www.phyhome.com FHL104C User Manual
1
FHL104C
EPON OLT
User Manual
www.phyhome.com FHL104C User Manual
2
Preface
Related Documentation
Manual Name
Explained
FHL104C
Command Line
Reference
Introduced FHL104C OLT entry devices, systems and equipment,
VLAN, port, port isolation, OLT, ONU, RSTP, Link-Aggregation, mirror,
the MAC address table, QoS, ACL, IGMP, performance, alarm and
pipe network module command.
About this Document
FHL104C EPON OLT User Manual mainly introduces the product description,
positioning, installation, operation, specific functional characteristics and configuration
method, product use matters needing attention in the process of etc.. It suits for
product technical support personnel and people who use the product . Above the
product operation, if you have any questions, please read this manual carefully.
www.phyhome.com FHL104C User Manual
3
Conventions
The following symbol format and keyboard combination may be found in this
document, they are defined as follows:
Format Conventions
Format
Meaning
Bold
Command key words Remain unchanged in the command have to
input completely
Italic
Parameters of the command Replace this part of the command by the
actual values
[ ]
The element located in[ ] means this part is optional
(x | y | ... )
Means that one of the element must be selected in this part
[x|y|…]
Means that it’s a option to select one of this part
<x-y>
Means that the value must be inputted between x and y
$
Indicates the note annotation after this symbol
Key Combination Conventions
Format
Meaning
<words>
Means the name of a key, for example <Enter> <Tab> <Backspace>
<a> <?> indicates the key of Enter, Tab, Backspace, lowercase letters
<KEY1+key
2>
Means the key combination. pressing the keys meanwhile. For
example <Ctrl+Alt+A> means pressing “Ctrl” “Alt” “A” These three
key meanwhile
<KEY1
key2>
Means press the first key Release Then press the second key For
example <Alt F> means press <Alt> KEY firstly, Released, and then
press <F> KEY.
www.phyhome.com FHL104C User Manual
4
Symbol Conventions
The following symbols may be found in this document. They are defined as follows
Caution, Note: Indicates a potentially hazardous situation, which if not
avoided, may cause equipment damage, data loss, performance degradation, or
unexpected results.
Warning: The notes followed the sign need to be given extra attention,
improper operation may cause damage to the body.
Instructions: Provides additional information to emphasize or supplement
important points of the main text.
Noun convention
OLT Here means FHL104C System,including switches and other devices connected
on the link port, the main exchange processing module.
PON Here means PON Protocol Processing module and PON port.
Tips
The command line input for the system need to be distinguished from the size of the
write.
www.phyhome.com FHL104C User Manual
5
Abbreviations
ACL
Access Control List
CDR
Call Detail Record
CVLAN
Customer VLAN
DA
Destination Address
DBA
Dynamic Bandwidth Allocation
EPON
Ethernet Passive Optical Network
FEC
Forward Error Correction
IGMP
Internet Group Management Protocol
LLID
Logical Link Identifier
LPU
Line Process Unit
MAC
Medium Access Control
OLT
Optical Line Terminal
ONU
Optical Network Unit
QoS
Quality of Service
RSTP
Rapid Spanning Tree Protocol
SA
Source Address
SCU
Switch Control Unit
SLA
Service Level Agreement
SNI
Service Network Interface
SNMP
Simple Network Management Protocol
RTT
Round Trip Time
UNI
User Network Interface
VLAN
Virtual Local Area Network
VoIP
Voice over IP
C&M
Classification&Marking
www.phyhome.com FHL104C User Manual
6
Contents
Preface .................................................................................................................................................. 2
Related Documentation............................................................................................................... 2
About this Document.................................................................................................................... 2
Conventions .................................................................................................................................. 3
Abbreviations ................................................................................................................................ 5
1. Description ................................................................................................ ...................................... 9
1.1Product description................................................................................................................. 9
1.1.1 Product positioning..................................................................................................... 9
1.1.2 Product features ......................................................................................................... 9
1.1.3 Structure features..................................................................................................... 10
1.1.4 Index parameter........................................................................................................ 11
1.1.5 Typical networking .................................................................................................... 13
1.2 functiona description ........................................................................................................... 16
1.2.1 GEPON access function.......................................................................................... 16
1.2.2 Data service and forwarding................................................................................... 17
1.2.3 Management and maintenance.............................................................................. 18
2. Installation and landing.............................................................................................................. 19
2.1 Security issues ..................................................................................................................... 19
2.2 Login OLT.............................................................................................................................. 19
2.2.1 After the console port connected to the OLT device ........................................... 19
2.2.2 Local login via Telnet................................................................................................ 20
2.2.3 Remote login via Telnet ........................................................................................... 20
2.2.4 Management of OLT through network management software .......................... 21
3.Command line interface and view ............................................................................................ 21
3.1 Command line interface...................................................................................................... 21
3.2 Command line hierarchy and command line view .......................................................... 21
3.3 Command line view ............................................................................................................. 22
3.4 Command line feature......................................................................................................... 23
3.4.1 Command line help .................................................................................................. 23
3.4.2 Command line history command............................................................................ 25
3.4.3 Command line error message ................................................................................ 25
3.4.4 Command line editing features............................................................................... 26
4.PON service description and configuration .......................................................................... 27
4.1 PON service Introduction.................................................................................................... 27
4.2 PON configuration ............................................................................................................... 28
4.2.1 Global parameter configuration.............................................................................. 28
4.2.2 service template configuration................................................................................ 29
4.2.3 VLAN Configuration ................................................................................................. 30
4.2.4 Addition and removal of ONT ................................................................................. 30
4.2.5 ONT binding template.............................................................................................. 31
4.2.6 ETH ONT port configuration ................................................................................... 31
www.phyhome.com FHL104C User Manual
7
4.2.7 ONT remote restart .................................................................................................. 32
4.2.8 ONT multicast configuration.................................................................................... 32
4.2.9 Encryption and FEC switches................................................................................. 32
5.QINQ service description and configuration......................................................................... 33
5.1QinQ service Introduction.................................................................................................... 33
5.2QinQ service configuration.................................................................................................. 33
6. Multicast service introduction and configuration ............................................................... 35
6.1 Multicast service introduction............................................................................................. 35
6.2 Multicast Configuration ....................................................................................................... 36
6.2.1 Multicast VLAN configuration ................................................................................. 36
6.2.2 Multicast mode.......................................................................................................... 36
6.2.3 Multicast upstream port ........................................................................................... 36
6.2.4 Multicast global parameter configuration .............................................................. 36
7. Upstream port configuration .................................................................................................... 37
7.1 Upstream port mode............................................................................................................ 37
7.2 The addition and removal of VLAN ................................................................................... 37
8.OLT storm suppression................................ ............................................................................... 38
8.1 Multicast suppression.......................................................................................................... 38
8.2 Unknown unicast suppression........................................................................................... 39
8.3 Broadcast suppression ....................................................................................................... 39
9. ONT remote batch upgrade....................................................................................................... 39
9.1 ONT remote batch upgrade ............................................................................................... 39
9.2 ONT distal batch upgrade configuration........................................................................... 40
9.2.1 Upgrade preparation ................................................................................................ 40
9.2.2 ONT program loading .............................................................................................. 41
9.2.3 View bulk upgrade status ........................................................................................ 42
10. Introduction and configuration of PON port protection .................................................. 42
10.1 PON port protection .......................................................................................................... 42
10.2 PON port protection configuration................................................................................... 42
11. RSTP loop detection and configuration............................................................................... 42
11.1 RSTP loop detection.......................................................................................................... 42
11.2 RSTP loop detection configuration.................................................................................. 42
12. Alarm and statistics ............................................................................................................... 43
12.1 Alarm configuration and query......................................................................................... 43
12.2 Statistical query.................................................................................................................. 43
13. user management...................................................................................................................... 44
www.phyhome.com FHL104C User Manual
8
13.1 User add ............................................................................................................................. 44
13.2 User query .......................................................................................................................... 44
13.3 User delete ......................................................................................................................... 44
14. System upgrade and backup.................................................................................................. 44
14.1 Introduction to system upgrade....................................................................................... 44
14.2 System upgrade................................................................................................................. 45
14.2.1 Environmental construction .................................................................................. 45
14.2.2 Software upgrade................................................................................................... 46
14.3 Configuration file backup and load ................................................................................. 47
14.3.1 Configuration file backup....................................................................................... 47
14.3.2 Load profile.............................................................................................................. 48
14.3.3 Saving configuration .............................................................................................. 48
15.SNMP configuration................................................................................................................... 49
www.phyhome.com FHL104C User Manual
9
1.Description
1.1Product description
FHL104C is Shenzhen PHYHOME Electronics Co., Ltd. launched a cassette
GEPON OLT Bureau end device. The device has the advantages of small volume,
light weight, convenient installation and simple maintenance, good compatibility,
service without configuration, plug and play with.FHL104C provides four GEPON
port and four Cu / light combo uplink port, with a total access to 256
ONU.FHL104C follow IEEE 802.3 standards, by reference to the requirements to
achieve the China Telecom EPON Technology and support 1GEPON access
business, and Shenzhen City PHYHOME Electronics Co., Ltd. of FHR series of
ONU With the use of the ONU with the third party.
1.1.1 Product positioning
Product positioning is a small, easy to use, cost -effective EPON OLT equipment
at office end for in high-rise buildings, small communities , low density residential
areas, companies, shopping malls, hotels, office buildings and other small
construction of FTTH. It can also be used to monitor, intercom and other industry
applications.
1.1.2 Product features
19 inch standard width, 1U height
The installation is simple and flexible, and don’t need to configure.
Provide 4 GEPON port access
Maximum 256 ONU access (1:64)
The maximum 4 COMBO Gigabit uplink ports business
www.phyhome.com FHL104C User Manual
10
Comply with 802.3 ah specification
Fully compatible with CTC GEPON specification
Support 1:64 optical branching ratio (10km transmission distance)
Maximum access distance 20Km (1:32)
Supports three layers of Stir (CTC SPEC ).
Support FEC (which can improve the transmission distance and branching
ratio)
Supports arbitrary PON 1:1 protection (TBD)
Support ONU out of power, broken fiber alarm
Supports RSTP and loop back detection of ONU port
Support ONU software exception upgrade, batch upgrade
Supports ONU data interoperability with a PON port
Support physical isolation of GEPON
Support on uplink port physical isolation
Supported physical Port isolation of ONU
Supports 802.1Q VLAN mode
Support for VLAN transmission, conversion mode
Supports QinQ VLAN mode
Supports all kinds of multicast mode (Snooping/Proxy/CTC)
Support end-to-end QoS service quality assurance configuration
1.1.3 Structure features
1U standard case, the size of the 440mm (W) 44mm x (H) x 170 (D)

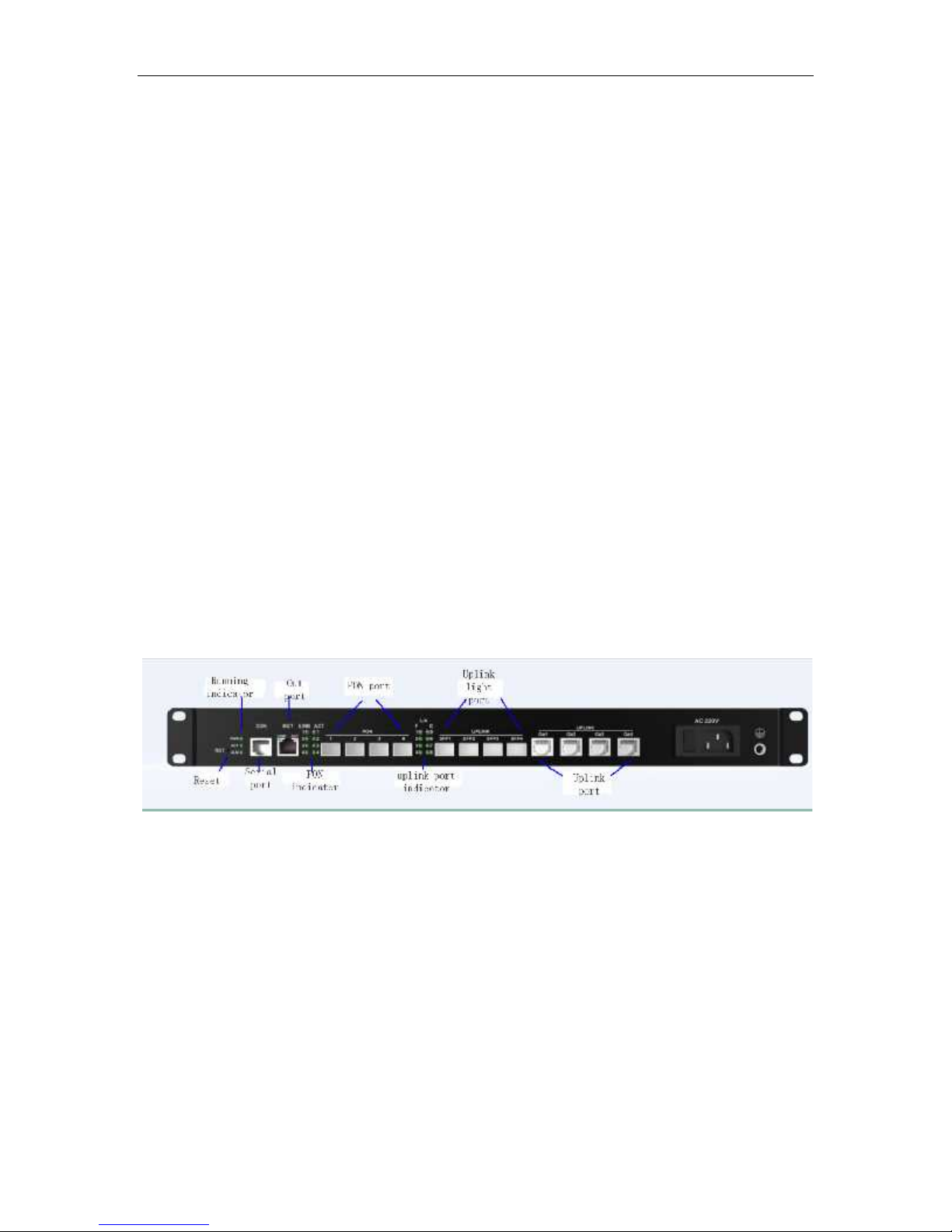

FHL104C Front Panel View Figure 2-2
The components and functions of the front panel are described as follows:
(1) RST: Restart button
(2) CONSOLE: serial port, interface to meet the RS232 Standard Specification for
local management
(3) MGMT: a device with an external management network interface to meet the
100BASE-TX specification for use with a higher level management Equipment
connection
(4)PWR power indicator. When bureau terminal power on, this lantern lits
(5) ACT: equipment running indicator
(6) ALM: emergency warning light
(7) PON1-PON4:4 GEPON interface
(8)GE1-GE4:10/100/1000BASE-TX adaptive Ethernet electrical interface,
www.phyhome.com FHL104C User Manual
11
providing the service.Access can automatically adapt to the direct network cable
and cross network cable.
(9) SFP1-SFP4:1000BASE-LX/SX Ethernet optical interface, supports 1.25Gbps
single mode and multi-mode SFP optical module.
LED
State
Explain
System state
Power
(red)
on
normal operation condition
off
There is no normal operation of the power system
and the power system
ACT
(green)
Twinkle
4Hz frequency: system start state
1Hz frequency: normal working condition
Light or off
System is not working normal
Port state
Link/Act
(green)
on
A stable connection is established between the port
and the connected device.
off
No connection or connection to the port is not
normal
Twinkle
Ongoing data collection / development
1.1.4 Index parameter
Table 5-1 device function and index parameter list
item
Description
chassis
structure
size
Size
440mm (W) x 44mm (H) x 170
(D)
weight
1000g
body frame
19” 1U
AC power
supply
Input
90V TO 264V AC
Power
50W
Surge current
<10A TBD
fuse
2A TBD
redundance
Not supported
Isolation impedance
> 50M ohm
earthing resistance
< 5 ohm
environme
nt
temperature
0 to to 40 degree C (long term)
-5 to 50 degree C (2 hours /
day)
humidity
10 to 90% (no condensation)
Storage temperature
-20 to 70ºC
Storage humidity
10 to 90% (no condensation)
www.phyhome.com FHL104C User Manual
12
item
Description
atmos
86 to 106 kpa
Dust particle size
Diameter>5μm, <3*104pcs/m3
Refrigerati
on
Fan
Left fixed 2 fans, right into the
wind, the left side of the wind
Heat dissipation
noise
Electromagnetic compatibility
requirements
GB 9254-1998 Class A
GB/T 17618-1999
Surge protection requirements
YD/T 1082-2000
Panel
interface
Network
managem
entI/F
Port number
1
junctor
RJ-45
protocol
100BASE-TX/10BASE-T
MDI/MDI-X
Auto
Duplex
Full/Half
Auto
CLI I/F
junctor
RJ45(CSICO)
Other I/F
LED
Please refer to "LED display
specifications"
Uplink I/F
Port number
4 combo
junctor
4 RJ45
junctor
4 SFP
protocol
10/100/1000BASE-T(RJ45)
1000BASE-X (SFP)
MDI/MDI-X
Auto or Manual
Duplex
Full Duplex or Auto
reset
RST(Switch)
Reset the whole system by the
reset button
PON I/F
Port number
4
Trunk fiber protection
port
0
junctor
SFP socket, SC connector
protocol
1000BASE-PX20
IEEE802.3-2005
DDM with RSSI
Compliant with CTC2.1
emission wavelength
1480 to 1500nm
Luminous power
+2.0 to +7dBm
RMS
≤ 0.44nm
extinction ratio
≥9dB
Receiving wavelength
@BER<1×10-12
1260 to 1360nm
www.phyhome.com FHL104C User Manual
13
item
Description
Received optical
power
@BER<1×10-12
-28 to –6dBm
Other I/F
LED
Please refer to "LED display
specifications"

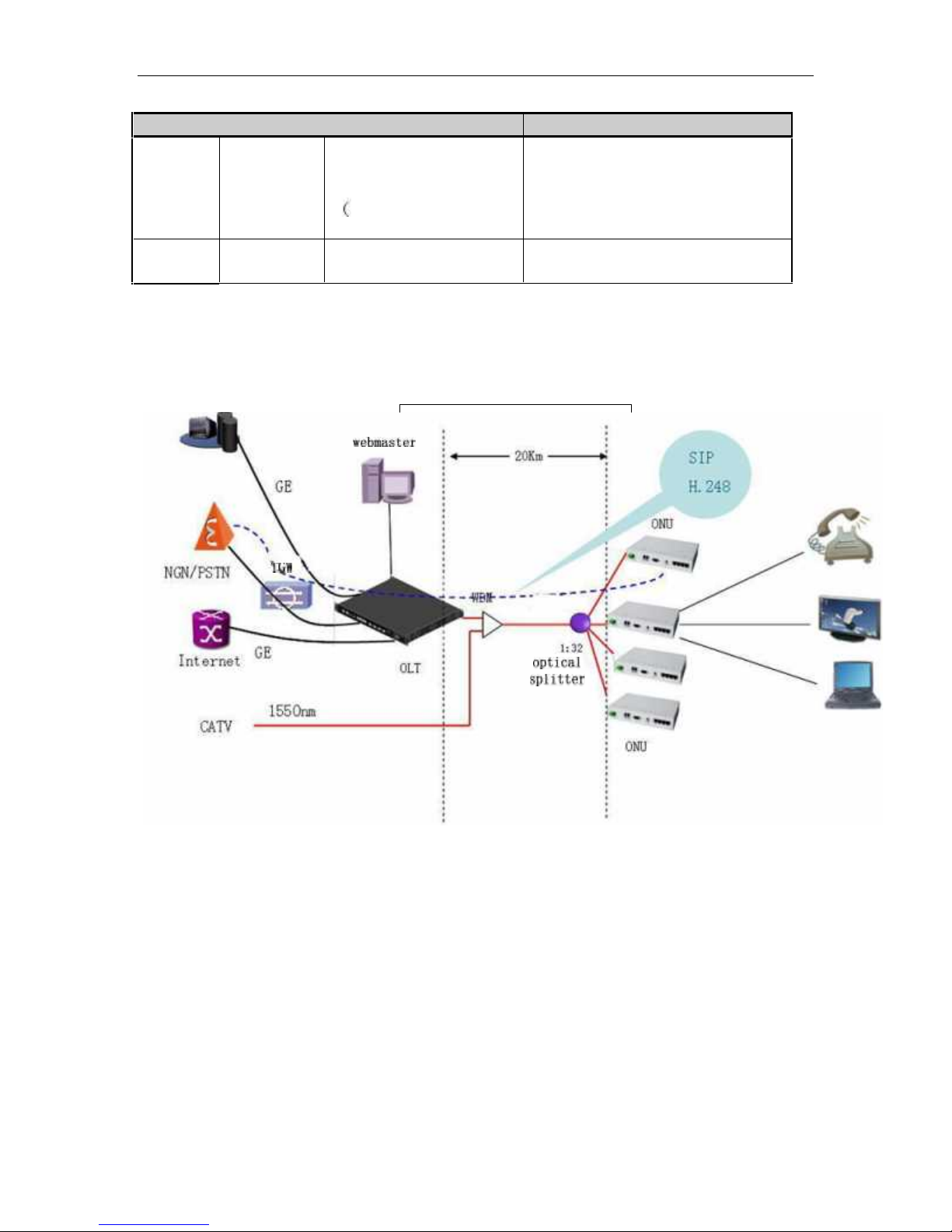

1.1.5 Typical networking
Typical multi service access network:
High-rise buildings, the number of single building users around 200:
Low density cell:
Radio and television network application EPON+LAN:
www.phyhome.com FHL104C User Manual
14
Radio and television EPON+ EOC
Safe city
www.phyhome.com FHL104C User Manual
15
Village Project
Smart home
www.phyhome.com FHL104C User Manual
16
1.2 functional description
1.2.1GEPON access function
EPON standard
Fully comply with IEEE802.3ah standards, fully compatible with China Telecom
EPON equipment technical requirements V3.0.
Maximum spectral ratio
1: 64.
Bandwidth setting
Through the SLA setting, the bandwidth of the ONU can be configured (which can
be configured with a minimum guaranteed bandwidth and maximum effort
bandwidth).
ONU management
You can add, authorize, and bind PON at the ONU port to disp lay a list of
authorized and unauthorized ONU.Remote management through ONU OLT and
www.phyhome.com FHL104C User Manual
17
its port (port isolation and port loop back detection, etc.).
ONU isolation
By default, the ONU is physically isolated.
After the P2P mode is turned on, the ONU can comm unicate with each other in
the same PON port.
ONU classification function (Classification&Marking)
You can perform simple traffic classification on the ONU (based VLAN).
security
Supports three layers of Stir (SPEC CTC).
Supports MAC address number limit, supports MAC address filtering.
Supports full protection of PON port.
1.2.2 Data service and forwarding
VLAN function
OLT and ONU support port based VLAN, VLAN ID range: 1~4094, where 1 is
reserved for VLAN ID , OLT VLAN ID number is 4094.
Support VLAN 802.1q mode, support VLAN through the transfer, conversion
mode, support QinQ VLAN mode.
MAC
OLT supports the exchange of MAC addresses, which supports the dynamic
learning of the MAC address. MAC's OLT address aging time can be configured.
Port isolation
Support physical isolation link port, support GEPON port physical isolation.
Dynamic bandwidth allocation (DBA)
OLT support dynamic bandwidth allocation mechanism, through to the LLID
assigned SLA to implement bandwidth allocation, a minimum bandwidth allocation
particles of 1MB / s, each LLID configuration can be guaranteed bandwidth, to
www.phyhome.com FHL104C User Manual
18
bandwidth and priority three parameters. An LLID of the same priority through the
historical traffic statistics to ensure that service fairness and the QoS of the
network through the guaranteed bandwidth to achieve.
Priority control (QOS)
The device supports IEEE802.lp agreement marks priorities to achieve the priority
of Ethernet control support end to end QoS configuration.
Storm suppression
Support for broadcast storm suppression.
Multicast function
Support IGMP snooping, the use of SCB way to achieve multicast, each ONU
supports 32 multicast groups, OLT supports 1024 multicast groups.
OLT supports PROXY, and can be dynamically added, IGMP Proxy is able to
intercept redundant report IGMP packets for the router, and can take the initiative
to IGMP query group.
Support CTC.
1.2.3 Management and maintenance
Support console port command line management, support the maintenance
of network telnet management, support on the export of Telnet in
management
Support SNMP network management
Remote upgrade
Supports remote online upgrade of OLT devices.
Support ONU remote online upgrade feature, support ONU software bulk upgrade,
automatic upgrade.
Configuration save recovery
You can save the data on the device configuration, and resume after the switch or
restart.
The backup and load of Configuration files
www.phyhome.com FHL104C User Manual
19
The OLT configuration can be backed up by the document, and then is loaded
into it after edited.
Performance statistics
Support for the uplink of statistics, PON Port Statistics, ONT statistics, ONT
ETHport statistics query.
2 Installation and landing
2.1 Security issues
warning:
When equipment installation, you must first grounding; when remove of
equipment, and finally to remove ground. Equipment should be permanent
connect to protection ground. Prior to operating equipment, should check the
equipment of the electrical connections, to ensure that equipment has reliable
grounding.
Do not block the vents when installing, prevent the operation process of poor
heat dissipation leads to failure.
Equipment operation note:
It is forbidden to operate the equipment and cable in the thunderstorm
weather.
Naked eye are forbidden to export the optical fiber to prevent the laser beam
from burning the eyes.
2.2 Login OLT
2.2.1 Thought the console port connected to the OLT
device to Log in equipment
With serial port interrupt the host and OLT through the serial port of the DB9-RJ45
connection, new serial connection, serial terminal parameters are set to: baud
rate 9600 , data bits 8 bits, no parity , stop bit is 1, without the flow control .
Connected to equipment, terminal will be as output:
*************************************************************
* *
* PHYHOME Software Platform (version 1.11) *
* *
* Copyright 2010-2015 FH-NET OPTOELECTONIC LTD. *
* *
*All rights reserved. *
* *
www.phyhome.com FHL104C User Manual
20
*************************************************************
login:admin
Password:*****
Device default user name and password is :admin, admin.
After you enter the password, the terminal block is shown as follows. The user
can begin to configure the FHL104C.
Host>
2.2.2 Local login via Telnet
The FHL104C management network (MGT) and PC is connected with
management using a crossover cable , PC configuration static IP 192.168.0. X
subnet, subnet mask 255.255.255.0.
Then start the telnet client on PC, connect to OLT.
The OLT Management net IP: 192.168.0.18.After telnet connection is successful,
enter the default user name and password :admin/admin can be connected to
OLT.
2.2.3 Remote login via Telnet
FHL104C support with the management of the channel, you can let the host to
manage through the OLT upstream port .
The OLT device is equipped with no IP, which needs to be manually configured
within the IP.
After using the serial port or MGT port to land OLT, use the following command to
configure the IP:
Host (config) # manage-vlan 100
Host (config) # inband ip address 192.168.1.18 255.255.255.0 VLAN 100
Host (config) # interface ethernet 1/2 - --uplink port management
Host (config-ethernet-1/2) #join-vlan 100 tag
Then through the remote host, telnet to the OLT management IP 192.168.1.18.
Note: If you do not configure the management VLAN, the system defaults to
www.phyhome.com FHL104C User Manual
21
VLAN 1.
2.2.4 Management OLT through network management
software
Before management FHL104C through the network management software,
please ensure that host gateway can ping through the OLT with IP or with external
IP. Then open network management software FHN108, scanning of the network,
after the discovery of the equipment can be added. In the specific operation of the
network, please reference FHN108 user's manual .
3 Command line interface and view
3.1 Command line interface
FHL104C OLT equipment provides a series of configuration commands and
command line interfaces to the user to configure and manage the EPON system:
Command hierarchical protection, to ensure that the user is not authorized to
invade FHL104C.
Users can type in<?> at any time to get online help.
Provide History features, you can view the historical order.
The command line key take a search method that does not need to fully
match the keyword, the user just need to enter the” sh” for the “show”
command.
3.2 Command line hierarchy and command line view
OLT FHL104C's command line uses hierarchical protection to prevent
unauthorized users from illegal intrusion.
Command line is divided into access level, management level 2 levels, the
introduction is as follows:
Access level: Commands for user interface language mode switch, the
terminal control parameter settings, system settings, view, etc., associated
with the view .
Management level: contains the command related to the system overall and
interface as well as part of the service configuration, associated with config
view, ge, pon, interface, onu and other interface views and vlan and acl and
other global configuration view.
www.phyhome.com FHL104C User Manual
22
The user of the login system is divided into 2 levels, respectively, with the
command level, the access level of the user can use the access level commands,
privileged users can use all the commands.
3.3 Command line view
Each command line view is based on different configuration requirements, there
are connections and differences between them. For example, the OLT establ ish
the connection immediatelyr entering the view after enter a user ID and password,
it can only view the running status and statistics The simple function, you can type
config command to enter the config view , you can type in different commands to
enter the corresponding view.
Command line provides the following seven views: view, config, ge port, pon port,
onu, multicast, vlan.
Into the specific operating rules of the view:
Enter / exit the view view: with the OLT connection, enter the password, you
can enter the view view to see the system running state, the default password
is admin; input exit to disconnect the connection with the OLT.
Login:admin
Password: * * * *
Host#exit
Entry / exit config view: typing configure on enable view, you can enter to
config view global configuration; type exit or end retreated to the view.
Host#configure
Host (config) # exit
Host#
Entry / exit ge port view: in the config view input interface ethernet
(slotid/portid:1/<1-4>) can enter to uplink view Gigabit uplink port
configuration; type exit retreated to config view, input end retreated to the
view.
Entry / Exit pon view: in config view input int pon slotid / portid (slotid / portid:
1/<1-4>) to proceed to the next pon view a PON port configuration; enter the
www.phyhome.com FHL104C User Manual
23
exit button to exit config view, enter end retreat to view .
Host (config) # interface pon 1/1
Host(config-pon-1/1)#
Host(config-pon-1/1)## exit
Entry / exit onu view: in the config view input int onu slotid/portid:branchid
(slotid/portid:branchid:1/<1-4>: <1-64>) can enter the onu view to configure
the ONU; type exit retreat to the pon view, input end to retreat to the view.
Host(config) # interface onu 1/1:1
Host(config-onu-1/1:1)
Host(config-onu-1/1:1)# exit
Entry / exit VLAN view: in the config view input int vlan vlanid can enter vlan
view to global configure the VLAN; type exit to retreat to config view, input end
retreated to the view.
Host (config) # int vlan 2
Host (config-vlan-2) #
Host (config-vlan-2) # exit
Host (config) #
Entry / exit multicast view: in the config view input multicast can enter the
multicast view to global configure the ACL; type exit to retreat to config view,
input end to retreat to the view.
Host (config) # multicast
Host (config-multicast) #exit
Host (config) #
3.4 Command line feature
3.4.1 Command line help
The command line interface provides two types of online help: Complete help and
partial help. The user can get the relevant information needed in the process of
www.phyhome.com FHL104C User Manual
24
the device configuration.
3.4.1.1 Complete help
1) In any view, type <? >, the user terminal screen displays all the commands
and their simple descriptions of the view.
Host (config-vlan-2) #
cls Clear screen
description Vlan description
end End current mode and change to enable mode
exit Exit current mode and down to previous mode
help Description of the interactive help system
list Print Commands list for current mode
member Vlan member information
no Negate a command or set it to its defaults
quit Exit current mode and down to previous mode
2) Type a command, then connect to a <?>, if the location is the keyword, and
the user terminal screen will list all key words and their simple description.
Host (config-multicast) #igmp
pre-group Set prejoin services.
proxy-ip Configure IGMP proxy services.
3) Type a command, then connect to a <?>, if the location is a parameter, the
user terminal screen will list the related parameters.
Host (config) #interface vlan
<1-4094>Vlan id
3.4.1.2 Partial help
1) Type a character string, which is followed by <?>the end of the user's terminal
www.phyhome.com FHL104C User Manual
25
screen, which lists all the commands at the beginning of the string.
Host (config) # in
inband Inband interface
interface Enter ethernet configuration mode
2) Type a command, and then a string is followed by <?>the user's terminal
screen, which lists all the key words in the beginning of the string.
Host (config) #show auth
authorized-onu Authoried ONU list
authorize-mode Authoried ONU mode
authorize-policy Authoried ONU policy mode
3) Type the command of a keyword in the first few letters, press the key <Tab> if
to enter letters at the beginning of the keyword only, the user terminal screen
will show a complete keyword; if the keyword matching with the input alphabet
is not unique, the terminal screen in order to display letters matching
keywords.
3.4.2 Command line history command
The command line interface provide function similar to Doskey function, the
history command the user typed can be saved automatically, users can always
invoke the history command line the command interface kept , and repeat. When
the user input a plurality of the same command, only the first input command as a
command history was ordered interface save as shown in table 3 -1.
Table 3-1 access history command
Operation
Keys or commands
result
Show historical
commands
show history
Effective historical command to
display user input
Access to a
historical order
The cursor keys↑ or
<Ctrl+P>
If there is an earlier historical
order, then take a history order
To visit a historical
order
Next cursor key↓or
<Ctrl+N>
If there is a history of late, then
take out the next historical order
3.4.3 Command line error message
www.phyhome.com FHL104C User Manual
26
All the commands the user type in , if it pass the syntax check , it will be executed
correctly , or report the error message to the user, and the common err or
message is shown in table 3-2.
Table 3-2 common error information table
3.4.4 Command line editing features
Command line interface provides the basic command editing features, support for
multi line editing, the maximum length of each command is 256 characters, as
shown in table 3-3.
Table 3-3 edit function table
Key
Function
Ordinary key
If the edit buffer is not full, insert the current cursor position and
move the cursor to the right.
Back lattice Backspace
Delete a character of the position of the cursor, the cursor
forward
Left cursor key← or
<Ctrl+B>
A character position is moved to the left
Right cursor key or
<Ctrl+F>
Cursor to move a character position to the right
the cursor key or
<Ctrl+P>
The cursor keys ↓ or
<Ctrl+N>
Show historical commands
Button <Ctrl+C>
When a display information is more than a screen,
provides a pause function, then the user can type Ctrl+C
used to pause the display and the suspension of the
command to perform.
English error message
Cause of error
% Unknown command.
No command is found
No keyword search
Parameter type error
The parameter value is out of range
Too many input parameters
%Command incomplete.
Input command is not complete
%Ambiguous command.
Input command is not clear
www.phyhome.com FHL104C User Manual
27
Tab key
After typing the incomplete key press Tab, the system will
automatically execute the partial help: If the matching key word
is unique, the system with the complete replacement of the
original input keyword; if you enter a letter with a matching
keyword is not unique, then displayed one letter matching
keywords and line display; if the command word parameters do
not match, the system does not make any changes, rewrapping
display original input.
4.PON service description and configuration
4.1PON service Introduction
EPON sections service mainly includes ont granted registration, and ont service
template configuration.FHL104C adopt authorized (also called authentication)
and authorization strategy to operate legitimacy management of ont .
Authorization is refers to the standard definition, through what way to uniquely
identify a ont and distribution ONUID.FHL104C support for MAC address, logic
ID , MAC address + logical ID three authorization. Authorization policy mainly
authorized manually and automatically authorize.
In FHL104 system, ont registered and ont authorization are two different concepts.
Registration is ont access after OLT, MPCP negotiation, ONUID distribution and
location of a series of process. After successful registration, ONT is "has been
registered, unauthorized state" in a OLT. This service can not run normally.
The authority is to authorize the ONT to have a successful ONT access, or the
ONT for a pre configuration. It is the legitimacy of a ONT license.
Manual authorization means via the command line, the network management to
www.phyhome.com FHL104C User Manual
28
configure the ONT manually that has been registered or required for pre
configuration for the registration.
Automatic authorization means that when the ONT is successfully registered to
OLT, the system automatically completes the authorization operation without
human operation.
After authorization, the ONT data will be written to the software and hardware
related tables.
ONT's service template mainly has the DBA template and QINQ template.
DBA template is a service bandwidth template, which is based on the ONT
configuration of a class template.
The QINQ template is a service template for FHL104C, which defines the VLAN,
priorities, and ETH types of service flows.
4.2 PON configuration
4.2.1 Global parameter configuration
Authorization mode configuration:
In config mode, enter the command:
authorize-mode can operate authorization mode switch. The default authorization
mode is MAC address. If you need to change the authorization mode to Hybird
(that is, MAC address +LOID), enter the following command:
Host (config) # authorize-mode hybrid
note: authorization model and authorization policy interdependence. When the
authorization strategy for automatic license, you cannot modify the licensing
model.
Authorization policy configuration:
The system default authorization policy is "automatic authorization", such as the
need to modify the authorization policy for manual authorization, can enter the
command:
Host (config) #authorize- policy manual
Note: the configuration of the automatic authorization policy is dependent on the
authorization mode. Only when the MAC address is configured for automatic
www.phyhome.com FHL104C User Manual
29
authorization.
View configuration results:
Config mode, enter the command
Host(config)# show authorize-mode
Host(config)# show authorize-policy all
To view the status of the authorization mode and authorization policy.
4.2.2 service template configuration
The system supports 100 DBA templates, each template is identified by the
template name and template ID:
Create DBA Template command:
Host(config)# dba-profile 1
Host(dba-profile-1)#profile-name 10M
Host(dba-profile-1)#fir 2048 cir 5120 pir 10240
Host(dba-profile-1)#quit
Host(config)#
QINQ template also called service template, used to define the flow in the process
of VLAN. through OLT, such as through the VLAN100 Internet flow, create a QINQ
template commands:
Host (config) # QinQ-profile 1
Host(qinq-profile-1)#profile-name HSI_VLAN_100
Host(qinq-profile-1)#rule 1 translate cvlan 100 to 100
Host(qinq-profile-1)#quit
Host(config)#
A QINQ template can have a maximum of 32 rule, but the configuration of each
rule can not conflict.
www.phyhome.com FHL104C User Manual
30
If the rule is the same as the operating rules, the rule will cover the previously
configured rule.
If you need to remove the template, type no qinq-profile or no dba-profile.
4.2.3 VLAN Configuration
OLT VLAN configuration
VLAN configuration contains VLAN create, delete and ETH port VLAN add, delete.
uplink ETH port joint VLAN, message entering, and leave the OLT uplink port, the
VLAN information carried will have corresponding processing. The uplink port
VLAN support transparent transmission and stripping: message from the mouth of
the uplink hair to the upstream network equipment, can be with a VLAN tag, can
also be untag. And for the packets over the network uplink OLT only VLAN
transparent transmission processing. Do not support VLAN add.
Create a VLAN, and add the VLAN to the uplink:
Host(config)# vlan 100 ------------create VLAN 100
Host(config)# interface ethernet 1/1---------into the upstream port mode
Host(config-ethernet-1/1)#join-vlan 100 tag -------VLAN tag 100 to join the
upstream, and tag go out.
Host(config)# no vlan 100 ----------delete VLAN
ONT VLAN configuration
OLT supports the VLAN configuration of ONT under OAM, and the specific
configuration method is in 4.2.7 the ONT ETH port configured.
4.2.4 Addition and removal of ONT
In manual authorization policy, after ont successful registration and need to
manually ont authorization, authorization process is ont added pro cess.ONT add
implies ont attributes relative table establishment, after the completion of writes to
the database, as well as the LLID bandwidth resource occupation.After ONT
authorization, ont that have legitimate access uplink network permissions.ONT
manual authorization can be accomplished via the command line and network
management.
ONT add (authorize) command:
Host (config) # interface PON 1/1 - in PON mode
Host(config-pon-1/1)#authorize-onu auth-id 1 type FHR1100 mac-addr
www.phyhome.com FHL104C User Manual
31
00:15:20:88:89:90 -------------ONT authorization
The lifting of the authorization operation also means that ONT will be removed,
the ONT's resources will be released, and the service will be interrupted.
Host (config-pon-1/1) #no authorize-onu auth-id 1 ---------- lift ONT authorization
4.2.5 ONT binding template
After the creation of the DBA template, it can through the template binding to ont
to specific ont with the template definition of bandwidth properties.ONT binding
template, the upstream bandwidth will be according to the bandwidth
configuration template effect. DBA binding template, you need to specify a
template name.
Host(config)# interface onu 1/1:1
Host(config-onu-1/1:1)#bind dba-profile 10M
Release DBA template binding:
Host(config-onu-1/1:1)#no bind dba-profile 10M
4.2.6 ETH ONT port configuration
OLT support through the parameters of the OAM remote configuration ONT ETH
port, such as eth port open / close, auto negotiation, uplink and downlink rate
limiting, ring back detection, Ethernet VLAN mode and which,.ONT configuration
parameters to the ONT mode. Before the configuration to use command interface
ONU 1/1:1 (PON 1 ONT ID 1) into ONT mode.
ONT Ethernet port open, close:
Host (config-onu-1/1:1) #ethernet-port 1 disable - close ETH
Host (config-onu-1/1:1) #ethernet-port 1 enable - Open ETH
ONT Ethernet port rate limit:
Host(config-onu-1/1:1)#ethernet-port 1 downstream-rate-limit cir 20480 pir
102400
ONT Ethernet port VLAN configuration
www.phyhome.com FHL104C User Manual
32
ONT Ethernet port VLAN configuration support configuration VLAN mode and
VLANID.
VLAN mode is commonly used in TAG mode and TRUNK mode.
Host(config-onu-1/1:1)#ethernet-port 1 vlan-mode tag
Host(config-onu-1/1:1)#ethernet-port 1 vlan-tag vid 10 ------vlan tag
model
Host(config-onu-1/1:1)#ethernet-port 2 vlan-trunk -------vlan trunk model
Host(config-onu-1/1:1)#ethernet-port 2 vlan-trunk vid 20
4.2.7 ONT remote restart
Type the reboot command in ONT mode to restart the ONT.
Host(config-onu-1/1:1)# reboot
4.2.8 ONT multicast configuration
Support ONT multicast mode, multicast fast leave setting and multicast VLAN.
Host(config-onu-1/1:1)#mcast-work-mode snooping ----multicast mode is
snooping
Host(config-onu-1/1:1)#mcast-leave-mode fast ----- fast leave Configuration
Host(config-onu-1/1:1)#ethernet-port 1 mcast-vlan 100 ----Configuration
multicast VLAN100
Host(config-onu-1/1:1)#ethernet-port 1 mcast-vlan not-strip-vlan ----no
mcast-vlan multicast VLAN
4.2.9 Encryption and FEC switches.
ONT encryption Configuration and FEC switches
Host(config-onu-1/1:1)#encrypt-ctrl
Host(config-onu-1/1:1)# fec-ctrl
www.phyhome.com FHL104C User Manual
33
5.QINQ service description and configuration
5.1QinQ service Introduction
FHL104C use service templates to define the service model, namely QinQ profile.
In QinQ template can create up to 32 rule, each rule defines a service model.
Such as VLAN transparent transmission, VLAN switch, and a VLAN tag add is
QinQ business.
After binding the QINQ template to the PON port, the PON port will use the
service model defined in the QINQ template.
QINQ template configuration process, each rule can not conflict. The back of the
rule rule can cover the front, but the configuration of the rule will not come into
effect.
5.2QinQ service configuration
Create a QINQ template that defines a QINQ service model:
Host(config)# qinq-profile 10
www.phyhome.com FHL104C User Manual
34
Host(qinq-profile-10)#profile-name qinq
Host(qinq-profile-10)#rule 1 add-svlan 200 cvlan 100 ------inlayer vlan
100,outlayer vlan 200
Host(config)# interface pon 1/1
Host(config-pon-1/1)#bind qinq-profile qinq -------PON port bind QINQ template
When the QINQ template rule is created, it can be added to the outer VLAN.
Such as the first layer after the VLAN switch, and then add the outer VLAN:
Host(qinq-profile-20)#rule 1 translate cvlan 5 to 10 add-svlan 100
For a specific range of inner VLAN, do add outer VLAN operation:
Host(qinq-profile-20)#rule 2 add-svlan 400 cvlan-range 40 50
When you add an outer VLAN, you can make a Ethernet Type and a priority of the
outer VLAN, which can be copied from the inner VLAN, and also can be specified
manually:
Host(qinq-profile-20)#rule 3 add-svlan 300 copy cvlan-cos ethertype
0x8200 cvlan-cos 7 cvlan-range 20 30
Customers need to be based on the actual service network planning, to configure
the appropriate QINQ template.
Generally speaking, the VLAN at network side is limited, service planning is
generally a type of service planning a VLAN. In order to simplify the configuration
and for a small access network, VLAN user side can be consistent with the
network side, do not need to configure QinQ double VLAN. Such simple
configuration, easy maintenance. The side of the user can use the VLAN range
1-4095, user side of VLAN can be identical to the network side, can also be
different.For the user side of VLAN at network side, QinQ configuration templates
are as follows:
Host(config)# qinq-profile 30
Host(qinq-profile-30)#profile-name3service
Host(qinq-profile-30)# rule 1 translate cvlan 10 to 10 -------user VLAN
www.phyhome.com FHL104C User Manual
35
unchanged, until the uplink up to the network side, the VLAN for Internet
business
Host(qinq-profile-30)# rule 2 translate cvlan 20 to 20 -------user VLAN
unchanged, the uplink direct to the network side, the SWD for SIP telephone
service
Host(qinq-profile-30)# rule 3 translate cvlan 30 to 30 -------user VLAN
unchanged, the uplink direct to the network side, VLAN30 for IPTV video on
demand services.
6. Multicast service introduction and
configuration
6.1 Multicast service introduction
Multicast is a communication to multiple recipients simultaneously to transmit
data, now widely used in IP video on demand service .FHL104C achieve the basic
multicast service functions, including IGMP V2, IGMP Snooping, IGMP proxy, and
VLAN-based Multicast.
IGMP proxy: mainly realize multicast query and multicast report function .
Query is of universal group query or a specific set of queries to the user multicast,
reporter is to response on the upper router query message .
IGMP Snooping: mainly realize multicast monitoring function, intact
forwarding multicast packets sent by the user side. Query the specific group at
the same time function.
Multicast based on VLAN: Support to verify MVLAN and process users ’ add
and left .The system does not support multiple multicast VLAN currently ..
Multicast pre - adding features: support for a specific program to add features,
www.phyhome.com FHL104C User Manual
36
for pre - added program, the system will automatically send report packets, the
program flow to the OLT upstream.
FHL104C currently only supports V1 IGMP and IGMPV2, for the time being
not processed V3 IGMP packets. It does not support the multicast version number
of the configuration system.
The opening of the multicast service needs to configure multicast VLAN,
multicast mode, multicast upstream port and pre join the program group.
6.2 Multicast Configuration
6.2.1 Multicast VLAN configuration
Configure the multicast VLAN in multicast mode. the current system only
support one multicast VLAN.After the multicast VLAN is configured, the system
requires that the multicast packet is the same as the multicast VLAN with the
configuration of VLAN.
Host(config)# multicast ------getin multicast mode
Host(config-multicast)# multicast vlan 100
6.2.2 Multicast mode
The current system supports IGMP snooping and IGMP proxy
configuration.
Host(config-multicast)# multicast mode proxy
6.2.3 Multicast upstream port
The multicast upstream port is used to specify the entry port on the OLT:
Host(config-multicast)#multicast uplink-port 1/1
6.2.4 Multicast global parameter configuration
IGMP Proxy IP address configuration:
Host(config-multicast)#igmp proxy-ip 192.168.1.242
IGMP proxy query interval:
Host(config-multicast)#multicast query-interval 60
IGMP query response time:
www.phyhome.com FHL104C User Manual
37
Host(config-multicast)#multicast query-response-interval 10
The maximum number of IGMP queries:
Host(config-multicast)#multicast robust 2
7. Upstream port configuration
7.1Upstream port mode
FHL104C uplink port for 4*1GE combo interface. The same port number of
Ethernet and SFP optical interface cannot use at the same time . Considering the
FHL104C product positioning and uplink port currently does not implement
adaptive function. Uplink port on the device side also need the 1000m interface,
otherwise uplink port cannot up.
The upstream port mode has two kinds : fiber and copper, physical connection
mode can be switched by the command .
Host(config)# interface ethernet 1/1 ---------into the upstream ETH port mode
Host(config-ethernet-1/1)# medium fiber --------configuration uplink port as
Light port
Host(config-ethernet-1/1)#medium copper --------configurate uplink port as
electric port
7.2 The addition and removal of VLAN
Upstream VLAN supports tag and untag modes.
Tag mode indicates that the message from the upstream port will carry the VLAN
information.
Untag pattern identifies the message from the upstream port when it will be
stripped of VLAN information.
For the network side into the mouth of the message, VLAN information don ’t
process.
Host (config-ethernet-1/1) # join-vlan 100 tag -------- VLAN 100 tag the uplink port
Host (config-ethernet-1/1) #join-vlan 200 ---------VLAN untag 200 untag
www.phyhome.com FHL104C User Manual
38
Prior to the VLAN configuration, the VLAN has been created:
Host (config-ethernet-1/1) #join-vlan 300 untag
% Vlan 300 does not exist, please create it first!
7.3 Close and open the upstream port
Through the shutdown command, you can directly close the upstream port; no
shutdown command to open the port.
Host(config-ethernet-1/1)# shutdown
Host(config-ethernet-1/1)#no shutdown
The command is not prompted after the successful execution of the system.
8.OLT storm suppression
8.1Multicast suppression
Multicasting refers to the destination MAC address of the first byte of the lowest 1
message, the access layer equipment common multicast message multicast
packets and STP protocol, routing protocol message.FHL104C can detect such
message and according to the configuration inhibition, to save bandwidth,
network protection role.
ETH uplink port suppression:
Host(config)# interface ethernet 1/1
Host(config-ethernet-1/1)# multicast-limit the limit speed is 200pps .
The purpose of which is to achieve the purpose of suppressing the rate of PPS.
The unit is the, the upstream port is suppressed by all the multicast packets,
including the multicast protocol and the multicast stream.
After the arrival of the multicast message OLT OLT will query the multicast
forwarding table, if in the multicast forwarding table, the MAC address to the
normal forwarding is called for known multicast, if you can not find the forwarding
is known for unknown multicast. Based on multicast -limit uplink port eth is
inhibition of all multicast packets.
Under the PON port can also be configured based on the suppression of unknown
multicast packet:
Host(config)# interface pon 1/1
www.phyhome.com FHL104C User Manual
39
Host(config-pon-1/1)#unknown-multicast-limit 100
8.2 Unknown unicast suppression
Unicast message means lowest bit of the first byte of the the destination MAC
address is not 1 and MAC address is not all f or 0 message. For unicast packets,
FHL104C will lookup 2 layer forwarding table according to the message of MAC
address, if we can find the out port, normal packet forward to the other side, if you
can't find out port, it is identified as unknown unicast. Unknown unicast default
turn broadcast processing. If there is a large number of unknown unicast packets
in the network, will lead to the decrease of the network efficiency, reduce the use
of bandwidth. So it is necessary to suppress unknown unicast rate.
Host(config)# interface ethernet 1/1
Host(config-ethernet-1/1)# unknown-unicast-limit 100
Host(config-pon-1/1)#unknown-unicast-limit
Host(config-pon-1/1)#unknown-unicast-limit 10
8.3 Broadcast suppression
Broadcast message refers to the destination MAC address is all f messages. The
access layer equipment of broadcasting flooding will lead to reduce the service
performance of the equipment, reduce the user bandwidth. Broadcast
suppression can give uplink ETH port and PON port configuration.
Host(config)# interface ethernet 1/1
Host(config-ethernet-1/1)#broadcast-limit 200
Host(config)# interface pon 1/1
Host(config-pon-1/1)#broadcast-limit 200
9. ONT remote batch upgrade
9.1 ONT remote batch upgrade
HL104C supports ONT remote batch upgrade. Customers can use this feature to
www.phyhome.com FHL104C User Manual
40
batch update version of ONT. Batch remote upgrade can solve the maintenance
costs, improve the maintenance efficiency.
Batch upgrading function is realized according to the CTC criteria, for the loader
to OLT and OLT loading to ONT , and program activated three step.ONT program
loading of the to the OLT stage, mainly from the host via FTP download buffer to
the OLT, at this time to ensure that the FTP server is configured correctly, and the
main machine and OLT communications normal. In the program downloaded to
ont stage, the program of ont will via the standard OAM program download,
download to ont. At this time ont dropped will lead to upgrade failed. To activate
the program phase of ont, under the active command, ont will restart and loading
the new Upgrade of the ONT program, etc. after the new ONT program is
successfully launched, the upgrade is completed.
9.2 ONT distal batch upgrade configuration
9.2.1 Upgrade preparation
Open the FTP program wftpd32.exe, configure the FTP user name, password,
and program path.
Create a new user, and configure the file path to be loaded
After the configuration is complete, click Done
www.phyhome.com FHL104C User Manual
41
the program need to upgrade should be put in the corresponding directory.
9.2.2 ONT program loading
Execute the ONT program in the config mode:
Host(config)# ftp download
A.B.C.D Remote ftp server ip address ------------server IP address
Host(config)# ftp download 192.168.0.100
USER User name for host login ----------FTP user name
Host(config)# ftp download 192.168.0.100 test test
WORD Download file name from ftp server ----------FTP password
Host(config)# ftp download 192.168.0.100 test test v411c01.bin
[WORD] Write file name to local host -------to be upgraded
Host(config)# ftp download 192.168.0.100 test test v411c01.bin
When FTP download the program to the the OLT, and then select the ONTS need
to upgrade to upgrade. Due to the different types of ont, the program is not the
same, so upgrade need develop ont type. Types of input must be same with type
of ont .
Host(config)# upgrade onu 1/1:1 dev-type FHR1100 filename tclinux.bin
1/1:1 is a list of ONT to be upgraded, or 1/1:1,2,3,1/1:1 -10 or 1/1:all
After the batch upgrade, you can view the upgrade status of ONT:
Host(config)# show upg-onu-status 1/1:all
After the program is loaded, the program needs to be activated to complete the
www.phyhome.com FHL104C User Manual
42
upgrade.
Host(config)# active onu 1/1:all
After the activation of the ONT program, ONT will automatically restart from the
new software.
9.2.3 View bulk upgrade status
At each stage of the ONT upgrade process can be viewed by the following
command upgrade status:
Host(config)# show upg-onu-status 1/1:1 or
Host(config)# show upg-onu-status 1/1:1-10
------------------------------------------------------------------------------------------------------------
ont batch upgrading exit certain risks, such as the emergence of ont
procedures for the use of incorrect, after upgrading ont of the situation ca n not be
started; or ont the upgrade process device is powered down lead to flash data
loss and ont cannot start. Before the upgrade, please be sure to ensure accuracy
of ont program, the upgrade process try to choose in the use of idle period.
10. Introduction and configuration of
PON port protection
10.1 PON port protection
10.2 PON port protection configuration
11. RSTP loop detection and
configuration
11.1 RSTP loop detection
11.2 RSTP loop detection configuration
www.phyhome.com FHL104C User Manual
43
12. Alarm and statistics
12.1 Alarm configuration and query
In the config mode, enter the alarm to enter alarm mode. This mode support alarm
configuration of open, shut off the switch, support adjustment of the alarm level,
support configuration trap report switch, alarm history query support.
Close alarm function:
Host(config-alarm)# alarm disable
Open alarm function:
Host(config-alarm)#alarm enable
Generate trap when alarm:
Host(config-alarm)# trap enable
Configure an alert level for an alarm:
Host(config-alarm)# alarm-level alarm-id 0x60012 level 1
Query all historical alarm records:
Host(config-alarm)#show history-alarm all
Historical alarm record for a time period:
Host(config-alarm)#show history-alarm start-time 2014/06/30 end-time
any
12.2 Statistical query
ETH uplink port statistics to check:
Host(config)# show statistics ethernet 1/1
PON statistics query:
Host(config)# show statistics pon 1/1
www.phyhome.com FHL104C User Manual
44
13. user management
13.1 User add
Users of FHL104C are divided into the root, admin and guest, root own all
authority, admin hold operator management authority, guest can only query, may
not modify. System has three user default, root/root admin / admin. guest/guest.
These three users can not be deleted.
Users must select a user group for admin or guest.
Host(config)# user test group admin password 1234--- - add test user, role for
admin
Host(config)# user abcd group guest password 1234 ------- add abcd user, role for
guest
13.2 User query
Type show user-info command to view all user information in Config mode ,
Host(config)# show user-info
13.3 User delete
Delete a user:
Host(config)# no user test
14. System upgrade and backup
14.1 Introduction to system upgrade
FHL104C OLT equipment support system software upgrade.FHL104C system
contains the service function modules: SCU main control module and PON
service module, at present two modules of the program are packaged into a file,
just start serial boot command line to upgrade, or remote FTP upgrade mode
upgrade. Upgrade steps is divided into three steps: first to download program files
to the ramdisk and upgrade file in ramdisk to each sub module, finally restart the
system can successfully upgraded software system. Note in front of the download
will Shall ensure that FHL104C management channel and the FTP server is
connected, you can use the ping command for diagnosis. In the download must
also pay attention to check the server of FTP service is open, user name and
www.phyhome.com FHL104C User Manual
45
password are correct, the target file existence.
all the file types the specific details can be upgraded of FHL104C OLT devices are
as follows:
OS file: FHL104C program file, which contains the main control unit module and
service control module.
Config file: that is, the FHL104C configuration file for the text format.
BOOT file: FHL104C boot BSP driver file. In the BOOT mode to load. In general,
there is no need to upgrade this file.
14.2 System upgrade
14.2.1 Environmental construction
Example to build FTP server : use wftpd32.exe as FTP server software.

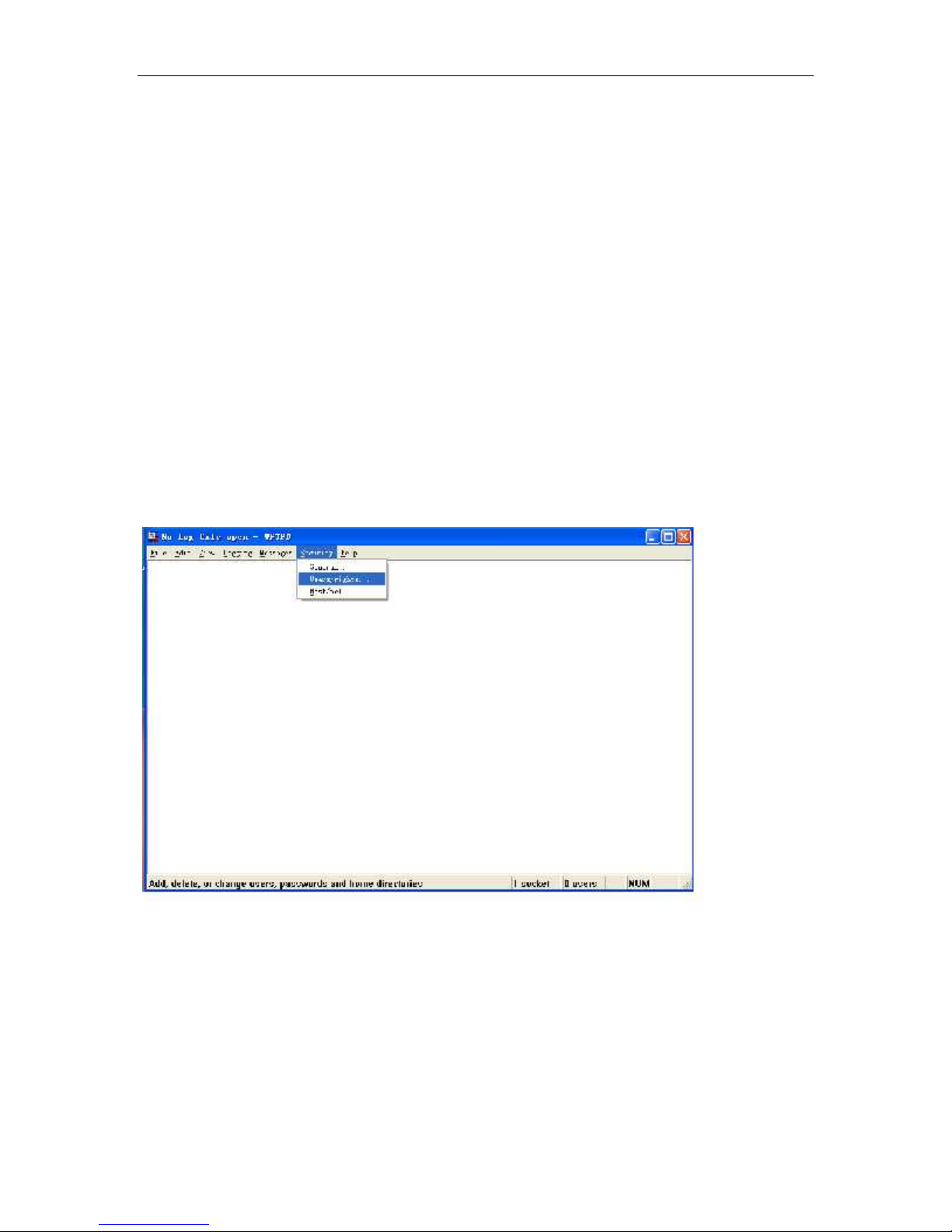

FTP way to upgrade the software, in the "security" directory, select "Users/rights",
the pop-up window:
www.phyhome.com FHL104C User Manual
46

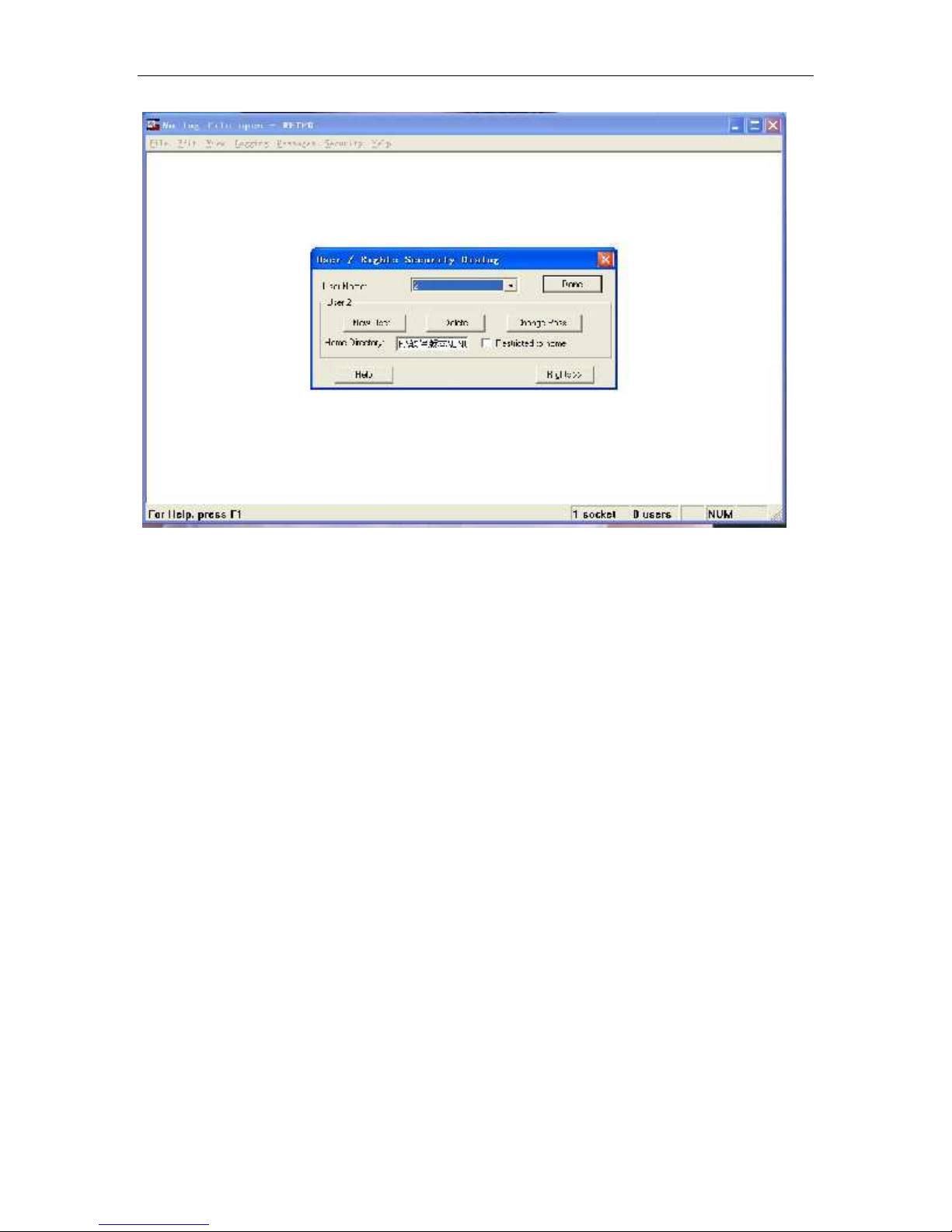

"User name" enter a user name, according to the requirements of users; "home
directory" to upgrade version stored in the directory, the "change password"
password, with the user need. Then click "done". To this FTP server set up to
complete.
14.2.2 Software upgrade
Please upgrade in the config view.
Download the upgrade file:
ftp download ipaddress username password filename1 [filename2]
ipaddress: Set ftp server ip
username: set FTP server user name
password: set FTP server password
filename1: file path and file name
filename2: file name after download to the device
update the file to the target sheet:
www.phyhome.com FHL104C User Manual
47
upgrade os file name
filename: file name after download to the device
------------------------------------------------------------------------------------------------------------
software upgrades please check the software version and the time before
the operation, once the wrong program may upgrade
Causes the system unable to start.
------------------------------------------------------------------------------------------------------------
Restart system:
Reboot
Upgrade APP software.
Host(config)# ftp download 192.168.0.198 1 1 FHL104CV100R002
Host(config)# update os FHL104CV100R002
Host(config)# reboot
Description: to upgrade to boot, you need through the console port local
upgrading, upgrading boot version, please contact technical support staff. To
restore the factory configuration, equipment after the restart to configure
according to the startup-config loading.
14.3 Configuration file backup and load
14.3.1 Configuration file backup
FHL104C configuration divided into start and run configurations two. Boot
configuration is also called system startup when loading the configuration file, file
name is startup.cfg, run configuration, is after the successful launch of the system,
running configuration, operation users can continue to update the run
configuration, and finally performs the write command, run the configure to write
to the boot configuration and keep to flash. Run configuration file name for the
running.cfg.FHL104C support will launch configuration, the run configuration
backup to the host server. Backup before to ensure normal FTP server
www.phyhome.com FHL104C User Manual
48
configuration. OLT before the host is normal.
Host(config)# ftp upload 192.168.1.100 test test startup.cfg
14.3.2Load profile
After the backup configuration file, users can edit the configuration file , save, and
then reload it to the device. Loading a configuration file to the OLT and need to
perform upgrade command to ensure that the configuration file at the next reboot
to work , and then restart the system.
Host(config)# ftp download 192.168.1.100 test test startup.cfg
Host(config)#upgrade config startup.cfg
Host(config)# reboot
14.3.3 Saving configuration
In the config mode, the write command can be configured to save the current
running configuration to the boot configuration, and to write to the flash.
Host(config)# write
This will save the configuration to the flash memory.
Are you sure?(y/n) [y]
Building device configuration.....
Writing config .... [Success]
Host(config)#
Clear the starting configuration can be clear about all the configuration, the
system to restart after the factory settings.
Host(config)# erase startup-config
Please make before erasing the data configuration configuration backup,
data can not be restored once erased.
www.phyhome.com FHL104C User Manual
49
Please use this operation carefully in the current use.
15.SNMP configuration
FHL104C provides MIB interface, can be through the NMS equipment
management and maintenance.
Before the OLT is managed by the gateway, the SNMP parameters are required to
be configured on the OLT.
Group name:
OLT has the default SNMP group name public and private, if the user uses the
default group name, the project is not configured. Otherwise, it is configured by
the following command:
Host(config)# snmp community abctest ro
Host(config)# snmp community testabc rw
TRAP server
The Trap server needs to be configured manually, and the port is not configured
by default when using 162:
Host(config)# snmp trap-server 192.168.1.100 v2
Loading...
