Page 1
Desktop
Data Path
Voice Path
MDF
IDF - 2
nd
Floor
IDF - 4
nd
Floor
IDF - 6
nd
Floor
Wide Area Network (WAN)
Local Area Network (LAN)
Data
Voice
PoLRE LPC Unmanaged 8 Port
Switch
Ethernet & PoE over single pair
of wire with 4 times the reach of
traditional data switches
RJ45 Cable
RJ11 Cable
PhyLink Adapter
V
Cloud Based
VoIP

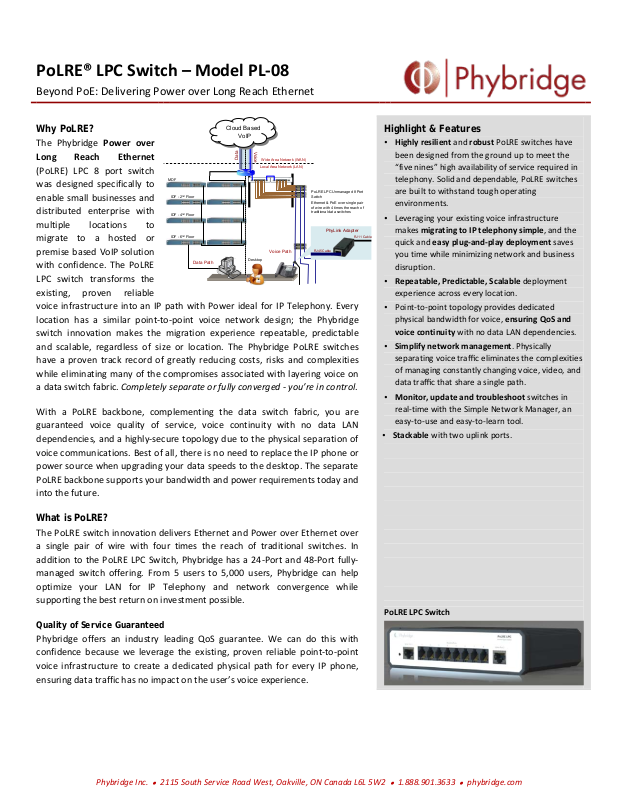

PoLRE® LPC Switch – Model PL-08
Beyond PoE: Delivering Power over Long Reach Ethernet
Why PoLRE?
The Phybridge Power over
Long Reach Ethernet
(PoLRE) LPC 8 port switch
was designed specifically to
enable small businesses and
distributed enterprise with
multiple locations to
migrate to a hosted or
premise based VoIP solution
with confidence. The PoLRE
LPC switch transforms the
existing, proven reliable
voice infrastructure into an IP path with Power ideal for IP Telephony. Every
location has a similar point-to-point voice network design; the Phybridge
switch innovation makes the migration experience repeatable, predictable
and scalable, regardless of size or location. The Phybridge PoLRE switches
have a proven track record of greatly reducing costs, risks and complexities
while eliminating many of the compromises associated with layering voice on
a data switch fabric. Completely separate or fully converged - you’re in control.
With a PoLRE backbone, complementing the data switch fabric, you are
guaranteed voice quality of service, voice continuity with no data LAN
dependencies, and a highly-secure topology due to the physical separation of
voice communications. Best of all, there is no need to replace the IP phone or
power source when upgrading your data speeds to the desktop. The separate
PoLRE backbone supports your bandwidth and power requirements today and
into the future.
What is PoLRE?
The PoLRE switch innovation delivers Ethernet and Power over Ethernet over
a single pair of wire with four times the reach of traditional switches. In
addition to the PoLRE LPC Switch, Phybridge has a 24-Port and 48-Port fullymanaged switch offering. From 5 users to 5,000 users, Phybridge can help
optimize your LAN for IP Telephony and network convergence while
supporting the best return on investment possible.
Quality of Service Guaranteed
Phybridge offers an industry leading QoS guarantee. We can do this with
confidence because we leverage the existing, proven reliable point-to-point
voice infrastructure to create a dedicated physical path for every IP phone,
ensuring data traffic has no impact on the user’s voice experience.
Phybridge Inc. 2115 South Service Road West, Oakville, ON Canada L6L 5W2 1.888.901.3633 phybridge.com
Highlight & Features
Highly resilient and robust PoLRE switches have
been designed from the ground up to meet the
“five nines” high availability of service required in
telephony. Solid and dependable, PoLRE switches
are built to withstand tough operating
environments.
Leveraging your existing voice infrastructure
makes migrating to IP telephony simple, and the
quick and easy plug-and-play deployment saves
you time while minimizing network and business
disruption.
Repeatable, Predictable, Scalable deployment
experience across every location.
Point-to-point topology provides dedicated
physical bandwidth for voice, ensuring QoS and
voice continuity with no data LAN dependencies.
Simplify network management. Physically
separating voice traffic eliminates the complexities
of managing constantly changing voice, video, and
data traffic that share a single path.
Monitor, update and troubleshoot switches in
real-time with the Simple Network Manager, an
easy-to-use and easy-to-learn tool.
Stackable with two uplink ports.
PoLRE LPC Switch
Page 2
Dimensions
4.5cm x 17.8cm x 12cm (HxWxD) 1.77” x 7.01” x 4.72” (HxWxD)
PoLRE LPC Switch Technical Specifications: Model PL-08
Model PL-08: Can drive up to 8 Adapters
Weight 0.308 kg (0.679 lbs.)
Interface: Ethernet
uplink (Trunk IP)
Interface: Downlink
(PoE and IP to
adapter)
2 RJ45 ports: 10/100 Base-T autosensing, independent speed selection, Ethernet IEEE 802.3, CAT5 copper
cable
8 x RJ11 Jacks
Maximum distance: 1200' (365m) CAT3 UTP cable, 24 AWG
Speed: 10Mb/s (full duplex)
PoE power: 10 Watts
Power supply 48VDC
Power consumption 2.9W
Power injection
(PoE)
Operating
48VDC
Endpoint devices must be compliant with IEEE 802.3af
-10° C to 45.5° C
temperature
Humidity 10% to 95% (non-condensing) at 35° C
Compliance and Agency Approval
EMC Emission (Class-A): FCC Part 15, EN 55022:2010
Immunity: EN 55024:2010
Safety UL 60950-1 2nd Ed, CSA C22.2 No. 60950-1-07 2nd Ed + A1, IEC 60950-1:2005 + A1,
EN 60950-1:2006 + A11 + A12 + A1
Environment EU RoHS Directive 2011/65
© 2013 Phybridge Inc. All rights reserved. PoLRE and PowerWISE are registered trademarks of Phybridge Inc.
