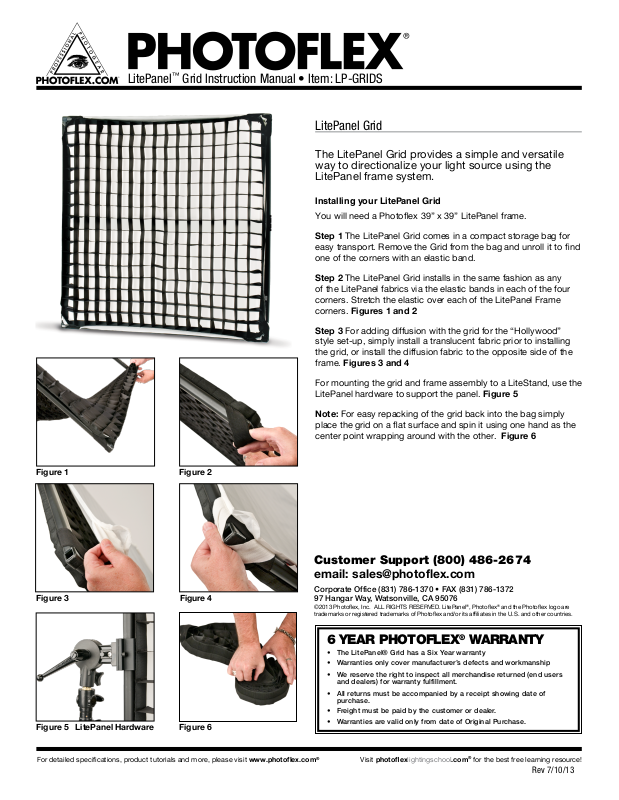

LitePanel™ Grid Instruction Manual • Item: LP-GRIDS
LitePanel Grid
The LitePanel Grid provides a simple and versatile
way to directionalize your light source using the
LitePanel frame system.
Installing your LitePanel Grid
You will need a Photoex 39” x 39” LitePanel frame.
Step 1 The LitePanel Grid comes in a compact storage bag for
easy transport. Remove the Grid from the bag and unroll it to nd
one of the corners with an elastic band.
Step 2 The LitePanel Grid installs in the same fashion as any
of the LitePanel fabrics via the elastic bands in each of the four
corners. Stretch the elastic over each of the LitePanel Frame
corners. Figures 1 and 2
Step 3 For adding diffusion with the grid for the “Hollywood”
style set-up, simply install a translucent fabric prior to installing
the grid, or install the diffusion fabric to the opposite side of the
frame. Figures 3 and 4
Figure 2Figure 1
Figure 3
Figure 5 LitePanel Hardware Figure 6
Figure 4
For mounting the grid and frame assembly to a LiteStand, use the
LitePanel hardware to support the panel. Figure 5
Note: For easy repacking of the grid back into the bag simply
place the grid on a at surface and spin it using one hand as the
center point wrapping around with the other. Figure 6
Customer Support (800) 486-2674
email: [email protected]
Corporate Office (831) 786-1370 • FAX (831) 786-1372
97 Hangar Way, Watsonville, CA 95076
©2013 Photoex, Inc. ALL RIGHTS RESERVED. LitePanel®, Photoex® and the Photoex logo are
trademarks or registered trademarks of Photoex and/or its afliates in the U.S. and other countries.
6 YEAR PHOTOFLEX® WARRANTY
• The LitePanel® Grid has a Six Year warranty
• Warranties only cover manufacturer’s defects and workmanship
• We reserve the right to inspect all merchandise returned (end users
and dealers) for warranty fulfillment.
• All returns must be accompanied by a receipt showing date of
purchase.
• Freight must be paid by the customer or dealer.
• Warranties are valid only from date of Original Purchase.
For detailed specifications, product tutorials and more, please visit www.photoflex.com
®
Visit photoexlightingschool.com® for the best free learning resource!
Rev 7/10/13
