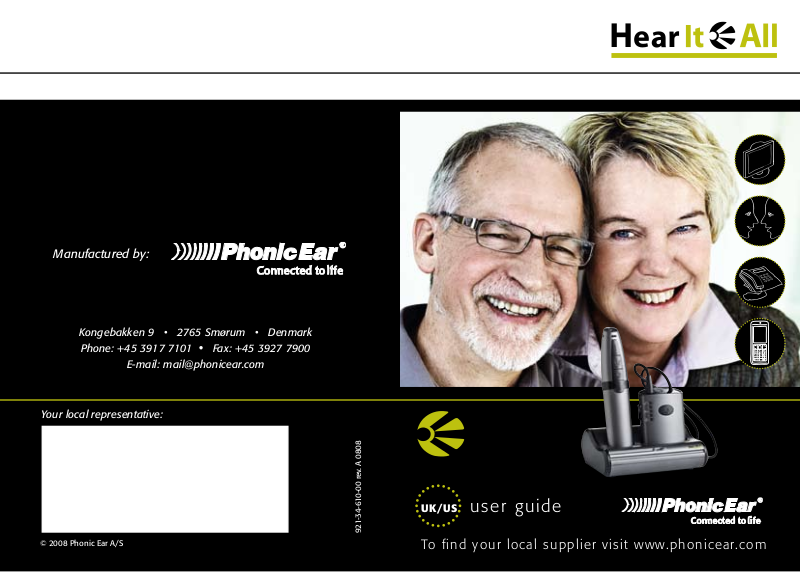

Your local representative:
Manufactured by:
© 2008 Phonic Ear A/S
To find your local supplier visit www.phonicear.com
UK/US user guide
Kongebakken 9 • 2765 Smørum • Denmark
Phone: +45 3917 7101 • Fax: +45 3927 7900
E-mail: mail@phonicear.com
921-34-610-00 rev. A 0808
Table of contents
Package content 4
System description 5
Functions 6
Installation 8
Connect cables to a television 8
Connect cables to a landline telephone 9
Connect power 9
Setup 10
Wireless setup for landline telephones 11
Wireless setup for mobile telephones 12
Wireless setup for televisions 13
Wireless setup for communication 14
Receiver setup 15
Operation 16
Indicators 16
Charging 17
Listening to the television 19
Communication 21
Telephone conversations 22
Mobile telephone conversations 23
Advanced operation 25
Quick list of functions 26
Warranty 28
Test and approval 30
Warnings 32
Declaration of conformity 38
3
Package contents
System description
Congratulations and thank you for purchasing HearIt All.
HearIt All is an all-in-one solution for amplifying sound in many everyday
situations. HearIt All provides high quality amplified sound from televisions,
conversations, telephones and mobile telephones. HearIt All is powerful,
robust and very easy to use. HearIt All is designed for people with hearing
difficulties and is ideal both for people wearing hearing aids, and for those
who do not wear or use a hearing aid.
Typical package contents
Receiver with
neck loop
Bag with carrying
strap
Transmitter
Connector set
RCA phono to mini jack
3,5 mm mini jack to 3,5 mm mini jack
SCART to RCA phono
6 mm jack to 3,5 mm mini jack
Charging stand
(Subject to change)
Headphones*
Zip-case
*
Telephone line
cord* and
bell to bell telephone cord
The HearIt All system consists of three main units:
Transmitter
Transmits sound from the television and/or conversations to the receiver via a
built- in 2,4 GHz wireless digital audio system (WDA).
Receiver with neck loop
Receives sounds from the transmitter via both WDA and Bluetooth. Works
with headphones or hearing aids in T-position (telecoil).
Charging stand
Charging stand for receiver and transmitter. Transmits the signal from a
connected landline to the receiver via Bluetooth.
HearIt All has four main functions:
Amplified sound from television/radio
Amplified conversation
Amplified telephone conversation
Amplified mobile telephone conversation
Screwdriver
* optional in some countries
Two-unit
charging cord
Power supply
4
Extra power
supply
(for e.g. travelling)*
Wrist strap and
neck strap
5
Functions
Functions
Receiver
R1: On/off switch and answering button,
WDA and Bluetooth indicator
R2: Volume button +/- (up/down)
R3: Bluetooth and volume level 1 indicator
R4: Volume level 2 indicator
R5: Battery and volume level 3 indicator
R6: Volume level 4 indicator
R7: WDA and volume level 5 indicator
R8: Headphones jack
R9: Neck loop jack
R10: Neck loop
R11: Charging jack
R10
Transmitter
T3
T2
T1
T4
T7
T6
T5
R9
R7
R5
R2
R3
T1: On/off switch, WDA and
battery indicator
T2: Omni directional
microphone button with
indicator
T3: Directional microphone
button with indicator
T4: Charging jack
T5: Wrist strap hole
T6: Belt clip
T7: Neck strap hole
R11
R8
R6
R4
R1
Charger
C1
C4 C5 C6 C7 C8 C9
C1: Charging stand for transmitter
C2: Charging stand for receiver
C3: Power and Bluetooth indicator
C4: WDA channel selector
C5: Bluetooth and WDA connecting/channel button
C6: 6V DC power supply jack
C7: Sound input jack for television, radio, MP3, etc.
C8: Telephone in jack
C9: Telephone out jack
C3
C2
6
7
L
AUDIO
R
Installation
Installation
Connect cables to a television
In the following, we refer to the sound source as a television, however, the
sound may come from a variety of different sound sources e.g. radio, MP3,
CD, computer etc.
Connecting a television or other sound source
1. Use the enclosed cables and connectors to connect your television.
Depending on the TV model, you can choose between the following
connections on your TV:
a. Line out (RCA phono to mini jack)
b. Scart (SCART adaptor and RCA phono to mini jack)
c. Headphone out (mini jack/6 mm jack to mini jack)
2. Connect the mini jack into charger jack C7 (on the back of your HearIt All
charger).
a. or
1
Connector set
Direct line
Please note:
Most televisions disconnect speakers when attaching a jack to the •
headphone output.
Some flat screen televisions may have a significant delay leading to “echo •
sound effects” when used with hearing aids in MT-position. Please contact
Phonic Ear for futher information.
b. or c.
SCART
adaptor
6 mm jack
adaptor
2
C7
Connect cables to a landline telephone
Connecting a landline telephone
1. Connect one end of your existing telephone line cord to the charger jack
C8 and the other end to the telephone wall outlet.
2. Connect one end of the telephone cord to charger jack C9 and the other
end to your landline telephone using the bell to bell telephone cord.
C9
1
C8
2
Connect power
1. Firmly insert the power supply
connector into charger jack C6.
2. Firmly insert the power supply adaptor
into your mains wall outlet. Do not
1
C6
turn on main power until a wireless
connection between the charger and
the receiver has been established.
* Plugs vary from country to
country
Important!
Plug in the power supply after installation but do not turn on power
until the wireless connection between charger and receiver has been
established (see page 11).
*
2
8
9
SetupSetup
Wireless setup
Wireless connections must be established before main power is turned on.
HearIt All combines two wireless radio systems: Bluetooth and WDA.
Bluetooth: Is a way of connecting and exchanging information between
between Bluetooth enabled devices such as mobile telephones, laptops, PC’s,
printers, headsets etc.
WDA (Wireless Digital Audio): Is a way of connecting and exchanging
information between WDA enabled devices such as the HearIt All charger and
receiver.
10
Wireless setup for landline telephones
Establishing a wireless connection between the HearIt All
charger and receiver
1. Turn on the receiver by pressing receiver button R1 for up to five seconds.
2. Turn on the main power for the charger.
3. The charger indicator C3 begins blinking rapidly while connection is in
progress.
4. Once a connection has been established, the charger indicators C3 and
R3 stop blinking blue.
R3
1
R1
3
C3
Please note:
Once the wireless connection between HearIt All and a Bluetooth unit •
has been established, the units will automatically connect when they are
within range of each other.
If the connection is lost or power to the charging stand was turned on •
before wireless setup was made, connection can be established by a
single push to charger button C5 at any time. Always turn on the receiver
before attempting to connect charger and receiver.
If the connection is lost because of low or no range or no receiver power, •
the connection will automatically be re-established once a suitable range
has been reached or the receiver has been charged. If connection is
lost because there is no power to the charger, follow steps 1 to 4 to reestablish the connection.
11
4
C3
Setup
Setup
Wireless setup for mobile telephones
Establishing a wireless connection between Bluetooth mobile
telephones and the HearIt All receiver
1. Enter the mobile telephone menu to allow the mobile telephone to
search for available Bluetooth devices.
2. Select the Bluetooth entry “HearIt All”.
3. Enter the pass code into the mobile telephone (8888). Select connect. A
short beep will be heard in the hearing aid or in the headphones.
4. Once the wireless connection is established, receiver indicator R3 stops
blinking blue.
R3
1
2
Please note:
Once a wireless connection between HearIt All and a Bluetooth unit •
has been established the units will automatically connect when they are
within range of each other.
The receiver can connect with both a Bluetooth mobile telephone and the •
charger at the same time. If one Bluetooth connection has already been
established the receiver indicator R3 will not blink.
During telephone conversations, the receiver indicator • R1 will illuminate
blue indicating that the wireless connection is active.
4
Wireless setup for televisions
Establishing a wireless connection between the HearIt All
charger and receiver
1. Turn on the transmitter by a single short push to transmitter button T1.
2. Place the transmitter in the charger and the receiver around the neck.
3. Turn on the television.
4. Turn on the receiver by pressing receiver button R1 for up to five seconds.
5. If sound is not immediately available press the receiver button R2+
(volume up) for 5 seconds.
6. Once the connection has been established the receiver indicator R1 turns
white.
If the connection is lost due to battery out, out of range or power off, repeat
steps 5 and 6. The indicator R7 blinks white if the transmitter is off or out of
range.
R7
R2
R1
5
6
T1
1
2
y
x
y
e
3
R1
4
1312
Setup
Setup
Wireless setup for communication
Establishing wireless connection between the HearIt All
transmitter and receiver
1. Turn on the transmitter by a single short push to transmitter button T1.
2. Hold the transmitter in your hand and place the receiver around the neck.
3. Choose between omni or directional microphone setting by a single short
push to either transmitter button T2 or T3.
4. Turn on the receiver by pressing the receiver button R1 for up to five
seconds.
5. If sound is not immediately available, press the receiver button R2+
(volume up) for 5 seconds.
6. Once a connection has been established receiver indicator R1 turns
white.
If the connection is lost due to battery out, out of range or power off repeat
steps 5 and 6. The indicator R7 blinks white if the transmitter is off or out of
range.
R7
T1
1
During TV listening and communication the receiver indicator R1 will
illuminate white to show that the wireless connection is active.
T3
T2
3
4
R1
R2+
5
R1
6
Receiver Setup
Neck loop and T/MT function on HA
In order to use HearIt All with hearing aids in T-position (telecoil), the hearing
aid must be equipped with a telecoil fitted by the hearing care professionel.
Installing neck loop
1. Detach neck loop R10 from receiver jack R9 by pulling the loop wire.
2. Place receiver on the chest and place loop wire around the neck.
3. Reattach neck loop R10 to receiver jack R9.
4. Switch hearing aid to T (telecoil only) or MT (microphone and telecoil
simultaneously) position.
R9
1
2
Please note:
Connecting headphones to the headphones jack • R8 disconnects the
signal to the neck loop.
R9
3
Important!
Charge receiver and transmitter before use. (See page 17)
1514
Operation
-
+
-
+
Operation
Indicators
All indicators on the HearIt All receiver, transmitter and charger speak the
same language. A steady illumination gives an indication that the function is
ready whereas blinking generally indicates that something is wrong.
LED indicators: Blinking: Generally means warning
Red/Green: Power and battery status
Blue: Wireless Bluetooth functions
White: Wireless WDA function
The receiver must be turned on and charged before use, and the charger
connected as described in the installation/setup chapter. Ensure in addition that
headphones are connected and hearing aids are set in T- or MT-position.
Charging
If transmitter indicator T1 or receiver indicator R5 flash red during operation
or units do not turn on when desired, it is time to charge the transmitter and/
or receiver. You can charge each unit separately or charge both at the same
time. Place the transmitter and/or receiver in slots C1 and C2 respectively.
Receiver indicator 1. R5 and transmitter indicator T1 will light red while
charging.
Once charging is complete, receiver indicator 2. R5 and transmitter
indicator T1 will light green.
C1
T1
No power
R5
1
Charger
Please note:
Ensure that the power supply is connected to the charger and that the •
power supply adaptor is firmly attached to an active wall power outlet
(charger indicator C3 is constant green or flashing blue/green).
Transmitter and receiver cannot be overcharged if they are left in the •
charger after completed charging.
C2
2
3
Charged
1716
Operation
-
+
Operation
Charging when travelling
1. Connect Y-cord to the power supply and ensure that the power supply is
correct connected to an active wall power outlet.
2. Connect the ends of the Y-cord to charging jack T4 on transmitter and/or
charging jack R11 on the receiver.
3. Receiver indicator R5 and transmitter indicator T1 will illuminate red while
charging.
4. Once charging is complete, receiver indicator R5 and transmitter indicator
T1 will light green.
*
1
3
2
T4
* Plugs vary from country to country
R11
4
Charged
Please note:
As the battery capacity of the receiver is larger than the battery capacity of •
the transmitter it may take slightly longer to charge the receiver.
We recommend fully charging batteries before use, however, partly charging •
the units does not inflict damage to them.
Listening to the television
Using HearIt All with your television
1. Place the receiver around neck (see page15).
2. Turn on the receiver by pressing receiver button R1 for up to five seconds.
3. Place the transmitter firmly in the charger.
4. Turn on the transmitter by a single short push to transmitter button T1.
5. Transmitter indicators T2 and T3 will both illuminate white indicating
transmission.
6. Receiver indicator R1 will illuminate white while listening to the television.
T1
2
R1
Please note:
If there is no sound press receiver button • R2+ (volume up) for 5
seconds to activate the wireless connection.
T3
T2
43
5
R1
6
1918
Operation
Operation
Adjusting volume
Press receiver button 1. R2+ (volume up) or R2- (volume down) to set
comfortable listening level.
The receiver indicators 2. R3 to R7 illuminate depending on volume level.
R2+
R2-
1
2
Please note:
The maximum volume level has been reached if all five receiver indicators •
R3 to R7 are illuminated. If the signal is still too weak adjust the volume on
your television or contact your hearing care professionel for adjustment of
the telecoil in the hearing aid.
The volume setting is constantly displayed on the receiver. This is to allow •
others (i.e. a nurse) to see if the unit is on and working.
When using HearIt All with your television, we recommend that you are •
seated.
Communication
Using HearIt All as a communicator
1. Remove the transmitter and receiver from the charger.
2. Place the receiver around your neck (see page15).
3. To turn the transmitter and receiver on make a single push to transmitter
button T1 and hold down receiver button R1 for five seconds.
4. Choose between omni-directional or directional microphone setting by
pushing transmitter button T2 or T3 (see below).
5. Hold the transmitter in your hand pointing towards the direction of the sound.
6. To turn the transmitter and receiver off, make a single push to transmitter
button T1 and hold down receiver button R1.
Please note:
If no sound is audible, press button • R2+ (volume up) for 5 seconds to
activate the wireless connection.
Transmitter and receiver do not have to be in close proximity to the •
charger when using HearIt All as a communicator.
When using HearIt All as a communicator, we recommend that you are •
seated.
Microphone settings
omni-directional
directional
T2
T3
2120
Operation
Operation
Telephone conversations
Accepting an incoming call
When a call comes in a ringing tone will be heard in the hearing aid or 1.
headphones and the receiver indicator R1 starts blinking blue.
Press receiver button 2. R1 briefly to accept call.
To end the call press receiver button 3. R1.
1
R1
Making a call
1. Turn on the receiver by pressing receiver button R1 for up to five seconds.
2. Press receiver button R1 briefly and wait for dial tone.
3. Pick up the handset, place it next to the telephone and wait for the dial tone.
4. Enter the desired telephone number.
5. To end the call press receiver button R1.
R1
2
1
3
Please note:
Only make a single short push to accept or end a call. It may take a couple •
of seconds before the call is completely connected or disconnected.
The telephone handset may be on the hook or off the hook during •
the conversation. This allow others to listen in or participate in the
conversation.
2
R1
4
22 23
3
R1
R1
5
Mobile telephone conversations
Accepting an incoming call
1. When a call comes in a ringing tone will be heard in the hearing aid or
headphones and the receiver indicator R1 starts blinking blue.
2. Press receiver button R1 to accept the call.
3. Press receiver button R1 to end the call.
1 3
R1
Please note:
You can accept a call from the mobile telephone or the landline •
telephone when listening to the television.
Only make a single short push to accept or end a call. It may take a •
couple of seconds before a call is completely connected or disconnected.
The ringing tone of the mobile telephone call may be the same sound as •
heard from the mobile telephone itself depending on the mobile telephone
used.
The receiver does not have to be in close proximity to transmitter or •
charger as it works independently as a mobile telephone headset while
travelling.
If the receiver is turned off when a mobile telephone call comes in, that •
specific call cannot be answered or ended using HearIt All.
2
R1
R1
Operation
Advanced operation
Making a mobile telephone call
1. Turn on the receiver by pressing receiver button R1 for up to five seconds.
2. Enter the dial number on the mobile telephone and pick up the handset.
3. The call is automatically transferred to the HearIt All receiver.
4. To end the call press receiver button R1 or end the call on the mobile
telephone.
Rejecting an incoming call
1. When a call comes in a ringing tone will be heard in the hearing aid or
headphones and the receiver indicator R1 starts blinking blue.
2. Press receiver button R2- (volume down) for 5 seconds to reject the call.
R2-
1
R1
2
Please note:
It is not possible to reject calls from the landline telephone using this •
procedure.
Changing WDA channel
The WDA channel is preset, but can be changed.
1. Place the receiver and transmitter in charger.
2. Select the desired channel using channel button C4 on the back of the charger.
3. Press and hold the channel button C5 for five seconds.
4. Lights on both receiver and transmitter illuminate in a short blinking
pattern to indicate that the new channel has been set.
1
2
3
C4
C5
4
Important!
To change channel both receiver and transmitter must be firmly placed in
the charging stand.
24 25
Quick list of functions
Quick list of functions
Button/diode/jack Function
Receiver
R1 Power on (hold for up to 5 seconds)•
Power off (hold for up to 5 seconds)•
Answering and ending mobile telephone •
calls
Answering and ending landline telephone •
calls
White light: WDA active•
Blue light: Bluetooth active•
Blue blink: Incoming call•
R2+ (up)
R2- (down)
R3 Blue blink: Bluetooth not connected•
R4 Green light: Volume level 2•
R5
R6 Green light: Volume level 4•
R7 White blink: WDA connection lost•
Volume up•
Connect/disconnect WDA•
Volume down•
Reject mobile telephone call (hold for 2 •
seconds)
Green light: Volume level 1•
When in use
Red blink: Low battery •
Green light: Volume level 3•
When charging
Red light: Charging•
Green light: Fully charged•
Green light: Volume level 5•
Button/diode/jack Function
R8 Jack for headphones•
R9 Jack for neck loop•
R10 Neck loop•
R11 Jack for charger•
Transmitter
T1 Power on/off, WDA and battery indicator•
T2 Omni-directional microphone. To pick up •
sound from different directions.
T3 Directional microphone. To pick up sound •
from one direction only.
T4 Jack for charger•
T5 Wrist strap hole•
T6 Belt clip•
T7 Neck strap hole•
Charger
C1 Charging stand for transmitter•
C2 Charging stand for receiver•
C3 Power and Bluetooth indicator•
C4 WDA channel selector•
C5 Bluetooth•
C6 Jack for power supply•
C7 Sound input jack for television, radio, etc.•
C8 Jack for telephone in•
C9 Jack for telephone out•
and WDA connecting button
2726
Warranty
Warranty
A Two-year limited warranty is issued to the original consumer of this
product by Phonic Ear A/S.
Time period of warranty
This warranty will come into effect upon the date of the original purchase
of this equipment, and will remain in effect for two calendar years from
that date as long as the instrument remains the property of the original
consumer.
What is covered by this warranty
Any electronic component which, because of workmanship, manufacturing,
or design defects, fails to function properly under normal use during the
lifetime of this warranty will be replaced or repaired at no charge for parts
or labour when returned to the factory service centre. Transportationcost are
to be met by the customer. If it is determined that repair is not feasible, the
entire unit may be replaced with an equivalent unit upon mutual agreement
of the manufacturer and customer.
What is not covered by this warranty
1 Malfunctions resulting from abuse, neglect, or accident.
2 Peripheral accessories as itemized within the product brochure, when
such items are returned after 90 days from the original purchase.
3 Batteries.
4 Instruments connected, installed, used, or adjusted in a manner
contrary to instructions provided by the manufacturer.
5 Consequential damages and damages resulting from delay or loss of
this instrument. The exclusive remedy under this warranty is strictly
limited to repair or replacement as herein provided.
6 Products damaged in transit unless investigated by the shipper and
returned to the warrantor with the investigation report.
Phonic Ear A/S reserves the right to make changes to the design or
construction of any of its instruments at any time without incurring any obligation to make any changes whatsoever on units previously purchased. This
warranty is in lieu of all other expressed warranties. All expressed and implied
warranties will terminate upon the expiration of this written warranty. No representative or person is authorized to represent or assume for us any liability
in connection with the sale or use of our products other than as set forth
above. The above warranty does not affect any legal rights that you might
have under applicable national legislation governing sale of consumer goods.
Your distributor may have issued a warranty that goes beyond the clauses of
this limited warranty. Please consult your distributor for further information.
What to do if you need service
If you require service under the terms of this warranty, carefully package the
instrument to prevent damage and return it to your distributor (see information on
back cover). Please provide your receipt, a detailed description of the problem,
your full name, billing address, and telephone number.
For assistance with troubleshooting or answers to other questions please
consult your hearing care professional.
2928
Test and approval
Phonic Ear A/S, Kongebakken 9, 2765 Smørum, Denmark
0678
Electrical and electronic equipment (EEE) contains materials, components and
substances, that could be dangerous or detrimental to human health and the
environment if waste electrical and electronic equipment (WEEE) is not disposed of
correctly.
Products marked with the crossed-out dustbin shown above are electrical and electronic
equipment. The crossed-out dustbin indicates that waste electrical and electronic
equipment may not be disposed of with unsorted household waste and that it must be
collected separately.
In developing and manufacturing your Phonic Ear product, we used high-quality
materials and components that can be reused. Thus, when disposing of your waste
electrical and electronic equipment, you must use a collection system designated
for this purpose, regardless of whether you dispose of your waste at your local civic
amenity site or whether your waste is collected from your household. Please contact
your local authority for further information.
How to remove batteries
Transmitter:
1) Remove screw in the black clip on the rear side
2) Pull top part and bottom part apart by pulling hard and twisting gently
3) Cut battery away from the printed circuit board
4) Cut wires one at a time
The socket outlet must be installed near to the equipment and must be
easily accessible. Only use power supplies listed in the user guide.
The following switch mode power supply can be used with the HearIt All.
Manufacture: Fuhua, MODEL No.: UE15WCP-060100SPA and PART No.:
UE070904HKCN1-R.
This product is intended for connection to the public switched analogue
telephone network and may be operated in: BE, CY, DK, EE, FI, FR, GR, IE, IT,
LV, LT, LU, AT, CZ, DE, HU, NL, PL, SK, SI, ES, SE, IS, NO, CH, BG, RO, TR, MT,
PT, GB, and LI.
Receiver:
1) Unscrew two screws in the top corners on the rear of unit
2) Open top cover by lifting cover up in the top
3) Remove top cover completely
4) Cut battery away from the printed circuit board
5) Cut wires one at a time
30 31
Warnings Warnings
You should familiarize yourself fully with the following general warnings and the entire
contents of this booklet before using your HearIt All.
Misuse can result in sudden and permanent hearing loss
HearIt All is not a toy and therefore should be kept out of the reach of children and
anyone else e.g. people with learning difficulties who might swallow parts or otherwise
cause injury to themselves. Special attention should be paid to the smaller components
in order to prevent children from swallowing them and choking. If a part is swallowed,
see a doctor immediately.
Always make sure to set the volume controls correctly according to your hearing. By
using HearIt All with a sound pressure level that is too high, you may risk impairing your
hearing.
Never allow others to wear or use your HearIt All as incorrect/wrongful usage could
cause permanent damage to their hearing.
Dysfunction in HearIt All.
HearIt All may stop functioning, for instance if the batteries are discharged. You should
be aware of this possibility, in particular when you are in traffic or otherwise dependent
on warning sounds.
Interference
Your HearIt All has been thoroughly tested for interference, according to the most
stringent international standards. But new technical developments constantly bring
new products into society, and some may emit electromagnetic radiation, leading to
unforeseen interference in HearIt All. Examples include induction cooking appliances,
shop alarm systems, mobile telephones, fax machines, personal computer devices,
X-rays, computer tomography etc.
Your hearing instruments are designed to comply with the most stringent Standards of
International Electromagnetic Compatibility. However HearIt All might cause interference
with other medical devices. Such interference can also be caused by radio signals,
power line disturbances, airport metal detectors, electromagnetic fields from other
medical devices and electrostatic discharges.
Possible side effects
The otherwise non-allergenic materials used in hearing instruments may in rare cases
cause a skin irritation.Consult a doctor if you experience any side effects.
32 33
Use on Aircrafts
The HearIt All should not be used on board on aircrafts unless specifically permitted by
the flight personnel.
Implantable devices
HearIt All is designed to comply with the most stringent Standards of International
Electromagnetic Compatibility. However, HearIt All might cause interference with other
medical devices such as defibrillators and pacemakers. Please, contact the manufacturer
of your implantable device for information about the risk of disturbance. Interference
can also be caused by power line disturbances, airport metal detectors, electromagnetic
fields from other medical devices, radio signals and electrostatic discharges.
Do never exposure HearIt All to great heat by putting it in the oven, in the micro wave
oven or by burning it. There is a risk that it will explode and cause serious injury.
The safety of the use of HearIt All with auxillary input cable is determined by external signal
source. When the input cable is connected to mains-operated equipment, this equipment
must comply with IEC-60065, IEC-60601, IEC-60950 or equivalent safety standards.
The emission power from the HearIt All is below international emission limits for Human
Exposure. For comparison, the radiation of the HearIt All is equal to that of a Bluetooth
headset for a mobile telephone. HearIt All complies with international standards
concerning electromagnetic Compatibility.
Cleaning and maintenance
Any dirt, moisture or grease should be cleaned of by using a dry or damp cloth. HearIt
All must never be washed or immersed in water or other liquids. Make sure not to drop
HearIt All onto hard surfaces.
Avoid heat, humidity and chemicals
Your HearIt All must never be exposed to extreme heat e.g. left inside a parked car in
the sun. It must never be exposed to a lot of moisture e.g. steam baths, showers or
heavy rain. Nor must it be dried in micro wave ovens or other ovens. HearIt All must not
be exposed to or cleaned with cleaning chemicals or alcohols.
Use in cars
Using the HearIt All with a mobile phone while driving can distract you. If driving
conditions demand it, pull of the road and park before making and answering calls.
Use of the neck loop
If by accident the neck strap should get caught in something while wearing it, the neck
Warnings Warnings
loop is constructed to open automatically. Therefore, never try to modify the neck loop
in an unauthorized way. The neck loop should not be used for children who weighs less
than 11 kg.
Use of neck strap
Please use the neck strap carefully. Due to security reasons (to avoid strangulation)
the neck strap will automatically open if it gets caught in something. Do not shorten or
modify the neck strap in any way, i.e. such as tie a knob to shorten the length. The neck
strap should not be used for children who weighs less than 11 kg.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operation instructions for satisfying
RF exposure compliance. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
HearIt All
Tested to comply with
FCC Standards
FOR HOME OR OFFICE USE
This device complies with Part 15 and 68 of the FCC rules and RS-210 of Industry Canada.
Operation is subject to the following two conditions:
This device may not cause harmful interference.•
This device must accept any interference received, including interference that may •
cause undesired operation.
Changes or modifications not expressly approved by Phonic Ear could void the user’s
authority to operate the equipment.
a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.•
Increase the separation between the equipment and receiver.•
Connect the equipment into an outlet on a circuit different from that to which the •
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.•
NOTE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in
34 35
3436 37
38
Loading...
