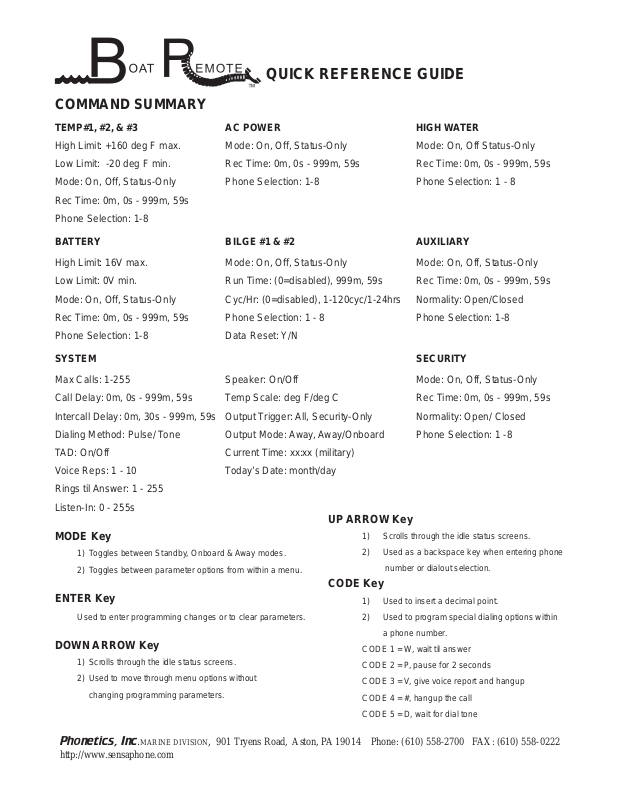

QUICK REFERENCE GUIDE
COMMAND SUMMARY
TEMP#1, #2, & #3 AC POWER HIGH WATER
High Limit: +160 deg F max. Mode: On, Off, Status-Only Mode: On, Off Status-Only
Low Limit: -20 deg F min. Rec Time: 0m, 0s - 999m, 59s Rec Time: 0m, 0s - 999m, 59s
Mode: On, Off, Status-Only Phone Selection: 1-8 Phone Selection: 1 - 8
Rec Time: 0m, 0s - 999m, 59s
Phone Selection: 1-8
BATTERY BILGE #1 & #2 AUXILIARY
High Limit: 16V max. Mode: On, Off, Status-Only Mode: On, Off, Status-Only
Low Limit: 0V min. Run Time: (0=disabled), 999m, 59s Rec Time: 0m, 0s - 999m, 59s
Mode: On, Off, Status-Only Cyc/Hr: (0=disabled), 1-120cyc/1-24hrs Normality: Open/Closed
Rec Time: 0m, 0s - 999m, 59s Phone Selection: 1 - 8 Phone Selection: 1-8
Phone Selection: 1-8 Data Reset: Y/N
SYSTEM SECURITY
Max Calls: 1-255 Speaker: On/Off Mode: On, Off, Status-Only
Call Delay: 0m, 0s - 999m, 59s Temp Scale: deg F/deg C Rec Time: 0m, 0s - 999m, 59s
Intercall Delay: 0m, 30s - 999m, 59s Output Trigger: All, Security-Only Normality: Open/ Closed
Dialing Method: Pulse/ Tone Output Mode: Away, Away/Onboard Phone Selection: 1 -8
TAD: On/Off Current Time: xx:xx (military)
Voice Reps: 1 - 10 Today’s Date: month/day
Rings til Answer: 1 - 255
Listen-In: 0 - 255s
UP ARROW Key
MODE Key
1) Toggles between Standby, Onboard & Away modes.
2) Toggles between parameter options from within a menu.
1) Scrolls through the idle status screens.
2) Used as a backspace key when entering phone
number or dialout selection.
CODE Key
ENTER Key
Used to enter programming changes or to clear parameters.
DOWN ARROW Key
1) Scrolls through the idle status screens.
2) Used to move through menu options without
changing programming parameters.
1) Used to insert a decimal point.
2) Used to program special dialing options within
a phone number.
CODE 1 = W, wait til answer
CODE 2 = P, pause for 2 seconds
CODE 3 = V, give voice report and hangup
CODE 4 = #, hangup the call
CODE 5 = D, wait for dial tone
Phonetics, Inc.MARINE DIVISION, 901 Tryens Road, Aston, PA 19014 Phone: (610) 558-2700 FAX: (610) 558-0222
http://www.sensaphone.com
