Nios micro III & V
User Guide
2
Contents
Welcome 5
Description 6
Short introduction
Inserting the battery 8
Switching ON/OFF 8
Selecting a hearing program 9
Preparation
Replacing the battery 10
Tamper proof battery compartment 13
Identifying left and right hearing instruments 15
Inserting your hearing system with
earmold into your ear 16
Inserting your hearing system
with micro tube into your ear 20
Closed domes 22
Operation
Switching ON/OFF 24
Hearing programs 25
Controlling the Volume (optional) 27
Controlling two hearing instruments 28
3
Telecoil (optional) 28
EasyPhone (optional) 29
Wireless accessories (optional) 32
myPilot 32
iCom 34
iView 36
Remote control (optional) 37
FM communication (optional) 39
Dynamic FM transmitter 40
Multi-frequency FM receivers 41
Design-integrated FM receiver ML12i 41
Universal FM receivers (MLxi, MicroMLxS) 42
Attaching and removing the
audio shoe (AS12) 43
MyLink 46
Manual selection of an FM program 47
Maintenance 48
Microphone Protector 48
Micro tube and dome 50
Important points 55
4
Warning 58
Service and Warranty 59
Phonak distributors worldwide 62
Notices 62
5
Your new Nios micro hearing system uses the very
latest advances in digital wireless hearing technology.
Nios micro offers you, automatically, the highest
sound quality, speech understanding and listening
comfort in all your hearing situations. High-tech
has turned highly sophisticated hearing systems into
convenient devices that are easy to use.
Please read this manual carefully to benefit from all
the features of your new hearing system. Ask your
hearing care professional if you have any questions.
Nios micro is a quality product developed by the Swiss
company Phonak, a world leader in hearing technology,
innovation and reliability. With proper care and
usage, your hearing system will support your hearing
and communication needs for many years.
For further information, please visit the Phonak website
www.phonak.com.
Phonak – life is on
Welcome
6
Description
Hearing system with earmold
햲 Microphone inputs with Microphone Protector
햳 Program switch (optional)
햴 Battery compartment with ON/OFF switch
햵 Hook / sound output
햶 Individual earmold
햵
햶
햲
햴
햳
Hearing system with
micro tube and SlimTip
햲 – 햴 See system with earmold
햵 Micro tube/sound output
햶 Individual SlimTip
햷 Removal handle
Hearing system with
micro tube and dome
햲 – 햴 See system with earmold
햵 Micro tube/sound output
햶 Dome
햷 Retention
7
햵
햶
햲
햴
햳
햷
햵
햶
햷
햲
햴
햳
8
Short introduction
Inserting the battery
Details see page 10
Switching ON/OFF
Details see page 24
OFF
ON
9
Selecting a hearing program (optional)
Details see page 26
Replacing the battery
Use battery size 13 for your Nios micro system.
Using the nail grip, open the battery compartment
completely and remove the old battery.
Remove the protective foil from
the new battery. Wait for
two minutes before inserting it.
10
Preparation
11
Insert the new battery with the “+” sign (flat side
of the battery) as shown below. The correct battery
orientation can also be seen on the inside of the
battery compartment. Close the battery compartment.
12
Handle the battery compartment with care and
do not use excessive force.
If there is any resistance when closing the
compartment, ensure that the battery is
inserted correctly. The compartment may not
close properly if the battery is upside down,
and the instrument will not work.
When your hearing system is not in use, leave
the battery compartment open to allow any
moisture to evaporate.
Low battery warning
An acoustic signal gives you an early warning that
the battery is approaching exhaustion. You have
approximately 30 minutes to replace the battery after
hearing the signal. The hearing system will repeat
the low battery warning approximately every 30 minutes.
Please note that the battery consumption increases
with regular use of the myPilot command center,
the iCom communication interface or the remote
controls KeyPilot2 or WatchPilot2.
Preparation
13
Tamper proof battery compartment
The battery is locked inside the battery compartment
for safety reasons. The latch can easily be opened with
a fingernail. Place the fingernail in the groove and pull
the latch away from the hearing instrument 햲 and
then push it upwards 햳.
햲
햳
“click”
14
The battery can only be inserted when the latch is open
햴. Move the latch over the inserted battery so that
it lies against it 햵. Lock the battery by pushing the later
towards the hearing instrument with your finger 햶.
Before you close the battery compartment, check that
the latch is locked in position and the battery can’t
be removed.
Warning: The battery latch must be placed back
over the battery and locked before closing the battery
compartment.
Preparation
햴
햵
햶“click”
15
Identifying left and right hearing instruments
It is important to use the correct hearing instrument for
each ear.
Your hearing care professional can mark the hearing
instruments for you. The color code is visible when
the battery compartment is opened. It will identify left
and right hearing instruments as follows:
red = right hearing instrument
blue = left hearing instrument
16
Inserting your hearing instrument with earmold into
your ear
Using the hand on the same side you wear your hearing
instrument, grasp the earmold between the thumb and
index finger.
Raise your hand to your ear making sure the canal
portion of the earmold faces your ear. Tilt your hand
slightly forward.
Preparation
17
Place the canal portion of the earmold inside your ear
canal. If it is difficult to get it into place, stretch your ear
by pulling it gently backwards and upwards with your
other hand. When the canal portion is in place, twist the
earmold backwards so that it fits into the concha and
the helix portion is under the fold.
18
Now position the hearing instrument behind the ear.
Be careful not to twist the tubing.
Preparation
19
Check the placement of the earmold by tracing the
contour of the ear with your finger.
To remove your hearing instruments grasp the earmold,
not the tubing, and pull it out of your ear gently but
firmly.
20
Preparation
Inserting your hearing system with micro tube
into your ear
Open domes and SlimTip
Place the hearing
instrument over the top
of your ear 햲.
Hold the micro tube where it attaches to the dome
or SlimTip 햳 and gently push the dome or SlimTip into
your ear canal. The dome or SlimTip should be placed
far enough into the ear so that the micro tube lies
flush with your head.
햳
햲
21
Place the retention tail (if available) of the micro tube
into the bowl of your concha 햴.
To remove your hearing instrument, grasp the micro
tube near the dome and pull it out of your ear gently
but firmly.
In very rare cases, the dome can remain in the
ear canal when removing the micro tube from
the ear. In the unlikely case that any parts remain
in the ear canal, it is strongly recommended to
see a medical specialist for safe removal.
햴
22
Closed domes
The closed dome has a different design than other domes
(refer to pictures). The closed dome consists of two
fins overlapping each other. Before inserting the closed
dome into the ear canal, it is important to check the
position of these fins. The larger fin must be positioned
over the smaller fin 햵. If the position is incorrect 햶,
you can easily adjust it. With one finger, gently bend
the bigger fin forwards and then back again so that it
overlaps the smaller one 햷. Make sure that the slit
of the closed dome is in a horizontal position on the tube
unit, as shown in picture 햵. Your closed dome is now
ready to be inserted into the ear.
Preparation
23
Correct position 햵
Wrong position 햶
Moving the fins 햷
24

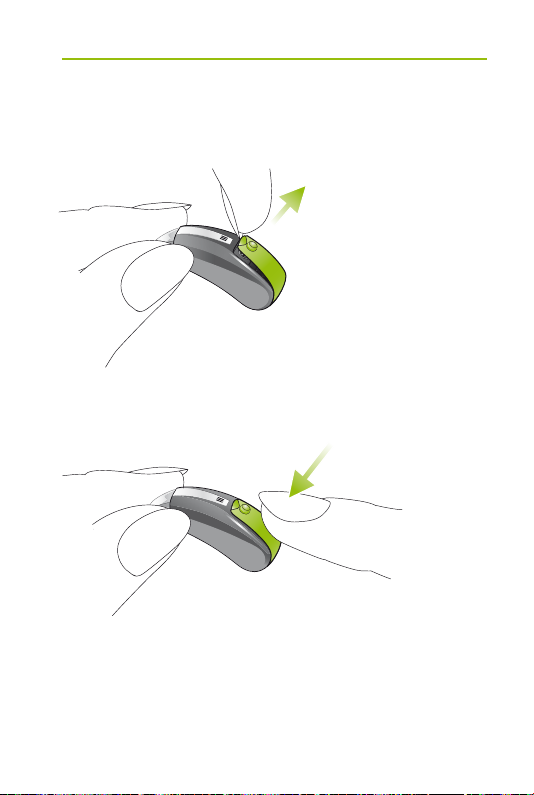

Switching ON/OFF
Switching OFF
Using the nail grip, slightly open
the battery compartment until it
snaps to its OFF position.
Switching ON
Close the battery compartment.
Your hearing system is always
in the default hearing program
and at your preferred volume
when turned ON.
Operation
25
Delayed activation
The Nios micro hearing system requires several seconds
to start up. Your hearing care professional may have
activated a further delayed activation timer. This function
delays the activation of the hearing system (for 9 or 15
seconds) after the battery door is closed in order to
avoid any disturbance while placing it on your ear. An
acoustic signal confirms when your hearing system is
switched on.
Hearing programs
Automatic mode
Nios micro is able to recognize different hearing
environments and to automatically select the most
appropriate hearing program.
Additional program selection
Upon request, your hearing care professional can
program additional individual hearing programs
dedicated to specific hearing situations. Additional
programs are accessed via the myPilot command
center, the program switch or other remote controls
such as KeyPilot2 or WatchPilot2.
26
Program switch (optional)
The program switch allows manual toggling between the
“Automatic Mode”, the “Mute Mode” and individual
hearing programs. A short melody confirms the selection
of the “Automatic Mode”.
Option without program switch
The Nios micro hearing system is also available without
the program switch. This is the default for 0 – 4 year old
children or could be an option for users who do not need
an extra program switch with their myPilot command
center or remote control.
Operation
27
Controlling the volume (optional)
The volume of your Nios micro hearing system can be
adjusted either with an optional remote control or
by using the program switch. Upon request, your hearing
care professional can make the program switch a
volume control.
When you touch the program switch, your volume will
first be decreased in steps until the minimum is reached,
and then increases again until the maximum is reached.
Whenever you turn OFF and ON your hearing system,
the volume is set to the start level again.
28
Controlling two hearing instruments
An automatic synchronisation for program selection,
QuickSync, is integrated in Nios micro V models. Your
hearing care professional may have deactivated this
wireless syncronization. Users wearing two hearing
instruments only have to activate the functionality on
one instrument; the other one will be adjusted
automatically.
Telecoil (optional)
Your hearing care professional may have activated a
telecoil in your hearing system. The programs with
telecoil can be used with hearing system compatible
phones or via inductive loop systems (present in some
school settings, theaters, churches, etc.).
Ask your hearing care professional to print out the
complete description of your individual hearing
programs and how to access them with your myPilot
command center, program switch or remote control.
Operation
29
EasyPhone (optional)
Your hearing care professional may have activated
EasyPhone in your hearing system. The EasyPhone
function enables your hearing system to automatically
select your telephone program when the telephone
handset is held close to your ear. An acoustic signal
confirms the switch. It automatically returns to
the previous hearing program when the telephone
handset is removed from your ear.
Some telephones produce a magnetic field strong enough
to activate your EasyPhone function. Most types of
telephones require an additional magnet fixed on the
receiver to activate this function.
Fixing the EasyPhone magnet
Clean the telephone handset
thoroughly. Hold the telephone
handset nearly verticaly similar
to making a telephone call. Hold
the magnet near to the “listening
end” of your telephone handset
and release it. The magnet will
automatically flip to the correct
side.
30
If you hold the telephone receiver
in your right hand when making
telephone calls, position the magnet
in the upper right half of the
receiver.
If you hold the telephone receiver
in your left hand, position the
magnet in the upper left half of
the receiver.
Use the double-sided adhesive
tape to stick the magnet to the
location described above. Do
not cover the sound openings of
your handset.
Instead of holding the phone
against your ear canal, hold the
earpiece of the phone against
the microphone, which is at the
front of your Nios micro.
Operation
31
Use of EasyPhone
Use the telephone in a normal manner. An acoustic
signal indicates the activation of the EasyPhone
program. In the beginning, you may need to move
the handset slightly to find the optimum position
for a reliable switch and comfortable hearing.
If necessary, move the magnet to another position on
the handset to increase your comfort of use.
Keep magnets out of reach of children and pets.
If a magnet is swallowed, please seek the medical
advice.
The magnet used to strengthen the magnetic field
of your phone may affect some medical devices
or electronic systems. Always keep the magnet (or
the telephone equipped with the magnet) at least
30 cm (12”) away from pacemakers, credit cards
or other magnetically sensitive devices.
High distortion during dialling or phoning may
mean that the phone receiver is stressed by
the magnet. To avoid any damage, please move
the magnet to another place on the telephone
receiver.
32
Wireless accessories (optional)
myPilot
The myPilot command center is an optional accessory
for your hearing systems. It allows a convenient,
user-friendly and discreet control of all the functions
of your hearing system and additional benefits:
쐍 Volume control
쐍 Program selection
쐍 Automatic mode selection
쐍 Clock and alarm
쐍 myPilot battery status
쐍 Read out of hearing instrument volume,
programs and battery status
For detailed information
on the use of your myPilot,
please refer to its user
guide or ask your hearing
care professional.
myPilot:
available in two
stylish colors,
high-tech grey or white.
33
For optimum results, position your myPilot as shown
in the drawing.
Do not use your myPilot in locations where
it is forbidden to use electronic devices.
Operating range
max. 50 cm (20”)
34
Wireless accessories (optional)
iCom
iCom is an optional accessory
available for Nios micro hearing
systems. With the push of a
single button, iCom connects
your hearing system with
the technology around you.
Bluetooth connections
iCom offers a simple way to connect your mobile
phone via Bluetooth to your hearing system.
iCom is also capable of transmitting a stereo
audio signal from any Bluetooth enabled device
(built-in or via an adapter) such as MP3 players,
laptops, computers or televisions.
Please refer to the iCom user guide for more information on the numerous iCom appplications.
Do not use your iCom in locations where it is
forbidden to use electronic devices.
35
FM compatibility
iCom also offers FM accessibility when a Phonak FM
receiver is connected, refer to picture below.
EasyAudio and EasyBluetooth
Your Nios micro hearing system contains two special
audio programs: EasyAudio and EasyBluetooth. These
programs are automatically selected in your hearing
system when an audio or Bluetooth signal is received
from iCom. EasyAudio and EasyBluetooth ensure that
you have the optimum program activated for streaming.
An acoustic signal in your Nios micro hearing instruments
confirms the switch to either Easy program.
Please refer to the iCom user guide for more information
on the numerous iCom applications.
Do not use your iCom in locations where it is
forbidden to use electronic devices.
iView
iView, the status viewer, is an optional accessory for
parents with small children and also for teachers
or caregivers. Just by the press of a button, iView shows
the status of the hearing instrument's battery, the
current hearing program and volume settings displayed
on a large screen.
For detailed information on the use of iView,
please refer to its user guide or ask your hearing care
professional.
Do not use your iView in locations where it is
forbidden to use electronic devices.
36
Wireless accessories (optional)
37
Phonak offers a comprehensive range of modern remote
controls. Ask your hearing care professional to
demonstrate them to you. Choose the model that is
most convenient for your lifestyle and your taste.
WatchPilot2
Exclusive and modern,
available with sporty
rubber band or elegant
metal band.
KeyPilot2
Small, easy and
convenient.
Remote control (optional)
38
For best results with your KeyPilot2 or WatchPilot2
remote control, refer to the drawing.
For detailed information on the use of your remote
control, please refer to its user guide. Your hearing care
professional can also print an individual description
of your hearing programs for you.
Do not use your remote control in locations
where it is forbidden to use electronic devices.
Remote control (optional)
39
FM communication (optional)
Your hearing system is equipped with Direct Audio
Input (DAI). It allows you to fully benefit from the
high-end FM systems from Phonak.
When noise, distance or reverberation is a problem,
FM systems greatly improve communication. A wireless
FM communication system consists of a transmitter
and a receiver. The transmitter is placed near, or directly
connected to the sound source (e.g. TV or radio).
It transmits the signal via radio to the FM receivers
attached either to your hearing instruments or to
an iCom.
For more information on the use of your FM system,
please refer to the appropriate FM transmitter or
receiver user guide or ask your hearing care professional.
40
Dynamic FM transmitters
Phonak offers Dynamic FM transmitters for all
customers and needs:
inspiro
The transmitter for teachers
and suitable for use in school
SmartLink+
For teenagers and adults who want
nothing less than the very best.
ZoomLink+
Comfortable transmitter
for everybody
EasyLink+
The transmitter that is easiest
to operate
FM communication (optional)
41
Multi-frequency FM receivers
Phonak offers two FM solutions for your Nios micro
hearing instrument.
1. Design-integrated FM receiver (see below)
2. Universal FM receiver (see page 42)
1. Design-integrated FM receiver, ML12i
Perfectly integrated into the Nios micro design for
daily use. Switching ON/OFF on the hearing system can
easily be done (see page 24).
42
FM communication (optional)
2. Universal FM receivers (MLxi, MicroMLxS)
MLxi: Together with
the audio shoe
interface, AS12.
It can be removed if FM is not in use.
For ON/OFF function of the hearing system,
see page 24.
Note:
To have FM immediately active when required,
Phonak recommends to leave the MLxi attached when
not in use. If required, MLxi can easily be switched
off by pressing the button.
MicroMLxS: Together with
the audio shoe
interface AS12.
Set the MicroMLxS switch
to the “•” position for use.
43
It can be removed if FM is not in use. For ON/OFF
function of the hearing system, see page 24.
Note:
쐍
To have FM immediately active when required,
Phonak recommends to leave the MicroMLxS
attached when not in use. If required, MicroMLxS can
easily be switched off by setting the switch to the
OFF position “
°
”, see photo page 42.
Attaching and removing the audio shoe (AS12)
Your hearing care professional has already prepared
your Nios micro hearing system (with a special battery
compartment) for use with an FM receiver.
To attach the audio shoe, firmly hold it in your hand
and push the small black locking systems together with
the bottom of the hearing system 햲, see page 44.
44
Then push the
hearing system
down until
it snaps in 햳.
To remove the audio shoe, place the hearing system
on a firm surface, hold the audio shoe firmly and slide
the locking system 햴.
FM communication (optional)
햲
햲
햳
햳
“click”
45
Pull the hearing system upwards
with the other hand 햵.
When not in use, the receiver automatically switches
to a low power stand-by mode.
Note:
To have FM immediately active when required,
Phonak recommends to leave the MLxi attached when
not in use. If required MLxi can easily be switched
off by pressing the button.
햵
햴
46
MyLink
As an alternative to iCom with an FM receiver, MyLink
is a small and appealing FM receiver that is compatible
with hearing systems with a telecoil.
MyLink picks up the FM signal and relays it to the
hearing instrument.
FM communication (optional)
47
Manual selection of an FM program
쐍 myPilot command center: choose your desired
FM program. The selection is confirmed by an
acoustic signal.
쐍 Program switch: toggle until you reach the
desired FM program, identified by the appropriate
acoustic signal.
쐍 Remote controls: KeyPilot2 or WatchPilot2 let
you toggle through the desired manual programs
as selected by your hearing care professional.
48
Microphone Protector
Important: The Microphone Protector is an exclusive
Phonak system designed to protect the Nios micro
high-tech microphones from debris. As a result, they
last much longer, reducing the service costs of your
hearing system. The Microphone Protector can be
replaced if needed. Your hearing system should never
be used without the Microphone Protector.
Maintenance
49
Important: Consult your hearing care professional about
changing the Microphone Protector if you experience
any of the following:
쐍 The hearing system sounds quieter than usual
쐍 There is a reduction in sound quality
쐍 Understanding in noise becomes more difficult
쐍 It becomes more difficult to determine the direction
of sounds
Your hearing care professional can tell you whether the
Microphone Protector should be exchanged or not.
50
Micro tube and dome
The following care and maintenance instructions
will help extend the life span and ensure the quality
and comfort of your hearing instrument fit with the
micro tube.
The micro tube feeds the amplified sound from the
hearing instrument into the ear. It is important that the
micro tube, the dome or SlimTip fit correctly into
your ear. If the micro tube, dome or SlimTip irritate
your ear in any way and prevent you from wearing your
hearing instrument, please contact your hearing care
professional. You should never attempt to modify
the shape of the micro tube yourself. The micro tube,
dome or SlimTip should be cleaned regularly.
Step 1
Hold the dome and remove the ear wax from the grid
of the dome with a small brush or fabric.
If hearing performance does not improve after step 1
proceed to step 2.
Maintenance
90°
햲
햳
51
Step 2
Detach the micro tube from the hearing instrument
as follows:
쐍 Hold the micro tube in one hand and the hearing
instrument in the other hand.
쐍 Gently twist the micro tube 90° 햲 and pull it
straight out, away from the hearing instrument 햳.
52
햴
Insert the cleaning rod where the micro tube attaches
to the hearing instrument and push it all the way
through the micro tube and out through the dome or
SlimTip
햴 . After cleaning it is important to remove
the cleaning rod.
Maintenance
53
Attach the micro tube onto the hearing instrument as
follows:
쐍 Hold the micro tube in one hand and the hearing
instrument in the other hand.
쐍 Push the micro tube onto the hearing instrument
until it is snug 햵.
햵
54
It is not recommended to submerge or rinse the
micro tube, dome or SlimTip in water, as there
is a risk that a water drop may become lodged in
the micro tube. As a consequence, sound will
be prevented from going through the micro tube.
The micro tube and dome should be changed every
three months or sooner if the micro tube becomes
stiff or brittle. Only your hearing care professional
should change the dome. This is to prevent the
dome from detaching from the micro tube during
insertion into the ear.
Maintenance
55
Important points
1) Always use new batteries for your Nios micro
hearing system. You can return empty batteries to
your hearing care professional.
2) When your hearing system is not in use, leave the
battery compartment open to allow any moisture
to evaporate.
3) If you do not use your hearing system for
a long period of time, store it in its protective case.
Remove the batteries and leave the battery
compartments open. Make sure your hearing system
is completely dry before closing the case.
4) Protect your hearing system from excessive moisture
and heat. Always remove it before showering,
bathing or swimming. Do not leave the hearing
system near windows or in a car. Avoid strong jolts
and vibration.
56
5) Daily cleaning and the use of a drying system is
highly recommended. "C&C line" from Phonak is a
complete set of cleansing products. Your hearing
care professional will be glad to advise you.
Never use household cleaning products (washing
powder, soap, etc.) to clean your hearing system.
6) Hair spray, face creams and make-up can damage
hearing systems. Remove the hearing system
before applying cosmetics.
7) If you experience any soreness or inflammation
in or behind your ear, contact your hearing care
professional.
8) If your hearing system fails to operate after you
have correctly inserted new batteries, contact your
hearing care professional for advice. Please remember
to bring your accessories (e.g. myPilot, iCom or
remote control) together with your hearing system
for service enquiries.
Maintenance
57
The symbol with the crossed out disposal bin
indicates that this hearing system shall not be
treated as household waste. Please hand over
your old or unused hearing system to the
applicable collection point for the recycling of
electrical and electronic equipment or bring it
to your hearing care professional for appropriate
disposal.
By ensuring this product is disposed of correctly,
you will help prevent potential negative effects
on the environment and human health.
58
Warning
Hearing system batteries are toxic when swallowed!
Keep them out of reach of children and pets. If
batteries are swallowed, please seek the advice of
a medical practitioner!
Only use hearing systems that have been specially
programmed for you by a hearing care professional.
Other instruments may be ineffective and may, in
certain cases, even damage your hearing.
X-ray radiation (e.g. CT scans, MRI scans) may
adversely affect the correct functioning of your
system. We recommend that you remove them
before undergoing X-ray procedures and keep them
outside the room.
Hearing systems in directional microphone mode
reduce mainly background sounds. Warning signals
coming from behind and vehicles’ horns approaching
from behind are partially or completely suppressed.
Changes or modifications made to this
equipment not expressly approved by Phonak
are not allowed.
59
Phonak offers you a comprehensive global warranty
which becomes effective on the date of purchase. Please
ask your hearing care professional about the details and
duration. This warranty covers any repairs due to defects
in material and/or workmanship. The warranty does not
cover damage from improper handling or care, exposure
to chemicals, immersion in water or undue stress.
Damage caused by third parties or non-authorized service
centers renders the Phonak warranty null and void. This
warranty does not include any services performed by
hearing care professionals in their offices. This warranty
applies to the Phonak products listed below:
Serial number Serial number
instrument – right: instrument – left:
Date of purchase: Date of purchase:
Service and Warranty
60
Notices
Notice 1
This instrument is certified under:
FCC ID: KWC-WHSBTE
IC: 2262A-WHS
This device complies with Part 15 of the FCC Rules
and with RSS-210 of Industry Canada. Operation is
subject to the following two conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received,
including interference that may cause undesired
operation.
Changes or modifications made to this equipment
not expressly approved by Phonak may void the FCC
authorization to operate this equipment.
Notice 2
This Class B digital apparatus complies with Canadian
ICES-003.
61
Notice 3
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
쐍 Reorient or relocate the receiving antenna
쐍 Increase the separation between the equipment
and receiver
쐍 Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected
쐍 Consult the dealer or an experienced radio/TV
technician for help
62
Group companies: (detailed information on
www.phonak.com)
Australia Phonak Australasia Pty. Ltd.
Baulkham Hills N.S.W 2153
Austria Hansaton Akustische Geräte GmbH
5020 Salzburg
Belgium Ets Lapperre B.H.A.C. NV
B-1702 Groot-Bijgaarden
Phonak Belgium NV, B-1700 Dilbeek
Brazil Phonak do Brasil –
Sistemas Audiológicos Ltda.
São Paulo – SP 04363-100
Canada Phonak Canada Limited
Mississauga, Ontario L5W OB3
China Phonak (Shanghai) Co. Ltd.
Shanghai City 200233
Denmark Phonak Danmark A/S
Østre Hougvej 42-44, 5500 Middelfart
France Phonak France SA, 69500 Bron
Germany Phonak GmbH, 70736 Fellbach-
Oeffingen, EC Representative
India Phonak India Pvt. Ltd., 100 034 New Delhi
Italy Phonak Italia S.r.l., 20159 Milano
Japan Phonak Japan Co., Ltd., Tokyo 101-0044
Jordan Phonak Middle East, 11181 Amman
Mexico Phonak Mexicana, S.A. de C.V. 03920
México, D.F.MEXICO
Netherlands Phonak B.V., 4131PN Vianen
New Zealand Phonak New Zealand Ltd., Takapuna
Auckland 9
Norway Phonak AS, 0105 Oslo
Phonak distributors worldwide
63
Poland Phonak Polska SP Z.0.0 00-567 Warszawa
Portugal Phonak Ibércia S.A., 03008 Alicante, Spain
Russian Federation Phonak CIS Ltd., Moscow, 115114
Spain Phonak Ibérica S.A., 03008 Alicante
Sweden Phonak AB, 117 43 Stockholm
Switzerland Phonak AG, Phonak Schweiz, 8712 Stäfa
Turkey Phonak Turkey A.S., 34357 Istanbul
United Kingdom Phonak UK Limited
Warrington, Cheshire WA1 1PP
USA Phonak LLC, Warrenville, IL 60555-3927
Independent general A complete list of Phonak distributors
distributors: is available at Phonak's Internet site:
www.phonak.com
Please visit us or ask your hearing care
professional for information.
Manufacturer: Phonak AG, Laubisrütistrasse 28
CH-8712 Stäfa, Switzerland
64
Safety notice
Operating
conditions
The CE symbol is a confirmation by Phonak AG
that Nios products and accessories meet
the requirements of directive 93/42/EEC on
medical devices and the R&TTE Directive
1999/5/EC on Radio and Telecommunication
Terminal Equipment.
The numbers after the CE symbol are the
numbers of consulted certified bodies under the
above mentioned directives.
This symbol indicates that Nios products
comply with requirements for a BF type applied
part according to EN 60601-1. The surface of
the hearing system is specified as applied part
type BF.
This symbol indicates that it is important that
the user refers to associated warnings given in
this user guide.
External devices may only be connected if
they have been tested in accordance with
corresponding IECXXXXX standards. Only use
accessories approved by Phonak AG.
The product has been designed for trouble-free
operation without restrictions when used as
intended, unless otherwise stated in this user
guide.
XXXX
65
Transportation and
storage conditions
Temperature should not exceed limits of
–20°/60° Celsius at a relative air humidity
of 65% for extended periods during
transportation and storage. Air pressure
between 500 and 1100 hPa is not
detrimental to the instrument.
0459
Australia & New Zealand
Brazil
China
Japan
South Korea
Notes
029-0221-02/V1.00/2009-03/A+W Printed in Switzerland, © Phonak AG, all rights reserved
www.phonak.com
Loading...
