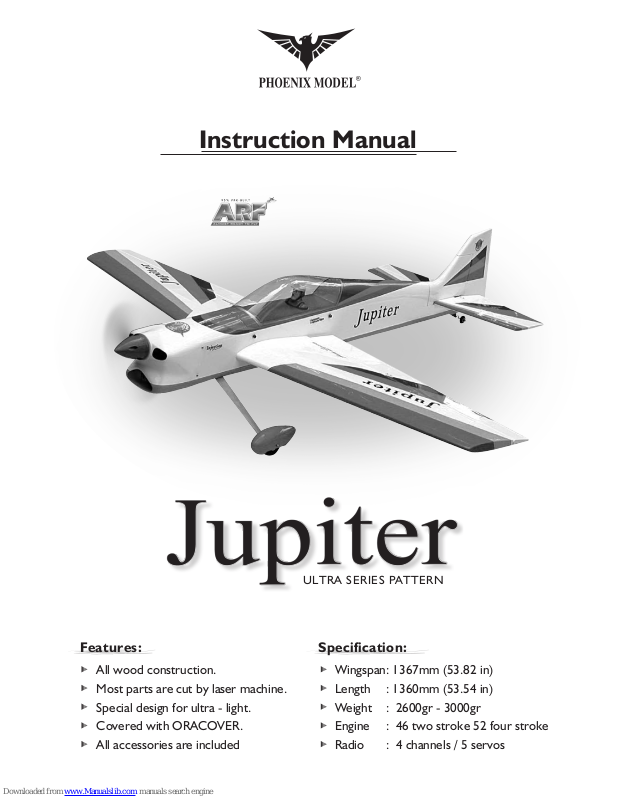

Instruction Manual
All wood construction.
Most parts are cut by laser machine.
Special design for ultra - light.
Covered with ORACOVER.
All accessories are included
Features:
Wingspan: 1367mm (53.82 in)
Length : 1360mm (53.54 in)
Weight : 2600gr - 3000gr
Engine : 46 two stroke 52 four stroke
Radio : 4 channels / 5 servos
Specification:
ULTRA SERIES PATTERN
MAIN GEAR ASSEMBLY
• (2) Main gear Aluminum
• (2) 65mm diameter wheels
• (2) Set of axles
• (2) Fiberglass wheel pants
• (4) 4mm x 20mm machine screws
• (4) 8mm flat washers
• (4) Lock washers
TAIL WHEEL ASSEMBLY
• (1) Tail wheel bracket w/wire
• (1) 25mm diameter wheel
• (2) 2mm wheel collar
• (2) Nylon control clasp
• (2) 2mm x 16mm wood screw
ELEVATOR CONTROL SYSTEM
• (2) Set aluminum control horn
• (4) 2mm x 30mm screw
• (2) M2 metal clevis
• (2) Silicone tube
• (1) Nylon snap keeper
• (1) Metal domino
• (1) 1.7mm x 100mm metal rod
RUDDER CONTROL SYSTEM
• (1) Set aluminum control horn
• (2) 2mm x 30mm screw
• (1) M2 metal clevis
• (1) Silicone tube
• (1) Nylon snap keeper
AILERON CONTROL SYSTEM
• (2) Set aluminum control horn
• (4) 2mm x 30mm screw
• (2) M2 metal clevis
• (2) Silicone tube
• (2) Nylon snap keeper
• (2) 1.7mm x 180mm metal rod
KIT CONTENTS: We have organized the parts as they come out of the box for better identification
during assembly. We recommend that you regroup the parts in the same manner. This will ensure you
have all of parts required before you begin assembly.
TOOLS AND SUPPLIES NEEDED.
• Medium C/A glue.
• 30 minute epoxy.
• 6 minute epoxy.
• Hand or electric drill.
• Assorted drill bits.
• Modeling knife.
• Straight edge ruler.
• 2 bender plier.
• Wire cutters.
• Masking tape.
• Thread lock.
• Paper towels.
• Rubbing alcohol
SUGGESTION
To avoid scratching your new airplane, do not
unwrap the pieces until they are needed for
assembly. Cover your workbench with an old towel or
brown paper, both to protect the aircraft and to
protect the table. Keep a couple of jars or bowls
handy to hold the small parts after you open the bag.
NOTE
Please trial fit all the parts. Make sure you have the
correct parts and that they fit and are aligned properly
before gluing! This will assure proper assembly. The
JUPITER ARF is hand made from natural materials,
every plane is unique and minor adjustments may
have to be made. However, you should find the fit
superior and assembly simple.
The painted and plastic parts used in this kit are fuel
proof. However, they are not tolerant of many harsh
chemicals including the following: paint thinner, C/A
glue accelerator, C/A glue debonder and acetone. Do
not let these chemicals come in contact with the
colors on the covering and the plastic parts.
SAFETY PRECAUTION
• This is not a toy
• Be sure that no other flyers are using your radio
frequency.
• Do not smoke near fuel
• Store fuel in a cool, dry place, away from
children and pets.
• Wear safety glasses.
• The glow plug clip must be securely attached to
the glow plug.
• Do not flip the propeller with your fingers.
• Keep loose clothing and wires away from the propeller.
• Do not start the engine if people are near. Do not
stand in line with the side of the propeller.
• Make engine adjustments from behind the propeller
only. Do not reach around the spinning propeller.
MAIN GEAR ASSEMBLY
• (2) Main gear Aluminum
• (2) 65mm diameter wheels
• (2) Set of axles
• (2) Fiberglass wheel pants
• (4) 4mm x 20mm machine screws
• (4) 8mm flat washers
• (4) Lock washers
TAIL WHEEL ASSEMBLY
• (1) Tail wheel bracket w/wire
• (1) 25mm diameter wheel
• (2) 2mm wheel collar
• (2) Nylon control clasp
• (2) 2mm x 16mm wood screw
ELEVATOR CONTROL SYSTEM
• (2) Set aluminum control horn
• (4) 2mm x 30mm screw
• (2) M2 metal clevis
• (2) Silicone tube
• (1) Nylon snap keeper
• (1) Metal domino
• (1) 1.7mm x 100mm metal rod
RUDDER CONTROL SYSTEM
• (1) Set aluminum control horn
• (2) 2mm x 30mm screw
• (1) M2 metal clevis
• (1) Silicone tube
• (1) Nylon snap keeper
AILERON CONTROL SYSTEM
• (2) Set aluminum control horn
• (4) 2mm x 30mm screw
• (2) M2 metal clevis
• (2) Silicone tube
• (2) Nylon snap keeper
• (2) 1.7mm x 180mm metal rod
1
KIT CONTENTS: We have organized the parts as they come out of the box for better identification
during assembly. We recommend that you regroup the parts in the same manner. This will ensure you
have all of parts required before you begin assembly.
KIT CONTENTS
MOTOR MOUNT ASSEMBLY
• (1) Nylon engine mount
• (4) 4mm x 25mm metal screw
• (8) Flat metal washer
• (4) Lock metal washer
• (4) 3mm x 20mm screw
THROTTLE CONTROL SYSTEM
• (1) 1,3mm x 500mm metal pushrod
• (1) 3,5mm x 350mm nylon pushrod housing
• (1) Metal connector
FUEL TANK
• (1) Nylon fuel tank
• (1) Pre - assembled stopper w / 3 tube
• (1) Metal clunk
MISCELLANEOUS ITEMS
• (1) 19mm x 348mm diameter aluminum dihedral
• (4) 6mm x 45mm nylon screws
• (2) 4mm x 30mm wood screws
• (4) 2.6mm x 10mm wood screws
• (1) Spinner
• (1) Block of wood
• (3) 1.7mm x 800mm metal rod
• (1) Cowling
• (1) Decal sheet
2
TOOLS AND SUPPLIES NEEDED.
• Medium C/A glue.
• 30 minute epoxy.
• 6 minute epoxy.
• Hand or electric drill.
• Assorted drill bits.
• Modeling knife.
• Straight edge ruler.
• 2 bender plier.
• Wire cutters.
• Masking tape.
• Thread lock.
• Paper towels.
• Rubbing alcohol
SUGGESTION
To avoid scratching your new airplane, do not
unwrap the pieces until they are needed for
assembly. Cover your workbench with an old towel or
brown paper, both to protect the aircraft and to
protect the table. Keep a couple of jars or bowls
handy to hold the small parts after you open the bag.
NOTE
Please trial fit all the parts. Make sure you have the
correct parts and that they fit and are aligned properly
before gluing! This will assure proper assembly. The
JUPITER ARF is hand made from natural materials,
every plane is unique and minor adjustments may
have to be made. However, you should find the fit
superior and assembly simple.
The painted and plastic parts used in this kit are fuel
proof. However, they are not tolerant of many harsh
chemicals including the following: paint thinner, C/A
glue accelerator, C/A glue debonder and acetone. Do
not let these chemicals come in contact with the
colors on the covering and the plastic parts.
SAFETY PRECAUTION
• This is not a toy
• Be sure that no other flyers are using your radio
frequency.
• Do not smoke near fuel
• Store fuel in a cool, dry place, away from
children and pets.
• Wear safety glasses.
• The glow plug clip must be securely attached to
the glow plug.
• Do not flip the propeller with your fingers.
• Keep loose clothing and wires away from the propeller.
• Do not start the engine if people are near. Do not
stand in line with the side of the propeller.
• Make engine adjustments from behind the propeller
only. Do not reach around the spinning propeller.
INSTALLING THE AILERON SERVOS
1. Install the rubber grommets and brass eyelets
onto the aileron servo.
2. Turn the wing panel right side up. Using a
modeling knife, remove the covering from over
the precut servo box.
3. Connect a 150-200mm servo extension to each
aileron servo.
4. Place the aileron servo into the servo box.
Secure the servo in place using the mounting
screws provided.
1
Remove the
covering
2
5. Repeat step # 2 - # 4 to install the second
aileron servo in the opposite wing half.
INSTALLING THE CONTROL HORNS
1. One aileron control horn in positioned on each
aileron. Using a ruler and a pen, locate and
mark the location of the control horn. It should
be mounted on the bottom side of the aileron at
the leading edge, in line with the aileron
pushrod.
2. Drill 3mm hole through the aileron and screw
the control horn in place.
3. Repeat step # 1 - # 2 to install the control horn
INSTALLING THE AILERON LINKAGES
1. Working with the aileron linkage for now, thread
2. Attach the clevis to the outer hole in the control
3. Locate one nylon servo arm, and using wire
4. Plug the aileron servo into the receiver and
5. Center the aileron and hold it in place using a
RIGHT WRONG
3. Check the fit of the horizontal stabilizer in its
4. With the horizontal stabilizer correctly aligned,
2. Draw a center line onto the horizontal stabilizer.
3
3
3. Repeat step # 1 - # 2 to install the control horn
on the opposite aileron.
INSTALLING THE AILERON LINKAGES
1. Working with the aileron linkage for now, thread
one clevis at least 14 turns onto one of the
2mm x 180mm threaded wires.
2. Attach the clevis to the outer hole in the control
horn. Install a silicone tube on the clevis.
3. Locate one nylon servo arm, and using wire
cutters, remove all but one of the arms. Using a
1.6mm drill bit, enlarge the third hole out from
the center of the arm to accommodate the
aileron pushrod wire.
4. Plug the aileron servo into the receiver and
center the servo. Install the servo arm onto the
servo. The servo arm should be perpendicular
to the servo and point toward the middle of the
wing.
5. Center the aileron and hold it in place using a
couple of pieces of masking tape.
6. With the aileron and aileron servo centered,
carefully place a mark on the aileron pushrod
wire where it crosses the hole in the servo arm.
7. Using pliers, carefully make a 90 degree bend
down at the mark made. Cut off the excess
wire, leaving about 4mm beyond the bend.
5
Silicone Tube
6
Screw

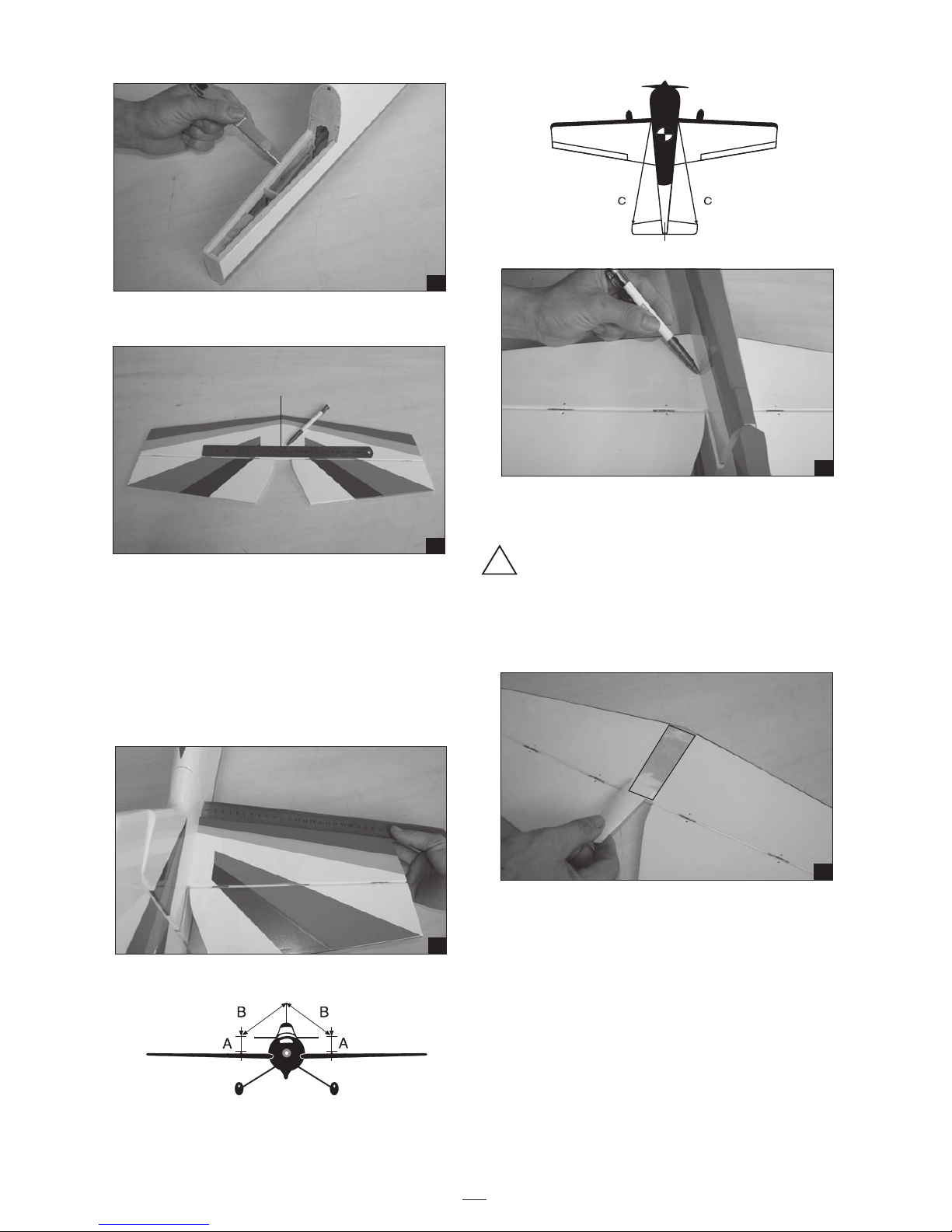

HORIZONTAL STABILIZER INSTALLATION
PARTS REQUIRED
· (1) Horizontal stabilizer with Elevator halves.
1. Using a modeling knife, cut away the covering
from the fuselage for the stabilizer and remove .
8. Insert the 90 degree bend down through the
hole in the servo arm. Install one nylon snap
keeper over the wire to secure it to the arm.
Install the servo arm retaining screw and
remove the masking tape from the aileron.
9. Repeat step # 4 - # 11 to install the second
aileron linkage. After both linkages are
completed, connect both of the aileron servo
leads using a Y-harness you have purchased
separately.
INSTALLING THE WING TO THE FUSELAGE
Attach the wings to the joiner tube and using the
nylon thumbscrews to secure the wing panels
to the fuselage.
4
Nut
RIGHT WRONG
2. Place the vertical stabilizer into the mounting
7. After the epoxy has fully cured, remove the
VERTICAL STABILIZER INSTALLATION
PARTS REQUIRED
· (1) Vertical stabilizer with rudder.
1. Using a modeling knife, remove the covering on
Draw a center line
8
4
7
3. Check the fit of the horizontal stabilizer in its
slot. Make sure the horizontal stabilizer is
square and centered to the fuselage by taking
measurements, but don't glue anything yet.
4. With the horizontal stabilizer correctly aligned,
mark the shape of the fuselage on the bottom
of the tail plane using a water soluble /
non-permanent felt-tip pen.
5. Remove the stabilizer. Using the lines you just
drew as a guide, carefully remove the covering
from between them using a modeling knife.
When cutting through the covering to remove it,
cut with only enough pressure to only cut
through the covering it's self. Cutting into the
balsa structure may weaken it. This could lead
to possible failure during flight.
2. Draw a center line onto the horizontal stabilizer.
9
6. When you are sure that everything is aligned
correctly, mix up a generous amount of 30
minute epoxy. Apply a thin layer to the bottom
of the stabilizer mounting area and to the
stabilizer mounting platform sides in the
fuselage. Place the stabilizer in place and
re-align. Double check all of your
measurements one more time before the epoxy
cures. Remove any excess epoxy using a
paper towel and rubbing alcohol and hold the
stabilizer in place with T-pins or masking tape.
10
11
!
12
Glue with epoxy
5
2. Place the vertical stabilizer into the mounting
platform on the top of the horizontal stabilizer.
Mark the shape of the vertical stabilizer onto
the top of the horizontal stabilizer using a
felt-tip pen.
4. Place the vertical stabilizer back in place. Using
a triangle, check to ensure that the vertical
stabilizer is aligned 90 degree to the horizontal
stabilizer.
5. When you are sure that everything is a aligned
correctly, mix up a generous amount of 30
minute epoxy. Apply a thin layer to the
mounting platform and to the vertical stabilizer
mounting area. Apply epoxy to the lower rudder
hinge. Set the stabilizer in place and re-align.
Double check all of your measurements once
more before the epoxy cures. Remove any
excess epoxy using a paper towel and rubbing
alcohol and hold the vertical stabilizer in place
with T-pins or masking tape. Allow the epoxy to
fully cure before proceeding.
13
7. After the epoxy has fully cured, remove the
masking tape or T-pins used to hold the
stabilizer in place and carefully inspect the glue
joints. Use more epoxy to fill in any gaps that
were not filled previously and clean up the
excess using a paper towel and rubbing
alcohol.
VERTICAL STABILIZER INSTALLATION
PARTS REQUIRED
· (1) Vertical stabilizer with rudder.
1. Using a modeling knife, remove the covering on
the rear of the vertical stabilizer.
14
15
16
TAIL WHEEL INSTALLATION
PARTS REQUIRED
· (1) Tail wheel bracket w/wire.
· (1) Wheel collar with set screw.
· (1) 25mm diameter tail wheel.
· (2) Nylon control clasp.
· (2) 3mm x 12mm screws.
3. Now, remove the vertical stabilizer and using a
modeling knife, carefully cut just inside the
marked lines and remove the film on the top of
the horizontal stabilizer. Just as you did with
the horizontal stabilizer, make sure you only
press hard enough to cut the film, not the balsa
horizontal stabilizer.
1. Set the tail wheel assembly in place on the
2. Drill 2,6mm pilot holes through the plywood
3. Secure the tail wheel bracket in place using two
4. Align the tail wheel wire so that the wire is
3. Using a modeling knife, carefully cut out two
Just cut only one side of the wheel pant, where
drill
INSTALLING THE WHEEL PANTS
1. Locate the wheel pants from the hardware bag.
2. Using a 5mm drill bit, carefully drill two pilot
19
1. Set the tail wheel assembly in place on the
plywood plate.
2. Drill 2,6mm pilot holes through the plywood
plate.
3. Secure the tail wheel bracket in place using two
3mm x 12mm screw.
4. Align the tail wheel wire so that the wire is
parallel with the bottom of the rudder. The
control clasp has a pre-drilled hole through the
top of it. Slide this hole on to the tail wheel wire
while sliding the clasp over the bottom of the
rudder.
!
4. Slide a 4.5mm nut/ three 16mm flat washers /
4.5mm nut / collar / wheel / collar onto the axle.
5. Slide the axle assembly into the wheel pant.
There are just one nut and two flat washers
outside of the wheel pant.
6. Remove one nut, one flat washer. Attach the
main landing gear to the axle.
7. Center both collars and wheel in the middle of
the wheel pant, lock both collars in place using
a hexagon 2mm screw.
8. With the landing gear in place, tighten two nuts.
3. Using a modeling knife, carefully cut out two
line from the margin of the hole onto the wheel
pant.
Just cut only one side of the wheel pant, where
the main gear will install. Be sure to make a left
and right wheel pant.
drill
cut
18
6
10mm flat washer
!
After installing the wheel pant, apply a small
drop of thin C/A to the bottom nut.
9. Repeat step # 1-8 to install the second wheel
pant assembly.
MAIN GEAR INSTALLATION
PARTS REQUIRED
· (2) Main gear.
· (2) 65mm diameter wheels.
· (2) Fiberglass wheel pants.
· (4) 4mm x 25mm machine screw.
· (4) 16mm flat washers
· (4) 16mm flat washers.
· (4) 4,5mm nut
· (4) Wheel collars + screws.
· (2) 4mm x 58mm axle.
INSTALLING THE WHEEL PANTS
1. Locate the wheel pants from the hardware bag.
Mark the locations of the mounting axles onto
the wheel pants. The locations of the two
mounting holes are the middle of the wheel
opening, on right side, left side and 10mm from
the bottom of the wheel pant.
2. Using a 5mm drill bit, carefully drill two pilot
holes through the wheel pant at the TWO
marks you made.
Screw
Clasps
17
INSTALLING THE MAIN LANDING GEAR
1. Four nuts have been installed at the factory.
2. Install main landing gear into the fuselage using
(4) 6mm x 20mm machine screws and 10mm
flat washers provided in the kit.
7
.
ENGINE INSTALLATION
PARTS REQUIRED
• (4) 3mm x 25mm wood csrew
• (1) 1.3mm x 500mm wire.
• (1) 3.5mm x 350 mm nylon pushrod housing.
• (1) Metal connector.
• (1) Engine mount
• (4) 4mm x 25mm screw
!
INSTALLING THE THROTTLE PUSHROD HOUSING
1. Install the engine mount into the fire wall using
4mm x 25mm screw.
2. Place the engine into the engine mount and
align it properly with the front of the cowling.
The distance from the firewall to the front of the
engine thrust washer should 110mm.
If your engine is equipped with a remote needle
valve, we suggest installing it into the engine at
this time.
3. Slide the pushrod housing through the hole in
the firewall, through the hole in the forward
bulkhead, and into the servo compartment.
4. Apply a couple of drops of thin C/A to the pushrod
housing where it exits the firewall and where it
passes through the forward bulkhead. This will
secure the housing in place.
5. Using a modeling knife, cut off the nylon pushrod
housing 26mm in front of the servo tray.
INSTALLING THE ENGINE
1. Locate the long piece of wire used for the
throttle pushrod. One end of the wire has been
pre-bend in to a "Z" bend at the factory. This
"Z" bend should be inserted into the throttle
arm of the engine when the engine is fitted onto
the engine mount. Fit the engine to the engine
mount using the screws provided.
10 down thrust
3
0
right thrust
20
21
!
FUEL TANK
PARTS REQUIRED
· (1) Nylon fuel tank.
· (1) Metal clunk.
· (1) Silicon tube.
· (1) Pre-assemble stopper.
· (1) 165mm x 250mm foam.
INSTALLING THE STOPPER ASSEMBLY
1. The stopper has been pre-assembled at the
factory.
2. Using a modeling knife, cut one length of silicon
fuel line (the length of silicon fuel line is
calculated by how the weighted clunk should
rest about 8mm away from the rear of the tank
and move freely inside the tank). Connect one
end of the line to the weighted clunk and the
other end to the nylon pick up tube in the
stopper.
3. Carefully bend the second nylon tube up at a 45
degree angle (using a cigarette lighter). This
tube will be the vent tube to the muffler.
4. Carefully bend the third nylon tube down at a 45
degree angle (using a cigarette lighter). This
tube will be vent tube to the fueling valve
When the stopper assembly is installed in the
tank, the top of the vent tube should rest just
below the top surface of the tank. It should not
touch the top of the tank.
!
5. Test fit the stopper assembly into the tank. It
6. When satisfied with the alignment of the stopper
7. Using a modeling knife, cut 3 lengths of fuel line
8. Feed three lines through the fuel tank
Blow through one of the lines to ensure the fuel
Do not secure the tank into place permanently
9. Secure the fuel tank using the plate of plywood
4. Install the clevis on the elevator pushrod. Make
5. The control horn should be mounted on the
6. Drill two 1.6mm holes through the elevator
7. Attach clevis to the third hole in the control
8. Locate one nylon servo arm, and using wire
9. Plug the elevator servo into the receiver and
10. Be sure both elevator halves are flat. Center
11. Connect two elevator purshord to the metal
12. With the elevator halves and elevator servo
13. Using pliers, carefully make a 90 degree bend
14. Insert the 90 degree bend up through the hole
15. Using thick CA glue, secure the pushrod
To carburator
To muffler
To vent Tube
23
24
Elevator servo
Rudder servo
Throttle servo
!
8
5. Test fit the stopper assembly into the tank. It
may be necessary to remove some of the
flashing around the tank opening using a
modeling knife. If flashing is present, make
sure none of it falls into the tank.
6. When satisfied with the alignment of the stopper
assembly tighten the 3mm x 20mm machine
screw until the rubber stopper expands and
seals the tank opening. Do not over tighten the
assembly as this could cause the tank to split.
7. Using a modeling knife, cut 3 lengths of fuel line
150mm long. Connect 2 lines to the 2 vent
tubes and 1 line to the fuel pickup tube in the
stopper.
8. Feed three lines through the fuel tank
compartment and through the pre-drilled hole in
the firewall. Pull the lines out from behind the
engine, while guiding the fuel tank into place.
Push the fuel tank as far forward as possible,
the front of the tank should just about touch the
back of the firewall.
Blow through one of the lines to ensure the fuel
lines have not become kinked inside the fuel
tank compartment. Air should flow through
easily.
Do not secure the tank into place permanently
until after balancing the airplane. You may
need to remove the tank to mount the battery in
the fuel tank compartment.
9. Secure the fuel tank using the plate of plywood
and glue it by C.A glue.
22
SERVO INSTALLATION
INSTALLING THE FUSELAGE SERVOS
1. Install the rubber grommets and brass collets
into the elevator, rudder and throttle servos.
Test fit the servos into the servo tray. Trim the
tray if necessary to fit your servos
2. Mount the servos to the tray using the mounting
screws provided with your radio system.
INSTALLING THE ELEVATOR PUSHROD
PARTS REQUIRED
· (2) Wire pushrod
· (1) Domino connector
· (2) Clevis
· (2) Silicone tube
· (1) Nylon snap keeper
· (2) Nylon control horn w/plate
· (4) 2mm x 14mm sheet metal screw
· (2) Elevator pushrod
1. Locate the pushrod exit slot on the right side
and left side of the fuselage. It is located
slightly ahead and below the horizontal
stabilizer.
2. Carefully cut away the covering material from
the slot.
3. Working from inside the fuselage, slide the
threaded end of the pushrod until it reaches the
exit slot. Carefully reach in with a small screw
driver and guide the pushrod out of the exit
slot.
C.A glue
27
4. Install the clevis on the elevator pushrod. Make
sure 6mm of thread shows inside the clevis.
5. The control horn should be mounted on the
bottom, left side and right side of the elevator at
the leading edge, in line with the elevator
pushrod.
6. Drill two 1.6mm holes through the elevator
using the control horn as a guide and screw the
control horn in place.
7. Attach clevis to the third hole in the control
horn. Install a silicone tube on the clevis.
8. Locate one nylon servo arm, and using wire
cutters, remove all but one of the arms. Using a
2mm drill bit, enlarge the third hole out from the
center to accommodate the elevator pushrod
wire.
9. Plug the elevator servo into the receiver and
center the servo. Install the servo arm onto the
servo. The servo arm should be perpendicular
to the servo and point toward the middle of the
fuselage.
10. Be sure both elevator halves are flat. Center
both elevator halves and hold them in place
using a couple of pieces of masking tape.
11. Connect two elevator purshord to the metal
domino connector and secure it. Insert the wire
pushrod into the metal domino connector and
secure it.
12. With the elevator halves and elevator servo
centered, carefully place a mark on the elevator
pushrod wire where it crosses the hole in the
servo arm.
13. Using pliers, carefully make a 90 degree bend
up at the mark made. Cut off the excess wire,
leaving about 8mm beyond the bend.
14. Insert the 90 degree bend up through the hole
in the servo arm, install one nylon snap keeper
over the wire to secure it to the arm. Install the
servo arm retaining screw and remove the
masking tape the elevator halves.
15. Using thick CA glue, secure the pushrod
sleeves to the pushrod sleeve guide.
9
26
25
Control horn elevator
INSTALLING THE RUDDER PUSHROD
PARTS REQUIRED
· (1) Clevis
· (1) Nylon snap keeper.
· (1) Silicone tube
· (1) Nylon control horn W/plate.
· (2) 2mm x 14mm machine screw
· (1) Rudder pushrod.
1. Locate the pushrod exit slot on the left of the
fuselage.
2. Carefully cut away the covering material from
the slot.
3. Working from inside the fuselage, slide the
threaded end of the remaining pushrod down
the inside of the fuselage until the pushrod
reaches the exit slot. Carefully reach in with a
small screw driver and guide the pushrod out of
the exit slot.
4. Install the clevis on the rudder pushrod. Make
sure 6mm of thread shows inside the clevis.
5. The control horn should be mounted on the left
side of the rudder at the leading edge, in line
with the rudder pushrod.
6. Drill two 1.6mm holes through the rudder using
the control horn as a guide and screw the
control horn in place.
7. Attach clevis to the third hole in the control
horn. Install a silicone tube on the clevis.
8. Locate one nylon servo arm, and using wire
9. Plug the rudder servo into the receiver and
10. Center the rudder and hold it in place using a
11. With the rudder and rudder servo centered,
12. Using a pliers, carefully make a 90 degree
13. Insert the 90 degree bend up through the hole
14. Using thick CA glue, secure the pushrod
INSTALLING THE THROTTLE
1. Install one adjustable metal connector through
.
8. Locate one nylon servo arm, and using wire
cutters, remove all but one of the arms using a
2mm drill bit, enlarge the third hole out from the
center to accommodate the rudder pushrod
wire.
9. Plug the rudder servo into the receiver and
center the servo. Install the servo arm onto the
servo.
10. Center the rudder and hold it in place using a
piece of masking tape.
11. With the rudder and rudder servo centered,
carefully place a mark on the rudder pushrod
wire where it crosses the hole in the servo arm.
12. Using a pliers, carefully make a 90 degree
bend up at the mark made. Cut off excess wire,
leaving about 8mm beyond the bend.
13. Insert the 90 degree bend up through the hole
in the servo arm. Install one nylon snap keeper
over the wire to secure it to the arm. Install the
servo arm retaining screw and remove the
masking tape from the rudder.
14. Using thick CA glue, secure the pushrod
sleeves to the pushrod sleeve guide.
10
30
29
28
!
After installing the adjustable metal connector
apply a small drop of thin C/A to the bottom
nut. This will prevent the connector from
loosening during flight.
2. Plug the throttle servo into the receiver and turn
on the radio system. Check to ensure that the
throttle servo output shaft is moving in the
correct direction. When the throttle stick is
moved forward from idle to full throttle, the
throttle barrel should also open and close using
this motion. If not, reverse the direction of the
servo, using the transmitter.
3. Slide the adjustable metal connector / servo
arm assembly over the plain end of the
pushrod wire. Position the throttle stick and the
throttle trim at their lowest positions.
4. Manually push the carburator barrel fully
closed. Angle the arm back about 45 degree
from center and attach the servo arm onto the
servo. With the carburator barrel fully closed,
tighte the set screw in the adjustable metal
connector.
5. Remove the excess throttle pushrod wire using
wire cutters and install the servo arm retaining
screw.
INSTALLING THE THROTTLE
1. Install one adjustable metal connector through
the third hole out from the center of one servo
arm, enlarge the hole in the servo arm using a
2mm drill bit to accommodate the servo
connector. Remove the excess material from
the arm.
MOUNTING THE COWL
PARTS REQUIRED
· (1) fiberglass cowl
. (1) Wooden engine mount
· (4) 3mm x 12mm
1. Remove the muffler and needle valve assembly
from the engine. Slide the fiberglass cowl over
the engine.
2. Measure and mark the locations to be cut out
for engine head clearance, needle valve,
muffler,. Remove the cowl and make these
cutouts using a rotary tool with a cutting disc
and a rotary sanding drum attachment.
3. Slide the cowl back into place. Align the front of
the cowl with the crankshaft of the engine. The
front of the cowl should be positioned so the
crankshaft is in the middle of the precut
opening. Hold the cowl firmly in place using
several pieces of masking tape.
!
4. While holding the cowl firmly in position, drill
5. Using a 3mm drill bit, enlarge the four holes in
Enlarging the holes through the cowl will prevent
6. Slide the cowl back over the engine and secure
7. Install the muffler. Connect the fuel and pressure
FINAL ASSEMBLY
PARTS REQUIRED
· (1) Spinner
· (2) 3 mm x 20mm wood screw.
!
4. While holding the cowl firmly in position, drill
four 1,6mm pilot holes through both the cowl
and the side edges of the firewall.
5. Using a 3mm drill bit, enlarge the four holes in
the cowling
Enlarging the holes through the cowl will prevent
the fiberglass from splitting when the mounting
screws are installed.
6. Slide the cowl back over the engine and secure
it in place using four 3mm x 12mm wood
screws.
7. Install the muffler. Connect the fuel and pressure
lines to the carburator, muffler and fuel filler
valve. Tighten the screws completely.
31
11
!
34
Switch
Receiver
Battery
32
33
!
INSTALLING THE SPINNER
Install the spinner back-plate, propeller and
spinner cone. The spinner cone is held in place
using two 3mm x 20mm wood screws.
The propeller should not touch any part of the
spinner cone. If it dose, use a sharp modeling
knife and carefully trim away the spinner cone
where the propeller comes in contact with it.
INSTALLING THE RECEIVER AND BATTERY
1. Plug the servo leads and the switch lead into
the receiver. You may want to plug an aileron
extension into the receiver to make plugging in
the aileron servo lead easier when you are
installing the wing. Plug the battery pack lead
into the switch.
2. Wrap the receiver and battery pack in the
protective foam to protect them from vibration.
Use a rubber band or masking tape to hold the
foam in place.
3. Strap the battery pack and receiver onto the
wing joiner tube in the fuselage.
Do not permanently secure the receiver and
battery until after balancing the model.
4. Using a 2mm drill bit, drill a hole through the
side of the fuselage, near the receiver, for the
antenna to exit.
INSTALLING THE SWITCH
1. The switch should be mounted on the fuselage
side, opposite the muffler, close enough to the
receiver so the lead will reach. Use the face
plate of the switch cut out and locate the
mounting holes.
2. Cut out the switch hole using a modeling knife.
Use a 2mm drill bit and drill out the two
mounting holes through the fuselage side.
3. Secure the switch in place using the two
machine screws provided with the radio
system.
FINAL ASSEMBLY
PARTS REQUIRED
· (1) Spinner
· (2) 3 mm x 20mm wood screw.
Cowl area cutout
for proper airflow
to carburetor.
BALANCING
1. It is critical that your airplane be balanced
THE CENTER OF GRAVITY IS LOCATED
2. Mount the wing to the fuselage. Using a couple
3. Turn the airplane upside down. Place your
4. If the nose of the plane falls, the plane is nose
!
LATERAL BALANCE
After you have balanced a plane on the C.G.
5. Turn the airplane upside down. Attach one loop
6. If one side of the wing fall, that side is heavier
Always operate in open areas, away
from factories, hospitals, schools,
buildings and houses etc. NEVER fly
your aircraft close to people or built
up areas.
NEVER fly near power lines, aerials
or other dangerous areas including
airports, motorways etc.
NEVER fly in wet conditions or on
windy or stormy days.
ALWAYS adjust the engine from
behind the propeller, and do not allow
any part of your body to be in line
with the propeller.
12
BALANCING
1. It is critical that your airplane be balanced
correctly. Improper balance will cause your
plane to lose control and crash.
THE CENTER OF GRAVITY IS LOCATED
110mm BACK FROM THE LEADING EDGE
OF THE WING, AT THE FUSELAGE. This
location is recommended for initial test flying
and trimming. There is a 5mm margin forward
and aft. BALANCE A PLANE UPSIDE DOWN
WITH THE FUEL TANK EMPTY.
2. Mount the wing to the fuselage. Using a couple
of pieces of masking tape, place them on the
top side of the wing 110mm back from the
leading edge, at the fuselage sides.
3. Turn the airplane upside down. Place your
fingers on the masking tape and carefully lift
the plane .
4. If the nose of the plane falls, the plane is nose
heavy. To correct this first move the battery
pack further back in the fuselage. If this is not
possible or does not correct it, stick small
amounts of lead weight on the fuselage under
the horizontal stabilizer. If the tail of the plane
falls, the plane is tail heavy. To correct this,
move the battery and receiver forward or if this
is not possible, stick weight into the firewall.
When balanced correctly, the airplane should
sit level or slightly nose down when you lift it up
with your fingers.
FLIGHT PREPARATION
PRE FLIGHT CHECK
1. Completely charge your transmitter and receiver
batteries before your first day of flying.
2. Check every bolt and every glue joint in your
plane to ensure that everything is tight and well
bonded.
3. Double check the balance of the airplane.
4. Check the control surface.
5. Check the receiver antenna. It should be fully
extended and not coiled up inside the fuselage.
6. Properly balance the propeller.
CONTROL THROWS
1. We highly recommend setting up a plane using
the control throws listed.
2. The control throws should be measured at the
widest point of each control surface.
3. Check to be sure the control surfaces move in
the correct directions.
110mm
!
LATERAL BALANCE
After you have balanced a plane on the C.G.
You should laterally balance it. Doing this will
help the airplane track straighter.
5. Turn the airplane upside down. Attach one loop
of heavy string to the engine crankshaft and
one to the tail wheel wire. With the wings level,
carefully lift the airplane by the string. This may
require two people to make it easier.
6. If one side of the wing fall, that side is heavier
than the opposite. Add small amounts of lead
weight to the bottom side of the lighter wing
half's wing tip. Follow this procedure until the
wing stays level when you lift the airplane.
Ailerons : 12mm up 12mm down
Elevator : 15mm up 15mm down
Rudder : 20mm right 20mm left
Elevator Control
Aileron Control
12mm
12mm
Rudder Control
20mm
20mm
15mm
15mm
I/C FLIGHT WARNINGS
Always operate in open areas, away
from factories, hospitals, schools,
buildings and houses etc. NEVER fly
your aircraft close to people or built
up areas.
THE PROPELLER IS DANGEROUS
Keep fingers, clothing (ties, shirt
sleeves, scarves) or any other loose
objects that could be caught or drawn
in, away from the propeller. Take care
at ALL times.
Keep all onlookers (especially small
children and animals) well back from
the area of operation. This is a flying
aircraft, which will cause serious
injury in case of impact with a person
or animal.
NEVER fly near power lines, aerials
or other dangerous areas including
airports, motorways etc.
NEVER use damaged or deformed
propellers or spinners.
DO NOT dispose of empty fuel
containers on a fire, this can lead to
an explosion.
NEVER fly in wet conditions or on
windy or stormy days.
ALWAYS adjust the engine from
behind the propeller, and do not allow
any part of your body to be in line
with the propeller.
13
I/C FLIGHT GUIDELINES
When ready to fly, first extend the
transmitter aerial.
Operate the control sticks on the
transmitter and check that the control
surfaces move freely and in the
CORRECT directions.
ALWAYS land the model INTO the
wind, this ensures that the model lands
at the slowest possible speed.
Switch on the transmitter.
Switch off the transmitter.
Check that the transmitter batteries
have adequate power.
Switch off the receiver.
Switch on the receiver.
ALWAYS take off into the wind.
Check that the wings are correctly
fitted to the fuselage.
If the model does not respond correctly
to the controls, land it as soon as
possible and correct the fault.
Empty the fuel tank after flying, fuel left
in the tank can cause corrosion and
lead to engine problems.
Made in Vietnam
Loading...
