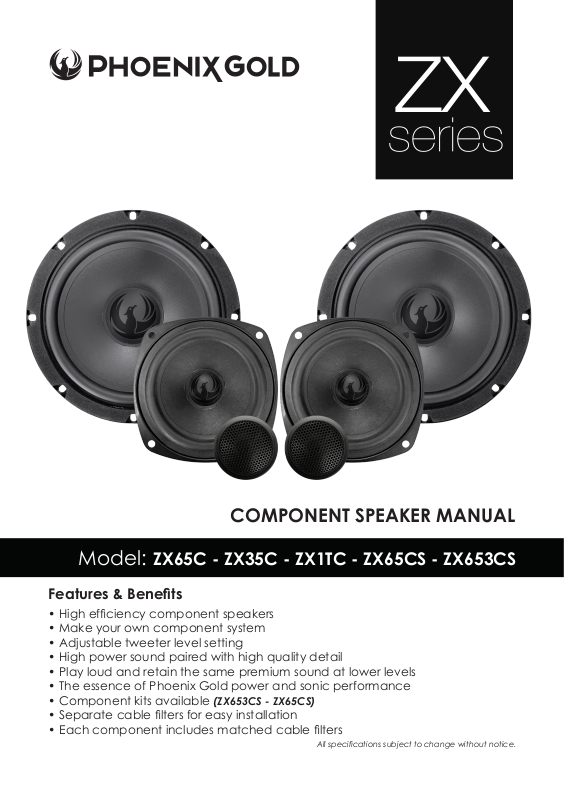

COMPONENT SPEAKER MANUAL
ZX
Model: ZX65C - ZX35C - ZX1TC - ZX65CS - ZX653CS
Features & Benets
• High efciency component speakers
• Make your own component system
• Adjustable tweeter level setting
• High power sound paired with high quality detail
• Play loud and retain the same premium sound at lower levels
• The essence of Phoenix Gold power and sonic performance
• Component kits available (ZX653CS - ZX65CS)
• Separate cable lters for easy installation
• Each component includes matched cable lters
All specications subject to change without notice.
Page 2
ZX65C - 6.5”/165mm 2-Way Midrange Woofer
SPECIFICATION ZX65C
Speaker 6.5”
Max Power (Watts) 120 Watts
RMS Power (Watts) 60 Watts
Filter Design (LP) 6dB
Crossover Point (Hz) 4000Hz (LP)
Voice Coil (Diameter) 25mm
Sensitivity 89dB (1W/1m)
Magnet / Cone (Material) Ferrite / Polypropylene
Impedance 4 Ohm
Diameter 165mm
Depth 64mm
Installation
Make sure the enclosure is rmly xed in your vehicle. Check before drilling or cutting holes. DO NOT work near fuel
tanks, fuel lines hydraulic lines or electrical wiring.
DO NOT mount speaker or tweeter in such a way as to pinch or damage the wires.
This woofer is supplied with a set of custom ZX grills.
Filter Usage
Filters are used to divide the different frequencies to different speakers. It’s very important to use the right lters with the
right speakers, as failure to do so will damage the speakers. Please follow the guide below and make sure you use these
lters in the right way.
Low-pass (6dB) lter for use with a 2-way system.
© 2021 Phoenix Gold | A Brand of AAMP Global
www.phoenixgold-eu.com
Page 3
ZX35C - 3.5”/89mm Midrange Speaker
SPECIFICATION ZX35C
Speaker 3.5”
Max Power (Watts) 40 Watts
RMS Power (Watts) 20 Watts
Filter Design (BP & LP) 6dB
Crossover Point (Hz) 350Hz - 4000Hz (BP)
Voice Coil (Diameter) 20.4mm
Sensitivity 86dB (1W/1m)
Magnet / Cone (Material) Ferrite / Paper
Impedance 8 Ohm
Diameter 90mm
Depth 40mm
Installation
Make sure the enclosure is rmly xed in your vehicle. Check before drilling or cutting holes. DO NOT work near fuel
tanks, fuel lines hydraulic lines or electrical wiring.
DO NOT mount speaker or tweeter in such a way as to pinch or damage the wires.
Filter Usage
Filters are used to divide the different frequencies to different speakers. It’s very important to use the right lters with the
right speakers, as failure to do so will damage the speakers. Please follow the guide below and make sure you use these
lters in the right way.
Band-pass (6dB) lter for use with a 2-way system.

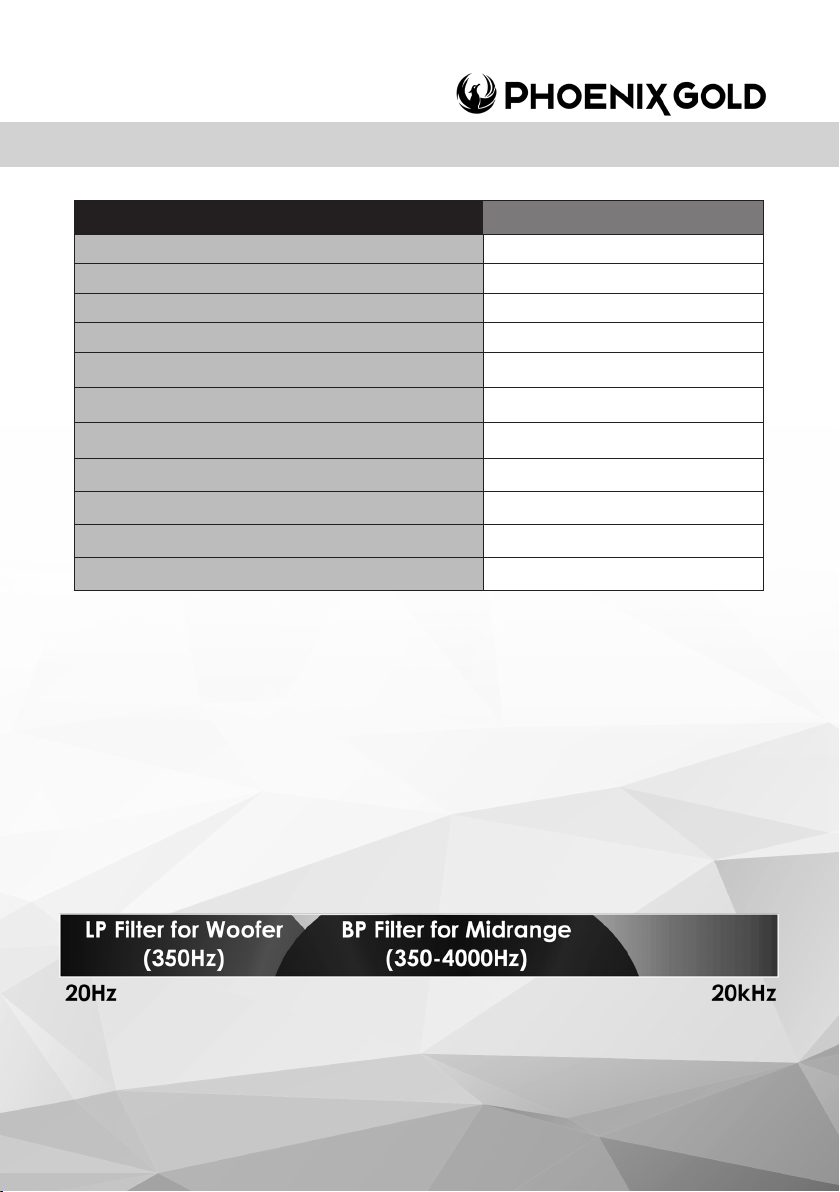

Low-pass (6dB) lter for use with a 3-way system with additional woofer. This lter is supplied in the ZX35C box, but is to
be used with a compatible woofer.
© 2021 Phoenix Gold • www.phoenixgold-eu.com
Page 4

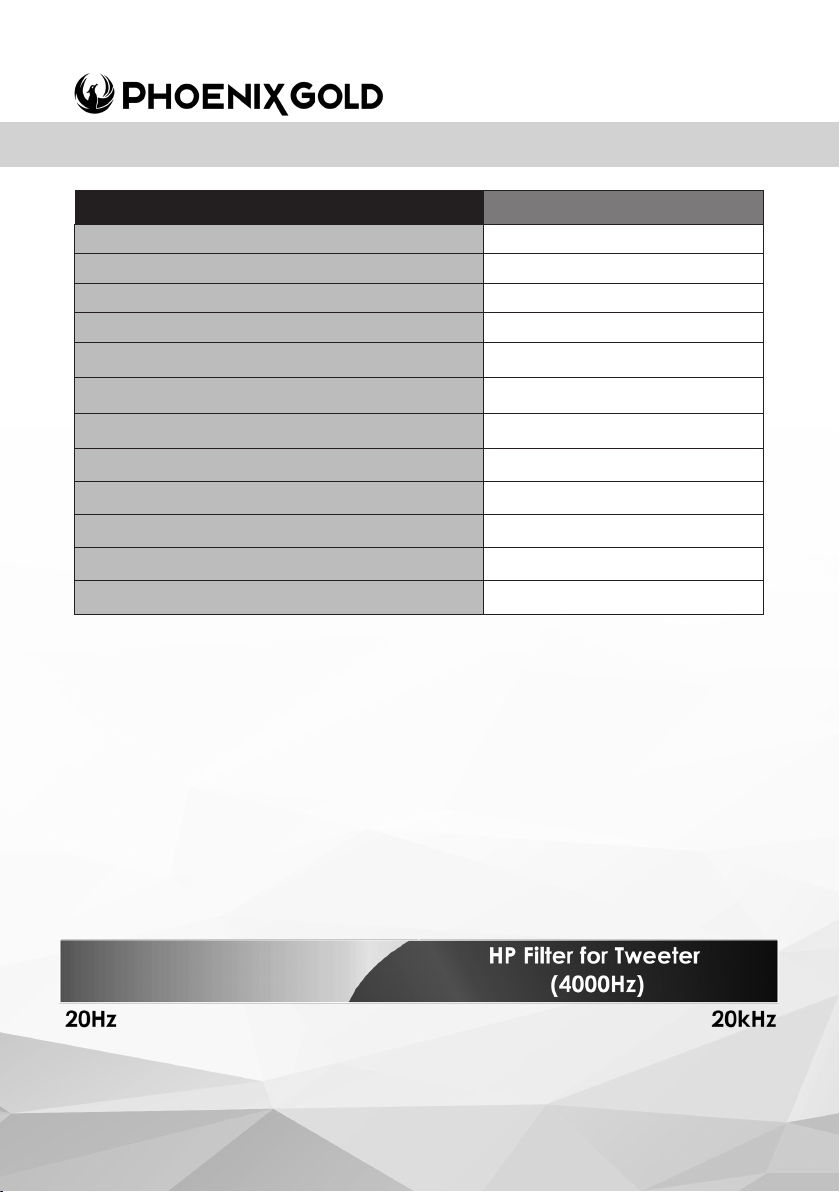

ZX1TC - 1”/25mm Soft Dome Tweeter
SPECIFICATION ZX1TC
Speaker 1”
Max Power (Watts) 40 Watts
RMS Power (Watts) 20 Watts
Filter Design (HP) 12dB
Crossover Point (Hz) 4000Hz (HP)
Tweeter Level Adjustment 0dB & -2dB
Sensitivity 91dB (1W/1m)
Magnet / Cone (Material) Neodymium / Silk
Impedance 4 Ohm
Diameter 25mm
Tweeter Depth 20mm
Housing Depth 39mm
Installation
Make sure the enclosure is rmly xed in your vehicle. Check before drilling or cutting holes. DO NOT work near fuel
tanks, fuel lines hydraulic lines or electrical wiring.
Located on the tweeter will be 2 thin wires with a male and a female connector - these areto control the tweeter level
adjustment. As default the tweeter will register at -2dB. When these wires are connected together, the attenuation level
will 0dB.
DO NOT mount speaker or tweeter in such a way as to pinch or damage the wires.
Filter Usage
Filters are used to divide the different frequencies to different speakers. It’s very important to use the right lters with the
right speakers, as failure to do so will damage the speakers. Please follow the guide below and make sure you use these
lters in the right way.
High-pass (12dB) lter for use with a 2-way or 3-way system.
© 2021 Phoenix Gold | A Brand of AAMP Global
www.phoenixgold-eu.com
Page 5
ZX65CS - 2-Way Component Speaker Kit
SPECIFICATION ZX65CS
Speaker 6.5” Midrange Woofer / 1” Tweeter
Max Power (Watts) 160 Watts
RMS Power (Watts) 80 Watts
Filter Design (HP / LP) 6dB / 12dB
Crossover Point (Hz) 4000Hz (LP & HP)
Tweeter Level Adjustment 0dB & -2dB
Voice Coil (Diameter) 25mm
Sensitivity 89dB (1W/1m) / 90dB (1W/1m)
Speaker Magnet / Cone (Material) Ferrite / Polypropylene
Tweeter Magnet / Cone (Material) Neodymium / Silk
Impedance 4 Ohm
Diameter 165mm / 25mm
Speaker Depth 64mm
Tweeter Depth 20mm
Housing Depth 39mm
Installation
Make sure the enclosure is rmly xed in your vehicle. Check before drilling or cutting holes. DO NOT work near fuel
tanks, fuel lines hydraulic lines or electrical wiring.
Located on the tweeter will be 2 thin wires with a male and a female connector - these areto control the tweeter level
adjustment. As default the tweeter will register at -2dB. When these wires are connected together, the attenuation level
will 0dB.
DO NOT mount speaker or tweeter in such a way as to pinch or damage the wires.
Filter Usage
Filters are used to divide the different frequencies to different speakers. It’s very important to use the right lters with the
right speakers, as failure to do so will damage the speakers. Please follow the guide below and make sure you use these
lters in the right way.
High-pass (12dB) lter for use with tweeter in a 2-way system.
Low-pass (6dB) lter for use with midrange woofer in a 2-way system.
© 2021 Phoenix Gold • www.phoenixgold-eu.com
Page 6

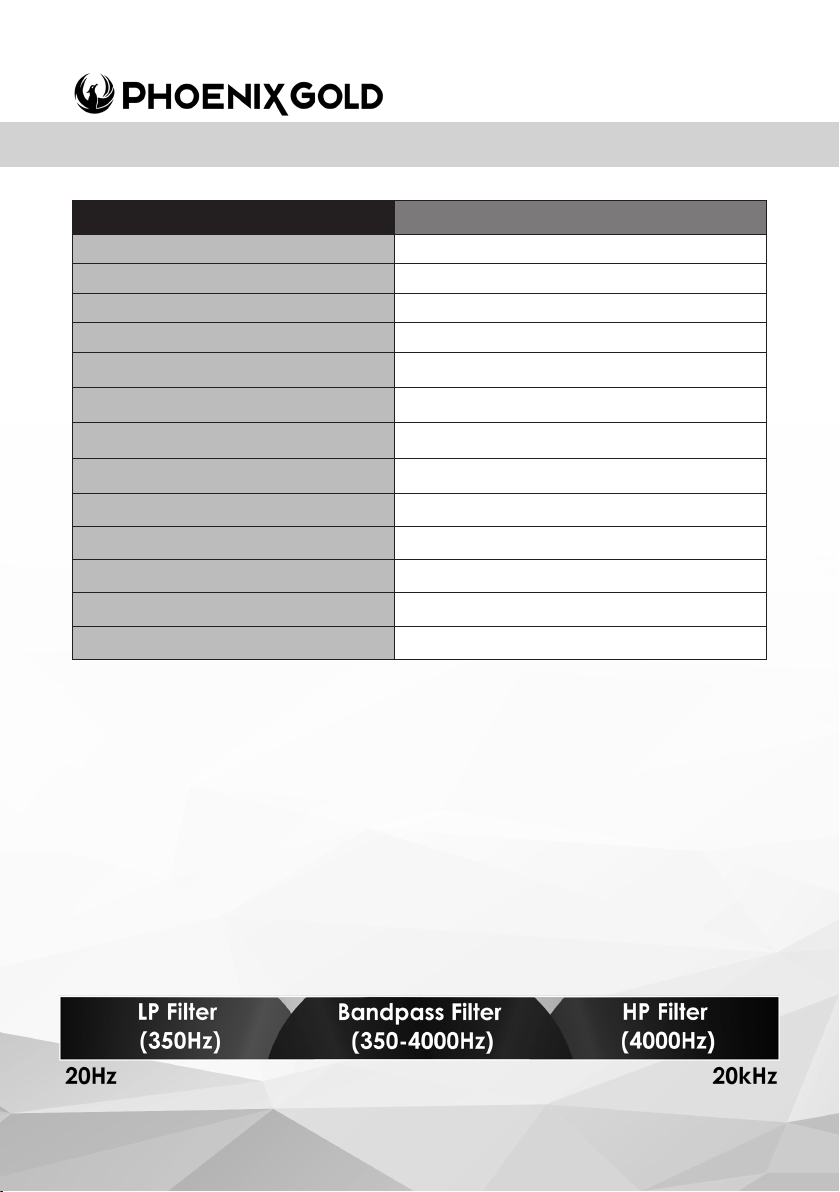

ZX653CS - 3-Way Component Speaker Kit
SPECIFICATION ZX653CS
Speaker 6.5” Woofer / 3.5” Midrange / 1” Tweeter
Max Power (Watts) 200 Watts
RMS Power (Watts) 100 Watts
Filter Design (LP / BP / HP) 6dB / 6dB / 12dB
Crossover Point (Hz) 350-4000Hz
Tweeter Level Adjustment 0dB & -2dB
Voice Coil (Diameter) 25mm / 20.4mm
Sensitivity 89dB / 86dB / 91dB (1W/1m)
Impedance 4 Ohm
Diameter 165mm / 90mm / 25mm
Speaker Depth 64mm / 40mm
Tweeter Depth 20mm
Housing Depth 39mm
Installation
Make sure the enclosure is rmly xed in your vehicle. Check before drilling or cutting holes. DO NOT work near fuel
tanks, fuel lines hydraulic lines or electrical wiring.
Located on the tweeter will be 2 thin wires with a male and a female connector - these areto control the tweeter level
adjustment. As default the tweeter will register at -2dB. When these wires are connected together, the attenuation level
will 0dB.
DO NOT mount speaker or tweeter in such a way as to pinch or damage the wires.
Filter Usage
Filters are used to divide the different frequencies to different speakers. It’s very important to use the right lters with
the right speakers, as failure to do so will damage the speakers. Please follow the guide below and make sure you use
these lters in the right way.
High-pass (12dB) lter for use with tweeter in a 3-way system.
Band-pass (6dB) lter for use with midrange speaker in a 3-way system.
Low-pass (6dB) lter for use with midrange woofer in a 3-way system.
© 2021 Phoenix Gold | A Brand of AAMP Global
www.phoenixgold-eu.com
Page 7

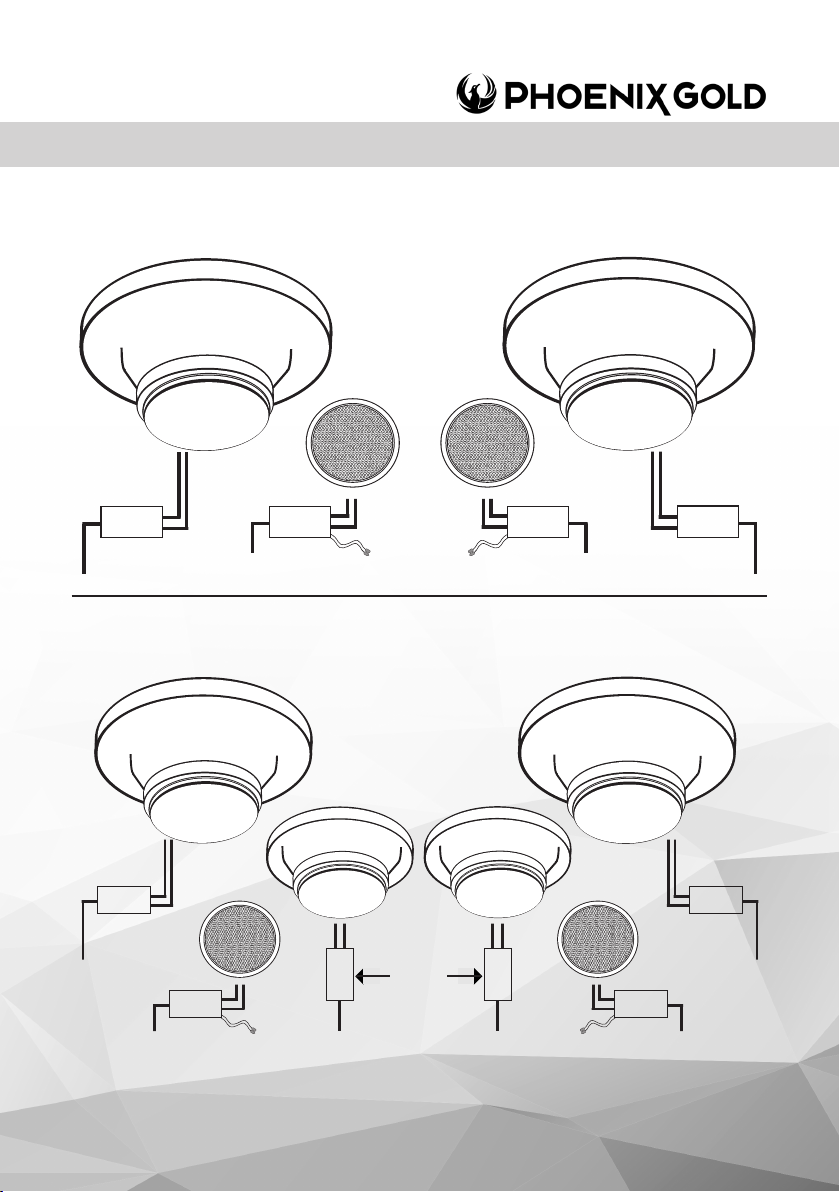

ZX653CS / ZX65CS - Component Speaker Kits
ZX65CS - ZX65C + ZX1TC
ZX65C ZX65C
ZX1TC ZX1TC
4000Hz 4000Hz4000Hz 4000Hz
**
ZX653CS - ZX65C + ZX35C + ZX1TC
ZX65C ZX65C
350Hz 350Hz
ZX1TC ZX1TC
4000Hz 4000Hz
* Wires used to adjust tweeter level. Disconnected = -2dB. Connected = 0dB damping.
ZX35C ZX35C
350-4000Hz
*
*
© 2021 Phoenix Gold • www.phoenixgold-eu.com
Page 8
Disclaimer
Always ensure the enclosure is securely attached, to avoid movement. PHOENIX GOLD accepts no responsibility for
damage or injury in relation to inappropriate securing of this product.
Phoenix Gold Product Warranty
LIMITED WARRANTY ON SPEAKERS
Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years
from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an
authorized Phoenix Gold dealer in the United States of America only. Should service be necessary under this warranty
for any reason due to manufacturing defect or malfunction, Phoenix Gold will (at its discretion) repair or replace
the defective product with new or re-manufactured product at no charge. Damage caused by the following is
not covered under warranty: accident, misuse, abuse, product modication or neglect, failure to follow installation
instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or
consequential damages and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to
accident or normal wear and tear is not covered under warranty.
INTERNATIONAL WARRANTIES:
Products purchased outside the United States of America are covered only by that country’s Authorized Phoenix Gold
reseller and not by Phoenix Gold. Consumers needing service or warranty information for these products must contact
that country’s reseller for information.
© 2021 Phoenix Gold | A Brand of AAMP Global
www.phoenixgold-eu.com
REV 26/04/22
