ZX400
Ti
/
ZX600TiWeb Manual
PGTECH-AMP001A
TABLE OF CONTENTS
Features 02
Specifications 03
Operational Details 04-06
System Design, PowerFlowtmSystem 07-08
System Design, Examples 09-1 4
Installation, Mounting 15
Installation, Power & Speaker Connections 16
Installation, Input Sensitivity & Bass Adjustment 17
Trouble-Shooting 18- 19
Warranty Information 20
Ti
ZX
amp manual
pg.01
FEATURES
• TCCHtmThermal Convection Cooled Heatsink. This proprietary design uses a variable speed
fan to ensure that the ZXTikeeps its cool when the music gets hot!
• High-current Triple Darlington output stage. This tried and true topology is the standard for
outstanding dynamic peak output performance
• TAIMtmTimed Acoustically Integrated Muting. Ensures dead silent turn on & off. No clicks, pops
or buzzes
• Tri-lineartmcapability allows simultaneous stereo and bridged operation
• Output current sensing allows the ZXTito automatically optimize the power supply and output
stage to reliably operate at impedances as low as 2 ohms bridged or 1 ohm stereo
• Intuitive crossover configuration switch assures easy initial setup
• 24dB per octave, high pass or low pass crossover. Continuously variable from 40 Hz to 800 Hz
• Auxiliary outputs route high pass, low pass or full range signals to another amplifier
• Twin-TtmBass Boost circuit provides up to 18dB of boost at 45 Hz
• SuperbritetmTri-LED power-on indicator
• Independent Thermal and Overload protection LED indicators
• Custom formed chassis with unique Titanium finish
• 24kt gold plated power and speaker terminals
• 2-ounce copper, double-sided G10 glass-epoxy printed circuit boards
• Replaceable insulated mounting feet
• Audiophile grade capacitors and 1% tolerance metal film resistors throughout the audio path
• Optional LPL44tmLow Pass Level controller allows the driver to adjust bass volume from the
driver’s seat
• Optional RDDPtmRemote Diagnostic Display Panel uses two tri-color LED’s allowing the driver to
monitor the amplifier’s battery voltage, power-on, thermal and overload status
• Optional SDTtmSuperior Digital Technology allows the driver to monitor the amplifier’s battery
voltage with a vacuum florescent display along with a tri-color LED indicating power-on, thermal
and overload status
Ti
ZX
amp manual
pg.02
SPECIFICATIONS
Continuous Output Power at 1% THD (Wrms):
ZX600Ti
Into 4 ohms Stereo @ 12.5 Vdc (IASCA/USAC) 75 x 2
Into 4 ohms Stereo @ 14.4 Vdc 150 x 2
Into 2 ohms Stereo @ 14.4 Vdc 300 x 2
Into 4 ohms Bridged @ 14.4 Vdc 600 x 1
Minimum Speaker Load, Bridged 2 ohms
Minimum Speaker Load, Stereo 1 ohm
Recommended Fuse Size, Stereo 4 ohms / Stereo 2 ohms / Bridged 60 / 80 / 80 amp
Continuous Current Draw @ Full Power * 60 amps
Peak Current Draw @ Full Power ** 85 amps
Dimensions, Chassis (inches) 15.00 L x 9.00 W x 2.25 H
Dimensions, Overall (inches) 16.00 L x 10.00 W x 2.25 H
ZX400Ti
Into 4 ohms Stereo @ 12.5 Vdc (IASCA/USAC) 37 x 2
Into 4 ohms Stereo @ 14.4 Vdc 100 x 2
Into 2 ohms Stereo @ 14.4 Vdc 200 x 2
Into 4 ohms Bridged @ 14.4 Vdc 400 x 1
Minimum Speaker Load, Bridged 2 ohms
Minimum Speaker Load, Stereo 1 ohm
Recommended Fuse Size, Stereo 4 ohms / Stereo 2 ohms / Bridged 50 / 60 / 60 amp
Continuous Current Draw @ Full Power * 45 amps
Peak Current Draw @ Full Power ** 65 amps
Dimensions, Chassis (inches) 11.25 L x 9.00 W x 2.25 H
Dimensions, Overall (inches) 12.25 L x 10.00 W x 2.25 H
Common Specifications
Total Harmonic Distortion < 0.02 %
Signal to Noise Ratio (A-weighted) > 100 dB
Frequency Response +/- 1 dB, 20 Hz to 20 kHz
Bass Boost 0 to +18 dB @ 45 Hz
Crossover Frequency Range 40 Hz to 800 Hz
Crossover Slope 24 dB per octave
Input Sensitivity 200 millivolts to 6 volts
Input Impedance > 30 kohms
Input Voltage Range 0.2 volts to 6 volts
Power Supply Operating Range 10.5 Vdc to 15.5 Vdc
Typical current draw at idle < 3 amps
*Average continuous current draw when playing typical music material.
**Average peak current needed for musical peaks (<20ms) when playing typical music material.
Due to ongoing research and development, features, specifications and availability are subject to change without notice.
Ti
ZX
amp manual
pg.03

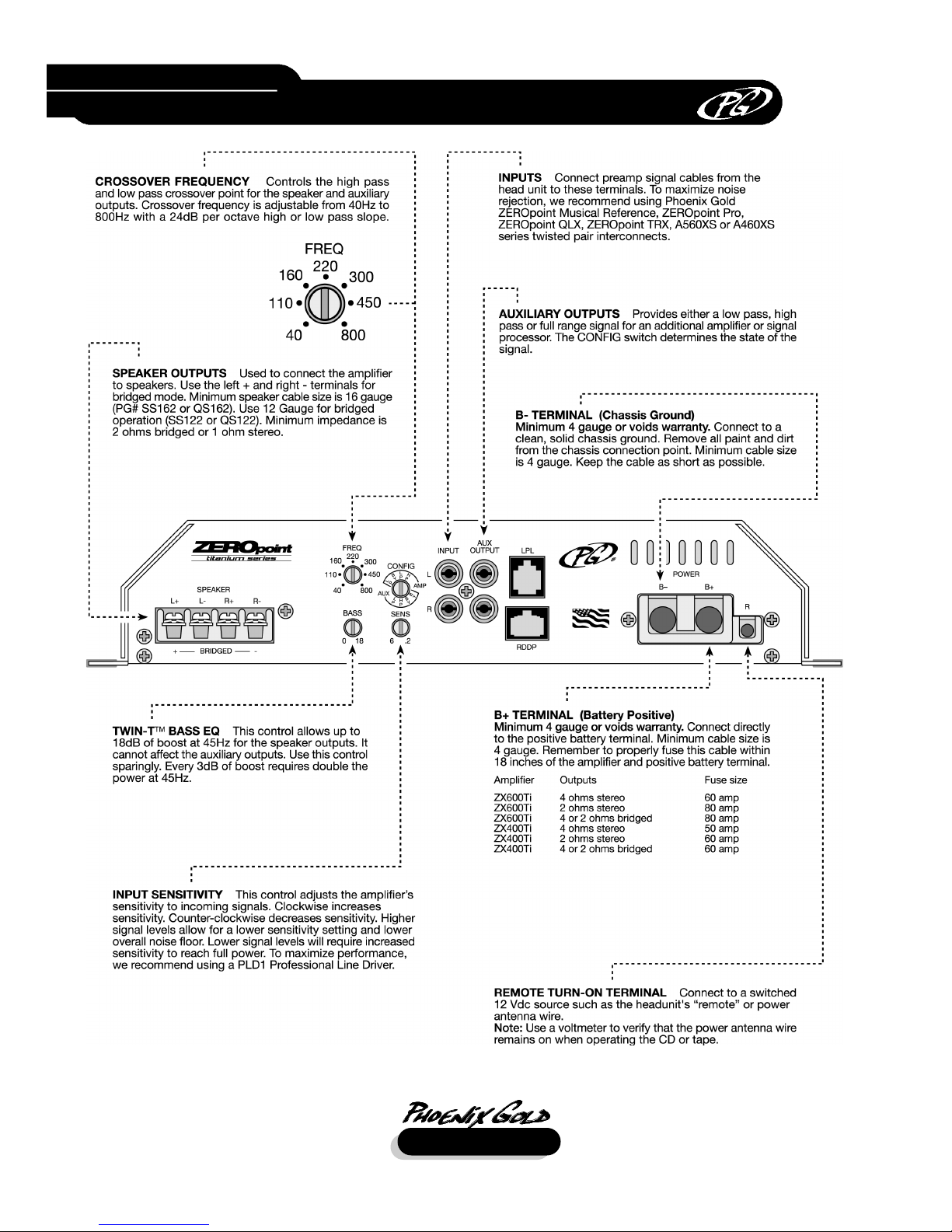

OPERATIONAL DETAILS
Ti
ZX
amp manual
pg.04

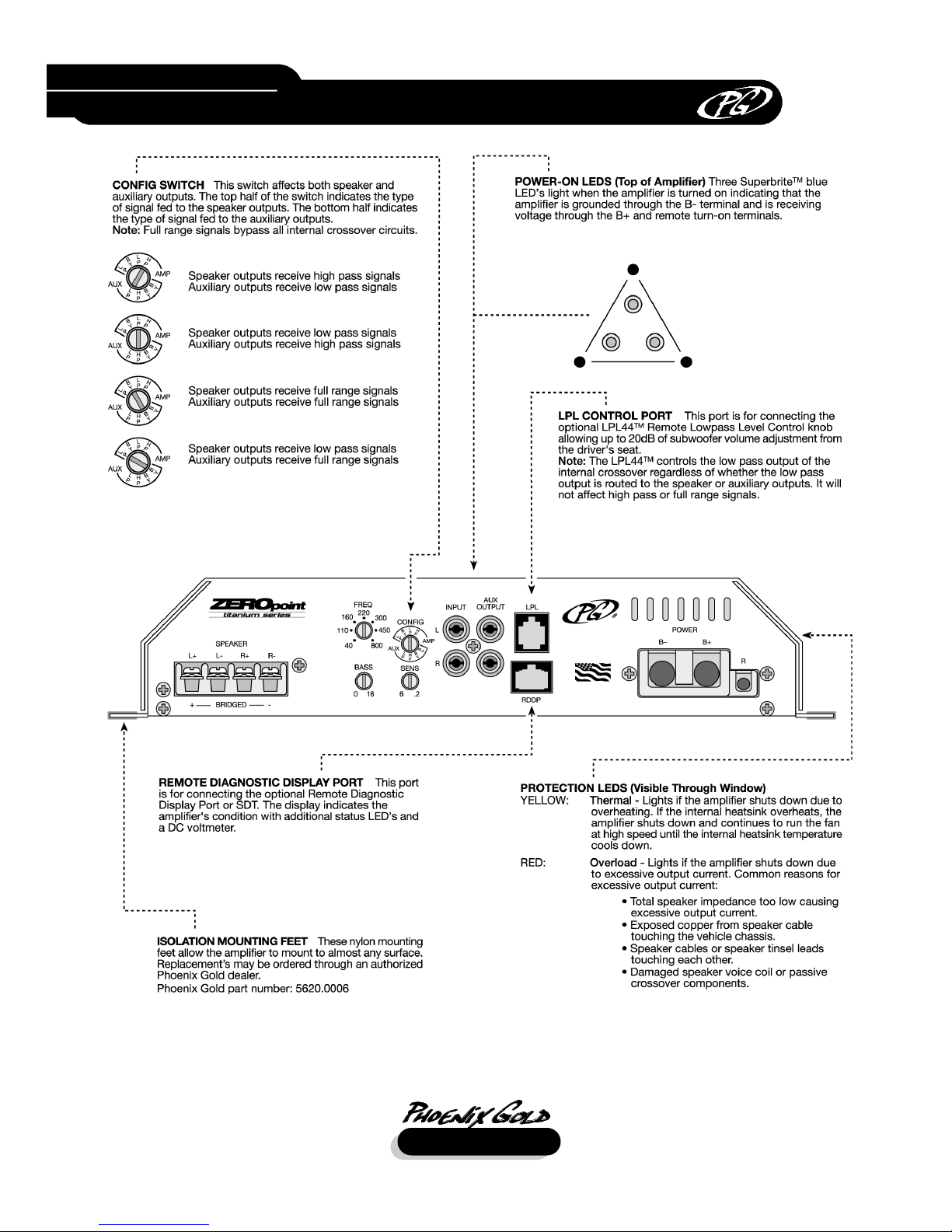

OPERATIONAL DETAILS
Ti
ZX
amp manual
pg.05

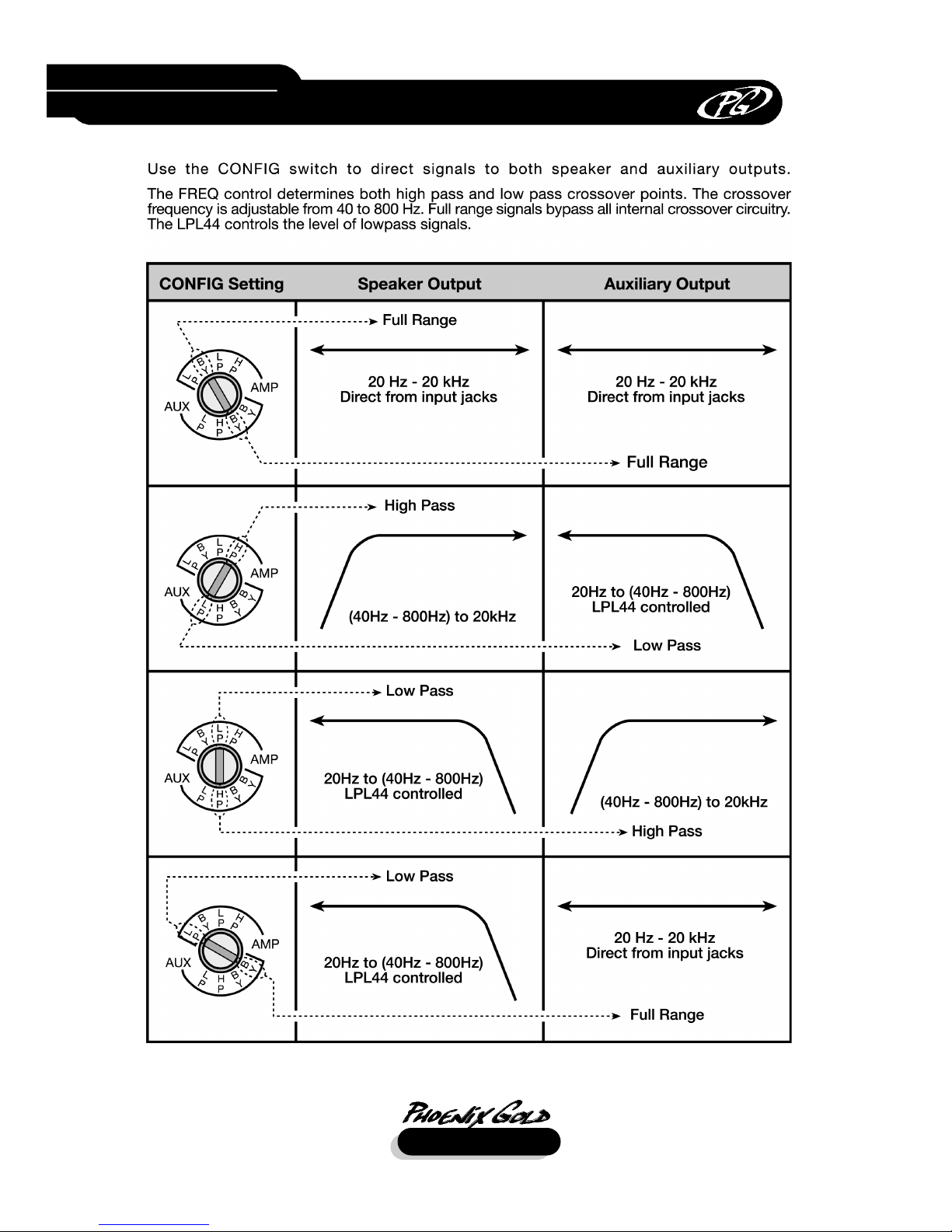

OPERATIONAL DETAILS
Ti
ZX
amp manual
pg.06
