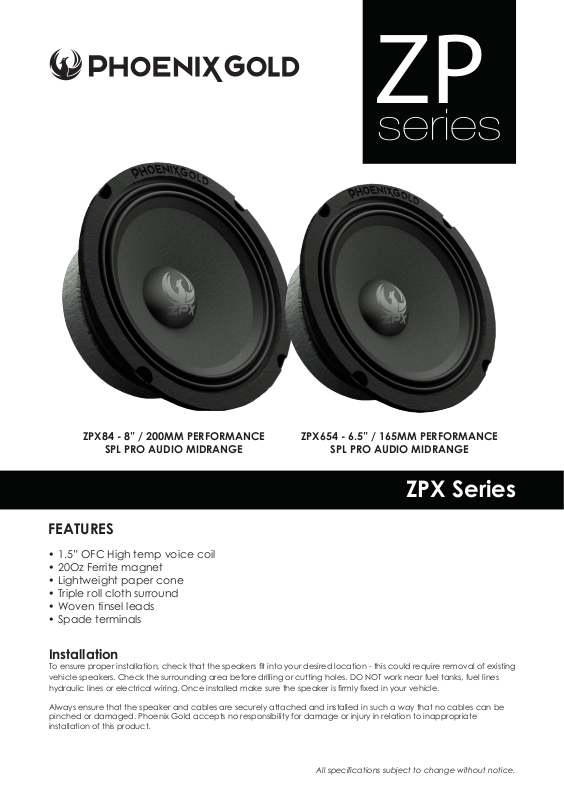

Page 1
ZP
ZPX84 - 8” / 200MM PERFORMANCE
SPL PRO AUDIO MIDRANGE
ZPX654 - 6.5” / 165MM PERFORMANCE
SPL PRO AUDIO MIDRANGE
ZPX Series
FEATURES
• 1.5” OFC High temp voice coil
• 20Oz Ferrite magnet
• Lightweight paper cone
• Triple roll cloth surround
• Woven tinsel leads
• Spade terminals
Installation
To ensure proper installation, check that the speakers t into your desired location - this could require removal of existing
vehicle speakers. Check the surrounding area before drilling or cutting holes. DO NOT work near fuel tanks, fuel lines
hydraulic lines or electrical wiring. Once installed make sure the speaker is rmly xed in your vehicle.
Always ensure that the speaker and cables are securely attached and installed in such a way that no cables can be
pinched or damaged. Phoenix Gold accepts no responsibility for damage or injury in relation to inappropriate
installation of this product.
All specications subject to change without notice.
Page 2
ZPX Series - 6.5”/165mm & 8”/200mm Performance Pro Audio Midrange
SPECIFICATION ZPX654 ZPX84
Speaker Type: PRO Audio Midrange Speaker PRO Audio Midrange Speaker
Speaker Size: 6.5” (165mm) 8” (200mm)
Impedance: 4 Ω 4 Ω
Frequency Response: 100Hz - 10kHz 80Hz - 9000Hz
Power Handling (RMS): 200W 225W
Power Handling (MAX): 400W 450W
Sensitivity: 91.4dB (1W/1m) 92.5dB (1W/1m)
Re: 3.2 Ohm 3.2 Ohm
Fs: 117.8 Hz 98 Hz
Qms: 5.71 5.51
Qes: 0.86 0.96
Qts: 0.75 0.82
Cms: 0.18 mm/N 0.19 mm/N
Vas: 4.8 L 12 L
BL: 5.3 N/A 5.4 N/A
Sd: 136.8 cm2 213.8 cm2
Mms: 10 gr 14.1 gr
Voice Coil Diameter: 1.5” (38mm) 1.5” (38mm)
Outer Diameter: 165mm 211mm
Mounting Diameter: 141mm 183mm
Mounting Depth: 75mm 83mm
Speaker Grills No No
Disclaimer
Ensure your safety and the well-being of those around you by following these essential guidelines:
• Keep all product materials and packaging away from children, pets, or anyone at risk of suffocation.
• Exposure to noise levels above 85 dB can cause permanent hearing damage.
• Extreme sound frequencies reduce perception abilities that are essential in road trafc conditions; do not let loud
volumes distract from being mindful behind the wheel.
• Phoenix Gold takes no responsibility for any physical harm or damage caused by improper use of their products.
• Ensure that all metals and raw materials are disposed of in accordance with local regulations and environmental
standards to minimise any negative impact on the environment.
© 2023 Phoenix Gold | A Brand of AAMP Global
phoenixgold-eu.com
Warranty
Phoenix Gold products come with a
limited warranty and are covered by our
regional distribution partners and their
terms and conditions.
You can nd out more information by
contacting your local retailer or distributor.
REV 09/03/2023
