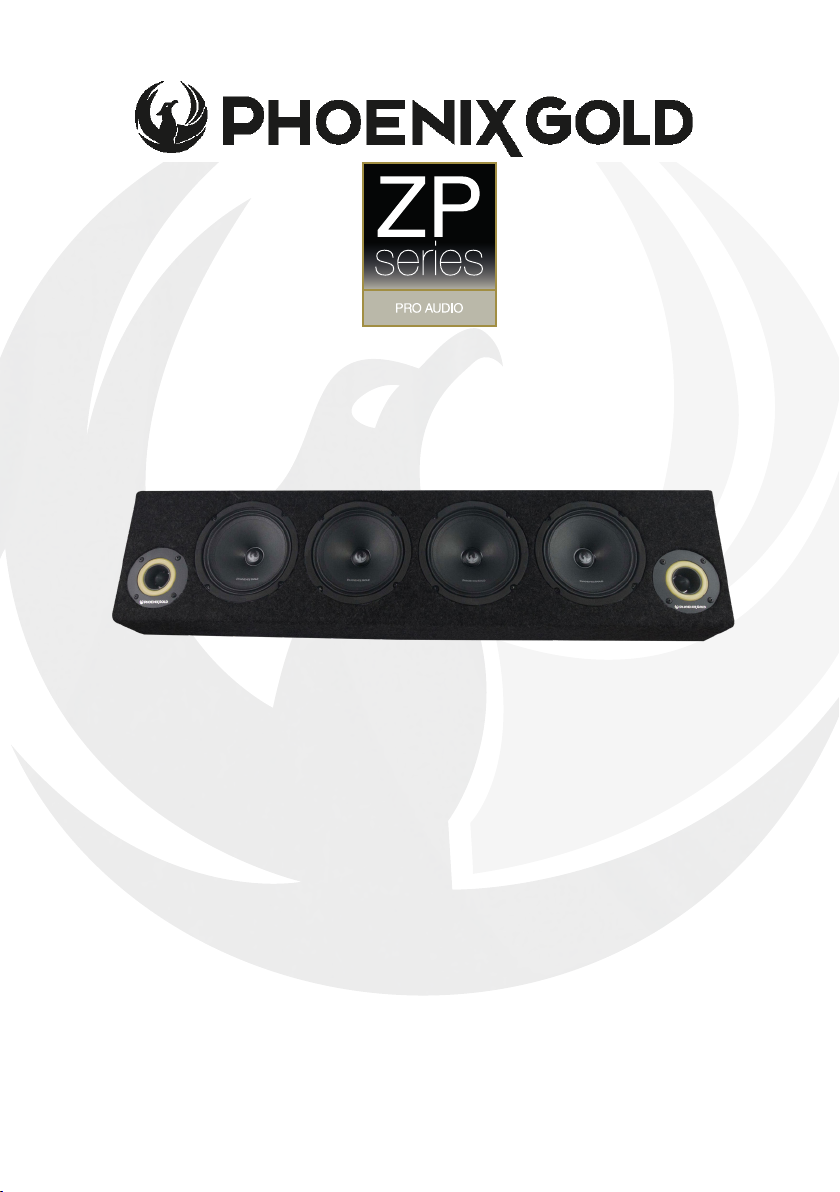

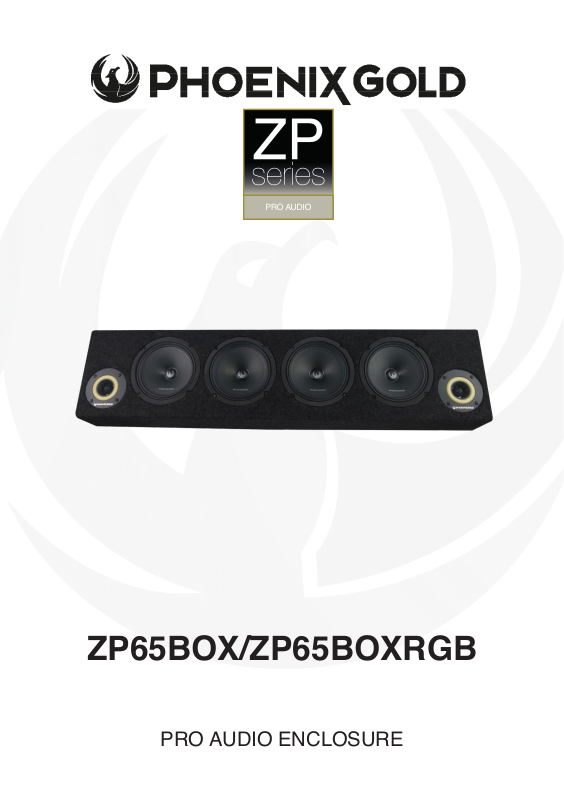

Page 1

ZP65BOX/ZP65BOXRGB

PRO AUDIO ENCLOSURE

Page 2

SPECIFICATIONS

Specications: ZP65BOX ZP65BOXRGB

Type: Pro Audio Enclosure Pro Audio Enclosure

Power (RMS): 850w 850w

Power (MAX): 1700w 1700w

Frequency Response: 90Hz - 20Khz 90Hz - 20Khz

Impedance: 4Ω 4Ω

Midrange Speaker: 4 x ZP65 6.5” 4 x ZP65 6.5”

Tweeter: 2 x ZPRO36 3.8” 2 x ZPRO36 3.8”

Dimensions: 920 x 200.25 x 160mm 920 x 200.25 x 160mm

RGB Illumination : NO YES

CRITICAL DIMENSIONS RGB INSTRUCTIONS

920

200.25

160

87.69

180

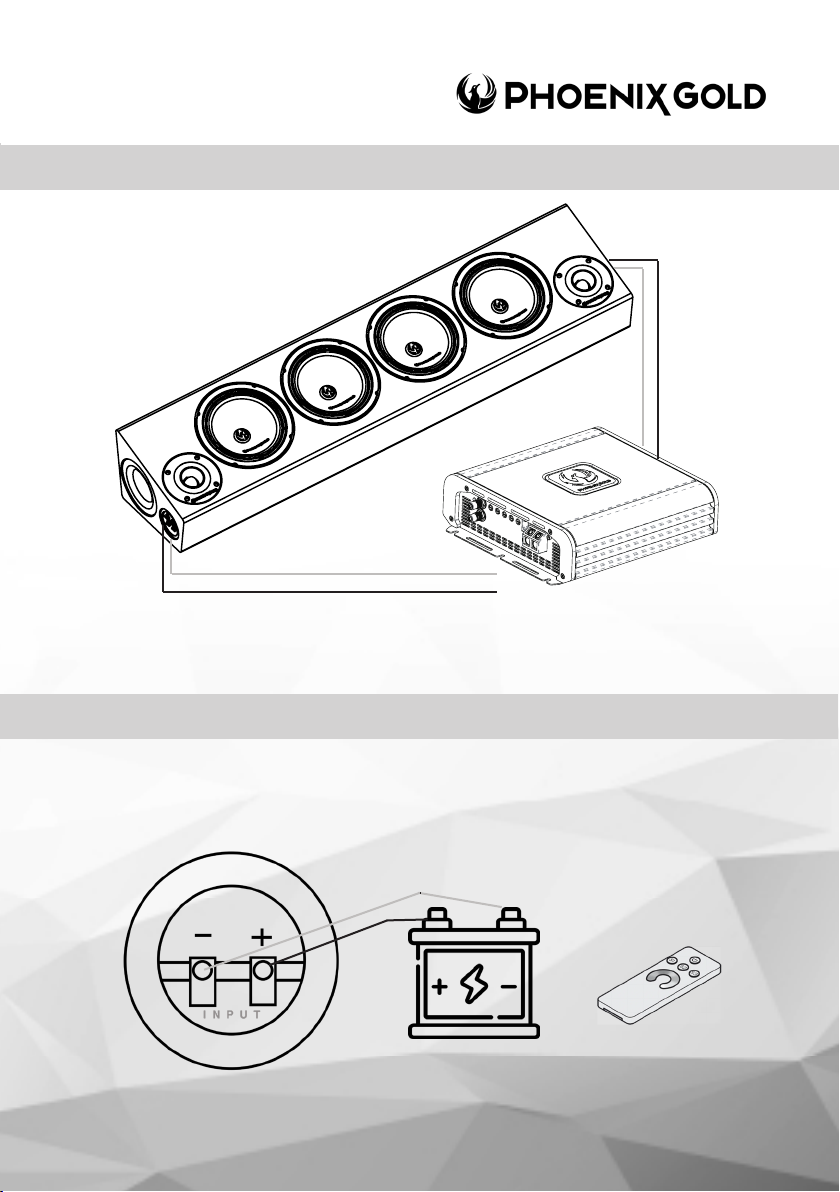

Page 3

To complete installation of your Pro box wire both left and right side terminals to 2 channels

of an amplifer being careful to match the RMS rating of the products for best performance

RGB INSTRUCTIONS

For RGB illumination provide the rear terminal with both a fused 12v power and ground

connection and utlise the remote control for colour selection

Page 4

Disclaimer

Always ensure the enclosure is securely attached, to avoid movement. PHOENIX GOLD accepts no responsibility for damage or injury in relation to inappropriate securing of this product.

Phoenix Gold Product Warranty

LIMITED WARRANTY ON AMPLIFIERS

Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold or it’s Country distributor / reseller will (at its discretion) repair or replace the defective product with new or re-manufactured product at no charge. Damage caused by the following is not covered under warranty: accident, misuse, abuse, product modiﬁcation or neglect, failure to follow installation instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under warranty.

REV 22/05/24
