Page 1

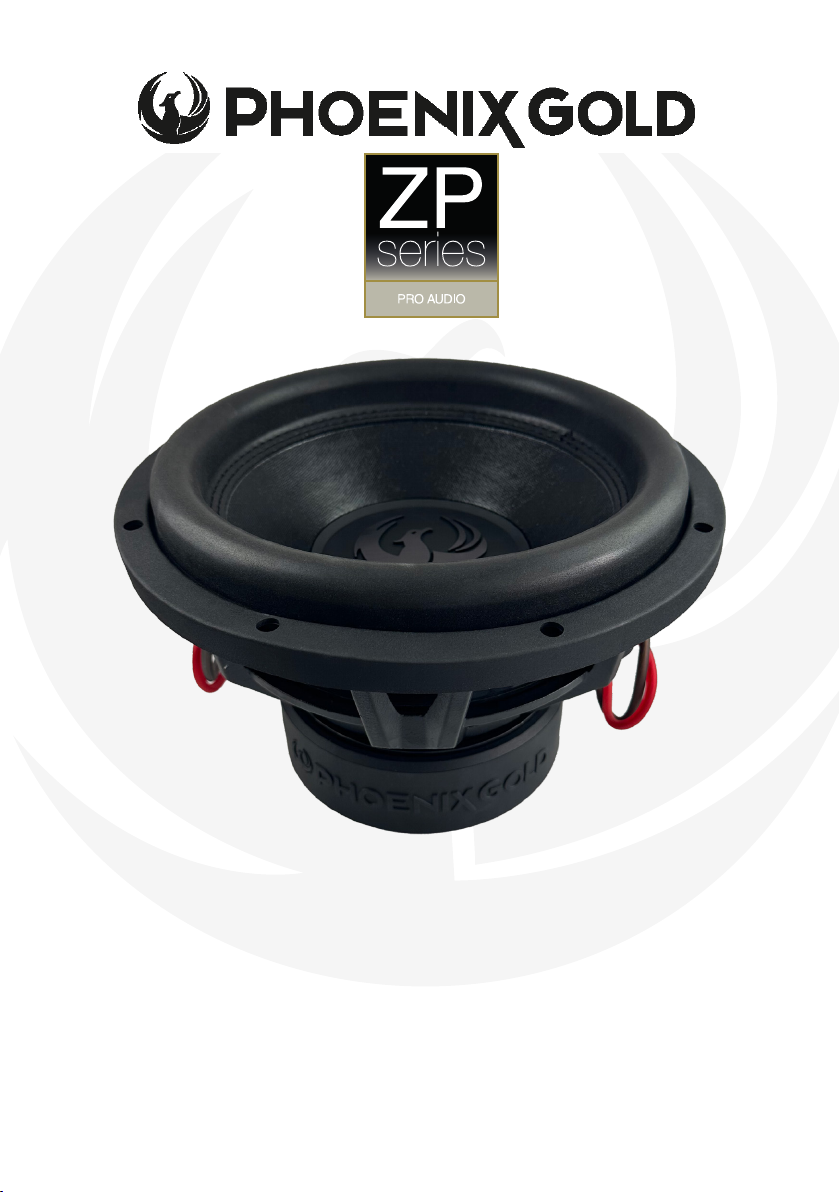

ZP12D2/D4

12” SUBWOOFER

Page 2

SPECIFICATIONS

Specications: ZP12D2 ZP12D4

Speaker Type Subwoofer Subwoofer

Speaker Size 12” (322mm) 12” (322mm)

Impedance 2x2 Ω 2x4 Ω

Power (RMS) 1500 W 1500 W

Power (MAX) 4500 W 4500 W

Voice Coil 3” (75mm) 3” (75mm)

Displacement 3 L 3 L

Mounting Depth 186.5 mm 186.5 mm

Mounting Diameter 281.5 mm 281.5 mm

Outer Diameter 322 mm 322 mm

Weight 11.6 kg 11.6 kg

TS PARAMETERS

Specications: ZP12D2 ZP12D4

Sensitivity 83.1dB (1W/1m) 84.9dB (1W/1m)

Re 3.6 Ohm 6.4 Ohm

Fs 32.686 Hz 36.289 Hz

Qms 4.710 2.625

Qes 0.643 0.593

Qts 0.566 0.483

Cms 64.539 μM/N 62.527 μM/N

Vas 24.280 L 25.028 L

BL 20.552 Tm 27.522 Tm

Sd 514.72 cm2 530.93 cm2

Mms 367.367 g 307.625 g

Le: 3.498 mH 5.609 mH

EBP: 50.83 Hz 61.2 Hz

Xmax 17.5 mm 17.5 mm

Page 3

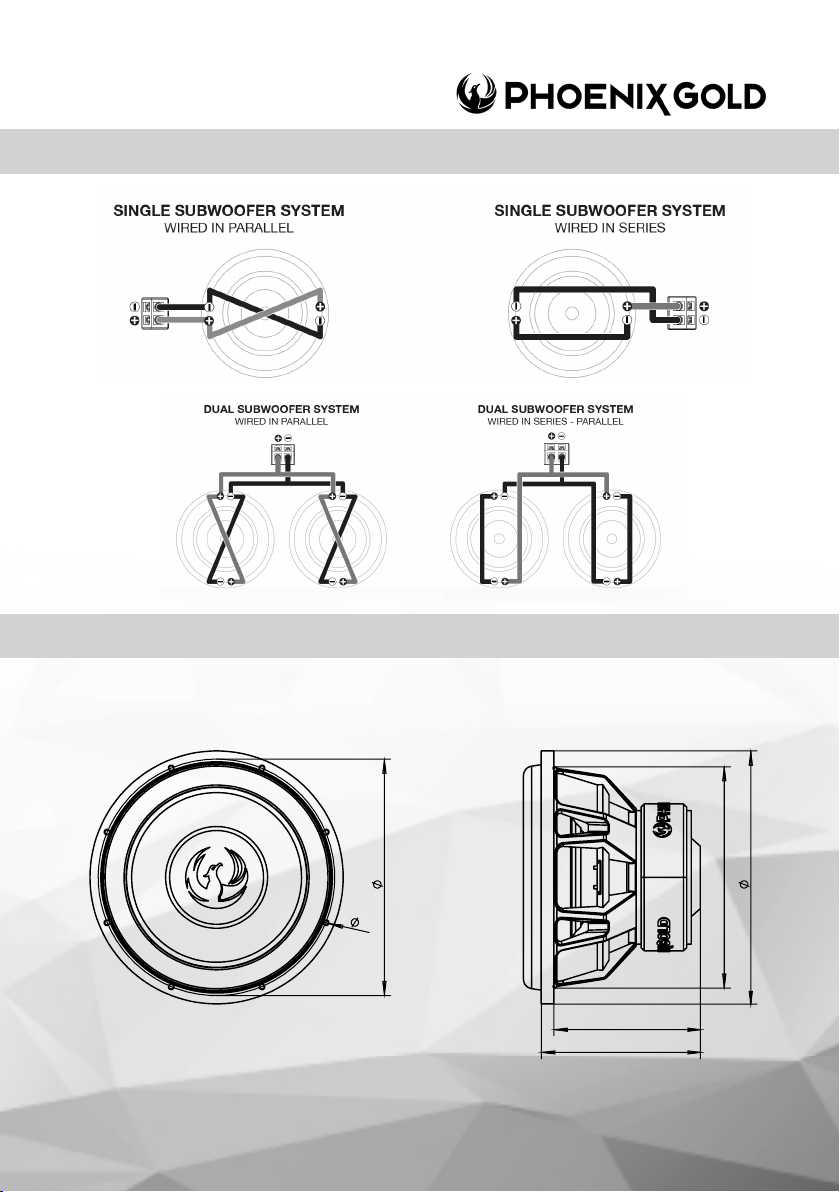

SUBWOOFER CONNECTIONS

ZP12 CRITICAL DIMESIONS

301

322

281.44

186.24

202.24

Page 4

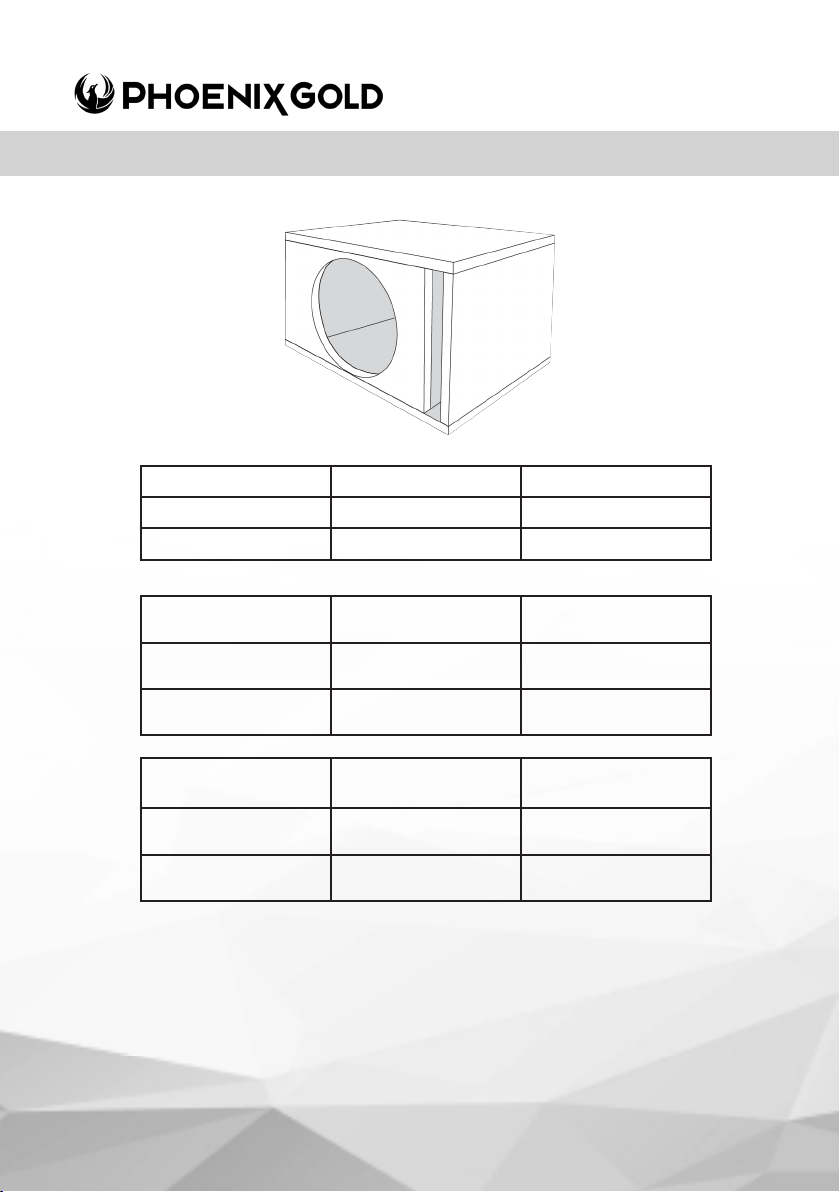

ENCLOSURES

Specications: ZP12D2 (Series) ZP12D4 (Series)

Displacement 3 L / 0.1ft3 3 L / 0.1ft3

Sealed Enclosure: 20L- 35L / 0.9 - 1.2ft3 Not Recommended

Ported Enclosure Small: 45L / 1.58ft3 45L / 1.58ft3

Tuning 40hz 40hz

Port Area 200cm2 / 31in2 200cm2 / 31in2

Ported Enclosure

60L / 2.1ft3 60L / 2.1ft3

recommended:

Tuning 35hz 35hz

Port Area 235cm2 / 36in2 235cm2 / 36in2

Disclaimer

Always ensure the subwoofer is securely attached, to avoid movement. PHOENIX GOLD accepts no responsibility for damage or injury in relation to inappropriate securing of this product.

Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold or it’s Country distributor / reseller will (at its discretion) repair or replace the defective product with new or re-manufactured product at no charge. Damage caused by the following is not covered under warranty: accident, misuse, abuse,

product modication or neglect, failure to follow installation instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and

does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under warranty.

Phoenix Gold Product Warranty

LIMITED WARRANTY ON SUBWOOFERS

REV 22/05/24
