ZR
ZR Series Subwoofers
Models: ZMAX82 - ZMAX122
FEATURES
Aluminium basket- PG designed, powder coated aluminium baskets
help deliver exceptional bass
High roll foam surround- Helps to maximize the performance of the
subwoofers
BASV bobbin former- Able to handle high temperatures to ensure
longevity of the subwoofer [ZMAX82: 2.5” / ZMAX122: 3”]
Vented frame & motor- Better thermal efciency, reduces motor
compression and provides extended low frequency response
Big quality motor- High quality magnet
[ZMAX82: 100oz / ZMAX122: 195oz]
Page 2
ZMAX82 / ZMAX122

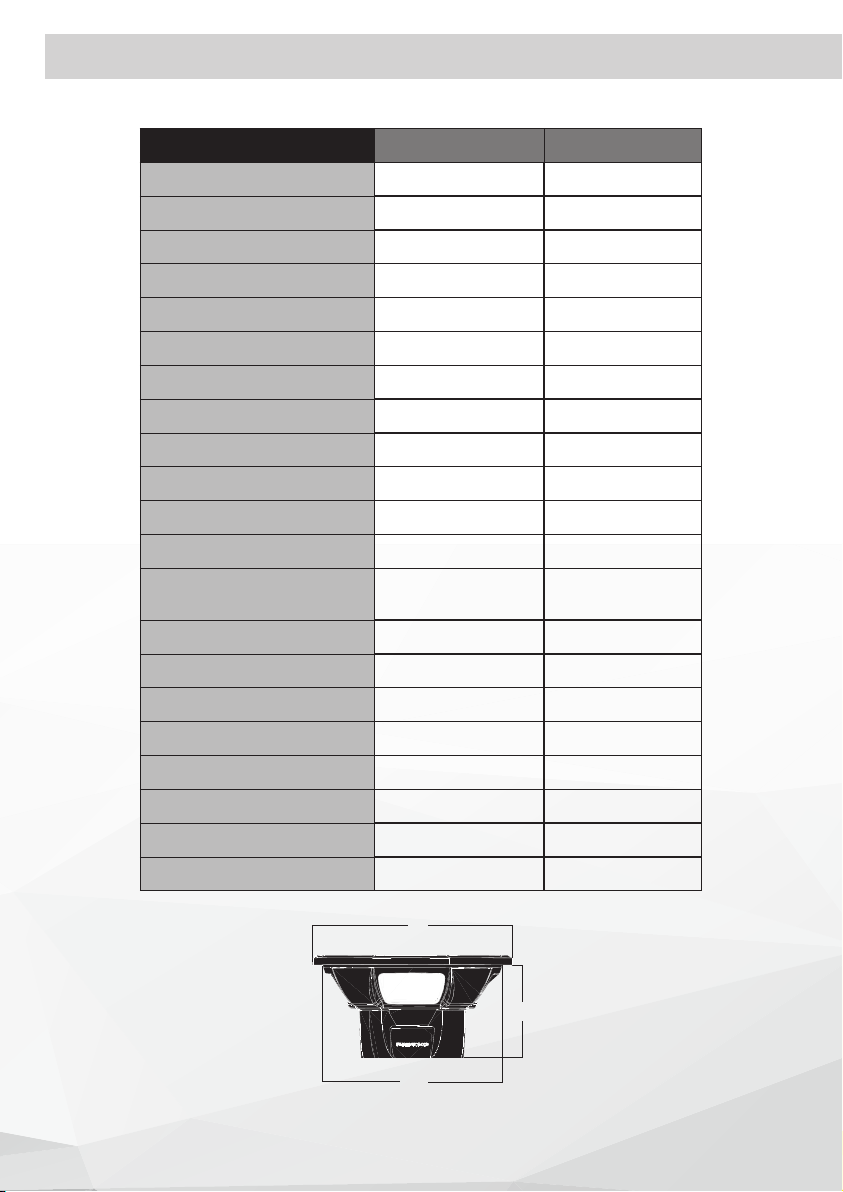

SPECIFICATION ZMAX82 ZMAX122
Nominal Impedance (Z) 1.85 ohms 3.50 ohms
DC Resistance (Re) 2 ohms 2.2 ohms
Resonance Frequency (Fs) 49.7 Hz 33.5 Hz
Piston Area (Sd) 206.1cm
Force Factor (BL) 9.3 Tm 14.679 Tm
Mechanical Q Factor (Qms) 9.186 6.092
Electrical Q Factor (Qes) 0.585 0.423
Total Q Factor (Qts) 0.55 0.396
Sensitivity 1W/M (SPL) 81 dB 85 dB
Mechanical Compliance (Cms) 63.273 μM/N 57.261 μM/N
Moving Mass (Mms) 161.806 g 393.362 g
Linear Excursion (Xmax) 14.5mm 16.5mm
Volume Acoustic
Compliance (Vas)
Reference Efciency (NO.)
Nominal Power (Pe)
Peak Power
Frequency Response
Voice Coil Diameter
Overall Diameter (A)
Cut Out Diameter (B)
Mounting Depth (C)
2
3.82 Ltr
0.13 cu ft
0.08% 0.18%
500 Watts 1500 Watts
1500 Watts 4500 Watts
20-500 Hz 20-500 Hz
2.3in/60mm 2.9in/75mm
8.6in/218.50mm 12.95in/329.00mm
7.35in/186.00mm 11.32in/287.53mm
5.17in/131.49mm 7in/178.50mm
510.7cm
21.2 Ltr
0.74 cu ft
2
A
C
B
Page 3

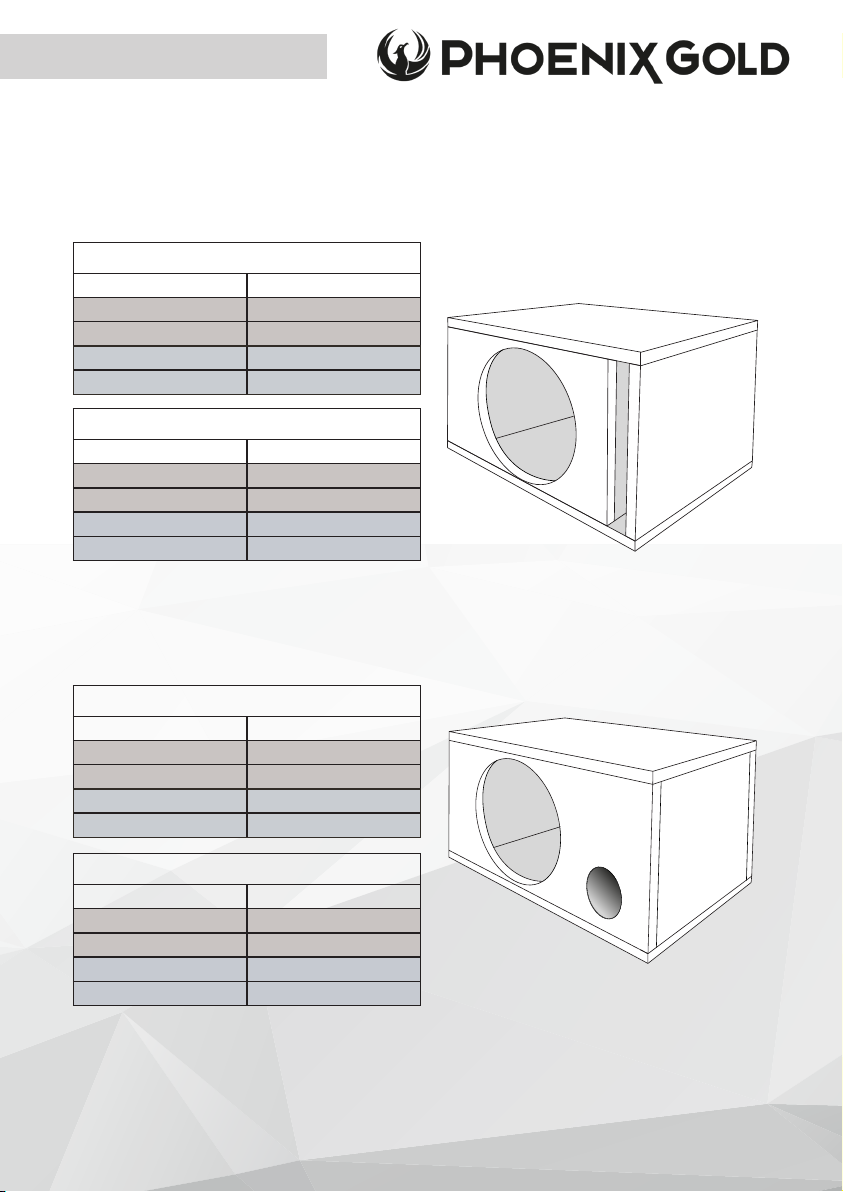

Enclosure Recommendations
Speaker and port displacement are already taken into account for recommended enclosures
ZMAX82
Ported Enclosure - Punchy Bass
Net Internal Volume 25 Ltr
Slot Port Area 60cm
Slot Port Length 29cm
Round Port Diameter 4 inch (10.16cm)
Round Port Length 40cm
2
Ported Enclosure - Deep Bass
Net Internal Volume 33 Ltr
Slot Port Area 60cm
Slot Port Length 27cm
Round Port Diameter 4 inch (10.16cm)
Round Port Length 38cm
2
ZMAX122
Ported Enclosure - Punchy Bass
Net Internal Volume 33 Ltr
Slot Port Area 90cm
Slot Port Length 55cm
Round Port Diameter 4 inch (10.16cm)
Round Port Length 34cm
2
Slot Port Example
Ported Enclosure - Deep Bass
Net Internal Volume 40 Ltr
Slot Port Area 90cm
Slot Port Length 41cm
Round Port Diameter 4 inch (10.16cm)
Round Port Length 37cm
2
Round Port Example
Page 4

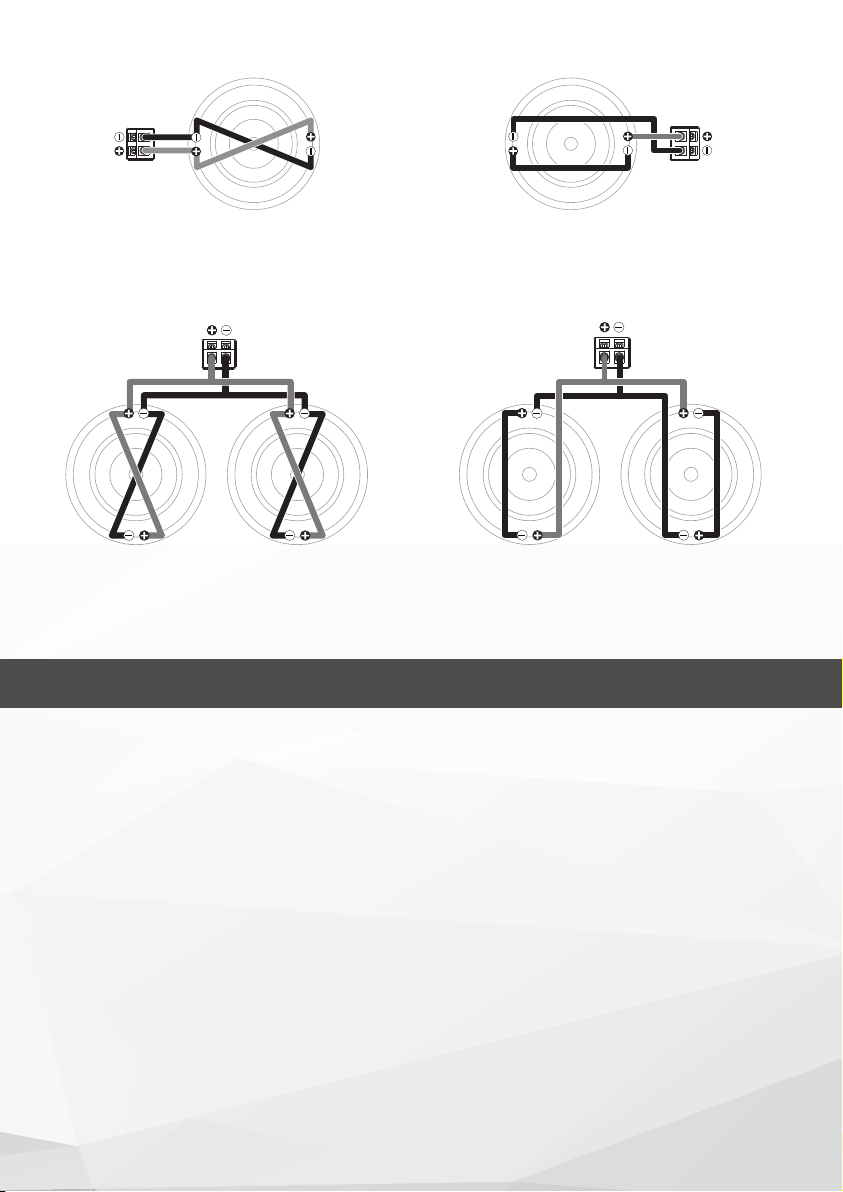

SINGLE SUBWOOFER SYSTEM
WIRED IN PARALLEL
SINGLE SUBWOOFER SYSTEM
WIRED IN SERIES
ZMAX82 / ZMAX122 = 1 OHM
DUAL SUBWOOFER SYSTEM
WIRED IN PARALLEL
ZMAX82 / ZMAX122 = 1/2 OHM
ZMAX82 / ZMAX122 = 4 OHM
DUAL SUBWOOFER SYSTEM
WIRED IN SERIES - PARALLEL
ZMAX82 / ZMAX122 = 2 OHM
Phoenix Gold Product Warranty
LIMITED WARRANTY ON SUBWOOFERS
Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of
purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer in the United States of
America only. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold will (at its
discretion), repair or replace the defective product with new or remanufactured product at no charge. Damage caused by the following is not covered
under warranty: accident, misuse, abuse, burnt voice coils, used as door stops ,salad bowls or hats, product modication or neglect, failure to follow
installation instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential
damages and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not
covered under warranty.
INTERNATIONAL WARRANTIES:
Products purchased outside the United States of America are covered only by that country’s Authorized Phoenix Gold reseller and not by Phoenix
Gold. Consumers needing service or warranty information for these products must contact that country’s reseller for information.
Phoenix Gold is a Power Brand of AAMP Global
15500 Lightwave Drive, Suite 202
Clearwater, Florida 33760
P: 866-788-4237
[email protected]
Designed and Engineered in the USA
© 2020 AAMP GLOBAL | phoenixgold.com REV 050521
