ZDSKVW2
Plug & Play 2-Way Speaker Upgrade Kit
160W MAX POWER
80W RMS
Page 2

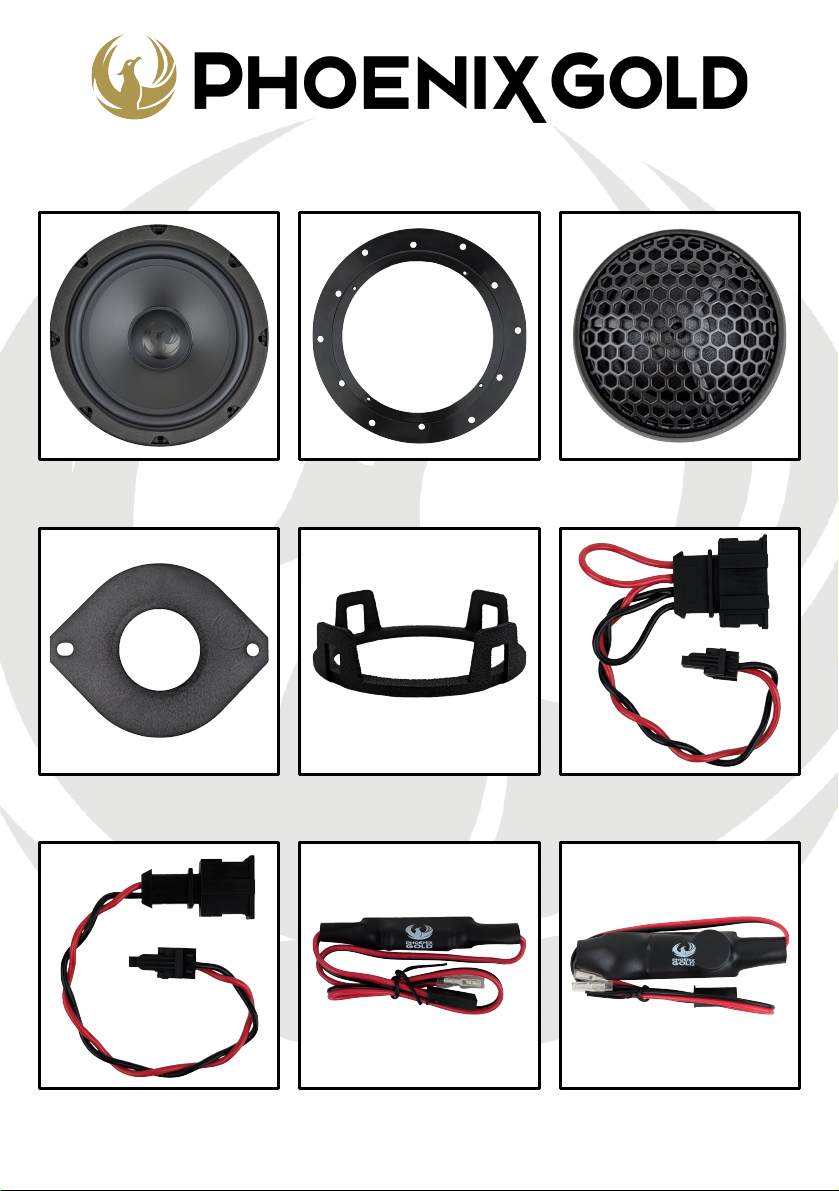

2x Speakers 2x Adapter Rings 2x Tweeters
2x Tweeter Adapters
2x Tweeter Harness
2x Speaker Harness 2x Bottom Plates
2x ZZF-LP4000 2x ZZF-HP4000-6
Page 3

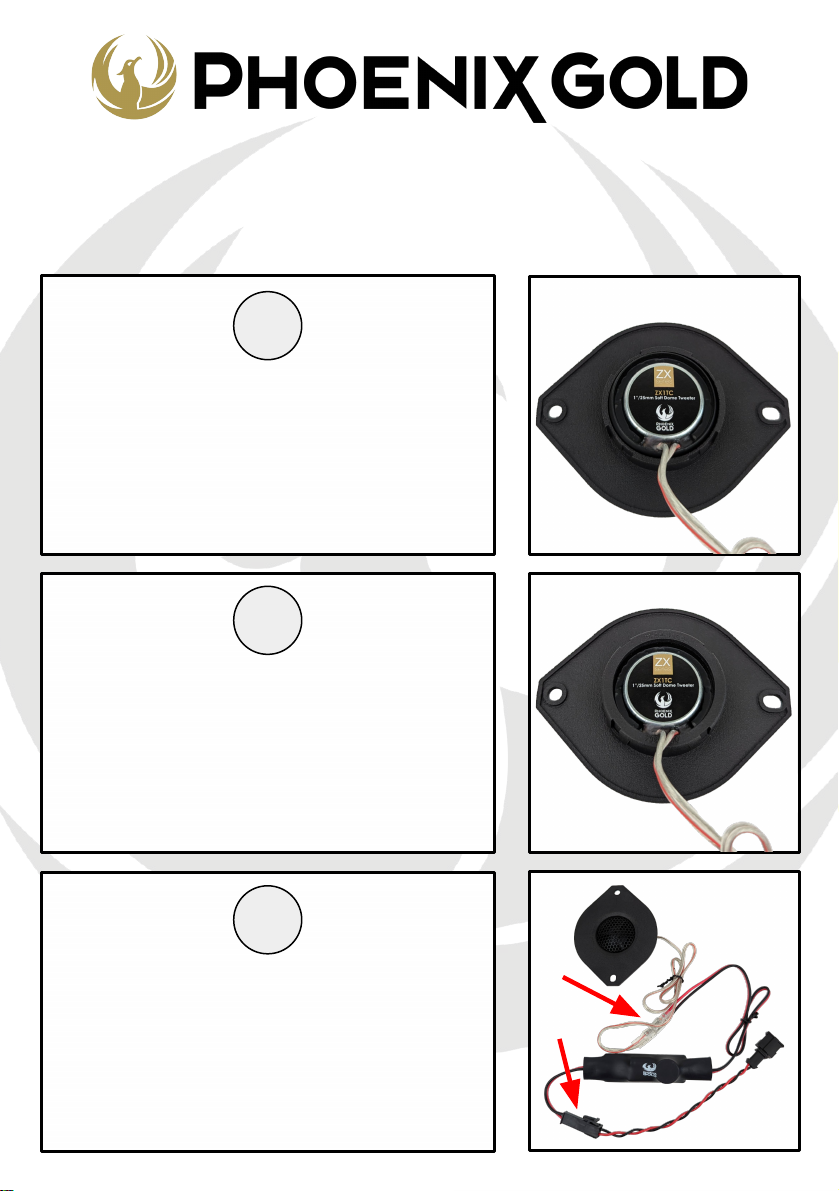

Quick Start Guide
1
Screw the speaker into the speaker
adapter.
2
Connect the ZZF-LP4000 filter to the
speaker.
3
Connect the speaker harness to
ZZF-LP4000.
Page 4
Quick Start Guide
4
Put the tweeter into the tweeter
adapter.
5
Attach the bottom plate to the back of
the tweeter adapter.
6
Connect the ZZF-HP4000-6 filter to the
tweeter.
Connect the tweeter harness to the
ZZF-HP4000-6 filter.
Page 5
Specifications
Speaker Type: 2-Way Speaker Kit
Speaker Size: 6.5” (165mm) / 1” (25mm)
Frequency Response: 60Hz - 20kHz
Power Handling (RMS): 80W
Power Handling (MAX): 160W
Impedance: 4Ω
Sensitivity: 89dB (1W/1m)
Fs: 62Hz
Qts: 0.593
Crossover: Inline Crossovers
1” (25mm) Voice Coil
Polypropylene cone with rubber surround
Page 6
Fitment List
Make Model Year Fitment
Volkswagen Caddy 2004 - 2010 (2K) Front Doors*
Volkswagen Caddy 2010 - 2015 (2K) (Facelift) Front Doors*
*OBS! If OEM tweeters are not available in the vehicle the tweeter connectors are
not plug & play. Some external speaker wire installation is required for the
tweeters if there is no OEM tweeter installed of pre-installed speaker wire.
Page 7
Disclaimer
Always ensure the speaker is securely attached. Phoenix Gold accepts no
responsibility for damage or injury in relation to inappropriate securing of this
product.
Phoenix Gold Product Warranty
LIMITED WARRANTY ON SPEAKERS
Phoenix Gold warrants this product to be free of defects in materials and
workmanship for a period of one (1) years from the original date of purchase. This
warranty is not transferable and applies only to the original purchaser from an
authorized Phoenix Gold dealer. Should service be necessary under this warranty
for any reason due to manufacturing defect or malfunction, Phoenix Gold or it’s
Country distributor / reseller will (at its discretion) repair or replace the defective
product with new or re-manufactured product at no charge. Damage caused by
the following is not covered under warranty: accident, misuse, abuse, product
modification or neglect, failure to follow installation instructions, unauthorized
repair attempts, misrepresentations by the seller. This warranty does not cover
incidental or consequential damages and does not cover the cost of removing or
reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear
is not covered under warranty.
