Page 1
Enclosures
Models: Z212AB-V2
Z-Series
Page 2
Z-Series Enclosures
© 2017 Phoenix Gold • www.phoenixgold.com
Z212AB-V2 - Dual 12” Active Wedge Enclosure
SPECIFICATION Z212ABV2
Peak Power (Watts) 640 Watts
Max Power (Watts) 320 Watts
RMS Power (Watts) 160 Watts
Frequency Response 10Hz-200Hz
Low Pass Filter (Variable) 50Hz-200Hz
Tuning Bass Reex
Woofer Size Dual 12”
Fuse 25A
Dimensions (mm/inches) 824(w) x 383(h) x 395(d)
32.44” x 15.07” x
Disclaimer
Always ensure the Active Enclosure is securely attached, to avoid movement. PHOENIX GOLD accepts no responsibility
for damage or injury in relation to inappropriate securing of this product.
Control Descriptions
LEVEL
This allows the adjustment of the amplier level of the
subwoofer. Turn clockwise to increase the level. If the
sound becomes distorted reduce the level.
LOW PASS FILTER (LPF)
This allows the adjustment of the highest frequency the
Active Enclosure will produce. This should be adjusted
to blend with your main speakers. Typically, this will be
set to around 100Hz (approximately the central position
of the control knob)
BASS REMOTE CONTROLLER
This control can be mounted in the front of the vehicle
to give you control of your subwoofers output level.
Installation
Make sure the Active Enclosure is rmly xed in your
vehicle. Check before drilling or cutting holes. DO
NOT work near fuel tanks, fuel lines hydraulic lines or
electrical wiring.
DO NOT mount the Active Enclosure in such a way as
to pinch or damage the wires.
Make sure everything is rmly connected before
attaching a +12V wire. Ensure the +12V wire is fused as
close as possible to the battery. Always use a fuse with
the recommended rating.

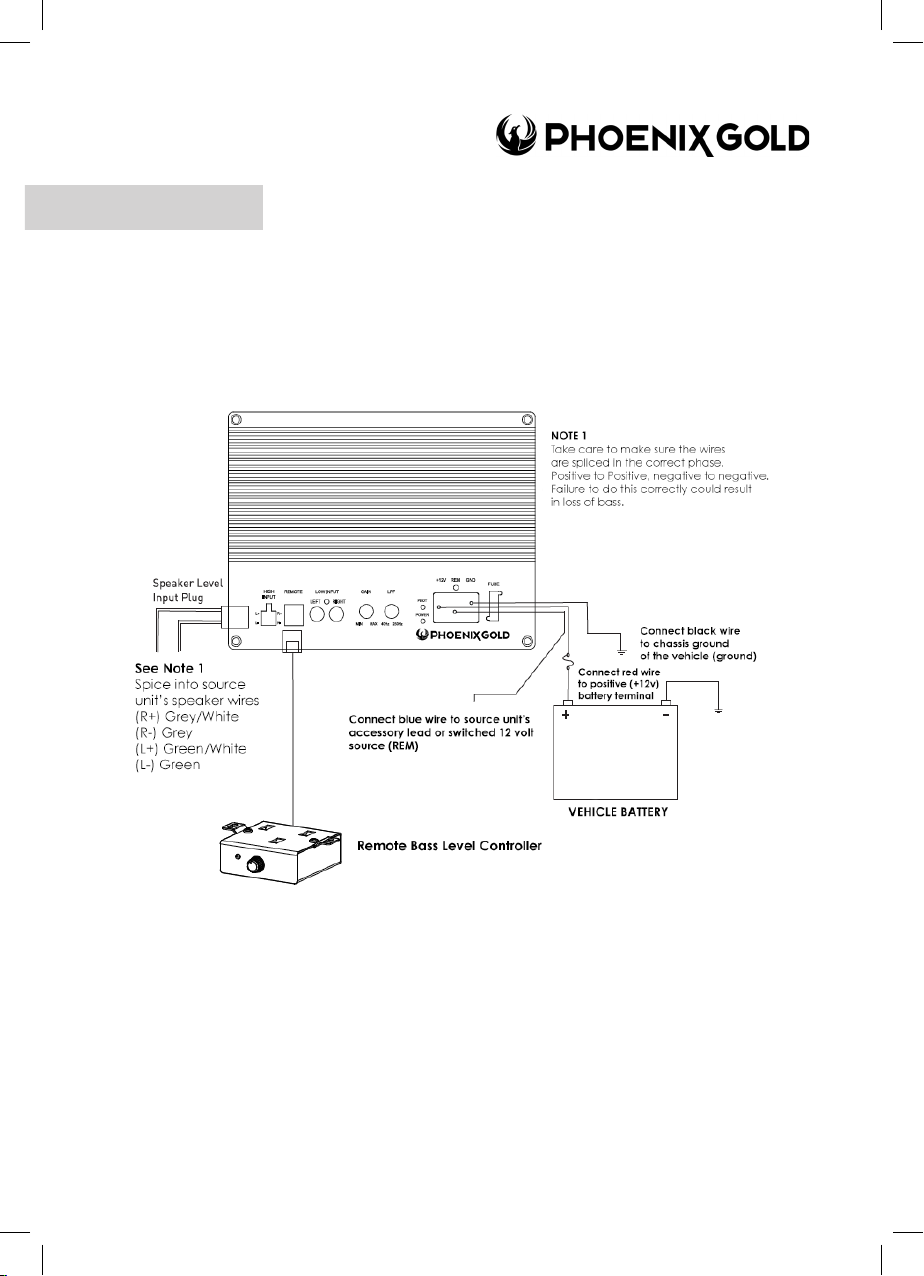

Wiring
• Connect the ground wire to the vehicle rst
(clean dirt and paint to bare metal)
• Connect the remote on (blue wire)
• Connect the RCA cables if applicable OR
• Connect the speaker level wire by splicing
into the headunits speaker wires. See Note1
on adjacent page.
• Connect the remote level controller with the
supplied lead
• Please ensure power wire is fused within 12”
of battery
• Connect the 12 volt (red wire) to the positive
battery terminal.
• Check all connections.
Page 3
© 2017 Phoenix Gold • www.phoenixgold.com
Z-Series Enclosures
Z110AB-V2 - Z112AB-V2
Page 4
Phoenix Gold Product Warranty
LIMITED WARRANTY
Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period
of one (1) years from the original date of purchase. This warranty is not transferable and applies only
to the original purchaser from an authorized Phoenix Gold dealer in the United States of America
only. Should service be necessary under this warranty for any reason due to manufacturing defect
or malfunction, Phoenix Gold will (at its discretion), repair or replace the defective product with new
or remanufactured product at no charge. Damage caused by the following is not covered under
warranty: accident, misuse, abuse, product modication or neglect, failure to follow installation
instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not
cover incidental or consequential damages and does not cover the cost of removing or reinstalling
the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under
warranty.
INTERNATIONAL WARRANTIES:
Products purchased outside the United States of America are covered only by that country’s
Authorized Phoenix Gold reseller and not by Phoenix Gold. Consumers needing service or warranty
information for these products must contact that country’s reseller for information.
email - [email protected] (US)
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
email - [email protected] (Europe)
15500 Lightwave Drive, Suite 202
Clearwater, Florida 33760
Woolmer Way, Bordon, Hampshire,
GU35 9QE, United Kingdom
Phoenix Gold is a Power Brand of AAMP Global
