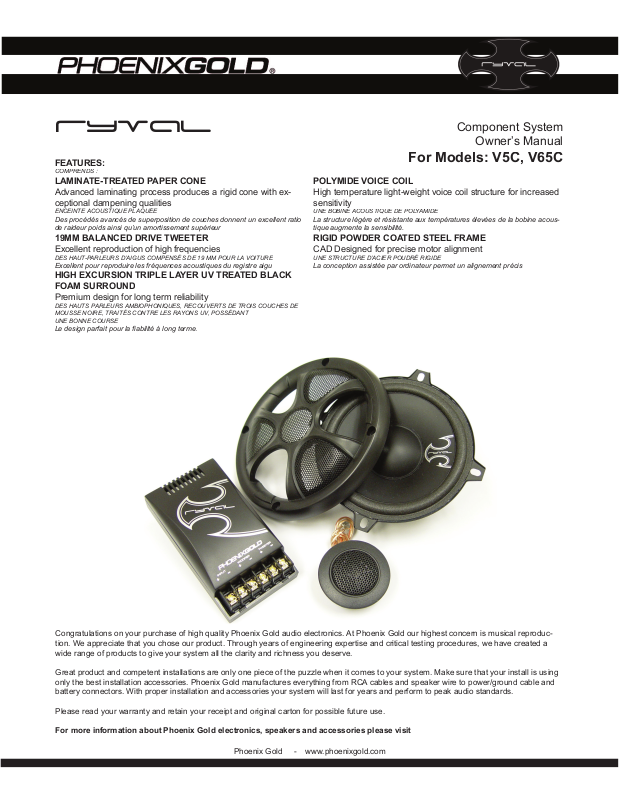

Phoenix Gold V5C User Manual
Component System
Owner’s Manual
tion. We appreciate that you chose our product. Through years of engineering expertise and critical testing procedures, we have created a
wide range of products to give your system all the clarity and richness you deserve.
only the best installation accessories. Phoenix Gold manufactures everything from RCA cables and speaker wire to power/ground cable and
Advanced laminating process produces a rigid cone with ex-
ENCEINTE ACOUSTIQUE PLAQUÉE
Des procédés avancés de superposition de couches donnent un excellent ratio
DES HAUT-PARLEURS D’AIGUS COMPENSÉS DE 19 MM POUR LA VOITURE
Excellent pour reproduire les fréquences acoustiques du registre aigu
DES HAUTS PARLEURS AMBIOPHONIQUES, RECOUVERTS DE TROIS COUCHES DE
MOUSSE NOIRE, TRAITÉS CONTRE LES RAYONS UV, POSSÉDANT
Le design parfait pour la fi abilité à long terme.
sensitivity
La structure légère et résistante aux températures élevées de la bobine acous-
La conception assistée par ordinateur permet un alignement précis
obstructions. Make sure to allow suffi cient clearance for window tracks, structural braces, trunk lid springs, etc.
2. Assuming enough area and depth is available, use the provided template and trace the speaker cutout and mounting
holes onto the surface of the mounting location.
vided speed clips which will act as a nut for the supplied screws.
4. Always provide water protection if not supplied in the vehicle. We suggest using a rain shield or equivalent. If in doubt,
please contact your Phoenix Gold Dealer.
SPEAKER INSTALLATION WITHOUT GRILL
When installing your new coaxial speakers in the factory locations there may not be room enough to use the provided Ryval grills.
SPEAKER INSTALLATION WITH GRILL
vided. Please read the section above on installation for concerns about custom installations.
TWEETER ADJUSTMENT
The 20mm tweeters can pivot in their housing. When mounted low in the door, angle the tweeter up for better high frequency
The crossover provided with the Ryval component set is optimized to give the most accurate in-car response. Use only the cross-
over provided; the use of any other crossover may result in damage to one or more of the Ryval series components.
The basic component system hookup requires signal, via speaker wire, to run from your power amplifi er (not included in this set)
to each of the two crossovers that come with your Ryval component system, designate one for the left channel and one for the
When selecting a mounting location for the crossover it is suggested to mount within the cab of the vehicle, such as the kick panels
or near the amplifi er; if you must mount them in the door, mount them between the moisture barrier and the innermost door panel.
TWEETER
MID RANGE WOOFER
CROSSOVER
AMPLIFIER (NOT INCLUDED)
TWEETER
MID RANGE WOOFER
CROSSOVER
INPUT
WOOFER
TWEETER
+ - + - + -
INPUT
WOOFER
TWEETER
+ - + - + -
+
+
+
+
+
_
_
+
_
_
_
_
