AMPLIFIER MANUAL
MANUEL DE L’AMPLIFICATEUR

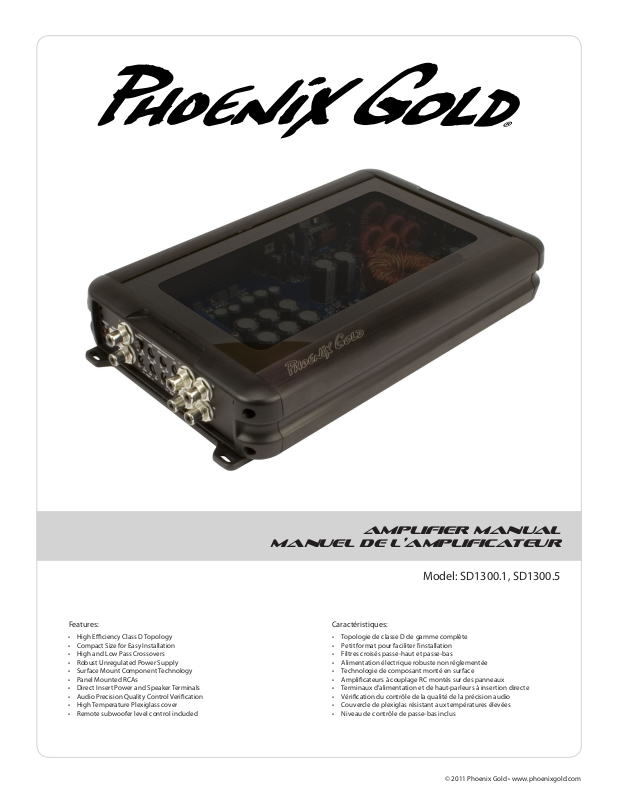

Model: SD1300.1, SD1300.5
Features: |
Caractéristiques: |
|
• High Efficiency Class DTopology |
• Topologie de classe D de gamme complète |
|
• Compact Size for Easy Installation |
• Petit format pour faciliter l’installation |
|
• High and Low Pass Crossovers |
• Filtres croisés passe-haut et passe-bas |
|
• Robust Unregulated Power Supply |
• Alimentation électrique robuste non réglementée |
|
• Surface Mount ComponentTechnology |
• Technologie de composant monté en surface |
|
• |
Panel Mounted RCAs |
• Amplificateurs à couplage RC montés sur des panneaux |
• Direct Insert Power and SpeakerTerminals |
• Terminaux d’alimentation et de haut-parleurs à insertion directe |
|
• Audio Precision Quality ControlVerification |
• Vérification du contrôle de la qualité de la précision audio |
|
• |
HighTemperature Plexiglass cover |
• Couvercle de plexiglas résistant aux températures élevées |
• Remote subwoofer level control included |
• Niveau de contrôle de passe-bas inclus |
© 2011 Phoenix Gold • www.phoenixgold.com
SPECIFICATIONS
SD1300.1 SPECIFICATIONS
Frequency Response: |
± 1dB from 20Hz to 300Hz |
Signal to Noise Ratio: |
>90dB |
Low Pass Crossover: |
18dB per Octave |
Subsonic Filter: |
12dB per Octave |
Low Pass Crossover Range: |
30Hz to 300Hz |
Subsonic Crossover Range: |
10Hz to 55Hz |
Bass Boost @ 45Hz: |
0 to +18dB |
Low Level Input Range: |
200 millivolts to 8 volts |
Lowest Recommend Load: |
1 ohm |
Typical Efficiency: |
70% |
Damping Factor: |
Greater than 200 |
SD1300.5 SPECIFICATIONS
Frequency Response: |
± 1dB from 20Hz to 20kHz |
Signal to Noise Ratio: |
>100dB |
High Pass Crossovers: |
12dB per Octave |
Low Pass Crossover: |
18dB per Octave |
High Pass Crossover Range: |
15Hz to 250Hz |
Low Pass Crossover Range: |
30Hz to 300Hz |
Bass Boost @ 45Hz: |
0 to +18dB |
Low Level Input Range: |
200 millivolts to 8 volts |
Front and Rear Channels Lowest Load: |
4 ohms Bridged or 2 ohms Stereo |
Subwoofer Channel Lowest Load: |
2 ohm |
Typical Efficiency: |
70% |
Damping Factor |
Greater than 200 |
Note: All SD amplifiers operate correctly up to 14.4 volts. Do not operate the amplifier above 14.4 volts.The amplifier will engage its overvoltage protection, the result is no audio output on one or more channels.
Amplifier Owner’s Manual
RMS Power 14.4Vdc ≤ 1%THD |
900 x 1 @ 2 ohms |
|
|
1300 x 1 |
@ 1 ohm |
Dynamic Power 14.4Vdc >1%THD |
1200 x 1 |
@ 2 ohms |
|
1600 x 1 |
@ 1 ohm |
Recommended Fuse Size: |
120 amp |
|
Power/GroundWire Size: |
4 Gauge |
|
Dimensions (Includes Mounting Feet): |
14.33”L x 6.93”W x 2.0”H |
|
|
364mm L x 176mmW x 51mm H |
|
Dimensions (IncludesTerminals): |
14.96”L x 6.93”W x 2.0”H |
|
|
380mm L x 176mmW x 51mm H |
RMS Power 14.4Vdc ≤1%THD |
80 x 4 @ 4 ohms Stereo |
||
|
125 x 4 @ |
2 ohms Stereo |
|
|
250 x 2 @ |
4 ohms Bridged |
|
|
plus |
|
|
|
500 x 1 @ |
4 ohms |
|
|
800 x 1 |
@ |
2 ohms |
Dynamic Power 14.4Vdc >1%THD |
95 x 4 @ 4 ohms Stereo |
||
|
150 x 4 |
@ |
2 ohms Stereo |
|
300 x 2 |
@ |
4 ohms Bridged |
|
plus |
|
|
|
700 x 1 |
@ |
4 ohms |
|
1000 x 1 @ 2 ohms |
||
Recommended Fuse Size: |
100 amp |
|
|
Power/GroundWire Size: |
4 Gauge |
|
|
Dimensions (Includes Mounting Feet): |
14.33”L x 6.93”W x 2.0”H |
||
|
364mm L x 176mmW x 51mm H |
||
Dimensions (IncludesTerminals): |
14.96”L x 6.93”W x 2.0”H |
||
|
380mm L x 176mmW x 51mm H |
© 2011 Phoenix Gold • www.phoenixgold.com
Amplifier Owner’s Manual

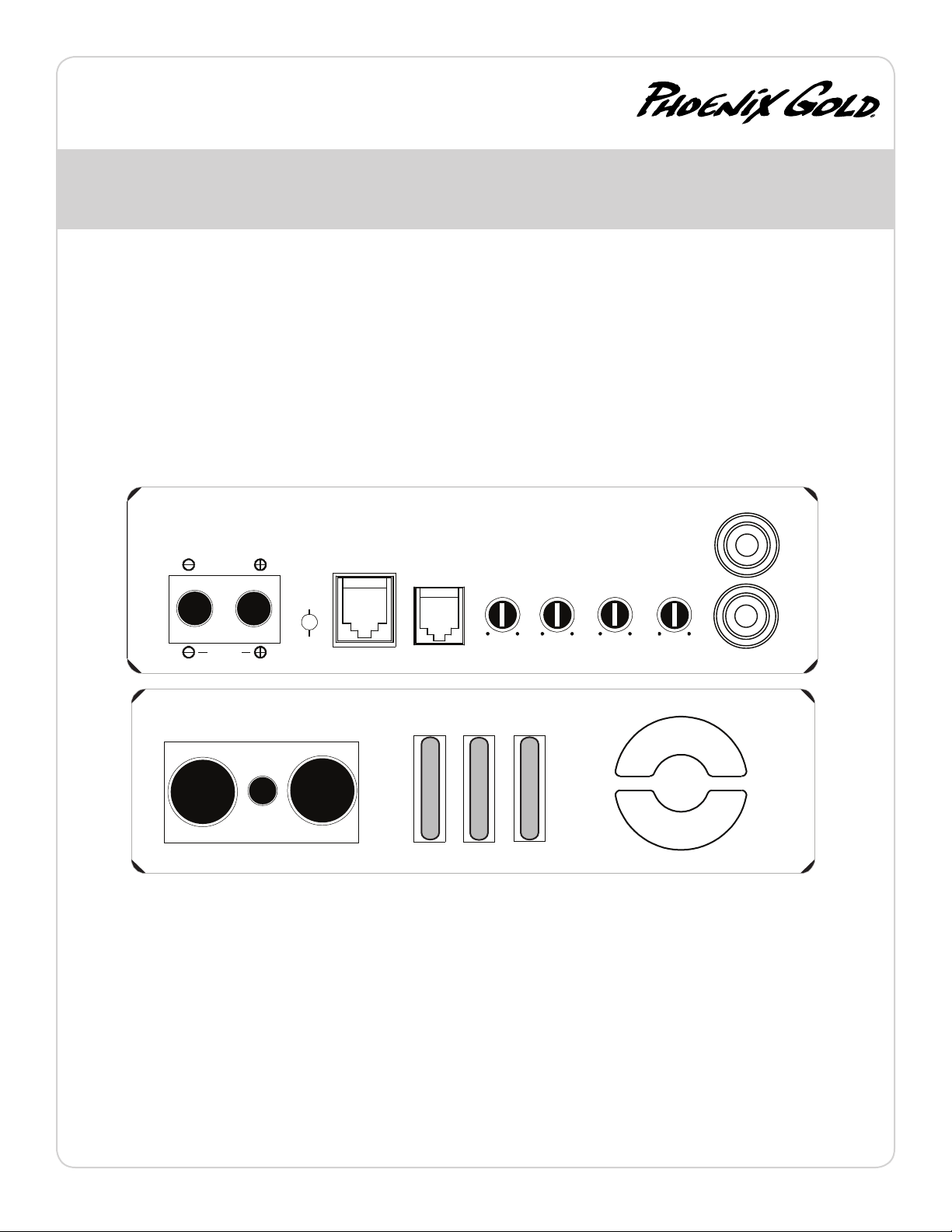

SD1300.1
MONOBLOCK POWER AMPLIFIER
INPUT
Connect preamp signal cables from the head unit to these terminals.
CROSSOVER FREQUENCY
Controls the lowpass crossover point for the speaker outputs.
BASS BOOST
Variable bass boost from 0 to +18dB @ 45Hz.
REMOTE LEVEL CONTROL
This port is for connecting the subwoofer remote level control.This allows up to 20dB of volume adjustment. This is not a bass boost, it controls the level of the low pass signal.
NOTE:This control is not compatible with the Phoenix Gold LPL44 level control.
SENS
Used to reach maximum amplifier power with a wide variety of headunits.
SUBSONIC CROSSOVER FREQUENCY
Controls the highpass crossover point for the speaker outputs to eliminate extreme low frequencies.
RMD
Optional RMDVoltage Display plugs into this port. Sold separately.
INPUT
L
REMOTE
|
|
|
RMD |
X-OVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FREQ. |
BASS |
SUBSONIC |
SENS |
|
|
PROTECT |
|
|
|
|
|
|
|
|
|
|
|
|
R |
|
|
POWER |
|
30Hz 300Hz |
0dB 18dB |
10Hz 55Hz |
MIN MAX |
SPEAKER |
|
|
|
||||
|
|
|
|
|
|
|
|
GROUND |
R |
+ 12V |
|
FUSE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GROUND |
REMOTE |
+ 12V |
|
40A |
|
40A |
|
40A |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
+12V |
SPEAKER OUTPUTS |
This must be connected to the fused positive terminal (+12V) of the car’s |
Used to connect the amplifier to speakers. SD1300.1 minimum impedance |
battery.The fuse must be located within 18 inches of the battery. |
is 1 ohm. |
REMOTE |
|
This must be connected to switched +12V, usually a trigger wire coming |
|
from the head unit or ignition. |
|
GROUND |
|
This must be connected to the negative terminal of the car’s battery or |
|
bolted to a clean, unpainted part of the chassis of the vehicle. |
|
NOTE:Visible through the plexiglass cover, a single blue power LED is located in the lower corner of all SD amplifiers.
© 2011 Phoenix Gold • www.phoenixgold.com
Amplifier Owner’s Manual

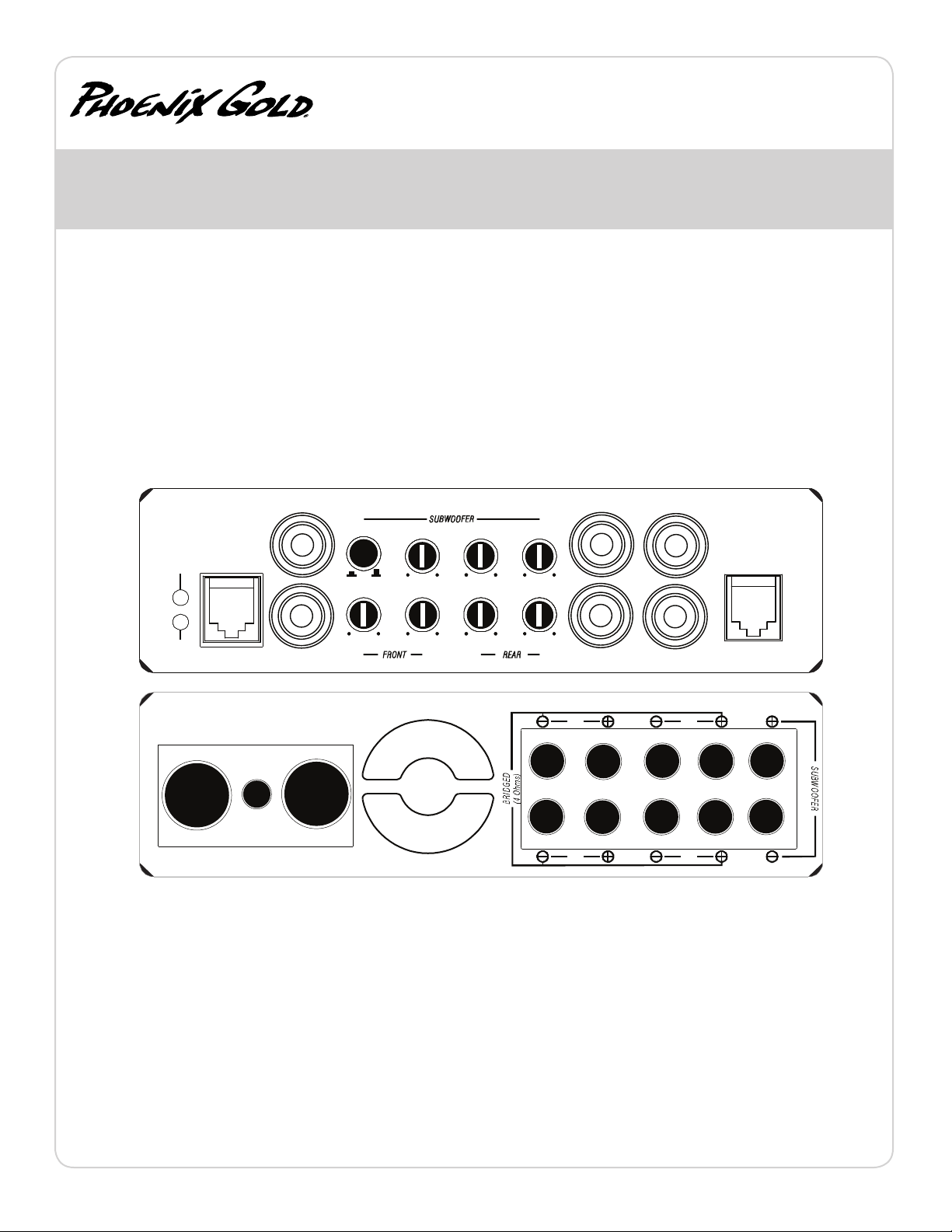

SD1300.5
5 CHANNEL POWER AMPLIFIER
FRONT, REAR AND SUB INPUTS
Connect preamp signal cables from headunit to these inputs.The front AND rear inputs must be used, if only the front input is used then the rear speaker outputs will have no output signal.The Sub Input may or may not be used see SUB INPUT SWITCH for more information.
HPF AND LPF CROSSOVER FREQUENCY
Controls the crossover point for the speaker outputs.
REMOTE LEVEL CONTROL
This port is for connecting the subwoofer remote level control.This allows up to 20dB of volume adjustment. This is not a bass boost, it controls the level of the subwoofer channel only.
NOTE:This control is not compatible with the Phoenix Gold LPL44 level control.
BASS BOOST
Variable bass boost from 0 to +18dB @ 45Hz for the subwoofer channel only.
SENS
Used to reach maximum amplifier power with a wide variety of headunits.
SUB INPUT SWITCH
IN: Subwoofer speaker output is fed by the sub Input. If the headunit or processor has a subwoofer low level output use this setting.
OUT: Subwoofer speaker output is fed by the front input and the sub Input is not used. If the headunit or processor only has front and rear low level outputs use this setting.
RMD
Optional RMDVoltage Display plugs into this port. Sold separately.
|
|
SUB INPUT |
|
|
|
|
|
|
FRONT INPUT |
REAR |
|
L |
|
|
|
|
|
|
|
FL |
RL |
|
|
SUB INPUT |
SENS |
BASS BOOST |
|
LPF |
|
|||
PROTECT |
REMOTE |
|
|
|
|
|
|
|
|
RMD |
|
|
|
|
|
|
|
|
|
|
|
|
R |
SUB |
FRONT |
MIN |
MAX |
0dB |
18dB |
30Hz |
300Hz |
|
|
HPF |
SENS |
HPF |
SENS FR |
RR |
|||||
POWER |
|
15Hz |
250Hz |
MIN |
MAX |
15Hz |
250Hz |
MIN |
MAX |
|
|
|
|
|
|
|
|
|
|
|
|
|
FR |
SUB. |
GROUND |
R |
+ 12V |
|
GROUND |
REMOTE |
+ 12V |
RL |
RR |
SUB. |
|
|
|
+12V
This must be connected to the fused positive terminal (+12V) of the car’s battery.The fuse must be located within 18 inches of the battery.
REMOTE
This must be connected to switched +12V, usually a trigger wire coming from the head unit or ignition.
GROUND
This must be connected to the negative terminal of the car’s battery or bolted to a clean, unpainted part of the chassis of the vehicle.
SPEAKER OUTPUTS
Used to connect the amplifier to speakers. Front and Rear Channel minimum impedance is 4 ohms bridged or 2 ohms stereo. Subwoofer channel minimum impedance is 2 ohms. Use Right + and Left - to bridge the front or rear channels, the subwoofer channel is not bridgeable.
NOTE:Visible through the plexiglass cover, a single blue power LED is located in the lower corner of all SD amplifiers.
