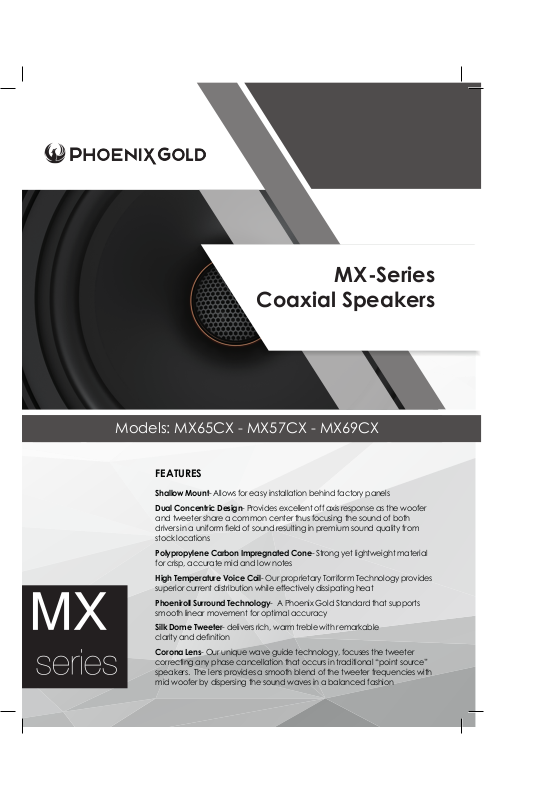

Page 1
MX-Series
Coaxial Speakers
Models: MX65CX - MX57CX - MX69CX
FEATURES
Shallow Mount- Allows for easy installation behind factory panels
Dual Concentric Design- Provides excellent off axis response as the woofer
and tweeter share a common center thus focusing the sound of both
drivers in a uniform eld of sound resulting in premium sound quality from
stock locations
Polypropylene Carbon Impregnated Cone- Strong yet lightweight material
for crisp, accurate mid and low notes
High Temperature Voice Coil- Our proprietary Torriform Technology provides
superior current distribution while effectively dissipating heat
Phoeniroll Surround Technology- A Phoenix Gold Standard that supports
smooth linear movement for optimal accuracy
Silk Dome Tweeter- delivers rich, warm treble with remarkable
clarity and denition
Corona Lens- Our unique wave guide technology, focuses the tweeter
correcting any phase cancellation that occurs in traditional “point source”
speakers. The lens provides a smooth blend of the tweeter frequencies with
mid woofer by dispersing the sound waves in a balanced fashion
Page 2
CONTENTS
2 x MX Series Coaxial Speakers
2 x Speaker Grilles
8 x Mounting Screws
8 x Mounting Clips
1 x User / Installation Manual
1 x Mounting Template
(MX65CX and MX69CX)
CAUTION!
Do not drill mounting holes with speaker in
place as this could allow drill shavings to
damage the voice coil and void the speaker
warranty.

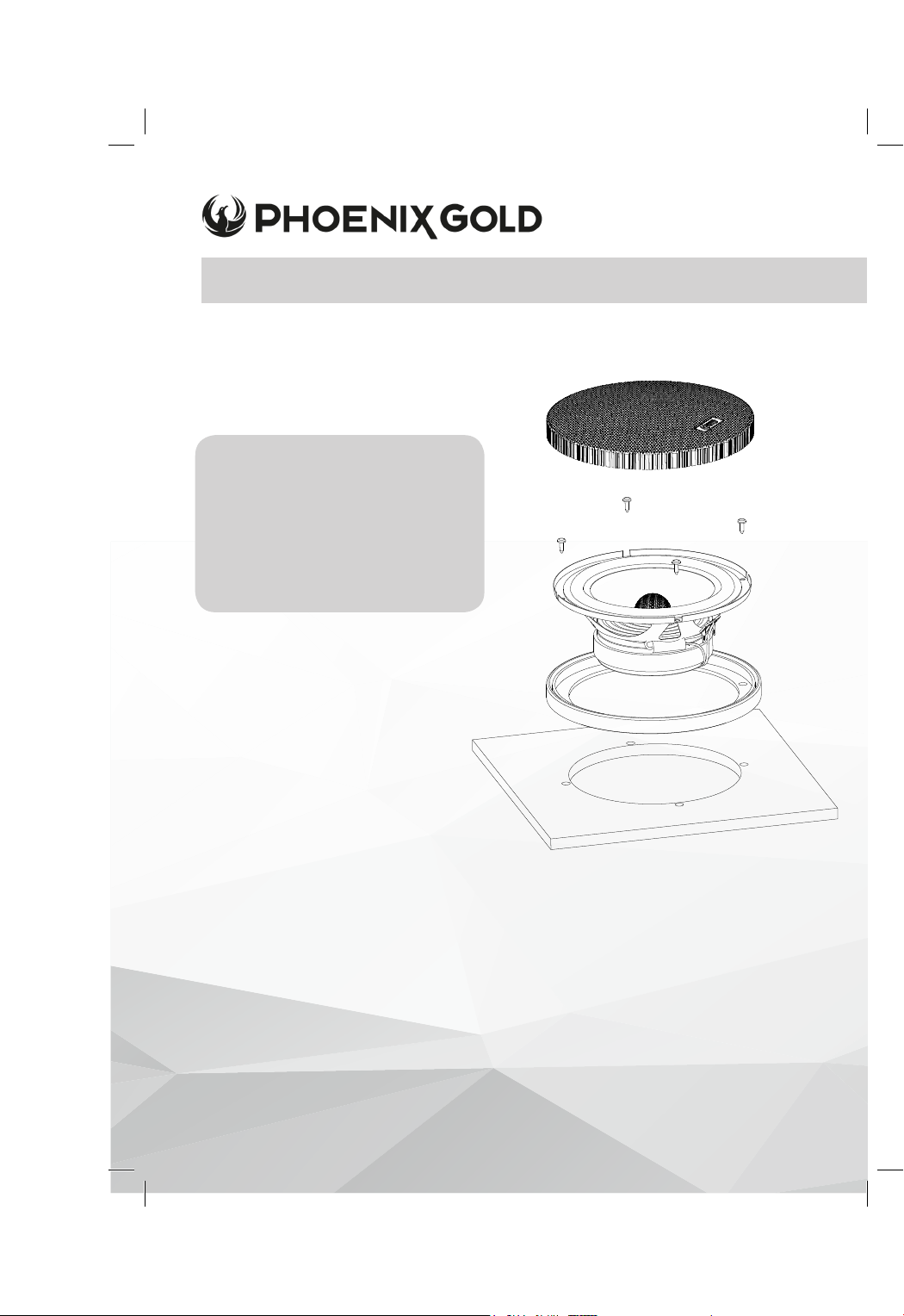

MOUNTING GUIDELINES
1. Ensure there is adequate clearance and depth for the speaker to be mounted.
2. Use the supplied template to mark & cut out the correct diameter hole.
3. Drill four holes for the mounting screws.
4. Separate the grille from the grille frame.
5. Insert the speaker into the grille frame and afx with the screws provided.
6. Complete installation by replacing the grille into the grille frame.
Page 3
MX Series Coaxial Speakers
MX65CX - MX57CX - MX69CX
WIRING GUIDELINES
Ensure the audio system is turned off before making any connections to the amplier,
speakers or source unit. Failure to do so could result in permanent damage to the
audio system.
When wiring the speakers ensure that the wire is protected from sharp objects and always
use rubber grommets when wiring through metal panels.
Ensure all terminals and connections are protected from the vehicle chassis and from
each other as failure to do so could result in permanent damage to the audio system.
When connecting the speakers to the source unit or ampliers ensure you connect the
positive and negative output wire from the source unit to the corresponding speaker
terminals. This will ensure the audio system will be in phase.
SPECIFICATION
PEAK Power 150 Watts 150 Watts 150 Watts
RMS Power 100 Watts 100 Watts 100 Watts
Frequency Response 59Hz-20KHz 67Hz-20KHz 55Hz-20KHz
Impedance 4 Ohm 4 Ohm 4 Ohm
Sensitivity 90dB 92dB 88 dB
Cone Material Polypropylene/Carbon Polypropylene/Carbon Polypropylene/Carbon
Tweeter Material Silk Silk Silk
Tweeter Size 25mm 19mm 25mm
FS 67hz 67hz 55hz
Vas 11.8cuL 10.9cuL 19.59cuL
Xmax 10mm 10mm 11mm
Qts 0.419 1.278 0.592
Overall Diameter
Cutout Diameter
Mounting Depth
A
B
C
MX65CX MX57CX MX69CX
7.08in
180mm
5.67in
144mm
2.28in / 58mm 2.20in / 56mm 2.95in / 75mm
5.51in x 8.66in
140mm x 220mm
4.96in x 7.16in
126mm x 182mm
7.25in x 10.18in
184mm x 258mm
6.02in x 8.78in
153mm x 223mm
WARNING:
Audio Systems can produce sound levels over 135dB. Continuous exposure to sound pressure levels
over 100dB may cause permanent hearing loss. Please watch for emergency vehicles as warning
signals may not be heard.
Page 4

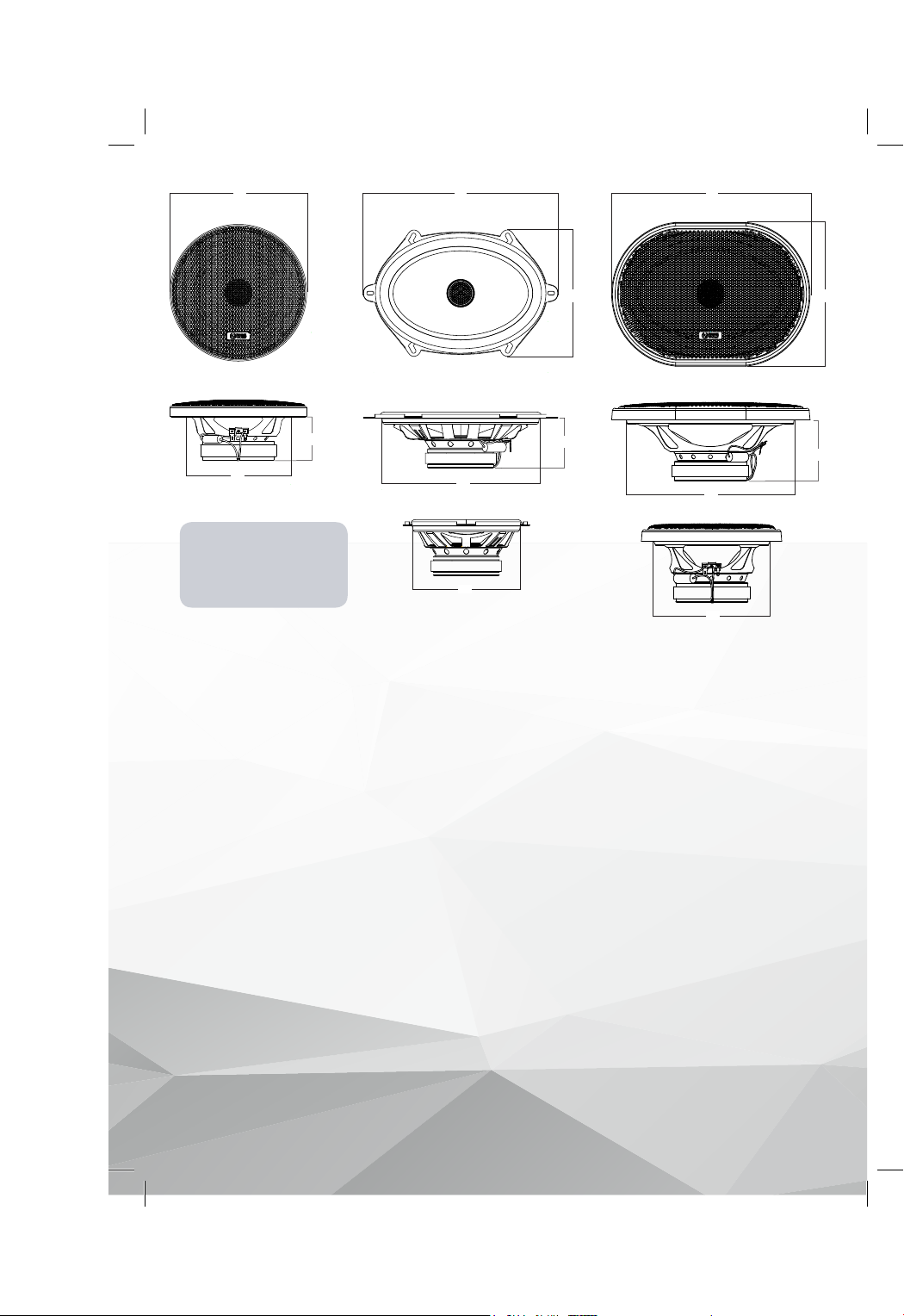

MX65CX MX57CX MX69CX
A
7.08in/180mm
A
8.66in/220mm
A
10.18in/258mm
A
5.51in/140mm
B
5.67in/144mm
C
2.28in/58mm
B
7.16in/182mm
C
2.20in/56mm
B
8.78in/223mm
A = Overall Diameter
B = Cutout Diameter
C = Mounting Depth
Phoenix Gold Product Warranty
LIMITED WARRANTY
Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period
of one (1) years from the original date of purchase. This warranty is not transferable and applies only
to the original purchaser from an authorized Phoenix Gold dealer in the United States of America
only. Should service be necessary under this warranty for any reason due to manufacturing defect
or malfunction, Phoenix Gold will (at its discretion), repair or replace the defective product with new
or remanufactured product at no charge. Damage caused by the following is not covered under
warranty: accident, misuse, abuse, product modication or neglect, failure to follow installation
instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not
cover incidental or consequential damages and does not cover the cost of removing or reinstalling
the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under
warranty.
INTERNATIONAL WARRANTIES:
Products purchased outside the United States of America are covered only by that country’s
Authorized Phoenix Gold reseller and not by Phoenix Gold. Consumers needing service or warranty
information for these products must contact that country’s reseller for information.
B
4.96in/126mm
B
6.02in/153mm
A
7.25in/184mm
C
2.95in/75mm
Phoenix Gold is a Power Brand of AAMP Global
tel - 1-800-477-2267
email - [email protected] (USA)
email - [email protected] (Europe)
15500 Lightwave Drive, Suite 202
Clearwater, Florida 33760
© 2019 AAMP Global
Woolmer Way, Bordon, Hampshire,
GU35 9QE, United Kingdom
