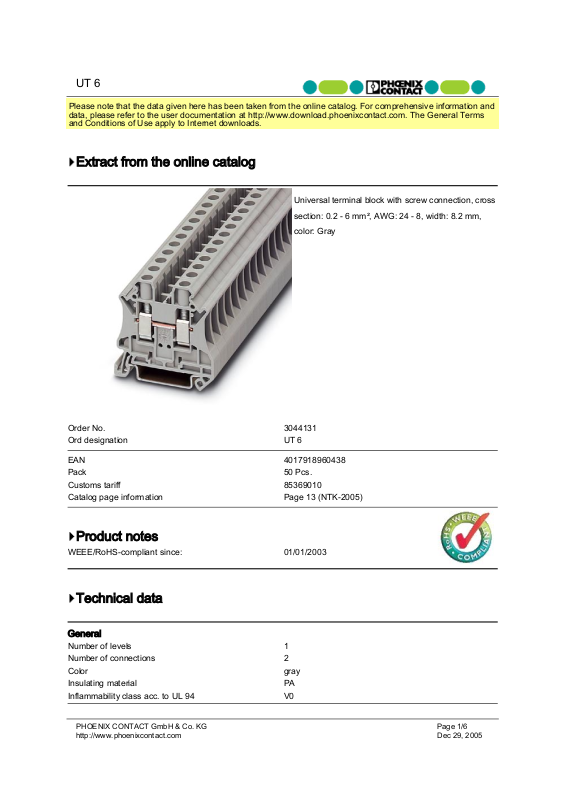

Page 1
UT 6
6
Please note that the data given here has been taken from the online catalog. For comprehensive information and
data, please refer to the user documentation at http://www.download.phoenixcontact.com. The General Terms
and Conditions of Use apply to Internet downloads.
Extract from the online catalog

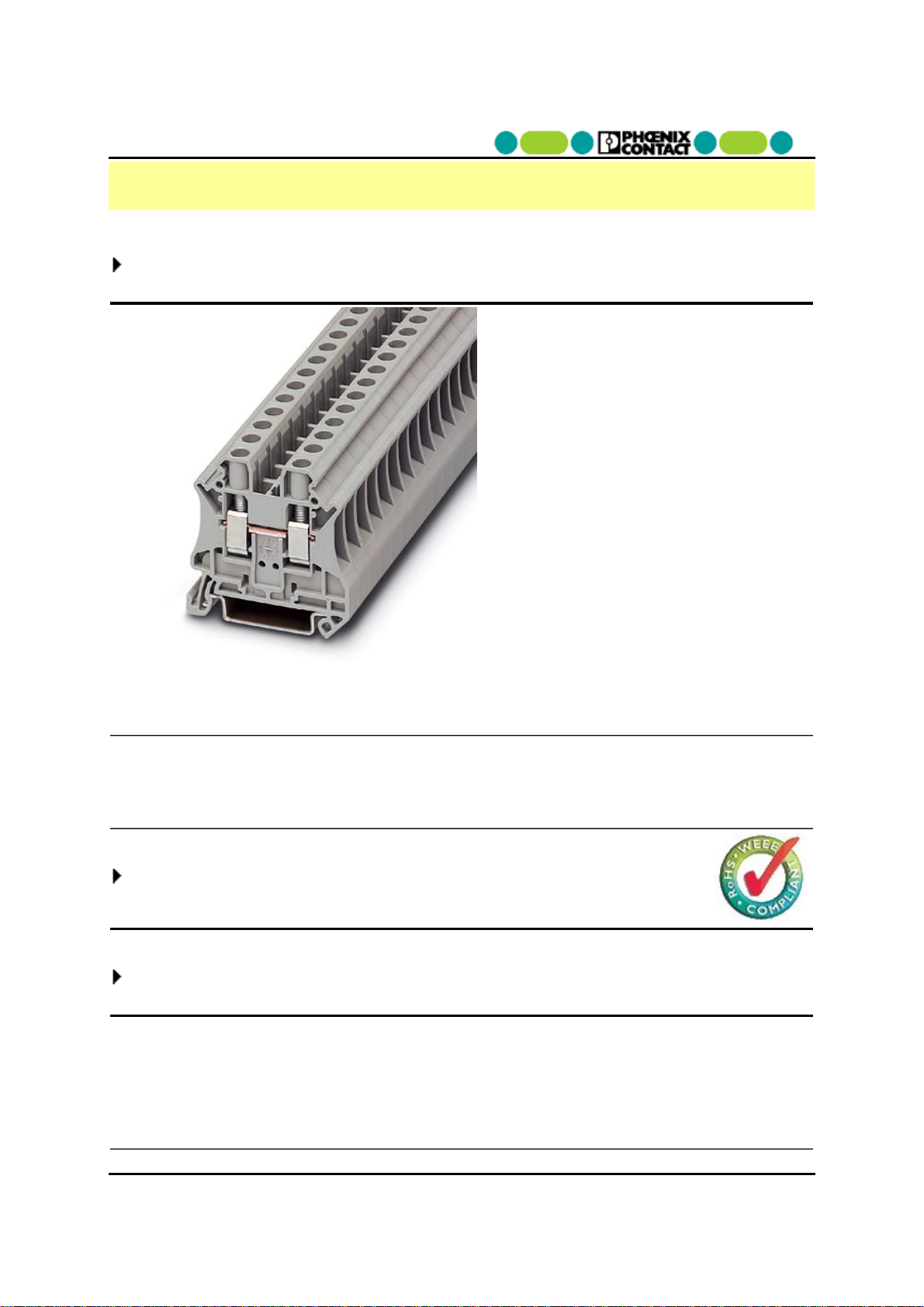

Universal terminal block with screw connection, cross
section: 0.2 - 6 mm², AWG: 24 - 8, width: 8.2 mm,
color: Gray
Order No. 3044131
Ord designation UT 6
EAN 4017918960438
Pack 50 Pcs.
Customs tariff 85369010
Catalog page information Page 13 (NTK-2005)
Product notes
WEEE/RoHS-compliant since: 01/01/2003
Technical data
General
Number of levels 1
Number of connections 2
Color gray
Insulating material PA
Inflammability class acc. to UL 94 V0
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com Dec 29, 2005
Page 1/
Page 2
UT 6
6
Dimensions
Width 8.2 mm
Length 46.9 mm
Height NS 35/7,5 47.5 mm
Height NS 35/15 55 mm
Technical data
Maximum load current 57 A (with 10 mm
Rated surge voltage 8 kV
Contamination class 3
Surge voltage category III
Insulating material group I
Connection in acc. with standard IEC/ DIN VDE
Nominal current I
Nominal voltage U
Open side panel ja
Connection data
Conductor cross section, rigid min. 0.2 mm
Conductor cross section, rigid max. 10 mm
Conductor cross section flexible min. 0.2 mm
Conductor cross section, flexible max. 6 mm
Conductor cross section AWG/kcmil min. 24
Conductor cross section AWG/kcmil max 8
Conductor cross section flexible, with ferrule without
plastic sleeve min.
Conductor cross section flexible, with ferrule without
plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic
sleeve min.
Conductor cross section flexible, with ferrule with plastic
sleeve max.
2 conductors with same cross section, solid min. 0.2 mm
2 conductors with same cross section, solid max. 2.5 mm
2 conductors with same cross section, flexible, min. 0.2 mm
2 conductors with same cross section, flexible max. 2.5 mm
2 conductors with same cross section, flexible, TWIN
ferrules with plastic sleeve, min.
2 conductors with identical cross section, flexible TWIN
ferrules with plastic sleeve, max.
2 conductors with same cross section, flexible, ferrules
without plastic sleeve min.
2 conductors with same cross section, flexible, ferrules
without plastic sleeve, max.
Type of connection Screw connection
Stripping length 10 mm
Internal cylindrical gage A5
Screw thread M 4
Tightening torque, min 1.5 Nm
57 A
N
1000 V
N
0.25 mm
6 mm
0.25 mm
6 mm
0.5 mm
4 mm
0.25 mm
1.5 mm
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
conductor cross section)
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com Dec 29, 2005
Page 2/
Page 3
UT 6
6
Certificates
Certificate logos
CUL
Nominal voltage U
Nominal current I
AWG/kcmil 24-8
UL
Nominal voltage U
Nominal current I
AWG/kcmil 24-8
600 V
N
50 A
N
600 V
N
50 A
N
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com Dec 29, 2005
Page 3/
Page 4
UT 6
6
Accessories
Item Designation Description
Assembly
3047167 ATP-UT Partition plate, for visual and electrical separation of terminal
groups, width: 2 mm, color: gray
3047028 D-UT 2,5/10 Cover, for terminal block UT and UT...-PE, color: gray
0801762 NS 35/ 7,5 CU UNPERF
2000MM
1207640 NS 35/ 7,5 PERF 755MM NS 35 DIN rail, height 7.5 mm, length 755 mm
1207653 NS 35/ 7,5 PERF 955MM NS35 DIN rail, height 7.5 mm, length 955 mm
1207666 NS 35/ 7,5 PERF 1155MM NS 35 DIN rail, height 7.5 mm, length 1155 mm
0801733 NS 35/ 7,5 PERF 2000MM DIN rail, material: Steel, perforated, height 7.5 mm, width 35
0801681 NS 35/ 7,5 UNPERF 2000MM DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
1201756 NS 35/15 AL UNPERF
2000MM
1201895 NS 35/15 CU UNPERF
2000MM
1207679 NS 35/15 PERF 755MM NS 35 DIN rail, height 15 mm, length 755 mm
1207682 NS 35/15 PERF 955MM NS 35 DIN rail, height 15 mm, length 955 mm
1207695 NS 35/15 PERF 1155MM NS 35 DIN rail, height 15 mm, length 1155 mm
1201730 NS 35/15 PERF 2000MM DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
1201714 NS 35/15 UNPERF 2000MM DIN rail, material: Steel, unperforated, height 15 mm, width 35
1201798 NS 35/15-2,3 UNPERF
2000MM
DIN rail, material: Copper, unperforated, height 7.5 mm, width
35 mm, length: 2 m
mm, length: 2 m
mm, length: 2 m
DIN rail, deep-drawn, high profile, unperforated, 1.5 mm thick,
material: Aluminum, height 15 mm, width 35 mm, length 2 m
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
length: 2 m
mm, length: 2 m
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
Bridges
3030284 FBS 2-8 Plug-in bridge for cross-connections in the terminal center, 2-
pos., color: Red
3030297 FBS 3-8 Plug-in bridge for cross-connections in the terminal center, 3-
pos., color: Red
3030307 FBS 4-8 Plug-in bridge for cross-connections in the terminal center, 4-
pos., color: Red
3030310 FBS 5-8 Plug-in bridge for cross-connections in the terminal center, 5-
pos., color: Red
3047251 RB UT 6-(2,5/4) Reducing bridge, for connection from UT 10 to UT 4 or UT 2,5
General
3047264 RB UT 6-ST(2,5/4)
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com Dec 29, 2005
Page 4/
Page 5
UT 6
6
Marking
0811228 X-PEN 0,35 Marker pen without ink cartridge, for manual labeling of markers,
labeling extremely wipe-proof, line thickness 0.35 mm
1052015 ZB 8,LGS:FORTL.ZAHLEN Zack strip, 10-section, printed horizontally: with the numbers, 1-
10, 11-20 etc. up to 991-1000, color: white
5060896 ZB 8/WH-100:UNBEDRUCKT Zack strip, unprinted: 10-section, for individual labeling with M-
PEN, ZB-T or CMS system, large batch, sufficient for labeling
1000 terminal blocks, terminal width: 8.2 mm, color: White
1050512 ZB 8:SO/CMS Zack strip, 10-section, divisible, special printing, marking
according to customer requirements
Plug/Adapter
3030925 PAI-4 Test adapter, for 4 mm diameter test plug PS and safety test
plug, makes contact in the bridge shaft
3031005 PS-8 Modular test plug, for individual assembly of test plug strips, for
UT, ST and QT terminal blocks, can be labeled with ZBF 8,
color: Red
Tools
1205066 SZS 1,0X4,0 Screwdriver, bladed, matches all screw terminal blocks with 10
mm² and 16 mm² connection cross section, blade: 1.0 x 4.0 mm
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com Dec 29, 2005
Page 5/
Page 6
UT 6
6
Address
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Phone +49 5235 3 00
Fax +49 5235 3 41200
http://www.phoenixcontact.com
Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com Dec 29, 2005
Page 6/
