UT 4-TG
8
Please note that the data given here has been taken from the online catalog. For comprehensive information and
data, please refer to the user documentation at http://www.download.phoenixcontact.com. The General Terms
and Conditions of Use apply to Internet downloads.
Extract from the online catalog

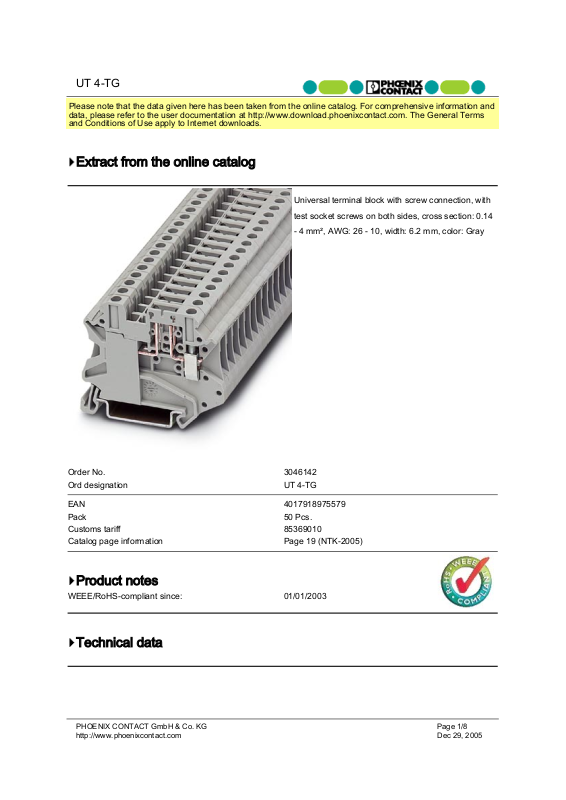

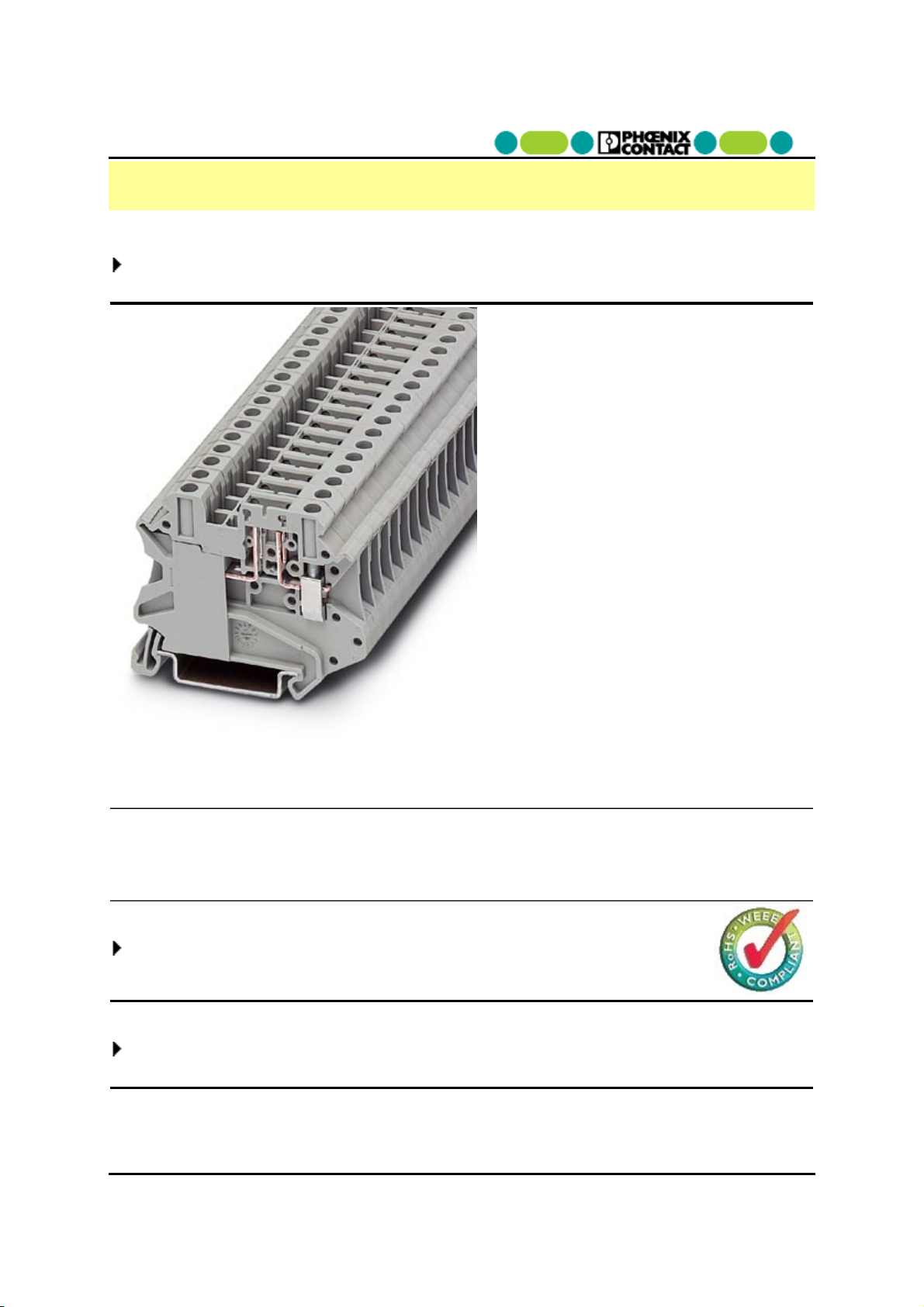

Universal terminal block with screw connection, with
test socket screws on both sides, cross section: 0.14
- 4 mm², AWG: 26 - 10, width: 6.2 mm, color: Gray
Order No. 3046142
Ord designation UT 4-TG
EAN 4017918975579
Pack 50 Pcs.
Customs tariff 85369010
Catalog page information Page 19 (NTK-2005)
Product notes
WEEE/RoHS-compliant since: 01/01/2003
Technical data
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com Dec 29, 2005
Page 1/
Page 2
UT 4-TG
8
General
Number of levels 1
Number of connections 2
Color gray
Insulating material PA
Inflammability class acc. to UL 94 V0
Dimensions
Width 6.2 mm
Length 56.8 mm
Height NS 35/7,5 47.5 mm
Height NS 35/15 55 mm
Technical data
Maximum load current 20 A
Rated surge voltage 6 kV
Contamination class 3
Surge voltage category III
Insulating material group I
Connection in acc. with standard IEC/ DIN VDE
Nominal current I
Nominal voltage U
Open side panel nein
20 A
N
500 V
N
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com Dec 29, 2005
Page 2/
Page 3
UT 4-TG
8
Connection data
Conductor cross section, rigid min. 0.14 mm
Conductor cross section, rigid max. 6 mm
Conductor cross section flexible min. 0.14 mm
Conductor cross section, flexible max. 4 mm
2
2
2
2
Conductor cross section AWG/kcmil min. 26
Conductor cross section AWG/kcmil max 10
Conductor cross section flexible, with ferrule without
0.25 mm
plastic sleeve min.
Conductor cross section flexible, with ferrule without
4 mm
plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic
0.25 mm
sleeve min.
Conductor cross section flexible, with ferrule with plastic
4 mm
sleeve max.
2 conductors with same cross section, solid min. 0.14 mm
2 conductors with same cross section, solid max. 1.5 mm
2 conductors with same cross section, flexible, min. 0.14 mm
2 conductors with same cross section, flexible max. 1.5 mm
2 conductors with same cross section, flexible, TWIN
0.5 mm
ferrules with plastic sleeve, min.
2 conductors with identical cross section, flexible TWIN
2.5 mm
ferrules with plastic sleeve, max.
2 conductors with same cross section, flexible, ferrules
0.25 mm
without plastic sleeve min.
2 conductors with same cross section, flexible, ferrules
1.5 mm
2
2
2
2
2
2
2
2
2
2
2
2
without plastic sleeve, max.
Type of connection Screw connection
Stripping length 9 mm
Internal cylindrical gage A4
Screw thread M 3
Tightening torque, min 0.6 Nm
PHOENIX CONTACT GmbH & Co. KG
Page 3/
http://www.phoenixcontact.com Dec 29, 2005
Page 4
UT 4-TG
8
Certificates
Certificate logos
CUL
Nominal voltage U
Nominal current I
AWG/kcmil 26-10
UL
Nominal voltage U
Nominal current I
AWG/kcmil 26-10
600 V
N
16 A
N
600 V
N
16 A
N
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com Dec 29, 2005
Page 4/
Page 5
UT 4-TG
8
Drawings

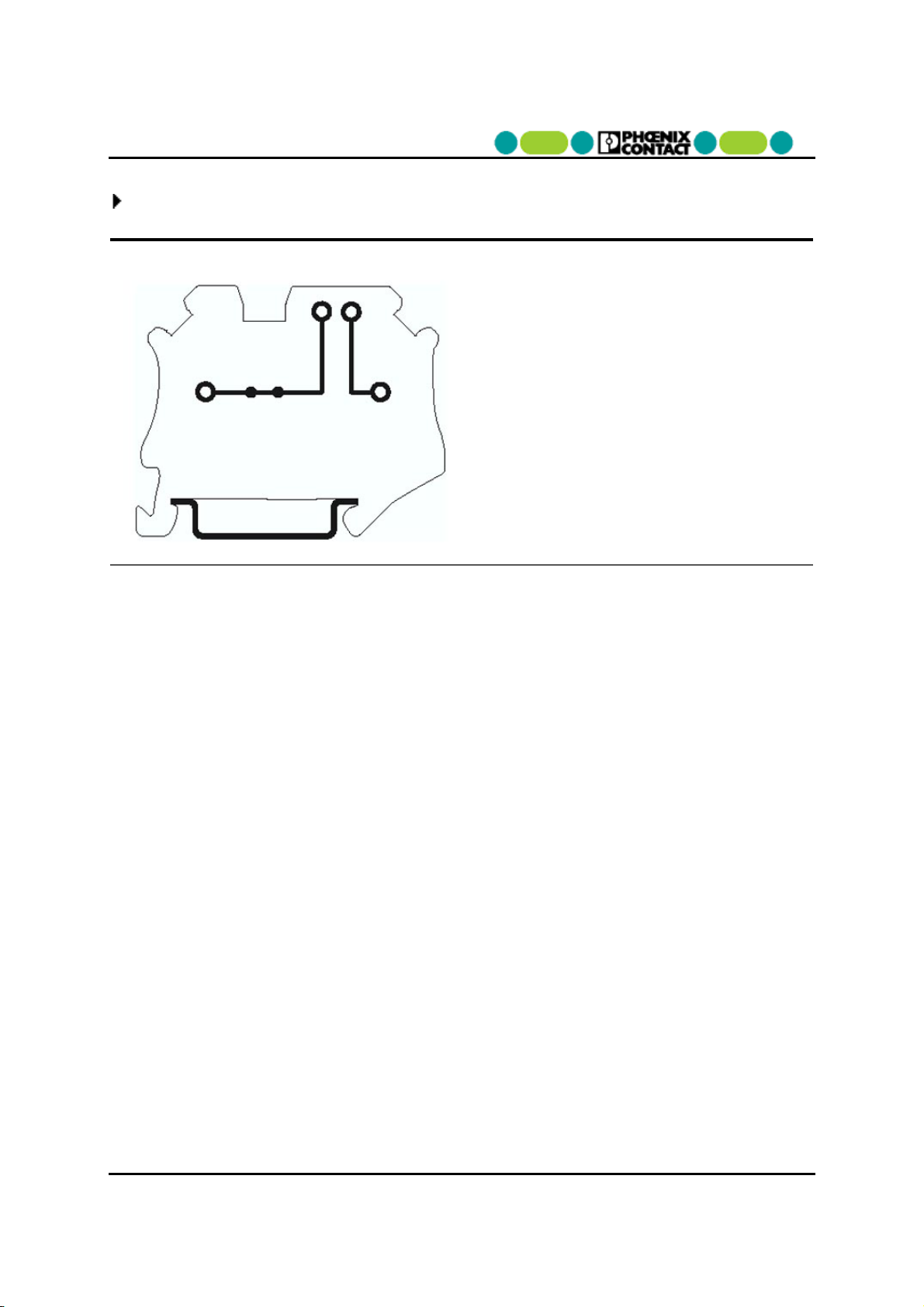

Circuit diagram
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com Dec 29, 2005
Page 5/
Page 6
UT 4-TG
8
Accessories
Item Designation Description
Assembly
0801762 NS 35/ 7,5 CU UNPERF
2000MM
1207640 NS 35/ 7,5 PERF 755MM NS 35 DIN rail, height 7.5 mm, length 755 mm
1207653 NS 35/ 7,5 PERF 955MM NS35 DIN rail, height 7.5 mm, length 955 mm
1207666 NS 35/ 7,5 PERF 1155MM NS 35 DIN rail, height 7.5 mm, length 1155 mm
0801733 NS 35/ 7,5 PERF 2000MM DIN rail, material: Steel, perforated, height 7.5 mm, width 35
0801681 NS 35/ 7,5 UNPERF 2000MM DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
1201756 NS 35/15 AL UNPERF
2000MM
1201895 NS 35/15 CU UNPERF
2000MM
1207679 NS 35/15 PERF 755MM NS 35 DIN rail, height 15 mm, length 755 mm
1207682 NS 35/15 PERF 955MM NS 35 DIN rail, height 15 mm, length 955 mm
1207695 NS 35/15 PERF 1155MM NS 35 DIN rail, height 15 mm, length 1155 mm
1201730 NS 35/15 PERF 2000MM DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
1201714 NS 35/15 UNPERF 2000MM DIN rail, material: Steel, unperforated, height 15 mm, width 35
1201798 NS 35/15-2,3 UNPERF
2000MM
3036796 P-CO Component connector, can be used in all spring-cage basic
DIN rail, material: Copper, unperforated, height 7.5 mm, width
35 mm, length: 2 m
mm, length: 2 m
mm, length: 2 m
DIN rail, deep-drawn, high profile, unperforated, 1.5 mm thick,
material: Aluminum, height 15 mm, width 35 mm, length 2 m
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
length: 2 m
mm, length: 2 m
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
disconnect terminal blocks of types QTC 1,5-TG, ST 2,5...-TG
and STS 2,5- TG, color: Gray
Bridges
3030336 FBS 2-6 Plug-in bridge for cross-connections in the terminal center, 2-
pos., color: Red
3030242 FBS 3-6 Plug-in bridge for cross-connections in the terminal center, 3-
pos., color: Red
3030255 FBS 4-6 Plug-in bridge for cross-connections in the terminal center, 4-
pos., color: Red
3030349 FBS 5-6 Plug-in bridge for cross-connections in the terminal center, 5-
pos., color: Red
3030271 FBS 10-6 Plug-in bridge for cross-connections in the terminal center, 10-
pos., color: Red
3030365 FBS 20-6 Plug-in bridge for cross-connections in the terminal center, 20-
pos., color: Red
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com Dec 29, 2005
Page 6/
Page 7
UT 4-TG
8
General
3038956 P-FIX Through connector, insulated, color: Gray
3036806 P-FU 5X20 Fuse plug, color: Black
3036835 P-FU 5X20 LA 250 Fuse plug, black, with light indicator, voltage light indicator: 110
V ... 250 V, current light indicator: 0.5 mA ... 2.5 mA, color: Black
3036819 P-FU 5X20 LED 24 Fuse plug, black, with light indicator, voltage light indicator: 12 V
... 30 V, current light indicator: 1.0 mA ... 2.5 mA, color: Black
3036822 P-FU 5X20 LED 60 Fuse plug, black, with light indicator, voltage light indicator: 30 V
... 60 V, current light indicator: 0.8 mA ... 2.0 mA, color: Black
Plug/Adapter
3036783 P-DI Disconnect plug, can be used in all spring-cage basic disconnect
terminal blocks of types ST 2,5...-TG and STS 2,5- TG, color:
Orange
3030925 PAI-4 Test adapter, for 4 mm diameter test plug PS and safety test
plug, makes contact in the bridge shaft
3030996 PS-6 Modular test plug, for individual assembly of test plug strips, for
UT, ST, DT and QT terminal blocks, can be labeled with ZBF 6,
color: Red
Tools
1205053 SZS 0,6X3,5 Screwdriver, bladed, matches all screw terminal blocks up to 4.0
mm² connection cross section, blade: 0.6 x 3.5 mm, without VDE
approval
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com Dec 29, 2005
Page 7/
Page 8
UT 4-TG
8
Address
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Phone +49 5235 3 00
Fax +49 5235 3 41200
http://www.phoenixcontact.com
Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com Dec 29, 2005
Page 8/
