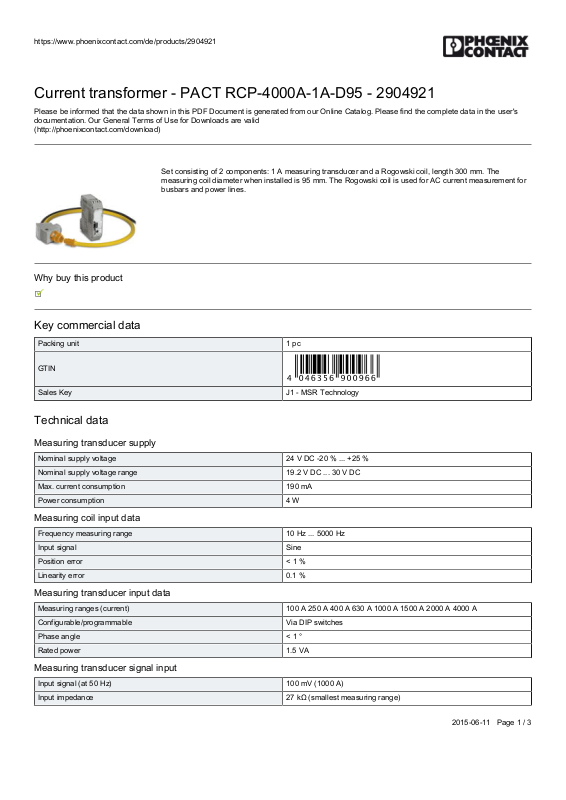

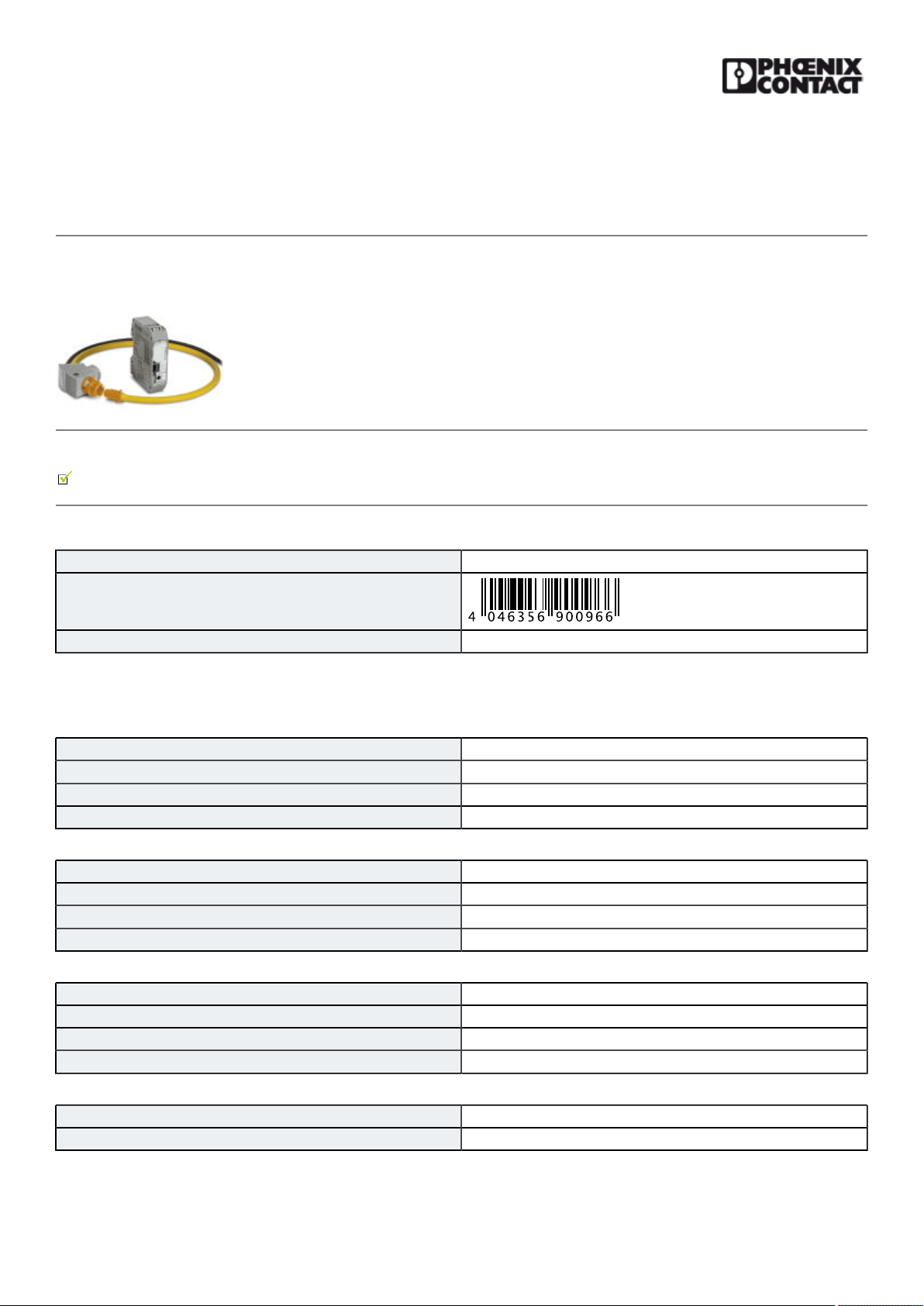

Current transformer-PACT RCP-4000A-1A-D95-2904921
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Set consisting of 2 components: 1 A measuring transducer and a Rogowski coil, length 300 mm. The
measuring coil diameter when installed is 95 mm. The Rogowski coil is used for AC current measurement for
busbars and power lines.
Why buy this product
Key commercial data
Packing unit 1 pc
GTIN
Sales Key J1 - MSR Technology
Technical data
Measuring transducer supply
Nominal supply voltage 24 V DC -20% ... +25%
Nominal supply voltage range 19.2 V DC ... 30 V DC
Max. current consumption 190 mA
Power consumption 4 W
Measuring coil input data
Frequency measuring range 10 Hz ... 5000 Hz
Input signal Sine
Position error < 1 %
Linearity error 0.1 %
Measuring transducer input data
Measuring ranges (current) 100 A 250 A 400 A 630 A 1000 A 1500 A 2000 A 4000 A
Configurable/programmable Via DIP switches
Phase angle < 1 °
Rated power 1.5 VA
Measuring transducer signal input
Input signal (at 50 Hz) 100 mV (1000 A)
Input impedance 27 kΩ (smallest measuring range)
2015-06-11Page1/3
Page 2
https://www.phoenixcontact.com/de/products/2904921
Current transformer-PACT RCP-4000A-1A-D95-2904921
Technical data
Measuring coil signal output
Output signal (at 50 Hz) 100 mV (no load, at 1,000 A)
V
Output voltage (in no-load operation)
Output voltage (sinusoidal, in no-load operation)
Measuring transducer signal output
Current output signal 0 A AC ... 1 A AC
Load 0 Ω ... 1.5 Ω
Operating voltage display Green LED
General data, measuring coil
Length of measuring coil 300 mm
Diameter of measuring coil 8.3 mm ±0.2 mm
Length of signal cable 3000 mm
Conductor structure signal line 2x 0.22 mm (Signal (tinned))
Coil material ELASTOGRAN
Housing material PC
Insulation double insulation
Rated insulation voltage 1000 V AC (rms CAT III)
Test voltage 10.45 kV (DC / 1 min.)
Basic accuracy <± 0.21 %
UL, USA / Canada UL 61010 Recognized
= M * dI/dt
OUT
100 mV (V
1,000 A))
1x 0.22 mm (Shielding (tinned))
600 V AC (rms CAT IV)
= 2 * π * M * f * I (M = 0.318 μH; example: At 50 Hz; I =
OUT
General data for measuring transducer
Linearity error < 0.5 % (From the range end value)
Maximum transmission error ≤ 0.5 % (From the range end value)
Frequency range 45 Hz ... 65 Hz
Current consumption < 190 mA (at 19.2 V)
Housing material Polyamide
Degree of protection IP20
Test voltage 1.5 kV AC (Supply/input and output: 50 Hz, 1 min)
UL, USA / Canada UL 508 Listed
General data
Standards/regulations IEC61010-1
IEC61010-2-032
Insulation double insulation
Pollution degree 2
Surge voltage category III (1,000 V, to neutral conductor)
IV (600 V, to neutral conductor)
2015-06-11Page2/3
Page 3
https://www.phoenixcontact.com/de/products/2904921
Current transformer-PACT RCP-4000A-1A-D95-2904921
Technical data
General data
Temperature coefficients
Connection data
Connection name Measuring transducer side
Conductor cross section flexible min. 0.2 mm²
Conductor cross section flexible max. 2.5 mm²
Conductor cross section solid min. 0.2 mm²
Conductor cross section solid max. 2.5 mm²
Conductor cross section AWG min. 24
Conductor cross section AWG max. 14
Screw thread M3
Connection method Screw connection
Stripping length 7 mm
Torque 0.5 Nm ... 0.6 Nm
0.005 %/K (+10°C ... +70°C; both components have the same ambient
temperature)
0.07 %/K (-20°C ... +10°C; both components have the same ambient
temperature)
Dimensions
Width 22.50 mm
Height 70.40 mm
Depth 85.00 mm
Ambient conditions
Ambient temperature (operation) -30 °C ... 80 °C (Measuring coil)
-20 °C ... 70 °C (Measuring transducer)
Ambient temperature (storage/transport) -40 °C ... 90 °C (Measuring coil)
-25 °C ... 85 °C (Measuring transducer)
Maximum altitude < 2000 m
Measuring coil degree of protection IP67 (not assessed by UL)
Classifications
eCl@ss
eCl@ss 5.1 27200303
eCl@ss 6.0 27200303
ETIM
ETIM 4.0 EC002048
ETIM 5.0 EC002048
