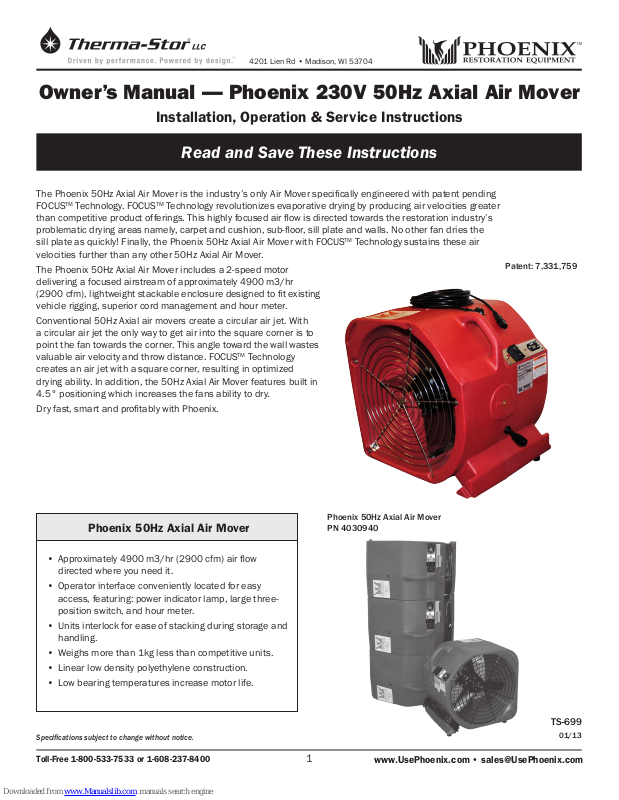

Owner’s Manual — Phoenix 230V 50Hz Axial Air Mover

Installation, Operation & Service Instructions

Read and Save These Instructions

The Phoenix 50Hz Axial Air Mover is the industry’s only Air Mover specically engineered with patent pending

FOCUSTM Technology. FOCUSTM Technology revolutionizes evaporative drying by producing air velocities greater

than competitive product offerings. This highly focused air ow is directed towards the restoration industry’s
problematic drying areas namely, carpet and cushion, sub-oor, sill plate and walls. No other fan dries the
sill plate as quickly! Finally, the Phoenix 50Hz Axial Air Mover with FOCUSTM Technology sustains these air
velocities further than any other 50Hz Axial Air Mover.

The Phoenix 50Hz Axial Air Mover includes a 2-speed motor
delivering a focused airstream of approximately 4900 m3/hr
(2900 cfm), lightweight stackable enclosure designed to t existing
vehicle rigging, superior cord management and hour meter.

Conventional 50Hz Axial air movers create a circular air jet. With
a circular air jet the only way to get air into the square corner is to
point the fan towards the corner. This angle toward the wall wastes
valuable air velocity and throw distance. FOCUSTM Technology
creates an air jet with a square corner, resulting in optimized
drying ability. In addition, the 50Hz Axial Air Mover features built in

4.5° positioning which increases the fans ability to dry.
Dry fast, smart and protably with Phoenix.

Patent: 7,331,759

Phoenix 50Hz Axial Air Mover

• Approximately 4900 m3/hr (2900 cfm) air ow
directed where you need it.

• Operator interface conveniently located for easy
access, featuring: power indicator lamp, large three­position switch, and hour meter.

• Units interlock for ease of stacking during storage and
handling.

• Weighs more than 1kg less than competitive units.

• Linear low density polyethylene construction.

• Low bearing temperatures increase motor life.

Specifications subject to change without notice.

Toll-Free 1-800-533-7533 or 1-608-237-8400

Phoenix 50Hz Axial Air Mover
PN 4030940

1

www.UsePhoenix.com • [e-mail]

TS-699

01/13

Table of Contents

Introduction ............................................................................ 1

FOCUSTM Technology Features and Benets.........................1

1. Safety Information ..........................................................2

2. Intended Application ....................................................... 3

3. Safety Certications ........................................................3

4. Specications ..................................................................3

5. Power Requirements.......................................................3

5.1 International Cord/Plug Set .....................................3

5.2 Integrated Cord Wrap ................................................ 3

6. Applications ..................................................................... 3

6.1 Sizing for Water Restoration Jobs .............................3

6.2 Placement .................................................................. 3

6.3 Orienting of Directional Drying System .................... 4

7. Operating Instructions ....................................................4

8. Operator Panel Features ................................................. 5

8.1 Run-Time Hour Meter ................................................5

8.2 Power Indication Lamp .............................................5

8.3 3-Position Drying Selector Switch ............................5

9. Maintenance .................................................................... 5

9.1 Servicing ....................................................................5

9.2 Cleaning ..................................................................... 5

10. Replacement Parts and Optional Accessories .............6

11. Wiring Diagram ............................................................... 6

Warranty ...........................................................................7

Serial No. ___________________________

Purchase Date ______/______/_____

Dealer’s Name ___________________________________

1 Safety Information

• Do not operate the unit with a cut or frayed power cord.
Replace cord if it becomes damaged.

• Do not unplug the unit by pulling on the cord. Grasp the
plug rmly and pull it out of the wall socket or power
receptacle.

• Always use a grounded outlet.

• Never operate electrical equipment in standing water.

• Never operate with the safety grills removed. Personal
injury may result.

• Do not stick your ngers or other objects through the
safety grills.

• Do not restrict airow to the unit. This may cause the unit
to overheat.

• Unit should never be serviced or cleaned while it is
plugged in.

• Do not sit or stand on the unit or use as a shelf or table.

• Before leaving an 50Hz Axial Air Mover unattended,
ensure children do not have access to the equipment. Do
not allow children to play with or near the unit or in its air
ow.

• To reduce the risk of re or electric shock, do not use this
air mover with any solid-state speed control device.

• Do not route cord under furniture or appliances.

LIRE ET CONSERVER CES INSTRUCTIONS

• Risque de choc électrique Peut causer des blessures ou
la mort. Débrancher toutes les alimentations en courant
électrique à distance avant l’entretien ou le nettoyage.

• Ne pas utiliser l’appareil avec un cordon d’alimentation
coupé ou efloché.

• Ne pas débrancher l’appareil en tirant sur le cordon. Tenir
la che fermement et la tirer hors de la prise murale ou la
prise d’alimentation électrique.

• Toujours utiliser une prise mise à la terre.

• Ne jamais utiliser l’équipement électrique dans de l’eau
stagnante.

• Ne jamais utiliser sans les grilles de protection. Des
blessures risquent d’en résulter.

• Ne pas passer les doigts ou d’autres objets dans les
grilles de protection.

• Ne pas diminuer le débit d’air arrivant jusqu’à l’appareil.
L’appareil risque de trop chauffer.

• Ne pas s’asseoir ou se tenir debout sur l’appareil; ne pas
l’utiliser comme étagère ou table.

• Avant de laisser un appareil aéraulique 50Hz Axial sans
surveillance, s’assurer que les enfants n’ont pas accès
à l’équipement. Ne pas laisser les enfants jouer avec
l’appareil ou à proximité de l’appareil ou dans l’air qu’il
projette.

• Pour réduire le risque d’incendie ou de choc électrique, ne

pas utiliser ce ventilateur avec un dispositif de commande

de vitesse à semi-conducteurs.

2

www.UsePhoenix.com • [e-mail]-Free 1-800-533-7533 or 1-608-237-8400

2 Intended Application

The Phoenix 50Hz Axial Air Mover has changed the
drying industry by minimizing overall drying time on water
restoration jobs. The Phoenix 50Hz Axial Air Mover uses
patent pending FOCUS Technology to maximize air velocity
across oors and along walls for longer distances. By
maximizing the air velocity, water evaporates more quickly
from the carpet, cushion, sub-oor, wall, and sill plate.

3 Safety Certifications

The Phoenix 50Hz Axial Air Mover (P/N 4030940) conforms
to UL STD 507. Certied to CAN/CSA STD C22.2 No. 113.

4 Specifications

Part No. 4030940

Motor 1/4 hp 2-speed
4-pole, PSC Electric Motor.

Cords

4028264 IEC C13 to BS 1363 U.K. Plug
4028265 IEC C13 to AS 3112 Australian Plug
4028268 IEC C13 to CEE 7/7 European Plug

Air Flow Approximately 4900 m3/hr (2900 cfm)

Cord 7 m Power Cord (20 ft)

Current High - 1.4 Amps

Low - 1.25 Amps

Voltage 230 volts/50hz

Warranty Year One - 100% parts and labor
(all components)
Year Two - 100% parts only (all components)
Years Three through Seven - Only materials
and workmanship of the housing are covered.

Dimensions

Cabinet

Width 51 cm (19.9”)

5 Power Requirements

5.1 International Cord/Plug Set

Connect the appropriate Cord/Plug set (provided) to the IEC
C13 connector. The Phoenix 50Hz Axial Air Mover draws 1.28
Amps; 230 volts and should be plugged into an appropriate
grounded (earthed) outlet.

5.2 Integrated Cord Wrap

The Phoenix 50Hz Axial Air Mover features integrated cord
management. Wrap the cord around the cord wrap as shown
and tuck under the previous wrap.

Figure 3: Cord wrap

6 Applications

6.1 Sizing for Water Restoration Jobs

Current industry standards call for one air mover per 3-5
meters (10-16 linear feet) of wall space, dependent upon the
Class of water damage. For commercial structures, the indus­try standard calls for one air mover for every 4.6 - 5.6 square
meters (50-60 square feet).

The water restoration industry based these estimates on the
air mover technology available when writing the standards.
Following these equipment-sizing standards when using the
Phoenix 50Hz Axial Air Mover will result in dramatically faster
drying times. If the restoration professional desires to merely
achieve industry standard drying times, he can use fewer

Phoenix 50Hz Axial Air Movers than standard equipment

standards allow.

Height 50 cm (19.5”)

Depth 39 cm (15.2”)

Weight 13.4 kg (29.5 Lbs)

6.2 Placement

Current industry guidelines suggest placing air movers at a
15° - 45° angle to wall. These guidelines apply to air mov­ers without FOCUS Technology. FOCUS Technology allows the

restoration professional to place the Phoenix 50Hz Axial Air

Mover at an angle nearly parallel to the wall.
The test graph shown below depicts immediate air ow at the

FOCUS Technology corner. The 50Hz Axial Air Mover sustains
this air ow for more than 6 meters (20 feet) and maximizes
the air velocity across the oor and along the wall when
placed the at 4.5° angle from the wall.

By touching the front edge of the output side of the 50Hz
Axial air mover against the wall and rotating the rest of

3
