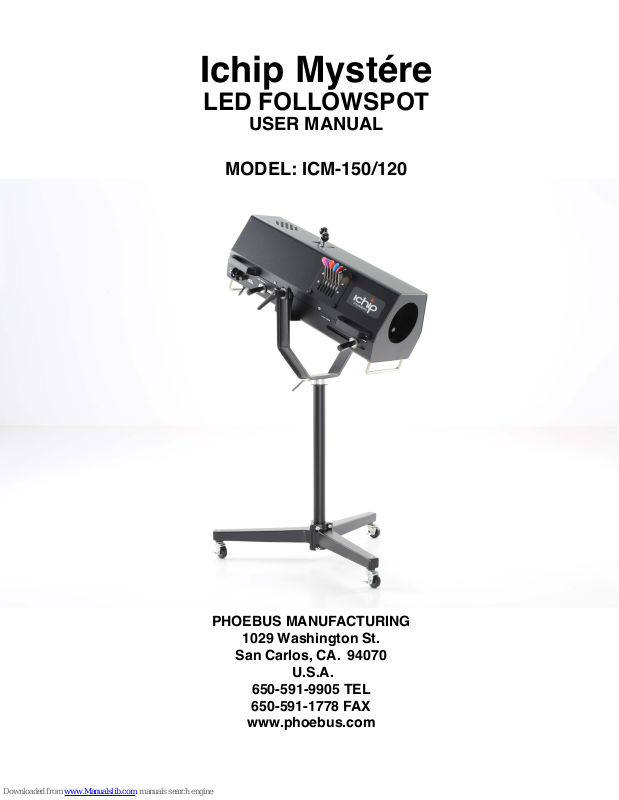

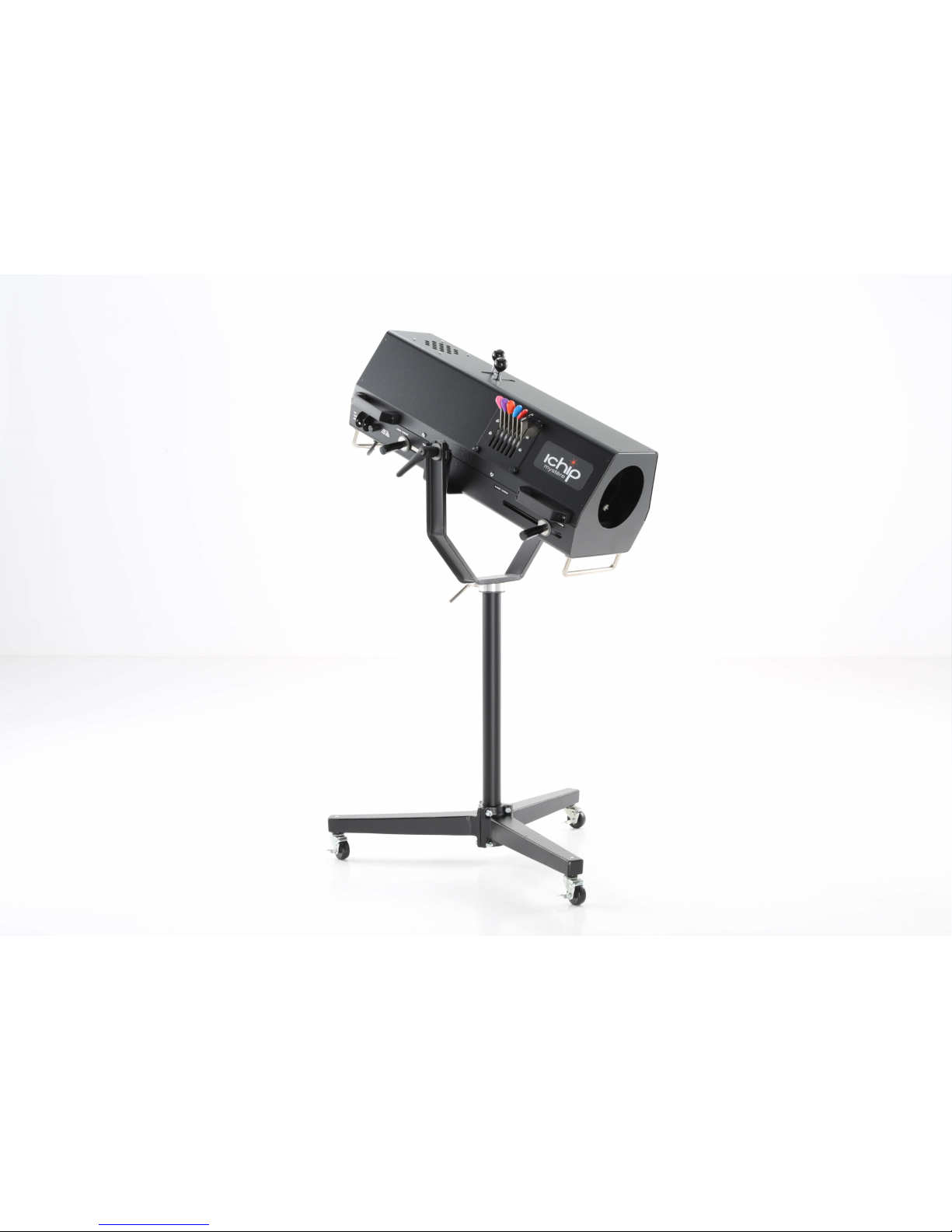

Ichip Mystére
LED FOLLOWSPOT
USER MANUAL
MODEL: ICM-150/120
PHOEBUS MANUFACTURING
1029 Washington St.
San Carlos, CA. 94070
U.S.A.
650-591-9905 TEL
650-591-1778 FAX
www.phoebus.com
Ichip Mystére LED FOLLOWSPOT
USER MANUAL
ICM-150/120
CONTENTS PAGE
LIMITED WARRANTY......................................................................................................1
CONTROL DESCRIPTION (Features).............................................................................2
CONTROL DESCRIPTION (Specications).....................................................................2
BASIC SETUP AND ASSEMBLY .....................................................................................2-3-4
OPTICAL SYSTEM OPERATION
I. SET UP AND FOCUSING .....................................................................................4
II. BEAM CONTROL.................................................................................................. 4
TECHNICAL DATA
I. LAMP..................................................................................................................... 5
II. ELECTRICAL.........................................................................................................5
MAINTENANCE
I. LAMP INSTALLATION...........................................................................................5
II. LENS CLEANING.................................................................................................. 6
III. COLOR GEL REPLACEMENT..............................................................................6
IV. HOUSING REMOVAL AND LUBRICATION ..........................................................6
V. TROUBLESHOOTING...........................................................................................6

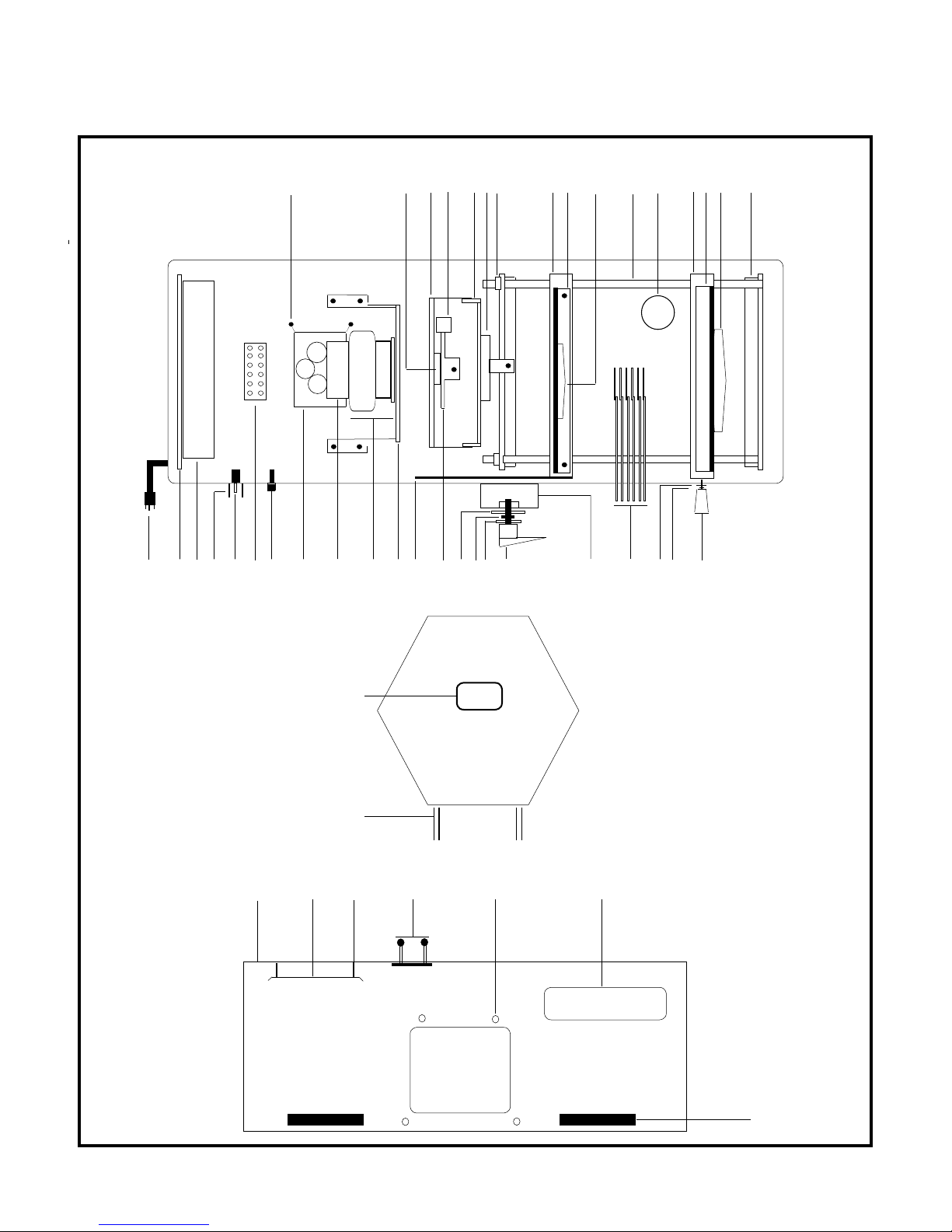

PARTS LAYOUT...............................................................................................................7-8
PARTS DESCRIPTION ....................................................................................................9
REPLACEMENT PARTS LIST .........................................................................................10
WARRANTY......................................................................................................................11
Ichip Mystére
ICM-150/120 User Manual
LIMITED WARRANTY
Thank you for purchasing the Phoebus Manufacturing Ichip Mystére Model
#ICM-150/120.
The Phoebus Manufacturing Ichip Mystére is guaranteed against defects in material
and workmanship for a period of one year from date of purchase from Phoebus
Manufacturing. In case of difculty, contact Phoebus Manufacturing or your dealer for
repair or return instructions. Iris and dowser are guaranteed for six months under
normal use.
LED Module is Included in this warranty. This warranty does not apply to mechanical
defects caused by rough handling or to damage caused by improper
operation not in accordance with this manual. Cause of defect is in the sole
judgement of Phoebus Manufacturing.
This warranty is voidable at Phoebus Manufacturing’s option under the following
circumstances:
1
User makes unauthorized modications (electrical or mechanical).
The unit is connected to improper voltage supply.
Any other condition occurs which causes catastrophic failure or impairs Phoebus
Manufacturing’s ability to render proper service.
If the unit is modied by the customer without permission, the customer agrees to pay for
any time or parts necessary to remove the modications before repair, if necessary.
Phoebus will not be responsible for consequential damages caused by failure, for whatever reason, of equipment of its manufacture. Sole liability is for repair or replacement (at
Phoebus Manufacturing’s option) of the defective equipment under the terms described
above.
Ichip Mystére
ICM-150/120 User Manual
CONTROL DESCRIPTION
Features
2
1. POWER SWITCH
2. FUSE
3. REAR LENS CONTROL
4. ADJUSTABLE TILT HANDLE
5. FRONT LENS CONTROL
6. DOWSER
7. IRIS
8. COLOR CONTROLS
9. HEIGHT COLLAR
SPECIFICATIONS
Off- circuit one (cooling)- Circuit two (on).
3AB 7AMP
Used to focus image. Turn handle clockwise to
lock and counterclockwise to unlock. Slide handle
to focus.
Friction lock for vertical tilt of unit.
Changes image size. Turn handle clockwise to
lock and counterclockwise to unlock. Slide handle
forward for smaller image, spot distribution, long
throws. Slide handle back for larger image, ood
distribution, short throws.
Mechanical Dimmer. Opens when lever is moved
towards operator.
Controls size of image. Opens widest when lever
is moved towards operator.
Six controls. Gel is inserted in beam when lever
is moved down.
Slides up and down yoke to raise or lower unit.
1. THROW
2. LAMP
3. SIZE
4. WEIGHT
5. TILT
6. SWEEP
7. POWER
8. CONTROLS
9. OPTICS
15 to 150 feet
LED 36 Chip Micro Lens Array 5600K 90CRI
28.5"L x 47"H x 10.5"W
60 pounds including base
70° down, 60° up
360°
120 volt 50/60Hz under 5 amps
Iris, Dowser, Six Color Boomerang
4" rear, 6" front
Basic Setup and Assembly
1. Unpack and check for shipping damage. Box contents contains the following:
a. (1) Ichip Mystére LED Followspot.
b. (1) Yoke Assembly.
c. (1) Yoke Insert Tube.
d. (3) Cast Aluminum base legs.
e. (1) Height collar,height collar washer and handle.
f. (1) Hardware kit w/ 6 5/16-18 x 1 1/2" hex head bolts, 6 hex nuts and 6
lock washers
g. (1) Accessory kit w/ 2 lens handles, 2 adjustable yoke handles, 2 control
handles (note: Control handles are threaded into the dowser and iris
assembly) with black knob, 2 medium Brake washers, 2 small brake
washers.
Ichip Mystére
ICM-150/120 User Manual
ASSEMBLY INSTRUCTIONS
1. Find the cast aluminum base legs. One at a time, with the hollow side facing down,
place three base legs around the bottom of the yoke tube. Note: either end of tube
can be top or bottom. As you place the legs around the tube, simultaneously insert
the hex head bolts into the pass through holes on each of the base leg. Slide on
the lock washer and hand tighten the hex nuts. Using a 1/2" socket, nut driver or
open end wrench. Proceed to alternately tighten each bolt. To prevent gaps between the legs do not tighten any one bolt completely, tighten bolts equally.
2. Next Insert 3 casters into the base legs. Occasionally the base leg through hole
may accumulate excess powder coating, making it difcult to insert casters. Light
ling with a rattail le can be used to clean excess coating. Slide the height collar
ring onto the yoke tube, followed by the height collar washer. Then insert the yoke
into the base insert tube. Screw in the height collar handle and raise or lower to
desired height and lock handle into place.
3

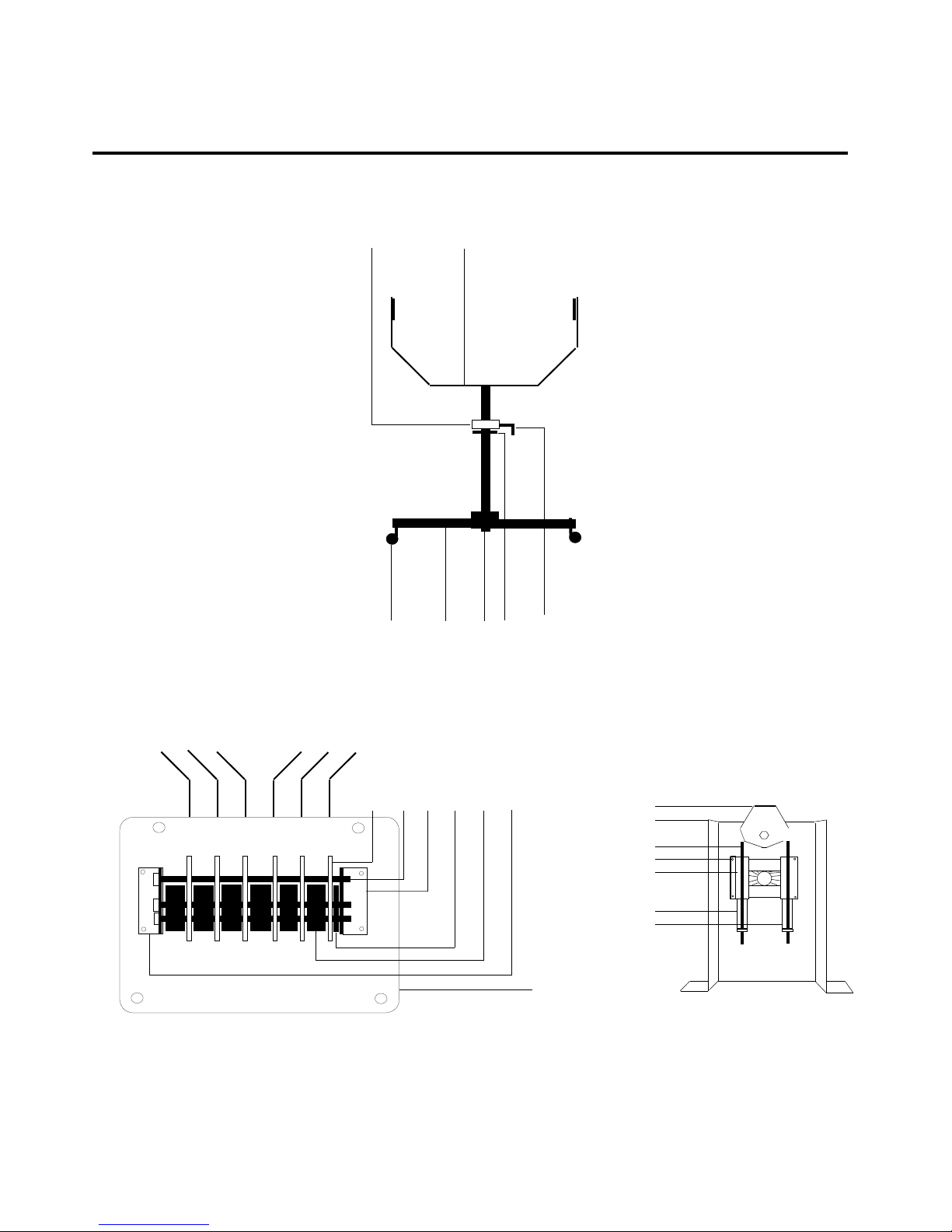

3. Slide the small fiber friction washer followed by the sleeve bearing and then the
large friction washers onto the threaded stud of the adjustable tilt handle. Thread
handle into the bail until it is ushed to the yoke weld nut on the other side of the
bail. Spread washers fully apart so that the yoke can be inserted between them.
4. Lift the Ichip Mystére using the front and rear black carry Handles located on
both sides of the chassis. Position the bail handle shafts in the U-shaped slots at
the top of the yoke. Ensure that the washers are positioned properly. Turn the tilt
lock handles to tighten the grip on the yoke. Push the button on the tilt handle for
suitable handle positioning.
5. The two zinc plated steel control shafts have been threaded on and secured at
the factory, hand tighten the two black control knobs onto the shaft, The Iris and
douser are ready for operation. The shafts have flat cut outs at one end of the
shaft. Use an open end wrench to tighten the shafts securely. A nyloc nut and
washer are supplied to fully secure shaft. Next, unscrew the two 1/4-20 phillips
head shipping screws and washers, remove and save screws for future shipping
use if needed. Slide the metal washer (first) and then the fibre lens washer onto
the threaded stud of the lens handles. Insert and hand tighten to lock down
(clockwise) and loosen to operate (counterclockwise).
6. Lastly, Screw the two black control knobs onto the iris and dowser control shaft
to complete the assembly process. The Ichip Mystére is now ready for
operation.
Ichip Mystére
ICM-150/120 User Manual
SYSTEM OPERATION
I. SETUP AND FOCUSING
4
1. The
Ichip Mystére is equipped with a three position switch. On, Cooling & Off. Be
sure that the switch is in the off position (down) before connecting the AC line cord
into a 110-120 VAC Grounded Receptacle. Flip the power switch to the middle fan,
position for cooling purposes. Flip the switch to the on, up position. LED Array will
strike immediately, and will come up to full output.
2. Lamps are not classied as hot-restrike and do not require cool down in order to re-
strike. However, we recommend a 30 second cool down period at the end of
usage.
3. Move iris and dowser controls toward operator to open.
4. Move front lens forward for spot or rearward for ood distribution. Position can be
chalk marked on side of chassis near handle set.
5. Move rear lens until edge of pattern is in focus. Position may be adjusted for hard
or soft edge.
6. Close down the iris by moving its control handle away from the operator.
7. Focused may change slightly with iris closed. Best focus setting is with iris half
open.
8. To “zoom” the lenses to a new position, a coordinated motion of both front and
rear lenses is used. Note that these lens move opposite to each other to maintain
focus
II. BEAM CONTROLS
1. The dowser gradually dims the beam until completely blacked out. Move the control
handle away to close and toward to open the dowser. The dowser Micro switch
cuts down the power to the LED Array when fully closed.
2. The iris provides a 6 to 1 change in image diameter. It is controlled by the front
handle, away to close and toward to open. The brightest spot is obtained with the
iris open and the lenses adjusted for the largest spot desired. Smaller spots are
then obtained using the iris.
Ichip Mystére
ICM-150/120 User Manual
TECHNICAL DATA
I. 36 Chip Micro Lens LED Array Module
The Ichip Mystére uses a 5600K, 90 CRI 36 chip Micro lens LED Array Module. The
internally mounted ballast is used to operate the LED Module from standard 120 volts.
The
LED array module lifespan is on average of 6000 hours. However at normal use it is
rated well beyond 6000 hrs. Once the LED module reaches the 6000 hour mark, one or
two of the LED Micro chips may expire. However this will not noticeably effect the light
output of the Ichip Mystére, which will continue to operate well past the 6000 hour mark.
CRI (color rendering index) is a measure of how accurately a light source illuminates
objects' true colors. Our LED modules have a CRI value of 90, indicating that the
modules are able to produce white light that approximates halogen or incandescent
lighting and natural daylight. The LED Module is cooled by two specially designed fans to
insure cool and quiet operation. One fan is chassis mounted below the LED module while the
second fan is mounted directly onto LED Module. The fans are essential to lamp
operation. Improper cooling will cause decreased LED module life. Allow LED Module to
cool before cutting power.
5
II. ELECTRICAL
The Ichip Mystére operates on 110 to 120V 50/6
0Hz A.C. and draws Less than 7 amps.
(replace using 7A 3AB Bussman fuse) Located at the rear inside of the unit you will nd
the internally mounted Ballast used to supply the lamp with the proper voltage and
current. There are no user serviceable parts located on this ballast!! Refer to the
trouble shooting guide located on page 6 of this manual, or contact the local dealer/
representative in your area.
MAINTENANCE
I. LED Module Replacement
Installation
1. Turn off and unplug unit.
2. Remove the eight carry handle mount screws and four housing mount screws
located on both sides of housing.
3. Remove the two black control handle knobs from the control shafts.
4. Lift and remove housing from chassis.
5. Unscrew the four LED module cooling fan button head screws followed by the four
LED module Button head mount screws. For easier access to the LED module
mount screws, The LED module mount bracket may be removed by unscrewing the
four phillips screws located on the underside of the chassis.
6. Replace the LED module and LED module cooling fan by reversing the above
steps
Ichip Mystére
ICM-150/120 User Manual
II. LENS CLEANING
1. Slide front lens to its extreme forward position using the control handle.
2. Clean the front lens using glass cleaner and a soft, lint-free cloth. The rear surface
may be reached by removing the housing.
3. Slide rear lens fully back and clean both surfaces.
4. Replace housing.
III. COLOR GEL REPLACEMENT
1. Unscrew four thumbscrews on either side of the color boomerang.
2. Lift boomerang off. Position it upside down, control levers facing you.
3. Raise the lefthand (operator right) gel holder and lower all the others.
4. Remove three clip fasteners around the gel holder rim.
5. Separate rings, remove old gel.
6. Use the ring as a pattern to cut new gel. Darker gels should be put in lefthand
(operator right) gel holders.
7. Insert gel, cover with ring and secure with three clips.
8. Lower lefthand (operator right) gel holder and raise next one.
9. Repeat steps #4 to #8. To access the bottom gel clip, raise all the gels to the left
or right and lower the one being worked on.
10. As you move toward the right-hand gels (operator right), insert progressively
lighter colors. The lefthand (operator right) holders should be used for deep blue
or purple gels.
11. Replace boomerang assembly and secure with four thumbscrews.
6
IV. LUBRICATION
1. Remove housing carry handles and mount screws.
2. Tighten vertical tilt lock handles on either side of yoke. Unit will be unbalanced
with the housing off
3. Unscrew the two black control knobs leaving the control shafts in place.
4. Grip both the front and rear end of the housing.
5. Lift straight up until front lens is cleared, and remove.
6. Wipe all bearing shafts with a cloth dampened with furniture wax.
7. Operate front and rear lenses forward and back to distribute wax.
8. Replace housing using the black carry handles. Guide front over lens and line
up front housing and chassis.
9. Replace the two black control knobs.
10. Re-assemble the carry handles and chassis mount screws .
V. TROUBLESHOOTING-LAMP AND BALLAST
Lamp does not light:
1. If unit is off, check power and fuse. Replace fuse with 7 amp 3AB fuse.
2. If unit is on and the fan is running, check the following:
(a) Check that the LED module connections are in place and secured. Lamp
may be defective or reached the end of its life.
(b) The power supply contains no user serviceable parts. Contact Phoebus Mfg.
Ichip Mystére
ICM-150/120 User Manual
PARTS LAYOUT (CHASSIS AND HOUSING)
7
1b
1a
2a 2b 2c 2d 2e 2f 2g 2h 2i 2j 2k 2m 2n 2o 2p 2q 2r 2s 2t 2u 2v
1c 1d 1e 1f 1g
2l
1h 1i
1k
1j
1l
1m 1n 1o 1p
3a
3b
3c 3d 3e 3f 3g 3h
345-0001
Ichip Mystére
3i
Ichip Mystére
ICM-150/120 User Manual
PARTS LAYOUT (BASE, COLORBOOM & DOUSER ASSEMBLIES)
4a 4b
8
5a 5b 5c 5d 5e 5f
5g 5h 5i 5j 5k 5l
4c 4d 4e 4f 4g
6a
6b
6c
6d
6e
6f
6g
5j
Ichip Mystére
ICM-150/120 User Manual
Retail Replacement Parts List
9
1a.
1b.
1c.
1d.
1e.
1f.
1g.
1h.
1i.
1j.
1k.
1l.
1m.
1n.
1o.
1p.
3a.
3b.
3c.
3d.
e.
3
3f.
3g.
3h.
3i.
#
Description
Lamp Fan Guard
Swivel Bushing ICM-771-56
Douser Bracket
Dimmer Switch
Iris Bracket
Iris
Shaft Collar
Rear Lens Block
Rear Lens Bracket
Rear Lens
Lens Rail Rod
Air Vent Screen
Front Lens Block
Front Lens Bracket
Front Lens
Lens Rail Bracket
Serial Number Plate
Chassis Guide Handle
Housing
Light Baffle
Light Baffle Spacer
D.C. Control Handle w/knob
Color Boom Thumbscrew
Housing Product Label
Housing Carry Handle
Part Number
ICM-SG31B
ICM-007
ICM-V71C1
ICM-008
ICM-101
ICM-6S 2
ICM-011R
ICM-009
ICM-105X140
ICM-SS38R
ICM-SC80B
ICM-011F
ICM-010
ICM-6X16
ICM-021
ICM-ICMSP
ICM-014
ICM-001
ICM-018
ICM-163214
ICM-163214
ICM-B1032
ICM-ICD3C
ICM-F14
PER
1
1
1
1
1
1
1
1
1
2
1
1
1
1
2
1
2
1
1
1
1
4
1
4
Price
$10.00
$17.50
$75.00
$25.00
$80.00
$165.00
$7.00
$100.00
$75.00
$85.00
$50.00
$10.00
$100.00
$75.00
$85.00
$80.00
$12.00
$100.00
$300.00
$36.00
$20.00
$30.00
$3.00
$10.00
$60.00
#
2a.
2b.
2c.
2d.
2e.
2f.
2g.
2h.
2i.
2j.
2k.
2l.
2m.
2n.
2o.
2p.
2q.
2r.
2s.
2t.
2u.
2v.
4a.
4b.
4c.
4d.
4e.
4f.
4f.
Description
Line Cord
Driver Mount Brkt.
LED Driver
Switch Guard
3 Position Switch
Terminal Block
Fuse Holder ICM-3424X
Chassis Mount LED Fan
LED Mount Fan
LED Array Module
LED Module Bracket
Rear Lens Brake Arm
Douser Swivel
Med. Brake Washer
Yoke Sleeve Bearing
Sm. Brake Washer
Yoke Tilt Handles
Medium Duty Bail
Color Boom Assembly
Fibre Lens Handle washer ICM-771-83L
Steel Lens Washer
Lens Control Handle
Height Collar
Medium Duty Yoke
Caster w/Brakes
Cast Aluminum Base Leg
Yoke Insert Tube
Height Collar Washer
Height Collar Handle
Part Number
ICM-MR31
ICM-002
ICM-HGL36B
ICM-771-75
ICM-2GG51
ICM-0625220
ICM-0A92A
ICM-UF80B
ICM-56K90C
ICM-001
ICM-023
ICM-019
ICM-771-84
ICM-6391K
ICM-771-83
ICM-DB12
ICM-011
ICM-015A
ICM-1420
ICM-5K51
ICM-0055
ICM-0033
ICM-0033
ICM-0054
ICM-0056
ICM-0D25
ICM-82571
PER
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
1
1
2
2
2
1
1
3
3
1
1
1
Price
$28.00
$48.00
$115.00
$18.00
$28.00
$22.00
$22.00
$50.00
$45.00
$600.00
$98.00
$25.00
$60.00
$7.00
$4.75
$4.75
$40.00
$115.00
$425.00
$4.75
$1.00
$15.00
$60.00
$300.00
$25.00
225
$
.00
$40.00
$7.00
$18.00
5a.
5b.
5c.
5d.
5e.
5f.
5g.
5h.
5i.
5j.
5k.
5l.
5m.
Gel Frame 15º Right
Gel Frame 30º Right
Gel Frame 45º Right
Gel Frame 45º Left
Gel Frame 30º Left
Gel Frame 15º Left
Gel Frame Color Ring
Boom Retaining Bolt
Left Boom Bracket
Boom Thrust Washer .187
Boom Thrust Washer .375
Boom Bracket Right
Color Boom Plate
ICM-017-1R
ICM-017-2R
ICM-017-3R
ICM-017-4L
ICM-017-5L
ICM-017-6L
ICM-UQ0001
ICM-1420HXB
ICM-016L
ICM-030-1
ICM-030-3
ICM-016R
ICM-015
1
1
1
1
1
1
6
3
1
2
5
1
1
$22.00
$22.00
$22.00
$22.00
$22.00
$22.00
$60.00
$5.00
$45.00
$10.00
$45.00
$45.00
$60.00
6a.
6b.
6c.
6d.
6e.
6f.
6g.
Douser Swivel
Douser Bracket
Douser Connecting Rod
Douser Spacer Bar
Douser Slide Retainer
Upper Douser Jaw
Lower Douser Jaw
ICM-019
ICM-007
ICM-771-151
82571
ICM-
ICM-82571
ICM-82571
ICM-82571
$
1
1
2
2
2
1
1
48.00
$75.00
$24.00
$12.00
$12.00
$32.00
$
32.00
Ichip Mystére
ICM-150/120 User Manual
WARRANTY CARD
MODEL NUMBER
SERIAL NUMBER
DATE OF PURCHASE
PLACE OF PURCHASE (DEALER NAME)
10
USER’S NAME
COMPANY NAME
STREET ADDRESS
CITY STATE ZIP
TELEPHONE FAX EMAIL
Please fold along the dotted lines and staple
with return address on the outside as shown above.
Thank you!
Place
stamp
here
PHOEBUS MANUFACTURING
1029 Washington St.
San Carlos, CA. 94070
ATTENTION: WARRANTY DEPARTMENT
Loading...
