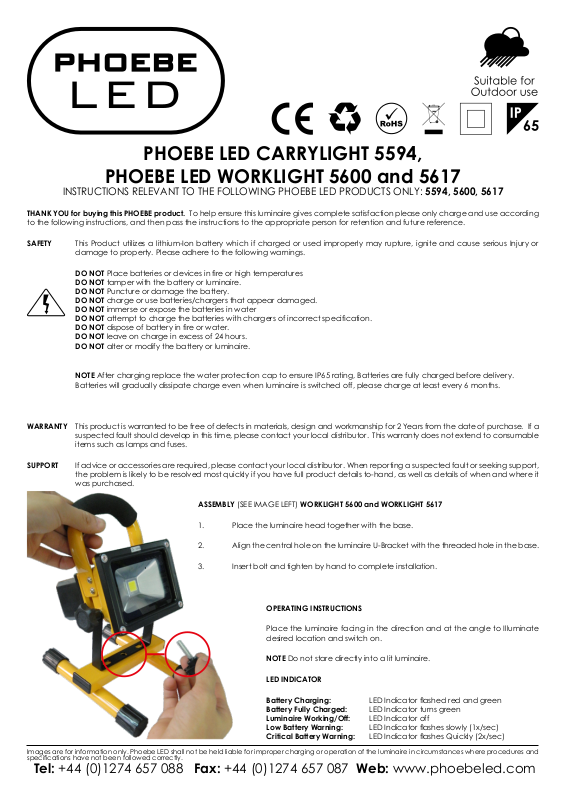

PHOEBE LED CARRYLIGHT 5594,
PHOEBE LED WORKLIGHT 5600 and 5617
INSTRUCTIONS RELEVANT TO THE FOLLOWING PHOEBE LED PRODUCTS ONLY: 5594, 5600, 5617
THANK YOU for buying this PHOEBE product. To help ensure this luminaire gives complete satisfaction please only charge and use according
to the following instructions, and then pass the instructions to the appropriate person for retention and future reference.
SAFETY This Product utilizes a lithium-Ion battery which if charged or used improperly may rupture, ignite and cause serious Injury or
DO NOT Place batteries or devices in re or high temperatures
DO NOT tamper with the battery or luminaire.
DO NOT Puncture or damage the battery.
DO NOT charge or use batteries/chargers that appear damaged.
DO NOT immerse or expose the batteries in water
DO NOT attempt to charge the batteries with chargers of incorrect specication.
DO NOT dispose of battery in re or water.
DO NOT leave on charge in excess of 24 hours.
DO NOT alter or modify the battery or luminaire.
NOTE After charging replace the water protection cap to ensure IP65 rating, Batteries are fully charged before delivery.
WARRANTY This product is warranted to be free of defects in materials, design and workmanship for 2 Years from the date of purchase. If a
SUPPORT If advice or accessories are required, please contact your local distributor. When reporting a suspected fault or seeking support,
ASSEMBLY (SEE IMAGE LEFT) WORKLIGHT 5600 and WORKLIGHT 5617
damage to property. Please adhere to the following warnings.
Batteries will gradually dissipate charge even when luminaire is switched off, please charge at least every 6 months.
suspected fault should develop in this time, please contact your local distributor. This warranty does not extend to consumable
items such as lamps and fuses.
the problem is likely to be resolved most quickly if you have full product details to-hand, as well as details of when and where it
was purchased.
1. Place the luminaire head together with the base.
2. Align the central hole on the luminaire U-Bracket with the threaded hole in the base.
3. Insert bolt and tighten by hand to complete installation.
OPERATING INSTRUCTIONS
Place the luminaire facing in the direction and at the angle to Illuminate
NOTE Do not stare directly into a lit luminaire.
LED INDICATOR
Battery Charging: LED Indicator ashed red and green
Battery Fully Charged: LED Indicator turns green
Luminaire Working/Off: LED Indicator off
Low Battery Warning: LED Indicator ashes slowly (1x/sec)
Critical Battery Warning: LED Indicator ashes Quickly (2x/sec)
Images are for information only. Phoebe LED shall not be held liable for improper charging or operation of the luminaire in circumstances where procedures and
specications have not been followed correctly.
desired location and switch on.
Tel: +44 (0)1274 657 088 Fax: +44 (0)1274 657 087 Web: www.phoebeled.com
Page 2

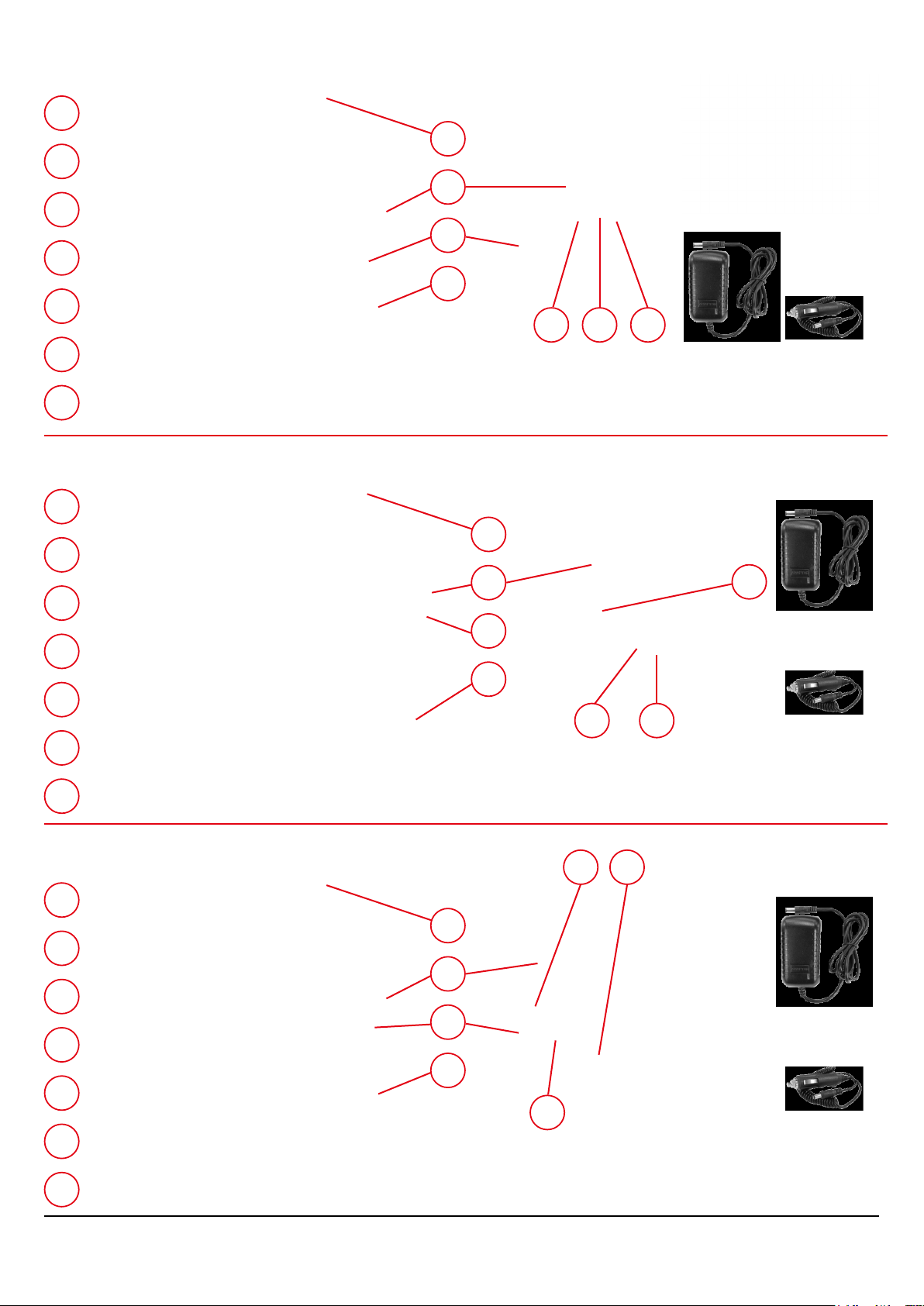

PHOEBE LED CARRYLIGHT 5594 ACCESSORIES
1 Carry Handle
1
2 Battery
2
3 Angle tightening knob
3
4 Foldable Bracket
4
5 High/Off/Low switch
5 6 7
Carrying Bag
6 LED Indicator
7 Charging Socket / Water Protection Cap
Mains Adaptor/
Charger
AC/DC
Car Charger
12V-24V DC
max 2A
PHOEBE LED WORKLIGHT 5600 20W ACCESSORIES
1 Carry Handle
1
2 Battery
7
Mains Adaptor/
Charger
AC/DC
Car Charger
12V-24V DC
max 2A
3 Angle tightening knob
4 Base
5 On/Off switch
6 LED Indicator
7 Charging Socket / Water Protection Cap
2
3
4
5
6
PHOEBE LED WORKLIGHT 5617 10W ACCESSORIES
5 6
1 Carry Handle
1
2 Battery
2
3 Angle tightening knob
3
4 Base
4
5 On/Off switch
7
6 LED Indicator
7 Charging Socket / Water Protection Cap
Images are for information only. Phoebe LED shall not be held liable for improper charging or operation of the luminaire in circumstances where procedures and
specications have not been followed correctly.
Mains Adaptor/
Charger
AC/DC
Car Charger
12V-24V DC
max 2A
