Phocos Any-Grid Series, Any-Grid PSW-H-5kW-230/48V, Any-Grid PSW-H-3kW-230/24V User And Installation Manual

Pure Sine Wave Hybrid Inverter Charger with
MPPT Solar Charge Controller

PSW-H-5kW-230/48V
PSW-H-3kW-230/24V

User and Installation Manual

English

For further languages see
Für weitere Sprachen siehe
Pour autres langues voir
Para otros idiomas ver
对于其他语言请参阅

www.phocos.com

1.0 Introduction ................................................................................................................................................... 2

2.0 Important Safety Information ....................................................................................................................... 2

3.0 Regulatory Information ................................................................................................................................. 3

4.0 Overview......................................................................................................................................................... 4

Functional Overview .......................................................................................................................................................................... 4

Product Overview ................................................................................................................................................................................ 5

5.0 Installation ..................................................................................................................................................... 6

Package Contents ................................................................................................................................................................................ 6

Mounting the Unit ............................................................................................................................................................................... 6

Battery Connection ............................................................................................................................................................................. 7

AC Input and AC Output Connection .......................................................................................................................................... 8

PV Connection ...................................................................................................................................................................................... 9

Final Assembly .................................................................................................................................................................................... 10

Remote Display Panel Installation ............................................................................................................................................... 10

Installing Multiple Units in Parallel or 3-Phase Configuration .......................................................................................... 12

6.0 BLE Communication ..................................................................................................................................... 16

7.0 Relay Contact................................................................................................................................................ 17

8.0 Operation ..................................................................................................................................................... 17

Inverter Power ON/OFF ................................................................................................................................................................... 17

Display and Control Module .......................................................................................................................................................... 18

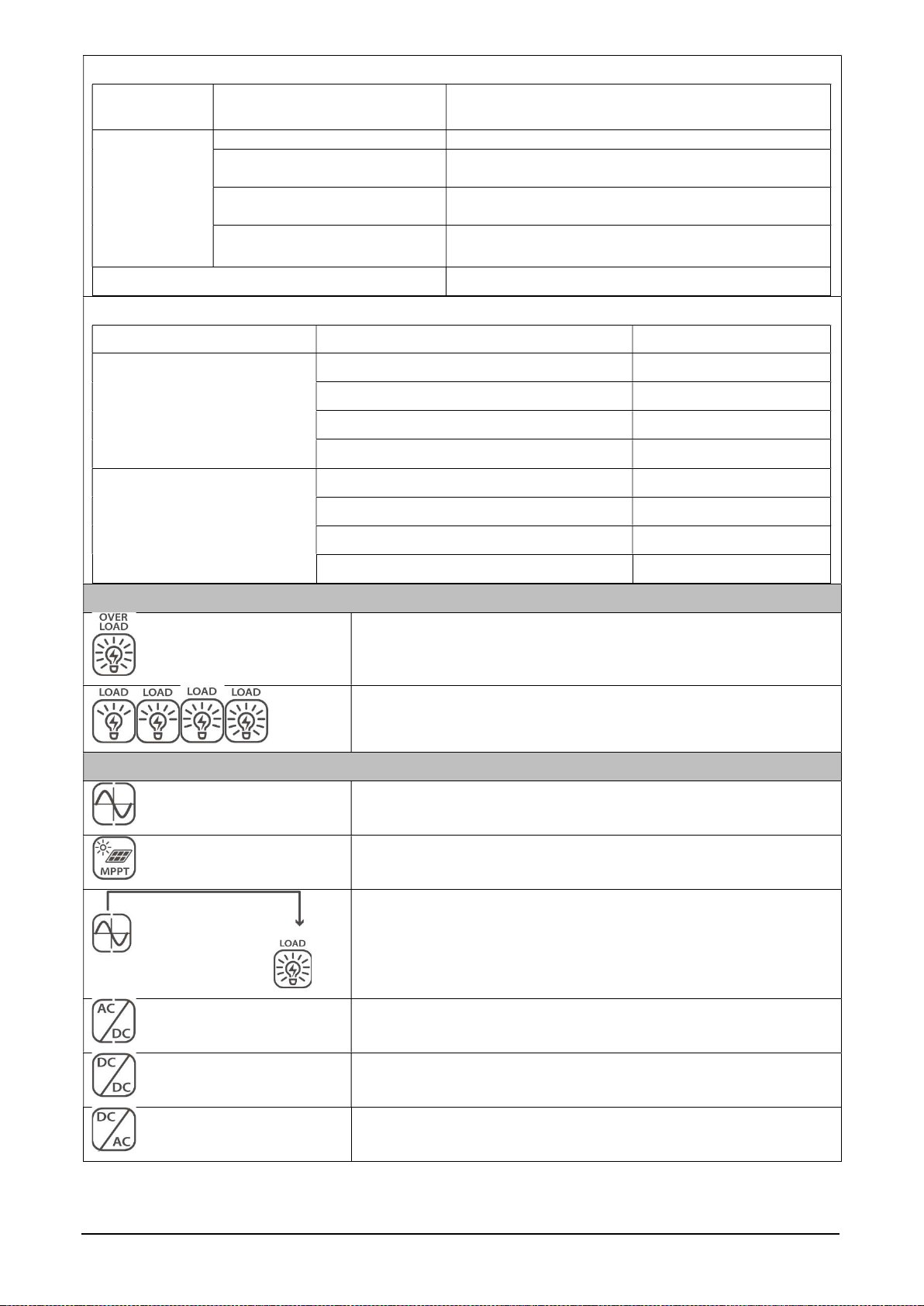

Display Symbols ................................................................................................................................................................................. 19

Device Operation Settings ............................................................................................................................................................. 21

USB and Timer Settings ................................................................................................................................................................... 28

Screen Views of Current Values .................................................................................................................................................... 31

Operating Mode Description ........................................................................................................................................................ 37

9.0 Fault Reference Codes.................................................................................................................................. 40

10.0 Warning Codes ............................................................................................................................................. 42

11.0 Troubleshooting........................................................................................................................................... 43

12.0 Specifications ............................................................................................................................................... 47

Grid Mode ............................................................................................................................................................................................. 47

Off-Grid Mode ..................................................................................................................................................................................... 48

Battery Charging ................................................................................................................................................................................ 49

General ................................................................................................................................................................................................... 49

13.0 Warranty ....................................................................................................................................................... 50

14.0 Liability Exclusion ........................................................................................................................................ 50

www.phocos.com 1 | P a g e

1.0 Introduction

Dear customer, thank you for choosing this quality Phocos product. The Any-Grid™ pure sine wave hybrid inverter /
charger series has numerous outstanding features and use-cases such as:

 Function as purely Off-Grid inverter for applications with no AC power source
 Function as solar enabled (optional) uninterruptible power supply (UPS) functionality for intermittent or

unstable AC sources

 Function as grid-connected or AC-generator-connected inverter to reduce energy demand from the AC

source by prioritizing solar and/or battery power, thus saving energy costs

 Grid injection of excess energy possible where it is legal, with or without a connected battery. Accidental

injection is prevented by requirement of a PIN code for activation

 Both neutral (N) and line (L) wires of the AC input are automatically disconnected (break-before-make relays)

from the AC output when the Any-Grid operates in Off-Grid mode

 High-voltage MPPT solar charge controller allows the connection of more solar panels in series (compared to

other Off-Grid solar charge controllers), typically eliminating the need for expensive combiner boxes

 Battery charging from an AC source such as the public power grid or a genset
 Compatibility with multiple battery types including lead-acid (gel, AGM and liquid electrolyte) and Lithium-

based batteries such as LiFePO4

 Battery-free mode: if an AC source is available, photovoltaic (PV / solar) power can be used as first priority,

even with no battery attached

 Removable wired display unit can be installed in a different room (up to 20 m / 66 ft cable can be used)
 All-in-one hybrid unit allows simple and fast installation, and easy configuration
 Monitor the unit in real-time with the PhocosLink BLE smartphone App

This manual describes the assembly, installation, operation and troubleshooting of this unit.

2.0 Important Safety Information

SAVE THESE INSTRUCTIONS: This manual contains important instructions for models PSW-H-5kW-230/48V
(referred to as 48 V model) and PSW-H-3KW-230/24V (referred to as 24 V model) that shall be followed during
installation and maintenance of the hybrid inverter/charger. Read and save this manual for future reference.

WARNING: The installation of this unit may only be undertaken by qualified personnel with appropriate
training. High voltages in and around the unit can cause serious injury or death. This unit must be installed in
accordance with rules and regulations at the site of installation.

CAUTION: A battery can present a risk of electrical shock, burn from high short-circuit current, fire or
explosion from vented gasses. Observe proper precautions.

WARNING: This unit must be connected to a permanent grounded wiring system. Be sure to comply with local
requirements and regulations when installing this unit.

BATTERY TYPE: Suitable for use with lead-acid (gel, AGM and liquid electrolyte) and Lithium-based batteries
such as LiFePO4.

OVERCURRENT PROTECTION FOR BATTERY: Install an overcurrent protection device with a minimum of 1000A
interrupt rating as close as possible to the battery terminal. Select a device rated for 1.25 times the nominal
current rating of the inverter/charger (see table below). An overcurrent protection device must be purchased
separately.

Any-Grid model PSW-H-5KW-230/48V PSW-H-3KW-230/24V

Overcurrent Protection Rating

Nominal Battery Voltage

www.phocos.com 2 | P a g e

175 Adc, min. 66 Vdc 210 Adc, min. 33 Vdc

48 Vdc 24 Vdc

1. Before using the unit, read all instructions and cautionary markings on this unit, the batteries, the solar modules,
any connected loads.

2. Please do not disassemble or attempt to repair Phocos products. This unit does not contain user serviceable parts.
Damage to the warranty seal will lead to a loss of warranty of the product and can lead to injury.

3. To reduce risk of electric shock, disconnect all wirings before attempting any maintenance or cleaning. Switching
off the unit is not sufficient, turn off and / or disconnect all connections to the unit.

4. For safe operation of this unit, please adhere to appropriate cable size requirements in this manual.

5. Be very cautious when working with uninsulated metal tools on or around batteries. The can short-circuit
batteries or other electrical parts and could cause an explosion and / or injury.

6. Strictly follow the installation procedure when connecting or disconnecting AC or DC terminals. Please refer to
the “Installation” section of this manual for details.

7. Appropriate fuses or breakers are required near the battery supply and AC input and AC output of this unit.

8. WARNING: It is highly recommended and legally required in many countries to install a Type B residual current
device (RCD) between the AC output of the unit(s) and the AC loads to protect humans from hazardous electric
shock due to faulty AC wiring, faulty loads or a potential inverter fault.
Only in Off-Grid mode, the neutral (N) and ground (PE) of the AC output are automatically bridged inside the Any­Grid to ensure the RCD’s functioning if the AC installation is wired correctly as a TN-S or TN-C-S earthing system. In
a TN-C-S installation the bridge between neutral (N) and ground (PE) must be between the public grid and AC
input of the Any-Grid to ensure that there is never more than one bridge between N and PE.

9. Never allow any AC or DC connections to be short-circuited. Do not connect to the mains when the battery input
is short-circuited.

10. Only qualified service persons may service this device. If errors persist after following the “Troubleshooting”
section in this manual, please send this unit back to a local Phocos dealer or service center for maintenance.

11. WARNING: Because this inverter (AC output) is not isolated from the PV input, only three types of PV modules are
acceptable for use: monocrystalline, polycrystalline and CIGS modules. To avoid any malfunction, do not connect
any PV modules with possible current leakage to the inverter. For example, positive- or negative-grounded PV
modules will cause current leakage to the inverter. When using CIGS modules, please be sure that neither the
positive nor negative PV cables are grounded. Grounding of the PV module frame is permitted and frequently
required by local law.
The battery is isolated from the inverter and PV input, therefore the battery positive or negative terminal may be
grounded if required.

12. CAUTION: It is highly recommended to use a surge arrester, also named surge protective device (SPD) near the PV
input terminals of this unit. This is to prevent damage to the unit from lightning, thunderstorms or other voltage
surges on the PV cables. The max. DC operating voltage of the SPD must be between 450 and 480 Vdc.
For example the

13. CAUTION: It is highly recommended to use a surge arrester, also named surge protective device (SPD) near the AC
input terminals of this unit, if the AC input is used. This is to prevent damage to the unit from lightning,
thunderstorms or other voltage surges on the AC input conductors (for example coming from the public grid).
The max. AC operating voltage of the SPD must be between 275 and 300 Vac.
For example the
public grids with large voltage swings, lower protection) is suitable.

Citel DS240-350DC

Citel DS41S-230

(for most public grids or generators, higher protection) or

is suitable.

Citel DS41S-320

(for

3.0 Regulatory Information

This product is CE and RoHS (Restriction of Hazardous Substances) compliant.
Please find the CE declaration at www.phocos.com.

This product is manufactured in an ISO 9001 (quality management) and ISO 14001 (environmental management)
certified facility.

This equipment is suitable for use in non-hazardous locations only.
This is a class A device: in a domestic environment this product may cause radio interference in which case the user

may be required to take adequate measures.

www.phocos.com 3 | P a g e

RoHS

4.0 Overview

PV Panels (optional)

Battery

(optional)

AC Loads

AC Generator

(optional)

*

Functional Overview

This pure sine wave hybrid inverter charger with solar charge controller (MPPT) can provide power to connected
loads by utilizing PV power, AC power and battery power. Most connections are optional, but there must be at least
one power source (AC or PV):

Public Grid (optional)*

Phocos Any-Grid™

Hybrid Inverter Charger

(up to 9 units parallel or 3-phase) * Any-Grid™ accepts one AC input

Removable Display

Fig. 1: System Overview

This unit has one each of the following power connections: battery, PV, AC input, AC output. The unit is designed to
provide continuous power from PV / battery or an AC source, depending on the set priority. Independently, the
priority for charging the battery can be set (the battery can only be charged from AC when the unit is not working in
Off-Grid mode). The switching time between Grid (also valid when an AC generator is used) and Off-Grid modes is
only 10 milliseconds (typical) when a single Any-Grid unit is used. Timers can be used to change the priorities based
on hourly time slots, this is useful for areas where grid power have differing costs throughout the day. The integrated
maximum power point tracking (MPPT) solar charge controller can handle particularly high PV voltages, allowing for
a simpler installation and lower costs than most Off-Grid solar charge controllers. Typically, no combiner boxes or
string fuses / diodes are required.

The pure sine wave AC output and the surge power capability (twice the continuous power rating) assure all types of
AC loads can be powered. Ensure that the peak power requirement of the loads is below the surge power capability
of this inverter.

Two special functions allow even more flexibility: Battery-Free mode and Grid Injection.
In Battery-Free mode, no battery is connected to the unit and an AC source must be present. The unit will then

provide as much power from PV as is available to supply loads, adding any missing power from the AC source. If there
is more PV power available than can be utilized by the loads, then the PV power is reduced to ensure no power feed­in into the grid.

The Grid Injection functionality allows feeding any excess power into the grid. If there is excess PV power beyond
what is utilized by the load and for battery charging, this power can be fed into the public grid to take advantage of
net metering or feed-in tariffs. In this way all the PV power can be used even if the battery is full and the loads do not
require all the available PV power. Feeding into the grid may be prohibited in some areas so this function is locked by
a PIN code to avoid accidental grid injection.

www.phocos.com 4 | P a g e

Product Overview

Pin 1 Pin 8

Display Unit

Fig. 2: Product Overview

1. LC-display

2. Inverter status indicator

3. Charging indicator

4. Fault indicator

5. Function buttons

6. AC output on/off switch (solar charging still functions when the AC output is powered off )

7. AC input terminals (public grid or AC generator connection)

8. AC output terminals (load connection)

9. PV terminals

10. Battery terminals

11. Resettable circuit breaker

12. Remote display unit communication port

13. Parallel communication port (for inter-connecting multiple Any-Grid units)

14. Current sharing port (for inter-connecting multiple Any-Grid units)

15. Relay contact

16. USB-OTG communication port

17. Output source indicators and USB function indicators

18. Battery Management System (BMS) communication port: CAN, RS-485 and RS-232

19. RS-232 communication port

www.phocos.com 5 | P a g e

5.0 Installation

Package Contents

Before installation, please inspect the unit to ensure nothing inside the package is damaged. Package contents:

 Any-Grid unit
 This manual
 RS-232 cable (SUB-D to RJ-45)
 Parallel communication cable (gray connectors, needed for systems with multiple Any-Grid units)
 Current sharing cable (green connectors, needed for systems with multiple Any-Grid units on a phase)
 3 pcs. ring terminals for battery connection (2 pcs. required for installation)

Mounting the Unit

Before connecting all wirings, please take off bottom cover by removing two screws as shown below and carefully
sliding the cover down. Before removing the cover entirely, remove the 3 wire harnesses by their connectors (Fig. 3).

Fig. 3: Removal of bottom cover Fig. 4: Minimum distance to other objects

WARNING: Only mount this unit on concrete or another solid non-combustible
surface capable of securely holding the weight of the unit.

 Install this inverter at eye level to ensure legibility of the display
 Ensure the ambient temperature is between -10 ~ 50 °C, 14 ~ 122 °F at all

times

 Avoid excessively dusty environments
 The unit is designed for vertical installation on a solid wall
 Ensure a minimum distance to other objects and surfaces as shown in

Fig. 4 to guarantee sufficient heat dissipation and to have enough space
for removing wires.

 Install in a room where noise is not an issue as the unit has fans for cooling

Install the unit by using three M4 or M5 screws (Fig. 5) appropriate for the weight of
the unit and wall material, use wall plugs. The bottom screw hole is only accessible
after removal of the bottom cover (Fig. 3). This bottom cover must remain removed
for the rest of this “Installation” chapter until instructed otherwise.

Fig. 5: Mounting holes

www.phocos.com 6 | P a g e

Battery Connection

WARNING: The installation of this unit may only be undertaken by qualified personnel with appropriate
training. High voltages in and around the battery and unit can cause serious injury or death. This unit must be
installed in accordance with rules and regulations at the site of installation.

WARNING: Choose a suitable battery fuse as outlined in the chapter “Important Safety Information”, section
“OVERCURRENT PROTECTION FOR BATTERY”.

WARNING: Ensure the battery cables are sized according to the table below. Inadequate battery cables can
cause excessive heat or fire during operation.

Recommended battery cable cross-section, battery size and fuse / DC circuit breaker rating:

Any-Grid model PSW-H-5KW-230/48V PSW-H-3KW-230/24V

Battery cable cross-section

Min. battery capacity (lead-based)

Battery current capability

Fuse / breaker rating

Steps to connect the battery:

1. WARNING: Ensure the battery cables are not yet connected to the battery.

CAUTION: Ensure none of the cable insulation is jammed in the ring terminal before crimping.
Crimp one battery ring terminal (included) to each the positive and negative battery lead (unit side). If choosing
ring terminals other than the included ones, make sure they have an inside ring diameter of 6.4 mm, 0.25 in to fit
the M6 battery terminal bolts of the Any-Grid securely.

2. Remove the pre-installed nuts from the battery terminal bolts. Insert the ring terminal of the battery cables

through the casing holes and flat onto the corresponding battery terminal (Fig. 6). Screw down the previously
removed nuts with a torque of 2 ~ 3 Nm (1.5 ~ 2.2 lbf⋅ft). Ensure the ring terminals sit flush on the connectors.

CAUTION: Do not apply any anti-oxidant substances to the battery terminals of the unit before they are
adequately fastened.
CAUTION: Over-tightening the terminal nuts can cause damage to the terminal, under-tightening can
cause a loose connection and excessive heat during operation, make sure to use the prescribed torque.

3. Install the fuse holder or breaker in the positive battery cable (or negative, if the battery must be positive-

grounded).

WARNING: Ensure the fuse is not yet installed or make sure the circuit breaker is secured in the open
position for the rest of the installation procedure until instructed to do otherwise.

48 V / 200 Ah 24 V / 200 Ah

140 Adc continuous

280 Adc surge (5s)

175 Adc, min. 66 Vdc 210 Adc, min. 33 Vdc

35 ~ 50 mm², AWG 0 ~ AWG 2

168 Adc continuous

336 Adc surge (5s)

4. Connect the other end of the battery cables to the battery. Ensure the polarity of the battery terminals on the

Any-Grid match the battery polarity.

CAUTION: Reverse polarity connection to the battery may damage the unit.

Fig. 6: Battery connection

www.phocos.com 7 | P a g e

AC Input and AC Output Connection

WARNING: Before connecting an AC source to the AC input of the Any-Grid, install an AC circuit breaker
between the Any-Grid and AC input power source. This will ensure the inverter can be securely disconnected
during maintenance and fully protected from over current of AC input. Make sure the breaker is open / off for
the rest of the installation procedure until instructed otherwise.

WARNING: Ensure that the installation has adequate grounding and connect the protective earth (PE)
terminals to this ground as instructed below. Failure to do so can cause serious injury or death once the unit is
powered up or the AC source is activated via its breaker.

WARNING: Ensure the AC cables are sized according to the table below. Inadequate AC cables can cause
excessive heat or fire during operation.

CAUTION: Do not connect an AC source to the “AC OUTPUT” labelled terminal of the unit as this will destroy
the unit. Only connect it to the “AC INPUT” labeled terminal.

Recommended AC cable cross-section and AC circuit breaker rating:

Any-Grid model PSW-H-5KW-230/48V PSW-H-3KW-230/24V

AC input and output cable cross-section

Circuit breaker rating

Steps to connect the AC source and AC loads:

1. WARNING: Ensure the battery cable fuse is removed or breaker is secured in the open position.

WARNING: Ensure the AC source breaker is secured in the open position and there is no voltage on the
conductors before continuing.

2. Remove 10 mm / 0.4 in of insulation for the six AC conductors (neutral “N”, live “L” and protective earth “PE”
for the AC source and loads).

3. Insert the three AC source wires through the rectangular casing hole marked “AC INPUT”. Insert the “PE”
protective conductor first into the corresponding AC input terminal and tighten that terminal screw

with a torque of 1.4 ~ 1.6 Nm (1.0 ~ 1.2 lbf⋅ft). Repeat for the neutral “N” and live “L” conductors.

40 Aac, min. 280 Vac 30 Aac, min. 280 Vac

4 ~ 10 mm², AWG 7 ~ AWG 11

Fig. 7: AC input connection

4. Insert the three AC load wires through the rectangular casing hole marked “AC OUTPUT”. Insert the “PE”
protective conductor first into the corresponding AC output terminal and tighten that terminal screw

with a torque of 1.4 ~ 1.6 Nm (1.0 ~ 1.2 lbf⋅ft). Repeat for the neutral “N” and live “L” conductors.

www.phocos.com 8 | P a g e

Fig. 8: AC Output connection

5. Make sure the six wires are securely connected.

CAUTION: Over-tightening the terminal screws can cause damage to the terminal, under-tightening
can cause a loose connection and excessive heat during operation, make sure to use the prescribed
torque. Ensure none of the conductor insulation is jammed between the terminal contacts.
CAUTION: Ensure the polarity is correct on all wires. Failure to do so may cause a short-circuit at the
AC source when several units are working in parallel operation.

PV Connection

WARNING: Before connecting the PV module array to the PV input of the Any-Grid, install an DC circuit
breaker between the Any-Grid and PV modules. This will ensure the inverter can be securely disconnected
during maintenance and is fully protected from over current of the PV modules. PV modules produce a
dangerous voltage even with little light. Make sure the breaker is open / off for the rest of the installation
procedure until instructed otherwise.

WARNING: Ensure the PV cables are sized according to the table below. Inadequate PV cables can cause
excessive heat or fire during operation.

Recommended battery cable cross-section and DC circuit breaker rating:

Any-Grid model PSW-H-5KW-230/48V PSW-H-3KW-230/24V

PV cable cross-section

Circuit breaker rating

PV Module Selection:
For selecting the correct PV module configuration, please consider the following points:

 The total open circuit voltage (Uoc / Voc) of the PV module array may never exceed the values in the table

below. Consider the coldest possible temperatures at the location of installation together with the
temperature coefficient of the PV modules used.

 The total maximum power point voltage (Umpp / Vmpp) of the PV module array must be above the

minimum values in the table below. Consider the warmest PV module temperatures at the location of
installation.

 The total maximum power point current (Impp / Ampp) of the PV module array may not exceed the value in

the table below.

Any-Grid model PSW-H-5KW-230/48V PSW-H-3KW-230/24V

Max. PV voltage (Uoc)

Min. PV mpp voltage (Umpp)

Max. mpp current (Impp)

120 Vdc 90 Vdc

2.5 ~ 16 mm², AWG 5 ~ AWG 13
20 Adc, min. 450 Vdc

450 Vdc

22.5 Adc (up to 18 Adc actually usable)

www.phocos.com 9 | P a g e

Steps to connect the AC source and AC loads:

1. Remove 10 mm / 0.4 in of insulation from the positive and negative PV cables.

2. Insert the two PV wires through the rectangular casing hole marked “PV input”.

3. Insert the positive PV cable into the “PV+” terminal and the negative PV cable into the “PV-“ terminal.

CAUTION: Ensure correct polarity.

Fig. 9: PV connection

4. Tighten both terminal screws with a torque of 1.4 ~ 1.6 Nm (1.0 ~ 1.2 lbf⋅ft) and make sure the two wires are
securely connected.

CAUTION: Over-tightening the terminal screws can cause damage to the terminal, under-tightening
can cause a loose connection and excessive heat during operation, make sure to use the prescribed
torque. Ensure none of the cable insulation is jammed between the terminal contacts.

Final Assembly

After Battery, PV and AC wiring is completed, please slide the bottom cover back up on the unit, re-connect the 3
wire harnesses removed in Fig. 3, and secure it by fastening the two screws as shown below.

Fig. 10: Re-applying bottom cover

Remote Display Panel Installation

The display module can optionally be removed and installed in a remote location with an optional communication
cable. Please take the following steps to implement this remote panel installation. Use a standard straight Ethernet
patch cable (Cat5 or higher) with male RJ45 connectors on both sides (not included). A maximum cable length of 20
meters or 66 feet is recommended. Follow the steps below to remove the display module and install it away from the
inverter unit.

www.phocos.com 10 | P a g e

1. Remove the screw holding the bracket on the bottom of the display module (Fig. 11  ①) and push down

Remove

Push

Pull

Screw in

the display unit from the case slightly while removing the metal bracket.

2. Keep pushing the display module down, taking care not to damage the connected cable (Fig. 11  ②).

3. Remove the cable connected to the display module (Fig. 11  ③).

4. Screw the bracket removed in Fig. 11  ① back in place (Fig. 11  ④).

Fig. 11: Remote display removal

5. Drill the three mounting holes in the marked distances of 70 mm, 2.75 into each other (Fig. 12, left). Use M3,
size no. 4 diameter screws. The screw heads must be between 5 ~ 7 mm, 0.2 ~ 0.3 in. Screw the bottom two
screws into the wall where the display module is to be mounted and let the screw heads protrude 2 mm,

0.08 in. from the wall. Slide the display down on the protruding screw heads. Now insert and tighten the
third screw at the top (Fig. 12, right).

Fig. 12: Remote display mounting hole locations

6. Install one end of the Ethernet patch cable (not included) into socket (Fig. 2) on the display module
(right side). Install the other end of the Ethernet patch cable into socket (Fig. 2) on the Any-Grid unit.

7. If using Lithium batteries designed for battery management system (BMS) communication such as
Pylontech batteries, please visit www.phocos.com for a current list of batteries supported with BMS

communication. Connect the battery BMS cable to socket (Fig. 2).

CAUTION: Ensure the battery and BMS is compatible with the Any-Grid and that the pin location is
correct before connection. Damage to any communication port or the battery due to incorrect
connection is not covered by warranty.

www.phocos.com 11 | P a g e

Pin (see Fig. 2)

1 2 3 4 5 6 7 8

Function

RS-232 RX RS-232 TX RS-485 B +12 Vdc RS-485 A CAN H CAN L GND

Installing Multiple Units in Parallel or 3-Phase Configuration

Introduction

This entire chapter is only relevant if using more than one Any-Grid unit. Multiple Any-Grid units of the same model
number can be used either in parallel on a single phase, or in a 3-phase configuration with a common neutral. All
units must be connected to the same battery bank. This chapter is an addition to all other sections above in the
chapter “Installation”, please adhere to all guidelines and safety instructions accordingly.

Parallel operation on a single phase is possible with up to 9 units.
Alternatively, 3-phase configuration is possible, whereby at least one unit must be installed on each of the 3 phases

and a maximum of 7 units on a phase. The total number of units may not exceed 9 in any case.

Mounting the Units

When installing multiple units, please keep a minimum distance between the units as shown in Fig. 13.

Fig. 13: Remote display mounting hole locations

Connections

Use the cable cross-sections, tightening torque and connectors as described for a single unit.
Battery Connection: Make sure to use a separate DC fuse or circuit breaker for each unit. Instead of connecting each

unit to the battery, connect each positive battery cable to a bus bar, and each negative battery cable to a second bus
bar. These bus bars are then connected to the battery terminals. The cross-section of the bus bars, and the cables
from the bus bars to the battery terminals should equal the recommended battery cable cross-section per unit, times
the number of units connected to it.

The minimum recommended battery capacity for lead-based batteries is 200 Ah per connected Any-Grid. For
example, in a system with 3 units, the battery bank should have a capacity of at least 600 Ah.

AC Connections: Regarding AC input and output, please also follow the same principle. Use the wiring cross-section
and circuit breaker as defined for each individual unit, then attach those wires to bus bars. The bus bars from the AC
input are then connected to the AC source, the bus bars from the AC output are connected to the distribution panel
and loads.

PV Connections: Use the PV connection as described for individual units. Each unit must be connected to its own PV
array and must not have any electrical contact to any other units’ PV arrays.

CAUTION: Please install at least a breaker at the battery terminals and AC input of every individual Any-Grid
unit. This will ensure each unit can be securely disconnected during maintenance and fully protected from
over-current of battery or AC input. Use the breaker ratings as described in the chapters “Battery Connection”
and “AC Input and AC Output Connection”.

www.phocos.com 12 | P a g e

CAUTION: All inverters must share the same battery bank. Otherwise, the inverters will go into fault mode.
WARNING: Ensure all circuit breakers are open / disabled before wiring the units so that there is no voltage on

the battery, AC and PV wires.

General rules for the communications connections (see Fig. 2  ⓭ Parallel Communication Port and ⓮ Current
Sharing Port):

1. Every unit must have both parallel communication ports occupied. These ensure phase synchronization and
synchronization of parameters between the units.

2. Current sharing ports must only be occupied for those units where there is more than one unit on that
particular phase. If there is only one unit on a phase, then current sharing cables must not be used. These
current sharing cables ensure that all units on one phase operate at the same AC power output level.

3. Every parallel communication or current sharing cable used, must either be connected directly between two
neighboring units, or with a maximum of one unit between them.

4. Connecting parallel communication cables, assuming units are numbered from 1 to ≤ 9 from left to right:

a) Connect the left black parallel communication port of unit 1 to the right port on unit 2.
b) Connect the right port of unit 1 to the left port of unit 3.
c) Connect the left port of unit 2 to the to the right port of unit 4.
d) Continue connecting the right port of each odd-numbered unit to the left port of the next odd-

numbered unit. Continue connecting the left port of each even-numbered to the right port of the
next even-numbered unit, until there are only two unoccupied black ports.

e) Connect the unoccupied black port of the last unit to the unoccupied black port of the second-to-

last unit.

5. Connecting current sharing cables just like step 4, assuming units are numbered from 1 to ≤ 9 from left to
right on a particular phase (the must be no connection of current sharing cables between any two phases’
units!):

a) Connect the left green current sharing port of unit 1 to the right port on unit 2.
b) Connect the right port of unit 1 to the left port of unit 3.
c) Connect the left port of unit 2 to the to the right port of unit 4.
d) Continue connecting the right port of each odd-numbered unit to the left port of the next odd-

numbered unit. Continue connecting the left port of each even-numbered to the right port of the
next even-numbered unit, until there are only two unoccupied green ports on the particular phase.

e) Connect the unoccupied green port of the last unit to the unoccupied green port of the second-to-

last unit.

f) Repeat steps 5a to 5e for further phases with more than one unit.

The following section will show a few examples of how the parallel communication and current sharing cables are
mounted. For better visibility download this manual in color at www.phocos.com.

Example: 5 Units on Single Phase

Note: this example excludes PV wiring, circuit breakers and bus bars for better visibility.

www.phocos.com 13 | P a g e

Fig. 14: Power connections of 5 units on a single phase

Fig. 15: Communication connections of 5 units on a single phase

Example: 7 Units on Phase 1, 1 Unit on Phase 2, 1 Unit on Phase 3

Note: this example excludes PV wiring, circuit breakers and bus bars for better visibility.

Fig. 16: Power connections of 7 units on P1, 1 unit on P2, 1 unit on P3

Fig. 17: Communication connections of 5 units on a single phase

Notice that because there is only one unit on phase 2 (P2) and phase 3 (P3), there are no green current sharing cables
connected to these two units.

www.phocos.com 14 | P a g e

Commissioning
Parallel in Single Phase

CAUTION: Before continuing, ensure the wiring is correct according to the previous chapter, particularly that
all units are connected to the same neutral wire. Ensure that all AC input breakers and AC output breakers are
open on each individual Any-Grid unit and that each unit is turned off with its AC output on/off switch. Ensure
each unit is disconnected from PV, but connected to the battery via its battery breaker / fuse. The battery
breaker must be closed / inserted to ensure each unit can function for commissioning.

Follow the following steps once the wiring is completed.

1. Turn on one unit with its AC output on/off switch

2. In the Settings Menu (see chapter “Device Operation Settings”) navigate to settings menu 28.

3. Turn the AC output on/off switch off to deactivate the AC output. The unit will remain in Stand-By mode for
under a minute and the display will stay on for this time.

4. Set the menu number 28 setting from the default value “Single” (SIG) to “Parallel” (PAL). This will not be
possible if the unit is not turned off as described in the previous step.

5. Once the setting is confirmed, wait for the unit to shut down automatically, the display will then turn off
completely.

6. Repeat steps 1 to 5 with each further unit connected in parallel.

7. Now turn on each unit. One unit will automatically and randomly be defined as the master unit and will
show the master screen, all other units will show the slave screen on their display:

Screen of Master unit Screen of Slave unit(s)

8. Switch on the AC input breaker of each unit in quick succession, if an AC source is installed. If this takes too
long, then some units may show fault 82 on their screen, but they will restart automatically and upon
detecting a valid AC input, will function normally.

9. It’s better to have all inverters connect to utility at the same time. If not, it will display fault 82 in following­order inverters. However, these inverters will automatically restart. If detecting AC connection, they will work
normally.

Screen of Master unit

Screen of Slave unit(s)

10. If there are no further faults displayed, the parallel system installation is complete. The breakers on the AC
output of each unit can be switched on and then loads may be connected.

3-Phase, One or more Units per Phase

CAUTION: Before continuing, ensure the wiring is correct according to the previous chapter, particularly that
all units are connected to the same neutral wire. Ensure that all AC input breakers and AC output breakers are
open on each individual Any-Grid unit and that each unit is turned off with its AC output on/off switch. Ensure
each unit is disconnected from PV, but connected to the battery via its battery breaker / fuse. The battery
breaker must be closed / inserted to ensure each unit can function for commissioning.

www.phocos.com 15 | P a g e

Follow the following steps once the wiring is completed.

1. Turn on one unit on phase 1 with its AC output on/off switch

2. In the Settings Menu (see chapter “Device Operation Settings”) navigate to settings menu 28.

3. Turn the AC output on/off switch off to deactivate the AC output. The unit will remain in Stand-By mode for
under a minute and the display will stay on for this time.

4. Set the menu number 28 setting from the default value “Single” (SIG) to “Phase L1” (3P1). This will not be
possible if the unit is not turned off as described in the previous step.

5. Once the setting is confirmed, wait for the unit to shut down automatically, the display will then turn off
completely.

6. Repeat steps 1 to 5 with each further unit connected on the same phase 1. Then repeat steps 1 to 5 for each
unit in phase 2 and, instead of choosing “Phase L1” in step 4, choose “Phase L2” (3P2). Then repeat steps 1 to
5 for each unit in phase 3 and, instead of choosing “Phase L1” in step 4, choose “Phase L3” (3P3).

7. Now turn on each unit. The units will show the following in their respective screens:

Screen of Units on Phase L1 Screen of Units on Phase L2 Screen of Units on Phase L3

8. Switch on the AC input breaker of each unit in quick succession, if an AC source is installed. If this takes too
long, then some units may show fault 82 on their screen, but they will restart automatically and upon
detecting a valid AC input, will function normally.

9. If a valid AC input source is detected and the three phases match with the with unit settings in settings
menu number 28, they will work normally. Otherwise, the symbol will flash and Grid Mode will not

function. In this case, check that the order or the three phases is correct. If necessary, turn off all units and
then switch the setting in settings menu number 28 for all Phase L2 units to Phase L3 and vice-versa by
following steps 1 to 5. Then continue with step 7. The displays will now show the following:

Screen of Units on Phase L1

10. If there are no further faults displayed, the 3-phase system installation is complete. The breakers on the AC
output of each unit can be switched on and then loads may be connected.

Screen of Units on Phase L2

Screen of Units on Phase L3

6.0 BLE Communication

This unit is equipped with wireless BLE functionality. Download the
“PhocosLink” App from the Google Play™ store or Apple’s App Store® with
an Android™ or iOS device, respectively. Once the App is installed, use it to
connect to the Any-Grid unit with the BLE pairing password “123456”. The
typical maximum communication distance is approximately 6 ~ 7 meters.

Google Play™ Apple App Store®

www.phocos.com 16 | P a g e

7.0 Relay Contact

There is one potential-free relay contact (3A / 250 Vac) available on the display module (Fig. 2  ). It may be used
to signal an external device when battery voltage reaches a low level, such as a gasoline or diesel generator. The relay
may be wired with normally closed (NC) or normally open (NO) logic. The table below indicates the relay states
between the common (C) and NO, as well as between C and NC contacts.

Relay terminals:

Any-Grid Status Condition

NC & C NO & C

Powered Off or
Battery-free mode

Powered On

Unit is off and AC output is not powered. Closed Open

Output is
powered
from
Battery
power or
Solar
power.

8.0 Operation

Inverter Power ON/OFF

Settings Menu 01
set as “Utility / AC
input first” (USB)
or “Solar / PV first”
(SUB)

Settings Menu 01
is set as SBU

Battery voltage < Low DC warning
voltage (2 Vdc for the 48 V model / 1
Vdc for the 24 V model above the
value in settings menu 29)

Battery voltage > Settings menu 13
or battery charging reaches Floating
phase

Battery voltage < Settings menu 12 Open Closed
Battery voltage > Settings menu 13

or battery charging reaches Floating
phase

Open Closed

Closed Open

Closed Open

Fig. 18: Display module ON/OFF load button location

Ensure the “ON/OFF” switch located on the display module (Fig. 18) is in the “OFF” position after the initial installation
(the button must not be depressed).

Now activate the circuit breakers or insert the fuses to energize the various inputs and outputs in the following order
(skip any that are not connected):

1. Battery

2. AC input

3. PV input

4. AC output

Next, press the “ON/OFF” switch to turn on the AC output and thus connected AC loads and the entire unit.

www.phocos.com 17 | P a g e

If the “ON/OFF” switch is in the “OFF” position, then the unit will be completely off when there is insufficient sunlight.
If PV modules are connected and there is sufficient PV voltage, the unit and display will wake up automatically to
charge the batteries during the day. Once the PV voltage drops below the threshold, the unit will again turn
completely off to save energy during the night. The AC output and thus the AC loads will remain off as long as the
“ON/OFF” switch is in the “OFF” position.

Display and Control Module

The display and control module, shown in Fig. 19, includes six LED indicators, six function buttons, an ON/OFF
button and a LC-display, indicating the operating status and allowing the programming of settings parameters.

LC-Display

Status

indicators

Function

buttons

Fig. 19: Display module buttons and indicators

Source

LED 2

Indicator Description

LED Indicator Color Solid On / Flashing Description

Source LED 1 Green Solid On AC output powered by AC input
Source LED 2 Green Solid On AC output powered by PV

Source
LED 1

Source
LED 3

Inverter ON/OFF
button

Source LED 3 Green Solid On AC output powered by battery

Solid On AC output powered by AC input (Grid mode)

Green

Status
indicators

Green

Red

Flashing AC output powered by integrated inverter (Off-

Grid mode)
Solid On Battery is fully charged
Flashing Battery is charging
Solid On Fault mode
Flashing Warning mode

Function Buttons

Function Button Description

Escape / close Exit settings without confirming
USB function setting Select USB OTG functions

Timer setting for AC output source priority Setup timer for prioritizing AC output source

Timer setting for the battery charger source
priority

Setup timer for prioritizing battery charger source

www.phocos.com 18 | P a g e

Up To last selection

Down To next selection

Enter To confirm/enter the selection in setting mode

Display Symbols

Fig. 20: LC-Display symbols

Symbol Description

Input Information

Settings menu and Fault Information

Output Information

Indicates AC input
Indicates PV input

Indicates input voltage, input frequency, PV voltage, charging current,
charging power, battery voltage.

Indicates the setting menus

Indicates warning and fault codes.

Warning: flashing with warning code.

Fault: shown with fault code.

Indicates output voltage, output frequency, load in % of nominal power,

Battery Information

www.phocos.com 19 | P a g e

load in VA, load in Watt and discharging current.

Indicates battery level in 0 ~ 24%, 25 ~ 49%, 50 ~ 74% and 75 ~ 100%
(left to right) increments.

While the battery is charging, the battery indicator shows the following:

Status

Battery voltage (48 V model /

LCD Display

24 V model)

< 48 V / < 24 V 4 bars flash in turns

All battery

48 ~ 50 V / 24 ~ 25 V

charging
modes except

50 ~ 52 V / 25 ~ 26 V

Floating phase

> 52 V / > 26 V

Floating phase. Batteries are fully charged.

Bottom bar constantly on and other three bars flash in
turns
Bottom two bars constantly on and other two bars flash
in turns

Bottom three bars constantly on and top bar flashes

4 bars constantly on

While the battery is discharging, the battery indicator shows the following:

Load Percentage Battery voltage (48 V model / 24 V model) LC-Display

< 44.4 / < 22.2 V 0 ~ 24%

44.4 ~ 46.4 V / 22.2 ~ 23.2 V 25 ~ 49%

Load > 50%

46.4 ~ 48.4 V / 23.2 ~ 24.2 V 50 ~ 74%
> 48.4 V / > 24.2 V 75 ~ 100%
< 45.4 / 22.7 V 0 ~ 24%

45.4 ~ 47.4 V / 22.7 ~ 23.7 V 25 ~ 49%

Load < 50%

47.4 ~ 49.4 V / 23.7 ~ 24.7 V 50 ~ 74%

Load Information

Mode Operation Information

> 49.4 V / > 24.7 V 75 ~ 100%

Indicates overload

Indicates load level by 0 ~ 24%, 25 ~ 49%, 50 ~ 74% and 75 ~ 100%
(left to right) increments.

Constantly on: AC source valid
Blinking: AC source present but rejected

PV input valid

Load supplied by AC input

AC source charger circuit is active

PV charger circuit is active

DC to AC inverter circuit is active

www.phocos.com 20 | P a g e

Alarm disabled

BLE is ready to connect

USB disk connected

Timer setting or time display

Device Operation Settings

General Settings

Press for 3 seconds to enter settings mode. Press or to select between settings menus. Once selected,
press to confirm the selection or to exit without confirmation.

Settings menus

Menu no. Description Selectable Option and Notes

Escape

00 Exit setting mode

AC output source priority:

01

Configure the priority of
which power sources supply
the AC output load

Utility / AC input first (Default)
“USB” for:

Utility  Solar  Battery

Solar / PV first
“SUB” for:

Solar  Utility  Battery

AC input / utility will provide power
to the loads as first priority. If there
is excess solar power beyond what
is required for battery charging,
this power is used to supply power
to the loads instead. The battery is
not discharged (Grid mode).

Solar and battery will provide
power to the loads when AC input /
utility power is unavailable (Off­Grid mode).

Solar provides power to the loads
as first priority. If solar power is not
sufficient to power all connected
loads, AC input / utility power will
supply the loads simultaneously
(Grid mode).

If no solar power is available (ex. at
night), AC input / utility power is
used exclusively. The battery is only
discharged when the AC input /
utility power is unavailable (Off­Grid mode).

www.phocos.com 21 | P a g e

SBU priority
“SBU” for:

Solar  Battery  Utility

Solar powers the loads as first
priority. If solar power is not
sufficient to power all connected
loads, the battery will supply power
to the loads at the same time. The
Any-Grid is disconnected from the
grid at this time (Off-Grid mode).

AC input / utility provides power to
the loads (Grid mode) only when
the battery voltage drops to either
low-level warning voltage or the
setting point in settings menu 12.

Maximum total battery
charging current of AC and
solar charging combined:

Max. total charging current =

02

AC input charging current +
solar charging current

This setting is important to
limit charging current for
some battery types.

03 AC input voltage range

10A

80A (Default)

Can be set from 10 ~ 80 Adc in 10 Adc increments. This is the battery­side DC charging current.

Appliances

Accepted AC input voltage range
from 90 ~ 280 Vac.

UPS (Default)

Accepted AC input voltage range
from 170 ~ 280 Vac.

AGM (Default)

Flooded

User-defined

Battery charging voltages and low
voltage disconnect (LVD) can be
manually defined in settings menu
26, 27 and 29.

05

Battery type

Settings menus 26, 27 and 29
can only be modified if “User­defined” is selected here

Pylontech battery
(only for 48 Vdc models)

For use with Pylontech Lithium
batteries. Ensure the battery
management system
communication is connected (see
chapter “Remote Display Panel
Installation”). Settings menus 02,
26, 27 and 29 will be automatically
set up and cannot be changed.

Further batteries may be added in
the future. Please visit
www.phocos.com for a current list
of batteries supported with BMS
communication.

www.phocos.com 22 | P a g e

Restart disabled (Default)

Restart enabled

06

07

08

09

10

11

12

13

Automatic restart if an AC
output overload occurs

Automatic restart when over­temperature occurs

Solar power feed-in into grid

A PIN code is required to
change this setting. Grid feed­in / injection may not be legal
at the site of installation.
Contact your dealer for more
details.
Only activate when using the
public grid as AC source, else
your AC generator and the
Any-Grid could be damaged.

AC output frequency

Only relevant for Off-Grid
mode

AC output voltage

Only relevant for Off-Grid
mode

Maximum AC source charging
current (battery side)

If settings menu 02 is smaller
than this value, charging will
be limited by the value in
settings menu 02.

Voltage set-point to switch
from Off-Grid mode to Grid
mode when “SBU priority” is
selected in settings menu 01

Voltage set-point to switch
from Grid mode to Off-Grid
mode when selecting “SBU
priority” in settings menu 01.

Restart disabled (Default)

Disabled (Default)

50 Hz (Default)

230 Vac (Default)

30 Adc (Default)

48 Vdc (48 Vdc model Default)
24 Vdc (24 Vdc model Default)

Battery fully charged

Restart enabled

Enabled

60 Hz

From 220 ~ 240 Vac in 10 Vac
increments.

Available values: 2 Adc and 10 ~ 80
Adc in 10 Adc increments.

Available values: 44 ~ 57 Vdc in 1
Vdc increments for 48 Vdc model.

Available values: 22 ~ 28.5 Vdc in

0.5 Vdc increments for 24 Vdc
model.

54 Vdc (48 Vdc model Default)
27 Vdc (24 Vdc model Default)

www.phocos.com 23 | P a g e

Available values: “FULL” and 48 ~ 64 Vdc in 1 Vdc increments for 48 Vdc
model.

Available values: “FULL” and 24 ~ 32 Vdc in 1 Vdc increments for 24 Vdc
model.

The battery is considered fully charged when the float charging phase
is reached.

16

Battery charger source priority

Configure the priority of
which power sources are used
to charge the battery. The AC
source can only charge the
battery if in Grid, Stand-By or
Fault modes. In Off-grid mode
only solar / PV power can
charge the battery.

It is recommended not to
choose “Only Solar” if an AC
source is available because
the self-consumption of the
Any-Grid unit is supplied from
the battery (if connected). If
there are long periods without
sunshine (ex. snow), the unit
may shut down due to low
battery voltage. Instead, select
“Solar first” here and 2 Adc in
settings menu 11 to
compensate for the self­consumption with some
safety margin.

Solar first

Solar and Utility (Default)

Only Solar

Alarm on (Default)

Solar power will charge battery as
first priority.

Utility will charge battery only
when solar energy is not available
and the unit is in Grid mode.

Solar power and AC input power
will charge battery at the same
time if the unit is in Grid mode.

Solar power will be the only battery
charging source regardless of the
operating mode.

Alarm off

18 General alarm control

19

Automatic return to default
overview display screen

20 Display backlight control

Return to default display view
(Default)

Remain at last view

Backlight always on (Default)

The display will return to the
default overview (input voltage /
output voltage) if no button is
pressed for approx. 1 minute.

The display will remain at the
selected view indefinitely, until
another view is selected.

Backlight off after one minute of no
button presses

www.phocos.com 24 | P a g e

Alarm on (Default)

Alarm off

22

23

25

26

Beeps while primary source is
interrupted

Overload by-pass:

When enabled, the unit will
quickly switch to Grid mode if
an AC output overload occurs
in Off-Grid mode. It will return
back to Off-Grid mode once
the load power has
normalized.

Record fault codes to internal
datalogger

Boost battery charging
voltage

By-pass disabled (Default)

Record enabled (Default)

57.6 Vdc (48 Vdc model Default)

28.8 Vdc (24 Vdc model Default)

Bypass enabled

Record disabled

If “User-defined” is selected in
settings menu 05, this value can be
changed.

Available values: 48.0 ~ 64.0 Vdc in

0.1 Vdc increments for 48 Vdc
model.

27

28

Floating battery charging
voltage

AC output mode

To avoid damage, this value
can only be changed if the
inverter is in Stand-By mode
(AC output turned off). See
chapter “Installing Multiple

Units in Parallel or 3-Phase
Configuration” for detailed

instructions.

55.2 Vdc (48 Vdc model Default)

27.6 Vdc (24 Vdc model Default)

Single: This unit is used alone in
a single-phase application

Phase L1: This unit is one of
several units and on phase 1 in a
three-phase application

Available values: 24.0 ~ 32.0 Vdc in

0.1 Vdc increments for 24 Vdc
model.

If “User-defined” is selected in
settings menu 05, this value can be
changed.

Available values: 48.0 ~ 64.0 Vdc in

0.1 Vdc increments for 48 Vdc
model.

Available values: 24.0 ~ 32.0 Vdc in

0.1 Vdc increments for 24 Vdc
model.

Parallel: This unit is one of several
units in a single-phase application

Phase L2: This unit is one of several
units and on phase 2 in a three­phase application

www.phocos.com 25 | P a g e

29

Low voltage disconnect

The AC output is turned off
when the battery reaches this
voltage level to protect the
battery from deep discharge.
The low DC / battery warning
voltage is 2 Vdc for the 48 V
model / 1 Vdc for the 24 V
model above this setting.

Phase L3: This unit is one of
several units and on phase 3 in a
three-phase application

44.0 Vdc (48 Vdc model Default)

22.0 Vdc (24 Vdc model Default)

If “User-defined” is selected in
settings menu 05, this value can be
changed.

Available values: 37.5 ~ 54.0 Vdc in

0.1 Vdc increments for 48 Vdc
model.

Available values: 18.8 ~ 27.0 Vdc in

0.1 Vdc increments for 24 Vdc
model.

This voltage is fixed and
independent of the load power
level.

Boost battery charging
duration

32

The duration for which the
boost voltage from settings
menu 26 is held before the
Floating phase is reached.

Battery equalization

Battery equalization helps
prevent sulfation of lead-acid
batteries and is beneficial for
bringing all cells to the same

33

voltage. Consult your battery
manual to make sure the
battery can withstand the
higher voltages required for
this purpose. This is typically
the case for flooded lead-acid
batteries.

34 Battery equalization voltage

Battery equalization duration

The duration for which the

35

equalization voltage from
settings menu 34 is held
before the Floating phase is
reached.

Automatic

120 min (Default)

If “User-defined” is selected in settings menu 05, this value can be
changed. Available values: “Automatic” and 5 ~ 900 minutes in 5 min.
increments.

If “Automatic” is set, the duration of bulk phase (see chapter
“Specifications”  “Battery Charging”) is multiplied by 10, with a
minimum of 10 minutes and maximum of 8 hours.

Enabled

Disabled (Default)

If “User-defined” or “Flooded” is selected in settings menu 05, this value
can be changed.

59.2 Vdc (48 Vdc model Default)

29.6 Vdc (24 Vdc model Default)

Available values: 48.0 ~ 64.0 Vdc in

0.1 Vdc increments for 48 Vdc
model.

Available values: 24.0 ~ 32.0 Vdc in

0.1 Vdc increments for 24 Vdc

120 min. (Default)

model.
Available values: 5 ~ 900 minutes in

5 min. increments.

www.phocos.com 26 | P a g e

Battery equalization timeout

If the equalization voltage
from settings menu 34 cannot

36

be reached within the
duration from settings menu
35, once this timeout is
reached, equalization is ended
and the charger returns to
Floating phase.

37 Equalization interval

180 min. (Default)

30 days (Default)

Enabled

Available values: 5 ~ 900 minutes in
5 min. increments.

Available values: 0 ~ 90 days in 1­day increments.

Disabled (Default)

39

40

41

Equalization phase: forced
start

Reset PV and Load energy
datalogger storage

Maximum discharging current
This setting is important to

limit discharging current for
some battery types.

If the battery equalization function is enabled in settings menu 33, this
function can be enabled. If “Enabled” is selected in this menu, battery
equalization is immediately force-started and the display main view
will show (EQ).
If “Disabled” is selected, it will cancel the forced equalization function
until the next scheduled equalization interval as defined in settings
menu 37. will no longer be shown in LCD main page.

Not reset (Default)

Disabled (Default)

Reset

120 A

Depending on the battery type used, its maximum discharge current
may be lower than what the Any-Grid unit requires to deliver its full
power to AC loads. If set to “Disabled” the unit will draw as much
current from the battery as necessary to supply the loads. If
overloaded by too much load power, settings menu 23 determines if
the unit may switch to the AC input by-pass to deliver more power or
protect itself by turning off permanently (until manual restart) or
temporarily (depends on settings menu 06).

If this setting is not “Disabled” then the unit will allow a maximum of
the set discharge current. If this limit is surpassed, the unit will switch
to the AC input by-pass temporarily to provide more power to the
loads. If no AC source is available, then the unit will shut down for 5
minutes.

Available values: Disabled and 30 ~ 120 Adc in 10 Adc increments for
48 Vdc model.

Available values: Disabled and 30 ~ 150 Adc in 10 Adc increments for
24 Vdc model.

www.phocos.com 27 | P a g e

93 Erase all datalogger contents

No reset (Default)

Reset

94 Datalogger storage period

95 Time setting: minute

96 Time setting: hour

10 days (Default)

The Any-Grid unit can store
measurement data with the
following frequency:

3 days: 20 entries per hour
5 days: 12 entries per hour
10 days: 6 entries per hour
20 days: 3 entries per hour
30 days: 2 entries per hour
60 days: 1 entry per hour

Once the memory is full, entries are
over-written.

Available values: 3, 5, 10, 20, 30 and
60 days.

Irrespective of this setting the unit
stores the last 100 error / warning
event codes.

Allows setting the current time in
minutes.

Available values: 00 ~ 59 minutes.

Allows setting the current time in
hours (24h notation).

Available values: 00 ~ 23 hours.

Allows setting the current day of
the month.

97 Date setting: day of month

98 Date setting: month

99 Date setting: year

Available values: day 01 ~ 31.

Allows setting the current month.
Available values: month 01 ~ 12.

Allows setting the current year (last
two digits: ex. 2019 = 19).

Available values: year 17 ~ 99.

USB and Timer Settings

There are three function keys on the display module to implement functions such as USB OTG, timer settings for the
output source priority and timer settings for the battery charger source priority.

USB Functionality

Insert a USB OTG storage device (disk) or a USB disk with a USB OTG microUSB adaptor (Micro-B male to USB Type A

www.phocos.com 28 | P a g e

female, sold separately) into the USB port (see Fig. 2). Press for 3 seconds to enter USB function mode.
These functions including the unit firmware upgrade, data log export and internal parameters re-write from the USB
disk.

Note: If no button is pressed within 1 minute of starting this procedure, the screen it will automatically return to the
default main view.

Follow these steps to select the various USB functions:

1. Press for 3 seconds to enter USB function mode. The three available functions are shown on the display
(UPGRADE, SETTINGS, LOGGER):

2. Press either , or to enter one of the three selectable settings programs (detailed description in
step 3).

3. Please select the desired function by following the procedure as shown in the table below:

Function Description Screen View

Upgrade the Any-Grid firmware if necessary with a file from the USB disk.

Upgrade
firmware

Over-write all parameter settings with a settings file stored on the USB disk. Settings files may be
available from your Phocos dealer.

Re-write
internal
parameters

1. By pressing the unit prepares to export the internal data
log to a connected USB disk. Once the function is ready, the

screen will display . Press the button to confirm the
selection.

Export data
log

2. Press to select “YES” or to return to the main screen
without any changed.

3. If “YES” was selected, Source LED 1 (see Fig. 19) will flash once
every second during the process.

4. Once the data log copy to the USB disk is complete, the screen
will show: and all LEDs will be lit.

5. Now press to return to main screen.

Possible error messages for USB functions:

Error Code Description

No USB disk is detected

USB disk is write-protected

File read from the USB disk has an incorrect format

If any error occurs, the error code will be displayed for three seconds. After three seconds, the screen returns to the
default main view.

www.phocos.com 29 | P a g e

Timer Override Setting for AC Output Source Priority

This timer setting is to set up the daily AC output source priority.
Note: If no button is pressed within 1 minute of starting this procedure, the screen it will automatically return to the

default main view.
To define a daily time period in which a specific AC output source priority is to be temporarily activated, follow the

steps below:

1. Press and hold for 3 seconds to enter the timer setting for the AC output source priority. The three
available priority orders are shown on the display (see chapter “Device Operation Settings”  “Settings
menu 01” for an explanation):

2. From top to bottom the priorities shown in the screen represent:

a. Utility / AC input first (“USB” for Utility  Solar  Battery)
b. Solar / PV first (“SUB” for Solar  Utility  Battery)
c. SBU priority (“SBU” for Solar  Battery  Utility)

3. Press either , or to enter one of the three selectable priorities:

a. = USB

b. = SUB

c. = SBU

4. The selected priority order (USB, SUB or SBU) is shown at the top of the screen. The middle shows the
starting time and the bottom shows the stopping time in full hours (24h notation). As an example for the
USB priority:

5. Press to select the starting time (middle of screen), it will flash. Now press or to change the
starting time in 1-hour steps. Then, press to confirm the starting time, it will stop flashing.

6. Press to select the ending time (bottom of screen), it will flash. Now press or to change the
ending time in 1-hour steps. Then, press to confirm the ending time, it will stop flashing.

7. Now press to return to main screen.

Timer Override Setting for Battery Charger Source Priority

This timer setting is to set up the daily battery charger source priority.
Note: If no button is pressed within 1 minute of starting this procedure, the screen it will automatically return to the

default main view.
To define a daily time period in which a specific battery charging source priority is to be temporarily activated, follow

the steps below:

1. Press and hold for 3 seconds to enter the timer setting for the battery charger source priority. The three
available priority orders are shown on the display (see chapter “Device Operation Settings”  “Settings
menu 16” for an explanation):

www.phocos.com 30 | P a g e

2. From top to bottom the priorities shown in the screen represent:

a. Solar first (“CSO” for Charger Solar)
b. Solar and Utility (“SNU” for Solar and Utility)
c. Only Solar (“OSO”)

3. Press either , or to enter one of the three selectable priorities:

a. = CSO

b. = SNU

c. = OSO

4. The selected priority order (CSO, SNU or OSO) is shown at the top of the screen. The middle shows the
starting time and the bottom shows the stopping time in full hours (24h notation). As an example for the
CSO priority:

5. Press to select the starting time (middle of screen), it will flash. Now press or to change the
starting time in 1-hour steps. Then, press to confirm the starting time, it will stop flashing.

6. Press to select the ending time (bottom of screen), it will flash. Now press or to change the
ending time in 1-hour steps. Then, press to confirm the ending time, it will stop flashing.

7. Now press to return to main screen.

Screen Views of Current Values

The screen views can be scrolled by pressing or to show current values in the following order:

Measurement Values Screen View Example

If there is no grid feed-in:
Input voltage = 230 Vac, Output voltage = 230 Vac

AC input voltage / AC output voltage
(Default Display Screen)

If there is grid feed-in:
Feed-in power = 800 W, Output voltage = 230 Vac

www.phocos.com 31 | P a g e

AC input frequency

PV voltage

PV current

Input frequency = 50 Hz, Output voltage = 230 Vac

PV voltage = 260 Vdc

PV current = 2.5 Adc

PV power

PV power = 650 W

www.phocos.com 32 | P a g e

Charging current

AC and PV charging current (battery side) = 50 Adc

PV charging current = 25 Adc

AC charging current = 25 Adc

Charging power

AC and PV charging power = 2.5 kW

PV charging power = 1.5 kW

AC charging power = 1.5 kW

www.phocos.com 33 | P a g e

Battery voltage and AC output voltage

AC output frequency

AC output percentage of nominal inverter power

Battery voltage = 50 Vdc, output voltage = 230 Vac

Output frequency = 50 Hz

Load percent = 80%

AC output in VA (apparent power)

When load power is lower than 1 kVA, apparent
power is shown in VA (ex. 900 VA)

When load power is higher than 1 kVA, apparent
power is shown in kVA (ex. 4.00 kVA)

www.phocos.com 34 | P a g e

When load power is lower than 1 kW, active power is
shown in W (ex. 900 W)

Load in Watt (active power)

Battery voltage / DC discharging current

When load power is lower than 1 kW, active power is
shown in kW (ex. 4.00 kW)

Battery voltage = 50 Vdc,
discharging current = 25 Adc

Battery voltage = 50 Vdc,
inverter temperature = 25 °C

Battery voltage / inverter internal temperature and solar
charge controller internal temperature

(Inverter temperature and solar charge controller
temperature is displayed in turns)

Battery voltage = 50 Vdc,
solar charge controller temperature = 25 °C

www.phocos.com 35 | P a g e

PV energy generated today, and AC output energy
consumed today

PV energy generated this month, and AC output energy
consumed this month

PV energy = 2.38 kWh,
AC output energy = 2.38 kWh

PV energy = 23.8 kWh,
AC output energy = 23.8 kWh

PV energy = 2.38 MWh,
AC output energy = 2.38 MWh

PV energy generated this year, and AC output energy
consumed this year

PV energy generated in total, and AC output energy
consumed in total

Current date

PV energy = 23.8 MWh,
AC output energy = 23.8 MWh

October 28, 2019.

www.phocos.com 36 | P a g e

Current time (24h notation)

Main microcontroller version (V1)

BLE controller version (V3)

16:30 hrs.

Version 06.00

Version 00.21

Operating Mode Description

Operating mode Behaviors

Stand-By mode
The AC output is not turned

on, but the unit can charge
the battery without AC
output (if the inverter
ON/OFF switch is set to the
OFF position).

No AC output voltage is
supplied by the unit, but
it still can charge
batteries

LCD display

Battery is charged by an AC source

Battery is charged by solar power

Battery is charged by AC source and solar power

www.phocos.com 37 | P a g e

No charging

Battery is charged by solar power and excess power is
fed into the grid

No battery connected, solar power is fed directly into
the grid

Fault mode
Errors are currently active

(see chapter “
Fault Reference Codes” for

details)

Solar power and AC
source can charge
batteries

Battery is charged by AC source and solar power

Battery is charged by an AC source

Battery is charged by solar power

No charging

www.phocos.com 38 | P a g e

Battery is charged and AC loads are powered by AC
source and solar power

Battery is charged and AC loads are powered by an AC
source

Battery is charged and AC loads are powered by the
grid and excess power is fed into the grid

Grid mode

AC output power is fully
sourced from the AC
input (by-pass), battery
charging is available

No battery connected, solar power and AC source
provide power to AC loads

No battery connected, AC source provides power to AC
loads

www.phocos.com 39 | P a g e

Solar power and the AC source provide power to the AC
output

Battery-free mode
No battery is connected to

the Any-Grid

AC output power is fully
sourced from the AC
input (by-pass) and solar
power

AC source provides power to the AC output

Battery and solar provide power to the AC output

Solar provides power to the AC output and charges
battery at the same time, no AC source available

Off-Grid mode

AC output power from
battery (if connected)
and solar power

Power to AC output from battery only

No battery connected and no AC source, power to AC
output from solar only

9.0 Fault Reference Codes

Fault Code Fault Event Screen View

01 Fan is locked while inverter is off

02 Over-temperature

www.phocos.com 40 | P a g e

03 Battery voltage is too high

04 Battery voltage is too low

05 AC output is short circuited

06 AC output voltage is too high

07 AC output overload timeout

08 Internal DC bus voltage is too high

09 Internal DC bus soft start failed

10 Solar charge controller over-current

11 Solar charge controller over-voltage

12 DC-DC converter over-current

13 Battery discharge over-current

51 Over-current

52 Internal DC bus voltage is too low

53 Inverter soft-start failed

55 DC voltage component in AC output too high

57 Current sensor failed

58 Output voltage too low

60 Power feedback protection

71 Firmware version inconsistent

72 Current sharing fault

80 CAN communication fault

81 Host / Master loss

82 Synchronization loss

83 Battery voltage detected differs between units

84 AC input voltage and frequency detected differs between units

85 AC output current unbalanced

86 AC output mode setting is differs between units

www.phocos.com 41 | P a g e

10.0 Warning Codes

Warning Code Warning Event Audible Alarm Screen view

01 Fan is locked while inverter is

on

02 Over-temperature None

03 Battery is over-charged Beeps once every second

04 Low battery voltage Beeps once every second

07 AC output overload Beeps twice every second

Beeps three times every
second

10 AC output power de-rating Beeps twice every 3

seconds

32 Communication interrupted None

Eq Battery equalization None

bP Battery is not connected None

www.phocos.com 42 | P a g e

11.0 Troubleshooting

Problem LCD / LED / Buzzer Explanation / Possible cause What to do

Unit shuts down
automatically during
start-up process.

No response after
power on.

AC source exists but
the unit works in
battery mode.

LCD / LEDs and
buzzer will be active
for 3 seconds and
then turn off.

No indication.

Input voltage is
displayed as 0 on the
LCD and green LED is
flashing.

Green LED is flashing.

The battery voltage is too low
(< 45.84 V / < 22.92 V for the 48
V / 24 V model)

1. The battery voltage is far too
low (< 33.6 V / < 16.8 V for the
48 V / 24 V model)

2. Battery polarity is connected
in reverse

Input circuit breaker is tripped

Insufficient quality of AC power
(Grid or Generator)

1. Re-charge battery

2. Replace battery

1. Check if batteries and the
wiring are connected correctly,
check battery polarity.

2. Re-charge battery.

3. Replace battery.

Check if AC circuit breaker is
tripped and AC wiring is
connected correctly.

1. Check if AC wires are too thin
and/or too long.

2. Check if generator (if applied)
is working correctly or if input
voltage range setting is correct
(try switching from UPS mode 
Appliances mode), see chapter
“Device Operation Settings” 
“Settings menu 03” for details.

Green LED is flashing.

When the unit is
turned on, internal
relay is switched on
and off repeatedly.

LCD display and LEDs
are flashing

“Solar / PV First” is set as the
priority of the AC output
source.

Battery is disconnected.

Change output source priority to
“AC input / utility first”, see
chapter “Device Operation

Settings”  “Settings menu
01” for details.

Check if battery wires are well
connected.

www.phocos.com 43 | P a g e

Fault code 07

Overload error. The inverter is
overloaded >= 110% for more
than the allowed duration.

Reduce the connected load by
switching off some equipment.

Buzzer beeps
continuously and red
LED is on.

Check if wiring is connected well
and remove abnormal loads.

Fault code 05

Output short circuited.

Temperature of internal
converter component is over
120°C.

Check whether the air flow of the
unit is blocked or whether the

Fault code 02

Internal temperature of
inverter component is over

ambient temperature is too high.

100°C.
Battery is over-charged. Return to repair center.

Fault code 03

The battery voltage is too high.

Check if specifications and
quantity of batteries meet
requirements.

Fault code 01 Fan fault Replace the fan(s)

Fault code 06/58

Fault code
08/09/53/57

Output abnormal (AC output
voltage below 190Vac or
higher than 260Vac)

Internal components failed. Return to repair center.

1. Reduce the connected load.

2. Return to repair center

Fault code 51 Over current or surge.

Restart the unit, if the error
occurs again, please return to
repair center.

Fault code 52

Internal DC bus voltage too
low.

Fault code 55 Output voltage is unbalanced.

Fault code 56

Fault code 13

Fault code 60

Battery is not connected
correctly, or internal fuse has
blown.

Battery discharge over-current
detected.

Current feedback into the
inverter is detected.

If the battery is connected
correctly, please return to repair
center.

Increase the battery discharge
current limit in settings menu
number 41.

1. Restart the unit.

2. Check if L/N cables are not
inversely connected in all
units.

3. For a parallel system in
single phase, make sure the
green current sharing are
connected between all.

4. For 3-phase systems, make
sure the green current
sharing cables are
connected between all units
on the same phase, and not
connected to any units on
the other phases.

5. If the problem remains,
please contact your repair
center.

Fault code 61

www.phocos.com 44 | P a g e

Battery management system
communication loss.

This fault is only available when
the battery type in settings

Fault code 69

Fault code 70

Battery charging temporarily
disabled by battery
management system.

Battery discharging
temporarily disabled by
battery management system.

menu 05 is set to anything other
than “AGM”, “Flooded” or “User­defined”. Unless you are using a
BMS connection for a compatible
lithium battery, make sure to use
“AGM”, “Flooded” or “User­defined” in settings menu 05.

After battery communication
cable is connected and a
communication signal is not
detected for 3 minutes, buzzer
will beep. After 10 minutes,
inverter will stop charging and
discharging the battery.

Battery is not allowed to charge
as the battery management
system (BMS) in the connected
battery has blocked charging
due a BMS or battery cell error.
The Any-Grid will stop charging
the battery.

Battery is not allowed to
discharge as the battery
management system (BMS) in
the connected battery has
blocked discharging due a BMS
or battery cell error. The Any-Grid
will stop discharging the battery.

Fault code 71

Fault code 72

The firmware version of each
inverter is not the same.

The output current of each
inverter is different.

Fault code 80 CAN communication data loss

Fault code 81 Host data loss

Fault code 82 Synchronization data loss

1. Check the version of each
inverter firmware via the
screen and make sure the
versions are same. If not,
contact your instraller to
provide a firmware update.

2. After updating, if the
problem still remains, please
contact your repair center.

1. Check if the green current
sharing cables are correctly
connected and restart the
unit.

2. If the problem remains,
please contact your repair
center.

1. Check if the grey
communication cables are
correctly connected
between all units and restart
the units.

2. If the problem remains,
please contact your repair
center.

1. Make sure all inverters share

Fault code 83

The detected battery voltage
differs between units.

same battery bank.

2. Remove all loads and
disconnect AC input and PV

www.phocos.com 45 | P a g e

Fault code 84

The detected AC input voltage
and frequency differ between
units.

input. Then, check the
battery voltage of all units. If
the values from all inverters
are close, please check if all
battery cables are the same
length and same material
and cross-section. Verify the
seat of each battery
connaction to the respective
units.

3. If the problem still remains,
please contact your repair
center.

1. Check the AC input wiring
connection and restart the
unit.

2. Make sure the AC source
starts up with the same
voltage and frequency on
each phase. If there are
breakers installed between
AC inout and Any-Grid units,
please be sure all breakers
can be turned on the AC
input at same time.

Fault code 85 AC output current unbalanced

Fault code 86

AC output mode setting is
different between units.

3. If the problem still remains,
please contact your repair
center.

1. Restart the inverter.

2. Remove excessive loads and
re-check load information
from LCD of units. If the
values are different between
units on the same phase,
please check if AC input and
output cables are the same
length, cross-section and
material.

3. If the problem remains,
please contact your repair
center.

1. Switch off the units and
check settings menu
number 28.

2. For parallel systems on a
single phase, make sure no
unit has 3P1, 3P2 or 3P3 set
in settings menu number 28.
For 3-phase systems, make
sure no unit has “PAL” set in
settings menu number 28.

3. If the problem remains,
please contact your repair
center.

www.phocos.com 46 | P a g e

12.0 Specifications

Grid Mode

Model PSW-H-5KW-230/48V PSW-H-3KW-230/24V

AC Input Voltage Waveform Pure Sine Wave (utility or generator)

Nominal AC Input Voltage 230 Vac

Maximum AC Input Current 40 Aac 30 Aac

AC Input Overvoltage Category OVC III

170 Vac ± 7 Vac (UPS mode)

Low Loss AC Input Voltage

90 Vac ± 7 Vac (Appliances mode)
See chapter “Device Operation Settings”  “Settings menu 03” for details.

Low Loss Return AC Input
Voltage

High Loss AC Input Voltage 280 Vac ± 7 Vac

High Loss Return AC Input
Voltage

Maximum AC Input Voltage 300 Vac

Nominal AC Input Frequency 50 Hz / 60 Hz

Low Loss Frequency 40 Hz ± 1 Hz

Low Loss Return AC Input
Frequency

High Loss AC Input Frequency 65 Hz ± 1 Hz

High Loss Return AC Input
Frequency

Grid mode: Circuit Breaker

Output Short Circuit Protection

Transfer Time between Grid
mode and Off-Grid mode and
vice versa

(40 Aac, resettable)
Off-Grid mode: Electronic Protection

10 ms typical (UPS mode)
20 ms typical (Appliances mode)

See chapter “Device Operation Settings”  “Settings menu 03” for details.

180 Vac ± 7 Vac (UPS mode)

100 Vac ± 7 Vac (Appliances mode)

270 Vac ± 7 Vac

42 Hz ± 1 Hz

63 Hz ± 1 Hz

Grid mode: Circuit Breaker
(30 Aac, resettable)
Off-Grid mode: Electronic Protection

AC Output Power De-Rating
In Grid mode, the maximum AC

output power is dependent on
the AC input voltage.

www.phocos.com 47 | P a g e

Maximum AC output power formula
when in Grid mode:

40 Aac x AC input voltage =
Max. AC output power

Example: 40 Aac x 230 Vac = 9,200 W

Maximum AC output power formula
when in Grid mode:

30 Aac x AC input voltage =
Max. AC output power

Example: 30 Aac x 230 Vac = 6,900 W

Off-Grid Mode

≦

Battery voltage for

AC Output Power

Nominal Power

-

Model PSW-H-5KW-230/48V

Nominal AC Output Power 5000 VA / 5000 W

PSW-H-3KW-230/24V

3000 VA / 3000 W

AC Output Voltage Waveform Pure Sine Wave

AC Output Voltage Regulation 230 Vac ± 5% (programmable, 220 ~ 240 Vac)

Total Harmonic Distortion of Voltage < 5% for linear load, < 10% for non-linear load at nominal voltage

AC Output Frequency 50 Hz or 60 Hz (programmable)

Peak Efficiency > 93% > 91%

100 milliseconds @ ≥ 205% nominal AC output power

AC Output Overload Protection

5 seconds @ ≥ 150% nominal AC output power

10 seconds @ 110% ~ 150% nominal AC output power

AC Output Surge Capacity 2x nominal power for 5 seconds

Nominal Battery Input Voltage 48 Vdc 24 Vdc

Min. Battery Voltage for Inverter
Start-up

46.0 Vdc Default
≥ 2.0 Vdc. above “Low voltage
disconnect” setting

See chapter “Device Operation
Settings”  “Settings menu 29” for
details.

23.0 Vdc Default
≥ 1.0 Vdc. above “Low voltage
disconnect” setting

See chapter “Device Operation
Settings”  “Settings menu 29” for

details.
Low Battery Warning Voltage
load nominal power < 20%

20% ≤ load nominal power < 50%
load nominal power ≥ 50%

46.0 Vdc

42.8 Vdc

40.4 Vdc

23.0 Vdc

21.4 Vdc

20.2 Vdc
Low Battery Warning Return Voltage
load nominal power < 20%

20% ≤ load nominal power < 50%
load nominal power ≥ 50%

Low Battery Voltage Disconnect

Programmable, see chapter “Device Operation Settings” 
“Settings menu 29” for details.

load nominal power < 20%
20% ≤ load nominal power < 50%
load nominal power ≥ 50%

High Battery Disconnect Voltage 66 Vdc

High Battery Return Voltage 64 Vdc

48.0 Vdc

44.8 Vdc

42.4 Vdc

44.0 Vdc

40.8 Vdc

38.4 Vdc

24.0 Vdc

22.4 Vdc

21.2 Vdc

22.0 Vdc

20.4 Vdc

19.2 Vdc

33 Vdc

32 Vdc

DC Voltage Accuracy ± 0.3%V at no load

DC Offset

100 mV

AC Output Power De-Rating
If the AC output load power is

higher than the power in the
diagram to the right, the AC output

Nominal Power

voltage will be decrease until the AC
output power reaches the de-rated
power specified to conserve battery.
The lower limit of the AC output
voltage is 190 Vac.

www.phocos.com 48 | P a g e

600 W for 24 Vdc model

or 1000 W for 48 Vdc model

18.8 / 37.5 Vdc 25 / 50 Vdc

24 V / 48 V model

Battery Charging

Battery Voltage & Current

voltage limited)

Time

Charging from AC Source

Model PSW-H-5KW-230/48V PSW-H-3KW-230/24V

Max. Battery Charging Current at
Nominal AC Input Voltage

Boost Charging
Voltage

Flooded Battery 58.4 Vdc 29.2 Vdc
AGM / Gel Battery 57.6 Vdc 28.8 Vdc

80 Adc

Floating Charging Voltage 55.2 Vdc 27.6 Vdc
Overcharge Protection 66 Vdc 33 Vdc
Charging Algorithm 4-Stage with Equalization

Charging Curve
If battery type “User-defined” is set

in chapter “Device Operation
Settings”  “Settings menu 05”,
the charging parameters are set
with the following settings menus:

Charge current limit: 11
Boost voltage: 26
Boost duration: 32
Float voltage: 27
Equalization: 33, 34, 35, 36, 37

Charging from MPPT Solar Charge Controller

Bulk: phase 1

(charge current limited)

Absorption or

Equalization: phase 2/3

(boost or equalization

Floating: phase 4

(float voltage limited)

Voltage

Current

Model PSW-H-5KW-230/48V PSW-H-3KW-230/24V

Max. Usable Solar Power 4800 W 4000 W (2400 W for battery charging)
Max. Solar Array Power 6000 Wp 5000 Wp
Max. Solar Array Open Circuit

Voltage, Overvoltage Category

450 Vdc, OVC II

Solar Array MPP Voltage Range 120 Vdc ~ 430 Vdc 90 Vdc ~ 430 Vdc
Max. Usable Solar Input Current 18 Adc
MPPT Start-Up Voltage 110 Vdc +/- 10Vdc 80 Vdc +/- 5Vdc

General

Model PSW-H-5KW-230/48V

Certifications

CE, RoHS, produced in ISO 9001 & ISO 14001 certified facility

Operating Temperature Range -10 ~ 50 °C

Storage temperature -15 ~ 60 °C

Humidity

Ingress Protection, pollution degree

5% to 95% Relative Humidity (non-condensing)

IP21, pollution degree 2, for indoor use

PSW-H-3KW-230/24V

Dimensions (D x W x H)

Net Weight

www.phocos.com 49 | P a g e

11.8 kg / 26 lbs

143 x 309 x 478 mm / 5.6 x 12.2 x 18.8 in

11 kg / 24 lbs

13.0 Warranty

We warranty this product against defects in materials and workmanship for a period of 24 months from the date of
purchase and will repair or replace any defective unit when directly returned, postage paid, to Phocos. This warranty
will be considered void if the unit has suffered any obvious physical damage or alteration either internally or
externally. This warranty does not cover damage arising from improper use, such as plugging the unit into unsuitable
power sources, attempting to operate products that require excessive power consumption, or use in unsuitable
environments. This is the only warranty the company makes. No other warranties express or implied including
warranties of merchantability and fitness for a particular purpose. Repair and replacement are your sole remedies
and the company shall not be liable for damages, whether direct, incidental, and special or consequential, even if
caused by negligence.

14.0 Liability Exclusion

The manufacturer shall not be liable for damages, especially on the battery, caused by use other than as intended or
as mentioned in this manual or if the recommendations of the battery manufacturer are neglected. The manufacturer
shall not be liable if there has been service or repair carried out by any unauthorized person, unusual use, wrong
installation, or incorrect system design.

Specifications are subject to change without notice.
Version: 20191021
Made in China

Phocos AG
Magirus-Deutz-Str. 12
89077 Ulm, Germany
Phone [phone]
Fax [phone]
www.phocos.com
[e-mail]

www.phocos.com 50 | P a g e

ISO9001
ISO14001
RoHS
