Congratulations on choosing
™
the
Optimum
Configurations / Konfigurationen / Configuraciones / Configuraties / Konfigurasjoner /
Konfigurationer
Features / Caractéristiques / Produkteigenschaften / Características / Kemerken /
Funksjoner / Funktioner
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner /
Instruktioner
Product Care / Conseils d’entretien / Produktpflege / Cuidado del producto /
Productverzorging / Produkt Care / Skötsel
Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwingen /
Advarsler / Varningar
1
Page 4
OPTIMUM
A
Configurations / Konfigurationen / Configuraciones / Configuraties / Konfigurasjoner / Konfigurationer
Page 5
Configurations / Konfigurationen / Configuraciones / Configuraties / Konfigurasjoner / Konfigurationer
B
C
OPTIMUM
3
Page 6
OPTIMUM
A
14
1
2
3
4
5
6
7
8
9
10
11
12
13
15
16
17
18
19
21
Features / Caractéristiques / Produkteigenschaften / Características / Kenmerken / Funksjoner / Funktioner

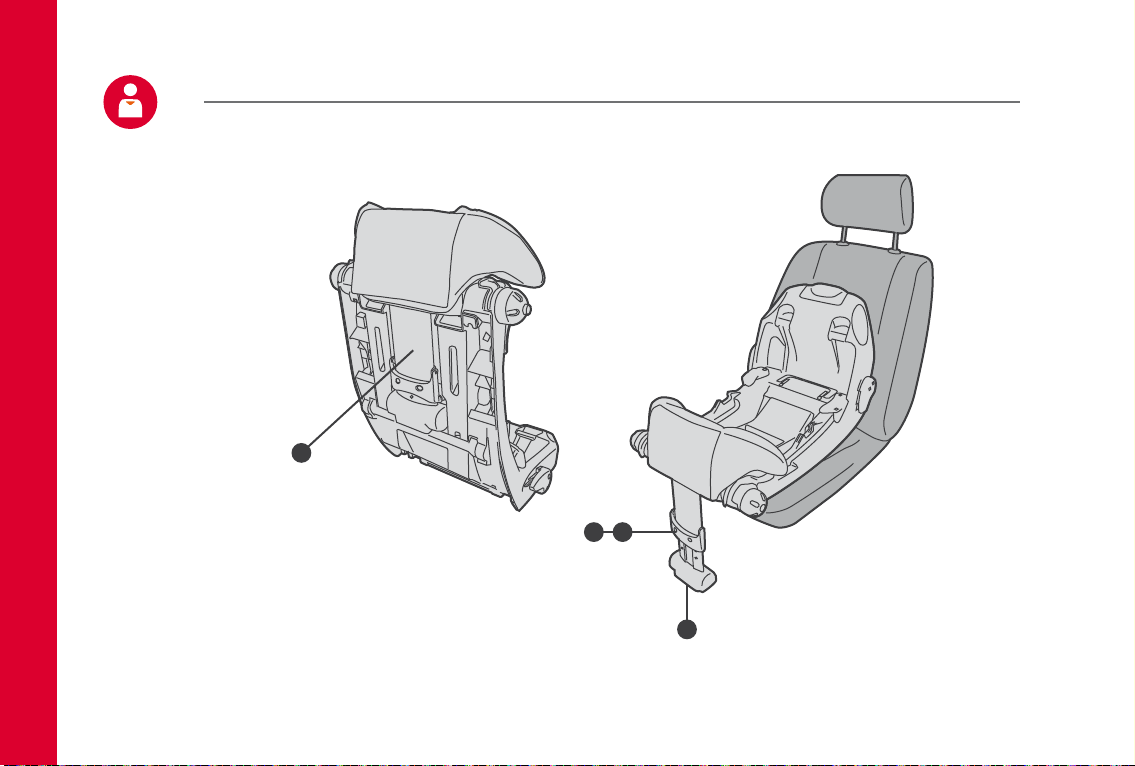

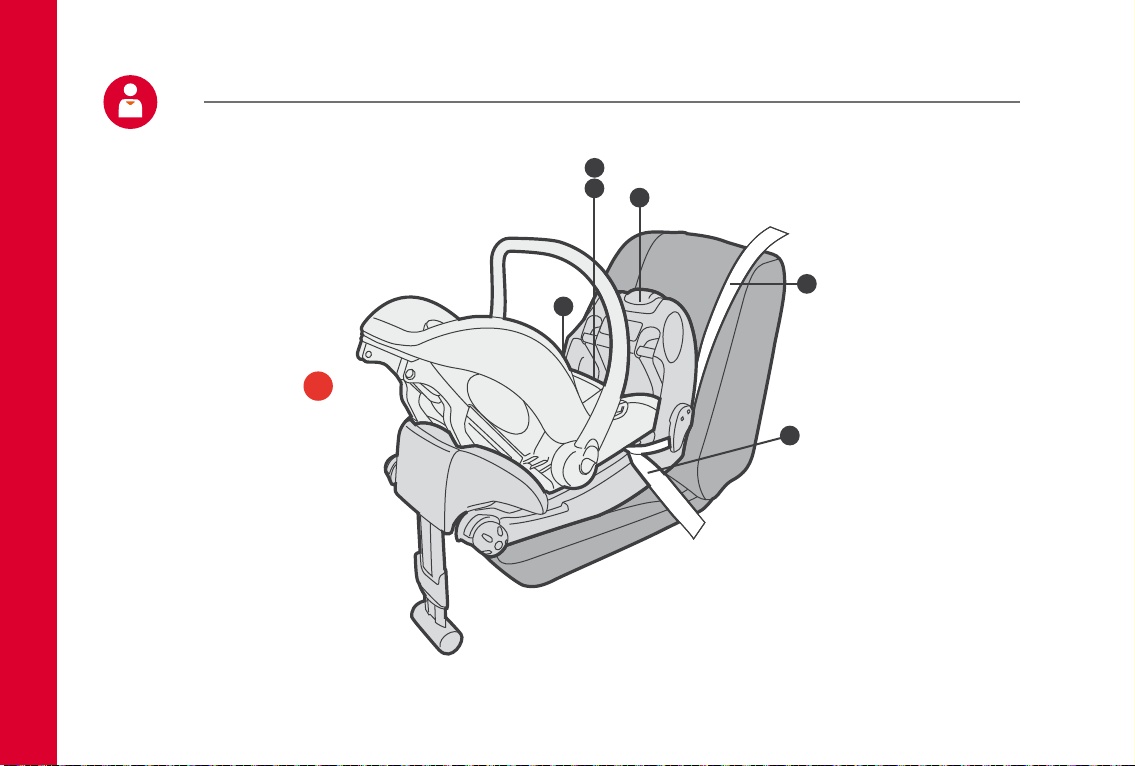

Overview of parts
Page 7
C
1 Base
2 Head rest
3 Shell side locking pins
4 Seatbelt lock off
5 Shell securing catch
6 Seat belt locator
7 Seat belt router
8 Base release catch
9 Lap belt guide
10 Extendable support leg
11 Support leg lock cover
12 Shell
13 Belt guide
14 Lap strap / Slots
15 One pull harness clamp
16 Handle release catch
17 Side window for seat belt
18 Shoulder strap slots
19 Diagonal belt guide
20 Handle
21 Instruction Pocket
Overview of parts
OPTIMUM
Features / Caractéristiques / Produkteigenschaften / Características / Kenmerken / Funksjoner / Funktioner
5
Page 8
14
5
6
7
8
9
10
13
15
17
OPTIMUM
Out of the packaging
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner
Page 9
14 Lap strap / Slots
15 One pull harness clamp
16 Handle release catch
17 Side window for seat belt
18 Shoulder strap slots
19 Diagonal belt guide
20 Handle
21 Instruction Pocket
Where to keep and find the instuctions
OPTIMUM
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner
7
Page 10
OPTIMUM
1a
2b 2c 2d
5a
3
4a
2a
1a
1
b
2b
2c
2d
4b
5b
5c
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner

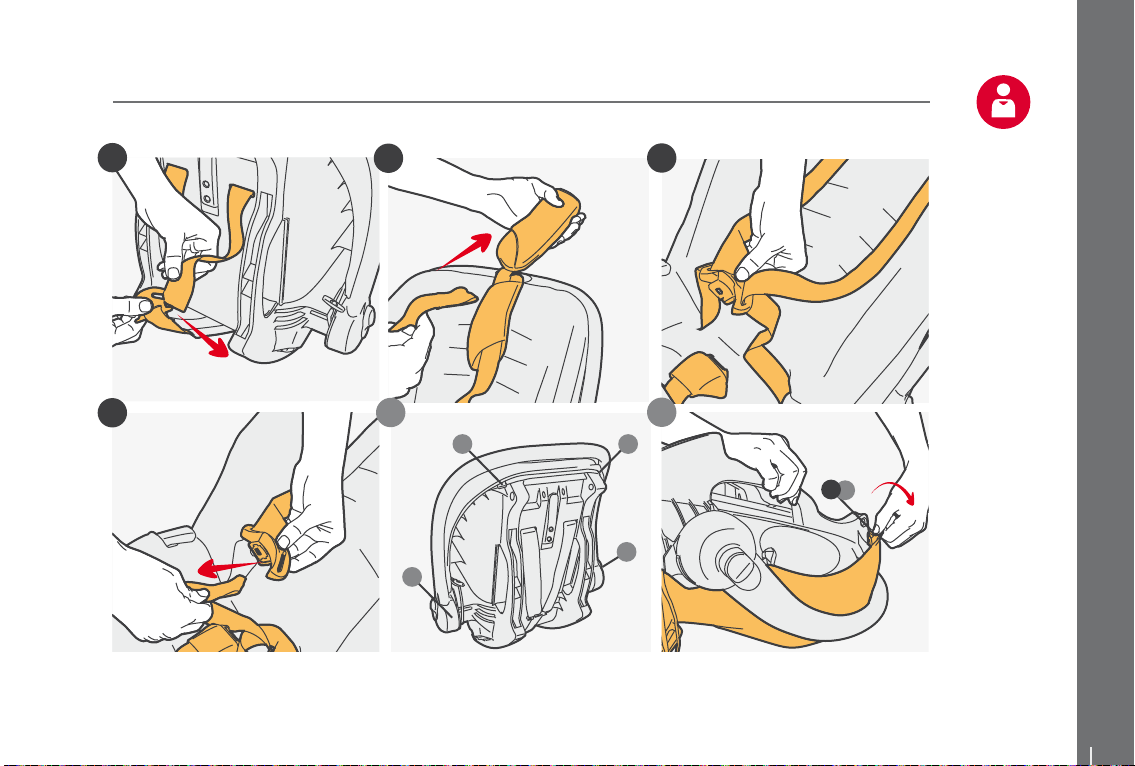

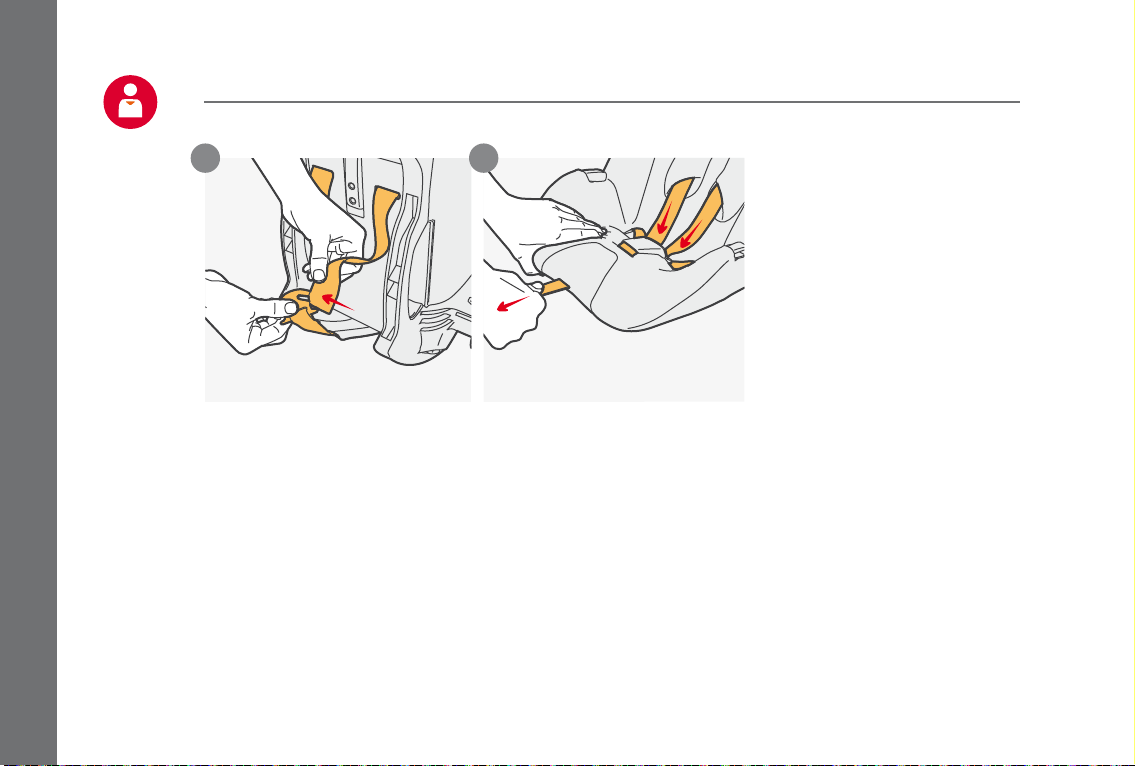

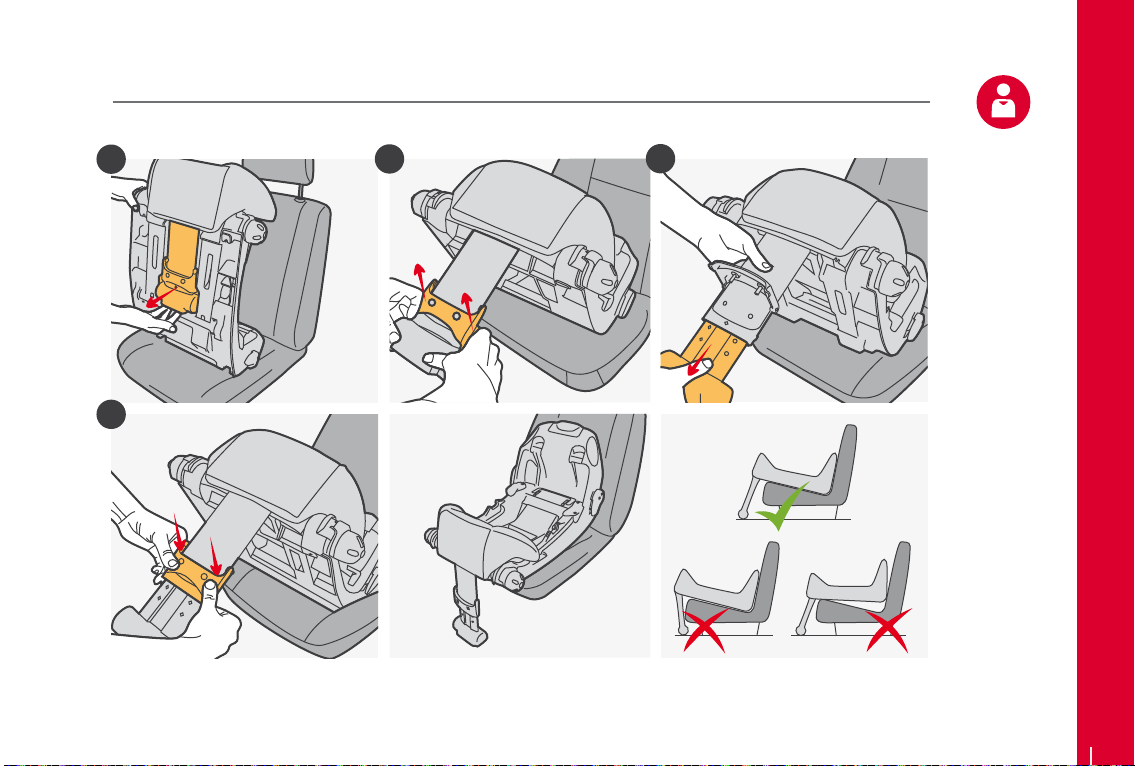

Implementation chapter 1 - How to separate the shell from the base
Page 11
1a
1b 2a
2b 2c 2d
Implementation chapter 1 - How to separate the shell from the base
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner
OPTIMUM
9
Page 12
3
4a
4b
5a 5b 5c
3
4a
2a
2b
2c
2d
4b
OPTIMUM
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner
Implementation chapter 1 - How to separate the shell from the base
Page 13
OPTIMUM
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner
11
Page 14
OPTIMUM
1
4
2
4
1
3
2
3
1
3a
3b
4a
4b
4c
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner

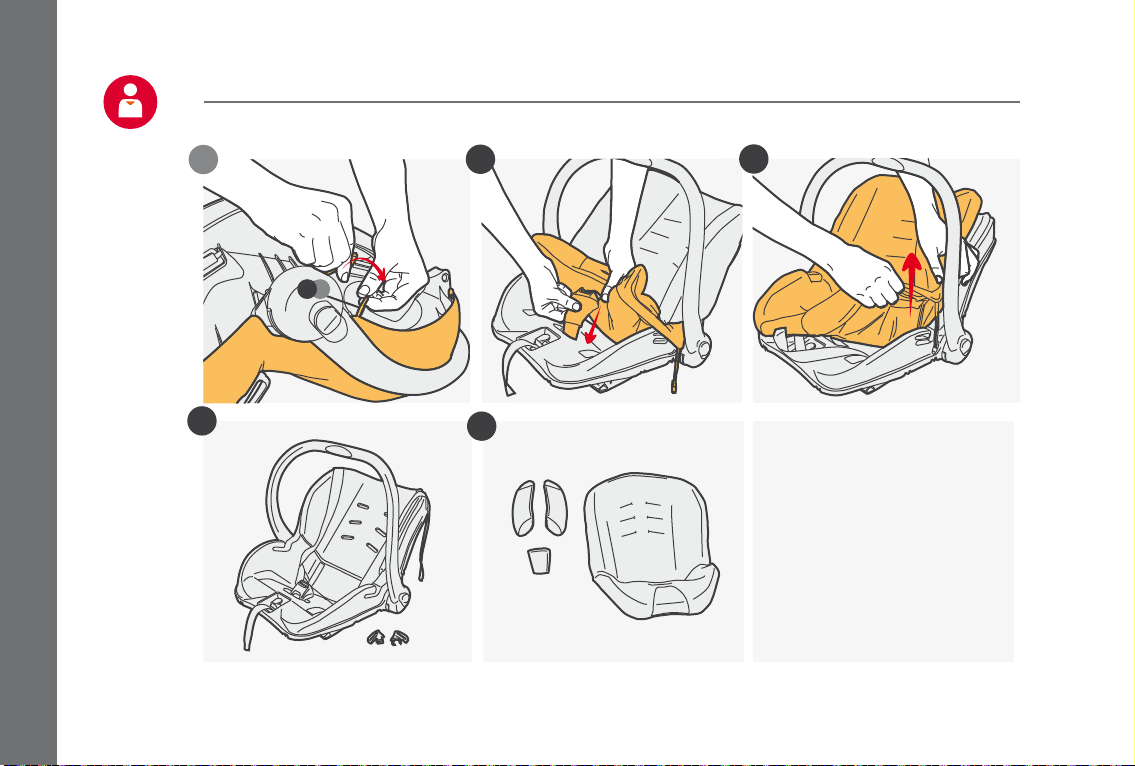

Implementation chapter 2 - How to remove soft goods & how to adjust the harness
Page 15
1
2
3
4
3b
4a3a
Implementation chapter 2 - How to remove soft goods & how to adjust the harness
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner
OPTIMUM
13
Page 16
3
4c
4b
3
1
3a
3b
OPTIMUM
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner
Implementation chapter 2 - How to remove soft goods & how to adjust the harness
Page 17
Implementation chapter 3 - How to unbuckle harness
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner
OPTIMUM
15
Page 18
OPTIMUM
1
c
s
H
L
C
R
4b
4c
4c
4b
3b
2
1
3
6
5
7
12
2
3
3a
3b
5a
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner

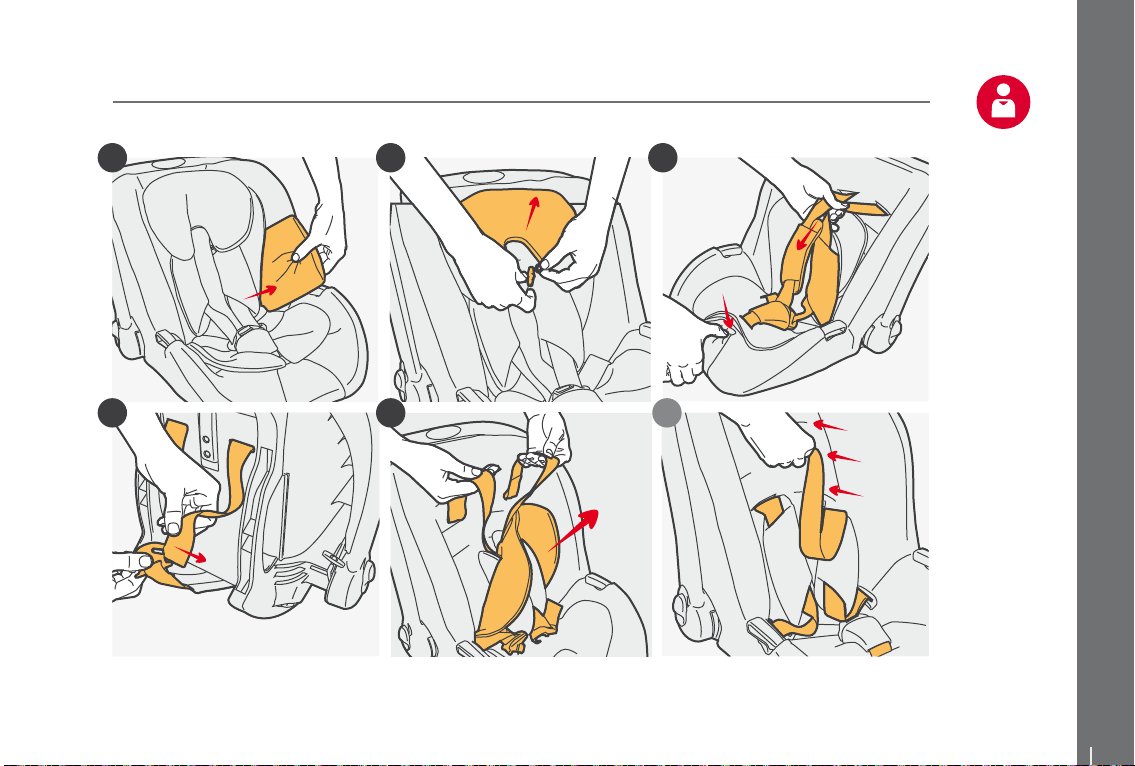

Implementation chapter 4 - How to remove seat fabric for washing
Page 19
1
4
1
2
3b
4a
4b
4c
4c
4b
4b
3a
Implementation chapter 4 - How to remove seat fabric for washing
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner
OPTIMUM
17
Page 20
3
2
4c
6
7
5
5a
c
3
6
5
2
3
3a
3b
5a
OPTIMUM
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner
Implementation chapter 4 - How to remove seat fabric for washing
Page 21
4
1
4c
4c

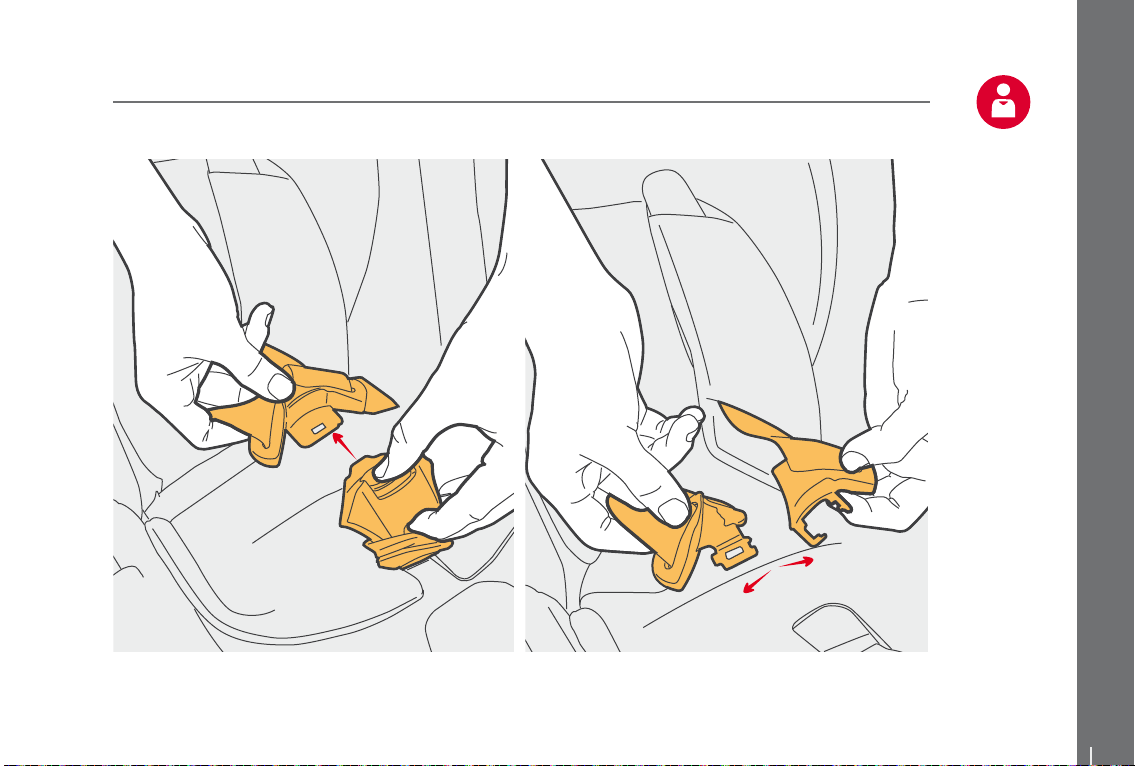

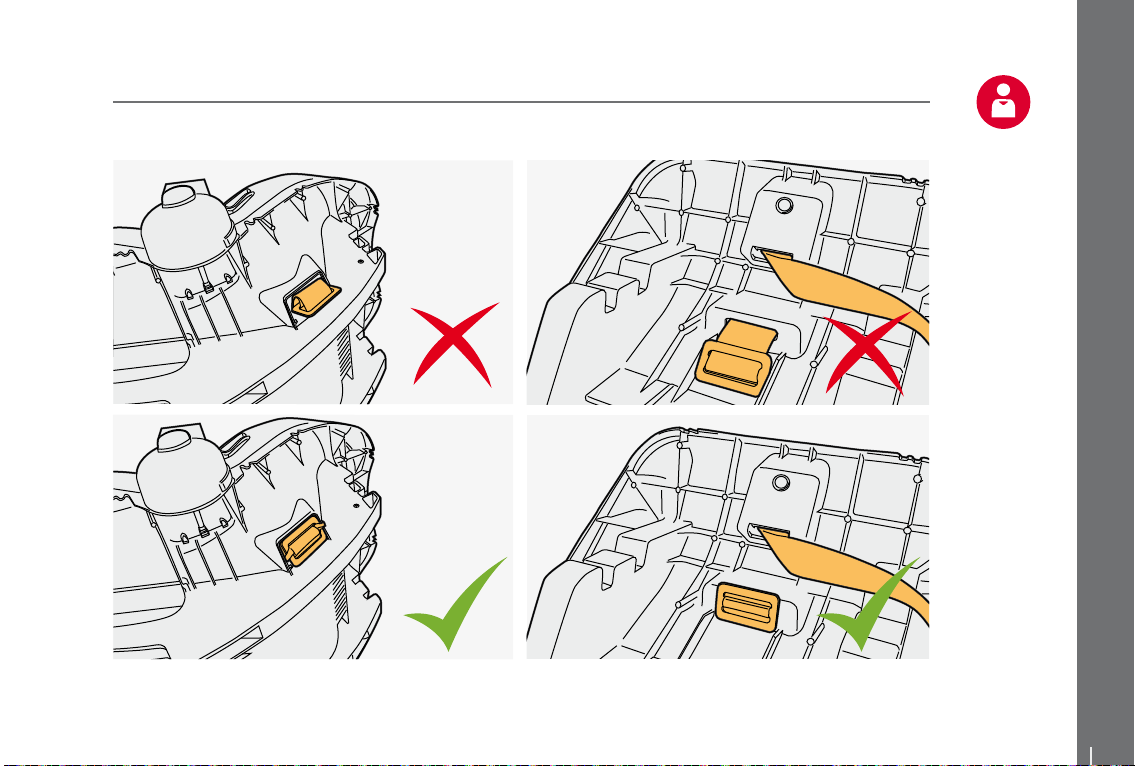

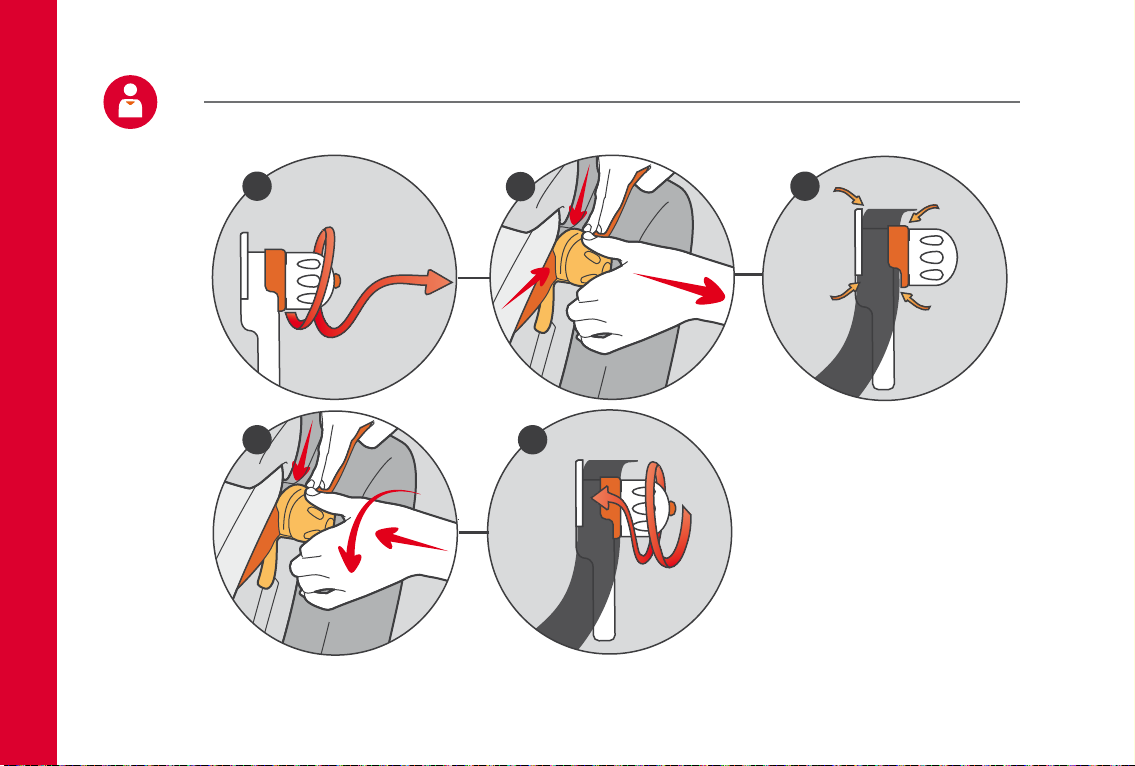

Implementation chapter 5 - Checking the position of the harness buckles in the shell
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner
OPTIMUM
19
Page 22
OPTIMUM
c
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner

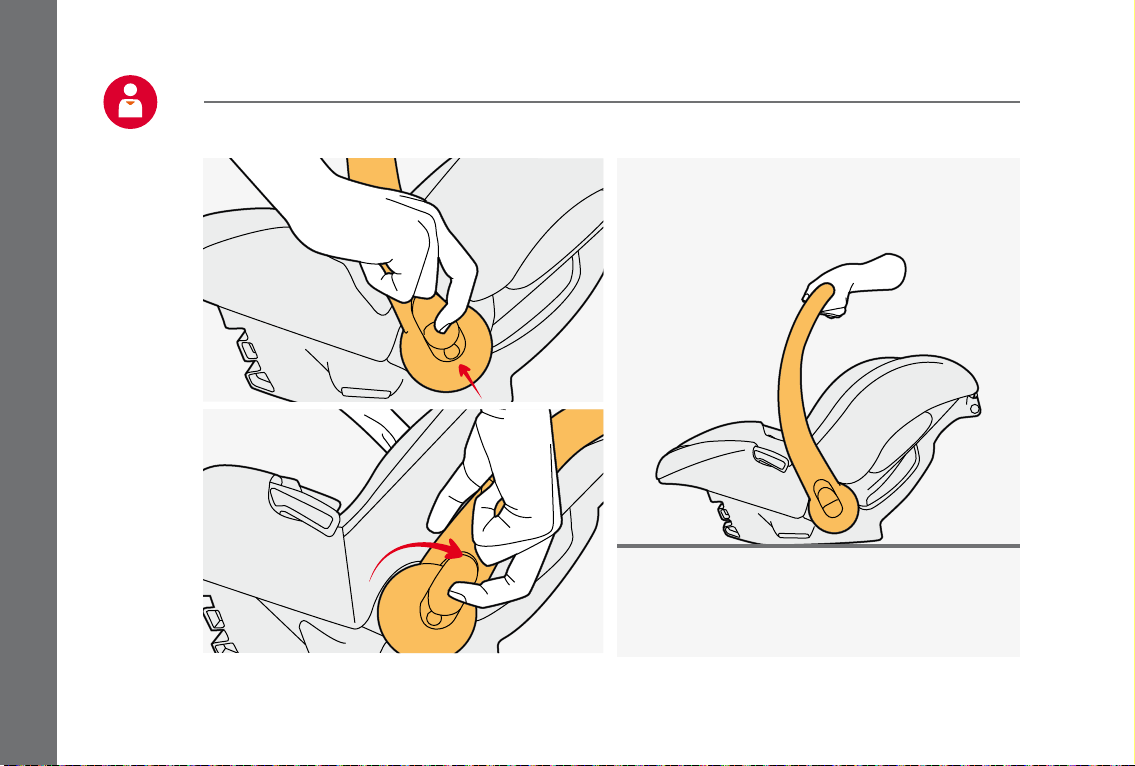

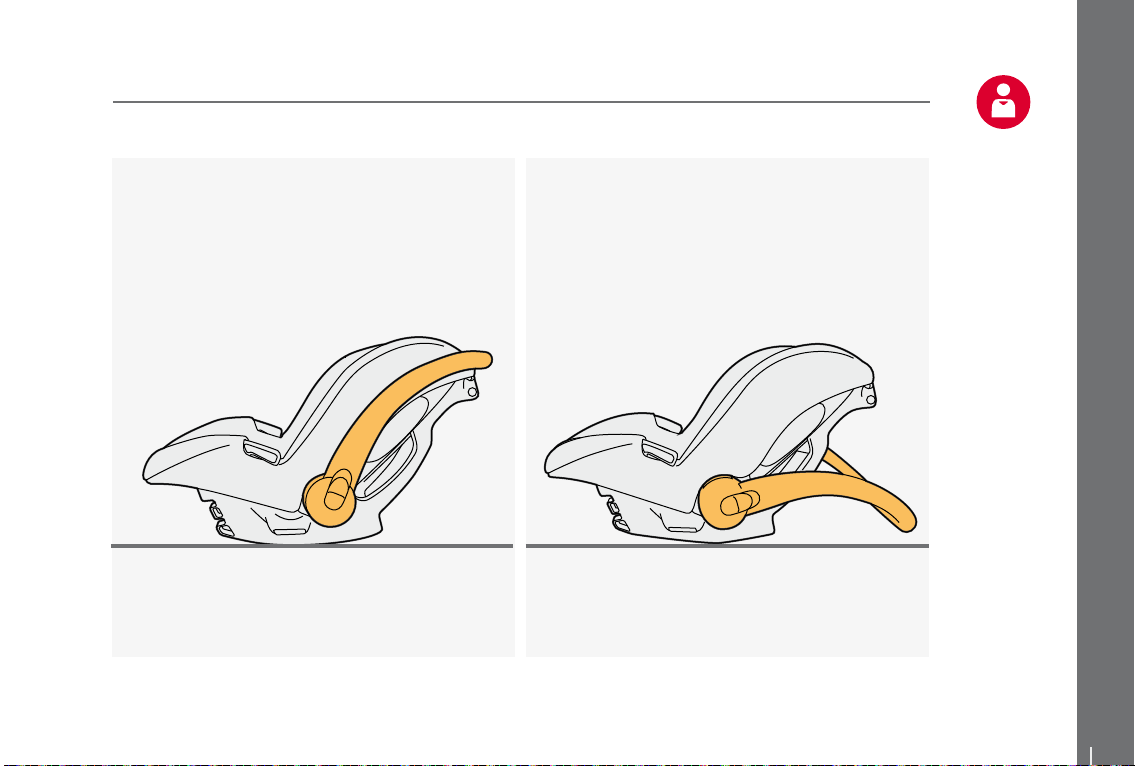

Implementation chapter 6 - How to adjust the handle position
Page 23
Implementation chapter 6 - How to adjust the handle position
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner
OPTIMUM
21
Page 24
OPTIMUM
1227-02
70 mm
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner

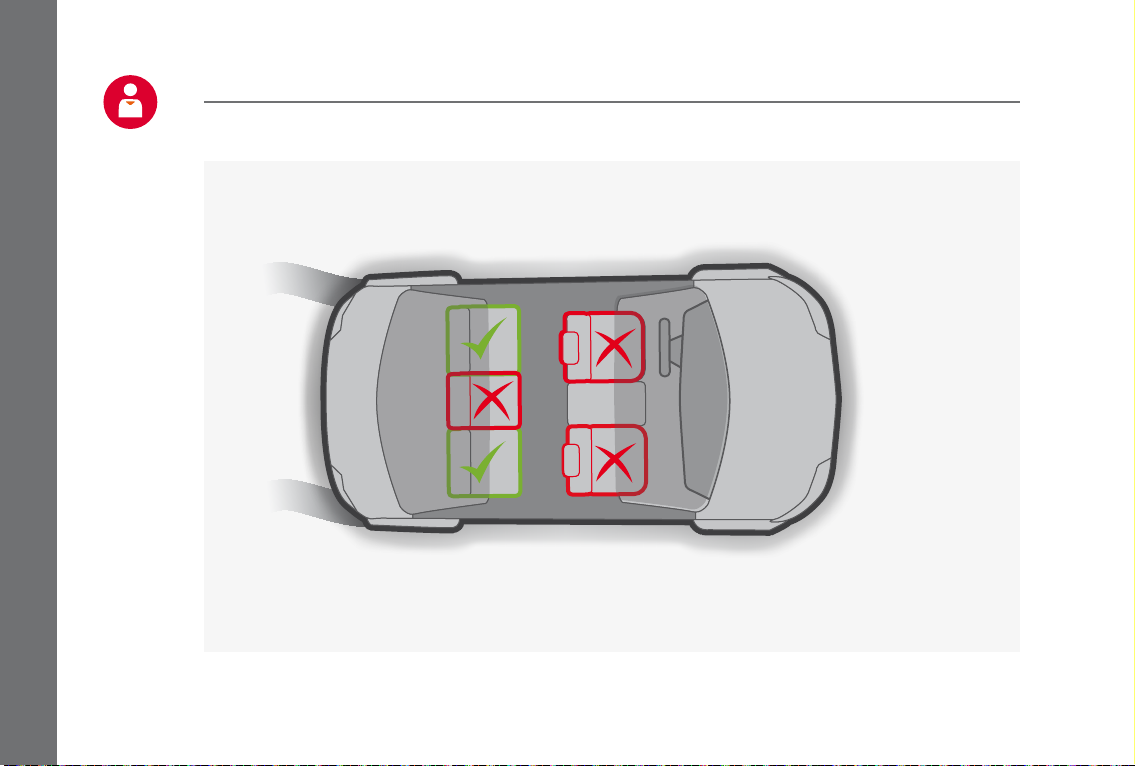

Implementation chapter 7 - Carseat position
Page 25

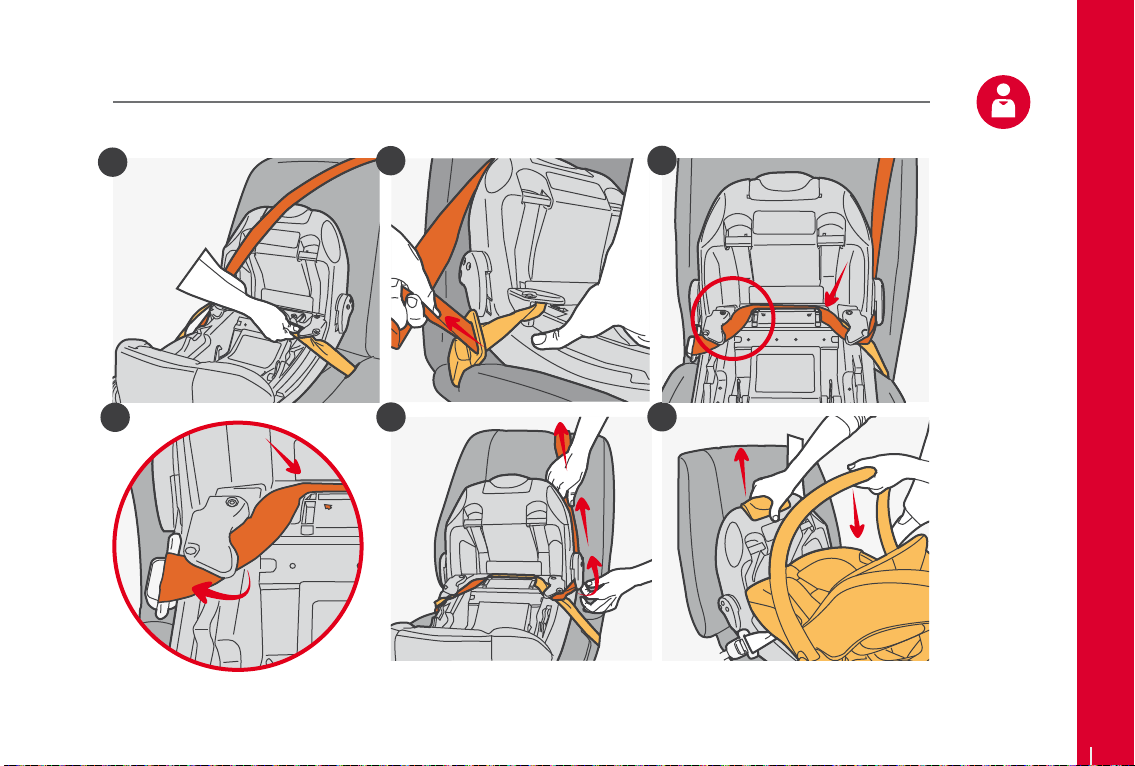

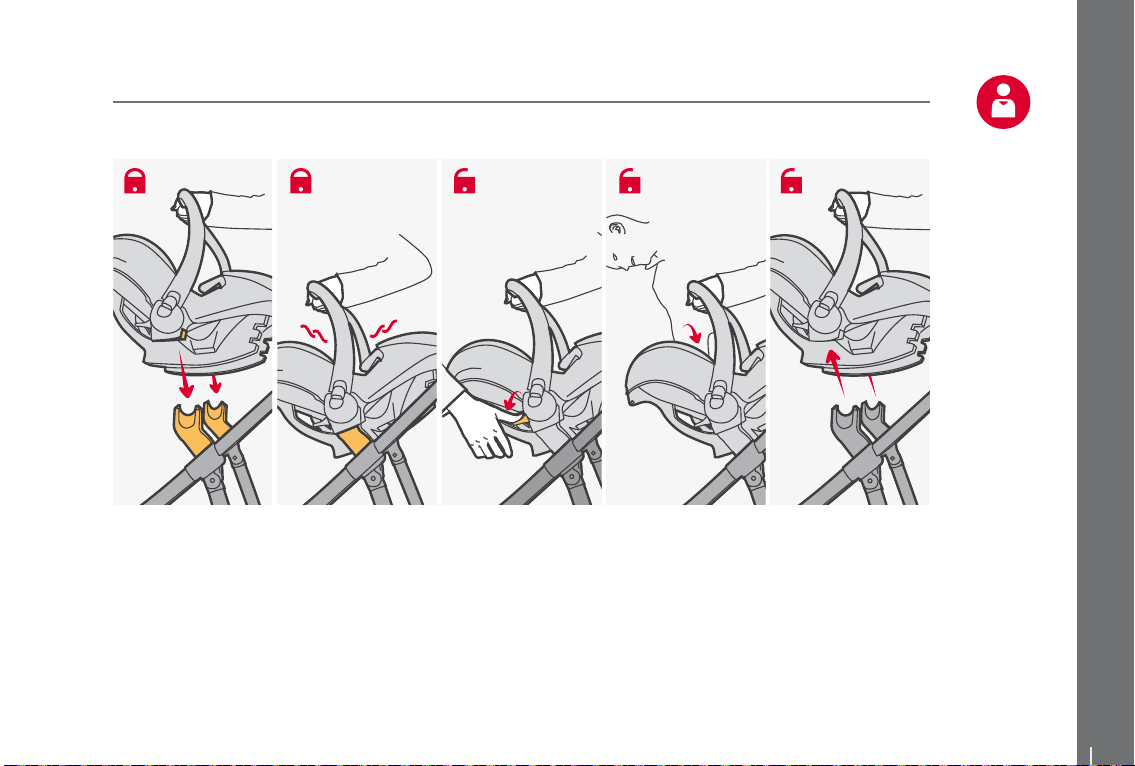

Implementation chapter 8 - How to use the Travelsystem *to use with Maxicosi TS
L
R
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner
OPTIMUM
23
Page 26
OPTIMUM
A
1
2
1
3
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner

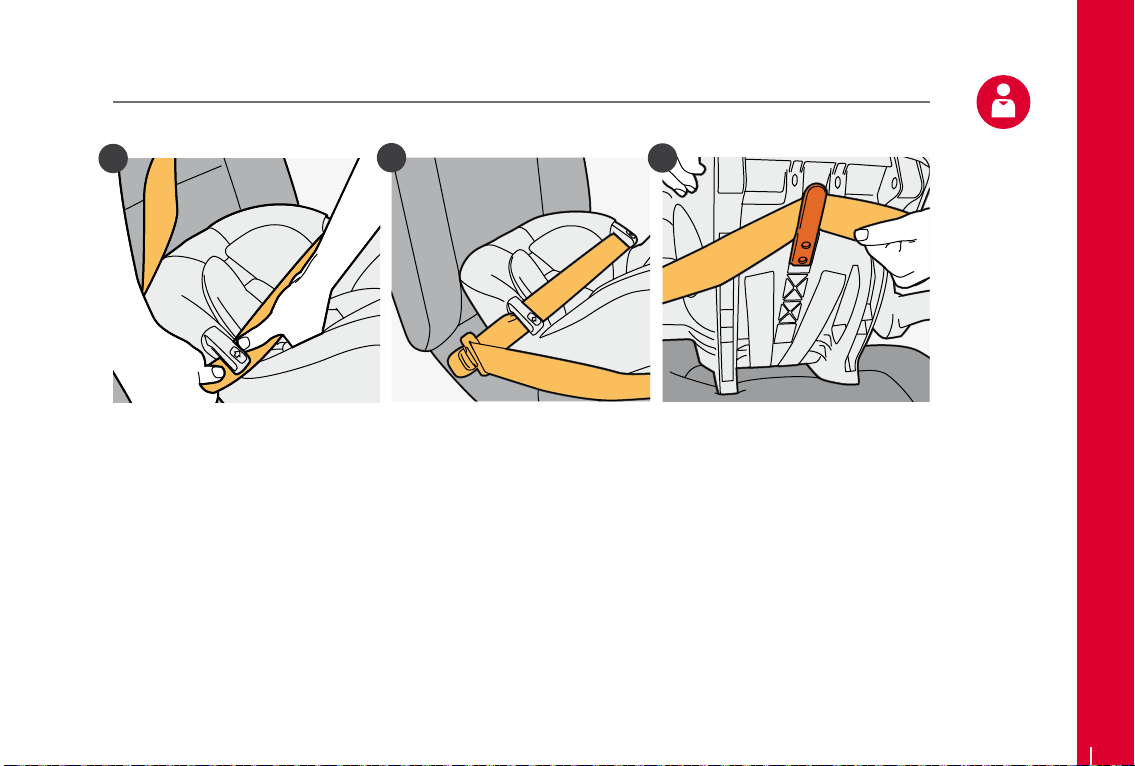

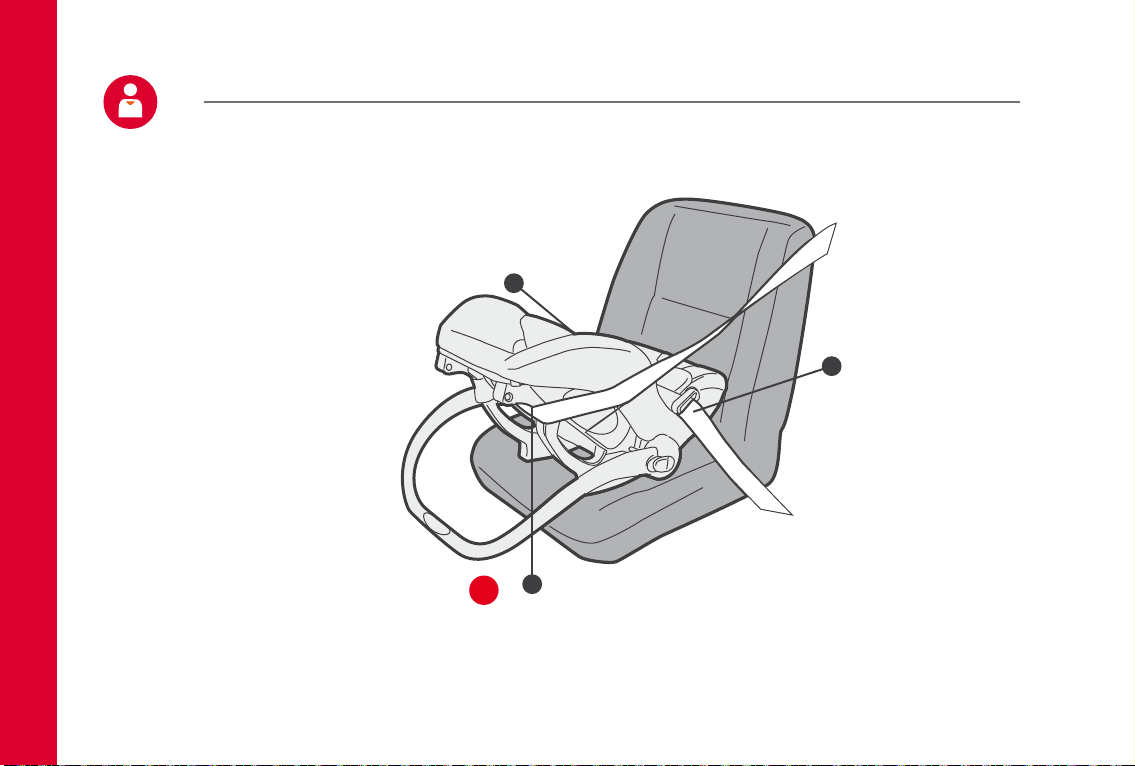

MODE A - Suitable for 0-13kg. Using the infant mode without the shell
Page 27
1
2
3
MODE A - Suitable for 0-13kg. Using the infant mode without the shell
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner
OPTIMUM
25
Page 28
OPTIMUM
1
4
A
3
1
2 4
3
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner
PREPARE FOR MODE B - Suitable for 0-13kg. Using the infant mode with the shell
Page 29
1
2
3
4
a b
b
a
PREPARE FOR MODE B - Suitable for 0-13kg. Using the infant mode with the shell
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner
OPTIMUM
27
Page 30
B
1
3a
2 4
3
3
5
2
4
1
3a
OPTIMUM
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner

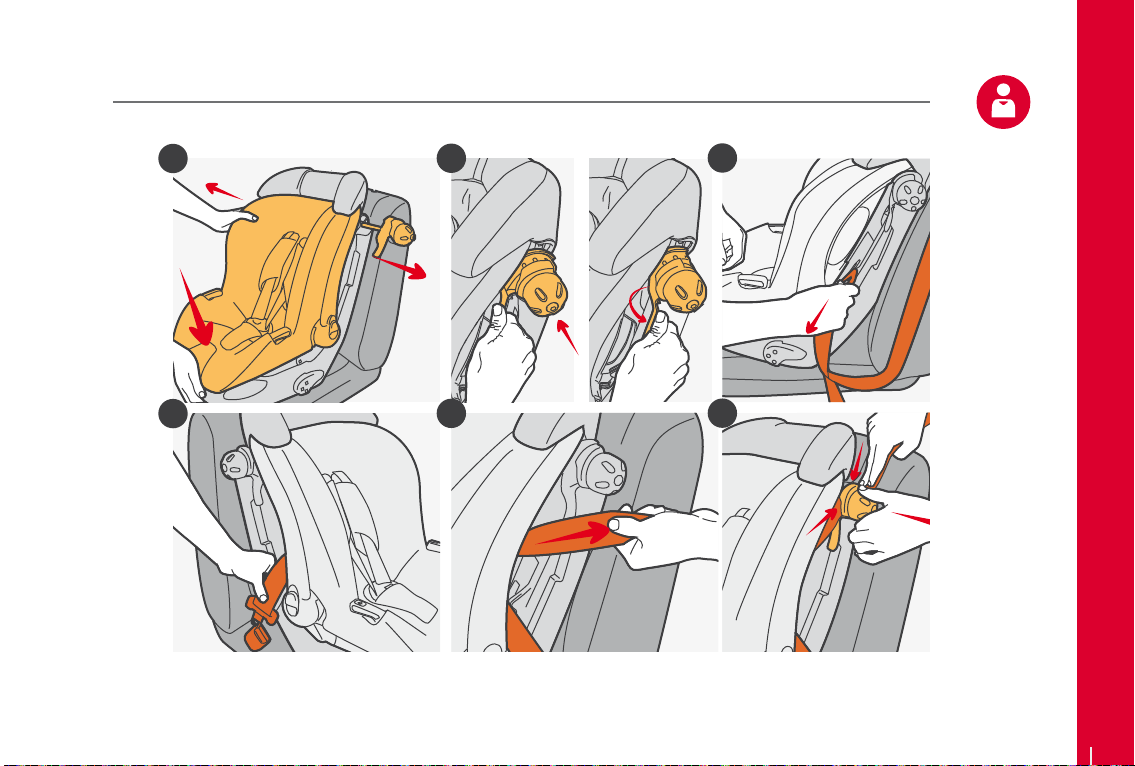

MODE B - Suitable for 0-13kg. Using the infant mode with the shell
Page 31
1
3a
5
2
4
3
b
a
MODE B - Suitable for 0-13kg. Using the infant mode with the shell
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner
OPTIMUM
29
Page 32
OPTIMUM
1227-02
70 mm
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner

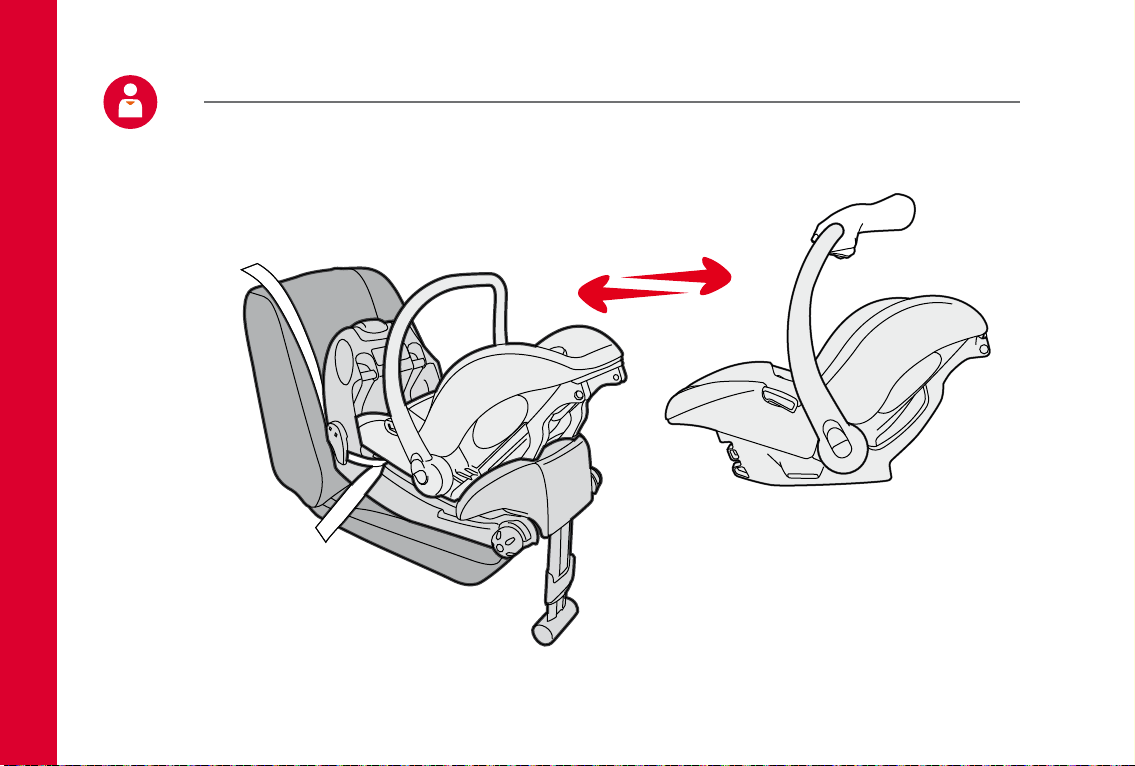

MODE B - Suitable for 0-13kg. Release and attach the shell
Page 33
1227-02
70 mm

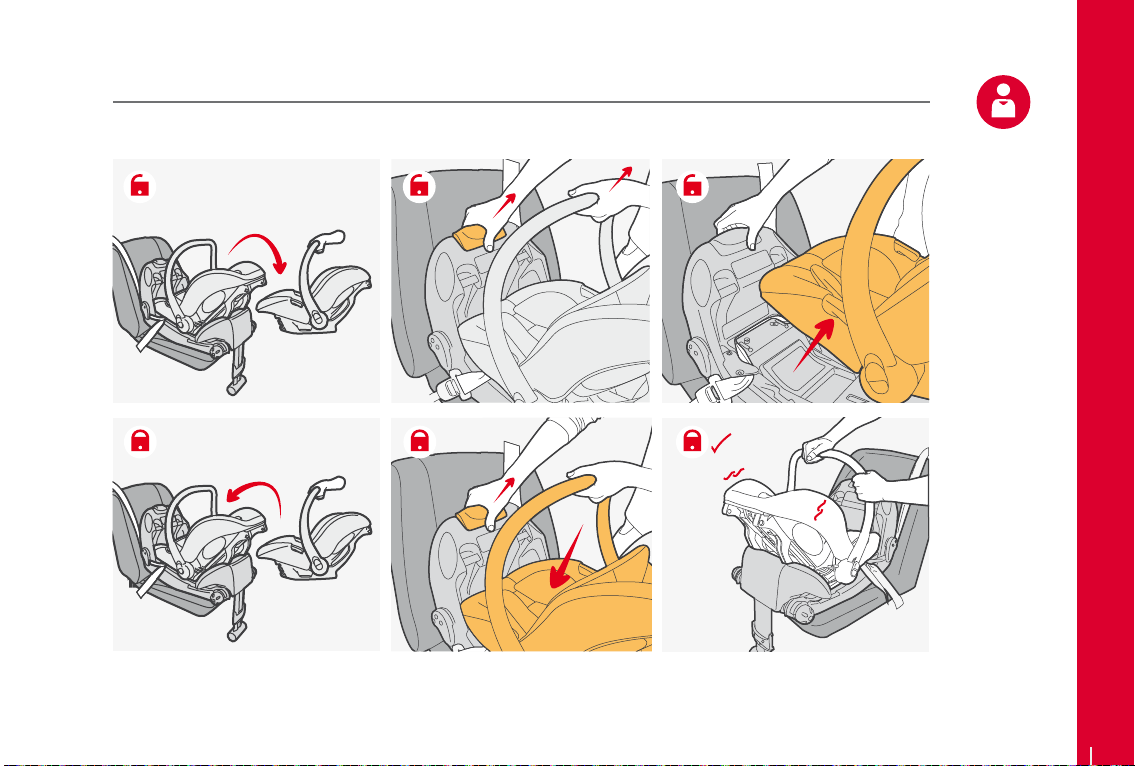

MODE B - Suitable for 0-13kg. Release and attach the shell
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner
OPTIMUM
31
Page 34
OPTIMUM
1227-02
C
1
4
70 mm
1
3
5
3
4
2
6
1
6a
6b
6c
6d
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner

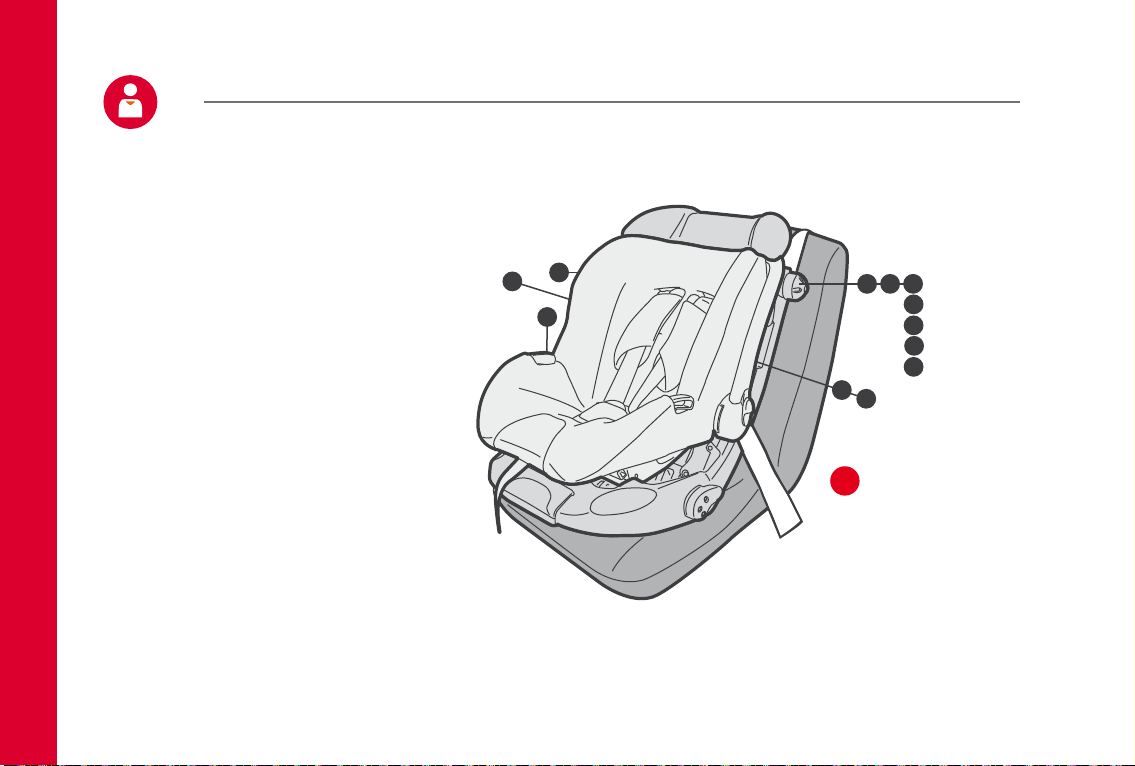

MODE B - Suitable for 9-18kg. Toddler mode
Page 35
1227-02
1
2
3
4
5
6
70 mm
MODE B - Suitable for 9-18kg. Toddler mode
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner
OPTIMUM
33
Page 36
OPTIMUM
1227-02
6a
6e
6b
6c
70 mm
6d
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner
MODE B - Suitable for 9-18kg. Toddler mode
Page 37
1227-02
70 mm

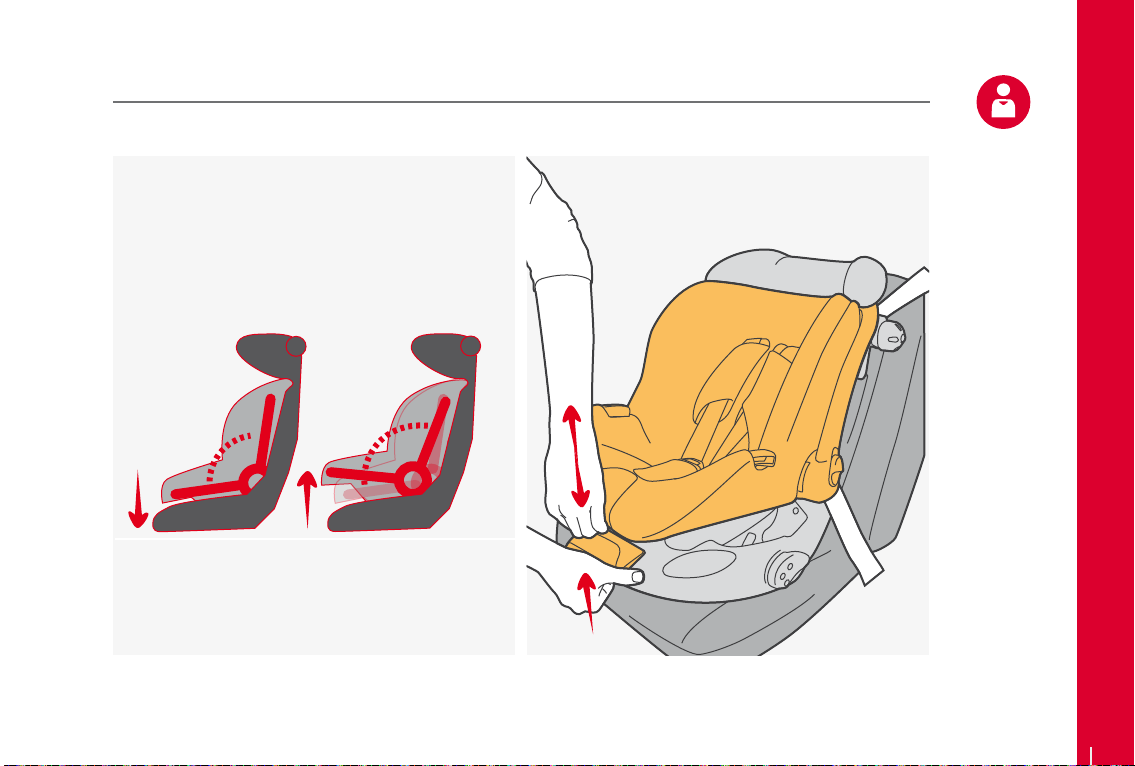

MODE B - Recline mode
OPTIMUM
Instructions / Gebrauchsanweisung / Instrucciones / Instructies / Instruksjoner / Instruktioner
35
Page 38
OPTIMUM
Product Care / Conseils d’entretien / Produktpflege / Cuidado del producto / Productverzorging / Produkt Care / Skötsel
CLEANING & CARING
Check the optimum™ for cuts & bruises. If your product
is damaged in any way , or you’re not sure how to use it,
please consult our web support (www.philandteds.com/
support) from where you can access a local customer care
team.
caring for your optimum
Unlike children, your optimum™ likes to stay clean.
cleaning the fabric cover
Read the label on the removable cover for washing •
instructions.
Hand wash in warm water only.•
DO NOT tumble dry.•
•
cleaning the harness, chest pads and seat
Sponge clean only. Use hand soap and warm water. •
DO NOT attempt to remove the harness straps •
from the seat when cleaning. It is unnecessary and
dangerous to do so.
DO NOT use solvents, detergents or washing up •
liquids as these may weaken the harness and seat.
DO NOT lubricate or oil any part of the seat. •
™
DO NOT wring. •
Dry your optimum™ thoroughly before storage. •
Store in a well ventilated space, away from direct •
sunlight which could damage or fade your product.
Store the optimum™ in a safe place when it is not •
being used. Avoid placing heavy objects on top of it.
DO NOT allow your optimum™ to come into contact •
with corrosive substances e.g. battery acid.
RIGHTS & REMEDIES
We want to give owners confidence in the quality of our
products. They are fully warranted against defects in
materials & workmanship for one year from the date of
purchase.
What is the warranty?
If we determine that the product has a manufacturing
fault we will repair it free of charge. If not practical to
repair it we will, at our discretion, replace the faulty part in
question*.
What if it’s outside the warranty terms?
If the product fails due to wear & tear, accident, neglect or
negligence, or if it is outside the 1 year warranty period, we
will happily repair it for a reasonable charge.
Page 39
OPTIMUM
Product Care / Conseils d’entretien / Produktpflege / Cuidado del producto / Productverzorging / Produkt Care / Skötsel
EN
Who do I contact?
If your product is less than a year old and subject to a
warranty claim please file one through the support section
of the website: www.philandteds.com/support
If you are unsure if the product is subject to a warranty
claim, or it is outside the one year warranty period, please
consult our web support (www.philandteds.com/support)
from where you can access a local customer care team.
You will need to provide proof of purchase. They will
inform you of the next step.
Please register your product purchase by visiting:
www.philandteds.com/register
Who is covered?
The original purchaser buying product from an authorised
dealer. Proof of purchase is required.
What is covered?
Workmanship or materials that are deemed faulty by
, providing the product has at all times been
used in normal conditions, used in accordance with the
instructions & been properly maintained.
What is not covered?
Second hand product; modified product; poorly
maintained product; normal wear, fading & fabric cuts;
improper use or care: (by way of example) abnormal
use; not following instructions; excessive load; transport
damage i.e. airline or freight damage.
Customer costs within warranty
The customer is responsible for any inwards freight
charge to return product to a representative for
warranty & or service.
Customer costs outside warranty
Where proof of purchase is not provided or product
is outside of the one year warranty period,
reserves the right to charge a service fee and/or charge
for parts replaced/repaired. A return freight charge may
apply.
Exclusions
Any consequential loss or damage to any person or
property directly or indirectly as a result of using a
product.
WORLDWIDE COVERAGE:
If you file a warranty claim outside of the country of
purchase we reserve the right to charge freight and/or
service fees.
* Consumers may have extra rights in some countries or states.
37
Page 40
OPTIMUM
Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwingen / Advarsler / Varningar
GENERAL INSTRUCTIONS
Group 0+ / 1 Suitable for 0kg to 13 &
9kg to 18kg
This document contains imortant information and must
be kept with the seat for future reference.
The optimum™ complies with requirements applicable in
market of sale, refer www.philandteds.com/certification
Notice
Please read thoroughly before commencing •
installation as an incorrect installation could be
dangerous.
Extreme Hazard
Do not use in passenger seats equipped with airbags•
Vehicle seat belt requirements
Your child seat can only be installed using a three-•
point lap and diagonal seat belt in the rear passenger
seats of the car.
NOTICE
This is a “Universal” child restraint; it is approved to 1.
ECE Regulation 44.04 for general use in vehicles and
will fit most, but not all, vehicle seats.
A correct fit is likely if the vehicle manufacturer has 2.
declared in the vehicle handbook that the vehicle is
capable of accepting a “Universal” child restraint for
this group.
This child restraint has been declared “Universal” 3.
under more stringent conditions than those applied to
earlier designs which do not carry this notice.
If in doubt, consult either the child restaint 4.
manufacturer or the retailer.
IMPORTANT
This product should be used rearward facing until the •
child is too large for the seat or exceeds 13kgs.
This product should only be used forward facing for •
children over 9kg up to a maximum of 18kg.
Page 41
OPTIMUM
Product Care / Conseils d’entretien / Produktpflege / Cuidado del producto / Productverzorging / Produkt Care / Skötsel
EN
WARNINGS
Always keep this manual in the pocket located on the •
back of the head rest.
Never use the child seat without fastening the child‘s •
harness correctly, and never attempt to use it without
fastening it into the car.
BEFORE first use of your car seat read this manual •
carefully. Failing to follow the correct installation
instructions may result in the restraint not functioning
as it should.
The car seat is only suitable for use in vehicles •
fitted with 3 point safety belts, approved to UN/ECE
regulation 16 or equivalent standards.
Rigid items and plastic parts of a child restraint •
must be so located and installed that they are not
liable, during everyday use of the vehicle, to become
trapped by a movable seat or in a door of the vehicle.
Pay special attention to the warnings,• printed in red.
Car safety seats are designed to protect your child in •
the event of a sudden stop or crash. No safety seat
guarantees absolute protection from injury in the
event of a crash, but using them reduces the risk.
Countries can differ in laws and recommendations •
for safe child restraint seat use. Further advice can be
gained from your local law enforcement officers or
your vehicle supplier.
After an accident this product and your car seat belts •
should be replaced. They may not look damaged but
in the event of another accident, this product and your
car seat belts may not be able to protect your child as
well as they should
When fitting the belt, it may become gathered or •
bunched. However ensure the belt is tight and there
is no slack.
DO & DON‘TS
DO NOT under any circumstances use the car seat •
with a passenger seat fitted with an air bag.
DO NOT leave loose objects, such as luggage or •
books in the back or your car. They must be secured,
because if the vehicle stops suddenly, loose objects
will keep moving and can cause serious injuries.
Large and heavy loose objects are a particular risk.
DO NOT leave folding passenger seats unlatched. If •
your vehicle stops suddenly, a loose seat back could
injure your child.
DO NOT leave children unattended in this product, •
even for a short time.
39
Page 42
OPTIMUM
Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwingen / Advarsler / Varningar
DO NOT use this product without the fabric cover. •
The cover should not be replaced with any other
than the one recommended by the manufacturer
as it constitutes an integral part of the restraints
performance.
DO NOT make any alterations or additions to the •
product.
DO NOT install this product in any other way other •
than that described in this booklet.
DO store this product in a safe place when it is not •
being used. Avoid placing heavy objects on top
of it and do not store near direct heat sources eg.
radiators.
DO periodically inspect the harness for wear, paying •
particular attention to attachment points, stitching and
adjusting devices.
DO always keep this product secure in the vehicle, •
even if it is not being used by your child.
DO keep this user guide safe for future reference. •
DO cover this product if your car is left in direct •
sunshine. Metal and plastic fittings can become hot to
touch in sunny weather and the cover may become
faded.
DO make sure that you adjust the harness to fit your •
child before each journey.
Page 43
© Phil and Teds Most Excellent Buggy Company Ltd 2011.
We (Phil and Teds Most Excellent Buggy Company Ltd) own the intellectual property rights in our brands, designs and inventions featured in this publication.
These include, without limitation, the mountain buggy, life without limit, and INLINE trade marks and product names. We actively pursue people who infringe
our intellectual property.
©Phil & Teds Most Excellent Buggy Company Ltd 2011.
Nous (Phil and Teds Most Excellent Buggy Company Ltd) sommes détenteurs de tous les droits de propriété intellectuelle associés à nos marques, modèles et inventions mentionnés dans le présent document. Ceux-ci incluent, sans que cela soit limitatif, les marques commerciales the mountain buggy, life without limit, INLINE
trade marks et product names. Nous engageons des poursuites contre tous ceux qui enfreignent nos droits de notre propriété intellectuelle.
© Phil and Teds Most Excellent Buggy Company Ltd 2011.
Wir (Phil and Teds Most Excellent Buggy Company Ltd) sind Eigentümer aller geistigen Eigentumsrechte bezüglich unserer in dieser Veröffentlichung
aufgeführten Marken, Designs und Erfindungen. Diese schließen die Marken und mountain buggy, life without limit, INLINE trade marks und product names.
Personen, die unsere Eigentumsrechte verletzen, werden von uns aktiv verfolgt.
© Phil and Teds Most Excellent Buggy Company Ltd 2011.
Nos pertenecen a nosotros (Phil and Teds Most Excellent Buggy Company Ltd) los derechos de propiedad intelectual de nuestras marcas, diseños e inventos
mostrados en la presente publicación. Se incluyen, sin limitarse a, las marcas the mountain buggy, life without limit, INLINE trade marks e product names.
Iniciaremos acciones legales contra aquéllos que violen nuestra propiedad intelectual.
© Phil and Teds Most Excellent Buggy Company Ltd 2011.
Wij (Phil and Teds Most Excellent Buggy Company Ltd) bezitten de intellectuele eigendomsrechten op onze merken, ontwerpen en uitvindingen die in deze
publicatie worden vermeld. Dit zijn, zonder beperking, de handelsmerken the mountain buggy, life without limit, and INLINE trade marks en de product names.
We dienen daadwerkelijk een aanklacht in tegen degenen die inbreuk maken op ons intellectueel eigendomsrecht.
© Phil and Teds Most Excellent Buggy Company Ltd 2011.
Vi (Phil and Teds Most Excellent Buggy Company Ltd) äger upphovsrätten till de varumärken, designer, former och uppfinningar som visas i denna publikation.
Dessa inkluderar men är ej begränsade till varumärkena mountain buggy, life without limit och INLINE samt produktnamnen. Vi förföljer aktivt de som kränker
vår upphovsrätt.
© Phil and Teds Most Excellent Buggy Company Ltd 2011.
Wij (Phil and Teds Most Excellent Buggy Company Ltd) bezitten de intellectuele eigendomsrechten op onze merken, ontwerpen en uitvindingen die in deze
publicatie worden vermeld. Dit zijn, zonder beperking, de handelsmerken the mountain buggy, life without limit, and INLINE trade marks en de product names.
We dienen daadwerkelijk een aanklacht in tegen degenen die inbreuk maken op ons intellectueel eigendomsrecht.
Page 44
AU/NZ
phil&teds Australasia
102-112 Daniell Street
Newtown, Wellington 6021
New Zealand/Nouvelle-Zélande
+ 64 4 3800 833
EUR
phil&teds Europe BV.
Klavermaten 37C
7472 DD Hof van Twente
Goor, NETHERLANDS/Pays Bas
+ 31 0547 352727
USA/CAN
phil&teds USA Inc.
123 N College Ave, suite 206
Fort Collins, CO 80524
USA
1 800 839 4985
8013-02
www.philandteds.com
Loading...
