Phil & Teds alpha Series Manual For Future Reference

Download

Page 1

READ

KEEP FOR FUTURE REFERENCE

FOR YOUR CHILD'S SAFETY

THESE INSTRUCTIONS

BEFORE USE

CAREFULLY

safety certified

USA Federal Motor Vehicle Safety Standards

alpha

protect

™

Store these instructions in the container provided within your LATCH base.

Page 2

The alpha™ complies with requirements applicable in market of sale

For rights & remedies, refer www.philandteds.com/warranty

Please register your purchase through our online warranty registration by visiting: www.philandteds.com/register

philandteds.com

The protect™ complies with requirements applicable in market of sale

For rights & remedies, refer www.mountainbuggy.com/warranty

Please register your purchase through our online warranty registration by visiting: www.mountainbuggy.com/register

mountainbuggy.com

Page 3

Congratulations on choosing your new infant car seat!

Product Care

Safety Warnings

Features

Instructions

Page 4

Product care

GENERAL INSTRUCTIONS

Suitable for Children from 4–35lbs/1.8–15.9kg.

THIS DOCUMENT CONTAINS IMPORTANT INFORMATION AND MUST BE KEPT WITH THE INFANT CAR SEAT FOR FUTURE REFERENCE.

This product should be used rearward facing until the child is too large for the seat or exceeds 35lbs/15.9kgs.

This product should never be used forward facing.

CLEANING & CARING

Check your infant car seat for cuts & bruises. If your

product is damaged in any way, or you’re not sure how to

use it, please consult our web support from where you can

access a local customer care team.

Caring for your infant car seat

Unlike children, your infant car seat likes to stay clean.

Cleaning the fabric cover:

• Read the label on the removable cover for washing

instructions.

• Hand wash in warm water only.

• DO NOT tumble dry.

• The fabric cover can be easily removed for washing.

1. Remove the harness by gently feeding it through from

the front to the back of the seat.

2. Next remove the crotch strap, including buckle, by

rotating it a quarter turn and feeding it out through the

seat shell. The cover should now be free of obstruction.

3. Remove the cover and hand wash it at 30ºC; dry at -

away from direct heat.

4. To replace the cover follow the instructions above in

reverse.

Page 5

Product care

Cleaning the harness, chest pads and seat:

• Sponge clean only. Use hand soap and warm water.

• DO NOT use solvents, harsh detergents or washing up

liquids as these may weaken the harness and seat.

• Use only mild detegents.

• DO NOT lubricate or oil any part of the seat.

• DO NOT wring.

• Dry thoroughly before storage.

• Store in a well ventilated space, away from direct

sunlight which could damage or fade your product.

• Store in a safe place when it is not being used. Avoid

placing heavy objects on top of it.

• DO NOT allow to come into contact with corrosive

substances e.g. battery acid.

Cleaning the buckle:

Food, drink, or other debris may collect inside the harness buckle which can affect proper function. Wash in

warm water until clean. Be sure you can hear an audible click to make sure the buckle is working properly.

The correct use and maintenance of your infant car seat will ensure it gives long and trouble free use. When

somebody else is using your infant car seat, ensure that they also know how to use it and especially the correct

way to adjust it. The safety of your child is your responsibility.

Please read thoroughly before commencing installation as an incorrect installation could be dangerous.

• This child restraint complies with USA Federal Motor Vehicle Safety Standards (FMVSS) for general use in vehicles and will t most, but not all, vehicle seats.

Extreme Hazard

• Do not use in passenger seats equipped with airbags.

IMPORTANT

Page 6

Safety Warnings

WARNINGS

American Safety Standards states:

• PLEASE READ THOROUGHLY BEFORE COMMENCING INSTALLATION AS INCORRECT INSTALLATION COULD BE DANGEROUS.

• THIS INFANT CAR SEAT SHOULD NEVER BE USED ON A PASSENGER SEAT EQUIPPED WITH AN AIRBAG.

• Owners of vehicles with side airbags should refer to their owner’s manual for child restraint installation instructions.

• ACCORDING TO ACCIDENT STATISTICS, children are safer when properly restrained in rear vehicle seating positions, rather than in the front seating positions.

• REGISTER YOUR CHILD RESTRAINT with the manufacturer.

• READ AND UNDERSTAND the instructions in this manual and in

Page 7

Safety Warnings

your vehicle owner’s manual before installing your infant car seat and base.

• IMPROPER USE OF THIS INFANT CAR SEAT and base could increase the risk of a serious injury or death in a sudden stop or car crash.

• FOLLOW ALL INSTRUCTIONS on this child restraint and in the written instructions located in the container provided within your LATCH base.

• USE ONLY WITH children who weigh between 4–35lbs (1.8–15.9kg) and whose height is 32 inches (81cm) or less. Child’s head MUST be 1” (2.5 cm) or more below the top of the seat.

• FOR LOW BIRTH-WEIGHT INFANT, you must always use the premmie insert in the infant car seat. The premmie insert must be used for infants who weigh less than 6 lbs (2.7 kg). Only use the newborn liner when the harness is used in the bottom 2 sets of harness slots.

Page 8

Safety Warnings

• SOME CHILDREN WITH SPECIAL NEEDS, such as premmies or those who have tested positive for positional apnea, may be at increased risk of suffering breathing or other difficulties in an infant car seat. Please consult a physician to determine what type of infant car seat should be used for your child before using this product.

• SNUGLY ADJUST the belts provided with this infant car seat around your child.

• NEVER LEAVE CHILD UNATTENDED in or around the vehicle. Vehicle backovers can happen in any type of vehicle. Vehicles have blind spots, the areas around the vehicle that you can not see from the driving position. Always check around the vehicle before moving your vehicle.

• ONLY PLACE THIS INFANT CAR SEAT IN A REAR-FACING DIRECTION on a forward facing vehicle seat when using it in a vehicle. Refer to diagrams.

Page 9

Safety Warnings

• NEVER place this infant car seat on side-facing or rear facing vehicle seats.

• SECURE THIS INFANT CAR SEAT with the vehicle’s infant car seat anchorage system (LATCH) if available or with a vehicle belt, never both.

• ALWAYS TIGHTLY INSTALL THE INFANT CAR SEAT AND BASE TO THE VEHICLE SEAT, since in a crash an unsecured child restraint system may injure other occupants.

• TO PREVENT EJECTION, SECURELY ATTACH the infant car seat to the base and LIFT UP TO CHECK that it is attached.

• MAKE SURE nothing interferes with the carrier attachment to the base.

• ALWAYS store the LATCH connectors when they are not being used for installation.

Page 10

Safety Warnings

• NEVER place two LATCH connectors on one vehicle LATCH anchor.

• DO NOT allow children to play with the vehicle seat belts. A child within reach of a seat belt may become entangled if he or she pulls the seat belt all the way out and wraps the belt around his or her head, neck, or waist.

WHEN NOT USED IN A VEHICLE

• NEVER LEAVE child unattended.

• SUFFOCATION HAZARD: Infant car seat can roll over on soft surfaces and suffocate child. NEVER place infant car seat on beds, sofas or other soft surfaces.

• STRANGULATION HAZARD: Child can strangle in loose restraint straps. Always use harness. NEVER leave child in infant car seat when straps are loose or undone.

• Children have STRANGLED in loose or partially buckled harness

Page 11

Safety Warnings

straps. Fully restrain the child even when infant car seat is used outside the vehicle.

• FALL HAZARD: Child’s movements can slide carrier. NEVER place infant car seat near edges of counter tops, tables, or other elevated surfaces. DO NOT use on shopping carts.

• NEVER USE INFANT CAR SEAT OR BASE IF IT HAS BEEN DAMAGED OR BROKEN OR ANY COMPONENT IS MISSING. DO NOT use a cut, frayed or damaged infant car seat harness, vehicle seat belt or LATCH belt.

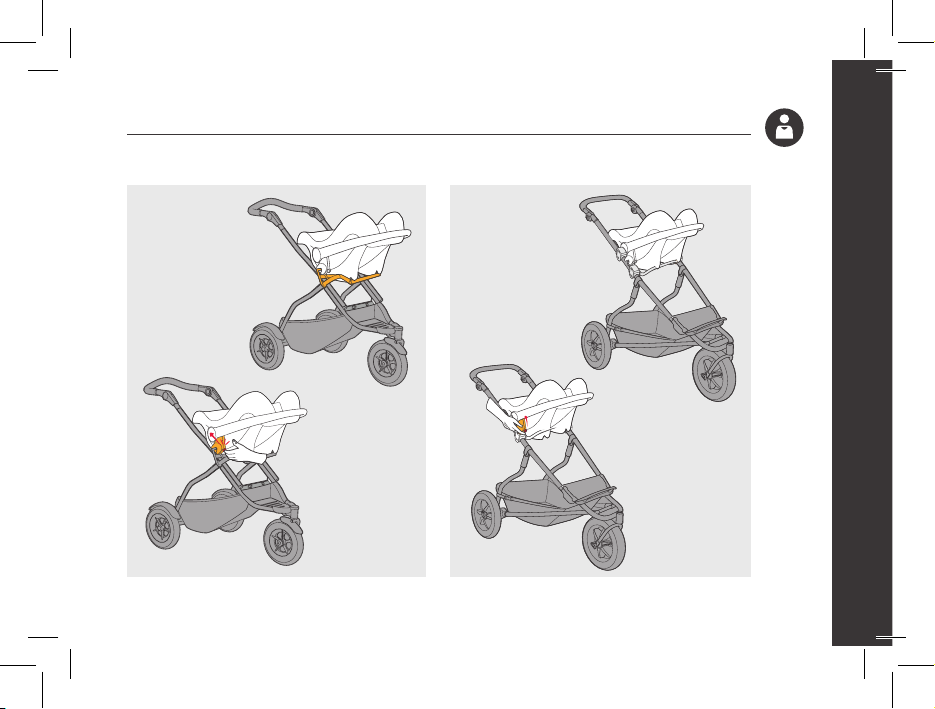

• WHEN USING THIS INFANT CAR SEAT WITH A STROLLER, ONLY USE with phil&teds and Mountain Buggy travel systems/ car seat adaptors. Refer to your stroller USER GUIDE for stroller attachment instructions.

Page 12

Safety Warnings

• NEVER use this infant car seat with strollers for which it was not intended.

• DO NOT allow children to play with the infant car seat.

• ALWAYS MAKE SURE handle is locked in the upright carrying position before lifting. An unlocked handle could result in serious injury to your child from falling from the infant car seat.

• ALWAYS REPLACE THE INFANT CAR SEAT AND BASE AFTER A CRASH OF ANY KIND. A crash can cause unseen damage to the infant car seat that may not be visible.

• DO NOT MODIFY YOUR INFANT CAR SEAT OR BASE or use any accessories or parts not supplied by the manufacturer of your infant car seat.

• THE INFANT CAR SEAT MAY BECOME VERY HOT IF LEFT IN THE SUN OR HOT AREAS. Always make sure to check the

Page 13

Safety Warnings

temperature of any metal or plastic parts before placing your child in the infant car seat.

• NEVER allow someone else to use this infant car seat and base without also passing along this manual to them.

• NEVER use a second-hand infant car seat or base or an infant car seats or base of which you do not know its history.

• DISCONTINUE USE of this infant car seat after 6 years from the manufacture date. The manufacture date can be found on the underside of your infant car seat.

Page 14

Safety Warnings

Page 15

Safety Warnings

Checklist Before Use

Inspect

• Only use this infant car seat rear facing

• Infant car seat is free of damage

Verify Child within Weight and Size Range

• Weight between 4–35lbs/1.8–15.9kg

• Height 81cm / 32inches or less.

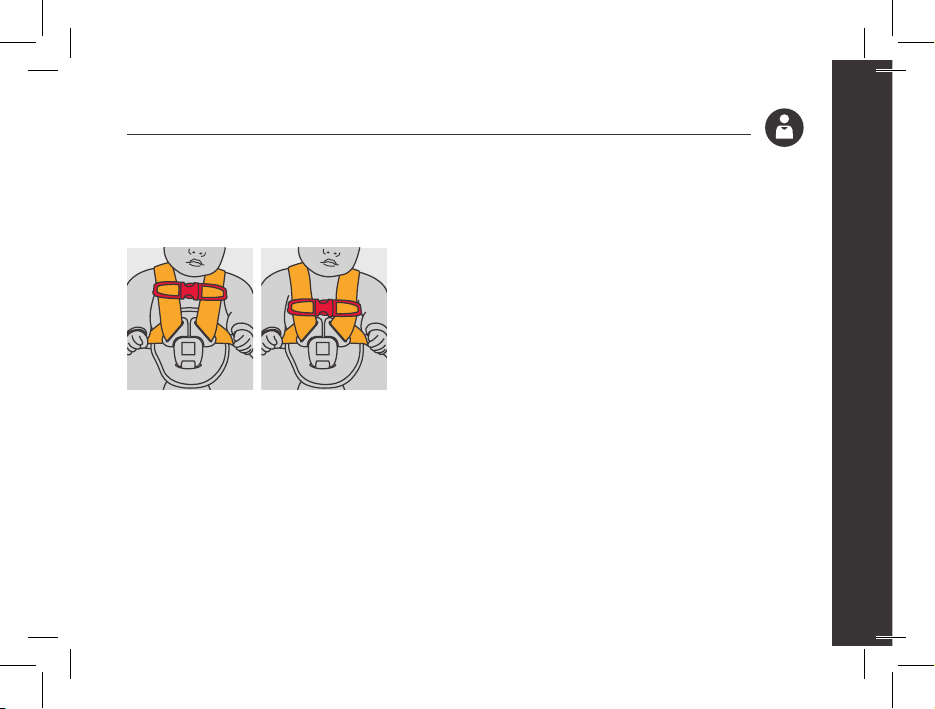

Secure Child Properly in Infant Car Seat

• Correct shoulder strap height (at or slightly

below shoulders)

• Harness not twisted and low across hips

• Harness secure and tight

Install Infant Car Seat Rearward-facing in Safe

Location in Vehicle

• Vehicle seats that face front of vehicle only

• Handle locked in specied position (2a)

• Child facing rear of vehicle

• Position with NO active airbag

• 3 point (shoulder/lap) belt used

• Seat belt not twisted

• Belt path followed

• Tight against vehicle seat

Page 16

Safety Warnings

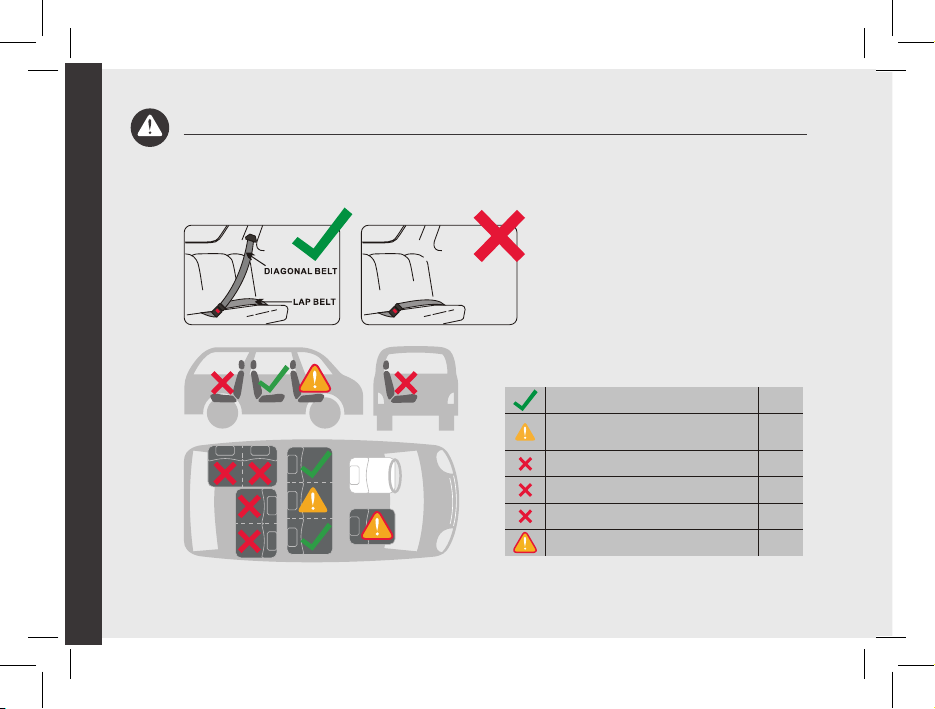

Seat Belt Installation without Base

On outer rear seat

On centre rear seat with 3-point belt

On a rearward-facing seat

On seats facing sidewards

On rear seat with lapbelt only

Front seat with airbag off

YES

Page 17

Safety Warnings

Approved Seat Belt Types

This infant car seat can only be tted into the

passenger seat of a car with a lap and diagonal seat belt

and no air bag.

The infant car seat is only suitable if the vehicle is tted

with 3-point static or 3-point retractor safety belt, approved

by, the USA Federal Motor Vehicle Safety Standards.

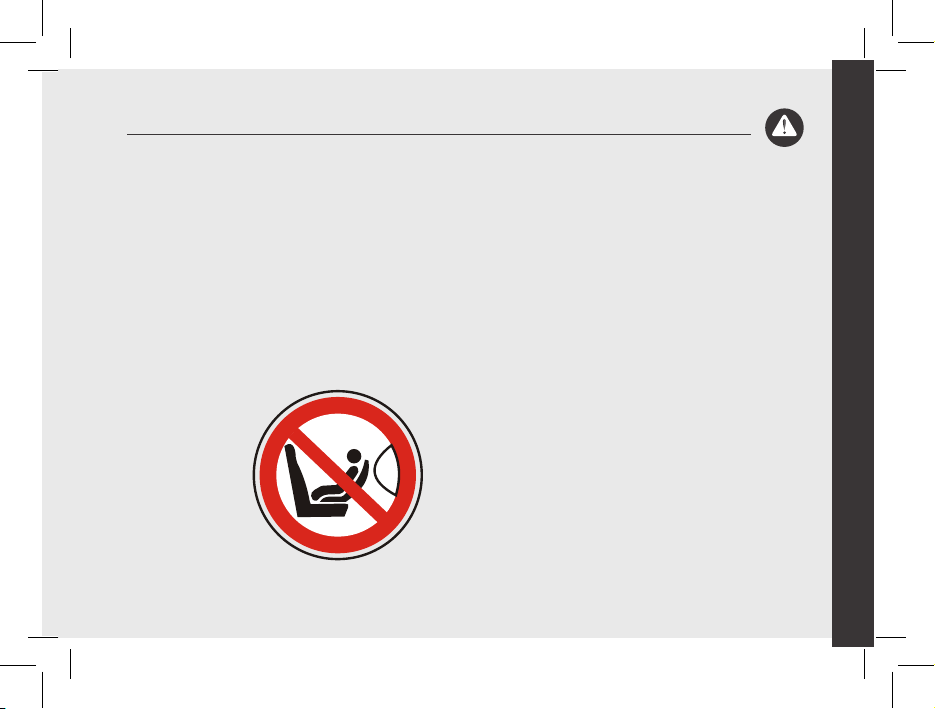

Do not use on a

passenger seat

with a front airbag.

Page 18

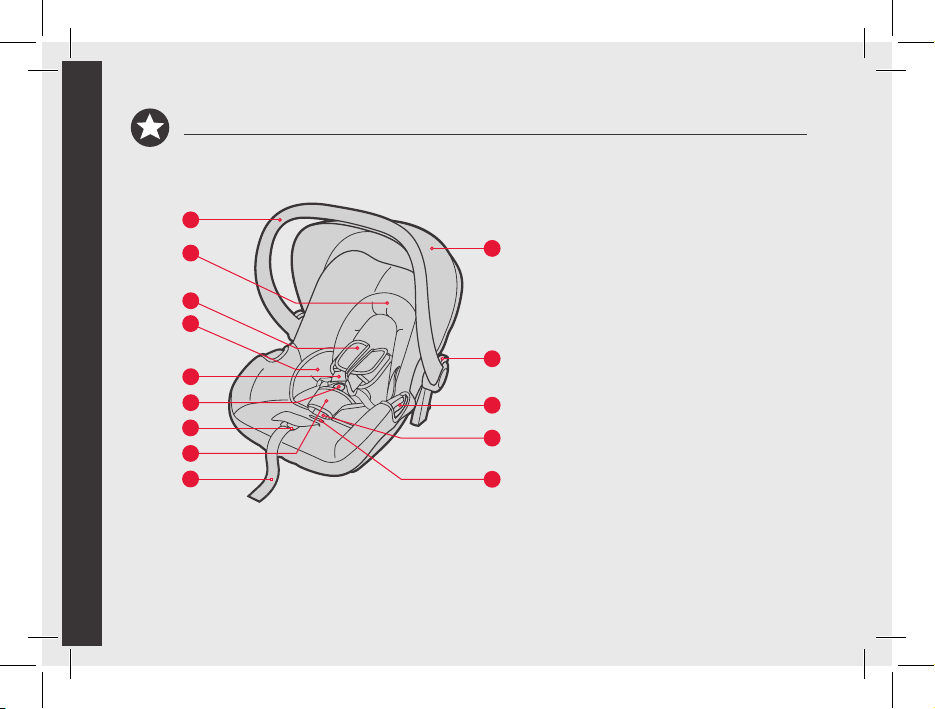

Features

01 Carry Handle

02 Newborn Liner

03 Shoulder Pads

04 Newborn Supports

05 Harness

06 Buckle

07 Adjuster Button

08 Crotch Pad

09 Adjuster Strap

10 Sunhood

11 Handle Release Button

12 Lap Belt Guide

13 Crotch Belt

14 Crotch Strap Slot

Page 19

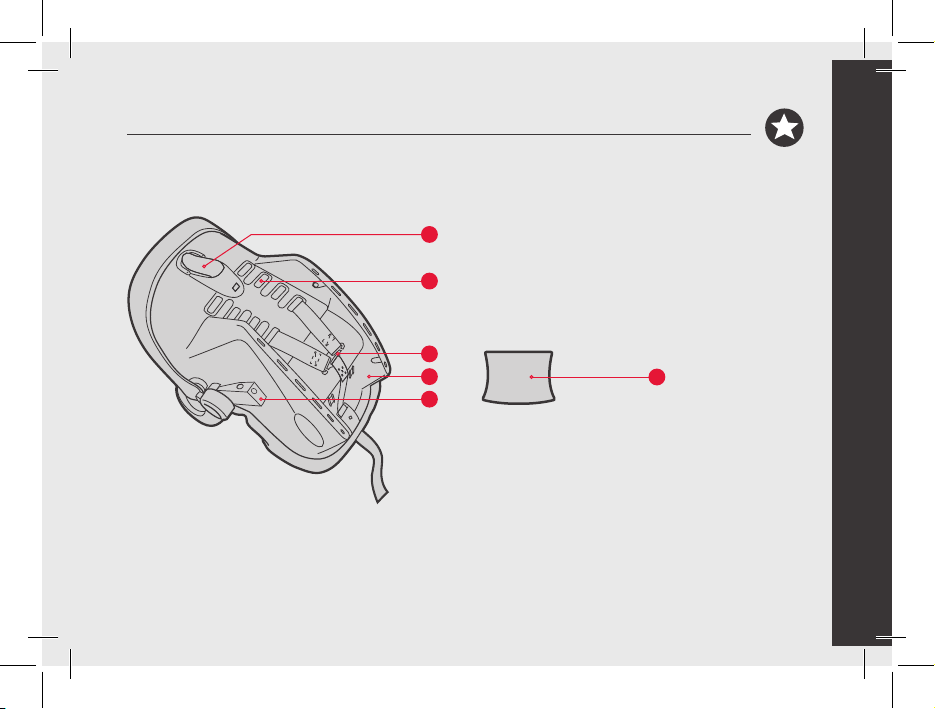

Features

15 Shoulder Belt Guide

16 Harness Slot

17 Splitter Plate

18 Shell

19 Adapter

20 Premmie Insert

Page 20

Instructions

Page 21

Instructions

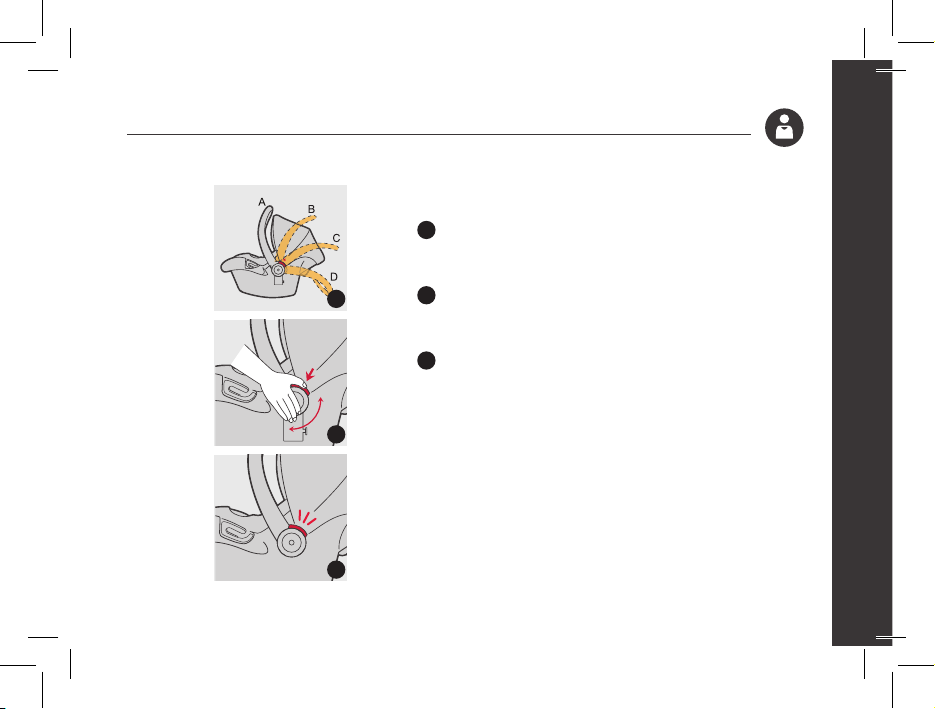

Adjusting the Handle

2a There are 4 positions: In vehicle position (A),

Carry position (A), Middle position (B,C), and

Stationary position(D)

2b To adjust, squeeze handle release buttons on both

sides, then rotate the handle, The handle will lock

into position.

2c You should hear a click when the handle button

is engaged and handle is locked into the upright

carrying position.

WARNING:

Always make sure the handle is securely locked in

the upright carrying position before carrying.

Page 22

Instructions

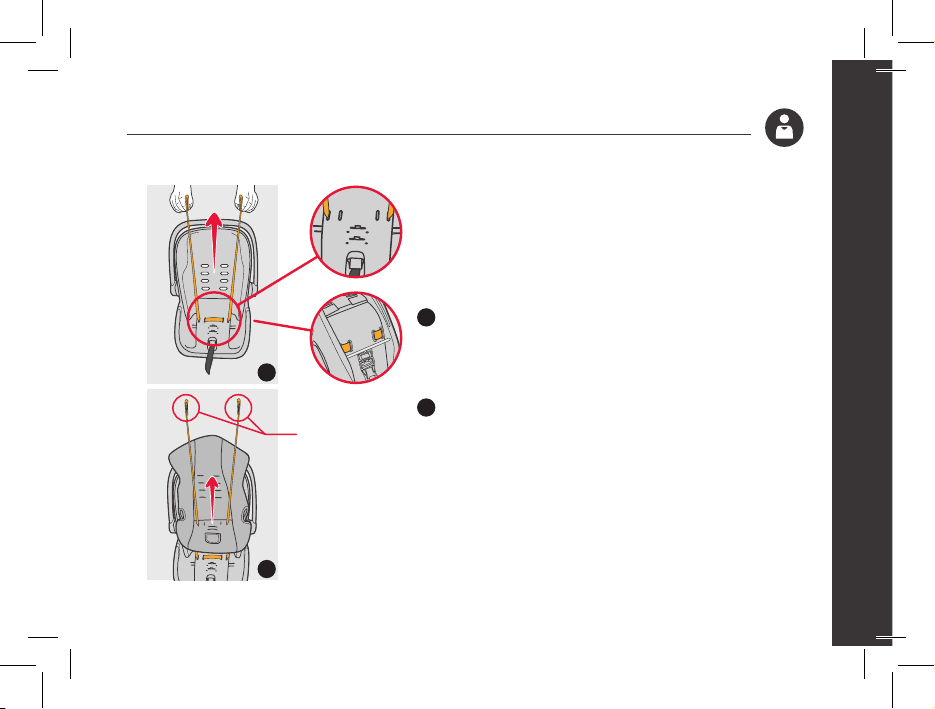

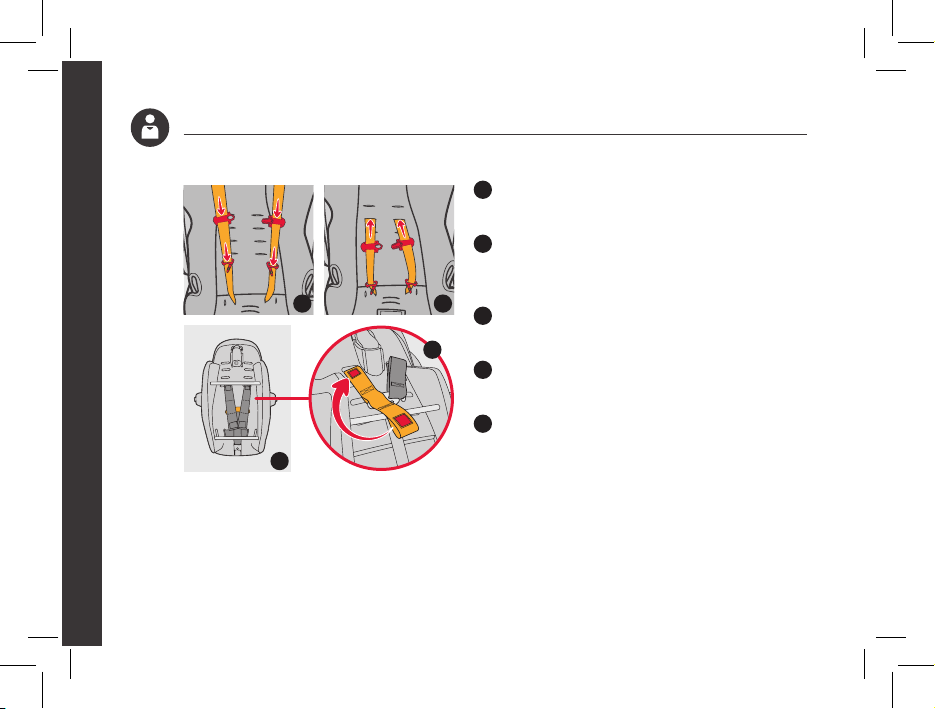

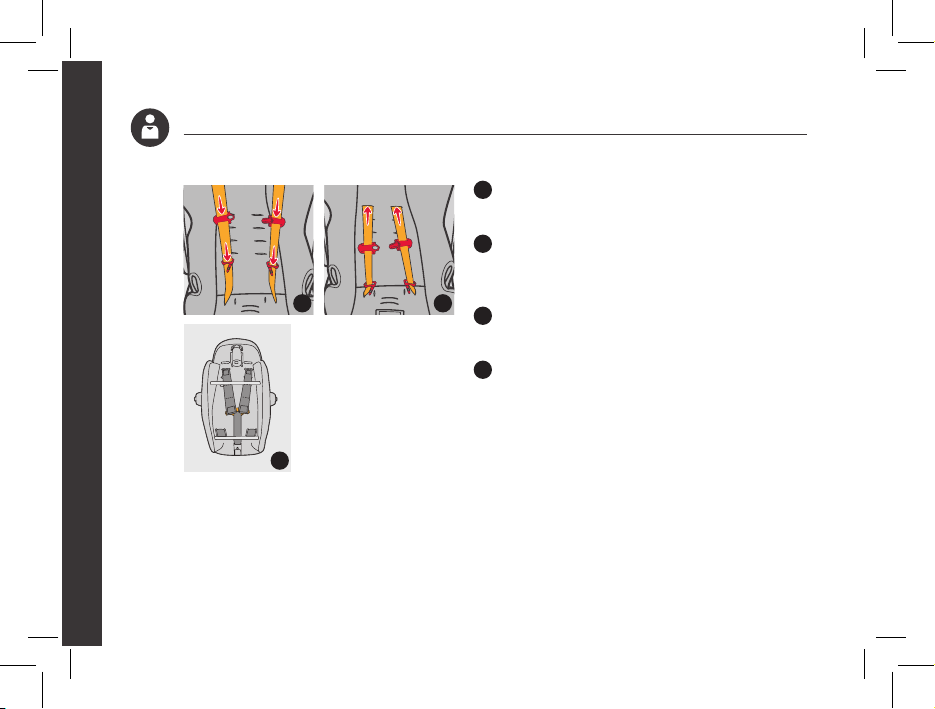

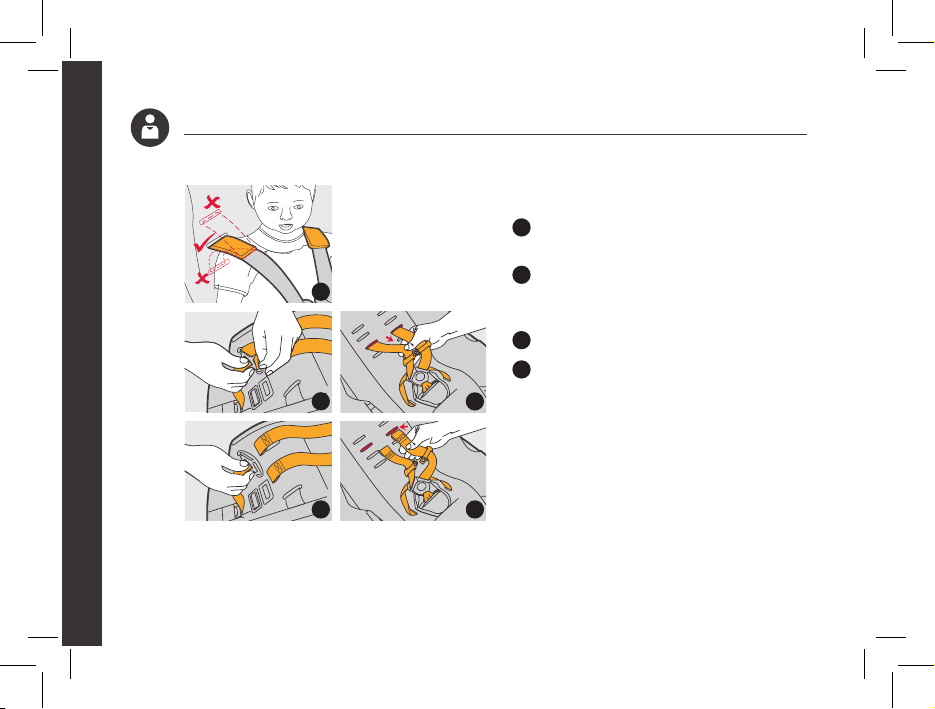

Adjusting the Harness

3a Adjust the shoulder straps height so they are

level with, or just below child shoulders.

3b To adjust the height of shoulder straps, you need to

take out the straps from the splitter plate located in

the rear of the seat.

3d Pull both straps through the shell and seat cover.

3e Thread the harness straps through the proper

harness slot. Make sure that both straps are even

and not twisted. From the rear of the seat, secure

the harness strap onto the splitter plate (reverse the

3b). Pull to make sure the harness straps are rmly

secured onto the splitter plate. Remember, shoulder

straps should be level with, or just below the child’s

shoulders (3a). For more guidence on which harness

slot to use please see the next page.

Page 23

Instructions

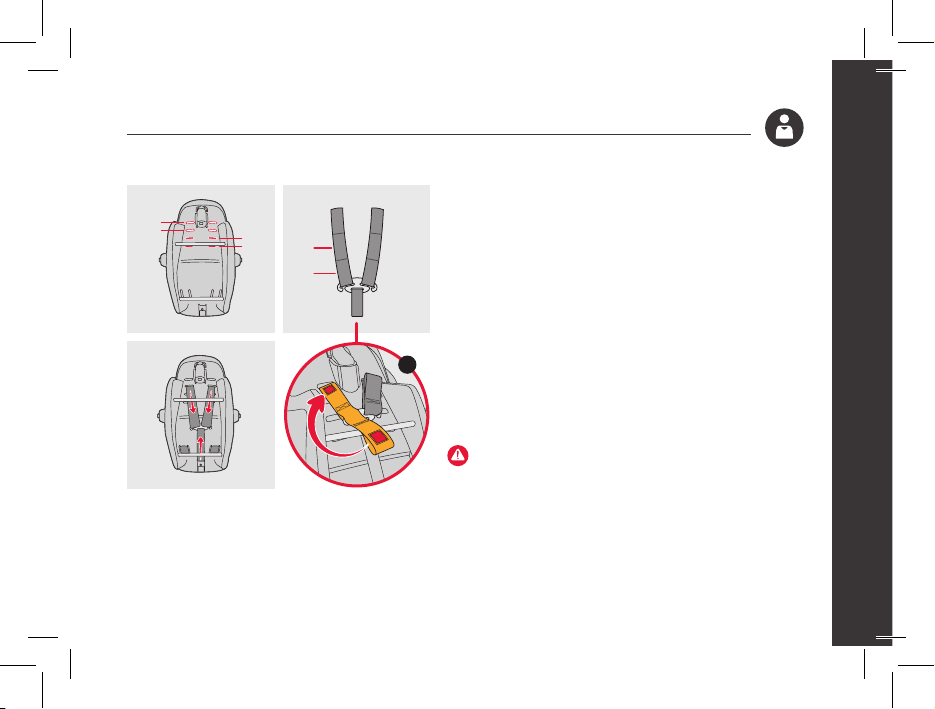

Adjusting the Harness

4 3

2 1

For Smaller Babies:

Thread harness straps through either slots 1 or 2

depending on the size of your child and attach loops (A)

to splitter plate. For premature babies you can use the

extra loops at the back of the infant car seat to fold over

and velcro to the back of the harness. Refer to 3f for how

to fasten extra length of loops to the harness.

For Larger Babies:

Thread harness straps through either slots 3 or 4

depending on the size of your child and attach loops (B)

to splitter plate.

MAKE SURE that the harness straps and harness

adjustment strap are routed under the metal rods

as shown.

CHECK STEP: Make sure harness straps are not

twisted and double check that they are completely

on the splitter plate.

Page 24

Instructions

Adjusting the Crotch Strap Position

The crotch strap adjusts to 2 positions to t the child’s

size. Only move crotch strap position to outer position

when the child weighs more than 15lbs/7kg. Typically

this is when the harness is in middle slots.

4a To move the crotch strap, locate the metal plate attached

to the crotch strap under the infant car seat (4a). Rotate

the metal plate and push it through the shell and seat

cover. Loosen har ness adjuster strap if it is in the way.

4b Locate the appropriate crotch strap slot and insert the

metal plate and crotch strap through the seat cover and

shell (4b). Pull on harness buckle to make sure crotch

strap is securely installed.

Page 25

Instructions

Top view of seat

Bottom view of seat

Folded straps face into seating area

Changing the Waist Strap Position

For Smaller Babies (under 12lbs/5.5kg):

In order to change waist strap position, you will need

to remove the harness, the seat pad, the chest clip and

the buckle tongues.

Insert the harness straps up through the bottom side of

the shell through the inner waist slots with the folded

portion of the strap facing in seating area as shown.

MAKE SURE harness straps are not twisted.

Lay pad on seat and pull straps up through the inner seat

pad waist strap slits as shown.

Page 26

Instructions

5c 5d

Re-attach the buckle tongues then the chest clip as

shown.

Re-insert the harness straps through the same set

of slots in seat pad and shell of the seat that are

appropriate for the size of your child.

Turn the seat over and pull harness straps through

the back of the shell.

Re-assemble straps onto the splitter plate onto loops (A)

as shown in the 'Adjusting the Harness' section.

Fasten the bottom set of loops onto the hook and loop

patches on the harness as shown using the velcro.

Page 27

Instructions

Top view of seat

Bottom view of seat

Folded straps face into seating area

Changing the Waist Strap Position

For Larger Babies (over 12lbs/5.5kg):

In order to change waist strap position, you will need

to remove the harness, the seat pad, the chest clip and

the buckle tongues.

Insert the harness straps into the inner slots from the

top side of the shell then pull them back up through the

outer slots with the folded portion of the strap facing in.

MAKE SURE harness straps are not twisted.

Pull straps up through the outer seat pad waist strap slits

as shown.

Page 28

Instructions

6c 6d

Re-attach the buckle tongues then the chest clip as

shown.

Re-insert the harness straps through the same set

of slots in seat pad and shell of the seat that are

appropriate for the size of your child.

Turn the seat over and pull harness straps through

the back of the shell.

Re-assemble straps onto the splitter plate onto loops (B)

as shown in the 'Adjusting the Harness' section.

Page 29

Instructions

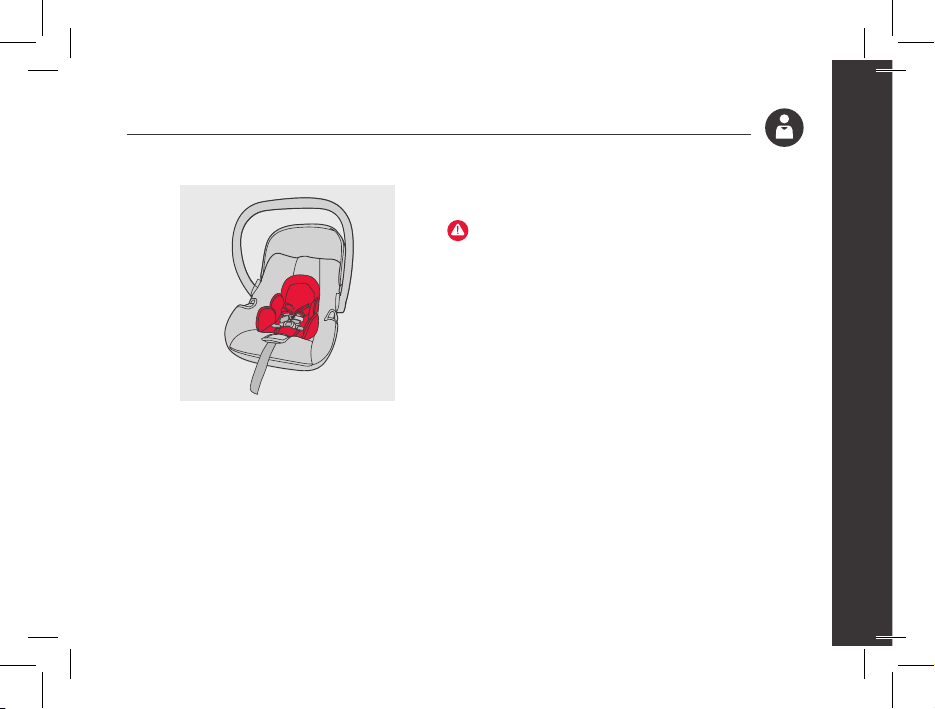

Using the Newborn Liner

WARNING

To prevent ejection or serious injury, only use the

newborn liner when the harness is used in the bottom

2 sets of harness slots.

If there is a gap between the buckle strap and the child,

place a tightly rolled washcloth around the buckle strap.

Page 30

Instructions

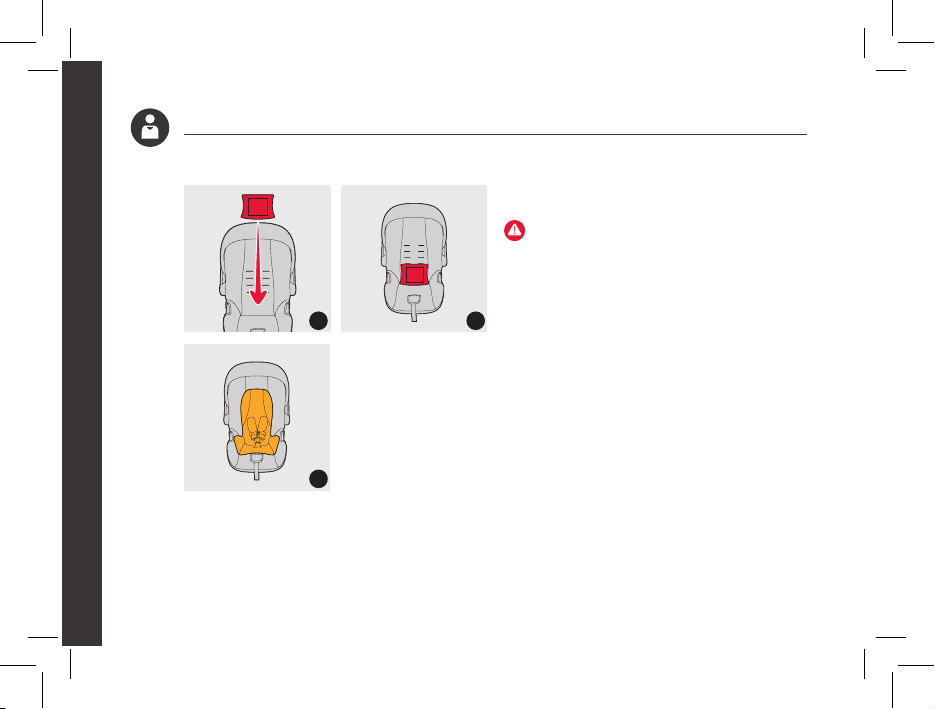

THIS TEXT FACES UP

1 2

The premmie insert is designed to only be inserted into

the bottom of the seat one way. The words "THIS TEXT

FACES UP" on the label must be visible when inserting it

into the bottom of the seat.

Using the Premmie Insert

WARNING

THIS TEXT FACES UP

To prevent ejection or serious injury:

• For low birth-weight infant, you must always use the premmie

insert with the newborn liner.

The premmie insert must be used for infants who weigh less

than 6lbs (2.7kg).

• To prevent suffocation, always place premmie insert into the

bottom of the seat under the newborn liner exactly as shown.

Page 31

Instructions

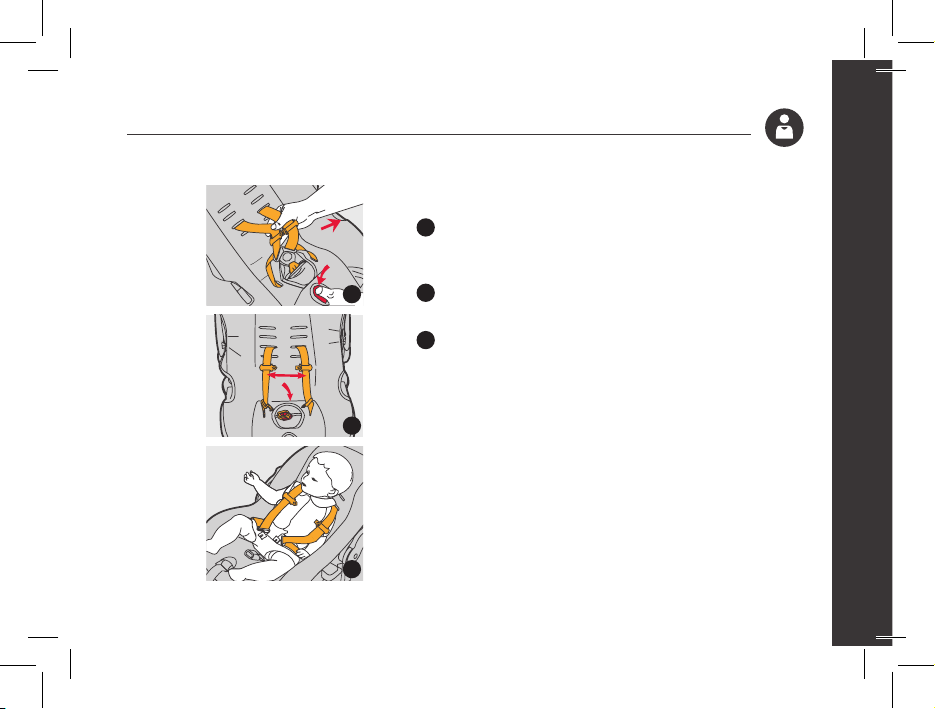

Securing the Child In Infant Car Seat

5a Press the adjuster button on the front center of the

seat, and pull on both shoulder straps to loosen the

harness.

5b Press the red button on the buckle to release the

shoulder straps and move them to the side.

5c Place child’s bottom on the seat and the child’s back

at against the back of the Infant Car Seat. This will

increase the child’s comfort and allow the harness to

properly secure the child. Slide shoulder straps over

the child’s shoulders (5c). Make sure the harness is at

or below the top of the child’s shoulders.

Page 32

Instructions

CAUTION!

The hip belt must lie as low as

possible over your child's hips.

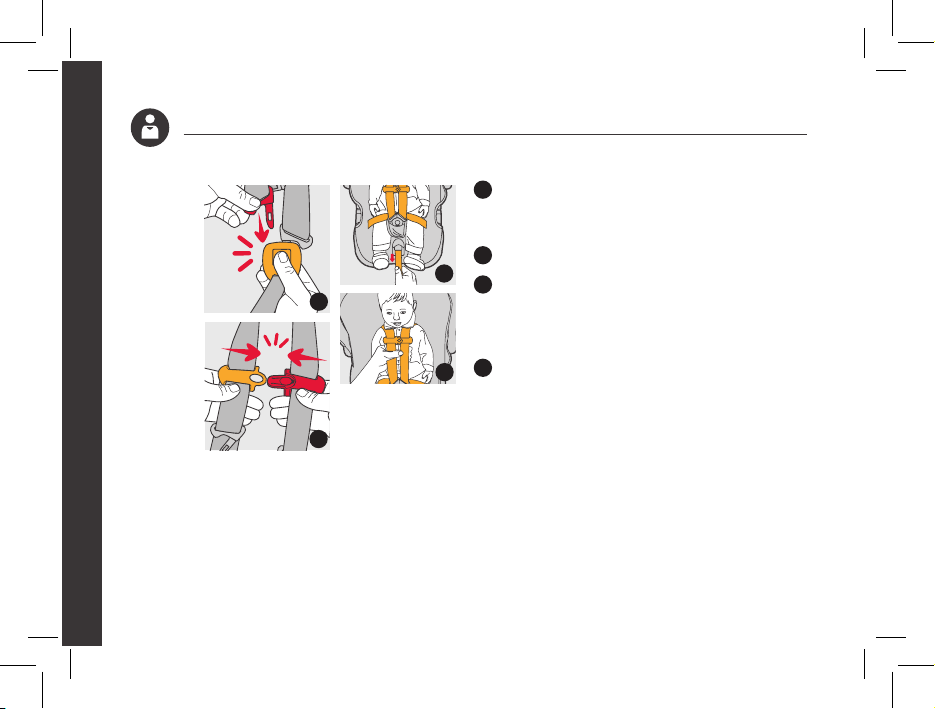

Insert buckle clips into the buckle until you hear a “click”.

Make sure the shoulder straps are not twisted. Adjust the

shoulder pads over the centre of the child’s shoulders.

Clip chest buckle pieces together until you hear a “click”.

Slowly pull harness adjuster strap to make the shoulder

straps snug around the child’s shoulders. BE CAREFUL

not to allow the chest clip to slide up into their neck when

tightening.

5g For proper tightness, one nger should t between the

harness straps and the child’s shoulders.

To remove the child, loosen shoulder straps and release

buckle and chest clip.

Discontinue use when child’s weight is more than

35lbs/15.9kg, and/or the child's height is more than

81cm / 32".

Page 33

Instructions

CAUTION!

The chest clip should sit high on the hard part of

the child's chest where there's a bone.

correct incorrect

Page 34

Instructions

Approved Uses Outside of the Vehicle

• ALWAYS secure the child with the harness when placing

the child in the infant car seat.

• ALWAYS make sure the handle is securely locked before

using. For use as an infant carrier, place handle in carrying

station (A in 2a). For rocking, place the child restraint on

level ground, make sure handle is in carrier positions (A in

2a) and lock gently.

• For feeding and resting, place seat on secure and

level surface away from the edge of elevated surfaces,

and put handle in the stationary position (D in 2a).

Page 35

Instructions

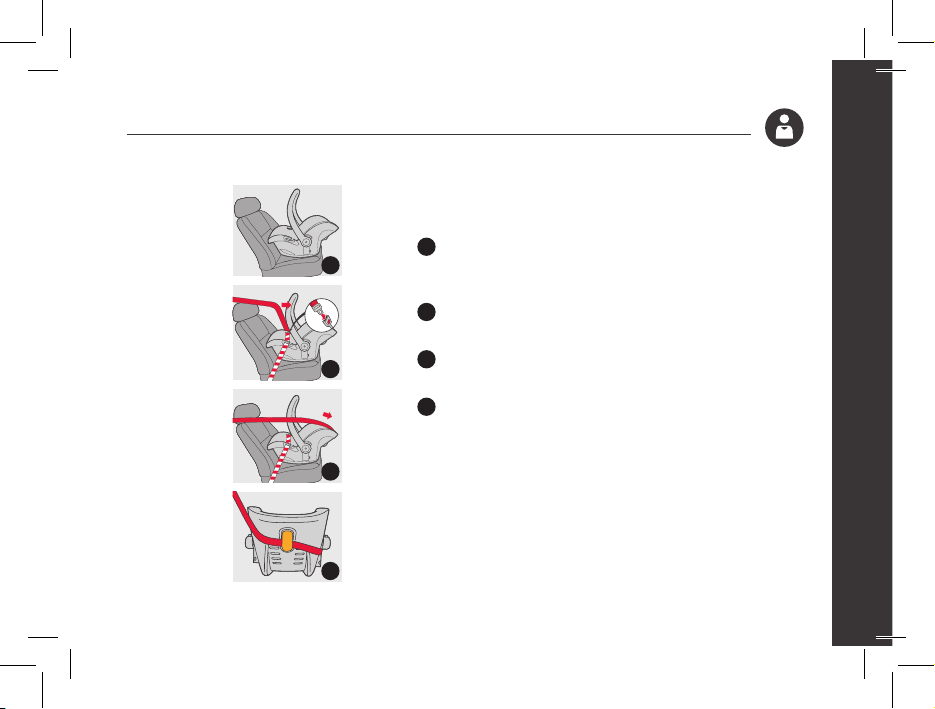

Installation in the Vehicle without Base

6a Place the infant car seat rear-facing on the vehicle seat

and make sure the handle is in specied position.

The child will face the rear of the vehicle.

6b Route the vehicle lap belt through both lap belt guides

and buckle the seat belt.

6c Route the vehicle shoulder belt around the back of the

infant car seat and through the shoulder belt guide.

6d If vehicle shoulder belt is too short, please move vehicle

seat as far back as possible and lower the vehicle seat belt

height adjustment to the lowest possible height. If the vehicle

belt is still too short, try another authorised seating position.

Page 36

Instructions

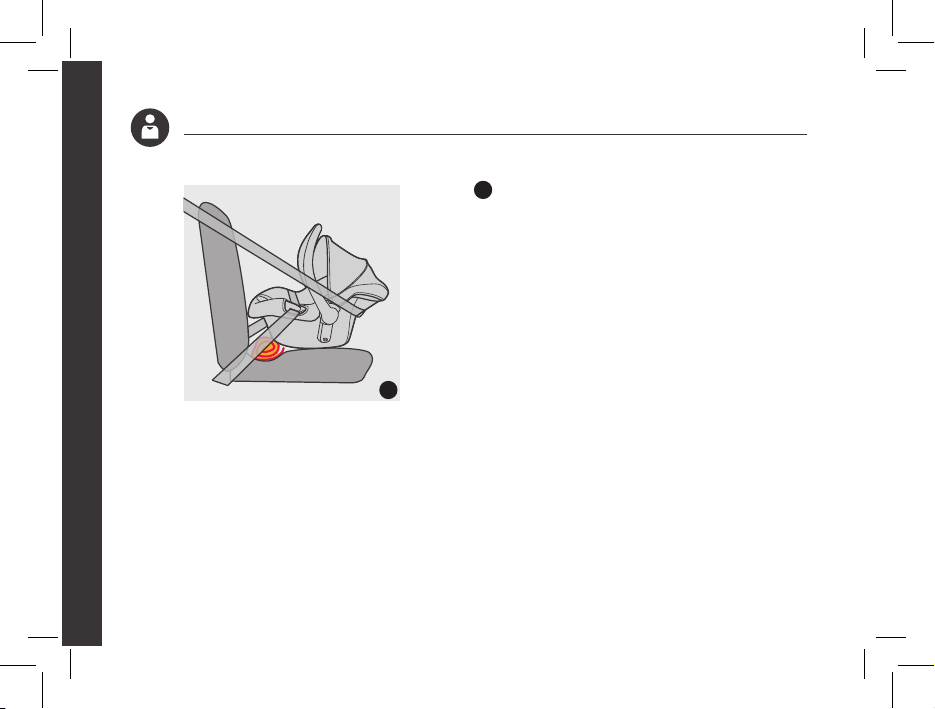

6e Adjust the infant car seat to the proper recline to ensure

maximum protection for the child. A tightly rolled towel

under the front edge of the infant car seat can be used to

achieve the correct recline.

WARNING:

Do not route the vehicle belt using any other path when

using the infant car seat. For assistance contact our

Customer Service team.

Do not use 2 point vehicle belt (lap belt) to install this

infant car seat.

Only install the infant car seat rear-facing on forward-facing

vehicle seats.

Make sure the child is properly secured in the infant car seat,

and the infant car seat is tightly installed in the vehicle.

Page 37

Instructions

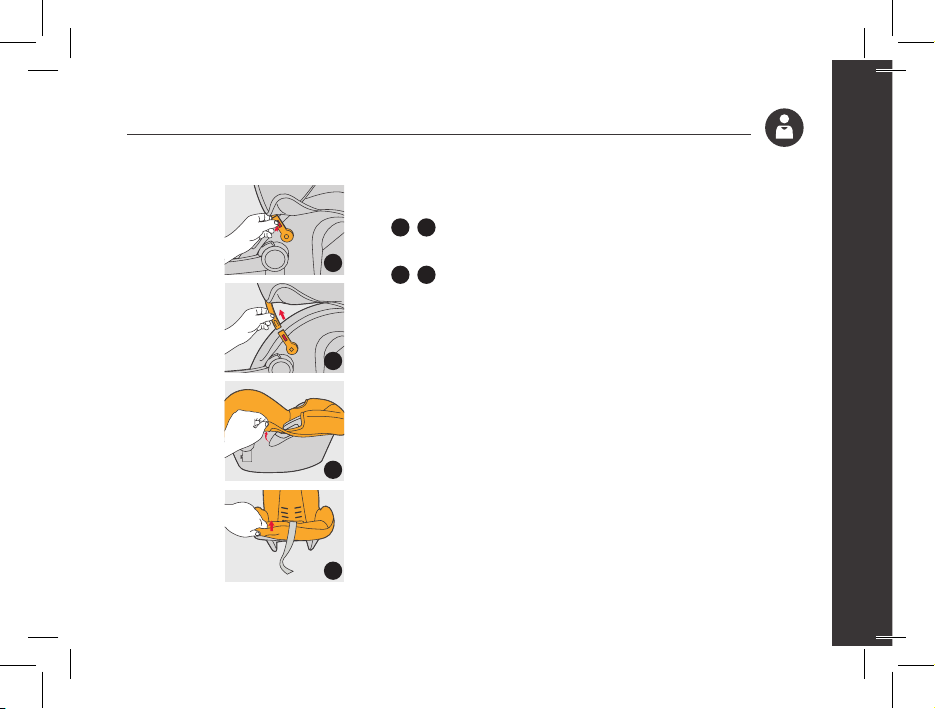

Removing the Canopy and Cover

7a / 7b On the side of canopy, pull the tab and detach the

canopy frame.

7c / 7d Pull out the cover from shell front.

Page 38

Instructions

Travel Systems

This infant car seat can be used as a travel system in

conjunction with selected strollers. See philandteds.com

or mountainbuggy.com for details.

Installing:

Having correctly attached an appropr iate car seat

adapter (sold separately) to your stroller, test that the

infant car seat is fully attached by pulling the infant car

seat up and forward; it should not come free from the car

seat adapter.

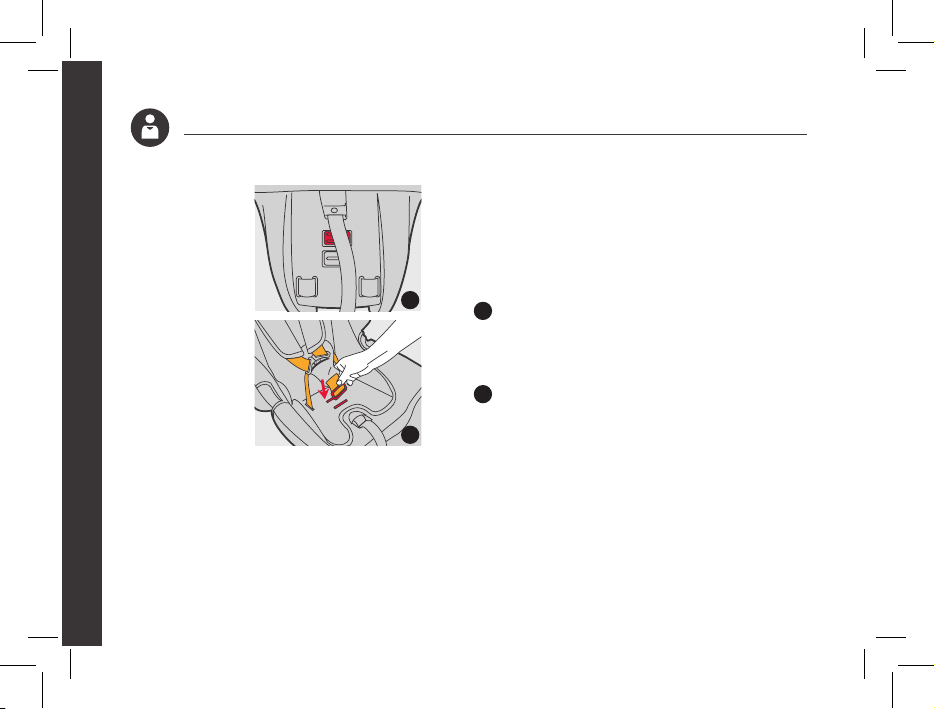

Removing the infant car seat:

Red release levers are located on both sides of the infant

car seat, immediately above the connector points (as

shown). Lift up on both levers then lift the infant car seat

off the stroller using the carry handle.

Page 39

Instructions

alpha™

use only original mountain buggy or phil&teds car seat adapters to secure infant car seat to a buggy.

protect™

Page 40

Page 41

We (Phil and Teds Most Excellent Buggy Company Ltd) own the intellectual property rights in our brands, designs and inventions featured in this

publication. These include, without limitation, the phil~teds, adapt~survive!, ~, INLINE trade marks and INLINE DOUBLE BUGGY shape. We actively

pursue people who infringe our intellectual property.

Nous (Phil and Teds Most Excellent Buggy Company Ltd) sommes détenteurs de tous les droits de propriété intellectuelle associés à nos marques, modèles

et inventions mentionnés dans le présent document. Ceux-ci incluent, sans que cela soit limitatif, les marques commerciales phil~teds, adapt~survive !, ~, et

INLINE et la forme du INLINE DOUBLE BUGGY. Nous engageons des poursuites contre tous ceux qui enfreignent nos droits de notre propriété intellectuelle.

Wir (Phil and Teds Most Excellent Buggy Company Ltd) sind Eigentümer aller geistigen Eigentumsrechte bezüglich unserer in dieser Veröffentli-

chung aufgeführten Marken, Designs und Erfindungen. Diese schließen die Marken phil~teds, adapt~survive!, ~, und INLINE sowie die Form INLINE

DOUBLE BUGGY ohne Einschränkungen ein. Personen, die unsere Eigentumsrechte verletzen, werden von uns aktiv verfolgt.

Nos pertenecen a nosotros (Phil and Teds Most Excellent Buggy Company Ltd) los derechos de propiedad intelectual de nuestras marcas, diseños

e inventos mostrados en la presente publicación. Se incluyen, sin limitarse a, las marcas phil~teds, adapt~survive!, ~, e INLINE la forma de INLINE

DOUBLE BUGGY. Iniciaremos acciones legales contra aquéllos que violen nuestra propiedad intelectual.

Wij (Phil and Teds Most Excellent Buggy Company Ltd) bezitten de intellectuele eigendomsrechten op onze merken, ontwerpen en uitvindingen

die in deze publicatie worden vermeld. Dit zijn, zonder beperking, de handelsmerken phil~teds, adapt~survive!, ~, INLINE en de INLINE DOUBLE

BUGGY-vorm. We dienen daadwerkelijk een aanklacht in tegen degenen die inbreuk maken op ons intellectueel eigendomsrecht.

Page 42

Instructions

Page 43

Instructions

Page 44

AU/NZ

Mountain Buggy Australasia 102-112 Daniell Street Newtown, Wellington 6021 New Zealand / Nouvelle-Zélande. + 64 4 3800 833

EUR

Mountain Buggy Europe Klavermaten 37C 7472 DD Hof van Twente (Goor) NETHERLANDS / Pays-Bas. + 31 (0) 547 352 727

USA/CAN

Mountain Buggy USA 221 Jefferson Street Fort Collins, CO 80524 USA. 1 800 916 8442

FRA

Mountain Buggy France 15 rue Gertrude Bell 56000 Vannes FRANCE. + 33 (0) 2 97 44 88 26

[email protected]

8122-09

AU/NZ

phil&teds 102-112 Daniell Street Newtown, Wellington 6021 New Zealand / Nouvelle-Zélande. + 64 4 3800 833

EUR

phil&teds Europe BV Klavermaten 37C 7472 DD Hof van Twente (Goor) NETHERLANDS / Pays-Bas. + 31 (0) 547 352 727

USA/CAN

phil&teds USA Inc 221 Jefferson Street Fort Collins, CO 80524 USA. 1 800 839 4985

FRA

phil&teds France 15 rue Gertrude Bell 56000 Vannes FRANCE. + 33 (0) 2 97 44 88 26

[email protected]
