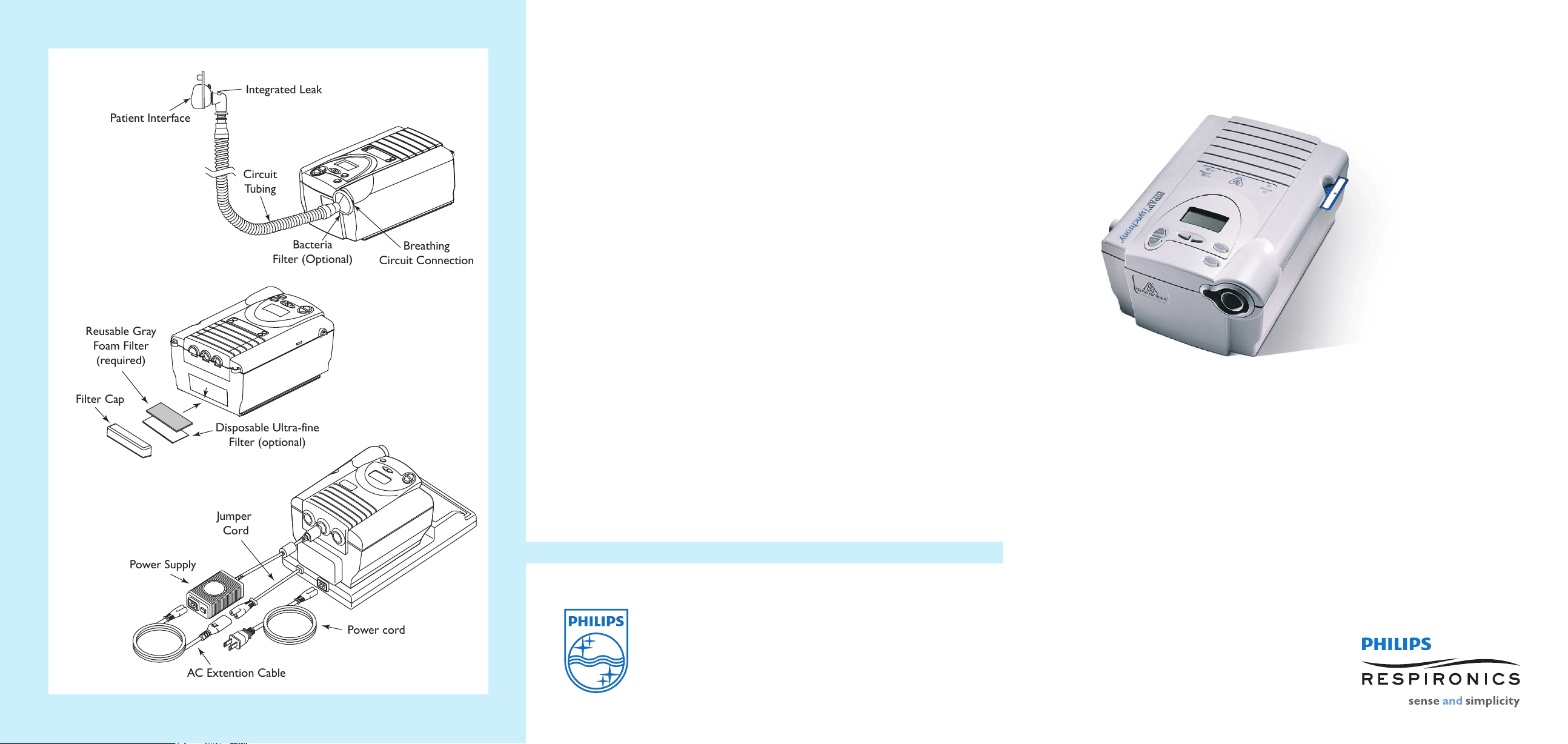

Reusable Gray
Foam Filter
(required)
Disposable Ultra-fine
Filter (optional)
Filter Cap
Jumper
Cord
Power Supply
AC Extention Cable
Power cord
Breathing
Circuit Connection
Circuit
Tubing
Patient Interface
Bacteria
Filter (Optional)
Integrated Leak
Philips Healthcare is part of
Royal Philips Electronics
BiPAP Synchrony
Philips Respironics Asia Pacific
+65 6882 5282
How to reach us
www.philips.com/healthcare
Asia
+49 7031 463 2254
Europe, Middle East , Africa
+49 7031 463 2254
Latin America
+55 11 2125 0744
North America
+1 425 487 700 0
800 285 5585 (toll free, US only)
Philips Respironics
1010 Murry Ridge Lane
Murrysville, PA 15668
Customer Service
+1 724 387 4000
800 345 6443 (toll free, US only)
Philips Respironics International
Headquarters
+33 1 47 28 30 82
Philips Respironics Australia
+61 (2) 9666 4444
Philips Respironics China
+86 021 24127311
Philips Respironics Deutschland
+49 8152 93 06 0
Philips Respironics France
+33 2 51 89 36 00
Philips Respironics Italy
+39 039 203 1
Philips Respironics Sweden
+46 8 120 45 900
Philips Respironics Switzerland
+41 6 27 45 17 50
Philips Respironics United
Kingdom
+44 800 1300 845
www.philips.com/respironics

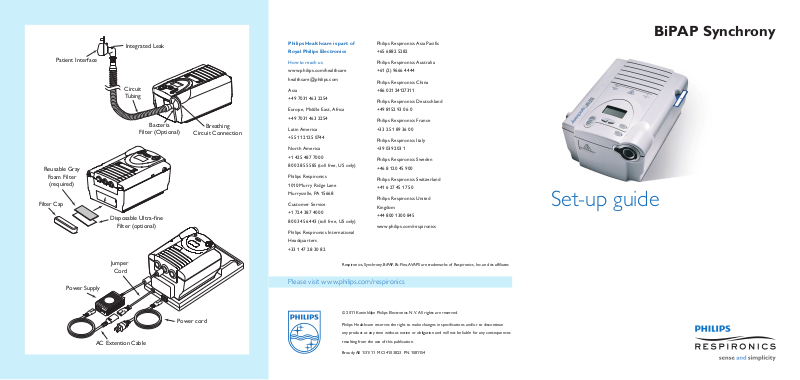

Set-up guide
Respironics, Synchrony, BiPAP, Bi-Flex, AVAPS are trademarks of Respironics, Inc. and its affiliates
Please visit www.philips.com/respironics
© 2011 Koninklijke Philips Electronics N.V. All rights are reserved.
Philips Healthcare reserves the right to make changes in specifications and/or to discontinue
any product at any time without notice or obligation and will not be liable for any consequences
resulting from the use of this publication.
Broudy AE 1/31/11 MCI 4103823 PN 1081154
Page 2

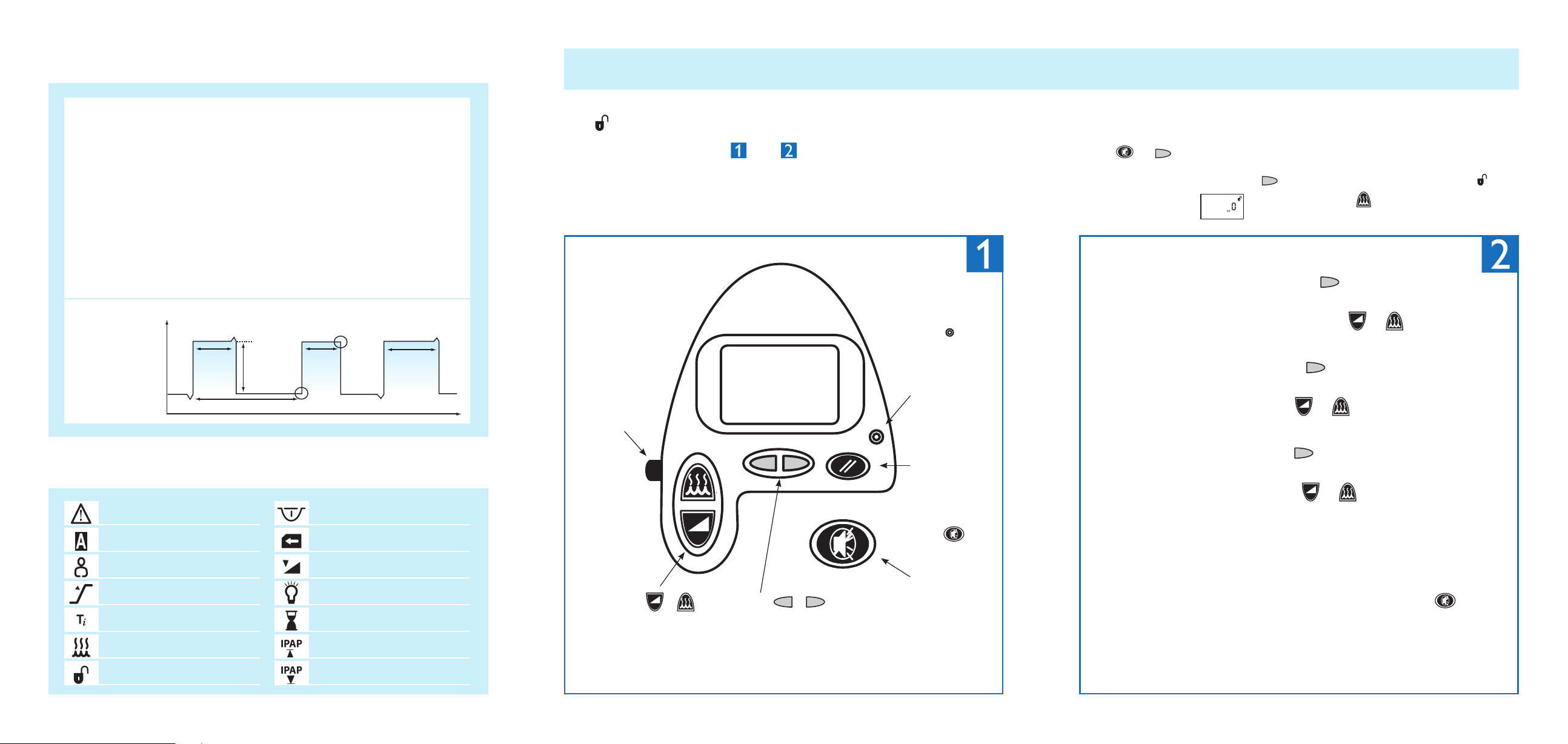

Some definitions
Setting ventilation
IPAP Inspiratory pressure
EPAP PEEP = Positive End Expiratory
Pressure
PS Pressure support = IPAP – EPAP
Ti Inspiratory time
CPAP Continuous pressure mode
S Spontaneous mode
S/T Spontaneous mode with back
up rate
T Pressure control mode
Leak Monitoring leak
S/T mode Pressure
IPA P
EPAP
Icons
Alarm on
Patient apnea alarm
Patient disconnection alarm
Rise time
Inspiratory time
Humidifier on
Machine unlocked
PC Spontaneous mode with back
up rate and fixed inspiratory
time at each breath
AVAP S Average Volume Assured
Pressure Support function
RR Respiratory rate
BPM Breath per minute
Vte Exhaled tidal volume estimation
Mi nVen t Exhaled minute ventilation
estimation
S
Ti
Patient
PS
60 sec. /BPM t
Ti
Machine
Bi-Flex parameter
SmartCard
Pressure Ramp
Backlight
Patient time meter
Maximum IPAP setting
Minimum IPAP setting
ST
Ti
Patient
> If appears on the screen, the machine is unlocked;
go directly to frames
and .
> To unlock the machine,
1) Hold and together for more than 2 seconds.
2) To keep the machine unlocked, press
“0” flash on the screen:
several times to reach the unlock screen, “ ” and
and set to 1 by pressing
.
1. To reach the mode screen, press .
Press
to navigate
Press
on/off
button
Press
to change the setting
&
Press
navigate through the
different setting screens
(modes, IPAP, EPAP, etc)
& to
through the
monitoring
screens
Alarm
Reset
Button
Press
to go back
to the main
screen
2. To change the ventilation mode, press
3. To reach AVAPS screen, press
4. To set AVAPS feature, press
5. To reach IPAP screen, press
6. To change IPAP setting, press
.
or .
.
or .
7. To reach the EPAP screen, then the breath rate, the
inspiratory time... etc, repeat this key combination.
> To come back to the main screen at any time: Press
> To start ventilation: Press on/off button
or .
