Philips XL490, XL495 User Manual

Always there to help you
Question?
Philips
Register your product and get support at
www.philips.com/support
XL490
XL495
User manual
Contents
Switch between uppercase and
lowercase 17
1 Important safety instructions 3
2 Your phone 5
What is in the box 5 Overview of the phone 6 Overview of the base station 7
3 Get started 8
Connect the base station 8 Install the handset 8
Congure your phone (country
dependent) 9
Change the remote access PIN code
(for XL495) 9
Charge the handset 10
Check the battery level 10 What is standby mode? 10 Display icons 10
Check the signal strength 11
Switch the handset on or off 11
4 Calls 12
Make a call 12 Answer a call 12 End a call 13 Adjust the earpiece/speaker volume 13 Mute the microphone 13 Turn the speaker on or off 13 Make a second call 13 Answer a second call 13 Switch between two calls 13 Make a conference call with the
external callers 14
5 Intercom and conference calls 15
Make a call to another handset 15 Make a conference call 15
7 Phonebook 18
Direct keys 18 Direct access memories 18 View the phonebook 18 Search a record 18 Call from the phonebook 19
Access the phonebook during a call 19
Add a record 19 Edit a record 19 Delete a record 19 Delete all records 20
8 Call log 21
Call list type 21 View the call records 21 Save a call record to the phonebook 21 Return a call 21 Delete a call record 22 Delete all call records 22
9 Redial list 23
View the redial records 23 Save a redial record to the phonebook 23 Redial a call 23
Access the redial list during a call 23
Delete a redial record 23 Delete all redial records 23
10 Phone settings 24
Sound settings 24
Eco mode 25 ECO+ mode 25
Name the handset 26
Set the date and time 26
Set the display language 26
Auto answer 26 Set the handset LED indicator behavior 27
6 Text and numbers 17
Enter text and numbers 17
11 Alarm clock 28
Set the alarm 28 Turn off the alarm 28
1EN
12 Telephone answering machine 29
Turn the answering machine on or off 29
Family notes 29
Set the answering machine language 29
Set the answer mode 30 Announcements 30
Incoming messages 30
Remote access 32
13 Services 34
Call list type 34 Auto conference 34
Call barring 34 Call blocking 35 Network type 36 Auto prex 36
Select the recall duration 36 Dial mode 36 Auto clock 37
Register additional handsets 37 Unregister the handsets 37 Restore default settings 38
14 Technical data 39
15 Notice 40
Declaration of conformity 40
Use GAP standard compliance 40
Compliance with EMF 40 Disposal of your old product and battery 40
16 Appendix 42
Text and number input tables 42
17 Frequently asked questions 44
18 Index 46
2 EN
1 Important safety
instructions
Power requirements
This product requires an electrical supply of 100-240 volts AC. In case of power failure, the communication can be lost.
The voltage on the network is classied
as TNV-3 (Telecommunication Network Voltages), as dened in the standard EN
60950.
Handsfree activation could suddenly increase the
volume in the earpiece to a very high level: make sure
the handset is not too close to your ear.
This equipment is not designed to make emergency
calls when the power fails. An alternative has to be
made available to allow emergency calls.
Do not allow the product to come into contact with
liquids.
Do not use any cleaning agents containing alcohol,
ammonia, benzene, or abrasives as these may harm
the set.
Do not expose the phone to excessive heat caused by
heating equipment or direct sunlight.
Do not drop your phone or allow objects to fall on
your phone.
Active mobile phones in the vicinity may cause
interference.
Warning
The Electrical network is classied as hazardous. The
only way to power down the charger is to unplug the
power supply from the electrical outlet. Ensure that the electrical outlet is always easily accessible.
To avoid damage or malfunction
Caution
Use only the power supply listed in the user
instructions.
Use only the batteries listed in the user instructions.
Risk of explosion if battery is replaced by an incorrect
type.
Dispose of used batteries according to the instructions.
Do not dispose of batteries in re.
Always use the cables provided with the product.
Do not allow the charging contacts or the battery to
come into contact with metal objects.
Do not let small metal objects come into contact with
the product. This can deteriorate audio quality and
damage the product.
Metallic objects may be retained if placed near or on
the handset receiver.
Do not use the product in places where there are
explosive hazards.
Do not open the handset, base station or charger as
you could be exposed to high voltages.
For pluggable equipment, the socket-outlet shall
be installed near the equipment and shall be easily accessible.
About operating and storage temperatures
Operate in a place where temperature is
always between 0°C to +40°C (up to 90%
relative humidity).
Store in a place where temperature is
always between -20°C and +45°C (up to 95% relative humidity).
Battery life may be shorter in low temperature conditions.
3EN
4 EN
2 Your phone
Congratulations on your purchase and welcome to Philips! To fully benet from the support that Philips offers, register your product at www.philips.
com/welcome.
What is in the box
Handset**
Base station (XL490)
Power adapter**
Line cord*
Guarantee
User manual
Base station (XL495)
Charger**
4XLFNVWDUWJXLGH
Quick start guide
Note
* In some countries, you have to connect the line
adapter to the line cord, then plug the line cord to the
telephone socket.
Tip
** In multi-handset packs, there are additional handsets
and chargers and power adapters.
5EN
Overview of the phone
p
o n m
l k j
a Earpiece b
• Scroll up on the menu.
• Increase the earpiece/speaker volume.
• Access the phonebook in standby mode.
c
Delete text or digits.
• Cancel operation.
• Access the redial list in standby mode.
Change the sound prole during a call.
d
• End the call.
• Exit the menu/operation.
Press and hold to switch the handset
on or off.
e m1/m2/m3
a
b c d e
f g h i
q
r
Store the emergency phone numbers or
numbers you call frequently.
f
Press to enter a space during text editing.
Press and hold to lock/unlock the keypad in standby mode.
g
Press and hold to enter a pause when making a call.
Switch to upper/lower case during editing.
h
• Mute or unmute the microphone.
• Access to the answer machine menu in
standby mode (for XL495 only).
Listen to new messages from the answering machine (for XL495 only).
i Microphone j
Activate/deactivate audio boost in earpiece or handsfree mode.
k
• Turn the speaker phone on/off.
Make and receive calls through the speaker.
l
Press and hold to make an intercom call (for multi-handset version only).
Change the dial mode (from pulse mode to temporary tone mode).
m
• Scroll down on the menu.
• Decrease the earpiece/speaker volume.
Access the call log in standby mode.
n
• Make and receive calls.
Recall key (This function is network dependent.)
6 EN
o
• Access the main menu in standby mode.
Conrm selection.
• Enter the options menu.
• Select the function displayed on the handset screen directly above the key.
p LED indicator
View events or charging status.
q Loudspeaker r Battery door
Overview of the base station
XL490
a
c
Turn the answering machine on or off.
d
Delete the current playback message.
Press and hold to delete all old
messages.
e /
Decrease/increase the speaker volume.
f /
Skip backward/forward during playback.
g
Play messages.
Stop messages playback.
a
Press to nd handsets.
Press and hold to enter the registration mode.
XL495
a
Press to nd handsets.
Press and hold to enter the registration mode.
b Speaker
a b c d e f g
7EN
3 Get started
Caution
Make sure that you have read the safety instructions in
the 'Important safety instructions' section before you connect and install your handset.
Connect the base station
Warning
Risk of product damage! Ensure that the power supply
voltage corresponds to the voltage printed on the back
or the underside of the phone.
Use only the supplied power adapter to charge the
batteries.
Note
If you subscribe to the digital subscriber line (DSL) high
speed internet service through your telephone line, ensure you install a DSL lter between the telephone line cord and the power socket. The lter prevents
noise and caller ID problems caused by the DSL
interference. For more information on the DSL lters,
contact your DSL service provider.
The type plate is located on the bottom of the base
station.
3 Connect each end of the power adapter
to (for multi handset version only):
• the DC input jack at the bottom of the
extra handset charger.
• the power socket on the wall.
1 Connect each end of the power adapter
to:
• the DC input jack at the bottom of the base station;
• the power socket on the wall.
2 Connect each end of the line cord to:
• the telephone socket at the bottom of the base station;
• the telephone socket on the wall.
8 EN

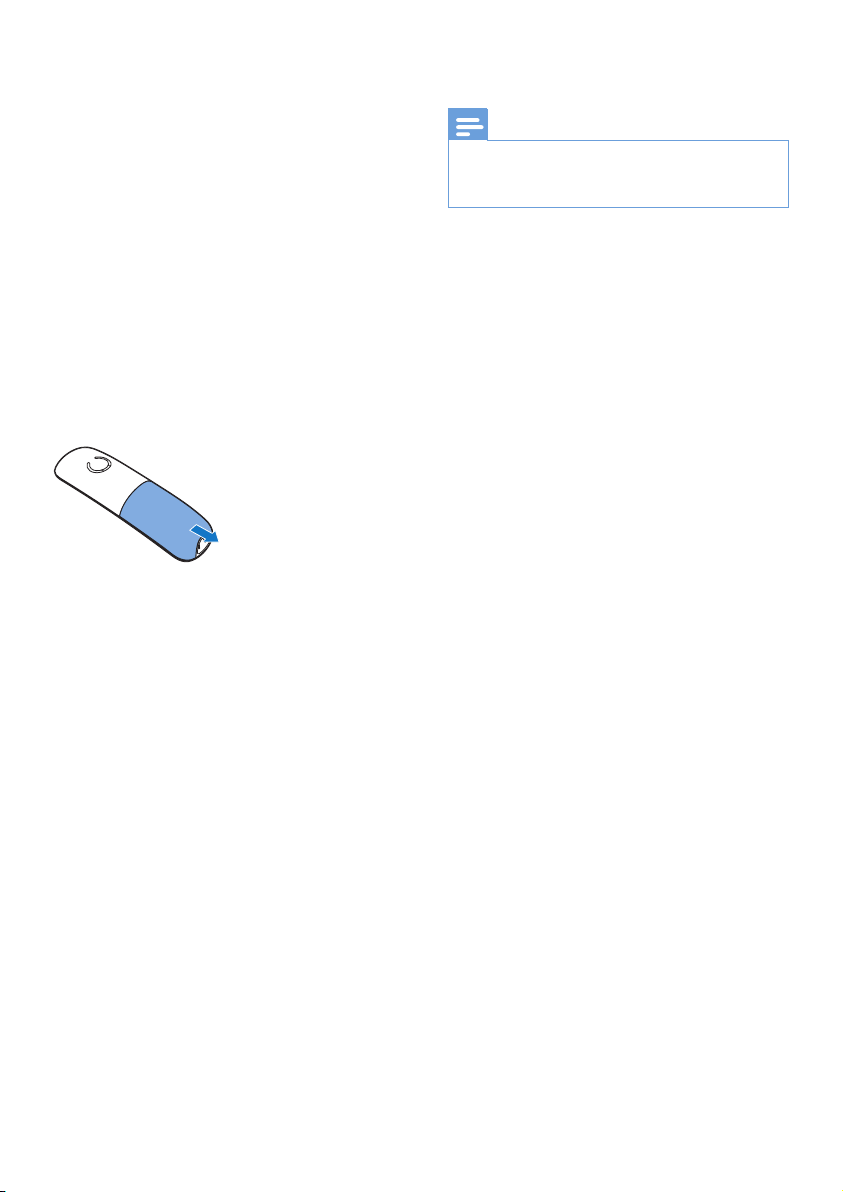

Install the handset
The batteries are pre-installed in the handset.
Pull the battery tape off from the battery door before charging.
Caution
Risk of explosion! Keep batteries away from heat,
sunshine or re. Never discard batteries in re.
Use only the supplied batteries.
Risk of decreased battery life! Never mix different
brands or types of batteries.
Note
Charge the batteries for 8 hours before rst use.
If the handset becomes warm when the batteries are
charging, it is normal.
Warning
Check the battery polarity when inser ting in the
battery compar tment. Incorrect polarity may damage
the product.
Congure your phone
(country dependent)
1 When using your phone for the rst time,
you see a welcome message.
2 Press [OK].
Set the country/language
Select your country/language, then press [OK] to conrm.
» The country/language setting is saved.
Note
The country/language setting option is country
dependent. If no welcome message is displayed, it means the country/language setting is preset for your
country. Then you can set the date and time.
To re-set the language, see the following steps.
1 Select [Menu] > [Phone setup] >
[Language], then press [OK] to conrm.
2 Select a language, then press [OK] to
conrm.
» The setting is saved.
Set the date and time
1 Select [Menu] > [Phone setup] > [Date &
time], then press [OK] to conrm.
2 Press the numeric buttons to enter the
date, then press [OK] to conrm.
» The time setting menu is displayed on
the handset.
3 Press the numeric buttons to enter the
time.
• If the time is in 12-hour format, press / to select [am] or [pm]
(Country dependent).
4 Press [OK] to conrm.
Change the remote access PIN code (for XL495)
Note
This feature is available only for models with answering
machine.
The default answering machine remote access PIN
code is 0000 and it is important to change it to ensure
the security.
1 Select [Menu] > [Answ. Machine] >
[Remote access] > [Change PIN], then
press [OK] to conrm.
9EN
2 Enter the old PIN, then press [OK] to
conrm.
3 Enter the new PIN code, then press [OK]
to conrm.
4 Enter the new PIN code again, then press
[Save] to conrm.
» The setting is saved.
Charge the handset
Place the handset on the base station to charge the handset. When the handset is
placed correctly on the base station, you hear a
docking sound.
» The handset starts charging.
Note
Charge the batteries for 8 hours before rst use.
If the handset becomes warm when the batteries are
being charged, it is normal.
When the handset is off the base station, the bars indicate the
battery level (full, medium and
low). When the handset is on the base
station/charger, the bars ash until charging is complete.
The empty battery icon ashes.
The battery is low and needs
recharging.
The handset turns off if the batteries are empty.
If you are on the phone, you hear warning
tones when the batteries are almost empty. The
call gets disconnected after the warning.
What is standby mode?
Your phone is in standby mode when it is idle. The handset name, date and time, and handset number are displayed on the standby screen.
You can activate or deactivate the docking tone (see 'Set the docking tone' on page 25). Your phone is now ready to use.
Check the battery level
The battery icon displays the current battery level.
10 EN
Display icons
In standby mode, the icons shown on the main screen tell you what features are available on your handset.
Icon Descriptions
When the handset is off the base
station/charger, the bars indicate the battery level (from full to low).
When the handset is on the base
station/charger, the bars keep scrolling until charging is complete.
The empty battery icon ashes and
you hear an alert tone. The battery is low and needs
recharging.
It shows the connection status between the handset and base station. The more bars are shown, the better
the signal strength is.
It remains steadily on when browsing incoming calls in the call log.
It remains steadily on when browsing outgoing calls in the redial list.
It ashes when there is a new missed call or when browsing unread missed calls in call log. It remains steadily on when browsing the read missed calls in call log.
It remains steadily on when browsing blocked calls in call log.
It ashes when receiving incoming call.
It remains steadily on when you are in a call.
The speaker is on.
The ringer is off.
The silent mode is set and within active period
(the phone does not ring). Answering machine (XL495 only):
it ashes when there is a new message or when the memory is full.
It is displayed when the telephone
answering machine is turned on. It ashes when there is a new voice
message.
It remains steadily on when the voice
messages are already viewed in the call log.
The icon is not shown when there is
no voice message.
The silent mode is set, but is outside of active period.
The alarm is activated.
It is displayed when you adjust the
/
volume.
ECO The Eco mode is activated. ECO+ The ECO+ mode is activated.
Check the signal strength
The number of bars indicates the connection status between the handset and base station. The more bars are shown, the better the connection is.
Make sure the handset is connected to the base station before you make or receive calls and carry out the phone functions and features.
If you hear warning tones when you are on the phone, the handset is almost out
of battery or the handset is out of range. Charge the battery or move the handset
nearer to the base station.
Note
When ECO+ is on, the signal strength is not displayed.
Switch the handset on or off
Press and hold to switch the handset on or off.
11EN
4 Calls
Note
When the power fails, the phone cannot access
emergency services.
Tip
Check the signal strength before you make a call or
when you are in a call (see 'Check the signal strength' on page 11).
Call through the direct key
You can make a quick call from the record pre-
saved in the direct key in the following ways:
Press m1, m2 or m3 in standby mode, then press or to dial out the number.
Press or to get the dial tone rst. Then press m1, m2 or m3 to display the record content. Then press [OK] to dial out the number.
Tip
For information of how to set the direct keys, see the
chapter 'Phonebook', section 'Direct keys'.
Make a call
You can make a call in these ways:
Normal call.
Predial call.
Call through the direct keys
You can also make a call from the redial list (see
'Redial a call' on page 23), phonebook list (see 'Call from the phonebook' on page 19) and call log (see 'Return a call' on page 21).
Normal call
1 Press or . 2 Dial the phone number.
» The number is dialed out. » The duration of your current call is
displayed.
Predial call
1 Dial the phone number
To erase a digit, press [Clear].
• To enter a pause, press and hold .
2 Press or to dial out the call.
Note
The talk time of your current call is displayed on the
call timer.
If you hear warning tones, the phone is almost out of
battery or out of range. Charge the battery or move
the phone close to the base station.
Answer a call
When the phone rings, you can select from the following options:
press or to answer the call.
pick up the phone from the base station
(or from the charger) to answer the call
when you have activated the auto answer feature (see 'Auto answer' on page 26).
Warning
When the handset rings or when the handsfree is
activated, keep the handset away from your ear to
avoid ear damage.
Note
The caller ID service is available if you have registered
to the caller ID service with your service provider.
12 EN
Tip
When there is a missed call, a notication message is
displayed.
Select [Silent] to turn off the ringer of the current
incoming call.
End a call
You can end a call in these ways:
Press ;
Place the handset to the base station
or charging cradle.
Adjust the earpiece/speaker volume
Press / to adjust the volume during a call.
» The earpiece/speaker volume is
adjusted and the phone is back to the call screen.
Mute the microphone
Make a second call
Note
This service is network dependent.
1 Press during a call.
» The rst call is put on hold.
2 Dial the second number.
» The number displayed on the screen is
dialed out.
Answer a second call
Note
This service is network dependent.
When there is a periodical beep to notify you
of an incoming call, you can answer the call in these ways:
1 Press and to answer the call.
» The rst call is put on hold, and you
are now connected to the second call.
2 Press and to end the current call and
answer the rst call.
1 Press during a call.
» [Mute on] is displayed on the handset. » The caller cannot hear you, but you
can still hear his voice.
2 Press again to unmute the microphone.
» You can now communicate with the
caller.
Turn the speaker on or off
Press .
Switch between two calls
Note
This service is network dependent.
You can switch your calls in these ways:
Press and ; o r
Press [Option] and select [Switch calls], then press [OK] again to conrm.
» The current call is put on hold, and you
are now connected to the other call.
13EN
Loading...
+ 35 hidden pages
