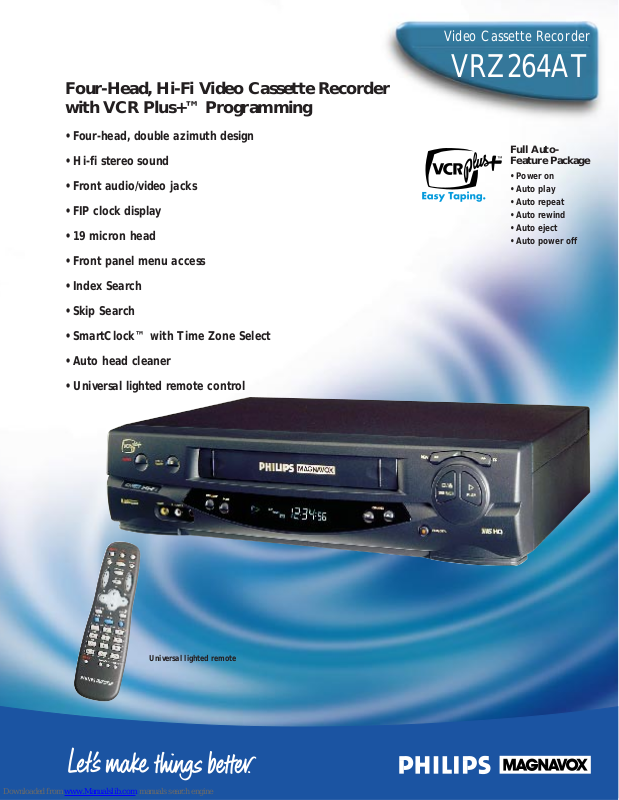

Philips VRZ264AT99 Specifications

Four-Head, Hi-Fi Video Cassette Recorder
with VCR Plus+™ Programming

• Four-head, double azimuth design

• Hi-fi stereo sound

• Front audio/video jacks

• FIP clock display

• 19 micron head

• Front panel menu access

• Index Search

• Skip Search

• SmartClock™ with Time Zone Select

• Auto head cleaner

• Universal lighted remote control

Video Cassette Recorder

VRZ264AT

Full Auto­Feature Package

• Power on

• Auto play

• Auto repeat

• Auto rewind

• Auto eject

• Auto power off

Universal lighted remote

Video Cassette Recorder

VRZ264AT

Programming & Record/Playback Features

Hi-Fi Stereo Sound with Built-In MTS/SAP Decoder

Record stereo videotapes from stereo sound sources and playback
pre-recorded hi-fi stereo tapes in hi-fi stereo sound–with an excellent
90dB+ dynamic range–through a stereo-equipped TV or regular TV and
stereo hi-fi home audio system. The built-in MTS/SAP decoder allows
reception and recording of off-air television stereo broadcasts and second
audio program transmissions, where available. Back-up memory logic
retains the cable channel guide map indefinitely even during a power failure
or when the VCR is disconnected from its power source.

VCR Plus+™ Programming

Simplifies VCR programming by allowing you to simply enter PlusCode

®

programming numbers found in many published television listings. When
recording begins, your VCR automatically selects the proper TV channel
and program length. Back-up memory logic retains the cable channel
guide map indefinitely even during a power failure or when the VCR is
disconnected from its power source.

One-Touch Record

Record up to 8 hours or to the end of the tape with the touch of a sin­gle button. Each touch of the OTR button adds 30 minutes of additional
recording time.

8-Event/1-Year Smart Programming
Remote Control Onscreen Menu Programming


SQPB (S-VHS Quasi-Playback)

A revolutionary video playback technology that allows you to watch
videotapes recorded in the S-VHS (Super-VHS) mode. Now you too can
enjoy the videos that your Uncle made at the last family reunion without
buying expensive S-VHS equipment.

Incredible Picture™

For picture detail that’s so real, you’ll think you’re a member of the cast!
The menu-selectable Incredible Picture settings boost picture detail
beyond average, all the way to incredible! Choose from NORMAL,
VIDEO ENHANCER, or INCREDIBLE PICTURE modes.

4-Head, Double Azimuth Design

Combines direct drive cylinder and capstan motors with precision digital
servo control to produce excellent special effects reproduction–Still,
Slow, and with the appropriate remote control, Frame Advance, Variable
Slow Motion and x2 Play–in both SP and SLP speeds.

19 Micron Head
Digital Auto Tracking System
Auto Head Cleaner

Convenience

SmartClock™

This menu-driven feature automatically maintains the correct time, regu­larly checking and updating the time if necessary. It also resets the clock
after a power failure. The menu-driven time zone feature allows selection
of appropriate time for those who live in a time zone other than that of
their CATV service provider.

Daylight Savings Time Adjustment

This menu-driven feature automatically compensates for Daylight Savings
Time changes in early April and late October so you don’t have to reset
the clock twice a year. Simply activate the Daylight Savings Time option
in the Set Clock menu and forget it!

Automatic Channel Setup

The VCR tuner scans through television frequencies, automatically
storing active broadcast channel into memory. Then, only active channels
programmed into memory are tuned using the CHANNEL ▲ ▼ buttons on
either the remote or front panel of the VCR. Automatic channel preset can
be repeated whenever desired, should new channels become available.
Channels can be manually added or deleted.

Front Panel Audio/Video Inputs

Provide added convenience to the user when recording tapes directly from a
camcorder to the VCR. In addition, accessory video equipment such as a video
game or Web browser can be connected for direct playthrough to the TV set.

181-Channel FS Tuning
Clock/Function Display
Trilingual (English/Spanish/French) Onscreen Function Display
Onscreen Real-Time Counter
Timer/Programmer Back-up System
Repeat Play
Quick Start Mechanism
Audio/Video Input/Output Jacks

Special Effects

Variable Slow Motion

View SP or SLP video recordings in slow motion in both forward and
reverse modes. Slow motion speed can be adjusted from 1/5th to 1/60th
normal speed in either direction.

21x Forward/Reverse Latching Search

Search in forward or reverse mode at 21 times normal playing speed in SLP,
and 7 times normal in SP. The Latching Search feature provides continuous
forward or reverse search with a single touch of the control. A second
touch stops the search operation and returns the unit to the Play mode.

Skip Search
x2 Play
Index Search

Remote Control

Universal LIghted Remote

Full Auto-Feature Package

• Power On

• Digital Auto Tracking

• Auto Play

• Auto Repeat

• Auto Rewind

• Auto Eject

• Auto Power Off

UPC: 0378498869857
Product Dimensions: 15.8"W x 3.7"H x 10.4"D
Product weight: 8 lbs. approx.
Carton Dimensions: 19.6"W x 7.3"H x 14.0"D
Carton Weight: lbs.
Master Pack: 1

Contains: 4-Head, Hi-fi Stereo Video Cassette Recorder, Unified Infrared Remote Control
w/Batteries, RF Coaxial Cable, Operating Instructions, Warranty Information

Printed in U.S.A.
©1998 Philips Consumer Electronics Co.
A Division of Philips Electronics North America Corp.
KID Design 97584, Philips Consumer Electronics Co.

Subject to modification without notice

* SmartClock and Incredible Picture are trademarks of

Philips Consumer Electronics.
VCR Plus+ and PlusCode are trademarks of Gemstar Development
Corporation. The VCR Plus+ system is manufactured under license from
Gemstar Development Corp.
