Page 1

Owner’s Manual

Important!

Return your Warranty Registration

Card within 10 days. See why inside.

Video Cassette Recorder

VRZ220AT VRZ250AT

VRZ220/250 layout 4/8/99 10:11 PM Page 1

Page 2

Once your PHILIPS MAGNAVOX purchase is registered, you’re eligible to receive all the privileges of owning a PHILIPS MAGNAVOX product. So complete and return the Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.

Return your Warranty Registration card today to

ensure you receive all the

benefits

you’re entitled to.

For Customer Use

Enter below the Serial No. which is located on the rear of the cabinet. Retain this information for future reference.

Model No. ______________ Serial No. ______________

Congratulations on your purchase, and welcome to the “family!”

Dear PHILIPS MAGNAVOX product owner:

Thank you for your confidence in PHILIPS MAGNAVOX. You’ve selected one of the best-built, best-backed products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come. As a member of the PHILIPS MAGNAVOX “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry. What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network. And most importantly you can count on our uncompromising commitment to your total satisfaction. All of this is our way of saying welcome-and thanks for investing in a PHILIPS MAGNAVOX product.

Sincerely,

Robert Minkhorst President and Chief Executive Officer

P.S. Remember, to get the most from your PHILIPS

MAGNAVOX product, you must return your Warranty Registration Card within 10 days. So please mail it to us right now!

Know these

safetysymbols

This “bolt of lightning” indicates

uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The “exclamation point” calls

attention to features for which

you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert.

ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Hurry!

Warranty Verification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your PHILIPS MAGNAVOX warranty.

Owner Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

Model Registration

Returning your Warranty Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model.

Visit our World Wide Web Site at http://www.philipsmagnavox.com

VRZ220/250 layout 4/8/99 10:11 PM Page 2

Page 3

Introduction 3

Features

• Automatic Channel Setup

• Automatic Head Cleaner

• Automatic Operation Features

• Automatic Tracking Adjustment

• Daylight-Saving Time

• Display Panel

• Hi-Fi Stereo Sound System (VRZ250 only)

• High Quality (HQ) System

• MTS (Multi-Channel Television Sound) System (VRZ250 only)

• On-Screen Displays in English or Spanish

• One-Touch Recording

• Real-Time Counter

• Repeat Play

• Special Effects Playback: Forward and Reverse Searching; Still; Slow Motion (VRZ250 only)

• Time Search (VRZ250 only)

• Timer Recording

Safety Precautions

Warning: To prevent fire or shock hazard, do not expose this equipment to rain or moisture. Federal Communications Commission Warning: Any unauthorized changes or modifications to this equipment void the user’s authority to operate it.

This VCR is equipped with a High Quality (HQ) system and is compatible with existing Video Home System (VHS) equipment. Philips Consumer Electronics Company recommends that you use only video cassette tapes that have been tested and inspected for use in two, four, six, and eight hour VCRs, and which are labeled with the mark. The use of tapes that have not been inspected for use in two, four, six, and eight hour VCRs may result in poor picture quality and excessive deposits on the video heads, which may not be covered by the warranty if damage occurs.

Note to the Cable TV System Installer: This reminder is provided to call the Cable TV system installer’s attention to Article 820-40 of the National Electrical Code, which provides guidelines for proper grounding – in particular, specifying that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as possible.

Welcome to your VCR owner’s manual.

This manual describes the VRZ220 and the VRZ250. The VRZ220 is a two-head, monaural (single sound source) system, while the VRZ250 is a four-head, stereo system. The VRZ250 can play tapes in Slow Motion and perform a Time Search; the VRZ220 can not. Otherwise, the two models are exactly the same. In this manual, the VRZ250 is illustrated. (The VRZ220 has single AUDIO IN/OUT Jacks. Also, the VRZ220 remote control does not have the SLOW button and the TIME SEARCH button. Otherwise, the VRZ220 looks exactly like the VRZ250.) This manual has seven sections: Setting Up Your VCR; Description of Controls; Basic Operations; Recording; Playing; Stereo Features; and Information You May Need. The instructions explain all of the VCR’s features, which are listed below. You cannot hurt your VCR by trying the features! So read on – and relax.

• Your new product and its packaging contain materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount that needs to be properly disposed. Your product uses batteries that should not be thrown away when depleted but should be disposed of as small chemical waste. Please find out about the local regulations on disposal of your old product, batteries, and packaging whenever you replace existing equipment.

Helpful Hint

VRZ220/250 layout 4/8/99 10:11 PM Page 3

Page 4

4 Table of Contents

Setting Up Your VCR

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Before Using Your VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Hookups Without a Cable Box/Direct Broadcast System . . . . . . . . . . . . . . . . . . . . . .6-7

Hookups With a Cable Box/Direct Broadcast System . . . . . . . . . . . . . . . . . . . . . . . . .8-9

Hookups With a Stereo TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Turning on Your VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Automatic Channel Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-14

Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Daylight-Saving Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Language Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Description of Controls

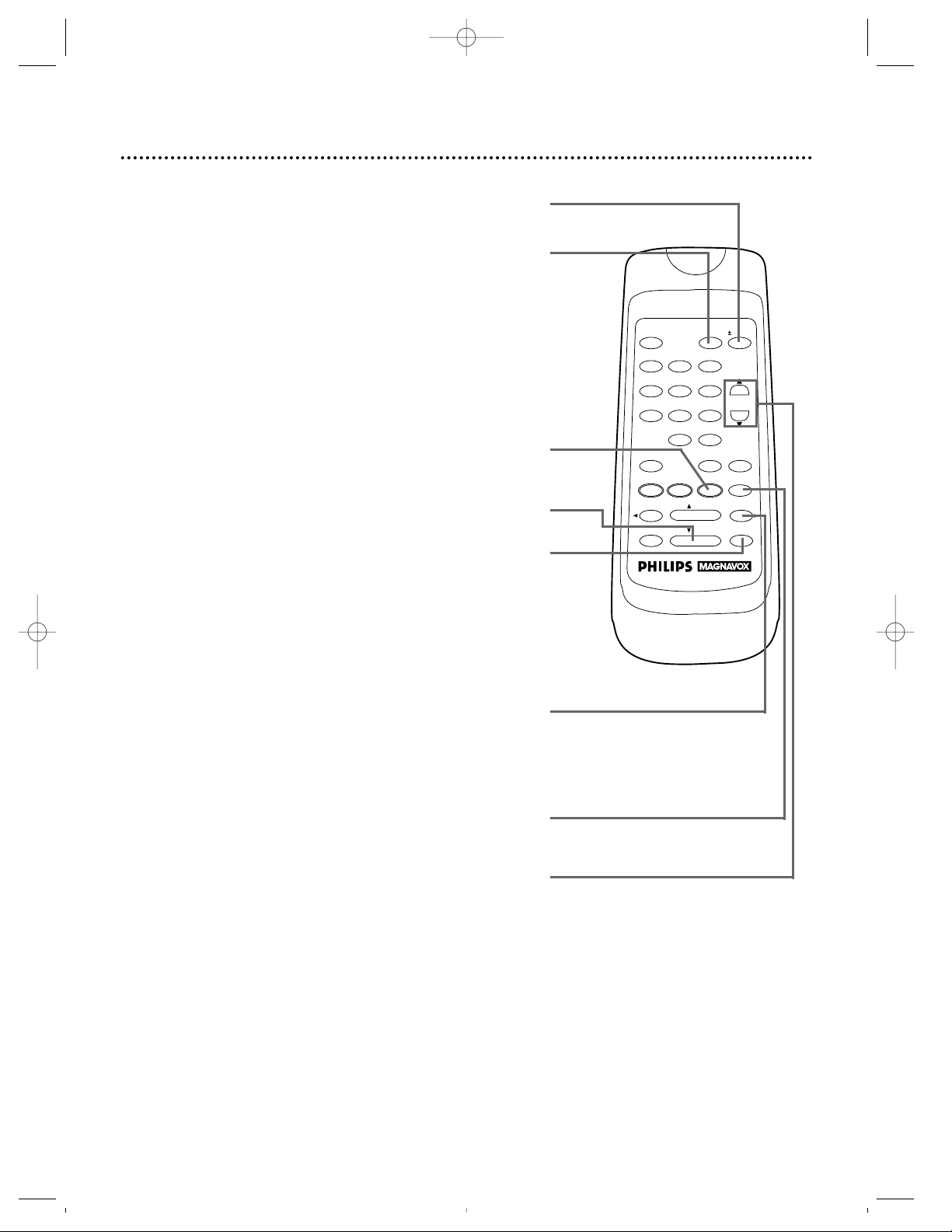

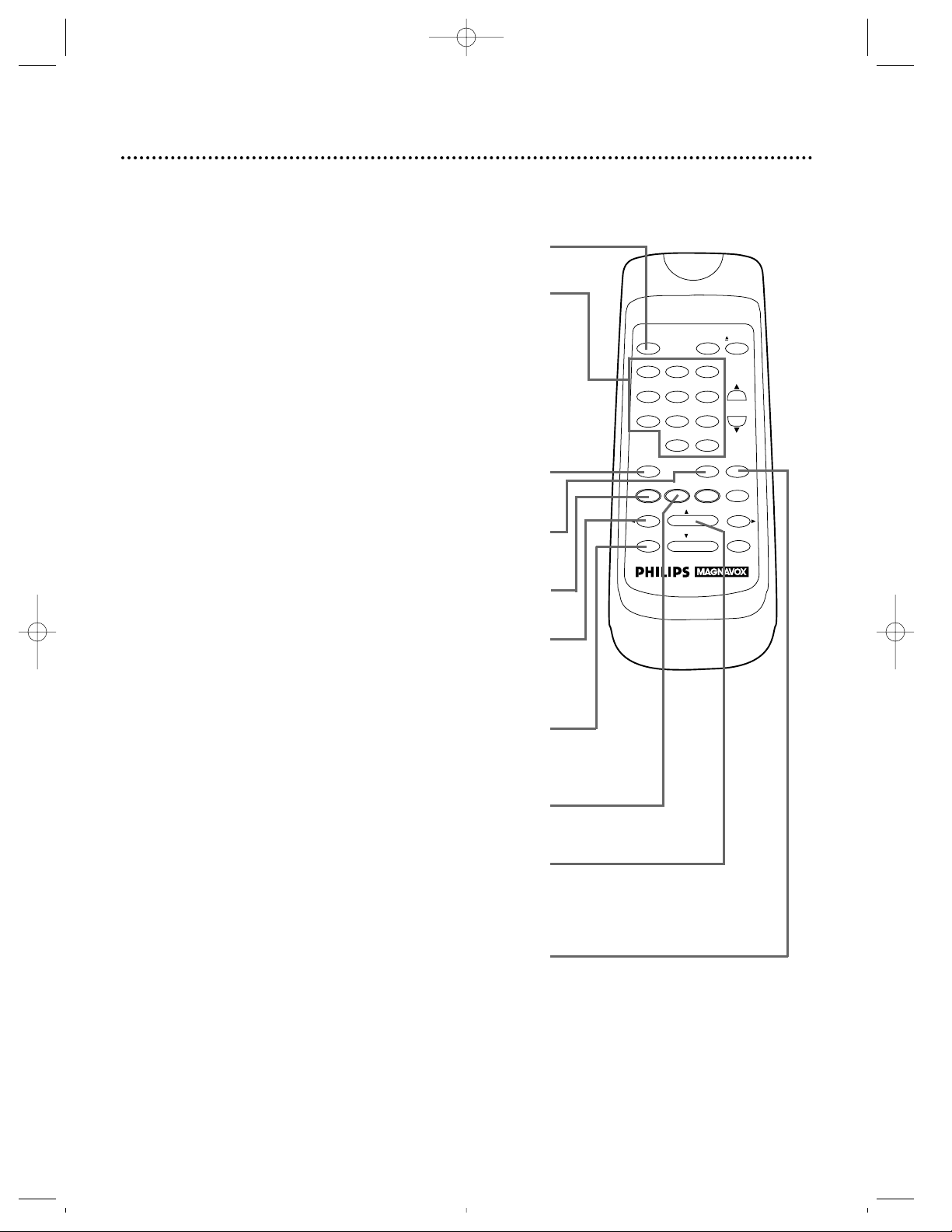

Remote Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-19

On-Screen Status Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

VCR Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

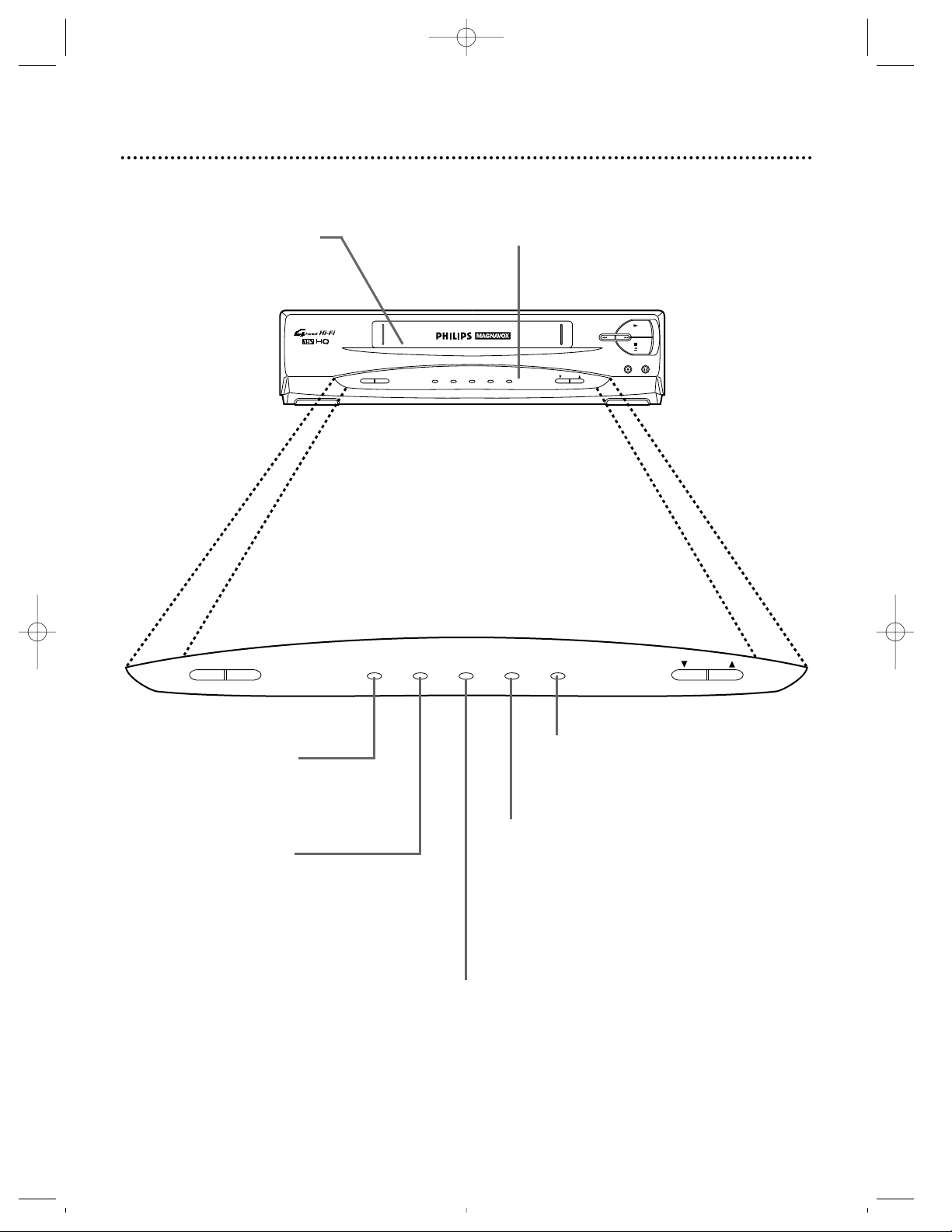

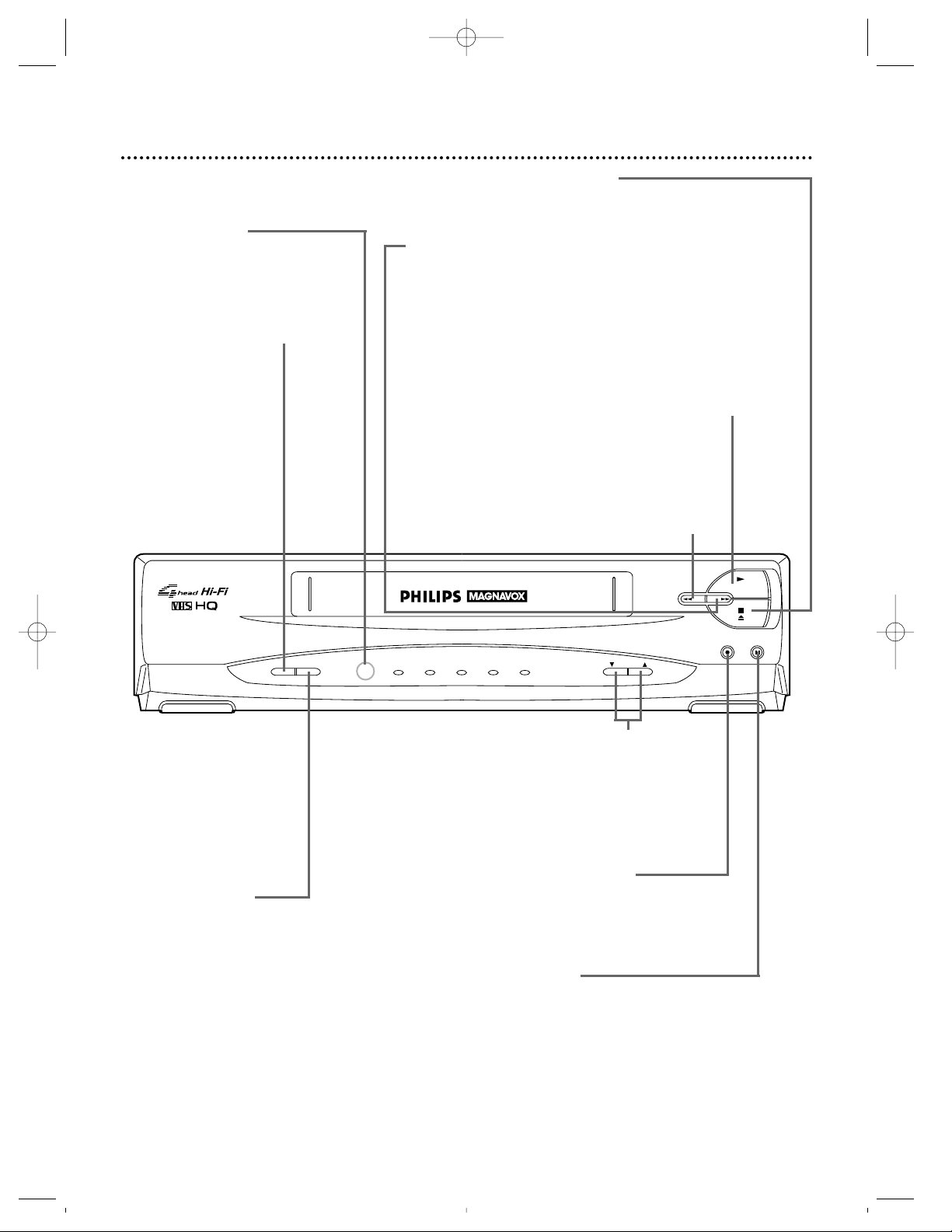

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

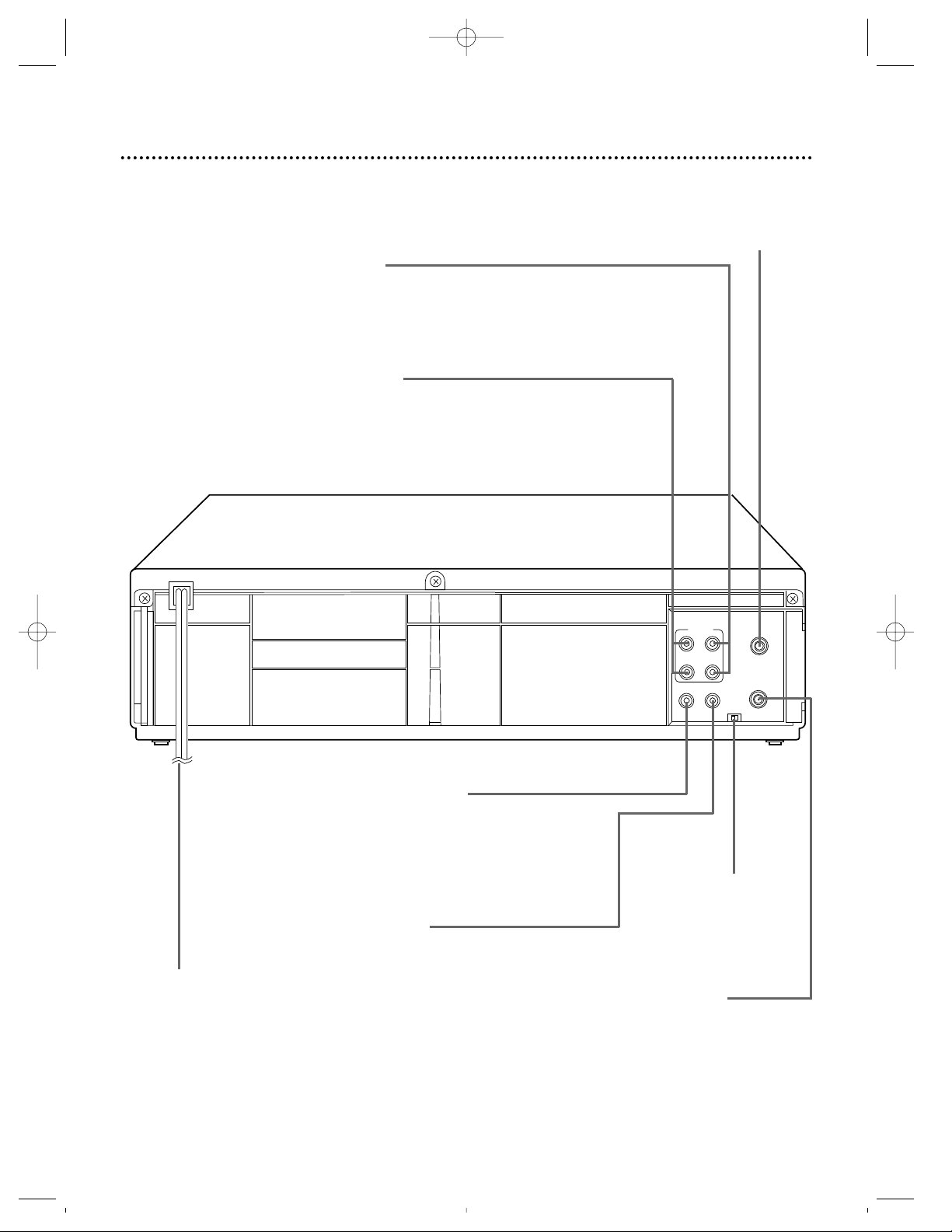

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Basic Operations

Playing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Recording

Recording One Channel/Watching Another . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

One-Touch Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-31

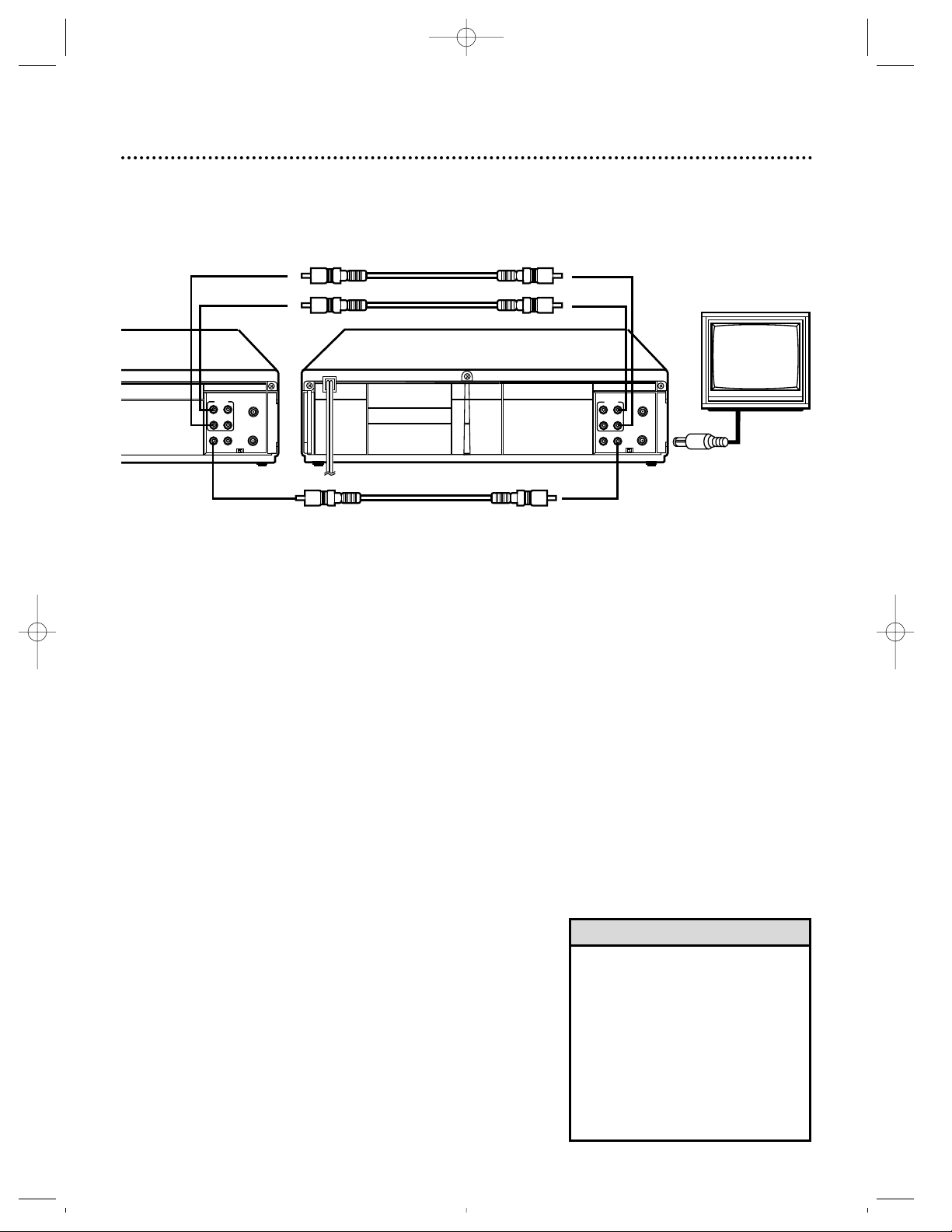

Rerecording (Tape Duplication) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Playing

Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Time Search (VRZ250 only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Real-Time Counter Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Special Effects Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Automatic Operation Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Stereo Features (VRZ250 only)

Multi-Channel Television Sound System (VRZ250 only) . . . . . . . . . . . . . . . . . . . . . .38-39

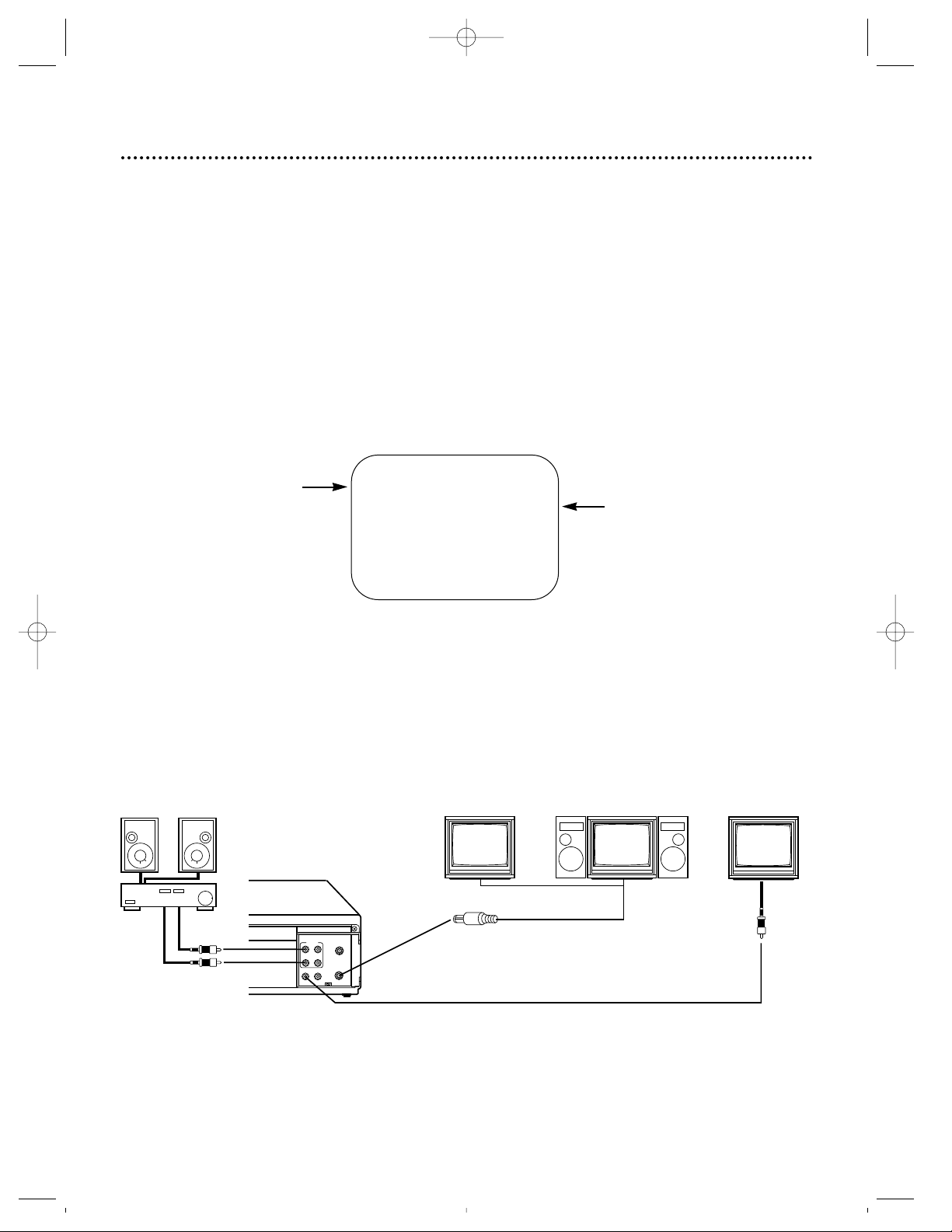

Hi-Fi Stereo Sound System (VRZ250 only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40-41

Information You May Need

Helpful Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42-43

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

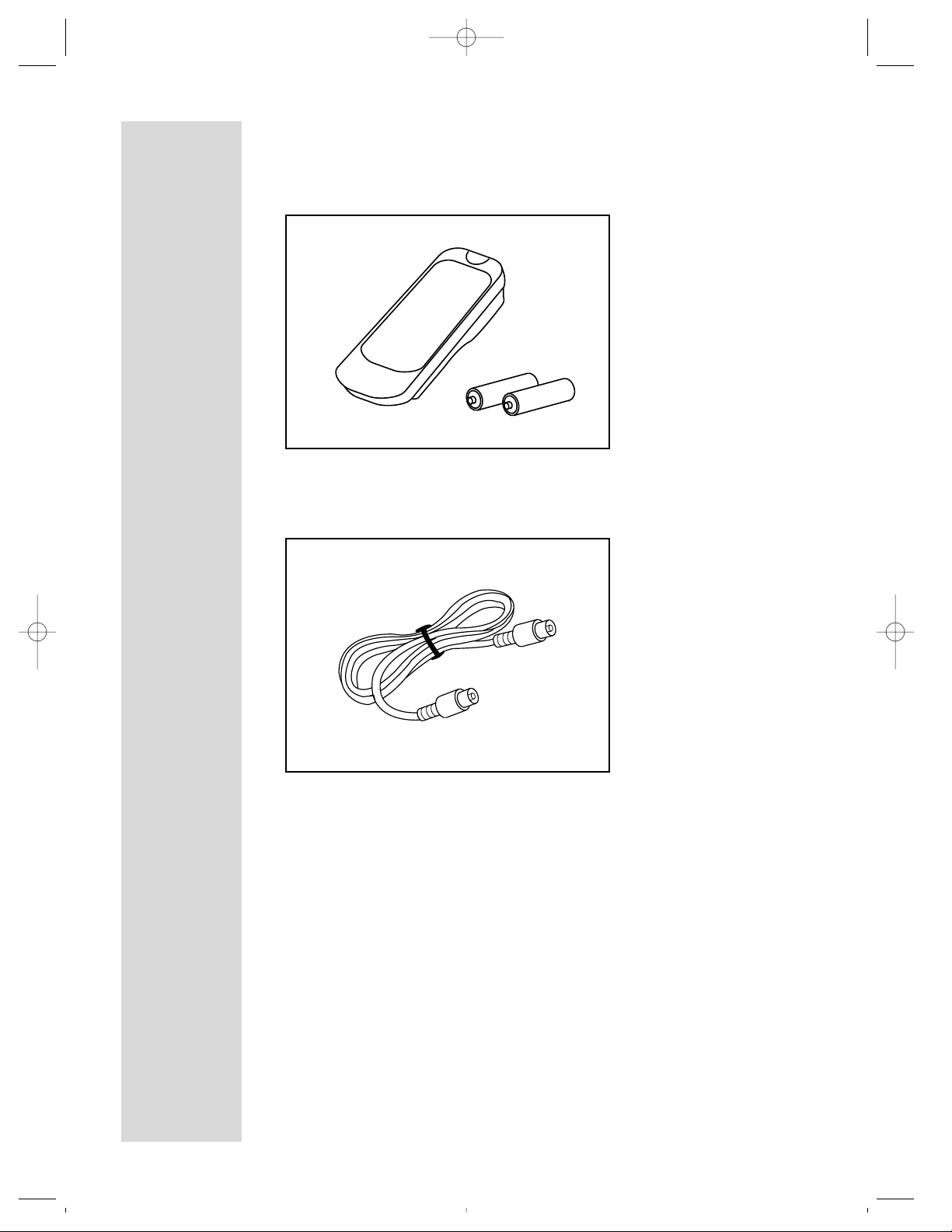

Supplied Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

VRZ220/250 layout 4/8/99 10:11 PM Page 4

Page 5

● Use only tapes with the mark.

● Remove any light adhesive stick-on notes from the video cas-

sette tape before putting the tape in the VCR. Removable labels can jam the VCR.

● Periodic maintenance is required to maintain your VCR’s excel-

lent performance. This VCR has an Automatic Head Cleaner. However, the video heads will require replacement eventually. Only an authorized service center should perform this service.

Before Using Your VCR 5

Putting Batteries in the Remote Control

Remove the battery compartment lid on the bottom of the

remote control by sliding it in the direction of the arrow.

Place two AA batteries inside the battery compartment

with their +and –ends aligned as indicated.

Replace the battery compartment lid.

• Do not mix alkaline and manganese batteries.

• Do not mix old and new batteries.

Helpful Hints

Using the Remote Control

● Point the remote control at the VCR’s remote sensor (see page

22) when using the remote control to operate the VCR.

● Do not put objects between the remote control and the VCR.

VCR maintenance

Video cassette tapes have record tabs to ensure that recordings are not accidentally erased.

To prevent erasure, break off the tab with a screwdriver.

To record again, cover the hole with cellophane tape.

Erasure Prevention

1 2

Removing the Plastic Cover from the Front Panel

A thin, plastic cover may protect the front panel of your VCR. Before using the VCR, lift a corner of the plastic, then peel it off.

1 2

VRZ220/250 layout 4/8/99 10:11 PM Page 5

Page 6

75V ANT /

CABLE

75V

ANT /

CABLE

6 Hookups Without a Cable Box / Direct Broadcast System

The basic VCR/TV connection – antenna/cable to VCR to TV – is shown below. If you have a Cable Box or a Direct Broadcast System, please see pages eight-nine. If you have a Stereo TV, please see page 10. After you hook up the VCR, go to page 11 to turn on the VCR. (The VRZ250 is illustrated here. The VRZ220 has single AUDIO IN/OUT Jacks.)

ANTENNA IN

Jack

(on back of TV)

Cable

(75 ohm)

Antenna

Indoor/Outdoor

(300 ohm)

Disconnect the antenna or cable from your TV.

Connect the antenna or cable to the ANT(enna) IN Jack of your VCR.

CH3

CH4

OUT

ANT

AUDIO

VIDEO

OUT

CH3

CH4

OUT

ANT

VIDEO

OUT

AUDIO

Back of VCR

Cable

(75 ohm)

Antenna

Indoor/Outdoor

(300 ohm)

VRZ220/250 layout 4/8/99 10:11 PM Page 6

Page 7

Connect the RF coaxial cable (supplied) to the OUT Jack on the back of the VCR and to the ANTENNA IN Jack on the TV. (You may use either a snap-on

type (supplied) or screw-on type of coaxial cable, whichever you prefer.)

Set the CH3/CH4 switch on the back of the VCR to CH3 or CH4, whichever

channel is not used or least used in your area. Set the TV to the same channel. For example, when playing a tape, if the CH3/CH4 switch is set to CH3, the TV should be on channel 03.

Hookups Without a Cable Box / Direct Broadcast System (cont’d) 7

Plug in the TV and the VCR.

You are ready to turn on the VCR. Please go to page 11 before turning on the VCR.

CH3

CH4

OUT

ANT

CH 4

CH 3

CH3 / CH4

Switch

AUDIO

VIDEO

OUT

CH3

CH4

OUT

ANT

CH3 CH4

VIDEO

OUT

AUDIO

CH3

CH4

OUT

ANT

75V ANT /

CABLE

75V

ANT /

CABLE

CH3

CH4

OUT

ANT

AUDIO

VIDEO

OUT

VIDEO

OUT

AUDIO

RF coaxial cable

Antenna or Cable

ANTENNA IN Jack

(on back of TV)

example only

VRZ220/250 layout 4/8/99 10:11 PM Page 7

Page 8

8 Hookups With a Cable Box / Direct Broadcast System

There are two ways to connect your Cable Box/DBS to the VCR. With this connection:

● You may view any channel.

● You must select channels at the Cable Box/DBS. Channels cannot be changed at the VCR.

● You may not view a channel other than the one you are recording.

● You may not program channels at the VCR.

● You can only program a timer recording for one channel at a time. Set the TV and the VCR to the

Cable Box/DBS output channel (channel 03 or 04), and set your Cable Box/DBS to the channel you want to record. When you enter the channel you want to record in a timer recording, select channel 03 or 04 (the Cable Box/DBS output channel). (This is step 5 on page 29.) Leave the Cable Box/DBS on for a timer recording.

Recording/Viewing Any Channel

Connections

With the VCR on and in VCRposition (the VCR/TV light will appear on the display panel), use the CHANNEL o/p buttons to set the

VCR to the Cable Box/DBS output channel (channel 03 or 04).

Set the TV to the same channel to which you set the VCR.

Select the channel you want to view/record at the Cable Box/DBS.

Connect a Cable signal to the IN Jack on the Cable Box/DBS.

Use an RF coaxial cable (supplied) to connect the OUT Jack on the Cable Box/DBS to the ANT(enna) IN Jack on the VCR.

Use a second RF coaxial cable to connect the OUT Jack on the VCR to the TV’s ANTENNA IN Jack.

VIDEO

OUT

AUDIO

CH3

CH4

OUT

ANT

OUT

75V

ANT /

CABLE

TV’s

ANTENNA IN

Jack

Cable Box/DBS

VCR

Cable Signal

RF coaxial

cable

RF coaxial

cable

VRZ220/250 layout 4/8/99 10:11 PM Page 8

Page 9

Hookups With a Cable Box / Direct Broadcast System (cont’d) 9

With this connection:

● You may watch one channel while recording another.

● You may not record scrambled channels.

Recording One Channel/Watching Another

Put the Cable Box/DBS on the same channel as the VCR’s CH3/CH4 switch. Then, with the VCR in VCR position (the VCR/TV light will appear on the display panel), use the CHAN-

NEL o/p buttons to select the channel you want to record at the VCR. Start the recording.

Press the VCR/TV button once to put the VCR in TV position. (The VCR/TV light will disappear.)

Set the TV to the Cable Box/DBS output channel (03 or

04).

Select the channel you want to watch at the Cable Box/DBS.

• When you play a tape, make sure the Cable Box/DBS is set to the same channel as the CH3/CH4 switch on the VCR. Set the TV to the Cable Box/DBS output channel (03 or 04).

Helpful Hint

Connect a Cable signal to the VCR’s ANT(enna) IN Jack.

Use an RF coaxial cable (supplied) to connect the OUT Jack on the VCR to the IN Jack on the Cable Box/DBS.

Use a second RF coaxial cable to connect the OUT Jack on the Cable Box/DBS to the ANTENNA IN Jack on the TV.

Connections

VIDEO

OUT

AUDIO

CH3

CH4

OUT

ANT

OUT

75V

ANT /

CABLE

TV’s ANTENNA

IN Jack

Cable Box/DBS

VCR

Cable Signal

RF coaxial

cable

RF coaxial

cable

VRZ220/250 layout 4/8/99 10:11 PM Page 9

Page 10

10 Hookups With a Stereo TV

VIDEO

OUT

AUDIO

CH3

CH4

OUT

ANT

Connect the antenna or cable to the ANT(enna) IN Jack on the back of the VCR.

Connect a video cable (not supplied) to the yellow VIDEO OUT Jack on the back of the VCR. Then, connect the other end of the video cable to the VIDEO IN Jack on your TV.

Turn on your TV, making sure it is in Line Input mode. Please refer to your TV

owner’s manual for details.

Video Cable

Audio Cable

VIDEO

OUT

CH3

CH4

AUDIO

OUT

ANT

antenna or cable

Video Cable

Audio Cable

3VRZ220

Connect an audio cable (not supplied) to the white AUDIO OUT Jack on the back of the VCR. Then, connect the other end of the audio cable to the AUDIO IN Jack on your TV.

If your TV has Right and Left AUDIO IN Jacks, you must use a “Y” splitter audio cable as illustrated to deliver audio to the TV’s right and left channels. This hookup will not give you stereo sound. To get stereo sound, use the connections on pages six-seven and select the channel to be viewed at the TV (with the VCR turned off).

3VRZ250

Connect an audio cable (not supplied) to the red and white AUDIO OUT Jacks on the back of the VCR. Then, connect the other end of the audio cable to the AUDIO IN Jacks on your TV.

VRZ220

VRZ250

VRZ220/250 layout 4/8/99 10:11 PM Page 10

Page 11

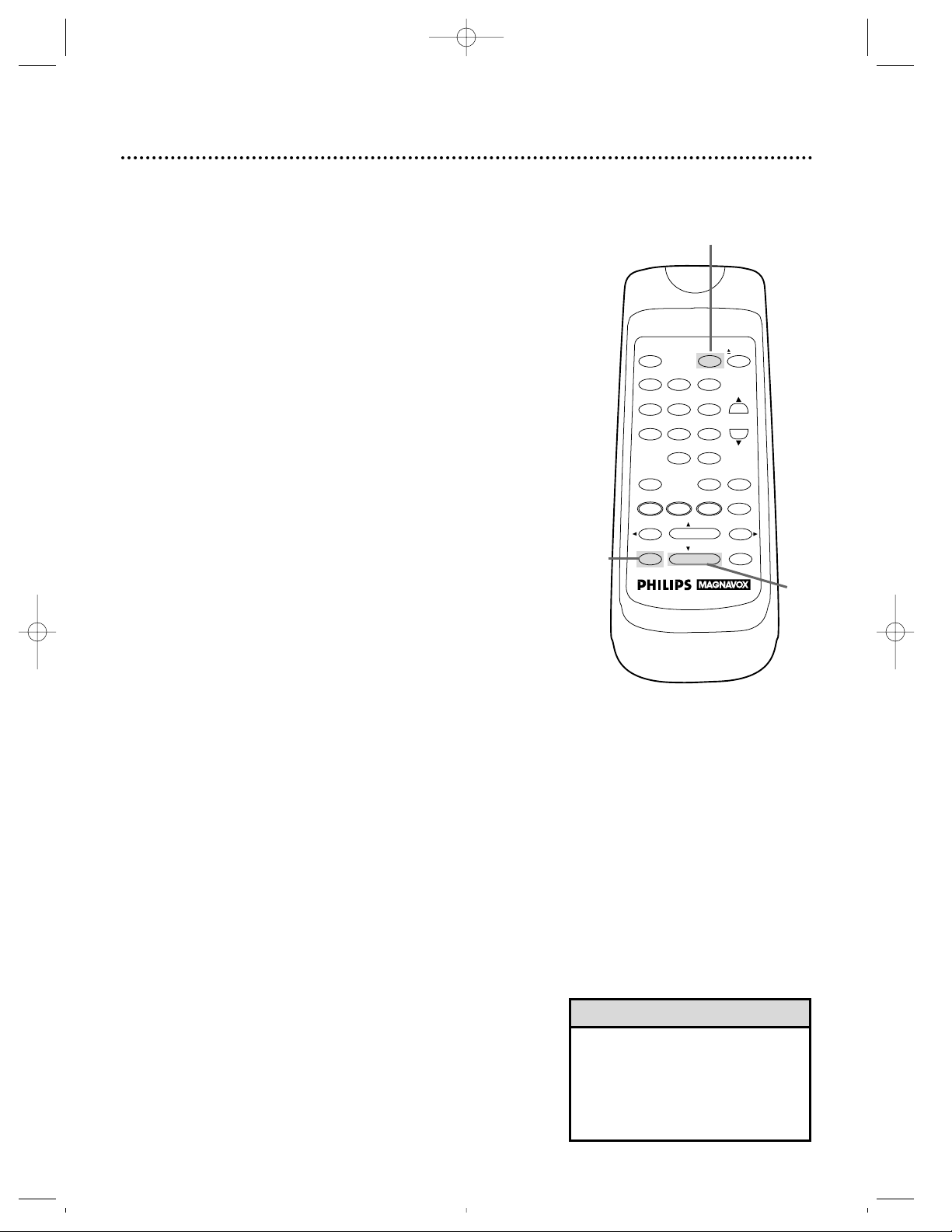

Press the POWER button. The VCR/TV light and the POWER

light will appear on the display panel.

Turn on the TV. Set it to the same channel as the CH3/CH4 switch on the back of the VCR. The display shown

below will appear. (If the display does not appear, check your hookups, then follow the steps on page 12 to set up channels and page 17 to select a language.)

Within 60 seconds, press the PLAY/o button or the STOP/p button to select English or Spanish on-screen displays.

Press the MENU button. The display shown below will appear.

SELECT op

→ENGLISH ON

ESPAÑOL

MAKE SELECTION OR PUSH MENU TO CONTINUE

Turning on Your VCR 11

Within 60 seconds, press the CHANNEL o button to begin automatic channel programming. AUTO SET PRO-

CEEDING PLEASE WAIT will appear on-screen. The VCR will memorize all available channels. When all channels are programmed, CHANNELS ARE SET will appear on-screen briefly, then TV programming will appear. Now, when you press the CHANNEL o/p buttons, you’ll only scan through channels that you receive.

• To skip this feature and play a tape immediately, insert a tape with its record tab removed. Or, to skip step 3, press the MENU button. All onscreen displays will be inEnglish. To

skip step 5, press the STOP/p button. Channels will not be programmed, and CHANNELS NOT SETwill appear on-screen.

• If you try to program channels when there is no antenna or cable connected to the VCR, programming will appear to take place, but eventually a NOTV SIGNALSmessage will appear. Connect an antenna or cable to the VCR’s ANT(enna) IN Jack and try again. You may need to follow the steps on page 12.

• The TIMER light on the VCR will blink when the power is restored after a power failure of more than one minute.

Helpful Hints

Before turning on your VCR, make sure there are batteries in the remote control and the VCR and TV are connected correctly.

● You can not program channels if you are using a Cable Box or

a Direct Broadcast System.

Turn on the TV.

CONNECT ANTENNA OR CABLE TO VCR

THEN . . .

PUSH CH UP KEY

OR . . .

FOR PLAY ONLY – PUSH STOP

VRZ220/250 layout 4/8/99 10:11 PM Page 11

POWER EJECTVCR/TV

1 2 3

4 5 6

+100

TIME SEARCH

/STOP

CHANNEL

MEMORY

7 8 9

SPEED

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

Page 12

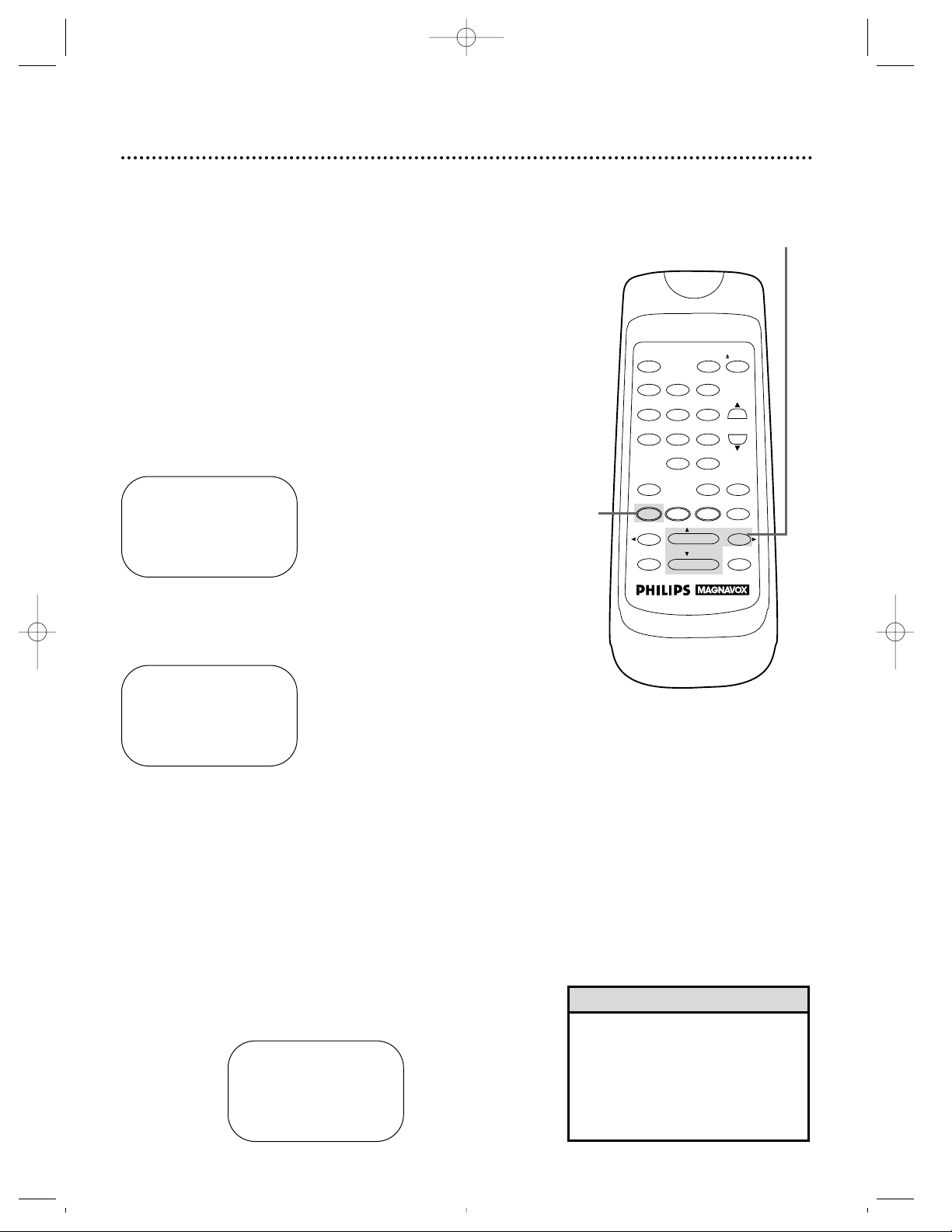

12 Automatic Channel Setup

Press the MENU button.

SELECT op CHOOSE B

→PROGRAM

VCR SET UP TUNER SET UP SET CLOCK

TO END PUSH EXIT

• You can not enter the TUNER SET UP menu when you are in Line Input mode (channel 00). When you select channel 00, A/V IN will appear on-screen briefly.

• You can not program channels if you are using a Cable Box or DBS.

Helpful Hints

Although your VCR may automatically memorize the channels you receive when you turn it on for the first time, this function lets you set up the channels again.

Press the PLAY/o button or the STOP/p button to select TUNER SET UP, then press the F.FWD/B button.

Note: TV STEREO and 2ND AUDIO are not available in the TUNER SET UP menu of the VRZ220.

Press the PLAY/o button or the STOP/p button to select TV (if you have an antenna) or CABLE TV (if you have a cable connection). Then, press the F.FWD/B button.

ON will appear beside your choice.

Press the PLAY/o button or the STOP/p button to select AUTO PROGRAMMING, then press the F.FWD/B button. The VCR will place all the channels you receive into its

memory.

Wait for a few minutes while the VCR sets up the channels. When this is complete, CHANNELS ARE SET will appear

on-screen. Then the programming of the lowest channel number placed in the VCR’s memory will appear on-screen. Now when you press the CHANNEL o/p buttons, you will scan only through channels you receive.

2-4

SELECT op CHOOSE B →TV

CABLE TV ON AUTO PROGRAMMING ADD/DELETE CH CH MEMORY REVIEW TV STEREO ON 2ND AUDIO

TO END PUSH EXIT

VRZ220/250 layout 4/8/99 10:11 PM Page 12

POWER EJECTVCR/TV

1 2 3

4 5 6

+100

TIME SEARCH

/STOP

CHANNEL

MEMORY

7 8 9

SPEED

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

Page 13

Automatic Channel Setup (cont’d) 13

Adding/Deleting Channels

Press the MENU button.

SELECT op ADD/DELETE B

124 DELETED 125 DELETED

1 → DELETED 2 ADDED 3 ADDED

TO END PUSH EXIT

Press the PLAY/o button or the STOP/p button to select TUNER SET UP, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button to select ADD/DELETE CH, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button until the channel number you want to add or delete appears beside the arrow.

SELECT op ADD/DELETE B

16 DELETED 17 ADDED 18 → ADDED 19 ADDED 20 ADDED

TO END PUSH EXIT

Press the F.FWD/B button to select ADDED or DELETED.

Press the STATUS/EXIT button.

2-5

VRZ220/250 layout 4/8/99 10:11 PM Page 13

POWER EJECTVCR/TV

1 2 3

4 5 6

+100

TIME SEARCH

/STOP

CHANNEL

MEMORY

7 8 9

SPEED

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

Page 14

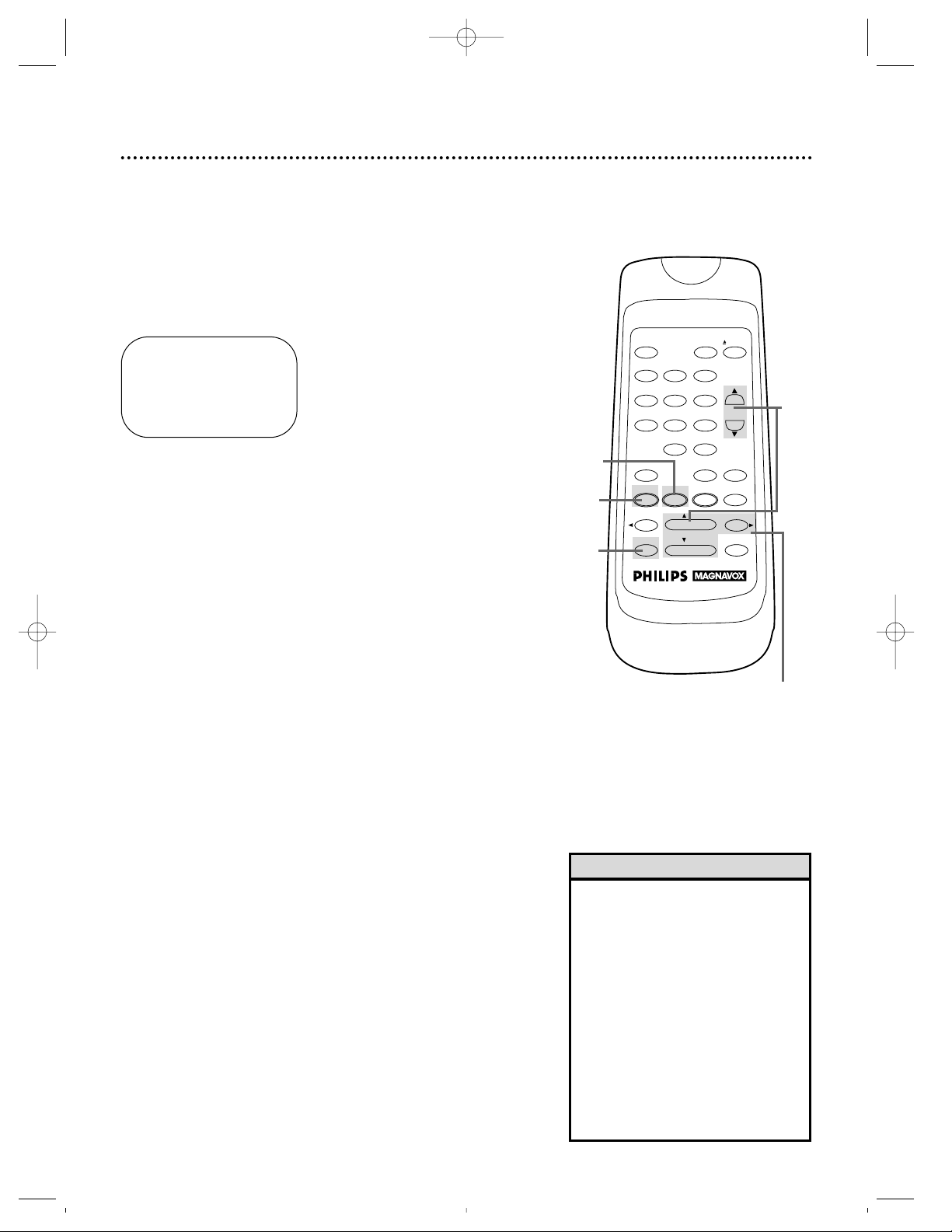

14 Automatic Channel Setup (cont’d)

Reviewing Memorized Channels

Press the PLAY/o button or the STOP/p button to select CH MEMORY REVIEW, then press the F.FWD/B button.

A list of programmed channels will appear on-screen.

● If all the programmed channels don’t fit on the screen, press

the F.FWD/B button to see the remaining channels. Then press the REW(ind)/s button to return to the first screen of

channels.

● If you do not press any buttons within 10 seconds, you will

either go to the next screen of channels or you will return to the previous menu.

Press the STATUS/EXIT button once or twice to exit.

Press the MENU button.

SELECT op CHOOSE B

→PROGRAM

VCR SET UP TUNER SET UP SET CLOCK

TO END PUSH EXIT

Press the PLAY/o button or the STOP/p button to select TUNER SET UP, then press the F.FWD/B button.

2-3

SELECT op CHOOSE B →TV

CABLE TV ON AUTO PROGRAMMING ADD/DELETE CH CH MEMORY REVIEW TV STEREO ON 2ND AUDIO

TO END PUSH EXIT

Note: TV STEREO and 2ND AUDIO are not available in the TUNER SET UP menu of the VRZ220.

• You can not enter the TUNER SET UP menu during a recording.

Helpful Hint

VRZ220/250 layout 4/8/99 10:11 PM Page 14

POWER EJECTVCR/TV

1 2 3

4 5 6

+100

TIME SEARCH

/STOP

CHANNEL

MEMORY

7 8 9

SPEED

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

Page 15

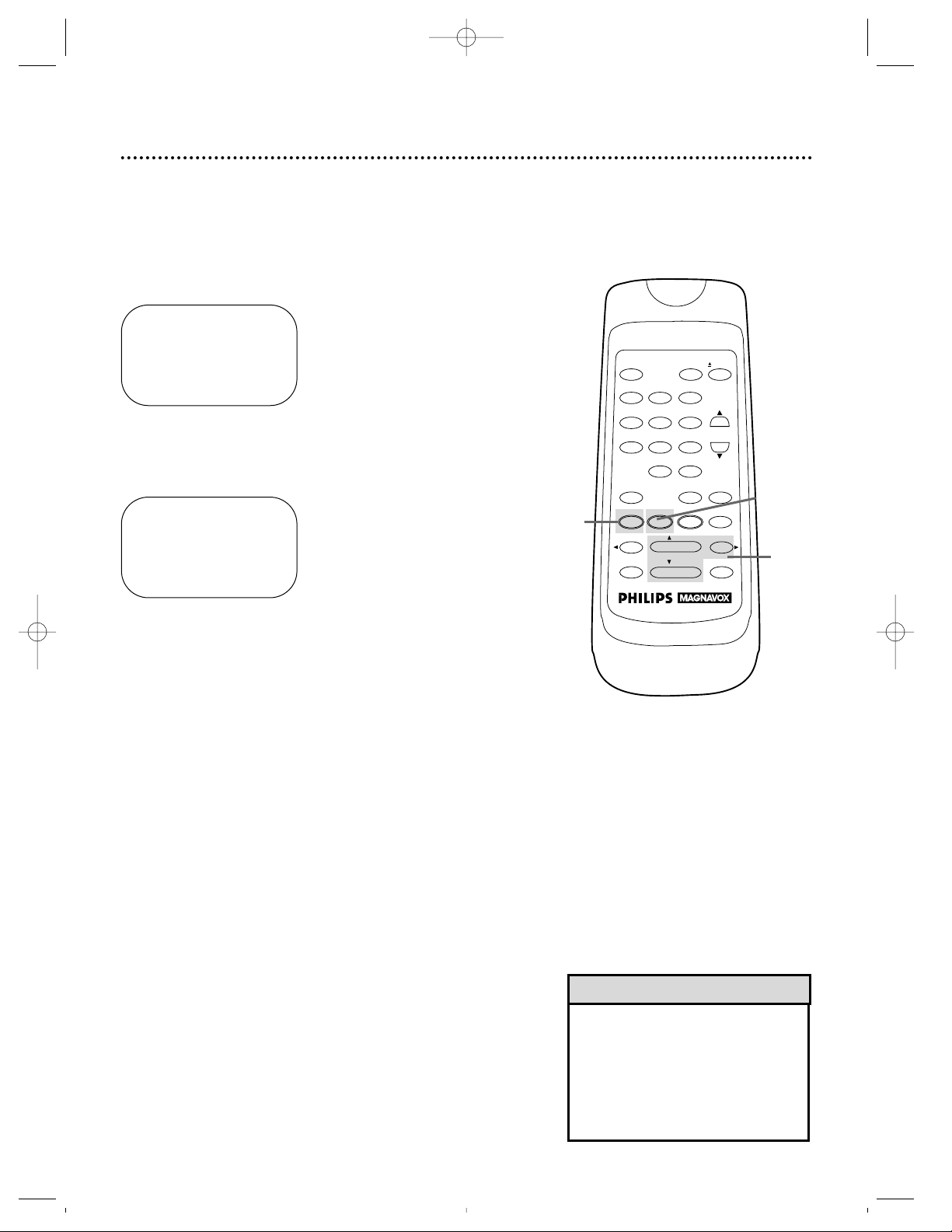

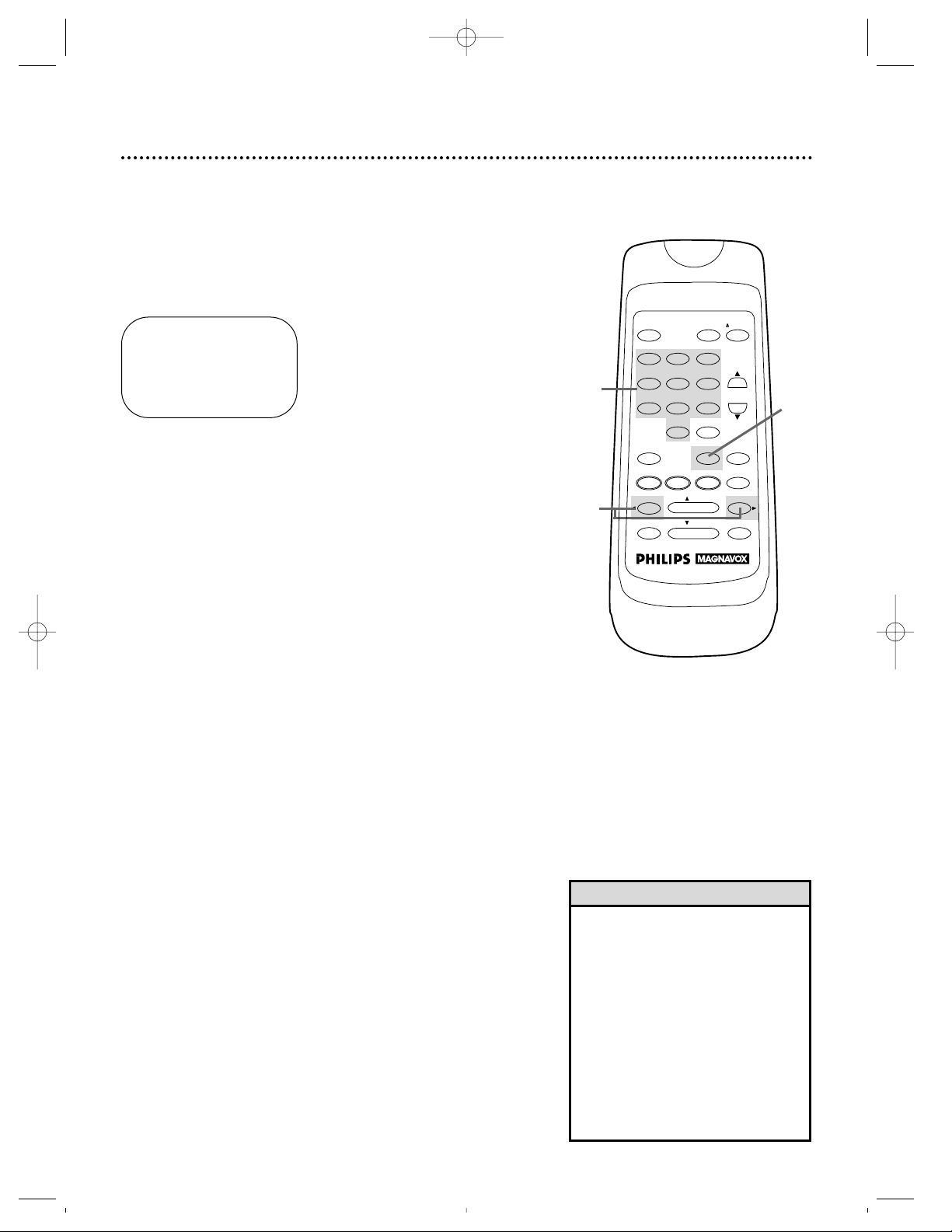

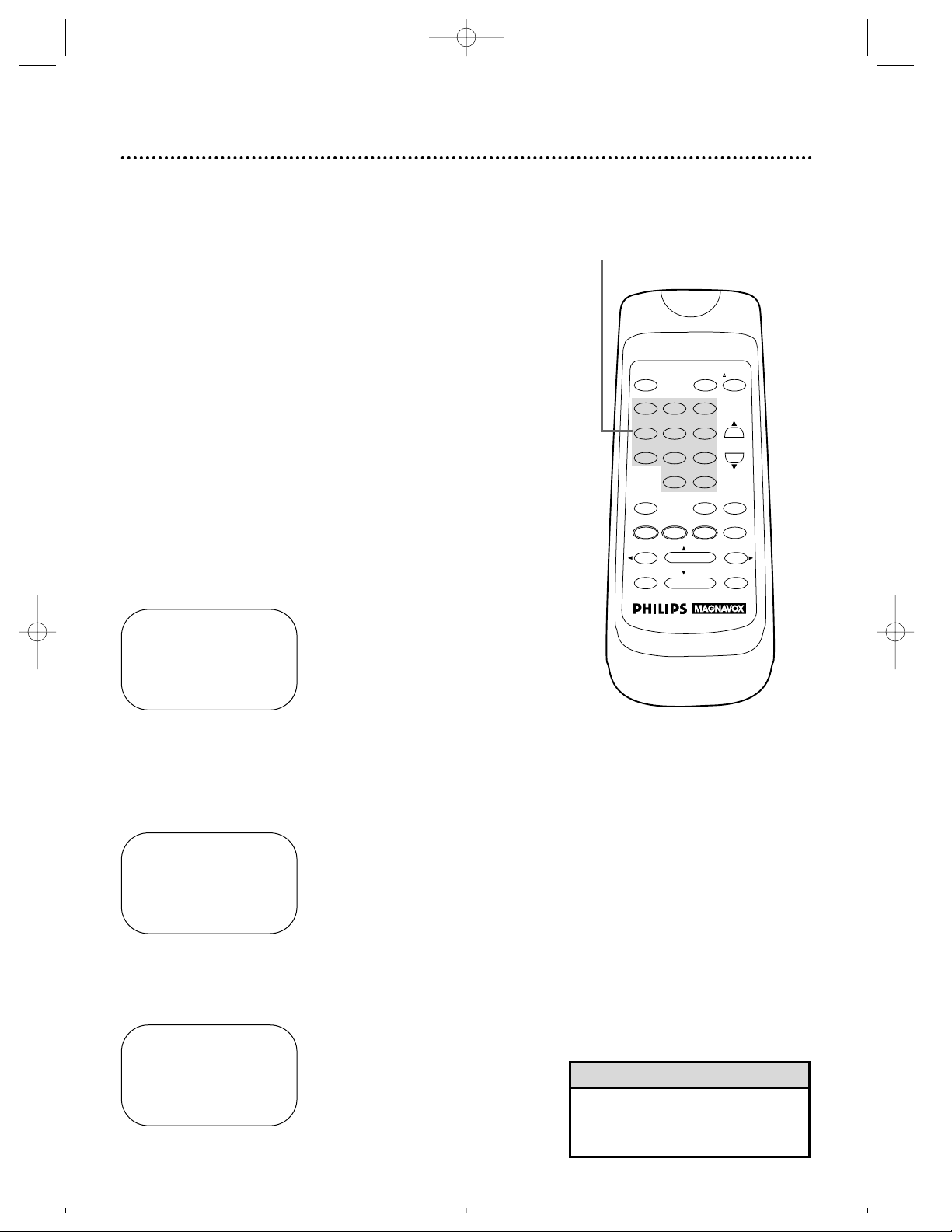

Setting the Clock 15

Follow the steps below to set your VCR’s clock. Make sure:

● The VCR is on and the VCR/TV light appears on the display

panel. (If it does not, press the VCR/TV button once.)

● You make each entry within 60 seconds of the previous entry.

Press two Number buttons for the hour(s) and two Number buttons for the minute(s). Then press 1 for AM or 2 for PM. For example, for 2:15 PM, press 02, 15, 2.

Press two Number buttons for the month, two Number buttons for the day, and two Number buttons for the year. For example, for July 1, 1998, press 07, 01, 98. The day of

the week will appear automatically.

Press the STATUS/EXIT button.

• Enter a 0 before a single digit number.

• Entries that do not match the VCR’s calendar will cause a question mark to appear on-screen.

• To make corrections, press the CLEAR button until the space for the number you want to correct is flashing. Then enter the correct number.

• The current time will appear onscreen if you press the STATUS/EXIT button. (See page 20 for details.)

• Power failures that last for more than one minute can cause you to lose your clock setting. If this happens, follow the steps on pages 11 and 15.

Helpful Hints

Press the MENU button.

Press the PLAY/o button or the STOP/p button to select SET CLOCK, then press the F.FWD/B button.

2-3

4-5

POWER EJECTVCR/TV

1 2 3

4 5 6

7 8 9

CHANNEL

MEMORY

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

/STOP

+100

TIME SEARCH

SPEED

VRZ220/250 layout 4/8/99 10:11 PM Page 15

Page 16

Press the MENU button.

Press the PLAY/o button or the STOP/p button to select SET CLOCK, then press the F.FWD/B button.

Press the STATUS/EXIT button.

SET CLOCK

→DAYLIGHT SVG TIME [ON]

SELECT op CHOOSE B TO END PUSH EXIT

SELECT op CHOOSE B

→PROGRAM

VCR SET UP TUNER SET UP SET CLOCK

TO END PUSH EXIT

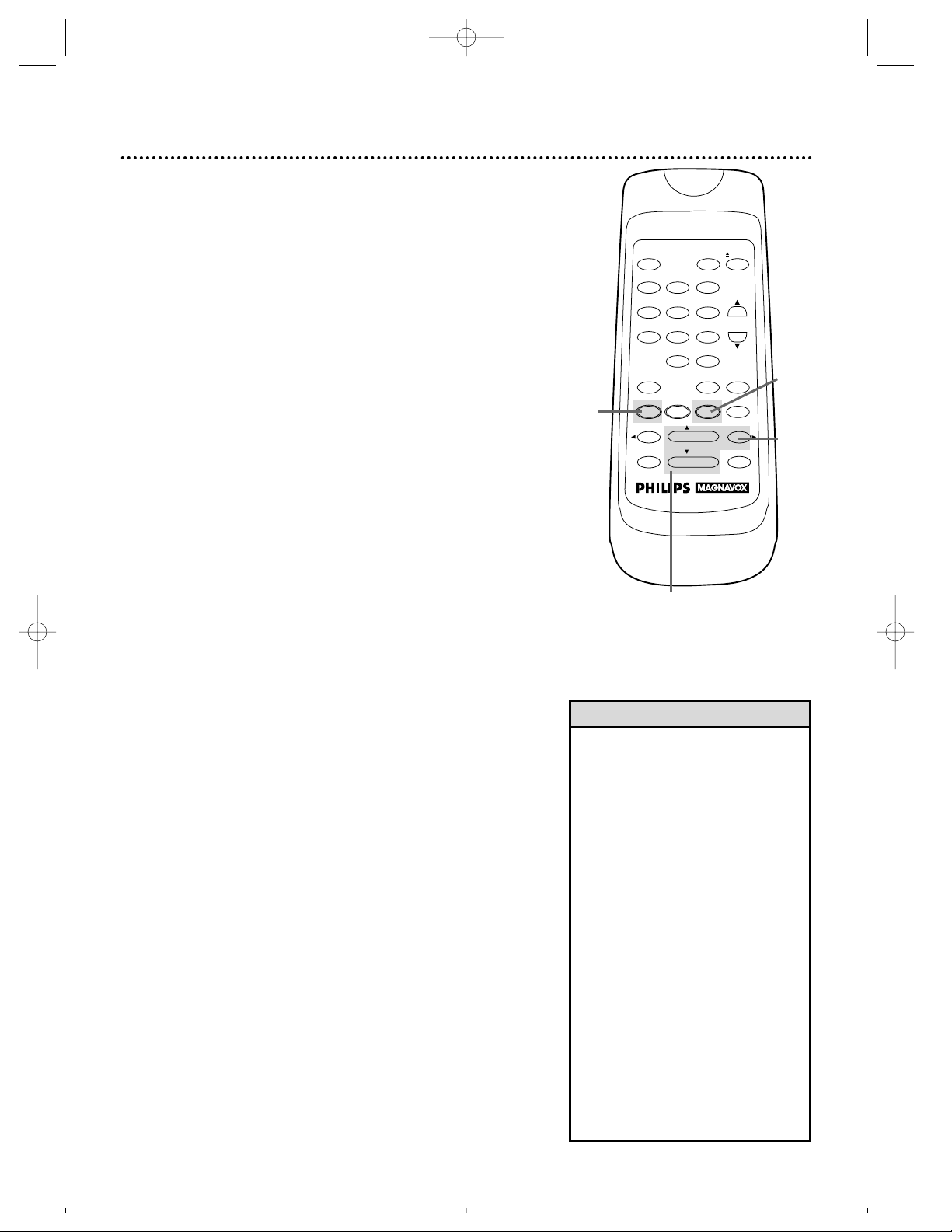

16 Daylight-Saving Time

You may program the VCR so its clock will automatically move forward one hour in April and turn back one hour in October. Daylight-Saving Time is set to ON when you receive your VCR. Turn Daylight-Saving Time ON or OFF by following the steps below. Before you begin:

● Make sure the clock is set.

Press the PLAY/o button or the STOP/p button to select DAYLIGHT SVG TIME. Then, press the F.FWD/B button so that OFF (or ON) appears beside DAYLIGHT SVG TIME.

2-3

VRZ220/250 layout 4/8/99 10:11 PM Page 16

POWER EJECTVCR/TV

1 2 3

4 5 6

+100

TIME SEARCH

/STOP

CHANNEL

MEMORY

7 8 9

SPEED

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

Page 17

Language Selection 17

Press the MENU button.

Follow the steps below to change the language of the on-screen displays.

Press the PLAY/o button or the STOP/p button to select VCR SET UP, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button to select LANGUAGE, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button to select English or Spanish on-screen displays.

Press the STATUS/EXIT button.

SELECT op CHOOSE B

→PROGRAM

VCR SET UP TUNER SET UP SET CLOCK

TO END PUSH EXIT

• If you accidentally select Spanish on-screen displays and need English on-screen displays:

1. Press the MENU button.

2. Press the PLAY/o button or the STOP/p button to select PREPARE EL VCR, then press the F.FWD/B

button.

3. Press the PLAY/o button or the STOP/p button to select LENGUAJE, then press the F.FWD/B button.

4. Press the PLAY/o button or the STOP/p button to select ENGLISH.

5. Press the STATUS/EXIT button.

Helpful Hint

SELECT op

→ENGLISH ON

ESPAÑOL

MAKE SELECTION OR TO END PUSH EXIT

2-3

SELECT op CHOOSE B →REPEAT PLAY OFF

ON SCREEN MODE AUDIO OUT LANGUAGE

TO END PUSH EXIT

Note: AUDIO OUT is not available in the VCR SET UP menu of the VRZ220.

VRZ220/250 layout 4/8/99 10:11 PM Page 17

POWER EJECTVCR/TV

1 2 3

4 5 6

+100

TIME SEARCH

/STOP

CHANNEL

MEMORY

7 8 9

SPEED

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

Page 18

18 Remote Control Buttons

POWER EJECTVCR/TV

1 2 3

4 5 6

7 8 9

CHANNEL

MEMORY

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

/STOP

+100

TIME SEARCH

SPEED

POWER Button

Press to turn the VCR on or off.

MENU Button

Press to bring up the main menu display.

SPEED Button

Press to select the recording speed (SP, LP, or SLP). Details are on

pages 30 and 44.

PLAY/o Button

Press to play a tape; press to release Slow (VRZ250 only), Search, or

Still mode and return to normal playback. Details are on page 36.

Press to select an item in the on-screen menu.

REWIND/{ Button

When tape playback is stopped, press to rewind the tape at high

speed. During playback, press to rewind the tape while the picture

stays on-screen. Details are on page 36.

Press to return to a previous on-screen menu.

STATUS/EXIT Button

Press to access or remove the on-screen status display.

Details are on page 20. Press to exit on-screen menus.

Number Buttons

Use to select channels and to program VCR functions

(such as the clock).

Channels 1 - 9 ●

To select, press 0, then the channel number you want. For

example, to select channel 7, press 0, 7.

Channels 100 and above ●

To select, press the +100 button, then press the last two digits of the channel you want. For example, to select channel 117, press the +100

button, 1, 7.

TIME SEARCH Button (VRZ250 only)

Press to fast forward or rewind the tape a specific length of time.

Details are on page 34.

REC(ord)/OTR Button

Press once to start a recording. Details are on page 25.

Or, press repeatedly to start a One-Touch Recording. Details are on

page 27.

MEMORY Button

Press to memorize a tape position at which the real-time counter was

set to 0:00:00. Details are on page 35.

VRZ220/250 layout 4/8/99 10:11 PM Page 18

Page 19

Remote Control Buttons (cont’d) 19

STOP/p Button

Press to stop the tape. Press to select an item in the on-screen menu.

PAUSE/STILL Button

While recording, press to temporarily stop the recording (pause).

Press a second time to resume normal recording. Details are on page

25. You can not pause a One-Touch Recording. During playback, press to freeze the picture (still). On the VRZ250, press the

PAUSE/STILL button again to resume playback. On the VRZ220, press

the PLAY/o button to resume playback. On the VRZ220, each press

of the PAUSE/STILL button will change the position of the noise lines

in the Still picture. Details are on page 36.

F.FWD(Fast Forward)/B Button

When playback is stopped, press to fast forward the tape at high

speed. During playback, press to fast forward the tape while the

picture stays on-screen. Details are on page 36.

Press to change a setting of an on-screen menu item or to advance to

the next menu.

CHANNEL (K/L) Buttons

Press to scan up or down through the VCR’s channels after the chan-

nels have been programmed.

CLEAR Button

Press to erase incorrect data when programming VCR functions.

Also, press to reset the real-time counter. Details are on page 35.

VCR/TV Button

Use to select the signal that your TV receives.

VCR Position ●

Use to watch a tape, to watch a program while recording it, or to

watch a TV broadcast using the CHANNEL (K/L) or Number but-

tons. If the VCR/TV light appears on the display panel of the VCR,

it is in VCR position.

TV Position ●

Use to watch TV or to watch one program while recording another.

Details are on page 26. If the VCR/TV light doesn’t appear on the

display panel, the VCR is in TV position.

EJECT Button

Press to eject the tape.

SLOW Button (VRZ250 only)

During tape playback, press to view the picture in slow motion.

Press again to resume normal playback.

POWER EJECTVCR/TV

1 2 3

4 5 6

7 8 9

CHANNEL

MEMORY

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

/STOP

+100

TIME SEARCH

SPEED

VRZ220/250 layout 4/8/99 10:11 PM Page 19

Page 20

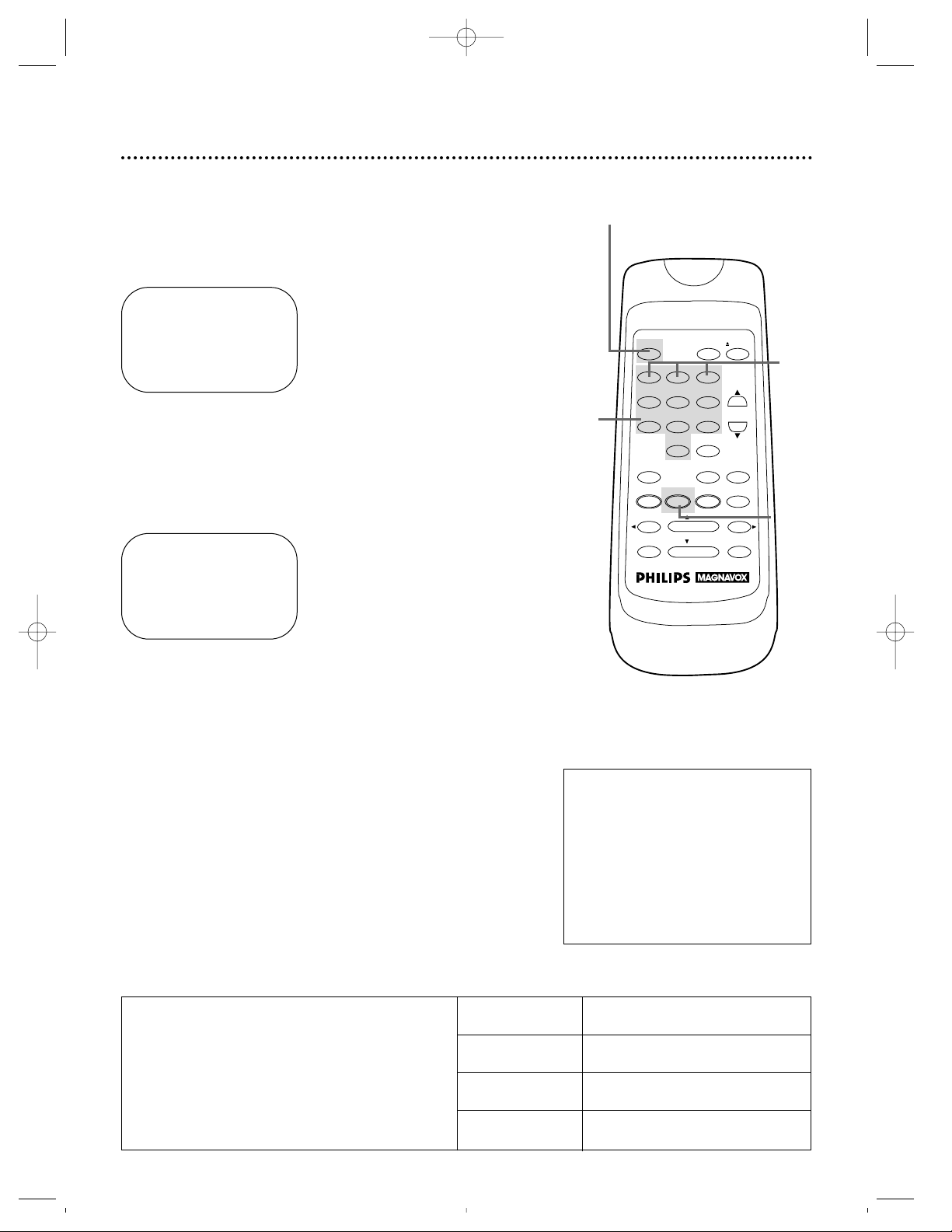

SELECT op CHOOSE B →STATUS [ON]

COUNTER ONLY [OFF]

TO END PUSH EXIT

20 On-Screen Status Displays

• If the channel you select has no broadcast, the screen will become solid blue.

• You may not access a status display when viewing a still picture, during slow motion playback (VRZ250

only), or when the F.FWD/B or REWIND/s button is pressed dur-

ing playback.

Helpful Hints

Press the MENU button.

A status display will appear when you press the STATUS/EXIT button or certain function buttons. The contents of the status display will vary. To choose the status display mode, follow the steps below.

If you select STATUS ON, then select COUNTER ONLY ON:

● Whenever you press the STOP/p button or the PLAY/o but-

ton, the status display will appear for five seconds. After five seconds, only the counter will remain on-screen. You must press the STATUS/EXIT button to remove it.

If you select STATUS ON, then select COUNTER ONLY

OFF:

● Whenever you press the STOP/p button or the PLAY/o but-

ton, the status display will appear for five seconds.

If you select STATUS OFF:

● The status display will not appear when you press function but-

tons. You must press the STATUS/EXIT button to see the status display.

Press the PLAY/o button or the STOP/p button to select VCR SET UP, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button to select ON SCREEN MODE, then press the F.FWD/B button.

If you set STATUS to OFF, go to step 6. If you set STATUS to ON, press the PLAY/o button or the STOP/p button to select COUNTER ONLY, then press the F.FWD/B button so that OFF (or ON) appears beside it.

Press the STATUS/EXIT button.

Press the PLAY/o button or the STOP/p button to select STATUS, then press the F.FWD/B button so that OFF (or ON) appears beside STATUS.

Button Pressed

Time

MTS Broadcast Available (VRZ250 only)

Counter and Counter Memory

Tape Speed

STOP 12:00 AM TV STEREO CH10

STEREO 2ND AUD

SLP M 1:23:45 HIFI

Status Display

(example only)

Receiving and Recording Mode (VRZ250 only)

Channel

Audio Out Mode (VRZ250 only)

VRZ220/250 layout 4/8/99 10:11 PM Page 20

Page 21

VCR Display Panel 21

CHANNELVCR/TVPOWER VCR/TVPOWER TAPE IN TIMER REC

REW

REC/OTR

F.FWD

CHANNELVCR/TVPOWER VCR/TVPOWER TAPE IN TIMER REC

STOP EJECT

PLAY

PAUSE

VCR Display Panel

Information about VCR operations is displayed here.

Cassette Compartment

Insert a video cassette tape here.

VCR/TV Light

This light appears when the VCR is in VCR position.

REC(ord) Light

This light appears during a recording. It flashes when a recording is paused.

TAPE IN Light

This light appears when a tape is in the VCR.

POWER Light

This light indicates that the power is on.

TIMER Light

This light glows when you turn off the power to set a timer recording. It also glows during a One-Touch Recording. It flashes when you turn off the power to set a timer recording if a tape has not been placed in the VCR. It flashes when all timer recordings have finished.

VRZ250

(The 4-head Hi-Fi label will not appear on the VRZ220.)

VRZ220/250 layout 4/8/99 10:11 PM Page 21

Page 22

22 Front Panel

PAUSE Button

While recording, press to pause the recording. Press again to resume recording. Details are on page 25. You can not pause a One-Touch Recording. During tape playback, press to freeze the picture. On the VRZ250, press the PAUSE button again to resume playback. On the VRZ220, each press of the PAUSE button changes the position of the noise lines in the Still picture. Press the PLAY button to resume normal playback on the VRZ220. Details are on page 36.

POWER Button

Press to turn the VCR power on and off.

VCR/TV Button

Press to select VCR or TV position.

● VCR Position

Use to watch a tape, to watch a program while recording it, or to watch a TV program (changing channels at the VCR). When the VCR/TV light appears on the display panel, the VCR is in VCR position.

● TV Position

Use to watch TV (changing channels at the TV) or to watch one program while recording another. When the VCR/TV light does not appear on the display panel, the VCR is in TV position.

REC(ord)/OTR Button

Press once to start a recording. Press repeatedly to start a One-Touch Recording.

Details are on page 27.

CHANNEL (p/o) Buttons

Press to change channels at the VCR. Or, press to adjust the tracking of a tape during normal playback or slow motion playback (VRZ250 only). Also, press to remove vertical jitter in a Still picture.

PLAY Button

Press to play a tape. Press to release Slow (VRZ250 only), Search, or Still mode and return to playback. Details are on page 36.

REW(ind) Button

When playback is stopped, press to rewind the tape at high speed. During playback, press to rewind the tape while the picture stays on-screen. Details are on page 36.

STOP/EJECT Button

Press once to stop the tape. When playback is stopped, press to eject the tape.

F.FWD (Fast Forward) Button

When playback is stopped, press to fast forward the tape at high speed. During tape playback, press to fast forward the tape while the picture stays on-screen. Details are on page 36.

REW

REC/OTR

F.FWD

CHANNELVCR/TVPOWER VCR/TVPOWER TAPE IN TIMER REC

STOP EJECT

PLAY

PAUSE

Remote Sensor

Receives a signal from your remote control so you can operate your VCR from a distance.

VRZ250

VRZ220/250 layout 4/8/99 10:11 PM Page 22

Page 23

CH3

CH4

OUT

ANT

VIDEO

OUT

AUDIO

AUDIO IN Jacks

Connect cables coming from the AUDIO OUT Jacks of a camcorder, another VCR, or an audio source here. Details are on page 32.

The VRZ250 is shown here. The VRZ220 has only one AUDIO IN Jack.

VIDEO IN Jack

Connect a cable coming from the VIDEO OUT Jack of a camcorder, another VCR, or an audio-visual source (laser disc player, video disc player, etc.) here. Details are on page 32.

ANT(enna) IN Jack

Connect your antenna or cable here. Details are on pages six-10.

CH3/CH4 Switch

Set to channel 3 or 4 to use your TV with your VCR. Details are

on pages six-nine.

OUT Jack

Use the supplied RF coaxial cable to connect this jack to the ANTENNA IN Jack on your TV, Cable Box, or Direct Broadcast System. Details are on

pages six-nine.

VIDEO OUT Jack

Connect a cable going to the VIDEO IN Jack of a camcorder, another VCR, or an audio-visual source (laser disc player, video disc player, etc.) here. Details are on

pages 32 and 38.

AC Power Cord

Connect to a standard AC outlet to supply power to the VCR.

AUDIO OUT Jacks

Connect cables going to the AUDIO IN Jacks of a camcorder, another VCR, or an audio source here. Details are on

pages 32 and 38. The VRZ250 is shown here. The VRZ220 has only one AUDIO OUT Jack.

Rear Panel 23

VRZ250

VRZ220/250 layout 4/8/99 10:11 PM Page 23

Page 24

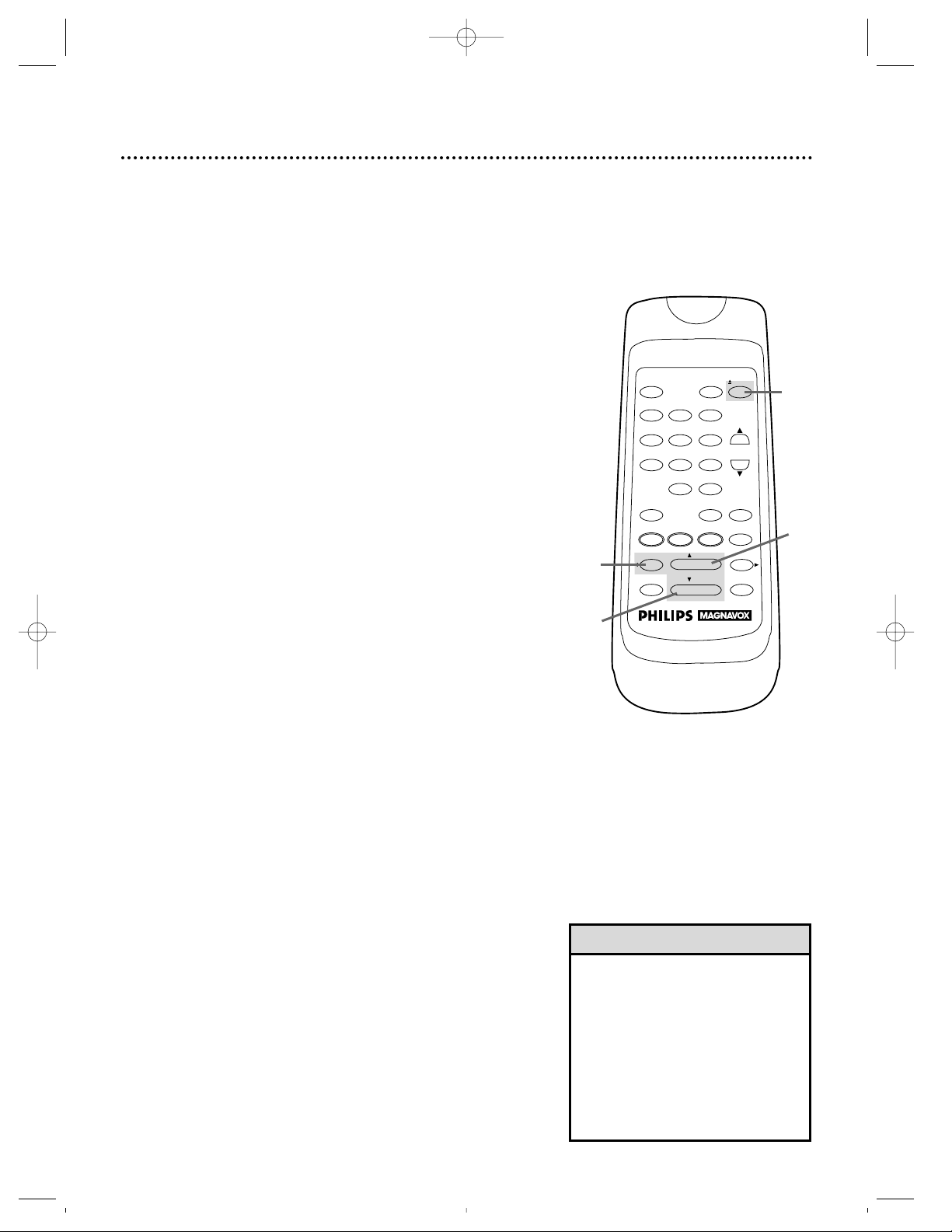

24 Playing

• If the tape you want to play is already in the VCR, make sure the VCR power is on and the VCR is in VCR position. (The VCR/TV light will appear on the display panel. If it does not, press the VCR/TV button.)

Then press the PLAY/o button.

• Other playback options and features are on pages 33 - 37.

Helpful Hints

Read and follow the steps below to play a tape.

Turn on the TV and set it to channel 3 or 4, whichever the

CH3/CH4 switch on the back of the VCR is set to.

Insert a tape in the VCR. The POWER, VCR/TV, and TAPE IN

lights will appear on the display panel. If the tape’s record tab has been removed, playback will start automatically.

Press the EJECT button to remove the tape.

If playback does not start automatically, press the PLAY/o button.

Press the STOP/p button to stop playback.

Press the REWIND/{ button to rewind the tape.

Turn on the TV.

Insert a tape in the VCR.

VRZ220/250 layout 4/8/99 10:11 PM Page 24

POWER EJECTVCR/TV

1 2 3

4 5 6

7 8 9

SPEED

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

TIME SEARCH

STATUS/EXIT CLEAR SLOWMENU

/STOP

CHANNEL

+100

MEMORY

Page 25

Read and follow the steps below to record a television program.

Turn on the TV and set it to channel 3 or 4, whichever the

CH3/CH4 switch on the back of the VCR is set to.

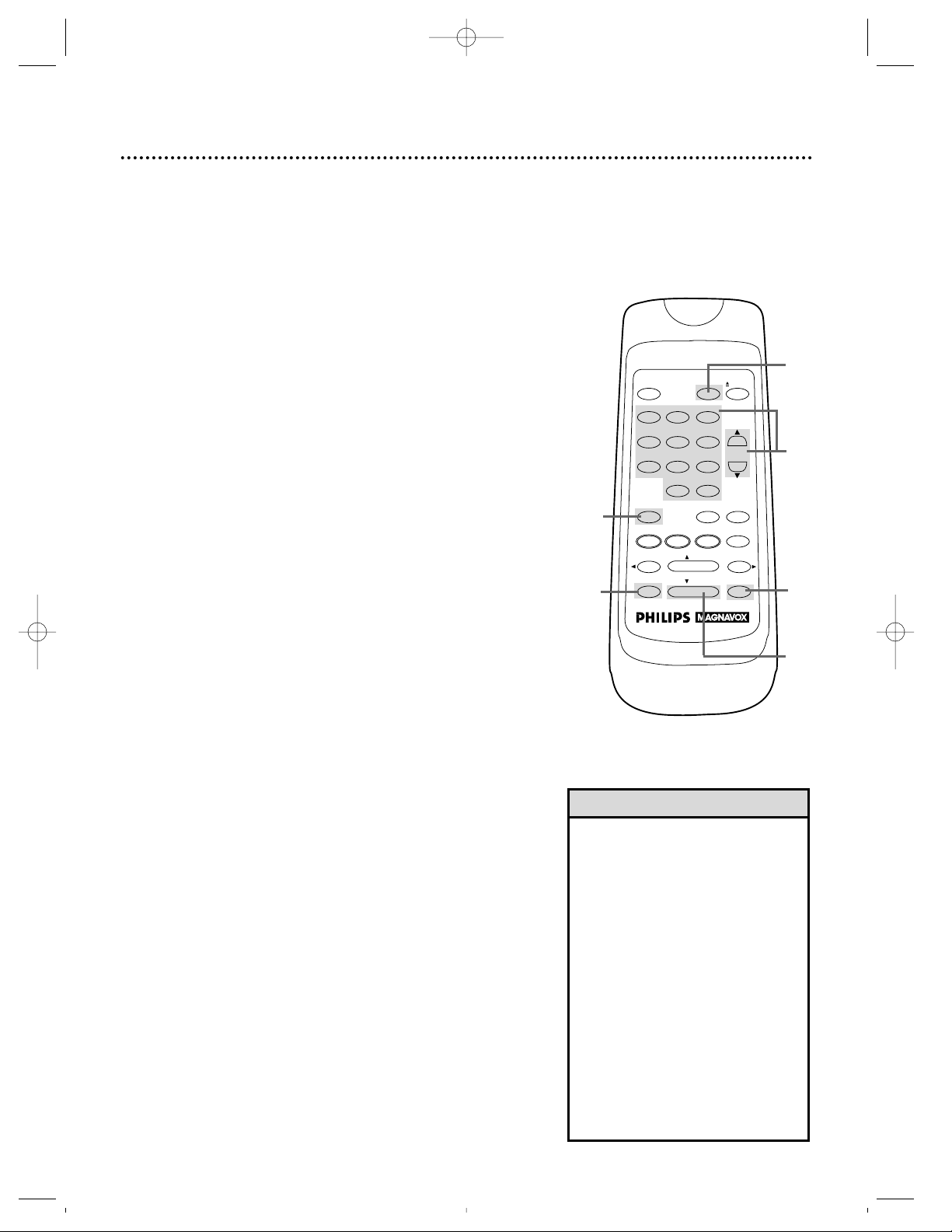

Recording 25

Insert a tape with its record tab intact in the VCR.

If the VCR/TV light appears on the display panel, go to step 4. If the VCR/TV light does not appear, press the VCR/TV button once.

• If you press the REC(ord)/OTR button when there is not a tape in the VCR, NOCASSETTE will flash onscreen.

• If you press the REC(ord)/OTR button while a tape without a record tab is in the VCR, the VCR will eject the tape and PROTECTEDCASSETTECANNOT RECORD will flash on-screen.

• Other recording options are on pages 26 - 32.

• You can change the tape speed during a recording, but some distortion will appear on the tape.

• The VCR will record in a preset volume.

Helpful Hints

Press the SPEED button until the desired tape speed appears

briefly on-screen. (Details about tape speed are on page 30.)

Use the CHANNEL o/p buttons or the Number buttons to select the channel to be recorded.

Press the REC(ord)/OTR button once to start recording.

The REC light will appear.

To pause the recording, press the PAUSE/STILL button once. The REC light will flash. To resume recording, press the REC(ord)/OTR button or press the PAUSE/STILL button again. The REC light will come on again.

To stop recording, press the STOP/p button.

Turn on the TV.

Insert a tape in the VCR.

7 8

VRZ220/250 layout 4/8/99 10:11 PM Page 25

POWER EJECTVCR/TV

1 2 3

4 5 6

7 8 9

SPEED

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

TIME SEARCH

STATUS/EXIT CLEAR SLOWMENU

/STOP

+100

CHANNEL

MEMORY

Page 26

Start a recording. (See page 25.)

26 Recording One Channel/Watching Another

• If you use a Cable Box or Direct Broadcast System hookup, you may not be able to watch one channel while recording another. See pages eight-nine for details.

Helpful Hint

Press the VCR/TV button to put the VCR in TV position.

The VCR/TV light will disappear from the VCR’s display panel.

Use the TV remote control to select the channel you want to watch at the TV.

To return to the channel being recorded, use the TV remote control to select channel 03 or 04 at the TV

(whichever channel the CH3/CH4 switch on the back of the VCR is set to).

Press the VCR/TV button to put the VCR in VCR position. The VCR/TV light will appear on the display panel. The

channel being recorded will appear on-screen.

Press the STOP/p button to stop the recording.

2&5

3 4

POWER EJECTVCR/TV

1 2 3

4 5 6

7 8 9

CHANNEL

MEMORY

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

/STOP

+100

TIME SEARCH

SPEED

Use the TV remote control to select the channel you want to watch at the TV.

Set the TV to channel 03 or 04.

VRZ220/250 layout 4/8/99 10:11 PM Page 26

Page 27

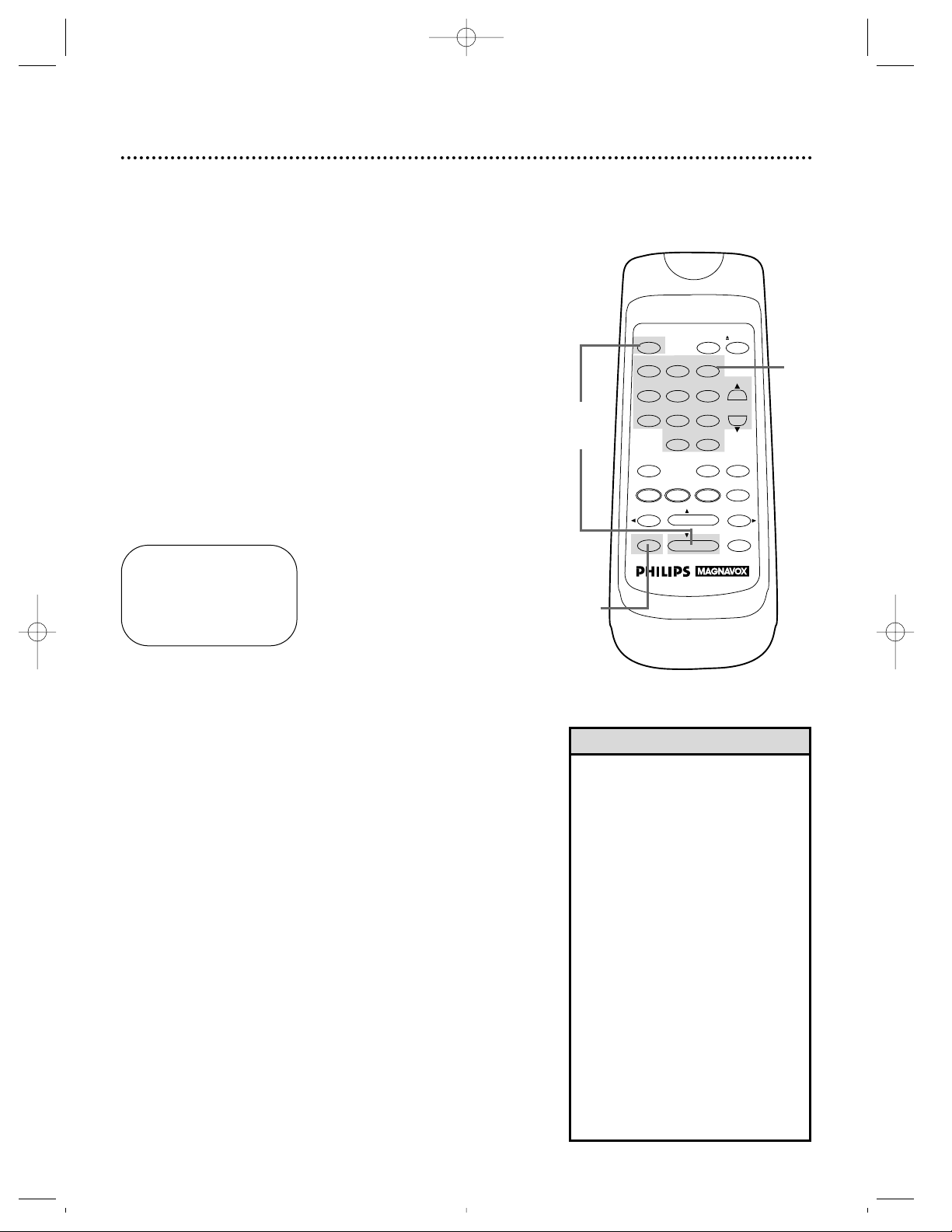

One-Touch Recording 27

Press the CHANNEL o/p buttons or the Number buttons to select the channel you want to record.

OTR (0:30)

CH12

Press the REC(ord)/OTR button repeatedly until the desired recording length (30 minutes to eight hours) appears on-screen. Recording will begin immediately. The REC

light and the TIMER light will appear on the display panel.

The One-Touch Recording feature allows you to set an immediate timed recording 30 minutes to eight hours long. Before you begin:

● Set up the channels at the VCR.

● Select a recording speed (SP, LP, SLP) with the SPEEDbutton.

● Put a tape in the VCR. Make sure the tape’s record tab is intact

and the tape is long enough to record the program(s).

● Place the VCRin VCR position. (The VCR/TV light will appear

on the display panel. If it does not, press the VCR/TV button once.)

To stop an OTR before recording is finished, press the STOP/p button or the POWER button.

To cancel the OTR but continue recording, press the REC(ord)/OTR button repeatedly until REC appears in the upper left corner of the TV screen. (STATUS must be set to ON. Details are on page 20.) The REC light will remain on the display panel of the VCR, but the TIMER light will disappear.

• To check the time remaining for an OTR after the OTRhas been set, press the STATUS/EXITbutton.

• To change the recording length while an OTR is in progress, press the REC(ord)/OTRbutton until the desired length appears on-screen.

• If you begin an OTR when another recording is paused, the OTRwill begin.

• You can not pause an OTR.

• If the preset time for a timer recording comes up during an OTR, the OTR has priority. The timer recording will not take place.

• If the end of the tape is reached during a One-Touch Recording, the VCR will eject the tape and turn itself off. The TIMER light will flash until you turn on the VCR.

Helpful Hints

VRZ220/250 layout 4/8/99 10:11 PM Page 27

POWER EJECTVCR/TV

1 2 3

4 5 6

+100

TIME SEARCH

/STOP

CHANNEL

MEMORY

7 8 9

SPEED

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

Page 28

DAILY PROGRAM (MON-FRI)

PROGRAM -1 2 3 4 5 6 7 8-

SELECT PROGRAM NUMBER TO END PUSH EXIT

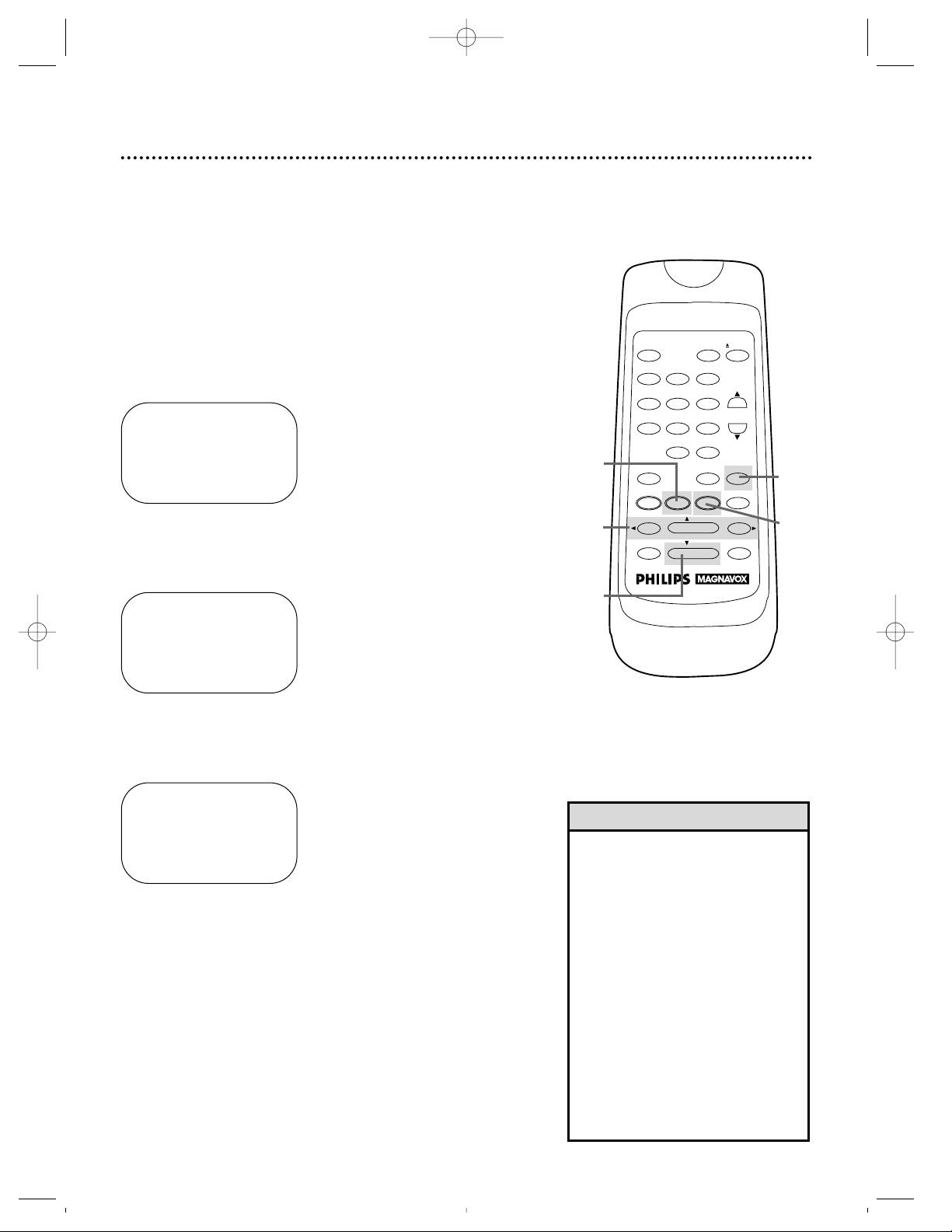

28 Timer Recording

Follow the steps below to program your VCR to record TV programs while you’re away from home. The VCR will turn itself on, record, and turn itself off automatically. Before you begin:

●Set up the channels at the VCR.

●Set the clock.

●Put a tape in the VCR. Make sure the tape’s record tab is intact

and the tape is long enough to record the program(s).

●Put the VCR in VCR position. The VCR/TV light will appear on

the display panel. If it does not, press the VCR/TV button once.

Do each step within 60 seconds of the previous step.

Press the MENU button.

SELECT op CHOOSE B

→PROGRAM

VCR SET UP TUNER SET UP SET CLOCK

TO END PUSH EXIT

Press the PLAY/o button or the STOP/p button to select PROGRAM, then press the F.FWD/B button.

SELECT op CHOOSE B →ONCE

DAILY WEEKLY PROGRAM REVIEW

TO END PUSH EXIT

Press the PLAY/o button or the STOP/p button to select a ONCE, DAILY, OR WEEKLY recording. Then, press the F.FWD/B button.

●ONCE: The VCR will record a TV program on any day you

choose, up to 12 months away.

●DAILY: The VCR will record the same channel every day from

Monday to Friday – starting at the same time and recording for the same length of time.

● WEEKLY: The VCR will record the same channel on the same

day, at the same time, and for the same length of time every week.

Daily Recording (example)

• If you need to make a correction while programming a timer recording, press the CLEAR button until the cursor is flashing on the item you want to change. Then enter the correct information.

Helpful Hint

2-3

VRZ220/250 layout 4/8/99 10:11 PM Page 28

POWER EJECTVCR/TV

1 2 3

4 5 6

+100

TIME SEARCH

/STOP

CHANNEL

MEMORY

7 8 9

SPEED

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

Page 29

ONE TIME PROGRAM

PROGRAM 1 CHANNEL – –

TO CORRECT PUSH CLEAR TO END PUSH EXIT

ONE TIME PROGRAM

PROGRAM 1 CHANNEL 10 TIME ON – – : – –

TO CORRECT PUSH CLEAR TO END PUSH EXIT

Press two Number buttons for the hour you want the recording to begin. Press two Number buttons for the minute you want the recording to begin. Press 1 for AM or 2 for PM. For example, for 9:30 PM, press 09, 30, 2.

ONE TIME PROGRAM

PROGRAM 1 CHANNEL 10 TIME ON 09:30 PM TIME OFF – – : – –

TO CORRECT PUSH CLEAR TO END PUSH EXIT

Timer Recording (cont’d) 29

Use the Number buttons (1 - 8) to select a slot in which to store the timer recording. There are eight slots. Open

slots will flash on-screen.

NOTE: If you enter a number for a slot that has already been used to store a timer recording, PREVIOUSLYSET PROGRAM will appear onscreen briefly. Information about the program in that slot will appear on-screen. If this happens, press the STATUS/EXIT button, then select another number.

Use the Number buttons to enter the channel you want to record.

● If you have a basic antenna or cable hookup (as shown on

pages six-seven) enter the channel number of the TVprogram you want to record. (Enter a 0 before all single-digit channels.)

● If you are recording from line input, press 0, 0. A/V IN will

appear on-screen.

● If you are using a Cable Box/DBS, enter the Cable Box/DBS

output channel (03 or 04). Set the Cable Box/DBS to the channel you want to record. Leave the Cable Box/DBS on for the timer recording. See page eight for details.

Follow the instructions in step 6 to enter the recording’s stop time. (AM or PM will be set automatically.)

Instructions continue on page 30.

• Entries that do not match the VCR’s clock or calendar will cause a question mark to appear on-screen.

Helpful Hint

4-7

POWER EJECTVCR/TV

1 2 3

4 5 6

7 8 9

CHANNEL

MEMORY

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

/STOP

+100

TIME SEARCH

SPEED

VRZ220/250 layout 4/8/99 10:11 PM Page 29

Page 30

ONE TIME PROGRAM

PROGRAM 1 CHANNEL 10 TIME ON 09:30 PM TIME OFF 11:00 PM REC SPEED SLP

SP=1 LP=2 SLP=3

TO CORRECT PUSH CLEAR TO END PUSH EXIT

30 Timer Recording (cont’d)

Press the Number 1 button to record in SP speed, the Number 2 button to record in LP speed, or the Number 3 button to record in SLP speed. (See the chart below.) You

cannot use the SPEED button at this time.

Press two Number buttons for the month and two Number buttons for the day you want to record the program. For example, for July 10, 1998, press 07, 10. The day of

the week and the year will appear automatically (you cannot program the VCR to record more than one year in advance).

ONE TIME PROGRAM

PROGRAM 1 CHANNEL 10 TIME ON 09:30 PM TIME OFF 11:00 PM REC SPEED SLP START DATE 07/10/98

FRI. TO CORRECT PUSH CLEAR TO END PUSH EXIT

Press the STATUS/EXIT button. PROGRAM WAS COM-

PLETED / PLEASE TURN OFF VCR FOR TIMER RECORDING will appear on-screen briefly. (If PROGRAM NOTCOMPLETED appears, try again from step 1.)

Turn off the VCR power. The TIMER light will appear on the

display panel. If the timer recording will take place several hours or days from now, you may use the VCR until time for the recording. Turn off the VCR a few minutes before the recording starts. If you forget to turn off the VCR, PLEASE TURN OFF VCR FOR TIMER RECORDING flashes on your TV screen two minutes before a timer recording starts. Press the CLEAR button to remove the message.

Tape Speed Maximum Record/Playback Time

Type T160 T120 T60

SP 2 hrs.

2 hrs. 1 hr.

(Standard Play) 40 mins. LP 5 hrs.

4 hrs. 2 hrs.

(Long Play) 20 mins. SLP

8 hrs. 6 hrs. 3 hrs.

(Super Long Play)

Tape Speeds

This chart shows the recording/playback time for three types of video cassettes (T160, T120, and T60). There are three playback speeds: SP, LP, and SLP. When recording, you can change the tape speed using the SPEED button.

The VCR must

be off for a

timer recording.

Put a tape in

the VCR.

POWER EJECTVCR/TV

1 2 3

4 5 6

7 8 9

CHANNEL

MEMORY

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

/STOP

+100

TIME SEARCH

SPEED

VRZ220/250 layout 4/8/99 10:11 PM Page 30

Page 31

Timer Recording (cont’d) 31

Repeat steps 1 - 4 to make sure you have cleared the correct timer recording.

• CLASH may flash on-screen when you finish setting a timer recording. This means that the timer recording you just programmed and another timer recording overlap. The current timer recording will not take place. You may choose to cancel the overlapping timer recording.

• If the preset time for a timer recording comes up during a OneTouch Recording, the OTR has priority.

• To stop a started timer recording, press the STOP/EJECT button on the VCR.

• If the power fails for more than one minute, programmed timer recordings will be lost. If this occurs, repeat the steps on pages 11 and 15 before resetting the timer recordings.

See page 42 for more hints.

Helpful Hints

With the VCR on and in VCR position (the VCR/TV light will appear on the display panel), press the MENU button.

Checking or Cancelling Timer Recordings

Press the PLAY/o button or the STOP/p button to select PROGRAM, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button to select PROGRAM REVIEW, then press the F.FWD/B button.

The timer recording information for the program in the lowest numbered slot will appear on-screen. If no timer recordings are set, nothing will happen when you press the F.FWD/B button.

Press the F.FWD/B button repeatedly to review all programmed timer recordings. If you don’t press the F.FWD/B

button within 10 seconds, the VCR will automatically display information about the next programmed timer recording. This will continue until all timer recordings have been displayed. Then the menu will disappear.

To cancel the timer recording displayed, press the CLEAR button. Either the display will disappear or information

about other timer recordings will appear. If you do not press any other buttons, the display will disappear after all timer recordings have been displayed.

2-3

5 4

VRZ220/250 layout 4/8/99 10:11 PM Page 31

POWER EJECTVCR/TV

1 2 3

4 5 6

+100

TIME SEARCH

/STOP

CHANNEL

MEMORY

7 8 9

SPEED

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

Page 32

Make the connections shown above.

32 Rerecording (Tape Duplication)

VCR 2 will record your tape. Insert a blank tape in VCR 2. The VCR must be in VCR position. (The VCR/TV light will appear on the display panel. If it does not, press the VCR/TV button once.)

Turn on the TV and set it to channel 03 or 04, whichever

channel the CH3/CH4 switch on VCR 2 is set to.

Point the remote control at VCR 2. Press Number buttons 0, 0 to select Line Input. A/V IN will appear on-screen.

Use the SPEED button to select SP, LP, or SLP at VCR 2.

Press the PLAY button on VCR 1 and the REC(ord)/OTR button on VCR 2 at the same time.

To stop recording, press the STOP/EJECT button on VCR 1, then press the STOP/EJECT button on VCR 2.

VCR 1 will play your tape. Put a prerecorded tape in VCR 1.

• Unauthorized recording of copyrighted television programs, video tapes, or other materials may infringe on the rights of copyright owners and violate copyright laws.

• The VCR in the figure above is the

VRZ250. If you have the VRZ220, use a single-plug audio cable to connect the AUDIO OUT Jack on VCR 1 to the AUDIOIN Jack on VCR 2.

Helpful Hints

● Audio and Video cables are not supplied.

VIDEO

OUT

AUDIO

VIDEO

OUT

AUDIO

CH3

CH4

OUT

ANT

CH3

CH4

OUT

ANT

VCR 1

Playing VCR

VCR 2 - Recording VCR

1. Audio cables from AUDIO OUT Jacks of VCR 1 to AUDIO IN Jacks of VCR 2

2. Video cable from VIDEO OUT Jack of VCR 1 to VIDEO IN Jack of VCR 2

3. RF coaxial

cable from VCR’s

OUT Jack to TV’s

ANTENNA IN

Jack

The instructions on this page show you how to copy tapes. The illustration uses two VRZ250 VCRs. Different VCRs may operate differently. To duplicate a tape, make the connections shown, then follow steps 1 - 7.

VRZ220/250 layout 4/8/99 10:11 PM Page 32

Page 33

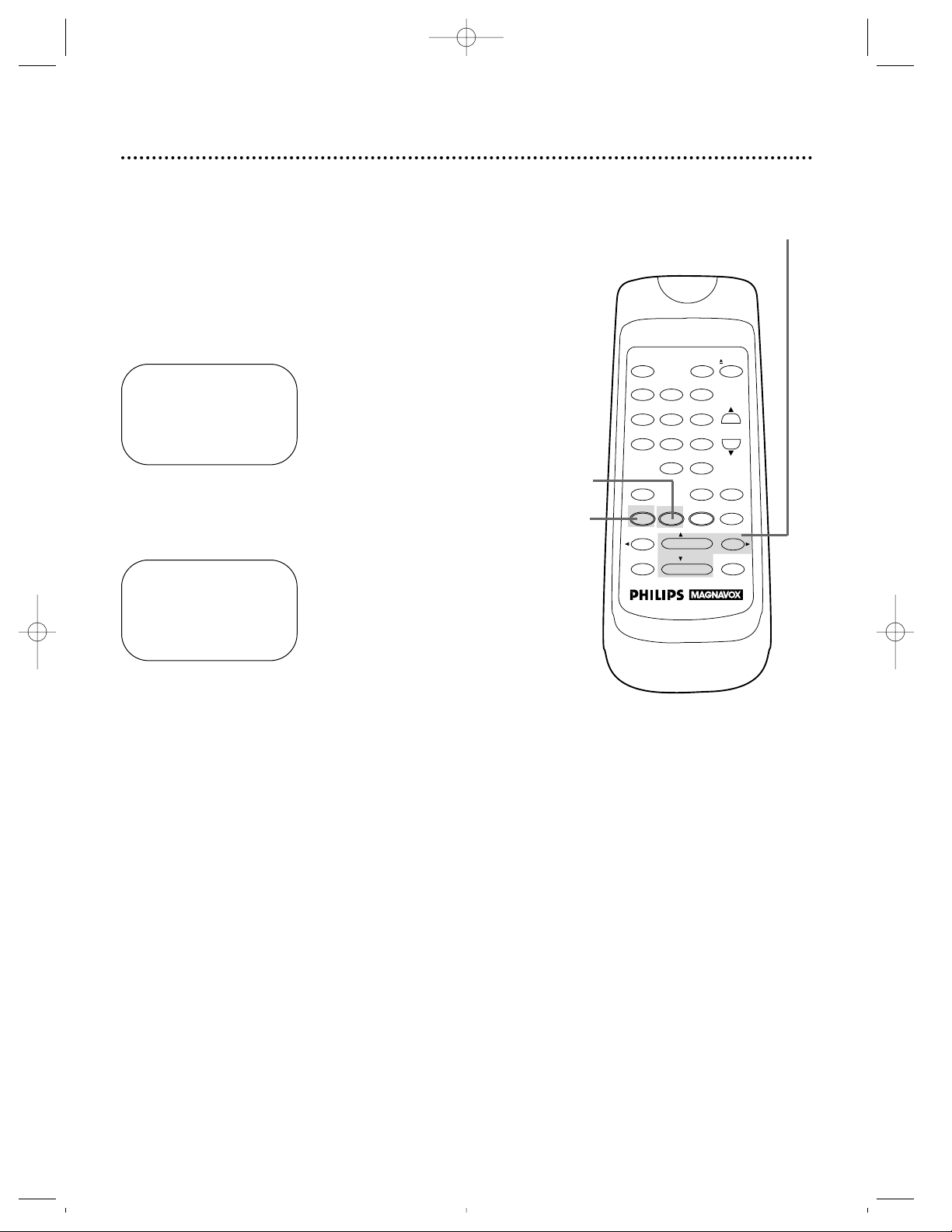

Repeat Play 33

Follow the steps below to make the VCR play a tape over and over.

Press the MENU button.

Press the PLAY/o button or the STOP/p button to select VCR SET UP, then press the F.FWD/B button.

Press the F.FWD/B button so that ON appears beside REPEAT PLAY.

Press the STATUS/EXIT button. Now, when a tape has fin-

ished playing, the VCR will rewind it and start playback again.

• To cancel Repeat Play, follow steps 1 - 3 above. At step 4, press the

F.FWD/B button so that OFF appears beside REPEAT PLAY. Press the STATUS/EXIT button.

• The real-time counter memory does not function during Repeat Play.

Helpful Hints

SELECT op CHOOSE B

→PROGRAM

VCR SET UP TUNER SET UP SET CLOCK

TO END PUSH EXIT

Press the PLAY/o button or the STOP/p button to select REPEAT PLAY.

2-4

SELECT op CHOOSE B →REPEAT PLAY OFF

ON SCREEN MODE AUDIO OUT LANGUAGE

TO END PUSH EXIT

Note: AUDIO OUT is not available in the VCR SET UP menu of the VRZ220.

VRZ220/250 layout 4/8/99 10:11 PM Page 33

POWER EJECTVCR/TV

1 2 3

4 5 6

+100

TIME SEARCH

/STOP

CHANNEL

MEMORY

7 8 9

SPEED

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

Page 34

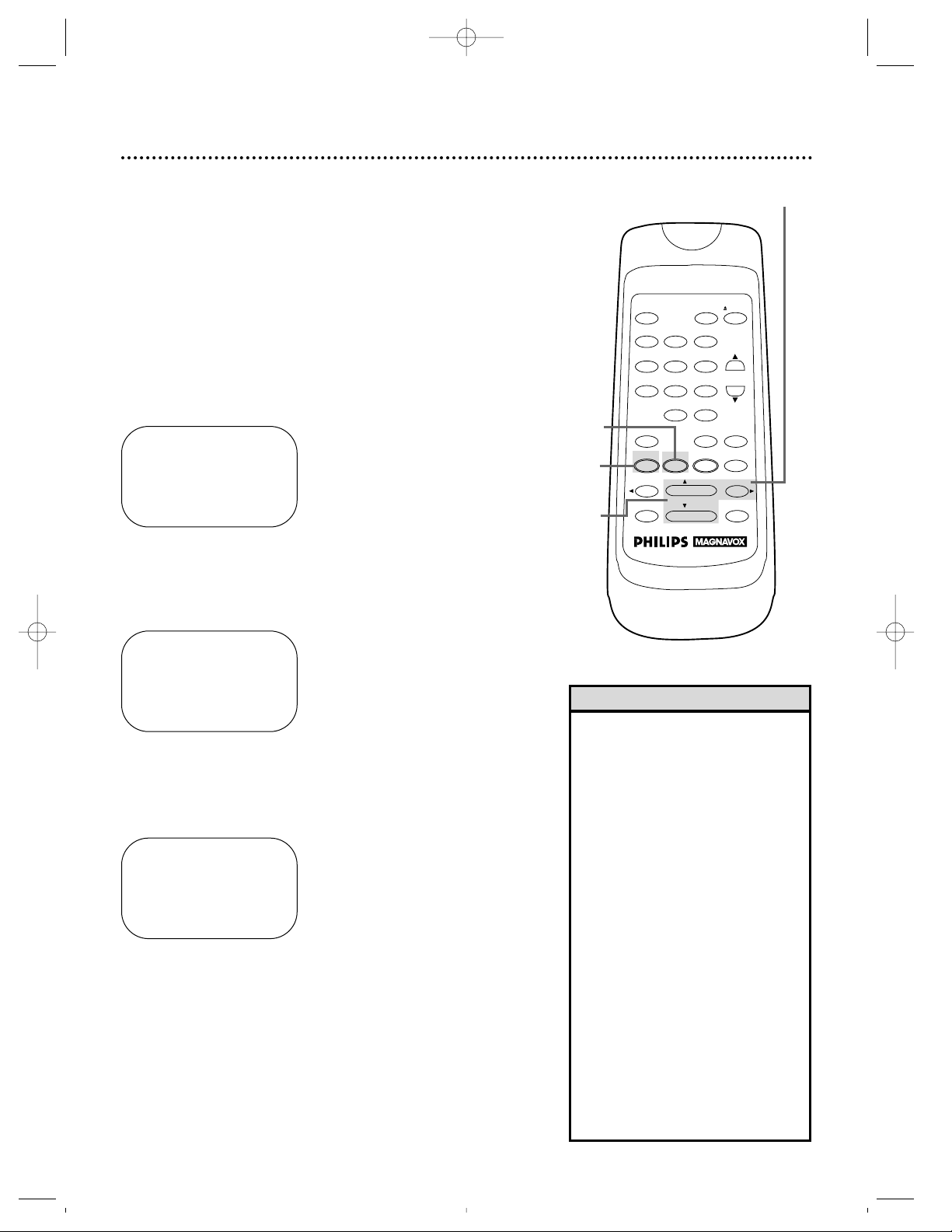

34 Time Search (VRZ250 only)

Follow the steps below to program the VCR to search forward or backward on a tape a specific length of time. There must be a tape in the VCR.

Press the TIME SEARCH button.

Within 10 seconds, use the Number buttons to enter the desired length of time you want to skip forward or backward. For example, for 1 hour, 25 minutes, press Number but-

tons 1, 2, 5. Or, for five minutes, press Number buttons 0, 0, 5.

Within 10 seconds, press the F.FWD/B button or the REWIND/{ button. The VCR will skip over the specified

length of time, then begin playback.

• If you want to search for more than 59 minutes, you must enter the length of time in hours and minutes. For example, to search forward 70 minutes, press 1,1,0 at step 2.

• You can not do a Time Search while recording.

• To remove the Time Search display, press the TIME SEARCH button again.

• To cancel a Time Search that is in progress, press the STOP/p button.

Helpful Hints

TIME SEARCH 0:00

ENTER SEARCH TIME

2 3

VRZ220/250 layout 4/8/99 10:11 PM Page 34

POWER EJECTVCR/TV

1 2 3

4 5 6

+100

TIME SEARCH

/STOP

CHANNEL

MEMORY

7 8 9

SPEED

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

Page 35

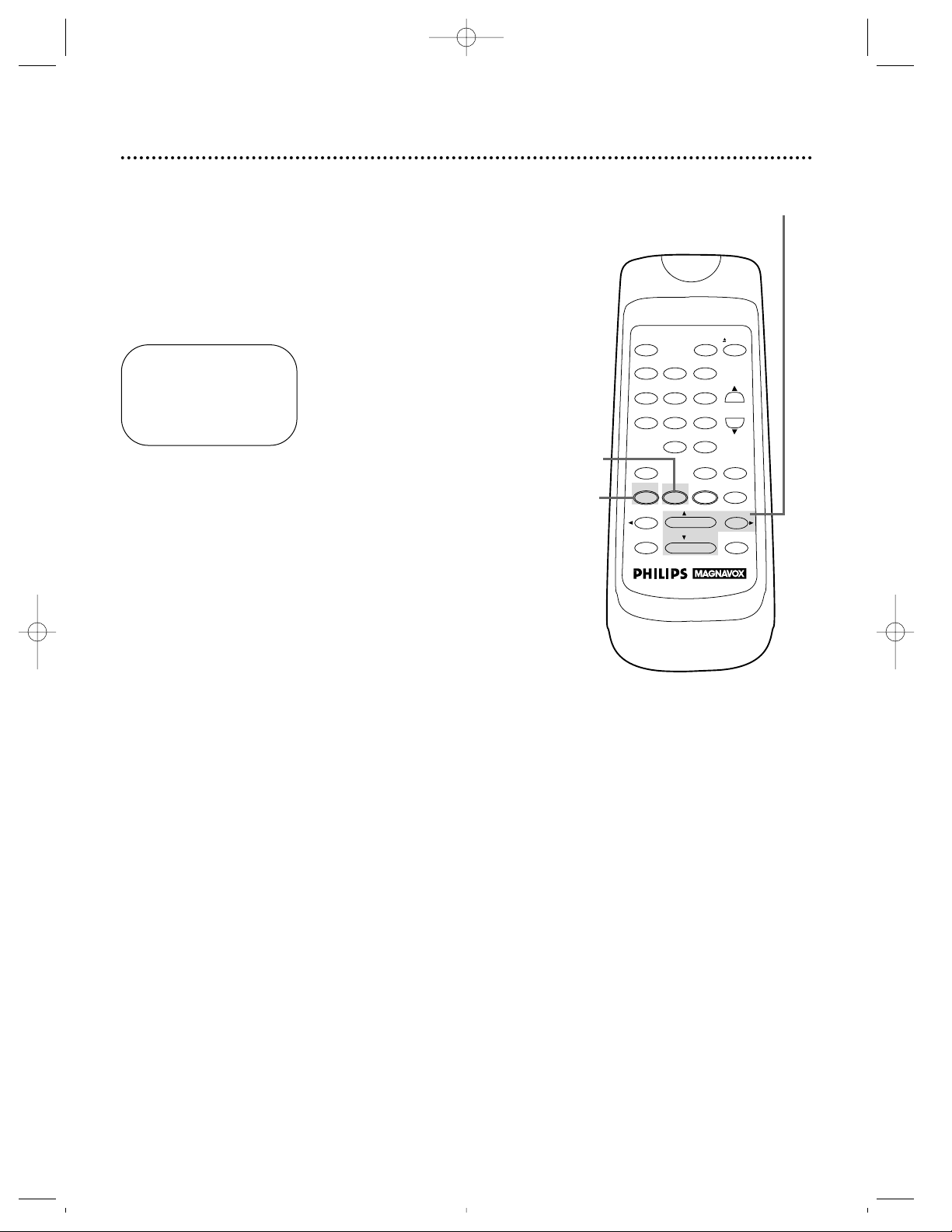

Real-Time Counter Memory 35

• The MEMORY button does not function if REPEAT PLAY is set to ON. Details are on page 33.

• To erase a real-time counter memory, press the MEMORY button until the M disappears from the screen.

• You may only set the real-time counter to zero at one location at a time. If you try to set the real-time counter to zero at a second location, the previous real-time counter to zero setting will be erased.

• The STEREO and SAP (Second Audio Program) indications will not appear in the status display of the VRZ220.

Helpful Hints

Follow the steps below to reset the real-time counter to zero at a tape location you want to refer to later.

Play, fast forward, or rewind a tape to the location that you would like to refer to later. Press the STOP/p button to stop the tape.

Press the STATUS/EXIT button to see the status display.

While the status display is on-screen, press the CLEAR button to reset the real-time counter to zero.

While the real-time counter is on-screen, press the MEMORY button so that M appears beside the counter.

To go to a tape location where the real-time counter was reset to zero, press the REWIND/{ button or the F.FWD/B button when playback is stopped.

When the tape reaches the point at which the counter was set to zero, the tape will stop. Press the PLAY/o button to watch the tape.

STOP 1:08PM TV STEREO CH10

STEREO

SLP 1 : 23 : 45 HIFI

STOP 1:08 PM TV STEREO CH10

STEREO

SLP 0 : 00 : 00 HIFI

STOP 1:08 PM TV STEREO CH10

STEREO

SLP M 0 : 00 : 00 HIFI

VRZ220/250 layout 4/8/99 10:11 PM Page 35

POWER EJECTVCR/TV

1 2 3

4 5 6

+100

TIME SEARCH

/STOP

CHANNEL

MEMORY

7 8 9

SPEED

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

Page 36

36 Special Effects Playback

Forward and Reverse Searching (SP/LP/SLP)

During tape playback, press and release the F.FWD/B button or the REWIND/{ button. A fast forward or reverse

picture search will begin.

To return to playback, press the PLAY/o button.

Super High Speed Searching (LP/SLP)

During tape playback, press the F.FWD/B button or the REWIND/{ button, then press again. The VCR will now

search in super high speed.

To return to normal playback, press the PLAY/o button.

Viewing a Still Picture

During tape playback, press the PAUSE/STILL button. A

still picture will appear on-screen.

NOTE for VRZ220: Only tapes recorded in SLP (Super Long Play) speed will show a clear picture. On the VRZ220, each press of the PAUSE/STILL button will change the position of the noise lines in the Still picture.

On the VRZ250, to release the still picture and return to playback, press the PLAY/o button or press the PAUSE/STILL button again. On the VRZ220, press the PLAY/o button to release the still picture and return to playback.

Viewing a Slow Motion Picture (VRZ250 only)

During tape playback, press the SLOW button. The tape

will play in slow motion.

To return to normal playback, press the PLAY/o button or press the SLOW button again.

• Slow (VRZ250 only) and Still modes

will automatically switch to Stop mode after five minutes to protect the VCR and the tape from damage.

• SP/LP/SLP means this feature will

work with tapes recorded in Standard Play, Long Play, or Super Long Play.

• LP/SLP means this feature will work

with tapes recorded in Long Play or Super Long Play. For details about tape speed, see pages 30 and 44.

Helpful Hints

VRZ220/250 layout 4/8/99 10:11 PM Page 36

POWER EJECTVCR/TV

1 2 3

4 5 6

+100

TIME SEARCH

/STOP

CHANNEL

MEMORY

7 8 9

SPEED

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

Page 37

Automatic Operation Features 37

The following playback features will always operate.

Automatic Playback

When you put a tape in the VCR, the power will come on automatically. If the tape’s record tab is missing, playback will begin. If a timer recording is set, the power will not come on automatically when you insert a tape with the record tab intact. If a timer recording is set and the VCR power is off, the VCR will eject the tape if the record tab is missing.

Automatic Rewind, Eject, Off

When a tape is played, fast forwarded, or recorded to its end, the VCR will rewind the tape, stop, eject the tape, and turn itself off. If the real-time counter memory is set, the VCR will only rewind to the point at which the counter is set to zero, then stop. The VCR will not eject the tape automatically or shut itself off.

Tape Eject

A tape can be ejected with the VCR power on or off (but the VCR must be plugged in). If a timer recording is set, a tape can only be ejected with the power on. Make sure you insert a tape and turn off the VCR power for the timer recording.

Automatic Tracking Adjustment

The VCR adjusts tracking automatically to give you the best possible picture quality. With some recordings, however, you may get a better picture using the manual tracking controls (see below).

Manual Tracking

To manually adjust the tracking during playback and slow motion playback (VRZ250 only) press the CHANNEL o/p buttons on the VCR. (The CHANNEL o/p buttons on the remote control will not adjust tracking.) Tracking will return to Automatic Tracking Adjustment when you press the STOP/p button or insert a tape. You cannot manually adjust the tracking of a Still picture. However, you may press the CHANNEL o/p buttons on the VCR to remove vertical jitter in a Still picture.

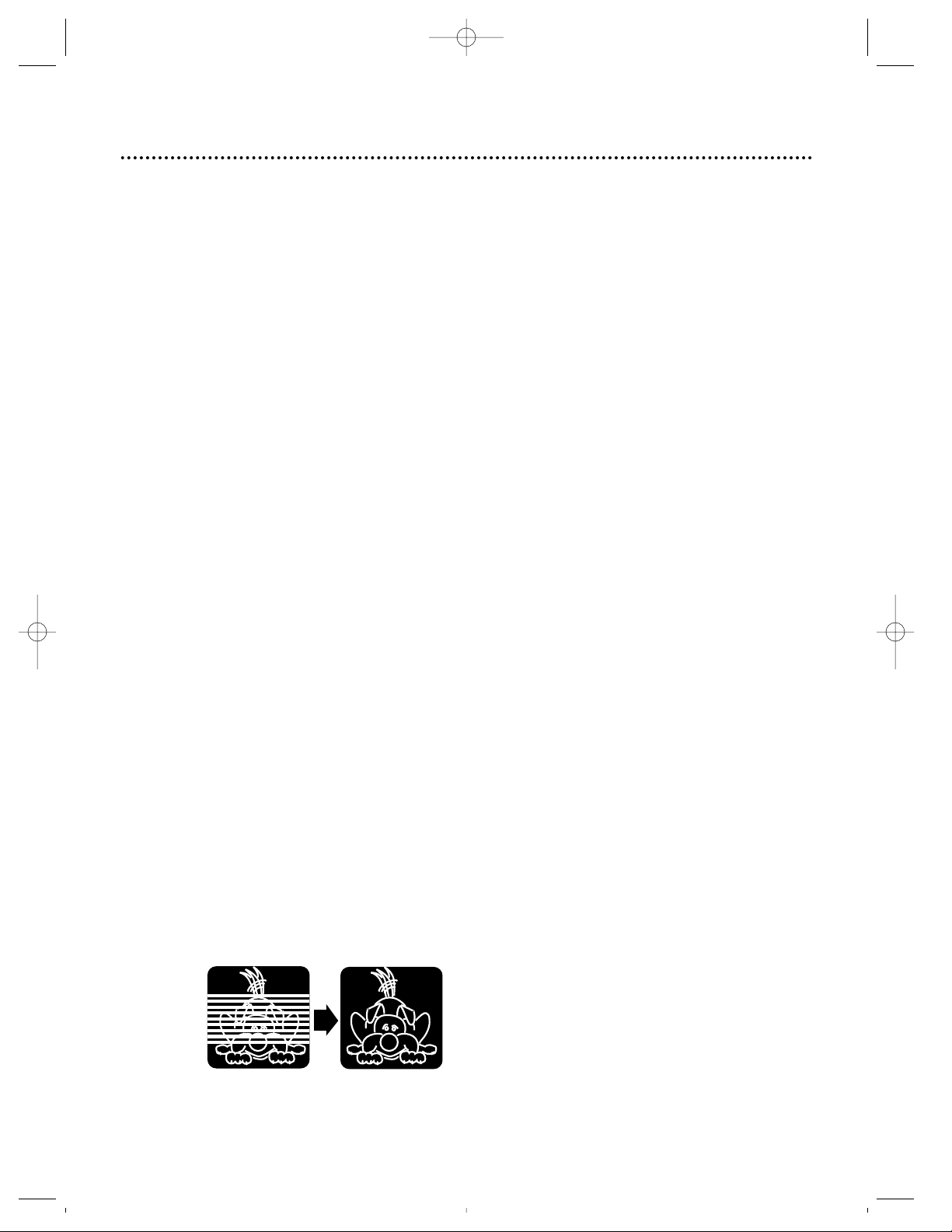

Before Tracking Adjustment

After Tracking Adjustment

VRZ220/250 layout 4/8/99 10:11 PM Page 37

Page 38

38 Multi-Channel Television Sound System (VRZ250 only)

To record and play back programs broadcast in stereo, even if you have a Mono Speaker TV, just use one of the connections shown, then follow the steps on pages 39-41.

Your VCR can play recordings broadcast in Hi-Fi (high fidelity) stereo, which produces a crisp, clear sound from two sources. Your VCR also can play tapes recorded in a second audio (usually, that means your program is recorded in a second language). Of course, your VCR will play tapes recorded in monaural (single-source) sound as well.

Your VCR also will record in Hi-Fi stereo or in second audio, so when you play back that tape on the VCR, it will be in stereo or second audio. If you play back the tape on a VCRthat can’t play back tapes in stereo or second audio, the VCR will automatically play the tape in monaural sound.

Read the directions on this page to familiarize yourself with your VCR’s stereo and second audio setups. Then follow the directions on page 39 to record in stereo or second audio and the directions on pages 4041 to play back tapes recorded in Hi-Fi stereo.

Understanding On-Screen Displays

When you receive a signal from a channel you’re watching, portions of the on-screen display shown below will appear when you press the STATUS/EXIT button on the remote control.

The indication 2ND AUD or TVSTEREO that appears on this side of the status display tells you if your VCR is programmed to receive a second audio or stereo broadcast (it cannot be programmed to receive both at the same time). Follow the steps on page 39 to program the VCR to receive a second audio or stereo broadcast.

The indication 2ND AUDor STEREO that appears on this side of the status display tells you if the program you’re watching is available in second audio or stereo. Even though a program is available in second audio or stereo, you still must program the VCR to receive or record the program. Follow the directions on page 39. This indication is not available during tape playback.

STOP 12:00 AM TV STEREO CH 02

STEREO 2ND AUD

SLP 1:23:45 HIFI

Stereo Amplifier

or Receiver

Monitor

Mono

Speaker TV

Stereo

Speaker TV

For stereo sound, connect the audio cables to the AUDIO OUT Jacks on the VCR and to the AUDIO IN Jacks on the Stereo Amplifier or Receiver. Then, connect the video cable to the VIDEO OUT Jack of the VCR and to the VIDEO IN Jack of a monitor TV.

OR, for monaural sound, connect only

the RF coaxial cable (supplied) to the

VCR’s OUT Jack and to the TV’s

ANTENNA IN Jack.

VRZ220/250 layout 4/8/99 10:12 PM Page 38

ANT

AUDIO

OUT

VIDEO

CH4

CH3

OUT

Page 39

Multi-Channel Television Sound System (VRZ250 only) (cont’d) 39

Press the MENU button.

Press the PLAY/o button or the STOP/p button to select TUNER SET UP, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button to select TV STEREO or 2ND AUDIO. Then, press the F.FWD/B

button. ON will appear to the right of your selection.

Press the STATUS/EXIT button.

To play a tape, press the PLAY/o button. Or, to record, select the channel to be recorded using the CHANNEL

o/p buttons, then go to step 6.

Press the REC(ord)/OTR button to start recording.

SELECT op CHOOSE B →TV

CABLE TV ON AUTO PROGRAMMING ADD/DELETE CH CH MEMORY REVIEW TV STEREO ON 2ND AUDIO

TO END PUSH EXIT

• You can only receive and record in stereo or second audio programs that are broadcast in second audio or stereo. You can only play in stereo or second audio tapes that were recorded in stereo or second audio. Please see page 38 to determine if the program you want to watch/record is being broadcast in stereo or second audio.

• If you select second audio when second audio is not available, the VCR will record normal audio.

Helpful Hints

2-3

VRZ220/250 layout 4/8/99 10:12 PM Page 39

POWER EJECTVCR/TV

1 2 3

4 5 6

+100

TIME SEARCH

/STOP

CHANNEL

MEMORY

7 8 9

SPEED

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

Page 40

40 Hi-Fi Stereo Sound System (VRZ250 only)

Press the MENU button.

Press the PLAY/o button or the STOP/p button to select VCR SET UP, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button to select AUDIO OUT, then press the F.FWD/B button.

Multi-Channel Television Sound system broadcasts are automatically recorded in Hi-Fi stereo sound. To play in Hi-Fi stereo the tapes recorded in Hi-Fi stereo, however, you’ll need to follow steps 1 - 9.

Press the PLAY/o button or the STOP/p button to select HIFI. ON will appear to the right of HIFI on-screen.

Press the STATUS/EXIT button.

SELECT op

→HIFI ON

MONO

TO END PUSH EXIT

SELECT op CHOOSE B

→REPEAT PLAY OFF

ON SCREEN MODE AUDIO OUT LANGUAGE

TO END PUSH EXIT

• All programs are automatically recorded in both Hi-Fi stereo sound and in monaural sound.

• The audio level of a tape recorded in Hi-Fi stereo will differ from the audio level of a tape not recorded in Hi-Fi stereo.

• Normally, HIFI should be selected from the AUDIO OUT menu for playback with Hi-Fi sound. But, you can change the selection to MONO if you want monaural audio playback. To do this, follow steps 1 - 3 above. At step 4, press the PLAY/o button or the STOP/p button to select MONO. Press the STATUS/EXIT button. HIFI will disappear from the status display.

• If you play non-Hi-Fi tapes while the VCR is set to HIFI, HIFI will disappear from the status display and the tape will play in monaural sound.

Please see additional notes on page 43.

Helpful Hints

SELECT op

→HIFI ON

MONO

TO END PUSH EXIT

2-3

5 4

VRZ220/250 layout 4/8/99 10:12 PM Page 40

POWER EJECTVCR/TV

1 2 3

4 5 6

+100

TIME SEARCH

/STOP

CHANNEL

MEMORY

7 8 9

SPEED

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

Page 41

Hi-Fi Stereo Sound System (VRZ250 only) (cont’d) 41

Press the MENU button.

Press the PLAY/o button or the STOP/p button to select TUNER SET UP, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button to select TV STEREO. Then, press the F.FWD/B button. ON will

appear to the right of TV STEREO on-screen.

Press the STATUS/EXIT button.

SELECT op CHOOSE B →TV

CABLE TV ON AUTO PROGRAMMING ADD/DELETE CH CH MEMORY REVIEW TV STEREO ON 2ND AUDIO

TO END PUSH EXIT

7-8

VRZ220/250 layout 4/8/99 10:12 PM Page 41

POWER EJECTVCR/TV

1 2 3

4 5 6

+100

TIME SEARCH

/STOP

CHANNEL

MEMORY

7 8 9

SPEED

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

Page 42

If you are having problems with your product, check this list of problems and possible solutions before requesting service. You may be able to solve the problem yourself. If you need to call a customer service representative, please know the model number and serial number of your product before you call. This information is displayed on the back of the product. Also, please take a moment to identify the problem you are having, and be prepared to explain this to the representative. If you believe the representative will need to help you with operations, please stay near the product. Our representatives will be happy to assist you.

No power

• Make sure the power plug is completely connected to an AC (alternating current) outlet.

• Make sure the power is turned on.

Power Failure

• Timer recordings, the clock setting, the language selection, and channel setup may be lost if the power fails for more than one minute. Follow the steps on pages 11 and 15. Then, see pages 28 - 31 to reprogram your timer recordings.

A TV program cannot be recorded.

• Check the connections between the VCR, TV, antenna/cable, and Cable Box/Direct Broadcast System (if applicable) (pages six - 10).

• Make sure the tape has a record tab (page five).

• Check the TV/VCR position (page 22).

• Check the CH3/CH4 switch (pages six - nine).

The VCR will not perform a timer recording.

• Make sure the recording start and stop times are set correctly (pages 28 - 31).

• Make sure a tape is in the VCR and the tape has a record tab (page five). If, after programming a timer

recording, you turn off the VCR power without putting a tape in the VCR, the TIMER light will blink.

• If the record tab on a tape is missing, the VCR will eject the tape. The TIMER light will blink.

• Make sure the VCR power is off.

• Make sure the clock is set (page 15).

• The VCR may not perform or continue a timer recording if a power interruption of more than one

minute occurs.

• If you have a Cable Box/Direct Broadcast System, timer recordings are programmed differently. (See page eight for details.)

• Finish programming a timer recording at least five minutes before the recording is set to begin.

• 12 p.m. is noon; 12 a.m. is midnight.

There is no playback picture or the playback picture is noisy or contains streaks.

• Make sure the TV is on the same channel as the VCR’s CH3/CH4 switch.

• Make sure the VCR is in VCR position. (The VCR/TV light will appear on the display panel.)

• Make sure channel 03 or 04 is properly adjusted at the TV.

• Adjust the tracking (page 37).

The VCR cannot be controlled with the remote control.

• Make sure the VCR/TV light appears on the display panel. If it does not, press the VCR/TV button once.

• Aim the remote control directly at the VCR’s remote sensor (page 22).

• Remove all obstacles between the remote control and the VCR.

• Inspect and/or replace the batteries in the remote control (page five).

The VCR does not respond normally to the remote control. (For example, the VCR may

change channels multiple times when you press the CHANNEL o button once.)

• Install new batteries (preferably alkaline) in the remote control.

The Number buttons won’t work for channels above 69.

• Select CABLE TV at the TUNER SET UP menu (page 12), then let the VCR set up the channels.

42 Helpful Hints

VRZ220/250 layout 4/8/99 10:12 PM Page 42

Page 43

TV programs cannot be watched normally.

• Put the VCR in TVposition. (Press the VCR/TV button so that the VCR/TV light disappears from the display panel. For details see page 22.)

• Check the connections between the VCR, TV, antenna/cable, and Cable Box/Direct Broadcast System (if applicable). (See pages six - 10 for details.)

Tape cannot be inserted.

• Insert the tape, window side up, with the record tab facing you.

• Make sure a tape isn’t already in the VCR by pressing the STOP/EJECT button on the VCR.

• Gently push on the center of the tape when putting it in the VCR. Never force the tape into the VCR.

• If a timer recording is programmed and the VCR power is off, you can not insert a tape without a

record tab.

Tape cannot be removed.

• Make sure the power plug is completely connected to a power outlet.

• You have set a timer recording. Turn the VCR power on, then eject the tape. Be sure to insert a tape

and turn off the power for your timer recording.

VCR ejects the tape when the REC(ord)/OTR button is pressed or when the VCR power is turned off to set a timer recording.

• Make sure the tape has a record tab (page five).

Channels above 13 cannot be received.

• Select CABLE TV at the TUNER SET UP menu (page 12), then let the VCR set up the channels.

Poor reception

• You may need to tune your TV again.

The motor (cylinder) rotates even when the VCR is in Stop mode.

• To enable the quick play mechanism, the cylinder will rotate for about five minutes. This is normal. The quick play mechanism enables the tape mechanism to switch from Stop mode to Play mode in one second.

Line Input mode

• If you accidentally enter Line Input mode (A/V IN will appear on your TV screen briefly), press the CHANNEL o/p buttons or use the Number buttons to select another channel.

Hi-Fi Stereo Sound (VRZ250 only)

• During playback, Hi-Fi audio may temporarily revert to normal audio when you adjust tracking. This is normal.

• When connecting the VCR to a stereo TV, you will only get stereo sound if you use audio cables to connect the AUDIO OUT jacks on the VCR to the AUDIO IN jacks on your TV, and if the TV is in Line (Auxiliary) Input mode.

• When you connect the AUDIO OUT jacks on the VCR to the AUDIO IN jacks on your TV, the stereo light on the TV might not glow. But, as long as the status display indicates you are receiving a stereo signal, you are receiving a stereo signal. This is normal.

• Only tapes recorded in Hi-Fi audio will play back in Hi-Fi audio. Tapes recorded in normal audio will play back in monaural audio.

Helpful Hints (cont’d) 43

VRZ220/250 layout 4/8/99 10:12 PM Page 43

Page 44

44 Glossary

AUDIO IN/OUT Jacks: jacks located on the back of the VCR which are used to record audio from another source (IN) or to send audio to another source (OUT). The VRZ220 has single AUDIO IN/OUT Jacks on the back of the VCR. The VRZ250 has Right and Left AUDIO IN/OUT Jacks on the back of the VCR.

Automatic Channel Setup: process in which the VCR memorizes all available channels. Then, when you press the CHANNEL o/p buttons, you only scan through channels you receive.

Bands: settings that allow you to tune channels.

• Antenna – VHF (very high frequency; channels 2 - 13) and UHF (ultra high frequency; channels 14 - 69).

• Cable – all standard channels can be received without a Cable Box.

Cable Box/DBS Output Channel: 03 or 04. Dubbing: copying a tape using a second VCR. Frame: a still picture. HQ: high quality; a feature in the VCR circuitry which provides

enhanced picture detail. Line Input: The channel to which you set your VCR during dub-

bing (0, 0). If you accidentally enter Line Input mode, press the CHANNEL

o/p buttons or use the Number buttons to select another channel.

OTR: One-Touch Recording; a timed recording that starts immediately and records for 30 minutes to eight hours.

Remote Control: the small electronic unit that came with your VCR; allows you to operate your VCR from a distance.

RF coaxial cable: The cable supplied with your VCR. Use it to connect your VCR to your TV (or Cable Box or DBS). The supplied cable is a snap-on type. However, you may use a screw-on type if you prefer.

Special Effects: forward and reverse searching; a still picture; slow motion (VRZ250 only) playback.

Tape Speeds: how fast the tape travels during a recording or playback.

• SP (standard play) – fastest tape speed (recording time for a T120 tape is approximately two hours); best picture quality.

• LP (long play) – average tape speed (recording time for a T120 tape is approximately four hours).

• SLP (super long play) – slowest tape speed (recording time for a T120 tape is approximately six hours).

VCR: video cassette recorder. VIDEO IN/OUT Jacks: jacks located on the back of the VCR

which are used to record video from another source (IN) or to send video to another source (OUT).

VRZ220/250 layout 4/8/99 10:12 PM Page 44

Page 45

Specifications 45

Video Heads

Two heads (VRZ220) Four heads with Hi-Fi stereo (VRZ250)

Video Signal

EIA standards; NTSC color

Antenna

VHF/UHF – 75 ohm external antenna terminal

VHF Output Signal

Channel 03 or 04 (switchable) 75 ohms unbalanced

Power Requirement

120V AC; 60Hz

Power Consumption

16W (VRZ220) 18W (VRZ250)

Operating Temperature

41°F (5°C) to 104°F (40°C)

Relative Humidity

10% to 80%

Weight

5.5 lbs. (2.5 kg.) (VRZ220)

5.73 lbs. (2.6 kg.) (VRZ250)

Dimensions

14-3/16” (W) x 3-1/16” (H) x 10” (D) (360mm x 92mm x 230mm)

Tuner Broadcast Channels

VHF 2-13, UHF 14-69

Cable TV Channels

2 – 13 Midband: A – 1 Superband: J – W Hyperband: A-5 – A-1 Special Channel: 5A Ultraband: 37 – 94, 100 – 125

NOTE: Designs and specifications are subject to change without notice.

VRZ220/250 layout 4/8/99 10:12 PM Page 45

Page 46

VIDEO CASSETTE RECORDER

90 Days Free Labor/One Year Parts Exchange. This product must be carried in for repair.

WHO IS COVERED?

You must have proof of purchase to receive warranty service. A sales receipt or other document showing that you purchased the product is considered proof of purchase.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For 90 days thereafter, all parts will be repaired or replaced, and labor is free. From 90 days to one year from the day of purchase, all parts will be repaired or replaced, but you pay for all labor charges. After one year from the day of purchase, you pay for the replacement or repair of all parts, and for all labor charges.

All parts, including repaired and replaced parts, are covered only for the original warranty period. When the warranty on the product expires, the warranty on all replaced and repaired parts also expires.

WHAT IS EXCLUDED?

Your warranty does not cover:

• labor charges for installation or setup of the prod-

uct, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.

• product repair and/or part replacement because

of misuse, accident, unauthorized repair or other cause not within the control of Philips Consumer Electronics Company.

• reception problems caused by signal conditions or

cable or antenna systems outside the unit.

• a product that requires modification or adaptation

to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.

• incidental or consequential damages resulting from

the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)

• damage caused by the use of non-VHS tapes or

tapes that have not been tested and labeled for use in two, four, six, and eight hour VHS recorders.

• a product that is used for commercial or institu-

tional purposes (including but not limited to rental purposes).

WHERE IS SERVICE AVAILABLE?

Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics Company. In countries where Philips Consumer Electronics Company does not distribute the product, the local Philips service organiza-

tion will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).

MAKE SURE YOU KEEP...

Please keep your sales receipt or other document showing proof of purchase. Attach it to this owner’s manual and keep both nearby. Also keep the original box and packing material in case you need to return your product.

BEFORE REQUESTING SERVICE...

Please check your owner’s manual before requesting service. Adjustments of the controls discussed there may save you a service call.

TO GET WARRANTY SERVICE IN U.S.A., PUERTO RICO OR U.S. VIRGIN ISLANDS...

Take the product to a Philips factory service center (see enclosed list) or authorized service center for repair. When the product has been repaired, you must pick up the unit at the center. Centers may keep defective parts.

(In U.S.A., Puerto Rico and U.S. Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. Because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.)

TO GET WARRANTY SERVICE IN CANADA...

Please contact Philips at:

1-800-661-6162 (French Speaking) 1-800-363-7278 (English Speaking)

(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special, incidental, or consequential damages, howsoever incurred, even if notified of the possibility of such damages.)

REMEMBER...

Please record below the model and serial numbers found on the product. Also, please fill out and mail your warranty registration card promptly. It will be easier for us to notify you if necessary.

MODEL # __________________________________ SERIAL # __________________________________

This warranty gives you specific legal rights. You may have other rights which vary from state to state.

Philips Service Solutions Group, P.O. Box 555, Jefferson City, Tennessee 37760, (423) 475-8869

EL4946E008 / MAC 6108/ 1-98

46 Limited Warranty

VRZ220/250 layout 4/8/99 10:12 PM Page 46

Page 47

ac power cord .................................23

accessories.......................................48

ant(enna) in jack...................6-10, 23

audio in/out jacks.......10, 23, 32, 44

automatic

playback.......................................37

rewind, eject, off........................37

batteries..............................................5

cassette compartment ...................21

ch3/ch4 switch........................6-9, 23

channel

above 100....................................18

adding...........................................13

deleting........................................13

reviewing.....................................14

setup.......................................11-14

o/p buttons ...............19, 22, 37

clear button...............................19, 35

clock setting.....................................15

connections..................................6-10

contents, table of..............................4

controls

remote...................................18-19

vcr...........................................21-23

counter only mode.........................20

daylight-saving time........................16

display panel .....................................21

duplication........................................32

eject button......................................19

erasure prevention...........................5

f.fwd/B button..................19, 22, 36

front panel........................................22

glossary..............................................44

helpful hints ................................42-43

hi-fi stereo sound system.......40-41

hookups

with cable box/dbs..................8-9

with stereo tv.............................10

without cable box/dbs............6-7

language selection....................11, 17

line input mode.................12, 32, 44

long play.....................................30, 44

lp ................................................30, 44

memory button........................18, 35

menu button....................................18

number buttons..............................18

on-screen status displays..............20

one-touch recording......................27

out jack.....................................6-9, 23

pause button....................................22

pause/still button...............19, 25, 36

play/K button ....................18, 24, 36

playing ................................................24

power

button....................................18, 22

cord..............................................23

light...............................................21

real-time counter............................35

rear panel .........................................23

rec/otr button.............18, 22, 25, 27

rec(ord) light....................................21

recording

basic ..............................................25

one channel/

watching another.......................26

timer.......................................28-31

remote control

buttons...................................18-19

sensor...........................................22

using ................................................5

repeat play........................................33

rerecording......................................32

rew(ind) button...............................22

rewind/s button............................18

rf coaxial cable.................6-9, 32, 44

safety precautions.............................3

searching...........................................36

second audio broadcast

receiving...........................38-39

recording..........................38-39

sensor (remote) ..............................22

slow

button ..........................................19

motion..........................................36

slp................................................30, 44

sp ................................................30, 44

speed button....................................18

standard play.............................30, 44

status display ....................................20

status/exit button.....................18, 20

stereo

broadcast

receiving...........................38-39

recording..........................38-39

hookups................................10, 38

still picture........................................36

stop/L button..................................19

stop/eject button............................22

super high speed searching..........36

super long play.........................30, 44

table of contents...............................4

tape

duplication...................................32

eject................................19, 22, 37

in light..........................................21

speed.....................................30, 44

time

search button......................18, 34

(setting)........................................15

timer

light...............................................21

recording

cancelling................................31

checking..................................31

setting...............................28-30

tracking..............................................37

hookups...................................6-10

position.................................19, 22

vcr position...............................19, 22

vcr/tv

button....................................19, 22

light...............................................21

video in/out jacks .......10, 23, 32, 44

warranty............................................46

Index 47

VRZ220/250 layout 4/8/99 10:12 PM Page 47

Page 48

IB8077E001

Printed In China

0VMN02171 / H1989UD, H1689UD * * * * *

SUPPLIED ACCESSORIES

Remote Control for VRZ220 4835 218 37235 Remote Control for VRZ250 4835 218 37236 Two AA Batteries 4835 138 17012

RF Coaxial Cable, 75 ohm 4835 323 27011

Check to be sure the items on this page are packed with your VCR. These accessories are provided to help you use or set up your VCR.

If any of these items are not included, or if you need to replace an item, contact Philips Service Solutions Group at the address below.

Philips Service Solutions Group P.O. Box 967 Greeneville, TN 37744-0967

Or, call 1-800-851-8885.

VRZ220/250 layout 4/8/99 10:12 PM Page 48
