Video Cassette Recorder VRX262AT

Owner’s Manual

Page 2

Once your PHILIPS MAGNAVOX purchase is registered, you’re eligible to receive all the privileges of owning a PHILIPS MAGNAVOX product. So complete and return the Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.

Return your Warranty Registration card today to

ensure you receive all the

benefits

you’re entitled to.

For Customer Use

Enter below the Serial No. which is located on the rear of the cabinet. Retain this information for future reference.

Model No. ______________ Serial No. ______________

Congratulations on your purchase, and welcome to the “family!”

Dear PHILIPS MAGNAVOX product owner:

Thank you for your confidence in PHILIPS MAGNAVOX. You’ve selected one of the best-built, best-backed products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come. As a member of the PHILIPS MAGNAVOX “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry. What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network. And most importantly you can count on our uncompromising commitment to your total satisfaction. All of this is our way of saying welcome-and thanks for investing in a PHILIPS MAGNAVOX product.

Sincerely,

Robert Minkhorst President and Chief Executive Officer

P.S. Remember, to get the most from your PHILIPS

MAGNAVOX product, you must return your Warranty Registration Card within 10 days. So please mail it to us right now!

Know these

safetysymbols

This “bolt of lightning” indicates

uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The “exclamation point” calls

attention to features for which

you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert.

ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

PHILIPS MAGNAVOX

Visit our World Wide Web Site at http://www.magnavox.com

Hurry!

Warranty Verification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your PHILIPS MAGNAVOX warranty.

Owner Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

Model Registration

Returning your Warranty Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model.

Page 3

Introduction 3

Features

• HQ (High Quality) System

• Automatic Channel Programming

• Frequency Synthesizer Tuning with Auto Set Feature

• On-Screen Displays in English or Spanish

• Display Panel

• MTS (Multi-Channel Television Sound) System

• Hi-Fi Stereo Sound System

• Automatic Tracking Adjustment

• One Touch Recording

• Unattended (Timer) Recording

• Special Effects Playback: Forward and Reverse Searching; Still; Slow Motion

• Wireless Remote Control

• Repeat Playback

• Automatic Operation Features

• Real Time Counter

• Daylight-Saving Time

• The VCR Plus+ Programming System

• Time Search Function

Safety Precautions

Warning: To prevent fire or shock hazard, do not expose this equipment to rain or moisture. FCC Warning: Any unauthorized changes or modifications to this equipment void the user’s authority to operate it.

This VCR, equipped with a HQ (High Quality) system, is compatible with existing VHS (video home system) equipment. Philips Consumer Electronics Company recommends that you use only video cassette tapes that have been tested and inspected for use in two, four, six, and eight hour VCRs, and which are labeled with the mark. The use of tapes that have not been inspected for use in two, four, six, and eight hour VCRs may result in poor picture quality and excessive deposits on the video heads, which may not be covered by the warranty if damage occurs.

Note to the CATV System Installer: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electrical Code, which provides guidelines for proper grounding – in particular, specifying that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as possible.

Copyright 1997 Philips Consumer Electronics Company. All rights reserved. VCR Plus+ and PlusCode are trademarks of Gemstar Development Corporation. The VCR Plus+ system is manufactured under license from Gemstar Development Corporation.

Welcome to your VCR owner’s manual. This manual has seven sections: Setting Up Your VCR; Description of Controls; Basic Operations; Recording; Playing; Stereo Features; and Information You May Need. The instructions explain all of the VCR’s features, which are listed below. You cannot hurt your VCR by trying the features! So read on – and relax.

• Before doing anything else, record the VCR’s model and serial numbers in the spaces provided on page two. These numbers will help us assist you if you ever call for help.

Helpful Hint

Page 4

4 Table of Contents

Setting Up Your VCR

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Before Using Your VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Hookups Without a Cable Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7

Hookups With a Cable Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9

Hookups With a Stereo TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Turning on Your VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Channel Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-14

Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Daylight-Saving Time Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Language Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Description of Controls

Remote Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-19

On-Screen Status Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

VCR Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Basic Operations

Playing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Recording

Recording One Channel/Watching Another . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

One Touch Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28-31

Setting Up the VCR Plus+ Programming System . . . . . . . . . . . . . . . . . . . . . . . . . . .32-33

Timer Recording With the VCR Plus+ Programming System . . . . . . . . . . . . . . . . . .34-35

Rerecording (Tape Duplication) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Playing

Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Time Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Real Time Counter Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Special Effects Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Automatic Operation Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Stereo Features

MTS Broadcast Stereo System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42-43

Hi-Fi Stereo Sound System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44-45

Information You May Need

Helpful Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46-47

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Supplied Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Page 5

● In this VCR, use only tapes with the mark.

● Make sure any light adhesive stick-on notes are removed from

the video cassette tape before putting the tape in the VCR. Removable labels like these can jam the VCR.

● Periodic maintenance is required to maintain your VCR’s con-

tinued excellent performance. The video heads will eventually require cleaning or replacement. Cleaning or replacement of the video heads should be performed by an authorized service center.

Before Using Your VCR 5

Putting Batteries in the Remote Control

Remove the battery compartment lid on the bottom of the

remote control by sliding it in the direction of the arrow.

Insert two AA batteries inside the battery compartment with

their polarities (+and – ends) aligned as indicated.

Replace the battery compartment lid.

Using the Remote Control

● Point the remote control at the VCR’s remote sensor (see page

22) when using the remote control to operate the VCR.

● Do not put objects between the remote control and the VCR.

Video cassette tapes have record tabs to ensure that recordings are not accidentally erased.

To prevent accidental erasure, break off the tab with a screwdriver.

To record again, cover the hole with cellophane tape.

Erasure Prevention

VCR maintenance

• The remote control and its batteries are supplied.

• Do not mix alkaline and manganese batteries.

• Do not mix old and new batteries.

Helpful Hints

1 2

Page 6

CH3

CH4

OUT

ANT

VIDEO

OUT

AUDIO

VIDEO

OUT

CH4

OUT

ANT

CH3

75V ANT /

CABLE

75V

ANT /

CABLE

6 Hookups Without a Cable Box

The basic VCR/TV connection – antenna/cable to VCR to TV – is shown below. If you have a Cable Box or a descrambler box, please refer to pages eight-nine. If you have a Stereo TV, please go to page 10. After you hook up the VCR, please go to page 11 to turn on the VCR.

ANTENNA IN

Jack

(on back of TV)

Cable

(75 ohm)

Back of VCR

Antenna

Indoor/Outdoor

(300 ohm)

Disconnect the antenna or cable from your TV.

Connect the antenna or cable to the ANT(enna) IN jack of your VCR.

Cable

(75 ohm)

Antenna

Indoor/Outdoor

(300 ohm)

Page 7

CH3

CH4

OUT

ANT

VIDEO

OUT

AUDIO

OUT

AUDIO

VIDEO

OUT

CH4

OUT

ANT

CH3

CH 4

CH 3

CH3 / CH4

Switch

CH3 CH4

75V ANT /

CABLE

75V

ANT /

CABLE

CH3

CH4

OUT

ANT

VIDEO

OUT

AUDIO

VIDEO

OUT

CH4

OUT

ANT

CH3

RF coaxial cable

Antenna

or Cable

Connect the RF coaxial cable (supplied) to the OUT jack on the back of the VCR and to the ANTENNA IN Jack on the TV. (You may use either a snap-on

type or screw-on type of coaxial cable, whichever you prefer. A snap-on type is supplied.)

Set the CH3/CH4 switch on the back of the VCR to CH3 or CH4, whichever channel is not used or least used in your area. To operate your VCR with your TV, set the TV to the same channel. For example, when playing a tape, if the CH3/CH4

switch is set to CH3, the TV should be on channel 3.

Hookups Without a Cable Box (cont’d) 7

ANTENNA IN Jack

(on back of TV)

example only

Plug in the TV and the VCR.

You are ready to turn on the VCR. Please go to page 11 before turning on the VCR.

Page 8

8 Hookups With a Cable Box

This connection allows you to view any channel. After you connect the Cable Box, VCR, and TV as shown below, the features described on this page will be available.

75V

ANT /

CABLE

CH3

CH4

OUT

ANT

VIDEO

OUT

AUDIO

OUT

ANTENNA IN Jack

Back of TV

(example only)

1. Connect Cable signal to IN Jack on Cable Box.

3. Use a second RF coaxial cable to connect the OUT jack on the VCR to the TV’s ANTENNA IN Jack.

Recording and Viewing a Scrambled or Unscrambled Channel

With the VCR on and in VCRposition (the VCR light will appear on the display panel), use the CHANNEL (Up/Down) but-

tons to set the VCR to the Cable Box output channel (channel 3 or 4).

Set the TV to the same channel to which you set the VCR.

Select the channel you want to watch or record at the Cable Box.

Watching TV With the VCR Off

Use the TV channel selector to set the TV to the Cable Box output channel (channel 3 or 4).

Select the channel you want to watch at the Cable Box.

Timer Recordings

With this connection, you may set a timer recording as described on pages 28-31. However, you must remember the following:

● You can only program a timer recording for one channel at a

time.

● Set the TV and the VCR to the Cable Box output channel

(channel 3 or 4).

● When you are prompted to enter the channel you want to

record, select channel 3 or 4 (the Cable Box output channel). (This is step 5 on page 29.)

● Set your Cable Box to the channel you want to record.

● Leave the Cable Box on while you are recording.

• With this hookup, channels cannot be changed using the VCR remote control. You must select channels at the Cable Box.

• You can not view a channel other than the one you are recording (the instructions on page 26 do not work with this hookup).

• You cannot program channels with this hookup (as discussed on page

12).

2. Use RF coaxial cable (supplied) to connect OUT Jack on Cable Box to

ANT(enna) IN Jack on VCR.

Helpful Hints

Page 9

Playing a Tape

Press the VCR/TV button to put the VCR in VCR position

(the VCR light will appear on the display panel).

Make sure the Cable Box is on the same channel as the VCR’s CH3/CH4 switch.

Use the TV channel selector to put the TV on the Cable Box output channel (channel 3 or 4).

Press the PLAY button to play the tape.

Hookups With a Cable Box (cont’d) 9

OUT

75V

ANT /

CABLE

CH3

CH4

OUT

ANT

VIDEO

OUT

AUDIO

This connection allows you to program an unattended recording of more than one unscrambled channel and to watch one channel while recording another. After you connect the VCR, Cable Box, and TV as shown below, the features on this page will be available.

Recording One Channel/Watching Another

With the VCR in VCR position (the VCR light will appear on the display panel), use the CHANNEL (Up/Down) buttons to select

the channel you want to record. Start the recording.

Press the VCR/TV button once to put the VCR in TV position.

Use the TV channel selector to put the TV on the Cable Box output channel (channel 3 or 4).

Select the channel you want to watch at the Cable Box.

• You cannot record scrambled channels with this connection.

Helpful Hint

1. Connect a Cable signal to the VCR’s

ANT(enna) IN Jack.

3. Use a second RF coaxial cable to connect the OUT Jack on the Cable Box to the ANTENNA IN Jack on the back of the TV.

2. Use an RF coaxial cable (supplied) to connect the OUT Jack on the VCR to the IN Jack on the Cable Box.

TV ANTENNA IN Jack

Page 10

10 Hookups With a Stereo TV

Connect the antenna or cable to the ANT(enna) IN Jack on the back of the VCR.

Connect a video cable to the yellow VIDEO OUT Jack on the back of the VCR. Then, connect the other end of the video cable to the VIDEO IN Jack on your TV.

Connect an audio cable to the red and white AUDIO OUT Jacks on the back of the VCR. Then, connect the other end of the audio cable to the AUDIO IN Jacks on your TV.

Turn on your TV, making sure it is in Line Input mode. Please

refer to your TV owner’s manual for details.

• A stereo audio cable (not supplied) is used here to deliver audio to the TV’s left and right channels.

• The TVmust be in Line Input mode. Please refer to your TV owner’s manual.

Helpful Hints

CH3

CH4

OUT

ANT

VIDEO

OUT

AUDIO

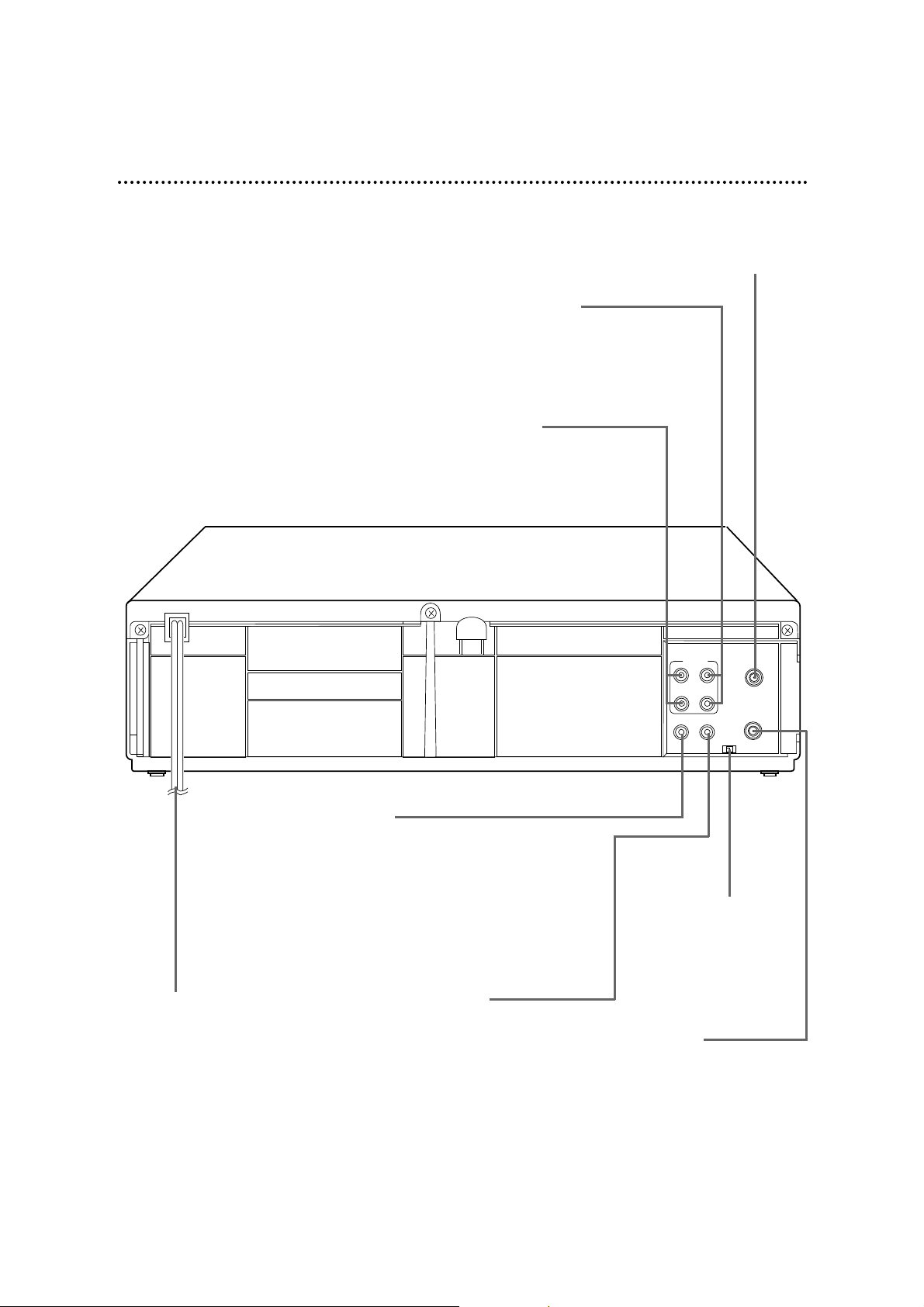

antenna or cable to ANT(enna) IN Jack

Video Cable

Audio Cable

VIDEO (yellow) and AUDIO (red and white)

OUT Jacks

Audio and Video

IN Jacks on TV

● Audio and Video cables are not supplied.

Page 11

• To skip this feature and play a tape immediately, insert a tape with its record tab removed. Or, to skip step 3, press the MENU button. All onscreen displays will be inEnglish. To skip step 5, press the STOPbutton. Channels will not be programmed, and CHANNELS NOTSET will appear on-screen.

• If you try to program channels when there is no antenna or cable connected to the VCR, programming will appear to take place, but eventually a NOTV SIGNALSmessage will appear on-screen. Connect an antenna or cable to the VCR and try again. You may need to follow the steps on page 12.

Helpful Hints

Turning on Your VCR 11

Before turning on your VCR, make sure there are batteries in the remote control and the VCR and TV are connected correctly.

● Follow the steps on this page only when you plug the VCR

power cord into the wall outlet for the first time.

● You may not be able to program channels at step 5 if you are

using a Cable Box.

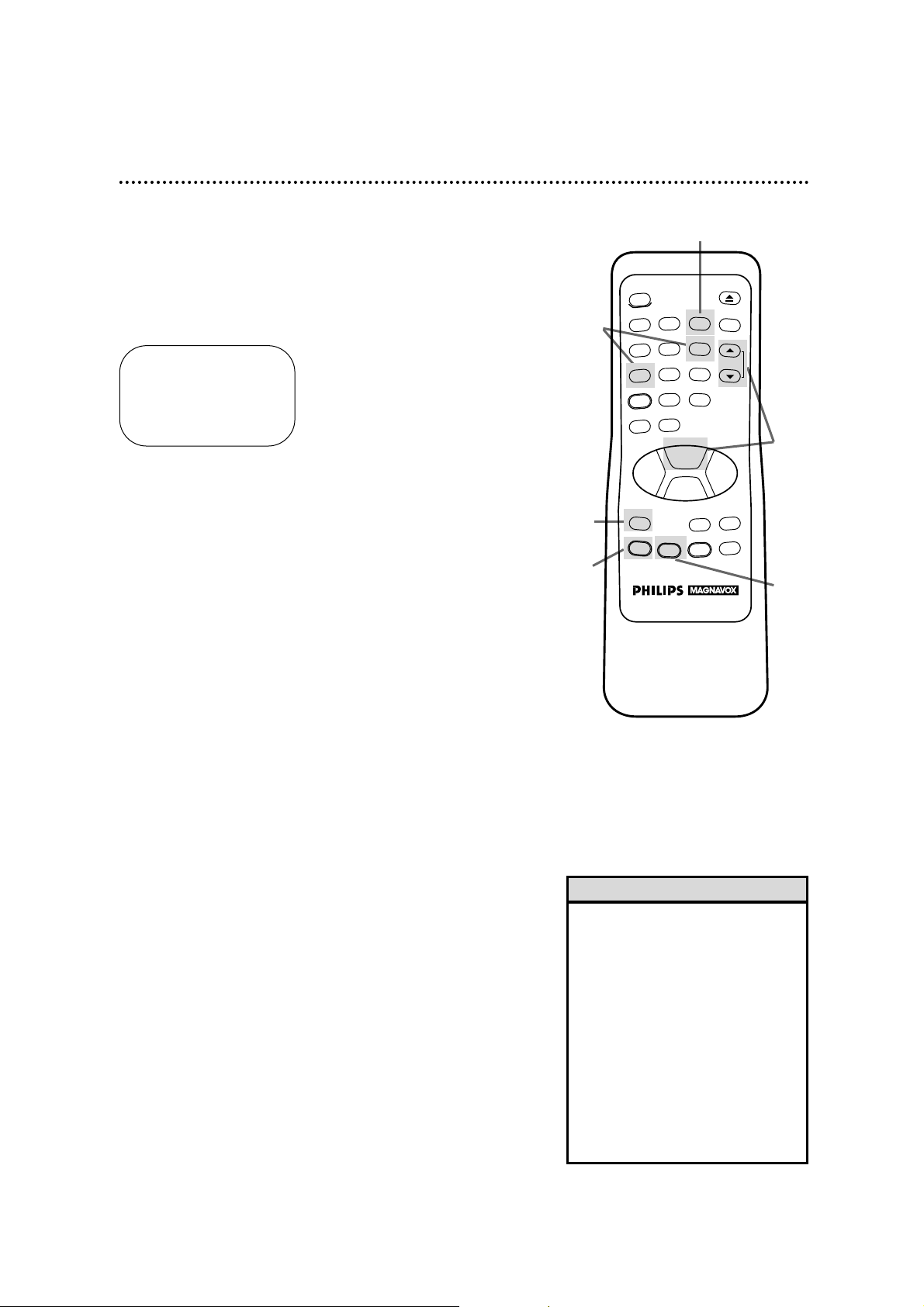

Turn the TV on. Set it to the same channel as the CH3/CH4 switch on the back of the VCR.

Press the POWER button to turn on the VCR. The VCR

light and the PWR. light will appear on the VCR display panel. The language select display screen shown below will appear. (If it does not appear, follow the steps on page 12 to program channels and page 17 to select a language.)

Within 60 seconds, press the Number 1 button to select English on-screen displays or the Number 2 button to select Spanish on-screen displays.

Press the MENU button. The channel program display shown

below will appear. The display will disappear after about 60 seconds if you do not press any buttons.

TO SELECT PUSH NO. SHOWN

1 ENGLISH ON 2 ESPAÑOL

MAKE SELECTION OR PUSH MENU TO CONTINUE

CONNECT ANTENNA OR CABLE TO VCR

THEN . . .

PUSH CH UP KEY

OR . . .

FOR PLAY ONLY – PUSH STOP

Press the CHANNEL (Up) button to begin automatic channel programming. AUTO SET PROCEEDING PLEASE

WAIT will appear on-screen. The VCR will place all of the channels you receive into its memory, so when you scan through channels using the CHANNEL (Up/Down) buttons, you’ll only scan through channels that you receive. When all channels are programmed, CHANNELS ARE SET will appear on-screen briefly. Then the TV will go to the lowest channel programmed.

REW

PLAY

POWER

VCR PLUS+

SPEED

VCR/TV

EJECT

CHANNEL

REC/OTR

STATUS/EXIT

SLOW

PAUSE/STILL

CLEAR

MEMORY

STOP

F.FWD

2 3

5 6

8 9

+100

TIME SEARCH

Turn on the TV.

Page 12

12 Channel Memory

Press the MENU button to bring up the main menu display.

TO SELECT PUSH NO. SHOWN

1 PROGRAM 2 VCR SET UP 3 TUNER SET UP 4 SET CLOCK

TO END PUSH EXIT

2&4

Programming Channels

Although your VCR may automatically memorize the channels you receive when you turn it on for the first time, this function lets you reprogram channels.

Press the Number 3 button to select TUNER SET UP.

TO SELECT PUSH NO. SHOWN

1 TV 2 CABLE TV ON 3 AUTO PROGRAMMING 4 ADD/DELETE CH 5 CH MEMORY REVIEW 6 TV STEREO ON 7 2ND AUDIO

TO END PUSH EXIT

Press the Number 1 button to select TV (if you have an

antenna) or the Number 2 button to select CABLE TV (if you have a cable connection). ON will appear to the right of your selection.

Press the Number 3 button to select AUTO PROGRAM-

MING. MEMORIZED CHANNEL / PLEASE WAIT will appear onscreen. The VCR will place all the channels you receive into its memory.

Wait for a few minutes while the VCR programs channels. When

programming is complete, CHANNELS ARE SET will appear onscreen. Then the programming of the lowest channel number placed in the VCR’s memory will appear on-screen. Now when you press the CHANNEL (Up/Down) buttons, you will scan only through channels you receive.

• You can not enter the TUNER SET UP menu when you are in Line Input mode (channel 00).

• Line Input mode will always be stored in the VCR’s memory as channel 00. When you select channel 00 with the CHANNEL (Up/Down) buttons or the Number buttons, A/V INwill appear on the screen briefly.

• You may not be able to program channels if you are using a Cable Box.

• To switch between TV and CABLE TV selection, repeat the steps on this page.

Helpful Hints

POWER

2 3

5 6

8 9

VCR PLUS+

SPEED

REW

REC/OTR

TIME SEARCH

PLAY

STOP

STATUS/EXIT

+100

SLOW

CLEAR

EJECT

VCR/TV

CHANNEL

F.FWD

PAUSE/STILL

MEMORY

Page 13

Channel Memory (cont’d) 13

Adding/Deleting Channels

Press the MENU button to bring up the main menu display.

Press the Number 3 button to select TUNER SET UP.

Press the Number 4 button to select ADD/DELETE CH.

Within 60 seconds, press the Number buttons to enter the desired channel number.

TO SELECT PUSH NUMBER

CH12 1 ADD 2 DELETE 3 SELECT ANOTHER CH

TO END PUSH EXIT

Within five seconds, press the Number 1 button to add that channel or the Number 2 button to delete that channel. Press the Number 3 button to leave that channel unchanged and select another channel.

If you do not make a choice within five seconds, you will return

to the previous menu display. If this happens, continue from step

Press the STATUS/EXIT button to exit. The programming of

the channel you added or deleted will appear.

SELECT CHANNEL NUMBER

CH – –

TO END PUSH EXIT

REW

PLAY

POWER

VCR PLUS+

SPEED

VCR/TV

EJECT

CHANNEL

REC/OTR

STATUS/EXIT

SLOW

PAUSE/STILL

CLEAR

MEMORY

STOP

F.FWD

2 3

5 6

8 9

+100

TIME SEARCH

Page 14

Press the MENU button to bring up the main menu display.

14 Channel Memory (cont’d)

Reviewing Programmed Channels

Press the Number 3 button to select TUNER SET UP.

Press the Number 5 button to select CH MEMORY REVIEW.

A list of programmed channels will appear on-screen.

● If all the programmed channels don’t fit on the screen, press

the Number 1 button to see the remaining channels. Then press the Number 2 button to return to the first screen of channels.

● If you do not press any buttons within 10 seconds, you will

either go to the next screen of channels or you will return to the previous menu display.

Press the STATUS/EXIT button twice to exit.

TO SELECT PUSH NO. SHOWN

1 PROGRAM 2 VCR SET UP 3 TUNER SET UP 4 SET CLOCK

TO END PUSH EXIT

TO SELECT PUSH NO. SHOWN

1 TV 2 CABLE TV ON 3 AUTO PROGRAMMING 4 ADD/DELETE CH 5 CH MEMORY REVIEW 6 TV STEREO ON 7 2ND AUDIO

TO END PUSH EXIT

POWER

VCR PLUS+

SPEED

REW

REC/OTR

2 3

5 6

8 9

TIME SEARCH

PLAY

STOP

STATUS/EXIT

+100

SLOW

CLEAR

EJECT

VCR/TV

CHANNEL

F.FWD

PAUSE/STILL

MEMORY

Page 15

TIME 02 :15 PM

MONTH – – / – – / – –

TO CORRECT PUSH CLEAR

TO END PUSH EXIT

Setting the Clock 15

Press the MENU button to bring up the main menu display.

Setting the Clock

Follow the steps below to set your VCR’s clock. Make sure:

● The VCR is on and the VCR light appears on the display panel.

(If it does not, press the VCR/TV button once.)

● You make each entry within 60 seconds of the previous entry.

If you do not, you may start over.

TO SELECT PUSH NO. SHOWN

1 PROGRAM 2 VCR SET UP 3 TUNER SET UP 4 SET CLOCK

TO END PUSH EXIT

Press the Number 4 button to select SET CLOCK. Then, press the Number 1 button to select SET CLOCK.

SET CLOCK

1 SET CLOCK 2 DAYLIGHT SVG TIME [ON]

TO SELECT PUSH NO. SHOWN TO END PUSH EXIT

Press two Number buttons for the hour(s) and two Number buttons for the minute(s). Then press 1 for AM or 2 for PM. For example, for 2:15 PM, press 02, 15, 2.

Press two Number buttons for the month, two Number buttons for the day, and two Number buttons for the year. For example, for July 1, 1997, press 07, 01, 97. The day of

the week will appear automatically.

TIME 02 :15 PM

DATE 07 / 01 / 97

TUE.

TO CORRECT PUSH CLEAR

TO END PUSH EXIT

Press the STATUS/EXIT button to start the clock. The

screen will return to the program you were watching.

• Enter a 0 before a single digit number.

• Entries that do not match the VCR’s internal calendar will cause a question mark (?) to appear on-screen.

• To make corrections, press the CLEAR button until the space for the number you want to correct is flashing. Then enter the correct number.

• The current time will appear on the VCR display panel when the clock is set. The current time will also appear on-screen if you press the STATUS/EXIT button. (See page 20 for details.)

• To reset the clock, follow the steps on this page.

• Power failures that last for more than one minute can cause you to lose your clock setting. If this happens, repeat the steps on this page.

• If you press the STATUS/EXIT button while you are setting the clock, the TV screen will return to the program you were watching. If this happens, start over.

Helpful Hints

PLAY

+100

SLOW

CLEAR

EJECT

VCR/TV

CHANNEL

F.FWD

PAUSE/STILL

MEMORY

POWER

2 3

5 6

8 9

VCR PLUS+

TIME SEARCH

SPEED

REW

REC/OTR

STOP

STATUS/EXIT

Page 16

Daylight-Saving Time Selection

You may program the VCR so its clock will automatically move forward one hour in April and turn back one hour in October. Daylight-Saving Time is set to ON prior to shipment from the factory. You may turn Daylight-Saving Time ON or OFF by following the steps below.

With the clock set, press the MENU button to bring up the main menu display.

Press the Number 4 button to select SET CLOCK.

Press the Number 2 button so that ON or OFF appears to

the right of DAYLIGHT SVG TIME.

Press the STATUS/EXIT button to exit.

16 Daylight-Saving Time Selection

TO SELECT PUSH NO. SHOWN

1 PROGRAM 2 VCR SET UP 3 TUNER SET UP 4 SET CLOCK

TO END PUSH EXIT

SET CLOCK

1 SET CLOCK 2 DAYLIGHT SVG TIME [ON]

TO SELECT PUSH NO. SHOWN TO END PUSH EXIT

SET CLOCK

1 SET CLOCK 2 DAYLIGHT SVG TIME [ON]

TO SELECT PUSH NO. SHOWN TO END PUSH EXIT

POWER

VCR PLUS+

SPEED

REW

REC/OTR

2 3

5 6

8 9

TIME SEARCH

PLAY

STOP

STATUS/EXIT

+100

SLOW

CLEAR

EJECT

VCR/TV

CHANNEL

F.FWD

PAUSE/STILL

MEMORY

Page 17

Language Selection 17

Press the MENU button to bring up the main menu display.

Language Selection

Follow the steps below to change the language of the on-screen displays.

Press the Number 2 button to select VCR SET UP.

Press the Number 4 button to select LANGUAGE.

Press the Number 1 button if you want the on-screen displays in English. ON will appear to the right of ENGLISH on-screen. Or, press the Number 2 button if you want the on-screen displays

in Spanish. SI will appear to the right of ESPAÑOL on-screen.

Press the MENU button to exit.

TO SELECT PUSH NO. SHOWN

1 PROGRAM 2 VCR SET UP 3 TUNER SET UP 4 SET CLOCK

TO END PUSH EXIT

TO SELECT PUSH NO. SHOWN

1 REPEAT PLAY OFF 2 ON SCREEN MODE 3 AUDIO OUT 4 LANGUAGE 5 VCR PLUS+ REF. MAP

TO END PUSH EXIT

• If you accidentally select Spanish on-screen displays and need English on-screen displays:

1. Press the MENU button.

2. Press the Number 2 button to select PREPARE LA VCR.

3. Press the Number 4 button to select LENGUAJE.

4. Press the Number 1 button to select English.

5. Press the MENU button to exit.

Helpful Hint

TO SELECT PUSH NO. SHOWN

1 ENGLISH ON 2 ESPAÑOL

MAKE SELECTION OR PUSH MENU TO CONTINUE

REW

PLAY

POWER

VCR PLUS+

SPEED

VCR/TV

EJECT

CHANNEL

REC/OTR

STATUS/EXIT

SLOW

PAUSE/STILL

CLEAR

MEMORY

STOP

F.FWD

2 3

5 6

8 9

+100

TIME SEARCH

Page 18

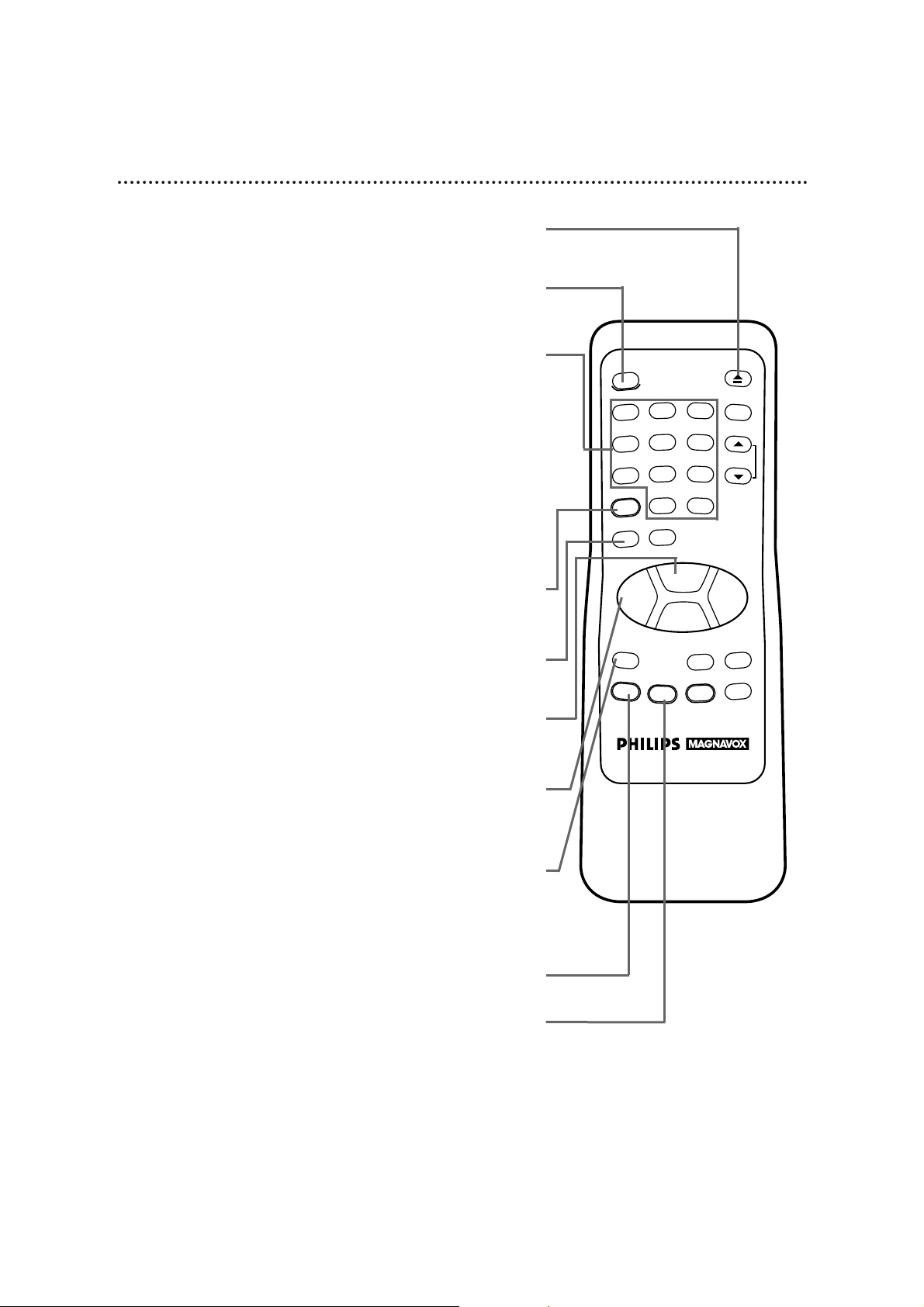

18 Remote Control Buttons

POWER Button

Press to turn the VCR on or off.

MENU Button

Press to bring up the main menu display.

(Tape) SPEED Button

Press to select the recording speed (SP, LP or SLP). Details are on

pages 25, 30, and 48.

PLAY Button

Press to play a tape. Also, press to release Slow, Search or Still

mode and to return to normal playback. Details are on page 40.

REW(ind) Button

When in Stop mode, press to rewind the tape at high speed.

When in Play mode, press to rewind the tape while the picture

stays on-screen.

REC(ord)/OTR Button

Press once to start a recording (see page 25 for details).

Or, press three to 18 times to start a one touch recording (an

immediate recording, 30 minutes to eight hours long) of the chan-

nel you are watching (see page 27 for details).

STATUS/EXIT Button

Press to see the on-screen status display or to make on-screen

status displays disappear. Details are on page 20. Press to exit on-

screen menus.

Number Buttons

Use to select channels and on-screen menus and to program VCR

functions (such as setting the clock).

Channels 1 - 9

●

To select, press 0, then press the channel you want. For example,

to select channel 7, press 0, 7.

Channels 100 and above ●

To select, press the +100 button, then press the last two digits of

the channel you want. For example, to select channel 117, press

the +100 button, 1, 7.

The +100 button will work only when selecting cable channels and

when CABLE TVhas been selected at the TUNER SET UP menu.

VCR PLUS+ Button

Press to set a Timer Recording with the VCR Plus+ programming

system. Details are on pages 34-35.

REW

PLAY

POWER

VCR PLUS+

SPEED

VCR/TV

EJECT

CHANNEL

REC/OTR

STATUS/EXIT

SLOW

PAUSE/STILL

CLEAR

MEMORY

STOP

F.FWD

2 3

5 6

8 9

+100

TIME SEARCH

EJECT Button

When playback is stopped, press to eject the tape.

Page 19

REW

PLAY

POWER

VCR PLUS+

SPEED

VCR/TV

EJECT

CHANNEL

REC/OTR

STATUS/EXIT

SLOW

PAUSE/STILL

CLEAR

MEMORY

STOP

F.FWD

2 3

5 6

8 9

+100

TIME SEARCH

Remote Control Buttons (cont’d) 19

STOP Button

Press to stop the tape.

PAUSE/STILL Button

In Record mode, press to temporarily stop the recording (pause).

Press a second time to resume recording. Details are on page 25.

You can not pause a one touch recording that is set for a specific

length of time.

In Play mode, press to freeze the picture (still). Press a second

time to resume normal playback. Details are on page 40.

F.FWD Button

When in Stop mode, press to fast forward the tape at high speed.

When in Play mode, press to fast forward while the picture stays

on-screen.

CHANNEL (Up/Down) Buttons

Press to scan up or down through the VCR’s channels after the

channels have been programmed.

CLEAR Button

Press to erase incorrect data when programming VCR functions,

such as setting the clock; press to clear a timer recording; or press

to reset the real time counter.

VCR/TV Button

Use to select the signal that your TV receives.

● VCR Position

Use to watch a tape, to watch a program while recording it, or

to watch a TV broadcast using the CHANNEL (Up/Down) or

Number buttons. When the VCR light appears on the VCR dis-

play panel, you are in VCR position.

● TV Position

Use to watch TV or to watch one program while recording

another. Details are on page 26.

MEMORY Button

Press to memorize a tape position at which the real time counter

was set to 0:00:00. Details are on page 39.

SLOW Button

During tape playback, press to view the picture in slow motion.

Press again to resume normal playback. Details are on page 40.

TIME SEARCH Button

Press to fast forward or rewind the tape a specific length of time.

Details are on page 38.

Page 20

TO SELECT PUSH NO. SHOWN

1 ON SCREEN ON ON 2 COUNTER ONLY 3 ON SCREEN OFF

TO END PUSH EXIT

20 On-Screen Status Displays

• If the channel you select has no broadcast, the screen will become a solid blue field. The screen will remain blue until you select an active channel.

• You may bring up the status display at any time by pressing the STATUS/EXITbutton. (The exception is when viewing a still picture or a slow motion picture, or when F.FWD or REW(ind) is pressed during playback.)

• Channel numbers (when tuned) are displayed for a few seconds.

Helpful Hints

Press the MENU button to bring up the main menu display.

TO SELECT PUSH NO. SHOWN

1 PROGRAM 2 VCR SET UP 3 TUNER SET UP 4 SET CLOCK

TO END PUSH EXIT

A status display, which includes the current time, channel, and other information (see illustration) will appear when you press the STATUS/EXIT button or certain function buttons. The contents of the status display may vary. There are three status display modes:

ON SCREEN ON:

● When you press the STOP button or the PLAY button, the status

display appears for five seconds.

COUNTER ONLY:

● When you press the STOP button or the PLAY button, the status

display appears for five seconds. After five seconds, only the counter will remain on-screen. Press the STATUS/EXITbutton to remove it.

ON SCREEN OFF:

● The status display will not appear when you press function buttons.

● You must press the STATUS/EXIT button to see the status display.

To select a status display mode, follow the steps below.

Press the Number 2 button to select VCR SET UP.

TO SELECT PUSH NO. SHOWN

1 REPEAT PLAY OFF 2 ON SCREEN MODE 3 AUDIO OUT 4 LANGUAGE 5 VCR PLUS+ REF. MAP

TO END PUSH EXIT

Press the Number 2 button to select ON SCREENMODE.

Press the Number 1 button to select ON SCREEN ON, the Number 2 button to select COUNTER ONLY, or the Number 3 button to select ON SCREENOFF. ONwill appear

beside the selected status display mode.

Press the STATUS/EXIT button to exit.

STOP 12:00 AM TV STEREO CH10

STEREO

2ND AUD

SLP M 1:23:45 HIFI

Function Button Pressed

Time

Channel

Counter and Counter Memory

Tape Speed

MTS Broadcast Available

Audio Out Mode

Receiving and Recording Mode

Page 21

VCR Display Panel 21

Cassette Compartment

Insert a tape here.

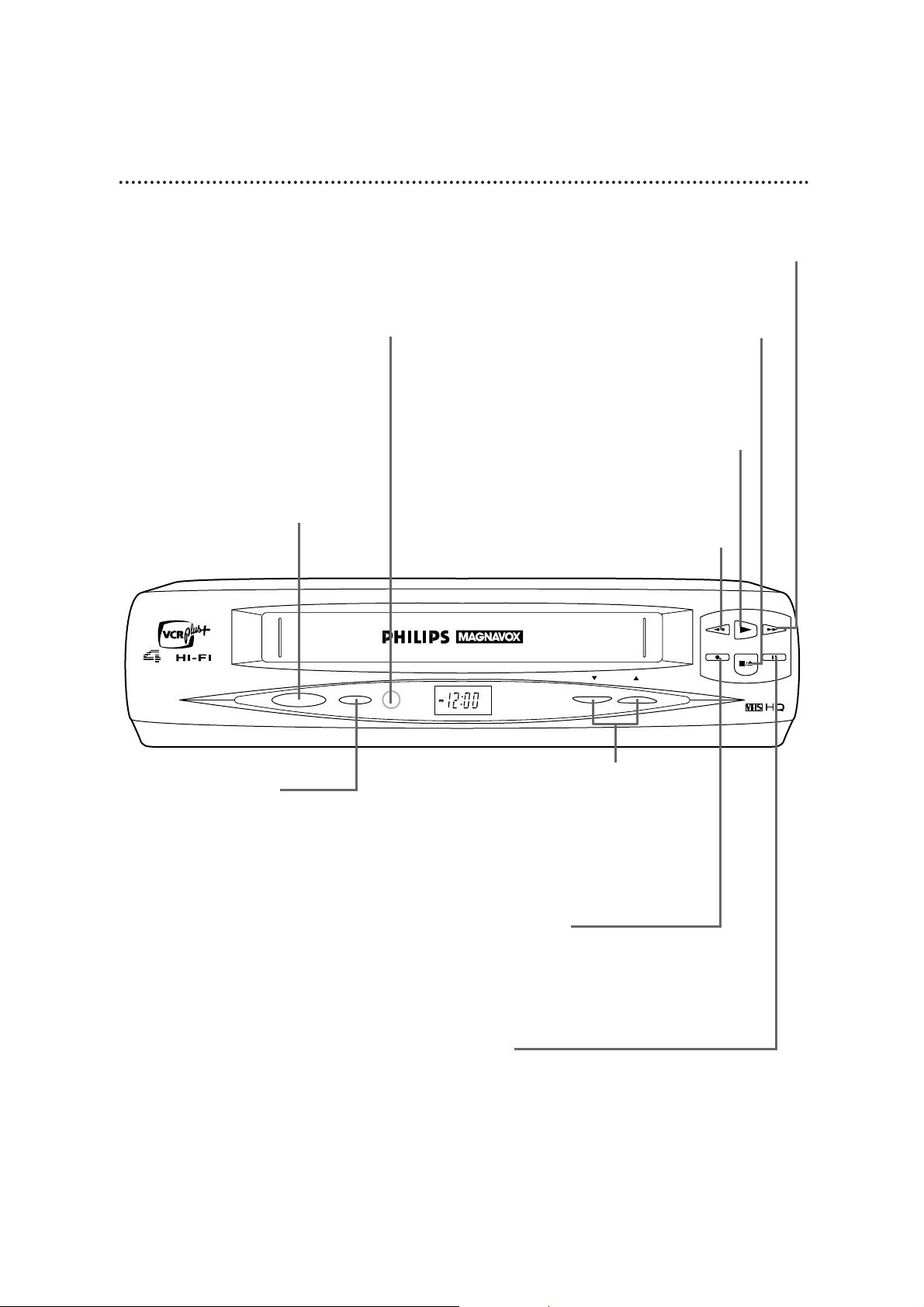

VCR Display Panel

Information about VCR operations appears here.

VCR Light

This light appears when the VCR is in VCR position. This light does not appear when the VCR is in TV position.

REC(ord) Light

This light appears when a recording is in progress. It flashes when a recording is paused.

Cassette-Inside Light

This light appears when there is a tape in the VCR.

PWR(power). Light

This light appears when the power is turned on.

REW

REC/OTR STOP/EJECT PAUSE

PLAY

F.FWD

CHANNEL

VCR/TV

POWER

VCR

PWR.

head

VCR

PWR.

REC

Timer Light

This light glows when the VCR is turned off to set a timer recording or when a one touch recording has been set. It flashes when the power is off if a timer recording has been set but a tape has not been placed in the VCR. It also flashes when a timer recording has finished (unless another timer recording is programmed, in which case it glows).

Clock Display

The current time appears here (when the clock is set). PM will appear on the display, but AM will not.

Page 22

22 Front Panel

PAUSE Button

In Record mode, press to temporarily stop the recording (pause). Press a second time to resume normal recording. Details are on page 25. You can not pause a one touch recording that is set for a specific length of time. In Play mode, press to freeze the picture (still). Press a second time to resume normal playback. Details are on page 40.

POWER Button

Press to turn the VCR power on and off.

VCR/TV Button

Use to select the signal that your TV receives.

● VCR Position

Use to watch a tape, to watch a program while recording it, or to watch a TV broadcast using the CHANNEL (Up/Down) or Number buttons. When the VCR light appears on the VCR display panel, you are in VCR position.

● TV Position

Use to watch TV or to watch one program while recording another. When the VCR light does not appear on the display panel, you are in TV position.

REC(ord)/OTR Button

Press once to start a recording. Press three to 18 times to start a one touch recording (an immediate recording, 30 minutes to eight hours long) of the channel you are watching. Details

are on page 27.

CHANNEL (Up/Down) Buttons

Press to scan up or down through the VCR’s channels.

TRACKING (Up/Down) Function

When in Play or Slow mode, press the CHANNEL (Up/Down) buttons on the

VCR to adjust the tracking. Details are on page 41.

PLAY Button

Press to play a tape. Also, press to release Slow, Search or Still mode and return to normal playback. Details are on page 40.

REW(ind) Button

When playback is stopped, press to rewind the tape at high speed. During playback, press to rewind the tape while the picture stays onscreen. Details are on page 40.

STOP/EJECT Button

Press once to stop the tape. When playback is stopped, press to eject the tape.

F.FWD(Fast Forward) Button

When in Stop mode, press to fast forward the tape at high speed. When in Play mode, press to fast forward while the picture stays on-screen. Details are on page 40.

REW

REC/OTR STOP/EJECT PAUSE

PLAY

F.FWD

CHANNEL

VCR/TV

POWER

VCR

PWR.

head

Remote Sensor

Receives an infrared signal from your remote control so you can operate your VCR from a distance.

Page 23

AUDIO IN Jacks

Connect the cables coming from the AUDIO OUT Jacks of a camcorder, another VCR, or an audio source here. Details are on page 36.

VIDEO IN Jack

Connect a cable coming from the VIDEO OUT Jack of a camcorder, another VCR, or an audio-visual source (laser disc, video disc player, etc.) here. Details are on page 36.

ANT(enna) IN Jack

Connect your antenna or cable here. Details are on pages six-10.

CH3/CH4 Switch

Set to channel 3 or 4 to use your TV with your VCR. Details are on

pages six-nine.

OUT Jack

Use the supplied RF coaxial cable to connect this jack to the ANTENNA IN Jack on your TV or the IN Jack on your Cable Box. Details are

on pages six-nine.

VIDEO OUT Jack

Connect a cable going to the VIDEO IN Jack of a camcorder, another VCR, or an audiovisual source (laser disc, video disc player, etc.) here. Details are on pages 10, 36 and 42.

AC Power Cord

Connect to a standard AC outlet to supply power to the VCR.

AUDIO OUT Jacks

Connect the cables going to the AUDIO IN Jacks of a camcorder, another VCR, or an audio source here.

Details are on pages 10, 36 and 42.

CH3

CH4

OUT

ANT

VIDEO

OUT

AUDIO

Rear Panel 23

Page 24

24 Playing

• If the tape you want to play is already in the VCR, make sure the VCR power is on and the VCR light is on, then press the PLAYbutton.

• Other playback options and features are on pages 37-41.

Helpful Hints

Read and follow the steps below to play a tape.

Turn the TV on and set it to channel 3 or 4, whichever the

CH3/CH4 switch on the back of the VCR is set to.

Insert a tape in the VCR. The power will come on. The VCR

will place itself in VCR position automatically (the VCR light and the Cassette-Inside light on the display panel of the VCR will appear). If the tape’s record tab has been removed, playback will start automatically.

When playback is stopped, press the EJECT button on the remote control or the STOP/EJECT button on the VCR again to remove the tape.

If playback does not start automatically, press the PLAY button to start playback.

Press the STOP button on the remote control or the

STOP/EJECT button on the VCR once to stop playback.

Press the REW(ind) button on the remote control or the

REW(ind) button on the VCR to rewind the tape.

Turn on the TV.

Insert a tape in the VCR.

POWER

VCR PLUS+

SPEED

REW

REC/OTR

2 3

5 6

8 9

TIME SEARCH

PLAY

STOP

STATUS/EXIT

+100

SLOW

CLEAR

EJECT

VCR/TV

CHANNEL

F.FWD

PAUSE/STILL

MEMORY

Page 25

Read and follow the steps below to record a television program.

Turn the TV on and set it to channel 3 or 4, whichever the

CH3/CH4 switch on the back of the VCR is set to.

Recording 25

Insert a tape with its record tab intact (see page five) in the

VCR. The power will come on, and the Cassette-Inside light will appear.

If the VCR light appears on the display panel of the VCR, go to step 4. If the VCR light does not appear, press the VCR/TV

button once.

• If the REC(ord)/OTR button is pressed while a tape without a record tab is in the VCR, the VCR will eject the tape and PROTECTED CASSETTECANNOT RECORD will flash on-screen.

• Other recording options are on pages 26-36.

• You can change the tape speed while the VCRis recording, but some distortion will appear on the tape.

• The VCR will record in a preset volume.

Helpful Hints

Press the (Tape) SPEED button on the remote control until

the desired tape speed (see pages 30 and 48 for details) appears on the TV screen. The tape speed will disappear from the screen after about five seconds.

Press the CHANNEL (Up/Down) buttons or the Number buttons to select the channel to be recorded.

Press the REC(ord)/OTR button once to start recording. The

REC light will appear on the VCR’s display panel. If the REC(ord)/OTR button is pressed when there is not a tape in the VCR, NO CASSETTE will flash on-screen.

To pause the recording (for example, during commercials), press the PAUSE/STILL button on the remote control

or the PAUSE button on the VCR once. The REC light will flash.

To start recording again, press the REC(ord)/OTR button or the PAUSE/STILL button again. The REC light will come

on again.

To stop recording, press the STOP button on the remote

control.

Turn on the TV.

Insert a tape in the VCR.

POWER

2 3

5 6

8 9

VCR PLUS+

SPEED

REW

REC/OTR

TIME SEARCH

PLAY

STOP

STATUS/EXIT

+100

SLOW

CLEAR

EJECT

VCR/TV

CHANNEL

F.FWD

PAUSE/STILL

MEMORY

Page 26

Start a recording (see page 25).

26 Recording One Channel/Watching Another

• If you use a Cable Box or satellite system hookup, you may not be able to watch one channel while recording another. See pages eight nine for details.

• If you don’t receive channels, check your hookups, then follow the instructions above carefully.

Helpful Hints

Press the VCR/TV button to put the VCR in TV position. The

VCR light will disappear from the VCR’s display panel.

Use the TV remote control to select the channel you want to watch.

To return to the channel being recorded, use the TV remote control to select channel 3 or 4 (whichever the

CH3/CH4 switch on the back of the VCR is set to).

Press the VCR/TV button to put the VCR in VCR position.

(The VCR light will appear on the display panel of the VCR.) The channel being recorded will appear on-screen.

To stop the recording, press the STOP button.

Select the channel you want to watch at the TV.

Set the TV to channel 3 or

VCR PLUS+

POWER

SPEED

2 3

5 6

8 9

TIME SEARCH

REW

REC/OTR

PLAY

STOP

STATUS/EXIT

+100

SLOW

CLEAR

EJECT

VCR/TV

CHANNEL

F.FWD

PAUSE/STILL

MEMORY

Page 27

One Touch Recording 27

Starting an OTR

Use the CHANNEL (Up/Down) buttons or the Number buttons to select the channel you want to record.

OTR (0:30)

CH12

Press the REC(ord)/OTR button repeatedly until the

desired recording length (30 minutes to eight hours) appears in the upper left corner of the screen. Recording will begin immediately.

The one touch recording (OTR) function allows you to set an immediate timed recording 30 minutes to eight hours long without setting the timer. Before you begin, make sure:

● Channels are programmed.

● The desired recording speed (SP, LP, SLP) has been selected

with the (Tape) SPEEDbutton. (Details are on pages 30 and

48.)

● There is a tape in the VCR. Make sure the tape’s record tab is

intact and the tape is long enough to record the program(s).

● The VCR light appears on the display panel of the VCR. (If it

does not, press the VCR/TV button once.)

To stop an OTR before recording is finished, press the STOP button or the POWER button. To cancel the OTR but

continue recording, press the REC(ord)/OTR button until REC appears in the upper left corner of the screen.

• To check the time remaining for an OTR after the OTRhas been set, press the STATUS/EXITbutton.

• To change the recording length while an OTR is in progress, press the REC(ord)/OTRbutton until the desired length appears on-screen.

• If you begin an OTR when a recording is paused, the OTRwill begin.

• You can not pause recording (for example, during commercials) during an OTR.

• If the preset time for a timer recording comes up during an OTR, the OTR has priority.

• If the end of the tape is reached during an OTR, recording will stop. The VCR will eject the tape, then turn itself off.

Helpful Hints

POWER

VCR PLUS+

SPEED

REW

REC/OTR

2 3

5 6

8 9

TIME SEARCH

PLAY

STOP

STATUS/EXIT

+100

SLOW

CLEAR

EJECT

VCR/TV

CHANNEL

F.FWD

PAUSE/STILL

MEMORY

Page 28

28 Timer Recording

Follow the steps below to program your VCR to record TV programs while you’re away from home. You can program up to eight timer recordings. For each one, the VCR will turn itself on, record, and turn itself off automatically. If you are using a Cable Box, timer recordings may be programmed differently. Read pages eight-nine before proceeding. Before you begin make sure:

● Channels are programmed.

● The clock is set.

● There is a tape in the VCR. Make sure the tape’s record tab is

intact and the tape is long enough to record the program(s).

● The VCR light appears on the display panel of the VCR. If it

does not, press the VCR/TV button once.

Complete each step within 60 seconds of completing the previous step. If you don’t, start again at step 1.

Press the MENU button to bring up the main menu display.

TO SELECT PUSH NO. SHOWN

1 PROGRAM 2 VCR SET UP 3 TUNER SET UP 4 SET CLOCK

TO END PUSH EXIT

Press the Number 1 button on the remote control to select

PROGRAM.

TO SELECT PUSH NO. SHOWN

1 ONCE 2 DAILY 3 WEEKLY 4 PROGRAM REVIEW

TO END PUSH EXIT

Daily Recording Menu Screen

DAILY PROGRAM (MON-FRI)

PROGRAM -1 2 3 4 5 6 7 8-

SELECT PROGRAM NUMBER TO END PUSH EXIT

Select a once, daily or weekly recording.

● Press the Number 1 button to select ONCE. The VCR will

record a TV program on any day you choose, up to 12 months away.

● Press the Number 2 button to select DAILY. The VCR will

record every day from Monday to Friday – starting at the same time and for the same length of time.

● Press the Number 3 button to select WEEKLY. The VCR will

record on the same day, at the same time, and for the same length of time every week (for example, every Tuesday from 23 p.m.).

REW

PLAY

POWER

VCR PLUS+

SPEED

VCR/TV

EJECT

CHANNEL

REC/OTR

STATUS/EXIT

SLOW

PAUSE/STILL

CLEAR

MEMORY

STOP

F.FWD

2 3

5 6

8 9

+100

TIME SEARCH

• If you need to make corrections while programming a timer recording, press the CLEAR button until the cursor is flashing on the item you want to change. Then enter the correct information.

• If the end of the tape is reached during a timer recording, recording will stop. The VCR will eject the tape and turn itself off.

Helpful Hints

Page 29

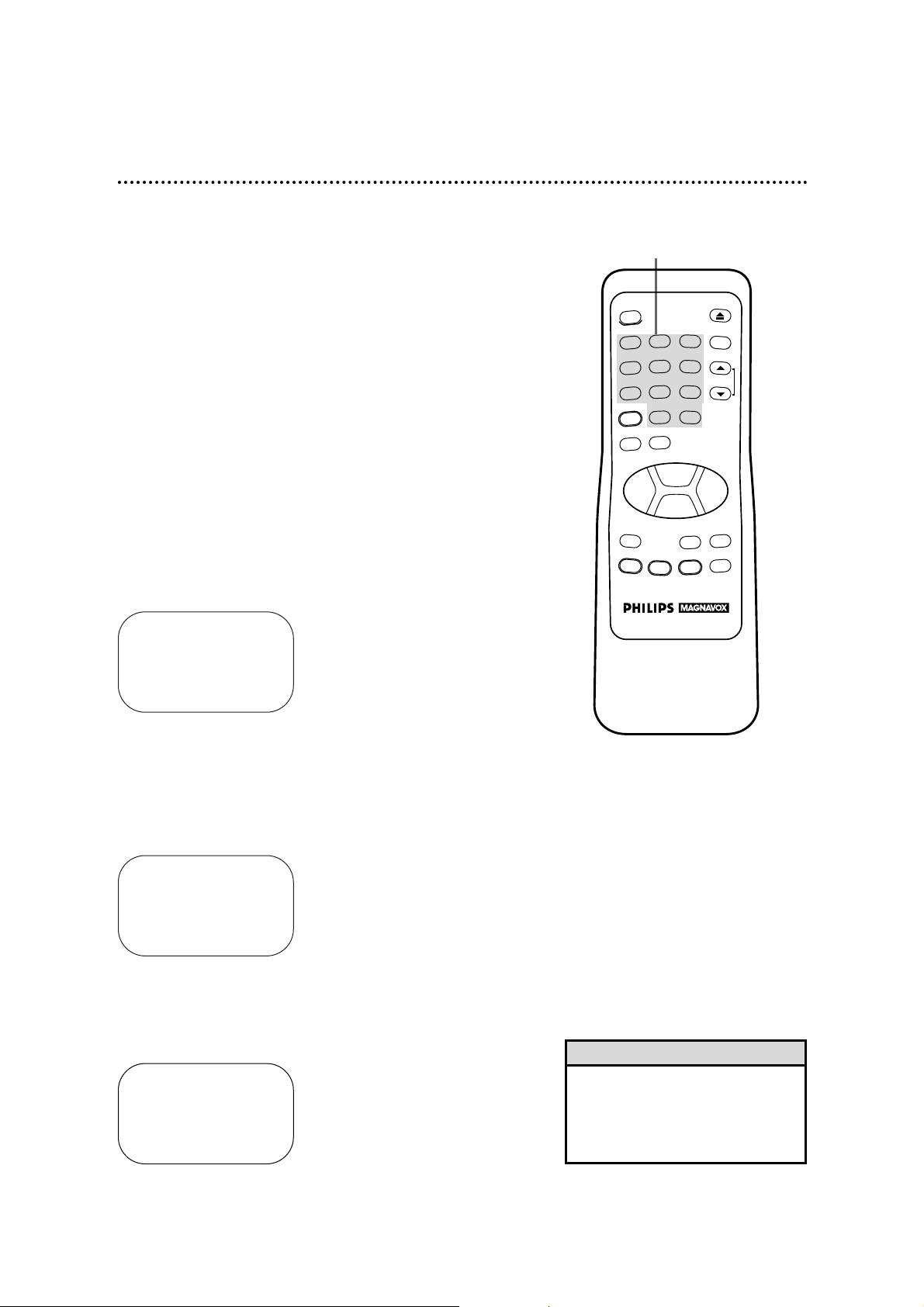

ONE TIME PROGRAM

PROGRAM 1 CHANNEL – –

TO CORRECT PUSH CLEAR TO END PUSH EXIT

ONE TIME PROGRAM

PROGRAM 1 CHANNEL 10 TIME ON – – : – –

TO CORRECT PUSH CLEAR TO END PUSH EXIT

Use the Number buttons (1 - 8) to select a slot in which to store the timer recording. There are eight timer recording

slots. Open slots will flash on-screen.

NOTE: If you enter a number for a slot that has already been used to store a timer recording, PREVIOUSLYSET PROGRAM will appear onscreen for a few seconds. Then information about the program in that position will be displayed on-screen. If this happens, press the STATUS/EXIT button twice. Then start again at step 1. (If you do not press any buttons within 60 seconds, you will return to the previous menu.)

Enter the recording’s start time.

Press two Number buttons for the hour you want the recording to begin. Press two Number buttons for the minute(s) you want the recording to begin. Press 1 for AM or 2 for PM. For example, for 9:30 PM, press 09, 30, 2.

Enter the channel you want to record.

● If you have a basic antenna or cable hookup (as shown on

pages six-seven) enter the channel of the TVprogram you want to record. (You must enter a 0 before all single digit channels.)

● If you are recording from line input, press 0, 0. A/V IN will

appear on-screen.

● If you are using a Cable Box, enter the Cable Box output chan-

nel (channel 03 or 04). See page eight for details.

Enter the recording’s stop time.

Follow the instructions in step 6 to set the recording’s stop time (AM or PM will be set automatically).

ONE TIME PROGRAM

PROGRAM 1 CHANNEL 10 TIME ON 09:30 PM TIME OFF – – : – –

TO CORRECT PUSH CLEAR TO END PUSH EXIT

Timer Recording (cont’d) 29

4-7

• Entries that do not match the VCR’s

internal clock or calendar will cause a question mark to appear onscreen.

Helpful Hint

Instructions continue on page 30.

POWER

VCR PLUS+

SPEED

REW

REC/OTR

2 3

5 6

8 9

TIME SEARCH

PLAY

STOP

STATUS/EXIT

+100

SLOW

CLEAR

EJECT

VCR/TV

CHANNEL

F.FWD

PAUSE/STILL

MEMORY

Page 30

ONE TIME PROGRAM

PROGRAM 1 CHANNEL 10 TIME ON 09:30 PM TIME OFF 11:00 PM REC SPEED SLP

SP=1 LP=2 SLP=3

TO CORRECT PUSH CLEAR TO END PUSH EXIT

30 Timer Recording (cont’d)

Press the Number 1 button to record in SP speed, press the Number 2 button to record in LP speed, or press the Number 3 button to record in SLP speed. For details, see

the chart below. You cannot use the (Tape) SPEEDbutton at this time.

Press two Number buttons for the month and two Number buttons for the day you want to record the program. For example, for July 10, 1997, press 07, 10. The day of

the week and the year will be displayed automatically (you cannot program the VCR to record more than one year in advance).

ONE TIME PROGRAM

PROGRAM 1 CHANNEL 10 TIME ON 09:30 PM TIME OFF 11:00 PM REC SPEED SLP START DATE 07/10/97

THU. TO CORRECT PUSH CLEAR TO END PUSH EXIT

Press the STATUS/EXIT button. PROGRAM WAS COM-

PLETED PLEASE TURN OFF VCR FOR TIMER RECORDING will appear on-screen (if PROGRAMNOTCOMPLETED appears, try again from step 1). In three seconds the on-screen display will disappear.

Turn off the VCR power. The Timer light will appear. The VCR must be turned off for a timer recording to take place.

(If the timer recording will take place several hours or days from now, you may use the VCR until time for the recording. Just turn off the VCR a few minutes before the recording starts.) If you forget to turn off the VCR, PLEASE TURN OFF VCR FOR TIMER RECORDING flashes on your TV screen two minutes before a timer recording starts. Remove the message by pressing the CLEAR button.

Tape Speed Maximum Record/Playback Time

Type T160 T120 T60

SP 2 hrs.

2 hrs. 1 hr.

(Standard Play) 40 mins. LP 5 hrs.

4 hrs. 2 hrs.

(Long Play) 20 mins. SLP

8 hrs. 6 hrs. 3 hrs.

(Super Long Play)

Tape Speeds

This chart shows the recording/playback time for three types of video cassettes (T160, T120, and T60). There are three playback speeds: SP, LP, and SLP. During playback, the VCR selects the tape speed automatically. When recording, you can change the tape speed using the (Tape) SPEED button (see page 18).

The VCR must

be off for a

timer recording

to take place!

Make sure there

is a tape in the

VCR.

REW

PLAY

POWER

VCR PLUS+

SPEED

VCR/TV

EJECT

CHANNEL

REC/OTR

STATUS/EXIT

SLOW

PAUSE/STILL

CLEAR

MEMORY

STOP

F.FWD

2 3

5 6

8 9

+100

TIME SEARCH

Page 31

Timer Recording (cont’d) 31

4 5

• CLASH may flash on the screen when you finish setting a timer recording, then the PROGRAM menu will appear. This means that the timer recording you just programmed and another timer recording overlap, and thus the current timer recording will not be carried out. In this case, cancel one of the overlapping timer recordings by following the instructions on this page.

• If the preset time for a timer recording comes up during an OTR, the OTR has priority.

• To stop a started timer recording, press the STOP/EJECT button on the VCR.

• If the power fails for more than one minute, programmed timer recordings will be lost. If this occurs, reset the VCR’s clock before re-programming the timer recording(s).

See page 46 for more notes.

Helpful Hints

Press the POWER button to turn on the VCR.

Reviewing or Cancelling Timer Recordings

Make sure the VCR light appears on the display panel of the VCR. If it does not, press the VCR/TV button.

Press the MENU button.

Press the Number 1 button to select PROGRAM.

Press the Number 4 button to select PROGRAM REVIEW.

The timer recording information for the program in the lowest numbered slot will appear on-screen. If there are no timer recordings set, nothing will happen when you press the Number 4 button.

Press the Number 1 button repeatedly to review all programmed timer recordings. If you don’t press the Number 1

button in 10 seconds, the VCR will automatically display information about the next programmed timer recording. This will continue until all filled positions have been displayed. Then the menu will disappear.

To cancel the timer recording displayed, press the CLEAR button. Either the display will disappear or information

about other timer recordings will appear. If you do not press any other buttons, the display will disappear after all timer recordings have been displayed.

Repeat steps 1-6 to make sure you have cleared the correct timer recording.

POWER

VCR PLUS+

SPEED

REW

REC/OTR

2 3

5 6

8 9

TIME SEARCH

PLAY

STOP

STATUS/EXIT

+100

SLOW

CLEAR

EJECT

VCR/TV

CHANNEL

F.FWD

PAUSE/STILL

MEMORY

Page 32

32 Setting Up the VCR Plus+ Programming System

First, fill in the boxes on this page. It will only take a few minutes, and you must do it if you want the VCR Plus+ programming system to work properly. Since the channel numbers of the stations you receive may not be the same as the station numbers, and since channel numbers differ from area to area, you must program the VCR with your local channel information. To fill in the boxes, you will need 1) a cable channel line-up list, if applicable (you can request one from your cable company), and 2) a chart that lists VCR Plus+ channel numbers, which you can find in your TV guide or the TV listings of your local newspaper.

TV Channels

Local TV

Stations

(call letters)

VCR PLUS+ CH.

CABLE/TV CH.

CABLE Channels

Local TV

Stations

(call letters)

CR PLUS+ CH.

CABLE/TV CH.

Page 33

Setting Up the VCR Plus+ Programming System (cont’d) 33

Now, compare the channel numbers you have written in the VCR PLUS+ CH. and CABLE/TV CH. columns. You’ll notice that some stations have VCR Plus+ and Cable/TV channel numbers that are the same, and other stations have channel numbers that do not match. Where the channel numbers DO NOT match, you must tell the VCR the VCR Plus+ and Cable/TV channel numbers according to the following steps.

● Make each entry within 60 seconds of the previous entry.

Press the MENU button.

Look at the boxes you filled in on page 32. For stations whose VCR Plus+ and Cable/TV channels do not match, press the CHANNEL (Up/Down) buttons until the arrow is beside the VCR Plus+ channel you need. Then, press the Number buttons to enter the corresponding Cable/TV channel from your list. (Enter a “0” before single-digit chan-

nels.) Continue this process until you have entered all the stations on your list.

Press the STATUS/EXIT button to exit.

• To correct a Cable/TV channel number, repeat the steps on this page.

• To clear a Cable/TV channel number, repeat steps 3-5 on this page. Then, press the CHANNEL (Up/Down) buttons to select it. Then press the CLEAR button. Press the STATUS/ EXIT button to exit.

• Always enter a “0” before singledigit channels.

• To select line input for the Cable/TV channel, press 0,0. AUX will appear on-screen.

• When you receive the VCR from the factory, all the VCR Plus+ channel numbers and Cable/TV channel numbers are the same.

Helpful Hints

TO SELECT PUSH NO. SHOWN

1 REPEAT PLAY OFF 2 ON SCREEN MODE 3 AUDIO OUT 4 LANGUAGE 5 VCR PLUS+ REF. MAP

TO END PUSH EXIT

Press the Number 5 button to select VCR PLUS+ REF. MAP.

VCR PLUS+ CROSS REF. MAP

VCR PLUS+ CABLE/TV

98 98 99 99

1 – – – – –>23 2 2

TO SELECT CH PUSH CH UP/ DOWN THEN ENTER CH NO. TO END PUSH EXIT

VCR PLUS+ CROSS REF. MAP

VCR PLUS+ CABLE/TV

98 98 99 99

1 – – – – –>1

2 2 TO SELECT CH PUSH CH UP/ DOWN THEN ENTER CH NO. TO END PUSH EXIT

Press the Number 2 button to select VCR SET UP.

Examine the lists on page 32.

REW

PLAY

POWER

VCR PLUS+

SPEED

VCR/TV

EJECT

CHANNEL

REC/OTR

STATUS/EXIT

SLOW

PAUSE/STILL

CLEAR

MEMORY

STOP

F.FWD

2 3

5 6

8 9

+100

TIME SEARCH

Page 34

VCR PLUS+ PROG.

PLUS CODE : – – – – – – – –

TO END PUSH EXIT

34 Timer Recording With the VCR Plus+ Programming System

Follow the steps below to program a timer recording using the PlusCode programming numbers in your TV guide. Before you begin, make sure:

● Channels are programmed (page 12).

● The VCR Plus+ and Cable/TV channel numbers are entered

(pages 32-33).

● The clock is set (page 15).

● There is a tape in the VCR. Make sure the tape’s record tab is

intact and the tape is long enough to record the program(s).

● The VCR light appears on the display panel of the VCR. If it

does not, press the VCR/TV button once.

Complete each step within 60 seconds of completing the previous step. If you don’t, you may return to step 1.

Press the VCR PLUS+ button on the remote control. The on-

screen display shown below will appear.

Use the Number buttons to enter the PlusCode programming number of the program you wish to record (this number is

different for every program, and it can be four to eight digits long).

Finally, press the VCR PLUS+ button.

VCR PLUS+ PROG.

PLUS CODE : 13285 – – –

TO SET PUSH VCR + TO CORRECT PUSH CLEAR

TO END PUSH EXIT

To record the program once, press the Number 1 button to select ONCE. To record the same program every day from Monday through Friday, press the Number 2 button to select DAILY. To record the same program every week on the same day (such as every Saturday), press the Number 3 button to select WEEKLY.

• ALL PROGRAMS INUSE will appear on-screen at step 1 if all timer recording slots are full. See page 31 to clear a timer recording slot.

• If CODE ERROR flashes after you enter the PlusCode programming number and press the VCR PLUS+ button, the number you entered was incorrect or too short. If this happens, enter the correct number.

• CLASH may flash on the screen at step 2 or at step 5. This means that the timer recording you just programmed and another timer recording overlap, and thus the current timer recording will not be carried out.

• If the end of the tape is reached during a timer recording, recording will stop. The VCR will eject the tape and turn itself off.

Helpful Hints

VCR PLUS+ PROG.

1 ONCE 2 DAILY 3 WEEKLY

TO SELECT PUSH NO. SHOWN TO END PUSH EXIT

REW

PLAY

POWER

VCR PLUS+

SPEED

VCR/TV

EJECT

CHANNEL

REC/OTR

STATUS/EXIT

SLOW

PAUSE/STILL

CLEAR

MEMORY

STOP

F.FWD

2 3

5 6

8 9

+100

TIME SEARCH

Page 35

ONE TIME PROGRAM PROGRAM 1 CHANNEL 9 TIME ON 10:30 PM TIME OFF 11:30 PM REC SPEED SLP

SP=1 LP=2 SLP=3

START DATE 10/10/97

FRI.

TO END PUSH EXIT

Timer Recording With the VCR Plus+ Programming System (cont’d) 35

• To quit the VCR Plus+ programming system at any time, press the STATUS/EXIT button. The display will disappear from the TV screen.

• If the preset time for a timer recording comes up during an OTR, the OTR has priority.

• To stop a started timer recording, press the STOP/EJECT button on the VCR.

• If the power fails for more than one minute, programmed timer recordings may be lost. Reset the clock before re-programming the timer recordings.

• If you have a Cable Box, timer recordings are programmed differently. See page eight for details.

See page 46 for more notes.

Helpful Hints

Press the Number 1 button to record in SP speed, press the Number 2 button to record in LP speed, or press the Number 3 button to record in SLP speed. For details, see

pages 30 and 48. You cannot use the (Tape) SPEED button at this time. Your choice will appear to the right of REC SPEED (but SP=1, LP=2, and SLP=3 will continue to flash).

The VCR must be off for a

timer recording to take

place! Make sure there is a

tape in the VCR.

Press the STATUS/EXIT button. PROGRAM WAS COM-

PLETED / PLEASE TURN OFF VCR FOR TIMER RECORDING should appear on the screen. After three seconds, the on-screen display will disappear.

Press the POWER button to turn off the VCR power. The

Timer light will appear. The Timer light will flash if there is not a tape in the VCR. If the timer recording will take place several hours or days from now, you may use the VCR until time for the recording. Just turn off the VCR a few minutes before the recording starts.

The VCR must be turned off for a timer recording to take place. If you forget to turn off the VCR, PLEASE TURN OFF

VCR FOR TIMER RECORDING flashes on your TV screen two minutes before a timer recording starts. You can remove the message by pressing the CLEAR button.

POWER

VCR PLUS+

SPEED

REW

REC/OTR

2 3

5 6

8 9

TIME SEARCH

PLAY

STOP

STATUS/EXIT

+100

SLOW

CLEAR

F.FWD

PAUSE/STILL

EJECT

VCR/TV

CHANNEL

MEMORY

Page 36

Make the connections shown above.

36 Rerecording (Tape Duplication)

The instructions on this page show you how to copy tapes. The illustration uses two VCRs just like yours. Different VCRs may operate differently.

NOTE: Unauthorized recording of copyrighted television programs, video tapes, or other materials may infringe on the rights of copyright owners and violate copyright laws.

VCR 2 will record your tape. Insert a blank tape in VCR 2. Make sure the VCR 2 power is on and VCR 2 is in VCR position (the VCR light will appear on the display panel of VCR 2).

Turn the TV on and set it to channel 3 or 4, whichever

channel the CH3/CH4 switch on VCR 2 is set to.

Point the remote control at VCR 2. Press the Number buttons 0, 0. A/V IN will appear on-screen.

Point the remote control at VCR 2. Use the (Tape) SPEED button to select SP, LP or SLP.

Press the PLAY button on VCR 1 and the REC(ord)/OTR button on VCR 2 at the same time.

To stop recording, press the STOP/EJECT button on VCR 1, then press the STOP/EJECT button on VCR 2.

VCR 1 will play your tape. Insert a prerecorded tape in VCR

1. If the tape does not have a record tab, playback begins. If this

happens, press the STOP/EJECT button on VCR 1 once.

CH3

CH4

OUT

ANT

CH3

CH4

OUT

ANT

VIDEO

OUT

AUDIO

VIDEO

OUT

AUDIO

VCR 1 - Playing VCR

VCR 2 - Recording VCR

1. Audio cables from AUDIO OUT Jacks of VCR 1 to AUDIO IN Jacks of VCR 2

2. Video cable from VIDEO OUT Jack of VCR 1 to VIDEO IN Jack of VCR 2

3. RF coaxial cable (supplied) from

VCR’s OUT Jack to

TV’s ANTENNA IN

Jack

●

Audio and Video cables are not supplied.

Page 37

Repeat Playback 37

Repeat Playback

Follow the steps below to program the VCR to play a tape over and over.

Press the MENU button to bring up the main menu display.

Press the Number 2 button to select VCR SET UP.

Press the Number 1 button so that ON appears to the right of

REPEAT PLAY on-screen.

Press the STATUS/EXIT button to exit. Now, when a tape

has finished playing, the VCR will rewind it and start playback again. (TV programming will appear while the tape is rewinding.)

TO SELECT PUSH NO. SHOWN

1 PROGRAM 2 VCR SET UP 3 TUNER SET UP 4 SET CLOCK

TO END PUSH EXIT

TO SELECT PUSH NO. SHOWN

1 REPEAT PLAY OFF 2 ON SCREEN MODE 3 AUDIO OUT 4 LANGUAGE 5 VCR PLUS+ REF. MAP

TO END PUSH EXIT

• The VCR will stay in Repeat Play mode until you cancel Repeat Play mode. To do this, follow steps 1 - 2 above. At step 3, press the Number 1 button so that OFF appears to the right of REPEAT PLAY on-screen. Press the STATUS/EXIT button to exit.

• The real time counter memory does not function during Repeat Play mode.

Helpful Hints

POWER

VCR PLUS+

SPEED

REW

REC/OTR

2 3

5 6

8 9

TIME SEARCH

PLAY

STOP

STATUS/EXIT

+100

SLOW

CLEAR

EJECT

VCR/TV

CHANNEL

F.FWD

PAUSE/STILL

MEMORY

Page 38

38 Time Search

Time Search

Follow the steps below to program the VCR to search forward or backward a specific length of time.

Press the TIME SEARCH button to bring up the Time Search

display.

Within 10 seconds, use the Number buttons to enter the desired length of time you want to skip forward or backward. For example, for 1 hour, 25 minutes, press Number but-

tons 1, 2, 5. Or, for five minutes, press Number buttons 0, 0, 5. If you do not make an entry within 10 seconds, the VCR will exit Time Search mode.

Within 10 seconds, press the F.FWD button or the REW(ind) button to skip forward or backward. The VCR will

fast forward or rewind the tape the specified length of time, then begin playback. (The time counts down on-screen as the searching progresses.)

TIME SEARCH 0:00

ENTER SEARCH TIME

• You can not enter the Time Search display when you are in Recording mode.

• You can remove the Time Search display by pressing the TIME SEARCH button once again.

• To cancel the Time Search when the VCR is fast forwarding or rewinding, press the STOP button once or the TIME SEARCH button twice.

• If you want to search for more than 59 minutes, you must enter the length of time in hours and minutes. For example, to search forward 70

Helpful Hints

POWER

VCR PLUS+

SPEED

REW

REC/OTR

2 3

5 6

8 9

TIME SEARCH

PLAY

STOP

STATUS/EXIT

+100

SLOW

CLEAR

EJECT

VCR/TV

CHANNEL

F.FWD

PAUSE/STILL

MEMORY

Page 39

Real Time Counter Memory 39

• The MEMORY button does not function if Repeat Play is set to ON. To turn Repeat Play OFF, see Helpful Hints on page 37.

• To erase a Real Time Counter Memory, press the MEMORY button until the M disappears from the screen.

• You may only set the real time counter to zero at one location at a time. If you try to set the real time counter to zero at a second location, the previous real time counter to zero setting will be erased.

Helpful Hints

STOP 1:08 PM TV STEREO CH10

SLP 1 : 23 : 45 HIFI

Real Time Counter Memory

Follow the steps below to reset the real time counter to zero at a tape location you want to refer to later.

Play, fast forward, or rewind a tape to the location that you would like to refer to later. Press the STOP button on the remote control or the STOP/EJECT button on the VCR to stop the tape.

Press the STATUS/EXIT button. The status display will

appear on-screen for about five seconds.

While the status display is still on-screen, press the CLEAR button to reset the real time counter to zero.

STOP 1:08 PM TV STEREO CH10

SLP 0 : 00 : 00 HIFI

While the counter is still on-screen, press the MEMORY button to set the real time counter memory. M will appear to the

left of the real time counter on-screen.

STOP 1:08 PM TV STEREO CH10

SLP M 0 : 00 : 00 HIFI

To go to a tape location where the real time counter was reset to zero, press the REW(ind) button or the F.FWD (Fast Forward) button when tape playback is stopped.

When the tape reaches the point at which the real time counter was reset to zero, the tape will stop. Press the PLAY button

to watch the tape.

POWER

VCR PLUS+

SPEED

REW

REC/OTR

2 3

5 6

8 9

TIME SEARCH

PLAY

STOP

STATUS/EXIT

+100

SLOW

CLEAR

EJECT

VCR/TV

CHANNEL

F.FWD

PAUSE/STILL

MEMORY

Page 40

40 Special Effects Playback

Forward and Reverse Searching (SP/LP/SLP)

During tape playback, press and release the F.FWD (Fast Forward) button or the REW(ind) button. A fast forward or reverse picture search will begin.

To return to playback, press the PLAY button.

Super High Speed Searching (LP/SLP)

During tape playback, press the F.FWD (Fast Forward) button or the REW(ind) button, then press again. The VCR will now search in super high speed.

To return to normal playback, press the PLAY button.

Viewing a Still Picture

During tape playback, press the PAUSE/STILL button on the remote control or the PAUSE button on the VCR. A still picture (frozen image) will appear on-screen.

To release the still picture and return to normal playback, press the PLAY button or press the PAUSE/STILL button again.

Viewing a Slow Motion Picture

During tape playback, press the SLOW button. The tape will play in slow motion.

To release slow motion playback and return to normal playback, press the PLAY button or press the SLOW button again.

• Slow and Still modes will automatically switch to Stop mode after five minutes to protect the VCR and the tape from damage.

• SP/LP/SLP means this feature will work with tapes recorded in Standard Play, Long Play, or Super Long Play.

• LP/SLP means this feature will work with tapes recorded in Long Play or Super Long Play. For details about tape speed, see pages 30 and 48.

• If a still picture vibrates vertically, stabilize it by pressing the CHANNEL (Up/Down) buttons on the VCR (any other vertical jitter should be removed with your TV’s vertical hold control, if your TV has one).

Helpful Hints

POWER

VCR PLUS+

SPEED

REW

REC/OTR

2 3

5 6

8 9

TIME SEARCH

PLAY

STOP

STATUS/EXIT

+100

SLOW

CLEAR

EJECT

VCR/TV

CHANNEL

F.FWD

PAUSE/STILL

MEMORY

Page 41

Automatic Operation Features 41

Automatic Playback

When you put a tape in the VCR, the power will come on automatically. If the tape’s record tab is missing, playback will begin. If a timer recording is set, the power will not come on automatically when you insert a tape with the record tab intact. If a timer recording is set and the VCR power is off, the VCR will eject the tape if the record tab is missing.

Automatic Rewind, Eject, Off

When a tape is played, fast forwarded, or recorded to its end, the VCR will rewind the tape, go into the Stop mode, eject the tape, then turn itself off. If the real time counter memory is set, the VCR will only rewind to the point at which the counter is set to zero, then stop. The VCR will not eject the tape automatically or shut itself off. If the end of the tape is reached during an OTR or timer recording, recording will stop. Then, the VCR will eject the tape and turn itself off. The VCR will not rewind the tape.

Tape Eject

A tape can be ejected with the VCR power on or off (but the VCR must be plugged in). If a Timer Recording is programmed, a tape can only be ejected with the power on. Make sure you insert a tape and turn off the power for the Timer Recording.

Automatic Tracking Adjustment

The VCR continually adjusts tracking automatically to give you the best possible picture quality. With some recordings, however, you may get a better picture using the manual tracking controls (see below).

Manual Tracking

To adjust the tracking manually, press the CHANNEL (Up/Down) buttons on the VCR during tape playback.

NOTES:

• This function is controlled only by the buttons on the VCR. The CHANNEL (Up/Down) buttons on the remote control will not adjust tracking.

• To return tracking to the position it was in when the VCR was shipped from the factory, press the CHANNEL (Up) and CHANNEL (Down) buttons on the VCR at the same time.

• Tracking is returned to auto tracking when a tape is inserted, or when the STOPbutton is pressed to halt playback.

• When the VCR is in Slow mode, auto tracking will not work. Instead, use the CHANNEL (Up/Down)buttons on the VCR to reduce noise lines in slow motion playback.

• Manual tracking will not operate when the VCR is in Still mode. If you want to reduce noise lines in a still picture, place the VCR in Slow mode. Use the CHANNEL (Up/Down) buttons on the VCR to remove the noise lines. Then return to Still mode.

Before Tracking Adjustment

After Tracking Adjustment

Page 42

To record and play back programs broadcast in stereo, even if you have a Mono Speaker TV, just use one of the connections shown, then follow the steps on pages 43-45.

STOP 12:00 AM TV STEREO CH 02

STEREO

2ND AUD

SLP 1:23:45 HIFI

Your VCR can play recordings broadcast in Hi-Fi (high fidelity) stereo, which produces a crisp, clear sound from two sources. Your VCR also can play tapes recorded in a second audio (usually, that means your program is recorded in a second language). Of course, your VCR will play tapes recorded in monaural (single-source) sound as well.

Your VCR also will record in Hi-Fi stereo or in second audio, so when you play back that tape on the VCR, it will be in stereo or second audio. If you play back the tape on a VCRthat can’t play back tapes in stereo or second audio, the VCR will automatically play the tape in monaural sound.

Read the directions on this page to familiarize yourself with your VCR’s stereo and second audio setups. Then follow the directions on page 43 to record in stereo or second audio and the directions on pages 4445 to play back tapes recorded in Hi-Fi stereo.

Understanding On-Screen Displays

When you receive a signal from a channel you’re watching, portions of the display screen shown below will appear when you press the STATUS/EXIT button on the remote control.

Specifically…

When a program broadcast in stereo is available, STEREO appears here. When a program broadcast in second audio is available, 2ND AUD

appears here. When a program is available both in stereo and second audio, both

STEREO and 2ND AUD appear here.

NOTE: Although a program may be broadcast in both stereo and second audio, you cannot record in both stereo and second audio at the same time.

The indication 2ND AUD or TV STEREO that appears on this side of the status display tells you if your VCR is programmed to receive a second audio or stereo broadcast (it cannot be programmed to receive both at the same time).

The indication 2ND AUDor STEREO that appears on this side of the status display tells you if the program you’re watching is available in second audio or stereo. This indication is not available during tape playback.

STOP 12:00 AM TV STEREO CH 02

STEREO

2ND AUD

SLP 1:23:45 HIFI

42 MTS Broadcast Stereo System

CH3

CH4

OUT

ANT

VIDEO

OUT

AUDIO

Stereo Amplifier

or Receiver

Monitor

Mono

Speaker TV

Stereo

Speaker TV

Monaural Sound

Audio cables from AUDIO OUT Jacks of VCR to AUDIO IN Jacks of Stereo Amplifier or Receiver

Video cable from VIDEO OUT Jack of VCR to VIDEO IN Jack of monitor TV

RF coaxial cable (supplied) from VCR’s

OUT Jack to TV’s ANTENNA IN Jack

Page 43

MTS Broadcast Stereo System (cont’d) 43

Press the MENU button to bring up the main menu display.

Press the Number 3 button to select TUNER SET UP.

Press the Number 6 button to select TV STEREO or the Number 7 button to select 2ND AUDIO. ON will appear to

the right of your selection.

Press the STATUS/EXIT button to exit.

To play a tape, press the PLAY button. Or, to record, select the channel to be recorded using the CHANNEL (Up/Down) buttons, then go to step 6.

Press the REC(ord)/OTR button to start recording.

TO SELECT PUSH NO. SHOWN

1 TV 2 CABLE TV ON 3 AUTO PROGRAMMING 4 ADD/DELETE CH 5 CH MEMORY REVIEW 6 TV STEREO ON 7 2ND AUDIO TO END PUSH EXIT

• You can only receive and record in stereo or second audio programs that are broadcast in second audio or stereo. You can only play in stereo or second audio tapes that were recorded in stereo or second audio. Please see page 42 to determine if the program you want to watch/record is being broadcast in stereo or second audio.

• If you select second audio when second audio is not available, the VCR will record normal audio.

Helpful Hints

POWER

VCR PLUS+

SPEED

REC/OTR

TIME SEARCH

REW

2 3

5 6

8 9

PLAY

STOP

STATUS/EXIT

+100

SLOW

CLEAR

EJECT

VCR/TV

CHANNEL

F.FWD

PAUSE/STILL

MEMORY

Page 44

44 Hi-Fi Stereo Sound System

Press the MENU button to bring up the main menu display.

Press the Number 2 button to select VCR SET UP.

Press the Number 3 button to select AUDIO OUT.

MTS broadcasts are automatically recorded in Hi-Fi stereo sound. To play in Hi-Fi stereo tapes recorded in Hi-Fi stereo, however, you’ll need to follow the steps below.

Press the Number 1 button to select HIFI. ON will appear to

the right of HIFI on-screen.

Press the STATUS/EXIT button to exit.

TO SELECT PUSH NO. SHOWN

1 HIFI ON 2 MONO

TO END PUSH EXIT

TO SELECT PUSH NO. SHOWN

1 REPEAT PLAY OFF 2 ON SCREEN MODE 3 AUDIO OUT 4 LANGUAGE 5 VCR PLUS+ REF. MAP

TO END PUSH EXIT

• All programs are automatically recorded in both Hi-Fi stereo sound and in monaural sound.

• The audio level of a tape recorded in Hi-Fi stereo will differ from the audio level of a tape not recorded in Hi-Fi stereo.

• Normally, HIFI should be selected from the AUDIO OUT menu for playback with Hi-Fi sound. But, you can change the selection to MONO if you want monaural audio playback. To do this, follow steps 1 - 3 above. At step 4, press the Number 2 button. Press the STATUS/EXIT button to exit. HIFI will disappear from the status display.

• If you play non-Hi-Fi tapes while the VCR is set to HIFI, HIFI will disappear from the status display and the tape will play in monaural sound.

Please see additional notes on page 47.

Helpful Hints

TO SELECT PUSH NO. SHOWN

1 HIFI ON 2 MONO

TO END PUSH EXIT

POWER

VCR PLUS+

SPEED

REW

REC/OTR

2 3

5 6

8 9

TIME SEARCH

PLAY

STOP

STATUS/EXIT

+100

SLOW

CLEAR

EJECT

VCR/TV

CHANNEL

F.FWD

PAUSE/STILL

MEMORY

Page 45

Hi-Fi Stereo Sound System (cont’d) 45

Press the MENU button to bring up the main menu display.

Press the Number 3 button to select TUNER SET UP.

Press the Number 6 button to select TV STEREO. ON will

appear to the right of TV STEREO on-screen.

Press the STATUS/EXIT button to exit.

TO SELECT PUSH NO. SHOWN

1 TV 2 CABLE TV ON 3 AUTO PROGRAMMING 4 ADD/DELETE CH 5 CH MEMORY REVIEW 6 TV STEREO ON 7 2ND AUDIO TO END PUSH EXIT

POWER

VCR PLUS+

SPEED

REC/OTR

TIME SEARCH

REW

2 3

5 6

8 9

PLAY

STOP

STATUS/EXIT

+100

SLOW

CLEAR

EJECT

VCR/TV

CHANNEL

F.FWD

PAUSE/STILL

MEMORY

Page 46

If you are having problems with your VCR, check the following list of problems and possible solutions before requesting service. You may be able to solve the problem yourself.

No power

• Make sure the power plug is completely connected to an AC (alternating current) outlet.

• Make sure the power is turned on.

Power Failure

• Timer recordings and the clock setting may be lost if the power fails for more than one minute. See page 15 to reset your clock. See pages 28-35 to reprogram your timer recordings.

A TV program cannot be recorded.

• Check the connections between the VCR, TV, antenna/cable, and Cable Box (if applicable) (pages six-10).

• Make sure the tape has a record tab (page five).

• Check the TV/VCR position (page 22).

• Check the CH3/CH4 switch (pages six-nine).

The VCR will not perform a timer recording.

• Make sure the recording start and stop times are set correctly (pages 28-35).

• Make sure a tape is in the VCR and the tape has a record tab (page five). If, after programming a timer

recording, you turn off the VCR power without putting a tape in the VCR, the Timer light will blink.

• If the record tab on a tape is missing, the VCR will eject the tape. The Timer light will blink.

• Make sure the VCR power is off.

• Make sure the clock is set (page 15).

• The VCR may not perform or continue a timer recording if a power interruption of more than one

minute occurs during the timer recording, even if the power comes back on afterward.

• If you have a Cable Box, timer recordings are programmed differently. (See page eight for details.)

• It is best to finish programming a timer recording at least five minutes before the recording is scheduled

to begin.

• 12 PM is noon; 12 AM is midnight.

The VCR did not record the complete OTR or timer recording.

• The end of the tape was reached before the end of the recording. The VCR will eject the tape and turn itself off.

Satellite Hookups

• Watching one TV channel while recording another may not be possible if you have a satellite hookup. You may have to set your TV to channel 3 or 4, then make your channel selections at the satellite converter box.

• With many satellite hookups, if you use accessory audio and video cables to connect your VCR to your TV, you will have to put your VCR in Line Input mode. To enter Line Input mode, press 0, 0 on the VCR’s remote control. A/V IN will appear on your TV screen briefly.

Line Input mode

• If you accidentally enter Line Input mode (A/V IN will appear on your TV screen briefly), press the CHANNEL (Up/Down) buttons or use the Number buttons to select another channel.

Daylight-Saving Time

• When automatic Daylight-Saving Time is set, the clock time will change automatically as follows: on the first Sunday in April, from 2 AM to 3 AM; on the last Sunday in October, from 2 AM to 1 AM.

• During the April time change, a timer recording programmed to start between 2 AM and the new 2 AM will not record. A timer recording programmed to end between 2 AM and the new 2 AM will end when the clock moves forward (the new 2 AM).

• During the October time change, a recording cannot be started between the new 1 AM and 1:59 AM.

The motor (cylinder) rotates even when the VCR is in Stop mode.

• To enable the quick play mechanism, the cylinder will rotate for about five minutes. This is normal.

46 Helpful Hints

Page 47

Helpful Hints (cont’d) 47

There is no playback picture or the playback picture is noisy or contains streaks.

• Make sure the TV and the Cable Box, if applicable, are on the same channel as the VCR’s CH3/CH4 switch (pages six-nine).

• Make sure the VCR is in VCR position (page 22). The VCR light will appear on the display panel of the VCR when the VCR is in VCR position.

• Make sure channel 3 or 4 is properly adjusted at the TV.

• Adjust the tracking (page 41).

The Number buttons won’t work for channels above 69.

• Select CABLE TV at the TUNER SET UP menu (page 12), then let the VCR program the channels.

Tape cannot be inserted.

• Insert the tape, window side up, with the record tab facing you.

• Make sure a tape isn’t already in the VCR by pressing the STOP/EJECT button on the VCR.

• Gently push on the center of the tape when putting it in the VCR. Never force the tape into the VCR.

• If a timer recording is programmed and the VCR power is off, you can not insert a tape without a

record tab.

Tape cannot be removed.

• Make sure the power plug is completely connected to an AC (alternating current) outlet.

• You have set a timer recording. Turn the VCR power on, then eject the tape. Be sure to insert a tape

and turn off the power for your timer recording.

VCR ejects the tape when the REC(ord)/OTR button is pressed or when the VCR power is turned off to set a timer recording.

• Make sure the tape has a record tab (page five).

Channels above 13 cannot be received.

• Select CABLE TV at the TUNER SET UP menu (page 12), then let the VCR program the channels.

Poor reception

• You may need to tune your TV again.

The VCR cannot be controlled with the remote control.

• Make sure the VCR light appears on the VCR display panel. If it does not, press the VCR/TV button once.

• Aim the remote control directly at the VCR’s remote sensor (page 22).

• Remove all obstacles between the remote control and the VCR.

• Inspect and/or replace the batteries in the remote control (page five).

TV programs cannot be watched normally.

• Put the VCR in TVposition. (Press the VCR/TV button so that the VCR light disappears from the display panel. For details see pages 19 and 22.)

• Check the connections between the VCR, TV, antenna/cable, and Cable Box (if applicable). (See pages six-10 for details.)

Hi-Fi Stereo Sound

• During playback, Hi-Fi audio may temporarily revert to normal audio when you adjust tracking. This is normal.

• When connecting the VCR to a stereo TV, you will only get stereo sound if you use audio cables to connect the AUDIO OUT jacks on the VCR to the AUDIO IN jacks on your TV, and if the TV is in Line (Auxiliary) Input mode.

• When you connect the AUDIO OUT jacks on the VCR to the AUDIO IN jacks on your TV, the stereo light on the TV might not glow. But, as long as the status display indicates a stereo signal, you are receiving a stereo signal. This is normal.

• If Hi-Fi audio continually reverts to normal audio during playback, you may want to change AUDIO OUT to MONO at step 4 on page 44.

• Only tapes recorded in Hi-Fi audio will play back in Hi-Fi audio. Tapes recorded in normal audio will play back in monaural audio.

Page 48

AUDIO IN/OUT Jacks: jacks located on the back of the VCR which are used to record audio from another source (IN) or to send audio to another source (OUT).

Automatic Channel Programming:

process in which the VCR scans all available channels and places the ones you receive in its memory. Then, when you push the CHANNEL (Up/Down) buttons, you only scan through channels you receive.

Bands:

settings that allow you to tune channels.

• Antenna – VHF (very high frequency; channels 2 - 13) and

UHF (ultra high frequency; channels 14 - 69).

• Cable – all standard channels can be received without a Cable

Box.

Cable Box Output Channel:

Channel 3 or 4.

Dubbing:

copying a tape using a second VCR.

Frame:

a single still picture.

HQ:

high quality; a feature in the VCR circuitry which provides

enhanced picture detail.

Line Input:

The channel to which you set your VCR during dub-

bing. The line input channel is always channel 00. If you accidentally enter Line Input mode (A/V IN will appear on

your TV screen briefly), press the CHANNEL (Up/Down) buttons or use the Number buttons to select another channel.

Mode:

a VCR operation.

OTR:

one touch recording; programming a timed recording that starts immediately and records for 30 minutes to eight hours, whichever you specify.

Remote Control:

the small electronic unit that came with your

VCR; allows you to operate your VCR from a distance.

RF coaxial cable:

The cable supplied with your VCR. Use it to connect your VCR to your TV (or Cable Box, if applicable). The supplied cable is a snap-on type. However, you may also use a screw-on type if you prefer.

Special Effects:

forward and reverse searching; viewing a still

picture; slow motion.

Tape Speeds:

how fast the tape travels during a recording.

• SP (standard play) – fastest tape speed (recording time for a

T120 tape is approximately two hours); best picture quality.

• LP (long play) – average tape speed (recording time for a T120

tape is approximately four hours).

• SLP (super long play) – slowest tape speed (recording time for

a T120 tape is approximately six hours).

VCR:

video cassette recorder.

VIDEO IN/OUT Jacks:

jacks located on the back of the VCR which are used to record video from another source (IN) or send video to another source (OUT).

48 Glossary

Page 49

Specifications 49

Video Heads

Four heads

Video Signal

EIA standards; NTSC color

Antenna

VHF/UHF – 75 ohm external antenna terminal

VHF Output Signal

Channel 3 or 4 (switchable) 75 ohms unbalanced

Power Requirement

120V AC; 60Hz

Power Consumption

20W

Operating Temperature

41°F (5°C) to 104°F (40°C)

Relative Humidity

10% to 80%

Weight

6.17 lbs. (2.8 kg.)

Dimensions

14-3/16” (W) x 3-1/16” (H) x 9-1/16” (D) (360 mm x 92mm x 230mm)

Tuner Broadcast Channels

VHF 2-13, UHF 14-69

CATV Channels

Midband: A – 1 Superband: J – W Hyperband: A-5 – A-1 Special Channel: 5A Ultraband: 37 – 94, 100 – 125

NOTE: Designs and specifications are subject to change without notice.

Page 50

50 Limited Warranty

VIDEO CASSETTE RECORDER

90 Days Free Labor/One Year Parts Exchange. This product must be carried in for repair.

WHO IS COVERED?

You must have proof of purchase to receive warranty service. A sales receipt or other document showing that you purchased the product is considered proof of purchase.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For 90 days thereafter, all parts will be repaired or replaced, and labor is free. From 90 days to one year from the day of purchase, all parts will be repaired or replaced, but you pay for all labor charges. After one year from the day of purchase, you pay for the replacement or repair of all parts, and for all labor charges.

All parts, including repaired and replaced parts, are covered only for the original warranty period. When the warranty on the product expires, the warranty on all replaced and repaired parts also expires.

WHAT IS EXCLUDED?

Your warranty does not cover:

• labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.

• product repair and/or part replacement because of misuse, accident, unauthorized repair or other cause not within the control of Philips Consumer Electronics Company.

• reception problems caused by signal conditions or cable or antenna systems outside the unit.

• a product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.

• incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)

• damage caused by the use of non-VHS tapes or tapes that have not been tested and labeled for use in two, four, six, and eight hour VHS recorders.

• a product that is used for commercial or institutional purposes (including but not limited to rental purposes).

WHERE IS SERVICE AVAILABLE?

Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics Company. In countries where Philips Consumer Electronics Company does not distribute the product, the local Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).

MAKE SURE YOU KEEP...

Please keep your sales receipt or other document showing proof of purchase. Attach it to this owner’s manual and keep both nearby. Also keep the original box and packing material in case you need to return your product.

BEFORE REQUESTING SERVICE...

Please check your owner’s manual before requesting service. Adjustments of the controls discussed there may save you a service call.

TO GET WARRANTY SERVICE IN U.S.A., PUERTO RICO OR U.S. VIRGIN ISLANDS...

Take the product to a Philips factory service center (see enclosed list) or authorized service center for repair. When the product has been repaired, you must pick up the unit at the center. Centers may keep defective parts.

(In U.S.A., Puerto Rico and U.S. Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. Because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.)

TO GET WARRANTY SERVICE IN CANADA...

Take the product to a Philips consumer service center (listed below), self-servicing dealer or authorized service depot.

Philips Electronics Ltd.

601 Milner Avenue, Scarborough, Ontario, M1B 1M8

(416) 292-5161

4977 Levy Street, St. Laurent, Québec, H4R 2N9

(514) 956-0120

1741 Boundary Road, Vancouver, B.C., V5M 3Y7

(604) 294-3441

(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special, incidental, or consequential damages, howsoever incurred, even if notified of the possibility of such damages.)

REMEMBER...

Please record below the model and serial numbers found on the product. Also, please fill out and mail your warranty registration card promptly. It will be easier for us to notify you if necessary. MODEL # __________________________________ SERIAL # __________________________________

This warranty gives you specific legal rights. You may have other rights which vary from state to state.

Philips Service Company, P.O. Box 555, Jefferson City, Tennessee 37760, (423) 475-8869

EL4946E006 / MAC 6108/ 11-96

Page 51

Index 51

ac power cord . . . . . . . . . . . . .23

accessories . . . . . . . . . . . . . . . .52

ant(enna) in jack . . . . . . . .6-10, 23

audio in/out jacks . . .10, 23, 36, 42 automatic

playback . . . . . . . . . . . . . . . .41

rewind, eject, off . . . . . . . . . .41

batteries . . . . . . . . . . . . . . . . . . .5

cable, rf coaxial . . . . .6-10, 36, 42

cassette-inside light . . . . . . . . . .21

cassette (also see tape)

compartment . . . . . . . . . . . .21

ch3/ch4 switch . . . . . . . . . .6-9, 23

channel

above 100 . . . . . . . . . . . . . . .18

adding . . . . . . . . . . . . . . . . . .13

deleting . . . . . . . . . . . . . . . . .13

memory . . . . . . . . . . . . . .12-14

programming . . . . . . . . . . . .12

reviewing . . . . . . . . . . . . . . .14

up/down buttons . . . .19, 22, 41

clear button . . . . . . . . . . . .19, 39

clock display . . . . . . . . . . . . . . .21

clock setting . . . . . . . . . . . . . . .15

contents, table of . . . . . . . . . . . .4

controls

remote . . . . . . . . . . . . . .18-19

vcr . . . . . . . . . . . . . . . . . . . .22

counter only mode . . . . . . . . . .20

daylight-saving time . . . . . . .16, 46

display panel . . . . . . . . . . . . . . .21

duplication . . . . . . . . . . . . . . . .36

eject button . . . . . . . . . . . . . . .18

erase protection . . . . . . . . . . . . .5

f.fwd button . . . . . . . . . .19, 22, 40

front panel . . . . . . . . . . . . . . . .22

glossary . . . . . . . . . . . . . . . . . . .48

helpful hints . . . . . . . . . . . . .46-47

hi-fi stereo sound system . . .44-45 hookups

with a cable box . . . . . . . . .8-9

with a stereo tv . . . . . . . . . .10

without a cable box . . . . . . .6-7

input

antenna/cable . . . . . . . . . . .6-10

line . . . . . . . . . . . . . . . . .36, 46

language selection . . . . . . . .11, 17

line input mode . . . . . . . . . .36, 46

long play . . . . . . . . . . . . . . .30, 48

lp . . . . . . . . . . . . . . . . . . . . .30, 48

memory button . . . . . . . . . .19, 39

menu button . . . . . . . . . . . . . . .18

mts broadcast stereo system .42-43

number buttons . . . . . . . . . . . .18

on screen off mode . . . . . . . . . .20

on screen on mode . . . . . . . . . .20

on screen status displays . . . . . .20

one touch recording . . . . . . . . .27

out jack . . . . . . . . . . . . . . .6-9, 23

pause button . . . . . . . . .22, 25, 40

pause/still button . . . . . .19, 25, 40

play button . . . . . . . . . .18, 22, 40

playing . . . . . . . . . . . . . . . . . . . .24

power

button . . . . . . . . . . . . . . .18, 22

cord . . . . . . . . . . . . . . . . . . .23

pwr. light . . . . . . . . . . . . . . . . . .21

real time counter . . . . . . . . . . .39

rear panel . . . . . . . . . . . . . . . . .23

rec/otr button . . . . .18, 22, 25, 27

rec(ord) light . . . . . . . . . . . . . . .21

record tab . . . . . . . . . . . . . . . . . .5

recording

basic . . . . . . . . . . . . . . . . . . .25

helpful hints . . . . . . . . . . .46-47

one channel/

watching another . . . . . . . . .26

timer . . . . . . . . . . . . . . . .28-31

with the vcr plus+

programming system . . . .32-35

remote control

buttons . . . . . . . . . . . .18-19

using . . . . . . . . . . . . . . . . .5

remote sensor . . . . . . . . . . . . .22

repeat playback . . . . . . . . . . . . .37

rerecording . . . . . . . . . . . . . . . .36

rew(ind) button . . . . . . .18, 22, 40

rf coaxial cable . . . . . .6-10, 36, 42

safety precautions . . . . . . . . . . . .3

satellite hookups . . . . . . . . . . . .46

searching . . . . . . . . . . . . . . . . . .40

second audio broadcast

receiving . . . . . . . . . .42-43

recording . . . . . . . . .42-43

slow

button . . . . . . . . . . . . . . .19, 40

motion . . . . . . . . . . . . . . . . .40

slp. . . . . . . . . . . . . . . . . . . .30, 48

sp . . . . . . . . . . . . . . . . . . . .30, 48

specifications . . . . . . . . . . . . . . .49

speed button . . . . . . . . . . . .18, 25

standard play . . . . . . . . . . . .30, 48

status display . . . . . . . . . . . . . . .20

status/exit button . . . . . . . . . . .18

stereo

broadcast

receiving . . . . . . . . . . .42-43

recording . . . . . . . . . .42-43

hookups . . . . . . . . . . . . . . . .42

still picture . . . . . . . . . . . . . . . .40

stop button . . . . . . . . . . . . .19, 25

stop/eject button . . . . . . . . . . . .22

super high speed searching . . . .40

super long play . . . . . . . . . .30, 48

table of contents . . . . . . . . . . . . .4

tape

duplication . . . . . . . . . . . . . .36

eject . . . . . . . . . . . . . . . . . . .41

speed . . . . . . . . . . . . . . .30, 48

time search button . . . . . . .19, 38

timer

light . . . . . . . . . . .21, 30, 35, 46

recording

checking . . . . . . . . . . . . . .31

clearing . . . . . . . . . . . . . .31

helpful hints . . . . . . . . . . .46

setting . . . . . . . . . . . . .28-35

tracking . . . . . . . . . . . . . . . . . . .41

hookup . . . . . . . . . . . . . . .6-10

position . . . . . . . . . . . . . .19, 22

viewing . . . . . . . . . . . . . . .8, 47

vcr

light . . . . . . . . . . . . . .19, 21, 22

plus+ button . . . . . . . . . .18, 34

plus+ programming

system . . . . . . . . . . . . . . .32-35

position . . . . . . . . . . . . . .19, 22

vcr/tv button . . . . . . . . .19, 22, 26

video

in/out jacks . .10, 23, 36, 42, 48

tapes (see tape)

warranty . . . . . . . . . . . . . . . . . .50

Page 52

IB7837E001

MAC6167

Printed In China

Printed In Hong Kong

0VMN01882 / H7420UD * * * * *

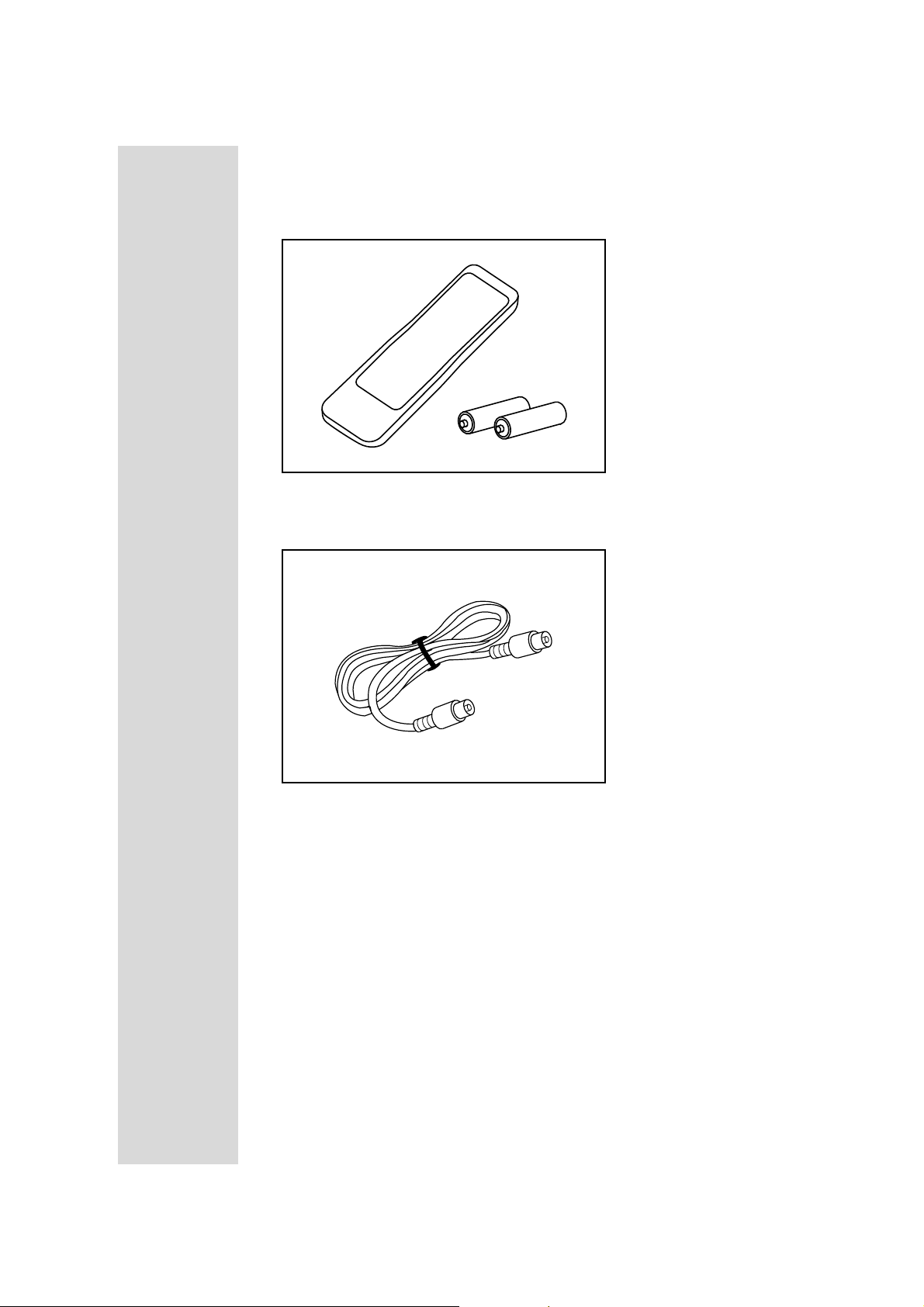

SUPPLIED ACCESSORIES

Remote Control (4835 218 37191) Two “AA” Batteries (4835 138 17012)

RF Coaxial Cable, 75 ohm (4835 323 27011)

Check to be sure the items on this page are packed with your VCR. These accessories are provided to help you use or set up your VCR.

If any of these items are not included, or if you need to replace an item, contact Philips Service Company at the address below.

Philips Service Company P.O. Box 967 Greeneville, TN 37744-0967

Or, call 1-800-851-8885.

Philips VRX262AT User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
