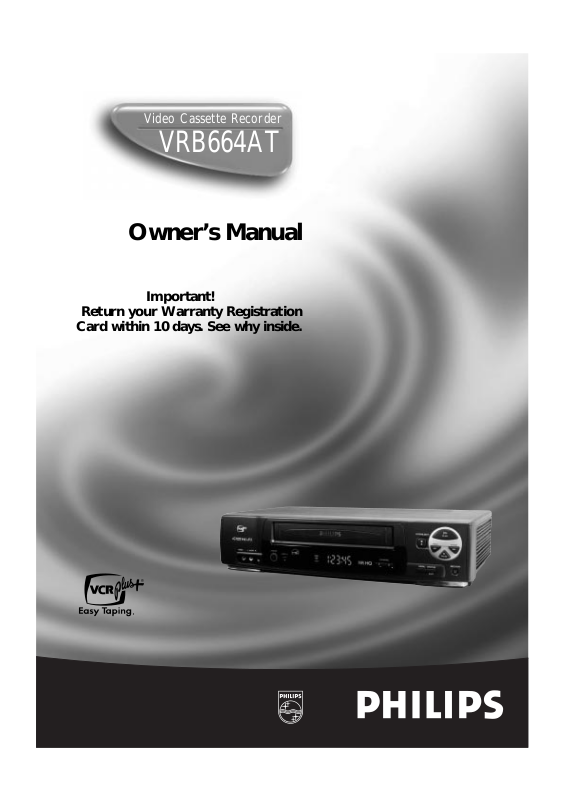

Page 1

Owner’s Manual

Important!

Return your Warranty Registration

Card within 10 days. See why inside.

Video Cassette Recorder

VRB664AT

Page 2

Once your PHILIPS purchase is registered, you’re eligible to receive all the privileges of owning a PHILIPS product. So complete and return the Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.

Return your Warranty Registration card today to

ensure you receive all the

benefits

you’re entitled to.

For Customer Use

Enter below the Serial No. which is located on the rear of the cabinet. Retain this information for future reference.

Model No. ________________ Serial No. ________________

Congratulations on your purchase, and welcome to the “family!”

Dear PHILIPS product owner:

Thank you for your confidence in PHILIPS. You’ve selected one of the best-built, best-backed products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come. As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry. What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network. And most importantly you can count on our uncompromising commitment to your total satisfaction. All of this is our way of saying welcome-and thanks for investing in a PHILIPS product.

Sincerely,

Robert Minkhorst President and Chief Executive Officer

P.S. Remember, to get the most from your PHILIPS

product, you must return your Warranty Registration Card within 10 days. So please mail it to us right now!

Know these

safetysymbols

This “bolt of lightning” indi-

cates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The “exclamation point”

calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

ATTENTION: Pour éviter les choc électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Hurry!

Warranty Verification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your PHILIPS warranty.

Owner Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

Model Registration

Returning your Warranty Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model.

Visit our World Wide Web Site at http://www.philips.com

Page 3

Introduction 3

Features

• Auto DBS RecordLink™

• Automatic Channel Setup

• Automatic Clock Setting with Time Zone

• Automatic Head Cleaner

• Automatic Operation Features

• Automatic Tracking Adjustment

• Blue Background

• Child Lock

• Daylight-Savings Time

• Display Panel with Auto Dimmer

• Front Panel Menu Access

• Hi-Fi Stereo Sound System

• High Quality (HQ) System

• MTS (Multi-Channel Television Sound) System

• 19 micron head - Improves the picture quality of tapes recorded in SLP

• On-Screen Displays in English or Spanish

• One-Touch Recording

• Real-Time Counter

• Remote Control with capability to operate TV, Cable Box, and Direct Broadcast System, with lighted buttons

• Repeat Play

• S-VHS Quasi Play Back (SQPB)

• Search Functions: Time Search; Index Search; Record End Search; Skip Search

• ShowGuard™ - Indefinite Timer Recording memory

• Smart Picture

• Special Effects Playback: Forward and Reverse Searching; Still; Variable Slow; Frame Advance

• The VCR Plus+ Programming System

Safety Precautions Warning: To prevent fire or shock hazard, do not expose this equipment to rain or moisture. Federal Communications Commission Warning: Any unauthorized changes or modifications to this equipment void the user’s authority to operate it.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This VCR is equipped with a High Quality (HQ) system and is compatible with existing Video Home System (VHS) equipment. Note to the Cable TV System Installer: This reminder is provided to call the Cable TV system installer’s attention to Article 820-40 of the National Electrical Code, which provides guidelines for proper grounding – in particular, specifying that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as possible.

Declaration of Conformity

Model Number: VRB664AT Trade Name: Philips Responsible Party: Philips Consumer Electronics

P.O. Box 14810 Knoxville, TN 37914-1810 (865) 521-4316

As an ENERGY STAR®Partner, Philips Consumer Electronics has determined that this product meets the E

NERGY STAR

guidelines for energy efficiency. ENERGY STAR®is a U.S. registered mark. Using products with the E

NERGY STAR

label can save energy. Saving energy reduces air pollution and lowers utility bills. Copyright 2000 Philips Consumer Electronics. All rights reserved. Auto DBS RecordLink and ShowGuard are trademarks of Philips Consumer Electronics. VCR Plus+

and PlusCode®are registered trademarks of Gemstar Development Corporation. The VCR Plus+ Programming system is manufactured under license from Gemstar Development Corporation.

Welcome to your VCR owner’s manual.

This manual has seven sections: Setting Up Your VCR; Description of Controls; Basic Operations; Recording Options; Playing Options; Additional Features; and Information You May Need. The instructions explain all of the VCR’s features, which are listed below. You cannot hurt your VCR by trying the features! So read on – and relax.

• Your new product, its packaging, and this manual contain materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount that needs to be properly disposed. Your product uses batteries that should not be thrown away when depleted but should be disposed of as small chemical waste. Please find out about the local regulations on disposal of your old product, batteries, manual, and packaging whenever you replace existing equipment.

Helpful Hint

Page 4

4 Table of Contents

Setting Up Your VCR

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Before Using Your VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Hookups Without a Cable Box/Direct Broadcast System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7

Hookups With a Cable Box/Direct Broadcast System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9

Hookups With a Stereo TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Turning on Your VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Automatic Channel Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-14

Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-18

Daylight-Savings Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Language Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

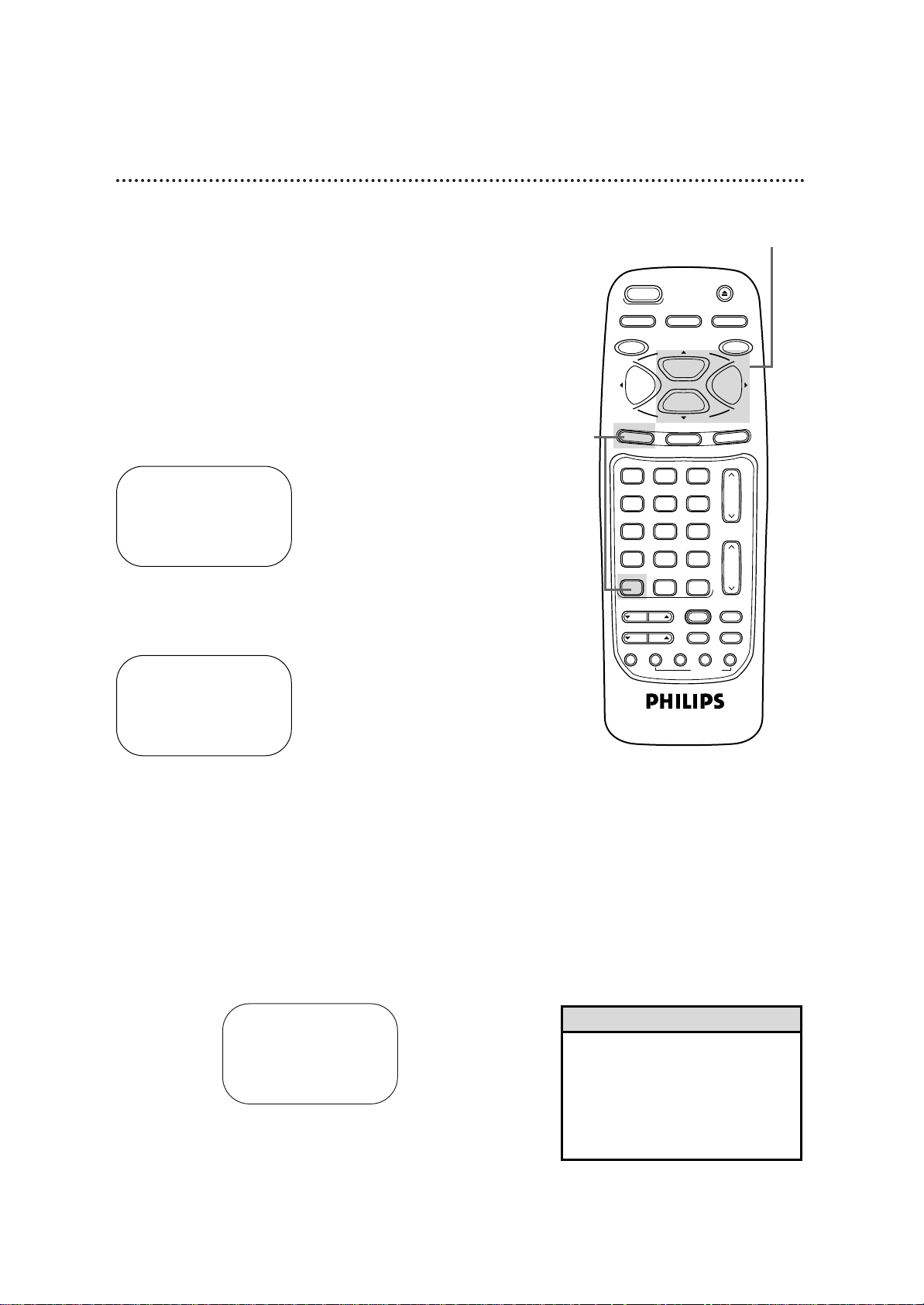

Setting the Remote to Operate a TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Setting the Remote to Operate a Cable Box/Direct Broadcast System . . . . . . . . . . . . . . . . . . . . . . . . . .22

Description of Controls

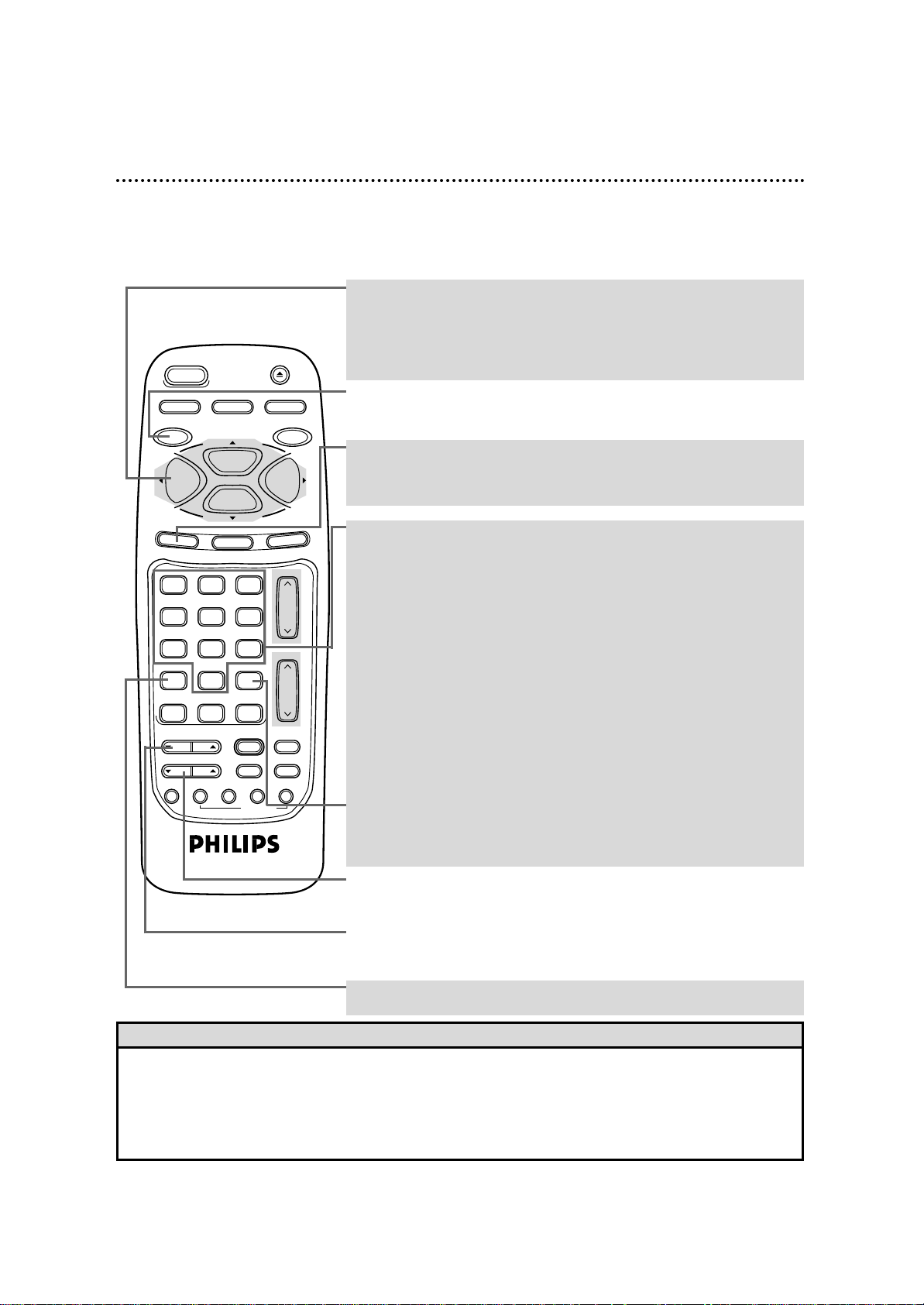

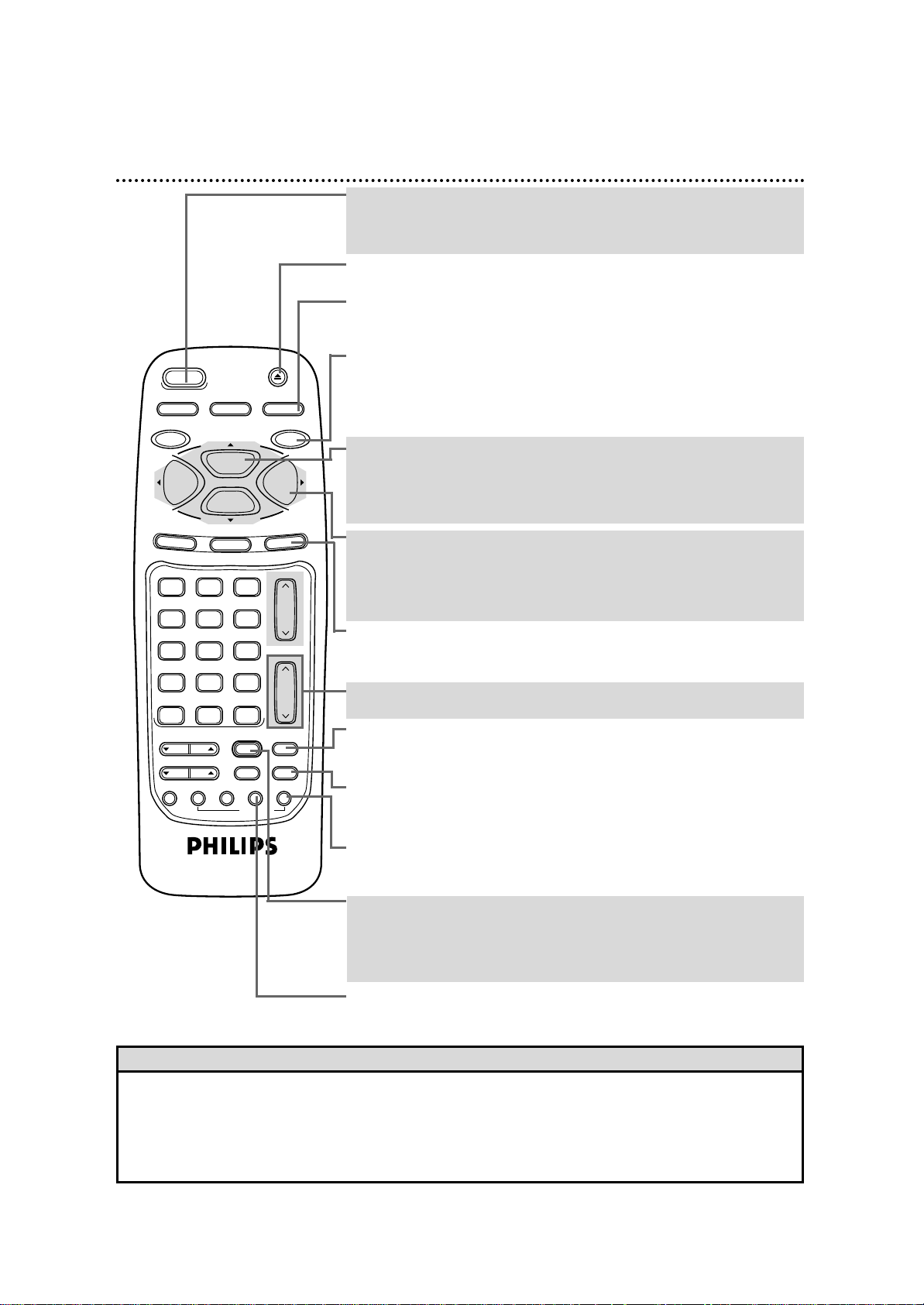

Remote Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23-25

On-Screen Status Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

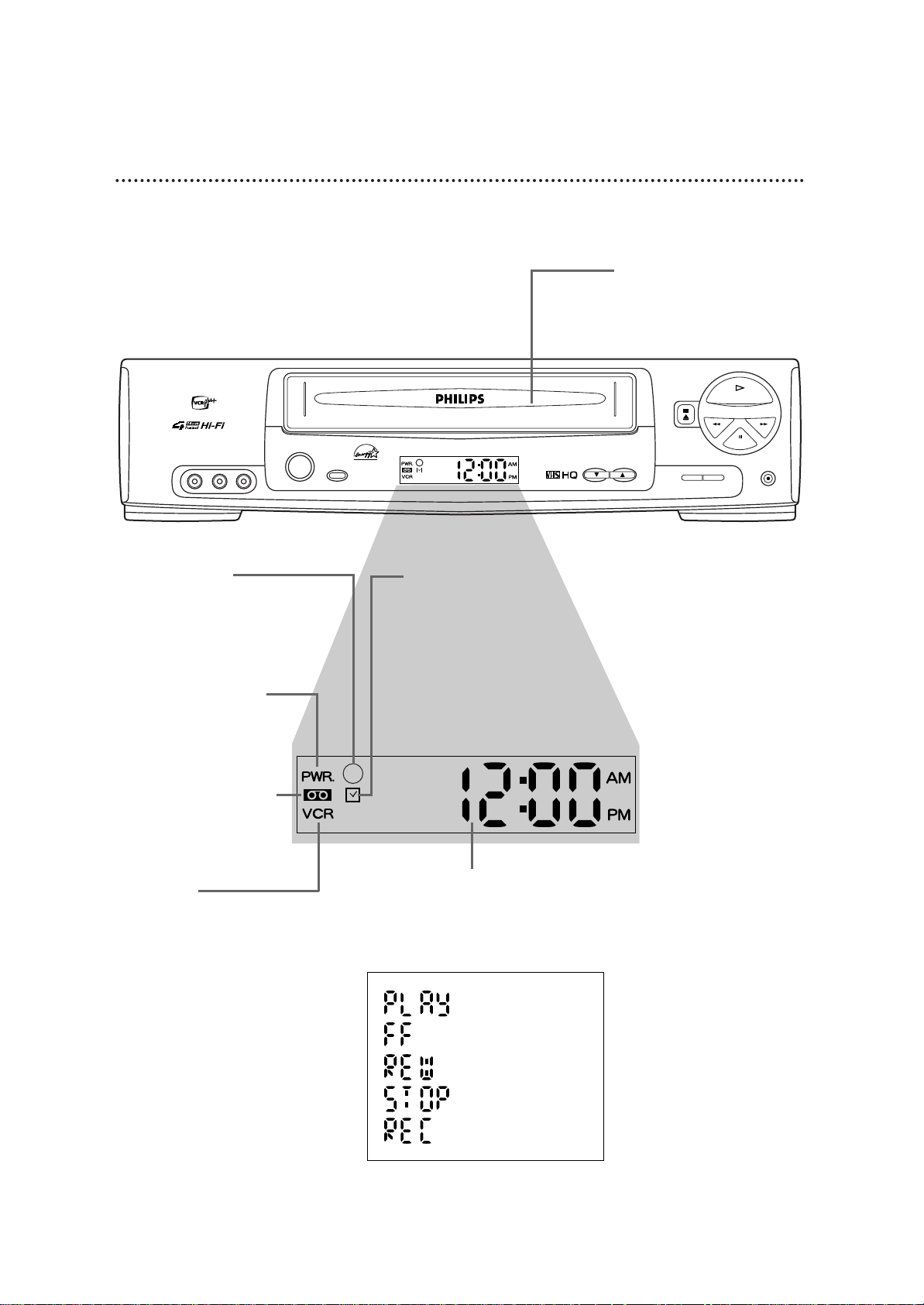

VCR Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

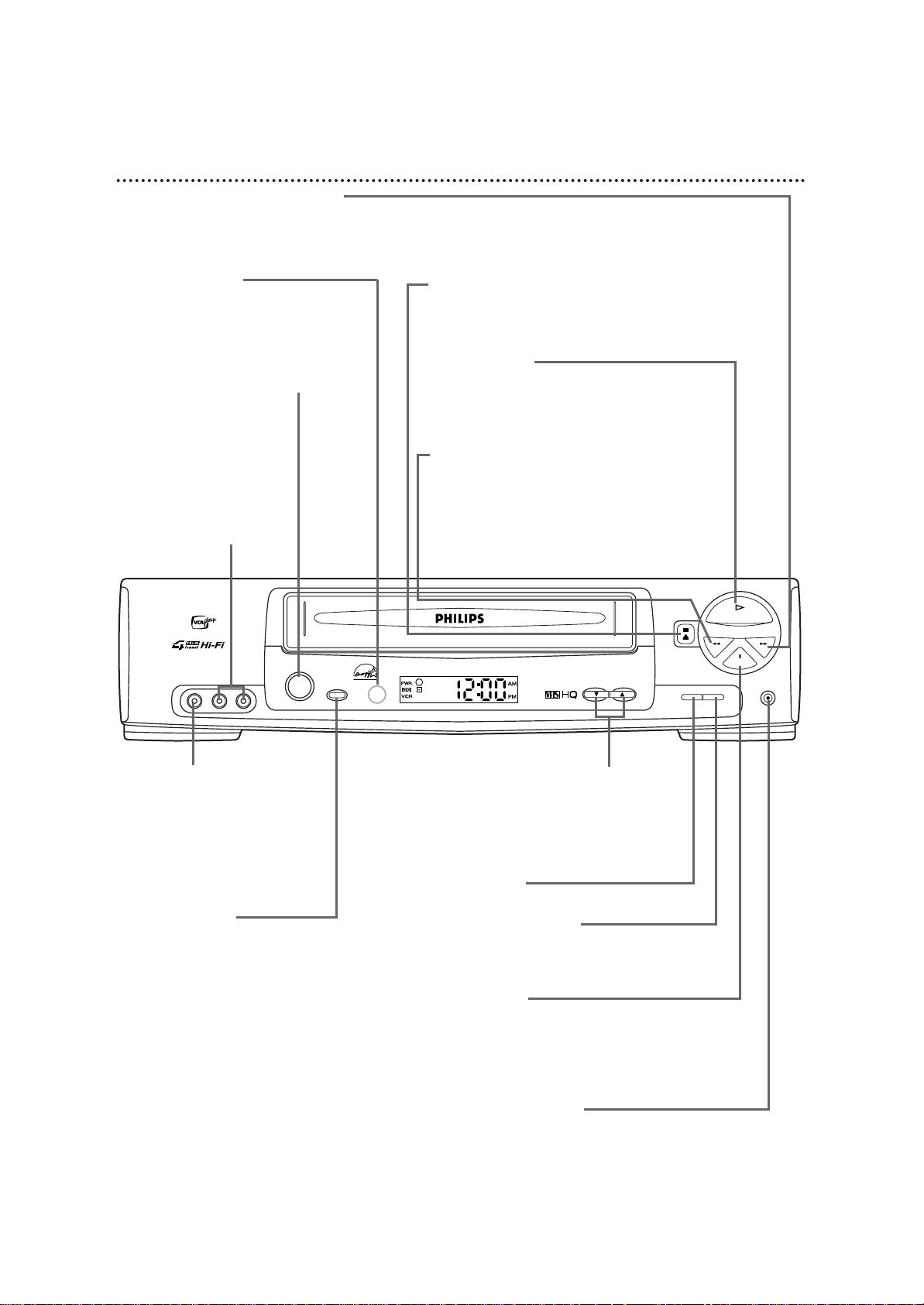

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

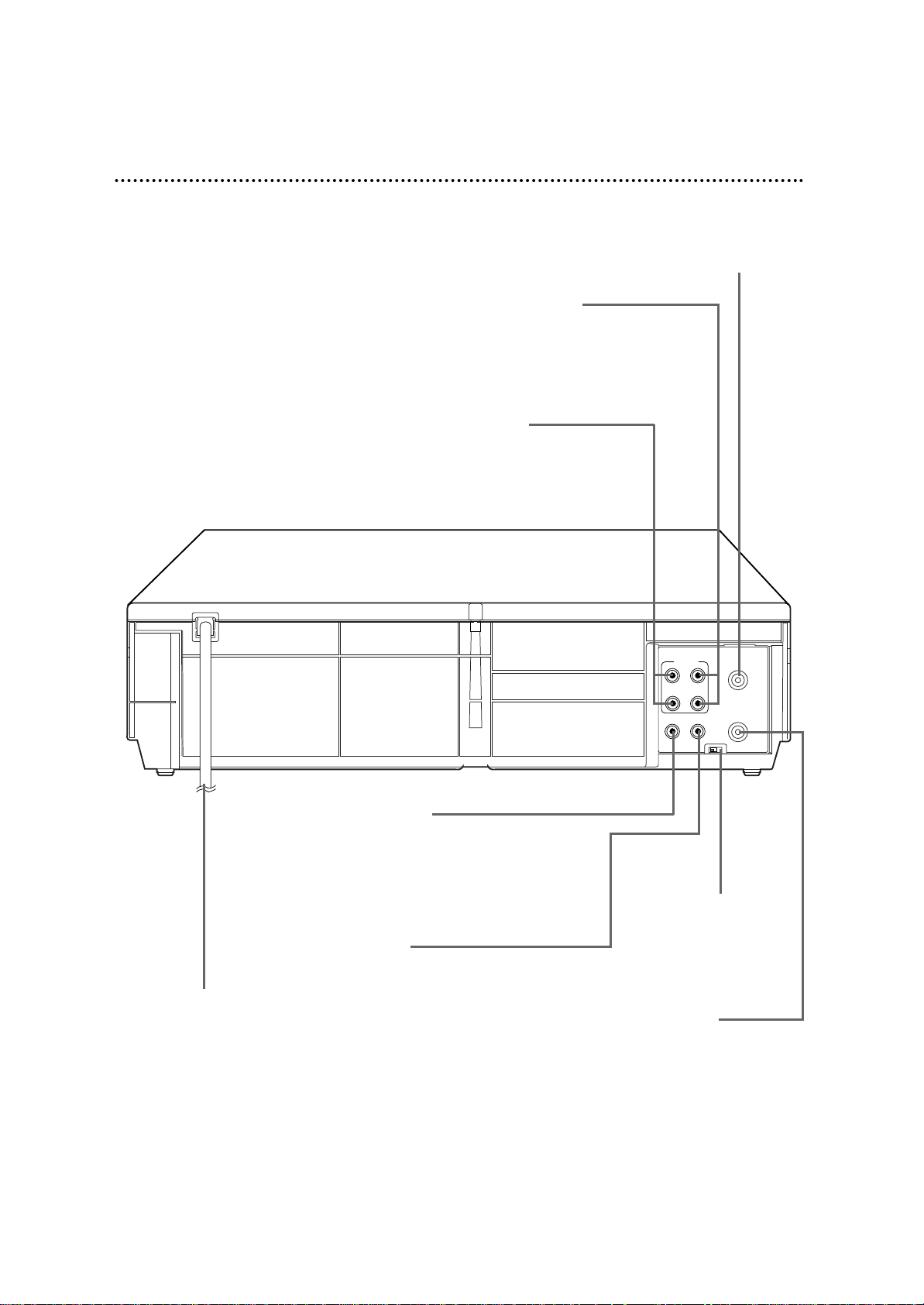

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Basic Operations

Playing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Recording Options

One-Touch Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Recording One Channel/Watching Another . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34-37

Setting Up the VCR Plus+ Programming System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38-39

Timer Recording with the VCR Plus+ Programming System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40-41

Auto DBS RecordLink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

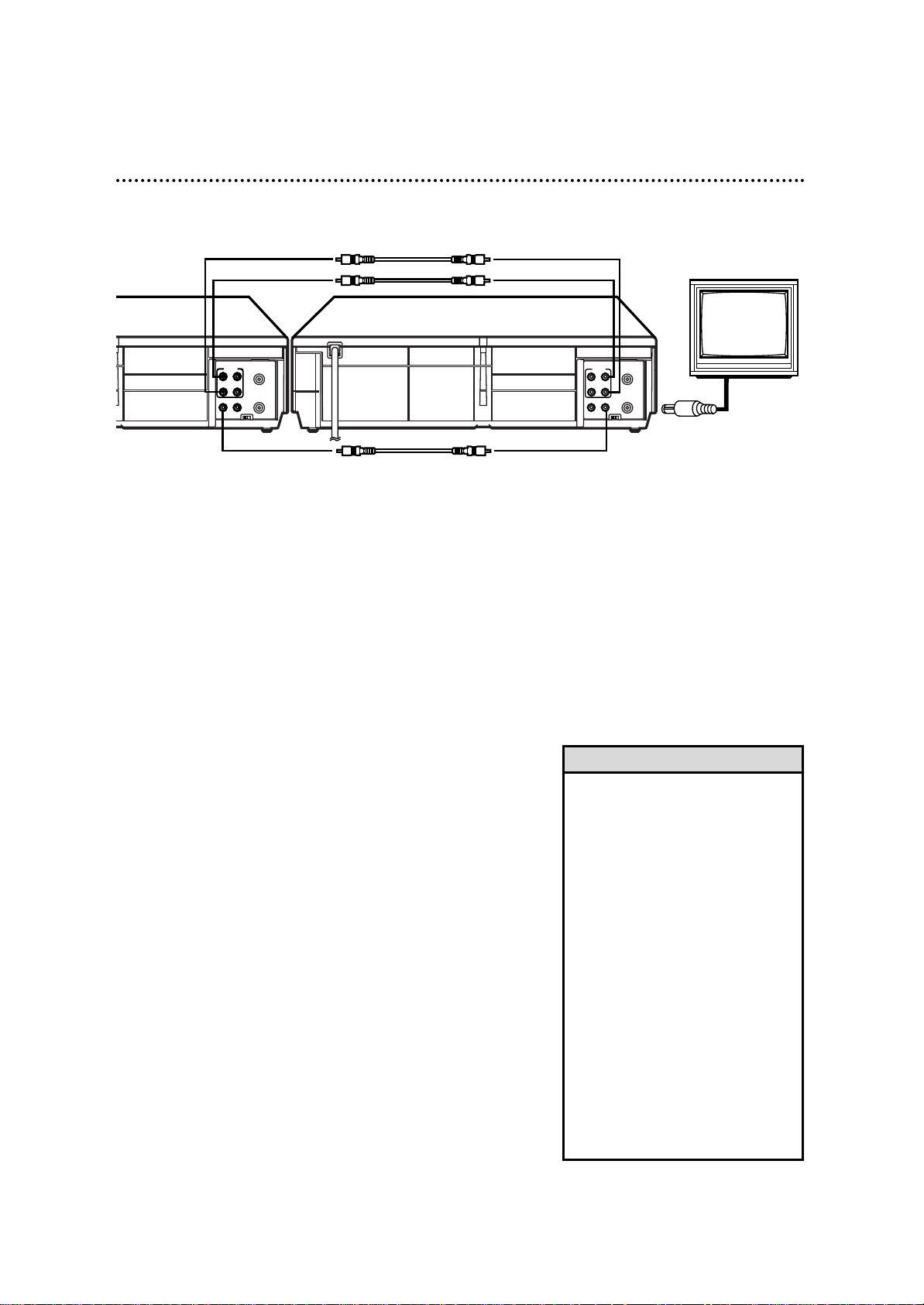

Rerecording (Tape Duplication) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Playing Options

Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Automatic Operation Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Special Effects Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46-47

Additional Features

Child Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

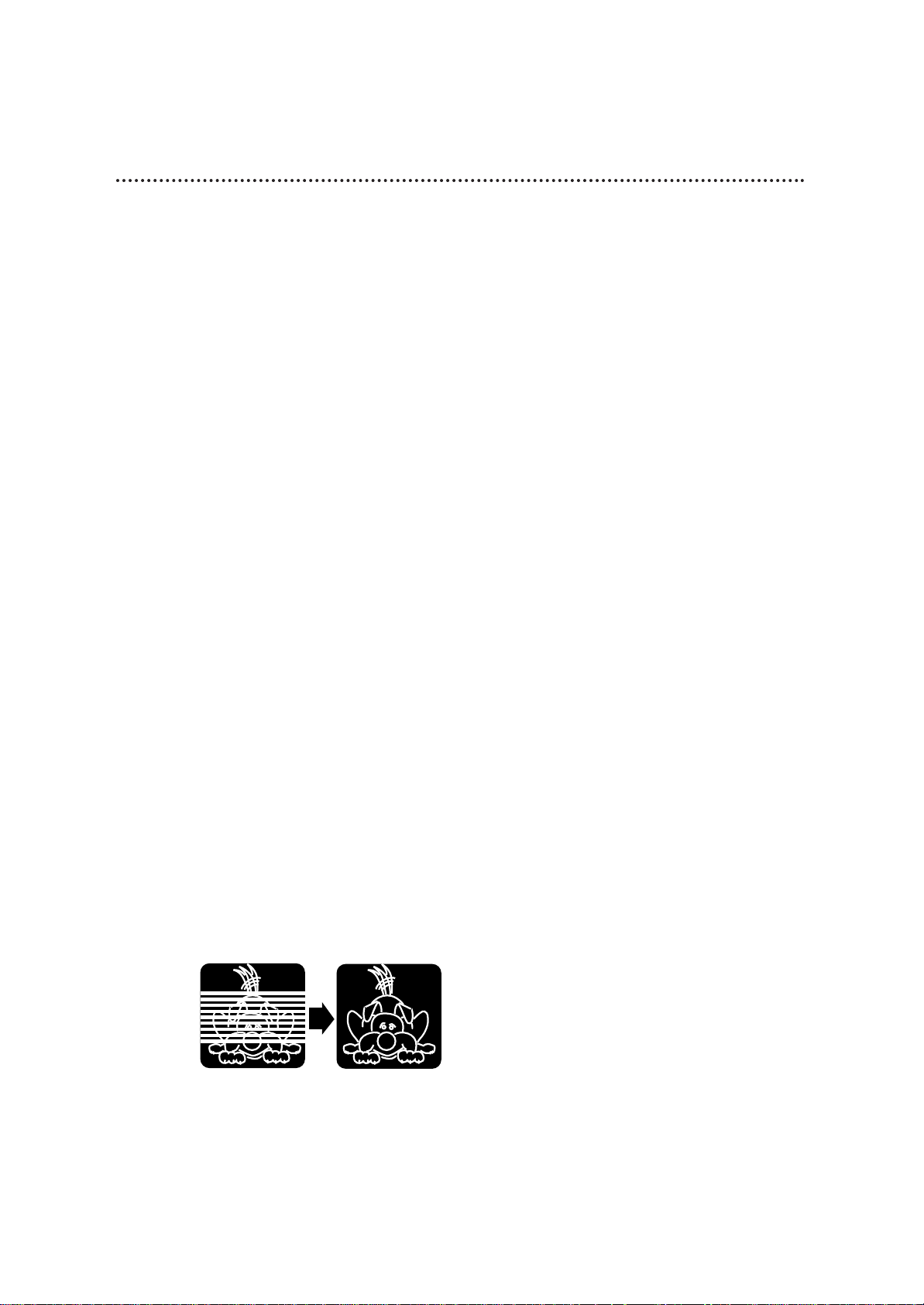

Smart Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Time Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Index Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Record End Search/Skip Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Real-Time Counter Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Blue Background . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Multi-Channel Television Sound System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55-56

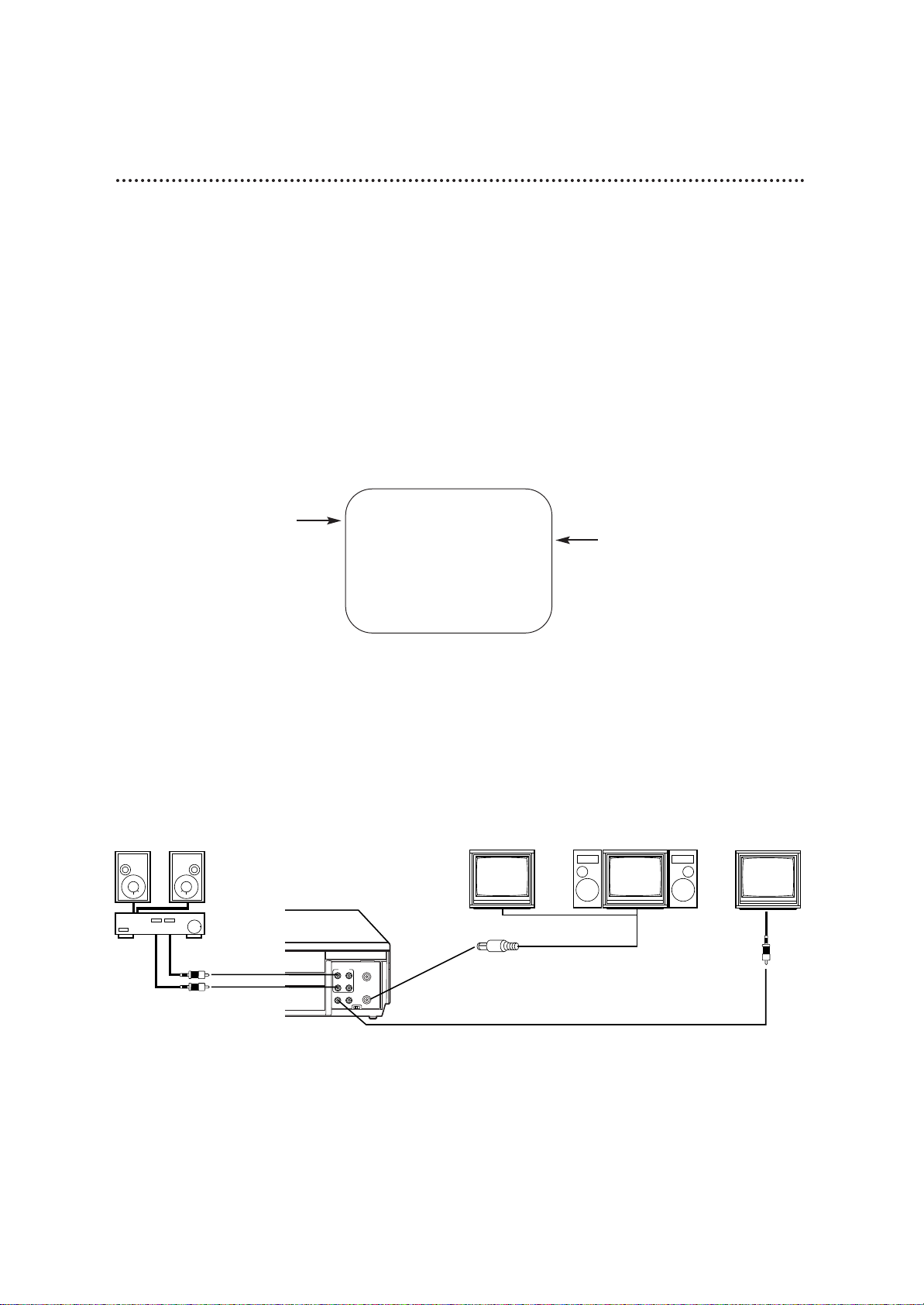

Hi-Fi Stereo Sound System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Information You May Need

Helpful Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58-59

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62-63

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

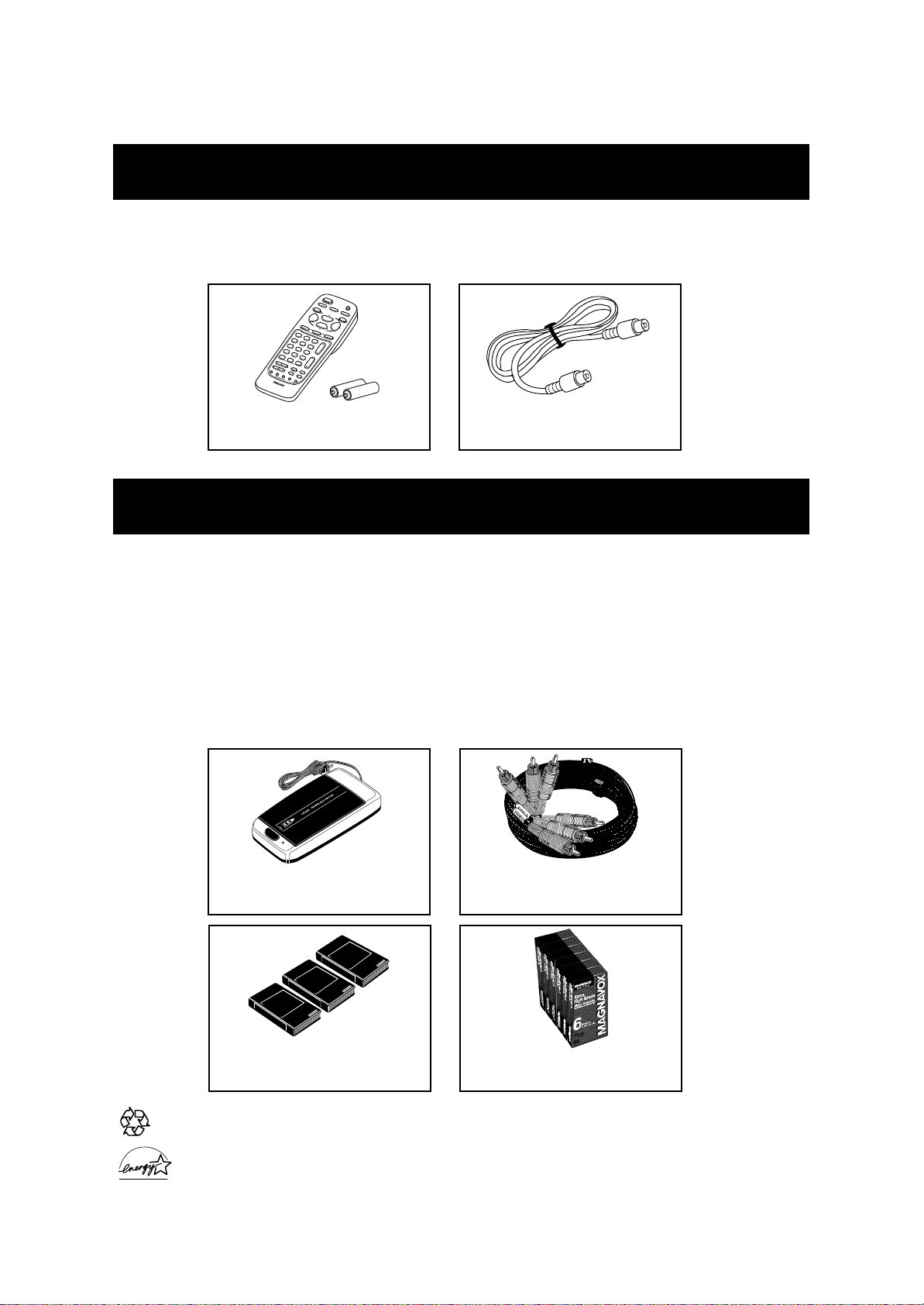

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Page 5

● Use only tapes with the mark. The use of other tapes may

result in poor picture quality and excessive deposits on the video heads, which may not be covered by the warranty if damage occurs.

● Remove any light adhesive stick-on notes from the video cas-

sette tape before putting the tape in the VCR. Removable labels can jam the VCR.

● Periodic maintenance is required to maintain your VCR’s excel-

lent performance. This VCR has an Automatic Head Cleaner. However, the video heads will require replacement eventually. Only an authorized service center should perform this service.

Before Using Your VCR 5

Putting Batteries in the Remote Control

Remove the battery compartment lid on the bottom of the

remote control by pressing the tab, then lifting the lid.

Place two AA batteries inside the battery compartment

with their +and –ends aligned as indicated.

Replace the battery compartment lid.

• Do not mix alkaline and manganese batteries.

• Do not mix old and new batteries.

Helpful Hints

Using the Remote Control

● Point the remote control at the VCR, then press the VCR but-

ton, when using the remote control to operate the VCR.

● Point the remote control at the TV, then press the TV button,

when using the remote control to operate the TV.

● Point the remote control at the Cable Box or Direct Broadcast

System (DBS), then press the CBL/DBS button, when using the remote control to operate the Cable Box or DBS.

VCR maintenance

Video cassette tapes have record tabs to ensure that recordings are not erased accidentally.

To prevent recording, break off the tab with a screwdriver.

To allow recording, cover the hole with cellophane tape.

Recording Prevention

1 2

2 3

Removing the Plastic Cover from the Front Panel

A thin, plastic cover may protect the front panel of your VCR. Before using the VCR, lift a corner of the plastic, then peel it off.

Page 6

VIDEO

OUT

AUDIO

CH3CH4

OUT

ANT

CH3

CH4

OUT

ANT

AUDIO

VIDEO

OUT

ANT /

CABLE

75 ANT /

CABLE

6 Hookups Without a Cable Box/Direct Broadcast System

The basic VCR/TV connection – antenna/cable to VCR to TV – is shown below. If you have a Cable Box or a Direct Broadcast System, please see pages eight-nine. If you have a Stereo TV, please see page 10. After you hook up the VCR, go to page 11 to turn on the VCR.

ANTENNA IN

Jack

(on back of

TV)

Cable

(75 ohm)

Back of VCR

Antenna

Indoor/Outdoor

(300 ohm)

Disconnect the antenna or cable from your TV.

Connect the antenna or cable to the ANT(enna) IN Jack of your VCR.

Cable

(75 ohm)

Antenna

Indoor/Outdoor

(300 ohm)

Page 7

VIDEO

OUT

AUDIO

CH3CH4

OUT

ANT

CH 4

CH 3

CH3

CH4

OUT

ANT

CH3 / CH4

Switch

CH3 CH4

AUDIO

VIDEO

OUT

VIDEO

OUT

AUDIO

CH3CH4

OUT

ANT

75 ANT /

CABLE

CH3

CH4

OUT

ANT

AUDIO

VIDEO

OUT

ANT /

CABLE

RF coaxial cable

Antenna or Cable

Connect the RF coaxial cable (supplied) to the OUT Jack on the back of the VCR and to the ANTENNA IN Jack on the TV. (You may use either a snap-on

type (supplied) or screw-on type of coaxial cable, whichever you prefer.)

Set the CH3/CH4 switch on the back of the VCR to CH3 or CH4, whichever

channel is not used or least used in your area. Set the TV to the same channel. For example, when playing a tape, if the CH3/CH4 switch is set to CH3, the TV should be on channel 03.

Hookups Without a Cable Box/Direct Broadcast System (cont’d) 7

ANTENNA IN Jack

(on back of TV)

example only

Plug in the TV and the VCR.

You are ready to turn on the VCR. Please go to page 11 before turning on the VCR.

Page 8

8 Hookups With a Cable Box/Direct Broadcast System

There are two ways to connect your Cable Box/DBS to the VCR. With this connection:

● You may view any channel.

● You must select channels at the Cable Box/DBS. Channels cannot be changed at the VCR.

● You may not view a channel other than the one you are recording.

● You may not program channels at the VCR.

● You can only program a timer recording for one channel at a time. Set the TV and the VCR to the Cable

Box/DBS output channel (channel 03 or 04), and set your Cable Box/DBS to the channel you want to record. When you enter the channel you want to record in a timer recording, select channel 03 or 04 (the Cable Box/DBS output channel). (This is step 5 on page 35.) Leave the Cable Box/DBS on for a timer recording.

● If you use the VCR Plus+ Programming system, set the Cable/TV channel to 3 or 4 (Cable Box/DBS output

channel) for every VCR Plus+ channel in the VCR Plus+ Cross Reference Map. You must set the Cable Box/DBS to the channel you want to record; leave the Cable Box/DBS on for the timer recording. Details are

on page 39.

AUDIO

VIDEO

OUT

CH3 CH4

OUT

ANT

OUT

ANT /

CABLE

TV’s

ANTENNA IN

Jack

Cable Box/DBS

VCR

Recording/Viewing Any Channel

Connections

With the VCR on and in VCR position (the VCR light will appear on the display panel), use the CH(annel) o/p button to set the VCR to the Cable

Box/DBS output channel (channel 03 or 04). Set the CH3/CH4 switch to the same channel.

Set the TV to the same channel to which you set the VCR.

Select the channel you want to view/record at the Cable Box/DBS.

Connect a Cable signal to the IN Jack on the Cable Box/DBS.

Use an RF coaxial cable (supplied) to connect the OUT Jack on the Cable Box/DBS to the ANT(enna) IN Jack on the VCR.

Use a second RF coaxial cable to connect the OUT Jack on the VCR to the TV’s ANTENNA IN Jack.

Cable Signal

RF coaxial

cable

RF coaxial

cable

Page 9

Hookups With a Cable Box/Direct Broadcast System (cont’d) 9

VIDEO

OUT

AUDIO

CH3CH4

OUT

ANT

OUT

ANT /

CABLE

With this connection:

● You may watch one channel while recording another.

● You may not record scrambled channels.

Recording One Channel/Watching Another

Put the Cable Box/DBS on the same channel as the VCR’s CH3/CH4 switch. Set the TV to the Cable Box/DBS output channel (03 or 04).

Then, with the VCR in VCR position (the VCR light will appear on the display panel), use the CH(annel) o/p button to

select the channel you want to record at the VCR. Start the recording.

Press the VCR/TV button once to put the VCR in TV position. (The VCR light will disappear.)

Select the channel you want to watch at the Cable Box/DBS.

TV’s ANTENNA

IN Jack

Cable Box/DBS

VCR

• When you play a tape, make sure

the Cable Box/DBS is set to the same channel as the CH3/CH4 switch on the VCR. Set the TV to the Cable Box/DBS output channel (03 or 04).

Helpful Hint

Connect a Cable signal to the VCR’s ANT(enna) IN Jack.

Use an RF coaxial cable (supplied) to connect the OUT Jack on the VCR to the IN Jack on the Cable Box/DBS.

Use a second RF coaxial cable to connect the OUT Jack on the Cable Box/DBS to the ANTENNA IN Jack on the TV.

Connections

Cable Signal

RF coaxial

cable

RF coaxial

cable

Page 10

10 Hookups With a Stereo TV

VIDEO

OUT

AUDIO

CH3CH4

OUT

ANT

antenna or

cable to

ANT(enna)

IN Jack

Video Cable

Audio Cable

VIDEO (yellow) and

AUDIO (red and white) OUT Jacks

Audio and Video

IN Jacks on TV

● Audio and Video cables are not supplied.

Connect the antenna or cable to the ANT(enna) IN Jack on the back of the VCR.

Connect a video cable to the yellow VIDEO OUT Jack on the back of the VCR. Then, connect the other end of the video cable to the VIDEO IN Jack on your TV.

Connect an audio cable to the red and white AUDIO OUT Jacks on the back of the VCR. Then, connect the other end of the audio cable to the AUDIO IN Jacks on your TV.

Turn on your TV, making sure it is in Line Input mode. Please

refer to your TV owner’s manual for details.

• A stereo audio cable (not supplied)

is used here to deliver audio to the TV’s left and right channels.

Helpful Hint

Page 11

Press the VCR button, then press the POWER button.

The VCR light and the PWR. (power) light will appear on the display panel.

Turn on the TV. Set it to the same channel as the CH3/CH4 switch on the back of the VCR. The display shown

below will appear. (If the display does not appear, check your hookups, then follow the steps on page 12 to set up channels and page 20 to select a language.)

Within 60 seconds, press the PLAY/o button or the STOP/p button to select English or Spanish on-screen displays and menus.

Press the MENU button. The display shown below will appear.

SELECT op

→ENGLISH ON

ESPAÑOL

MAKE SELECTION OR PUSH MENU TO CONTINUE

Turning on Your VCR 11

Within 60 seconds, press the CH(annel) o button to begin automatic channel programming. AUTO CH PROGRAMMING

IN PROCESS PLEASE WAIT will appear on the screen. The VCR will memorize all available channels. The channel numbers will appear on the display panel as the VCR scans channels. When all channels are memorized, CHANNELS ARE SET will appear on the screen briefly, then TV programming will appear. Now, when you press the CH(annel) o/p button, you’ll only scan through channels that you receive.

• To skip this feature and play a tape

immediately, insert a tape with its record tab removed. Or, to skip step 3, press the MENU button. All onscreen displays and menus will be in English. To skip step 5, press the STOP/.p button. Channels will not be memorized, and CHANNELS NOT SETwill appear on the screen.

• When you turn on the VCR again

later, you may see a message regarding AUTO CLOCK. Details are on pages 15-18.

• If you try to program channels

when there is no antenna or cable connected to the VCR, programming will appear to take place, but eventually a NOTV SIGNALSmessage will appear. Connect an antenna or cable to the VCR’s ANT(enna) IN Jack and press the CH(annel) o button again. You may need to follow the steps on page 12.

Helpful Hints

Before turning on your VCR, make sure batteries are in the remote control and the VCR and TV are connected correctly.

● Follow the steps on this page only when you plug the VCR

power cord into the wall outlet for the first time.

● You can not program channels if you are using a Cable Box or

a Direct Broadcast System.

● If you are not using a Cable Box/DBS, the clock may set itself

automatically after you connect the antenna/Cable signal to the VCR and plug in the power cord. The time will appear on the display panel.

Turn on the TV.

CONNECT ANTENNA OR CABLE TO VCR

THEN . . .

PUSH CH UP KEY

OR . . .

FOR PLAY ONLY – PUSH STOP

4 5

POWER

EJECT

VCR/TV

SPEED

REC/OTR

PLAY

STOP

STATUS/EXIT

MUTE

VCR TV CBL/DBS

VAR.SLOW

TRACKING

SMART

TIME INDEX


ALT.CH

VCR PLUS+

/ENTER

F.ADV

REC END

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

Page 12

12 Automatic Channel Setup

Press the MENU button.

SELECT op CHOOSE B

→PROGRAM

VCR SET UP TUNER SET UP SET CLOCK AUTO DBS OFF

RECORD LINK

TO END PUSH EXIT

• You can not enter the TUNER SET

UP menu when you are in Line Input mode (channel 001 or 002). When you select channel 001 or 002, AV REAR or AV FRONT will appear on the screen briefly.

• You can not program channels if

you are using a Cable Box or DBS.

• If you have an antenna, channels 2-

69 will be available. If you have a cable connection, channels 1-125 will be available.

Helpful Hints

Although your VCR may automatically memorize the channels you receive when you turn it on for the first time, this function lets you set up the channels again.

Press the PLAY/o button or the STOP/p button to select TUNER SET UP, then press the F.FWD/B button.

SELECT op CHOOSE B

→AUTO PROGRAMMING

ADD/DELETE CH CH MEMORY REVIEW TV STEREO ON 2ND AUDIO

TO END PUSH EXIT

Press the PLAY/o button or the STOP/p button to select AUTO PROGRAMMING, then press the F.FWD/B button. The VCR distinguishes between TV channels and cable chan-

nels, and the VCR will memorize all the channels you receive.

Wait for a few minutes while the VCR sets up the channels. When this is complete, CHANNELS ARE SET will appear on

the screen. Then the programming of the lowest channel number placed in the VCR’s memory will appear on the screen. Now when you press the CH(annel) o/p button, you will scan only through channels you receive.

3-4

Press the VCR button.

AUTO CH PROGRAMMING

IN PROCESS

PLEASE WAIT

START FINISH

POWER

VCR/TV

REC/OTR

MUTE

VCR TV CBL/DBS

SMART


VAR.SLOW

TRACKING

TIME INDEX

SPEED

PLAY

STOP

STATUS/EXIT

ALT.CH

VCR PLUS+

/ENTER

F.ADV

REC END

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

Page 13

Automatic Channel Setup (cont’d) 13

Adding/Deleting Channels

Press the MENU button.

SELECT op ADD/DELETE B

124 DELETED 125 DELETED

1 → DELETED 2 ADDED 3 ADDED

TO END PUSH EXIT

Press the PLAY/o button or the STOP/p button to select TUNER SET UP, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button to select ADD/DELETE CH, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button until the channel number you want to add or delete appears beside the arrow.

SELECT op ADD/DELETE B

16 DELETED 17 ADDED 18 → ADDED 19 ADDED 20 ADDED

TO END PUSH EXIT

Press the F.FWD/B button to select ADDED or DELETED. Repeat steps 5 and 6 until you have added or deleted all the

channels you wanted to add or delete.

Press the STATUS/EXIT button.

Press the VCR button.

3-6

NOTE: If you have an antenna, channel numbers 2-69 will appear on the ADD/DELETE CH menu. If you have a cable connection, channels 1-125 will be available.

SPEED

PLAY

STOP

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

POWER

VCR/TV

REC/OTR

STATUS/EXIT

MUTE

VCR TV CBL/DBS

VCR PLUS+

TIME INDEX

SMART


VAR.SLOW

TRACKING

ALT.CH

/ENTER

F.ADV

REC END

CH.

VOL.

SLOW

X2 PLAY

SKIP

Page 14

14 Automatic Channel Setup (cont’d)

Reviewing Memorized Channels

Press the PLAY/o button or the STOP/p button to select CH MEMORY REVIEW, then press the F.FWD/B button.

A list of programmed channels will appear on the screen.

● If all the programmed channels don’t fit on the screen, press

the F.FWD/B button to see the remaining channels. Then press the REW(ind)/s button to return to the first screen of channels.

● If you do not press any buttons within 10 seconds, you will

either go to the next screen of channels or you will return to the previous menu.

Press the STATUS/EXIT button once or twice to exit.

Press the MENU button.

Press the PLAY/o button or the STOP/p button to select TUNER SET UP, then press the F.FWD/B button.

SELECT op CHOOSE B

→ AUTO PROGRAMMING

ADD/DELETE CH CH MEMORY REVIEW TV STEREO ON 2ND AUDIO

TO END PUSH EXIT

Press the VCR button.

3-4

SELECT op CHOOSE B

→PROGRAM

VCR SET UP TUNER SET UP SET CLOCK AUTO DBS OFF

RECORD LINK

TO END PUSH EXIT

POWER

VCR/TV

REC/OTR

MUTE

VCR TV CBL/DBS

SMART


VAR.SLOW

TRACKING

TIME INDEX

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

ALT.CH

/ENTER

F.ADV

REC END

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

Page 15

Setting the Clock 15

Press the MENU button.

There are two ways to set the clock. With manual clock setting, you tell the VCR the current time. With automatic clock setting, the VCR gets the current time from your local PBS station. It keeps track of the time by constantly referring to the time broadcasted by your PBS station.

If you are using a Cable Box or Direct Broadcast System, you must set the clock manually.

Follow the instructions under either manual clock setting or automatic clock setting (page 17) to set the VCR’s clock. Before you begin, make sure:

● The VCR is hooked up and turned on, and channels are pro-

grammed into the VCR’s memory (see pages six-12).

●The VCR is in VCR position. The VCR light will appear on the

display panel. If it does not, press the VCR/TV button once.

Do each step within 60 seconds of the previous step.

Press the PLAY/o button or the STOP/p button to select SET CLOCK, then press the F.FWD/B button.

• To display the time on the TV

screen, press the STATUS/EXIT button. Details are on page 26.

• Power failures that last for more

than one minute can cause you to lose your clock setting if you set the clock manually. If this happens, reset the clock.

Helpful Hints

Manual Clock Setting

Press the PLAY/o button or the STOP/p button to select SET MANUAL CLOCK, then press the F.FWD/B button.

Instructions continue on page 16.

TIME – – : – –

DATE – – / – – / – –

TO END PUSH EXIT

Press the VCR button.

3-4

SELECT op CHOOSE B

→PROGRAM

VCR SET UP TUNER SET UP SET CLOCK AUTO DBS OFF

RECORD LINK

TO END PUSH EXIT

SET CLOCK

→AUTO CLOCK [ON]

SET MANUAL CLOCK DAYLIGHT SVG TIME [ON] SET TIME ZONE

(AUTO)

TO CONTINUE PUSH MENU SELECT op CHOOSE B TO END PUSH EXIT

SPEED

PLAY

STOP

VCR PLUS+

ALT.CH

/ENTER

F.ADV

REC END

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

POWER

VCR/TV

REC/OTR

STATUS/EXIT

MUTE

VCR TV CBL/DBS

VAR.SLOW

TRACKING

SMART

TIME INDEX


Page 16

TIME 02 :15 PM

MONTH – – / – – /– –

TO CORRECT PUSH CLEAR

TO END PUSH EXIT

TIME 02 :15 PM

DATE 07/ 01 / 00

SAT.

TO CORRECT PUSH CLEAR TO END PUSH EXIT

Press two Number buttons for the hour(s) and two Number buttons for the minute(s). Then press 1 for AM or 2 for PM. For example, for 2:15 PM, press 02, 15, 2.

● Enter a 0 before a single-digit number.

● Entries that do not match the VCR’s internal calendar or clock

will cause a question mark (?) to appear on the screen.

● To make corrections, press the CLEAR button until the space

for the number you want to correct is flashing. Then enter the correct number.

Press two Number buttons for the month, two Number buttons for the day, and two Number buttons for the year. For example, for July 1, 2000, press 07, 01, 00. The day of

the week will appear automatically.

Press the STATUS/EXIT button to start the clock. The

screen will return to the program you were watching. The time will appear on the VCR display panel.

16 Setting the Clock (cont’d)

5-6

VAR.SLOW

VCR TV CBL/DBS

VOL.

CH.

MUTE

ALT.CH

TRACKING

F.ADV

VCR/TV

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

X2 PLAY

SLOW

VCR PLUS+

/ENTER

SMART


TIME INDEX

REC END

SKIP

EJECT

CLEAR

PAUSE/STILL

Page 17

Setting the Clock (cont’d) 17

● If you want the VCR to locate a local PBS station from

which to take the time, press the PLAY/o button or the STOP/p button to select SET PBS CH. AUTO. Then press the F.FWD/B button. When the current time

appears on the screen, you’re finished. Press the STATUS/EXIT button. Or, you may be prompted to turn off the VCR. Turn off the VCR power, and leave it off for several minutes. When the current time appears on the VCR display panel, the clock is set. You may turn on the VCR again.

● If you want to tell the VCR the PBS station from which

to take the time, press the PLAY/o button or the STOP/p button to select SET PBS CH. MANUAL. Press the F.FWD/B button, then use the Number buttons to enter the channel number of the desired PBS station. When the current time appears on the screen, you’re

finished. Press the STATUS/EXIT button.

NOTE: CANNOT FIND PBS CLOCK DATA may flash on the screen. Press the PLAY/o button or the STOP/p button to choose SELECT NEW PBS CH., then press the F.FWD/B button. Use the Number buttons to enter the channel number of another PBS station. Or, press the PLAY/o button or the STOP/p button to select SET PBS CH. AUTO. Press the F.FWD/B button. You will be prompted to turn off the VCR. Turn off the VCR power, and leave it off for several minutes. When the current time appears on the VCR display panel, the clock is set. You may turn on the VCR again.

• If you enter an incorrect PBS chan-

nel number at step 4, press the CLEAR button, then enter the correct channel number.

• If you have an antenna, you may

select channels 2-69 at step 4. If you have a cable connection, you may select channels 1-125.

• The clock cannot be set automati-

cally if you don’t receive a channel that carries a time signal in your area. Set the clock manually.

• If there are only a few channels in

your area that carry time signals, setting the clock automatically may take several minutes. If nothing happens even after you wait several minutes, set the clock manually.

• You cannot select AUTO CLOCK at

step 3 during tape playback.

Helpful Hints

Press the VCR button, then press the MENU button.

Press the PLAY/o button or the STOP/p button to select SET CLOCK, then press the F.FWD/B button.

If OFF appears to the right of AUTO CLOCK, press the F.FWD/B button to select ON. Then, press the MENU button. Or, if ON appears to the right of AUTO CLOCK, press the MENU button.

Automatic Clock Setting

2-4

AUTO CLOCK

AUTO CLOCK USES PBS CHANNEL DATA

→SET PBS CH. AUTO

SET PBS CH. MANUAL

SELECT op CHOOSE B TO END PUSH EXIT

SELECT op CHOOSE B

→PROGRAM

VCR SET UP TUNER SET UP SET CLOCK AUTO DBS OFF

RECORD LINK

TO END PUSH EXIT

POWER

VCR/TV

REC/OTR

MUTE

VCR TV CBL/DBS

SMART


VAR.SLOW

TRACKING

TIME INDEX

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

ALT.CH

/ENTER

F.ADV

REC END

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

Page 18

18 Setting the Clock (cont’d)

Time Zone

When using the AUTO CLOCK function, you can specify your time zone. That way, the VCR will update the clock according to your time zone.

Press the VCR button, then press the MENU button.

Press the PLAY/o button or the STOP/p button to select SET CLOCK, then press the F.FWD/B button.

SET CLOCK

→AUTO CLOCK [ON]

SET MANUAL CLOCK DAYLIGHT SVG TIME [ON] SET TIME ZONE

(AUTO)

TO CONTINUE PUSH MENU SELECT op CHOOSE B TO END PUSH EXIT

Press the PLAY/o button or the STOP/p button to select SET TIME ZONE, then press the F.FWD/B button.

SELECT op CHOOSE B →AUTO ON

ATLANTIC EASTERN CENTRAL MOUNTAIN PACIFIC ALASKA HAWAII

TO END PUSH EXIT

Press the PLAY/o button or the STOP/p button to select your time zone. ON will appear beside your choice.

Press the STATUS/EXIT button.

2-4

SELECT op CHOOSE B

AUTO ATLANTIC

→EASTERN ON

CENTRAL MOUNTAIN PACIFIC ALASKA HAWAII

TO END PUSH EXIT

• SET TIME ZONE will not appear in

the menu if AUTO CLOCK is set to OFF.

• You may need to turn off the VCR

to enable the VCR to set its clock for your time zone.

Helpful Hints

SELECT op CHOOSE B

→PROGRAM

VCR SET UP TUNER SET UP SET CLOCK AUTO DBS OFF

RECORD LINK

TO END PUSH EXIT

POWER

VCR/TV

REC/OTR

MUTE

VCR TV CBL/DBS

SMART


VAR.SLOW

TRACKING

TIME INDEX

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

ALT.CH

/ENTER

F.ADV

REC END

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

Page 19

Press the MENU button.

Press the PLAY/o button or the STOP/p button to select SET CLOCK, then press the F.FWD/B button.

Press the STATUS/EXIT button.

Daylight-Savings Time 19

You may program the VCR so its clock will automatically move forward one hour in April and turn back one hour in October. Daylight-Savings Time is set to ON when you receive your VCR. Turn Daylight-Savings Time ON or OFF by following the steps below. Before you begin:

● Make sure the clock is set.

Press the VCR button.

Press the PLAY/o button or the STOP/p button to select DAYLIGHT SVG TIME. Then, press the F.FWD/B button so that OFF (or ON) appears beside DAYLIGHT SVG TIME.

3-4

SELECT op CHOOSE B

→PROGRAM

VCR SET UP TUNER SET UP SET CLOCK AUTO DBS OFF

RECORD LINK

TO END PUSH EXIT

SET CLOCK

→AUTO CLOCK [ON]

SET MANUAL CLOCK DAYLIGHT SVG TIME [ON] SET TIME ZONE

(AUTO)

TO CONTINUE PUSH MENU SELECT op CHOOSE B TO END PUSH EXIT

SET CLOCK AUTO CLOCK [ON] SET MANUAL CLOCK

→DAYLIGHT SVG TIME [ON]

SET TIME ZONE

(AUTO)

TO CONTINUE PUSH MENU SELECT op CHOOSE B TO END PUSH EXIT

SPEED

PLAY

STOP

VCR PLUS+

ALT.CH

/ENTER

F.ADV

REC END

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

POWER

VCR/TV

REC/OTR

STATUS/EXIT

MUTE

VCR TV CBL/DBS

VAR.SLOW

TRACKING

SMART

TIME INDEX


Page 20

20 Language Selection

Press the MENU button.

Follow the steps below to change the language of the on-screen displays and menus.

Press the PLAY/o button or the STOP/p button to select VCR SET UP, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button to select LANGUAGE, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button to select English or Spanish on-screen displays and menus.

Press the STATUS/EXIT button.

SELECT op CHOOSE B

→ REPEAT PLAY OFF

ON SCREEN MODE AUDIO OUT LANGUAGE VCR PLUS+ REF. MAP BLUE BACKGROUND ON

TO END PUSH EXIT

• If you accidentally select Spanish and need English:

1. Press the VCR button.

2. Press the MENU button.

3. Press the PLAY/o button or the STOP/p button to select PREPARE EL VCR, then press the F.FWD/B button.

4. Press the PLAY/o button or the STOP/p button to select LENGUAJE, then press the F.FWD/B button.

5. Press the PLAY/o button or the STOP/p button to select ENGLISH.

6. Press the STATUS/EXIT button.

Helpful Hint

Press the VCR button.

SELECT op

→ ENGLISH ON

ESPAÑOL

MAKE SELECTION OR TO END PUSH EXIT

3-5

SELECT op CHOOSE B

→PROGRAM

VCR SET UP TUNER SET UP SET CLOCK AUTO DBS OFF

RECORD LINK

TO END PUSH EXIT

POWER

VCR/TV

REC/OTR

MUTE

VCR TV CBL/DBS

SMART


VAR.SLOW

TRACKING

TIME INDEX

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

ALT.CH

/ENTER

F.ADV

REC END

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

Page 21

Setting the Remote to Operate a TV 21

• The remote control may only operate some features of your TV. For example, the remote control may turn on the TV power, but it may not change channels at the TV.

• If you can not change the channels at the TV using the Number buttons, press the VCR PLUS+/ENTER button after you press the Number buttons. It may change channels at the TV.

• When you replace the batteries in the remote control, you must program the remote control again.

• Remember to point the remote control toward the TV during steps 1-6.

Helpful Hints

Within 30 seconds, press the TV button.

Press the MUTE button.

Within 30 seconds, press the Number buttons to enter the two-digit code for your TV brand. For example, if you

have a Zenith TV, press Number buttons 0, 6.

Your VCR remote control may operate your TV. If the remote control doesn’t operate your TV now, follow the steps below.

Point the remote control at your TV and press the TV button. Then, press the POWER button. If your TV turns

on or off, try the other TV buttons (see pages 23-25). If your TV doesn’t turn on or off, or if the other buttons don’t work, go to step 2.

Find the brand of your TV on the list below, and remember the two-digit number beside it.

Repeat step 1. If the remote control works your TV, you’re fin-

ished. If the remote control still doesn’t work your TV, repeat steps 3-5, using a different code for your brand (if available).

There is no guarantee that the

remote will work your TV.

EMERSON . . . . . . . . . . . . . .14

FISHER . . . . . . . . . . . . . . . . .11

GE . . . . . . . . . . . . . . . . . . . .10

GOLDSTAR . . . . . . . . . . . . .04

HITACHI . . . . . . . . . . . . . . . .12

JVC . . . . . . . . . . . . . . . . . . . .05

MAGNAVOX . . . . . . .01, 02, 03

MARANTZ . . . . . . . . . . . . . .13

MITSUBISHI . . . . . . . . . . . . .13

MONTGOMERY WARD . . . .14

PANASONIC . . . . . . . . . . . . .07

PANASONIC-GAOO . . . . . . .07

PHILCO . . . . . . . . . . . . . . . .14

PHILIPS . . . . . . . . . . . . . . . .01

PHILIPS MAGNAVOX. .01, 02, 03

QUASAR . . . . . . . . . . . . . . . .07

RCA . . . . . . . . . . . . . . . . . . .10

SAMSUNG . . . . . . . . . . . . . .17

SANYO . . . . . . . . . . . . . . . . .11

SEARS . . . . . . . . . . . . . .08, 11

SHARP . . . . . . . . . . . . . . . . .16

SONY . . . . . . . . . . . . . . . . . .09

TOSHIBA . . . . . . . . . . . . . . .08

ZENITH . . . . . . . . . . . . . .06, 15

TV CODES

1&6

Find your TV code.

VAR.SLOW

VCR TV CBL/DBS

VOL.

CH.

MUTE

ALT.CH

TRACKING

F.ADV

VCR/TV

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

X2 PLAY

SLOW

VCR PLUS+

/ENTER

SMART


TIME INDEX

REC END

SKIP

EJECT

CLEAR

PAUSE/STILL

1&6

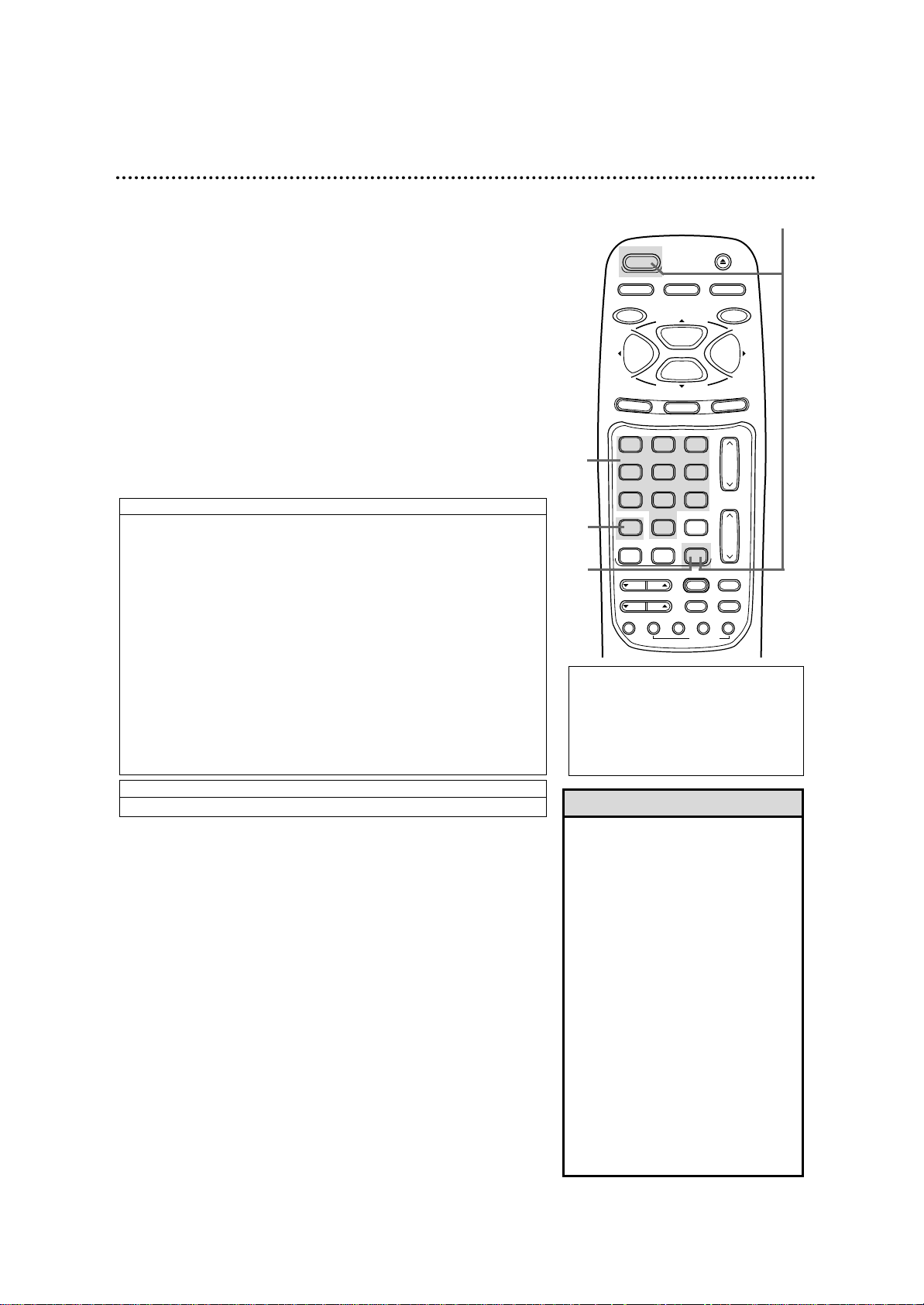

Page 22

• The remote control may only operate some features of your Cable Box/DBS. For example, the remote control may turn off the Cable Box/DBS power, but it may not change channels at the Cable Box/DBS.

• If you can not change the channels at the Cable Box by using the Number buttons, press the VCR PLUS+/ENTER button after you press the Number buttons. It may change channels at the Cable Box.

• When you replace the batteries in the remote control, you will have to program the remote control again.

• Remember to point the remote control toward the Cable Box/DBS during steps 1-6.

• Some Cable Boxes can only be turned on at the Cable Box.

Helpful Hints

22 Setting the Remote to Operate a Cable Box/Direct Broadcast System

Within 30 seconds, press the CBL/DBS button.

Press the MUTE button.

Within 30 seconds, press the Number buttons to enter the two-digit code for your Cable Box or DBS. For example,

if you have a Zenith Cable Box, press Number buttons 0,7.

Your VCR remote control may operate your Cable Box or Direct Broadcast System (DBS). If the remote control doesn’t operate your Cable Box or DBS now, follow the steps below.

Turn on the Cable Box/DBS. Then, point the remote control at your Cable Box/DBS and press the CBL/DBS button. Then, press the POWER button. If your Cable Box/DBS turns

off, try the other Cable Box/DBS buttons (see pages 23-25). If your Cable Box/DBS doesn’t turn off, or if the other buttons don’t work, go to step 2.

Find the brand of your Cable Box or DBS on the lists below and remember the two-digit number beside it.

Repeat step 1. If the remote control works your Cable Box or

DBS, you’re finished. If the remote control still doesn’t work your Cable Box or DBS, repeat steps 3-5, using a different code for your brand, if available.

Find your code.

CABLE BOX CODES

DIRECT BROADCAST SYSTEM CODES

ARCHER..01, 05, 06, 44 CABLETENNA

.....

01, 44

CABLEVIEW

........

04, 30,

42, 44, 52

CENTURY

..................

CITIZEN

...............

04, 30,

42, 44, 52

CURTIS

................

08, 09

DIAMOND

............

01, 44

EAGLE

...........

26, 40, 62

EASTERN/REGENCY

...................................

GC BRAND

..........

04, 30,

42, 44, 52

GEMINI/JASCO

..........

GENERAL ELECTRIC

.............................

01, 57

GENERAL INSTRUMENT

.....

01, 02, 03, 04, 34, 83

HAMLIN

....

14, 15, 28, 41

JERROLD

.......

01, 02, 03, 04, 34, 83

MAGNAVOX

...........

94,95

MAGNAVOX

..............

MATSUSHITA

.......................

16, 17, 97

MOVIETIME

.........

42, 44

NOVAVISION

........

08, 09

NSC/NEC

...................

OAK

......................

11, 46

OAK SIGMA

.........

11, 46 PANASONIC..16, 17, 97 PHILIPS

.........

07, 23, 50

PIONEER

.............

05, 06 PULSAR

.........

04, 30, 42, 44, 52 QUEST

.................

05, 06

RCA

................

16, 17, 97 REALISTIC

.................

RECOTON

.................

REGAL

.....

14, 15, 28, 41

REMBRANDT

.........................

01, 42, 44

RCA

.........................

SAMSUNG

.............

05, 06, 40, 42 SCIENTIFIC ATLANTA

...............................

08, 09 SIGNAL

........................

SL MARX

.........

06, 40, 42,

44, 52

SPRUCER........

16, 17, 97

STANDARD COMPONENTS

...............................

42, 44 STARGATE

......

04, 06, 30, 40, 42, 44, 52 TELEVIEW

.......

06, 40, 42 TOCOM

......

01, 33, 34, 42

UNIKA

....................

01, 44

UNIVERSAL

.....

42, 44, 52 VIDEOWAY

......

07, 23, 50 VIEWSTAR

......

26, 40, 62 ZENITH

............

07, 23, 50

SONY

.......................

1&6

VAR.SLOW

VCR TV CBL/DBS

VOL.

CH.

MUTE

ALT.CH

TRACKING

F.ADV

VCR/TV

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

X2 PLAY

SLOW

VCR PLUS+

/ENTER

SMART


TIME INDEX

REC END

SKIP

EJECT

CLEAR

PAUSE/STILL

There is no guarantee

that the remote

will work your

Cable Box or DBS.

Page 23

POWER

PAUSE/STILL Button

While recording, press to pause the recording. Press a second time to resume normal recording. Details are on page 31. You can not pause a One-Touch Recording. During playback, press to freeze the picture. Press again to resume playback. Details are on page 47.

EJECT Button

Press to eject the tape.

VOL(ume) o/p Button

Press to adjust the TV’s volume.

Remote Control Buttons 23

POWER Button

Press to turn on or off the VCR, TV, Cable Box, or Direct Broadcast System. (You must first press the VCR, TV, or CBL/DBS button.) Press and hold to set the Child Lock. Details are on page 48.

PLAY/o Button

Press to play a tape; press to release Slow, Search, or Still mode and return to normal playback. Details are on pages 46-47. Press to select an item in the VCR menu. Or, if you have a Magnavox, Philips, or Philips Magnavox TV, press when in TV mode to move up one row or selection in the TV menu.

REC(ord) END SEARCH Button

Press to search forward to an unrecorded portion of the tape. Details are on page 52.

• Press the VCR button before pressing other VCR buttons; press the TV button before pressing other TV buttons; press the CBL/DBS button before pressing other Cable Box/Direct Broadcast System buttons.

• The buttons with a shaded description may also operate features of your TV, Cable Box, or Direct Broadcast System.

• Buttons that are shaded in the illustration light up for five seconds when you press any button on the remote control.

Helpful Hints

F.FWD(Fast Forward)/B Button

When playback is stopped, press to fast forward the tape at high speed.

During playback, press to fast forward the tape while the picture stays on the screen. Details are on page 46. Or, if you have a Magnavox, Philips, or Philips Magnavox TV, use to adjust the controls in the TV menu.

SKIP SEARCH Button

Press during tape playback to skip forward 30 seconds at a time.

Details are on page 52.

MEMORY Button

Press to memorize a tape position at which the real-time counter was set to 0:00:00. Details are on page 53.

CLEAR Button

Press to erase incorrect information when programming VCR features. Press to reset the real-time counter. Details are on page 53.

SLOW Button

During tape playback, press to view the picture in slow motion. Press again to resume normal playback. Details are on page 47.

X2 PLAY Button

During tape playback, press to watch a tape at two times the normal playback speed. Details are on page 46.

VCR PLUS+/ENTER Button

Press to set a timer recording with the VCR Plus+ programming system. Details are on pages 38-41. Or, press after pressing the Number buttons to select a channel at the TV or the Cable Box. Details are on pages 21-22.

VCR/TV

REC/OTR

MUTE

VCR TV CBL/DBS

SMART


VAR.SLOW

TRACKING

TIME INDEX

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

ALT.CH

/ENTER

F.ADV

REC END

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

Page 24

24 Remote Control Buttons (cont’d)

STOP/p Button

Press to stop the tape. Press to select an item in the VCR menu. Or, if you have a Magnavox, Philips, or Philips Magnavox TV, press when in TV mode to move down one row or selection in the TV menu.

CBL/DBS Button

Press to operate the Cable Box or Direct Broadcast System. Details are on page 22.

SPEED Button

Press to select the recording speed (SP or SLP). Details are on pages 36 and

60.

STATUS/EXIT Button

Press to access or remove the on-screen status display. Details are on page

26. Press to exit on-screen menus. Or, if you have a Magnavox, Philips, or

Philips Magnavox TV, press the TV button, then press the STATUS/EXIT button to see a TV status display or to remove the TV menu.

CH(annel) o/p Button

Press to change channels at the VCR, TV, Cable Box, or Direct Broadcast System.

INDEX SEARCH Button

Press to fast forward or rewind to the starting points of programs that you have recorded on a tape. Details are on page 51.

F(rame). ADV(ance) Button

Press when in Still mode to advance the picture one frame at a time.

Details are on page 47.

VCR/TV Button

Use to select the signal that your TV receives.

● VCR Position

Use to watch a tape, to watch a program while recording it, or to watch a TV broadcast using the CH(annel) o/p or Number buttons to change channels at the VCR. If the VCR light appears on the display panel of the VCR, it is in VCR position.

● TV Position

Use to watch TV (changing channels at the TV) or to watch one program while recording another. Details are on page 33. If the VCR light doesn’t appear on the display panel of the VCR, it is in TV position.

TV Button

Press to operate the TV. Details are on page 21.

SMART PICTURE Button

Press repeatedly to select a Smart Picture mode. Details are on page 49.

TIME SEARCH Button

Press to fast forward or rewind the tape a specific length of time. Details are on page 50.

VCR Button

Press to operate the VCR.

• The buttons with a shaded description may also operate features of your TV, Cable Box, or Direct Broadcast System.

• Buttons that are shaded in the illustration light up for five seconds when you press any button on the remote control.

Helpful Hints

PLAY

ALT.CH

VCR PLUS+

/ENTER

F.ADV

REC END

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

POWER

VCR/TV

REC/OTR

MUTE

VCR TV CBL/DBS

SMART


SPEED

STOP

STATUS/EXIT

VAR.SLOW

TRACKING

TIME INDEX

Page 25

Remote Control Buttons (cont’d) 25

REW(ind)/{ Button

When tape playback is stopped, press to rewind the tape at high speed. During playback, press to rewind the tape while the picture stays on the screen. Details are on page 46. Press to return to a previous on-screen menu. Or, if you have a Magnavox, Philips, or Philips Magnavox TV, use the REW(ind)/

{ button to adjust the controls in the TV menu.

MENU Button

Press to access the VCR menu. Or, if you have a Magnavox, Philips, or Philips Magnavox TV, press the TV button, then press the MENU button to display the TV menu.

TRACKING

o/p Button

During normal or slow motion playback, press to adjust the tracking. Details are on page 45.

MUTE Button

Press to eliminate the TV’s sound. Press again to restore the volume.

REC(ord)/OTR Button

Press once to start a recording. Details are on page 31. Or, press repeatedly to start a One-Touch Recording. Details are on page 32.

Number Buttons

Press to select channels at the VCR, TV, Cable Box, or Direct Broadcast System; use to set up VCR features (such as the clock). (You can not select channels above 99 on a Magnavox, Philips, or Philips Magnavox TV.)

● Cable Users

Enter channel numbers as a two-digit number for the quickest results. For example, to select channel 6, press 0,6. If you only press the Number 6 button, channel 6 will be selected after a brief delay. (There also may be a brief delay when you select channels 10, 11, and 12.) If you want to select channels 100 and above, enter channel numbers as a three-digit number. For example, to select channel 117, press 1, 1, 7.

● Antenna Users

Enter channel numbers as a two-digit number for the quickest results. You may only select channels 2-69. For example, to select channel 5, press 0,5. If you only press the Number 5 button, channel 5 will be selected after a brief delay.

VAR(iable). SLOW Button

During slow motion playback, press to vary the tape playback speed from 1/6 to 1/30 of normal speed. Details are on page 47.

• The buttons with a shaded description may also operate features of your TV, Cable Box, or Direct Broadcast System.

• Buttons that are shaded in the illustration light up for five seconds when you press any button on the remote control.

Helpful Hints

ALT. CH (Alternate Channel) Button

Press while in TV mode to return to the TV channel you were viewing immediately before switching to your current channel. This button does not have an effect on channels changed at the VCR.

POWER

VCR/TV

REC/OTR

MUTE

VCR TV CBL/DBS

SMART


VAR.SLOW

TRACKING

TIME INDEX

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

ALT.CH

/ENTER

F.ADV

REC END

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

Page 26

SELECT op CHOOSE B →STATUS [ON]

COUNTER ONLY [OFF]

TO END PUSH EXIT

26 On-Screen Status Displays

• You may not access a status display when viewing a still picture, during slow motion playback, or during forward or reverse searching.

Helpful Hint

Press the VCR button, then press the MENU button.

Current status of tape

Time

MTS Broadcast Available

Counter and Counter Memory

Tape Speed

STOP 12:00 AM TV STEREO CH10

STEREO

2ND AUD

SLP M 1:23:45 HIFI

A status display will appear when you press the STATUS/EXITbutton or certain function buttons. The contents of the status display will vary. To choose the status display mode, follow the steps below.

If you select STATUS ON, then select COUNTER ONLY ON:

● Whenever you press the STOP/p button or the PLAY/o button,

the status display will appear for five seconds. After five seconds, only the counter will remain on the screen. You must press the STATUS/EXITbutton to remove it. Portions of the status display also may appear when you press other function buttons.

If you select STATUS ON, then select COUNTER ONLY

OFF:

● Whenever you press the STOP/p button or the PLAY/o button,

the status display will appear for five seconds. Portions of the status display also may appear when you press other function buttons.

If you select STATUS OFF:

● The status display will not appear when you press function but-

tons. You must press the STATUS/EXIT button to see the status display.

Press the PLAY/o button or the STOP/p button to select VCR SET UP, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button to select ON SCREEN MODE, then press the F.FWD/B button.

If you set STATUS to OFF, go to step 6. If you set STATUS to ON, press the PLAY/o button or the STOP/p button to select COUNTER ONLY, then press the F.FWD/B button so that OFF (or ON) appears beside it.

Press the STATUS/EXIT button.

Press the PLAY/o button or the STOP/p button to select STATUS, then press the F.FWD/B button so that OFF (or ON) appears beside STATUS.

Status Display

(example only)

Receiving and Recording Mode

Channel

Audio Out Mode

Page 27

VCR Display Panel 27

Cassette Compartment

Insert a tape here.

PLAY

STOP/EJECT

REC/OTR

MENU STATUS

EXIT

F.FWD

PAUSE

REW

CHANNEL

POWER

VCR/TV

VIDEO L AUDIO R

VCR Light

This light appears when the VCR is in VCR position. This light does not appear when the VCR is in TV position.

Record Light

This light appears during a recording. It flashes when a recording is paused.

Cassette-Inside Light

This light appears when there is a tape in the VCR.

PWR.(power) Light

This light appears when the power is on.

Timer Light

This light glows when the VCR is turned off to set a timer recording or during a One-Touch Recording. It flashes if the power is off for a timer recording, but there is no tape in the VCR. It flashes when all timer recordings are finished.

Clock/Feature Display with Auto Dimmer

This display tells you the current time (when the clock is set) and briefly displays which feature the VCR is currently performing. When you turn off the VCR, the display becomes dim.

: Playback : Fast forward : Rewind : Stop : Recording

Page 28

MENU Button

Press to access the VCR menu.

STATUS/EXIT Button

Press to access or remove the on-screen status display. Details are on page 26. Press to exit onscreen menus.

28 Front Panel

PAUSE Button

While recording, press to pause the recording. Press again to resume recording. Details are on page 31. You can not pause a One-Touch Recording. During tape playback, press to freeze the picture. Press again to resume playback. Details are on page 47.

POWER Button

Press to turn the VCR power on and off.

VCR/TV Button

Press to select VCR or TV position.

● VCR Position

Use to watch a tape, to watch a program while recording it, or to watch a TV program (changing channels at the VCR). When the VCR light appears on the display panel, the VCR is in VCR position.

● TV Position

Use to watch TV (changing channels at the TV) or to watch one program while recording another. When the VCR light does not appear on the display panel, the VCR is in TV position.

REC(ord)/OTR Button

Press once to start a recording. Press repeatedly to start a One-Touch Recording. Details are on page 32.

CHANNEL (p/o) Buttons

Press to change channels at the VCR. Or, press to adjust the tracking of a tape during normal playback or slow motion playback. Also, press to remove vertical jitter in a Still picture.

PLAY Button

Press to play a tape. Press to release Slow, Search, or Still mode and return to playback. Details are on pages 46-47. Press to select an item in the VCR menu.

REW(ind) Button

When playback is stopped, press to rewind the tape at high speed. During playback, press to rewind the tape while the picture stays on the screen. Details are on page 46. Press to return to a previous VCR menu.

STOP/EJECT Button

Press once to stop the tape. When playback is stopped, press to eject the tape. Press to select an item in the VCR menu.

F.FWD (Fast Forward) Button

When playback is stopped, press to fast forward the tape at high speed. During tape playback, press to fast forward the tape while the picture stays on the screen. Details are on page 46. Press to select an item in the VCR menu or to change the setting of a menu item.

PLAY

STOP/EJECT

REC/OTR

MENU STATUS

EXIT

F.FWD

PAUSE

REW

CHANNEL

POWER

VCR/TV

VIDEO L AUDIO R

Remote Sensor

Receives a signal from your remote control so you can operate your VCR from a distance.

AUDIO In Jacks

Connect audio cables coming from the audio out jacks of a camcorder, another VCR, or an audio source here. Details are on

page 43.

VIDEO In Jack

Connect a video cable coming from the video out jack of a camcorder, another VCR, or an audio-visual source (laser disc player, video disc player, etc.) here. Details are on page 43.

Page 29

AUDIO IN Jacks

Connect audio cables coming from the AUDIO OUT Jacks of a camcorder, another VCR, or an audio source here. Details are on page 43.

VIDEO IN Jack

Connect a video cable coming from the VIDEO OUT Jack of a camcorder, another VCR, or an audio-visual source (laser disc player, video disc player, etc.) here. Details are on page 43.

ANT(enna) IN Jack

Connect your antenna or cable here. Details are on pages six-10.

CH3/CH4 Switch

Set to channel 3 or 4 to use your TV with your VCR. Details are

on pages six-nine.

OUT Jack

Use the supplied RF coaxial cable to connect this jack to the ANTENNA IN Jack on your TV, Cable Box, or Direct Broadcast System. Details are on

pages six-nine.

VIDEO OUT Jack

Connect a video cable going to the VIDEO IN Jack of a camcorder, another VCR, or an audio-visual system (monitor, laser disc player, video disc player, etc.) here. Details are on pages 43 and 55.

AC Power Cord

Connect to a standard AC outlet to supply power to the VCR.

AUDIO OUT Jacks

Connect audio cables going to the AUDIO IN Jacks of a camcorder, another VCR, or an audio system here. Details are

on pages 43 and 55.

VIDEO

OUT

AUDIO

CH3 CH4

OUT

ANT

Rear Panel 29

Page 30

30 Playing

• If the tape you want to play is already in the VCR, make sure the VCR power is on and the VCR is in VCR position. (The VCR light will appear on the display panel. If it does not, press the VCR/TV button once.) Press the VCR button, then

press the PLAY/o button.

• Other playback options and features are on pages 44-57.

• When you play a tape recorded in S-VHS format on this unit, you can not get the high resolution that would be available on an S-VHS VCR. Noise lines (black and white streaks) may appear on the picture.

• If REPEAT PLAY is set to ON, playback will begin automatically, even when the record tab is intact.

Helpful Hint

Read and follow the steps below to play a tape.

Turn on the TV and set it to channel 3 or 4, whichever chan-

nel to which the CH3/CH4 switch on the back of the VCRis set.

Insert a tape in the VCR. The PWR., VCR, and Cassette-Inside

lights will appear on the display panel. If the tape’s record tab has been removed, playback will start automatically.

Press the EJECT button to remove the tape.

If playback does not start automatically, press the PLAY/o button.

Press the STOP/p button to stop playback.

Press the REW(ind)/{ button to rewind the tape.

Turn on the TV.

Insert a tape in the VCR.

S-VHS Quasi Play Back (SQPB)

This unit has a SQPB function that allows you to view a tape recorded in S-VHS format. A tape recorded in S-VHS format will play the same as a tape recorded in normal format. This unit detects whether the tape is recorded in S-VHS format or in normal format.

POWER

VCR/TV

REC/OTR

MUTE

VCR TV CBL/DBS

VAR.SLOW

TRACKING

SMART

TIME INDEX


SPEED

PLAY

STOP

STATUS/EXIT

ALT.CH

VCR PLUS+

/ENTER

F.ADV

REC END

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

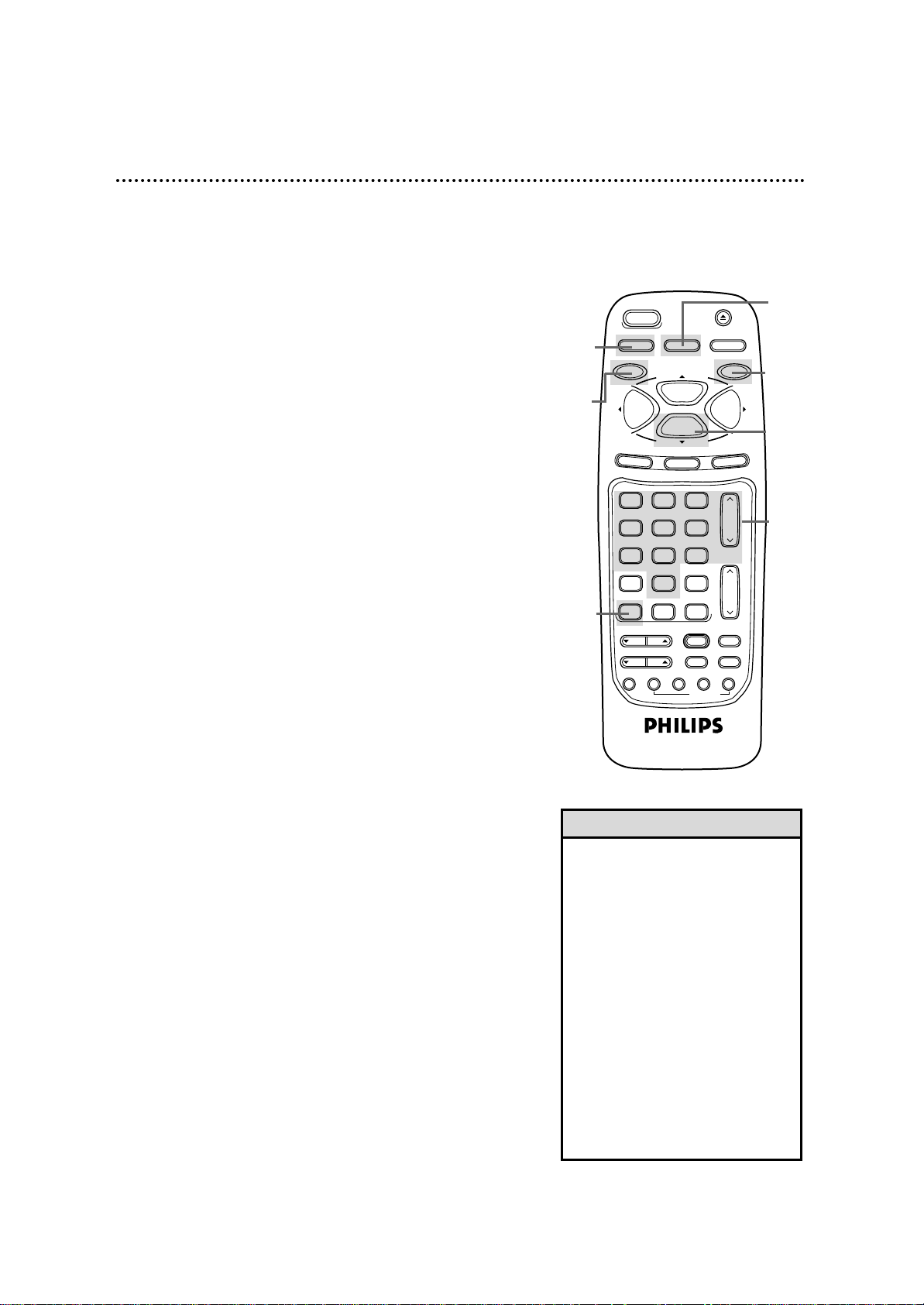

Page 31

Read and follow the steps below to record a television program.

Turn on the TV and set it to channel 3 or 4, whichever chan-

nel to which the CH3/CH4 switch on the back of the VCRis set.

Recording 31

Insert a tape with its record tab intact in the VCR.

If the VCR light appears on the display panel, go to step 5. If the VCR light does not appear, press the VCR/TV button once.

• If you press the REC(ord)/OTR button when there is not a tape in the VCR, NOCASSETTE will flash on the screen.

• If you press the REC(ord)/OTR button while a tape without a record tab is in the VCR, the VCR will eject the tape and PROTECTEDCASSETTECANNOT RECORD will flash on the screen.

• Other recording options are on pages 32-43.

• You can change the tape speed during a recording, but some distortion will appear on the tape.

• The VCR will record in a preset volume.

Helpful Hints

Press the SPEED button until the desired tape speed appears briefly on the screen. (Details about tape speed are on

page 36.)

Use the CH(annel) o/p button or the Number buttons to select the channel to be recorded.

Press the REC(ord)/OTR button once to start recording.

The Record light will appear.

To pause the recording, press the PAUSE/STILL button once. The Record light will flash. To resume recording, press the REC(ord)/OTR button or press the PAUSE/STILL button again. The Record light will come on again.

To stop recording, press the STOP/p button.

Turn on the TV.

Insert a tape in the VCR.

Press the VCR button.

5 9

POWER

VCR/TV

REC/OTR

MUTE

VCR TV CBL/DBS

VAR.SLOW

TRACKING

SMART

TIME INDEX


SPEED

PLAY

STOP

STATUS/EXIT

ALT.CH

VCR PLUS+

/ENTER

F.ADV

REC END

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

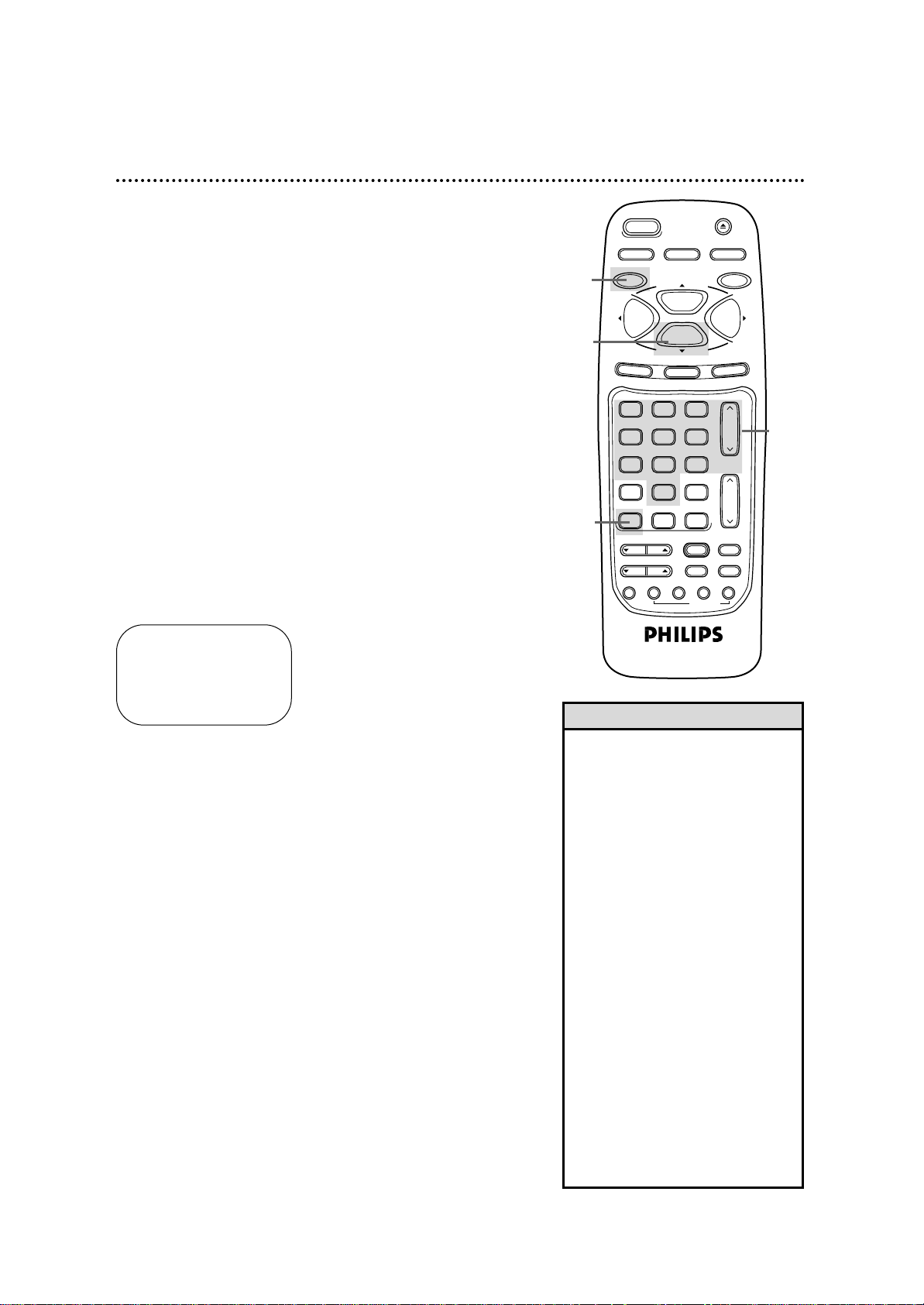

Page 32

32 One-Touch Recording

Press the CH(annel) o/p button or the Number buttons to select the channel you want to record.

OTR (0:30)

CH12

Press the REC(ord)/OTR button repeatedly until the desired recording length (30 minutes to eight hours) appears on the screen. Recording will begin immediately. The

Record light and the Timer light will appear on the display panel.

The One-Touch Recording feature allows you to set an immediate timed recording 30 minutes to eight hours long. Before you begin:

● Set up the channels at the VCR.

● Select a recording speed (SP, SLP) with the SPEED button.

● Put a tape in the VCR. Make sure the tape’s record tab is intact

and the tape is long enough to record the program(s).

● Place the VCR in VCR position. (The VCR light will appear on

the display panel. If it does not, press the VCR/TV button once.)

To stop an OTR before recording is finished, press the STOP/p button.

To cancel the OTR but continue recording, press the REC(ord)/OTR button repeatedly until REC appears in the upper left corner of the TV screen. (STATUS must be set to ON. See page 26 for details.) The Record light will remain on the display panel of the VCR, but the Timer light will disappear.

• To check the time remaining for an OTR after the OTRhas been set, press the STATUS/EXITbutton.

• To change the recording length while an OTR is in progress, press the REC(ord)/OTRbutton until the desired length appears on the screen.

• If you begin an OTR when another recording is paused, the OTRwill begin.

• You can not pause an OTR.

• If the preset time for a timer recording comes up during an OTR, the OTR has priority. A message will remind you when the timer recording was scheduled to begin. You may let the OTR continue; the timer recording will not take place. Or, stop the OTR and turn off the VCR immediately. The timer recording will take place if you turn off the VCR before the timer recording’s scheduled start time.

• If the end of the tape is reached during a One-Touch Recording, the VCR will eject the tape and turn itself off.

Helpful Hints

Press the VCR button.

POWER

EJECT

VCR/TV

REC/OTR

MUTE

VCR TV CBL/DBS

SMART


VAR.SLOW

TRACKING

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

TIME INDEX

ALT.CH

/ENTER

F.ADV

REC END

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

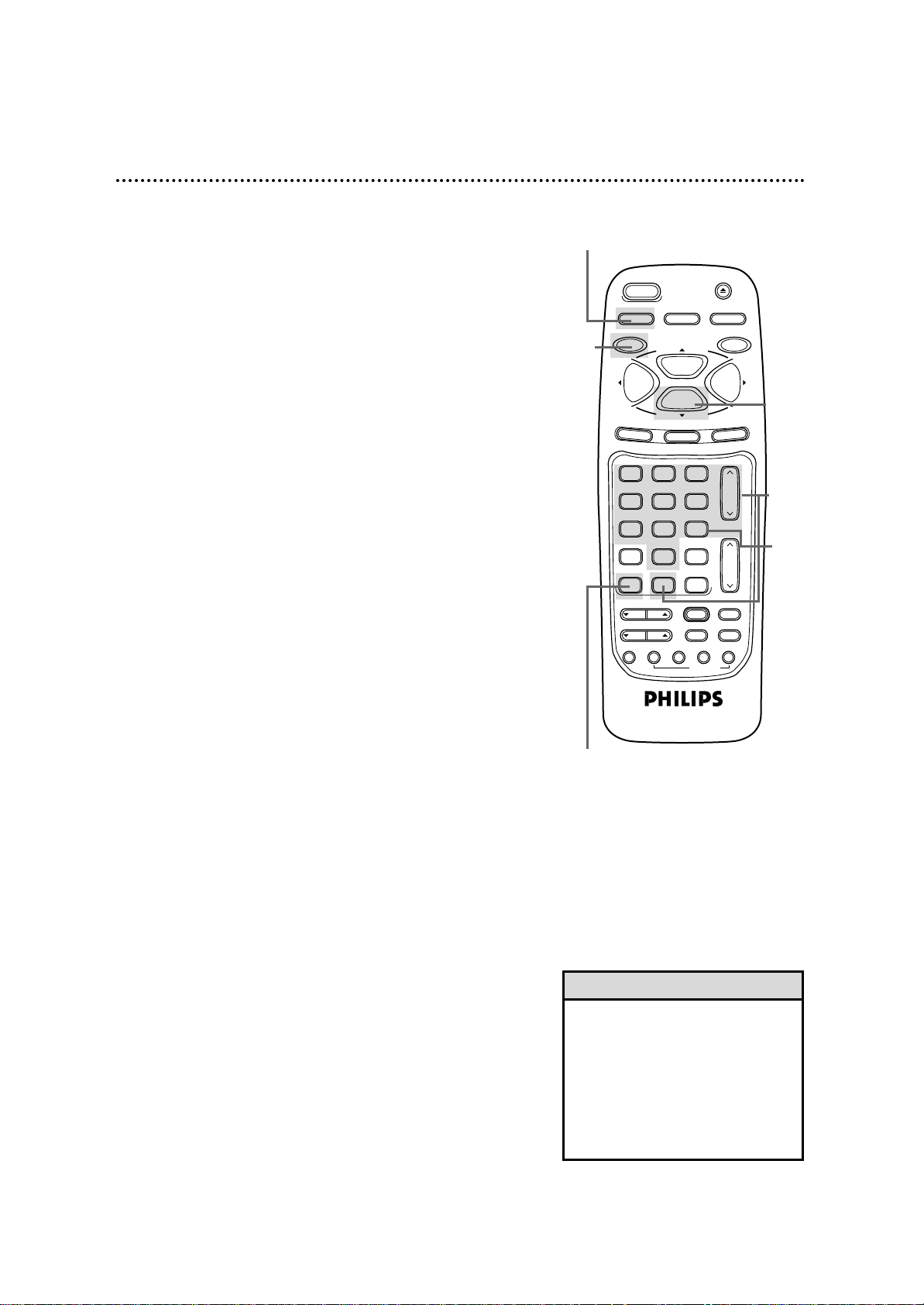

Page 33

Press the REC(ord)/OTR button to start a recording of the current channel. (See page 31.)

Recording One Channel/Watching Another 33

• If your VCR remote control does not operate your TV, see page 21 for more information.

• If you use a Cable Box or Direct Broadcast System hookup, you may not be able to watch one channel while recording another. See pages eight-nine for details.

Helpful Hints

Press the VCR/TV button to put the VCR in TV position.

The VCR light will disappear from the VCR’s display panel.

Press the TV button, then press the CH(annel) o/p or Number buttons to choose the channel you want to watch at the TV. (If the VCR remote control doesn’t operate

your TV, use the TV remote control to select the channel.)

To return to the channel being recorded, press the TV button, then select channel 03 or 04 at the TV (whichever channel

to which the CH3/CH4 switch on the back of the VCR is set). (If the VCR remote control doesn’t operate your TV, use the TV remote control to select channel 03 or 04.)

Press the VCR button.

Press the VCR/TV button to put the VCR in VCR position. The VCR light will appear on the display panel. The channel

being recorded will appear on the screen.

3&7

Press the VCR button.

Press the STOP/p button to stop the recording.

8 4

1&6

POWER

VCR/TV

REC/OTR

MUTE

VCR TV CBL/DBS

SMART


VAR.SLOW

TRACKING

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

TIME INDEX

ALT.CH

/ENTER

F.ADV

REC END

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

Page 34

DAILY PROGRAM (MON-FRI)

PROGRAM -1 2 3 4 5 6 7 8-

SELECT PROGRAM NUMBER TO END PUSH EXIT

34 Timer Recording

Follow the steps below to program your VCR to record TV programs while you’re away from home. The VCR will turn itself on, record, and turn itself off automatically. Before you begin:

●Set up the channels at the VCR.

●Set the clock.

●Put a tape in the VCR. Make sure the tape’s record tab is intact

and the tape is long enough to record the program(s).

●Put the VCR in VCR position. The VCR light will appear on the

display panel. If it does not, press the VCR/TV button once.

Do each step within 60 seconds of the previous step.

Press the VCR button, then press the MENU button.

Press the PLAY/o button or the STOP/p button to select PROGRAM, then press the F.FWD/B button.

SELECT op CHOOSE B

→ONCE

DAILY WEEKLY PROGRAM REVIEW

TO END PUSH EXIT

Press the PLAY/o button or the STOP/p button to select a ONCE, DAILY, or WEEKLY recording. Then, press the F.FWD/B button.

●ONCE: The VCR will record a TV program on any day you

choose, up to 12 months away.

●DAILY: The VCR will record the same channel every day from

Monday to Friday – starting at the same time and recording for the same length of time.

● WEEKLY: The VCR will record the same channel on the same

day, at the same time, and for the same length of time every week.

Daily Recording (example)

• If you need to make a correction while programming a timer recording, press the CLEAR button until the cursor is flashing on the item you want to change. Then enter the correct information.

Helpful Hint

2-3

SELECT op CHOOSE B

→PROGRAM

VCR SET UP TUNER SET UP SET CLOCK AUTO DBS OFF

RECORD LINK

TO END PUSH EXIT

POWER

VCR/TV

REC/OTR

MUTE

VCR TV CBL/DBS

SMART


VAR.SLOW

TRACKING

TIME INDEX

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

ALT.CH

/ENTER

F.ADV

REC END

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

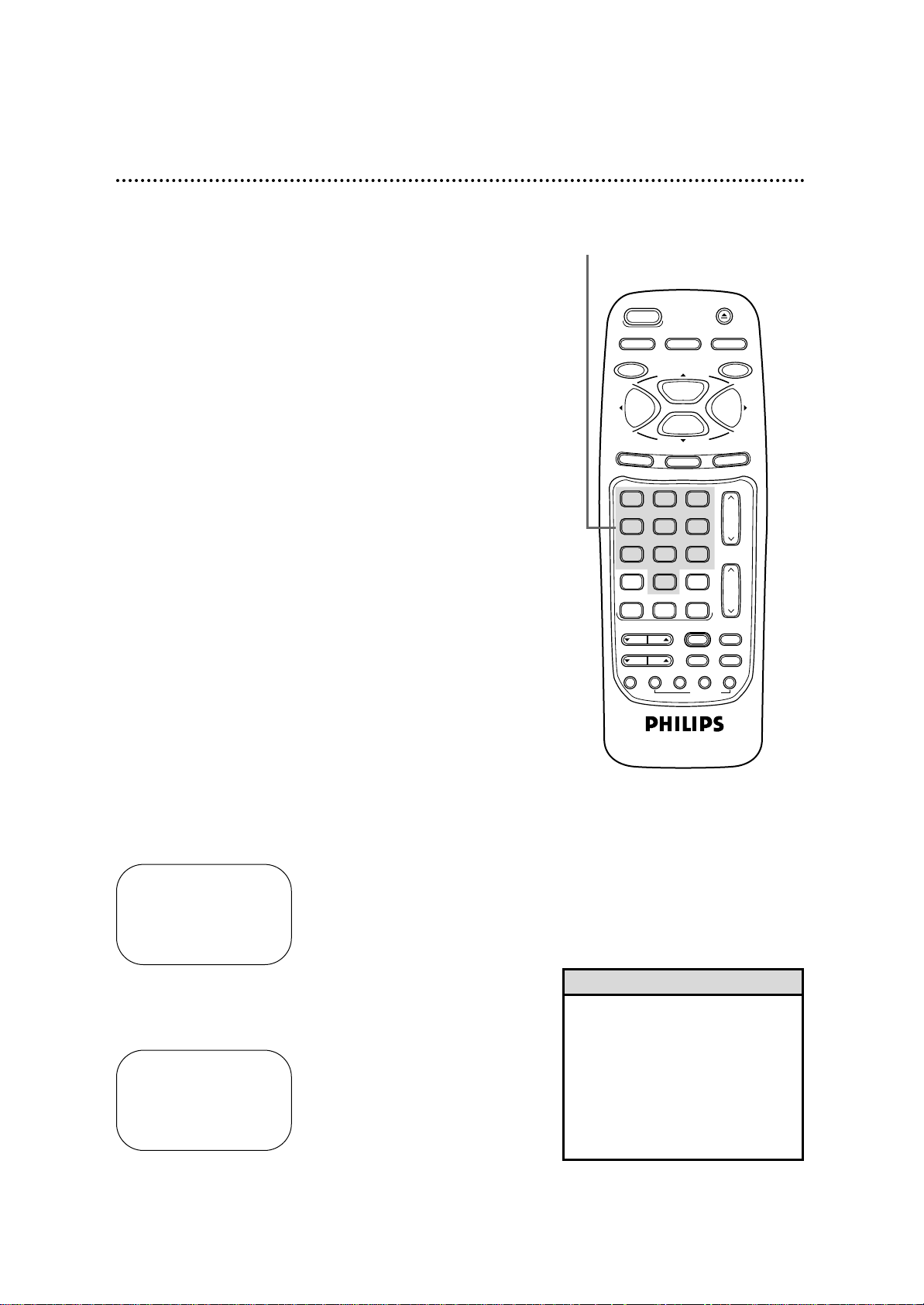

Page 35

ONE TIME PROGRAM

PROGRAM 1 CHANNEL 10 TIME ON – – : – –

TO CORRECT PUSH CLEAR TO END PUSH EXIT

Press two Number buttons for the hour you want the recording to begin. Press two Number buttons for the minute you want the recording to begin. Press 1 for AM or 2 for PM. For example, for 9:30 PM, press 09, 30, 2.

ONE TIME PROGRAM

PROGRAM 1 CHANNEL 10 TIME ON 09:30 PM TIME OFF – – : – –

TO CORRECT PUSH CLEAR TO END PUSH EXIT

Timer Recording (cont’d) 35

4-7

Use the Number buttons (1-8) to select a slot in which to store the timer recording. There are eight slots. Numbers for

open slots will flash on the screen.

NOTE: If you enter a number for a slot that has been used already to store a timer recording, PREVIOUSLYSET PROGRAM will appear on the screen briefly. Information about the program in that slot will appear on the screen. If this happens, press the STATUS/EXIT button, then select another number.

Use the Number buttons to enter the channel you want to record.

● Cable Users, enter channel numbers as a two-digit number for

the quickest results. For example, to select channel 6, press 0,6. If you only press the Number 6 button, channel 6 will be selected after a brief delay. There also may be a brief delay when you select

channels 10, 11, and 12.

If you want to select channels 100 and above, enter channel numbers as a three-digit number. For example, to select channel 117, press 1, 1, 7. Antenna Users, enter channel numbers as a two-digit number for the quickest results. For example, to select channel 5, press 0,5. If you only press the Number 5 button, channel 5 will be selected after a brief delay.

● If you are recording from line input, press 0,0 to select AV REAR.

● If you are using a Cable Box/DBS, enter the Cable Box/DBS out-

put channel (03 or 04). Set the Cable Box/DBS to the channel you want to record. Leave the Cable Box/DBS on for the timer recording. See page eight for details.

Follow the instructions in step 6 to enter the recording’s stop time. (AM or PM will be set automatically.)

Instructions continue on page 36.

• Entries that do not match the VCR’s clock or calendar will cause a question mark to appear on the screen.

• If you are recording from line input, connect the audio and video cables to the AUDIO IN and VIDEO IN jacks on the back of the VCR. (Please see illustration on page 43.)

Helpful Hints

VAR.SLOW

VCR TV CBL/DBS

VOL.

CH.

MUTE

ALT.CH

TRACKING

F.ADV

VCR/TV

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

X2 PLAY

SLOW

VCR PLUS+

/ENTER

SMART


TIME INDEX

REC END

SKIP

EJECT

CLEAR

PAUSE/STILL

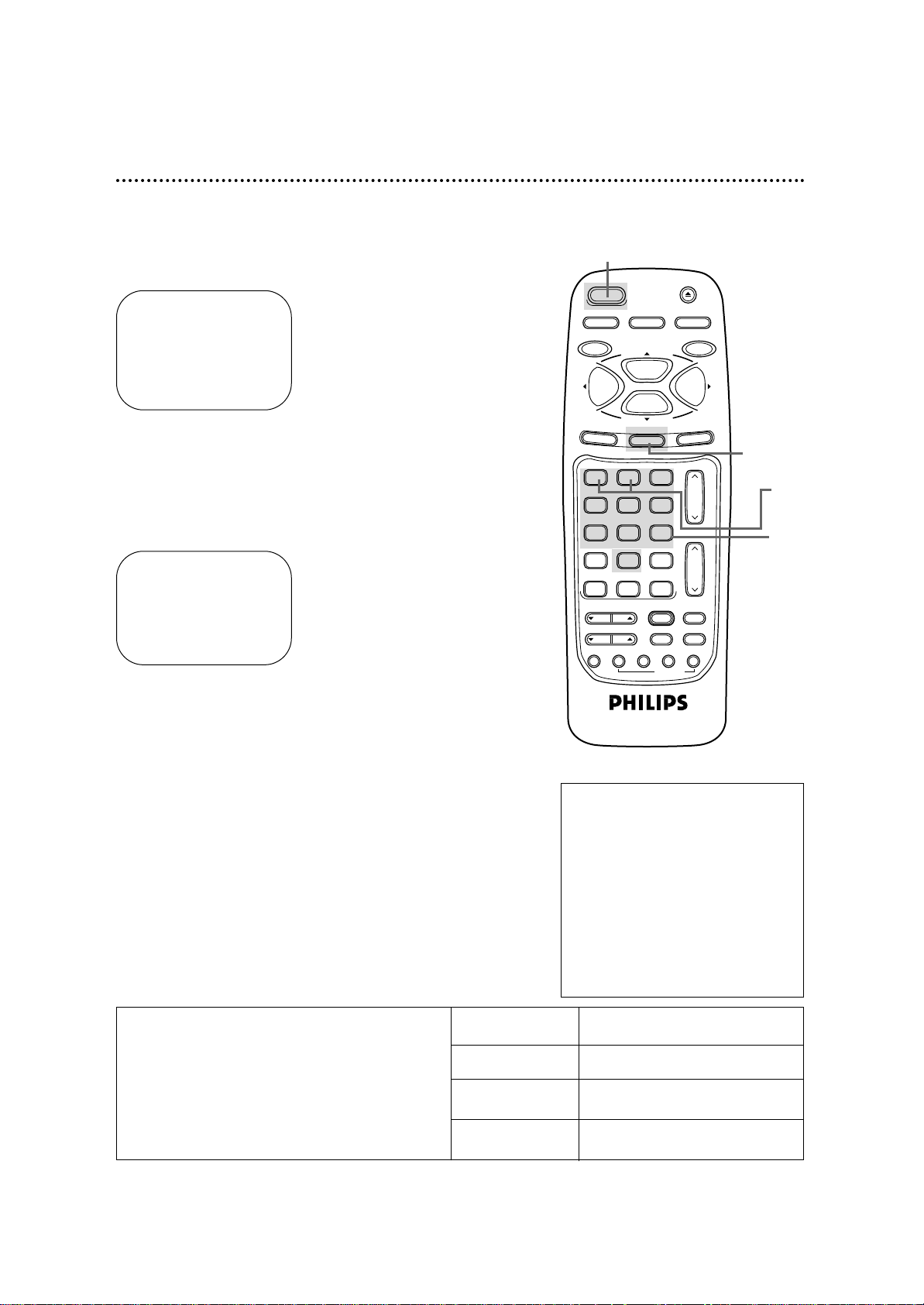

Page 36

36 Timer Recording (cont’d)

Press the Number 1 button to record in SP speed or the Number 2 button to record in SLP speed. (See the chart

below.) You cannot use the SPEED button at this time.

Press two Number buttons for the month and two Number buttons for the day you want to record the program. For example, for July 10, 2000, press 07, 10. The day of

the week and the year will appear automatically (you cannot program the VCR to record more than one year in advance).

Press the STATUS/EXIT button. PROGRAM WAS COM-

PLETED / PLEASE TURN OFF VCR FOR TIMER RECORDING will appear on the screen briefly. (If PROGRAM NOT COMPLETED appears, try again from step 1.)

Press the POWER button to turn off the VCR power. The

Timer light will appear on the display panel. If the timer recording will take place several hours or days from now, you may use the VCR until time for the recording. Turn off the VCR a few minutes before the recording starts. If you forget to turn off the VCR, PLEASE TURN OFF VCR FOR TIMER RECORDING flashes on your TV screen two minutes before a timer recording starts. Press the CLEAR button to remove the message.

Turn off the VCR

for the recording.

Insert a tape in

the VCR.

Leave the Cable

Box/DBS on

(if applicable).

VAR.SLOW

VCR TV CBL/DBS

VOL.

CH.

MUTE

ALT.CH

TRACKING

F.ADV

VCR/TV

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

X2 PLAY

SLOW

VCR PLUS+

/ENTER

SMART


TIME INDEX

REC END

SKIP

EJECT

CLEAR

PAUSE/STILL

Cassette type / Playback Time

Tape Speed T160 T120 T60

SP (standard play) 2 hrs.

2 hrs. 1 hr.

40 mins.

LP (long play) 5 hrs.

4 hrs. 2 hrs.

(playback only) 20 mins.

SLP (super long play)

8 hrs. 6 hrs. 3 hrs.

Tape Speeds

This chart shows the recording/playback time for three types of video cassettes (T160, T120, and T60). There are three playback speeds: SP, LP, and SLP. When recording, you can change the tape speed (SP or SLP) using the SPEED button. You cannot record in LP speed.

ONE TIME PROGRAM

PROGRAM 1 CHANNEL 10 TIME ON 09:30 PM TIME OFF 11:00 PM REC SPEED SP

SP=1 SLP=2

TO CORRECT PUSH CLEAR TO END PUSH EXIT

ONE TIME PROGRAM

PROGRAM 1 CHANNEL 10 TIME ON 09:30 PM TIME OFF 11:00 PM REC SPEED SLP START DATE 07/10/00

MON. TO CORRECT PUSH CLEAR TO END PUSH EXIT

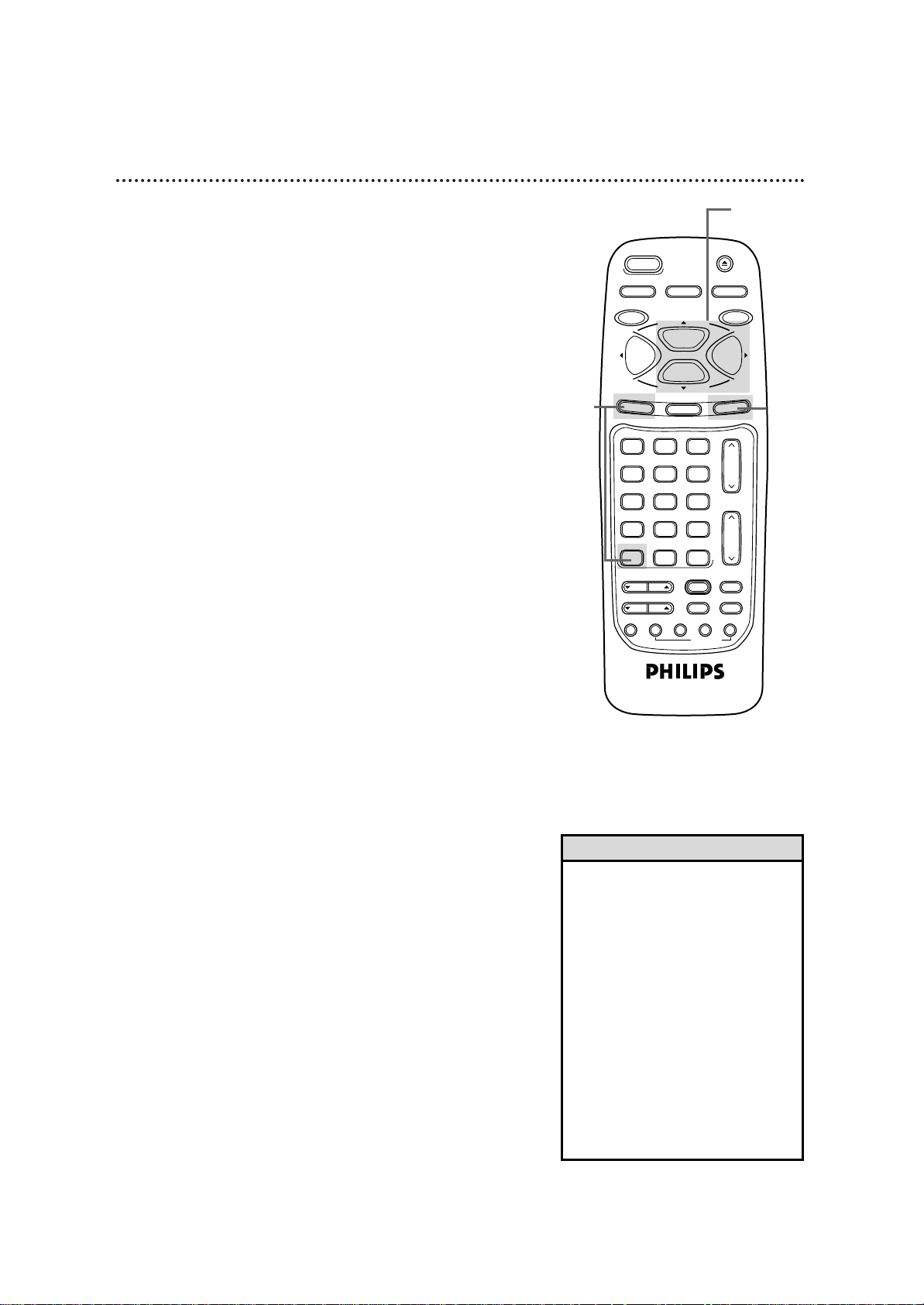

Page 37

Timer Recording (cont’d) 37

Repeat steps 1 - 4 to make sure you have cleared the correct timer recording.

• CLASH may flash on the screen when you finish setting a timer recording. This means that the timer recording you just programmed and another timer recording overlap. The current timer recording will not take place. You may choose to cancel the overlapping timer recording.

• To stop a started timer recording, press the STOP/EJECT button on the VCR.

• With ShowGuard, if the power fails for more than one minute, programmed timer recordings will be restored when the clock is reset. Details are on page 58.

Helpful Hints

With the VCR on and in VCR position (the VCR light will appear on the display panel), press the VCR button, then press the

MENU button.

Checking or Cancelling Timer Recordings

Press the PLAY/o button or the STOP/p button to select PROGRAM, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button to select PROGRAM REVIEW, then press the F.FWD/B button.

The timer recording information for the program in the lowest numbered slot will appear on the screen. If no timer recordings are set, nothing will happen when you press the F.FWD/B button.

Press the F.FWD/B button repeatedly to review all programmed timer recordings. If you don’t press the F.FWD/B

button within 10 seconds, the VCR will automatically display information about the next programmed timer recording. This will continue until all timer recordings have been displayed. Then the menu will disappear.

To cancel the timer recording displayed, press the CLEAR button. Either the display will disappear or information

about other timer recordings will appear. If you do not press any other buttons, the display will disappear after all timer recordings have been displayed.

2-4

POWER

EJECT

VCR/TV

REC/OTR

MUTE

VCR TV CBL/DBS

SMART


VAR.SLOW

TRACKING

TIME INDEX

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

ALT.CH

/ENTER

F.ADV

REC END

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

Page 38

38 Setting Up the VCR Plus+ Programming System

First, fill in the boxes on this page. It will only take a few minutes, and you must do it if you want the VCR Plus+ programming system to work properly. Since the channel numbers of the stations you receive may not be the same as the station numbers, and since channel numbers differ from area to area, you must program the VCR with your local channel information. To fill in the boxes, you will need 1) a cable channel list, if applicable (you can request one from your cable company), and 2) a chart that lists VCR Plus+ channel numbers, which you can find in your TV guide or the TV listings of your local newspaper.

NOTE: If you are using a Cable Box/DBS, the Cable/TV channel must be 3 or 4 (the Cable Box/DBS output channel) for every VCR Plus+ channel.

Channels

Station

Call Letters

VCR PLUS+ CH.

CABLE/TV CH.

Channels

Station

Call Letters

VCR PLUS+ CH.

CABLE/TV CH.

Page 39

Setting Up the VCR Plus+ Programming System (cont’d) 39

Now, compare the channel numbers you have written in the VCR PLUS+ CH. and CABLE/TV CH. columns. For stations whose VCR Plus+ and Cable/TV channels do not match, you must tell the VCR the VCR Plus+ and Cable/TV channel numbers by following steps 3-7. Make each entry within 60 seconds of the previous entry.

Press the VCR button, then press the MENU button.

Look at the lists you filled in on page 38. For stations whose VCR Plus+ and Cable/TV channels do not match, press the PLAY/o button or the STOP/p button until the arrow is beside the VCR Plus+ channel you need. Then, press the Number buttons to enter the corresponding Cable/TV channel from your list. Enter all the stations on your list.

● If you are recording from line input, press 0,0 to select AUX.

● If you are using a Cable Box/DBS, the Cable/TV channel

will be 3 or 4 (the Cable Box/DBS output channel) for every VCR Plus+ channel. You must set the Cable Box/DBS to the channel you want to record; leave the Cable Box/DBS on for the timer recording.

Press the STATUS/EXIT button.

Press the PLAY/o button or the STOP/ p button to select VCR PLUS+ REF. MAP, then press the F.FWD/B button.

VCR PLUS+ CROSS REF. MAP

VCR PLUS+ CABLE/TV

124 124 125 125

1 – – – – –>23 2 2

TO SELECT CH PUSH op THEN ENTER CH NO. TO END PUSH EXIT

VCR PLUS+ CROSS REF. MAP

VCR PLUS+ CABLE/TV

124 124 125 125

1 – – – – –>1

2 2 TO SELECT CH PUSH op THEN ENTER CH NO. TO END PUSH EXIT

Press the PLAY/o button or the STOP/ p button to select VCR SET UP, then press the F.FWD/B button.

Examine the lists on page 38.

4-6

7 3

SELECT op CHOOSE B

→REPEAT PLAY OFF

ON SCREEN MODE AUDIO OUT LANGUAGE VCR PLUS+ REF. MAP BLUE BACKGROUND ON

TO END PUSH EXIT

• To erase a Cable/TV channel number, repeat steps 3-5 on this page. Then, press the PLAY/o button or the STOP/p button until the arrow appears beside the Cable/TV channel you need to erase. Press the CLEAR button, then press the STATUS/EXIT button.

• When you receive the VCR, all the VCR Plus+ channel numbers and Cable/TV channel numbers are the same.

• If you are recording from line input, connect the audio and video cables to the AUDIO IN and VIDEO IN jacks on the back of the VCR. (Please see illustration on page 43.)

Helpful Hints

POWER

VCR/TV

REC/OTR

MUTE

VCR TV CBL/DBS

SMART


VAR.SLOW

TRACKING

TIME INDEX

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

ALT.CH

/ENTER

F.ADV

REC END

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

Page 40

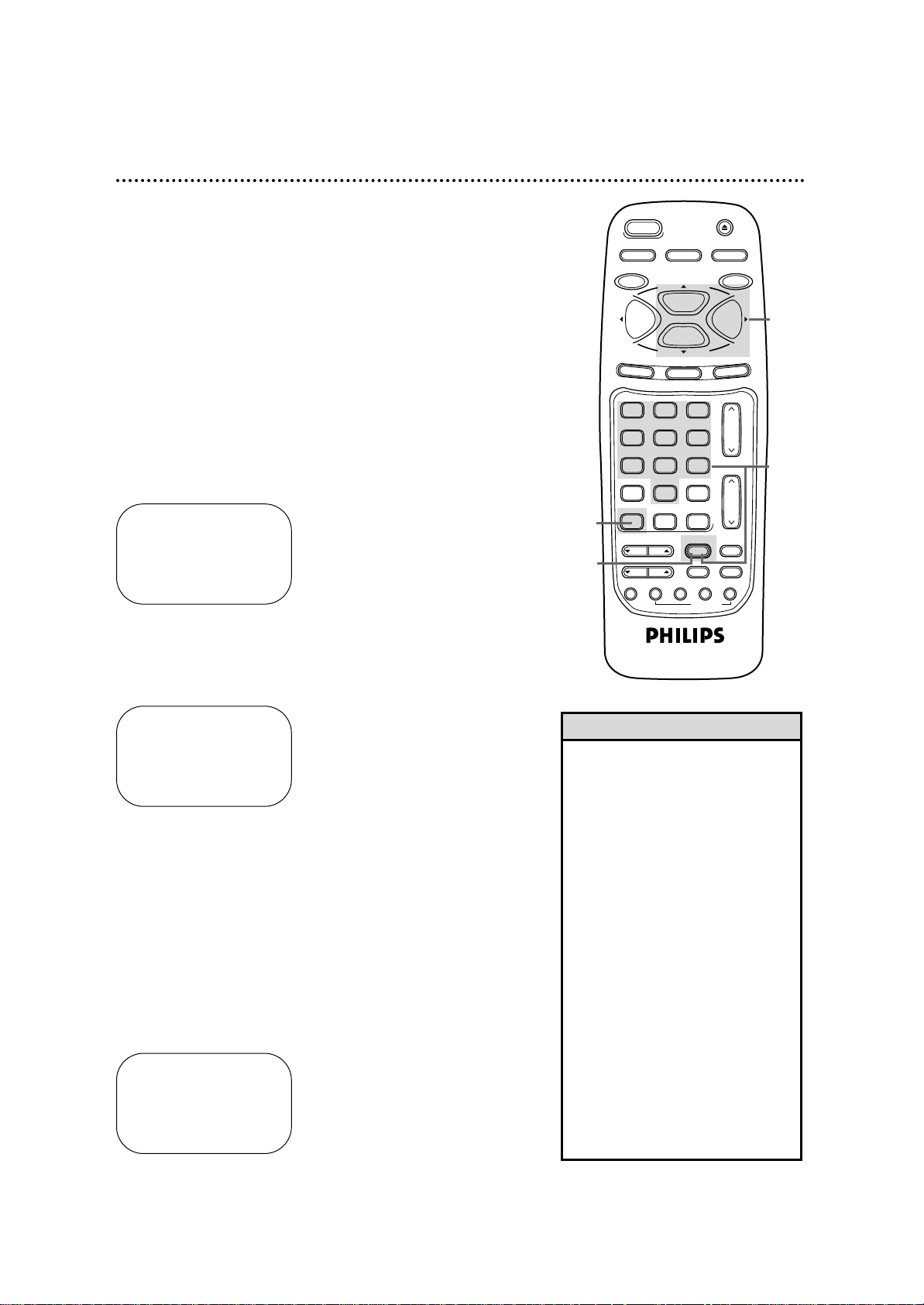

VCR PLUS+ PROG.

PLUS CODE : – – – – – – – –

TO END PUSH EXIT

Press the VCR PLUS+/ENTER button.

Press the Number buttons to enter the PlusCode programming number of the program you wish to record. Then, press the VCR PLUS+/ENTER button.

VCR PLUS+ PROG.

PLUS CODE : 13285 – – –

TO SET PUSH VCR+ TO CORRECT PUSH CLEAR TO END PUSH EXIT

Press the PLAY/o button or the STOP/p button to select a ONCE, DAILY, or WEEKLY recording. Then, press the F.FWD/B button.

●ONCE: The VCR will record a TV program on any day you

choose, up to 12 months away.

●DAILY: The VCR will record the same channel every day from

Monday to Friday – starting at the same time and recording for the same length of time.

● WEEKLY: The VCR will record the same channel on the same

day, at the same time, and for the same length of time every week.

• CODE ERROR may flash on the screen after step 3 if you enter an incorrect PlusCode programming number (for example, one that is too short). The previous screen will appear. Enter the correct PlusCode programming number.

• If CLASH flashes on the screen after step 3, the timer recording you just programmed and another timer recording overlap. The current timer recording will not occur.

• If you select DAILY at step 4, ERROR may flash on the screen if the program you want to record is broadcast on a Saturday or Sunday.

• If you enter a PlusCode programming number for a program that is on a channel that you have not entered in the VCR Plus+ Reference Map, you must enter the correct Cable/TV channel number. Details are on pages 38-39.

Helpful Hints

VCR PLUS+ PROG.

→ONCE

DAILY WEEKLY

SELECT op CHOOSE B TO END PUSH EXIT

Press the VCR button.

POWER

40 Timer Recording with the VCR Plus+ Programming System

Follow these steps to set a timer recording with the PlusCode programming numbers in your TV guide. Before you begin:

● Set up the channels at the VCR (page 12).

● Set up the VCR Plus+ and Cable/TV channel numbers (pages

38-39).

● Set the clock (pages 15-18).

● Put a tape in the VCR.

● Make sure the VCR light appears on the display panel. If it does

not, press the VCR/TV button once.

Do each step within 60 seconds of the previous step.

EJECT

VCR/TV

REC/OTR

MUTE

VCR TV CBL/DBS

SMART


VAR.SLOW

TRACKING

STATUS/EXIT

TIME INDEX

SPEED

PLAY

STOP

VCR PLUS+

ALT.CH

/ENTER

F.ADV

REC END

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

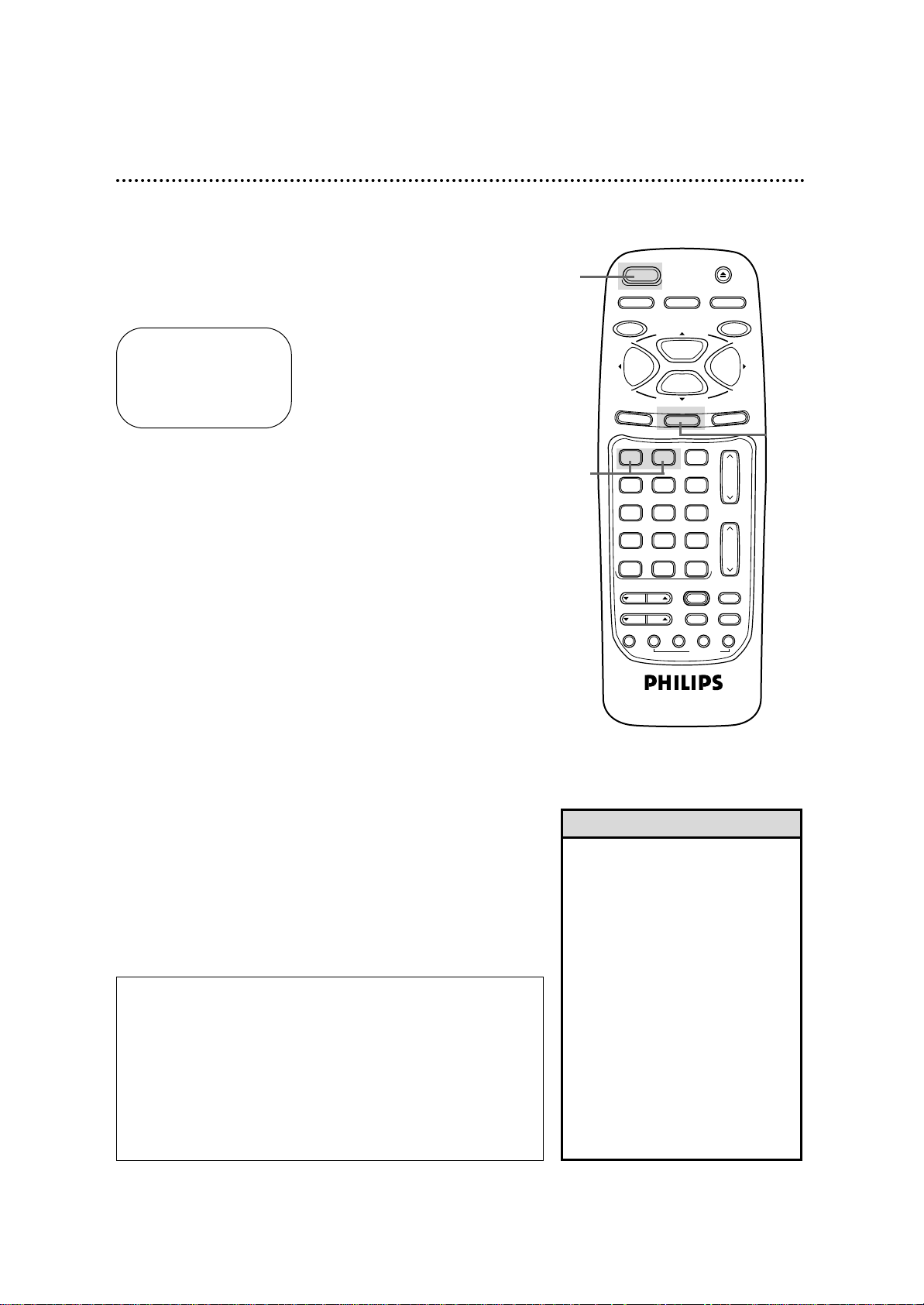

Page 41

Timer Recording with the VCR Plus+ Programming System (cont’d) 41

• To stop a started timer recording, press the STOP/EJECT button on the VCR.

• If you are using a Cable Box/DBS, timer recordings are programmed differently. See pages eight and 38-39 for details.

• You may use the VCR Plus+ Programming System to record programs on Cable TV channels up to channel 125.

• If the power fails for more than one minute, some of the programmed VCR PLUS+ channel numbers may be lost. In this case, repeat steps 27 on page 39.

See page 58 for more hints.

Helpful Hints

Press the Number 1 button to record in SP speed or the Number 2 button to record in SLP speed. Your selection

will appear beside REC SPEED on the screen; SP=1 SLP=2 will continue to flash. For details about tape speed, see pages 36 and

60. You cannot use the SPEED button at this time.

Turn off the VCR

for the recording.

Insert a tape in the VCR.

Leave the Cable Box/DBS on

(if applicable).

Press the STATUS/EXIT button. PROGRAM WAS COM-

PLETED/PLEASE TURN OFF VCR FOR TIMER RECORDING should appear on the screen briefly.

Press the POWER button to turn off the VCR power. The

Timer light will appear. The Timer light will flash if there is not a tape in the VCR. If the timer recording will take place several hours or days from now, you may use the VCR until time for the recording. Just turn off the VCR a few minutes before the recording starts. If you forget to turn off the VCR, PLEASE TURN OFF VCR FOR TIMER RECORDING flashes on your TV screen two minutes before a timer recording starts. Remove the message by pressing the CLEAR button.

ONE TIME PROGRAM

PROGRAM 1 CHANNEL 09 TIME ON 10:30 PM TIME OFF 11:30 PM REC SPEED SLP

SP=1 SLP=2

START DATE 10/10/00

TUE.

TO END PUSH EXIT

POWER

EJECT

VCR/TV

REC/OTR

MUTE

VCR TV CBL/DBS

SMART


VAR.SLOW

TRACKING

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

TIME INDEX

ALT.CH

/ENTER

F.ADV

REC END

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

Page 42

42 Auto DBS RecordLink

If you connect your VCR to a satellite tuner that has the Electronic Program Guide, the VCR will turn itself on, record, then turn itself off. First, read the owner’s manual of your satellite tuner; then, follow the steps below. Before you begin:

●Use audio and video cables to connect the VCR’s AUDIO/VIDEO IN

jacks on the back of the VCR to the satellite tuner’s AUDIO/VIDEO OUT jacks.

●Press the SPEED button to select the desired recording tape speed

(SP or SLP).

●Set the clock. Details are on pages 15-18.

●Put a tape in the VCR. Make sure the tape’s record tab is intact and

the tape is long enough to record the program(s).

Set the program to be recorded on the satellite tuner. Turn off the satellite tuner. See your satellite tuner owner’s manual for details.

Press the PLAY/o button or the STOP/p button to select AUTO DBS RECORD LINK. Then, press the F.FWD/B button. The current time appears next to AUTO DBS.

• If you want the VCR to begin recording immediately, (or as soon as the program is received from the satellite tuner) press the F.FWD/B button again, then go to step 5.

• If you want to tell the VCR the time to start recording, go to step 4.

Press the VCR button, then press the MENU button.

Set the program to be recorded on the satellite tuner.

Press the F.FWD/B button. ON will appear briefly beside AUTO

DBS, then a “FOLLOW THE STEPS...” message will appear. This message is a reminder to set the program on the satellite tuner (step 1 on this page) and to connect the VCR to the tuner (as described at the top of this page). After 30 seconds, the VCR will turn itself off and the Timer light will appear on the VCR display panel. The recording will begin either immediately or at the time you set in step 4. The VCR will stop recording when the program ends as set at your satellite tuner.

First, press the PLAY/o button or the STOP/p button until the desired hour (AM or PM) appears. Then, press the F.FWD/B button. Next, press the PLAY/o button or the STOP/p button until the desired minute appears.

• You cannot use the AUDIO/VIDEO In jacks on the front of the VCR for an Auto DBS RecordLink.

• To stop an Auto DBS RecordLink recording that is in progress, press the STOP/EJECT button on the VCR.

• If a program has copy guard protection, it may not record clearly.

• When you use this feature, the first few seconds of a program may not be recorded.

• If your satellite tuner synchronizes the recording start time with the broadcasting start time, refer to the tuner’s owner’s manual.

• When you turn on the VCR power, the Auto DBS RecordLink will be cancelled.

Helpful Hints

SELECT op CHOOSE B

PROGRAM VCR SET UP TUNER SET UP SET CLOCK

→AUTO DBS 12:00AM

RECORD LINK

TO END PUSH EXIT

3-5

POWER

VCR/TV

REC/OTR

SPEED

PLAY

STOP

STATUS/EXIT

MUTE

VCR TV CBL/DBS

VCR PLUS+

TIME INDEX

SMART


VAR.SLOW

TRACKING

ALT.CH

/ENTER

F.ADV

REC END

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

Page 43

Make the connections shown above.

Rerecording (Tape Duplication) 43

VCR 2 will record your tape. Insert a blank tape in VCR 2. The VCR must be in VCR position. (The VCR light will appear on the display panel. If it does not, press the VCR/TV button once.)

Turn on the TV and set it to channel 03 or 04, whichever

channel to which the CH3/CH4 switch on VCR 2 is set.

Point the remote control at VCR 2. Press Number buttons 0, 0, 1 or 0, 0, 2. (See Helpful Hints at right.)

Use the SPEED button to select SP or SLP at VCR 2.

Press the PLAY button on VCR 1 and the REC(ord)/OTR button on VCR 2 at the same time.

To stop recording, press the STOP/EJECT button on VCR 1, then press the STOP/EJECT button on VCR 2.

VIDEO

OUT

AUDIO

CH3 CH4

OUT

ANT

VIDEO

OUT

AUDIO

CH3 CH4

OUT

ANT

VIDEO

OUT

AUDIO

VCR 1

Playing VCR

VCR 2 - Recording VCR

VCR 1 will play your tape. Put a prerecorded tape in VCR 1.

1. Audio cables from AUDIO OUT Jacks of VCR 1 to AUDIO IN Jacks of VCR 2

2. Video cable from VIDEO OUT Jack of VCR 1 to VIDEO IN Jack of VCR 2

3. RF coaxial cable

from the OUT jack

of VCR 2 to the

TV’s ANTENNA IN

Jack

• If you use the AUDIO and VIDEO IN Jacks on the back of VCR 2, press Number buttons 0, 0, 1 at step 5. AV REAR will appear on the screen.

• If you use the AUDIO and VIDEO In Jacks on the front of VCR 2, press Number buttons 0, 0, 2 at step 5. AV FRONT will appear on the screen.

• Unauthorized recording of copyrighted television programs, video tapes, or other materials may infringe on the rights of copyright owners and violate copyright laws.

• If a program has copyright protection, it may not record clearly.

• These instructions show you how to copy tapes using two VCRs like yours. Different VCRs may operate differently.

Helpful Hints

● Audio and Video cables are not supplied.

Page 44

44 Repeat Play

Follow the steps below to make the VCR play a tape over and over.

Press the MENU button.

Press the PLAY/o button or the STOP/p button to select VCR SET UP, then press the F.FWD/B button.

Press the F.FWD/B button so that ON appears beside REPEAT PLAY.

Press the STATUS/EXIT button. Now, when a tape has fin-

ished playing, the VCR will rewind it and start playback again.

• To cancel Repeat Play, follow steps 1-4 above. At step 5, press the

F.FWD/B button so that OFF appears beside REPEAT PLAY. Press the STATUS/EXIT button.

• The real-time counter memory does not function during Repeat Play.

Helpful Hints

SELECT op CHOOSE B

→PROGRAM

VCR SET UP TUNER SET UP SET CLOCK AUTO DBS OFF

RECORD LINK

TO END PUSH EXIT

Press the VCR button.

Press the PLAY/o button or the STOP/p button to select REPEAT PLAY.

3-5

SELECT op CHOOSE B

→REPEAT PLAY OFF

ON SCREEN MODE AUDIO OUT LANGUAGE VCR PLUS+ REF. MAP BLUE BACKGROUND ON

TO END PUSH EXIT

POWER

VCR/TV

REC/OTR

MUTE

VCR TV CBL/DBS

SMART


VAR.SLOW

TRACKING

SPEED

PLAY

STOP

STATUS/EXIT

TIME INDEX

ALT.CH

VCR PLUS+

/ENTER

F.ADV

REC END

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

Page 45

Automatic Operation Features 45

The following playback features will always operate.

Automatic Playback

When you put a tape in the VCR, the power will come on automatically. If the tape’s record tab is missing, playback will begin. If a timer recording is set, the power will not come on automatically when you insert a tape with the record tab intact. If a timer recording is set and the VCR power is off, the VCR will eject the tape if the record tab is missing.

Automatic Rewind, Eject, Off

When a tape is played, fast forwarded, or recorded to its end, the VCR will rewind the tape, stop, eject the tape, and turn itself off. If the real-time counter memory is set, the VCR will only rewind the tape to the point at which the counter is set to zero, then stop. The VCR will not eject the tape automatically or shut itself off.

Tape Eject

A tape can be ejected with the VCR power on or off (but the VCR must be plugged in). If a timer recording is set, a tape can only be ejected with the power on. Make sure you insert a tape and turn off the VCR power for the timer recording.

Automatic Tracking Adjustment

The VCR adjusts tracking automatically to give you the best possible picture quality. With some recordings, however, you may get a better picture using the manual tracking controls (see below).

Manual Tracking

To manually adjust the tracking during playback and slow motion playback, press the CHANNEL o/p buttons on the VCR or the TRACKING o/p button on the remote control. Tracking will return to Automatic Tracking Adjustment when you press the STOP/p button or insert a tape. You cannot manually adjust the tracking of a Still picture. However, you may press the CHANNEL o/p buttons on the VCR to remove vertical jitter in a Still picture.

Before Tracking Adjustment

After Tracking Adjustment

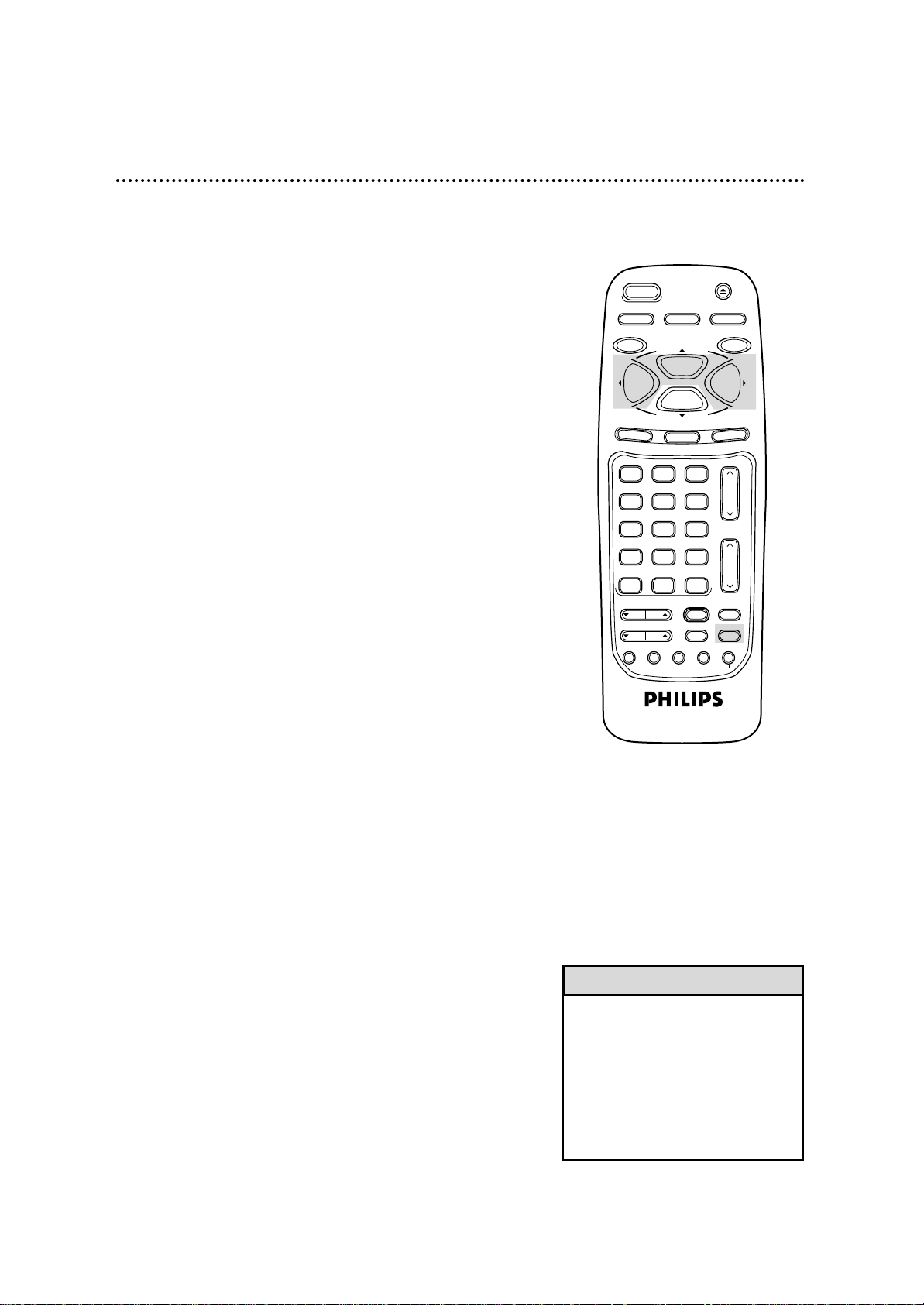

Page 46

46 Special Effects Playback

Forward and Reverse Searching (SP/LP/SLP)

During tape playback, press and release the F.FWD/B button or the REW(ind)/{ button. A fast forward or reverse

picture search will begin.

To return to playback, press the PLAY/o button.

Super High Speed Searching (LP/SLP)

During tape playback, press the F.FWD/B button or the REW (ind)/{ button, then press again. The VCR will now

search in super high speed.

To return to normal playback, press the PLAY/o button.

Playing a Tape at Double Speed

During tape playback press the X2 PLAY button. The pic-

ture will play at twice the normal playback speed.

To return to normal playback, press the X2 PLAY button again or press the PLAY/o button.

• SP/LP/SLP means this feature will work with tapes recorded in Standard Play, Long Play, or Super Long Play.

• LP/SLP means this feature will work with tapes recorded in Long Play or Super Long Play. For details about tape speed, see pages 36 and 60.

Helpful Hints

VAR.SLOW

VCR TV CBL/DBS

VOL.

CH.

MUTE

ALT.CH

TRACKING

F.ADV

VCR/TV

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

X2 PLAY

SLOW

VCR PLUS+

/ENTER

SMART


TIME INDEX

REC END

SKIP

EJECT

CLEAR

PAUSE/STILL

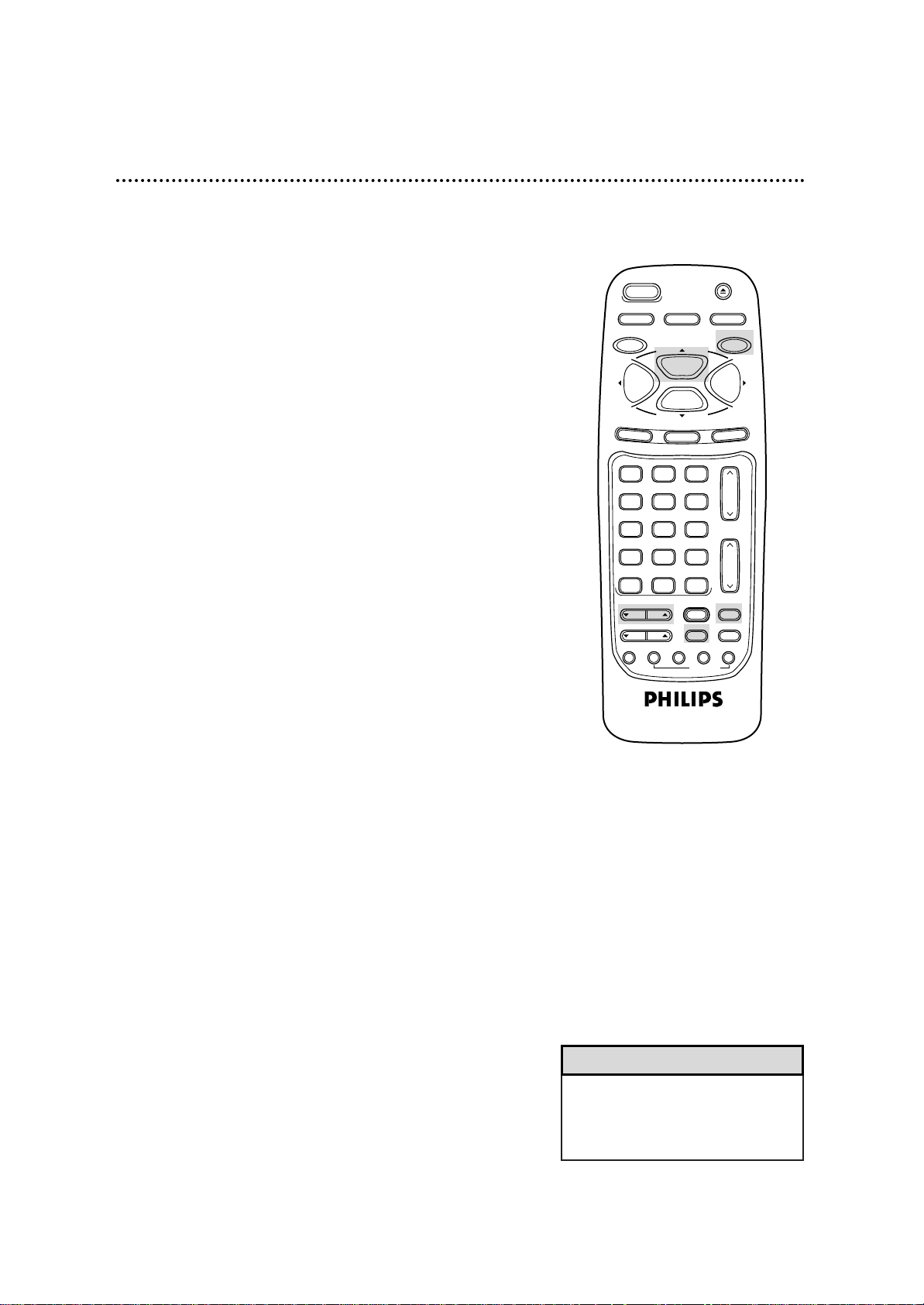

Page 47

• Slow and Still modes will automatically switch to Stop mode after five minutes to protect the VCR and the tape from damage.

Helpful Hint

Special Effects Playback (cont’d) 47

Viewing a Still Picture

During tape playback, press the PAUSE/STILL button. A

still picture will appear on the screen.

To advance the still picture frame-by-frame, press the F(rame). ADV(ance) button.

To release the still picture and return to playback, press the PLAY/o button or press the PAUSE/STILL button again.

Viewing a Slow Motion Picture

During tape playback, press the SLOW button. The tape

will play in slow motion. NOTE: You can control the speed of slow motion playback by pressing the VAR(iable). SLOW button.

To release slow motion playback and return to normal playback, press the PLAY/o button or press the SLOW button again.

POWER

VCR/TV

REC/OTR

MUTE

VCR TV CBL/DBS

SMART


VAR.SLOW

TRACKING

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

TIME INDEX

ALT.CH

/ENTER

F.ADV

REC END

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

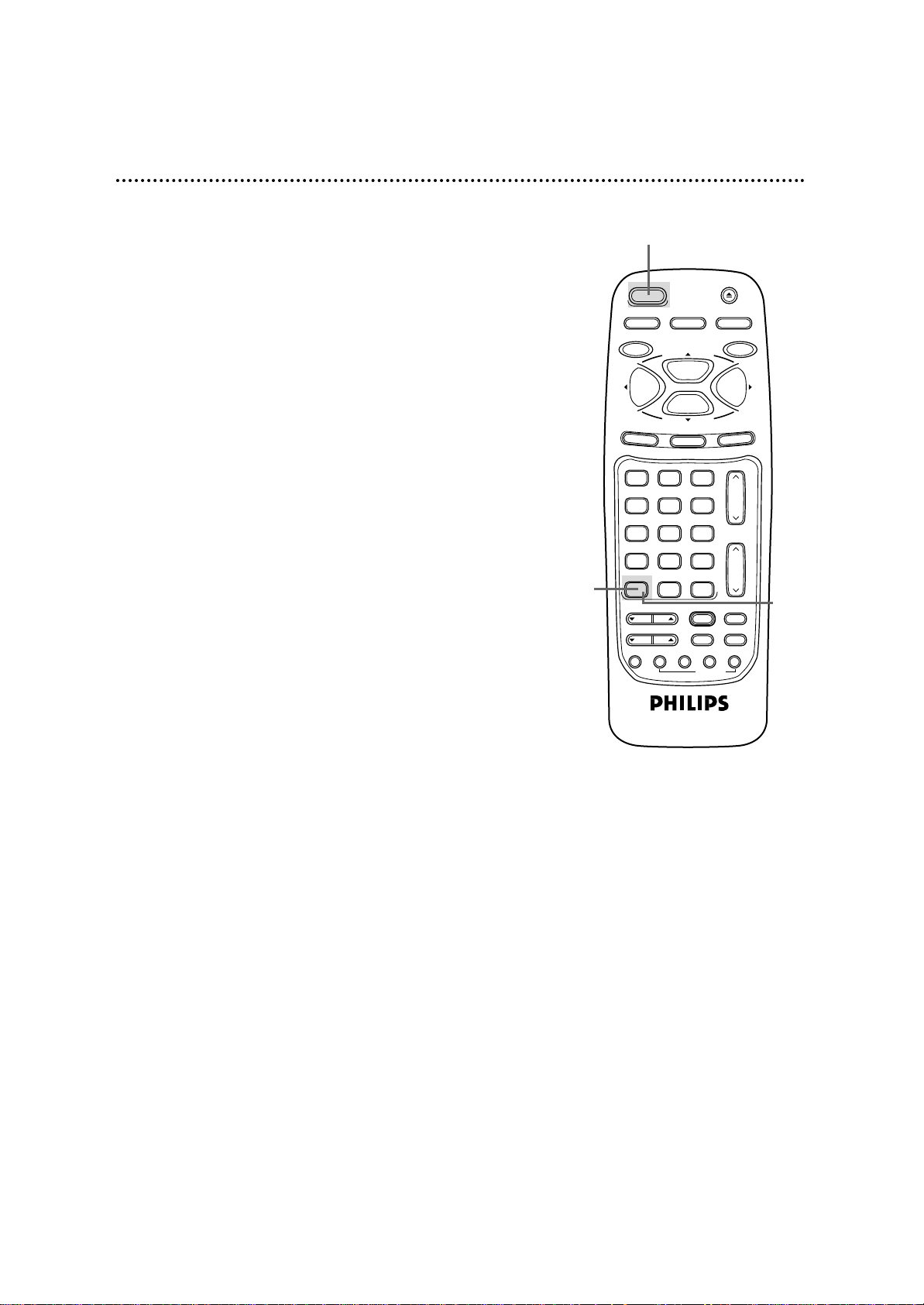

Page 48

Press and hold the POWER button on the remote control for 10 seconds so that CL appears on the display panel. The VCR will turn off.

When Child Lock is activated:

● The time will appear on the display panel. CL will appear on

the display panel every two seconds.

● You may insert a tape. However, the VCR power will remain

off and tape playback will not begin.

● You may press the EJECT button to remove the tape (unless a

timer recording is programmed or has finished recording).

● Timer recordings will take place as scheduled, even if Child

Lock is activated. CL will appear steadily on the display panel during the timer recording.

● The TV and Cable Box/DBS feature buttons of the remote

control will still operate when Child Lock is activated.

Child Lock prevents use of the VCR by deactivating the VCR feature buttons on the VCR and the remote control. To set the Child Lock, turn on the VCR power, then follow the steps below.

Press the VCR button.

To cancel the Child Lock, press the VCR button, then press and hold the POWER button on the remote control for 10 seconds so that the VCR turns on.

2-3

VAR.SLOW

VCR TV CBL/DBS

VOL.

CH.

MUTE

ALT.CH

TRACKING

F.ADV

VCR/TV

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

X2 PLAY

SLOW

VCR PLUS+

/ENTER

SMART


TIME INDEX

REC END

SKIP

EJECT

CLEAR

PAUSE/STILL

48 Child Lock

Page 49

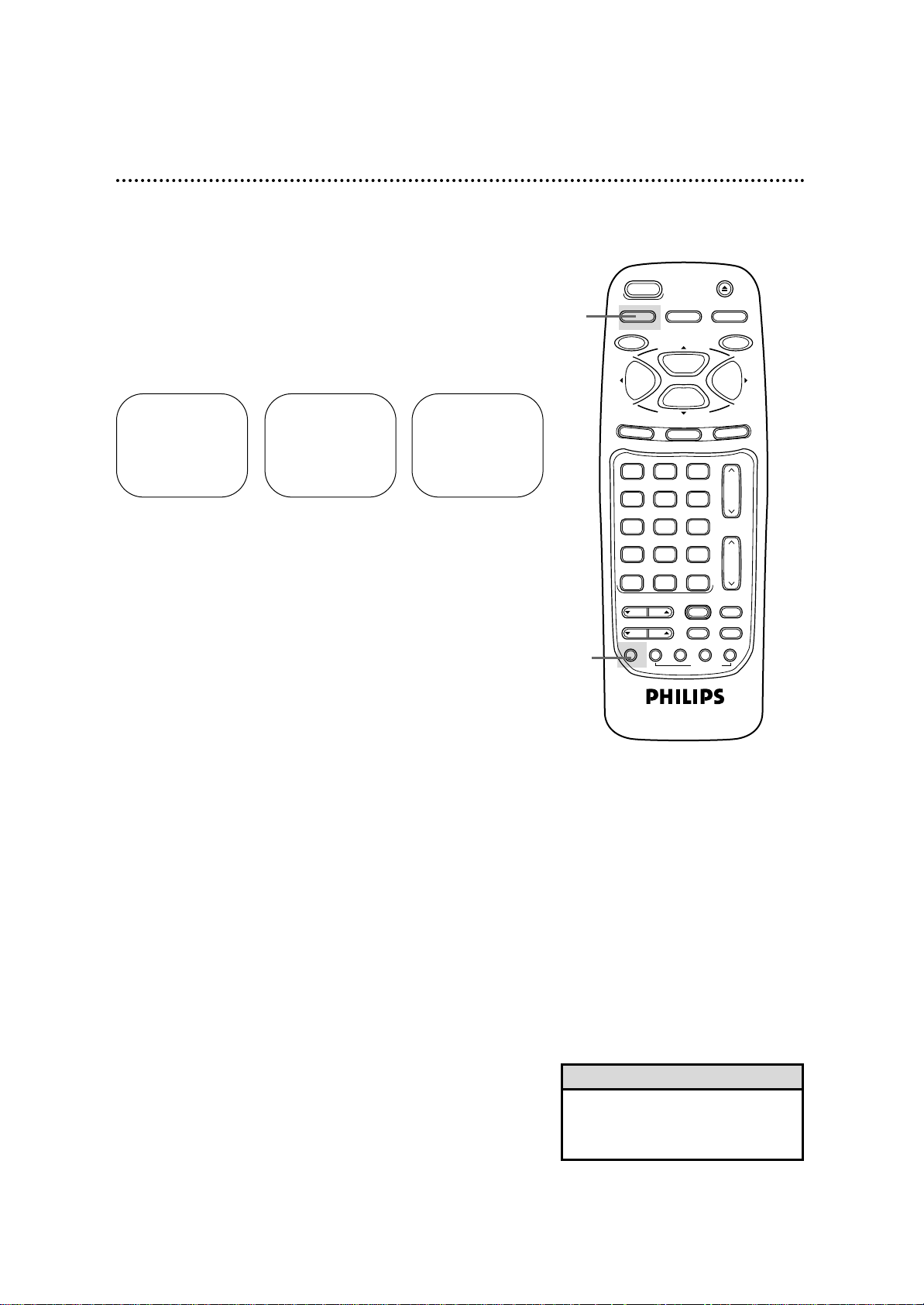

Smart Picture 49

[NATURAL]

The Smart Picture feature allows you to improve the VCR picture during normal playback.

Press the VCR button.

Press the SMART PICTURE button repeatedly until your desired mode appears on the screen.

Your selection will remain on the screen for about five seconds, then disappear.

• When the VCR is changed to special playback mode or stop mode, Smart Picture mode is canceled.

Helpful Hint

[SOFT] [SHARP]

POWER

VCR/TV

REC/OTR

MUTE

VCR TV CBL/DBS

SMART


VAR.SLOW

TRACKING

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

TIME INDEX

ALT.CH

/ENTER

F.ADV

REC END

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

Page 50

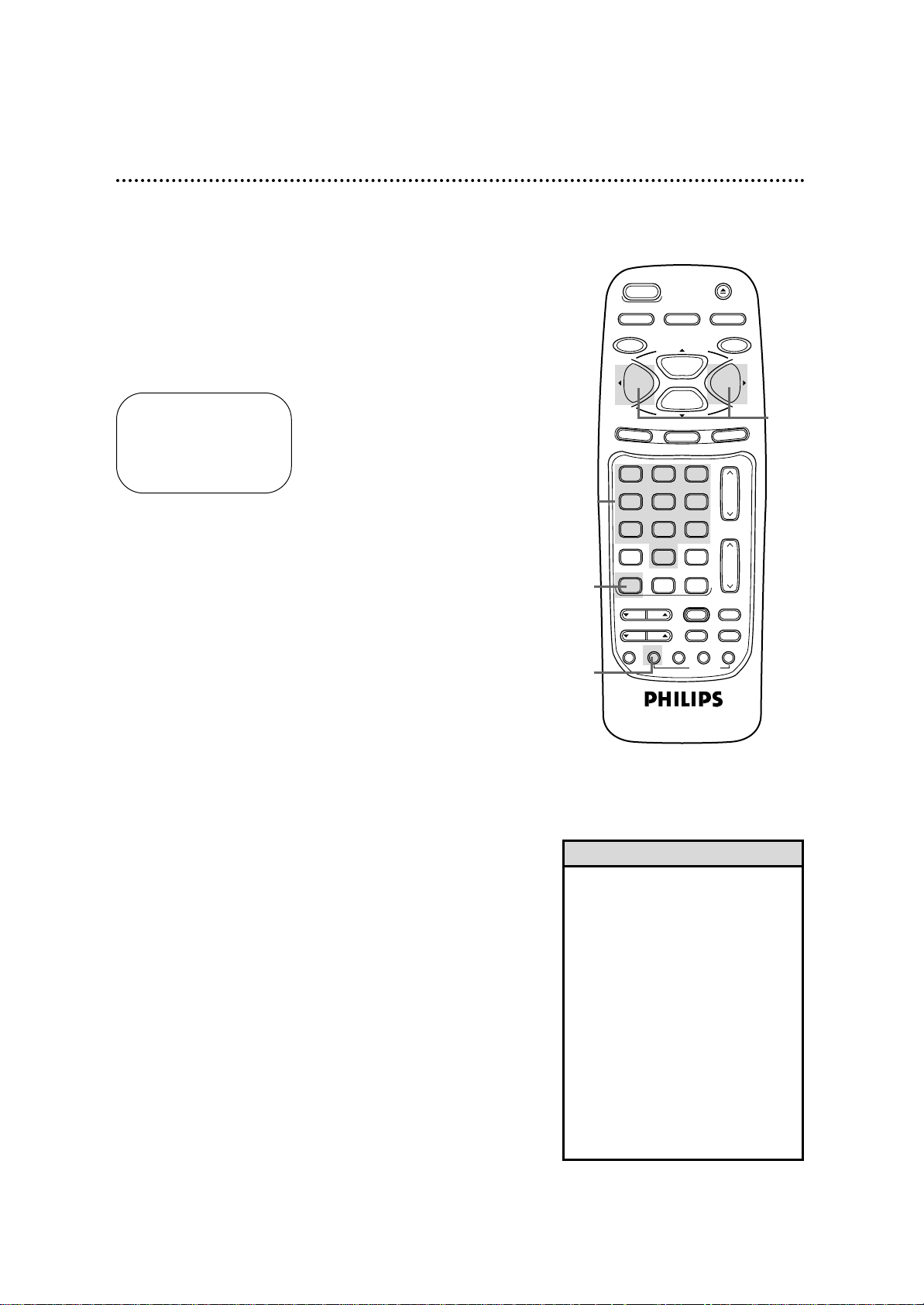

50 Time Search

Follow the steps below to program the VCR to search forward or backward on a tape a specific length of time. There must be a tape in the VCR.

Press the TIME SEARCH button.

Within 10 seconds, use the Number buttons to enter the desired length of time you want to skip forward or backward. For example, for 1 hour, 25 minutes, press Number but-

tons 1, 2, 5. Or, for five minutes, press Number buttons 0, 0, 5.

Within 10 seconds, press the F.FWD/B button or the REW(ind)/{ button. The VCR will skip over the specified

length of time, then begin playback.

• If you want to search for more than 59 minutes, you must enter the length of time in hours and minutes. For example, to search forward 70 minutes, press 1,1,0 at step 3.

• You can not do a Time Search while recording.

• To remove the Time Search display, press the TIME SEARCH button again.

• To cancel a Time Search that is in progress, press the STOP/p button.

• If the end of the tape is reached during a Time Search, the VCR will cancel the search and rewind the tape. Details are on page 45.

Helpful Hints

TIME SEARCH 0:00

ENTER SEARCH TIME

Press the VCR button.

3 1

POWER

VCR/TV

REC/OTR

MUTE

VCR TV CBL/DBS

SMART


VAR.SLOW

TRACKING

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

TIME INDEX

ALT.CH

/ENTER

F.ADV

REC END

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

Page 51

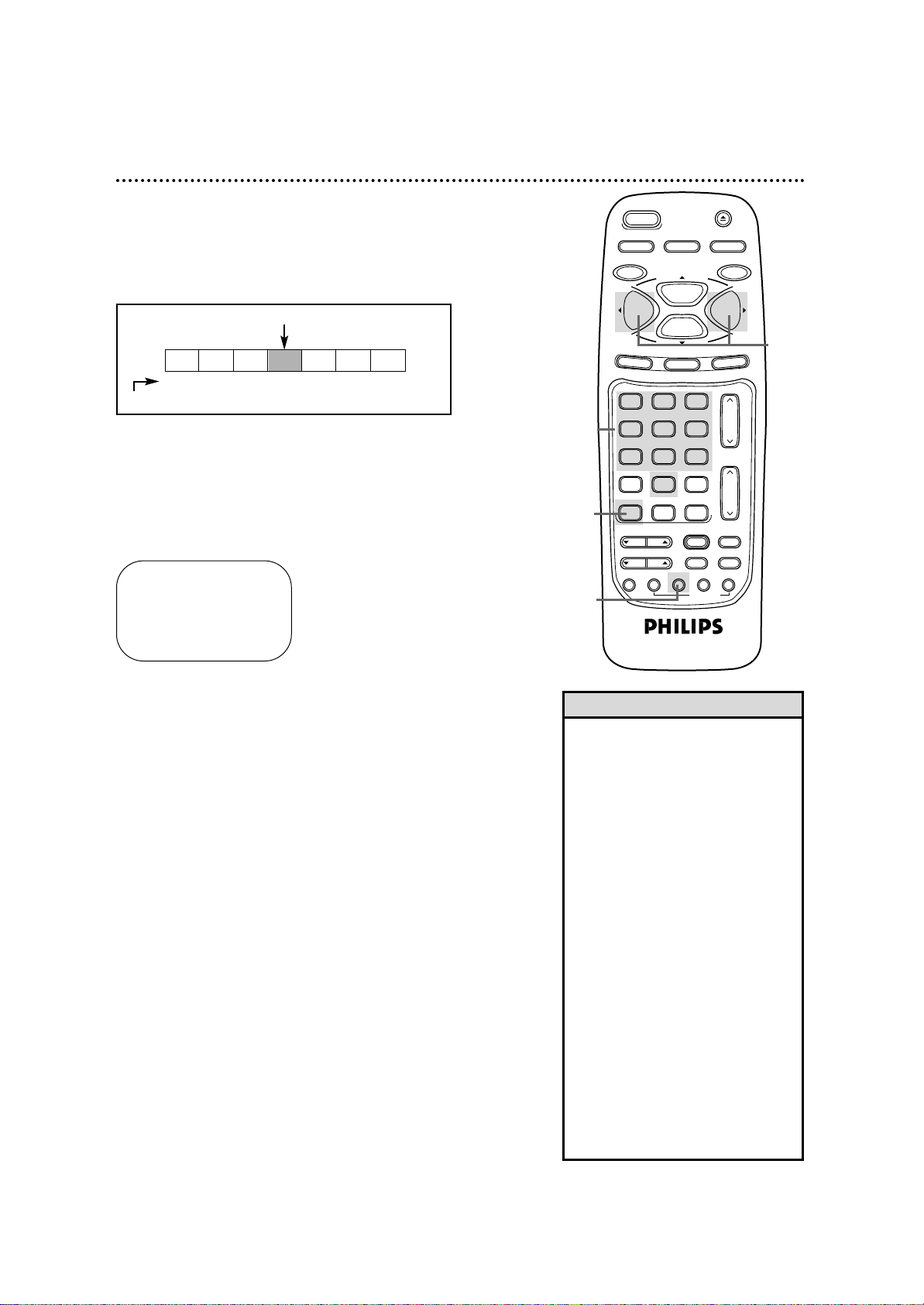

Index Search 51

This feature allows you to index the starting points of programs that you have recorded on a tape. Then, you can easily rewind or fast forward to that point.

Example:

If you are watching program number 4 and you want to fast forward to program number 7, skip three programs.

Pro. 1 Pro. 2 Pro.3 Pro. 4Pro. 5 Pro. 6Pro. 7

CURRENT PLAYBACK PROGRAM

4 3 2 1 1 2 3

INDEX MARK

Beginning of tape

End of tape

Press the VCR button.

Press the INDEX SEARCH button.

Within 10 seconds, use the Number buttons to enter the number of programs that you want to skip. For example,

to skip three programs, press Number buttons 0, 3. If you do not make an entry within 10 seconds, the VCR will exit Index Search mode.

Within 10 seconds, press the F.FWD/B button or the REW(ind)/{ button to skip forward or backward. The

VCR will fast forward or rewind to the beginning of the desired program, then begin playback. (The program numbers count down on the screen as the searching progresses. To remove the onscreen counter, press the INDEX SEARCH button once.)

• Every time an index mark is passed during rewinding or fast forwarding, the number of programs beneath INDEX SEARCH on the screen decreases by one.

• Up to 20 index marks may be searched.

• This function will not operate in recording mode.

• Press the STOP/p button to stop the search.

• An index mark will be made automatically at the beginning of every recording. An index mark is not made when a recording is paused.

• The time gap between index marks should be greater than 1 minute for SP recording, 2 minutes for LP recording, and 3 minutes for SLP recording.

• If the end of the tape is reached during an Index Search, the VCR will cancel the search and rewind the tape. Details are on page 45.

Helpful Hints

INDEX SEARCH

ENTER INDEX NUMBER

POWER

3 1

EJECT

VCR/TV

REC/OTR

SPEED

PLAY

STOP

STATUS/EXIT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

TIME INDEX

ALT.CH

VCR PLUS+

/ENTER

F.ADV

REC END

VOL.

SLOW

X2 PLAY

SKIP

MUTE

VCR TV CBL/DBS

VAR.SLOW

TRACKING

SMART


Page 52

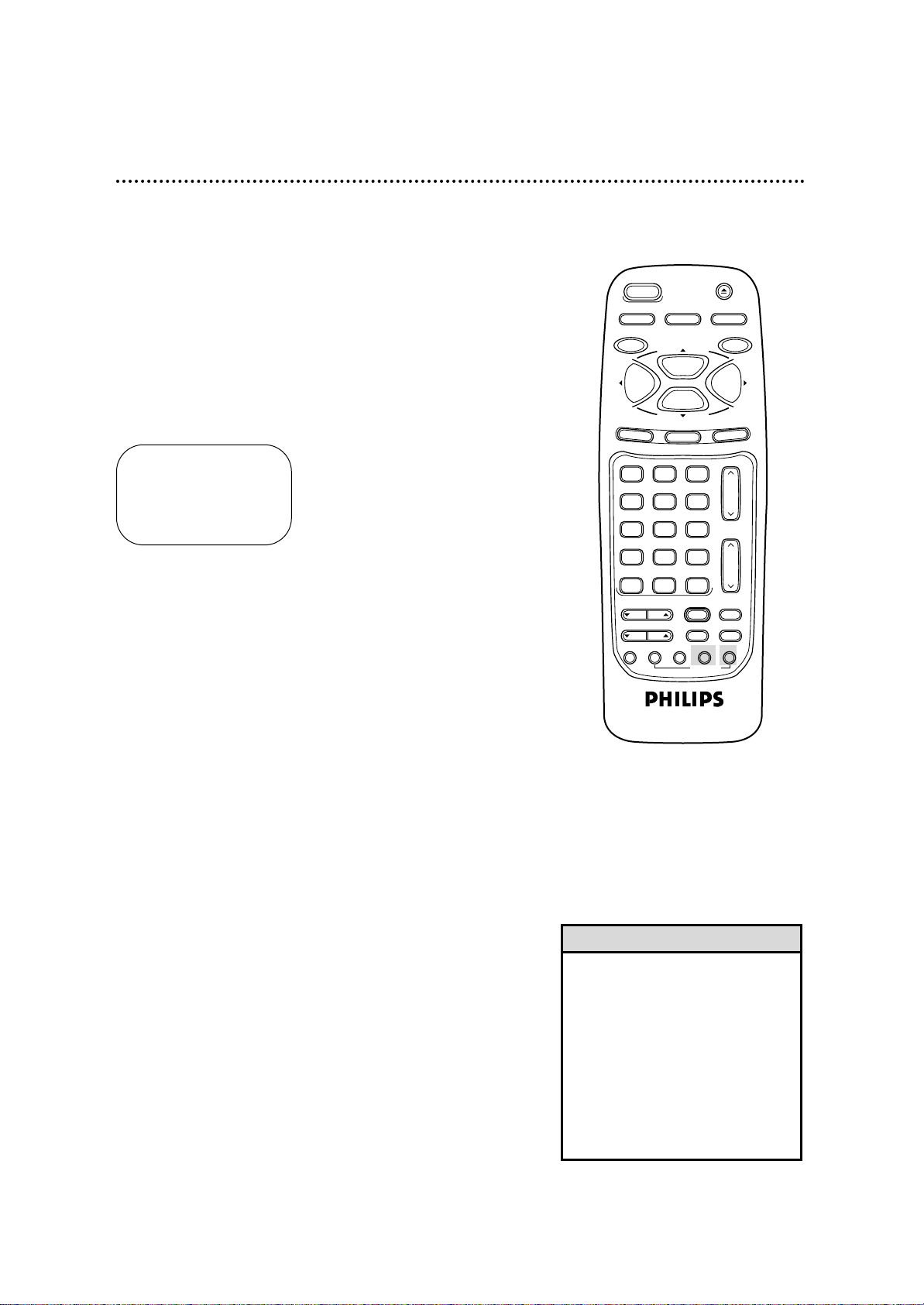

52 Record End Search/Skip Search

Record End Search

This function enables you to search forward to the next unrecorded portion of the tape (or to the point at which recording was stopped).

Press the REC(ord) END SEARCH button. The VCR begins

fast forwarding to the beginning of the next blank portion of the tape. SEARCHING FOR REC END will appear on the screen during the search. The VCR will automatically stop when the blank portion is reached. REC END SEARCH COMPLETED will appear on the screen briefly.

Skip Search

This function enables you to skip forward 30 seconds at a time during tape playback.

During tape playback press the SKIP SEARCH button.

The VCR will skip forward 30 seconds, then resume normal playback.

• Press the STOP/p button to cancel a Record End Search or a Skip Search.

• If the end of the tape is reached during a Record End Search, the VCR will cancel the search and eject the tape.

• If the end of the tape is reached during a Skip Search, the VCR will cancel the search and rewind the tape. Details are on page 45.

Helpful Hints

SEARCHING FOR REC END

POWER

VCR/TV

SPEED

REC/OTR

PLAY

STOP

STATUS/EXIT

MUTE

VCR TV CBL/DBS

VAR.SLOW

TRACKING

SMART

TIME INDEX


ALT.CH

VCR PLUS+

/ENTER

F.ADV

REC END

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

Page 53

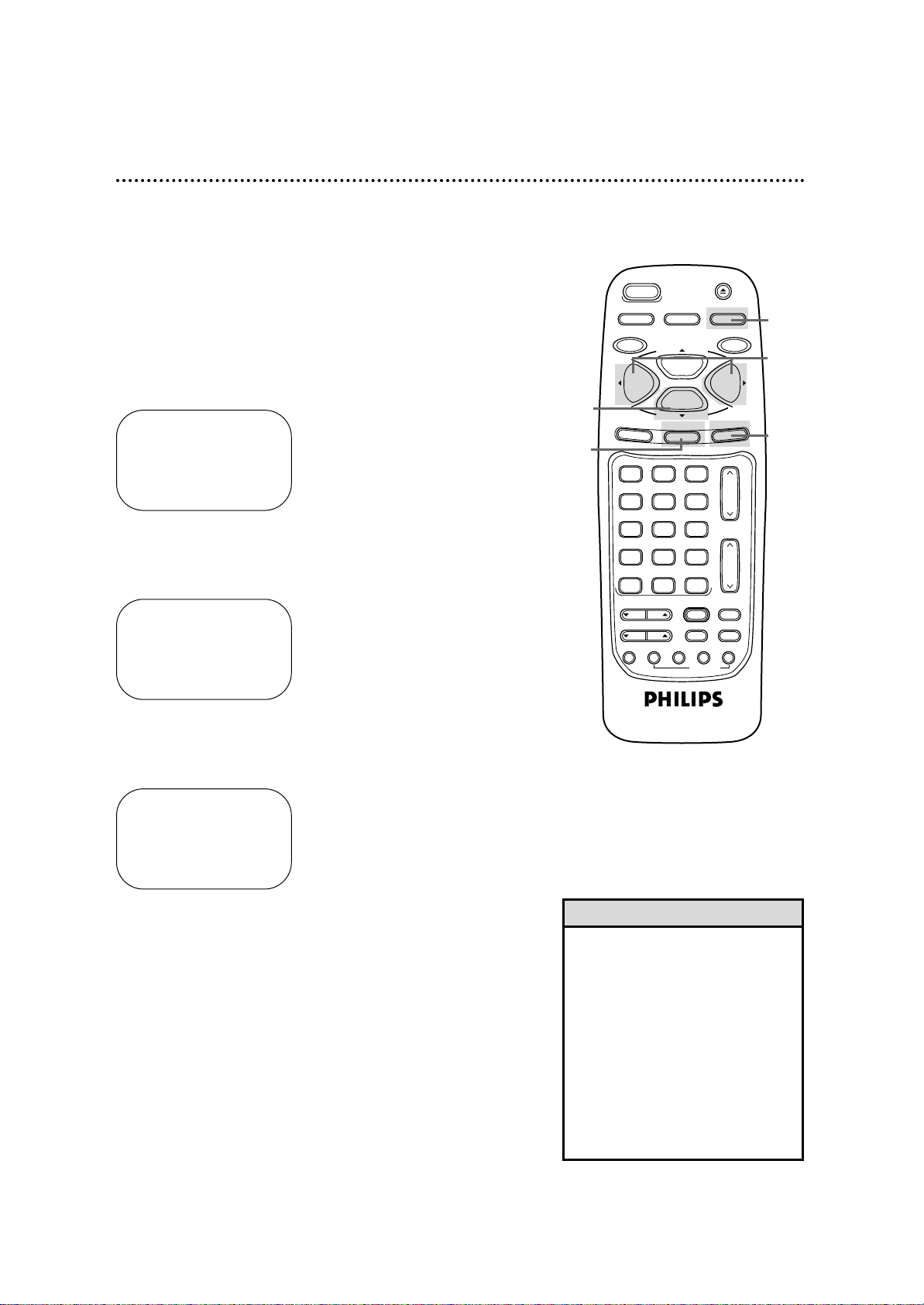

Real-Time Counter Memory 53

• The MEMORY button does not function if REPEAT PLAY is set to ON. Details are on page 44.

• To erase a real-time counter memory, press the MEMORY button until the M disappears from the screen.

• You may only set the real-time counter to zero at one location at a time. If you set the real-time counter to zero at a second location, the previous real-time counter to zero setting will be erased.

Helpful Hints

Follow the steps below to reset the real-time counter to zero at a tape location you want to refer to later.

Play, fast forward, or rewind a tape to the location that you would like to refer to later. Press the STOP/p button to stop the tape.

Press the STATUS/EXIT button to see the status display.

While the status display is on the screen, press the CLEAR button to reset the real-time counter to zero.

While the real-time counter is on the screen, press the MEMORY button so that M appears beside the counter.

To go to a tape location where the real-time counter was reset to zero, press the REW(ind)/{ button or the F.FWD/B button when playback is stopped.

When the tape reaches the point at which the counter was set to zero, the tape will stop. Press the PLAY/o button to watch the tape.

STOP 1:08PM TV STEREO CH10

SLP 1 : 23 : 45 HIFI

STOP 1:08 PM TV STEREO CH10

SLP 0 : 00 : 00 HIFI

STOP 1:08 PM TV STEREO CH10

SLP M 0 : 00 : 00 HIFI

4 3

POWER

VCR/TV

REC/OTR

MUTE

VCR TV CBL/DBS

SMART


VAR.SLOW

TRACKING

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

TIME INDEX

ALT.CH

/ENTER

F.ADV

REC END

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

Page 54

Press the VCR button.

Press the MENU button.

Press the PLAY/o button or the STOP/p button to select VCR SET UP, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button to select BLUE BACKGROUND. Then, press the F.FWD/B button repeatedly so that OFF (or ON) appears beside BLUE BACKGROUND.

54 Blue Background

VAR.SLOW

VCR TV CBL/DBS

VOL.

CH.

MUTE

ALT.CH

TRACKING

F.ADV

VCR/TV

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

X2 PLAY

SLOW

VCR PLUS+

/ENTER

SMART


TIME INDEX

REC END

SKIP

EJECT

CLEAR

PAUSE/STILL

3-4

If you want the TV screen to be solid blue when a weak signal is received, set BLUE BACKGROUND to ON. The screen will be blue and the sound will be muted. Or, if you want to receive the weak signal, set BLUE BACKGROUND to OFF. When you select a channel that is receiving a weak signal, you will see and hear the static in the TV programming. To set BLUE BACKGROUND to ON or OFF, follow these steps.

Press the STATUS/EXIT button.

SELECT op CHOOSE B

→PROGRAM

VCR SET UP TUNER SET UP SET CLOCK AUTO DBS OFF

RECORD LINK

TO END PUSH EXIT

SELECT op CHOOSE B

REPEAT PLAY OFF ON SCREEN MODE AUDIO OUT LANGUAGE VCR PLUS+ REF. MAP

→ BLUE BACKGROUND ON

TO END PUSH EXIT

SELECT op CHOOSE B

→ REPEAT PLAY OFF

ON SCREEN MODE AUDIO OUT LANGUAGE VCR PLUS+ REF. MAP BLUE BACKGROUND ON

TO END PUSH EXIT

Page 55

Multi-Channel Television Sound System 55

Your VCR can play recordings broadcast in Hi-Fi (high fidelity) stereo, which produces a crisp, clear sound from two sources. Your VCR also can play tapes recorded in a second audio (usually, that means your program is recorded in a second language). Of course, your VCR will play tapes recorded in monaural (single-source) sound as well.

Your VCR also will record in Hi-Fi stereo or in second audio, so when you play back that tape on the VCR, it will be in stereo or second audio.

Read the directions on this page to familiarize yourself with your VCR’s stereo and second audio setups. Then follow the directions on page 56 to record in stereo or second audio and the directions on page 57 to play back tapes recorded in Hi-Fi stereo.

Understanding On-Screen Displays

When you receive a signal from a channel you’re watching, portions of the on-screen display shown below will appear when you press the STATUS/EXIT button on the remote control.

To record and play back programs broadcast in stereo, even if you have a Single-Speaker TV, just use one of the connections shown, then follow the steps on pages 56-57.

The indication 2ND AUD or TVSTEREO that appears on this side of the status display tells you if your VCR is programmed to receive a second audio or stereo broadcast (it cannot be programmed to receive both at the same time). Follow the steps on page 56 to program the VCR to receive a second audio or stereo broadcast.

The indication 2ND AUDor STEREO that appears on this side of the status display tells you if the program you’re watching is available in second audio or stereo. Even though a program is available in second audio or stereo, you still must program the VCR to receive or record the program. Follow the directions on page 56. This indication is not available during tape playback.

STOP 12:00 AM TV STEREO CH 02

STEREO

2ND AUD

SLP 1:23:45 HIFI

CH3CH4

OUT

ANT

VIDEO

OUT

AUDIO

Stereo Amplifier

or Receiver

Monitor

Single-

Speaker TV

Stereo

Speaker TV

For stereo sound, connect the audio cables to the AUDIO OUT Jacks on the VCR and to the AUDIO IN Jacks on the Stereo Amplifier or Receiver. Then, connect the video cable to the VIDEO OUT Jack of the VCR and to the VIDEO IN Jack of a monitor TV.

OR, connect only the RF coaxial cable (supplied) to the VCR’s OUT Jack and

to the TV’s ANTENNA IN Jack.

Page 56

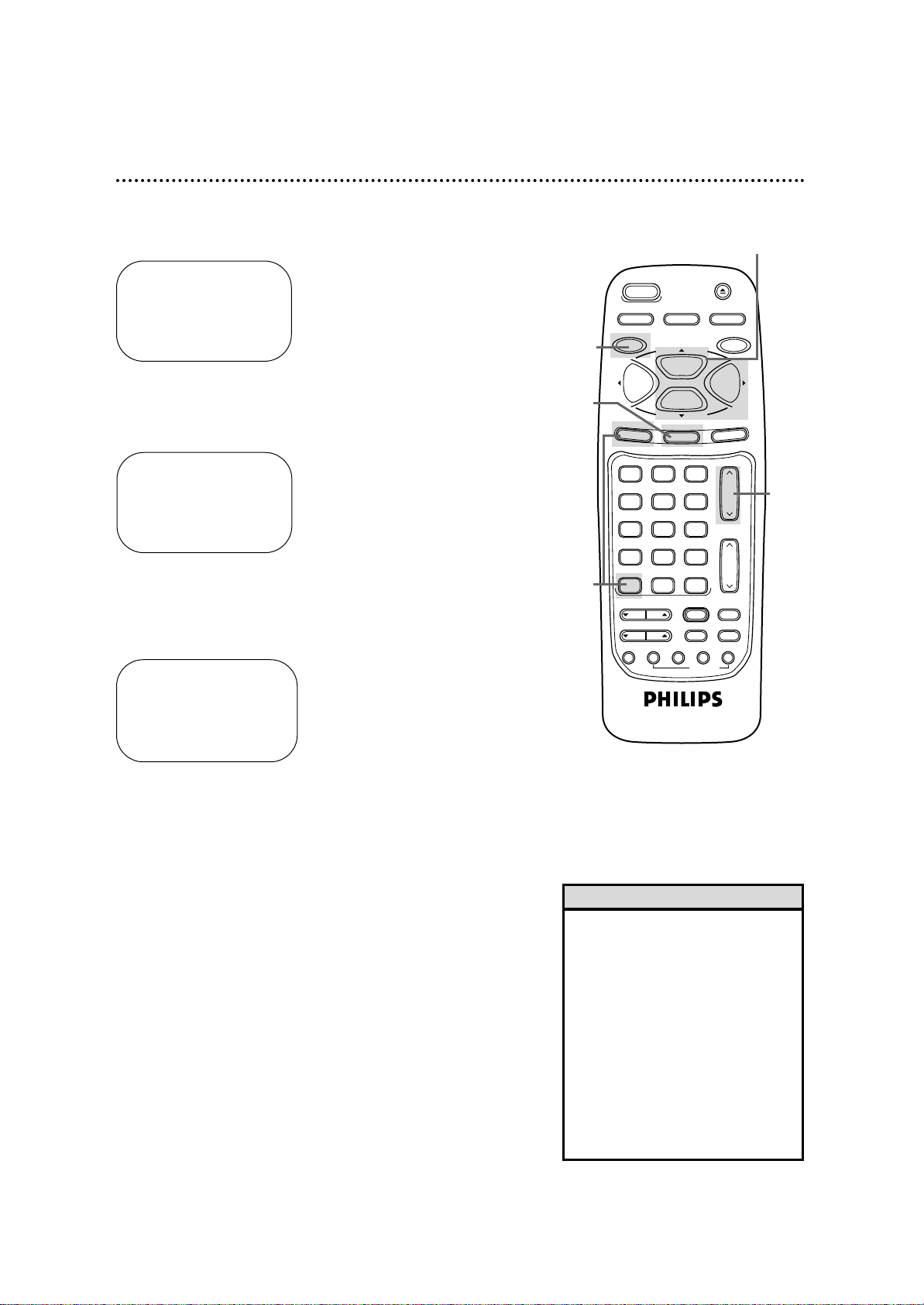

56 Multi-Channel Television Sound System (cont’d)

Press the VCR button, then press the MENU button.

Press the PLAY/o button or the STOP/p button to select TUNER SET UP, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button to select TV STEREO or 2ND AUDIO. Then, press the F.FWD/B button. ON will appear to the right of your selection.

Press the STATUS/EXIT button.

To record, select the channel to be recorded using the CH(annel) o/p button, then go to step 6.

Press the REC(ord)/OTR button to start recording.

SELECT op CHOOSE B

→AUTO PROGRAMMING

ADD/DELETE CH CH MEMORY REVIEW TV STEREO ON 2ND AUDIO

TO END PUSH EXIT

SELECT op CHOOSE B

AUTO PROGRAMMING ADD/DELETE CH CH MEMORY REVIEW TV STEREO

→2ND AUDIO ON

TO END PUSH EXIT

• You can only receive and record in stereo or second audio programs that are broadcast in stereo or second audio. You can only play in stereo or second audio tapes that were recorded in stereo or second audio. Please see page 55 to determine if the program you want to watch/record is being broadcast in stereo or second audio.

• If you select second audio when second audio is not available, the VCR will record normal audio.

Helpful Hints

2-3

SELECT op CHOOSE B

→PROGRAM

VCR SET UP TUNER SET UP SET CLOCK AUTO DBS OFF

RECORD LINK

TO END PUSH EXIT

POWER

VCR/TV

REC/OTR

MUTE

VCR TV CBL/DBS

SMART


SPEED

PLAY

STOP

STATUS/EXIT

VAR.SLOW

TRACKING

VCR PLUS+

TIME INDEX

ALT.CH

/ENTER

F.ADV

REC END

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

SLOW

X2 PLAY

SKIP

Page 57

VAR.SLOW

VCR TV CBL/DBS

VOL.

CH.

MUTE

ALT.CH

TRACKING

F.ADV

VCR/TV

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

X2 PLAY

SLOW

VCR PLUS+

/ENTER

SMART


TIME INDEX

REC END

SKIP

EJECT

CLEAR

PAUSE/STILL

Hi-Fi Stereo Sound System 57

Press the VCR button, then press the MENU button.

Press the PLAY/o button or the STOP/p button to select VCR SET UP, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button to select AUDIO OUT, then press the F.FWD/B button.

Multi-Channel Television Sound system broadcasts are automatically recorded in Hi-Fi stereo sound. To play in Hi-Fi stereo the tapes recorded in Hi-Fi stereo, however, you’ll need to follow steps 1-5.

SELECT op

→HIFI ON

MONO

TO END PUSH EXIT

• All programs are automatically recorded in both Hi-Fi stereo sound and in monaural sound.

• The audio level of a tape recorded in Hi-Fi stereo will differ from the audio level of a tape not recorded in Hi-Fi stereo.

• Normally, HIFI should be selected from the AUDIO OUT menu for playback with Hi-Fi sound. But, you can change the selection to MONO if you want monaural audio playback. To do this, follow steps 1-3. At step 4, press the PLAY/o button or the STOP/p button to select MONO. Press the STATUS/EXIT button. HIFI will disappear from the status display.

• If you play non-Hi-Fi tapes while the VCR is set to HIFI, HIFI will disappear from the status display and the tape will play in monaural sound.

Please see additional notes on page 59.

Helpful Hints

2-4

SELECT op CHOOSE B

→PROGRAM

VCR SET UP TUNER SET UP SET CLOCK AUTO DBS OFF

RECORD LINK

TO END PUSH EXIT

SELECT op CHOOSE B

→ REPEAT PLAY OFF

ON SCREEN MODE AUDIO OUT LANGUAGE VCR PLUS+ REF. MAP BLUE BACKGROUND ON

TO END PUSH EXIT

Press the PLAY/o button or the STOP/p button to select HIFI. ON will appear to the right of HIFI on the screen.

Press the STATUS/EXIT button.

SELECT op

→HIFI ON

MONO

TO END PUSH EXIT

Page 58

If you are having problems with your product, check this list of problems and possible solutions before requesting service. You may be able to solve the problem yourself. If you need to call a customer service representative, please know the model number and serial number of your product before you call. This information is displayed on the back of the product. Also, please take a moment to identify the problem you are having, and be prepared to explain this to the representative. If you believe the representative will need to help you with operations, please stay near the product. Our representatives will be happy to assist you.

No power

• Make sure the power plug is completely connected to an AC (alternating current) outlet.

• Make sure the power is turned on.

Power Failure

• With ShowGuard, if the power fails for more than one minute, programmed timer recordings will be restored when the clock is reset. (The clock will reset itself automatically if you are using the AUTO CLOCK feature. Details are on pages 17-18. If you are not using the AUTO CLOCK feature, reset the clock manually. Details are on pages 15-16.) The timer recording will not occur only if the timer recording was scheduled to take place during the power failure.

A TV program cannot be recorded.

• Check the connections between the VCR, TV, antenna/cable, and Cable Box/Direct Broadcast System (if applicable). Details are on pages six-10.

• Make sure the tape has a record tab. Details are on page five.

• Check the TV/VCR position. Details are on pages 24, 27, and 28.

• Check the CH3/CH4 switch. Details are on pages six-nine.

The VCR will not perform a timer recording.

• Make sure the recording start and stop times are set correctly. Details are on pages 34-41.

• Make sure a tape is in the VCR and the tape has a record tab (page five). If, after programming a timer

recording, you turn off the VCR power without putting a tape in the VCR, the Timer light will blink.

• If the record tab on a tape is missing, the VCR will eject the tape. The Timer light will blink.

• Make sure the VCR power is off.

• Make sure the clock is set. Details are on pages 15-18.

• If you have a Cable Box/Direct Broadcast System, timer recordings are programmed differently. Details are on page eight.

• Finish programming a timer recording at least five minutes before the recording is set to begin.

• Noon is 12 p.m.; midnight is 12 a.m.

There is no playback picture or the playback picture is noisy or contains streaks.

• Make sure the TV is on the same channel as the VCR’s CH3/CH4 switch.

• Make sure the VCR is in VCR position. (The VCR light will appear on the display panel.)

• Make sure channel 03 or 04 is properly adjusted at the TV.

• Adjust the tracking. Details are on page 45.

• TVs placed too close to the VCR can cause interference during tape playback. Move the VCR away from

the TV.

The VCR cannot be controlled with the remote control.

• Press the VCR button, then try the other VCR feature buttons.

• Make sure the VCR light appears on the display panel. If it does not, press the VCR/TV button once.

• Aim the remote control directly at the VCR’s remote sensor. Details are on page 28.

• Remove all obstacles between the remote control and the VCR.

• Inspect and/or replace the batteries in the remote control. Details are on page five.

The VCR does not respond normally to the remote control. (For example, the VCR may

change channels multiple times when you press the CH(annel) o button once.)

• Install new batteries (preferably alkaline) in the remote control.

The Number buttons won’t work for channels above 69.

• Enter channel numbers as a two-digit number. If you want to select channels 100 and above, enter channel numbers as a three-digit number. Details are on page 25.

58 Helpful Hints

Page 59

TV programs cannot be watched normally.

• Put the VCR in TV position. (Press the VCR/TV button so that the VCR light disappears from the display panel. Details are on pages 24, 27, and 28.)

• Check the connections between the VCR, TV, antenna/cable, and Cable Box/Direct Broadcast System (if applicable). Details are on pages six-10.

Tape cannot be inserted.

• Insert the tape, window side up, with the record tab facing you.

• Make sure a tape isn’t already in the VCR by pressing the STOP/EJECT button on the VCR.

• Gently push on the center of the tape when putting it in the VCR. Never force the tape into the VCR.

• If a timer recording is programmed and the VCR power is off, you can not insert a tape without a

record tab.

Tape cannot be removed.

• Make sure the power plug is connected completely to a power outlet.

VCR ejects the tape when the REC(ord)/OTR button is pressed or when the VCR power is turned off to set a timer recording.

• Make sure the tape has a record tab. Details are on page five.

Poor reception

• You may need to tune your TV again.

The motor (cylinder) rotates even when the VCR is in Stop mode.

• To enable the quick play mechanism, the cylinder will rotate for about five minutes. This is normal. The quick play mechanism enables the tape mechanism to switch from Stop mode to Play mode in one second.

Line Input mode

• If you accidentally enter Line Input mode (AV FRONT or AV REAR will appear on your TV screen briefly), press the CH(annel) o/p button or use the Number buttons to select another channel.

Hi-Fi Stereo Sound

• During playback, Hi-Fi audio may temporarily revert to normal audio when you adjust tracking. This is normal.

• When connecting the VCR to a stereo TV, you will only get stereo sound if you use audio cables to connect the AUDIO OUT jacks on the VCR to the AUDIO IN jacks on your TV. Make sure the TV is in Line (Auxiliary) Input mode.

• When you connect the AUDIO OUT jacks on the VCR to the AUDIO IN jacks on your TV, the stereo light on the TV might not glow. As long as the VCR status display indicates you are receiving a stereo signal, you are receiving a stereo signal. This is normal.

• Only tapes recorded in Hi-Fi audio will play back in Hi-Fi audio. Tapes recorded in normal audio will play back in monaural (single sound source) audio.

Cleaning the Video Heads

• Your VCR automatically cleans the video heads each time you insert a tape. However, the heads may become dirty. If so, use a commercially-available head cleaner or have an authorized servicer clean the video heads. Eventually, the heads may need to be replaced.

The playback picture is too dim, too bright, or fluctuates in brightness.

• Some programs may be broadcast with copyright protection technology in order to protect the rights of copyright owners. This technology is used on programs that are recorded on video tapes or Digital Video Discs (DVDs), as well as some programs broadcast by antenna/cable/satellite television channels. Programs broadcast with copyright protection technology may not record clearly. Likewise, if you play a tape that is a recording of a copyright protected program, the picture may not be clear. Tapes of copyright protected programs may have a picture that is dark or dim, or the brightness of the picture may fluctuate. Therefore, you should avoid recording or playing copies of copyright protected programs. This VCR incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Helpful Hints (cont’d) 59

Page 60

60 Glossary

AUDIO IN/OUT Jacks: jacks located on the front and back of the VCR which are used to record audio from another source (IN) or to send audio to another system (OUT).

Automatic Channel Setup:

process in which the VCR memorizes all available channels. Then, when you press the CH(annel) o/p button, you only scan through channels you receive.

Bands:

settings that allow you to tune channels.

• Antenna – VHF (very high frequency; channels 2-13) and UHF

(ultra high frequency; channels 14-69).

• Cable – all standard channels can be received without a Cable

Box/DBS.

Cable Box/DBS Output Channel:

03 or 04.

Dubbing:

copying a tape using a second VCR.

Frame:

a still picture.

HQ:

high quality; a feature in the VCR circuitry which provides

enhanced picture detail.

Line Input:

The channel to which you set your VCR during dubbing. If you use the AUDIO and VIDEO In jacks on the front of the VCR, select channel 002 (AV FRONT). If you use the AUDIO and VIDEO IN jacks on the back of the VCR, select 001 (AV REAR).

If you accidentally enter Line Input mode, press the CH(annel) o/p button or use the Number buttons to select another channel.

OTR:

One-Touch Recording; a timed recording that starts imme-

diately and records for 30 minutes to eight hours.

Remote Control:

the small electronic unit that came with your VCR; allows you to operate your VCR from a distance. You may be able to operate your TV, Cable Box, or Direct Broadcast System with the remote control.

RF coaxial cable:

The cable supplied with your VCR. Use it to connect your VCR to your TV (or Cable Box or DBS). The supplied cable is a snap-on type. However, you may use a screw-on type if you prefer.

Special Effects:

forward and reverse searching; a still picture;

slow motion playback.

Tape Speeds:

how fast the tape travels during a recording or

playback.

• SP (standard play) – fastest tape speed (recording time for a

T120 tape is approximately two hours); best picture quality.

• LP (long play) – average tape speed; playback only.

• SLP (super long play) – slowest tape speed (recording time for

a T120 tape is approximately six hours).

VCR:

video cassette recorder.

VIDEO IN/OUT Jacks:

jacks located on the front and back of the VCR which are used to record video from another source (IN) or to send video to another system (OUT).

Page 61

Specifications 61

Video Heads

Four heads – Hi-Fi

Video Signal

EIA standards; NTSC color

Antenna

VHF/UHF – 75 ohm external antenna terminal

VHF Output Signal

Channel 03 or 04 (switchable) 75 ohms unbalanced

Power Requirement

120V AC; 60Hz

Power Consumption

14W

Operating Temperature

41°F (5°C) to 104°F (40°C)

Relative Humidity

10% to 80%

Weight

5.73 lbs. (2.6 kg.)

Dimensions

15-3/4” (W) x 3-1/16” (H) x 8-3/4” (D) (400mm x 92mm x 223mm)

Tuner Broadcast Channels

VHF 2-13, UHF 14-69

Cable TV Channels

1 – 125

NOTE: Designs and specifications are subject to change without notice.

Page 62

VIDEO CASSETTE RECORDER or PLAYER

90 days Free Exchange / 91 days–One Year Reduced-Cost Exchange

WHO IS COVERED?

You must have proof of the date of purchase to exchange your product. A sales receipt or other document showing the date that you purchased the product is considered such proof.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For 90 days thereafter, you may exchange the defective product for a new product at the store from which it was purchased or through Philips. This exchange is made at no cost to you. From 91 days to one year from the date of purchase, you must follow the exchange procedures set out on the next page. For an exchange during this warranty period you must pay $29.95 for a new or renewed product. This reduced-cost exchange ends one year after the date of purchase. The replacement product is covered only for the warranty period of the original product. When the warranty on the original product expires, the warranty on all replaced products also expires.

WHAT IS EXCLUDED?

Your warranty does not cover:

• labor charges for installation or setup of the product,

adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.

• product repair and/or part replacement because of mis-

use, accident, unauthorized repair or other cause not within the control of Philips Consumer Electronics.

• reception problems caused by signal conditions or cable

or antenna systems outside the product.

• a product that requires modification or adaptation to

enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.

• incidental or consequential damages resulting from the

product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)

• damage caused by the use of non-VHS tapes or tapes

that have not been tested and labeled for use in two, four, six, and eight hour VHS recorders.

• a product that is used for commercial or institutional

purposes (including but not limited to rental purposes).

WHERE IS EXCHANGE AVAILABLE?

Warranty exchange is available in all countries where the product is officially distributed by Philips Consumer Electronics. In countries where Philips Consumer Electronics does not distribute the product, the local Philips

service organization will attempt to exchange the product, although there may be a delay if the appropriate product is not readily available.

MAKE SURE YOU KEEP...

Please keep your sales receipt or other document showing proof of date of purchase. Attach it to the owner’s manual and keep both nearby. Also keep the original box and packing material in case you need to return your product.

BEFORE EXCHANGING THE PRODUCT...

Please check your owner’s manual before exchanging the product. Adjustments of the controls discussed there may save you time and money.

TO EXCHANGE YOUR PRODUCT IN THE U.S.A., PUERTO RICO, OR U.S. VIRGIN ISLANDS...

Follow the instructions stated previously in the “What is Covered” section, or refer to the exchange instructions on the next page. In the U.S.A., Puerto Rico, and U.S. Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. Because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.

TO EXCHANGE A PRODUCT IN CANADA...

Please contact Philips at:

1-800-661-6162 (French Speaking)

1-800-363-7278 (English Speaking) In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special, incidental, or consequential damages, howsoever incurred, even if notified of the possibility of such damages.

TO GET OUT-OF-WARRANTY EXCHANGE...

In the U.S.A., Puerto Rico, or U.S. Virgin Islands, contact Philips Service Solutions Group at 1-800-531-0039 to obtain the cost of out-of-warranty exchange.

REMEMBER...

Please record below the model and serial numbers found on the product. Also, please fill out and mail your warranty registration card promptly. It will be easier for us to notify you if necessary. MODEL#__________________________________ SERIAL#__________________________________

This warranty gives you specific legal rights. You may have other rights which vary from state to state.

Philips Service Solutions Group, P.O. Box 2976, Longview, Texas 75606, (903) 242-4800

EL6466E001 /12-99

62 Limited Warranty

Page 63

If your product is defective, you may be able to exchange it at the store from which it was purchased.

Most stores display a Return Policy. If not, ask the manager or sales associate how many days you have to exchange a product with them. After the store’s return period has expired, you may exchange the product with Philips if you have your original sales receipt.

To exchange your product with Philips (per the warranty conditions stated previously), remember:

• If you exchange the product within 90 days of the original purchase, there is no cost to you.

• If you exchange the product more than 90 days after but less than one year after the day of original purchase, your cost will be $29.95.

• After 12 months from the day of original purchase, contact Philips Service Solutions Group at 1-800-531-0039 for information regarding out-of-warranty exchange.

• If you do not have your original sales receipt, or if you have any questions, call Philips Service Solutions Group at 1-800-531-0039.

To obtain a replacement product from Philips:

1. Complete the Exchange Form below.

2. Pack the product and its accessories (remote control, rf coaxial cable, owner’s manual, and car battery cord, if

applicable) in the original box or a suitable alternative. You will receive replacement accessories with your replacement product. For packing details, call 1-800-531-0039.

3. Put the completed Exchange Form, a copy of the original sales receipt, and the proper payment in an envelope. Do not staple or clip these items together. Label the envelope “Return Documents Enclosed.” Place this envelope in the box with the product.

4. Seal the box with packing tape and return the product, insured and freight prepaid, to:

Philips Consumer Electronics El Paso Recovery Center Suite A, 12375 Pine Springs Drive

El Paso, Texas 79927 A replacement will be sent to you via United Parcel Service (UPS) within 48 business hours of Philips’ receipt of the product.

EXCHANGE INSTRUCTIONS

Limited Warranty (cont’d) 63

EXCHANGE FORM

Your Address (street address to which replacement should be delivered, no P.O. boxes allowed):

Name: Street Address: Apt. #: City: State: Zip Code:

Payment Amount: __________ Method of Payment: (Check one. Please, no cash or CODs.)

_____ Check or money order

Account number Expiration date _____ American Express ___________________________ __________ _____ Visa ___________________________ __________ _____ Novus/Discover ___________________________ __________ _____ Mastercard ___________________________ __________

Signature: _____________________________________________________________ Detailed reason for return, use additional paper if necessary: _____________________________________________ _______________________________________________________________________________________________

Remember, the return box should include the following:

• The product,

• Completed Exchange Form and sales receipt,

• Accessories supplied with the product, and

• Payment, if applicable.

Page 64

ac power cord .................................29

accessories.......................................68

alt.ch button.....................................25

ant(enna) in jack...................6-10, 29

audio in/out jacks..............10, 28-29,

....................................43, 55, 60

auto dbs recordlink........................42

automatic

playback.......................................45

rewind, eject, off........................45

batteries..............................................5

blue background..............................54

cbl/dbs button ......................5, 22, 24

cassette compartment ...................27

cassette-inside light........................27

ch3/ch4 switch........................6-9, 29

channel

adding...........................................13

deleting........................................13

reviewing.....................................14

selection......................................25

setup.......................................11-14

o/p buttons ...............24, 28, 45

child lock...........................................48

clear button...............................23, 53

clock/feature display.......................27

clock setting...............................15-19

connections....................6-10, 43, 55

contents, table of..............................4

controls

remote...................................23-25

vcr.................................................28

counter only mode.........................26

daylight-savings time.......................19

display panel .....................................27

duplication........................................43

eject button......................................23

erasure prevention...........................5

f(rame). adv(ance) button......24, 47

f.fwd/B button..................23, 28, 46

front panel........................................28

glossary..............................................60

head cleaner.........................5, 59, 62

helpful hints ................................58-59

hi-fi stereo sound system.............57

hookups

with cable box/dbs..................8-9

with stereo tv.............................10

without cable box/dbs............6-7

index search button................24, 51

language selection....................11, 20

line input mode.................12, 43, 60

long play.....................................36, 60

lp ................................................36, 60

memory button........................23, 53

menu button.............................25, 28

mute button.....................................25

number buttons..............................25

on-screen status displays..............26

one-touch recording......................32

out jack.....................................6-9, 29

pause button....................................28

pause/still button......................23, 47

play/K button ....................23, 30, 46

playing ................................................30

power

button....................................23, 28

cord..............................................29

pwr.(power) light............................27

real-time counter............................53

rear panel .........................................29

rec/otr button.............25, 28, 31, 32

rec(ord) end search button..23, 52

record light.......................................27

recording

basic ..............................................31

one channel/

watching another.......................33

prevention.....................................5

timer.......................................34-37

with the vcr plus+

programming system..........38-41

remote control

buttons...................................23-25

sensor...........................................28

using ................................................5

repeat play........................................44

rerecording......................................43

rew(ind)/s button...........25, 28, 46

rf coaxial cable.................6-9, 43, 60

safety precautions.............................3

searching...........................................46

second audio broadcast

receiving...........................55-56

recording..........................55-56

sensor (remote) ..............................28

showguard.................................37, 58

skip search button...................23, 52

slow

button ..........................................23

motion..........................................47

slp................................................36, 60

smartclock........................................17

smart picture button...............24, 49

sp ................................................36, 60

speed button....................................24

standard play.............................36, 60

status display ....................................26

status/exit button..............24, 26, 28

stereo

broadcast

receiving...........................55-56

recording..........................55-56

hookups.......................................55

still picture........................................47

stop/L button..................................24

stop/eject button............................28

super high speed searching..........46

super long play.........................36, 60

table of contents...............................4

tape

duplication...................................43

eject................................23, 28, 45

speed.....................................36, 60

time

search button......................24, 50

setting.....................................15-19

timer

light...............................................27

recording

cancelling................................37

checking..................................37

setting...............................34-36

with vcr plus+ programming

system...............................38-41

tracking button .........................25, 45

button ...............................5, 21, 24

controls......................5, 21, 23-25

hookups...................................6-10

position.................................24, 28

var(iable). slow button ...........25, 47

vcr

button......................................5, 24

light...............................................27

plus+

programming system..........38-41

plus+/enter button.......21-23, 40

position.................................24, 28

vcr/tv button.............................24, 28

video in/out jacks..............10, 28-29,

....................................43, 55, 60

vol(ume)

o/p button ...................23

warranty......................................62-63

x2 play button..........................23, 46

64 Index

Page 65

Page 66

Page 67

Page 68

IB8213E001

Printed In China

0VMN02447 / H59W0UD * * * * *

SUPPLIED ACCESSORIES

OPTIONAL ACCESSORIES

The following items are supplied with your VCR; they

are provided to help you use or set up your VCR.

The following additional items are not provided with your VCR, but they are designed for use with your new VCR. To order these optional accessories, contact us at:

Philips Parts & Accessories Marketing Department

401 East Old Andrew Johnson Highway

P.O. Box 555

Jefferson City, TN 37760

1-800-851-8885.

VHS Cassette Rewinder

#M61117

Three Cassette Storage Cases (plastic)

Fits VHS and Beta cassettes

#M61104

Six High-grade, VHS, T-120 Cassettes

#MHG1206

RF Coaxial Cable, 75 ohm

4835 323 27011

Remote Control 4835 218 37283

Two AA Batteries 4835 138 17012

This owner’s manual is made of recyclable materials. Remember to recycle!

As an ENERGY STAR®Partner, Philips Consumer Electronics has determined that this product meets the E

NERGY STAR

guidelines for energy efficiency.

NERGY STAR

is a U.S. registered mark.

Stereo Audio and Video Cables (6 feet)

M61106 (gold connectors)

M61105 (color-coded connectors)

POWER

VCR/TV

EJECT

REC/OTR

SPEED

MEMORY

PAUSE/STILL

PLAY

STOP

MUTE

VCR TV CBL/DBS

VAR.SLOW

TRACKING

SMART PICTURE

TIME INDEX

F.FWDREW

STATUS/EXIT

CLEAR

CH.

ALT.CH

VOL.

VCR PLUS+ /ENTER

SLOW

F.ADV

X2 PLAY

REC END SKIP
