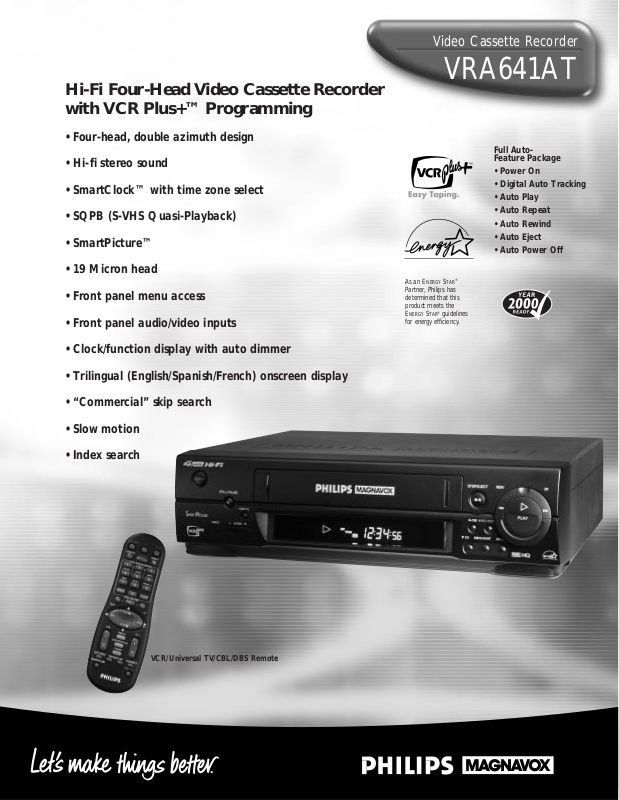

Philips VRA641AT User Manual

Hi-Fi Four-Head Video Cassette Recorder with VCR Plus+™ Programming

• Four-head, double azimuth design

• Hi-fi stereo sound

• SmartClock™ with time zone select

• SQPB (S-VHS Quasi-Playback)

• SmartPicture™

• 19 Micron head

• Front panel menu access

• Front panel audio/video inputs

• Clock/function display with auto dimmer

• Trilingual (English/Spanish/French) onscreen display

• “Commercial” skip search

• Slow motion

• Index search

Video Cassette Recorder

VRA641AT

VCR/Universal TV/CBL/DBS Remote

Full AutoFeature Package

• Power On

• Digital Auto Tracking

• Auto Play

• Auto Repeat

• Auto Rewind

• Auto Eject

• Auto Power Off

As an ENERGY STAR

Partner, Philips has determined that this product meets the E

NERGY STAR

guidelines

for energy efficiency.

Video Cassette Recorder

VRA641AT

Programming & Playback Features

Hi-Fi Stereo Sound with Built-In MTS/SAP Decoder

Record stereo videotapes from stereo sound sources and playback pre-recorded hi-fi stereo tapes in hi-fi stereo sound–with an excellent 90dB+ dynamic range–through a stereo-equipped TV or regular TV and stereo hi-fi home audio system. The built-in MTS/SAP decoder allows reception and recording of off-air television stereo broadcasts and second audio program transmissions, where available. Back-up memory logic retains the cable channel guide map indefinitely even during a power failure or when the VCR is disconnected from its power source.

VCR Plus+™ Programming

Simplifies VCR programming by allowing you to simply enter PlusCode® programming numbers found in many published television listings. When recording begins, your VCR automatically selects the proper TV channel and program length. Back-up memory logic retains the cable channel guide map indefinitely even during a power failure or when the VCR is disconnected from its power source.

One-Touch Record 8-Event/1-Year Smart Programming Remote Control Onscreen Menu Programming


SmartPicture™

Customize picture to your viewing preferences for maximum enjoyment with SmartPicture. A touch of the SmartPicture button on the remote control provides the option of selecting one of four factory preset positions including natural, distinct, soft, or sharp.

SQPB (S-VHS Quasi-Playback)

A revolutionary video playback technology that allows you to watch videotapes recorded in the S-VHS (Super-VHS) mode. Now you too can enjoy the videos that your Uncle made at the last family reunion without buying expensive S-VHS equipment.

4-Head, Double Azimuth Design

Combines direct drive cylinder and capstan motors with precision digital servo control to produce excellent special effects reproduction–Still, Slow, and with the appropriate remote control, Frame Advance, Variable Slow Motion and x2 Play–in both SP and SLP speeds.

19 Micron Head Digital Auto Tracking System Auto Head Cleaner

Convenience

SmartClock™

This menu-driven feature automatically maintains the correct time, regularly checking and updating the time if necessary. It also resets the clock after a power failure.The menu-driven time zone feature allows selection of appropriate time for those who live in a time zone other than that of their CATV service provider.

Front Panel Menu Access

Access most menu operations conveniently and quickly through the front panel of the VCR.

Front Panel Audio/Video Inputs

Provide added convenience to the user when recording tapes directly from a camcorder to the VCR. In addition, accessory video equipment such as a video game or Web browser can be connected for direct playthrough to the TV set.

Daylight Savings Time Adjustment Clock/Function Display with Dimmer Trilingual (English/Spanish/French) Onscreen Display Automatic Channel Setup 181-Channel FS Tuning Onscreen Real-Time Counter Timer/Programmer Backup System Repeat Play Quick Start Mechanism Audio/Video Input/Output Jacks

Special Effects

21x Forward/Reverse Latching Search

Search in forward or reverse mode at 21 times normal playing speed in SLP, and 7 times normal in SP. The Latching Search feature provides continuous forward or reverse search with a single touch of the control. A second touch stops the search operation and returns the unit to the Play mode.

Slow Motion

View SP or SLP video recordings in slow motion in both forward and reverse modes.

“Commercial” Skip Search

This feature allows short-distance “hops” in playback making it easier to find those elusive, previously recorded scenes. With just one touch of the SKIP SEARCH button on the remote you can fast forward the tape for 30 seconds and then return to the Play mode automatically.

Index Search System

Now you can instantly find the start of a taped program. The Index Search System automatically places an index mark on the videotape at the start of each recording and then instantly locates that mark when activated.

Remote Control

VCR/Universal TV/CBL/DBS Remote

Multifunction infrared remote controls all operating features and functions of this VCR, plus select functions of most Philips Magnavox and some competitive brand television sets, as well as some cable converter/decoders, and standard features of MAGNAVOX, RCA, and SONY digital broadcast satellite receivers. Change channels fast with the numeric direct access keypad and heads-up onscreen display for confirmation.

Full Auto-Feature Package

• Power On

• Digital Auto Tracking

• Auto Play

• Auto Repeat

• Auto Rewind

• Auto Eject

• Auto Power Off

UPC: 037849880210 Product Dimensions: 14.2"W x 3.7"H x 10.4"D Product Weight: 6 lbs. Carton Dimensions: 17.9"W x 7.3"H x 14"D Carton Weight: 8 lbs. Master Pack: 1

Contains: Four-Head, Hi-Fi Stereo Video Cassette Recorder, VCR/Universal TV/CBL/DBS Remote Control with Batteries, RF Coaxial Cable, Operating Instructions, Warranty Information

INTERNET ADDRESS: http://www.philipsusa.com Printed in U.S.A.

KID Design 981198

Subject to modification without notice.

* ENERGY STAR is a U.S. registered trademark.

SmartClock and SmartPicture are registered trademarks of Philips Consumer Electronics Company. VCR Plus+ is a registered trademark of Gemstar Development Corporation. The VCR Plus+ system is manufactured under license from Gemstar Development Corporation.
