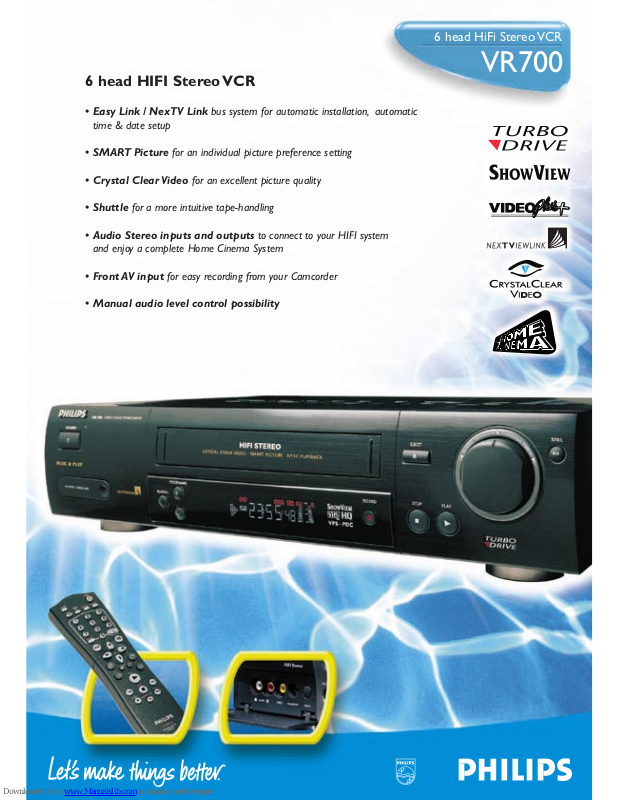

Page 1
6 head HIFI Stereo VCR
• Easy Link / NexTV Link bus system for automatic installation, automatic
time & date setup
• SMART Picture for an individual picture preference setting
• Crystal Clear Video for an excellent picture quality
• Shuttle for a more intuitive tape-handling
• Audio Stereo inputs and outputs to connect to your HIFI system
and enjoy a complete Home Cinema System
• Front AV input for easy recording from your Camcorder
• Manual audio level control possibility
6 head HiFi Stereo VCR
VR700
Page 2
6 head HiFi Stereo VCR
VR700
Subject to modification without notice
ShowView and VideoPlus are Trademarks of Gemstar Development Group
Product Highlights
• Easy Link / NexTView Link
What would you say if your VCR could be installed automatically
just by connecting it to your TV?
Wouldn't it be nice if the TV could switch on automatically when
you use the VCR?
Wouldn't it be ideal if, after having surfed through the Electronic
Programme Guide, you could programme the VCR's timer by just
selecting the film you want and without leaving the TV remote
control?
This is not a dream.This is NexTView Link.
• Crystal Clear Video
With this unique feature, our engineers have put all their
knowledge on the drawing board.The result?
• New laser cut video heads: You have the ultimate in head
technology and an extended life duration.
• Digital Studio Tracking system:A guarantee that the head will not
drift away from the track and therefore that your picture will be
noise-free.
• Natural Colours: Thanks to a sophisticated Noise-Reduction
circuit, the colours look brighter and are virtually noise free.
• Digital Studio Picture Control: Regardless of the tape quality you
use, we make sure that you get the optimum picture quality out
of it.
• SMART Picture
With SMART picture, you can adapt the picture to your own
preference: you can exaggerate the contours on this cartoon or
suppress the noise from that rental tape. We offer you the
possibility to play your tapes the way you like to see them.
• Auto Seek Modulator
Your VCR will automatically search for the best frequency to tune
the modulator to.This guarantees the best possible picture on your
TV set.
• Multibrand Remote Control
Should we say it? Our remote-controls can communicate with
more than 190 different brands of TVs.
Product Information
Reception
• Tuner: Full (UHF + VHF + Hyperband) Tuner
• Tuning: PLL, CH - FREQ entry, 99 presets
• Tuning/Install Features: Guide Channel Mapping,Manual
Search/Store, Plug & Play
User Interface
• Time/Date Download: PDC ,Text (Time/Date)
• Special Features: Child Lock, Demo mode
• Picture Improvement System:Digital Studio Picture Control,
Crystal Clear Video, SMART Picture
• Additional Playback Standard: Black & White, NTSC
• Audio Recording System: Audio only, FM Audio, Linear
• Audio Recording Level: Automatic, Manual
• TV-Related Functions:16:9 (pin 8), Follow TV, Direct Record
• TV-Related Digital Bus Functions:Easy Link / Cinema Link (pin 10)
Programming
• Number of Events: 6/month
• Programming Mode: OTR, Remote
• Record Control & Transmitter Identification: PDC,VPS
• Automatic Sat. Recording: From Ext. 1 and Ext.2
• Record Speed: Long Play, Standard Play
Tape Deck
• Number of Video / FM Audio / Flying Erase Heads: 4 / 2 / 0
• Play: +1, -1, Repeat
• Additional Playback Features: Still, Multiple Search Speeds,
Variable Slow Motion Speed
• Index Related Functions: Next/Previous index search
• Tape Length Recognition: Automatic
• Tape Counter: Linear relative, Linear time used/left
• Automatic Functions at Tape End: Rewind after Play -
Eject after Record
• Winding / Rewinding Time (E180): 90 sec.
• Head Cleaning Mode: Automatic, Manual
Connectors Rear
• EXT1: Black, Euro CVBS in/out
• EXT2: Blue, Euro CVBS in/out,Euro Decoder, RGB loop through
• Audio Conn. Rear: Cinch stereo in, Cinch stereo out
• Terrestrial Antenna In & Out: 75 Ohms (IECtype)
• Mains Connector: Standard (IECtype)
Connectors Front
• Audio/Video Conn. Front: Cinch CVBS in, Cinch stereo in
General
• Voltage: 198-264 V
• Frequency: 50Hz
• Backup Presets & Timer Events: 1yr
• Backup Clock & Calendar: 7hrs
• Power Cons. in Play / Std-By / Low Power Std By:18.0 / 6.0 /
< 4W
• Equipment Supplied: Aerial cable, Mains cord, Remote Control,
Batteries
• Weight incl. / excl. package in kg:6.5 / 4.3
• Set Size - W x D x H (mm): 435 x 290 x 93
• Packaging - W x D x H (mm): 553 x 384 x 180
/02 /07 /16 /39 /58
TV System Off Air PAL B/G PAL I PAL B/G PAL B/G, PAL I, PAL B/G, PAL D/K,
SECAM B/G, SECAM SECAM B/G, SECAM
L/L1 D/K
Sound System Off Air German Stereo, Mono Mono, NICAM German Stereo, Mono, German Stereo, Mono, German Stereo, Mono,
NICAM NICAM NICAM
Modulator System Pal G Pal I Pal G Splitter Pal GK (switchable)
Modulator Features Auto Seek, Electr. Auto Seek, Electr. Auto Seek, Electr. --- Auto Seek, Electr.
On/Off switch On/Off switch On/Off switch On/Off switch
Modulator Range Ch 21 - Ch 55 Ch 21 - Ch 55 Ch 21 - Ch 55 --- Ch 21 - Ch 55
Modulator Preadjustment 591.25 MHz (Ch 36) 583.25 MHz (Ch 35) 591.25 MHz (Ch 36) --- 591.25 MHz (Ch 36)
OSD Menu Languages Czech, Danish, Dutch, English, English Czech, Danish, Dutch, English, Czech, Danish, Dutch, English, Czech, Danish, Dutch, English,
Finnish, French, German, Finnish, French, German, Finnish, French, German, Finnish, French, German,
Hungarian, Italian, Norwegian, Hungarian, Italian, Norwegian, Hungarian, Italian, Norwegian, Hungarian, Italian, Norwegian,
Polish, Portuguese, Russian Polish, Portuguese, Russian Polish, Portuguese, Russian Polish, Portuguese, Russian
Cyrillic, Spanish, Swedish Cyrillic, Spanish, Swedish Cyrillic, Spanish, Swedish Cyrillic, Spanish, Swedish
Delivery Menu Language English English English French English
Record/Playback Standard PAL PAL PAL MESECAM, PAL, MESECAM, PAL
SECAM
Programming System Daily/Weekly, Showview Daily/Weekly, Daily/Weekly, Showview Daily/Weekly, Showview Daily/Weekly, Showview
VideoPlus+
Remote Control RT198 /101 /101 /101 /104 /101
