6 Hookups without a Cable Box/Direct Broadcast System

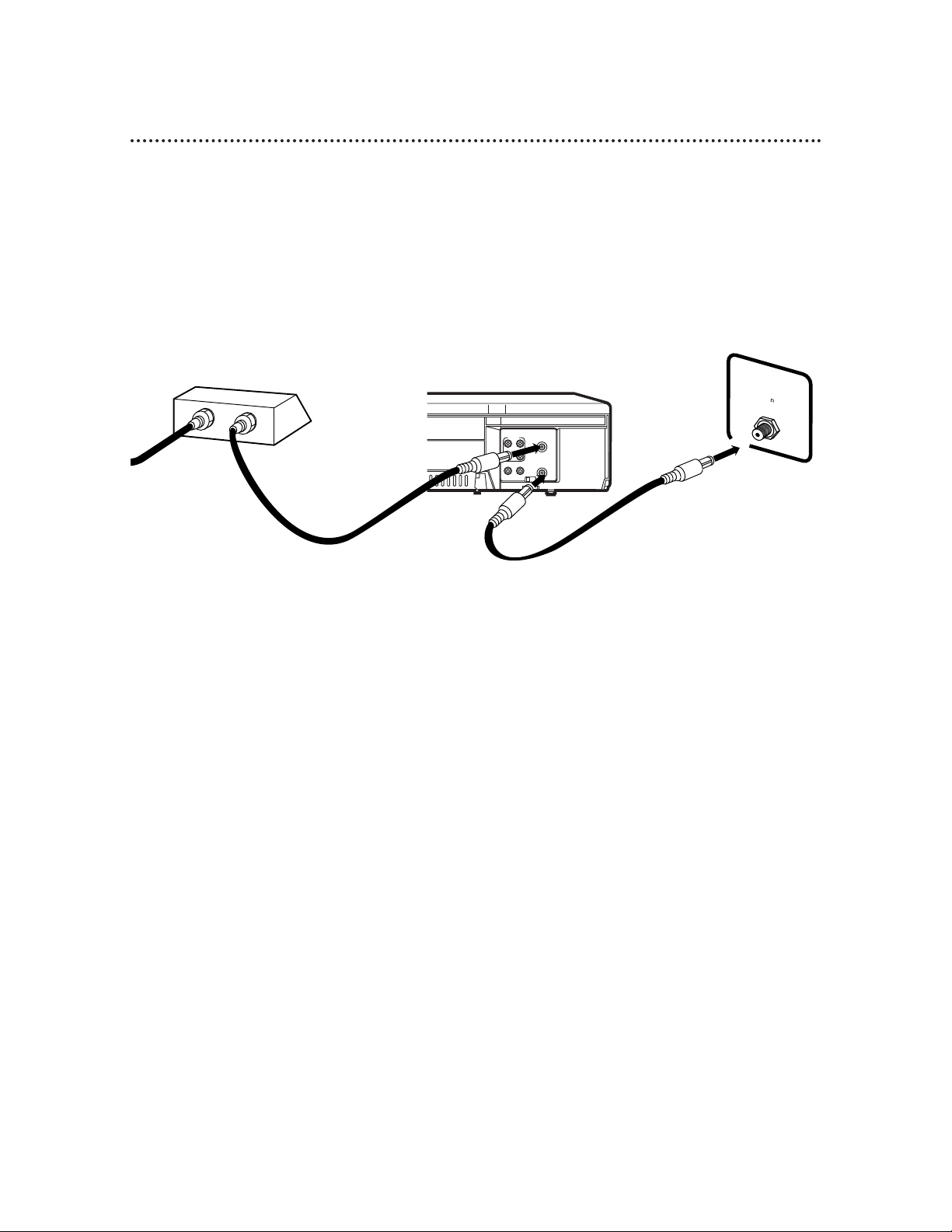

The basic VCR/TV connection – antenna/cable to VCR to TV – is shown below. If you have a

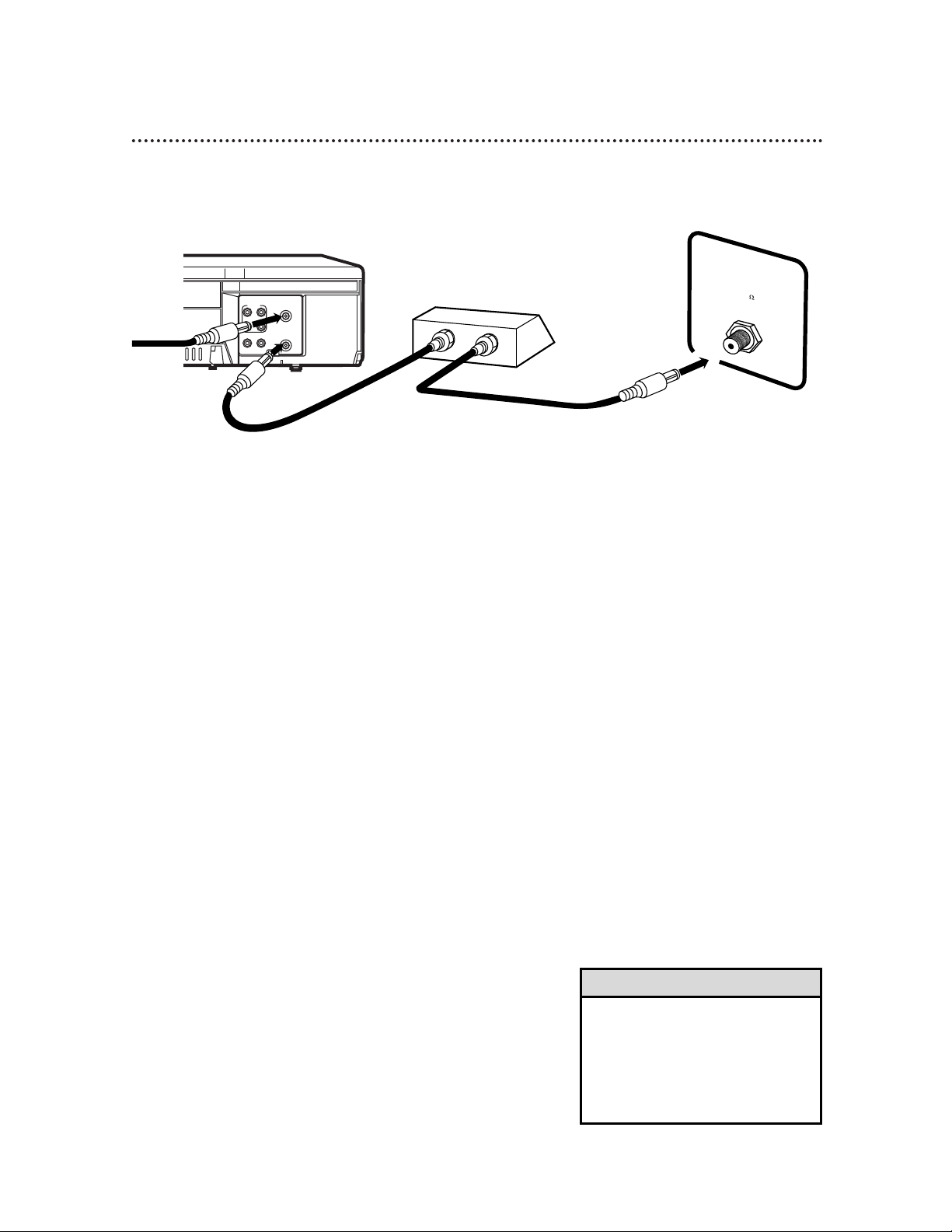

Cable Box or a Direct Broadcast System, please see pages eight-nine. If you have a Stereo

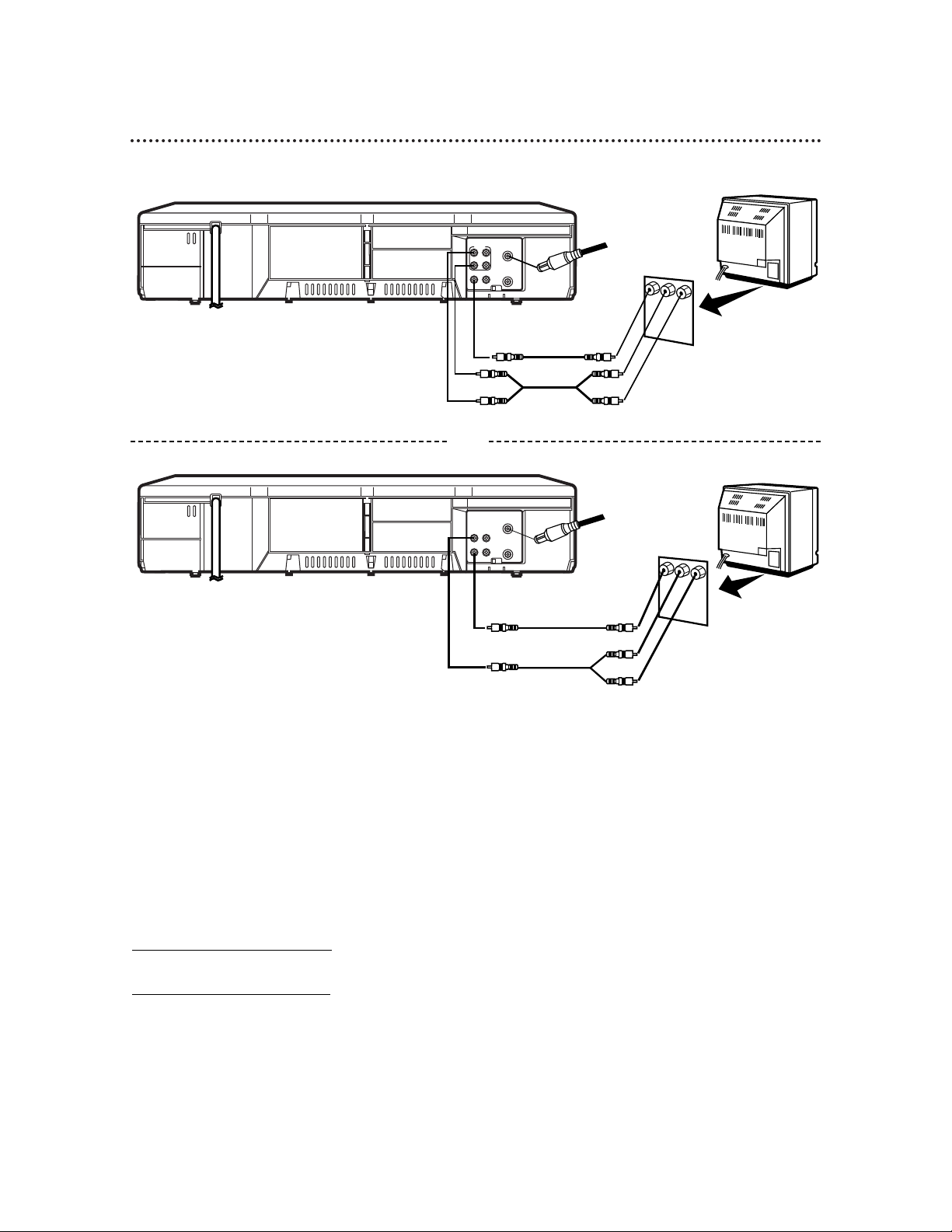

TV, please see page 10. After you hook up the VCR, go to page 11 to turn on the VCR.

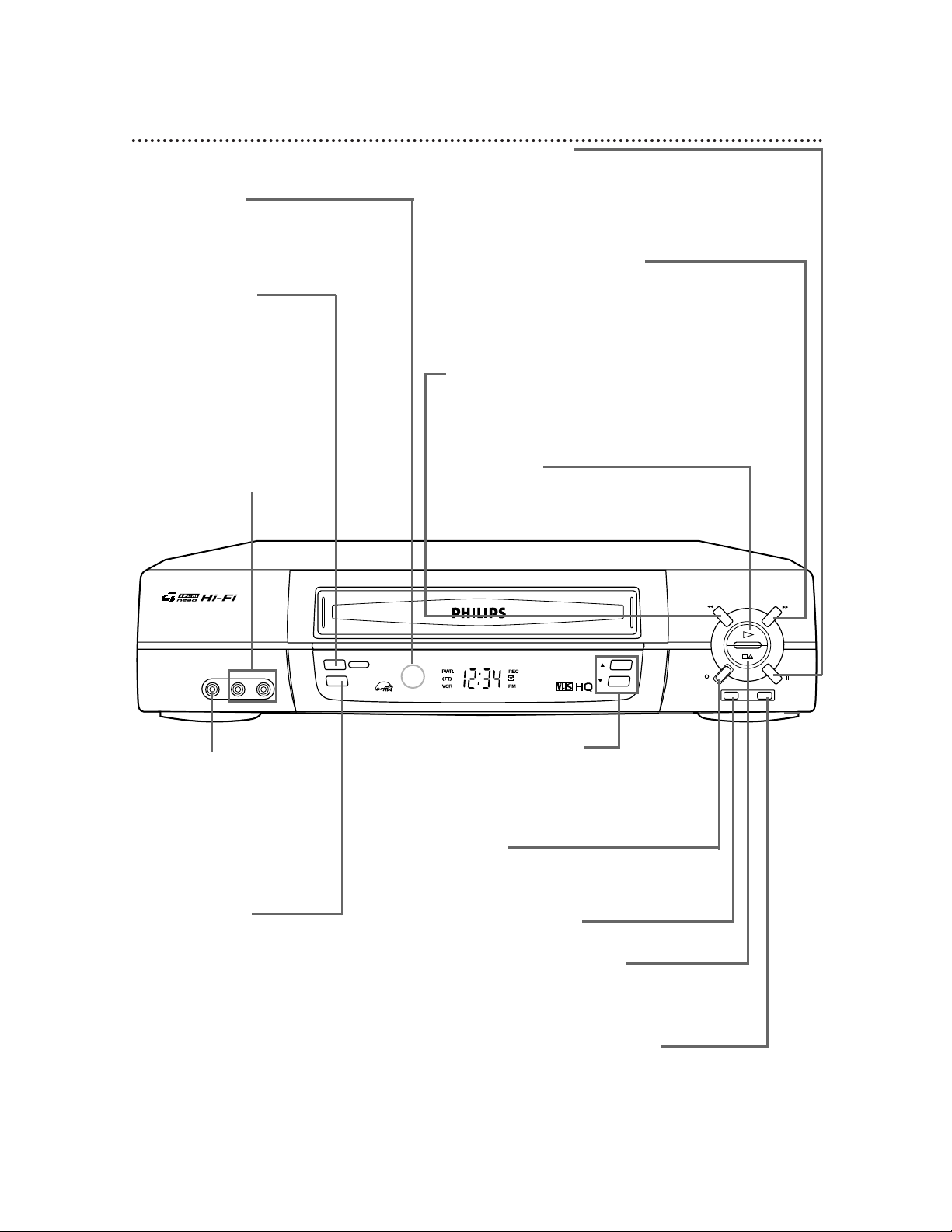

(The VR622CAT is illustrated here. The VR422CAT has single AUDIO IN/OUT jacks.)
ANTENNA IN
Jack
(on back of
TV)
Cable
(75 ohm)

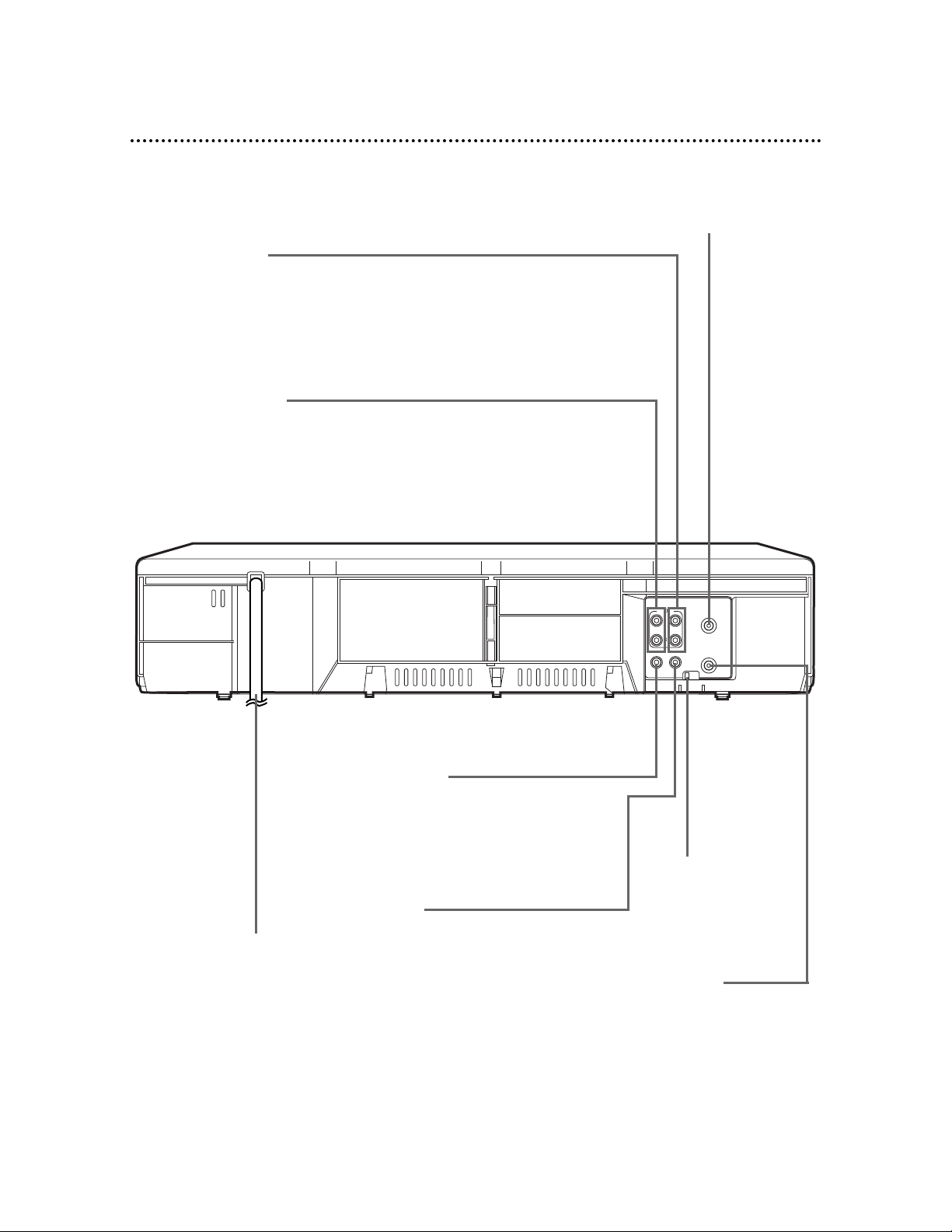

Back of VCR
Antenna
Indoor/Outdoor
(300 ohm)
1
Disconnect the antenna or cable from your TV.
2
Connect the antenna or cable to the ANT(enna) IN Jack of your VCR.
Cable
(75 ohm)
Antenna
Indoor/Outdoor
(300 ohm)
AUDIO
ANT
IN
OUT
VIDEO
L
R
OUT IN
CH3 CH4
OUT IN
AUDIO
ANT
IN
OUT
VIDEO
L
R
OUT IN
CH3 CH4
OUT IN
CH 4
or
CH 3
CH3 / CH4
Switch
CH3 CH4
AUDIO
ANT
IN
OUT
VIDEO
L
R
OUT IN
CH3 CH4
OUT IN
AUDIO
ANT
IN
OUT
VIDEO
L
R
OUT IN
CH3 CH4
OUT IN
75
ANT /
CABLE
75
ANT /
CABLE
supplied black
RF coaxial cable
3
Connect the supplied black RF coaxial cable to the OUT Jack on the back of
the VCR and to the ANTENNA IN Jack on the TV. (You may use either a snap-on
type (supplied) or screw-on type of coaxial cable, whichever you prefer.)
5
Set the CH3/CH4 switch on the back of the VCR to CH3 or CH4, whichever
channel is not used or least used in your area. Set the TV to the same channel. For
example, when playing a tape, if the CH3/CH4 switch is set to CH3, the TV should be on
channel 03.
Hookups without a Cable Box/Direct Broadcast System (cont’d) 7
ANTENNA IN Jack
(on back of TV)
example only
4
Plug in the power cords of the TV and the VCR.
6
You are ready to turn on the VCR. Please go to page 11 before turning on
the VCR.
