Philips VR421CAT99 User Manual

VR421CAT VR621CAT
Video Cassette Recorder Owner’s Manual
Once your PHILIPS purchase is registered, you’re eligible to receive all the privileges of owning a PHILIPS product. So complete and return the Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.
Return your Warranty Registration card today to
benefits
you’re entitled to.
For Customer Use
Enter below the Serial No. which is located on the rear of the cabinet. Retain this infor­mation for future reference.
Model No. ________________ Serial No. ________________
Congratulations on your purchase, and welcome to the “family!”
Dear PHILIPS product owner:
Thank you for your confidence in PHILIPS. You’ve selected one of the best-built, best-backed products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come. As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding ser­vice networks in the industry. What’s more, your purchase guarantees you’ll receive all the infor­mation and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network. And most importantly you can count on our uncompromising commitment to your total satisfaction. All of this is our way of saying welcome-and thanks for investing in a PHILIPS product.
Sincerely,
Robert Minkhorst President and Chief Executive Officer
P.S. Remember, to get the most from your PHILIPS
product, you must return your Warranty Registration Card within 10 days. So please mail it to us right now!
Know these
safetysymbols
This “bolt of lightning” indi-
cates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.
The “exclamation point”
calls attention to features
for which you should read the enclosed literature closely to prevent operating and main­tenance problems.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
CAUTION: To prevent elec­tric shock, match wide blade of plug to wide slot, fully insert.
ATTENTION: Pour éviter les choc électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
R
E
G
I
S
T
R
A
T
I
O
N
N
E
E
D
E
D
W
I
T
H
I
N
1
0
D
A
Y
S
Hurry!
Warranty Verification
Registering your product within 10 days confirms your right to max­imum protection under the terms and conditions of your PHILIPS warranty.
Owner Confirmation
Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.
Model Registration
Returning your Warranty Registration Card right away guaran­tees you’ll receive all the informa­tion and special offers which you qualify for as the owner of your model.
Visit our World Wide Web Site at http://www.philips.com
t
s
Introduction 3
Features
• Automatic Channel Setup
• Automatic Clock Setting with Time Zone
• Automatic Head Cleaner
• Automatic Operation Features
• Automatic Tracking Adjustment
• Blue Background
• Daylight-Savings Time
• Display Panel
• Front Panel Menu Access
• Hi-Fi Stereo Sound System (VR621CAT only)
• High Quality (HQ) System
• MTS (Multi-Channel Television Sound) System (VR621CAT only)
• 19 micron head
• On-Screen Displays in English or Spanish
• One-Touch Recording
• Real-Time Counter
• Remote Control with glow-in-the-dark buttons and the capability to operate a TV, Cable Box, and Direct Broadcast System
• Repeat Play
• S-VHS Quasi Play Back (SQPB)
• Special Effects Playback: Forward and Reverse Searching; Still; Slow Motion
• Time Search
• Timer Recording
Safety Precautions
Warning: To prevent fire or shock hazard, do not expose this equipment to rain or moisture. Federal Communications Commission Warning: Any unau­thorized changes or modifications to this equipment void the user’s authority to operate it.
This VCR is equipped with a High Quality (HQ) system and is com­patible with existing Video Home System (VHS) equipment. Philips Consumer Electronics recommends that you use only video cassette tapes which are labeled with the mark. The use of other tapes may result in poor picture quality and excessive deposits on the video heads, which may not be covered by the war­ranty if damage occurs.
Note to the Cable TV System Installer: This reminder is pro­vided to call the Cable TV system installer’s attention to Article 820-40 of the National Electrical Code, which provides guidelines for proper grounding – in particular, specifying that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as possible.
Declaration of Conformity
Model Number: VR421CAT/VR621CAT Trade Name: Philips Responsible Party: Philips Consumer Electronics
P.O. Box 14810 Knoxville, TN 37914-1810 (865) 521-4316
As an E
NERGY STAR
®
Partner, Philips Consumer Electronics
has determined that this product meets the ENERGY STAR
®
guidelines for energy efficiency. ENERGY STAR®is a U.S. registered mark. Using products with the ENERGY STAR®label can save energy. Saving energy reduces air pollution and lowers utility bills.
Copyright 2001 Philips Consumer Electronics. All rights reserved.
Welcome to your VCR owner’s manual.
This manual describes the VR421CAT and the VR621CAT. The VR421CAT is a monaural (single sound source) system, while the VR621CAT is a stereo system. Otherwise, the two models are exactly the same. In this manual, the VR621CAT is illustrated. (The VR421CAT has single AUDIO IN/OUT jacks. Otherwise, the VR421CAT looks exactly like the VR621CAT.) This manual has seven sections: Setting Up Your VCR; Description of Controls; Basic Operations; Recording; Playing; Additional Features; and Information You May Need. The instructions explain all of the VCR’s features, which are listed below. You cannot hurt your VCR by trying the features! So read on – and relax.
• This manual, your new product, and the packaging contain materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount that needs to be properly disposed. Your product uses batteries that should not be thrown away when depleted but should be disposed of as small chemical waste. Please find out about the local regu­lations on disposal of your old prod­uct, batteries, manual, and packag­ing whenever you replace existing equipment.
Helpful Hint
4 Table of Contents
Setting Up Your VCR
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Before Using Your VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Hookups without a Cable Box/Direct Broadcast System . . . . . . . . . . . . . . . . . . . . . . .6-7
Hookups with a Cable Box/Direct Broadcast System . . . . . . . . . . . . . . . . . . . . . . . . .8-9
Hookups with a Stereo TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Turning on Your VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Automatic Channel Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-14
Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-18
Daylight-Savings Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Language Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Setting the Remote to Operate a TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Setting the Remote to Operate a Cable Box/Direct Broadcast System . . . . . . . . . . . . .22
Description of Controls
Remote Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23-24
On-Screen Status Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
VCR Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Basic Operations
Playing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Recording
Recording One Channel/Watching Another . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
One-Touch Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33-36
Rerecording (Tape Duplication) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Playing
Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Real-Time Counter Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Time Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Special Effects Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Automatic Operation Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Additional Features
Multi-Channel Television Sound System (VR621CAT only) . . . . . . . . . . . . . . . . . . .43-44
Hi-Fi Stereo Sound System (VR621CAT only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Blue Background . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Information You May Need
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Helpful Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48-49
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Use only tapes with the mark.
Remove any light adhesive stick-on notes from the video cassette
tape before putting the tape in the VCR. Removable labels can jam the VCR.
Periodic maintenance is required to maintain your VCR’s excellent
performance. This VCR has an Automatic Head Cleaner. However, the video heads will require replacement eventually. Only an authorized service center should perform this service.
Before Using Your VCR 5
Putting Batteries in the Remote Control
1
Remove the battery compartment lid on the bottom of the
remote control by pressing the tab, then lifting the lid.
2
Place two AA batteries inside the battery compartment with
their +and –ends aligned as indicated.
3
Replace the battery compartment lid.
Using the Remote Control
Point the remote control at the VCR, then press the VCR button
before using the remote control to operate the VCR.
Point the remote control at the TV, then press the TV button
before using the remote control to operate the TV.
Point the remote control at the Cable Box or Direct Broadcast
System (DBS), then press the CBL/DBS button before using the remote control to operate the Cable Box or DBS.
VCR maintenance
Video cassette tapes have record tabs to ensure that recordings are not accidentally erased.
1
To prevent recording, break off the tab with a screwdriver.
2
To allow recording, cover the hole with cellophane tape.
Recording Prevention
1 2
1
2
3
Battery Safety
Battery Usage CAUTION - To prevent battery leakage that may
result in bodily injury or damage to the unit: Install ALL batteries correctly, with the + and - markings on the battery aligned as indicated on the unit; Do not mix batteries, for example, old with new or carbon with alkaline; and Remove batteries when the unit will not be used for a long time.
Removing the Plastic Cover from the Front Panel
A thin plastic cover may protect the front panel of your VCR.
Before using the VCR, lift a corner of the plastic, then peel it off.
OR
OR
6 Hookups without a Cable Box/Direct Broadcast System
The basic VCR/TV connection – antenna/cable to VCR to TV – is shown below. If you have a Cable Box or a Direct Broadcast System, please see pages eight-nine. If you have a Stereo TV, please see page 10. After you hook up the VCR, go to page 11 to turn on the VCR. (The VR621CAT is illustrated here. The VR421CAT has single AUDIO IN/OUT jacks.)
ANTENNA IN
Jack
(on back of
TV)
Cable
(75 ohm)
Back of VCR
Antenna
Indoor/Outdoor
(300 ohm)
1
Disconnect the antenna or cable from your TV.
2
Connect the antenna or cable to the ANT(enna) IN Jack of your VCR.
Cable
(75 ohm)
Antenna
Indoor/Outdoor
(300 ohm)
CH 4
or
CH 3
CH3 / CH4
Switch
CH3 CH4
supplied black
RF coaxial cable
3
Connect the supplied black RF coaxial cable to the OUT Jack on the back of the VCR and to the ANTENNA IN Jack on the TV. (You may use either a snap-on
type (supplied) or screw-on type of coaxial cable, whichever you prefer.)
5
Set the CH3/CH4 switch on the back of the VCR to CH3 or CH4, whichever
channel is not used or least used in your area. Set the TV to the same channel. For example, when playing a tape, if the CH3/CH4 switch is set to CH3, the TV should be on channel 03.
Hookups without a Cable Box/Direct Broadcast System (cont’d) 7
ANTENNA IN Jack
(on back of TV)
example only
4
Plug in the TV and the VCR.
6
You are ready to turn on the VCR. Please go to page 11 before turning on the VCR.
8 Hookups with a Cable Box/Direct Broadcast System
There are two ways to connect your Cable Box/DBS to the VCR. With this connection:
You may view any channel.
You must select channels at the Cable Box/DBS. Channels cannot be changed at the VCR.
You may not view a channel other than the one you are recording.
You may not program channels at the VCR.
You can only program a timer recording for one channel at a time. Set the TV and the VCR to the Cable Box/DBS
output channel (channel 03 or 04). Set the CH3/CH4 switch on the back of the VCR to the same channel. Set your Cable Box/DBS to the channel you want to record. When you enter the channel you want to record in a timer recording, select channel 03 or 04 (the Cable Box/DBS output channel). (This is step 5 on page 34.) Leave the Cable Box/DBS on for a timer recording.
TV’s
ANTENNA IN
Jack
Cable Box/DBS
VCR
Recording/Viewing Any Channel
Connections
1
With the VCR on and in VCR position (the VCR light will appear on the display panel),
set the VCR to the Cable Box/DBS output channel (03 or 04).
2
Set the TV to the same channel to which you set the VCR. Set the CH3/CH4 switch on the back of the VCR to the same channel.
3
Select the channel you want to view/record at the Cable Box/DBS.
1
Connect a Cable signal to the IN Jack on the Cable Box/DBS.
2
Use the supplied black RF coaxial cable to connect the OUT Jack on the Cable Box/DBS to the ANT(enna) IN Jack on the VCR.
3
Use a second RF coaxial cable (not supplied) to connect the OUT Jack on the VCR to the TV’s ANTENNA IN Jack.
1
2
3
Cable
Signal
RF coaxial
cable
RF coaxial
cable
Hookups with a Cable Box/Direct Broadcast System (cont’d) 9
With this connection:
You may watch one channel while recording another.
You may not record scrambled channels.
Recording One Channel/Watching Another
1
Put the Cable Box/DBS on the same channel as the VCR’s CH3/CH4 switch. Set the TV to the Cable Box/DBS output channel (03 or 04). Then, with the VCR in VCR position (the VCR light will appear on the display panel), use the CH(annel) o/p buttons to select the
channel you want to record at the VCR. Start the recording.
2
Press the VCR/TV button once to put the VCR in TV position.
(The VCR light will disappear.)
3
Select the channel you want to watch at the Cable Box/DBS.
4
To return to the channel you are recording, set the Cable Box/DBS to the same channel as the VCR’s CH3/CH4 switch. Press the VCR/TV button so that the VCR is in VCR position again. The VCR light will appear on the display panel. The channel you are recording will appear on the TV screen. Press the STOP/p button to stop recording.
TV’s ANTENNA
IN Jack
Cable Box/DBS
VCR
• When you play a tape, make sure the Cable Box/DBS is set to the same channel as the CH3/CH4 switch on the VCR. Set the TV to the Cable Box/DBS output channel (03 or 04).
Helpful Hint
1
Connect a Cable signal to the VCR’s ANT(enna) IN Jack.
2
Use the supplied black RF coaxial cable to connect the OUT Jack on the VCR to the IN Jack on the Cable Box/DBS.
3
Use a second RF coaxial cable (not supplied) to connect the OUT Jack on the Cable Box/DBS to the ANTENNA IN Jack on the TV.
1
2
3
Connections
Cable
Signal
RF coaxial cable
RF coaxial cable

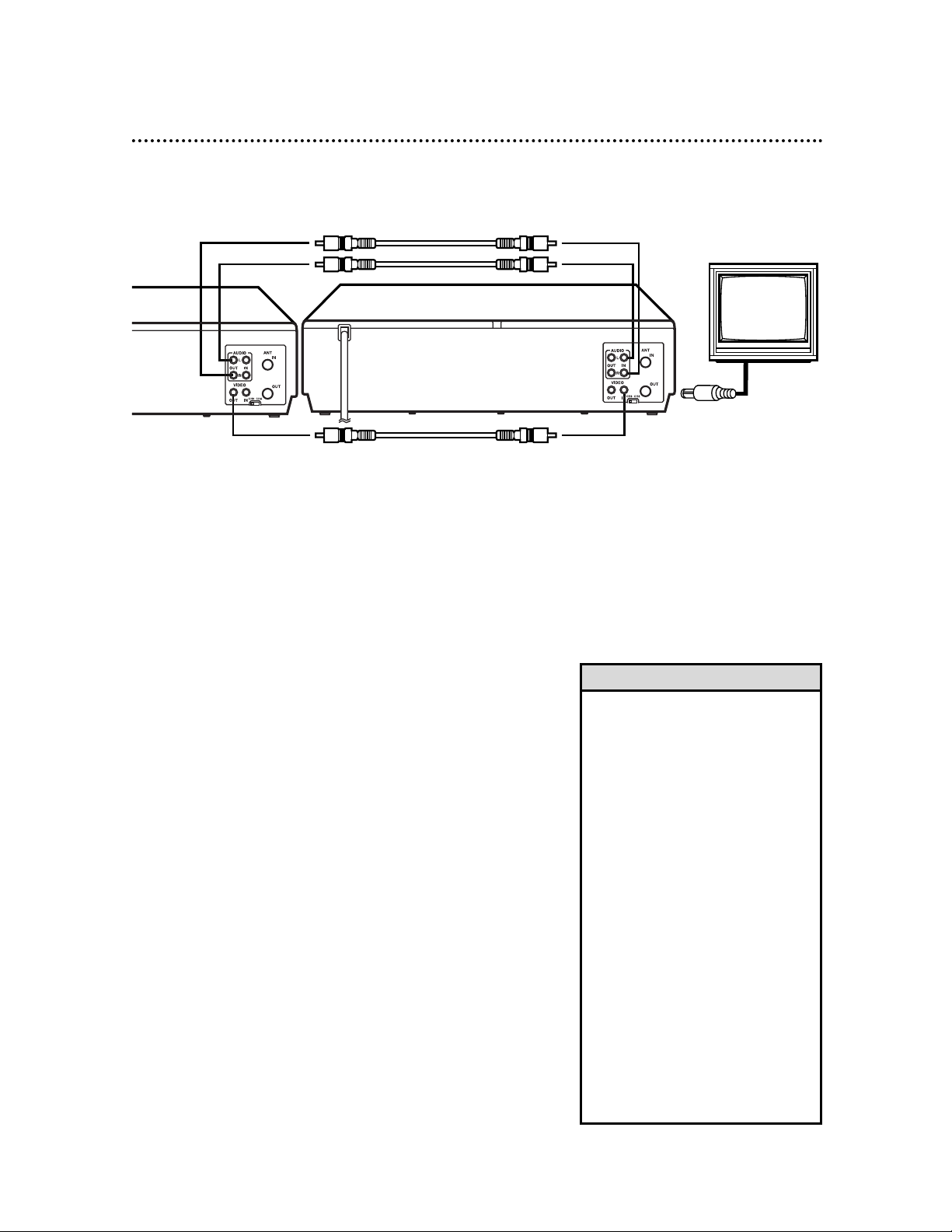

10 Hookups with a Stereo TV
Audio and Video cables are not supplied.
1
Connect the antenna or cable to the ANT(enna) IN Jack on the back of the VCR.
2
Connect a video cable to the yellow VIDEO OUT Jack on the back of the VCR. Then, connect the other end of the video cable to the VIDEO IN Jack on your TV.
3
If you have the VR621CAT, connect a stereo audio cable to the red and white AUDIO OUT Jacks on the back of the VCR. Then, connect the other end of the audio cable to the AUDIO IN Jacks on your TV. If you have the VR421CAT, connect an audio cable to the white AUDIO OUT Jack on the back of the VCR. Then, connect the other end of the audio cable to the AUDIO IN Jack on your TV. If
your TV has Right and Left AUDIO IN Jacks, you must use a “Y” splitter audio cable as illustrated to deliver audio to the TV’s right and left channels. This hookup will not give you stereo sound. To get stereo sound, use the connections on pages six - seven and select the channel to be viewed at the TV (with the VCR turned off).
4
Turn on your TV, making sure it is in Line Input mode. This might be referred to as the TV’s Audio/Video In
channel or the Auxiliary In channel. Please refer to your TV owner’s manual for details.
antenna or cable to ANT(enna) IN Jack
Video Cable
Stereo Audio Cable
VIDEO (yellow) and
AUDIO (red and white) OUT Jacks
Audio and Video IN
Jacks on TV
1
2
3
VR621CAT
ANT
AUDIO
VIDEO
IN
OUT
CH3 CH4
OUT IN
antenna or cable to ANT(enna) IN Jack
Video Cable
“Y” splitter Audio Cable
VIDEO (yellow) and
AUDIO (white) OUT Jacks
Audio and Video
IN Jacks on TV
1
2
3
VR421CAT
OR
1

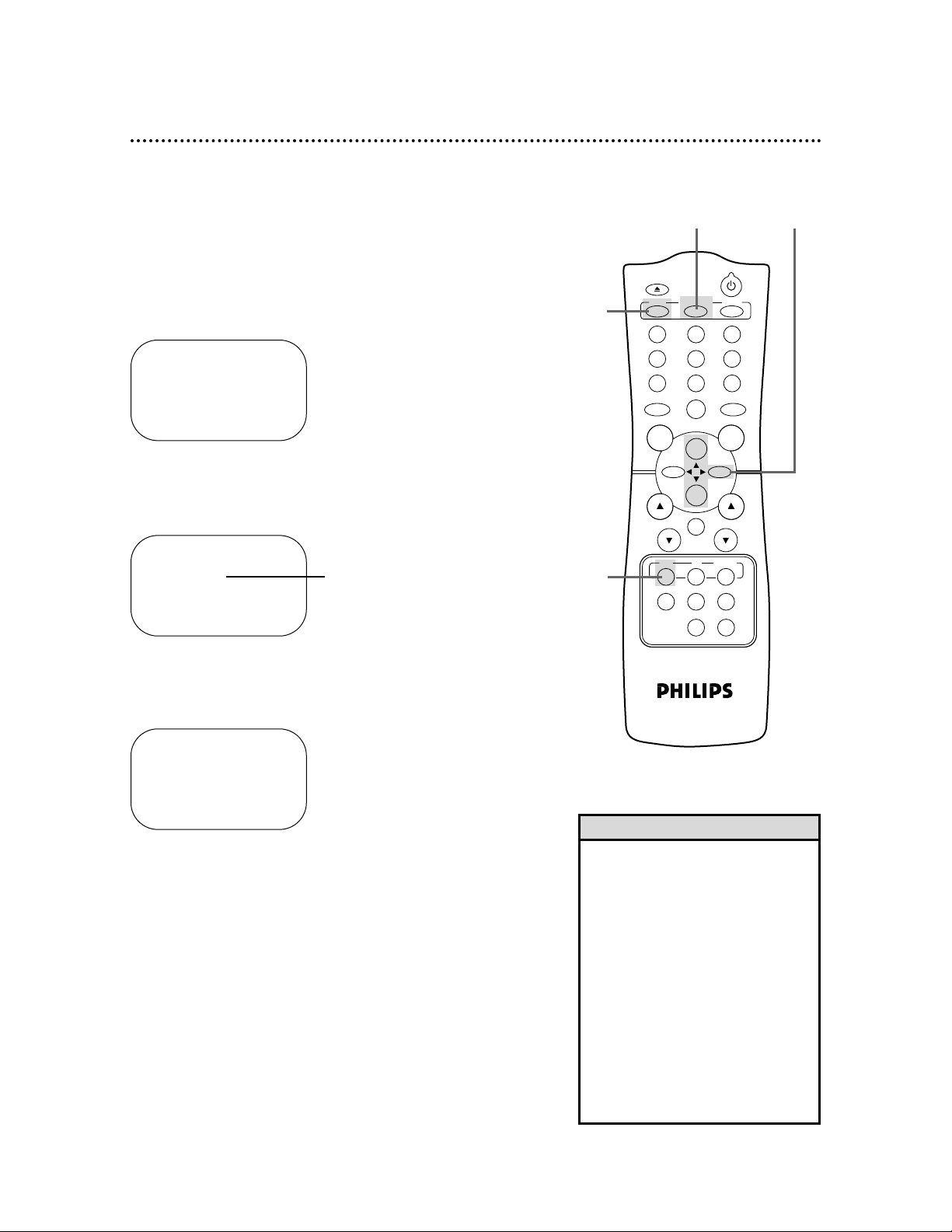

Press the VCR button, then press the POWER button.
The VCR light and the PWR. (power) light will appear on the VCR display panel.
2
Turn on the TV. Set it to the same channel as the CH3/CH4 switch on the back of the VCR. The display shown
below will appear on the TV screen. (If the display does not appear, check your hookups, then follow the steps on page 12 to set up channels and page 20 to select a language.)
3
Within 60 seconds, press the PLAY/o button or the STOP/p button to select English or Spanish on-screen displays and menus.
4
Press the MENU button. The display shown below will appear.
SELECT op
ENGLISH ON
ESPAÑOL
MAKE SELECTION OR PUSH MENU TO CONTINUE
Turning on Your VCR 11
5
Within 60 seconds, press the CH(annel) o button to begin automatic channel programming. AUTO CH PRO-
GRAMMING IN PROCESS PLEASE WAIT will appear on the screen. The VCR will memorize all available channels. The channel numbers will appear on the display panel as the VCR scans chan­nels. When all channels are memorized, CHANNELS ARE SET will appear on the screen briefly, then TV programming will appear. Now, when you press the CH(annel) o/p buttons, you’ll only scan through channels that you receive. You can still select other channels using the Number buttons.
• To skip this feature and play a tape immediately, insert a tape with its record tab removed. Or, to skip step 3, press the MENU button. All on­screen displays will be inEnglish. To skip step 5, press the STOP/p but­ton. Channels will not be pro­grammed, and CHANNELS NOT SETwill appear on the screen.
• When you turn on the VCR again later, you may see a message regarding AUTO CLOCK. Details are on pages 15-18.
• If you try to program channels when there is no antenna or cable connected to the VCR, programming will appear to take place, but even­tually a NOTV SIGNALSmessage will appear. Connect an antenna or cable to the VCR’s ANT(enna) IN Jack and press the CH(annel) o button again. You may need to fol­low the steps on page 12.
• You may need to repeat the steps on this page if a power failure occurs.
Helpful Hints
Before turning on your VCR, make sure there are batteries in the remote control and the VCR and TV are connected correctly.
You can not program channels if you are using a Cable Box or
a Direct Broadcast System.
If you are not using a Cable Box/DBS, the clock may set itself
automatically after you connect the antenna/Cable signal to the VCR and plug in the power cord. The time will appear on the display panel.
2
Turn on the TV.
CONNECT ANTENNA OR CABLE TO VCR
THEN . . .
PUSH CH UP KEY
OR . . .
FOR PLAY ONLY – PUSH STOP
1
3
4
5
POWER
EJECT
VCR/TV SPEED
TIME SEARCH
SLOWENTER
1 2 3
4 5 6
7 8 9
0
CH. VOL.
MEMORY ALT.CH
REW
PLAY
F.FWD
REC /OTR
PAUSE /STILL
STOP
MUTE
VCR CBL/DBSTV
MENU
STATUS/EXIT
CLEAR
12 Automatic Channel Setup
2
Press the MENU button.
SELECT op CHOOSE B
PROGRAM
VCR SET UP TUNER SET UP SET CLOCK
TO END PUSH EXIT
• You can not enter the TUNER SET UP menu when you are in Line Input mode (channel 001 or 002). When you select channel 001 or 002, AV REAR or AV FRONT will appear on the TV screen briefly.
• You can not program channels if you are using a Cable Box or DBS.
• If you have an antenna, channels 2­69 will be available. If you have a cable connection, channels 1-125 will be available.
• You may need to repeat the steps on this page if a power failure occurs.
Helpful Hints
Although your VCR may automatically memorize the channels you receive when you turn it on for the first time, this function lets you set up the channels again.
3

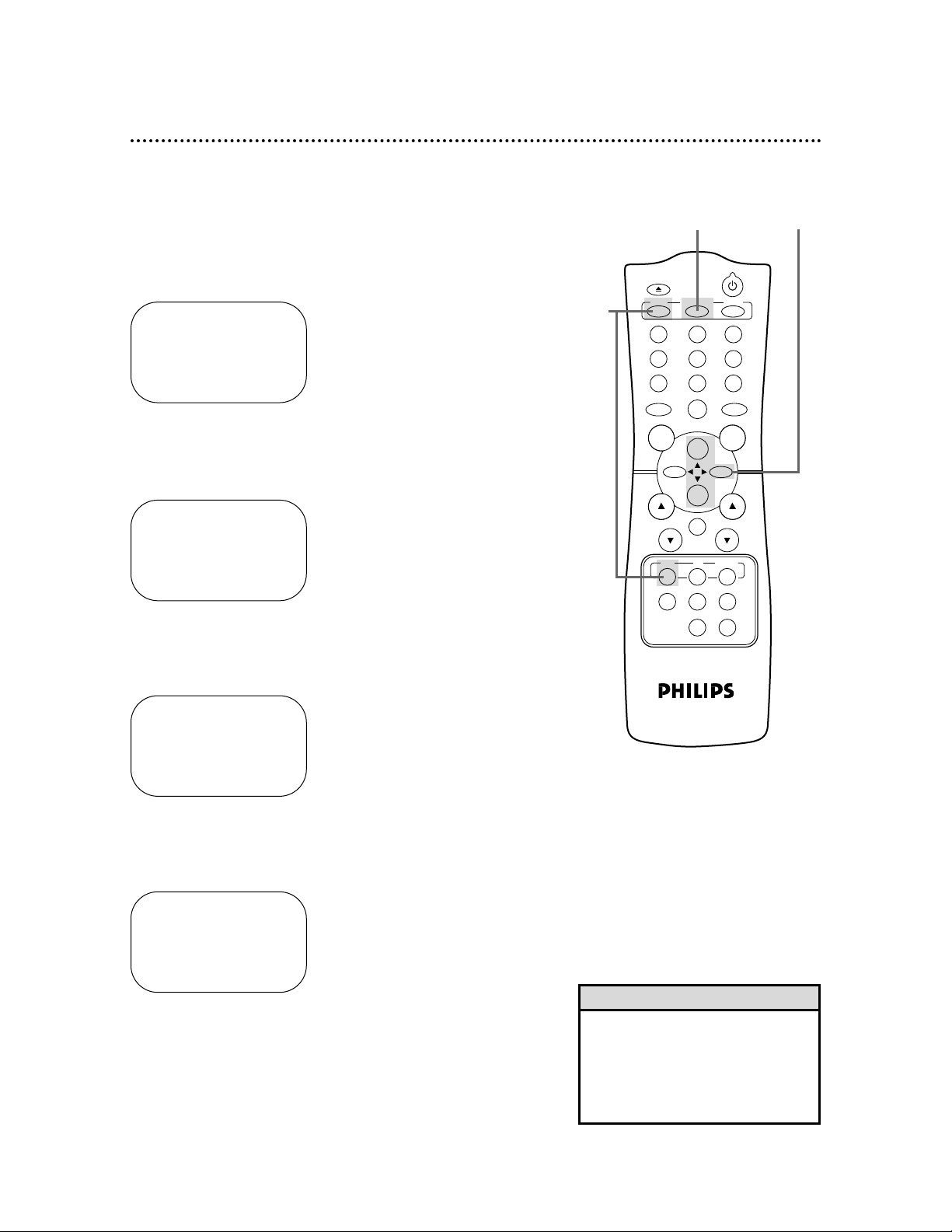

Press the PLAY/o button or the STOP/p button to select TUNER SET UP, then press the F.FWD/B button.
SELECT op CHOOSE B AUTO PROGRAMMING
ADD/DELETE CH CH MEMORY REVIEW TV STEREO ON 2ND AUDIO
TO END PUSH EXIT
4
Press the PLAY/o button or the STOP/p button to select AUTO PROGRAMMING, then press the F.FWD/B but­ton. The VCR distinguishes between TV channels and cable chan-
nels, and the VCR will memorize all the channels you receive. The channel numbers will appear on the VCR display panel during channel setup.
5
Wait for a few minutes while the VCR sets up the chan­nels. When this is complete, CHANNELS ARE SET will appear on
the screen. Then the programming of the lowest channel number placed in the VCR’s memory will appear on the screen. Now when you press the CH(annel) o/p buttons, you will scan only through channels you receive. You may still select non-memorized channels by pressing the Number buttons.
2
3-4
1
Press the VCR button.
1
VR621CAT only
AUTO CH PROGRAMMING
IN PROCESS
PLEASE WAIT
START FINISH
EJECT
MENU
MEMORY ALT.CH
POWER
STATUS/EXIT
1 2 3
4 5 6
7 8 9
0
REC /OTR
PLAY
REW
F.FWD
STOP
CLEAR
PAUSE /STILL
CH. VOL.
MUTE
VCR CBL/DBSTV
VCR/TV SPEED
TIME SEARCH
SLOWENTER
Automatic Channel Setup (cont’d) 13
2
Press the MENU button.
SELECT op ADD/DELETE B
124 DELETED 125 DELETED
1 DELETED 2 ADDED 3 ADDED
TO END PUSH EXIT
3
Press the PLAY/o button or the STOP/p button to select TUNER SET UP, then press the F.FWD/B button.
4
Press the PLAY/o button or the STOP/p button to select ADD/DELETE CH, then press the F.FWD/B button.
5

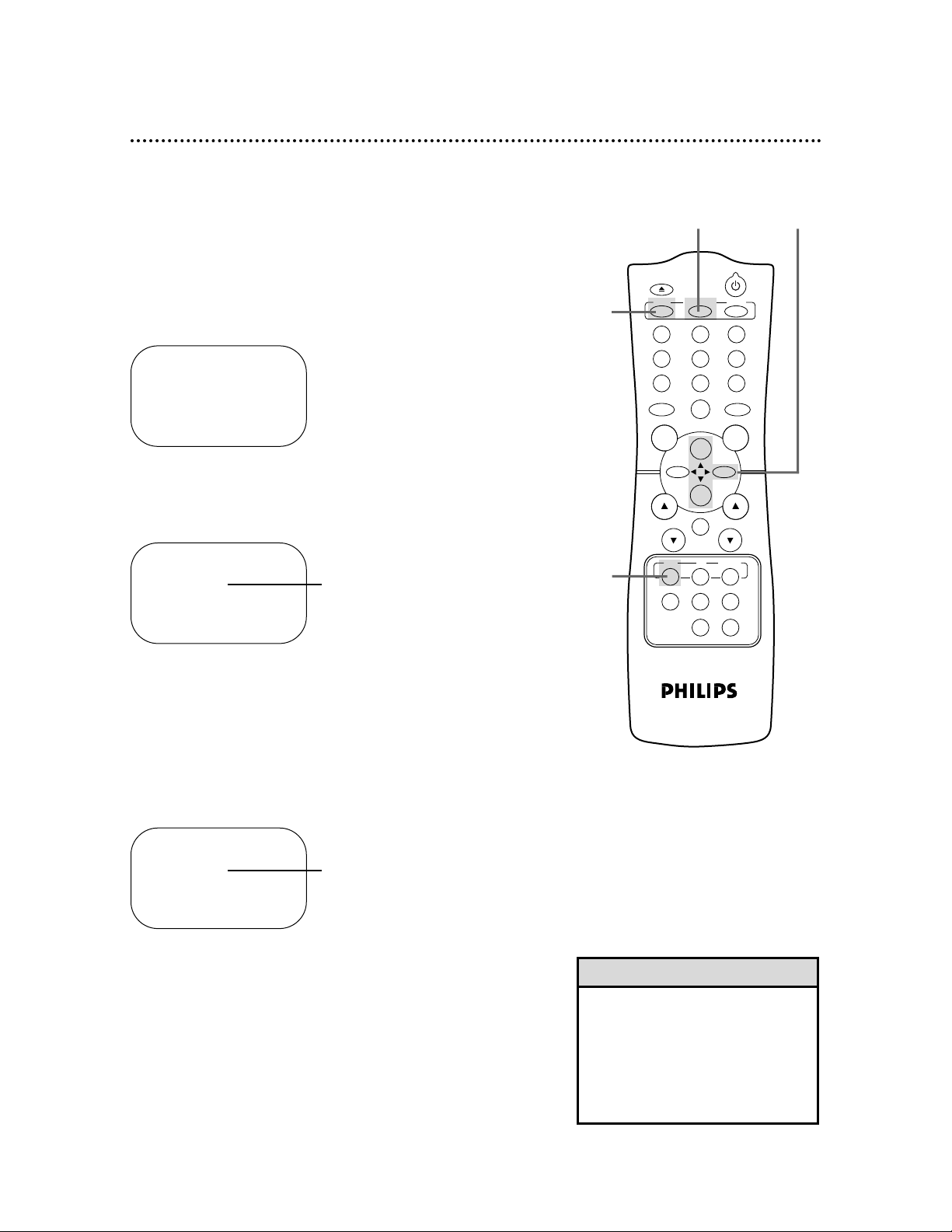

Press the PLAY/o button or the STOP/p button until the channel number you want to add or delete appears beside the arrow.
SELECT op ADD/DELETE B
16 DELETED 17 ADDED 18 ADDED 19 ADDED 20 ADDED
TO END PUSH EXIT
6
Press the F.FWD/B button to select ADDED or DELET­ED. Repeat steps 5 and 6 until you have added or deleted all the
channels you wanted to add or delete.
7
Press the STATUS/EXIT button.
2
3-67
1
Press the VCR button.
1
NOTE: If you have an antenna, channel numbers 2-69 will appear on the ADD/DELETE CH menu. If you have a cable connection, channels 1-125 will be available.
Adding/Deleting Channels
If your channel lineup changes, you may want to add newly avail­able channels or remove channels that are no longer available in your area. Channels that you add to the VCR’s memory can be selected by pressing the CH(annel) o/p buttons. To add or delete channels from the VCR’s memory, follow these steps.
EJECT
MENU
MEMORY ALT.CH
CH. VOL.
POWER
STATUS/EXIT
1 2 3
4 5 6
7 8 9
0
REC /OTR
PLAY
REW
F.FWD
STOP
MUTE
VCR CBL/DBSTV
VCR/TV SPEED
TIME SEARCH
SLOWENTER
CLEAR
PAUSE /STILL
14 Automatic Channel Setup (cont’d)
Reviewing Memorized Channels
4

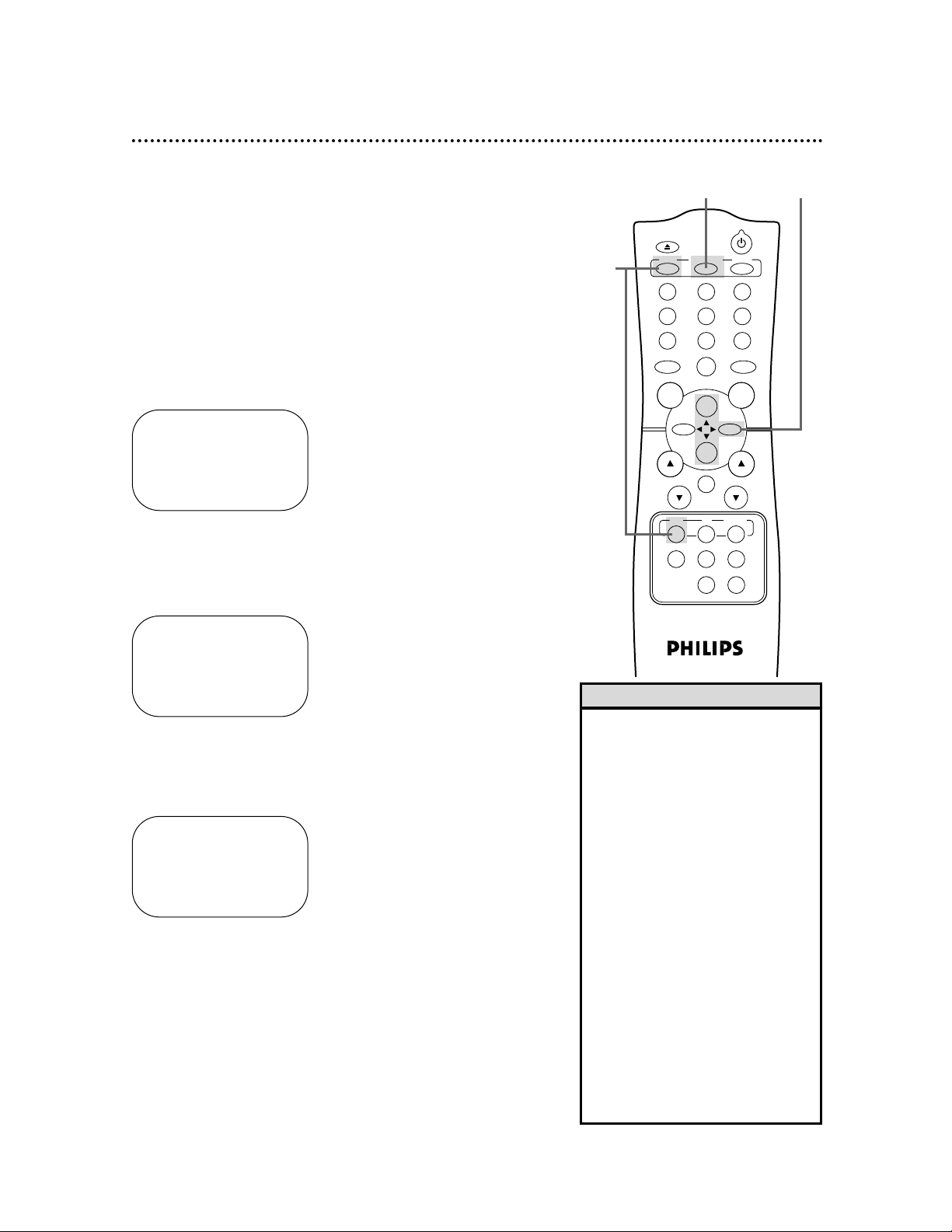

Press the PLAY/o button or the STOP/p button to select CH MEMORY REVIEW, then press the F.FWD/B button.
A list of programmed channels will appear on the screen.
If all the programmed channels don’t fit on the screen, press
the F.FWD/B button to see the remaining channels. Then press the REW(ind)/s button to return to the first screen of channels.
If you do not press any buttons within 10 seconds, you will
either go to the next screen of channels or you will return to the previous menu.
5
Press the STATUS/EXIT button once or twice to exit.
2
Press the MENU button.
SELECT op CHOOSE B
PROGRAM
VCR SET UP TUNER SET UP SET CLOCK
TO END PUSH EXIT
3
Press the PLAY/o button or the STOP/p button to select TUNER SET UP, then press the F.FWD/B button.
SELECT op CHOOSE B AUTO PROGRAMMING
ADD/DELETE CH CH MEMORY REVIEW TV STEREO ON 2ND AUDIO
TO END PUSH EXIT
2
3-45
1
Press the VCR button.
1
VR621CAT only
EJECT
MENU
MEMORY ALT.CH
CH. VOL.
POWER
STATUS/EXIT
1 2 3
4 5 6
7 8 9
0
REC
/OTR
PLAY
REW
F.FWD
STOP
MUTE
VCR CBL/DBSTV
VCR/TV SPEED
TIME SEARCH
SLOWENTER
CLEAR
PAUSE /STILL
Setting the Clock 15
2
Press the MENU button.
There are two ways to set the clock. With manual clock setting, you tell the VCR the current time. With automatic clock setting, the VCR gets the current time from your local PBS station. It keeps track of the time by constantly referring to the time broad­casted by your PBS station.
If you are using a Cable Box or Direct Broadcast System, you must set the clock manually.
Follow the instructions under either manual clock setting (below) or automatic clock setting (page 17) to set the VCR’s clock. Before you begin, make sure:
The VCR is hooked up and turned on, and channels are pro-
grammed into the VCR’s memory (see pages six-12).
The VCR is in VCR position. The VCR light will appear on the
display panel. If it does not, press the VCR/TV button once.
Do each step within 60 seconds of the previous step.
3
Press the PLAY/o button or the STOP/p button to select SET CLOCK, then press the F.FWD/B button.
SET CLOCK
AUTO CLOCK [ON]
SET MANUAL CLOCK DAYLIGHT SVG TIME [ON] SET TIME ZONE
(AUTO)
TO CONTINUE PUSH MENU SELECT op CHOOSE B TO END PUSH EXIT
• To display the time on the TV screen, press the STATUS/EXIT but­ton. Details are on page 25.
• Power failures may erase the clock setting. If this happens, reset the clock.
• Until the clock is set, - : - - may appear on the VCR display panel.
Helpful Hints
Manual Clock Setting
4
Press the PLAY/o button or the STOP/p button to select SET MANUAL CLOCK, then press the F.FWD/B button.
TIME – – : – –
DATE – – / – – / – –
TO END PUSH EXIT
1
Press the VCR button.
SELECT op CHOOSE B PROGRAM
VCR SET UP TUNER SET UP SET CLOCK
TO END PUSH EXIT
2
3-4
1
POWER
EJECT
VCR/TV SPEED
TIME SEARCH
SLOWENTER
1 2 3
4 5 6
7 8 9
0
CH. VOL.
MEMORY ALT.CH
REW
PLAY
F.FWD
REC /OTR
PAUSE /STILL
STOP
MUTE
VCR CBL/DBSTV
MENU
STATUS/EXIT
CLEAR
TIME 02 :15 PM
MONTH – – / – – /– –
TO CORRECT PUSH CLEAR TO END PUSH EXIT
TIME 02 :15 PM
DATE 07/ 01 / 01
SUN.
TO CORRECT PUSH CLEAR TO END PUSH EXIT
5

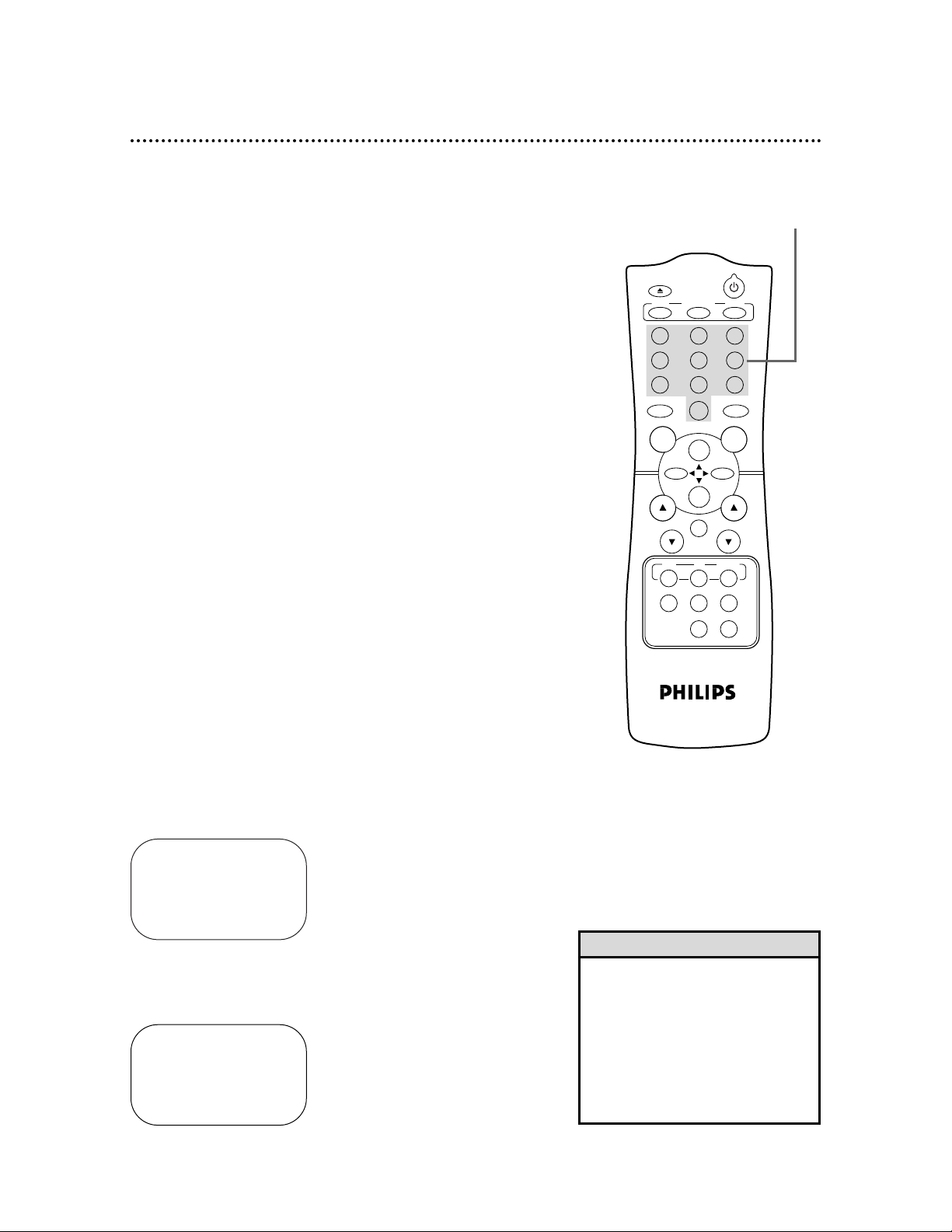

Press two Number buttons for the hour(s) and two Number buttons for the minute(s). Then press 1 for AM or 2 for PM. For example, for 2:15 PM, press 02, 15, 2.
Enter a 0 before a single-digit number.
Entries that do not match the VCR’s calendar or clock will
cause a question mark (?) to appear on the screen.
To make corrections, press the CLEAR button until the space
for the number you want to correct is flashing. Then enter the correct number.
6
Press two Number buttons for the month, two Number buttons for the day, and two Number buttons for the year. For example, for July 1, 2001, press 07, 01, 01. The day of
the week will appear automatically.
7
Press the STATUS/EXIT button to start the clock. The
screen will return to the program you were watching. The time will appear on the VCR display panel.
16 Setting the Clock (cont’d)
5-67
POWER
EJECT
VCR/TV SPEED
TIME SEARCH
SLOWENTER
1 2 3
4 5 6
7 8 9
0
CH. VOL.
MEMORY ALT.CH
REW
PLAY
F.FWD
REC
/OTR
PAUSE
/STILL
STOP
MUTE
VCR CBL/DBSTV
MENU
STATUS/EXIT
CLEAR
Loading...
+ 37 hidden pages
