Philips VR260, VR260/02, VR260/07, VR260/39, VR260/58 User Manual

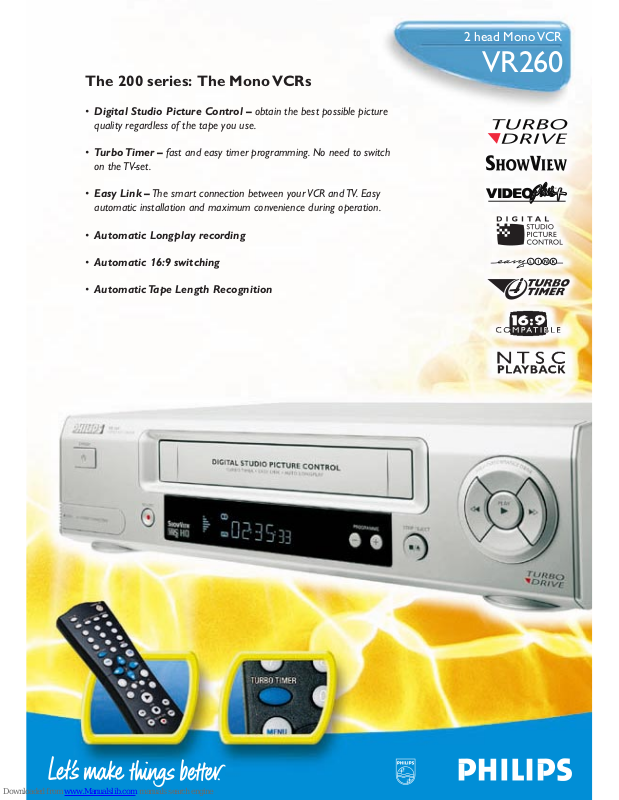

The 200 series: The Mono VCRs
• Digital Studio Picture Control – obtain the best possible picture
quality regardless of the tape you use.
• Turbo Timer – fast and easy timer programming. No need to switch
on the TV-set.
• Easy Link – The smart connection between your VCR and TV. Easy
automatic installation and maximum convenience during operation.
• Automatic Longplay recording
• Automatic 16:9 switching
• Automatic Tape Length Recognition
2 head Mono VCR
VR260
2 head Mono VCR
VR260
Subject to modification without notice
ShowView and VideoPlus are Trademarks of Gemstar Development Group
Product Highlights
• Digital Studio Picture Control
Digital Studio Picture Control keeps checking the quality of your
videotapes and reproduces the best possible picture performance. Philips’
Digital Studio Picture Control optimises the playback quality. It measures
the characteristics of the tape, adapts the resolution and reduces the
picture noise.
• Turbo Timer
Is Timer Programming complicated? No!
Is Timer Programming time consuming? No!
Just push the Turbo Timer button on the remote control.The display of
your VCR asks you then for the start and end time as well as the
programme’s number.That´s it. Just a number of seconds.
• Easy Link
Easy Link offers maximum convenience when it comes to installing a
VCR.There’s no need to wait endlessly for tuning of all channels or to
spend time re-sorting the presets in the right order.You just connect
both VCR and TV with a Scart cable and plug the mains.That’s all! On
top of that features like Automatic On/Off switching of the TV when the
VCR is used, Direct Record and automatic 16x9 switching make the daily
life of the VCR user much easier.
• Plug & Play
With Plug & Play, the VCR welcomes you and leads you through the
installation steps.You just have to set your language and the country you
live in.The VCR does the rest.
• Turbo Drive
Enjoy the ease of use and the comfort of one of the fastest VCR decks in
the world.
• Automatic Time download
The Teletext contains an extremely precise time information.Your videorecorder knows that and during the installation, it automatically reads
out this precious information. You can then use your VCR as the clock
reference in your home, as the time is readjusted every day.You even
don't have to worry about changing from summer to winter time!
• Automatic Satellite Recording
Your satellite receiver is equipped with a Timer function?
Connect both your VCR and the satellite receiver with a SC ART cable and
make use of the „Automatic Satellite Recording“ function.You just have
to activate it and switch your VCR to std-by.As soon as the satellite
receiver gest active, the VCR switches on and is set in the record mode.At
the end of the recording it returns automatically to Stand-by.
• Multibrand TV Remote Control
Should we say it? Our remote-controls can communicate with more than
190 different brands of TVs.
Product Information
Reception - Installation
• Tuner: Full Tuner (UHF + VHF + Hyperband)
• Tuning: PLL, CH entry, 99 presets
• Time/Date Download: PDC (Time / Date), Text (Time)
• Sound Systems: Mono
User Interface
• Special Features: Auto Standby On / Off, Child Lock, Display On / Off
• Picture Improvement System:Digital Studio Picture Control
• Tape Advance: Commercial Skip
• TV Related Functions: 16:9 (pin 8), NexTView Link (Rel 1.3)
Remote Control Unit
• Remote Control - code:TV-Multicode, TV-RC5,VCR1-RC5, VCR2-RC5
Connectors Rear
• EXT1: Black, Euro CVBS in / out
• EXT2: Black, Euro Decoder, RGB loop through
• Terrestrial Antenna In / Out: 75 Ohms (IECtype)
• Mains Connector: Standard (IECtype)
Connectors Front
• Audio/Video Connectors Front: 2 Cinch Audio in mono,Cinch CVBS in
Tape Deck
• Number of Video / FM Audio / Flying Erase Heads: 2 / 0 / 0
• Play: +1, -1, Repeat
• Playback Features:Standard Still, Multiple Search Speed
• Index Search Related Functions: Blank Tape Search, Next/Prev. index
search
• Head Cleaning Mode: Automatic
• Tape Length Recognition: Automatic
• Tape Counter: Linear Relative (h.m.s),Time Left (h.m)
• Wind / Rewind Time (E180): 100 sec.
• Automatic Functions at Tape End: Rewind after Play - Eject after Record
Programming
• Number of Events: 6 / month
• Programming Mode: OTR, Remote
• Record Control & Transmitter Identification: PDC, VPS
• Special Timer Programming: Turbo Timer
• Automatic SAT. Recording: SCART 2
On Tape Standard
• Additional Playback Standard:BLACK & WHITE, NTSC Playback
on PAL TV
General
• Voltage / Frequency: 198-264 V / 50Hz
• Backup Presets: 1yr
• Backup Clock, Calendar,Timer: 3 hrs
• Power Cons. in Play / Std-By / Low Power Std By:12.5 / 4.4 / < 4W
• Weight incl. / excl. package in kg: 5.5 / 3.6
• Set Size - W x D x H (mm): 380 x 260 x 93
• Packaging - W x D x H (mm): 450 x 382 x 180
• Equipment Supplied: Aerial Cable, Mains cord,Batteries, SCART cable
/02 /07 /39 /58
Tuning/Install Features Auto Tuning, Manual Store, Auto Install, Manual Store, Auto Tuning, Manual Store, Auto Tuning, Manual Store,
Plug & Play, ShowView Mapping, Plug & Play, ShowView Mapping, Plug & Play, ShowView Mapping, Plug & Play, ShowView Mapping,
Welcome Screen Welcome Screen Welcome Screen Welcome Screen
TV Systems Off Air PAL B/G PAL I PAL B/G, PAL I, PAL B/G, PAL D/K,
SECAM B/G, SECAM L/L1 SECAM B/G, SECAM D/K
Modulator Pal G Pal I Splitter Pal GK (switchable)
Modulator Features Electr. On/Off switch, Auto Seek, Electr. On/Off switch, – Electr. On/Off switch,
Manual Frequency Adjustment Manual Frequency Adjustment Manual Frequency Adjustment
Frequency Adj. Range Ch 21 - Ch 55 Ch 21 - Ch 55 – Ch 21 - Ch 55
Preadj. modulation frequency 591.25 MHz (Ch 36) 583.25 MHz (Ch 35) – 591.25 MHz (Ch 36)
OSD Menu Languages Danish, Dutch, English, Finnish, English Danish, Dutch, English, Finnish, Czech, English, Hungarian,
French, German, Italian, Norwegian, French, German, Italian, Norwegian, Polish, Russian Cyrillic, Slovak
Portuguese, Spanish, Swedish Portuguese, Spanish, Swedish
Remote Control - type RT113/101 RT113/101 RT113/104 RT113/101
Record Speed Long Play, Standard Play Long Play, Standard Play Standard Play Long Play, Standard Play
Record Speed Selection Auto LP, per Set Auto LP, per Set --- Auto LP, per Set
Record / Playback Standard PAL PAL MESECAM, PAL, SECAM MESECAM, PAL
Programming System Daily/Weekly, ShowView Mapping, Daily/Weekly, ShowView Mapping, Daily/Weekly, ShowView Mapping, Daily/Weekly, ShowView Mapping,
ShowView VideoPlus+ ShowView ShowView
