VR220CAT

Video Cassette Recorder Owner’s Manual

Page 2

Once your PHILIPS purchase is registered, you’re eligible to receive all the privileges of owning a PHILIPS product. So complete and return the Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.

Return your Warranty Registration card today to

ensure you receive all the

benefits

you’re entitled to.

For Customer Use

Enter below the Serial No. which is located on the rear of the cabinet. Retain this information for future reference.

Model No. ________________ Serial No. ________________

Congratulations on your purchase, and welcome to the “family!”

Dear PHILIPS product owner:

Thank you for your confidence in PHILIPS. You’ve selected one of the best-built, best-backed products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come. As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry. What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network. And most importantly you can count on our uncompromising commitment to your total satisfaction. All of this is our way of saying welcome-and thanks for investing in a PHILIPS product.

Sincerely,

Robert Minkhorst President and Chief Executive Officer

P.S. Remember, to get the most from your PHILIPS

product, you must return your Warranty Registration Card within 10 days. So please mail it to us right now!

Know these

safetysymbols

This “bolt of lightning” indi-

cates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The “exclamation point”

calls attention to features

for which you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

ATTENTION: Pour éviter les choc électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Hurry!

Warranty Verification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your PHILIPS warranty.

Owner Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

Model Registration

Returning your Warranty Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model.

Visit our World Wide Web Site at http://www.philips.com

Page 3

Introduction 3

Features

• Automatic Channel Setup

• Automatic Head Cleaner

• Automatic Operation Features

• Automatic Tracking Adjustment

• Blue Background

• Daylight-Savings Time

• Display Panel

• Front Panel Menu Access

• High Quality (HQ) System

• On-Screen Displays in English or Spanish

• One-Touch Recording

• Real-Time Counter

• Remote Control with glow-in-the-dark buttons and the capability to operate a Magnavox, Philips, or Philips Magnavox TV

• Repeat Play

• S-VHS Quasi Play Back (SQPB)

• Special Effects Playback: Forward and Reverse Searching; Still

• Timer Recording

Safety Precautions

Warning: To prevent fire or shock hazard, do not expose this equipment to rain or moisture. Federal Communications Commission Warning: Any unauthorized changes or modifications to this equipment void the user’s authority to operate it.

This VCR is equipped with a High Quality (HQ) system and is compatible with existing Video Home System (VHS) equipment. Philips Consumer Electronics recommends that you use only video cassette tapes which are labeled with the mark. The use of other tapes may result in poor picture quality and excessive deposits on the video heads, which may not be covered by the warranty if damage occurs.

Note to the Cable TV System Installer: This reminder is provided to call the Cable TV system installer’s attention to Article 820-40 of the National Electrical Code, which provides guidelines for proper grounding – in particular, specifying that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as possible.

Declaration of Conformity

Model Number: VR220CAT Trade Name: Philips Responsible Party: Philips Consumer Electronics

P.O. Box 14810 Knoxville, TN 37914-1810 (865) 521-4316

As an ENERGY STAR®Partner, Philips Consumer

Electronics has determined that this product meets the ENERGY STAR®guidelines for energy efficiency. ENERGY STAR®is a U.S. registered mark. Using products with the ENERGY STAR®label can save energy. Saving energy reduces air pollution and lowers utility bills.

Welcome to your VCR owner’s manual.

This manual has six sections: Setting Up Your VCR; Description of Controls; Basic Operations; Recording; Playing; and Information You May Need. The instructions explain all of the VCR’s features, which are listed below. You cannot hurt your VCR by trying the features! So read on – and relax.

• Your new product, its packaging, and this manual contain materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount that needs to be properly disposed. Your product uses batteries that should not be thrown away when depleted but should be disposed of as small chemical waste. Please find out about the local regulations on disposal of your old product, batteries, manual, and packaging whenever you replace existing equipment.

Helpful Hint

Page 4

4 Table of Contents

Setting Up Your VCR

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Before Using Your VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Hookups Without a Cable Box/Direct Broadcast System . . . . . . . . . . . . . . . . . . . . . .6-7

Hookups With a Cable Box/Direct Broadcast System . . . . . . . . . . . . . . . . . . . . . . . . .8-9

Hookups With a Stereo TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Turning on Your VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Automatic Channel Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-14

Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Daylight-Savings Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Language Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Description of Controls

Remote Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-19

On-Screen Status Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

VCR Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Basic Operations

Playing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Recording

Recording One Channel/Watching Another . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

One-Touch Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28-31

Rerecording (Tape Duplication) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Playing

Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Real-Time Counter Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Special Effects Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Automatic Operation Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Information You May Need

Blue Background . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Helpful Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38-39

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40-41

Glossary/Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Page 5

● Use only tapes with the mark.

● Remove any light adhesive stick-on notes from the video cas-

sette tape before putting the tape in the VCR. Removable labels can jam the VCR.

● Periodic maintenance is required to maintain your VCR’s excel-

lent performance. This VCR has an Automatic Head Cleaner. However, the video heads will require replacement eventually. Only an authorized service center should perform this service.

Before Using Your VCR 5

Putting Batteries in the Remote Control

Remove the battery compartment lid on the bottom of the

remote control by pressing the tab, then lifting the lid.

Place two AA batteries inside the battery compartment

with their +and –ends aligned as indicated.

Replace the battery compartment lid.

VCR maintenance

Video cassette tapes have record tabs to ensure that recordings are not accidentally erased.

To prevent recording, break off the tab with a screwdriver.

To allow recording, cover the hole with cellophane tape.

Recording Prevention

1 2

Battery Safety

● Battery Usage CAUTION - To prevent battery leakage that may

result in bodily injury or damage to the unit: Install ALL batteries correctly, with the + and - markings on the battery aligned as indicated on the unit; Do not mix batteries, for example, old with new or carbon with alkaline; and Remove batteries when the unit will not be used for a long time.

Using the Remote Control

● Point the remote control at the VCR, then press the VCR but-

ton, before using the remote control to operate the VCR.

● If you have a Magnavox, Philips, or Philips Magnavox television,

point the remote control at the TV, then press the TV button, before using the remote control to operate the TV.

Page 6

ANT

AUDIO

VIDEO

OUT

CH3 CH4

OUT IN

ANT

AUDIO

VIDEO

OUT

CH3 CH4

OUT IN

75Ω ANT /

CABLE

ANT /

CABLE

6 Hookups Without a Cable Box / Direct Broadcast System

The basic VCR/TV connection – antenna/cable to VCR to TV – is shown below. If you have a Cable Box or a Direct Broadcast System, please see pages eight-nine. If you have a Stereo TV, please see page 10. After you hook up the VCR, go to page 11 to turn on the VCR.

ANTENNA IN

Jack

(on back of TV)

Cable

(75 ohm)

Back of VCR

Antenna

Indoor/Outdoor

(300 ohm)

Disconnect the antenna or cable from your TV.

Connect the antenna or cable to the ANT(enna) IN Jack of your VCR.

Cable

(75 ohm)

Antenna

Indoor/Outdoor

(300 ohm)

Page 7

ANT

AUDIO

VIDEO

OUT

CH3CH4

OUT IN

ANT

AUDIO

VIDEO

OUT

CH3 CH4

OUT IN

CH 4

CH 3

CH3 / CH4

Switch

CH3 CH4

ANT

AUDIO

VIDEO

OUT

CH3CH4

OUT IN

ANT

AUDIO

VIDEO

OUT

CH3 CH4

OUT IN

75Ω ANT /

CABLE

ANT /

CABLE

RF coaxial cable

Antenna or Cable

Connect the RF coaxial cable (supplied) to the OUT Jack on the back of the VCR and to the ANTENNA IN Jack on the TV. (You may use either a snap-on

type (supplied) or screw-on type of coaxial cable, whichever you prefer.)

Set the CH3/CH4 switch on the back of the VCR to CH3 or CH4, whichever

channel is not used or least used in your area. Set the TV to the same channel. For example, when playing a tape, if the CH3/CH4 switch is set to CH3, the TV should be on channel 03.

Hookups Without a Cable Box / Direct Broadcast System (cont’d) 7

ANTENNA IN Jack

(on back of TV)

example only

Plug in the TV and the VCR.

You are ready to turn on the VCR. Please go to page 11 before turning on the VCR.

Page 8

8 Hookups With a Cable Box / Direct Broadcast System

There are two ways to connect your Cable Box/DBS to the VCR. With this connection:

● You may view any channel.

● You must select channels at the Cable Box/DBS. Channels cannot be changed at the VCR.

● You may not view a channel other than the one you are recording.

● You may not program channels at the VCR.

● You can only program a timer recording for one channel at a time. Set the TV and the VCR to the Cable

Box/DBS output channel (channel 03 or 04); set the CH3/CH4 switch on the back of the VCR to the same channel. Set your Cable Box/DBS to the channel you want to record. When you enter the channel you want to record in a timer recording, select channel 03 or 04 (the Cable Box/DBS output channel). (This is step 5 on page 29.) Leave the Cable Box/DBS on for a timer recording.

OUT

ANT /

CABLE

TV’s

ANTENNA IN

Jack

Cable Box/DBS

VCR

Recording/Viewing Any Channel

Connections

With the VCR on and in VCRposition (the VCR/TV light will appear on the display panel), use the CH(annel) o/p buttons to set the VCR to the

Cable Box/DBS output channel (channel 03 or 04). Set the CH3/CH4 switch on the back of the VCR to the same channel.

Set the TV to the same channel to which you set the VCR.

Select the channel you want to view/record at the Cable Box/DBS.

Connect a Cable signal to the IN Jack on the Cable Box/DBS.

Use an RF coaxial cable (supplied) to connect the OUT Jack on the Cable Box/DBS to the ANT(enna) IN Jack on the VCR.

Use a second RF coaxial cable to connect the OUT Jack on the VCR to the TV’s ANTENNA IN Jack.

Cable

Signal

RF coaxial

cable

RF coaxial

cable

AUDIO

OUT IN

VIDEO

CH3 CH4

ANT

OUT

Page 9

Hookups With a Cable Box / Direct Broadcast System (cont’d) 9

OUT

ANT /

CABLE

With this connection:

● You may watch one channel while recording another.

● You may not record scrambled channels.

Recording One Channel/Watching Another

Put the Cable Box/DBS on the same channel as the VCR’s CH3/CH4 switch. Set the TV to the Cable Box/DBS output channel (03 or 04).

Then, with the VCR in VCR position (the VCR/TV light will appear on the display panel), use the CH(annel) o/p buttons

to select the channel you want to record at the VCR. Start the recording.

Press the VCR/TV button once to put the VCR in TV position. (The VCR/TV light will disappear.)

Select the channel you want to watch at the Cable Box/DBS.

TV’s ANTENNA

IN Jack

Cable Box/DBS

VCR

• When you play a tape, make sure the Cable Box/DBS is set to the same channel as the CH3/CH4 switch on the VCR. Set the TV to the Cable Box/DBS output channel (03 or 04).

Helpful Hint

Connect a Cable signal to the VCR’s ANT(enna) IN Jack.

Use an RF coaxial cable (supplied) to connect the OUT Jack on the VCR to the IN Jack on the Cable Box/DBS.

Use a second RF coaxial cable to connect the OUT Jack on the Cable Box/DBS to the ANTENNA IN Jack on the TV.

Connections

Cable

Signal

RF coaxial

cable

RF coaxial

cable

AUDIO

OUT IN

VIDEO

CH3 CH4

ANT

OUT

Page 10

10 Hookups With a Stereo TV

ANT

AUDIO

VIDEO

OUT

CH3 CH4

OUT IN

antenna or

cable to

ANT(enna)

IN Jack

Video Cable

Audio Cable

VIDEO (yellow) and

AUDIO (white) OUT Jacks

Audio and Video

IN Jacks on TV

● Audio and Video cables are not supplied.

Connect the antenna or cable to the ANT(enna) IN Jack on the back of the VCR.

Connect a video cable to the yellow VIDEO OUT Jack on the back of the VCR. Then, connect the other end of the video cable to the VIDEO IN Jack on your TV.

Connect an audio cable to the white AUDIO OUT Jack on the back of the VCR. Then, connect the other end of the audio cable to the AUDIO IN Jack on your TV.

(If your TV has Right and Left AUDIO IN Jacks, you must use a “Y” splitter audio cable as illustrated to deliver audio to the TV’s right and left channels.)

Turn on your TV, making sure it is in Line Input mode. This

might be referred to as the TV’s Audio/Video In channel or the Auxiliary In channel. Please refer to your TV owner’s manual for details.

• This hookup will not give you stereo sound. To get stereo sound, use the connections on pages six-seven and select the channel to be viewed at the TV (with the VCR turned off).

Helpful Hint

Page 11

Press the VCR button, then press the POWER button. The

VCR/TV light and the POWER light will appear on the VCR display panel.

Turn on the TV. Set it to the same channel as the CH3/CH4 switch on the back of the VCR. The display shown

below will appear on the TV screen. (If the display does not appear, check your hookups, then follow the steps on page 12 to set up channels and page 17 to select a language.)

Within 60 seconds, press the PLAY/o button or the STOP/p button to select English or Spanish on-screen displays and menus.

Press the MENU button. The display shown below will appear.

SELECT op

→ENGLISH ON

ESPAÑOL

MAKE SELECTION OR PUSH MENU TO CONTINUE

Turning on Your VCR 11

Within 60 seconds, press the CH(annel) o button to begin automatic channel programming. AUTO CH PRO-

GRAMMING IN PROCESS PLEASE WAIT will appear on the screen. The VCR will memorize all available channels. When all channels are memorized, CHANNELS ARE SET will appear on the screen briefly, then TV programming will appear. Now, when you press the CH(annel) o/p buttons, you’ll only scan through channels that you receive.

• To skip this feature and play a tape immediately, insert a tape with its record tab removed. Or, to skip step 3, press the MENU button. All onscreen displays will be inEnglish. To skip step 5, press the STOP/p button. Channels will not be programmed, and CHANNELS NOT SETwill appear on the screen.

• If you try to program channels when there is no antenna or cable connected to the VCR, programming will appear to take place, but eventually a NOTV SIGNALSmessage will appear. Connect an antenna or cable to the VCR’s ANT(enna) IN Jack and press the CH(annel) o button again. You may need to follow the steps on page 12.

• You may need to repeat the steps on this page if a power failure occurs.

Helpful Hints

Before turning on your VCR, make sure there are batteries in the remote control and the VCR and TV are connected correctly.

● You can not program channels if you are using a Cable Box or

a Direct Broadcast System.

Turn on the TV.

CONNECT ANTENNA OR CABLE TO VCR

THEN . . .

PUSH CH UP KEY

OR . . .

FOR PLAY ONLY – PUSH STOP

EJECT

POWER

STATUS/EXIT

CLEAR

1 2 3

4 5 6

7 8 9

MEMORY ALT.CH

REC

/OTR

REW

CH. VOL.

VCR TV

VCR/TV SPEED

PLAY

STOP

MUTE

F.FWD

PAUSE /STILL

Page 12

12 Automatic Channel Setup

Press the VCR button, then press the MENU button.

SELECT op CHOOSE B

→PROGRAM

VCR SET UP TUNER SET UP SET CLOCK

TO END PUSH EXIT

• You can not enter the TUNER SET

UP menu when you are in Line Input mode (channel 001 or 002). When you select channel 001 or 002, AV REAR or AV FRONT will appear on the TV screen briefly.

• You can not program channels if

you are using a Cable Box or DBS.

• If you have an antenna, channels 2-

69 will be available. If you have a cable connection, channels 1-125 will be available.

• You may need to repeat the steps

on this page if a power failure occurs.

Helpful Hints

Although your VCR may automatically memorize the channels you receive when you turn it on for the first time, this function lets you set up the channels again.

Press the PLAY/o button or the STOP/p button to select TUNER SET UP, then press the F.FWD/B button.

SELECT op CHOOSE B →AUTO PROGRAMMING

ADD/DELETE CH CH MEMORY REVIEW

TO END PUSH EXIT

Press the PLAY/o button or the STOP/p button to select AUTO PROGRAMMING, then press the F.FWD/B button. The VCR distinguishes between TV channels and cable chan-

nels, and the VCR will memorize all the channels you receive.

Wait for a few minutes while the VCR sets up the channels. When this is complete, CHANNELS ARE SET will appear on

the screen. Then the programming of the lowest channel number placed in the VCR’s memory will appear on the screen. Now when you press the CH(annel) o/p buttons, you will scan only through channels you receive. You may still select non-memorized channels by pressing the Number buttons.

2-3

AUTO CH PROGRAMMING

IN PROCESS

PLEASE WAIT

START FINISH

EJECT

MEMORY ALT.CH

CH. VOL.

POWER

STATUS/EXIT

1 2 3

4 5 6

7 8 9

REC /OTR

PLAY

REW

F.FWD

STOP

MUTE

VCR TV

VCR/TV SPEED

CLEAR

PAUSE /STILL

Page 13

Automatic Channel Setup (cont’d) 13

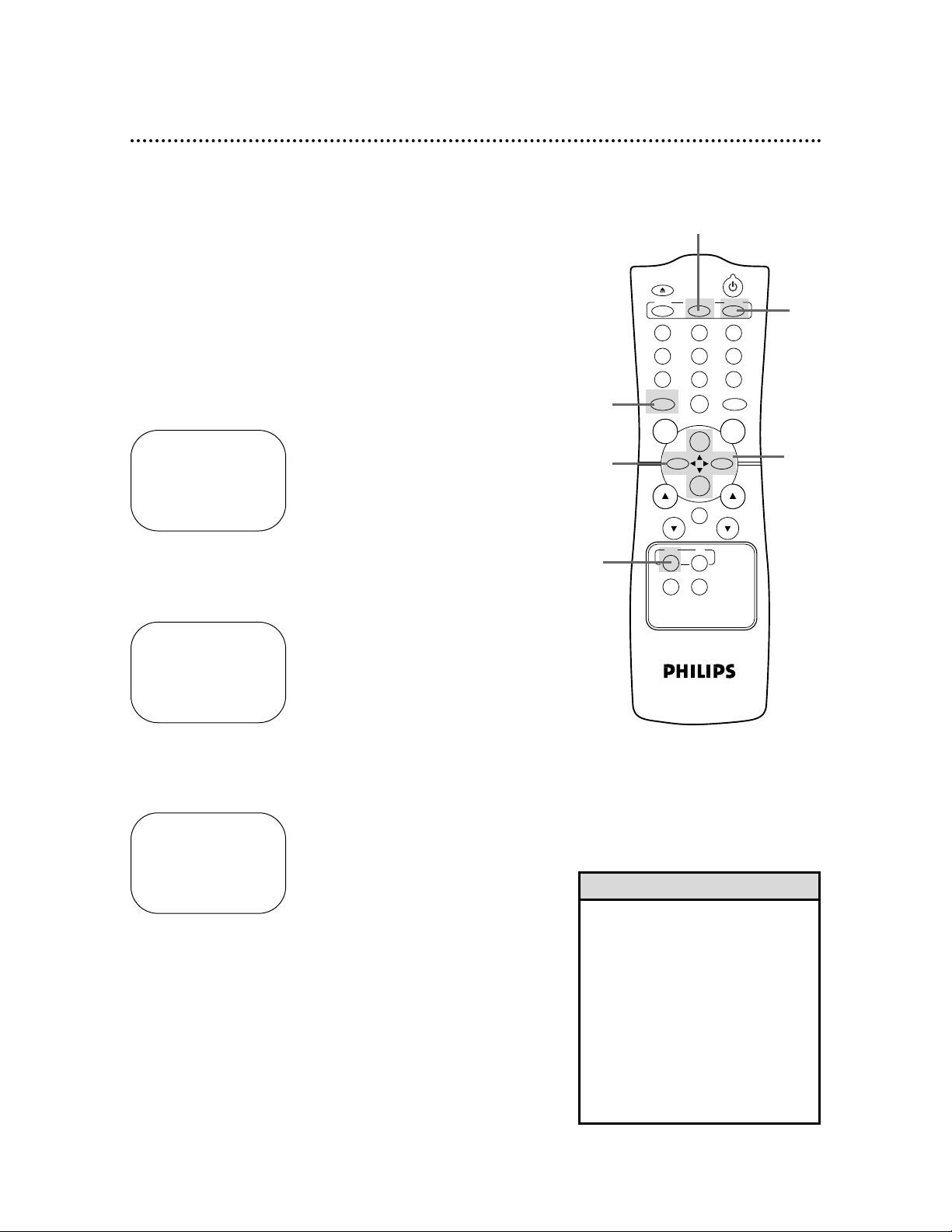

Adding/Deleting Channels

Press the VCR button, then press the MENU button.

SELECT op ADD/DELETE B

124 DELETED 125 DELETED

1 → DELETED 2 ADDED 3 ADDED

TO END PUSH EXIT

Press the PLAY/o button or the STOP/p button to select TUNER SET UP, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button to select ADD/DELETE CH, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button until the channel number you want to add or delete appears beside the arrow.

SELECT op ADD/DELETE B

16 DELETED 17 ADDED 18 → ADDED 19 ADDED 20 ADDED

TO END PUSH EXIT

Press the F.FWD/B button to select ADDED or DELETED. Repeat steps 4 and 5 until you have added or deleted all the

channels you wanted to add or delete.

Press the STATUS/EXIT button.

2-5

NOTE: If you have an antenna, channel numbers 2-69 will appear on the ADD/DELETE CH menu. If you have a cable connection, channels 1-125 will be available.

EJECT

POWER

1 2 3

4 5 6

7 8 9

MEMORY ALT.CH

REC /OTR

REW

CH. VOL.

VCR TV

VCR/TV SPEED

STATUS/EXIT

PLAY

STOP

MUTE

F.FWD

CLEAR

PAUSE /STILL

Page 14

14 Automatic Channel Setup (cont’d)

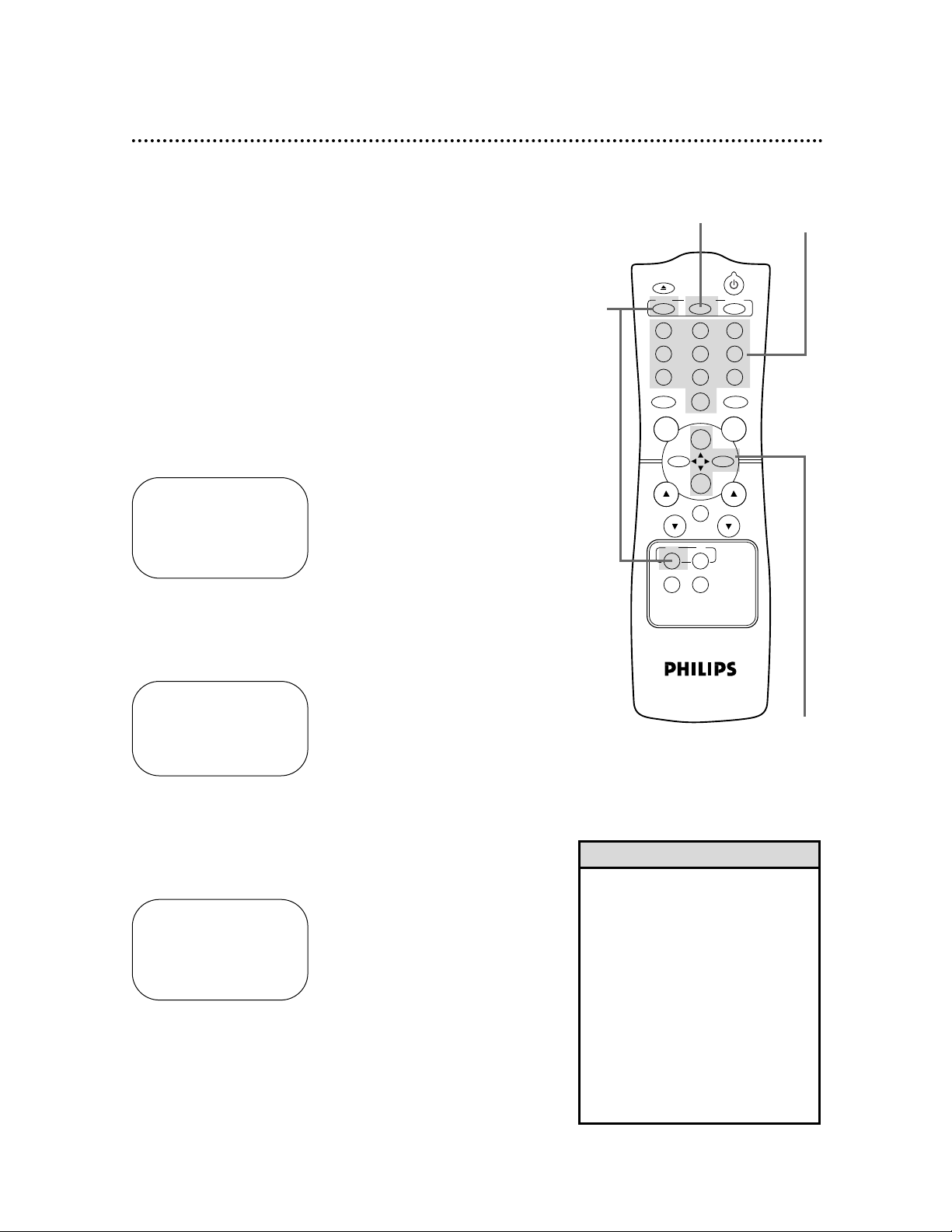

Reviewing Memorized Channels

Press the PLAY/o button or the STOP/p button to select CH MEMORY REVIEW, then press the F.FWD/B button.

A list of programmed channels will appear on the screen.

● If all the programmed channels don’t fit on the screen, press

the F.FWD/B button to see the remaining channels. Then press the REW(ind)/s button to return to the first screen of channels.

● If you do not press any buttons within 10 seconds, you will

either go to the next screen of channels or you will return to the previous menu.

Press the STATUS/EXIT button once or twice to exit.

Press the VCR button, then press the MENU button.

SELECT op CHOOSE B

→PROGRAM

VCR SET UP TUNER SET UP SET CLOCK

TO END PUSH EXIT

Press the PLAY/o button or the STOP/p button to select TUNER SET UP, then press the F.FWD/B button.

SELECT op CHOOSE B →AUTO PROGRAMMING

ADD/DELETE CH CH MEMORY REVIEW

TO END PUSH EXIT

2-3

EJECT

MEMORY ALT.CH

CH. VOL.

POWER

STATUS/EXIT

1 2 3

4 5 6

7 8 9

REC

/OTR

PLAY

REW

F.FWD

STOP

MUTE

VCR TV

VCR/TV SPEED

CLEAR

PAUSE /STILL

Page 15

TIME 02 :15 PM

MONTH – – / – – / – –

TO CORRECT PUSH CLEAR TO END PUSH EXIT

Setting the Clock 15

Follow the steps below to set your VCR’s clock. Make sure:

● The VCR is on and the VCR/TV light appears on the display

panel. (If it does not, press the VCR/TV button once.)

● You make each entry within 60 seconds of the previous entry.

Press two Number buttons for the hour(s) and two Number buttons for the minute(s). Then press 1 for AM or 2 for PM. For example, for 2:15 PM, press 02, 15, 2.

Press two Number buttons for the month, two Number buttons for the day, and two Number buttons for the year. For example, for July 1, 2001, press 07, 01, 01. The day of

the week will appear automatically.

TIME 02 :15 PM

DATE 07 / 01 / 01

SUN.

TO CORRECT PUSH CLEAR TO END PUSH EXIT

Press the STATUS/EXIT button.

• Enter a 0 before a single-digit number.

• Entries that do not match the VCR’s clock or calendar will cause a question mark to appear on the screen.

• To make corrections, press the CLEAR button until the space for the number you want to correct is flashing. Then enter the correct number.

• To see the current time on the TV screen, press the STATUS/EXIT button. Details are on page 20.

• Power failures that last for more than one minute can cause you to lose your clock setting.

Helpful Hints

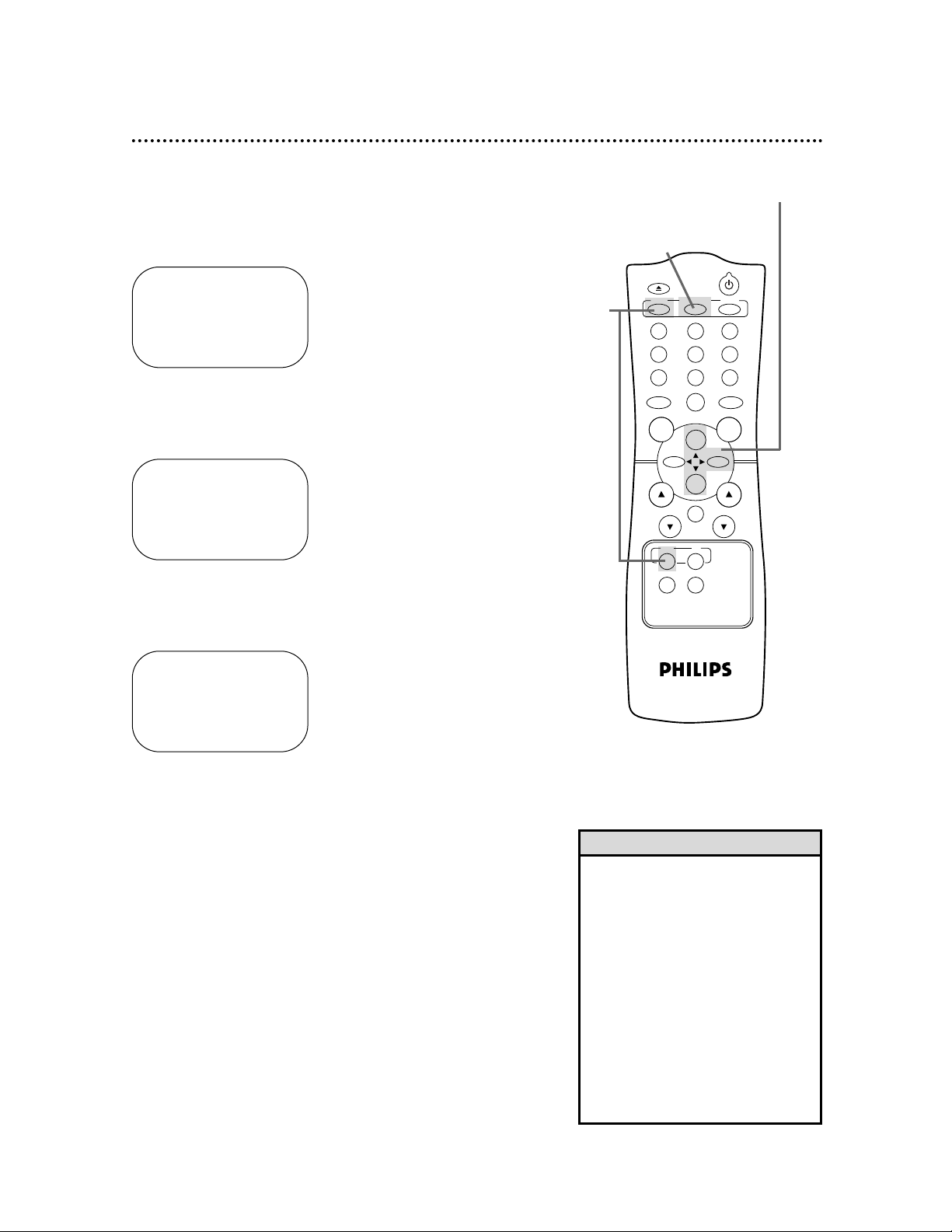

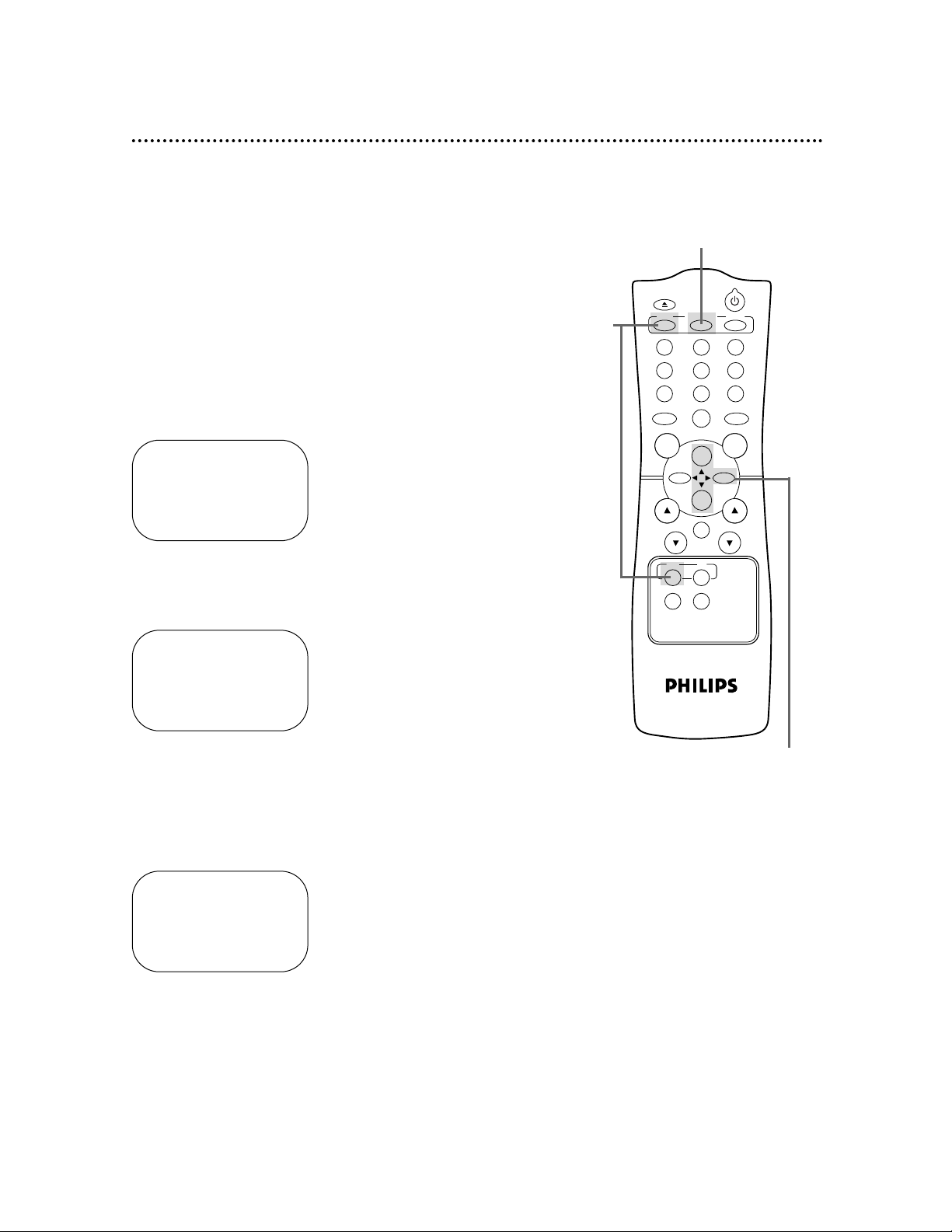

Press the VCR button, then press the MENU button.

Press the PLAY/o button or the STOP/p button to select SET CLOCK, then press the F.FWD/B button.

4-5

2-3

SET CLOCK

→SET CLOCK

DAYLIGHT SVG TIME [ON]

SELECT op CHOOSE B TO END PUSH EXIT

EJECT

MEMORY ALT.CH

CH. VOL.

POWER

STATUS/EXIT

1 2 3

4 5 6

7 8 9

REC /OTR

PLAY

REW

F.FWD

STOP

MUTE

VCR TV

VCR/TV SPEED

CLEAR

PAUSE /STILL

Page 16

Press the VCR button, then press the MENU button.

Press the PLAY/o button or the STOP/p button to select SET CLOCK, then press the F.FWD/B button.

Press the STATUS/EXIT button.

SET CLOCK

→SET CLOCK

DAYLIGHT SVG TIME [ON]

SELECT op CHOOSE B TO END PUSH EXIT

SELECT op CHOOSE B

→PROGRAM

VCR SET UP TUNER SET UP SET CLOCK

TO END PUSH EXIT

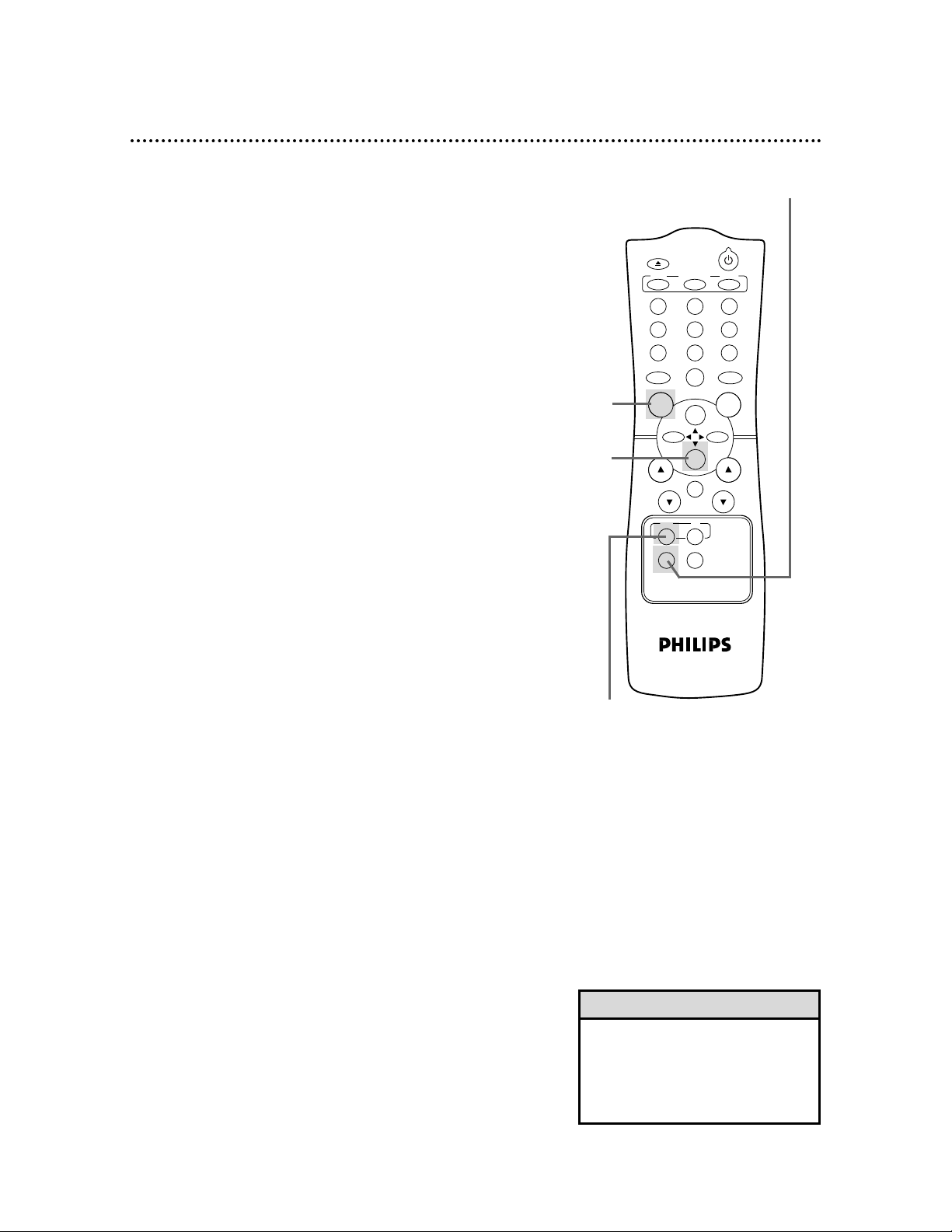

16 Daylight-Savings Time

You may program the VCR so its clock will automatically move forward one hour in April and turn back one hour in October. Daylight-Savings Time is set to ON when you receive your VCR. Turn Daylight-Savings Time ON or OFF by following the steps below. Before you begin:

● Make sure the clock is set. Details are on page 15.

Press the PLAY/o button or the STOP/p button to select DAYLIGHT SVG TIME. Then, press the F.FWD/B button so that OFF (or ON) appears beside DAYLIGHT SVG TIME.

2-34

POWER

EJECT

VCR/TV SPEED

1 2 3

4 5 6

7 8 9

CH. VOL.

MEMORY ALT.CH

REW

PLAY

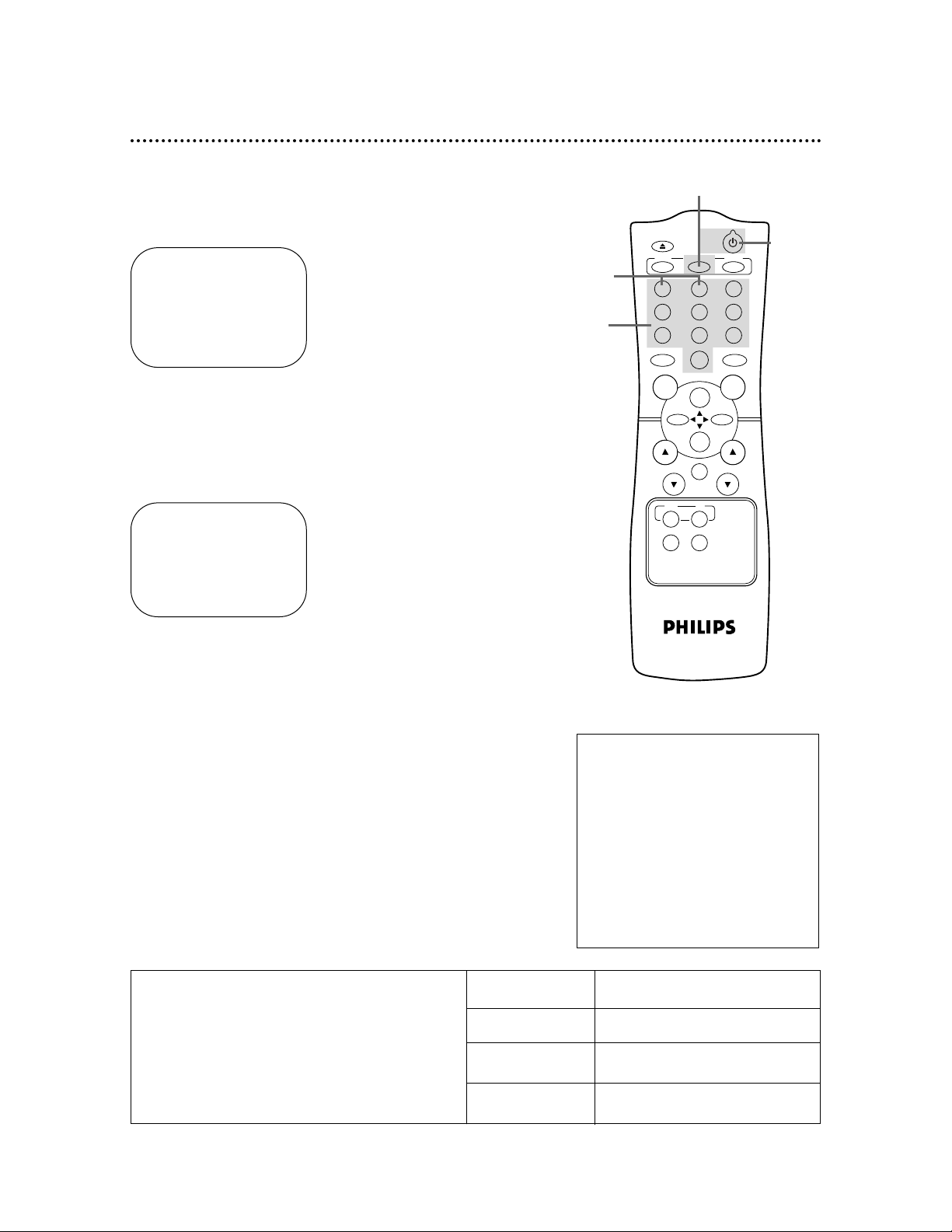

F.FWD

REC /OTR

PAUSE /STILL

STOP

MUTE

VCR TV

STATUS/EXIT

CLEAR

SET CLOCK

→DAYLIGHT SVG TIME [ON]

SELECT op CHOOSE B TO END PUSH EXIT

Page 17

Language Selection 17

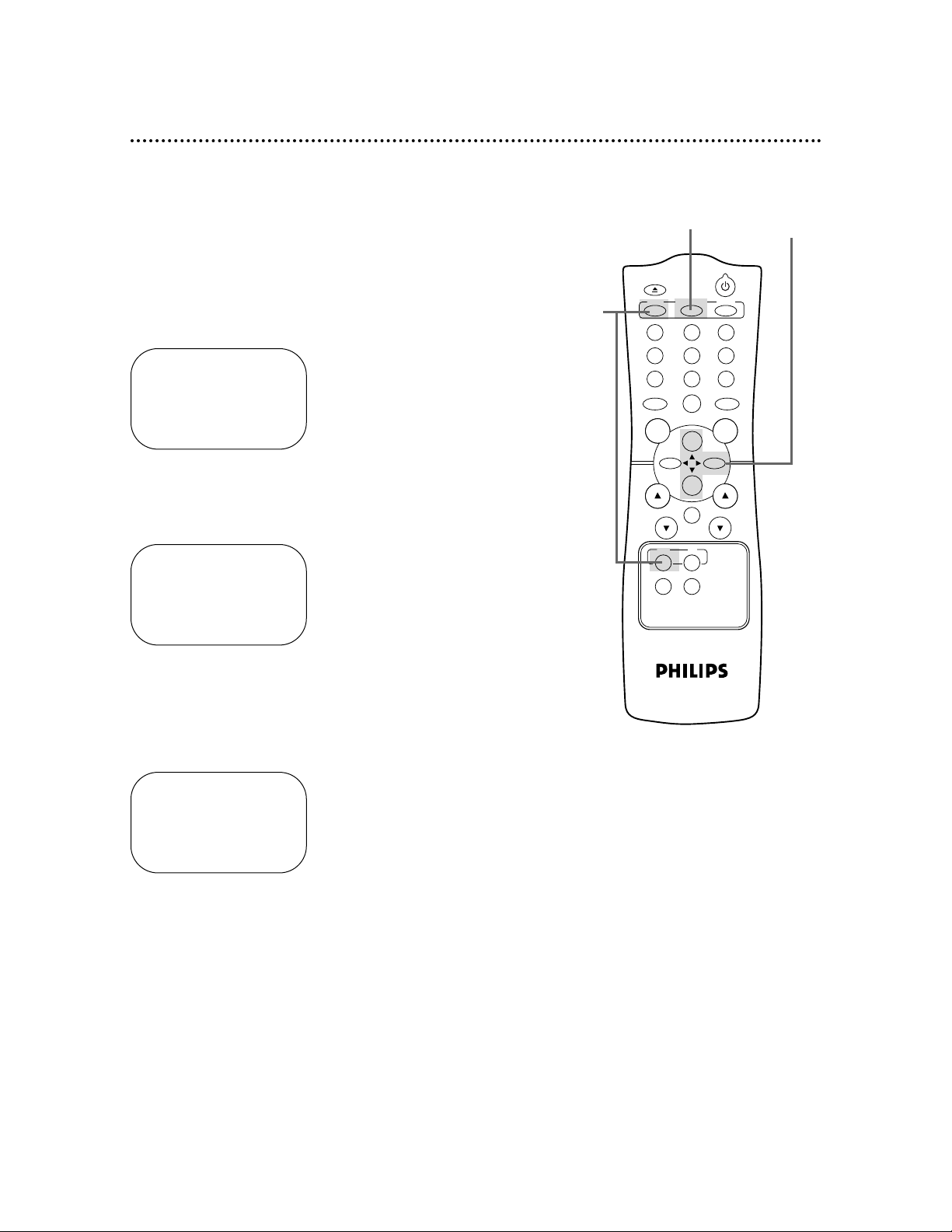

Press the VCR button, then press the MENU button.

Follow the steps below to change the language of the on-screen displays and menus.

Press the PLAY/o button or the STOP/p button to select VCR SET UP, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button to select LANGUAGE, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button to select English or Spanish on-screen displays and menus.

Press the STATUS/EXIT button.

SELECT op CHOOSE B

→PROGRAM

VCR SET UP TUNER SET UP SET CLOCK

TO END PUSH EXIT

SELECT op CHOOSE B

→REPEAT PLAY OFF

ON SCREEN MODE LANGUAGE BLUE BACKGROUND ON

TO END PUSH EXIT

• If you accidentally select Spanish and need English:

1. Press the VCR button, then press the MENU button.

2. Press the PLAY/o button or the STOP/p button to select PREPARE EL VCR, then press the F.FWD/B button.

3. Press the PLAY/o button or the STOP/p button to select LENGUAJE, then press the F.FWD/B button.

4. Press the PLAY/o button or the STOP/p button to select ENGLISH.

5. Press the STATUS/EXIT button.

Helpful Hint

SELECT op

→ENGLISH ON

ESPAÑOL

MAKE SELECTION OR TO END PUSH EXIT

2-4

POWER

EJECT

VCR/TV SPEED

1 2 3

4 5 6

7 8 9

CH. VOL.

MEMORY ALT.CH

REW

PLAY

F.FWD

REC /OTR

PAUSE /STILL

STOP

MUTE

VCR TV

STATUS/EXIT

CLEAR

Page 18

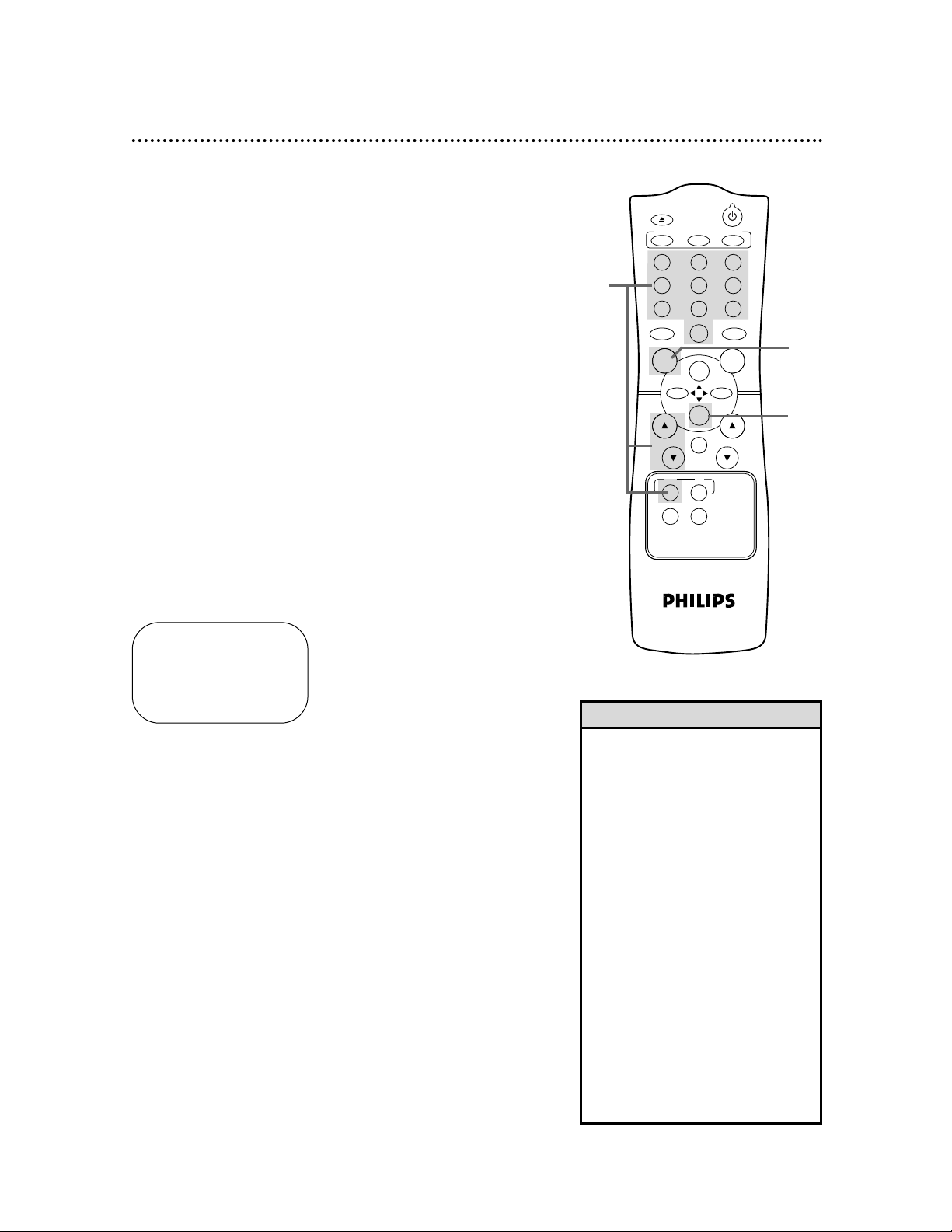

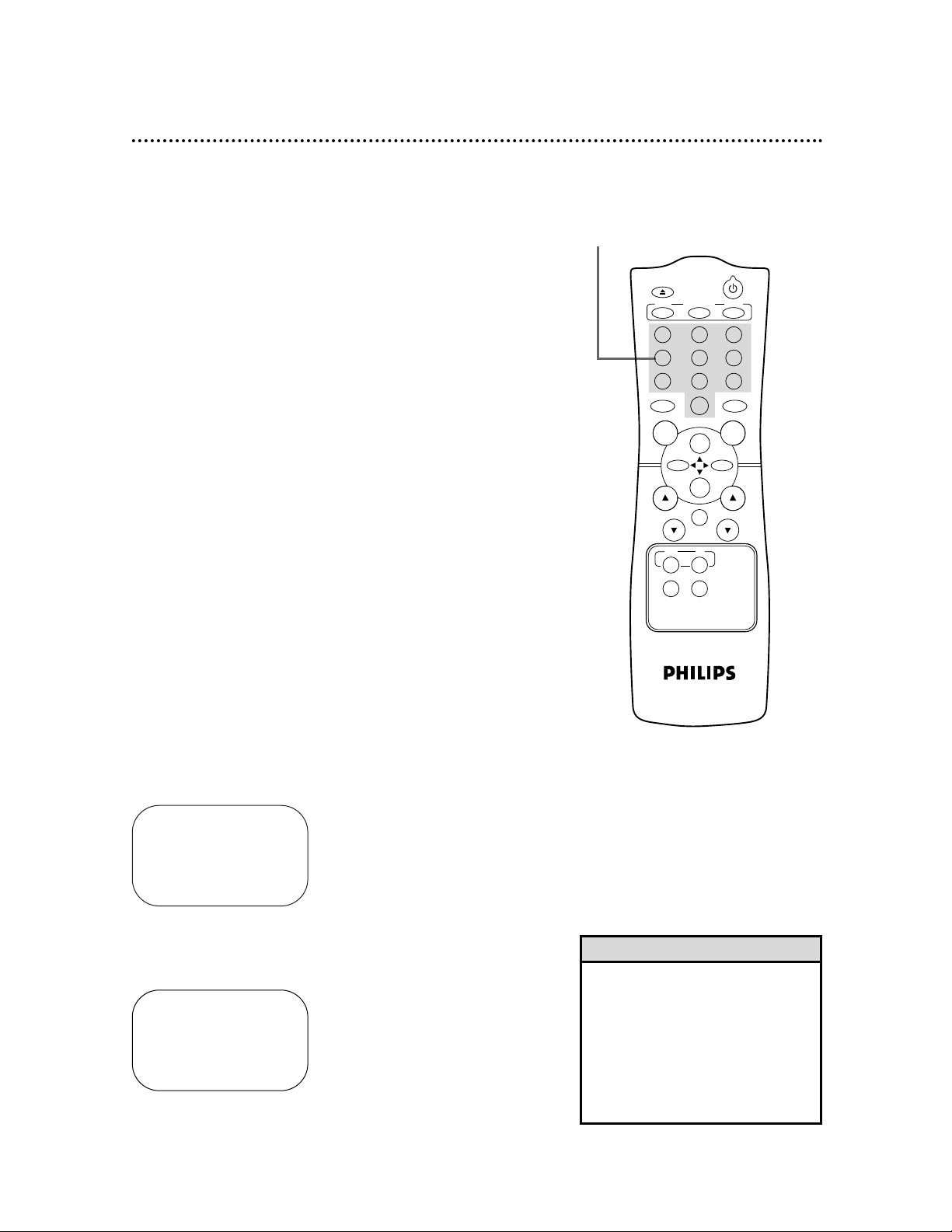

Number Buttons

Press to select channels at the VCR or at a Magnavox, Philips, or Philips

Magnavox TV; use to set up VCR features (such as the clock).

Cable Users

●

Enter channel numbers as a two-digit number for the quickest results.

For example, to select channel 6, press 0,6. If you only press the

Number 6 button, channel 6 will be selected after a brief delay. (There

also may be a brief delay when you select channels 10, 11, and 12.) If

you want to select channels 100 and above, enter channel numbers as a

three-digit number. For example, to select channel 117, press 1, 1, 7.

Antenna Users

●

Enter channel numbers as a two-digit number for the quickest results.

You may only select channels 2-69. For example, to select channel 5,

press 0,5. If you only press the Number 5 button, channel 5 will be

selected after a brief delay.

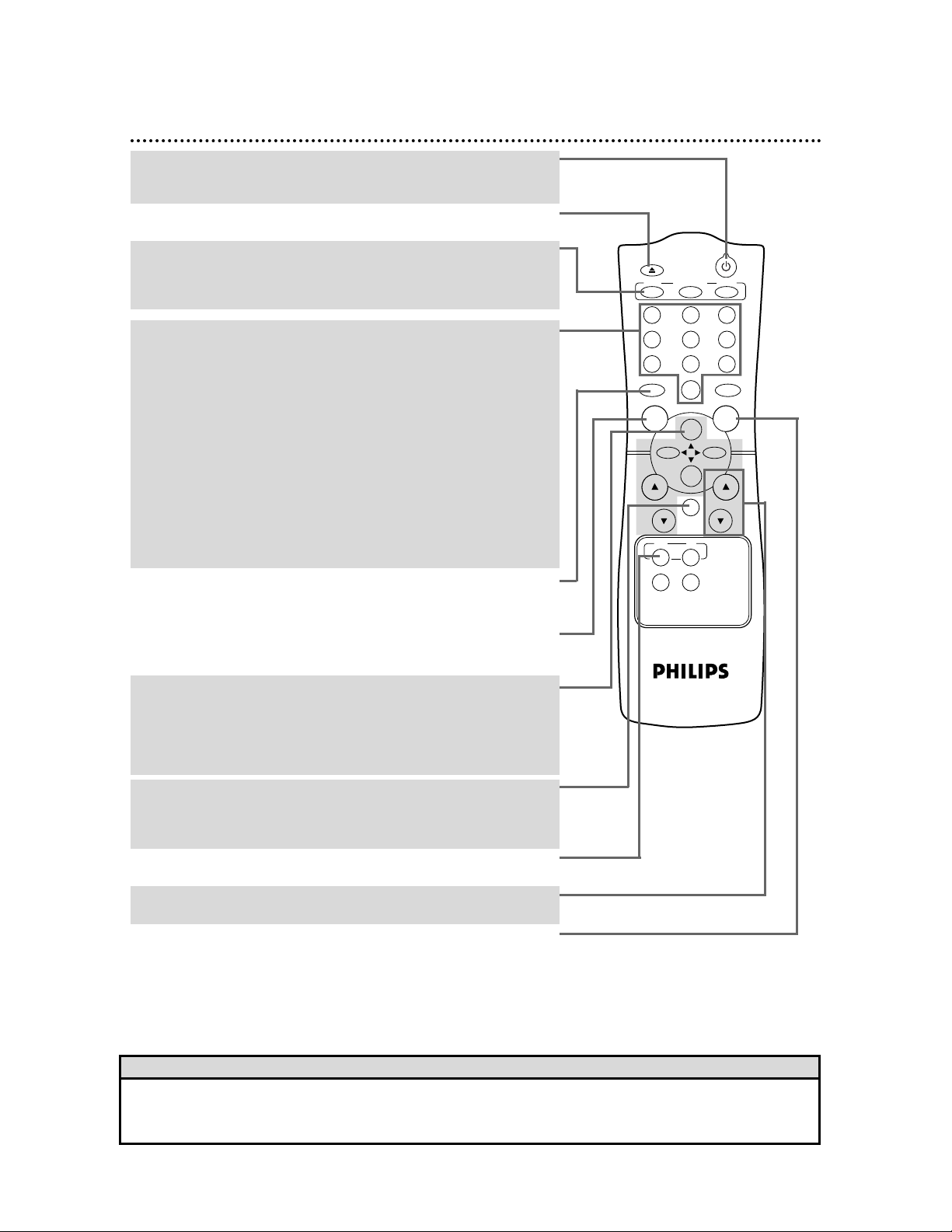

18 Remote Control Buttons

POWER

EJECT

VCR/TV SPEED

1 2 3

4 5 6

7 8 9

CH. VOL.

MEMORY ALT.CH

REW

PLAY

F.FWD

REC /OTR

PAUSE /STILL

STOP

MUTE

VCR TV

STATUS/EXIT

CLEAR

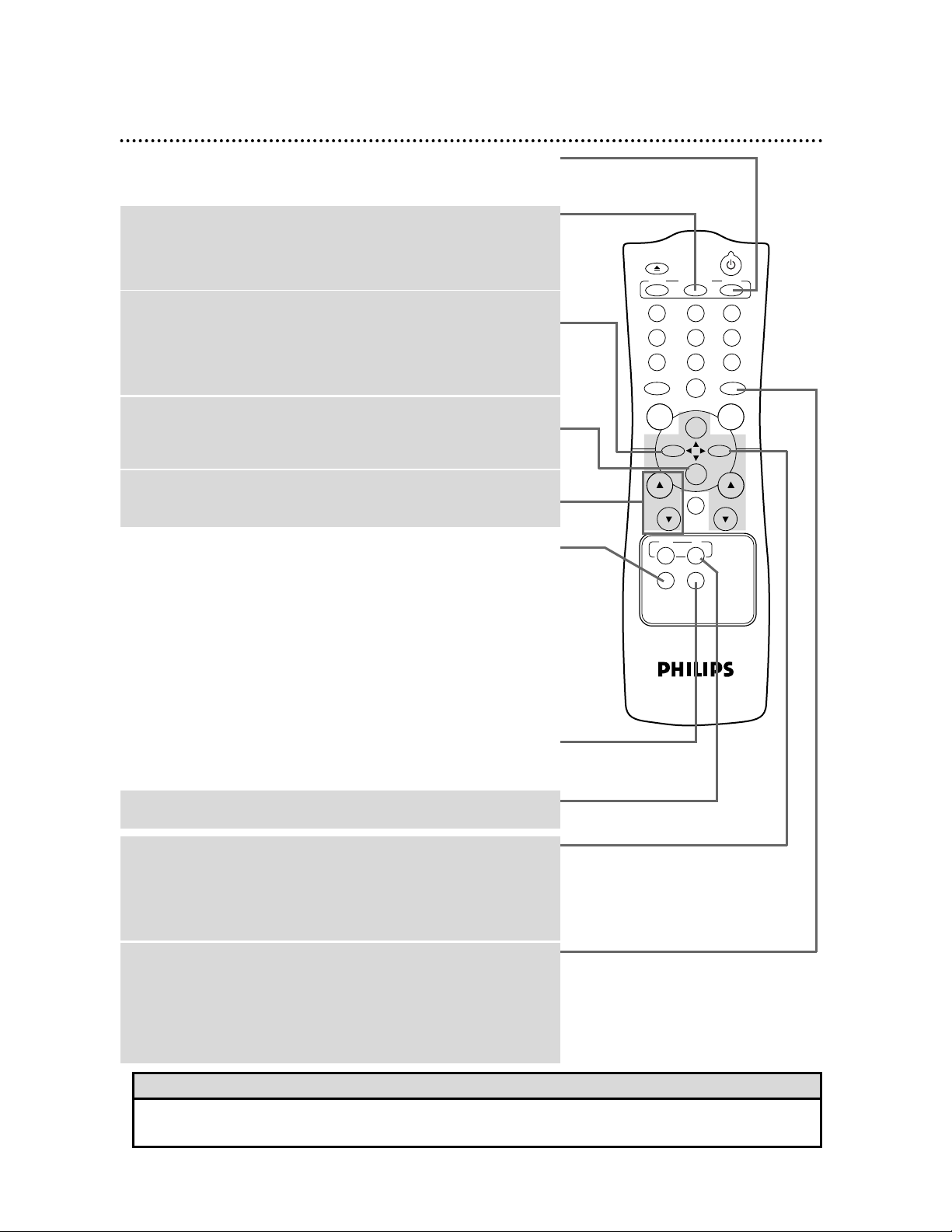

REC(ord)/OTR Button

Press once to start a recording. Details are on page 25. Or, press

repeatedly to start a One-Touch Recording. Details are on page 27.

MEMORY Button

Press to memorize a tape position at which the real-time counter was

set to 0:00:00. Details are on page 34.

VCR Button

Press to operate the VCR with the remote control.

POWER Button

Press to turn on or off the VCR or a Magnavox, Philips, or Philips

Magnavox TV. (You must first press the VCR or TV button.)

MENU Button

Press to access the VCR menu. Or, if you have a Magnavox, Philips,

or Philips Magnavox TV, press the TV button, then press the MENU

button to display the TV menu.

PLAY/o Button

Press to play a tape; press to release Search or Still mode and return

to normal playback. Details are on page 35. Press to select an item in

the VCR’s on-screen menu. Or, if you have a Magnavox, Philips, or

Philips Magnavox TV, press when in TV mode to move up one row

or selection in the TV menu.

• Press the VCR button before pressing VCR feature buttons; press the TV button before pressing TV feature buttons if you have a Magnavox, Philips, or Philips Magnavox TV.

• Buttons that are shaded in the illustration will glow for some time after exposure to direct light.

Helpful Hints

EJECT Button

Press to eject the tape.

VOL(ume) o/p Buttons

Press to adjust the volume of a Magnavox, Philips, or Philips Magnavox TV.

MUTE Button

Press to eliminate the sound at a Magnavox, Philips, or Philips

Magnavox TV. Press again to restore the volume. If you mute the vol-

ume, pressing the VOL(ume)

o button also will restore the volume.

PAUSE/STILL Button

While recording, press to temporarily stop the recording (pause). Press a

second time to resume normal recording. Details are on page 25.

You can not pause a One-Touch Recording.

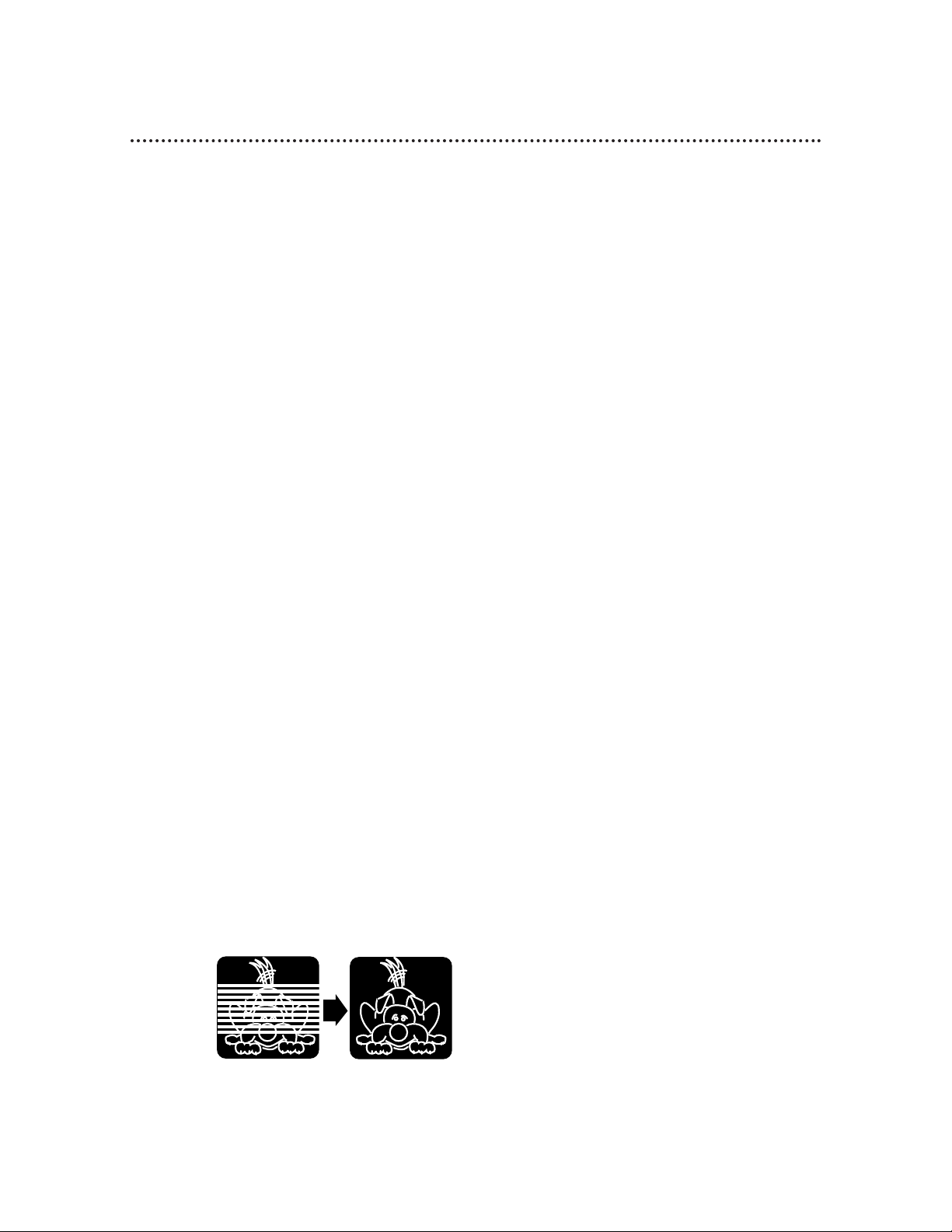

During playback, press to freeze the picture (still). Each time you press the

PAUSE/STILL button, the noise lines will change position on the screen. To

resume playback, press the PLAY/

o button. Details are on page 35.

Page 19

Remote Control Buttons (cont’d) 19

POWER

EJECT

VCR/TV SPEED

1 2 3

4 5 6

7 8 9

CH. VOL.

MEMORY ALT.CH

REW

PLAY

F.FWD

REC /OTR

PAUSE /STILL

STOP

MUTE

VCR TV

STATUS/EXIT

CLEAR

CLEAR Button

Press to erase incorrect data when programming VCR functions. Also,

press to reset the real-time counter. Details are on page 34.

VCR/TV Button

Use to select the signal that your TV receives from the VCR.

VCR Position ●

Use to watch a tape, to watch a program while recording it, or to watch a

TV broadcast using the CH(annel) o/p or Number buttons to change

channels at the VCR. If the VCR/TV light appears on the display panel of

the VCR, it is in VCR position.

TV Position ●

Use to watch TV (changing channels at the TV) or to watch one program

while recording another. Details are on page 26. If the VCR/TV light

doesn’t appear on the display panel of the VCR, it is in TV position.

REW(ind)/{ Button

When tape playback is stopped, press to rewind the tape at high speed.

During playback, press to rewind the tape while the picture stays on the

screen. Details are on page 35. Press to return to a previous VCR menu.

Or, if you have a Magnavox, Philips, or Philips Magnavox TV, use the

REW(ind) button to adjust the controls in the TV menu.

STATUS/EXIT Button

Press to access or remove the VCR’s on-screen status display. Details are

on page 20. Press to exit on-screen menus. Or, if you have a Magnavox,

Philips, or Philips Magnavox TV, press the TV button, then press the STA-

TUS/EXIT button, to see a TV status display or to remove the TV menu.

STOP/p Button

Press to stop the tape. Press to select an item in the VCR menu. Or, if

you have a Magnavox, Philips, or Philips Magnavox TV, press when in

TV mode to move down one row or selection in the TV menu.

CH(annel) o/p Buttons

Press to change channels at the VCR or at a Magnavox, Philips, or

Philips Magnavox TV.

TV Button

Press to operate a Magnavox, Philips, or Philips Magnavox TV.

• Buttons with a shaded description may also operate features of a Magnavox, Philips, or Philips Magnavox TV.

• Buttons that are shaded in the illustration will glow for some time after exposure to direct light.

Helpful Hints

ALT. CH (Alternate Channel) Button

If you have a Magnavox, Philips, or Philips Magnavox TV, press while in

TV position to return to the TV channel you were viewing immediately

before switching to your current channel. (If you press the ALT. CH but-

ton while in VCR position, the TV will change to the channel you last

selected before choosing channel 3 or 4 to use the VCR. However, the

TV channel will not be clear, because you are in VCR position.)

F.FWD(Fast Forward)/B Button

When playback is stopped, press to fast forward the tape at high speed.

During playback, press to fast forward the tape while the picture stays on

the screen. Details are on page 35. Press to advance to the next menu or

to change the setting of an item in the menu. Or, if you have a Magnavox,

Philips, or Philips Magnavox TV, use to adjust the controls in the TV menu.

SPEED Button

Press to select the recording speed (SP or SLP).

Details are on pages 30 and 42.

Page 20

SELECT op CHOOSE B →STATUS [ON]

COUNTER ONLY [OFF]

TO END PUSH EXIT

20 On-Screen Status Displays

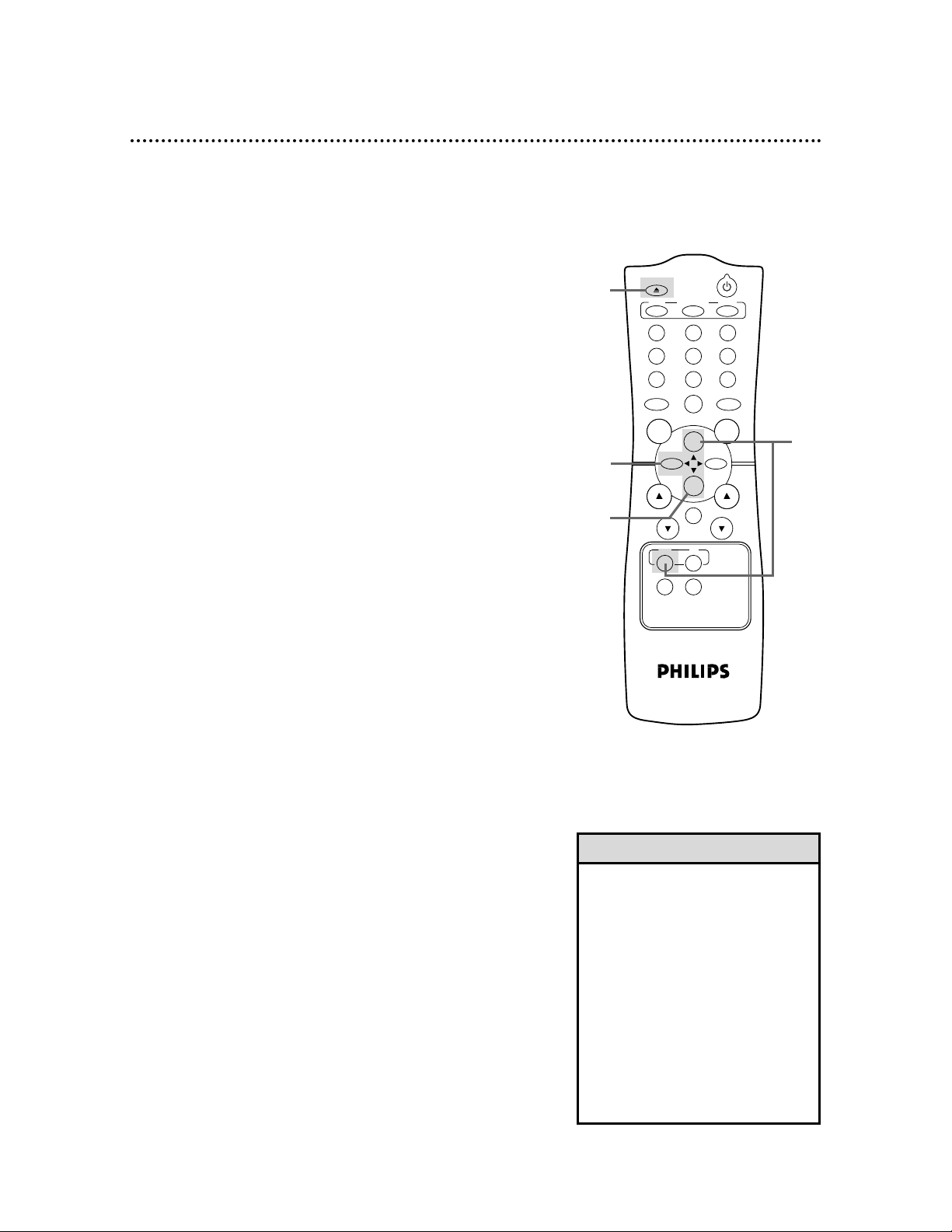

• You may not access a status display when viewing a still picture or during forward or reverse searching.

• The status display may not appear if a weak channel is selected and BLUE BACKGROUND is set to OFF. Details are on page 37.

Helpful Hints

Press the VCR button, then press the MENU button.

Current status of tape

Time

Channel

Counter and Counter Memory

Tape Speed

STOP 12:00 AM

CH10

SLP M 1:23:45

A status display will appear when you press the STATUS/EXITbutton or certain function buttons. The contents of the status display will vary. To choose the status display mode, follow the steps below.

If you select STATUS ON, then select COUNTER ONLY ON:

● Whenever you press the STOP/p button or the PLAY/o button,

the status display will appear for five seconds. After five seconds, only the counter will remain on the screen. You must press the STATUS/EXITbutton to remove it. Portions of the status display also may appear when you press other function buttons.

If you select STATUS ON, then select COUNTER ONLY OFF:

● Whenever you press the STOP/p button or the PLAY/o button,

the status display will appear for five seconds. Portions of the status display also may appear when you press other function buttons.

If you select STATUS OFF:

● The status display will not appear when you press function buttons.

You must press the STATUS/EXIT button to see the status display.

Press the PLAY/o button or the STOP/p button to select VCR SET UP, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button to select ON SCREEN MODE, then press the F.FWD/B button.

If you set STATUS to OFF, go to step 6. If you set STATUS to ON, press the PLAY/o button or the STOP/p button to select COUNTER ONLY, then press the F.FWD/B button so that OFF (or ON) appears beside it.

Press the STATUS/EXIT button.

Press the PLAY/o button or the STOP/p button to select STATUS, then press the F.FWD/B button so that OFF (or ON) appears beside STATUS.

Status Display

(example only)

Page 21

STOP/EJECT

RECORD

MENU STATUS/EXIT

F.FWD

PAUSE

REW

CHANNEL

PLAY

POWER

VCR/TV

CST.IN TIMER RECORD

VIDEO AUDIO

POWER

VCR/TV CST.IN TIMER RECORD

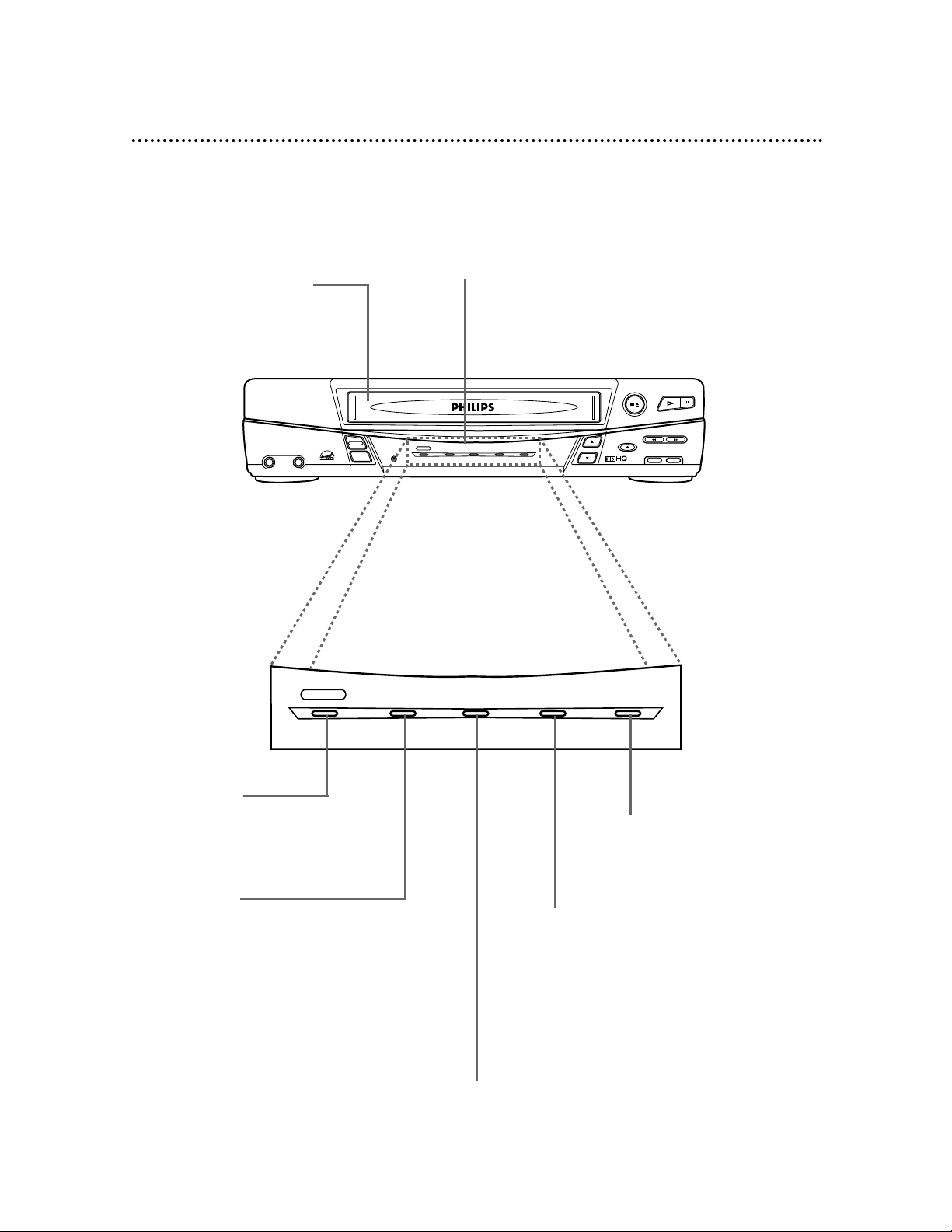

VCR Display Panel 21

Cassette Compartment

Insert a tape here.

VCR/TV Light

This light appears when the VCR is in VCR position. This light does not appear when the VCR is in TV position.

Details are on pages 19 and

22.

RECORD Light

This light appears during a recording. It flashes when a recording is paused.

CST.IN (Cassette Inside) Light

This light appears when there is a tape in the VCR.

POWER Light

This light appears when the power is on.

TIMER Light

This light glows when the VCR is turned off to set a timer recording, during a timer recording, or during a One-Touch Recording. It flashes if the power is off for a timer recording, but there is no tape in the VCR. It flashes when all timer recordings or OneTouch Recordings are finished.

VCR Display Panel

Information about VCR operations is displayed here.

Page 22

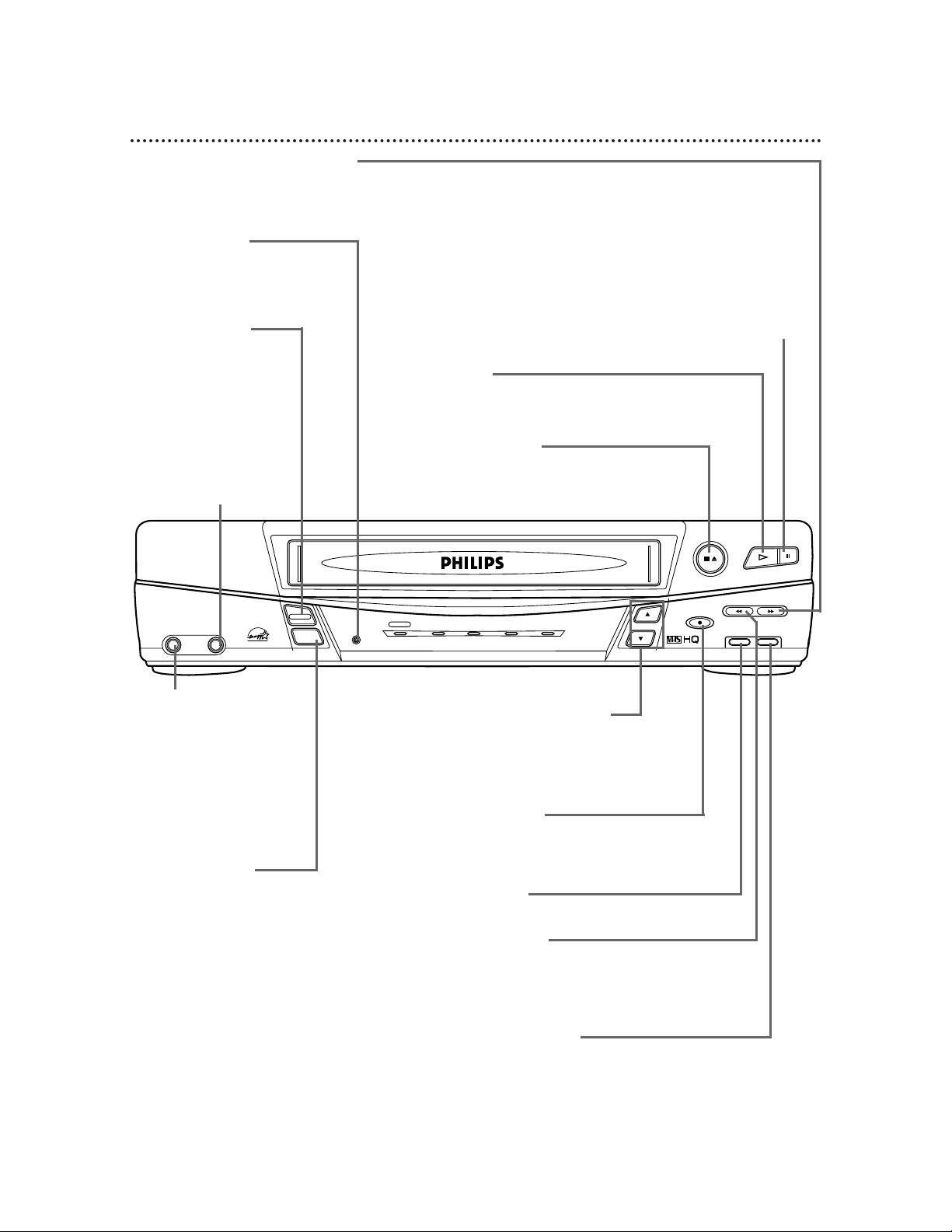

22 Front Panel

PAUSE Button

While recording, press to pause the recording. Press again to resume recording. Details are on page 25. You can not pause a One-Touch Recording. During tape playback, press to freeze the picture. Each press of the PAUSE button will cause the noise lines to move on the screen. Press PLAY to resume normal playback.

Details are on page 35.

POWER Button

Press to turn the VCR power on and off.

VCR/TV Button

Press to select VCR or TV position.

● VCR Position

Use to watch a tape, to watch a program while recording it, or to watch a TV program (changing channels at the VCR). When the VCR/TV light appears on the display panel, the VCR is in VCR position.

● TV Position

Use to watch TV (changing channels at the TV) or to watch one program while recording another. When the VCR/TV light does not appear on the display panel, the VCR is in TV position.

RECORD Button

Press once to start a recording. Press repeatedly to start a One-Touch Recording. Details are on page 27.

CHANNEL (p/o) Buttons

Press to change channels at the VCR. Or, press to adjust the tracking of a tape during normal playback. Also, press to remove vertical jitter in a Still picture.

PLAY Button

Press to play a tape. Press to release Search or Still mode and return to playback. Details are on page

35. Press to select an item in the VCR menu.

REW(ind) Button

When playback is stopped, press to rewind the tape at high speed. During playback, press to rewind the tape while the picture stays on the screen. Details are on page 35. Press to return to a previous on-screen menu.

STOP/EJECT Button

Press once to stop the tape. When playback is stopped, press to eject the tape. Press to select an item in the VCR menu.

F.FWD (Fast Forward) Button

When playback is stopped, press to fast forward the tape at high speed. During tape playback, press to fast forward the tape while the picture stays on the screen. Details are on page 35. Press to select an item in the VCR menu.

STOP/EJECT

RECORD

MENU STATUS/EXIT

F.FWD

PAUSE

REW

CHANNEL

PLAY

POWER

VCR/TV

CST.IN TIMER RECORD

VIDEO AUDIO

Remote Sensor

Receives a signal from your remote control so you can operate your VCR from a distance.

AUDIO In Jack

Connect an audio cable coming from the audio out jack of a camcorder, another VCR, or an audio source here.

Details are on page 32.

VIDEO In Jack

Connect a video cable coming from the video out jack of a camcorder, another VCR, or an audio-visual source (laser disc player, video disc player, etc.) here.

Details are on page 32.

MENU Button

Press to access the VCR menu.

STATUS/EXIT Button

Press to access or remove the on-screen status display. Details are on page 20. Press to exit on-screen menus.

Page 23

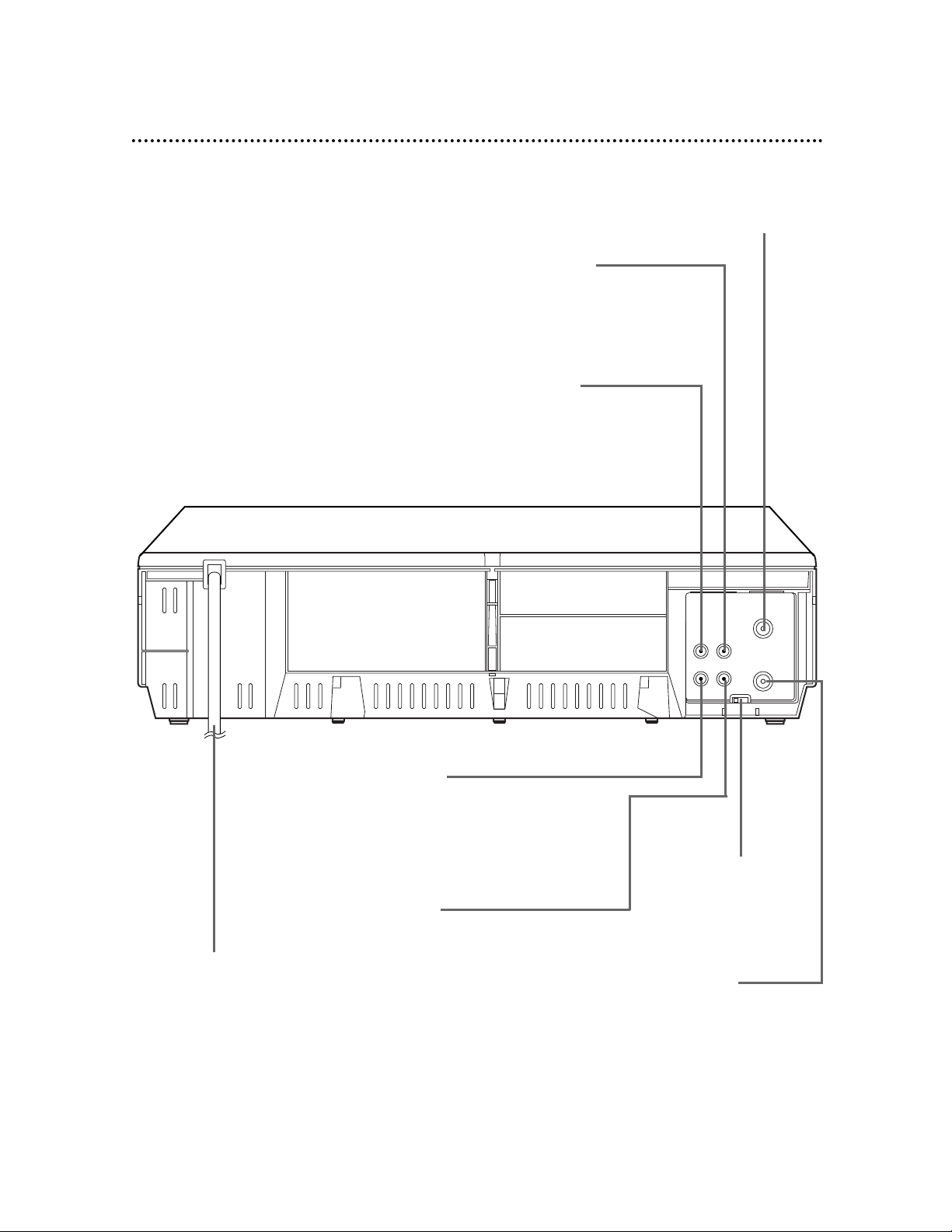

AUDIO IN Jack

Connect an audio cable coming from the AUDIO OUT Jack of a camcorder, another VCR, or an audio source here. Details are on page 32.

VIDEO IN Jack

Connect a video cable coming from the VIDEO OUT Jack of a camcorder, another VCR, or an audio-visual source (laser disc player, video disc player, etc.) here. Details are on page 32.

ANT(enna) IN Jack

Connect your antenna or cable here. Details are on pages six-10.

CH3/CH4 Switch

Set to channel 3 or 4 to use your TV with your VCR. Details are

on pages six-nine.

OUT Jack

Use the supplied RF coaxial cable to connect this jack to the ANTENNA IN Jack on your TV, Cable Box, or Direct Broadcast System. Details are on

pages six-nine.

VIDEO OUT Jack

Connect a video cable going to the VIDEO IN Jack of a camcorder, another VCR, or an audio-visual system (laser disc player, video disc player, etc.) here. Details are on page 32.

AC Power Cord

Connect to a standard AC outlet to supply power to the VCR.

AUDIO OUT Jack

Connect an audio cable going to the AUDIO IN Jack of a camcorder, another VCR, or an audio system here. Details are on page 32.

ANT

AUDIO

VIDEO

OUT

CH3 CH4

OUT IN

Rear Panel 23

Page 24

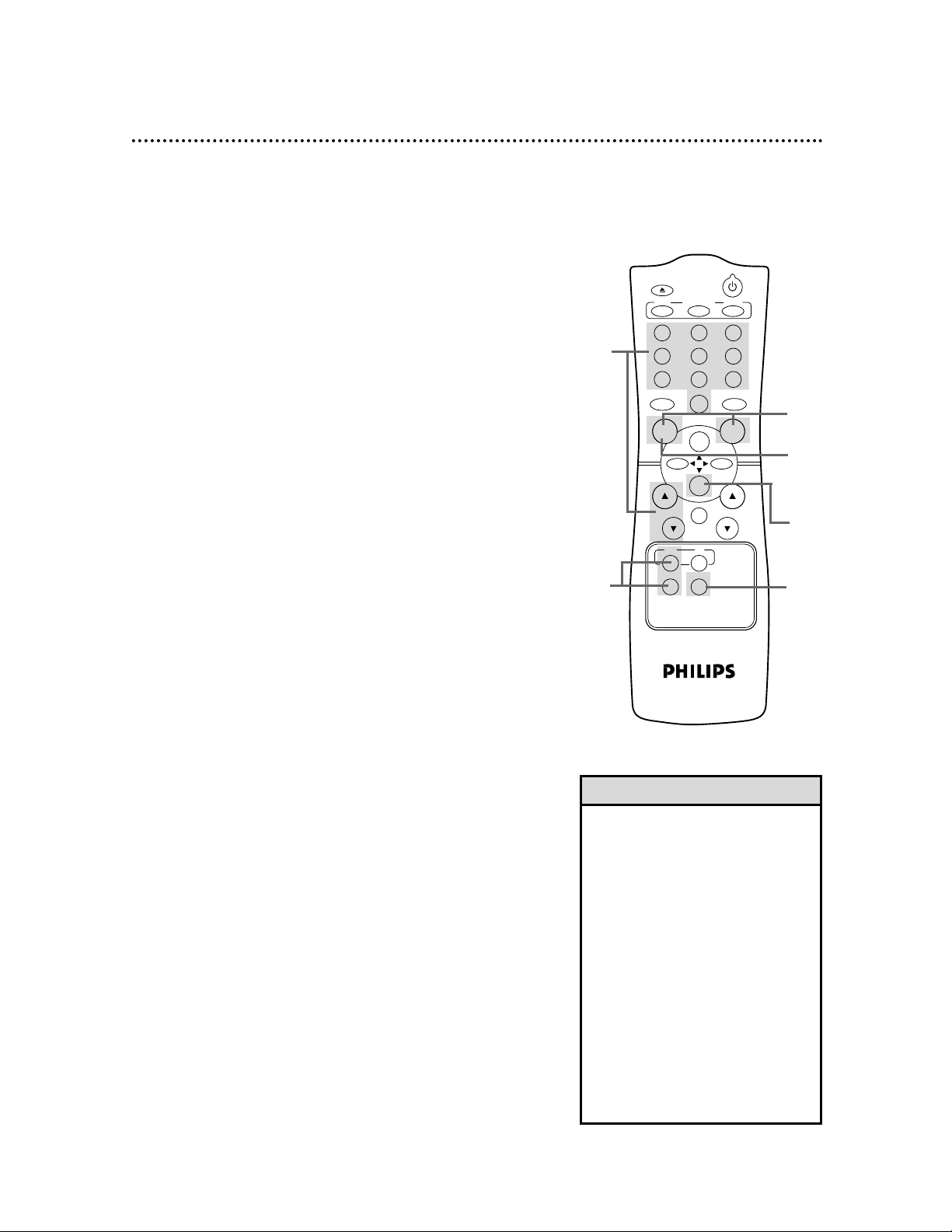

24 Playing

• If the tape you want to play is

already in the VCR, make sure the VCR power is on and the VCR is in VCR position. (The VCR/TV light will appear on the display panel. If it does not, press the VCR/TV button once.) Press the VCR button, then press the PLAY/o button.

• Other playback options and features

are on pages 33-36.

• If REPEAT PLAY is set to ON, play-

back will begin automatically when you insert a tape, even when the record tab is intact.

Helpful Hints

Read and follow the steps below to play a tape.

Turn on the TV and set it to channel 3 or 4, whichever

channel the CH3/CH4 switch on the back of the VCRis set to.

Insert a tape in the VCR. The POWER, VCR/TV, and CST. IN

lights will appear on the display panel. If the tape’s record tab has been removed, playback will start automatically.

Press the EJECT button to remove the tape.

If playback does not start automatically, press the VCR button, then press the PLAY/o button.

Press the STOP/p button to stop playback.

Press the REW(ind)/{ button to rewind the tape.

Turn on the TV.

Insert a tape in the VCR.

S-VHS Quasi Play Back (SQPB)

This unit has a SQPB function that allows you to view a tape recorded in S-VHS format. A tape recorded in S-VHS format will play the same as a tape recorded in normal format. This unit automatically detects whether the tape is recorded in S-VHS format or in normal format. When you play a tape recorded in S-VHS format on this unit, you can not get the high resolution that would be available on an SVHS VCR. Noise lines (black and white streaks) may appear on the picture.

EJECT

MEMORY ALT.CH

/OTR

CH. VOL.

POWER

STATUS/EXIT

1 2 3

4 5 6

7 8 9

REC

PLAY

REW

F.FWD

STOP

MUTE

VCR TV

VCR/TV SPEED

CLEAR

PAUSE

/STILL

Page 25

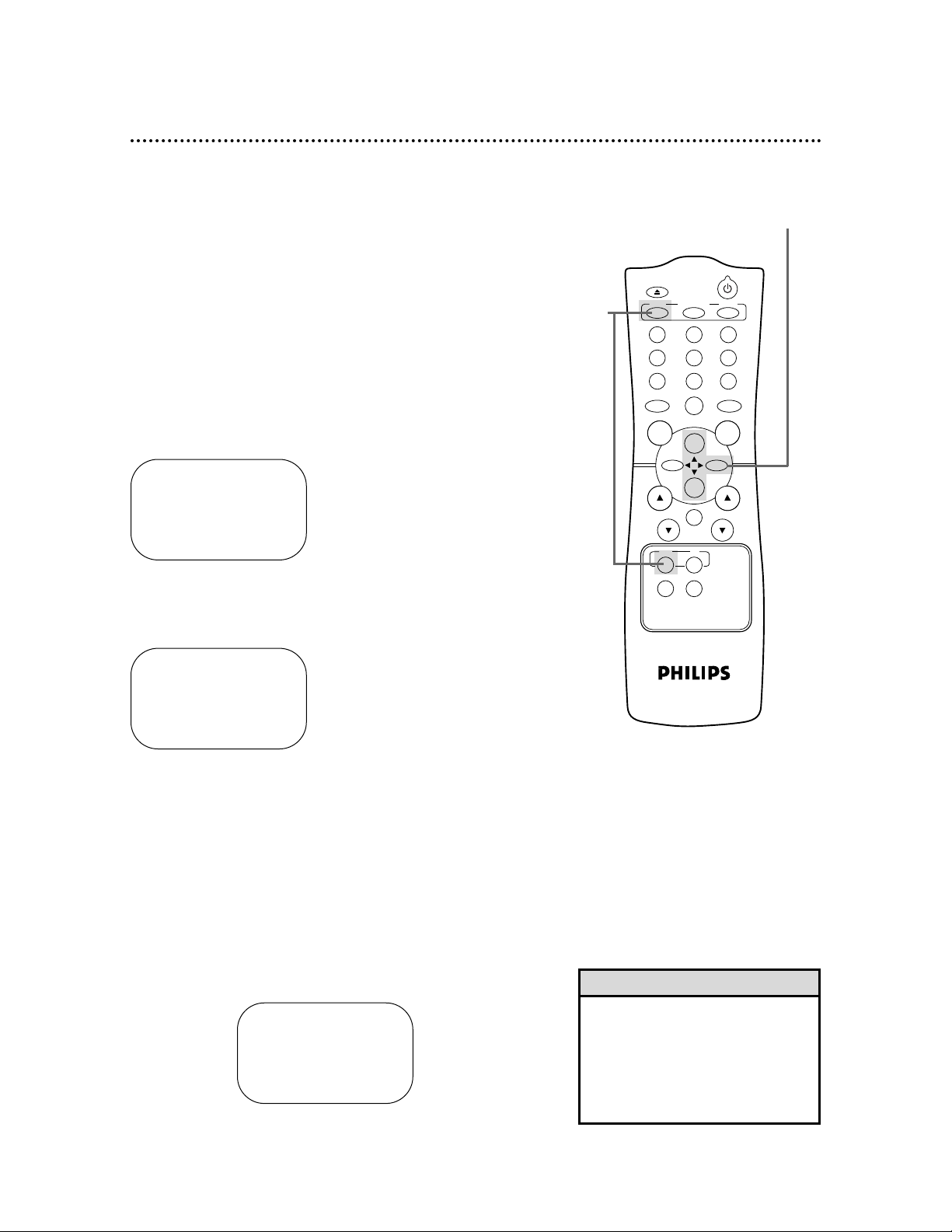

Read and follow the steps below to record a television program.

Turn on the TV and set it to channel 3 or 4, whichever

channel the CH3/CH4 switch on the back of the VCRis set to.

Recording 25

Insert a tape with its record tab intact in the VCR.

If the VCR/TV light appears on the display panel, go to step 4. If the VCR/TV light does not appear, press the VCR button, then press the VCR/TV button once.

• If you press the REC(ord)/OTR button when there is not a tape in the VCR, NOCASSETTE will flash on the screen.

• If you press the REC(ord)/OTR button while a tape without a record tab is in the VCR, the VCR will eject the tape and PROTECTEDCASSETTECANNOT RECORD will flash on the screen.

• Other recording options are on pages 26-32.

• You can change the tape speed during a recording, but some distortion will appear on the tape.

• The VCR will record in a preset volume.

Helpful Hints

Press the SPEED button until the desired tape speed appears briefly on the screen. (Details about tape speed are on

page 30.)

Use the CH(annel) o/p buttons or the Number buttons to select the channel to be recorded.

Press the REC(ord)/OTR button once to start recording.

The RECORD light will appear on the VCR display panel.

To pause the recording, press the PAUSE/STILL button once. The RECORD light will flash. To resume recording, press the REC(ord)/OTR button or press the PAUSE/STILL button again. The RECORD light will come on

again.

To stop recording, press the STOP/p button.

Turn on the TV.

Insert a tape in the VCR.

7 8

EJECT

MEMORY ALT.CH

CH. VOL.

POWER

STATUS/EXIT

1 2 3

4 5 6

7 8 9

REC /OTR

PLAY

REW

F.FWD

STOP

MUTE

VCR TV

VCR/TV SPEED

CLEAR

PAUSE /STILL

Page 26

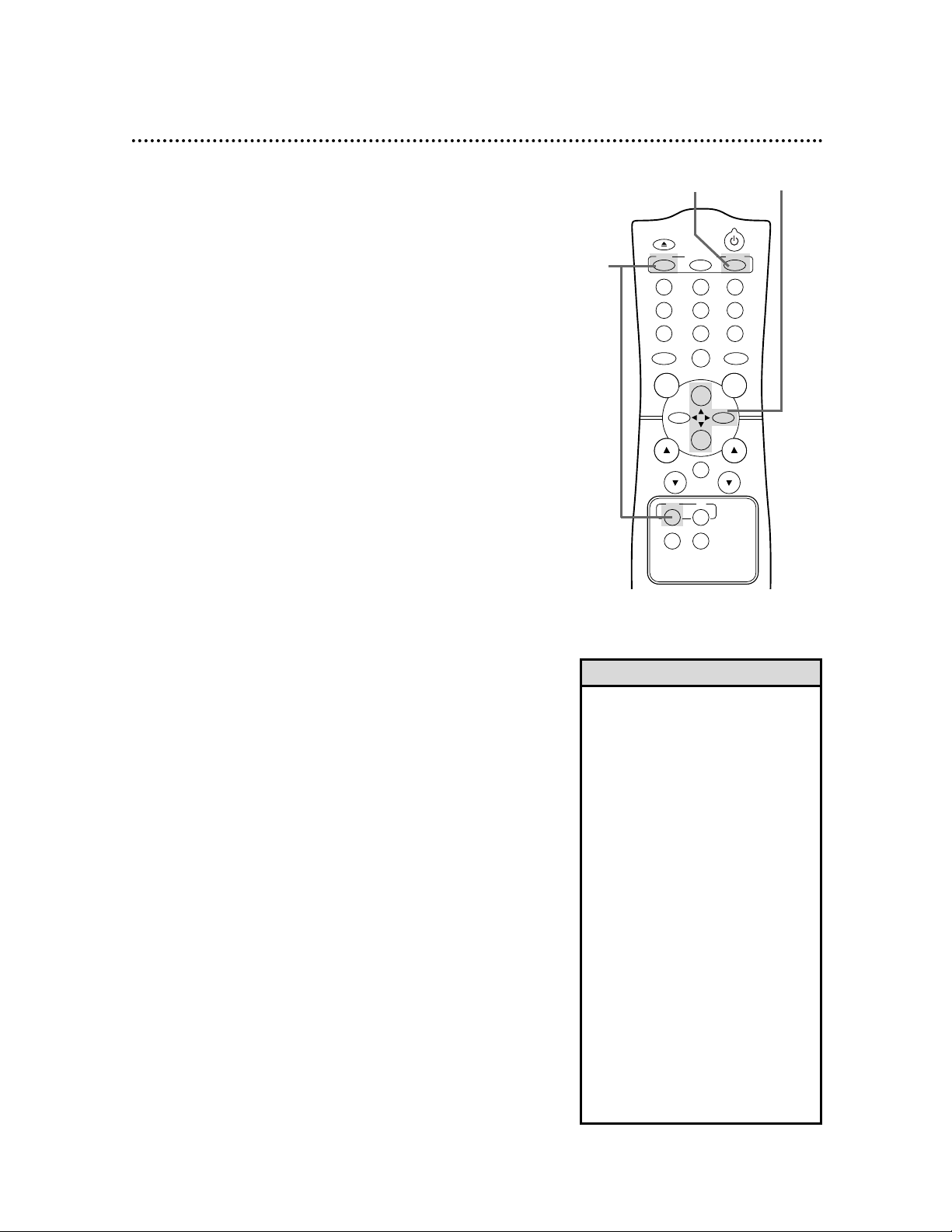

Press the REC(ord)/OTR button to start a recording of the current channel. (Details are on page 25.) The RECORD

light will appear on the VCR display panel.

Press the VCR button.

26 Recording One Channel/Watching Another

• If you use a Cable Box or Direct Broadcast System hookup, you may not be able to watch one channel while recording another. See pages eight-nine for details.

Helpful Hint

Press the VCR/TV button to put the VCR in TV position.

The VCR/TV light will disappear from the VCR’s display panel.

Use the TV remote control to select the channel you want to watch at the TV.

To return to the channel being recorded, use the TV remote control to select channel 03 or 04 at the TV

(whichever channel the CH3/CH4 switch on the back of the VCR is set to).

Press the VCR/TV button to put the VCR in VCR position. The VCR/TV light will appear on the display panel. The

channel being recorded will appear on the screen.

Press the STOP/p button to stop the recording.

4 5

Select the channel you want to watch at the TV.

Select channel 03 or 04 at the TV.

POWER

EJECT

VCR/TV SPEED

1 2 3

4 5 6

7 8 9

CH. VOL.

MEMORY ALT.CH

REW

PLAY

F.FWD

REC

/OTR

PAUSE

/STILL

STOP

MUTE

VCR TV

STATUS/EXIT

CLEAR

3&7

1&6

Page 27

One-Touch Recording 27

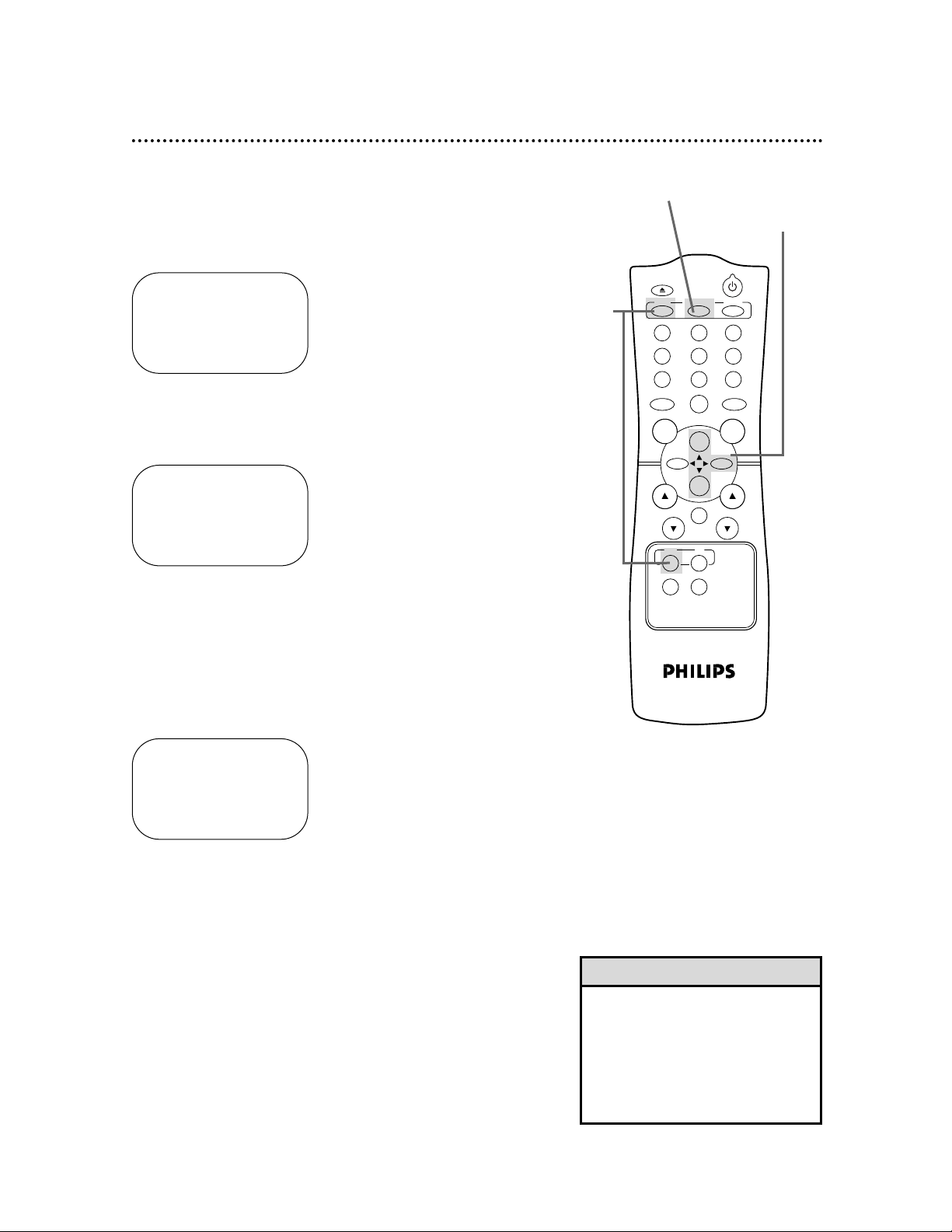

Press the VCR button, then press the CH(annel) o/p buttons or the Number buttons to select the channel you want to record.

OTR (0:30)

CH12

Press the REC(ord)/OTR button repeatedly until the desired recording length (30 minutes to eight hours) appears on the screen. Recording will begin immediately. The

RECORD light and the TIMER light will appear on the display panel.

The One-Touch Recording (OTR) feature allows you to set an immediate timed recording 30 minutes to eight hours long. Before you begin:

● Set up the channels at the VCR.

● Select a recording speed (SP, SLP) with the SPEEDbutton.

● Put a tape in the VCR. Make sure the tape’s record tab is intact

and the tape is long enough to record the program(s). If the end of a tape is reached during an OTR, the VCR will eject the tape and turn itself off.

● Place the VCRin VCR position. (The VCR/TV light will appear

on the display panel. If it does not, press the VCR/TV button once.)

To stop an OTR before recording is finished, press the STOP/p button.

To cancel the OTR but continue recording, press the REC(ord)/OTR button repeatedly until REC appears in the upper left corner of the TV screen. (STATUS must be set to ON. See page 20 for details.) The RECORD light will remain on the display panel of the VCR, but the TIMER light will disappear.

• To check the time remaining for an OTR after the OTRhas been set, press the STATUS/EXITbutton.

• To change the recording length while an OTR is in progress, press the REC(ord)/OTRbutton until the desired length appears on the screen.

• If you begin an OTR when another recording is paused, the OTRwill begin.

• You can not pause an OTR.

• If the preset time for a timer recording comes up during an OTR, the OTR has priority. A message will remind you when the timer recording was scheduled to begin. You may let the OTR continue; the timer recording will not take place. Or, stop the OTR and turn off the VCR immediately. The timer recording will take place if you turn off the VCR before the timer recording’s scheduled start time.

Helpful Hints

POWER

EJECT

VCR/TV SPEED

1 2 3

4 5 6

7 8 9

CH. VOL.

MEMORY ALT.CH

REW

PLAY

F.FWD

REC

/OTR

PAUSE

/STILL

STOP

MUTE

VCR TV

STATUS/EXIT

CLEAR

Page 28

DAILY PROGRAM (MON-FRI)

PROGRAM -1 2 3 4 5 6 7 8-

SELECT PROGRAM NUMBER TO END PUSH EXIT

28 Timer Recording

Follow the steps below to program your VCR to record TV programs while you’re away from home. The VCR will turn itself on, record, and turn itself off automatically. Before you begin:

●Set up the channels at the VCR. Details are on page 12.

●Set the clock. Details are on page 15.

●Put a tape in the VCR. Make sure the tape’s record tab is intact

and the tape is long enough to record the program(s).

●Put the VCR in VCR position. The VCR/TV light will appear on

the display panel. If it does not, press the VCR/TV button once.

Do each step within 60 seconds of the previous step.

Press the VCR button, then press the MENU button.

SELECT op CHOOSE B

→PROGRAM

VCR SET UP TUNER SET UP SET CLOCK

TO END PUSH EXIT

Press the PLAY/o button or the STOP/p button to select PROGRAM, then press the F.FWD/B button.

SELECT op CHOOSE B →ONCE

DAILY WEEKLY PROGRAM REVIEW

TO END PUSH EXIT

Press the PLAY/o button or the STOP/p button to select a ONCE, DAILY, or WEEKLY recording. Then, press the F.FWD/B button.

●ONCE: The VCR will record a TV program on any day you

choose, up to 12 months away.

●DAILY: The VCR will record the same channel every day from

Monday to Friday – starting at the same time and recording for the same length of time.

● WEEKLY: The VCR will record the same channel on the same

day, at the same time, and for the same length of time every week.

Daily Recording (example)

• If you need to make a correction while programming a timer recording, press the CLEAR button until the cursor is flashing on the item you want to change. Then enter the correct information.

Helpful Hint

2-3

POWER

EJECT

VCR/TV SPEED

1 2 3

4 5 6

7 8 9

CH. VOL.

MEMORY ALT.CH

REW

PLAY

F.FWD

REC /OTR

PAUSE

/STILL

STOP

MUTE

VCR TV

STATUS/EXIT

CLEAR

Page 29

ONE TIME PROGRAM

PROGRAM 1 CHANNEL 10 TIME ON – – : – –

TO CORRECT PUSH CLEAR TO END PUSH EXIT

Press two Number buttons for the hour you want the recording to begin. Press two Number buttons for the minute you want the recording to begin. Press 1 for AM or 2 for PM. For example, for 9:30 PM, press 09, 30, 2.

ONE TIME PROGRAM

PROGRAM 1 CHANNEL 10 TIME ON 09:30 PM TIME OFF – – : – –

TO CORRECT PUSH CLEAR TO END PUSH EXIT

Timer Recording (cont’d) 29

Use the Number buttons (1 - 8) to select a slot in which to store the timer recording. There are eight slots. Numbers for

open slots will flash on the screen.

NOTE: If you enter a number for a slot that has already been used to store a timer recording, PREVIOUSLYSET PROGRAM will appear on the screen briefly. Information about the program in that slot will appear on the screen. If this happens, press the STATUS/EXIT button, then select another number.

Use the Number buttons to enter the channel you want to record.

● Cable Users, enter channel numbers as a two-digit number for

the quickest results. For example, to select channel 6, press 0,6. If you only press the Number 6 button, channel 6 will be selected after a brief delay. There also may be a brief delay when you select

channels 10, 11, and 12.

If you want to select channels 100 and above, enter channel numbers as a three-digit number. For example, to select channel 117, press 1, 1, 7. Antenna Users, enter channel numbers as a two-digit number for the quickest results. For example, to select channel 5, press 0,5. If you only press the Number 5 button, channel 5 will be selected after a brief delay. You may only select channels 2-69.

● If you are recording from line input, press 0,0 to select AV REAR.

● If you are using a Cable Box/DBS, select the Cable Box/DBS out-

put channel (03 or 04). Set the Cable Box/DBS to the channel you want to record. Leave the Cable Box/DBS on for the timer recording. Details are on page eight.

Follow the instructions in step 6 to enter the recording’s stop time. (AM or PM will be set automatically.)

Instructions continue on page 30.

4-7

• Entries that do not match the VCR’s clock or calendar will cause a question mark to appear on the screen.

• If you are recording from line input, connect the audio and video cables to the AUDIO IN and VIDEO IN jacks on the back of the VCR. (Please see illustration on page 32.)

Helpful Hints

POWER

EJECT

VCR/TV SPEED

1 2 3

4 5 6

7 8 9

CH. VOL.

MEMORY ALT.CH

REW

PLAY

F.FWD

REC /OTR

PAUSE

/STILL

STOP

MUTE

VCR TV

STATUS/EXIT

CLEAR

Page 30

ONE TIME PROGRAM

PROGRAM 1 CHANNEL 10 TIME ON 09:30 PM TIME OFF 11:00 PM REC SPEED SLP

SP=1 SLP=2

TO CORRECT PUSH CLEAR TO END PUSH EXIT

30 Timer Recording (cont’d)

Press the Number 1 button to record in SP speed or the Number 2 button to record in SLP speed. (See the chart

below.) You cannot use the SPEED button at this time.

Press two Number buttons for the month and two Number buttons for the day you want to record the program. For example, for July 10, 2001, press 07, 10. The day of

the week and the year will appear automatically (you cannot program the VCR to record more than one year in advance).

ONE TIME PROGRAM

PROGRAM 1 CHANNEL 10 TIME ON 09:30 PM TIME OFF 11:00 PM REC SPEED SLP START DATE 07/10/01

TUE. TO CORRECT PUSH CLEAR TO END PUSH EXIT

Press the STATUS/EXIT button. PROGRAM WAS COM-

PLETED / PLEASE TURN OFF VCR FOR TIMER RECORDING will appear on the screen briefly. (If PROGRAM NOTCOMPLETED appears, try again from step 1.)

Press the POWER button to turn off the VCR power. The

TIMER light will appear on the display panel. The TIMER light will flash if there is no tape in the VCR. If the timer recording will take place several hours or days from now, you may use the VCR until time for the recording. Turn off the VCR a few minutes before the recording starts. If you forget to turn off the VCR, PLEASE TURN OFF VCR FOR TIMER RECORDING flashes on your TV screen two minutes before a timer recording starts. Press the CLEAR button to remove the message.

Cassette type / Playback Time

Tape Speed T160 T120 T60

SP (standard play) 2 hrs.

2 hrs. 1 hr.

40 mins.

LP (long play) 5 hrs.

4 hrs. 2 hrs.

(playback only) 20 mins.

SLP (super long play)

8 hrs. 6 hrs. 3 hrs.

Tape Speeds

This chart shows the recording/playback time for three types of video cassettes (T160, T120, and T60). There are three playback speeds: SP, LP, and SLP. When recording, you can change the tape speed (SP or SLP) using the SPEED button. You cannot record in LP speed. You can play a tape only in the speed in which you recorded it.

Turn off the VCR

for the recording.

Insert a tape in

the VCR.

Leave the Cable

Box/DBS on

(if applicable).

8 9

POWER

EJECT

VCR/TV SPEED

1 2 3

4 5 6

7 8 9

CH. VOL.

MEMORY ALT.CH

REW

PLAY

F.FWD

REC

/OTR

PAUSE

/STILL

STOP

MUTE

VCR TV

STATUS/EXIT

CLEAR

Page 31

Timer Recording (cont’d) 31

Repeat steps 1-4 to make sure you have cleared the correct timer recording.

• CLASH may flash on the screen when you finish setting a timer recording. This means that the timer recording you just programmed and another timer recording overlap. The current timer recording will not take place. You may choose to cancel the overlapping timer recording.

• To stop a started timer recording, press the STOP/EJECT button on the VCR.

• If the power fails for more than one minute, programmed timer recordings will be lost. If this occurs, repeat the steps on pages 11 and 15 before resetting the timer recordings.

See page 38 for more hints.

Helpful Hints

With the VCR on and in VCR position (the VCR/TV light will appear on the display panel), press the VCR button, then

press the MENU button.

Checking or Cancelling Timer Recordings

Press the PLAY/o button or the STOP/p button to select PROGRAM, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button to select PROGRAM REVIEW, then press the F.FWD/B button.

The timer recording information for the program in the lowest numbered slot will appear on the screen. If no timer recordings are set, nothing will happen when you press the F.FWD/B button.

Press the F.FWD/B button repeatedly to review all programmed timer recordings. If you don’t press the F.FWD/B

button within 10 seconds, the VCR will automatically display information about the next programmed timer recording. This will continue until all timer recordings have been displayed. Then the menu will disappear.

To cancel the timer recording displayed, press the CLEAR button. Either the display will disappear or information

about other timer recordings will appear. If you do not press any other buttons, the display will disappear after all timer recordings have been displayed.

2-4

POWER

EJECT

VCR/TV SPEED

1 2 3

4 5 6

7 8 9

CH. VOL.

MEMORY ALT.CH

REW

PLAY

F.FWD

REC

/OTR

PAUSE

/STILL

STOP

MUTE

VCR TV

STATUS/EXIT

CLEAR

Page 32

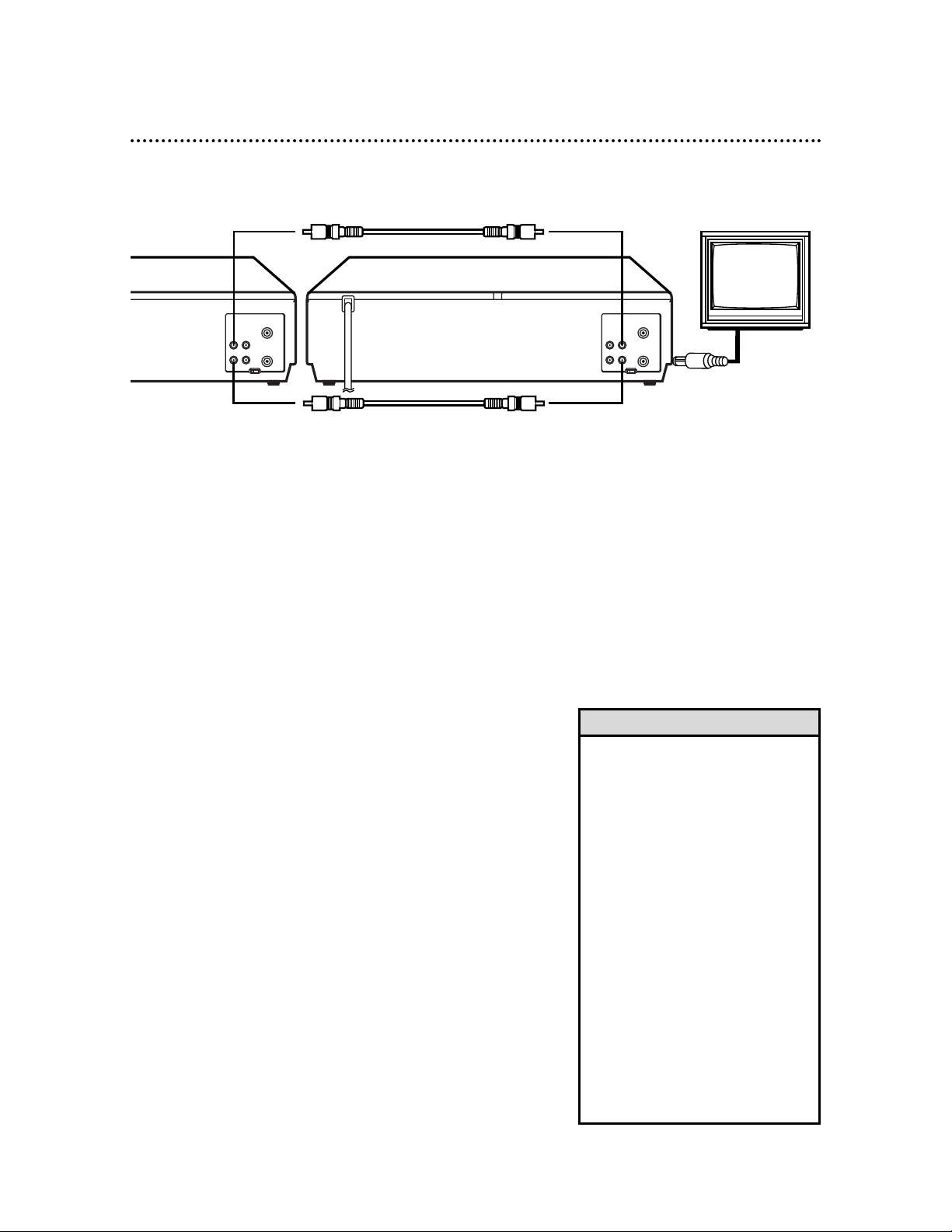

Make the connections shown above.

32 Rerecording (Tape Duplication)

VCR 2 will record your tape. Insert a blank tape in VCR 2. The VCR must be in VCR position. (The VCR/TV light will appear on the display panel. If it does not, press the VCR/TV button once.)

Turn on the TV and set it to channel 03 or 04, whichever

channel the CH3/CH4 switch on VCR 2 is set to.

Point the remote control at VCR 2. Press the VCR button, then press the Number buttons 0, 0, 1 or 0, 0, 2. (See

Helpful Hints at right.)

Press the SPEED button to select SP or SLP at VCR 2.

Press the PLAY button on VCR 1 and the RECORD button on VCR 2 at the same time.

To stop recording, press the STOP/EJECT button on VCR 1, then press the STOP/EJECT button on VCR 2.

ANT

AUDIO

VIDEO

OUT

CH3 CH4

OUT IN

ANT

AUDIO

VIDEO

OUT

CH3 CH4

OUT IN

VCR 1

Playing VCR

VCR 2 - Recording VCR

VCR 1 will play your tape. Put a prerecorded tape in VCR 1.

1. Audio cable from AUDIO OUT Jack of VCR 1 to AUDIO IN Jack of VCR 2

2. Video cable from VIDEO OUT Jack of VCR 1 to VIDEO IN Jack of VCR 2

3. RF coaxial cable

from the OUT jack

of VCR 2 to the TV’s

ANTENNA IN Jack

• If you use the AUDIO and VIDEO IN Jacks on the back of VCR 2, press Number buttons 0, 0, 1 at step 5. AV REAR will appear on the TV screen.

• If you use the AUDIO and VIDEO In Jacks on the front of VCR 2, press Number buttons 0, 0, 2 at step 5. AV FRONT will appear on the TV screen.

• Unauthorized recording of copyrighted television programs, video tapes, or other materials may infringe on the rights of copyright owners and violate copyright laws.

• If a program has copyright protection, it may not record clearly.

• These instructions show you how to copy tapes using two VCRs like yours. Different VCRs may operate differently.

Helpful Hints

● Audio and Video cables are not supplied.

Page 33

Repeat Play 33

Follow the steps below to make the VCR play a tape over and over.

Press the VCR button, then press the MENU button.

Press the PLAY/o button or the STOP/p button to select VCR SET UP, then press the F.FWD/B button.

Press the F.FWD/B button so that ON appears beside REPEAT PLAY.

Press the STATUS/EXIT button. Now, when a tape has fin-

ished playing, the VCR will rewind it and start playback again.

• To cancel Repeat Play, follow steps 1-3 above. At step 4, press the F.FWD/B button so that OFF appears beside REPEAT PLAY. Press the STATUS/EXIT button.

• The real-time counter memory does not function during Repeat Play.

Helpful Hints

Press the PLAY/o button or the STOP/p button to select REPEAT PLAY.

2-4

SELECT op CHOOSE B

→PROGRAM

VCR SET UP TUNER SET UP SET CLOCK

TO END PUSH EXIT

SELECT op CHOOSE B

→REPEAT PLAY OFF

ON SCREEN MODE LANGUAGE BLUE BACKGROUND ON

TO END PUSH EXIT

SELECT op CHOOSE B

→REPEAT PLAY ON

ON SCREEN MODE LANGUAGE BLUE BACKGROUND ON

TO END PUSH EXIT

EJECT

POWER

STATUS/EXIT

CLEAR

1 2 3

4 5 6

7 8 9

MEMORY ALT.CH

REC /OTR

REW

CH. VOL.

VCR TV

VCR/TV SPEED

PLAY

STOP

MUTE

F.FWD

PAUSE /STILL

Page 34

• The MEMORY button does not function if REPEAT PLAY is set to ON. Details are on page 33.

• To erase a real-time counter memory, press the MEMORY button until the M disappears from the screen.

• You may only set the real-time counter to zero at one location at a time. If you set the real-time counter to zero at a second location, the previous real-time counter to zero setting will be erased.

Helpful Hints

STOP 1:08PM

CH10

SLP 1 : 23 : 45

Follow the steps below to reset the real-time counter to zero at a tape location you want to refer to later.

Play, fast forward, or rewind a tape to the location that you would like to refer to later. Press the STOP/p button to stop the tape.

Press the VCR button.

Press the STATUS/EXIT button to see the status display.

While the status display is on the screen, press the CLEAR button to reset the real-time counter to zero.

STOP 1:08 PM

CH10

SLP 0 : 00 : 00

While the real-time counter is on the screen, press the MEMORY button so that M appears beside the counter.

STOP 1:08 PM

CH10

SLP M 0 : 00 : 00

To go to a tape location where the real-time counter was reset to zero, press the REW(ind)/{ button or the F.FWD/B button when playback is stopped.

When the tape reaches the point at which the counter was set to zero, the tape will stop. Press the PLAY/o button to watch the tape.

34 Real-Time Counter Memory

EJECT

MEMORY ALT.CH

CH. VOL.

POWER

STATUS/EXIT

1 2 3

4 5 6

REW

PLAY

STOP

MUTE

F.FWD

7 8 9

REC

/OTR

VCR TV

VCR/TV SPEED

CLEAR

PAUSE

/STILL

Page 35

Special Effects Playback 35

Forward and Reverse Searching (SP/LP/SLP)

During tape playback, press and release the F.FWD/B button or the REW(ind)/{ button. A fast forward or reverse

picture search will begin.

To return to playback, press the PLAY/o button.

Super High Speed Searching (LP/SLP)

During tape playback, press the F.FWD/B button or the REW(ind)/{ button, then press again. The VCR will now

search in super high speed.

To return to normal playback, press the PLAY/o button.

Viewing a Still Picture

During tape playback, press the PAUSE/STILL button. A

still picture will appear on the screen.

NOTE: Tapes recorded in SLP (Super Long Play) speed will show the clearest picture. Each time you press the PAUSE/STILL button in the Still mode, the noise lines will change position on the screen.

To release the still picture and return to playback, press the PLAY/o button.

• Still mode will automatically switch to Stop mode after five minutes to protect the VCR and the tape from damage.

• SP/LP/SLP means this feature will work with tapes recorded in Standard Play, Long Play, or Super Long Play.

• LP/SLP means this feature will work with tapes recorded in Long Play or Super Long Play. For details about tape speed, see pages 30 and 42.

Helpful Hints

EJECT

MEMORY ALT.CH

CH. VOL.

POWER

STATUS/EXIT

1 2 3

4 5 6

7 8 9

REC /OTR

PLAY

REW

F.FWD

STOP

MUTE

VCR TV

VCR/TV SPEED

CLEAR

PAUSE

/STILL

Page 36

36 Automatic Operation Features

The following playback features will always operate.

Automatic Playback

When you put a tape in the VCR, the power will come on automatically. If the tape’s record tab is missing, playback will begin. If a timer recording is set, the power will not come on automatically when you insert a tape with the record tab intact. If a timer recording is set and the VCR power is off, the VCR will eject the tape if the record tab is missing.

Automatic Rewind, Eject, Off

When a tape is played, fast forwarded, or recorded to its end, the VCR will rewind the tape, stop, eject the tape, then turn itself off. If the real-time counter memory is set, the VCR will only rewind the tape to the point at which the counter is set to zero, then stop. The VCR will not eject the tape automatically or shut itself off.

Tape Eject

A tape can be ejected with the VCR power on or off (but the VCR must be plugged in). If a timer recording is set, a tape can only be ejected with the power on. Make sure you insert a tape and turn off the VCR power for the timer recording.

Automatic Tracking Adjustment

The VCR adjusts tracking automatically to give you the best possible picture quality. With some recordings, however, you may get a better picture using the manual tracking controls (see below).

Manual Tracking

To manually adjust the tracking during normal playback, press the CHANNEL o/p buttons on the VCR. The CH(annel) o/p buttons on the remote control will not adjust tracking. Tracking will return to Automatic Tracking Adjustment when you press the STOP/p button or insert a tape. You cannot manually adjust the tracking of a Still picture. However, you may press the CHANNEL o/p buttons on the VCR to remove vertical jitter in a Still picture.

Before Tracking Adjustment

After Tracking Adjustment

Page 37

Blue Background 37

POWER

EJECT

VCR/TV SPEED

1 2 3

4 5 6

7 8 9

CH. VOL.

MEMORY ALT.CH

REW

PLAY

F.FWD

REC /OTR

PAUSE

/STILL

STOP

MUTE

VCR TV

STATUS/EXIT

CLEAR

Press the VCR button, then press the MENU button.

Press the PLAY/o button or the STOP/p button to select VCR SET UP, then press the F.FWD/B button.

Press the PLAY/o button or the STOP/p button to select BLUE BACKGROUND. Then, press the F.FWD/B button repeatedly so that OFF (or ON) appears beside BLUE BACKGROUND.

2-3

If you want the TV screen to be solid blue when a weak signal is received, set BLUE BACKGROUND to ON. The screen will be blue and the sound will be muted. Or, if you want to receive the weak signal, set BLUE BACKGROUND to OFF. When you select a channel that is receiving a weak signal, you will see and hear the static in the TV programming. The channel number will not appear on the screen when you select a weak channel. To set BLUE BACKGROUND to ON or OFF, follow these steps.

Press the STATUS/EXIT button.

SELECT op CHOOSE B

→PROGRAM

VCR SET UP TUNER SET UP SET CLOCK

TO END PUSH EXIT

SELECT op CHOOSE B →REPEAT PLAY OFF

ON SCREEN MODE LANGUAGE BLUE BACKGROUND ON

TO END PUSH EXIT

SELECT op CHOOSE B

REPEAT PLAY OFF ON SCREEN MODE LANGUAGE

→BLUE BACKGROUND ON

TO END PUSH EXIT

Page 38

If you are having problems with your product, check this list of problems and possible solutions before requesting service. You may be able to solve the problem yourself. If you need to call a customer service representative, please know the model number and serial number of your product before you call. This information is displayed on the back of the product. Also, please take a moment to identify the problem you are having, and be prepared to explain this to the representative. If you believe the representative will need to help you with operations, please stay near the product. Our representatives will be happy to assist you.

No power

• Make sure the power plug is completely connected to an AC (alternating current) outlet.

• Make sure the power is turned on.

Power Failure

• Timer recordings, the clock setting, the language selection, and channel setup may be lost if the power fails for more than one minute. Follow the steps on pages 11 and 15 to reset the language, channels, and clock. Then, see pages 28-30 to reprogram your timer recordings.

A TV program cannot be recorded.

• Check the connections between the VCR, TV, antenna/cable, and Cable Box/Direct Broadcast System (if applicable). Details are on pages six-10.

• Make sure the tape has a record tab. Details are on page five.

• Check the TV/VCR position. Details are on page 22.

• Check the CH3/CH4 switch. Details are on pages 6-9.

The VCR will not perform a timer recording.

• Make sure the recording start and stop times are set correctly. Details are on pages 28-31.

• Make sure a tape is in the VCR and the tape has a record tab (page five). If, after programming a timer

recording, you turn off the VCR power without putting a tape in the VCR, the TIMER light will blink.

• If the record tab on a tape is missing, the VCR will eject the tape. The TIMER light will blink.

• Make sure the VCR power is off.

• Make sure the clock is set. Details are on page 15.

• The VCR may not perform or continue a timer recording if a power interruption of more than one

minute occurs.

• If you have a Cable Box/Direct Broadcast System, timer recordings are programmed differently. Details are on page eight.

• Finish programming a timer recording at least five minutes before the recording is set to begin.

• 12 p.m. is noon; 12 a.m. is midnight.

There is no playback picture or the playback picture is noisy or contains streaks.

• Make sure the TV is on the same channel as the VCR’s CH3/CH4 switch.

• Make sure the VCR is in VCR position. (The VCR/TV light will appear on the display panel.)

• Make sure channel 03 or 04 is properly adjusted at the TV.

• Adjust the tracking. Details are on page 36.

• TVs placed too close to the VCR can cause interference during tape playback. Move the VCR away from

the TV.

The VCR cannot be controlled with the remote control.

• Press the VCR button, then try the other VCR feature buttons.

• Make sure the VCR/TV light appears on the display panel. If it does not, press the VCR/TV button once.

• Aim the remote control directly at the VCR’s remote sensor. Details are on page 22.

• Remove all obstacles between the remote control and the VCR.

• Inspect and/or replace the batteries in the remote control. Details are on page five.

The Number buttons won’t work for channels above 69.

• Enter channel numbers as a two-digit number. If you want to select channels 100 and above, enter channel numbers as a three-digit number. If you are using an antenna (not a cable signal), you may only select channels 2-69. Details are on page 18.

38 Helpful Hints

Page 39

TV programs cannot be watched normally.

• Put the VCRin TV position, then change channels at the TV. (Press the VCR/TV button so that the VCR/TV light disappears from the display panel. Details are on page 22.)

• Check the connections between the VCR, TV, antenna/cable, and Cable Box/Direct Broadcast System (if applicable). Details are on pages six-10.

Tape cannot be inserted.

• Insert the tape, window side up, with the record tab facing you.

• Make sure a tape isn’t already in the VCR by pressing the STOP/EJECT button on the VCR.

• Gently push on the center of the tape when putting it in the VCR. Never force the tape into the VCR.

• If a timer recording is programmed and the VCR power is off, you can not insert a tape without a record

tab.

Tape cannot be removed.

• Make sure the power plug is completely connected to a power outlet.

• You have set a timer recording. Turn the VCR power on, then eject the tape. Be sure to insert a tape and

turn off the power for your timer recording.

• Unplug the VCR power cord for five minutes. Then, plug in the power cord again, then press the POWER

button on the VCR. If the tape does not eject, press the STOP/EJECT button on the VCR three to five times. If the tape still does not eject, you may need to have an authorized servicer remove the tape.

VCR ejects the tape when the REC(ord)/OTR button is pressed or when the VCR power is

turned off to set a timer recording.

• Make sure the tape has a record tab. Details are on page five.

Poor reception

• You may need to tune your TV again.

The motor (cylinder) rotates even when the VCR is in Stop mode.

• To enable the quick play mechanism, the cylinder will rotate for about five minutes. This is normal. The quick play mechanism allows the tape mechanism to switch from Stop mode to Play mode in one second.

Direct Broadcast System Hookups

• Watching one TV channel while recording another may not be possible if you have a DBS hookup. You may have to set your TV to channel 03 or 04, then make your channel selections at the DBS.

• If you use audio and video cables to connect your DBS, VCR, and TV, you may have to put your VCR in Line Input mode (channel 001 or 002).

Line Input mode

• If you accidentally enter Line Input mode (AV FRONT or AV REAR will appear on your TV screen briefly), press the CH(annel) o/p buttons or use the Number buttons to select another channel.

Cleaning the Video Heads

• Your VCR automatically cleans the video heads each time you insert a tape. However, the heads may become dirty. If so, use a commercially-available head cleaner or have an authorized servicer clean the video heads. Eventually, the heads may need to be replaced.

The playback picture is too dim, too bright, or fluctuates in brightness.

• Some programs may be broadcast with copyright protection technology in order to protect the rights of copyright owners. This technology is used on programs that are recorded on video tapes or Digital Video Discs (DVDs), as well as some programs broadcast by antenna/cable/satellite television channels. Programs broadcast with copyright protection technology may not record clearly. Likewise, if you play a tape that is a recording of a copyright protected program, the picture may not be clear. Tapes of copyright protected programs may have a picture that is dark or dim, or the brightness of the picture may fluctuate. Therefore, you should avoid recording or playing copies of copyright protected programs. This VCR incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Helpful Hints (cont’d) 39

Page 40

40 Limited Warranty

VIDEO CASSETTE RECORDER or PLAYER

90 days Free Exchange / 91 days–One Year Reduced-Cost Exchange

WHO IS COVERED?

You must have proof of the date of purchase to exchange your product. A sales receipt or other document showing the date that you purchased the product is considered such proof.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For 90 days thereafter, you may exchange the defective product

for a new product at the store from which it was purchased or through Philips. This exchange is made at no cost to you. From 91 days to one year from the date of purchase, you must follow the exchange procedures set out on the next page. For an exchange during this warranty period you must pay $29.95 (plus your local sales tax) for a new or renewed product. This reduced-cost exchange ends one year after the date of purchase. The replacement product is covered only for the warranty period of the original product. When the warranty on the original product expires, the warranty on all replaced products also expires.

WHAT IS EXCLUDED?

Your warranty does not cover:

• labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.

• product repair and/or part replacement because of misuse, accident, unauthorized repair or other cause not within the control of Philips Consumer Electronics.

• reception problems caused by signal conditions or cable or antenna systems outside the product.

• a product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.

• incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)

• damage caused by the use of non-VHS tapes or tapes that have not been tested and labeled for use in two, four, six, and eight hour VHS recorders.

• a product that is used for commercial or institutional purposes (including but not limited to rental purposes).

WHERE IS EXCHANGE AVAILABLE?

Warranty exchange is available in all countries where the product is officially distributed by Philips Consumer Electronics. In countries where Philips Consumer Electronics does not distribute the product, the local Philips service

organization will attempt to exchange the product, although there may be a delay if the appropriate product is not readily available.

MAKE SURE YOU KEEP...

Please keep your sales receipt or other document showing proof of date of purchase. Attach it to the owner’s manual and keep both nearby. Also keep the original box and packing material in case you need to return your product.

BEFORE EXCHANGING THE PRODUCT...

Please check your owner’s manual before exchanging the product. Adjustments of the controls discussed there may save you time and money.

TO EXCHANGE YOUR PRODUCT IN THE U.S.A., PUERTO RICO, OR U.S. VIRGIN ISLANDS...

Follow the instructions stated previously in the “What is Covered” section, or refer to the exchange instructions on the next page. In the U.S.A., Puerto Rico, and U.S. Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. Because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.

TO EXCHANGE A PRODUCT IN CANADA...

Please contact Philips at:

1-800-661-6162 (French Speaking)

1-800-363-7278 (English Speaking) In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special, incidental, or consequential damages, howsoever incurred, even if notified of the possibility of such damages.

TO GET OUT-OF-WARRANTY EXCHANGE...

In the U.S.A., Puerto Rico, or U.S. Virgin Islands, contact Philips Service Solutions Group at 1-800-531-0039 to obtain the cost of out-of-warranty exchange.

REMEMBER...

Please record below the model and serial numbers found on the product. Also, please fill out and mail your warranty registration card promptly. It will be easier for us to notify you if necessary. MODEL#__________________________________ SERIAL#__________________________________

This warranty gives you specific legal rights. You may have other rights which vary from state to state.

Philips Service Solutions Group, P.O. Box 2976, Longview, Texas 75606, (903) 242-4800

EL6466E003 /10-00

Page 41

Limited Warranty (cont’d) 41

If your product is defective, you may be able to exchange it at the store from which it was purchased.

Most stores display a Return Policy. If not, ask the manager or sales associate how many days you have to exchange a product with them. After the store’s return period has expired, you may exchange the product with Philips if you have your original sales receipt.

To exchange your product with Philips (per the warranty conditions stated previously), remember:

• If you exchange the product within 90 days of the original purchase, there is no cost to you.

• If you exchange the product more than 90 days after but less than one year after the day of original purchase, your cost will be $29.95 plus your local sales tax. If sales tax is missing or incorrect, your order will be delayed, and you will be contacted.

• After 12 months from the day of original purchase, contact Philips Service Solutions Group at 1-800-531-0039 for information regarding out-of-warranty exchange.

• If you do not have your original sales receipt, or if you have any questions, call Philips Service Solutions Group at 1-800-531-0039.

To obtain a replacement product from Philips:

1. Complete the Exchange Form below.

2. Pack the product and its accessories (remote control, rf coaxial cable, owner’s manual, and car battery cord, if

applicable) in the original box or a suitable alternative. You will receive replacement accessories with your replacement product. For packing details, call 1-800-531-0039.

3. Put the completed Exchange Form, a copy of the original sales receipt, and the proper payment in an envelope. Do not staple or clip these items together. Label the envelope “Return Documents Enclosed.” Place this envelope in the box with the product.

4. Seal the box with packing tape and return the product via United Parcel Service (UPS), insured and freight pre paid, to:

Philips Recovery Center Rojas 6 12420 Mercantile Avenue El Paso, TX 79928 ATTENTION: VCR EXCHANGE

A replacement will be sent to you via UPS within 48 business hours of Philips’ receipt of the product.

EXCHANGE INSTRUCTIONS

EXCHANGE FORM

Your Address (street address to which replacement should be delivered, no P.O. boxes allowed):

Name: Street Address: Apt. #: City: State: Zip Code: Phone (day): Phone (night):

Payment Amount: $29.95

+ Sales Tax = Total

Method of Payment: (Check one. Please, no cash or CODs.)

_____ Check or money order Check/Money order number

Account number Expiration date _____ American Express ___________________________ __________ _____ Visa ___________________________ __________ _____ Novus/Discover ___________________________ __________ _____ Mastercard ___________________________ __________

Signature: _____________________________________________________________ Detailed reason for return, use additional paper if necessary: _____________________________________________ _______________________________________________________________________________________________ Model Number

Serial Number

Remember, the return box should include the following:

• The product,

• Completed Exchange Form and sales receipt,

• Accessories supplied with the product, and

• Payment, if applicable.

Page 42

42 Glossary/Specifications

Specifications

Video Heads

Two heads

Video Signal

EIA standards; NTSC color

Antenna

VHF/UHF – 75 ohm external antenna

terminal

VHF Output Signal

Channel 03 or 04 (switchable) 75 ohms unbalanced

Power Requirement

120V AC; 60Hz

Power Consumption

12W

Operating Temperature

41°F (5°C) to 104°F (40°C)

Relative Humidity

10% to 80%

Weight

5.1 lbs. (2.3 kg.)

Dimensions

14-3/16” (W) x 3-5/8” (H) x 8-1/2” (D) (360mm x 92mm x 215.5mm)

Tuner Broadcast Channels

VHF 2-13, UHF 14-69

Cable TV Channels

1-125

NOTE: Designs and specifications are subject to change without notice.

Glossary

AUDIO IN/OUT Jacks: jacks located on the front and back

of the VCR which are used to record audio from another source (IN) or to send audio to another system (OUT).

Automatic Channel Setup:

process in which the VCR memorizes all available channels. Then, when you press the CH(annel) o/p buttons, you only scan through channels you receive.

Bands:

settings that allow you to tune channels.

• Antenna – VHF (very high frequency; channels 2-13) and

UHF (ultra high frequency; channels 14-69).

• Cable – all standard channels can be received without a

Cable Box.

Cable Box/DBS Output Channel:

03 or 04.

Dubbing:

copying a tape using a second VCR.

Frame:

a still picture.

HQ:

high quality; a feature in the VCR circuitry which provides

enhanced picture detail.

Line Input:

The channel to which you set your VCR during dubbing. If you use the AUDIO and VIDEO In jacks on the front of the VCR, select channel 002 (AV FRONT). If you use the AUDIO and VIDEO IN jacks on the back of the VCR, select 001 (AV REAR). If you accidentally enter Line Input mode, press the CH(annel) o/p buttons or use the Number buttons to select another channel.

OTR:

One-Touch Recording; a timed recording that starts

immediately and records for 30 minutes to eight hours.

Remote Control:

the small electronic unit that came with

your VCR; allows you to operate your VCR from a distance.

RF coaxial cable:

The cable supplied with your VCR. Use it to connect your VCR to your TV (or Cable Box or DBS). The supplied cable is a snap-on type. However, you may use a screw-on type if you prefer.

Special Effects:

forward and reverse searching; a still picture.

Tape Speeds:

how fast the tape travels during a recording or

playback.

• SP (standard play) – fastest tape speed (recording time for a

T120 tape is approximately two hours); best picture quality.

• LP (long play) – average tape speed; playback only.

• SLP (super long play) – slowest tape speed (recording time

for a T120 tape is approximately six hours).

VCR:

video cassette recorder.

VIDEO IN/OUT Jacks:

jacks located on the front and back of the VCR which are used to record video from another source (IN) or to send video to another system (OUT).

Page 43

ac power cord .................................23

accessories.......................................44

alt.ch button.....................................19

ant(enna) in jack...................6-10, 23

audio in/out jacks 10, 22, 23, 32, 42 automatic

playback.......................................36

rewind, eject, off........................36

batteries..............................................5

blue background..............................37

cassette compartment ...................21

ch3/ch4 switch........................6-9, 23

channel

adding...........................................13

deleting........................................13

reviewing.....................................14

selection......................................18

setup.......................................11-14

o/p buttons ...............19, 22, 36

clear button...............................19, 34

clock setting.....................................15

connections..................................6-10

contents, table of..............................4

controls

remote...................................18-19

vcr...........................................21-23

counter only mode.........................20

cst.in light..........................................21

daylight-savings time.......................16

display panel .....................................21

duplication........................................32

eject button......................................18

ejecting a tape..................................39

f.fwd/B button..................19, 22, 35

front panel........................................22

glossary..............................................42

head cleaner....................3, 5, 39, 40

helpful hints ................................38-39

hookups

with cable box/dbs..................8-9

with stereo tv.............................10

without cable box/dbs............6-7

language selection....................11, 17

line input mode.................12, 32, 42

long play.....................................30, 42

lp ................................................30, 42

memory button........................18, 34

menu button.............................18, 22

mute button.....................................18

number buttons..............................18

on-screen status displays..............20

one-touch recording......................27

out jack.....................................6-9, 23

pause button....................................22

pause/still button...............18, 25, 35

play/K button..............18, 22, 24, 35

playing ................................................24

power

button....................................18, 22

cord..............................................23

light...............................................21

real-time counter............................34

rear panel .........................................23

rec/otr button.....................

18, 25, 27

record button

.....................22, 25, 27

record light.......................................21

recording

basic ..............................................25

one channel/

watching another.......................26

prevention.....................................5

timer.......................................28-31

remote control

buttons...................................18-19

sensor...........................................22

repeat play........................................33

rerecording......................................32

rew(ind)/s button...........19, 22, 35

rf coaxial cable..........6-9, 32, 42, 44

safety precautions.............................3

searching...........................................35

sensor (remote) ..............................22

slp................................................30, 42

sp ................................................30, 42

speed button....................................19

standard play.............................30, 42

status display ....................................20

status/exit button..............19, 20, 22

stereo TV hookups........................10

still picture........................................35

stop/L button..................................19

stop/eject button............................22

super high speed searching..........35

super long play.........................30, 42

s-vhs quasi play back ......................24

table of contents...............................4

tape

duplication...................................32

eject................................18, 22, 36

speed.....................................30, 42

time (setting)....................................15

timer

light...............................................21

recording

cancelling................................31

checking..................................31

setting...............................28-30

tracking..............................................36

button ..........................................19

hookups...................................6-10

position.................................19, 22

vcr

button ..........................................18

position.................................19, 22

vcr/tv

button....................................19, 22

light...............................................21

video in/out jacks 10, 22, 23, 32, 42 vol(ume)

o/p buttons.................18

warranty......................................40-41

Index 43

Page 44

IB8287E001

Printed In China

0VMN02673 / H77J4UD * * * * *

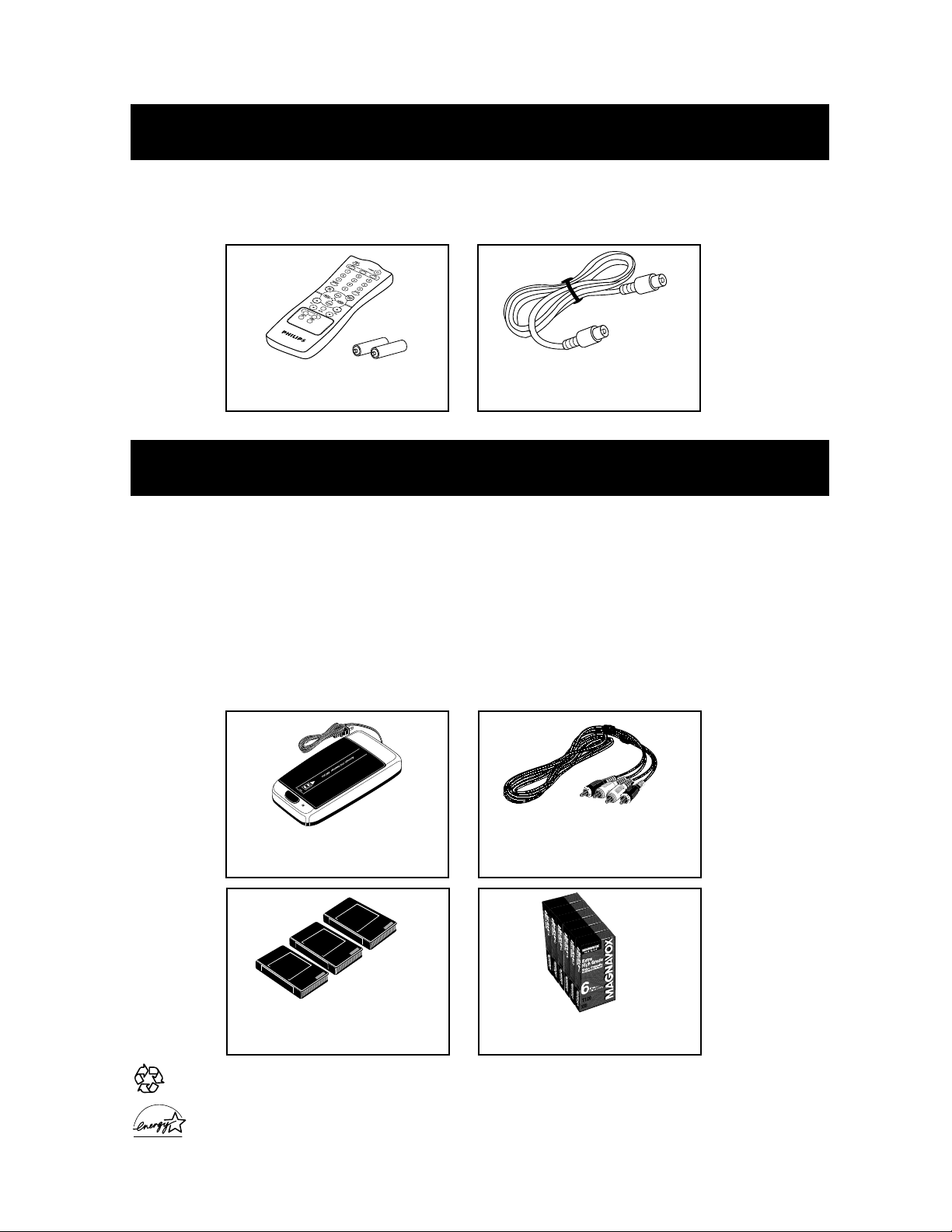

SUPPLIED ACCESSORIES

OPTIONAL ACCESSORIES

The following items are supplied with your VCR; they are provided to help you use or set up your VCR.

The following additional items are not provided with your VCR, but they are designed for use with your new VCR. To order these optional accessories, contact us at:

Philips Parts & Accessories Marketing Department

401 East Old Andrew Johnson Highway

P.O. Box 555

Jefferson City, TN 37760

1-800-851-8885.

VHS Cassette Rewinder

#M61117

Three Cassette Storage Cases (plastic)

Fits VHS and Beta cassettes

#M61104

Six High-grade, VHS, T-120 Cassettes

#MHG1206

Monaural Audio and Video Cables (6 feet)

Color-coded for easy connection

#M61103

RF Coaxial Cable, 75 ohm

4835 323 27011

Remote Control 4835 218 37313

Two AA Batteries 4835 138 17012

This owner’s manual is made of recyclable materials. Remember to recycle!

As an ENERGY STAR®Partner, Philips Consumer Electronics has determined that this product meets the E

NERGY STAR

guidelines for energy efficiency.

NERGY STAR

is a U.S. registered mark.
