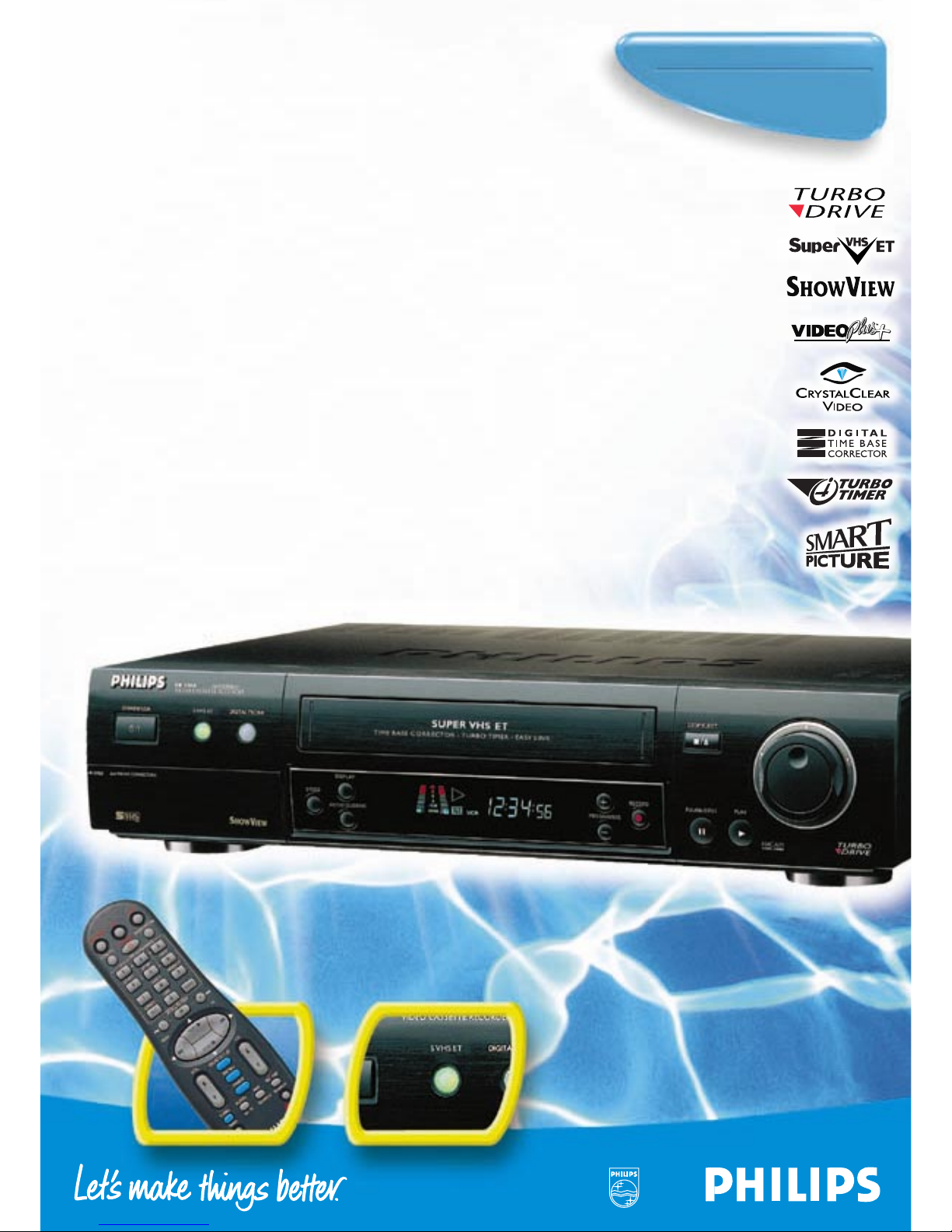

Page 1
6 head S-VHS HiFi VCR
VR1100
The 1000 series:The S-VHS class
• S-VHS ET – Expansion Technology.Use your VHS tapes and enjoy
S-VHS quality
• Crystal Clear Video – the perfect combination of technologies to
guarantee an outstanding picture quality
• Digital Time Base Corrector ensures sharp vertical lines and
jitter-free pictures
• Digital Noise Reduction for a noise-free playback from all
kinds of tape
• T urbo Timer – fast and easy timer programming.No need to
switch on the TV-set.
• Smart Picture for individual picture preference setting
Page 2
6 head S-VHS HiFi VCR
VR1100
Subject to modification without notice
ShowView and VideoPlus are registered Trademarks of Gemstar Development Group
Product Information
Reception - Installation
• Tuner:Full Tuner (UHF + VHF + Hyperband)
• Tuning:FST, CH entry,99 presets
• Tuning/Install Features:ATS -Euro+,Guide Channel Mapping,
Manual Search/Store, Plug & Play
Video System
• Picture Improvement System:Digital Studio Picture Control,
Crystal Clear Video,Digital Noise Reduction, SMART Picture,
Time Base Correction
Sound System
• Audio Recording System: FM Audio, Linear
• Audio Recording Level:Automatic
• Audio Dubbing:yes
User Interface
• Time/Date Download:PDC
• Resolution:>400 lines in S-VHS,>240 lines HQ+
• Assemble:Non Perfect
• Front Add-On’ s:Jog/Shuttle
• TV related digital bus funct.:Cinema Link
Remote Control Unit
• Remote Control type:RT519/101,Jog/Shuttle, glow buttons
• Remote Control codes:TV-Multibrand,VCR-RC5
Programming
• Number of Events:8/year
• Programming Mode:Remote
• Special Timer Programming:Turbo Timer,Quick Programming
• Automatic SAT.Recording: Record Link via SCART 2
• Record Speed:Long Play,Standard Play
• Record Speed Selection:Automatic,per Timer
Tape Deck
• VCR System:S-VHS,SVHS-ET, VHS-HQ
• Number of Video / FM Audio / Flying Erase Heads:4 / 2 / 0
• Play:+1,-1,Repeat
• Playback Features:Perfect Still,Fixed Search Speed,Variable Slow
Motion Speed
• Index Search Related Functions:Next/Prev.index search
• Tape Length Recognition:Automatic
• Tape Counter:Linear relative,Time left
• Wind / Rewind Time (E180):75 sec.
• Automatic Functions at Tape End:Rewind after Play & after Record
• Automatic Playback: Protected T ape
• Head Cleaning Mode:Automatic
• Dirty Head Warning:yes
Connectors Rear
• EXT1:Black,Euro CVBS in/out,Y/C In/Out Switchable
• EXT2:Black,Euro CVBS in/out,Euro Decoder,Y/C In Switchable
• Audio Conn.Rear:Cinch stereo out
• Terrestrial Antenna In / Out: 75 Ohms (IECtype)
• Mains Connector: Standard (IECtype)
Connectors Front
• Audio/Video Conn.Front:
Cinch CVBS in,Cinch stereo in,SVHS In
General
• Voltage:220-240 V,50Hz
• Backup Presets:1yr
• Backup Clock,Calendar,Timer: 10mn
• Weight incl./ excl.package in kg: 6.4 / 4.6
• Set Size - W x D x H (mm):435 x 330 x 94
• Packaging Size - W x D x H (mm):562 x 466 x 200
Product Highlights
• Turbo Drive
Turbo Drive is not only a synonym for winding and rewinding at very high
speed.It also stands for other high performance Deck features.The builtin Head Cleaner removes dirt from the video heads each time you put in
a cassette.The new Dirty Head Warning feature will display a message
on the TV screen whenever it is recommended to use a cleaning tape to
overcome severe dirt coating.In addition, a Tape Position Indicator shows
on your TV screen the progress of winding and rewinding of the tape in
real time.
• S-VHS-ET
Enjoy best possible picture quality from S-VHS technology while using
VHS tapes.
• Crystal Clear Video
With Crystal Clear Video,Philips has created the perfect combination of
technologies to guarantee the best possible picture restitution:
• Digital Studio Picture Control:Optimises the picture rendition regardless
of the quality of tape used.
• Laser cut Video Heads:They have a better profile for a superior
head/tape contact.Lesser wear guarantees longer life and higher
performance quality.
• Studio Tracking System:It improves the tracking accuracy and reduces
the crosstalk noise.
• Natural Colour:It cleans the colour from any kind of noise and corrects
the spill.
• Digital Time Base Corrector
With this feature,the playback picture appears perfectly stable without
any visible jitter.Vertical edges are straight,like drawn with a ruler.
The combination with an S-VHSrecording gives you the real cinema feel.
• T urbo Timer
Is Timer Programming complicated? No!
Is Timer Programming time consuming? No!
Just push the Turbo Timer button on the remote control.The display of
your VCR asks you then for the start and end time as well as the
programme’s number.That’s it.Just a number of seconds.
• SMART Picture
With SMARTpicture, you can adapt the picture to your own preference:
you can exaggerate the contours or suppress the noise from a rental
tape.We offer you the possibility to play your tapes the way you like to
see them.
/02 /07 /39
TV Systems PAL B/G, PAL D/K, PAL I PAL B/G, SECAM B/G, SECAM L/L1
MESECAM B/G, MESECAM D/K
Sound Systems German Stereo, Mono, NICAM Mono, NICAM German Stereo, Mono, NICAM
Modulator Pal G/K Pal I —Modulator Features Electr. On/Off switch Electr. On/Off switch —Frequency Adj. Range Ch 22 - Ch 69 Ch 22 - Ch 69 —Record / Playback Standard ME-SECAM, PAL PAL PAL, SECAM,
SECAM to PAL Conversion
Additional Playback Standard NTSC (non-stand. Pb in colour) NTSC (non-stand. Pb in colour) MESECAM, NTSC
(non-stand. Pb in colour)
OSD Menu Languages Danish, Dutch, English, Finnish, English French, Dutch
French, German, Italian, Norwegian,
Spanish, Swedish
Record Control & PDC, VPS PDC PDC
Transmitter Identification
Programming System Daily/Weekly, ShowV iew Daily/Weekly, VideoPlus+ Daily/Weekly, ShowView
Power Cons. 19.1 / 4.7 19.1 / 4.7 23.0 / 4.7
in Play / Stand-By
Equipment Supplied Aerial Cable, Batteries Aerial Cable, Batteries PAL cable + SECAM adapter ,
Batteries, Full SCART
