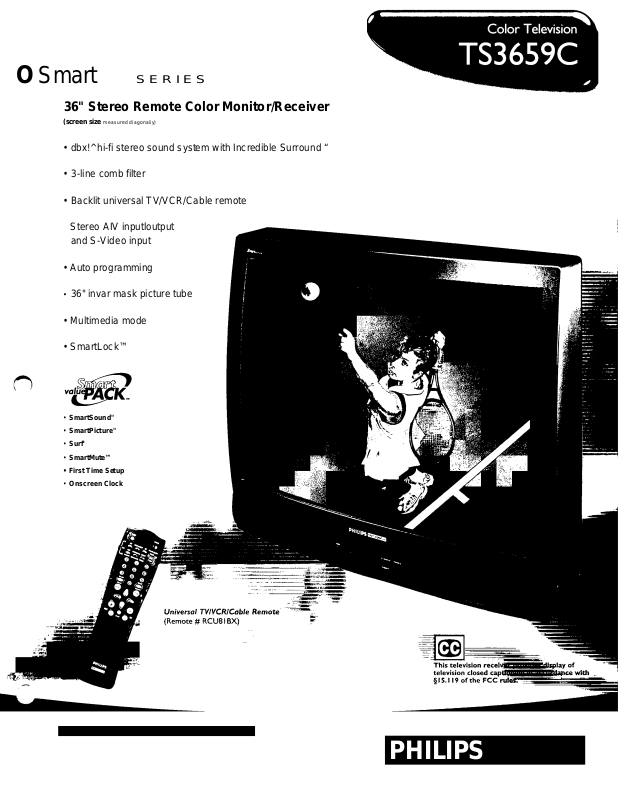

Philips TS3659C User Manual

O Smart

36" Stereo Remote Color Monitor/Receiver

(screen size measured diagonaiiy)

• dbx!^ hi-fi stereo sound system with Incredible Surround “

• 3-line comb filter

• Backlit universal TV/VCR/Cable remote

Stereo AIV inputloutput and S-Video input

• Auto programming

• 36" invar mask picture tube

• Multimedia mode

• SmartLock™

SERIES

• SmartSound"

• SmartPicture"

• Surf'

• SmartMute™

• First Time Setup

• Onscreen Clock

PHILIPS

Color Television


3-Line Comb Filter

CCD technology with a digital time constant provides razor-sharp picture performance and breathtaking clarity.

Improved Image Definition (IID")

Enjoy greater picture resolution with up to 800 lines of horizontal resolution.' This set easily supports the demands of DVD Video, Web browsers, and other advanced high-resolution video media (through the S-Video inputs).

SmartPicture™

Instantly optimize brightness, contrast, color, tint, and sharpness settings to enhance enjoyment of video games, sports, movies, or weak signals.

36" invar mask picture tube Premier picture performance with 35% transmission dark glass faceplate, black matrix, specially-tinted phosphors, and advanced alloys to eliminate color impurities.

Black Stretch

Special circuitry enhances the darker portions of the picture for added realism and overall picture quality.

Blue Stretch

Refines the white areas of the video image by applying blue highlights, extending their brilliance, resulting in a brighter, clearer picture.

Green Stretch 3-Position Color Temperature

Remote Control

Backlit LED Remote Control

No more fumbling with tiny buttons; just press the 'O' button and the 4way cursor, VOLUME AT. CHANNEL AT, menu, and surf buttons light up.

Universal TVIVCR/Cable Remote

Controls all features of this monitor/receiver with direct menu access, including Multimedia Mode. Incredible Surround”, Surf, and the dual A/V input/tuner switch. It also activates the exclusive SmartSound Plus”, SmartClock”. and SmartPicture” options. In addition, it controls all important operating features of virtually all VCRs, most brands of DVD Video players, virtually all brands of DBS receivers, and on/off as well as CHANNEL A T functions on most cable converters. (Remote # RCU8IBX)

Trilingual Onscreen Display

Control various television features with easy onscreen displays in your choice of English, Spanish, or French. Auto Programming Automatically scans all available channels-from regular antenna or cable-and programs only active broadcast stations into memory.

Closed Caption Onscreen Volume Bar

Sound

Incredible Surround '

An exciting psycho-acoustic method of widening the stereo spatial image for full-impact home entertainment.

SmartSound Plus"

Instantly optimize sound to satisfy any program situation. Select from one of four factory settings including movies, music, voice, or personal with a variety of combinations of bass & treble boost and automatic volume lev eling to suit any taste, dbx® Hi-Fi Stereo Sound System Built-in stereo sound system includes MTS/SAP decoder and dbx*' noise reduction to eliminate hiss and high-frequency interference.

Tone Controls

Audio/Video Jack Panel

Convenience

Multimedia Mode

One button instantly switches to A/V input source and automatically sets the SmartPicture” options to MULTIMEDIA.

SmartSurf’

Simplify channel surfing by storing up to ten favorite stations in the Surf

memory and then surfing only those channels at the touch of a button.

Add or delete channels from list through onscreen display.

SmartClock"

Automatically sets the right time of day and maintains it through brown outs, power failures, and even daylight savings time adjustments.

SmartLock"

Protect young children from harmful programming with V-chip technology based on the Motion Picture Association of America (MPAA) and the network television rating systems.

SmartMute” Automatically activates closed-captioning when the MUTE button is pressed.

Alternate Channel

Keep close tabs on 2 different channels with one-button convenience.

Onscreen Clock with Sleep Timer and Alarm Timer

Correct digital onscreen time display at your fingertips. Sleep timer auto matically turns set off at a preset time of up to 120 minutes, programmed in 15-minute increments. The Alarm Timer automatically turns on the TV to a preselected channel at a preset time of up to 24 hours from the time it was set

SmartClock, SmartSurf, SmartLock, SmartSound Plus, SmartPicture, Surf, SmartMute, Incredible Surround, and IID are trademarks of Philips Consumer Electronics Company, dbx is a registered trademark of dbx, Inc. Sunnyvale, CA.

Additional Features Include

• Channel edit

• Total remote menu format tuning with multicolor onscreen graphics

■ 181-channel capability

• 4-way cursor control

• Direct channel access

• Programmable scan tuning

• Status recall

• Mono/stereo/SAP select

• Cable/normal select

• Two 5" oval, full-range speakers with menu-selectable speaker switch

UPC: 0 37849 87748 7 Product dimensions: 33"W x 29"H x 24.2"D Product weight: 181 lbs. Carton dimensions: 37.1"W x 32.6"H x 27. !”D Carton weight: 185 ibs. Master pack: I

Carton Contains: 36" Stereo Remote Color Monitor/Receiver. Backlit Universai TV/VCR/ Cable Remote Control w/Batteries. Operating Instructions. Warranty Information

Prtnced in U.S.A.

01999 Philips Consumer Electromcs Co.

A Division of Philips Electronics North America Corp. KID Design 98698. Philips Consumer Elonronics Co.

INTERNET AODRfSS; http;//www.philipsusa.com

TS3659C

jP9iio

REAR j [

S-VIDEO

VIDEO

VIDEO 0Qj0

ANT *A’

75 n

' Lines per picture width. 600 based on EIA measurement procedures.

AUDIO

IN-t OUT

Specifications subject to change without notice.

____

¿e/i HMh

PHILIPS
