Philips TPM17.2A la Datasheet

TPM17.2A

Chassis name Platform Model name

50PUT6102/98

50PUT6102/79

50PUT6102/56

50PUT6102/98

50PUT6102S/98

55PUT6102/79

MT5596L

TPM17.2A LA

55PUT6102/56

55PUT6102/98

55PUT6102S/98

65PUT6162/98

65PUT6162/79

65PUT6162/56

65PUT6162S/98

50PUT6102/71

MTK5596L+7484

55PUT6102/71

Published by Doris.zheng 1736 Quality Subject to modification 3122 785 20381 2017

All rights reserved. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly. PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Philips Electronics N.V.

2017-Sep-08

1.Product inforamtion……….……………………………………………………………………………………3

2.Connections overview……..…..…..………………..…………………………………………………………5

3.Mechanical Instructions………………….………………………………………………………………… ….7

Cable dressing (50" 6102 series)………………………………………………………………………………7 Cable dressing (55" 6102 series)………………………………………………………………………………7

Cable dressing (65" 6162 series)………………………………………………………………………………8

Assembly/Panel Removal ………………………………………………………………………………………8

4.Service Modes…………….……………….………………….…………………………………… ……….….14

5.Software upgrading, Error Code and Panel Code………...……………………………………………..18

6.Circuit Descriptions…..……………………….………………………………………………………………23

7.IC Data Sheet……...……………………………………………………………………………………….…..33

8.Circuit Diagrams……………...……………………………………………………………………………….38

8.1 A 715G8672 PSU…………………………………………………………………..……………………38

8.2 A 715G6973 PSU…………………………………………………………………..……………………42

8.3 A 715G8682 PSU…………………………………………………………………..……………………46

8.4 B 715G8132 SSB………………………………………………………………………………………..50

8.5 B 715G8071 SSB………………………………………………………………………………………..74

8.6 J 715G8623 IR/LED Panel…………………………………………..…………………………………96

8.7 E 715G7088 Keyboard control panel……………………………………………………………….97

9.Styling Sheet……………….…………………….……………………………………………………………..98

6102 series 50"……………………………………………………………………………………………….98 6102 series 55"……………………………………………………………………………………………….99

6161 series 65"……………………………………………………………………………………………….100

Published by Doris.zheng 1736 Quality Subject to modification 3122 785 20381 2017

All rights reserved. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly. PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Philips Electronics N.V.

2017-Sep-08

1. Product information

Product information is subject to change without notice. For detailed procuct informationplease visit www.philips.com/support

Display Type

Diagonal screen size

 50PUT6102 : 123 cm / 50 inch  55PUT6102 : 139 cm / 55 inch  65PUT6162 : 164 cm / 65 inch

Display resolution  3840 x 2160p

Input resolution

 800 x 600p - 60 Hz  1024 x 768p - 60 Hz  1280 x 768p - 60 Hz  1360 x 765p - 60 Hz  1360 x 768p - 60 Hz  1280 x 1024p - 60 Hz  1920 x 1080p - 60 Hz23.5

Video formats Resolution  Refresh rate

 480i - 60 Hz  480p - 60 Hz  576i - 50 Hz  576p - 50 Hz  720p - 50 Hz, 60 Hz  1080i - 50 Hz, 60 Hz  1080p - 24 Hz, 25 Hz, 30 Hz  2160p - 24 Hz, 25 Hz, 30 Hz, 50 Hz, 60 Hz

Computer formats Resolutions (amongst others)

 640 x 480 - 60 Hz  800 x 600 - 60 Hz  1024 x 768 - 60 Hz  1280 x 768 - 60 Hz  1360 x 765 - 60 Hz  1360 x 768 - 60 Hz  1280 x 1024 - 60 Hz  1920 x 1080 - 60 Hz  3840 x 2160 - 60 Hz

Dimensions and Weights

50PUT6102  without TV stand: Width 1129.54 mm - Height 656.45 mm - Depth 83.17 mm - Weight ± TBD kg  with TV stand: Width 1129.54 mm - Height 717.72 mm - Depth 259.18 mm - Weight ± TBD kg 55PUT6102  without TV stand: Width 1239.20 mm - Height 714.04 mm – Depth

90.26 mm - Weight ± 15.28 kg  with TV stand: Width 1239.20 mm - Height 780.34 mm - Depth

259.06 mm - Weight ± 15.6 kg 65PUT6162  without TV stand: Width 1462.30 mm - Height 844.70 mm - Depth

92.50 mm - Weight ± 24.5 kg  with TV stand: Width 1462.30 mm - Height 906.70 mm - Depth

271.50 mm - Weight ± 26.2 kg

Connectivity

TV Side

 HDMI 3 in  HDMI 4 in - MHL  USB x 2  Headphones - Stereo mini-jack 3.5mm

TV Rear CVBS/Y Pb Pr : CVBS/Y Pb Pr, Audio L/R Serv.U Audio in: DVI TV Bottom

 HDMI 1 in - ARC  HDMI 2  USB x 1  Digital Audio out-Optical  Network LAN - RJ45  Antenna (75 ohm)

Reception

Aerial input : 75 ohm coaxial (IEC75)

 Tuner bands : Hyperban d, S-Channel, UHF, VHF

 DVB : DVB-T2, DVB-C (cable) QAM  Analogue video playback : SECAM, PAL  Digital video pla y back : MPEG2 SD/HD (ISO/IEC

13818-2), MPEG4 SD/HD (ISO/IEC 14496-10)  Digital audio playback (ISO/IEC 13818-3)

Sound

 HD Stereo  Output power (RMS) : 20W  Dolby® Digital Plus  DTS 2.0+ Digital out ™

Multimedia

Connections

 USB 2.0 / USB 3.0  Ethernet LAN RJ-45  Wi-Fi 802.11b/g/n (built-in)

Supported USB file systems  FAT 16, FAT 32, NTFS Playback formats  Containers : 3GP, AVCHD, AVI, MPEG-PS, MPEG-TS, MPEG-4, Matroska (MKV), Quicktime (MOV, M4V, M4A), Windows Media (ASF/WMV/WMA)  Video Codecs : MPEG-1, MPEG-2, MPEG-4 Part 2, MPEG-4 Part 10 AVC (H.264), VC-1, WMV9  Audio Codecs : AAC, HE-AAC (v1/v2), AMR-NB, Dolby Digital, Dolby Digital Plus, DTS 2.0 + Digital Out™, MPEG-1/2/2.5 Layer I/II/III (includes MP3), WMA (v2 to v9.2), WMA Pro (v9/v10)

 Subtitles :  Formats : SAMI, SubRip (SRT), SubViewer (SUB),

MicroDVD (TXT), mplayer2 (TXT), TMPlayer (TXT)

 Image Codecs : JPEG  Limitations :  Maximum supported total bit rate for a media file is

30Mbps.  Maximum supported video bit rate for a media file is 20Mbps.  MPEG-4 AVC (H.264) is supported up to High Profile @ L4.1.  VC-1 is supported up to Advanced Profile @ L3. Wi-Fi Certified This TV supports Miracast certified devices. Supported media server software (DMS)  You can use any DLNA V1.5 certified media server software (DMS class).  You can use the Philips TV Remote app (iOS and Android) on mobile devices. Performance may vary, depending on the capabilities of the mobile device and the softw are used.

Power

Product specifications are subject to change without notice. For more specification details of this product, see www.phili ps .com/ sup p ort Power

 Mains pow er : AC 110-240V +/-10%  Ambient temperature : 5°C to 35°C  Power saving features : Eco mode, Picture mute (for

radio), Auto s witch-off timer, Eco settings menu. The power rating stated on the product typeplate i s the power consumption for this product during normal household use (IEC 62087 Ed.2). The maximum power rating, stated betwe en brackets , is used for electrical safety (IEC 60065 Ed. 8.0).

2. Connections Overview

SCALER

NETWORK

SERVICE

TUNER

CONNECTOR

DDR

YPBPR

USB

HDMI

HDMIHDMI

Digtal

Audio

Out

USB

For 715G8132M

HDMI

SCALER

Service U

DDR

USB

HDMI HDMI

HDMI

Digtal

Audio

Out

Spdif out

network

TUNER

HDMI

YPBPR

For 715G8071M

3. Mechanical Instructions

LOUDSPEAKER

/

LOUDSPEAKER

WIFI MODULE

SSB

LOUDSPEAKER

/

(

LOUDSPEAKER

WIFI MODULE

SSB

3.1 Cable Dressing

MAIN POWER SUPPLY

A

(1054)

CN9101

ECN418

ECN701

CN701

CN412

CN

418

B

CN

4605

(1053)

CN

401

CN8601

E

CONTROL

ECN401 TO KEY/IR

KEY BOARD

ECN601

CN

601

ECN4605

ECN601

IR

LED

J

BOARD

(1056)

(1184)

W

(Wifi01)

Cable dressing (50" 6102 series)

ECN701

CN8101

CN9101

ECN418

E

ECN401

KEY BOARD

CONTROL

IR

J

ECN401

LED

BOARD

1054)

ECN601

(1184)

MAIN POWER SUPPLY

A

(1054)

CN701

CN

418

CN

4605

CN

401

ECN601

CN

601

B

(1053)

ECN4605

W

(Wifi01)

Cable dressing (55" 6102 series)

(1184)

LOUDSPEAKER

WIFI MODULE

SSB

/

(

ECN701

MAIN POWER SUPPLY

A

(1054)

E

KEY BOARD

CONTROL

ECN401 TO KEY/IR

IR

LED

J

BOARD

1054)

(1184)

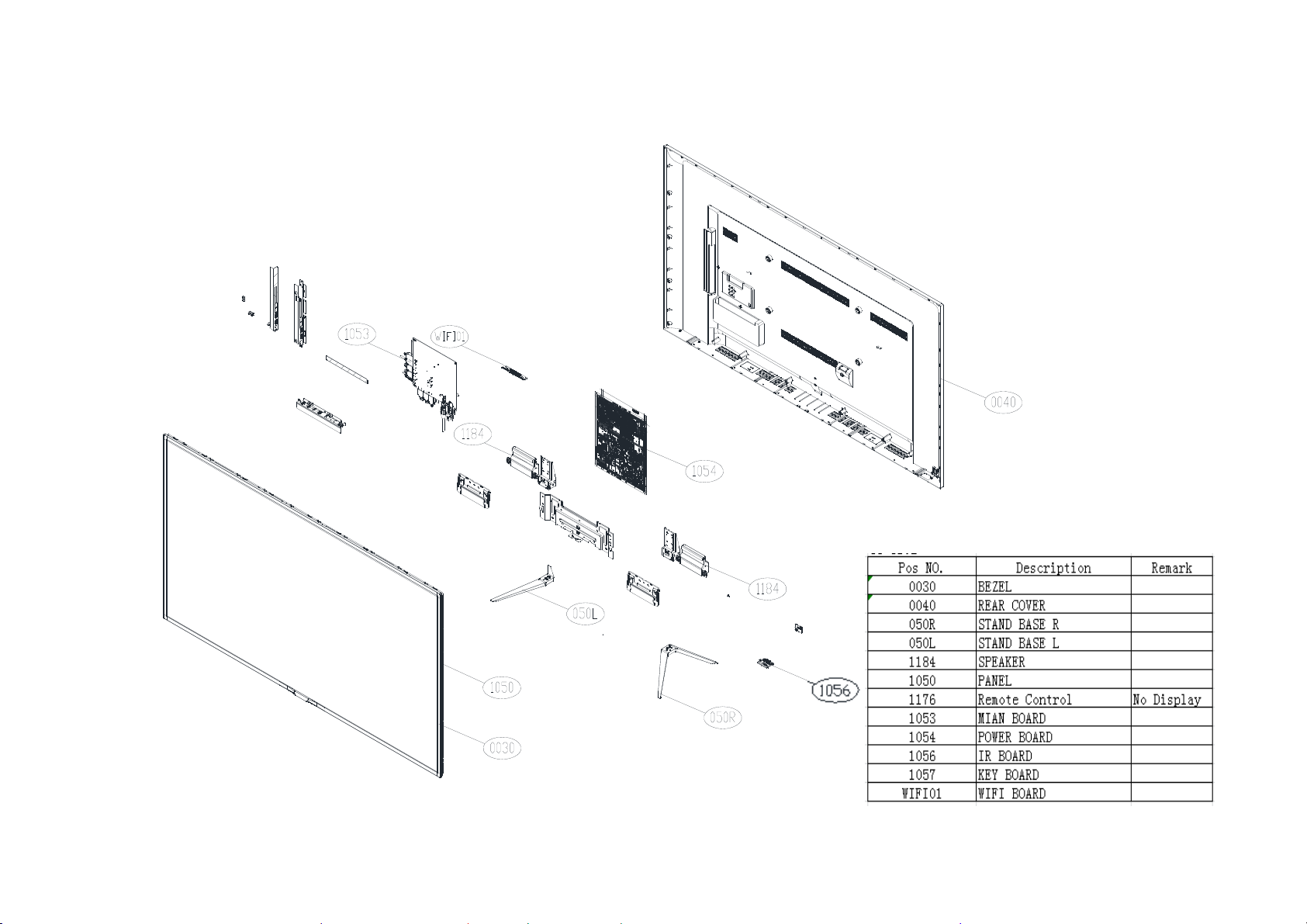

3.2 Assembly/Panel Removal

3.2.1 Stand removal

1. Remove the fixation screws [1] that secure the stand

2. Take the stand bracket out from the set.

CN9102

CN8601

ECN601

ECN9203

Cable dressing (65" 6162 series)

ECN418

ECN4605

W

(Wifi01)

CN418

ECN601

CN701

CN CN

CN

4605

B

(1053)

401

601

(1184)

3.2.2 IR board Control Unit

1. Unplug the connector from the SSB.

Caution: be careful, as these are very fragile connectors!

2. Remove all the fixation screws [1] and connector [2] from the IR board control unit. When defective, replace the whole unit.







2

3.2.3 Rear Cover

Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove fixation screws [2] and [3] that secure the back cover..

2. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.

3. Remove fixation screws [2] and [3] that secure the back cover.unplug connectors [4] for 65" 6162





















(55" 50" 6102 series)





  











    







(65" 6162 series)

3.2.3 Keyboard Control Unit

1. Release the connector [2] from the SSB Board. Caution: be careful, the Keyboard is catch on the Back cover, please be careful to avoid damage the fragile connectors!

2. Remove all the fixation screws[1] and the cable from the keyboard control panel and take it out from the Back cover

When defective, replace the whole unit.









3.2.4 Small Signal Board (SSB)

Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the

SSB.

1. Release the clips from the LVDS connector that connect with the SSB[1]. Caution: be careful, as these are very fragile connectors!

1. Unplug all other connectors [2] .

3. Remove all the fixation screws from the SSB [3].

4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket.



3

3.2.5 Power Supply Unit (PSU)

1

2

33

3

Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Gently unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

3.2.7 Speakers

1. Gently release the tapes that secure the speaker cables.

2. Unplug the speaker connector from the SSB.

3. Take the speakers out.

When defective, replace the both units.

3.2.8 WIFI module

1. Unplug the connector [1] from the SSB..

2. Remove fixation screw [2] that secure the WIFI module,

3. Remove fixation screw [3] and take WIFI module out of FRAME COVER PCB

When defective, replace the whole unit.

1

2

1

3

3.2.9 LCD Panel

3. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the keyboard control panel as described earlier.

4. Remove the stand bracket as d escribed earlier.

5. Remove the IR/LED as described earlier.

6. Remove the fixations screws that fix the metal clamps to the front bezel. Take out those clamps.

7. Remove all other metal parts not belonging to the panel.

8. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

4. Service Modes

4.1 Service Modes

The Service Mode feature is split into following parts:

 Service Alignment Mode (SAM).  Factory Mode.  Customer Service Mode (CSM).SAM and the Factory mode offer features, which can be used by the Service engineer to repair/align a TV set.

SAM and the Factory mode offer features, which can be used by the Service engineer to repair/align a TV set. Some features are:

 Make alignments (e.g. White Tone), reset the error buffer(SAM and Factory Mode).  Display information (“SAM” indication in upper right corner of screen, error buffer, software version, operating hours,options and option codes,

sub menus). The CSM is a Service Mode that can be enabled by the consumer. The CSM displays diagnosis information, which the customer can forward to the dealer or call centre. In CSM mode, “CSM”, is displayed in the top right corner of the screen. The information provided in CSM and the purpose of CSM is to:

 Increase the home repair hit rate.  Decrease the number of nuisance calls.  Solved customers’ problem without home visit.

Note: For the new model range, a new remote control (RC) is used with some renamed buttons. This has an impact on the activation of the Service modes. For instance the old “MENU” button is now called “HOME” (or is indicated by a “house” icon).

4.2 Service Alignment Mode (SAM)

Purpose

 To modify the NVM.  To display/clear the error code buffer.  To perform alignments.

Specifications

 Operation hours counter (maximum five digits displayed).  Software version, error codes, and option settings display.  Error buffer clearing.  Option settings.  Software alignments (White Tone).  NVM Editor.  Set screen mode to full screen (all content is visible).

How to Activate SAM

To activate SAM, use one of the following methods:

 Press the following key sequence on the remote control transmitter: “062596”, directly followed by the “INFO/OK” button. Do not allow the

display to time out between entries while keying the sequence.

 Or via ComPair.

After entering SAM, the following items are displayed, with “SAM” in the upper right corner of the screen to indicate that the television is in Service Alignment Mode.

How to Navigate

 In the SAM menu, select menu items with the UP/DOWN keys on the remote control transmitter. The selected item will be indicated. When not

all menu items fit on the screen, use the UP/DOWN keys to display the next/previous menu items.

 With the “LEFT/RIGHT” keys, it is possible to:

– (De) activate the selected menu item. – (De) activate the selected sub menu. – Change the value of the selected menu item.

 When you press the MENU button once while in top level SAM, the set will switch to the normal user menu (with the SAM mode still active in the

background).

How to Store SAM Settings

To store the settings changed in SAM mode (except the RGB Align settings), leave the top level SAM menu by using the POWER button on the remote control transmitter or the television set. The mentioned exceptions must be stored separately via the STORE button.

How to Exit SAM

Use one of the following methods:

 Switch the set to STANDBY by pressing the mains button on the remote control transmitter or the television set.  Via a standard RC-transmitter, key in “00” sequence.

Note: When the TV is switched “off” by a power interrupt while in SAM, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

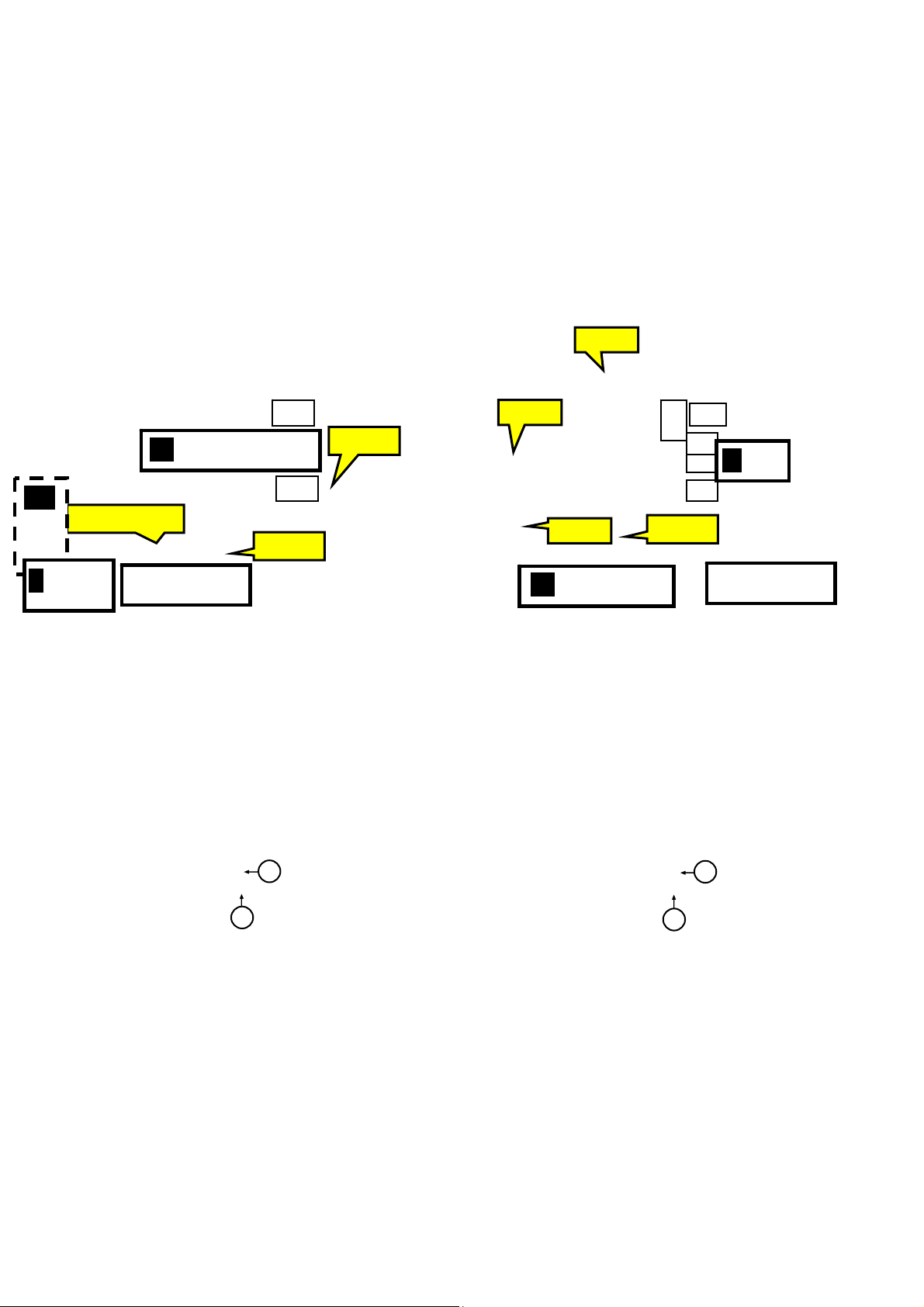

SAM mode overview

4.3 Factory mode:

Purpose

 To perform extended alignments.

Specifications

 Displaying and or changing Panel ID information.  Displaying and or changing Tuner ID information.  Error buffer clearing.  Various software alignment settings.  Testpattern displaying.  Public Broadcasting Service password Reset.  etc.

How to Activate the Factory mode

To activate the Factory mode, use the following method:

 Press the following key sequence on the remote control transmitter: from the “menu/ho me” press “1999”, directly followed by the

“Back/Return” button. Do not allow the display to time out between entries while keying the sequence.

After entering the Factory mode, we can see many items displayed,use the UP/D OWN keys to display the next/previous menu items

Factory mode overview

How to Exit the Factory mode

Use one of the following methods:

 Select EXIT_FACTORY from the menu and press the “OK” button.

Note: When the TV is switched “off” by a power interrupt, or normal switch to “stand-by” while in the factory mode, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

4.4 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and information on the TVs operation settings.The call centre can instruct the customer (by telephone) to enter CSM in order to identify the status of the set.This helps the call centre to diagnose problems and failures in the TV set before making a service call. The CSM is a read-only mode; therefore, modifications are not possible in this mode.

Specifications

 Ignore “Service unfriendly modes”.  Line number for every

line (to make CSM language independent).

 Set the screen mode to full

screen (all contents on screen is visible).

 After leaving the Customer Service Mode, the original settings are restored.  Possibility to use “CH+” or “CH-” for channel surfing, or enter the specific channel number on the RC.

How to Activate CSM

To activate CSM, press the following key sequence on a standard remote control transmitter: “123654” (do not allow the display to time out between entries while keying the sequence). After entering the Customer Service Mode, the following items are displayed. use the Right/Left keys to display the next/previous menu items

Note: Activation of the CSM is only possible if there is no (user) menu on the screen!

CSM Overview

How to Navigate

By means of the “CURSOR-DOWN/UP” knob (or the scroll wheel) on the RC-transmitter, can be navigated through the menus.

How to Exit CSM

To exit CSM, use one of the following methods.

 Press the MENU/HOME button on the remote control transmitter.  Press the POWER button on the remote control transmitter.  Press the POWER button on the television set.

5. Software Upgrading, Error code and Panel Code

5.1 Software Upgrading

5.1.1. The following update is for .pkg file.

1. Rename the file to “upgrade_loader.pkg”

Prepare a USB memory.

2.

3. Copy the software to USB flash disk(root directory).

4. Switch off the TV and Insert the USB memory stick that contains the software update files in one of the TV’s USB 2.0 ports. Note: It contains USB3.0 port, if connect on it, the software may can’t be detected.

5. Switch on the TV. The TV will detect the USB memory s tick automatically. Then a window jumps out as below

6. When the TV software is updated, the TV will turn on again automatically. Remove your USB flash drive.

7. We can enter in CSM or Factory mode to check the current software version.

5.1.2. The following update is for .upg file.

Step 1: Ready for F/W Upgrade

1. Rename the file to “autorun.upg”

Prepare a USB memory.

2.

3. Copy the software to USB flash disk(root directory).

4. Switch on the TV and Insert the USB memory stick that contains the software update files in one of the TV’s USB 2.0 ports

Note the version of this F/W before you change the software file name.

Step 2: F/W Upgrade

1. Press [Quick settings], then Choose [Update Software] in the Settings menu

Choose [Local Updates], then press OK.

2.

3. Select the file that you downloaded and press OK

4. Choose [Update], then choose [Start] on following step

5. Upgrade in progress

Step 3: Check the SW version

1. After burning software, TV will restart

Press “Menu+1999+back”, enter Factory mode to check if the software version is correct

2. Caution: Please make sure that software upgrade is finished before unplug the USB and AC power!

5.2 Error Code

5.2.1 Introduction

Error codes are required to indicate failures in the TV set. In principle a unique error code is a vailable for every:

• Activated (SW) protection.

• Failing I2C device.

• General I2C error.

The last five errors, stored in the NVM, are shown in the Service menu’s. This is called the error buffer. The error code buffer contains all errors detected since the last time the buffer was erased. The buffer is written from left to right. When an error occurs that is not yet in the error code buffer, it is displayed at the left side and all other errors shift one position to the right. An error will be added to the buffer if this error differs from any error in the buffer. The last found error is displayed on the left. An error with a designated error code never leads to a deadlock situation. It must always be diagnosable (e.g. error buffer via OSD or blinking LED). In case a failure identified by an error code automatically results in other error codes (cause and effect), only the error code of the MAIN failure is displayed.

5.2.2 How to Read the Error Buffer

You can read the error buffer in three ways:

• On screen via the SAM/CSM (if you have a picture). Example:

– ERROR: 000 000 000 000 000: No errors detected – ERROR: 013 000 000 000 000: Error code 13 is the last and only detected error – ERROR: 034 013 000 000 000: Error code 13 was detected first and error code 34 is the last detected (newest) error

• Via the blinking LED procedure (when you have no picture).

5.2.3 Error codes overview

In this chassis only “layer 2” error codes are available and point to problems on the SSB. They are triggered by LED blinking when CSM is activated. Only the following layer 2 errors are defined:

5.2.4 How to Clear the Error Buffer

The error code buffer is cleared in the following cases:

• By using the CLEAR command in the SAM menu

• By using the CLEAR command in the Factory mode:

• By using the following key sequence on the remote control transmitter: “062599” directly followed by the OK button.

• If the contents of the error buffer have not changed for 50 hours, the error buffer resets automatically.

Note: If you exit SAM by disconnecting the mains from the television set, the error buffer is not reset.

5.3 Panel Code

Press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in below tab. After resetting the Display Code, restart the set immediately.

CTN_ALT BOM# Panel Type Display Code

50PUT6102/98 50PUT6102/79 50PUT6102/56

50PUT6102/71

50PUT6102S/98

55PUT6102/79 55PUT6102/56 55PUT6102/98

55PUT6102/71

55PUT6102S/98

65PUT6162/98 65PUT6162/79 65PUT6162/56

65PUT6162S/98

TPT500U1-EQYSKM.G S1A XM 224 TPT500U1-EQYSKM.G S1A XM 224 TPT500U1-EQYSKM.G S1A XM 224 TPT500U1-EQYSKM.G S1A XM 224

TPT500U1-EQYSKM.G S1A XM 224 TPT550J1-QUBN0.K S8940Q XM 225 TPT550J1-QUBN0.K S8940Q XM 225 TPT550J1-QUBN0.K S8940Q XM 225 TPT550J1-QUBN0.K S8940Q XM 225 TPT550J1-QUBN0.K S8940Q XM 225

TPT650UA-QVN06.U S300B XM 226 TPT650UA-QVN06.U S300B XM 226 TPT650UA-QVN06.U S300B XM 226 TPT650UA-QVN06.U S300B XM 226

6. Circuit Descriptions

6.1 Introduction

The TPM17.2A LA is a new chassis launched in AP in 2016. The whole range is covered by MT5593UGIJ platform. The major deltas versus its predecessor support DVB-C; DVB-T2, with also USB3.0,WIFI/multi-media, Video out The TPM17.2A LA chassis comes with the following stylings:

 series xxPUT6102/xx  series xxPUT6162/xx

6.1.1 Implementation

Key components of this chassis are:

 SCALER MST7484GC BGA-420  SCALER MT5596LGIJ HSBGA-757  DEMODULATOR CXD2837ER-T4 VQFN 48  AUDIO AD87588-LG48NAY 20W E-LQFP-48  FLASH MX25L3206EM2I-12G 32Mb SOP-8  EEPROM M24128-BRMN6TP 128k SOP-8  EMMC THGBMDG5D1LBAIT 4GB FBGA153  NAND FLASH THGBMBG5D1KBAIT 4G BGA 153  TUNER EUROPE SUT-RE231ZN

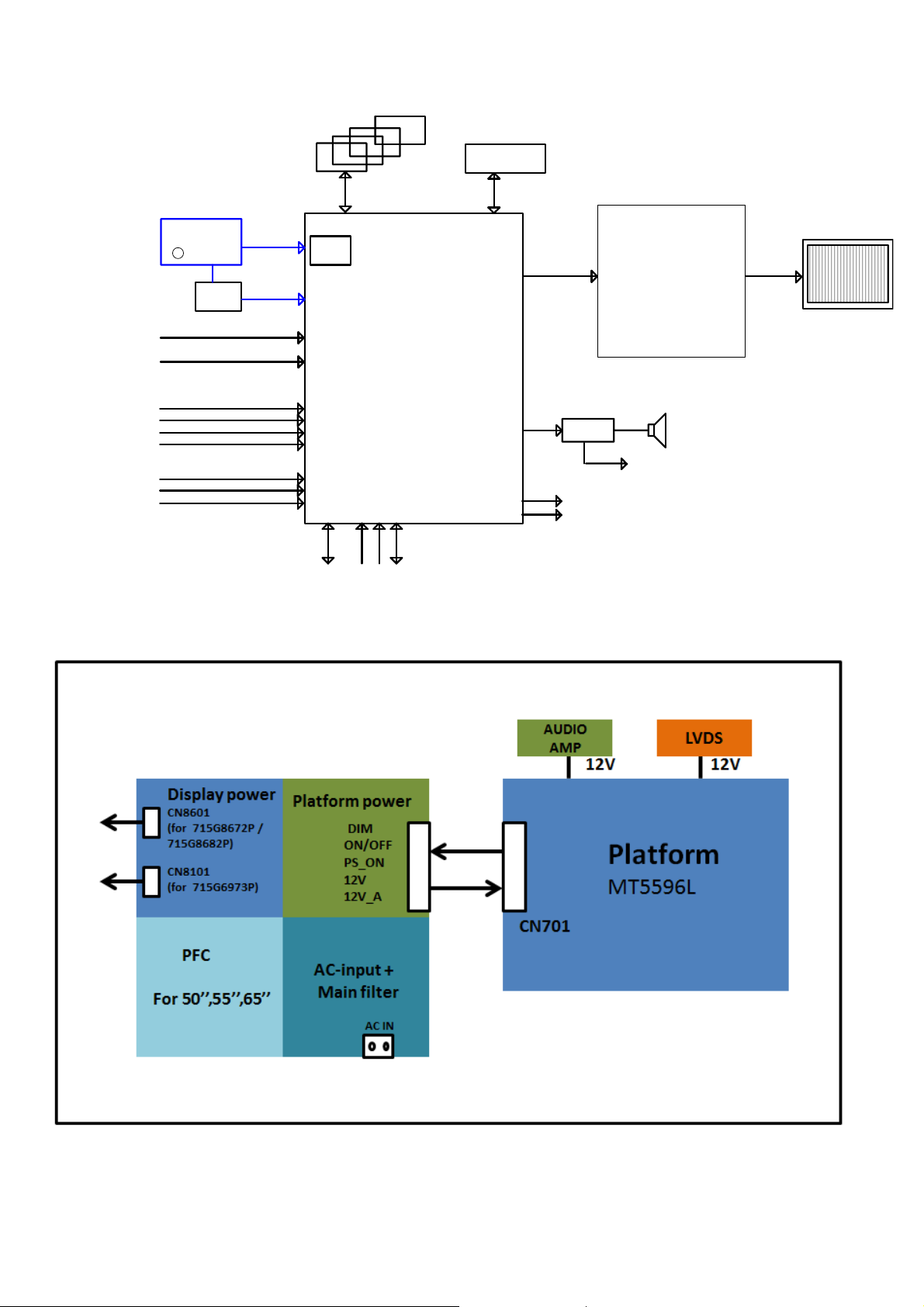

6.1.2 Block diagram (for 715G8132)

Block diagram (for 715G8071)

g

Block Diagram

TDSY H480F

DVB- T2 DEMOD Si2168

YPbPr+L/R

RJ45

HDMI1 HDMI2 HDMI3 HDMI4

USB 3.0

USB 2.0

USB

WiFi

SPI for Scanning backli

ATV

ht

DDR3

MT5596L

UART

RC

KEY

EMMC 4GB

HD& FHD LCD PANEL

VB1

AUD IO AMP

I2S

AD87588

ARC SPDIF

MST7484

3W/5 W/10W SPK

Headphone

VB1

6.2 Power Supply

Power architecture of this platform.

6.2.1 Power Supply Unit

All power supplies are a black box for Service. When defective, a new board must be ordered and the defective one must be returned, unless the main fuse of the board is broken. Always replace a defective fuse with one with the correct specifications! This part is available in the regular market. Consult the Philips Service web portal for the order codes of the boards. Important delta’s with the platform are:

• New power architecture for LED backlight

• “Boost”-signal is now a PWM-signal + continuous variable

The control signals are:

• PS-ON

• Lamp “on/off”

• DIM (PWM) (not for PSDL)

In this manual, no detailed information is available because of design protection issues.

• +12 output (on-mode)

• +12V_audio (audio AMP power)

• Output to the display; in case of

- IPB: High voltage to the LCD panel

- PSL and PSLS (LED-driver outputs)

- PSDL (high frequent) AC-current.

6.2.2 Diversity

The diversity in power supply units is mainly determined by the diversity in displays. The following displays can be distinguished:

• CCFL/EEFL backlight: power panel is conventional IPB

• LED backlight:

- side-view LED without scanning: PSL power panel

- side-view LED with scanning: PSLS power panel

- direct-view LED without 2D-dimming: PSL power panel

- direct-view LED with 2D-dimming: PSDL power panel.

PSL stands for Power Supply with integrated LED-drivers. PSLS stands for a Power Supply with integrated LED-drivers with added Scanning functionality (added microcontroller). PSDL stands for a Power Supply for Direct-view LED backlight with 2D-dimming.

6.3 DC/DC Converters

The on-board DC/DC converters deliver the following voltages(depending on set execution):

• +3V5-SB, permanent voltage for the Stand-by Power system and WIFI

• +3V3-STANDBY,voltage for IR/Key board

• +12V, input from the power supply for the panel common(active mode)

• +12V, input from the power supply for LNB supply

• +3V3-EMMC, +V-EMMC-IO, voltage for EMMC when TV on

• +1V5-DDR, +VREF-A2-DQ,, +VREF-A2-CA, voltage for DDR

• TUNER_3V3, supply voltage for tuner

• +5V-SW, input intermediate supply voltage for USB Power

• +12V-AUDIO1 for the AUDIO AMP

• +3.3VA_T2, +1.2V_T2 voltage for Demodulator IC channel decoder

• +3V3-WIFI,voltage for WIFI

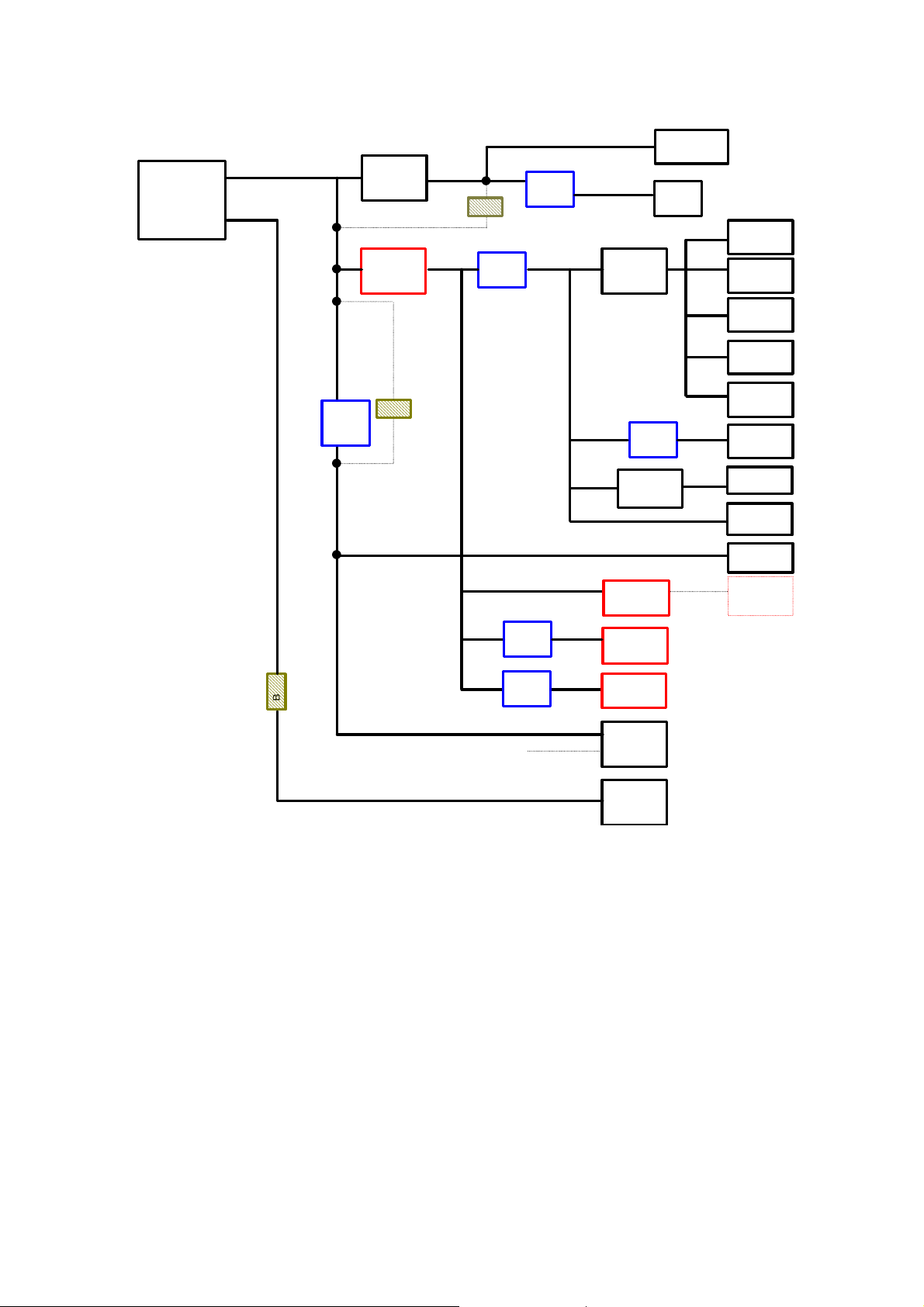

6.3.1 Power tree (for 715G8132)

POWER TRE E

AU_18V

OPWRSB_PWR

FB703

POWER SWITCH

AON4421 Q705

+18V_AUDIO

LDO CONVERTER

U712 G9091

FB601

PVDD

AUDIO AMP

AD87588

3V3SBSTB_PWR

R8058

BUCK CONVERTER

SY8366QNC U707

OPWRSB_PWR

SY8366QNC U708

PGOOD

SY8366QNC U706

+18V

SY8234FCC U713

OPWRSB_PWR

FB704

POWER SWITCH

AON4421 Q704

BUCK CONVERTER

R707

FB706

FB707FB705

AVDD1V0_STB

+18VMAIN_18V

+5V_STB

VCCK

+5V_USB USB 2.0 * 2 USB 3.0 * 1

R713

AVDD1V0_1

LDO CONVERTER

NC/AD1084CD U707

FB707

POWER SWITCH

AON4421 Q705

VCCK

+5V_SW

STB_PWR

BUCK CONVERTER

SY8366QNC U709

FB706

POWER MOS

AO3401A Q701

DDR_PWR_EN

R716

R717

R760

BUCK CONVERTER

RT8079ZQW U705

DVDD3V3

AVDD3V3

VCC3.3V_FRC

FB701

FB711

DDRV

1.5V

LDO CONVERTER

G9661 U704

LDO CONVERTER

G9141 U709

R8077

VCC1.8V_FRC

R726

LDO_PWR

AVDD1V2

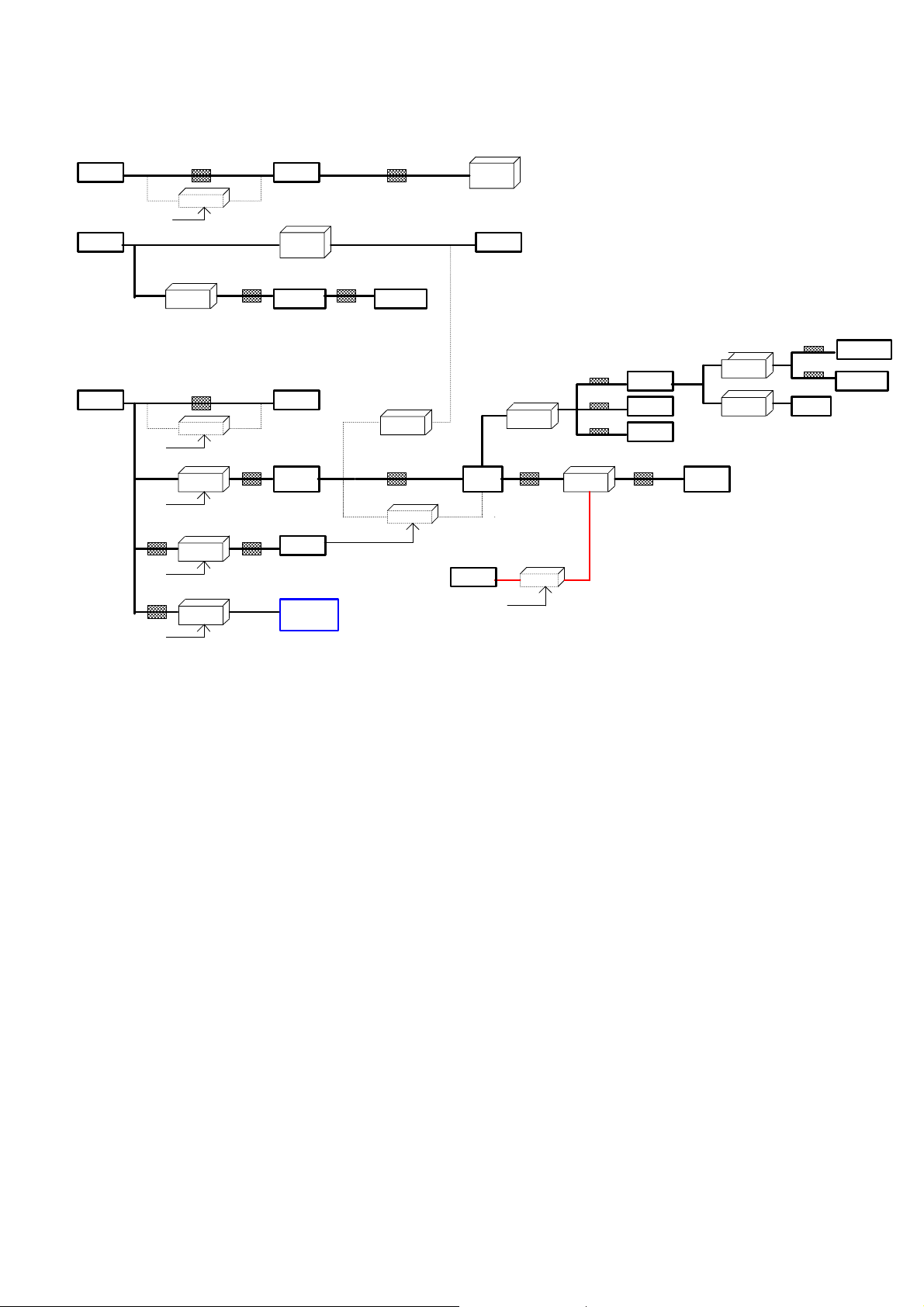

6.3.1 Power tree (for 715G8071)

POWE R TREE

Power Board 12V~18V

Main_18V

AU_18V

Ambi-Light U701 DCDC

18V->12V

4A

STB 5V

FB701

100mA

340mA

500mA

Reserve for 12V

DCDC 18V->5V

+18V

0.4A

FB708

Reserve for 18V for cost down

PWR Switch

Q704

FB703

Q706

3.06A

PWR Switch

+SW5V

1.5A

0.47A

0.24A

0.85A LDO

5V->3V3 1084_263

LDO 5V->3V3 1117

LDO 5V->3V3

DCDC 5V->1V5

MHL

PWR Switch

Pane l

STB 3V3

DDR_Power STR_mode

1000mA

500mA

DVDD3V3

LDO 3V3->1V8

LDO 3V3->1V05

LDO 3V3->1V1

LDO 3V3->1V2

USB2.0+3.0

FRC3V3

DC/DC 5V->1V8

DCDC 12V- >0V9

LDO 3V3->1V05

DVDD3V3

eMMC

AVDD

DTMB

USB 1.5A

FRC3V3

FRC0.9V 4A

STB 1V05 Reserve

100mA

450mADemod.

100mA

470mA

600mAFRC1V8

VCC K

0.5A

1.86A

Audio18V

PWREN

DCDC 18V- >1V0

AMP_20W RL

6A

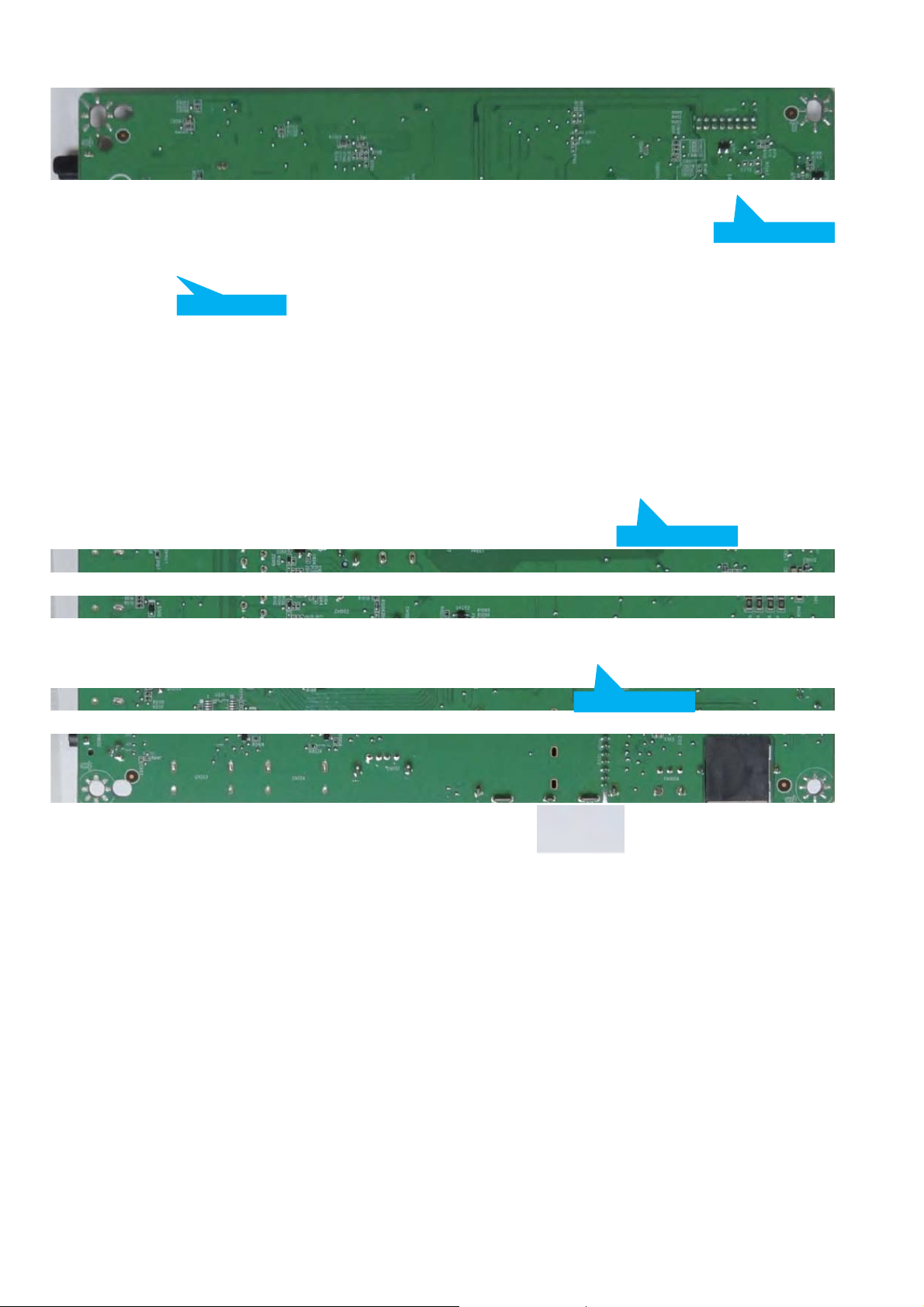

6.3.2 Power layout SSB

L707,DVDD3V3/AVDD3

V3/VCC3.3V_FRC

L803,VCC0.9_FRC

FB7056,+5_SW

L701,DDR, 1.5V

L703, VCCK,1.0V

FB705,AVDD3V3

L702,+5_STB

L803,+5_USB

C1113, +5-USB

Power SSB Top View(For 715G8132M)

FB106, CI2_VCC

D4012, WIFI_VCC

U102,TUNER3.3V

Power SSB Bottom View(For 715G8132M)

L801, VCC 1.8V_FRC

D703, +5V_STB

L703,VCCK

U707,3V3SB

C706,+5V_SW

C714,AVDD1V0_1

Power SSB Top View(For 715G8071MM)

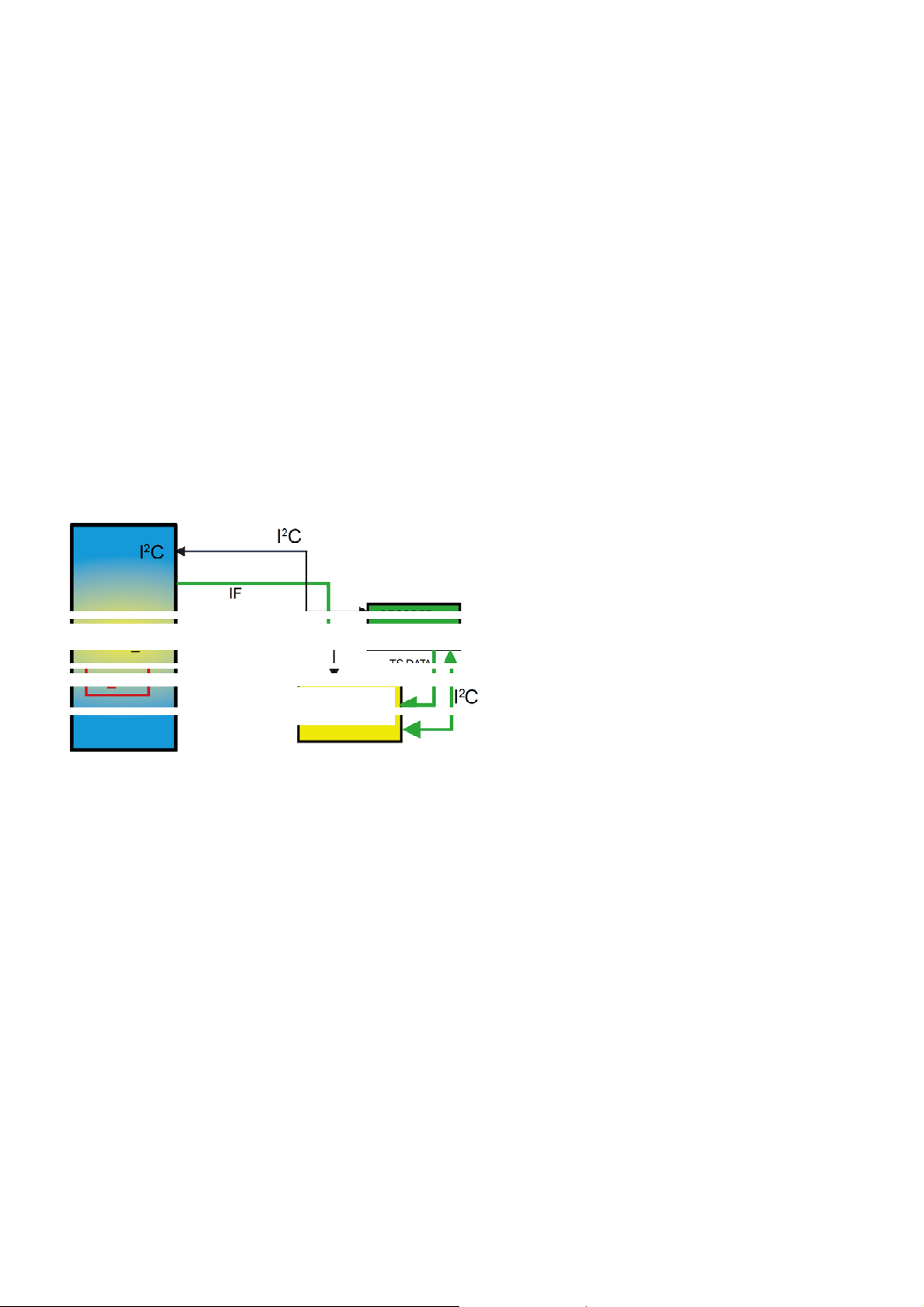

6.4 Front-End Analogue and DVB-T, DVB-C; reception

6.4.1 DVB-C part

The Front-End for analogue tuner consist of the following key components:

• TUNER EUROPE SUT-RE231ZN

• SCALER MT5596LGIJ HSBGA-757 Processor

• SCALER MST7484GC BGA-420 Processor

Below find a block diagram of the front-end application for DVB-C part.

SUT-RE231ZN

MTK5596L

6.4.2 DTB-T2 part

The Front-End for DVT part consist of the following key components:

• TUNER EUROPE SUT-RE231ZN

• SCALER MT5596LGIJ HSBGA-757 Processor

• DEMODULATOR CXD2837ER-T4 VQFN 48

Below find a block diagram of the front-end application for DTV part.

SUT-RE231ZN

MTK5596L

6.5 HDMI

Refer to below for the application.

The following HDMI connector can be used:

• HDMI 1: HDMI input ( TV digital interface support HDMI1.4/HDCP1.3) with digital audio/PC DVI input/MHL/CEC

• HDMI 2: HDMI input ( TV digital interface support HDCP) with digital audio/PC DVI input/CEC

• HDMI 3: HDMI input ( TV digital interface support HDMI1.4/HDCP1.3) with digital audio/PC DVI input/CEC

• HDMI 4: HDMI input ( TV digital interface support HDMI1.4/HDCP1.3) with digital audio/PC DVI input/ARC/CEC

• +5V detection mechanism

• Stable clock detection mechanism

• HPD control

• Sync detection

• TMDS output control

• CEC control

• ARC control

• MHL control

6.6 Video and Audio Processing - MT5596LGIJ HSBGA-757

The MT5596LGIJ HSBGA-757 is the main audio and video processor (or System-on-Chip) for this platform. It has the following features:

1. Worldwide multi-standard analog TV demodulator

2. ATSC/DVB-T/DVB-C/DTMB/ISDB-T demodulators

3. UHD@60Hz direct drive

4. Powerful CPU core

5. 3D graphic support OpenGL ES 1.1/2.0/3.0/3.1

6. A transport de-multiplexer

7. A muti-standard video decoder (including VP9)

8. Rich format audio codec

9. H.264 & VP8 encoder

10. HDMI 2.0 receiver with 3D support

11. MHL 3.0 & Standby Charging

12. 2D/3D converter

13. Ethernet MAC+PHY

14. Local dimming (LED backlight)

15. Two-link LVDS, V-by-one

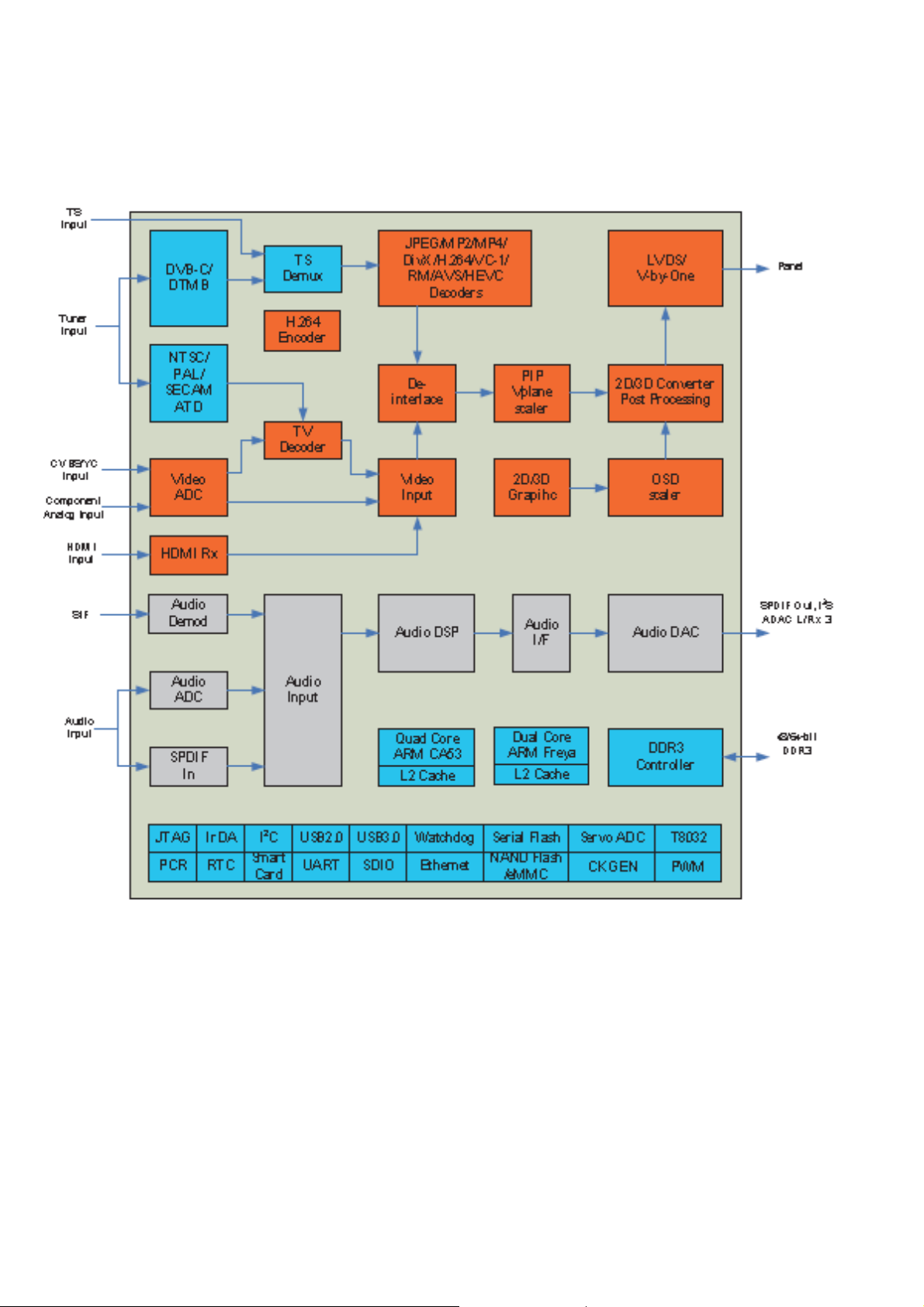

1 OVERVIEW The MediaTek MT5596L family consists of a DTV front-end demodulator, a backend decoder and a TV controller and offers high integration for advanced applications. It integrates a transport de-multiplexer, a high definition video decoder, an audio decoder, a two-link LVDS transmitter, a V-by-One transmitter, and a NTSC/PAL/SECAM TV decoder with a 3D comb filter (NTSC/PAL). The MT5596L enables consumer electronics manufacturers to build high quality, low cost and feature-rich DTV. World-Leading Audio/Video Technology: The MT5596L supports Full-HD MPEG1/2/4/h.264/DiviX/VC1/RM/AVS/VP6/VP8 and HD .264/AVC, 265/HEVC,

VP9 video decoder standards, and JPEG. The MT5596L also supports MediaTek MDDiTM de-interlace solution which can reach very smooth picture

quality for motions. A 3D comb filter added to the TV decoder recovers great details for still pictures. The special color processing technology provides a natural, deep colors and true studio quality video. Moreover, the MT5596L family has built-in high resolution and high-quality audio codec. Rich Features for High Value Products: The MT5596L family enables true single-chip experience. It integrates high-quality HDMI2.0, high speed VGA ADC, two-link LVDS, V-by-One,USB2.0/3.0 receiver, Ethernet MAC+PHY, Quad core CPU and 512K bytes L2 cache, OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1/0/1.1/1.2 compliant 3D graphic engine, and ATSC/DVB-T/DVBC/DTMB/ISDB-T demodulators. All New UHD@60Hz Experience: The MT5596L family provides consumers with UHD 60Hz direct drive. WW Common Platform Capability: The MT5596L family supports ATSC, DVB-T, DVB-C,DTMB and ISDB-T demodulation functions. It reserves transport stream inputs for external demodulators for other countries or areas. TV maker can easily port the same UI to worldwide TV models. First-class adjacent and co-channel rejection capability grants excellent reception.Professional error-concealment provides stable, smooth and mosaic-free video quality.

7. IC Data Sheets

7.1 MT5596L (IC U401)

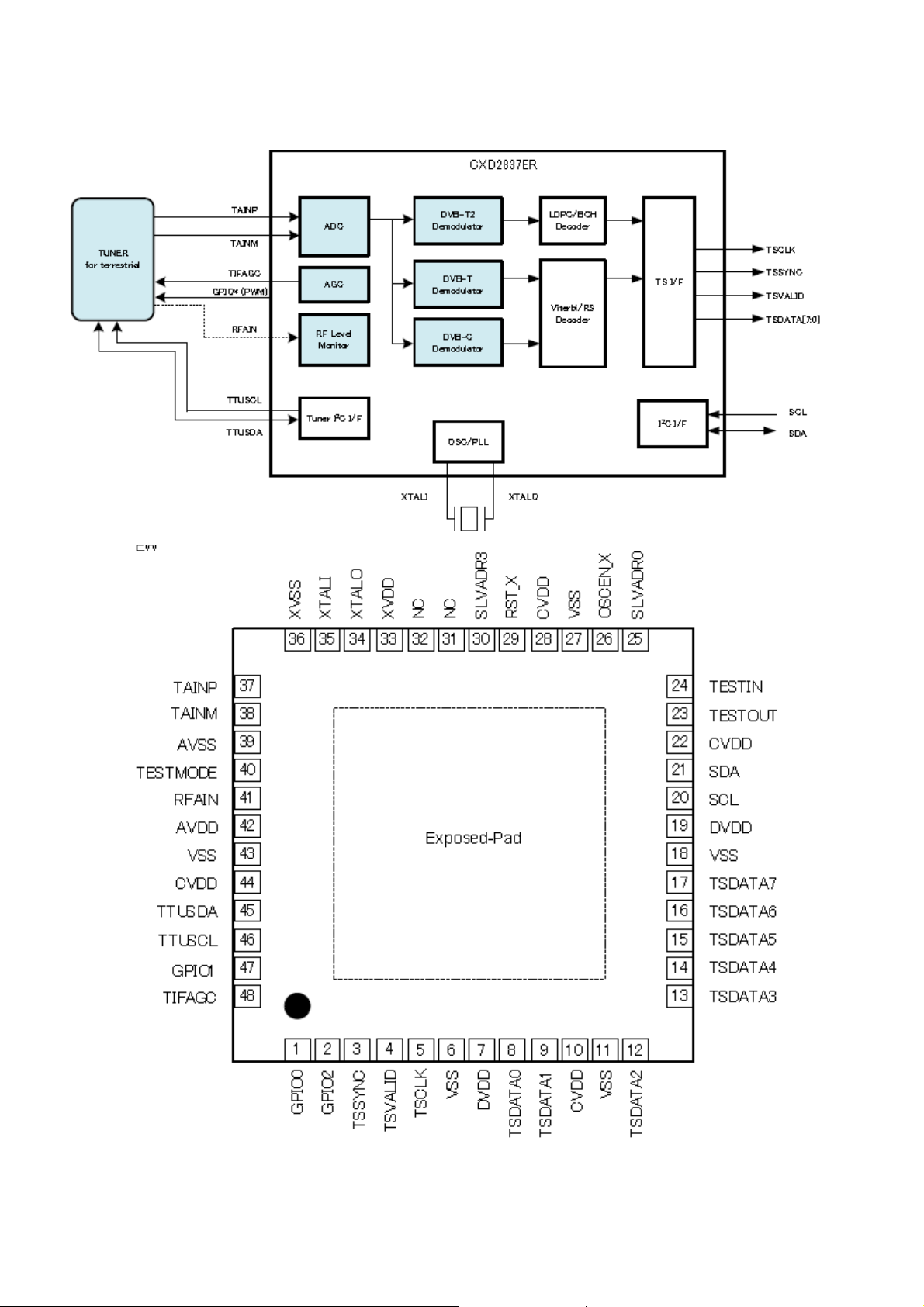

7.2 CXD2837ER-T4 (IC U101)

7.3 AD87588 (IC U601)

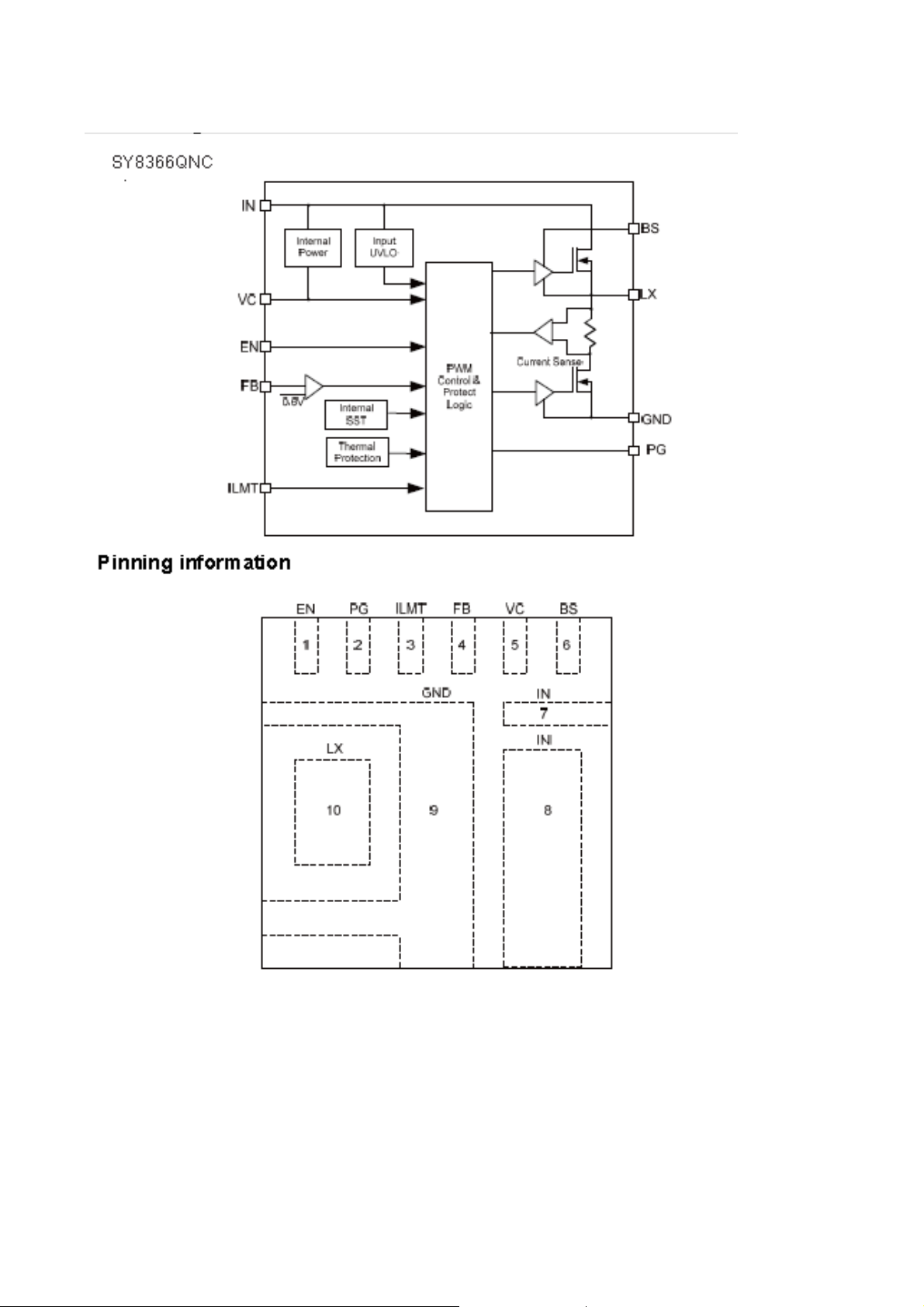

7.4 SY8366QNC (IC U708)

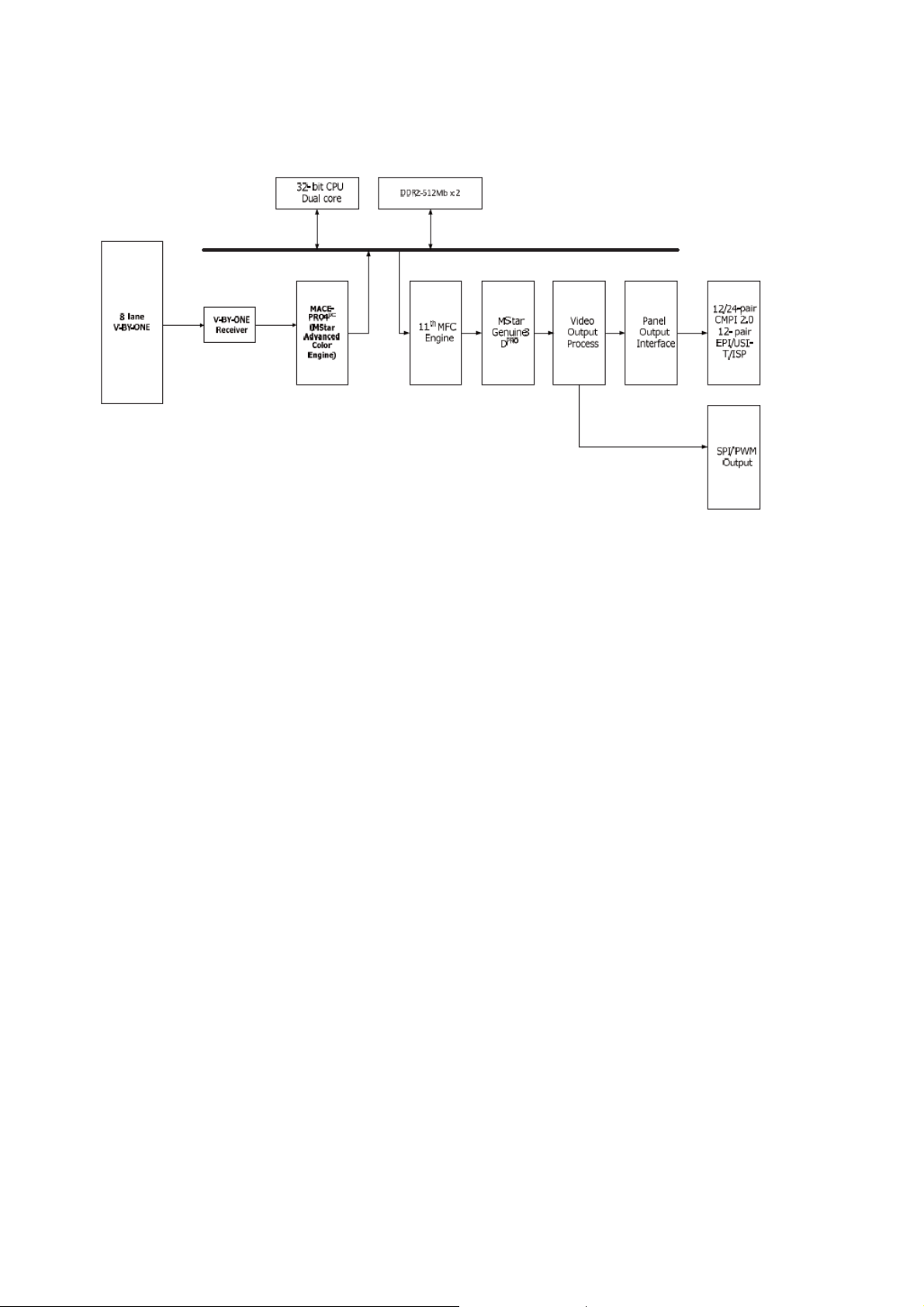

7.5 MST7484GC BGA (IC U801)

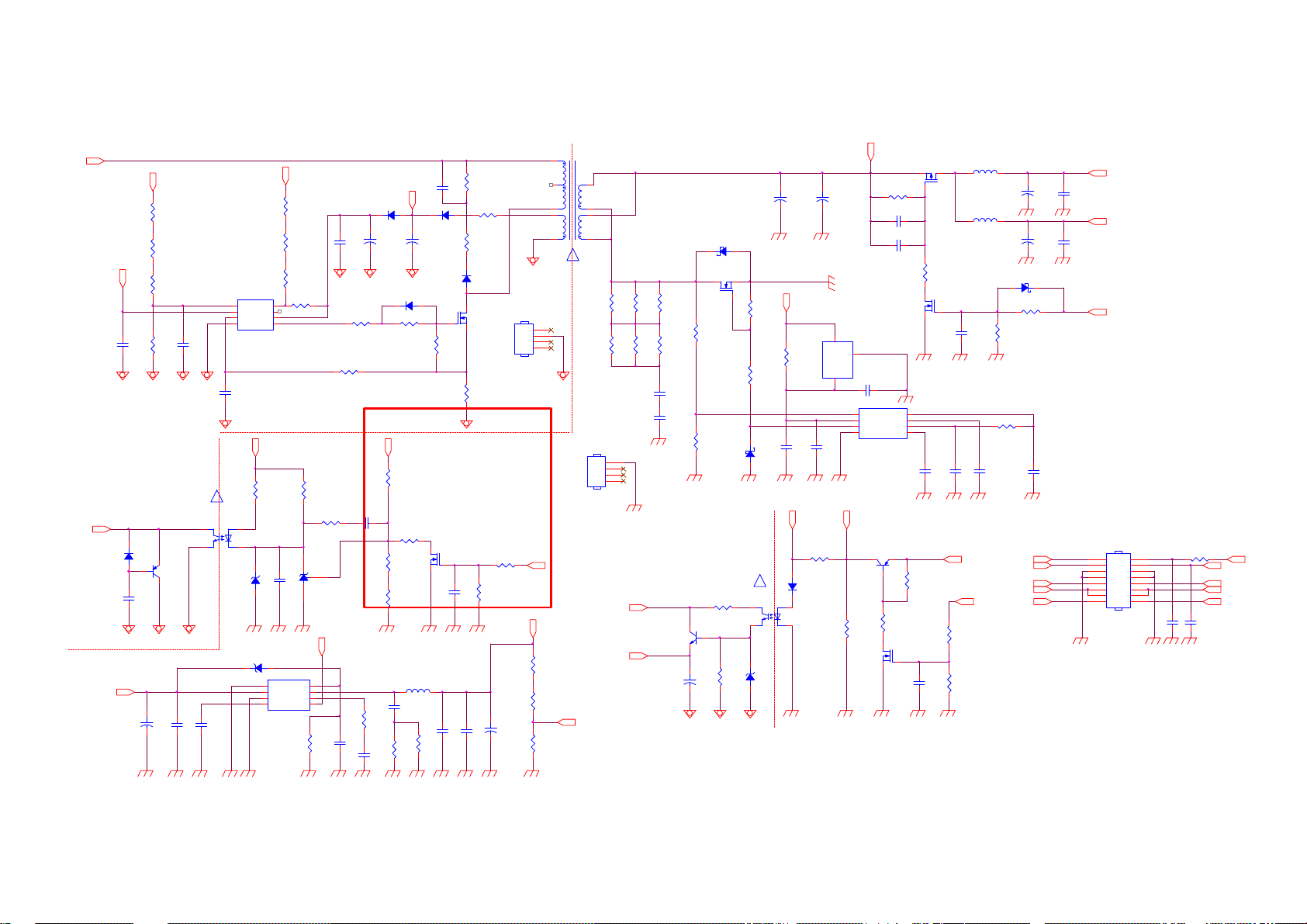

8.Circuit Diagrams

8.1 A 715G8672 PSU (For 50” 6102 Series)

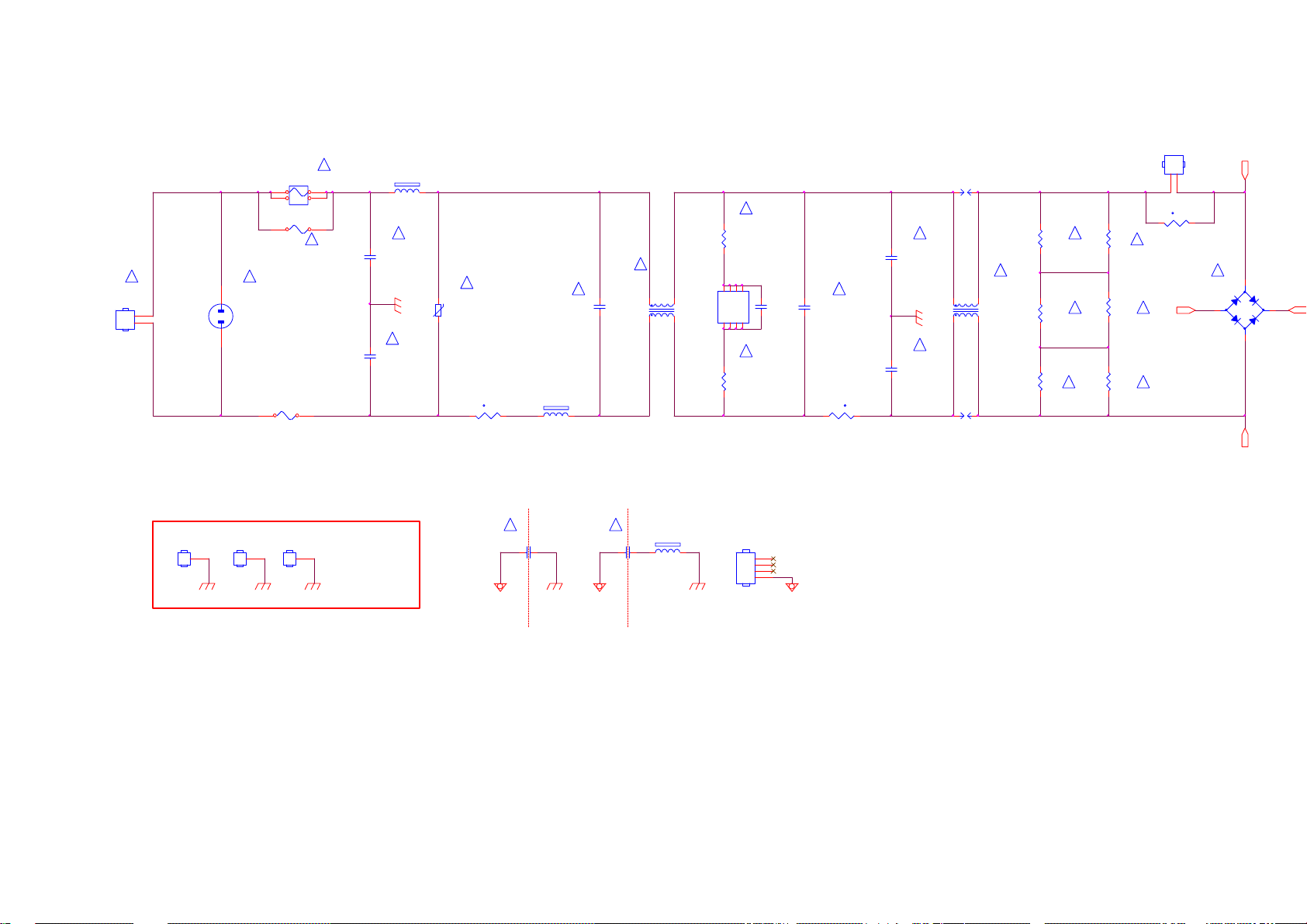

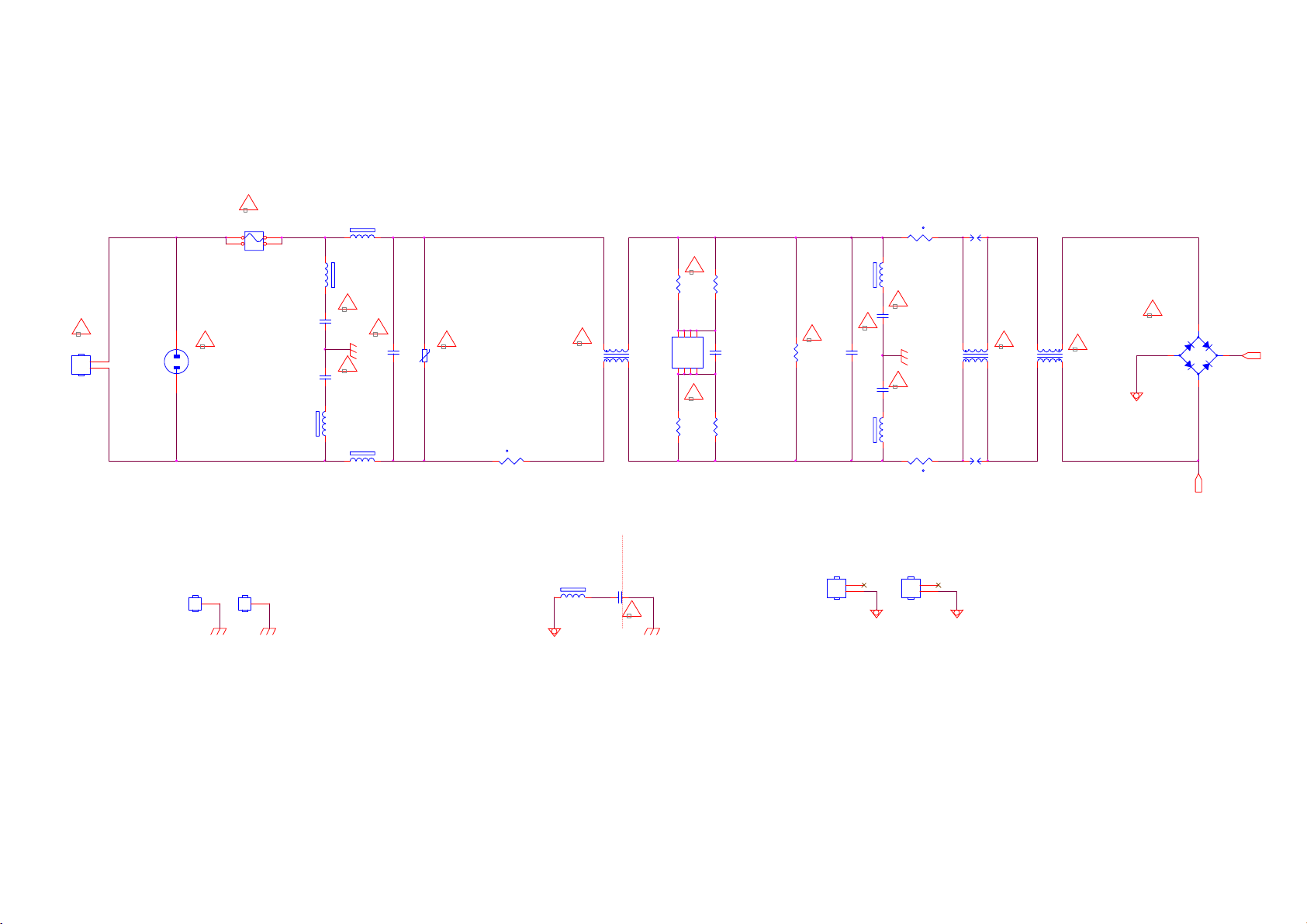

8-1-1 AC Input

!

CN9901 NC

F9901

T5AH/250V

1 2 3 4

!

12

1 2

CN9902

AC 2P

FB9901 BEAD

FB9905

NC

1 2

!

C9911 NC

!

C9912 NC

12

FB9904 NC

FB9902 BEAD

12

!

R9904

R9901

750K

!

C9901

470nF 275V

!

RV9901 680V

L9901 12mH

!

4

3

1

2

1

4

3

D12D1

C9907

NC

U9901

CAP004DG-TL

47PF

NC5D26D27NC

8

R9903 NC

!

R9902

R9905

750K

NR9901 1R

12

t

12

750K

NR9903

1 2

1R

FB9906 BEAD

1 2

!

C9913

47pF 250V

!

C9902

470nF 275V

!

C9914

220PF 250V

FB9907 BEAD

1 2

NR9902

1 2

1R

t

SG9901 DSPL-501N-A21F

4

3

1

2

SG9902 DSPL-501N-A21F

L9902 12mH

!

2

BD9901

!

1

2

!

L9903

0.25mH

4

3

GBJ2508_FU N

Vsin

+

4

-

1

3

N

HS9901

NC

1 2

200W

E

GND2

NC

FB9903

GND4

1

NC

BEAD

1 2

HOT COLD

C9916

!

220PF 250V

HS9902

HEAT SINK

1 2

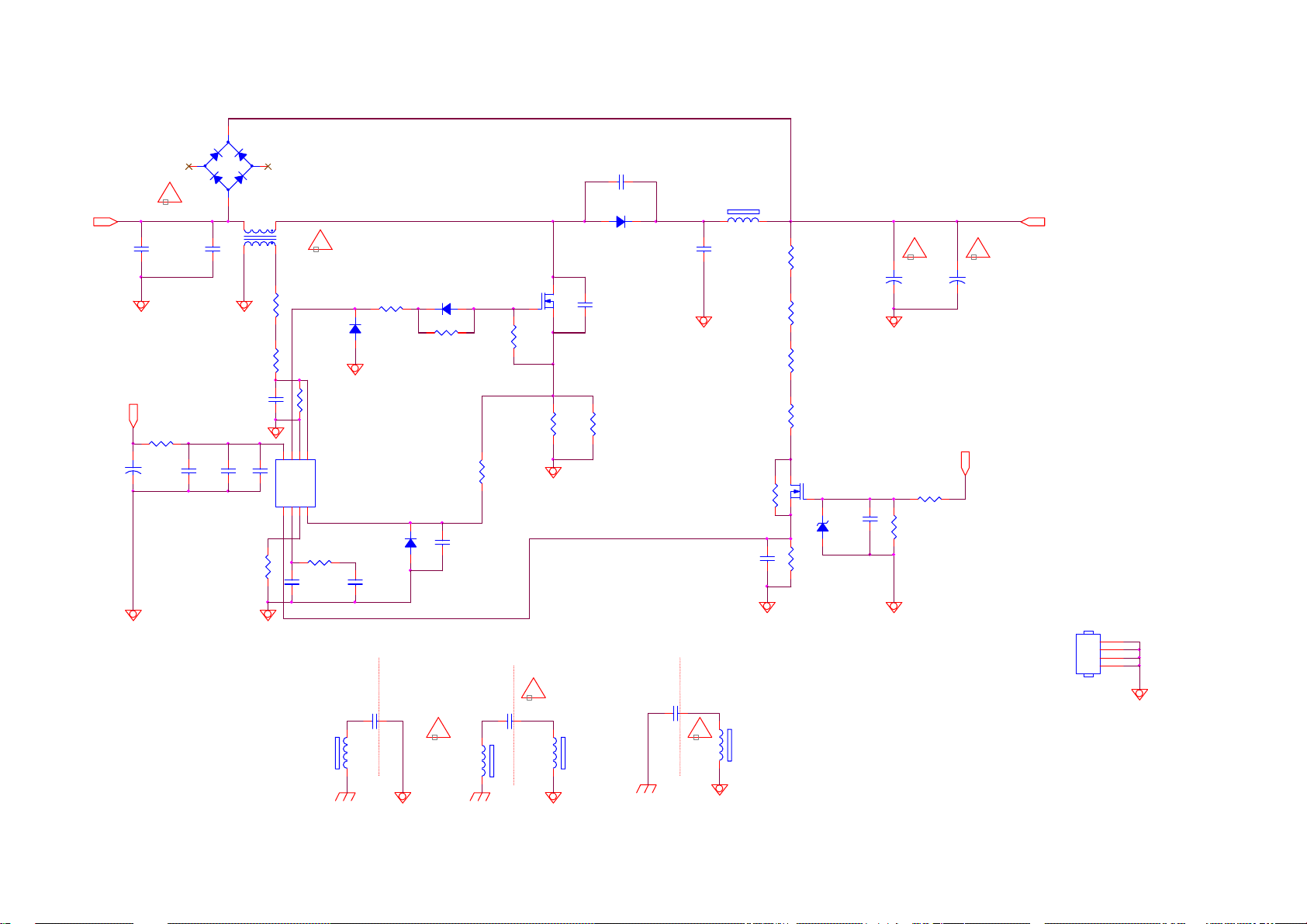

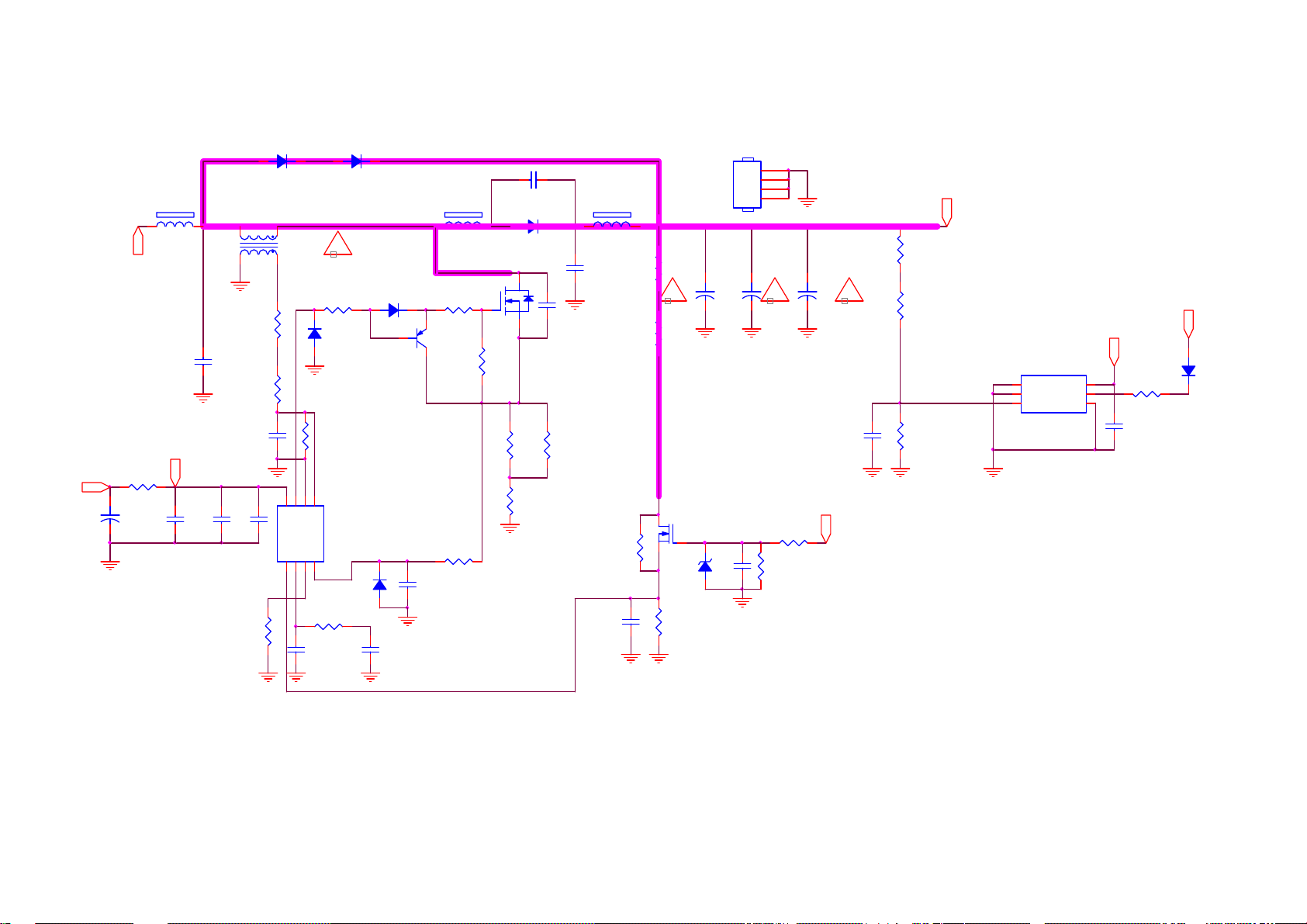

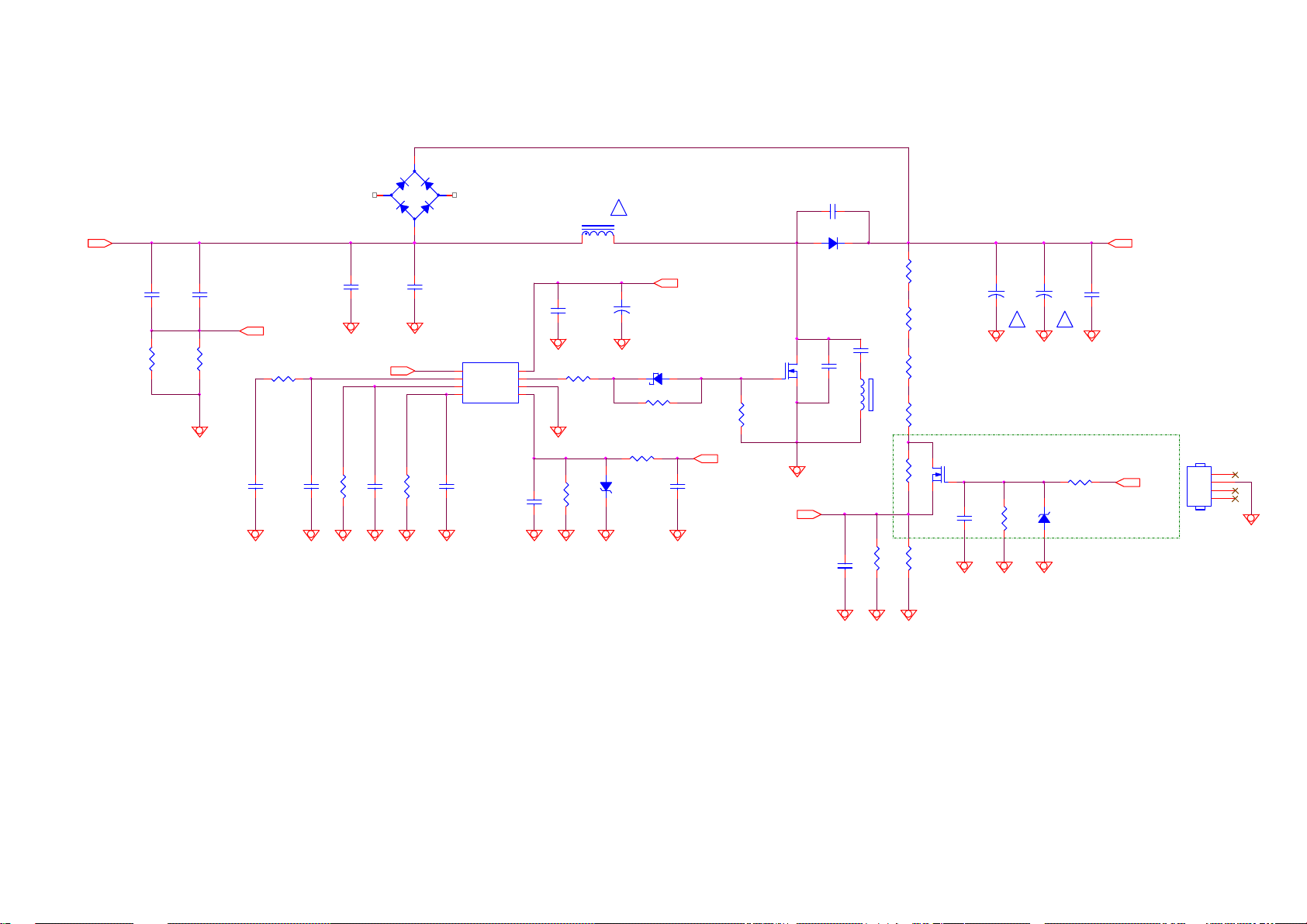

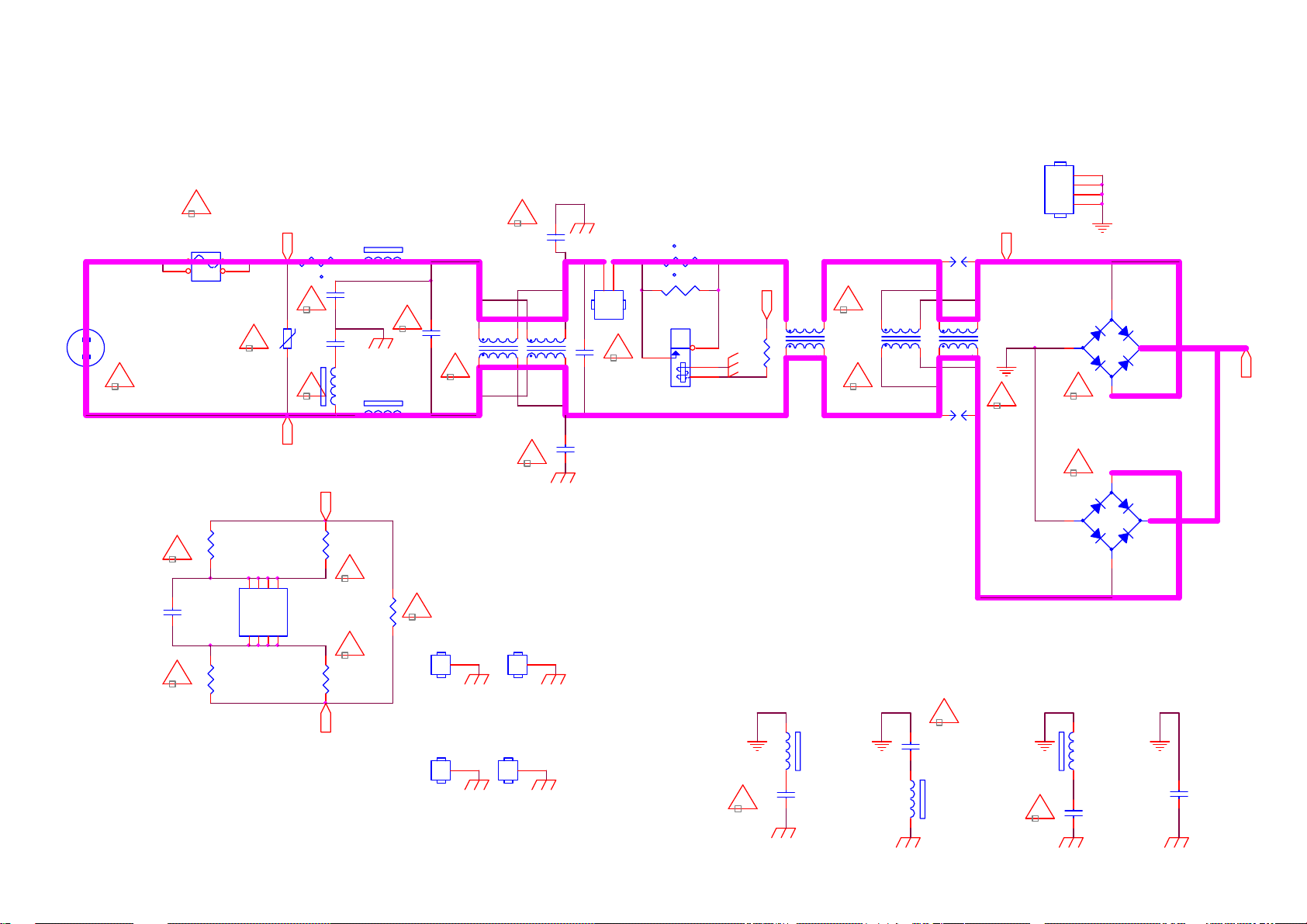

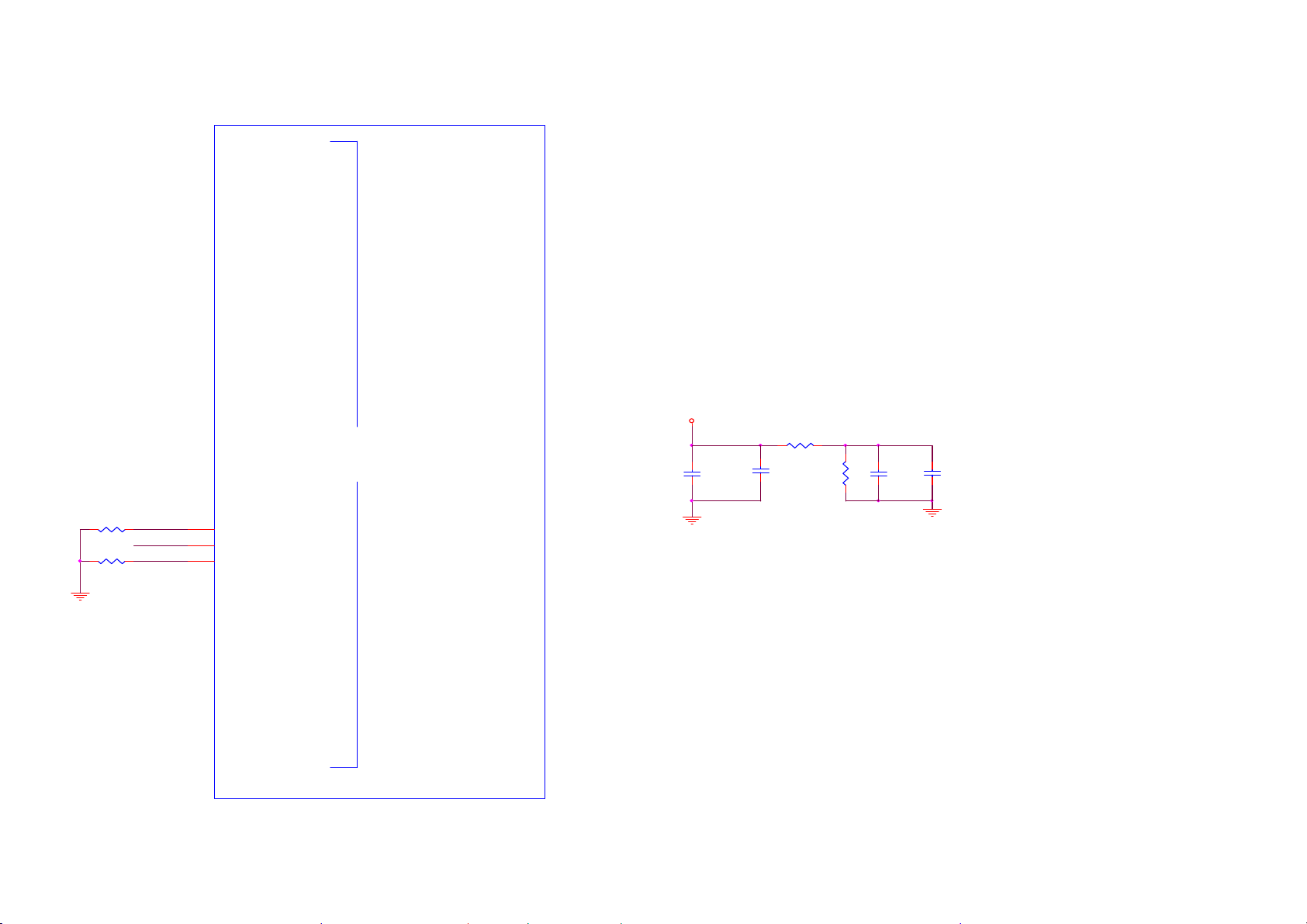

8-1-2 PFC LD7591T

!

Vsin

C9819 1uF

+VCC2

R9819

0R05 1/ 4W

C9808

+

22UF 50V

C9809

100N 50V

2

C9806 1uF

15K 1/8W 1%

C9815

100N 50V

27K +-1% 1/8W

1

BD9801 KBP208G-C

+

-

4

64

R9815 15K 1/8W 1%

R9801

C9807 47P 50V

C9816

100N 50V

R9813

3

C9801 47PF

!

FB9805

1 2

BEAD

100K 1%

R9818

NC

C9810

470PF 50V

12

FB9804 BEAD

R9806

R9810

R9820

R9804

2.7M 1%

Q9802

MTN127KN3

ZD9802 NC

1 2

R9811 19K1 +-1% 1/8W

C9814

100N 50V

!

+

C9803 68uF 450V

R9817

10K OHM

R9816

100K 1/8W 1%

+

+VCC2

!

C9804 68uF 450V

Vbus

For Q9801/D9802

HS9801

1 2 3 4

HEAT SINK

13

L9801

8

200uH

6

OUT7VCC

INV1COMP2RAMP3CS

C9812 47N 50V

!

R9807

2K 1/8W 1%

5

LD7591T

ZCD

GND

U9801

4

10K 1/8W 1% R9814

COLD HOT

12

C9818

FB9802

330PF 250V

BEAD

R9802

33ohm 1/4W +/ -5%

D9805

SS1060FL

D9806

SS1060FL

C9813

0.47UF 50V

D9804 SS1060FL

R9803

56 OHM +-5% 1/4W

C9811 1NF

!

FB9801 127R

R9805

10K 1/8W 1%

R9812 470R 1%

COLD

C9820

12

680PF 250V

Q9801

TK31A60W

!

HOT

D9802 FMNS-1106S

C9802

10NF 1 KV

C9817 100PF

R9808

R9809

0.15R

COLD HOT

12

FB9803 BEAD

C9821

100PF 250V

326mm*200mm*13.5mm

E

8-1-3 Main power SSC3S121A

Vbus

2.2NF

ZD9111

BZT52-B30

U9101

1

FB/OLP

GND

2

BR

VCC OCP

ST4DRV

SSC3S121A

R9135

4.7 MOHM +-5% 1/4W

C9116

R9140 39R 5%

R9150 39R 5%

8 7 6 5

1uF

C9141

Vbus

N

R9163

620K +-1% 1/4W

1 2

R9162

620K +-1% 1/4W

R9161

620K +-1% 1/4W

R9102

C9127

47K 1/8W 1%

2.2UF 2 5V

ZD9112

BZT52-B30

1 2

C9128

2.2UF 2 5V

HOT

C9112

+VCC2

+VCC1

2.2nF ZD9107

Q9102

BTC4672M3

For Q9101

HS9101

1 2 3 4

HEAT SINK

D9110

1N4148W

+

22UF 50V

BZT52-B15

1 2

HOT

R9153

3K 1/8W +/-1%

R9154

20K 1/8W 1%

C9123

2.2NF

D9101

SARS02

+VCC1

R9108

10ohm 1/4W +/-1%

C9104

C9150

680PF 50V

4

U9102

EL817M(X)

!

EL817M(X)

4

ZD9109 BZT52-B16

1 2

R9141 75K

D9103

FR107G-A0

+

C9103

47UF 50V

SS1060FL

R9104

330 OHM 1% 1/8W

12VS

R9118

4.7K 1/8W

R9119

1K5 +-1% 1/8W

1

23

C9114

ZD9106

BZT52-B15

1 2

LED_OVP

U9103

1

23

!

R9114

0R05 4A 1/4W

R9127 0R05 4A 1/4W

D9102

R9107 82 OHM

COLD

C9121 220N 50V

NC

U9104 TL431G-AE2-R

COLD

R9155 2Kohm 1/4W +/- 5%

D9108

1N4148W

R9156

3K 1/8W +/-1 %

Q9101 TK11A65D

R9121

1K 1/8W 1%

R9164

R9109

3K 1/8W +/-1 %

HOT

10K 1/8W 1%

9.1K 1%

R9120

R9115

2K2 1/8W 1%

DV5

5

4

3 2

1

5

4

3 2

1

C9145 47PF

R9101

0.24R

12VS

R9128

6.2K OHM +-1% 1/8W

Q9105

2N7002K

R9116

1K5 +-1% 1/8W

Q9109 2SA1797

R9157

10K 1/8W 1%

Q9108

2N7002K

T9101 POWER X'FMR

T9102 NC

C9142

100N 50V

C9147

0.1uF 50V

!

8 7 6

10 11 12

COLD

6

10 7

9

R9113

R9134

DV5

R9158 1K5 +-1% 1/8W

R9160

510K 1% 1/8W

12VS

NC

C9139

2.2nF 50V

10K OHM

R9129

R9130

330K 1/8W 5%

12VS

PS_ON

R9159 51 OHM 1/4W

Q9104 NC

R9142

C9135

C9143

NC

C9120 NC

C9119 NC

R9143 NC

Q9110 NC

For Q9111 Q9104

HS9102

C9133

0.1uF 50V

HEAT SINK

0.1uF 50V C9134

100PF 50V

NC

C9301

15 13 11

9 7 5 3 1

CN9101

1uF

CONN

C9110

470uF 25V

R9111

27 OHM

R9132

27 OHM

C9140

2.2nF 50V

+

C9106

R9122

R9123

5K1 +-5% 1/8W

470uF 25V

D9116 SR810-05

D9117 NC

D9106 SR810-05

D9104 NC

8.2K 1/4W

D9105

SS1060FL

12VS

C9107

470uF 25V

+

C9108

470uF 25V

12

MTE011N10RFP

R9126

10 OHM 1% 1/4W

C9124

Q9111

8 7 6 5

4.7UF

R9117

5.1KR 1%

R9124

33KOHM +-1% 1/4W

U9111

1

Timi ng

SYNC Vdd MOSG-C GND

2

Pred

3

VR

4

Adj

SP6018ES8RGB

+3.5V

C9136

47P 50V

ON/OFF DIM

+12V +12V +12V

C9188

NC

+

C9109

470uF 25V

R9112

27 OHM

R9133

27 OHM

+

R9110

27 OHM

R9131

27 OHM

L9101

1.1uH

+

C9113 470UF 25V

L9102 3UH

D9115 NC

1 2

C9122

R9145

NC

R9165 NC

1 2 3 4

12VS

R9310 NC

+

16 14 12 10 8 6 4 2

ZD9301 NC

12 1

PGND

2

VIN

3

AGND VCC4FB

U9301

NC

C9302

C9303

PS_ON

+12V_A+12V_A +12V

C9177

C9144

NC

+

C9115 470UF 25V

+3.5V

COMP

+12V +12V_A

DV5

L9303

8

EN

7

LX

6 5

NC

C9310

R9302

NC

C9306

C9307NCC9308

NC

R9303

R9304NCR9305

NC

C9305

NC

+

NC

+3.5V

R9306

NC

C9309

R9307

NC

R9308

NC

8-1-4 LED Driver SSC9522S

R8101

+VCC2

10K OHM

R8162

MTN127KN3

R8163 10K 1/8W 1%

FB_LLC

Q8106

0.1R

C8101 1NF

C8142

1MOHM

R8102

R8103

1MOHM

R8104

1MOHM

R8150

R8161

NC

100N 50V

+

R8105

C8102

16K9 1/8W 1%

100NF 50V

C8105

U8107

NC

R8116

2K43 1/8W 1%

4

10N 50V

C8115

C8114

4.7uF 10V

Vbus

C8103

22UF 50V

0.47UF 50V

2

R8117

470R 1%

U8102 EL817M(X)

!

+VCC2

R8106

D8104

3

1

3

1

3

1

R8126 0 OHM +-5% 1/8W

R8127 2K 1/8W 1%

Q8104 MMBT3906

R8128

1K 1/8W 1%

R8166

0R05 1/4W

FMX-23S

2

D8109 NC

2

D8105 FMX-23S

2

+

C8188

82uF 100V

VLED1

R8188 NC

ZD8120

BZT52-B13

1 2

ZD8112

BZT52-B15

1 2

NC

R8129

FB_LED

ZD8113

BZT52-B15

1 2

R8130

D8155

1K 1/8W 1%

1N4148W

R8159

5.1KR 1%

R8164

C8125

0.1uF 50V 1K 1/8W 1%

+12V

VS

FB_LLC

D8101

R8109

UF4007

10ohm +/-1% 1/8W

U8101 SSC9522S

1

18

Vsen

NC

2

17

Vcc

NC

3

16

FB

VGH

4

15

GND

VS

5

14

Css

VB

6

13

OC

NC

7

12

RC

NC

8

11

Reg

VGL

10

RV9COM

C8104

1uF

0.1uF 50V

C8110

C8111

C8112

5PF

47P 50V

R8107

470R 1/8W 1%

C8106

NC

560PF 50V

+12V

VLED1

BZT52-B2V4 ZD8110

1 2

3

IN

R8174

GND

0R05 4A 1/4W

BZT52-B2V4 ZD8102

OUT

1 2

1

BZT52-B2V4 ZD8103

1 2

D8106

SS1060FL

D8107

SS1060FL

C8155 NC

1.5K OHM

R8119

1

R8120

3K 1/8W +/-1%

23

NC

C8124

ZD8104

BZT52-B30

1 2

TL431G-AE2-R

R8108 200R 1%

C8123

0.1uF 50V

U8103

R8173

1uF

C8133

1 2

C8107 1nF 50V

NC

COLDHOT

C8122 NC

R8125 39K 1/8W 1%

ZD8101

BZT52-B15

VS

VLED1

R8121

R8122

R8123

7.5KOHM +-1% 1/8W

36K 1/8W 1%

33K 1/8W 1%

D8102 SS1060FL

SS1060FL

R8111 47R 1%

D8103

R8114 47R 1%

100PF

R8124 12K 1/8W 1%

R8110 10ohm +/-1% 1/8W

R8113 10ohm +/-1% 1/8W

FB_LED

T8101 POWER X'FMR

7

4

Q8101

TK10A50D

R8112

10K 1/8W 1%

Q8102

C8113

TK10A50D

100PF

R8115

10K 1/8W 1%

8 3 2

9

10 1

11

12

5

6

!

LED_OVP +12VDV5

COLDHOT

D8108 C8109 27nF

SS1060FL

Q8103 MMBT3904

TPV101_VCC

VLED1

L8101 3UH

C8120

+

C8116

82uF 100V

C8136

4.7UF

C8137

R8175NCR8176NCR8177

R8118 150K 1/4W

C8117

82uF 100V

R8135

R8145

R8146

1.2R 1%

R8147

R8148

1.2R 1%

R8139

1.2R 1%

150K 1/4W

R8151 0 OHM +-5% 1/8W

R8136

R8137

1.2R 1%

R8152 0 OHM +-5% 1/8W

R8141

R8140

1.2R 1%

R8178NCR8179

NC

R8138

1.2R 1%

R8142

1.2R 1%

+

C8118

47UF 100V

U8105

1

8

DIM

COMP

2

7

EN

GM

3

6

VCC

ISET

5

LED4GND

TPV101AD

U8106

1

8

DIM

COMP

2

7

EN

GM

3

6

VCC

ISET

5

LED4GND

TPV101AD

C8119

1NF 500V

NC

C8127

C8129NCC8130

0.1uF 50V

C8121

0.1uF 50V

DIM

1uF

C8128

1uF

+VLED

R8155 10K OHM

For D8104,D8109,D8105

HS8101 HEAT SINK

1 2 3 4

For IC8105

HS8102 HEAT SINK

1 2

For IC8106

HS8103 HEAT SINK

1 2

ON/OF FC8108

TPV101_VCC

CN8601

+VLED

R8144

R8143

0R05 4A 1/4W

+VLED

1 2 3 4 5 6 7 8

9 10 11

0R05 4A 1/4W

12

CONN

8.2 A 715G6937 PSU (For 55” 6102 Series)

n

8-2-1 AC Input

!

F9901

T5AH/250V

1 2 3 4

F9902

NC

! !

CN9901 NC

!

1 2

12

!

CN9902 AC SOKET

F9903

NC

FB9901 BEAD

!

C9911 22PF 250V

!

C9912 22PF 250V

CN9903 NC

SG9901

12

NC

!

RV9901 680V

R9901 510k 1/2W

!

1

4

!

! !

L9901 12mH

4

3

C9901

470NF 275V

1

2

3

D12D1

C9907

NC

U9901

CAP004DG-TL

47PF

NC5D26D27NC

8

C9902

470NF 275V

!

R9902

NR9901 1R

t

FB9902 BEAD

12

510k 1/2W

NR9902 1R

1 2

t

!

C9913

470pF 250V

!

C9914

470pF 250V

4

1

SG9902 NC

!

3

L9902 12mH

2

R9905

!

NC

R9904

! !

NC

R9903 NC

!

R9908 NC

R9907 NC

R9906 NC

L1N

2

t

12

NR9903 1R

R-

!

BD9901 GBJ1008-FU C

4

BO

2

Vsi

+

-

1

3

N

GND1 GND

!

GND2 GND

1

GND4 GND

1

C9917 NC

!

C9916

1NF 250V

FB9903 BEAD

1 2

HS9901 HEAT SINK

1 2 3 4

8-2-2 PFC

Vsin

C9803 1UF 450V

R9801

0.1R 3W

C9804 1UF 450V

R9802

0.1R 3W

R-

R9809 27K 1/8W 1%

1uF

C9806

C9807

0.47uF 50V

C9819 470PF

FB_PFC

R9810

22K 1/8W 1%

1

BD9801 KBP208G-C

+

2

C9808

10N 50V

3

L9801

-

4

C9820 1NF

U9801 SSC-2005S

R9811

33K 1/8W 1%

1

FB

2

COMP

3

RT RDLY4CS

C9809

10N 50V

VCC

OUT

GND

8 7 6 5

R9814 10 OHM 1/8W

C9813

3.3nF 50V

220uH

4

C9811 100N 50V

NC

R9813

!

6

+VCC2

+

C9810 10UF 50V

Q9801

R-

TK18A60V

R9816 10K 1/8W 1%

FB_PFC

D9802 SS1060

12

R9815 33R 1%

R9812 47R 1%

12

C9812

ZD9801

BZT52-B3V6

47PF 50V

C9814 47PF

D9801 FMNS-1106S

C9815 NC

Vbus

R9803 1MOHM +-1% 1/4W

R9804 680K OHM +-1% 1/4W

C9818 47PF

12

NC

C9805

1NF 50V

FB9904 BEAD

R9819

R9808

16K +-1% 1/8W

R9805 680K OHM +-1% 1/4W

R9806 100K 1%

Q9802

BSS127

R9807 470K 1%

+

C9801

82uF 450V

+

C9802

82uF 450V

C9816 1NF

!!

For Power Saving

HS9801

+VCC2

HEAT SINK

1 2 3 4

R9817 10K 1/8W 1%

D9803

SMF12A

R9818

C9817

100N 50V

30K 1/8W 1%

1 2

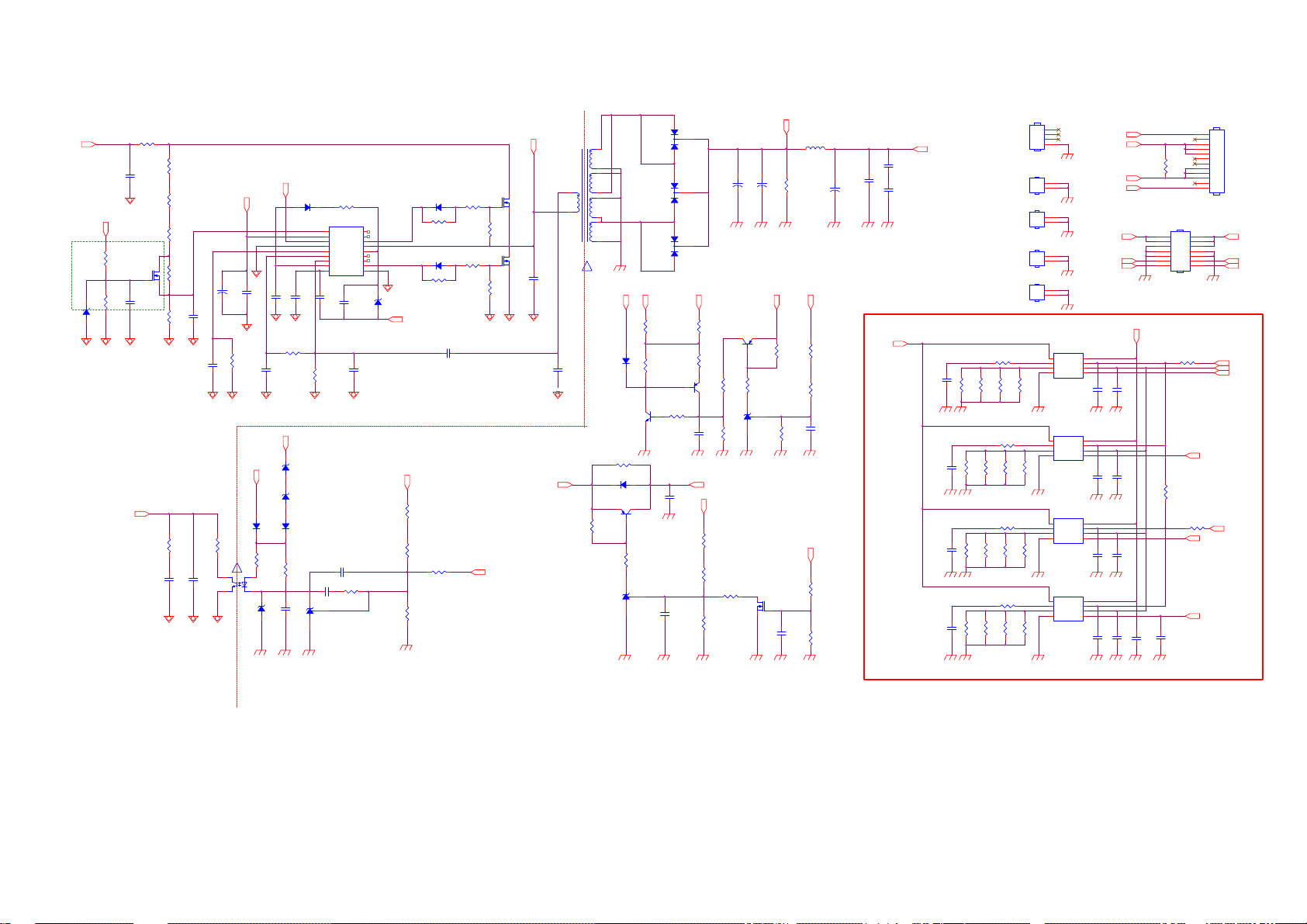

8-2-3 Main power

Vbus

FB_12V

BO BO

R9108

3.3M 1/4W

FB_12V

R9103

3.3M 1/4W

4N7 50V

C9101

NC

D9107

NC

C9130

12VS

+

C9301

T9101 POWER X'FMR

6

C9106

2.2NF

+VCC 1

C9104

0.1uF 50V

R9105

C9119 220N 50V

R9126

2K2 1/8W 1%

R9127

1K5 +-1% 1/8W

C9304

1nF 50V

D9108 1N4148

+

C9132

C9105

10UF 50V

D9101 1N4148W

R9106 82 OHM

12VS

R9125

9K1 1/8W 1%

R9128

6.2K 1%

L9301 47uH

C9306

2.2nF 50V

R9302

20K 1/8W 1%

R9303

C9305

30 OHM 1/4W

2.2nF 50V

R9147 330K +-1% 1/4W

R9148

NC NC

VCC

12VS

BZT52-B15

1 2

ZD9301

BZT52-B4V7

1 2 3

U9301

AOZ3015AI

8 7 6 5

R9122

1K5 +-1% 1/8W

12

PGND VIN AGND VCC4FB

330K +-1% 1/4W

R9149 330K +-1% 1/4W

R9146 0R05

R9123 R9124

1K 1/8W 1%

U9103

NC

C9118

AS431AN-E1

FB_SB

8

EN

7

LX

6

COMP

5

10ohm +/-1% 1/8W

R9107 1Kohm +-1% 1/4W

4.7K 1/8W

R9301

3K 1/8W +/-1 %

R9102

3.3M 1/4W

U9101 LD5532

1

BNO

2

COMP

3

CS GND4OUT

C9102

R9104

1000pF 50V

100K 1/8W 1%

C9103 330P 50V

!

U9102 EL817M(X)

1

4

23

NC

Q9109

470uF 25V

1uF

C9302

ZD9104

C9303

0.1uF 50V

D9102

FR107G-A0

100UF 50V

R9304

30 OHM 1/4W

R9109

Q9105 2N7002K

10K 1/8W 1%

C9307

C9120

1uF

R9111 82K 2W

R9110 2R2 +-5% 1/4W

R9150 22R 5%

D9103 SARS01-V1

Q9101 TK11A65D

0R22

R9101

R9129 10K OHM +-5% 1/8W

R9130

0.1uF 50V

+

1uF

C9308

330K 1/8W 5%

C9309

HS9101 HEAT SINK

470UF 25V

5

4 2

1

1 2 3 4

+5V

R9305 11K 1/8W 1%

R9306 750R 1%

R9307 3K3 1/8W 1%

DV5

380GL32P173N00

7

11 8

10

!

R9112

R9113

R9114

27 OHM

R9115

R9116

R9117

27 OHM

C9107

2N2 50V

C9108

2N2 50V

HS9102 HEAT SINK

1 2 3 4

+VCC1

+VCC2

C9121 10UF 50V

FB_SB

Q9106 BTC4672M3

+

D9104 SK510C

Q9102 AOTF298L

R9139

8.2K 1/4W

R9140

5K1 1/8W 1%

R9131

3K

+

C9109

1000uF 35V

12

12VS

R9141

5K1 1/8W 1%

R9142

10ohm +/-1% 1/8W

D9105

SS1060

1 2

!

U9104 EL817M(X)

4

ZD9105

20K 1/4W

BZT52-B15

R9132

1 2

R9143 4R7 1/4W 5 %

1uF

C9123

R9133 2K 1/8W 1%

D9106

1N4148W

1

23

3

1

C9124

12VS

Q9103 AOD4185

C9110

IN GND

OUT

1uF

1000uF 35V

DV5LED_OVP

U9106 NC

2

C9131 NC

8 7 6 5

R9134

R9118 100K 1/8W 1%

C9111 NC

C9112 NC

SYNC Vdd MOSG-C GND

U9105

SP6018ES8RGB

Q9107 MMBT3906

10K 1/8W 1%

Timi ng

Pred

VR Adj

R9135 10K 1/8W 1%

Q9108 2N7002K

C9122

1 2 3 4

R9136 1K5 1/8W 5%

0.1uF 50V

R9119 100K 1/8W 1%

Q9104 2N7002K

NC

C9125

R9138

510K 1% 1/8W

L9101 3UH

L9102 3UH

C9117

0.1uF 50V

C9126

0.1uF 50V

12VS

PS_ON

R9137

100 OHM 1/4W

1 2

100 OHM 1%

R9121

R9144 47K +-1% 1/4W

C9127

100PF 50V

3D_ON

+12V_A

ZD9103 SS1060

R9120

510K 1% 1/8W

+12V

+

C9113

470UF 25V

+

C9115

470UF 25V

C9128

0.1uF 50V

+5V

+12V_A

1uF

C9114

+12V

1uF

C9116

DV5

CN9101 CONN

2

1

4

3

6

5

8

7

10

9

12

11

14

13

16

15

C9129 1NF 500V

R9145 0R05 1/4W

C9133 10N 50V

PS_ON

+12V_A +12V

+5V

DIMBL_ON/OFF

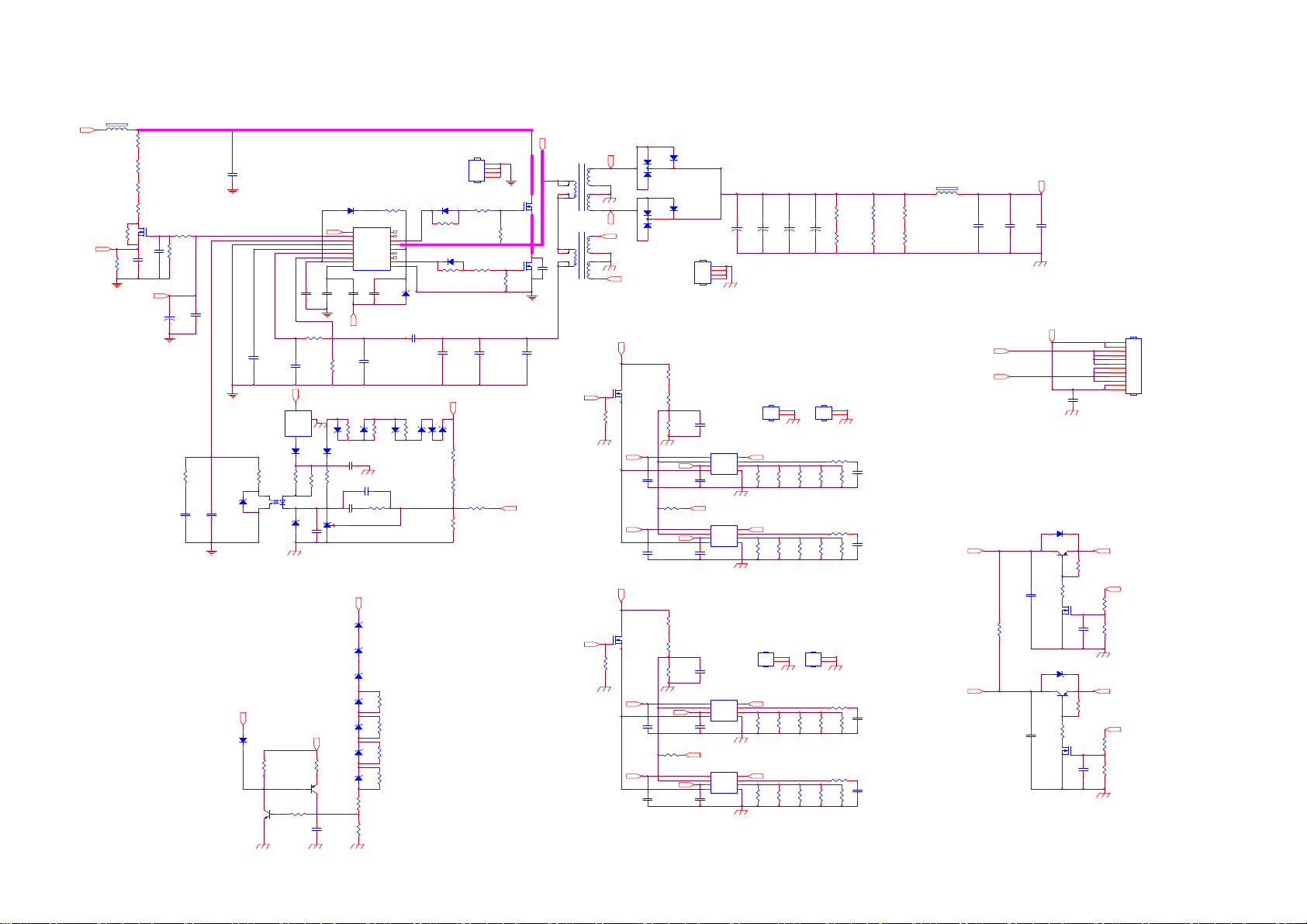

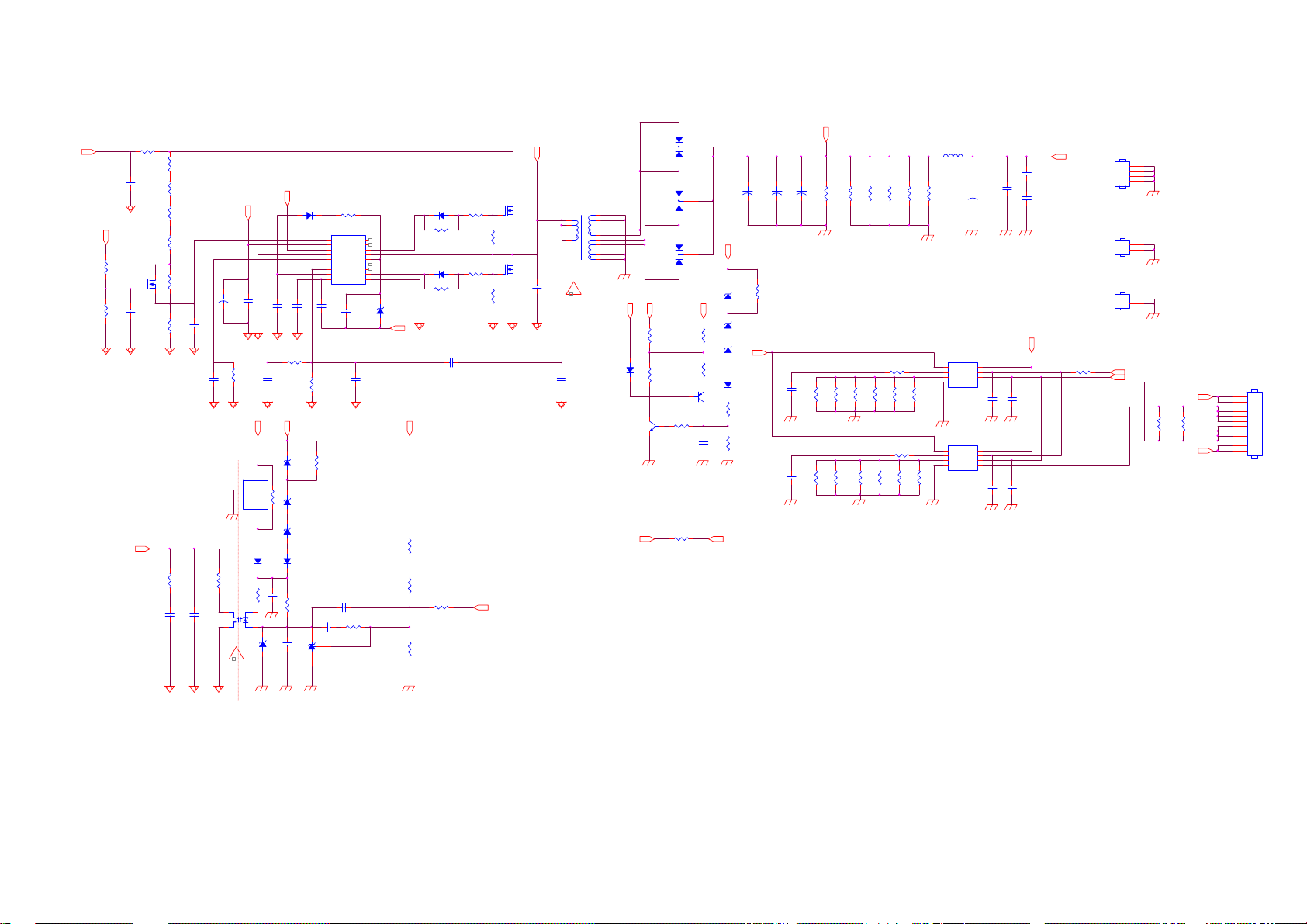

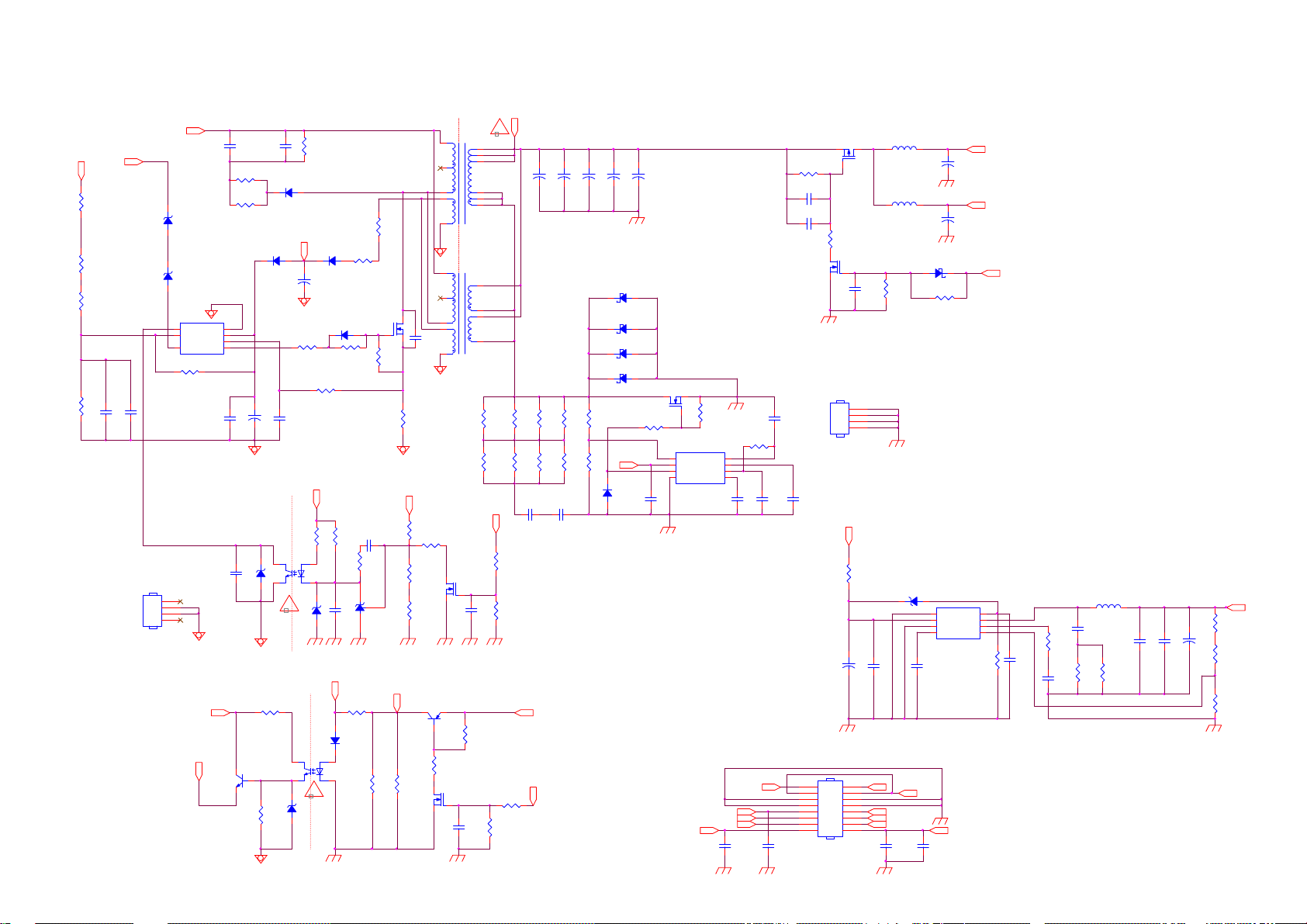

8-2-4 LED Driver

R8101

+VCC2

For Power Sav ing

R8162

10K 1/8W 1%

R8163

100K 1/8W 1%

FB_LLC

Q8106

BSS127

0.1R

C8101 1NF

C8142

100N 50V

Vbus

D8111

BZT52-B18

1 2

R8161

NC

R8151 0 OHM +-5% 1/8W

R8136

R8137

1oHM 1% 1/4W

R8152 0 OHM +-5% 1/8W

R8140

1oHM 1% 1/4W

R8153 NC

NC

R8144

R8154 NC

NC

R8148

HS8101 HEAT SINK

HS8102 HEAT SINK

HS8103 HEAT SINK

HS8104 NC

HS8105 NC

R8138

1oHM 1% 1/4W

R8141

1oHM 1% 1/4W

R8145NCR8146

R8149NCR8150

CN8101

1 2 3 4

1 2

U8105

8

COMP

7

GM

6

ISET

5

TPV101AD

1oHM 1% 1/4W

U8106

8

COMP

7

GM

6

ISET

5

TPV101AD

R8142

1oHM 1% 1/4W

U8107

8

COMP

7

GM

6

ISET

5

NC

U8108 NC

8

COMP

7

GM

6

ISET

5

NC

+VLED

-VLED1

R8158

0R05 1/4W

-VLED2 +VLED

+VLED

10

3D_ON

BL_ON/OFF

1

DIM

2

EN

3

VCC LED4GND

C8127

0.1uF 50V

1

DIM

2

EN

3

VCC LED4GND

C8129

0.1uF 50V

1

DIM

2

EN

3

VCC LED4GND

NC

1

DIM

2

EN

3

VCC LED4GND

NC

C8134

12 14

DIM

1uF

C8128

1uF

C8130

C8132NCC8131

NC

C8135

C8141

100PF 50V

CONN

1 2 3 4 5 6 7 8

9 10 11 12

CN9102 NC

2

1

4

3

6

5

8

7 9 11 13

R8155 10K 1/4W

NC

R8156

C8140

1NF 500V

R8157 NC

-VLED1

-VLED2

-VLED1

BL_ON/OFF

TPV101_VCC

-VLED2

3D_ON

+VLED

+12V DIM

+

Q8105 MMBT3906

5K1 1/8W 1%

1K 1/8W 1%

C8116

220UF 100V

R8132 5K1 1/8W 1%

U8104 AS431AN-E1

VLED1

L8101 3UH

+

R8118 75K

C8117

220UF 100V

+12V

VLED1

R8160

R8131

1K 1/8W 1%

62K 1/8W 1%

R8133

30K 1/8W 1%

R8134

3K3 1/8W 1%

TPV101_VCC

Q8108

NC

C8143

R8171 NC

R8172 NC

C8119

+

1NF 500V

C8118

47UF 100V

FB_LED

C8126

0.1uF 50V

+VLED

C8120

0.1uF 50V

C8121

0.1uF 50V

1uF

C8136

R8135

1oHM 1% 1/4W

1uF

C8137

R8139

1oHM 1% 1/4W

NC

C8138

NC

R8143

NC

C8139

R8147

380GL52P193YS0 40V

VS

R8102

1M5 1/4W 1%

R8103

1M5 1/4W 1%

R8104

1M5 1/4W 1%

+

C8103

R8105

C8102

18K 1/8W 1%

0.1uF 50V

C8105

0.47UF 50V

R8116

C8114

R8117

2K43 1/8W 1%

4.7uF 10V

470R 1%

4

10N 50V

C8115

U8102 EL817M(X)

FB_LLC

+VCC2

22UF 50V

NC

R8106

+12V

D8106

SS1060FL

R8119

2K4 +/-1% 1/8W

!

C8104

1

23

0.1uF 50V

1 2

C8110

R8107

470R 1/8W 1%

C8106 560PF 50V

VLED1

1 2

D8107

SS1060FL

NC

R8120

ZD8104

BZT52-B30

D8101

R8109

UF4007

10ohm +/-1% 1/8W

U8101 SSC9522S

1

18

Vsen

NC

2

17

Vcc

NC

3

16

FB

VGH

4

15

GND

VS

5

14

Css

VB

6

13

OC

NC

7

12

RC

NC

8

11

Reg

VGL

10

RV9COM

1uF

C8111

C8112

5PF

47P 50V

ZD8102

BZT52-B22

ZD8103

BZT52-B22

NC

C8124

R8108 180R 1%

C8123

0.1uF 50V

U8103 AS431AN-E1

C8133

C8122 NC

R8125 47K 1/8W 1%

1uF

1 2

C8107 1nF 50V

D8102

R8110

SS1060FL

10ohm +/-1% 1/8W

R8111 47R 1%

D8103

R8113

SS1060FL

10ohm +/-1% 1/8W

R8114 47R 1%

ZD8101

BZT52-B15

VS

C8108 100PF1KV

VLED1

R8121

39K 1/8W 1%

R8122

51K 1/8W 1%

R8124 10K OHM

R8123 5K6 +-1% 1/8W

FB_LED

Q8101

TK10A50D

R8112

10K 1/8W 1%

Q8102

TK10A50D

C8113

R8115

100PF1KV

10K 1/8W 1%

+12V

1

4

T8101 POWER X'FMR

C8109 27nF

!

NC

R8165

9

6 5

10 7

12 11

8

LED_OVP +12VDV5

D8108

SS1060FL

Q8103 MMBT3904

R8173

0 OHM +-5% 1/8W

D8110

NC

2 3

Q8107

1

NC

R8166

NC

U8109 NC

3

1

3

1

3

1

R8126 0 OHM +-5% 1/8W

R8127 2K 1/8W 1%

MMBT3906

R8128

1K 1/8W 1%

C8145 NC

Q8104

C8144 1uF

D8104 FMX-23S

2

D8109 NC

2

D8105 FMX-23S

2

R8129 NC

R8130

C8125

TPV101_VCC

VLED1

R8167

NC

R8168 NC

R8169 NC

1K 1/8W 1%

R8159

R8164

0.1uF 50V

R8170

NC

8.3 A 715G8682 PSU(For (For 65” 6162 Series)

8-3-1 AC Input

!

F9901

1 2 3 4

T6.3AH 250V

2

NR9901

1 2

1.5R

!

12

CN9901

AC 2P

!

R9903

!

NC_ 1MOHM +-5% 1/4W

C9903

NC_47PF

R9907 NC_ 1MOHM +-5% 1/4W

U9901 NC_CAP004DG-TL

1

NC

8

3

D12D1

RV9901

680V

!

1

4

NC

NC5D26D27NC

FB9901

1 2

900R

t

C9911

22PF 250V

C9912 22PF 250V

FB9905 BEAD

FB9902

1 2

900R

2

R9904 NC_ 1MOHM +-5% 1/4W

!

R9905

1M 5%

!

R9908 NC_ 1MOHM +-5% 1/4W

1

!

C9901

470NF 275V

!

GND1

1

GND

GND3

1

GND

1

4

L9903 NC

!

C9913

220PF 250V

2

1

3

!

GND2

GND

GND4

1

GND

L9901 8mH

1

3

4

1

2

N

CN9902 NC

!

C9902 470NF 275V

C9914

220PF 250V

HS9901 HEAT SINK

1 2 3 4

!

12

FB9917

GND

2

-

3

2

-

3

127R

C9917

680PF 250V

+

GND

1

Vsin

1

C9918

NC

3

4

BR_IN

L9902 8mH

!

BD9901 TS10P06G-04

4

GND

BD9902 TS10P06G-04

4

NR9903 5R

t

12

t

NR9902 5R

SW9901

NC

12

3 1

2

L

4

R9299 NC

DV5

!

4

3

L9905

1

2

0.25mH

1

L9904

4

NC

!

SG9901

DSPL-501N-A21F

2

1

3

SG9902

DSPL-501N-A21F

!

GND

!

1 2

FB9904

127R

C9915 1000pF 250V

GND

1 2

C9916 1NF 250V

FB9916

NC_BEAD

GND

!

8-3-2 PFC with LD7591T

FB9801

1 2

BEAD

Vsin

C9806 1UF 450V

GND

HVvcc

C9808

GND

R9819

0R05 1/4W

+

100N 50V

C9809

C9815

100N 50V

+VCC2

22UF 50V

D9801 IN5408G-04

L9801

1

6

3

4

GND

R9815

30K 1/8W 1%

R9801 0R05

C9807 47P 50V

GND

C9816

100N 50V

R9813

30KOHM +-1% 1/8W

GND

D9802 IN5408G-04

!

170uH

R9803

75 OHM

D9805 SS1060FL

GND

R9807

1.8KOHM +-1% 1/8W

5

8

6

LD7591T

ZCD

OUT7VCC

GND

U9801

INV1COMP2RAMP3CS

4

10K 1/8W R9814

C9812 47N 50V

SS1060FL

GND GND

D9806

D9804

SS1060FL

Q9803

MMBT2907A

C9811

1NF

C9813

0.47uF 50V

GND

1 2

FB9804

NC_BEAD

R9802

27 OHM

R9805

10K 1/8W

R9812

470R 1%

C9801 47PF

1

D9803 FMNS-1106S

C9802 NC

2

Q9801

IPA60R190P6

3

R9808

0.082R

R9800

0.024R

GND

C9817 100PF

R9809

0.082R

1 2

FB9803 BEAD

R9820

1.5M 1%

GND

R9804

1.5M 1%

R9818

NC_0R 05 1/4W

C9810

470PF 50V

GND GN D

HS9801

HEAT SINK

C9803 68uF 450V

+

GND GND

Q9802 MTN127KN3

ZD9801 NC

1 2

R9811 19K1 +-1% 1/8W

For Q9801

+

10K OHM +-5% 1/8W

C9814 100P 50V

GND

1 2 3 4

GND

C9804 68uF 450V

! !!

R9817

R9816 100K 1/8W

C9805

68uF 450V

+

GND

C9819

NC_470PF 50V

GND GNDGN D

HVvcc

Vbus

R9821 NC_1. 5M 1%

R9822 NC_1. 5M 1%

R9824 NC_15K 1/ 8W 1%

U9802

1

ISEN

2

GND VSEN3IREF

NC_LD8105GL

VCC

OUT

6 5 4

+VCC1

R9825

NC_510R 1%

C9818 NC_100N 50V

PFC_OVP

D9810

NC_1N4148W

P

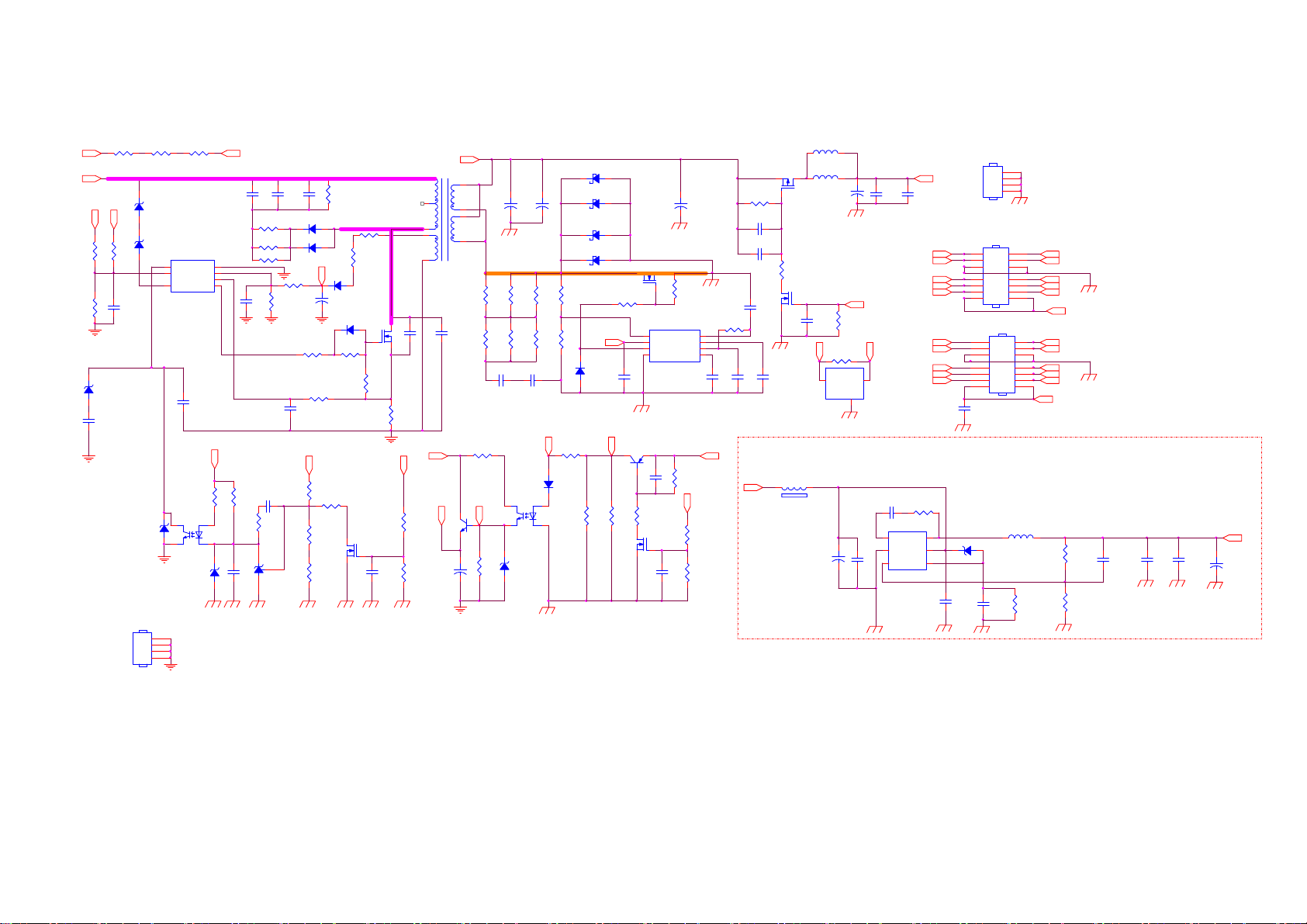

8-3-3 Flyback with SSC3S121

R9137

620K 1/4W

ZD9102

BZT52-B39

ZD9103

BZT52-B39

1 2

ZD9107

BZT52-B15

1 2

GND

1 2 3 4

R9138

620K 1/4W

U9101

FB/OLP BR

ST4DRV

SSC3S121A

C9112

2.2nF 50V

4

U9102

EL817M(X )

GND

GND VCC OCP

R9119

ZD9106

1.5K OHM

BZT52-B15

8 7 6 5

12VS

1

23

1 2

BR_out

R9144

R9118

4.7K 1/8W

1uF

C9114

BR_out

GND

BR_IN

Vbus

13K 1%

R9163

R9162

56K 1/8W +/-1%

BZT52-B4V3

1 2

C9102

4.7uF 25V

+VCC1

R9165

GND

ZD9101

R9136 620K 1/4W

10M

C9128

4.7uF 50V

1 2

HS9101

HEAT SINK

C9116

62R

GND

2.2NF

U9104

R9140

62R

R9150 62R

C9141 100nF 50V

C9121 220N 50V

AS431AN-E1

C9117NCC9123

GND

R9121

GND

R9113 5R1 1%

NC

R9106

1K 1/8W 1%

2.2NF D9101

SARS01-V1

D9109

SARS01-V1

+VCC1

+

100UF 50V

GND

R9108

10R 1%

R9104

150 OHM 1/4W

C9104 470PF 50V

12VS

R9120

9K1 1/8W 1%

R9128 NC_6.2KOH M +-1% 1/8W

R9115

2.2K OHM 1%

R9116

100 OHM 1% 1/8W

R9141 75K

C9103

SS1060FL

82 OHM

Q9105

R9127

D9102

R9107

NC_2N7002K

2.2 OHM 1/ 4W

R9114

2.2 OHM 1/4W

D9103

PG1010R

TK13A65U

Q9101

GND

R9109

10K 1/8W

C9142

L9101

12VS

T9101

5

12

4

6 11

3 2

7

1

POWER X'FMR

C9149

C9145

100PF

NC_10PF

R9101 0R2 5%

+VCC1

DV5

Q9102

BTC4672M3

+VCC2

R9129

NC_10K OHM

+

C9146

R9130

22UF 50V

NC_330K 1% 1/8W

NC_0.1uF 50V

R9153

3K

PFC_OVP

R9154

20K 1/8W 1%

R9110

27 OHM

R9131

27 OHM

C9139

1NF

4

BZT52-B16

1 2

+

C9110

R9111

R9132

U9103

EL817M(X)

ZD9109

+

2200uF 25V

27 OHM 1/4W

27 OHM

C9140

1NF

LLC_OVP

C9111

R9112

27 OHM

R9133

27 OHM

1

23

2200uF 25V

R9123

R9155 2Kohm 1/4W

D9108

1N4148W

R9156 3K 1%

R9122

10K 1/4W

5K1 +-5% 1/8W

SS1060FL

D9107 SR810-05

D9100 SR810-05

D9106 NC_SK810C

D9104 NC_SK810C

7812

D9105

R9164 3K 1%

12

R9126

10 OHM 1/4W

DV5

Q9109 BTB1424AM3

Q9108

Q9111 MTE011N10RFP-0-UB-S

U9111

8

Timi ng

SYNC

7

Vdd

6

MOSG- C

5

GND

SP6018ES8RGB

4.7UF

C9124

NC

PS_ON

C9148

R9157

10K OHM

R9159

51 OHM 1/4W

2N7002K

R9160

C9147

0.1uF 50V 510K 1% 1/8W

C9109

+

470uF 25V

R9117

5.1K 1/4W

1 2

Pred

3

VR

4

Adj

12VS

R9158 1K5 +-1% 1/8W

R9142 100KOHM +-5% 1/8W

R9124 33K +-1% 1/4W

C9135

100nF 50V

C9136

47P 50V

12VS

MTB15P04FP

C9120

NC_1uF

C9119

NC

C9133

100nF 50V

GND

NC_1.1uH

L9102

Q9104

1.1uH

+

C9115

R9143

470UF 25V

Q9110 2N7002K

100K 1/8W

C9122

0.1uF 50V

7812

R9125

4.7 OHM

1

C9134

100PF 50V

U9112 NC

DV5

R9145 510K 1% 1/8W

IN3OUT GND

2

12VS

C9144 NC

Power Saving需加入3.5V DC to DC

FB9301 127R

1 2

C9301 470UF 25V

C9303

100NF 50V

1 2

+

C9302

1uF

C9143 1uF

ON/OFF

+12V +12V +12V

R9304

U9301

BS GND FB3EN

SY8113BADC

+12V

+12V +12V

2R2

LX IN

C9309

1uF 50V

3D

6 5 4

C9310

NC

ZD9301

BZT52-B5V1

15 13 11

9 7 5 3 1

10 12 14 16

HS9102

HEAT SINK

CN9102

CONN

2 4 6 8

CN9101 NC-CONN

12

C9304

100NF 50V

1 2 3 4

16 14 12 10 8 6 4 2

L9301

4.7uH

DIM

PS_ON

+12V +12V +12V

+5V

1

DIMON/OFF

3

PS_ON

5 7 9

+12V

11

+12V

13

+12V+12V

15

+5V

Vout = 0.6V * (1 + R9302/R9303) = 0.6V * (1 + 100/20.5) = 3.53V Vout = 0.6V * (1 + R9302/R9303) = 0.6V * (1 + 100/13.5) = 5.04V

Vout = 0.6V * (1 + R9302/R9303) = 0.6V * (1 + 100/19.6) = 3.66V

R9302

10K 1/8W 1%

R9303

R9301

5K1

1.96KOHM +-1% 1/8W

C9305

100PF 50V

C9306

10UF 16V

C9307

10UF 16V

+

+5V

C9308 470UF 25V

LTVGW511XAP1

8-3-4 LLC with TPV101

FB8601

1 2

Vbus

BEAD

R8620 1M 1% 1/4W

R8601 1M 1% 1/4W

R8602 1M 1% 1/4W

R8605 1M 1% 1/4W

R8691

NC_0R05 1/4W

LLC_VSEN

R8614

Q8611 MTN127KN3

R8689

1K OHM +-5% 1/8W

R8690 10K OHM +-5% 1/8W

C8690 100P 50V

C8609

0.1uF 50V

16K9 1/8W 1%

GND

+VCC2

+

C8614

22UF 50V

GND

4.7UF

C8629

GND

TK10A50D

R8613 10K 1/8W 1%

Q8602

TK10A50D

TPV101_COMP

VS

8

T8601

8

5 6 11

1

12

2

Q8601

C8646

100PF

350uH

T8602

5 6 11

1 2

350uH

7

8

12

7

GND

C8649 NC

LED_VCC

-VLED-1

Q8606

NC

R8625 NC

DIM

C8625

NC

DIM

-VLED-2

Q8603

NC

R8657

NC

DIM

C8638

NC

DIM

D8602

3

NC

2

D8603

1

FMXA-2203SE

D8604

3

NC

2

D8606

1

FMXA-2203SE

HS8606

1 2 3 4

HEAT SINK

R8621 NC

R8623 NC

C8647

R8626

NC

U8602

1

DIM

2

SLP

R8641

0 OHM +-5% 1/8W

R8652 NC

R8656 NC

R8658 NC

R8669

0 OHM +-5% 1/8W

3

VCC LED4GND

TPV101AD C8626

100N 50V

LED_VCC

U8603

1

DIM

2

SLP

3

VCC LED4GND

TPV101AD

C8634

100N 50V

C8648

NC

U8604

1

DIM

2

SLP

3

VCC LED4GND

TPV101AD C8639

100N 50V

LED_VCC

U8605

1

DIM

2

SLP

3

VCC LED4GND

NC_TPV101AD C8644

NC

LED_VCC

C8633

NC

LED_VCC

C8643

NC

3D_VCC

COMP

+

C8606

C8605

220UF 100V

HS8602

HEAT SINK

TPV101_COMP

8 7

GM

6

ISET

5

R8633

1.5R 1/4W

TPV101_COMP

8 7

GM

6

ISET

5

R8644

1.5R 1/4W

HS8604

HEAT SINK

TPV101_COMP

8 7

GM

6

ISET

5

R8661

1.5R 1/4W

TPV101_COMP

8 7

GM

6

ISET

5

R8674 NC

NC

C8607

1 2

R8634

1.5R 1/4W

R8645

1.5R 1/4W

1 2

R8662

1.5R 1/4W

R8675 NC

+

R8635

1.2R 1%

R8646

1.2R 1%

R8676 NC

+

NC

C8608

HS8603

HEAT SINK

R8636

1.2R 1%

R8647

1.2R 1%

HS8605

NC_HEAT SINK

R8663

1.2R 1%

R8677 NC

R8628 0 OHM +-5% 1/8W

R8643 0 OHM 5% 1/8W

1 2

R8660 0 OHM +-5% 1/8W

R8664

1.2R 1%

R8673 NC

1 2

R8637

1.2R 1%

R8648

1.2R 1%

R8678 NC

R8607

47K 1/4W

R8608

47K 1/4W

R8665

1.2R 1%

C8624

4.7UF

C8637

4.7UF

C8642

NC

C8632

4.7UF

R8609

47K 1/4W

R8610

47K 1/4W

R8611

47K 1/4W

R8612

47K 1/4W

FB8602

1 2

BEAD

LED_VCC

3D_VCC

C8603 2N2 500V

-VLED-2

-VLED-1

R8653 0 OHM +-5% 1/8W

C8602 10NF 1KV

C8635

0.1uF 50V

C8640

0.1uF 50V

VLED

C8604 2N2 500V

VLED

1N4148W

Q8604

MMBT3906

ZD8620 NC_BZT52-B6V2

1 2

Q8607

NC_MMBT3906

D8610

R8650

10K 1/8W 1%

Q8605

2N7002K

C8636

R8666

NC_10K 1/8W 1%

Q8608

NC_2N7002K

C8641

C8622 2N2 500V

+12V

R8649

10K 1/8W 1%

R8651

R8654

0.1uF 50V 510K 1% 1/8W

+12V

R8659

NC_10K 1/8W 1%

R8668

NC

R8672

NC_510K 1% 1/8W

CN8601

1 2 3 4 5 6 7 8

9 10 11 12

CONN

ON/OFF

51OHM +-5% 1/8W

3D

NC_51OHM +-5% 1/8W

HS8601

1 2 3

D8607

R8616 82 OHM

C8617 15nF

VLED

ZD8607 BZT52-B7V5

R8627 91K OHM 1%

R8638 36K 1%

R8642 10K 1/8W 1%

HEAT SINK

R8604 10 OHM

R8615 10 OHM

10K 1/8W 1%

R8640

15K 1/4W 1%

4

Change F

R8617

C8618 15nF

C8601 NC_10NF 1KV

GND

C8615

0.1uF 50V

C8619

GND

R8629

47K +-5% 1/8W

C8630

10nF 50V

1 2

ZD8608 BZT52-B15

470 OHM 1/8W

1uF

3

U8608

NC_L78L09ACUTR

1

D8608

NC_1N4148W

R8630

U8606

470 OHM 1/4W

EL817M(X)

1

4

23

NC_1uF

1 2

ZD8609

BZT52-B30G

1uF

C8610

R8618

C8621 560PF 50V

12VS

IN

2

GND

OUT

D8609

1N4148W

R8631

R8622

3.3K OHM 1% 1/8W

C8631

LLC_VSEN

GND

R8688 0R05 1/4W ZD8602 NC

U8607 AS431AZTR-G1

C8611

12

R8632

D8601 UF4007

1 2 3 4 5 6 7 8

47P 50V

R8619 180R 1%

20K +-5% 1/8W

C8628

0.1uF 50V

U8601

Vsen Vcc FB GND Css OC RC Reg RV9COM

SSC9522S

C8612

VS

R8687 0R05 1/4W ZD8603 NC

1 2

C8623 NC_0.1uF 5 0V

C8627 100pF 50V

NC NC

VGH

VS

VB NC NC

VGL

C8613

5PF

1uF

C8620 1nF 50V

R8639

39K 1/8W 1%

R8603 10 OHM

18 17 16 15 14 13 12 11 10

1 2

ZD8601

BZT52-B15

C8616 100PF

R8686 0R05 1/4W ZD8604 NC_BZT52-B16G

12

BZT52-B9V1G

ZD8605

1 2

D8605 SS1060FL

R8606 82 OHM

SS1060FL

12

1 2

BZT52-B7V5 ZD8606

GND

VLED

ZD8610 BZT52-B20

1 2

ZD8611 BZT52-B20

1 2

ZD8612 BZT52-B20

1 2

NC

R8682

ZD8613

LLC_OVP

D8612

R8680

Q8609

MMBT3906

12VS

R8671

1K 1/8W 1%

C8645

0.1uF 50V

SS1060FL

R8670 2K 1/8W 1%

1Kohm +-1% 1/4W

Q8610

MMBT3904

0R05 1/4W

1 2

NC

R8683 0R05 1/4W

ZD8614

1 2

NC

R8684 0R05 1/4W

ZD8615

1 2

NC

R8685 0R05 1/4W

ZD8616

1 2

R8679 100R 1%

R8681 1K 1/8W 1%

8.4 B 715G8132 SSB

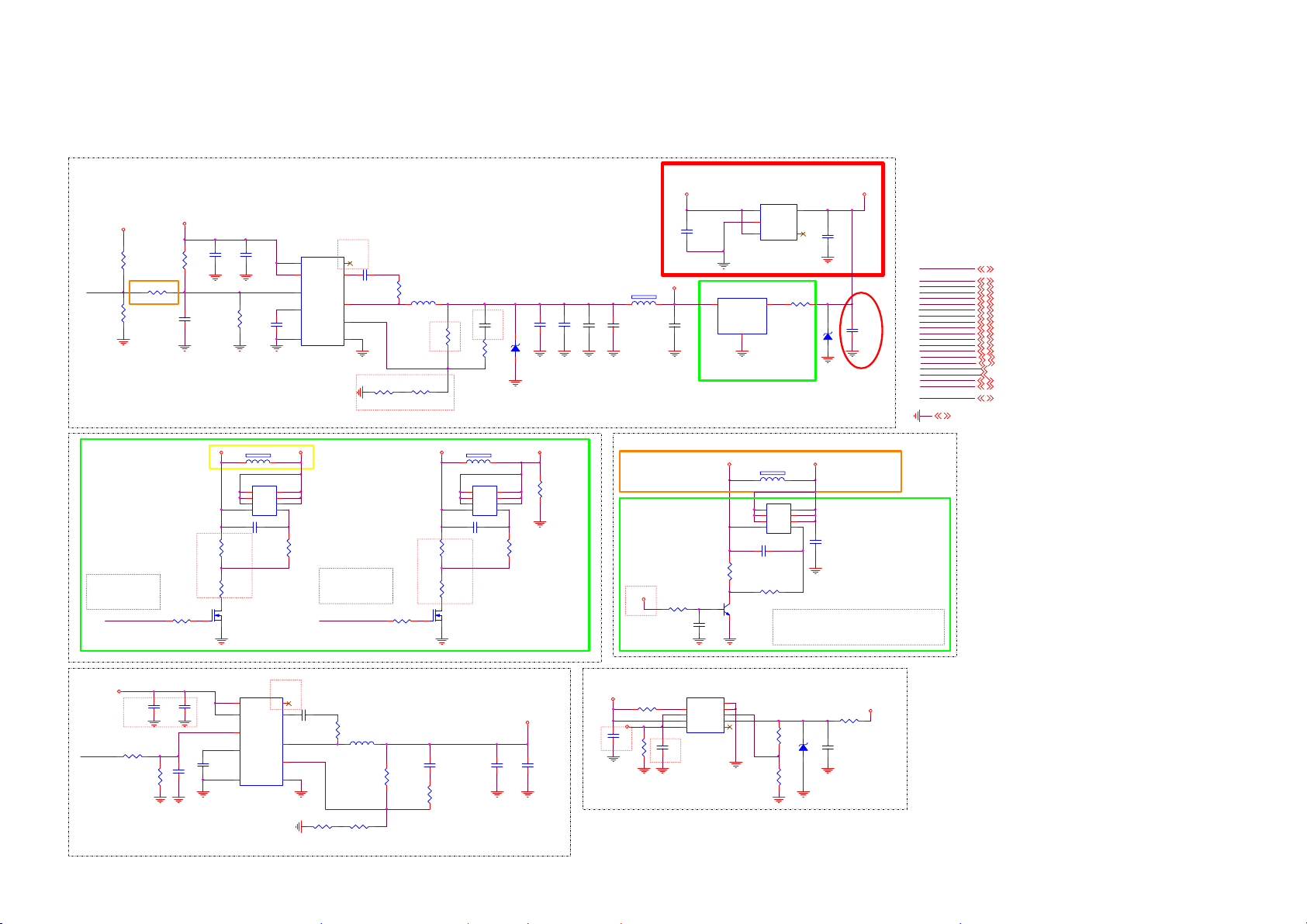

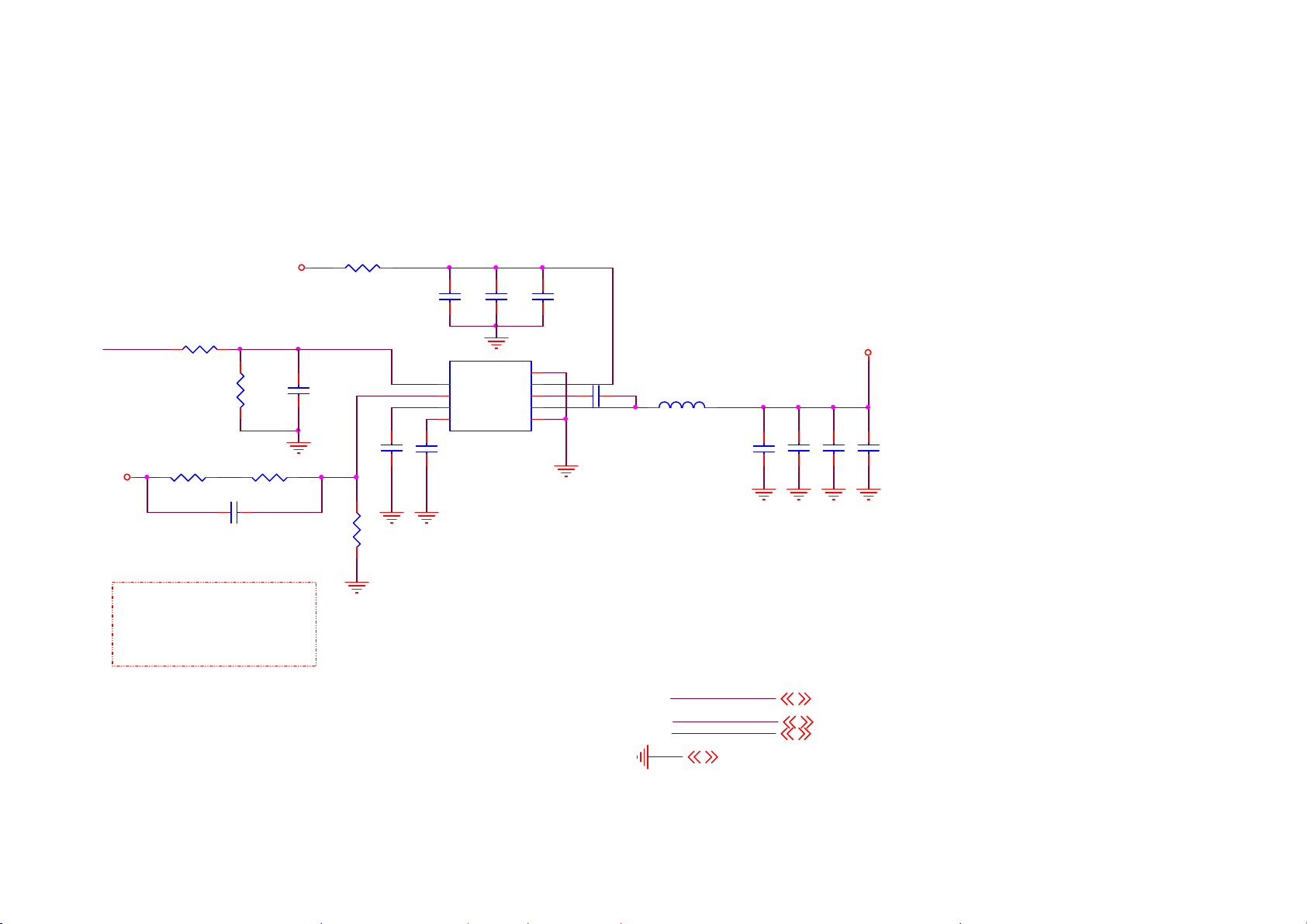

8-4-1 System Power 1

+18V to +5V_SB by PGOOD(U708)

Main_18V

R746

100K 1/16W 5%

PGOOD

R751

33K 1/16W 5%

OPWRSB_PWR Normal:High Stand_By:Low

OPWRSB_PWR

Main_18V

R748

0R05 1/16W

8/20 Add for PHP

NC/12KOH M +-5% 1/16W

NC/10K 1/ 16W 5%

R741

R798

100K 1/16W 5%

C777

NC/100N F 25V

R729

Main_18V

Big plane

C778

C779

10UF 25V

R744

15K 1/16W

FB702

1 2

120R 6A

Q704 NC/AON4421

8 7 6 5

R736 NC/6. 2K 1%

Q708 NC/2N 7002K

357G07630620HF

D D D

C780

4.7UF 6. 3V

1

D

2

D

3

D G4S

R730

NC/6K8 1/ 10W 5%

U708

8

IN

7

IN

1

EN

5

VC

9

GND

SY8366QNC

6A(Spec.)

+18V

2

PG

C781

6

BS

100N 50V

10

LX

Big plane

4

FB

3

ILMT

10K 1%

OPWRSB_PWR Normal:High Stand_By:Low

OPWRSB_PWR

R7005

2.2R 1% L702

3.3UH

R795

R796

R2

3K3 1%

R731

NC/12KOH M +-5% 1/16W

NC/10K 1/ 16W 5%

R742

R794

100K 1/10W 1%

R1

AU_18V

FB703

1 2

120R 6A

Q705 NC/AON4421

8

D

7

D

6

D

5

C710 NC/1uF 25VC709 NC/1uF 25V

NC/6K8 1/ 10W 5%

R737 NC/6. 2K 1%

Q709 NC/2N 7002K

Q755:357G07630620HF

C785 470pF 50V

R70061K 1/10W 1%

D D D G4S

R732

Big pl a ne

ZD704

1 2

NC/RLZ6V2B

1 2 3

C787

22UF 10V

+18V_AUDIO

R722

10KOHM

MAX=3A

C786

22UF 10V

STB_PWR

C720

2.2UF 10V

+5V_STB

FB706

1 2

120R 6A

C8094

C8095

NC/10UF 25V

+5V_STB TO +5V_SW BY PGOOD

If PSU has 3V3S B , all conponents are existing.

If PSU has 3V3S B , all conponents are NC.

VCCK

C724 NC/2.2UF 10V

NC/33K 1/ 10W 5%

R740

NC/2K7 1/ 16W 5%

C701

NC/100N 16V

R733

VIN3VOUT

GND/ADJ

NC/AZ 1084CD-3.3TRG1

U707

1

TO252GOI

5.0A(Spec.)

Q707 NC /MMBT3 904

If PSU has 3V 3SB, all conponents are existing.

MAX=0.12A

U712

1 2

C716

NC/1U F16V

NC/22KOH M 1/10W

5

VIN

VOUT

GND

4

EN3NC

G9091-330T11U

2

R750

NC/0R 051/8W

FB704

120R 6A

Q706

8

D

7

D

6

D

5

NC/AON 4421

R738

PGOOD Normal:open drain by pull-up vlotage timing Abnormal:low

D D D G4S

+5V_SW+5V_STB

1 2 3

ZD706

1 2

8/20 Add for P HP

MAX=2.0A

C713

NC/10uF 10V

C729 10UF 10V

NC/BZ T52-B3V6

3V3SB

C725 10UF 10V

PGOOD

18Vto12V +5V_STB +18V +18V_AUDIO VCCK AVDD1V2 DDRV

AVDD3V3

DVDD3V3 3V3SB +5V_SW AVDD1V0_1 AVDD1V0_STB

VCC1.8V_FRC

VCC3.3V_FRC

OPWRSB

OPWRSB_PWR BRIGHT_ADJ INVERTER_ON_OFF

STB_PWR

PGOOD 5

18Vto12V 24 +5V_STB 5,9,12 +18V 5,24,27

+18V_AUDIO 10

VCCK 5,6,7,19

AVDD1V2 5,9

DDRV 5,7,8 AVDD3V3 5,9,11,12, 18 DVDD3V3 5,6,7, 9,10,12,13, 14,15,17,19, 27 3V3SB 5,6,9,10,12,16, 17,18,27 +5V_SW 5,9,12,13,15,18,20,27 AVDD1V0_1 5,11,12,18 AVDD1V0_STB 5,6,12,18

VCC1.8V_FRC 5,21,23

VCC3.3V_FRC 5,21,22,24 OPWRSB 5,6 OPWRSB_PWR 5,18, 27

BRIGHT_ADJ 5,17 INVERTER_ON_OFF 5,17

STB_PWR 5,16

GND 5,6,7,8,9, 10,11,12,13, 14,15,16,17, 18,19,20,21,22,23,24,26,27

MAX=2.3A

Main_18V

OPWRSB_PWR

NC/10K 1/ 16W 5%

Vout = 0.6V (1+( 100/(5.1+0.16) ))=12V

Big plane

C766

C767

NC/10UF 25V

DC_Panel_EN

R786

C768

R787

NC/100K 1/16W 5%

NC/100N 16V

Vout = 0.6V (1+( R1/R2 ))

⊙

NC/10UF 25V

C769

NC/4. 7U F 6.3V

⊙

U701

8

IN

7

IN

1

EN

5

VC

9

GND

NC/SY 8366QNC

6A(Spec.)

ILMT

PG BS

FB

LX

2

C770

6

NC/100N 50V

10

4

3

R7047 NC/2. 2R 1%

Big plane

R791

NC/160R 1/ 16W

R2

L705 NC/3.3UH

R790

NC/5. 1K 1%

16V to 12V for Panel Vcc

For PSU 16V only

C771

NC/470PF

R789

NC/100K 1/ 10W 1%

R1

R792

NC/1K 1/ 10W 1%

Big plane

MAX=3A

C774

NC/10UF 25V

18Vto12V

C775

Sony request

1 2

ZD702 NC/MMSZ4678

MAX=0.44A TYP=0.32A

(0.32A/25mil)

AVDD1V0_1

R725

NC/0R 05

C714 10UF

ANALOG POWER AVDD1V05 For reserve

DVDD3V3

R723

10KOHM

+5V_SW

C711 10UF

NC/10UF 25V

R763

10KOHM

U703

1

POK

2

VEN

3

VIN VPP4NC

G9661

2.0A(Spec.)

C717 1uF 10V

(1A/60mil)

0.8 x (1+ 1.6K/5.1K ) = 1.05V

9

E-Pad

8

GND

7

ADJ

6

VO

5

1.65K 1%

5.1K 1%

R727

R734

AVDD3V3 to AV DD1V0

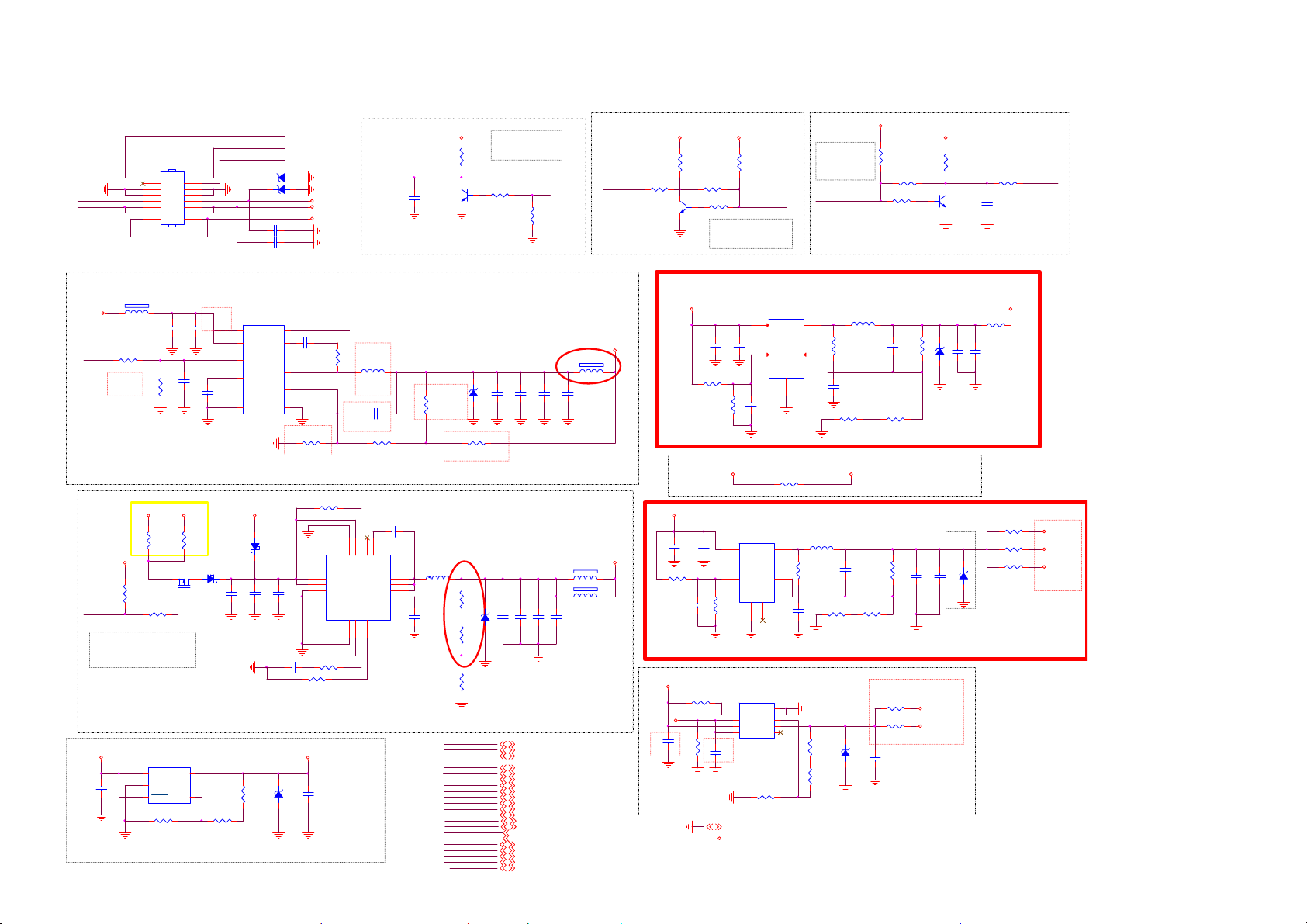

8-4-2 System Power 2

CN701

16 14 12

10

AU_18V Main_18V

8 6 4 2

CONN

MAIN POWER

3V3SB

R768

4.7K1/16W

NC/0R 05 1/16W

4.7K1/16W

R765

R770

DVDD3V3

R769

4.7K1/16W

Q711 MMBT3904

R771

100R 1/10W 5%

C796

NC/10uF 6. 3V

BL_ON/POK

MMBT3904

Q710

3V3SB

R709

20K 1/16W 5%

R767

4.7K1/16W

OPWRSB: Normal: Lo w Stand_by: Hi

OPWRSB

R715

47K 1/16W 5%

BL_DIG_DIM

DVDD3V3 DVDD3V3

R706

10K 1/16W 5%

R712

Q703

MMBT3904

R711

R714

100R 1/10W 5%

R705

4.7K1/16W

NC/0R 05 1/16W

BRIGHT_ADJ

4.7K1/16W

BRIGHT_A DJ: Normal:Max:+3V3, Min:0V Stand_By:0V

BL_ON/OFF: Inverte r on: Low Inverte r off: High

INVERTER_ON _OFF

BL_ON/POK BL_DIG_DIM OPWRSB_PWR

15 13 11 9 7 5 3 1

ZD707 ZD708

C707 100N 16V C708 100N 16V

NC/BZT52-B22 NC/BZT52-B22

12 12

AU_18V Main_18V

STB_PWR

OPWRSB_PWR

C704

NC/10uF 6.3V

Modify by EMI

Main_18V

1uF 10V

FB705

120R 6A

+18V

R8075 51K 1/16W 5%

R8076

SY8368QNC: Max:8A Vin 4V~25V

Vout = 0.6V (1+( R1/R2 ))

Vout = 0.6V (1+( 24/36 ))=1.0V

+5V_STB=ST B_PWR, R710 add 0R 2016-09-22

STB_PWR

R708 0R05 1/1 0W

3V3SB

R747 10K 1/10W 5%

DDR_PWR_EN

C743

R772 0R05 1/10W

DDR_PWR_EN FB enable(power off):low FB disable(power on):high

DVDD3V3

U709

1

IN

2

GND

SHDN3SET

G9141T11U

R7002 10K +-1% 1/16W

Vout=1.0(1+R1/R2)_SPEC 600mA

Big plane

C745 10UF 25V

10K

+5V_STB

OUT

C746 10UF 25V

PWR_EN

C747 NC/100NF 25V

4.7UF 6. 3V

⊙ ⊙

R710 NC/0R 05 1/ 10W

D702

1 2

FB340M

Q701 AO3401A

5

4

1K 1/16W 1%

C748

R7003

U706

8

IN

7

IN

1

EN

5

LDO

9

GND

SY8368QNC

+5V_SW

12

C722

C765

100N 16V

10UF 10V

3.0A(Spec.)

R7001

PG BS

LX

FB

ILMT

D701 FB340M

C723 10UF 10V

C740

1K 1/16W 1%

1 2

ZD711

NC/MMSZ4678

2

PGOOD

6

C749 100N 50V

R743

2.2R 1%

10

Big pl ane

4

3

R8072

36K 1%

R745 100K 1/16W 5%

U705 RT8079ZQW

1

VIN

2

VIN

3

GND

4

GND

R754

3.3NF 50V

R755 180K 1%

AVDD1V2

C744 10UF 6.3V 20%

R8071

R2

17

15

16

VIN

GND

AGND5FB6COMP7RT/SYN C

7K5 1/10W 5%

PGOOD Normal:open drain by pull-up vlotage timing Abnormal:low

L703

0.68uH

14

EN

8

C750

220P 50V

24K 1%

13

BOOT

PGOOD

SS/TR

C719

100N 16V

SW SW SW

Big plane

R8073

R1

10R 1/10W 5%

R8074 1R 1%

Vout=0.827 x (1+27K/33K) = 1. 5V)

12 11

L701

10

1.5uH

9

C726 10N 50V

R1

R2

18Vto12V +5V_STB +18V

VCCK AVDD1V2 DDRV

AVDD3V3

DVDD3V3

3V3SB

+5V_SW

AVDD1V0_1

AVDD1V0_STB

VCC1.8V_F RC VCC3.3V_F RC

OPWRSB OPWRSB_PWR

BRIGHT_ADJ

INVERTER_ON _OFF

DDR_PWR_EN

STB_PWR

8A DC/DC Vout=0.6 x (1+16 K/ 2 4K) = 1.0V for V CCK

ZD712

1 2

C758

C757

NC/MMSZ4678

22uF 6.3V

C759 22uF 6.3V

C760 22uF 6.3V

DRAM Power

FB701 120R 3A

1 2

120R 3A

FB711

C734

C735

10UF

18Vto12V 3,24

VCCK 3,6,7,19 AVDD1V2 9 DDRV 7,8

1 2

C736 10UF

MAX=1.6A

R749

24K 1%

1 2

R753

2.4K 1%

R701 33K 1/16W 1%

PGOOD

ZD701

C733

NC/BZT52H-C2V7

10UF

+5V_STB 3,9,12 +18V 3,24,27

AVDD3V3 9,11,12, 18 DVDD3V3 3,6,7,9,10,12,13,14, 15,17,19,27 3V3SB 3,6,9,10,12,16,17, 18,27 +5V_SW 3,9,12,13,15,18,20,27 AVDD1V0_1 3,11,12,18 AVDD1V0_STB 6,12,18

VCC1.8V_F RC 21,23

VCC3.3V_FR C 21,22,24 OPWRSB 6 OPWRSB_PWR 3, 18,27

BRIGHT_ADJ 17 INVERTER_ON_OFF 17 DDR_PWR_EN 17

STB_PWR 3,16

PGOOD 3

FB707

0R05

VCCK

DDRV

ANALOG POWER AVDD1V05_STB

+5V_SW

3K3 1/16W 5%

DVDD3V3

+5V_SW

STB_PWR

3K3 1/16W 5%

C706 10uF 16V

R752

R724 10KOHM

C712 10UF

AU_18V

C797

2.2UF 10V

R762

AVDD1V0_STB AVDD1V0_1

C727

100N 16V

C738

NC/100N 16V

R739 100K 1/16W 5%

R764

10KOHM

AU_18V

U710 G5725ADJT11U

4

C798

1

100N 16V

R761

NC/100K1/16W

C792

NC/100N 16V

R713 0R05

U702 G5719TBIU

4

VIN

LX

1

EN

VFB

GND2NC

5

U704

E-Pad

1

POK

GND

2

VEN

ADJ

3

VIN

VO

VPP4NC

G9661

C718

2.0A(Spec.)

1uF 10V

R735

1.65K 1%

GND 3,6,7,8,9, 10,11,12,13,14, 15,16,17,18,19, 20,21,22,23,24, 26,27

VIN

EN

3

6

9 8 7 6 5

R2

LX

VFB

GND

2

L707 2.2uH

R759

NC/100OHM

C739

NC/10NF 50V

3

L710 2.2uH

R775

NC/100OHM

5

C793

NC/10NF 50V

R773

2Kohm 1/16W +/-1%

Vout= 0 .6 x (1+20000/26000 )= 1.06 V

C728

NC/22P 50V

R756

R757

20K 1%

1K5 1%

Vout= 0.6 x (1+ 100 000/ 2 2000)= 3.32 V

eMMC 1V8

(1A/60mil)

R8077

R726

ZD710

R728

NC/BZT52H-C2V7

2K 1%

R1

R766 100R 1/16W 5%

C715 10UF

1 2

0.8 x ( 1+ 2.1K/1. 65K) = 1.8V

TYP = 300mA

C794

R702

NC/22P 50V

20K 1%

R704

24K 1%

1000 mA

R758

C721

100K 1%

NC/10U F 10V

VCC1.8V_F RC

0R05

LDO_PWR

0R05

ZD705

NC/MMSZ4678

1 2

C705 10UF 16V

Sony r eque s t

AVDD1V0_STB

R707

0R05

C799

C790

10uF 16V

NC/10UF 10V

(1A/60mil)

R716

0R051/8W

R717

0R051/8W

R760

ZD703

0R051/8W

NC/BZT52-B3V6

1 2

DIGITAL POWER DVDD3V3/AVDD3V3

DVDD3V3

AVDD3V3

VCC3.3V_F RC

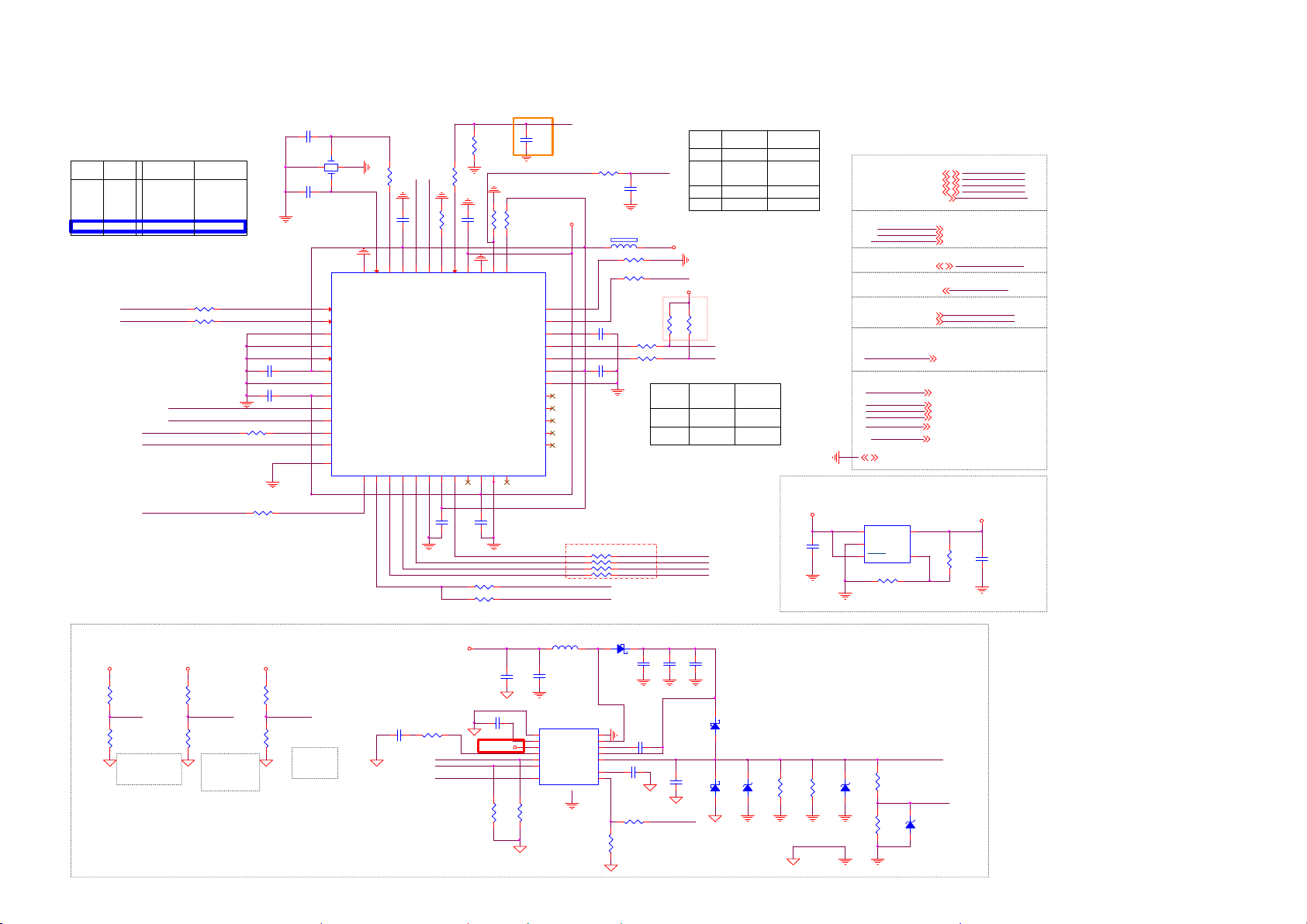

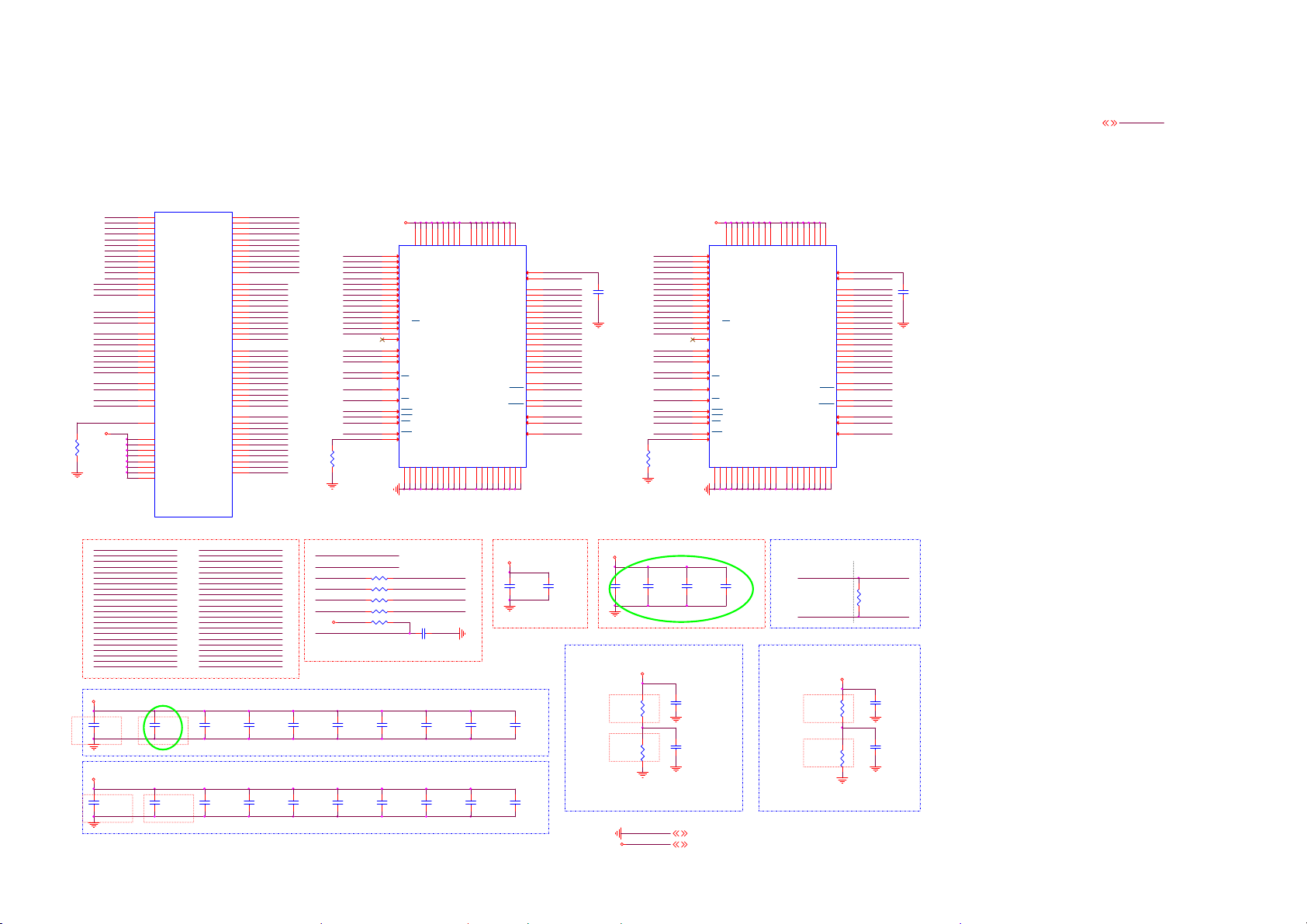

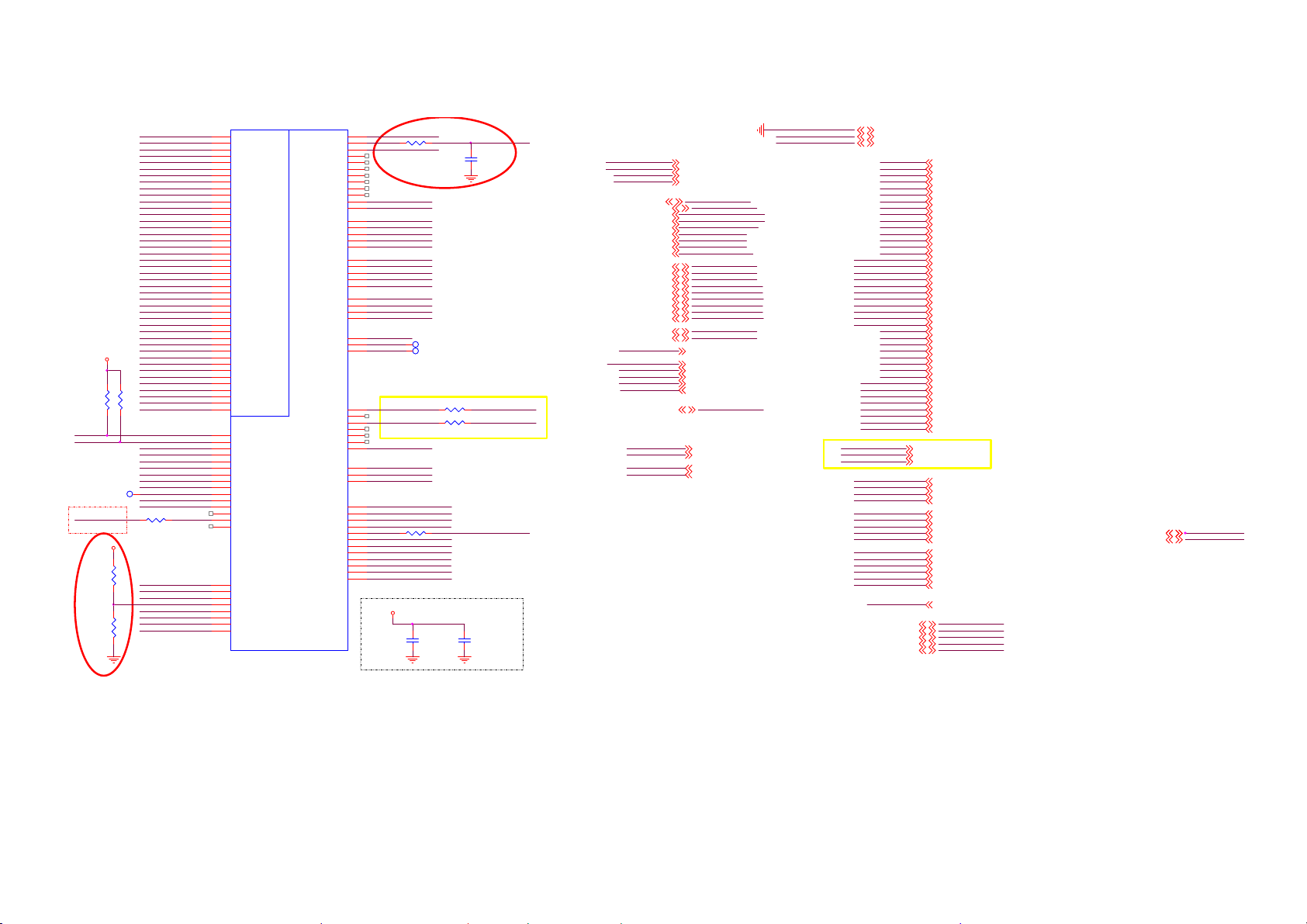

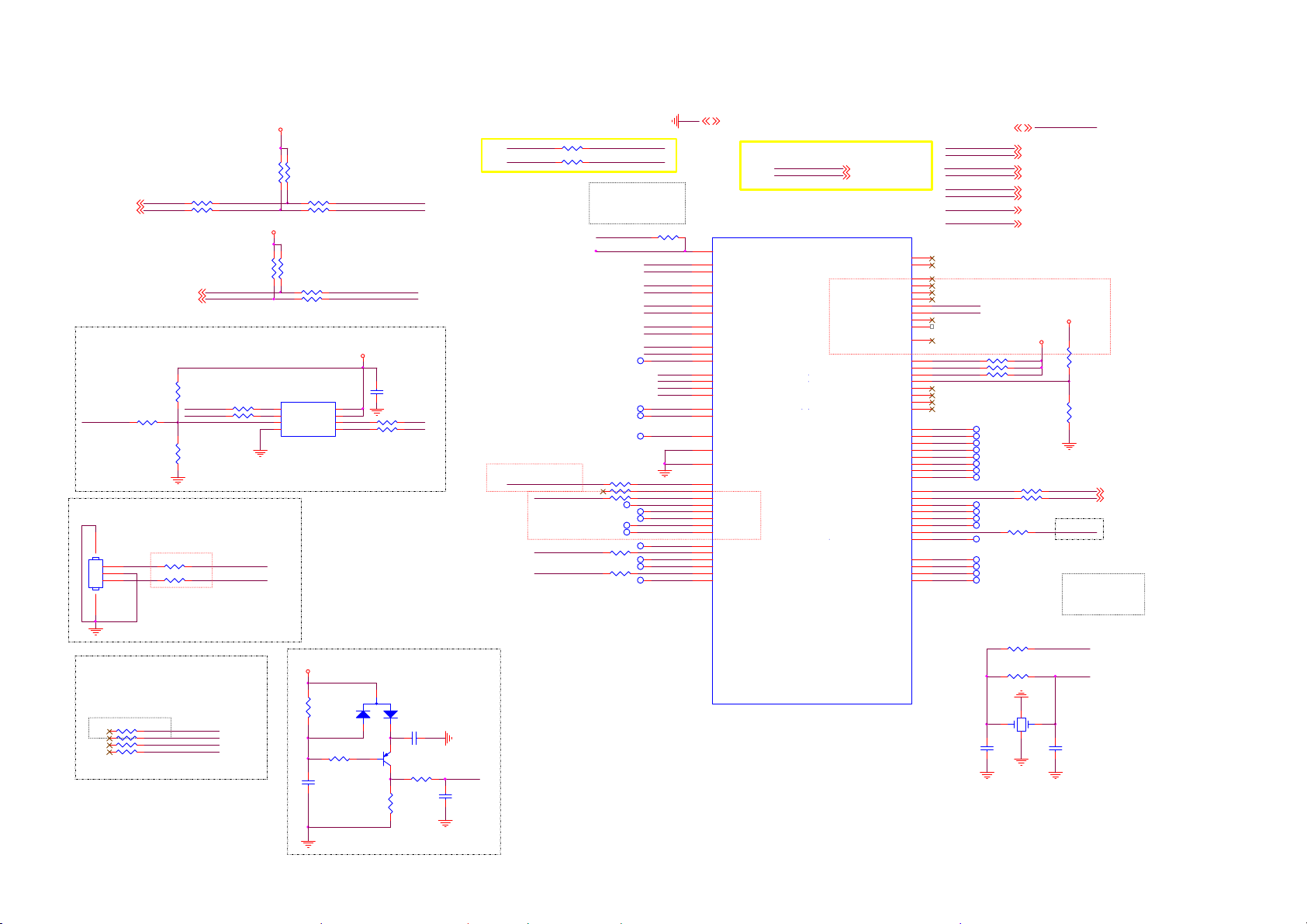

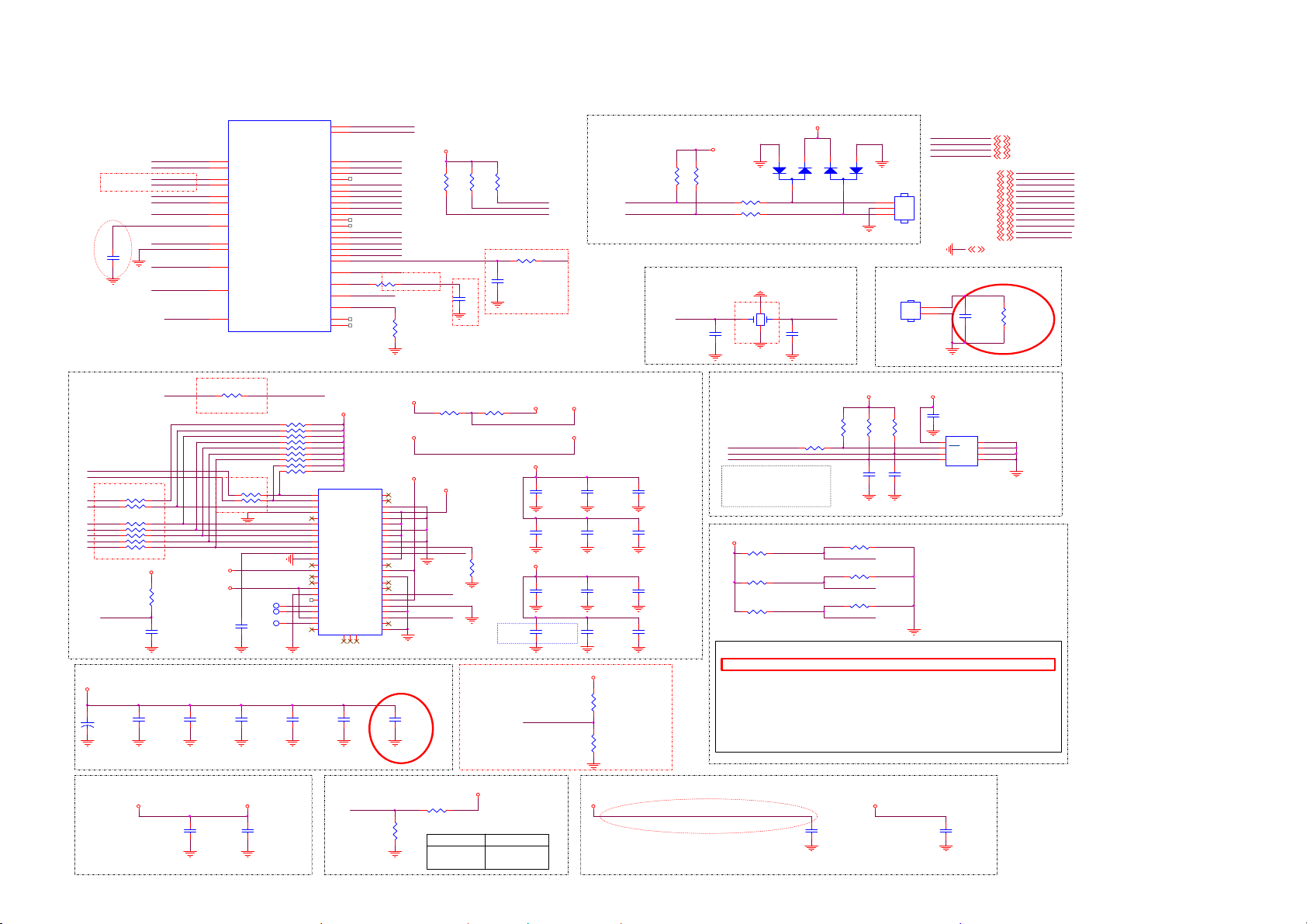

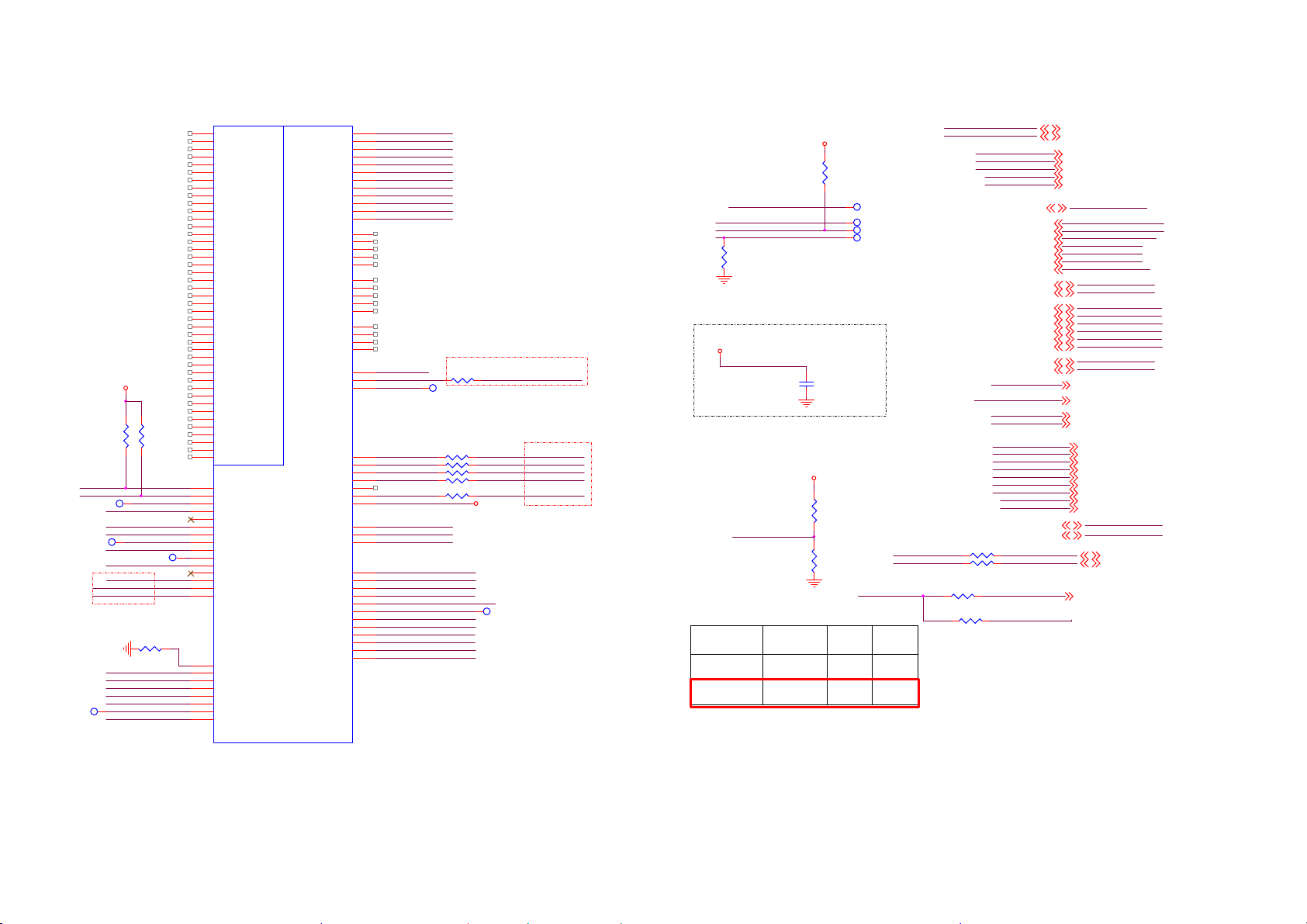

8-4-3 Periphera

Modify by 8/28

Close to main c hip

C8063 1uF 10V

OSDA0 OSCL0

OSDA1 OSCL1

XTAL I XTAL O

AVDD33_PDW_STB

VCC3IO_EMMC

AVDD33_RGB_STB AVSS33_RGB

AVDD33_PLL_STB

AVDD10_PDW_STB

POR_OPT

AM33 AN33

AH33

AA28 AA27

D32 D33

L24

K25 L22

L23

F28

R28

U401-7

OSDA0 OSCL0

OSDA1 OSCL1

XTAL I XTAL O

AVDD33_PD W_STB VCC 3I O_E MMC

AVDD33_RGB_STB AVSS33_RGB

AVDD33_PLL_STB

AVDD10_PD W_STB

POR_OPT

MT5596L

U0TX

U0RX

POWE__B

POOE__B POCE1__B POCE0__B

PDD7 PDD6 PDD5 PDD4 PDD3 PDD2 PDD1 PDD0

PARB__B

PACLE

PAALE

EMMC_CLK

EMMC_RSTB

EMMC_ DS

OPWRSB

ORESETB

FSRC_WR

STB_SCL

STB_SDA

AA32

U0TX

AA31

U0RX

Close to SOC

ORESETB

E-Fuse

R4005

4.7K1/16W

DVDD3V3

R5027

NC/4K7 1/ 16W 5%

C423 100N 16V

R5028

NC/4K7 1/ 16W 5%

R5029 NC/4K 7 1/ 16W 5%

PARB# POOE# POCE1#

R518

0R05 1/16W

C8071

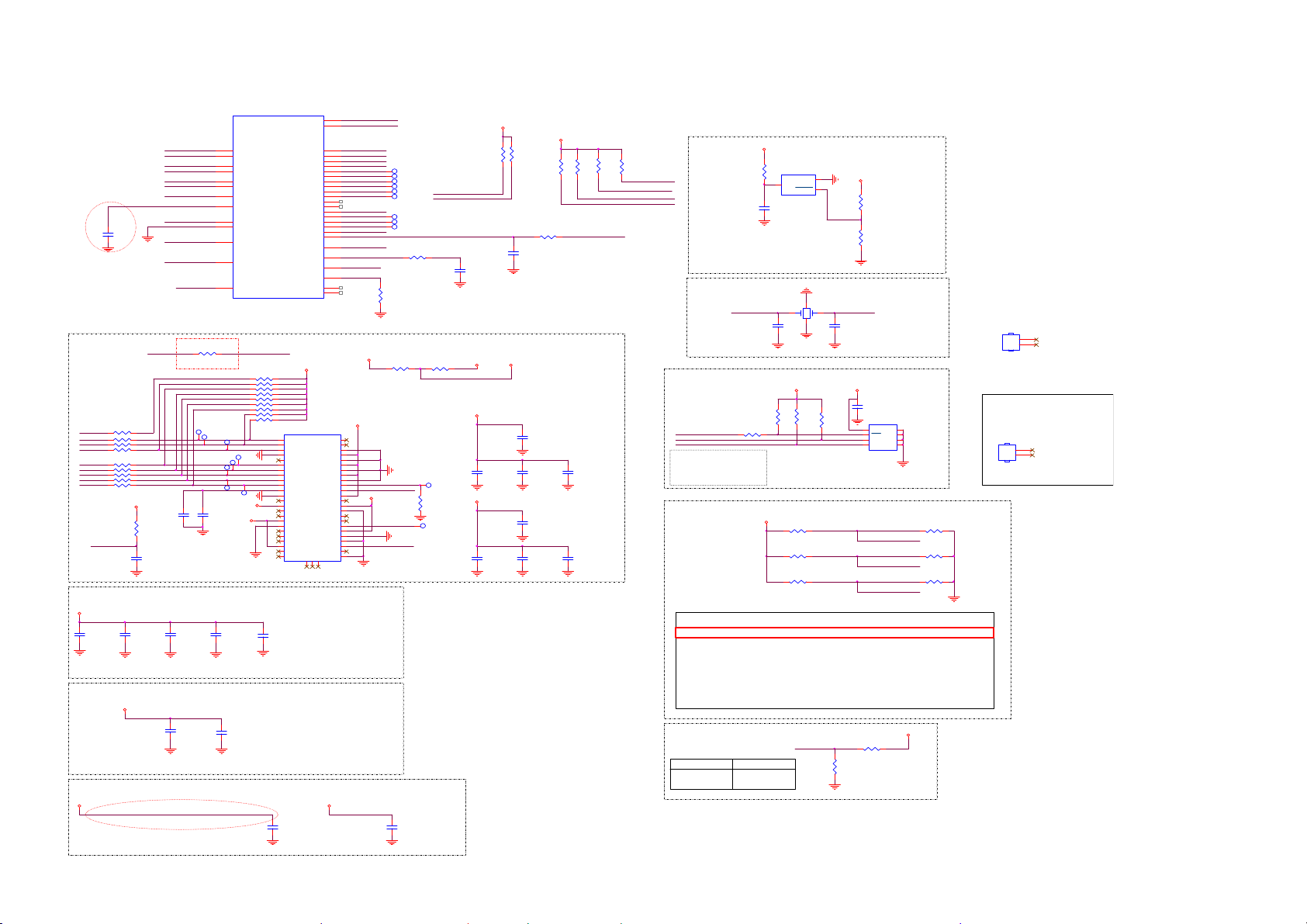

4.7PF 50V

DS

AD33

POWE#

AC33

POOE#

AD28

POCE1#

AG30 AE30

PDD7

AD31

PDD6

AD30

PDD5

AH32

PDD4

AG32

PDD3

AF32

PDD2

AG31 AF29 AC30

PARB#

AD32

PACLE

AF33

PAALE

AE31

EMMC_ CLK

AH30

EMMC_ RST#

AE29 V28

OPWRSB

P31

R520 1K 1/16W 5%

V29 F17 AB33

AB32

RC6

FSRC_WR

OIRI

UART Port 0

3V3SB

R401

R402

4.7K1/16W

U0TX U0RX

FOR CODE DOWNLOA D A ND DEBUG

4.7K1/16W R405 10R 1/16W 5% R410 10R 1/16W 5%

24MHz CRYSTAL

XTAL I

C4005

12P 50V

1

2 4

24MHz

3V3SB

1

2

3

D401 BAV99

1

2

D402 BAV99

3

VCCK 3V3SB DVDD3V3 AVDD1V0_STB

CN403

CONN

1 2 3

OPWRSB5

SYS_EEPROM_WP17

OSCL010 OSDA010 OSCL111, 22 OSDA111,22 LED_PWM117 LED_PWM016,17 LED_PWM216,17 RC616,27 U0TX12,27 U0RX12,27

VCCK 3,5,7,19 3V3SB 3,5,9,10, 12,16,17, 18,27 DVDD3V3 3,5, 7,9,10,12,13, 14,15,17, 19,27 AVDD1V0_STB 5,12,18

OPWRSB SYS_EEPR OM_WP

OSCL0 OSDA0 OSCL1 OSDA1 LED_PWM1 LED_PWM0 LED_PWM2 RC6 U0TX U0RX

GND 3,5,7,8,9,10,11,12, 13,14,15,16,17,18,19, 20,21,22,23,24,26, 27

MT5596L HEAT SINK

X401

3

XTAL O

C4006

12P 50V

HS401

HEAT SINK

1 2

C4015

NC/33P50V

R4029 22R 1/10W 5%

EMI modify 12/01

EMMC

PAALE PACLE

POWE# PDD2

PDD3 PDD4 PDD5 PDD6 PDD7

VCCK

+

3V3 IO Power

R50360R05 1/16W R50400R05 1/16W

R50920R05 1/16W R51350R05 1/16W R51360R05 1/16W R51370R05 1/16W R51380R05 1/16W

VCC 3I O_E MMC

EMMC_RST#

Core Power

C4012 NC/1 00U F 16V

DVDD3V3 VCC3IO_AB

EMMC_CLK EMMC_CLK#

VCC3IO_EMMC

R4030

4.7K1/16W

C4033 100N 16V

C4008 10UF 6. 3V 20%

VCC_EMMC

C4035

1uF 10V

C4009 100N 16V

C4014 100N 16V

POWE#1

R50300R05 1/16W

TP4430 TP4431

TP4432

C4010 100N 16V

R51390R 05 1/16W R51400R 05 1/16W

C4013 100N 16V

R4041 NC/ 10K 1 / 16W 5% R4034 NC/ 10K 1 / 16W 5% R4038 NC/ 10K 1 / 16W 5% R4037 NC/ 10K 1 / 16W 5% R4039 NC/ 10K 1 / 16W 5% R4033 NC/ 10K 1 / 16W 5% R4036 NC/ 10K 1 / 16W 5% R4035 NC/ 10K 1 / 16W 5% R4040 NC/ 10K 1 / 16W 5%

Close to Main Chip

VCC3IO_EMMC

A3

DAT0

A4

DAT1

A5

DAT2

A6

VSS

A7

NC

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

C2

VDDI

C4

Vssq

C5

NC

C6

Vccq

D4

A1 index

E5

NC

E6

Vcc

E7

Vss

E8

NC

E9

NC

E10

NC

F5

Vcc

F10

NC

G3

NC

NCB1NCC1NC

N1

NC

NC Vssq Vccq Vssq Vccq Vssq Vccq Vssq

CLK CMD Vccq

NC Vcc Vss NC NC

RSTN

Vcc

VSS

Vss

DS NC Vss

THGBMBG5D1KBAIT

12/25 thermal issue, c426, c446, c4007

C4036 100N 16V

C4011 100N 16V

POR

POR_OPT

EMMC VCC/VCCQ Power

DVDD3V3

R4027

NC/0R05 1/10W

VCC_EMMC

U4052

VCC3IO_EMMC P10 P7 P6 P5 P4 P3 N5 N4 N2 M6 M5 M4 K10 K9 K8 K7 K6 K5 J10 J5 H10 H5 G10 G5

EMMC_ CLK # POWE#1

EMMC_RST#

R4031 NC/10K 1/ 1 6W 5%

DS

Close to Main Chip

Reset delay

C4007 22uF 6.3V

3V3SB

R4015

NC/4K7 1/ 16W 5%

R4016 0R05 1/16W

R4015: NA R4016: Mount

LDO_PWR

R4028 0R05 1/10W

VCC3IO_EMMC

VCC _EMMC

VCC_EMMC

VCC3IO_EMMC

External ResetInternal POR

R4015: Mount R4016: NA

VCC3IO_EMMC

VCC_EMMCDVDD3V3

C4021 NC/10 0N F 16V

C4024 100N 16V

C4027 10UF 6. 3V 20%

C4030 100N 16V

ORESETB

SYSTEM EEPROM

SYS_EEPROM_WP OSCL0 OSDA0

SYS_EEPROM_WP Low: writ e

C4022 10UF 6.3V 20%

C4025 100N 16V

C4028 10UF 6.3V 20%

C4031 100N 16V

3V3SB

R4013

27K 1/16W 1%

R4014

20K 1%

C4023 10UF 6. 3V 20%

C4026 100N 16V

C4029 10UF 6. 3V 20%

C4032 100N 16V

High: Wr i te protecti on

3V3SB

ICE moce + 24M + ROM to eMMC boot from eMMC pins (share pins w/s NAND)

ICE mode + 24M + serial boot ICE moce + 24M + ROM to 60bit ECC Nand boot ICE mode + 24M + serial boot(with GPIO) Boundary scan mode OLT mode scan mode cpu model mode

Analog Power

AVDD33_PD W_STB AVDD33_RGB_STB AVDD33_PLL_STB

PCB Power merge

R4022 NC/4K7 1/ 16W 5%

R4021 NC/4K7 1/ 16W 5%

R4020 NC/4K7 1/ 16W 5%

4.7K1/16W

R4023

R4024 0R05 1/16W

DVDD3V3

R4018 10K 1/16W 5%

LED_PWM0

R4019 10K 1/16W 5%

LED_PWM1

R4017 10K 1/16W 5%

LED_PWM2

AVDD1V0_STB3V3SB

C8061 10UF

R4025

2.2K 1/16W R4026

2.2K 1/16W

C5091

C5090

33P50V

PCB Power merge

AVDD10_PD W_STB

DVDD3V3

C4020 220NF 16V

I2C ADDRESS "A0"

U409

8

VCC

7

WC

6

SCL

5

M24128-BRMN6TP

LED_PWM0 LED_PWM1 LED_PWM2STRAPPING

0 0 0 0 1 1 1 1

C8062 1uF 10V

1

E0

2

E1

3

E2

VSS4SDA

STRAPPI NG

00 0 1 11 0 0 1

1

1 0

0 1 0

1

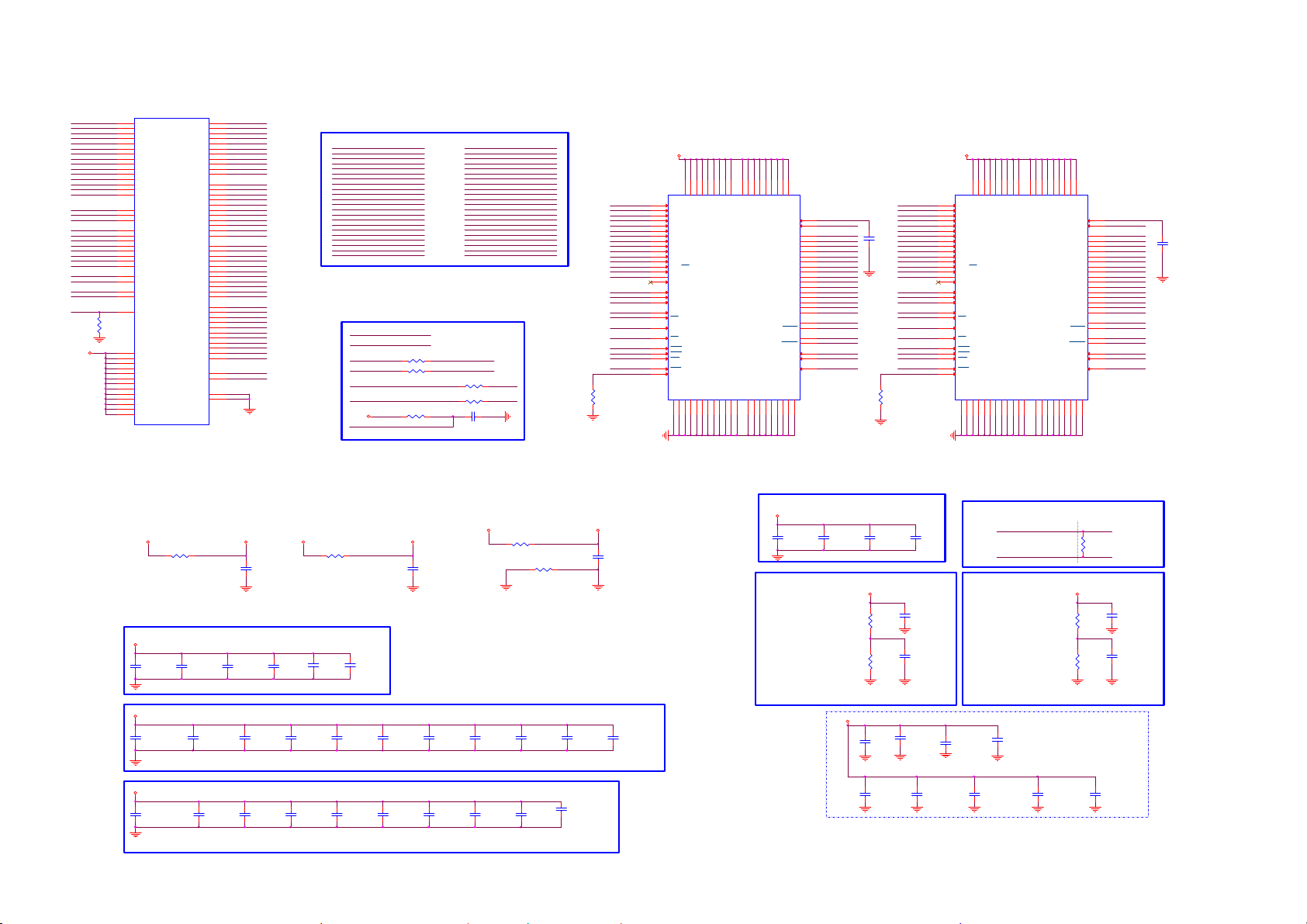

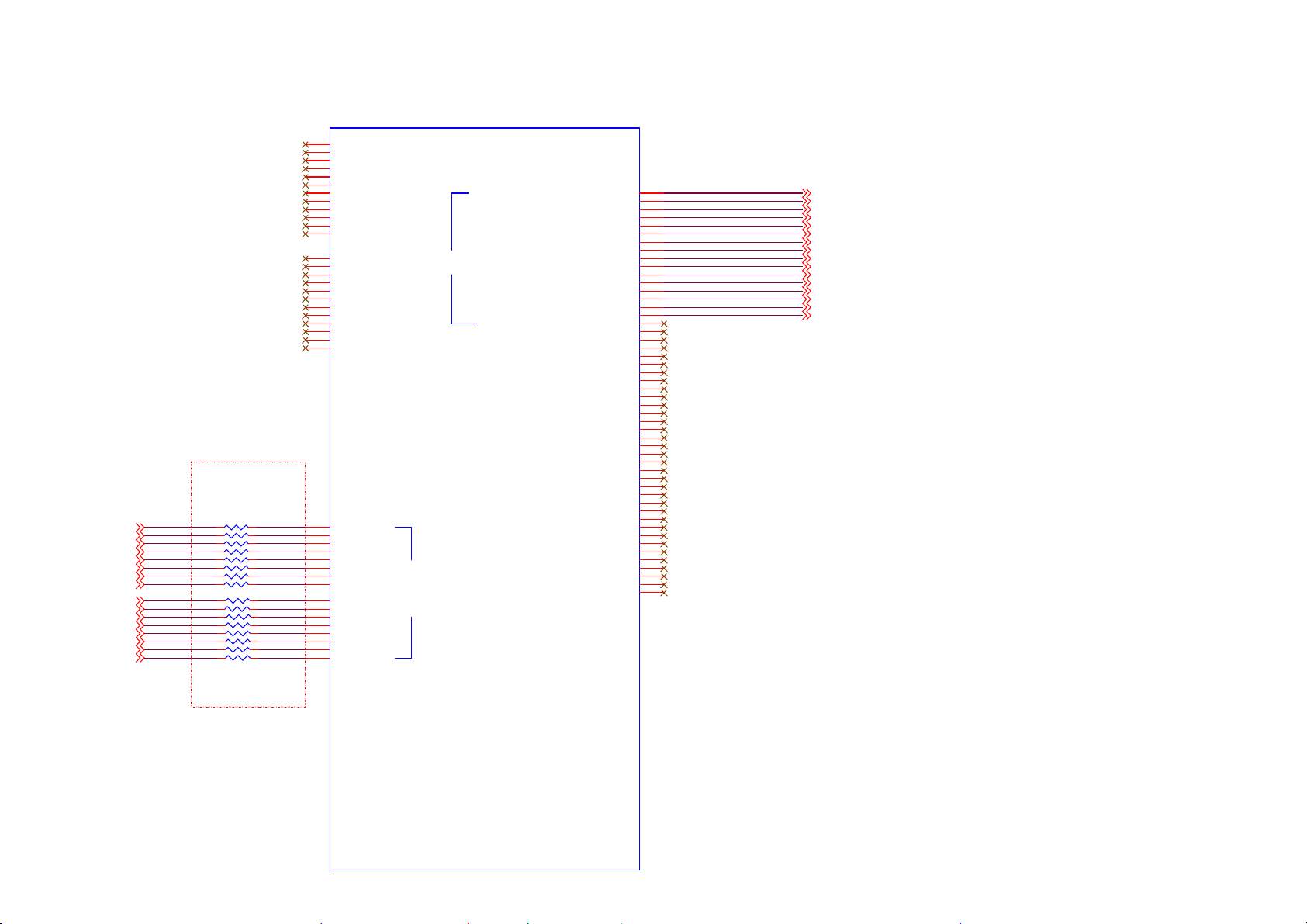

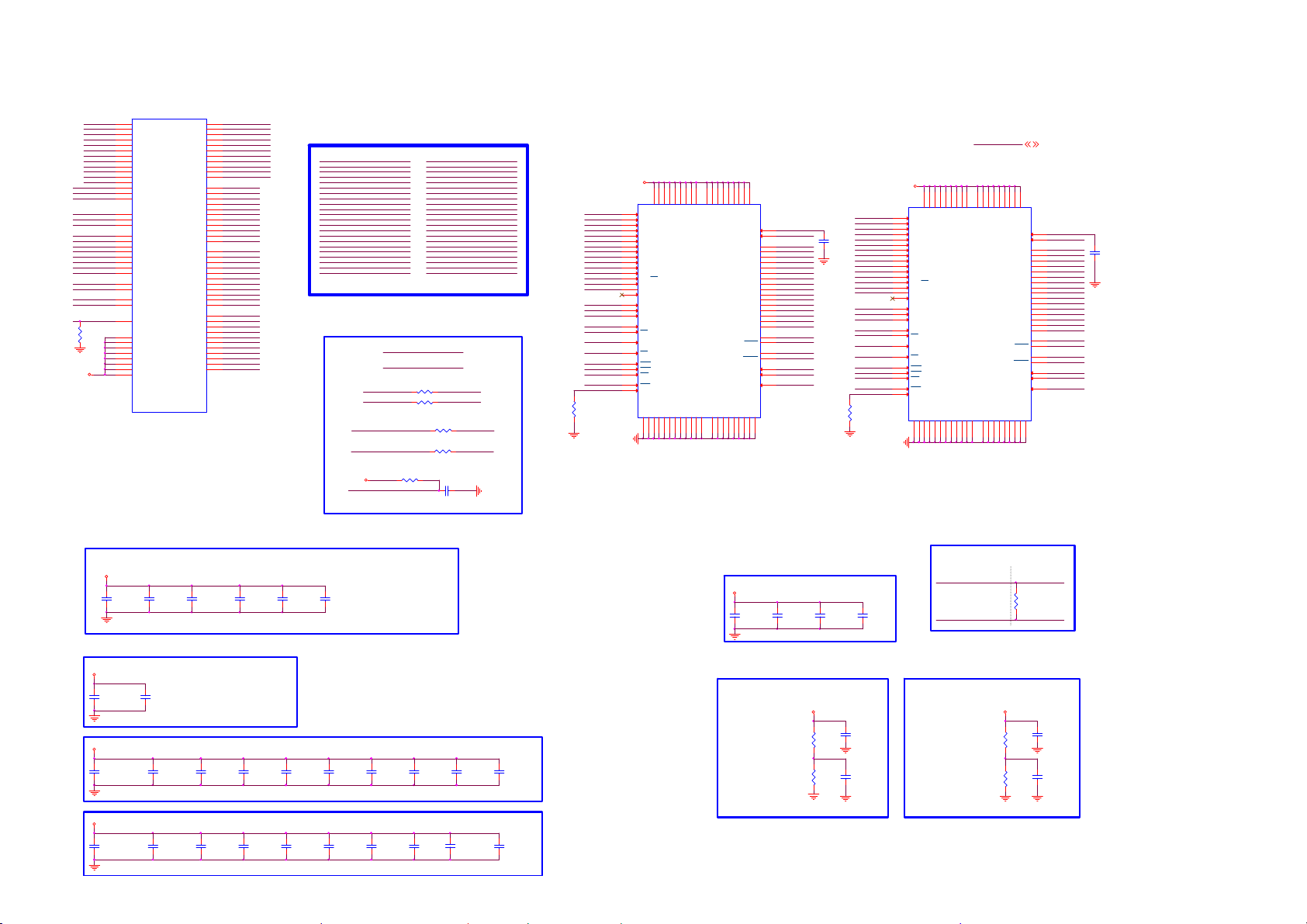

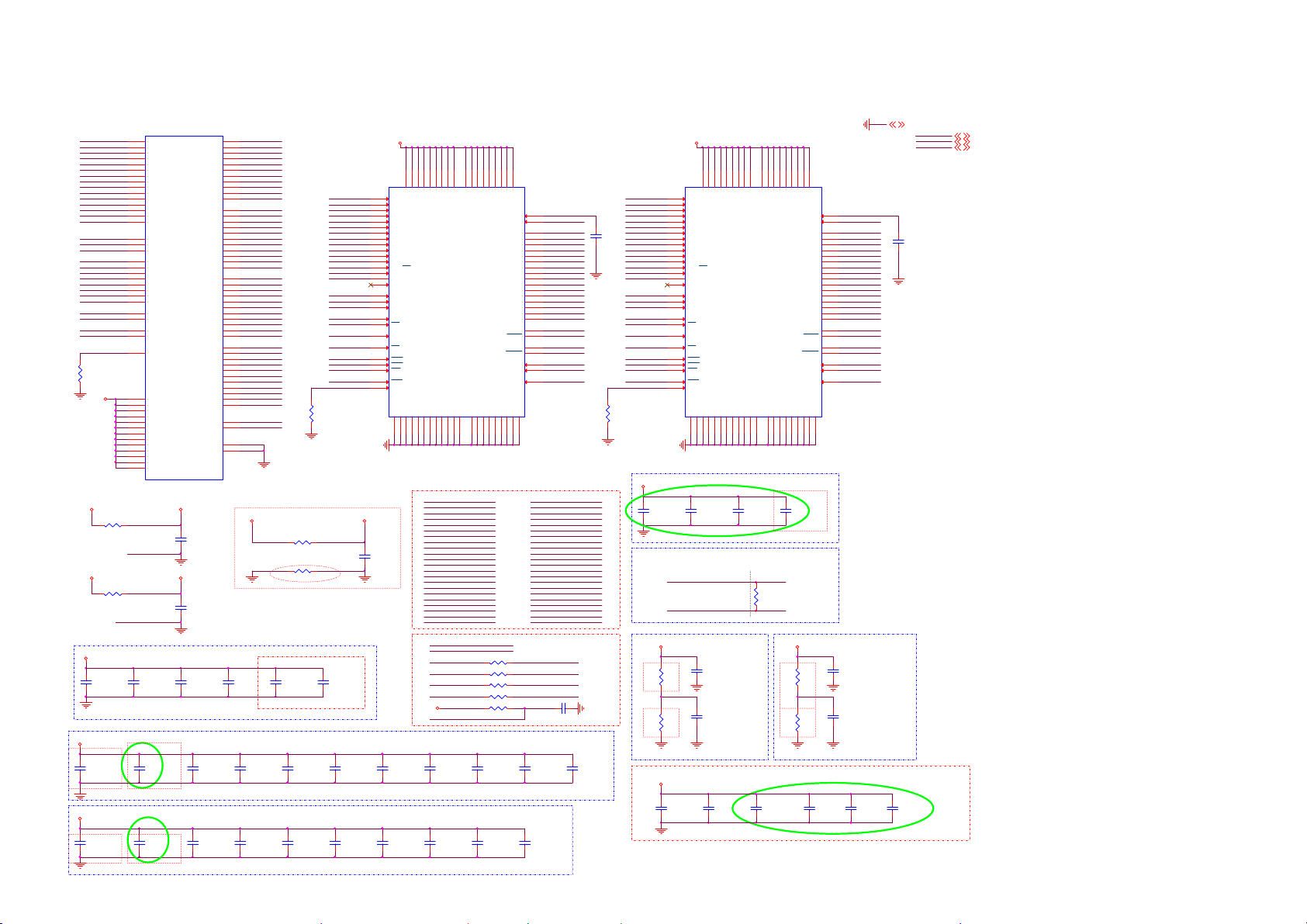

8-4-4 DDR3x2(4)

U401-1

ARA0 ARA1 ARA2 ARA3 ARA4 ARA5 ARA6 ARA7 ARA8 ARA9 ARA10 ARA11 ARA12 ARA13 ARA14

ARBA0 ARBA1 ARBA2

ARCS ARCSD ARRAS ARCAS ARWE ARODT ARCKE ARRESET#

ARCLK0 ARCLK0B

DDRVREF_A1 DDRVREF_A2

ARTN

DDRV

DVDD3V3 AVDD33_DDR

DDRV

C435 10uF 6.3V

R5

ARA0

AB6

ARA1

W7

ARA2

Y6

ARA3

AC6

ARA4

R7

ARA5

AD6

ARA6

T5

ARA7

Y5

ARA8

U5

ARA9

AC7

ARA10

AA5

ARA11

AC5

ARA12

R6

ARA13

U7

ARA14

AB5

ARBA0

AD5

ARBA1

P6

ARBA2

N2

ARCS

N3

ARCSD

N6

ARRAS

P7

ARCAS

AA6

ARWE

N4

ARODT

U6

ARCKE

V6

ARRESET#

M2

ARCLK

M1

ARCLK#

L2

DDRVREF_A1

AL1

DDRVREF_A2

M8

R463

0R05 1/16W

R464

0R05 1/16W

AK4 AJ5 AK5 AL5 AH6 AJ6 AG7 AH7 AF8

V9

W9

AB9

U9

AVDD33_DDR

AVSS33_DDR

AVDD10_DDR

AVSS_DDR

ARTN

DDRV DDRV DDRV DDRV DDRV DDRV DDRV DDRV DDRV DDRV DDRV DDRV DDRV_CKA

MT5596L

AVDD10_DDRVCCK

R460 47R 1/16W 5%

DRAM#1/2 Bypass Cap

C429 100N 16V

C430 100N 16V

C436 10UF

AVDD33_DDR AVDD10_DDR

0112 Modify

DDRV

C446 10uF 6.3V

C447 10UF

0112 Modify

ARDQM0 ARDQS0

ARDQS0#

ARDQ0 ARDQ1 ARDQ2 ARDQ3 ARDQ4 ARDQ5 ARDQ6 ARDQ7

ARDQM1 ARDQS1

ARDQS1#

ARDQ8

ARDQ9 ARDQ10 ARDQ11 ARDQ12 ARDQ13 ARDQ14 ARDQ15

ARDQM2 ARDQS2

ARDQS2#

ARDQ16 ARDQ17 ARDQ18 ARDQ19 ARDQ20 ARDQ21 ARDQ22 ARDQ23

ARDQM3 ARDQS3

ARDQS3#

ARDQ24 ARDQ25 ARDQ26 ARDQ27 ARDQ28 ARDQ29 ARDQ30 ARDQ31

AVSS_DDR AVSS_DDR

C426 1UF 6.3V

C427 100N 16V

C431 100N 16V

C437 100N 16V

C448 100N 16V

N5

ARDQM0ARDQM0

V1

ARDQS0AR DQS0

V2

ARDQS0BARDQS0B

R2

ARDQ0ARDQ0

AB2

ARDQ1ARDQ1

R1

ARDQ2ARDQ2

AB3

ARDQ3ARDQ3

P1

ARDQ4ARDQ4

AC3

ARDQ5ARDQ5

P3

ARDQ6ARDQ6

AC1 N7

W2 W3 Y3 T3 AA2 T2 Y1 U1 AA1 U3

AG4 AH2 AH3 AE3 AL2 AE2 AM1 AD1 AN1 AD2 AM2

AF5 AJ1 AK3 AJ3 AF3 AK2 AF1 AG5 AG1 AK1 AG2

L1 AC18

L4 AC17

ARDQ7ARDQ7 ARDQM1ARDQM1

ARDQS1AR DQS1 ARDQS1BARDQS1B ARDQ8ARDQ8 ARDQ9ARDQ9 ARDQ10ARDQ10 ARDQ11ARDQ11 ARDQ12ARDQ12 ARDQ13ARDQ13 ARDQ14ARDQ14 ARDQ15ARDQ15

ARDQM2ARDQM2 ARDQS2AR DQS2 ARDQS2BARDQS2B ARDQ16ARDQ16 ARDQ17ARDQ17 ARDQ18ARDQ18 ARDQ19ARDQ19 ARDQ20ARDQ20 ARDQ21ARDQ21 ARDQ22ARDQ22 ARDQ23ARDQ23

ARDQM3ARDQM3 ARDQS3AR DQS3 ARDQS3BARDQS3B ARDQ24ARDQ24 ARDQ25ARDQ25 ARDQ26ARDQ26 ARDQ27ARDQ27 ARDQ28ARDQ28 ARDQ29ARDQ29 ARDQ30ARDQ30 ARDQ31ARDQ31

AVDD33_DDRAVDD 33_DDR AVDD10_DDRAVDD 10_DDR

R461 240R 1%

1_A01_A0 1_A11_A1 1_A21_A2 1_A31_A3 1_A41_A4 1_A51_A5 1_A61_A6 1_A71_A7 1_A81_A8 1_A91_A9 1_A101_A10 1_A111_A11 1_A121_A12 1_A13 1_A14

1_BA01_BA0 1_BA11_BA1 1_BA21_BA2

ARCLK0ARCLK0 ARCLK0BARCLK0B

1_CKE1_CKE 1_ARCS1_ARCS 1_RAS#1_R AS#

1_CAS#1_C AS# 1_WE#1_WE#

1_RREST_MEM A_ZQ1

N3 P7 P3 N2 P8 P2 R8 R2

R3 R7

N7

M7 M2

N8 M3

K7 K9

K3

DRAM K4B4G1646E-BCMA 4Gb FBGA-96

AVDD10_DDR

AVSS_DDR

C434 100N 16V

C440 100N 16V

C451 100N 16V

AVDD10_DDR

C428 1uF 10V

VCCK

R465 0R05 1/16W

R466 0R05 1/16W

Reseved on bottom side.

C432 100N 16V

Bottom Side DRAM#1 Bypass Cap

Bottom Side DRAM#2 Bypass Cap

C438 100N 16V

C449 100N 16V

C433 100N 16V

C439 100N 16V

C450 100N 16V

DDRV

R9

A0

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD A1 A2 A3 A4 A5 A6 A7

T8

A8 A9

L7

A10/AP A11 A12/BC

T3

A13

T7

A14 NC_A15

BA0 BA1 BA2

J7

CK CK

CKE

L2

CS

J3

RAS CAS

L3

WE

T2

RST

L8

ZQ

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

DDRV

C441 100N 16V

C452 100N 16V

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

1_A10 ARA10ARA10 1_BA1 ARBA1ARBA1

1_A4 ARA4ARA4 1_A7 ARA7ARA7 1_A13 ARA13ARA13 1_A9 ARA9ARA9 1_RREST_MEM ARRESET#ARRESET# 1_A6 ARA6ARA6 2_A6 AR A6 1_A1 ARA1ARA1 1_A8 ARA8ARA8 1_A11 ARA11ARA11 1_CAS# ARCASARC AS 2_CAS# ARCAS 1_BA2 ARBA2ARBA2 1_A0 ARA0ARA0 1_A5 ARA5ARA5 1_A14 ARA14ARA14 1_RAS# ARRASARR AS 1_A2 ARA2ARA2 1_BA0 ARBA0ARBA0 1_A3 ARA3ARA3 1_WE# ARWEARWE

1_ARCSARCS

DDRVR EF_A1 A_VR EFCA1

ARCKE 1_CKE ARODT 1_ODT

ARRESET#

C442 100N 16V

C453 100N 16V

R467 R468 R469 R470 R471

2_ARCSDARCSD

C443 100N 16V

C454 100N 16V

U402

H9

K4B4G1646E-BCMA

VREF_DQ VREF_CA

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6

DQL7 DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

LDQS

LDQS UDQS

UDQS

LDM

UDM

ODT

G9

NC/0R 05 1/ 16W NC/0R 05 1/ 16W 47R 1/16W 5% 47R 1/16W 5%

NC/47K +-1% 1/16W

DDR3#1

H1

DDRVREF_A1

M8

A_VREFCA1

E3

ARDQ0

F7

ARDQ1

F2

ARDQ2

F8

ARDQ3

H3

ARDQ4

H8

ARDQ5

G2

ARDQ6

H7

ARDQ7

D7

ARDQ8

C3

ARDQ9

C8

ARDQ10

C2

ARDQ11

A7

ARDQ12

A2

ARDQ13

B8

ARDQ14

A3

ARDQ15

F3

ARDQS0

G3

ARDQS0B

C7

ARDQS1

B7

ARDQS1B

E7

ARDQM0

D3

ARDQM1

K1

1_ODT1_ODT

2_A10 ARA10 2_BA1 AR BA1 2_A12 ARA121_A12 ARA12ARA12 2_A4 ARA4 2_A7 ARA7 2_A13 ARA13 2_A9 ARA9 2_RREST_MEM ARRESET#

2_A1 ARA1 2_A8 ARA8 2_A11 ARA11

2_BA2 AR BA2 2_A0 ARA0 2_A5 ARA5 ARRAS 2_RAS# ARA14 2_A14 2_A2 ARA2 2_BA0 AR BA0 2_A3 ARA3 2_WE# ARWE

A_VREFCA2DDRVR EF_A2 2_CKE 2_ODT

C406

NC/100NF 16V

C444 100N 16V

C455 100N 16V

C445 100N 16V

DDRV

N3

C424 100N 16V

R462 240R 1%

2_A02_A0 2_A12_A1 2_A22_A2 2_A32_A3 2_A42_A4 2_A52_A5 2_A62_A6 2_A72_A7 2_A82_A8 2_A92_A9 2_A102_A10 2_A112_A11 2_A122_A12 2_A132_A13 2_A142_A14

2_BA02_BA0 2_BA12_BA1 2_BA22_BA2

ARCLK0ARCLK0 ARCLK0BARCLK0B

2_CKE2_CKE 2_ARCSD2_ARCSD 2_RAS#2_RAS#

2_CAS#2_CAS# 2_WE#2_WE#

2_RREST_MEM A_ZQ2

DDRV

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

J3

RAS

K3

CAS

L3

WE

T2

RST

L8

ZQ

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

DRAM#1/2 Bottom Layer

C456 100NF 16V

Differential Clock

NEAR Main Chip

ARCLK0

ARCLK0B

DDRV

DDR3#1 Ref Volt.

R473 1K 1/16W 5%

A_VREFCA1 A_VREFCA2

R474 1K 1/16W 5%

Bottom Side Capacitors close to IC

DDRV

C464 NC/10UF

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

C457 100NF 16V

C460 100N 16V

C461 100N 16V

Near DRAM

C465 NC/10UF

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

C458 100NF 16V

NEAR DRAM

ARCLK0ARCLK0

R472 100R 1/16W 1%

ARCLK0BARCLK0B

C466 100NF 16V

DDR3#2

U403

H9

K4B4G1646E-BCMA

H1

VREF_DQ

M8

VREF_CA

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

F3

LDQS

G3

LDQS

C7

UDQS

B7

UDQS

E7

LDM

D3

UDM

K1

ODT

G9

C459 100NF 16V

0112 Modify

DDRV

DDR3#2 Ref Volt.

R475 1K 1/16W 5%

R476 1K 1/16W 5%

C467 100NF 16V

DDRVREF_A2

A_VREFCA2 ARDQ16

ARDQ17 ARDQ18 ARDQ19 ARDQ20 ARDQ21 ARDQ22 ARDQ23 ARDQ24 ARDQ25 ARDQ26 ARDQ27 ARDQ28 ARDQ29 ARDQ30 ARDQ31

ARDQS2 ARDQS2B

ARDQS3 ARDQS3B

ARDQM2 ARDQM3

2_ODT2_ODT

C462 100N 16V

C463 100N 16V

Near DRAM

C468 100NF 16V

GND 3,5,6,8,9,10,11,12,13,14,15, 16,17,18,19, 20,21,22,23,24,26,27

C425 100N 16V

C469 1UF 6.3V

DDRV DVDD3V3 VCCK

DDRV 5,8

DVDD3V3 3,5,6,9,10,12,13,14, 15,17,19,27

VCCK 3,5,6,19

0112 Modify

8-4-5 DDR3x2(4)

U401-2

AH9

BRA0

AH17

BRA1

AJ14

BRA2

AJ16

BRA3

AH19

BRA4

AG9

BRA5

AJ19

BRA6

AH11

BRA7

AG17

BRA8

AH13

BRA9

AG21

BRA10

AH18

BRA11

AJ20

BRA12 BRA13 BRA14

BRBA0 BRBA1 BRBA2

BRCS BRCSD BRRAS# BRCAS# BRWE# BRODT BRCKE BRRESET#

BRCLK0 BRCLK0#

B_VERFDQ1 B_VERFDQ2

BRTN

DDRV

R477 47R 1/16W 5%

AH20

AH16 AK12

AH14

AM24

AD16

AD10 AE10 AE11 AE12 AE15

AJ11 AJ13

AJ17

AJ10

AK9 AK6

AK7 AJ8

AJ7

AM5 AL6

AN2

AC9 AD9 AE9

BRA12 BRA13 BRA14

BRBA0 BRBA1 BRBA2

BRCS BRCSD BRRAS BRCAS BRWE BRODT BRCKE BRRESET#

BRCLK BRCLK#

DDRVREF_B1 DDRVREF_B2

BRTN

DDRV DDRV DDRV DDRV DDRV DDRV DDRV DDRV_CKB

BRDQM0

BRDQS0

BRDQS0#

BRDQ0 BRDQ1 BRDQ2 BRDQ3 BRDQ4 BRDQ5 BRDQ6 BRDQ7

BRDQM1

BRDQS1

BRDQS1#

BRDQ8

BRDQ9 BRDQ10 BRDQ11 BRDQ12 BRDQ13 BRDQ14 BRDQ15

BRDQM2

BRDQS2

BRDQS2#

BRDQ16 BRDQ17 BRDQ18 BRDQ19 BRDQ20 BRDQ21 BRDQ22 BRDQ23

BRDQM3

BRDQS3

BRDQS3#

BRDQ24 BRDQ25 BRDQ26 BRDQ27 BRDQ28 BRDQ29 BRDQ30 BRDQ31

AM6 AL9 AM9 AM4 AM13 AN4 AN13 AM3 AN14 AN3 AL14

AN5 AM10 AN10 AN11 AN7 AM12 AM7 AL11 AL8 AL12 AN8

AH21 AM19 AN19 AN16 AM22 AM16 AN22 AL15 AM23 AM15 AN23

AK21 AL20 AN20 AH22 AN17 AM21 AL17 AJ22 AL18 AL21 AM18

BRDQM0 BRDQS0 BRDQS0# BRDQ0 BRDQ1 BRDQ2 BRDQ3 BRDQ4 BRDQ5 BRDQ6 BRDQ7

BRDQM1 BRDQS1 BRDQS1# BRDQ8 BRDQ9 BRDQ10 BRDQ11 BRDQ12 BRDQ13 BRDQ14 BRDQ15

BRDQM2 BRDQS2 BRDQS2# BRDQ16 BRDQ17 BRDQ18 BRDQ19 BRDQ20 BRDQ21 BRDQ22 BRDQ23

BRDQM3 BRDQS3 BRDQS3# BRDQ24 BRDQ25 BRDQ26 BRDQ27 BRDQ28 BRDQ29 BRDQ30 BRDQ31

DDR3#3

3_A0 3_A1 3_A2 3_A3 3_A4 3_A5 3_A6 3_A7 3_A8 3_A9 3_A10 3_A11 3_A12 3_A13 3_A14

3_BA0 3_BA1 3_BA2

BRCLK0 BRCLK0#

3_CKE 3_ARCS 3_RAS#

3_CAS# 3_WE#

3_RREST_MEM B_ZQ1

R478 240R 1%

CH2 AD/CM Damping

DDRV

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

J3

RAS

K3

CAS

L3

WE

T2

RST

L8

ZQ

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

VREF_DQ VREF_CA

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6

DQL7 DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

LDQS LDQS

UDQS UDQS

U404 K4B2G1646Q-BCMA

H9

H1 M8

E3 F7 F2 F8 H3 H8 G2 H7 D7 C3 C8 C2 A7 A2 B8 A3

F3 G3

C7 B7

E7

LDM

D3

UDM

K1

ODT

G9

B_VERFDQ1 B_VREFCA1

BRDQ0 BRDQ1 BRDQ2 BRDQ3 BRDQ4 BRDQ5 BRDQ6 BRDQ7 BRDQ8 BRDQ9 BRDQ10 BRDQ11 BRDQ12 BRDQ13 BRDQ14 BRDQ15

BRDQS0 BRDQS0#

BRDQS1 BRDQS1#

BRDQM0 BRDQM1

3_ODT

C470 100N 16V

DDR3#4

4_A0 4_A1 4_A2 4_A3 4_A4 4_A5 4_A6 4_A7 4_A8 4_A9 4_A10 4_A11 4_A12 4_A13 4_A14

4_BA0 4_BA1 4_BA2

BRCLK0 BRCLK0#

4_CKE 4_ARCSD 4_RAS#

4_CAS# 4_WE#

4_RREST_MEM B_ZQ2

R479 240R 1%

DDRV

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

J3

RAS

K3

CAS

L3

WE

T2

RST

L8

ZQ

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

DDR3#3

U405 K4B2G1646Q-BCMA

H9

VREF_DQ VREF_CA

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7 DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

LDQS LDQS

UDQS UDQS

LDM

UDM

ODT

G9

GND3, 5,6,7,9, 10,11,12,13,14, 15,16,17,18,19, 20,21,22,23,24, 26,27

GND

DDR3#4

H1

B_VERFDQ2

M8

B_VREFC A2

E3

BRDQ16

F7

BRDQ17

F2

BRDQ18

F8

BRDQ19

H3

BRDQ20

H8

BRDQ21

G2

BRDQ22

H7

BRDQ23

D7

BRDQ24

C3

BRDQ25

C8

BRDQ26

C2

BRDQ27

A7

BRDQ28

A2

BRDQ29

B8

BRDQ30

A3

BRDQ31

F3

BRDQS2

G3

BRDQS2#

C7

BRDQS3

B7

BRDQS3#

E7

BRDQM2

D3

BRDQM3

K1

4_ODT

C471 100N 16V

3_A2 BR A2 3_BA0 BRBA0 3_A3 BR A3 3_WE# BRWE# 3_A14 BRA14 3_RAS# BRRAS# 3_CAS# BRCAS# 3_BA2 BRBA2 3_A0 BR A0 3_A5 BR A5 3_A6 BR A6 3_A1 BR A1 3_A8 BR A8 3_A11 BRA11 3_A10 BRA10 3_BA1 BRBA1 3_A12 BRA12 3_A4 BR A4 3_A7 BR A7 3_A13 BRA13 3_A9 BR A9 3_RREST_MEM BRRESET#

DDRV

C474 10UF

DDRV

C484 10UF

MT5596L

C475

10uF 6.3V

0112 Modify

C485 NC/10UF

4_A2 BR A2 4_BA0 BRBA0 4_A3 BR A3 4_WE# BR WE# 4_A14 BRA14 4_RAS# BRRAS# 4_CAS# BRCAS# 4_BA2 BRBA2 4_A0 BR A0 4_A5 BR A5 4_A6 BR A6 4_A1 BR A1 4_A8 BR A8 4_A11 BRA11 4_A10 BRA10 4_BA1 BRBA1 4_A12 BRA12 4_A4 BR A4 4_A7 BR A7 4_A13 BRA13 4_A9 BR A9 4_RREST_MEM BRR ESET#

B_VERFDQ1 B_VREFC A1 B_VERFDQ2 BRCKE 3_CKE 4_CKE

3_ODTBRODT

DDRV

BRRESET#

Bottom Side DRAM#3 Bypass Cap

C477

C476 100N 16V

100N 16V

C478 100N 16V

C479 100N 16V

Bottom Side DRAM#4 Bypass Cap

C486 100N 16V

C487 100N 16V

C488 100N 16V

C489 100N 16V

3_ARCSBRCS 4_ARCSDBRCSD

R480 N C / 0R05 1/ 16W R481 N C / 0R05 1/ 16W R482 47R 1/ 16W 5% R483 47R 1/ 16W 5% R484 N C / 47K +-1% 1/16W

C407 NC/100N F 16V

C480 100N 16V

C490 100N 16V

DRAM K4B2G1646Q-BCMA 2Gb FBGA-96

B_VREFCA2

4_ODT

C481 100N 16V

C491 100N 16V

DRAM#3/4 Bypass Cap

DDRV

C472 100N 16V

C483

C482

100N 16V

C493

C492

100N 16V

C473 100N 16V

DRAM#3/4 Bottom Layer

DDRV

C494

C495

100NF 16V

DDR3#3 Ref Volt. DDR3#4 Ref Volt.

DDRV

R488 1K 1/16W 5%

B_VREFCA1

R489 1K 1/16W 5%

Near DRAM

DDRV

Damping and Termination for CLK Close to MainChip

C496

C497

100NF 16V

0112 Modify

C498 100N 16V

C499 100N 16V

Near DRAM

GND 3,5,6,7,9, 10,11,12,13,14,15,16,17,18, 19,20,21,22,23, 24,26,27 DDRV 5,7

BRCLK0

BRCLK0#

Close to DRAM

DDRV

R486 1K 1/16W 5%

B_VREFCA2

R487 1K 1/16W 5%

BRCLK0

R485 100R 1/16W 1%

BRCLK0#

C405 100N 16V

C409 100N 16V

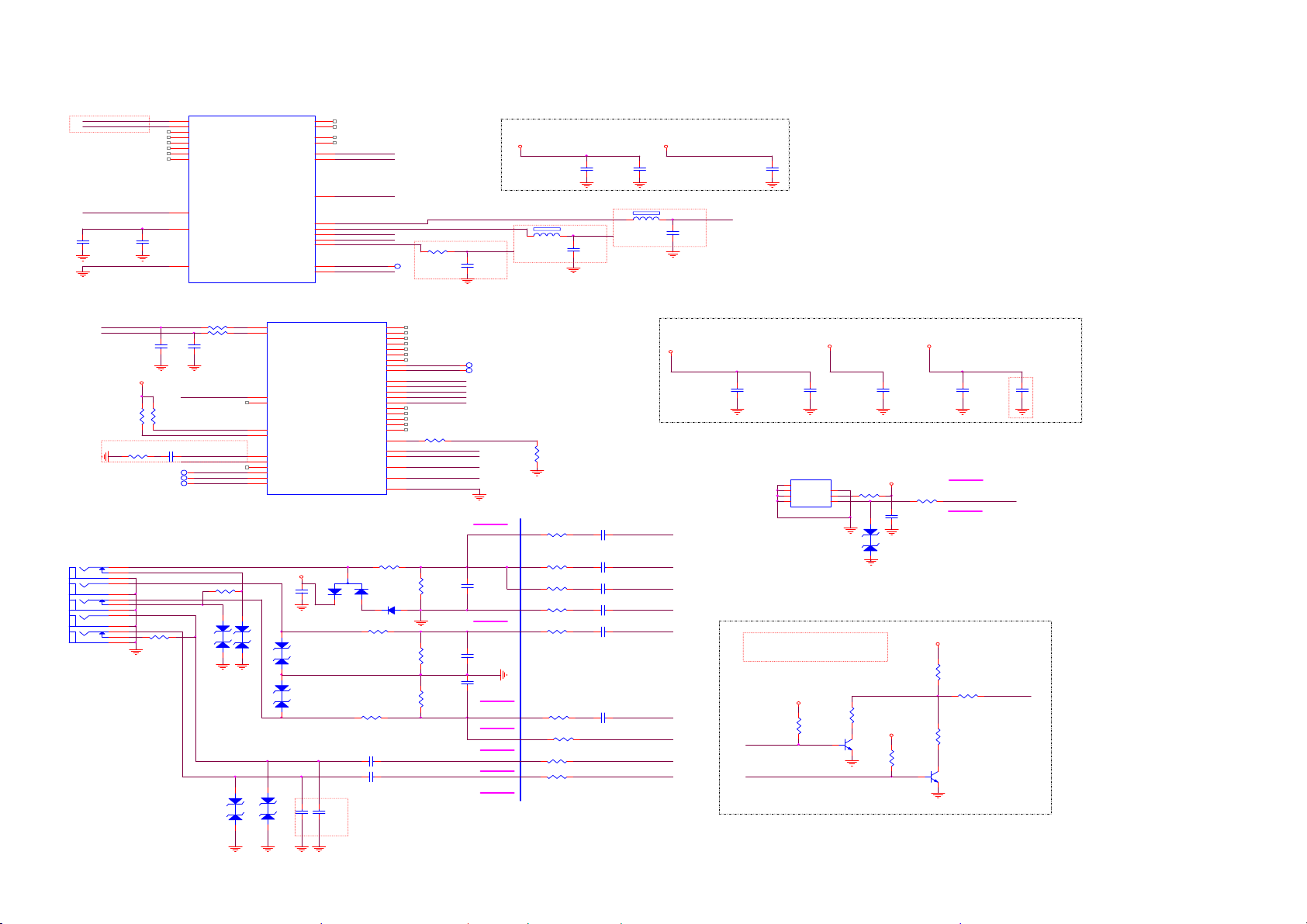

8-4-6 YPbPr/CVBS/SPIDIF

U401-4

C1002 1uF 10V

AVSS33_CLN

R119 0R05 1/16W R120 0R05 1/16W

C1011

C1012 NC/100N 16V

IF_AGC_5 593 CI_PWR_OC

Tuner/DEMOD

OSCL2 OSDA2

CVBS_COM CVBS3P CVBS2P

CVBS1P

CVBS0P

SIF_COM

Y_DET

Y_IN_1

PB_IN_1

YPBPR_DETECT

PR_IN_1

YPbPrL_IN

YPbPrR_I N

A32

C33

A33

C32

B32 A31 B31 B33

K21

E29

K22

AIN_R0 AIN_L0 AIN_R1 AIN_L1 AIN_R2 AIN_L2 AIN_R3 AIN_L3

AVDD33_AADC

VMID_AADC

AVSS33_CLN

MT5 59 6L

12

ZD101 NC/AZ5123-01H

12

AIN_R0 AIN_L0 SCART1_R_I N SCART1_L_IN AIN_R2 AIN_L2

AVDD33_AAD C

VMID_AADC

C1032 100N 16V

ADCINP_DEMOD ADCINN_DEMOD

NC/100N 1 6V

󰭨󱤎

CVBS_COM CVBS3PǐCN116

C1031 1uF 10V

R104

0R05 1/16W

TP104 TP105 TP107

Rear YPbPr /CVBS + R/L

CN1001

6 7

C

8 4

B

5 1

2

A

3

RCA 8P

CN1002

2

A

1 4

B

3

CONN

11/23 ex change

U401-5

E33

ADCINP_D EMOD

F32

ADCINN _DEMOD

C9

IF_AGC

D10

RF_AGC

D14

OSCL2

E14

OSDA2

H32

CVBS_COM

H33

CVBS3P

K29

CVBS2P

J29

CVBS1P

G33

CVBS0P

G32

SIF_COM

MT5 59 6L

R1013 0R05 1/16W

12

ZD105

ZD104

NC/AZ5123-01H

AR0_ADAC

AL0_ADAC

AR1_ADAC

AL1_ADAC

AR2_ADAC

AL2_ADAC

AVDD33_ADAC

ASPDIF O0 ASPDIF O1

AOSDATA1 AOSDATA0

AVDD33_D EMOD_STB

ZD106 NC/AZ 5123-01H

NC/AZ5123-01H

C31 C30

D31 D30

E31 E30

J21

Y32 E17 AL33

AOBCK

AK32

AOLRCK

AL32

AOMCLK

AJ32 AK33

HSYNC VSYNC

VGA_SDA

VGA_SCL

COM1

PB1P PR1P

SOY1

COM0

PB0P

PR0P SOY0

VDACX_OUT

AVDD33_VIDEO_STB

AVDD33_DTMB

AVDD1V2_DTMB

AVSS33_DEMOD

+5V_STB

C109

1uF 10V

12

ZD102 NC/AZ 5123-01H

12

ZD103 NC/AZ 5123-01H

C1044 1N 50V

Modify by EM I

AR0O AL0O

AL1O AR1O

AR2O AL2O

AVDD33_ADAC

AOBCK AOLRCK

AOSDATA1 AOSDATA0

RP GP

BP COM SOG

Y1P

Y0P

C1045

1N 50V

R30 R31 M31 N33 P33 N32 P32 T31 T30

L32 L33 K31 L31 M32 J31 J32 H31 K32 K33

J30

R5168

J24

AVDD33_VIDEO_STB

J25

AVDD33_DEMOD_STB

L20

AVDD33_DTMB

AN24

AVDD1V2_DTMB

L21

AVSS33_DEMOD

3

2

R1008 0R05 1/10W

R1012 0R05 1/10W

C1029 1uF 10V C1030 1uF 10V

HP Audio out

SCART Audio out

TP101

HP_EN AMP_PWRDN

COM1 PB1P PR1P

Y1P

SOY1 COM0 PB0P PR0P

Y0P

SOY0

10R 1/16W 5%

TUNER_BY PASS_OUT

D101 BAV99

D102

1

BAS316WS

Analog Powe r

R101

22R 1/16W 5%

10PF 50V

3V3SB

SCART IN

with GND

R1005

75R 1/16W 1%

with GND

R1010

75R 1/16W 1%

R1011

75R 1/16W 1%

with GND with GND with GND

C1004 10uF 6.3V

ARC

C1033

33P50V

Modify by EMI close to U401

AVDD3V3AVDD3V3

1 2

FB115 120R

AVDD3V3

C1006 100N 16V

C1035

1.5nF 50V C1036 47nF 16V C1037 10N 50V

C1038 10N 50V

C1039 10N 50V

C1042 10N 50V

CVBS3P

AVDD33_ADA C

C1003 100N 16V

1 2

FB114 120R

AOMCLK

C8054

Modify by EMI close to U401

Analog Pow er

AVDD33_VI DEO_STB AVDD33_DTMB

C1034

10PF 50V

C1040

10PF 50V

C1041

10PF 50V

R1004

NC/75 OHM +-5% 1/16W

AVDD33_DEMOD_STB

C1010 10uF 6.3V

R1001

10R 1/16W 1%

R1002

100R 1/16W 5%

R1003

100R 1/16W 5%

R1007

100R 1/16W 5%

R1009

100R 1/16W 5%

with GND

R1015

100R 1/16W 5%

with GND

R1139 30K OHM +-1% 1/16W R1140 30K OHM +-1% 1/16W

Near ScalerNEAR YPb Pr CONNECTOR

SOY1

Y1P

COM1

PB1P

PR1P

AIN_R0 AIN_L0

AVDD33_AAD C

SPDIF_OUT

C1043

10PF 50V

Modify by EM I close to U401

C1007 100N 16V

ǐ

 󲌽

AVDD1V2

AVDD1V2_DTMB

C1008 100N 16V

C1005 100N 16V

GND 3,5,6,7,8,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,26,27

SCART Audio Input

SCART Video Output

SCART Video Input

C1013 10UF 6.3V 20%

Audio in

DVDD3V3

Spdif Out

CN1004

OPTICAL

4

TH1

5 6 7

Source_DET H:Pr Plug-in (YPbPr)

L:Pr Plug-out (AV)

YPBPR_DETECT

Vedio_DET

H:Pr Plug-in (Cable detect) L:Pr Plug-out (Non Cable)

Y_DET

3

GND

TH2

2

VCC

TH3

1

VIN

TH4

R1016

100R 1/16W 5%

R114

AVDD3V3 3V3SB +5V_SW +5V_STB AVDD1V2 DVDD3V3

AR0O10 AL0O10 AR2O10 AL2O10 AL1O27 AR1O27 ARC12

AOMCLK10 AOBCK10 AOLRCK10 AOSDATA010

OSCL213, 14

OSDA213,14 ADCIN P_DEMOD13 ADCINN_DEMOD13 IF_AGC_559313 YPBPR_DETECT117 CI_PWR_OC15 VIDEO_DET17

SCART1_R_IN

SCART1_L_IN

TUNER_BY PASS_OUT

AIN_R2 AIN_L2

YPBPR_DETECT117

AMP_PWRDN

HP_EN

+5V_SW

R142

NC/22R 1/ 16W 5%

12

C1026

ZD128

100N 16V

NC/TVM1G5R5M100R

DVDD3V3

100R 1/16W 5%

AVDD3V3 5,11,12,18

3V3SB 3,5,6, 10,12,16, 17,18,27 +5V_SW 3,5,12,13, 15,18,20,27 +5V_STB 3,5,12

AVDD1V2 5

DVDD3V3 3,5,6, 7,10,12, 13,14,15, 17,19,27

AR0O AL0O AR2O AL2O AL1O AR1O ARC AOMCLK AOBCK AOLRCK AOSDATA0 OSCL2 OSDA2 ADCIN P_DEMOD ADCIN N_DEMOD IF_AGC_55 93 YPBPR_DETECT1 CI_PWR _OC VIDEO_DET

SCART1_R_IN 26 SCART1_L_IN 26

TUNER_BYPASS_OUT 26

VIDEO_DET

SOY0 Y0P COM0 PB0P

PR0P CVBS2P

AIN_R2 10 AIN_L2 10

YPBPR_DETECT1

AMP_PWRDN 10 HP_EN 10

with GND

SPDIF_OU T

SOY026 Y0P26 COM026 PB0P26 PR0P26

CVBS2P26

R123 0R05 1/16W

R1138

33R 1/16W 5%

R1017 47K 1/16W 5%

YPBPR_D ETECT1

R106 47K 1/16W 5%

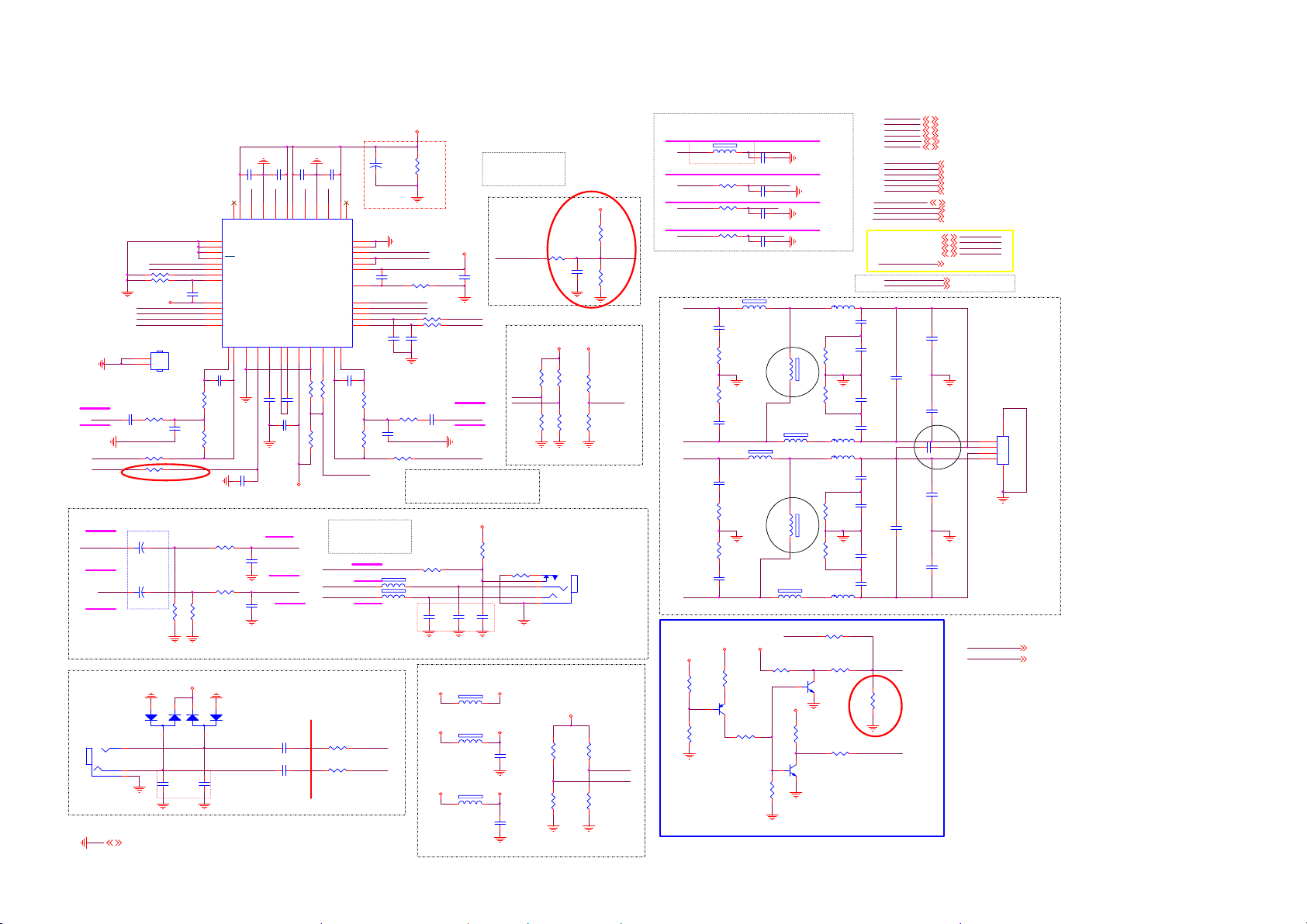

8-4-7 Speaker/Headphone(6)

U601

49

1 2 3

C655

330PF 50V

R675

22K 1/16W 5%

2

C601 470pF 50V

3V3SB

2

OUTR

OUTL

R676

4 5 6 7

C627 100N 16V

8

9 10 11 12

C656

68PF 50V R648

43K 1/16W

R651 51K 1%

10R 1/10W 5%

22K 1/16W 5%

1

3

C604

470pF 50V

Modify by EMI

DVI_AudioLIN

DVI_AudioRIN

AMP_CFG0

AMP_CFG1

R615 NC/0R05 OHM R616 0R05 1/10W

DVDD3V3

SDI AMP_SA0

LRCLKI

BICKI

MCLK

HS601

1 2

C651

1uF 10V

HEAT SINK

R647 16K 1%

R646 10R 1/10W 5% R650 10R 1/10W 5%

All P a th Grounding

AR2O

SCART1R_PA HP_EN

HP

C682

AR0O

All P ath Grounding(20mil)

+

100UF 16V

for PCB space

C683

+

100UF 16V

DVI 1/2/ 3/4 Audio Input

1

BAV99 D604

CN603

PHONE JAC K

3

2 1

GND 3,5,6,7, 8,9,11,12,13, 14,15,16,17,18, 19,20,21,22,23, 24,26,27

C609

C610

LA

45

46

LA

C652

1uF 10V

HPOUTR

C660 NC/6.8NF 50V

HPOUTLAL0O

C661 NC/6.8NF 50V

100N 50V

LB

43

44

LB

GNDL

VDDLB

AD87588-LG48NAY

C646

1uF 10V

C647 100N 16V

AU_VDD_HP

with GND

C685

1uF 10V

C684

1uF 10V

C611

100N 50V

42

VDDRB

RB

41

40

RB

GNDR

R655

1K 1/16W 5%

R634

1K5 1/16W 5%

100N 50V

48

47

NC

VDDLA THER MALPA D SDATA1 MS PLL CFG0 CFG1 CLK_OUT DGND

DVDD SDATA0 LRCIN BCLK MCLK

RINN13OUTR14VSS15EN16PVSS17CN18CP19PVDD20PGND21UVP22OUTL23LINN

C663

1uF 10V

R653

R654

Close to CONN.

BAV99 D605

C612

100N 50V

RA

37

39

38

RA

NC

36

VDDRA

LINEI N

35

LREX

34

RESET#

33

ERROR#

32

PD#

31

DVDD

30

DGND

29

DEF

28

SA1

27

SA0

26

SCL

25

SDA

24

C657

R656

68PF 50V

30K OHM

PWRDN-HP

HP_DET Low: normal High: HP detec t

HP_DET

FB613 120R/ 500mA

HPOUTR

HPOUTL

with GND

Close to IC

R658

AIN_L2

30Kohm 1/16W +/-5%

R657

AIN_R2

30Kohm 1/16W +/-5%

PVDD

C614

+

R608

100uF 35V

10K 1/4W

RESET#

R617

C625 100N 16V

0R05 1/10W

AMP_DEF

AMP_SA1

A_SCL

R620

A_SDA

R621

C632

C633

22R 1/16W 5% 22R 1/16W 5%

NC/22P 50V

All P a th

R643 43K 1/16W

R652 51K 1%

1 2 1 2

FB614 120R /500mA

Grounding

R642

C648

16K 1%

1uF 10V C649 330PF 50V

R637

10R 1/10W 5%

SCART OUT Gain R:-(R651/R647)=51/16=3.1875

L:-(R652/R642)=51/16=3.1875

R619 NC/ 0R 05 1/ 16W

C653 100N 16V

+18V_AUDIO

DVDD3V3

AU_VDD 3V3

C626 22UF

OSCL0 OSDA0

AL2O

SCART1L_PA

DVDD3V3

C654 100N 16V

Modify by EMI

FB601

120R 6A

FB602

1 2

120R 3A

FB605

1 2

120R 3A

I2SAMP_RESET Low: reset High: normal

Reset (pull-up)

I2SAMP_RESETPWRDN

I2C address Write=0110"SA0"0"SA1"0=0x60

AMP_SA0 AMP_SA1

R641 NC/ 4K7 1 / 16W 5%

R618 0R 05 1/ 16W

C662 NC/470pF 50V

PVDD

12

AU_VDD3V3

C602

10UF 6.3V 20%

AU_VDD_HP

C606

10UF 6.3V 20%

0R05 1/16W

R624

R629

3 4 2

5 1

R610

R625

NC/10K NC/10K

R630

10K 1/16W 5%

CN602 PHONE JAC K 5P

DVDD3V3

R601 0R05 1/16W

R604

NC/0R05 OHM

C619 1uF 10V

DVDD3V3DVDD3V3

10K 1/16W 5%

DVDD3V3

R660 NC/ 10K 1/ 16W 5%

RESET#

R609 10K 1/16W 5%

R626

NC/10K 1/16W 5%

AMP_DEF

R631 10K 1/16W 5%

R602 NC/0R05 1/ 16W

AMP_CFG0

AMP_CFG1

R605 0R05 1/16W

For EMI, close to MT5593

All Path Grounding(20mil)

1 2

AOMCLK

Modify by EMI

AOBCK

AOLRCK

AOSDATA0

RA

RB

LA

LB

Option

PVDD

FB603 120R

R645

470K

R640 180K

R603

0R05 1/16W

R606

0R05 1/16W

R607

0R05 1/16W

HCB3216KF-121T30

C616 470pF 50V

R611 10 OHM

R613 10 OHM

C623 470pF 50V

HCB3216KF-121T30

C630 470pF 50V

R622 10 OHM

R627 10 OHM

C642 470pF 50V

Anti-pop

DVDD3V3

R649 1K

23

Q603

1

LMBT3906LT1G

C603

C605

LRCLKI

C607

C608

1 2

FB606

1 2

FB609

DVDD3V3

R639

0R05 1/16W

MCLK

NC/33P50V

Grounding

BICKI

NC/33P50V

Grounding Grounding

NC/33P50V

SDI

Grounding

NC/33P50V

8/20 Add for PHP

SCART Audio Output

R612

NC/HC B3216KF-121T30

12

10 OHM

FB607

R614 10 OHM

FB608

HCB3216KF-121T30

1 2

R623

NC/HC B3216KF-121T30

12

10 OHM

FB610

R628 10 OHM

FB611

HCB3216KF-121T30

1 2

R633

AMP_PWRDN

R632

10K

DVDD3V3

R636

10K

R638

NC\10K

Q602 MMBT3904

R644

NC/ 0R 05 1/ 16 W Q601 MMBT3904

R659

NC\ 0R 05 1/ 16 W

3V3SB DVDD3V3 +5V_SW +18V_AUDIO

+5V_STB

+18V

Audio Output Interface

GPIO & I2C Control

OSDA0 OSCL0 HP_DET

I2SAMP_RESET

I2S Control

AOMCLK9 AOBCK9 AOLRCK9 AOSDATA09

PWRDN

L601 22uH

C615

100N 50V

C618

220N 50V

C621

220N 50V

C624

100N 50V

L602 22uH

L603 22uH

C629

100N 50V

C634

220N 50V

C640

220N 50V

C643

100N 50V

L604 22uH

0R05 1/16W

PWRDN

R635 10K

PWRDN-HP

3V3SB 3,5, 6,9,12,16,17, 18,27

DVDD3V3 3,5,6,7, 9,12,13,14,15, 17,19,27

+5V_SW 3,5,9,12,13, 15,18,20,27

+18V_AUDIO 3

+5V_STB 3,5,9,12

C620 100N 50V

C635 100N 50V

+18V 3,5,24,27

C617

10N 50V

C622

10N 50V

C628 N C/330nF

C631

10N 50V

C641

10N 50V

AIN_R2 AIN_L2 AL0O AR0O AL2O AR2O

SCART1R_PA SCART1L_PA

AIN_R2 9 AIN_L2 9 AL0O 9 AR0O 9 AL2O 9 AR2O 9

OSDA0 6 OSCL0 6 HP_DET 17 I2SAMP_RESET 17

AOMCLK AOBCK AOLRCK AOSDATA0

PWRDN 27

SCART1R_PA 26 SCART1L_PA 26

R-

R+

L-

L+

4 ohm: 10uH, 470nF 6 ohm: 15uH, 470nF 8 ohm: 22uH, 470nF

AMP_PWRDN HP_EN

Stereo mode: FB607, FB610, C628: NC

56

1 2 3 4

CN601 CONN

R

RR+ LL+

L

AMP_PWRDN 9 HP_EN 9

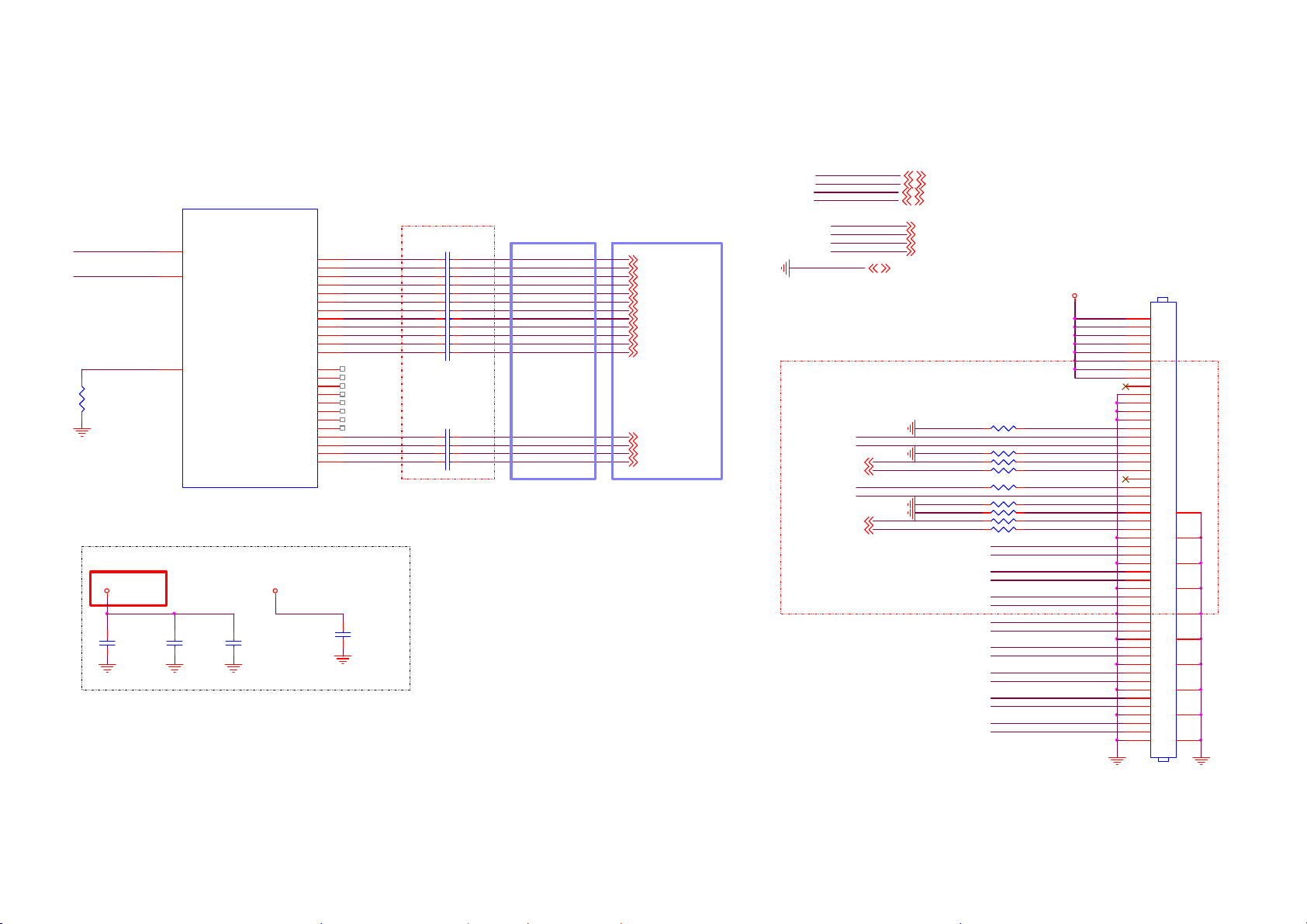

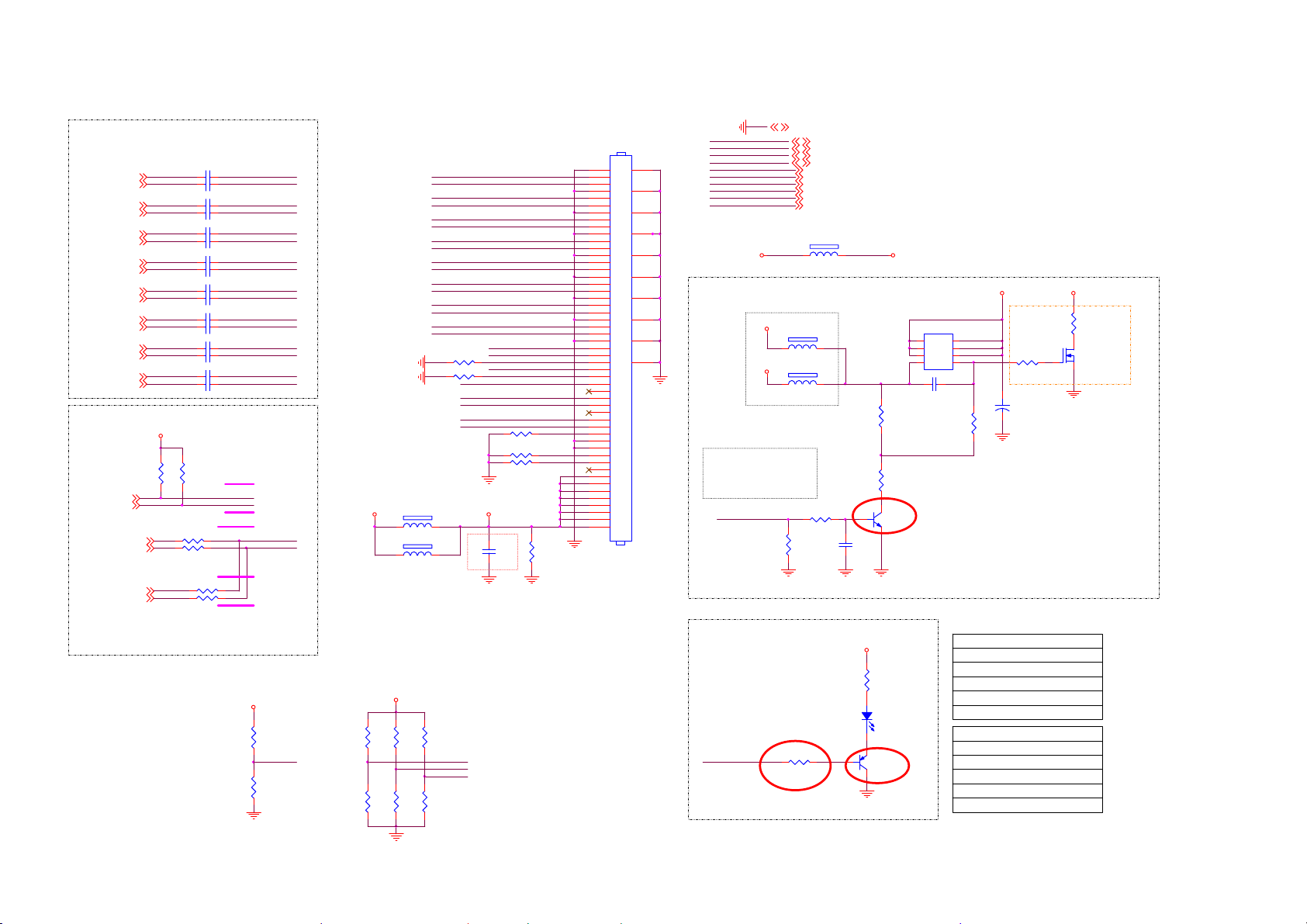

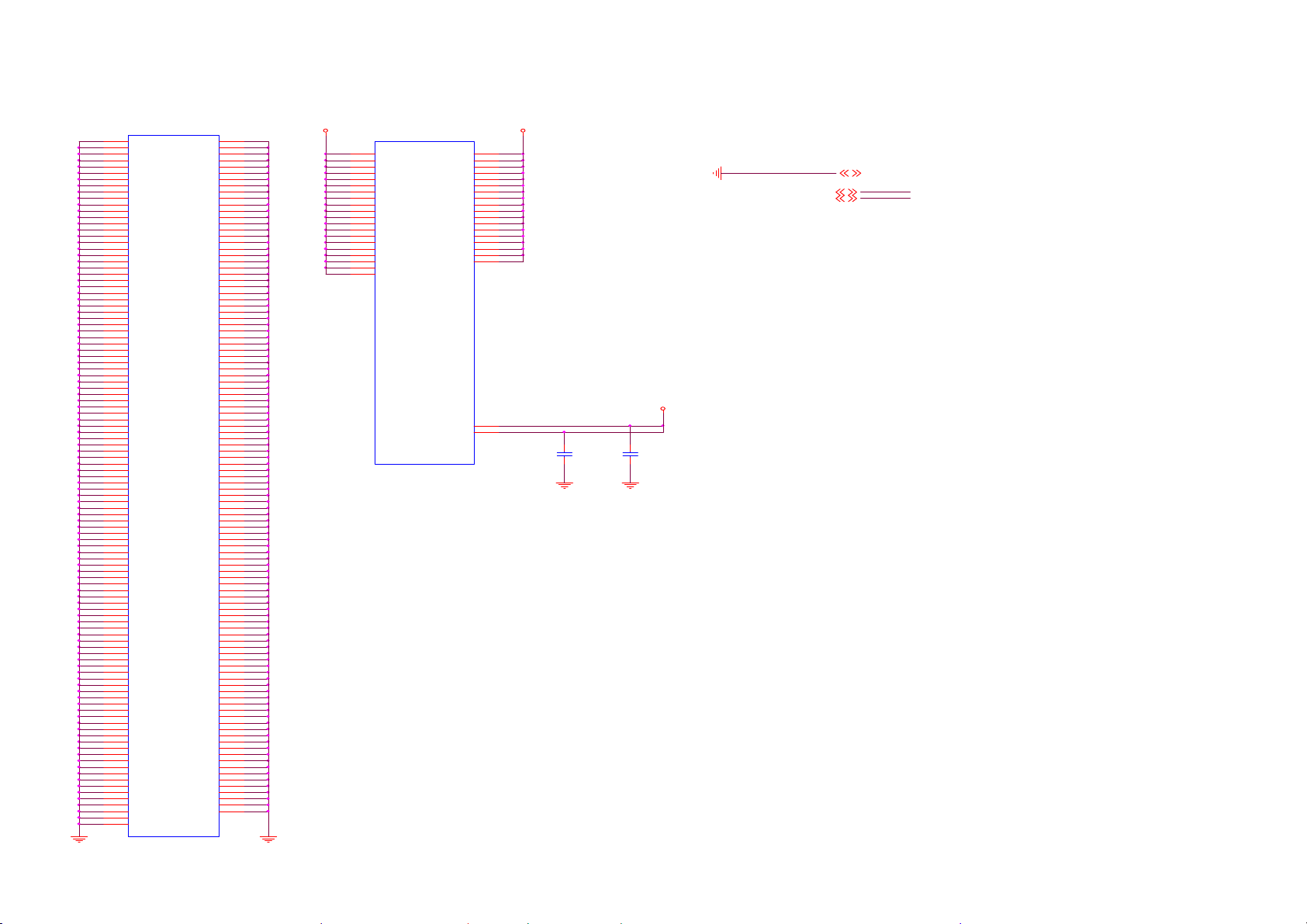

8-4-8 VB1 output

U401-3

AVDD10_LVDS_STB

AVDD33_LVDSA

REXT_VPLL

R459 6K8 1/16W 5%

AJ24

AVDD10_LVDS_STB

K20

AVDD33_LVDSA

AF22

REXT_VPLL

MT5596L

Analog Power

AVDD3V3AVDD1V0_1

AVDD10_LVDS_STB AVDD33_LVDSA

C417 10UF 6. 3V 20%

C418 1uF 10V

C419 100N 16V

AE0P

AE0N

AE1P

AE1N

AE2P

AE2N

AECKP

AECKN

AE3P

AE3N

AE4P

AE4N AO0P

AO0N

AO1P

AO1N

AO2P

AO2N

AOCKP

AOCKN

AO3P

AO3N

AO4P

AO4N

AN28 AM28 AL27 AK27 AL26 AK26 AN26 AM26 AL25 AK25 AL24 AK24

AN32 AM32 AL31 AK31 AL30 AK30 AN30 AM30 AL29 AK29 AL28 AK28

MT5596L Vx1 OUTPUT

To CN408 To MSD7484

LVDSTX_AE0P LVDSTX_AE0N LVDSTX_AE1P LVDSTX_AE1N LVDSTX_AE2P LVDSTX_AE2N LVDSTX_AECKP LVDSTX_AECKN LVDSTX_AE3P LVDSTX_AE3N LVDSTX_AE4P LVDSTX_AE4N

LVDSTX_AO3P LVDSTX_AO3N LVDSTX_AO4P LVDSTX_AO4N

C422 100N 16V

C4939 100N 16V C4940 100N 16V C4941 100N 16V C4942 100N 16V C4943 100N 16V C4944 100N 16V C4945 100N 16V C4946 100N 16V C4947 100N 16V C4948 100N 16V C4949 100N 16V C4950 100N 16V

C4959 100N 16V C4960 100N 16V C4961 100N 16V C4962 100N 16V

Close to U401 Scaler

SOC-VB1-TX2p SOC-VB1-TX2n SOC-VB1-TX3p SOC-VB1-TX3n SOC-VB1-TX4p SOC-VB1-TX4n SOC-VB1-TX5p SOC-VB1-TX5n SOC-VB1-TX6p SOC-VB1-TX6n SOC-VB1-TX7p SOC-VB1-TX7n

SOC-VB1-TX0p SOC-VB1-TX0n SOC-VB1-TX1p SOC-VB1-TX1n

VBY1_R2P 25 VBY1_R2N 25 VBY1_R3P 25 VBY1_R3N 25 VBY1_R4P 25 VBY1_R4N 25 VBY1_R5P 25 VBY1_R5N 25 VBY1_R6P 25 VBY1_R6N 25 VBY1_R7P 25 VBY1_R7N 25

VBY1_R0P 25 VBY1_R0N 25 VBY1_R1P 25 VBY1_R1N 25

AVDD3V3

DVDD3V3 Panel_12V AVDD1V0_1

D_Fomat0 D_Fomat1 Bit_SEL LD_EN_SOC

OSDA16,22 OSCL16,22

HTPDN17,22 LOCKN17,22

AVDD3V3 5,9,12,18 DVDD3V3 3,5,6,7,9,10,12,13,14,15,17,19,27 Panel_12V 24 AVDD1V0_1 3,5,12,18

D_Fomat0 24 D_Fomat1 24 Bit_SEL 24 LD_EN_SOC 17

GND 3,5,6,7,8,9,10,12,13,14,15,16,17,18,19,20,21,22,23,24,26,27

Panel_12V

D_Fomat0 D_Fomat1

Bit_SEL LD_EN_SOC

HTPDN LOCKN

R3202 0R05 1/16W

R3215 0R05 1/16W R3204 0R05 1/16W R3205 0R05 1/16W

R3207 0R05 1/16W R3216 0R05 1/16W

R3219 0R05 1/16W R3213 100R 1/16W 5% R3214 100R 1/16W 5%

SOC-VB1-TX0n SOC-VB1-TX0p

SOC-VB1-TX1n SOC-VB1-TX1p

SOC-VB1-TX2n SOC-VB1-TX2p

SOC-VB1-TX3n SOC-VB1-TX3p

SOC-VB1-TX4n SOC-VB1-TX4p

SOC-VB1-TX5n SOC-VB1-TX5p

SOC-VB1-TX6n SOC-VB1-TX6p

SOC-VB1-TX7n SOC-VB1-TX7p

CN408

51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10

9 8 7 6 5 4 3 2 1

61

60

59

58

57

56

55

54

53

52

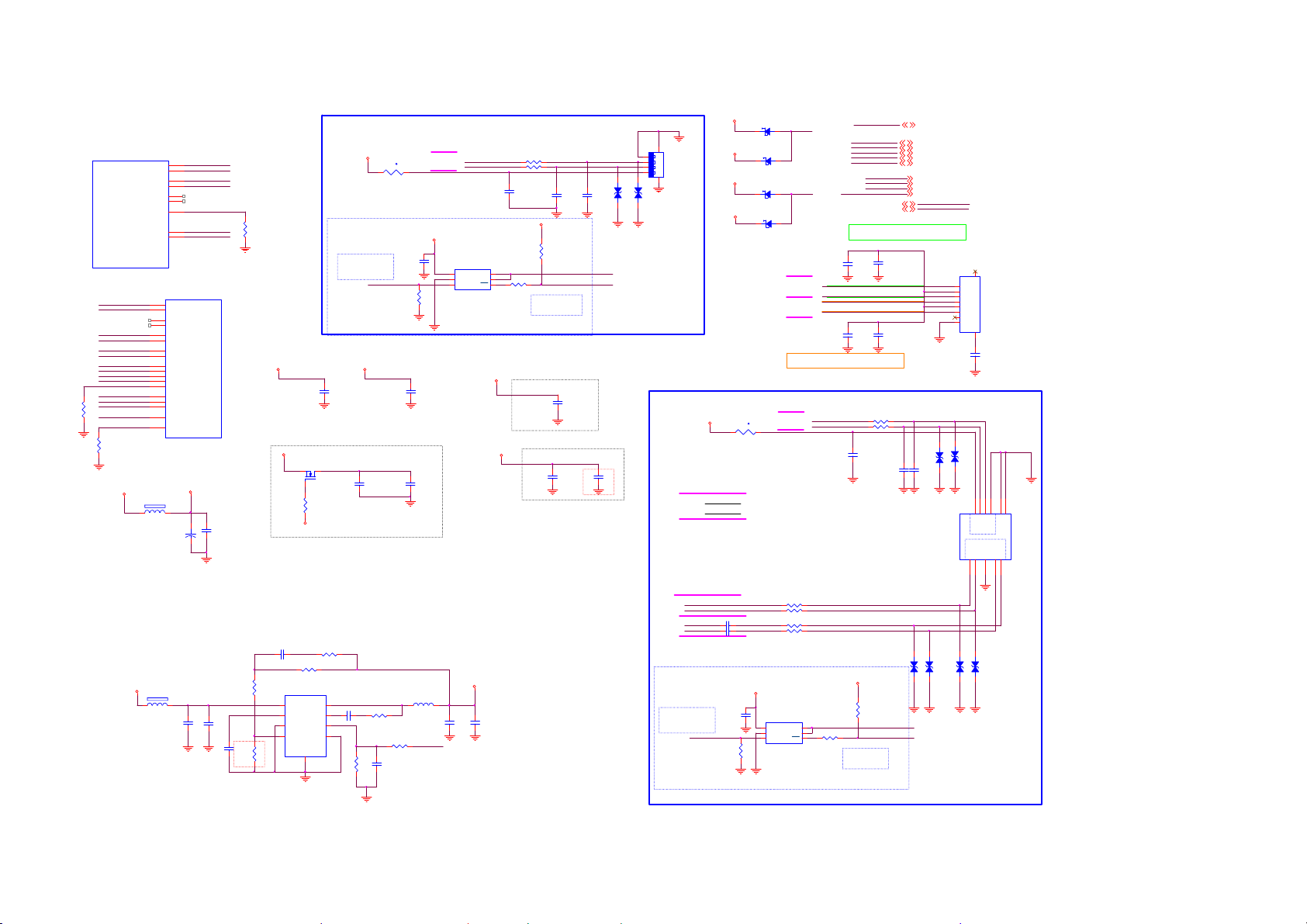

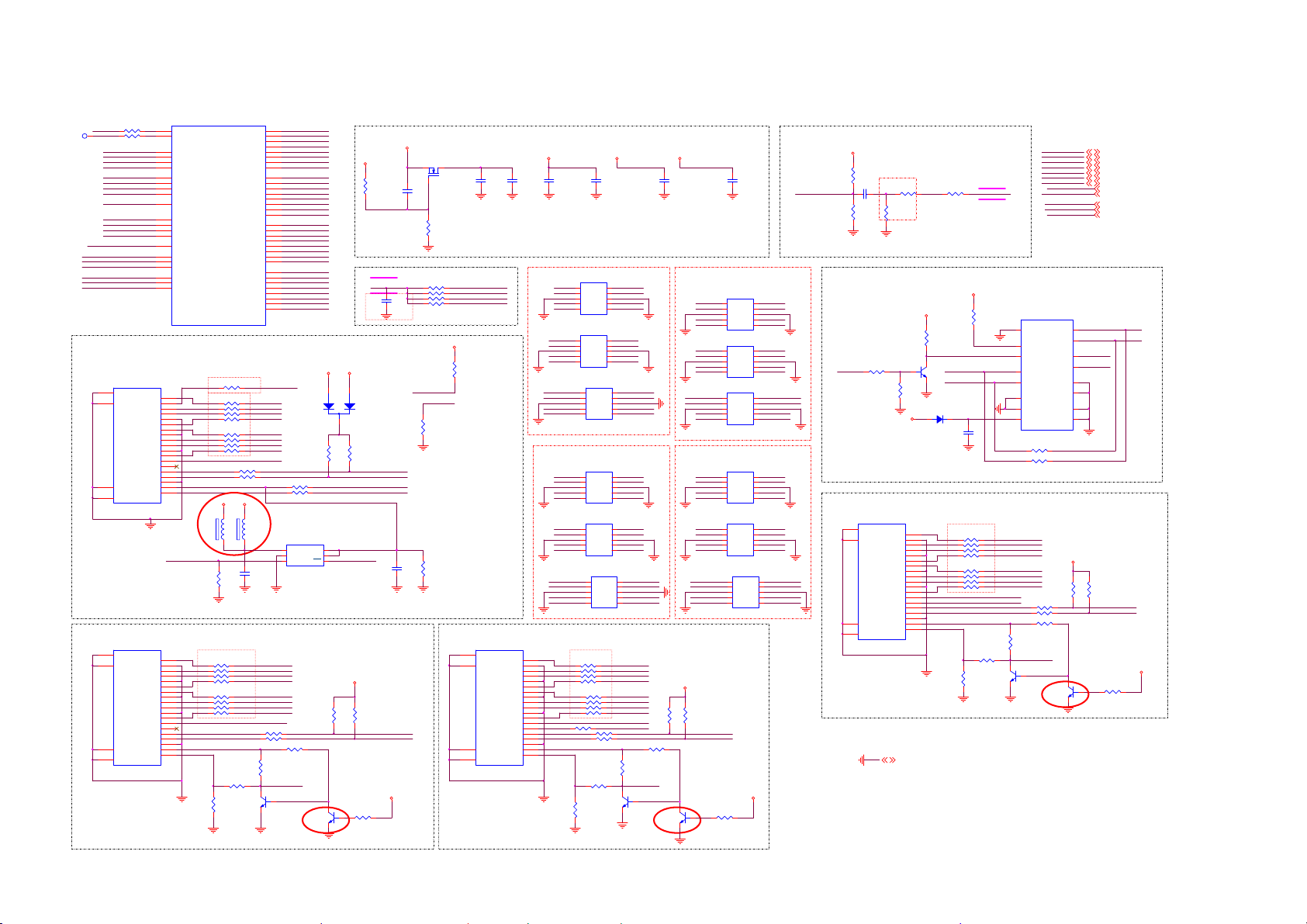

8-4-9 MHL/HDMI Input(5)

R501

100R 1/16W 5%

HDMI_CEC CEC

R517 100R 1/16W 5%

TP106

HDMI_0_SCL HDMI_1_SCL HDMI_2_SCL HDMI_3_SCL

HDMI_0_SDA HDMI_1_SDA HDMI_2_SDA HDMI_3_SDA

HDMI_0_PWR 5V

HDMI_0_HPD _CBUS HDMI_1_HPD HDMI_2_HPD HDMI_3_HPD

MHL_SENSE

AVDD10_HD MI_STB AVDD10_HD MI_STB AVDD10_ECBU S_STB

AVDD33_HD MI AVDD33_HD MI AVDD33_ECBU S_STB

Side HDMI/M HL Po r t 1 ( HDMI 1.4/MHL)

388G340FJ05FAT0001: BPR 1.6mm

CN501

20

SHLD0

22

SHLD2

23

SHLD3

21

SHLD1

HDMI 19P

TMDSD2+

DSHLD0

TMDSD 2-

TMDSD1+

DSHLD1

TMDSD 1-

TMDSD0+

DSHLD2

TMDSD 0-

TMDSC+ CSHLD0 TMDSC-

DDC_GND

VCC5

CEC

NC

SCL

SDA

HPD

U401-6

G19

HDMI_CEC_1

G21

HDMI_CEC_2

E20

HDMI_0_SCL

F22

HDMI_1_SCL

G23

HDMI_2_SCL

F23

HDMI_3_SCL

F20

HDMI_0_SDA

F21

HDMI_1_SDA

E22

HDMI_2_SDA

E24

HDMI_3_SDA

F19

HDMI_0_PWR 5V

E19

HDMI_0_HPD _CBUS

E21

HDMI_1_HPD

E23

HDMI_2_HPD

F24

HDMI_3_HPD

E18

MHL_ SEN SE

B16

AVDD10_HD MI_STB

A16

AVDD10_HD MI_STB

E27

AVDD10_ECBUS_STB

J19

AVDD33_HD MI

J20

AVDD33_HD MI

K24

AVDD33_ECBUS_STB

MT5 596 L

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

MHL_PWR _EN

SCL0 SDA0

OPWR0_5V

FB502

NC/120R 3A

HDMI_0_RX_0

HDMI_0_RX_0B

HDMI_0_RX_1

HDMI_0_RX_1B

HDMI_0_RX_2

HDMI_0_RX_2B

HDMI_0_RX_C

HDMI_0_RX_CB

HDMI_1_RX_0

HDMI_1_RX_0B

HDMI_1_RX_1

HDMI_1_RX_1B

HDMI_1_RX_2

HDMI_1_RX_2B

HDMI_1_RX_C

HDMI_1_RX_CB

HDMI_2_RX_0

HDMI_2_RX_0B

HDMI_2_RX_1

HDMI_2_RX_1B

HDMI_2_RX_2

HDMI_2_RX_2B

HDMI_2_RX_C

HDMI_2_RX_CB

HDMI_3_RX_0

HDMI_3_RX_0B

HDMI_3_RX_1

HDMI_3_RX_1B

HDMI_3_RX_2

HDMI_3_RX_2B

HDMI_3_RX_C

HDMI_3_RX_CB

R519 47R 1/ 16W 5%

R5404.7R R5414.7R R5424.7R R5434.7R

R5444.7R R5454.7R R5464.7R R5474.7R

HDMI_CEC_0

R515 100R 1 / 16W 5% R516 100R 1 / 16W 5%

+5V_SW

+5V_STB

FB501 120R 3A

Modify 11/24

1 2

C509

R512

10UF 10V

300K

A19 B19 D18 C18 A17 B17 D20 C20

A23 B23 D22 C22 A21 B21 D24 C24

C26 D26 C25 D25 A25 B25 A27 B27

A29 B29 C28 D28 C27 D27 C29 D29

MHL_SENSE

RX_0_2 RX_0_2B RX_0_1 RX_0_1B

RX_0_0 RX_0_0B RX_0_C RX_0_CB

R509 22R 1/ 16W 5% R521 4.7R

U501

2 1

G529A1TB1U

RX_0_0 RX_0_0B RX_0_1 RX_0_1B RX_0_2 RX_0_2B RX_0_C RX_0_CB

RX_1_0 RX_1_0B RX_1_1 RX_1_1B RX_1_2 RX_1_2B RX_1_C RX_1_CB

RX_2_0 RX_2_0B RX_2_1 RX_2_1B RX_2_2 RX_2_2B RX_2_C RX_2_CB

RX_3_0 RX_3_0B RX_3_1 RX_3_1B RX_3_2 RX_3_2B RX_3_C RX_3_CB

IN3OUT GND EN

OPWR0_5V

OUT

OC

Side HDMI port 2 (HDMI 2.0 & HDCP 2.2)

CN502

20 22

23 21

HDMI 19P

8/20 modify

SHLD0 SHLD2

SHLD3 SHLD1

TMDSD2+

DSHLD0

TMDSD 2-

TMDSD1+

DSHLD1

TMDSD 1-

TMDSD0+

DSHLD2

TMDSD 0-

TMDSC+ CSHLD0 TMDSC-

DDC_GND

VCC5

1 2 3 4 5 6 7 8 9 10 11 12 13

CEC

14

NC

15

SCL1 HDMI_1_SCL

SCL

16

SDA1

SDA

17 18 19

HPD

R5113

100K 1/16W 5%

R5484. 7R R5494. 7R R5514. 7R R5504. 7R

R5544. 7R R5524. 7R R5564. 7R R5554. 7R

OPWR1_5V

R5112

75R 1/16W 1%

RX_1_0 RX_1_0B RX_1_C RX_1_CB

HDMI_CEC _1

RX_1_2 RX_1_2B RX_1_1 RX_1_1B

R5110 47K

R5111 910R

HDMI_1_HPD

Q5005 MMBT390 4

R8033100R 1/1 6W 5% R8031100R 1/1 6W 5%

47K 1/16W 5%

Q5006

BC847C

388G340FJ05FAT0001: BPR 1.6mm

R8032

1

R513

4 5 6

Analog Power

+5V_SW

CEC

+5V_STB

2

D506

LBAT54CLT1G

3

R514

47K 1/16W 5% 47K 1/16W 5%

HDMI_0_PWR 5V HDMI_0_HPD _CBUS

USB_MHL_OC

OPWR1_5V

R8030 47K 1/16W 5%

R5114 47K

R553 1K 1/16W 5%

HDMI_CEC

C506

6.8PF 50V

HDMI_0_SCL HDMI_0_SDA

HDMI_1_SDA

3V3SB

AVDD3V3

with GND

C510 10UF 10V

Modify by EMI

USB_MHL_OC

AVDD33_HDMI

Q508 AO3414

C502

C501 NC/10N F 50V

R506 100K 1/16W 5%

R505 0R 05 1/ 16W R504 0R 05 1/ 16W R503 0R 05 1/ 16W R8034 0R05 1/16W

MHL_ SEN SE

R522 300K

R511 10K 1/16W 5%

100N 16V

Prevent HDMI leakage from HDMI device.

HDMI_CEC _0 HDMI_CEC _1 HDMI_CEC _2 HDMI_CEC _3

3V3SB

R510 10K 1/16W 5%

AVDD1V0_1

AVDD10_HD MI_STB

C503

C511

100N 16V

Close to connector

RX_0_2 RX_0_2B GND RX_0_1 RX_0_1 RX_0_1B

RX_0_0B GND RX_0_C RX_0_CB

HDMI_CEC _0 SCL0

SDA0 OPWR0_5V

Close to connector

RX_2_2 RX_2_2B GND RX_2_1 RX_2_1B

RX_2_0 RX_2_0B GND RX_2_C

HDMI_CEC _2 SCL2

SDA2 OPWR2_5V

U506

1

CH1

2

CH2

3

VN

4

CH3

CH45NC

NC/TVU1240R 1A U507

1

CH1

2

CH2

3

VN

4

CH3

CH45NC

NC/TVU1240R 1A

U508

1

CH1

2

CH2

3

VN

4

CH3 CH45NC

NC/TVU1240R 1A

U509

1

CH1

2

CH2

3

VN

4

CH3

CH45NC

NC/TVU1240R 1A U510

1

CH1

2

CH2

3

VN

4

CH3

CH45NC

NC/TVU1240R 1A

U511

1 2 3 4

NC/TVU1240R 1A

C504 1uF 10V

NC NC VN NC

NC NC

NC

NC NC

NC

NC NC

NC

CH1 CH2 VN CH3 CH45NC

AVDD1V0_STB

10 9 8 7 6

10 9 8

VN

7 6

10 9 8

VN

7 6

10 9 8

VN

7 6

NC NC VN NC

Side HDMI port 3 (HDMI 2.0 & HDCP 2.2)

CN503

20 22

23 21

SHLD0 SHLD2

SHLD3 SHLD1

HDMI 19P

TMDSD2 +

DSHLD0

TMDSD2-

TMDSD1 +

DSHLD1

TMDSD1-

TMDSD0 +

DSHLD2

TMDSD0-

TMDSC+ CSHLD0

TMDSC -

DDC_GND

VCC5

1 2 3 4 5 6 7 8 9 10 11 12 13

CEC

14

NC

15

SCL

16

SDA

17 18 19

HPD

R5574.7R R5584.7R R5594.7R R5604.7R

R5614.7R R5624.7R R5634.7R R5734.7R

R568 0R05 1/10W

SCL2 HDMI_SCL2/ RX

R538 100R 1/16W 5%

SDA2

R539 100R 1/16W 5%

OPWR2_5V

R502

75R 1/16W 1%

R507

100K 1/16W 5%

AVDD10_ECBUS_STB

RX_0_2 RX_0_2B

RX_0_1B

RX_0_0RX_0_0 RX_0_0B

RX_0_C RX_0_CB

HDMI_CEC_0 SCL0

SDA0

OPWR0_5V

RX_2_2 RX_2_2B

RX_2_1 RX_2_1B

RX_2_0 RX_2_0B

RX_2_C RX_2_CBRX_2_CB

10

HDMI_CEC_2

9

SCL2

8 7

SDA2

6

OPWR2_5V

RX_2_2 RX_2_2B RX_2_1 RX_2_1B

RX_2_0 RX_2_0B RX_2_C RX_2_CB

HDMI_CEC_2 UART_SEL

R5118 47K

R5119 910R

HDMI_2_HPD

Q5001 MMBT3904

3V3SB

AVDD33_ECBUS_STB

C512 10UF

Close to connector

RX_3_2 RX_3_2B GND RX_3_1 RX_3_1B

RX_3_0 RX_3_0B GND RX_3_C RX_3_CB

HDMI_CEC _3

SCL3 SDA3

OPWR3_5V

Close to connector

RX_1_2 RX_1_2B GND RX_1_1 RX_1_1B

RX_1_0 RX_1_0B GND RX_1_C

HDMI_CEC_1 SCL1

SDA1 OPWR1_5V

OPWR2_5V

R537

R536

47K 1/16W 5% 47K 1/16W 5%

HDMI_SDA2/TX

Q5002

BC847C

U512

1

CH1

2

CH2

3

VN

4

CH3 CH45NC

NC/TVU1240R 1A U513

1

CH1

2

CH2

3

VN

4

CH3 CH45NC

NC/TVU1240R 1A U514

1

CH1

2

CH2

3

VN

4

CH3 CH45NC

NC/TVU1240R 1A

U516

1

CH1

2

CH2

3

VN

4

CH3

CH45NC

NC/TVU1240R 1A U517

1

CH1

2

CH2

3

VN

4

CH3

CH45NC

NC/TVU1240R 1A

U518

1 2 3 4

NC/TVU1240R 1A

R5104

47K

C513 100N 16V

CH1 CH2 VN CH3 CH45NC

3V3SB

Audio Retu rn Ch an nel (ARC)

ARC_HDMI

R577

47K 1/16W 5%



R579

47K 1/16W 5%

DVDD3V3

HDMI Pin-14 for Factory WB & debug

10

RX_3_2

NC

9

RX_3_2B

NC

8

VN

7

RX_3_1

NC

6

RX_3_1B

10

RX_3_0

NC

9

RX_3_0B

NC

8

VN

7

RX_3_C

NC

6

RX_3_CB

10

HDMI_CEC_3

NC

9

SCL3

NC

8

VN

7

SDA3

NC

6

OPWR3_5V

10

RX_1_2

NC

9

RX_1_2B

NC

8

VN

7

RX_1_1

NC

6

RX_1_1B

10

RX_1_0

NC

9

RX_1_0B

NC

8

VN

7

RX_1_C

NC

6

RX_1_CBRX_1_CB

10

HDMI_CEC _1

NC

9

SCL1

NC

8

VN

7

SDA1

NC

6

OPWR1_5V

UART_SEL

Side HDMI port 4 ( ARC / HDMI 2.0 & HDCP 2.2)

CN504

20

SHLD0

22

SHLD2

23

SHLD3

21

SHLD1

HDMI 19P

from Scaler ARC

C505

180ohm 1/16W +/- 5%

1uF 10V

R530

Modify by SAC Ben

R529

82R

+5V_STB

R569

R570

NC/60.4K 1%

NC/40. 2K 1/ 16 W 1%

+5V_STB

NC/BAS316W S

1

TMDSD2+

2

DSHLD0

3

TMDSD2 -

4

TMDSD1+

5

DSHLD1

6

TMDSD1 -

7

TMDSD0+

8

DSHLD2

9

TMDSD0 -

10

TMDSC +

11

CSHLD0

12

TMDSC-

13

CEC

14

NC

15

SCL

16

SDA

17

DDC_GND

18

VCC5

19

HPD

GND 3,5, 6,7,8,9, 10,11,13, 14,15,16,17, 18,19,20, 21,22,23,2 4,26,27

R531

0R05 1/16W

R571 NC/10K 1/16W 5%

Q514

NC/MM BT3904

HDMI_SCL2/RX HDMI_SDA2/TX

D508

C408 NC/100N 16V

кで皌



with GND

+5V_STB

R572 NC/10K 1/16W 5%

S0

90

R5744. 7R R5784. 7R R5804. 7R R5814. 7R

R5824. 7R R5834. 7R R5844. 7R R5854. 7R

HDMI_CEC_3 ARC_H DMI SCL3

OPWR3_5V

R5107

75R 1/16W 1%

R5108

100K 1/16W 5%

ARC

S1

稼﹊

100R 1/16W 5% 100R 1/16W 5%

+5V_STB +5V_SW 3V3SB AVDD3V3 DVDD3V3 AVDD1V0_STB AVDD1V0_1

ARC

U515

6

/E

9

S1

10

S0

3

2Z

13

1Z

8

GND

7

VEE

16

VCC

NC/74H C4052PW

R575 0R 05 1/ 16W R576 0R 05 1/ 16W

RX_3_2 RX_3_2B RX_3_1 RX_3_1B

RX_3_0 RX_3_0B RX_3_C RX_3_CB

R5105 47K

R5106 910R

HDMI_3_HPD

Q5003 MMBT3904

MHL_PWR_EN

U0TX U0RX

USB_MHL_OC

2Y3 1Y3

2Y2 1Y2

2Y1 1Y1

2Y0 1Y0

OPWR3_5V

R566 R567

Q5004

BC847C

+5V_STB 3,5,9 +5V_SW 3, 5,9,13,15, 18,20,27 3V3SB 3,5,6,9, 10,16,17, 18,27 AVDD3V3 5,9,11, 18 DVDD3V3 3,5,6,7, 9,10,13, 14,15,17,19 ,27 AVDD1V0_STB 5,6,18 AVDD1V0_1 3,5,11,18 MHL_PWR_EN 17 ARC 9

U0TX 6,27

U0RX 6,27

USB_MHL_OC 17

4

HDMI_2_SCL

11

HDMI_2_SDA

2

U0RX

15

U0TX

5 14

1 12

R565

R564

47K 1/16W 5% 47K 1/16W 5%

HDMI_3_SCL

HDMI_3_SDASDA3

3V3SB

R5109

47K

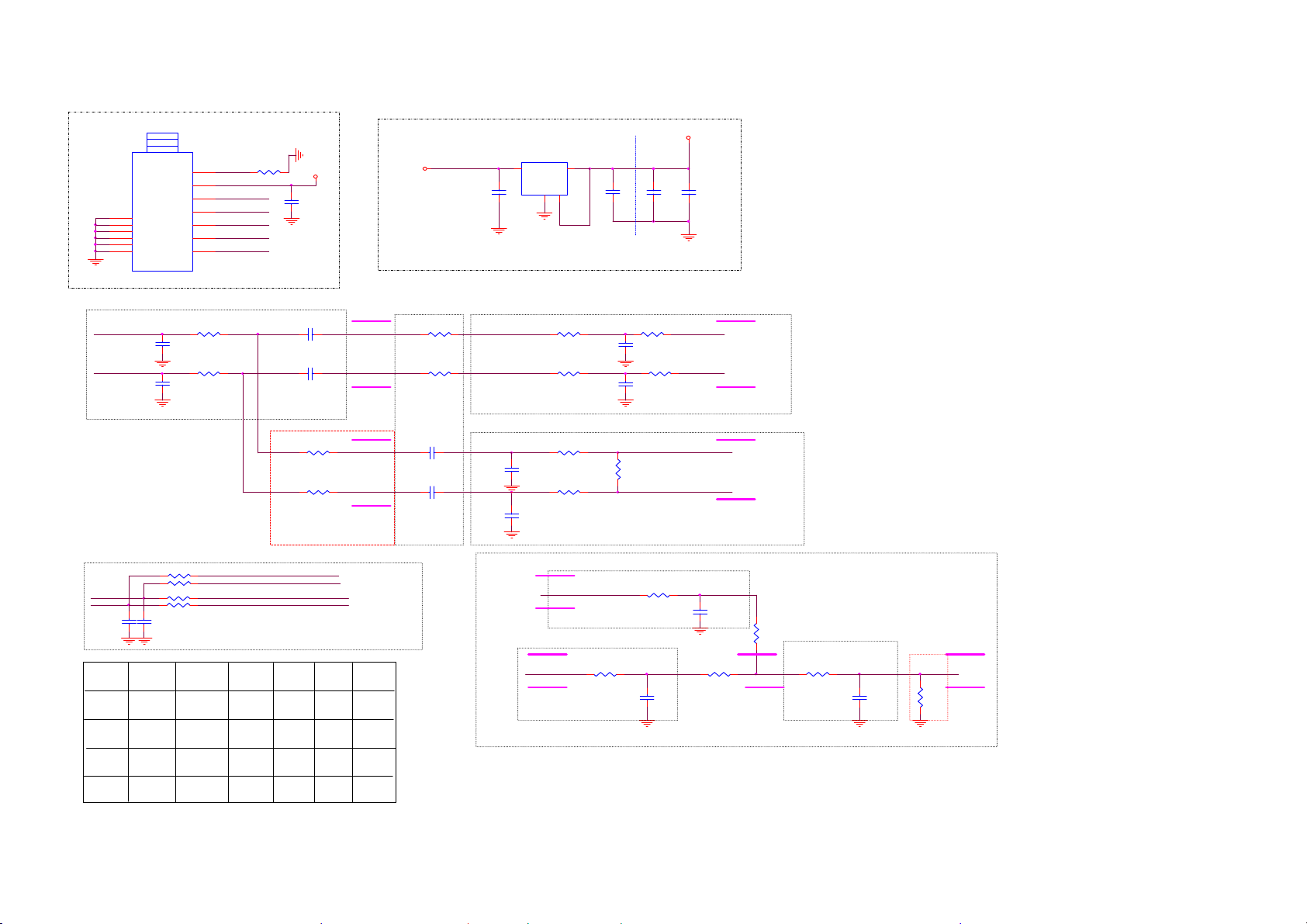

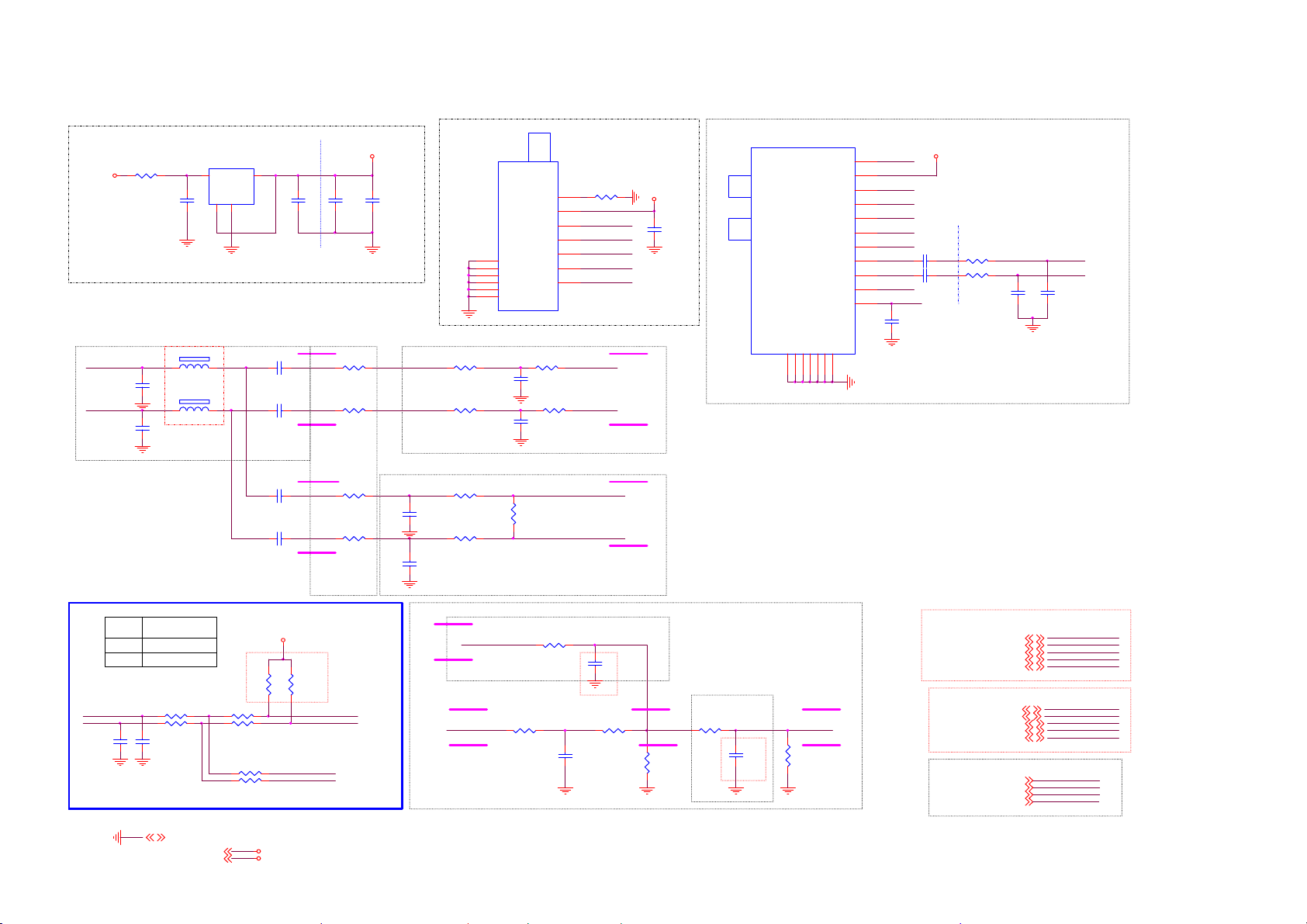

8-4-10 Tuner

+5V_SW TO TUNER3.3V

(Near Tuner)

+5V_SW

R102

0R051/8W

Close to MT5561

IFOUT1P

C106

IFOUT1N

22P 50V

C107 22P 50V

Close to Tuner

C102 1UF 10% 16V

1 2

FB101 120R

1 2

FB102 120R

3

U102 G960T63Uf

VIN

4

T2

TU101

8

TH1

9

TH2

10

TH3

11

TH4

12

TH5

13

TH6

NC/SUT-RE231ZN

Ant.PWR

+B1(3.3V)

VOUT

GND14

2

0.25A 20mil

C103

10UF 6.3V 20%

Close to tuner Pin

TUNER3.3V

C104 1UF 10% 16V

C105

100N 16V

Close to SONY DEMOD

C115 1uF 10V

C118 1uF 10V R192 47R 1/16W 5%

R116 0R05 1/16W

R188 0R05 1/16W

All Path Grounding(20mil)

Close to MT5593

C138

1uF 10V C140

1uF 10V

R193

0R05 1/16W

R196

0R05 1/16W

debug

ノ

Close to Tuner

R189 47R 1/ 16W 5%

R191 47R 1/ 16W 5%

R194

0R05 1/16W

C141 22P 50V

R197

0R05 1/16W

C142 22P 50V

C114

22P 50V

C1014

22P 50V

AIF/ TC IF

R195

NC/ 150R 1/ 16W 1%

0R05 1/16W

1 2 3

SDA

4

SCL

5

DIF_(N) DIF_(P) IF AGC

IFOUT1N

6

IFOUT1P

7

IFAGC

T2 DIF

R190 47R 1/16W 5%

ADCINP_DEMOD

ADCINN_DEMOD

R154

ANT_5V

T_SDA T_SCL

T2_IF_P

All Path Grounding(20mil)

T2_IF_N

All Path Grounding(20mil)

TUNER3.3V

C139

100N 16V

TU102

T2/S2

18

ANT_5V/GND

VCC SDA

SCL

IF_N

IF_P

AGC_T

IOUT

QOUT

AGC_S

LNB_IN

TH112TH213TH314TH415TH516TH617TH7

1 2 3 4 5 6 7 8 9 10 11

SUT-PE231AN

ANT_5V

T_SDA

T_SCL IFOUT1N IFOUT1P IFAGC PIN8

C8064 1uF 10V C8065 1uF 10V

AGC_S

TUNER_LNB

C8066 1N 50V

TUNER3.3V

CO-LAY with TU 102

Close to CXD2842

R1097 R1098

47 OHM 1/16W 47 OHM 1/16W

S2 Silicon Tuner

C1071

22pF 50V

C1072

IOUTP QOUTP

22pF 50V

I2C

T2/S2 T/C

To Tuner

T_SCL T_SDA

R449, R450, R160, R159

SMT

DVDD3V3

NC

R160

3.3K 1/ 16W

R162 R165

C154

C155

100R 1/16W 5%

22P 50V

100R 1/16W 5%

GND 3,5,6,7,8,9,10,11,12,14,15,16,17,18,19,20,21,22,23,24,26,27

R449 R450

0R05 1/16W 0R05 1/16W

R1089 R1090

NC/0R05 1/16W NC/0R05 1/16W

DVDD3V33,5,6,7,9,10,12,14,15,17,19,27 +5V_SW3,5,9,12,15,18,20,27

DVDD3V3 +5V_SW

R159

3.3K 1/ 16W

From Demod

T2S2_TUNER_SCL T2S2_TUNER_SDA

From SoC

OSCL2 OSDA2

AGC C ontrol

with GND

Close to Demod.

T2_IF_AGC_TUNER

with GND

IF_AGC_5593

R185 10K +-1% 1/16W

Close to MT5593

R103 10K +-1% 1/16W

R110 0R05 1/16W

C116 22N 25V

C146 22N 25V

with GND

R105 22K 1/16W

Close to Tuner

R111

1K 1/16W 5%

C117

4N7 50V

IFAGC

R186

NC/10K +-1% 1/ 16W

To SOC Interface

IF_AGC_55939 ADCINP_DEMOD9 ADCINN_DEMOD9

OSCL29,14 OSDA29,14

To DEMODE Interface

T2S2_TUNER_SCL14 T2S2_TUNER_SDA14

T2_IF_AGC_TUNER14

T2_I F_P14 T2_I F_N14

S2 Interface

IOUTP14 QOUTP14 AGC_S14 TUNER_LNB14

IF_AGC_5593

ADCINP_DEMOD

ADCINN_DEMOD

OSCL2

OSDA2

T2S2_TUNER_SCL T2S2_TUNER_SDA

T2_IF_AGC_TUNER

T2_IF_P T2_IF_N

IOUTP QOUTP AGC_S TUNER_LNB

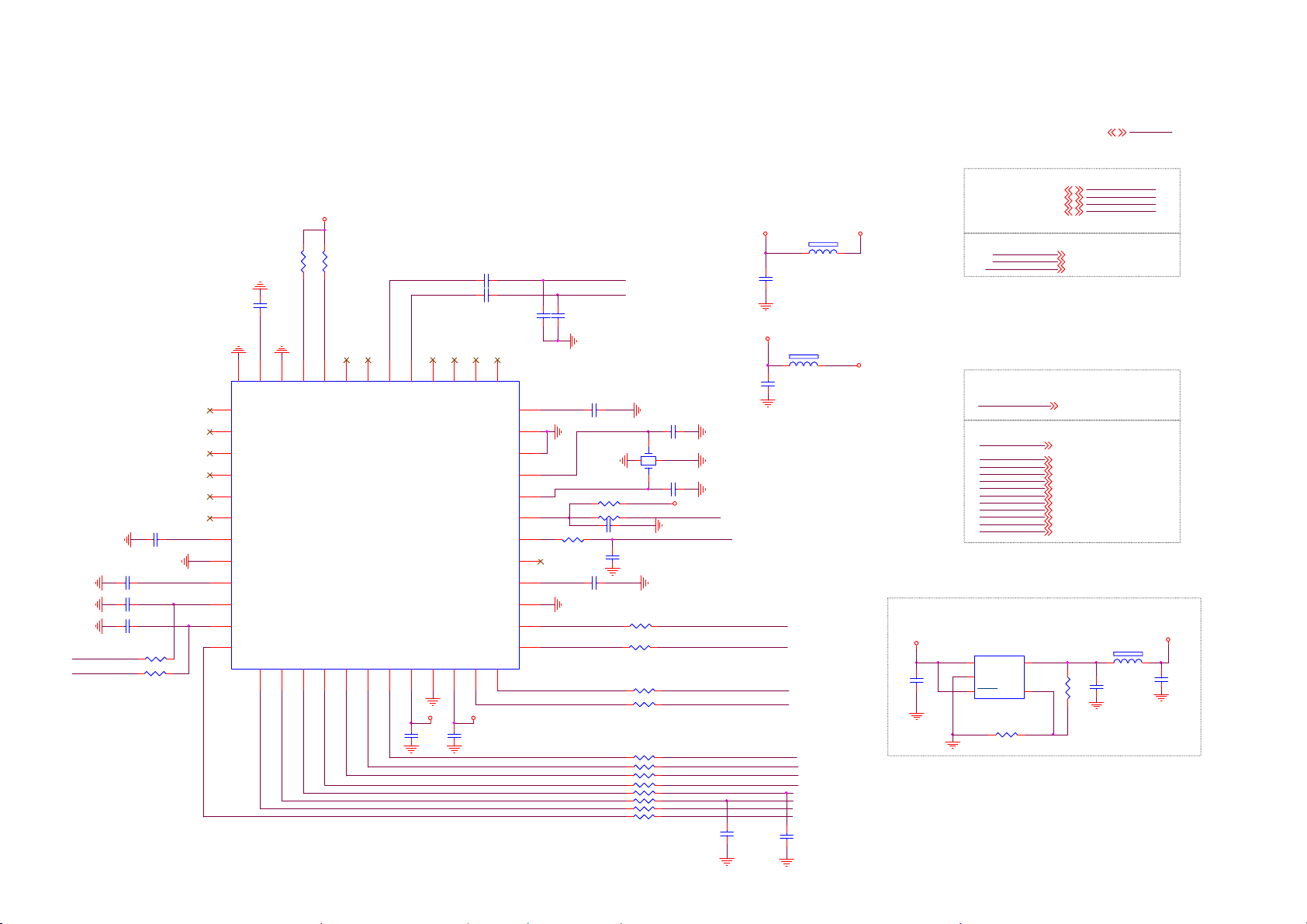

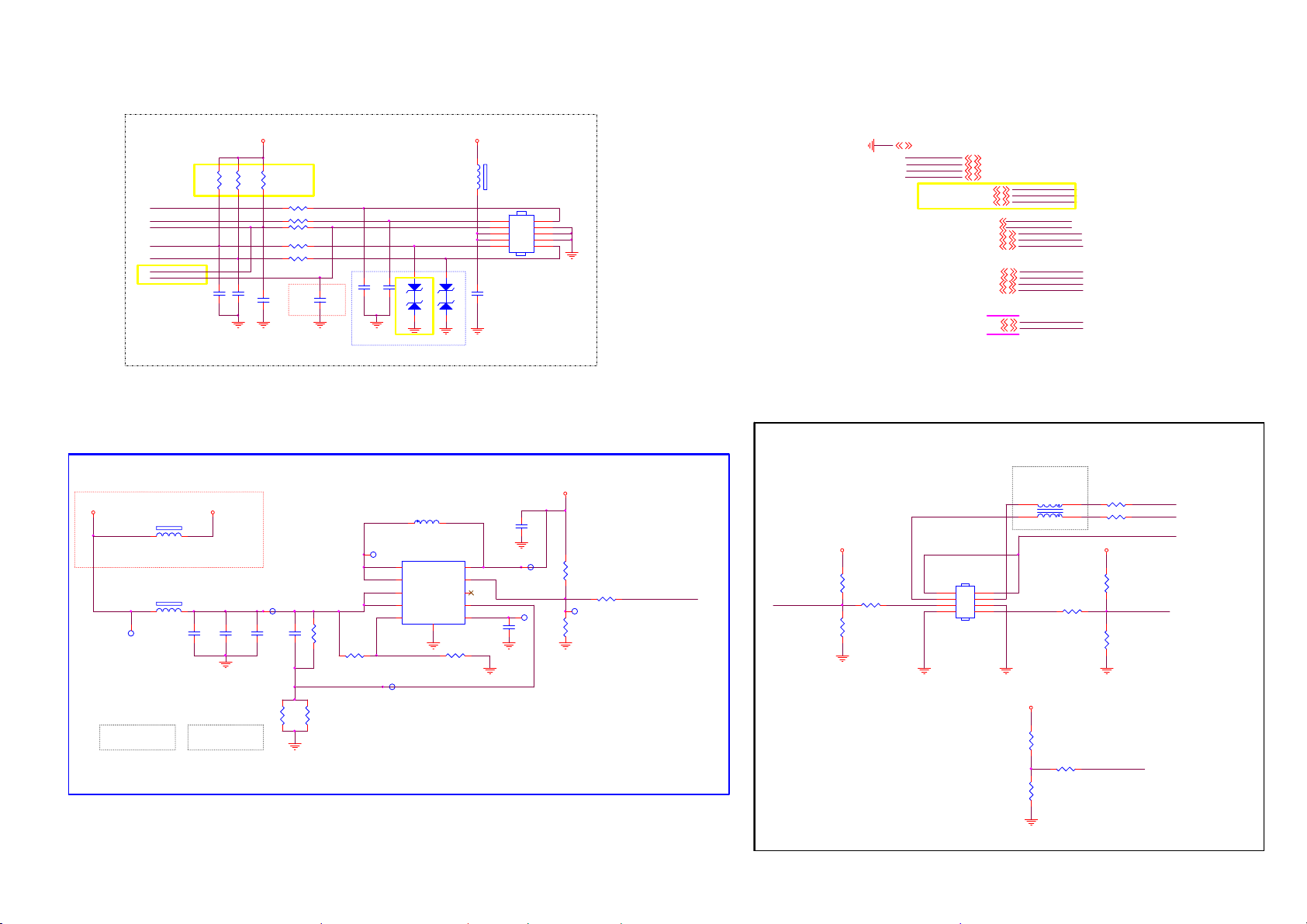

8-4-11 SONY DEMOD

SONY DEMOD

SLVADR3

SLVADR0 (PIN

25)

0ohm(H)

NM(L)

SlaveAddres

(PIN30

(Write)

)

NM(H)

0ohm(L)

NM(H)

0ohm(L)

*All bypass capacitors should be right close t o CXD2837/2839

0xD8

0xC8

0xDA

0xCA

TAINP and TAINM can be connected to IF input(-) and IF input(+) respectively

T2_IF_P T2_IF_N

13/18V_SW T2_IF_AGC_TUNER

LNB_EN

SlaveAddres (Read)

0xD9

0xC9

0xDB

0xCB

R174 0R 05 1/ 16W R175 0R 05 1/ 16W

T2S2_TUNER_SDA T2S2_TUNER_SCL

This shcem atic as sumes that customer will not use the RFAGC monitoring functi on, so RFAIN(41pi n) is connected to GND. Please mak e sure that y ou have to connect the pin to a module/LSI you us e when you us e the RFAGC monitoring functi on.

T2_FEAINP T2_FEAINN

C163

C165

R183 3. 3K 1/ 16W

R1080

0R05 1/16W

100N 16V

C1302

41.0MHz

C1303

15PF 50V

37 38 39 40 41 42 43 44 45 46 47 48

49

Core

1

X10 1

3

TAIN P TAIN M AVSS TESTMODE RFAIN AVDD VSS CVDD TTUSD A TTUSC L GPIO1 TIF AGC

PAD

DEMOD_RST

R168

24

36

35

XVSS

GPIO01GPIO22TSSYNC

499 OHM +-1% 1/16W

R169

C160

100N 16V

33

34

XVDD

XTALI

XTALO

TSVALID4TSCLK

3

S_DEMOD_GPIO2

IOUTP

QOUTP

31

32

SQAIN

5

6

R8049

0R05 1/16W

R173

0R05 1/16W

28

30

29

SIAIN

CVDD

RST_X

SLVADR3

C166 100N 16V

R1091 NC/ 22 OH M 1/16W R1092 0R05 1/16W

10K 1/16W 5%

C161100N 16V

27

VSS

C167 100N 16V

R171

0R05 1/16W

26

SAGC

R172

10K 1/16W 5%

25

SLVADR0

TSDATA212VSS11CVDD10TSDATA19TSDATA08DVDD7VSS

C8067

100N 16V

ESD

CVDD_1V1

Core

U101 CXD2844ER

24

DSQIN

23

DSQOUT

22

CVDD

21

SDA

20

SCL

19

DVDD

18

VSS

17

TSDA TA7

16

TSDA TA6

15

TSDA TA5

14

TSDA TA4

13

TSDA TA3

Core

S_TSD ATA0 S_TSCLK

S_DEMOD_TSSYNC

R1068

10K 1/16W 5%

C162 100N 16V

C164 100N 16V

R1307 47R 1/16W 5% R1308 47R 1/16W 5% R1309 47R 1/16W 5% R1310 47R 1/16W 5%

DMD_TSERR

LNB_LINED ROP

AGC_S

C1301

2.2nF 50V

FB105

120R 3A

1 2

R1031 0R05 1/ 16W

0R05 1/16W

R1087 R1088

DISEQC_OUT

0R05 1/16W 0R05 1/16W

R1084

T/C

Parts

R171 R1068 10K C1301

R1084 R1031 0ohm

DVDD3V3

R1086

R1085

3.3K 1/16W

OSDA2 OSCL2

R1087 R1088

SMTT2/S2

NC

DEMOD_TSDATA0

DEMOD_TSCLK

DEMOD_TSVALS_DEMOD_TSVALID DEMOD_TSSYNC

T2 CXD2837

0ohm

NC NC

R1089 R1090

NC

SMT

T2+S2

CXD2844

NC

2.2nF 0ohm

Tuner to Demod.

T2_I F_P13 T2_I F_N13 T2S2_TUNER_SCL13 T2S2_TUNER_SDA13

AGC_S13

Scaler to Demod.

OSCL2 OSDA2

T2_IF_AGC_TUNER

LMB to Scaler

TUN_LN B17

LNB to S2 Tuner

TUNER_LNB13

S2 Interface

QOUTP13

IOUTP13

LNB control

DMD_TSERR

Scaler to Demod.

DEMOD_RST DEMOD_TSCLK

DEMOD_TSVAL DEMOD_TSSYNC

DEMOD_TSDATA0

+12V_LNB

GND 3,5, 6,7,8,9,10,11,12, 13,15,16,17,18,19,20, 21,22,23,24,26,27

Vout=1.0(1+R1/R2)_SPEC 600mA

CVDD SPEC 451mA

C703

1uF 10V

DVDD3V3

U4252

1

IN

OUT

2

GND SHDN3SET

G9141T11U

R8052 10K +-1% 1/16W

OSCL2 9,13 OSDA2 9,13 T2_IF_AGC_TUNER 13

DMD_TSERR 17

DEMOD_RST 17 DEMOD_TSCLK 17

DEMOD_TSVAL 17 DEMOD_TSSYNC 17

DEMOD_TSDATA0 17

+12V_LNB 24

5

4

T2S2_TUNER_SCL

T2S2_TUNER_SDA

AGC_S

TUNER_LNB

QOUTP IOUTP

CVDD_1V1

R8053

1K 1/16W 1%

T2_IF_P T2_I F_N

TUN_LNB

C8070 10UF 6.3V 20%

DVDD3V3

R718 10K 1/16W 5%

LNB_EN

R719 NC/100K 1/ 16W 5%

LNB_EN: Low: disable Hig h: enable MP8124 Enable Selecti on

LNB POWER SUPPLY

DVDD3V3

R720 10K 1/16W 5%

LNB_LINED ROP

R721 NC/100K 1/ 16W 5%

LINEDROP: Low: 13.3/18.3V Hig h: 14.3/19.3V Compensati on Selecti on

DVDD3V3

R774 10K 1/16W 5%

R7775 NC/100K 1/ 16W 5%

13/18V_SW

13/18V_SW: Hig h: 18V Low: 13V

C253

3.3NF 50V

+12V_LNB

R227

60.4K 1%

LNB_EN LNB_LINEDROP

13/18V_SW

C250

100NF 25V

C249 220NF 16V

+12V_LNB

R223

NC/100K 1/ 16W 5%

R214

8 11 12 10

2

1

NC/100K 1/ 16W 5%

L201 10uH

C298 10UF 16V

U202

AGND

PGND BYPASS VDD COMP

VBOOST EN LINEDROP

13V/18V14EXTM

MP8124GD Z

VOUT TCAP

SW BST

D4013

1 2

FB340M

4 3 5

C248 100NF 25V

6 7

9

C245 22N 25V

13

R224

R213

33 OHM 1/16W

100K 1%

C243

10uF 35V

DISEQC_OUT

C240

10uF 35V

C297

100NF 25V

C244

10uF 35V

1 2

D504

ESD & Surge

FB340M

Protect

ZD201

D503

NC/PJSD24CW

FB340M

1 2

R216

2.2K 1/4W

R217

2.2K 1/4W

TUNER_LNB

ZD202

R221

NC/PJSD24CW

33K 1%

R225

5.1K 1%

ZD203

1 2

TUN_LNB

NC/PJ SD24CW

1 2

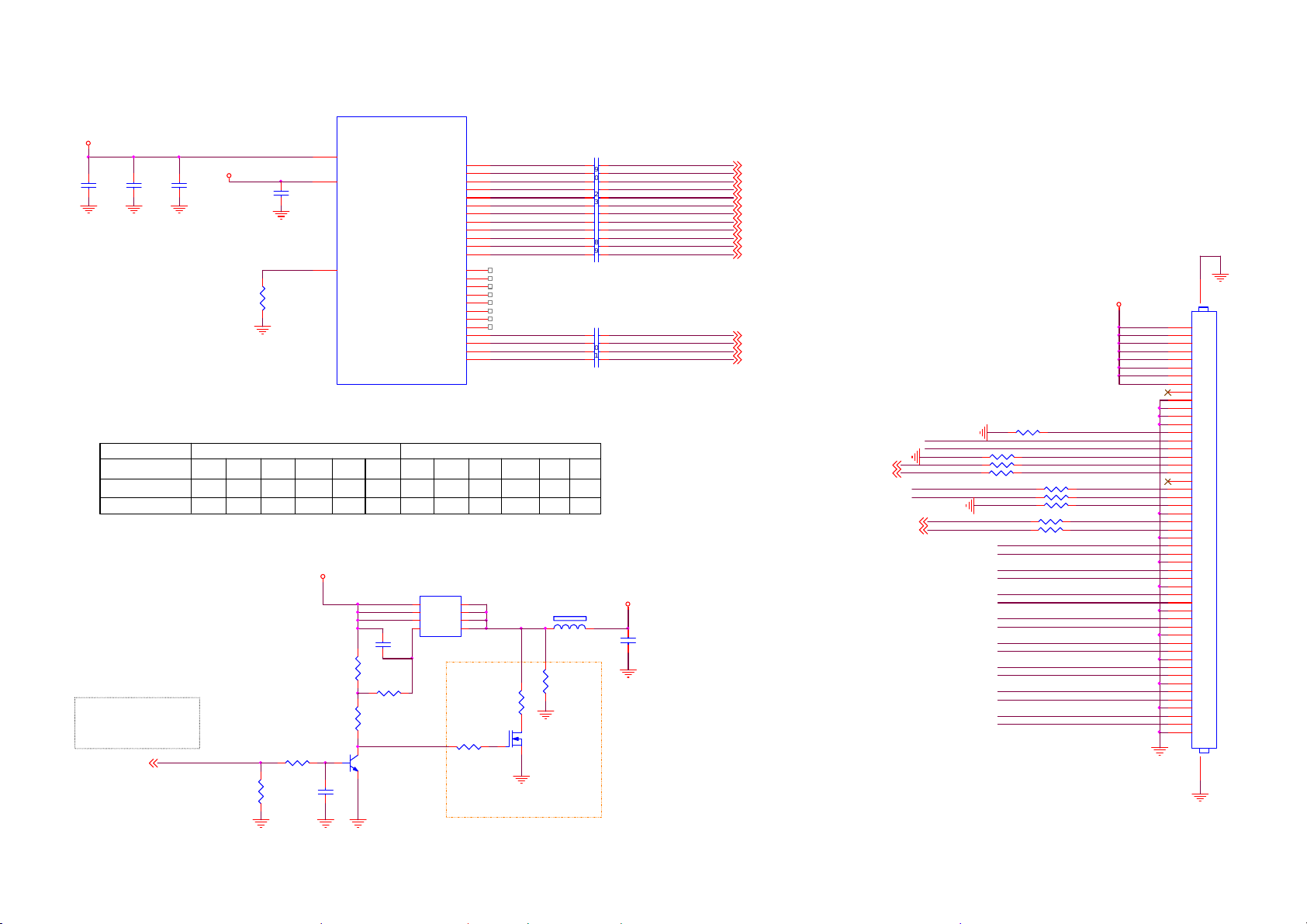

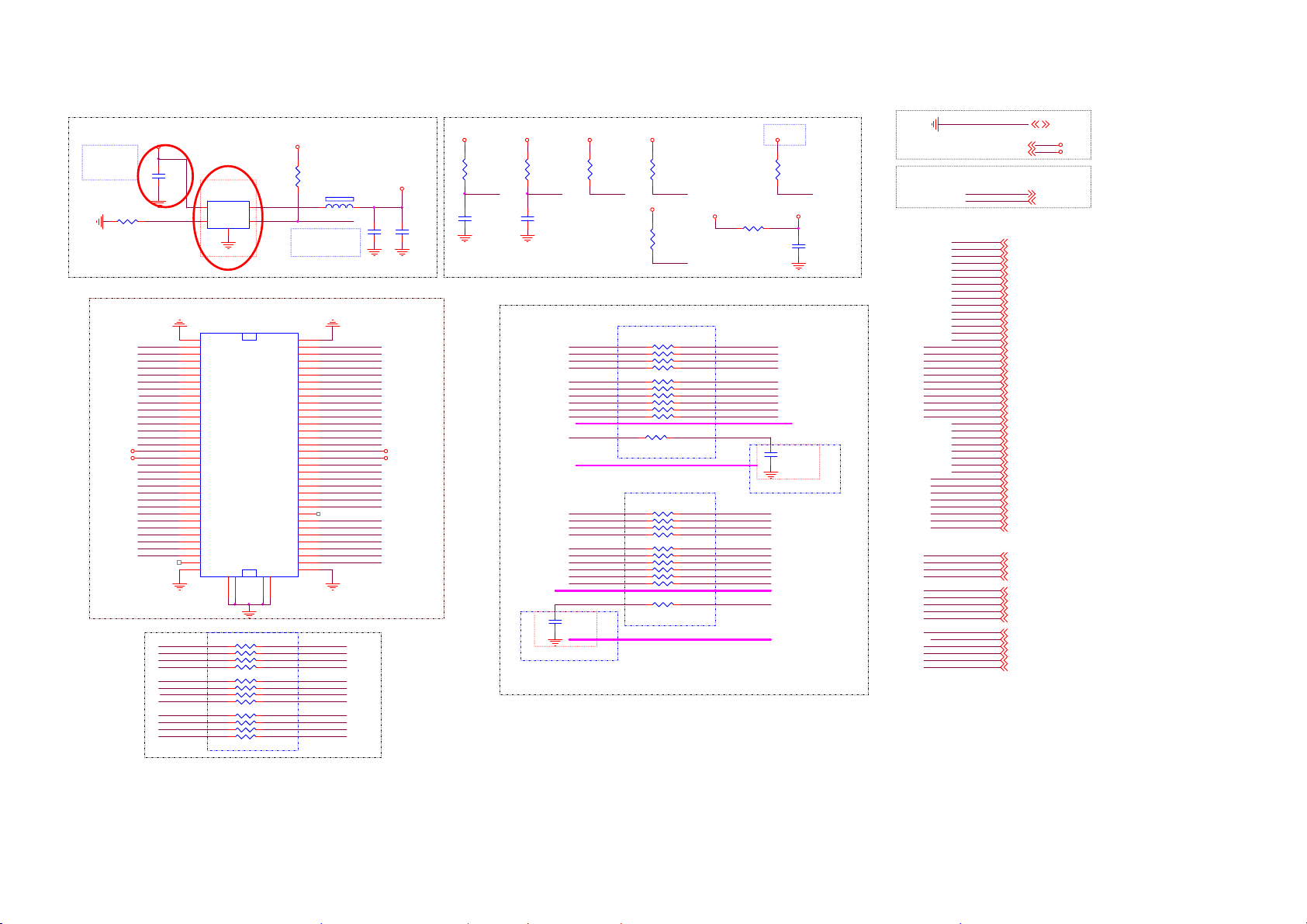

8-4-12 Internal CI

CI_PW R_E N H:EN L: OFF

CI2_VCC CI2_VCC

R1195

+5V_SW

CI_PWR_EN

4.7K1/16W

CI_D3 CI_D4 CI_D5 CI_D6 CI_D7 CI_CE1# CI_A10 CI_OE# CI_A11 CI_A9 CI_A8 CI_A13 CI_A14 CI_WE# CI_IREQ#

CI_MIVAL_R CI_MCLKI_R

CI_A12 CI_A7 CI_A6 CI_A5 CI_A4 CI_A3 CI_A2 CI_A1 CI_A0 CI_D0 CI_D1 CI_D2

C173

1UF 10V

CI_CD1# CI_CD2# CI_IORD# CI_IOWR#

CI_REG# CI_CE1# CI_OE# CI_WE#

CI_IREQ# CI_WAIT# CI_VS1# CI_RESET

U711

5

IN

4

EN

2

G524D3T11U

CN159

1

GND

2

D3

3

D4

4

D5

5

D6

6

D7

7

CE1#

8

A10

9

OE#

10

A11

11

A9

12

A8

13

A13

14

A14

15

WE#

16

READY#:IREQ#

17

VCC

18

VPP1

19

A16

20

A15

21

A12

22

A7

23

A6

24

A5

25

A4

26

A3

27

A2

28

A1

29

A0

30

D0

31

D1

32

D2

33

WP#

34

GND

PCMICA CARD

R1141 0R0 5 1/1 6W R1142 0R0 5 1/1 6W R1143 0R0 5 1/1 6W R1144 0R0 5 1/1 6W

R1145 0R0 5 1/1 6W R1146 0R0 5 1/1 6W R1147 0R0 5 1/1 6W R1148 0R0 5 1/1 6W

R1149 0R0 5 1/1 6W R1150 0R0 5 1/1 6W R1151 0R0 5 1/1 6W R1152 0R0 5 1/1 6W

Closed to CI SLOT

1

VOUT

3

FLG

GND

CI Slot

PCMCIA

BVD2#:SPKR

BVD1#:STSCHG

69697070717172

CI_DVDD3V3

GND

CD1#

D11 D12 D13 D14 D15

CE2#

VS1#

IORD#

IOWR#

A17 A18 A19 A20 A21

VCC

VPP2

A22 A23 A24 A25

VS2#

RESET

WAIT#

INPACK

REG#

D8 D9

D10

CD2#

GND

72

R1196 10K 1/16W 5%

FB106

220R/2000mA

1 2

CI_PWR_OC

HI = > NORMAL LO=> OC

35 36

CI_CD1#

37

CI_MDO3_R

38

CI_MDO4_R

39

CI_MDO5_R

40

CI_MDO6_R

41

CI_MDO7_R

42

CI_CE2#

43

CI_VS1#

44

CI_IORD#

45

CI_IOWR#

46

CI_MISTRT_R

47

CI_MDI0_R

48

CI_MDI1_R

49

CI_MDI2_R

50

CI_MDI3_R

51 52 53

CI_MDI4_R

54

CI_MDI5_R

55

CI_MDI6_R

56

CI_MDI7_R

57

CI_MCLKO_R

58

CI_RESET

59

CI_WAIT#

60 61

CI_REG#

62

CI_MOVAL_R

63

CI_MOSTRT_R

64

CI_MDO0_R

65

CI_MDO1_R

66

CI_MDO2_R

67

CI_CD2#

68

SPI_CLK SPI_CLK1 SPI_DATA SPI_CLE

CI_INT CI_TSCLK CI_TSVAL CI_TSSYNC

PVR_TSDATA0 PVR_TSDATA1 PVR_TSVAL CI_RST

C172

10UF 10V

CI2_VCC

C186

10UF 10V

CI2_VCC CI2_VCC

CI_DVDD3V3

R1187

10K 1/16W 5%

C169

100N 16V

Closed t o CI Conn ect o r

CI_DVDD3V3 CI2_VCCCI_DVDD3V3

R1188

10K 1/16W 5%

CI_CD2#

C170

100N 16V

R1189

10K 1/16W 5%

CI_VS1#

CI_MDI5 CI_MDI4 CI_MIVAL CI_MDI3

CI_MISTRT CI_MDI0 CI_MDI1 CI_MDI2 CI_MDI6 CI_MDI7

with GND

PVR_TSCLK CI_TSDATA0 CI_MDO0 CI_MDO1

CI_MDO2 CI_MDO3 CI_MDO4 CI_MDO5 CI_MDO6 CI_MDO7

PVR_TSSYNC

Modify by EMI

C188 10PF 50V

Close d to Main Chip

R1190

10K 1/16W 5%

CI_WAIT#CI_CD1#

R1163

R1153 R1154 R1155 R1156

R1157 R1158 R1159 R1160 R1161 R1162

CI2_VCC

R1193

10K 1/16W 5%

CI_IREQ#

47R 1/16W 5 % 47R 1/16W 5 % 47R 1/16W 5 % 47R 1/16W 5 %

47R 1/16W 5 % 47R 1/16W 5 % 47R 1/16W 5 % 47R 1/16W 5 % 47R 1/16W 5 % 47R 1/16W 5 %

47R 1/16W 5%

DVDD3V3

Close d to Main Chip

R1164 47R 1/16W 5% R1165 47R 1/16W 5% R1166 47R 1/16W 5% R1167 47R 1/16W 5%

R1168 47R 1/16W 5% R1169 47R 1/16W 5% R1170 47R 1/16W 5% R1171 47R 1/16W 5% R1172 47R 1/16W 5% R1173 47R 1/16W 5%

R1174 47R 1/16W 5%

Close d to CI SLOT

R1194

0R05 1/10 W

CI_MDI5_R CI_MDI4_R CI_MIVAL_R CI_MDI3_R

CI_MISTRT_R CI_MDI 0_R CI_MDI 1_R CI_MDI 2_R CI_MDI 6_R CI_MDI 7_R

CI_MCLKI_RCI_MCLKI

Closed to CI SLOT

CI_MOVAL_R CI_MOSTRT_R CI_MDO0_R CI_MDO1_R

CI_MDO2_R CI_MDO3_R CI_MDO4_R CI_MDO5_R CI_MDO6_R CI_MDO7_R

CI_MCLKO_R

CI2_VCC

R1192

10K 1/16W 5%

CI_CE2#

CI_DVDD3V3

Modify by EMI

C187 10PF 50V

with GND

6/24

C171

100N 16V

DVDD3V33,5,6,7,9,10,12,13, 14,17,19,27

+5V_SW3,5,9,12,13,18,20,27

Control Interface

CI_PWR_OC CI_PWR_EN

CI_A0 CI_A1 CI_A2 CI_A3 CI_A4 CI_A5 CI_A6 CI_A7 CI_A8 CI_A9 CI_A10 CI_A11 CI_A12 CI_A13

CI_A14 CI_MCLKI CI_MIVAL CI_MISTRT CI_MDI0 CI_MDI1 CI_MDI2 CI_MDI3 CI_MDI4 CI_MDI5 CI_MDI6 CI_MDI7

CI_D0

CI_D1

CI_D2

CI_D3

CI_D4

CI_D5

CI_D6

CI_D7 CI_MDO0 CI_MDO1 CI_MDO2 CI_MDO3 CI_MDO4 CI_MDO5 CI_MDO6 CI_MDO7

SPI_CLK SPI_CLK1 SPI_DATA SPI_CLE

CI_INT CI_TSCLK CI_TSVAL CI_TSSYNC CI_TSDATA0

PVR_TSSYNC PVR_TSCLK PVR_TSDATA0 PVR_TSDATA1 PVR_TSVAL CI_RST

CI_A0 17 CI_A1 17 CI_A2 17 CI_A3 17 CI_A4 17 CI_A5 17 CI_A6 17 CI_A7 17 CI_A8 17 CI_A9 17 CI_A10 17 CI_A11 17 CI_A12 17 CI_A13 17 CI_A14 17 CI_MCLKI 17 CI_MIVAL 17 CI_MISTRT 17 CI_MDI0 17 CI_MDI1 17 CI_MDI2 17 CI_MDI3 17 CI_MDI4 17 CI_MDI5 17 CI_MDI6 17 CI_MDI7 17 CI_D0 17 CI_D1 17 CI_D2 17 CI_D3 17 CI_D4 17 CI_D5 17 CI_D6 17 CI_D7 17 CI_MDO0 17 CI_MDO1 17 CI_MDO2 17 CI_MDO3 17 CI_MDO4 17 CI_MDO5 17 CI_MDO6 17 CI_MDO7 17

SPI_CLK 17 SPI_CLK1 17 SPI_DATA 17 SPI_CLE 17

CI_INT 17 CI_TSCLK 17 CI_TSVAL 1 7 CI_TSSYNC 17 CI_TSDATA0 17

PVR_TSSYNC 17 PVR_TSCLK 17 PVR_TSDATA0 17 PVR_TSDATA1 17 PVR_TSVAL 17 CI_RST 17

GND 3, 5,6,7,8,9, 10,11,12,13,14,16,17, 18,19,20,21,22,23,24, 26,27

DVDD3V3 +5V_SW

CI_PWR_OC 9

CI_PWR_EN 17

8-4-13 WIFI/KEYPAD/RS232

IR/KEY BOARD

3V3SB

8/20 OTS Key

R109

R108

R163

NC/6K8 1%

10K +- 1% 1/16W

R118 N C/100R 1/ 16W 5% R117 100R 1/ 16W 5%

R112 100R 1/ 16W 5%

R113 100R 1/16W 1% R170 NC/100R 1/ 16W 1%

C108

C156

NC/100pF 50V

100P 50V

C112 100P 50V

C157

NC/100N 16V

LED_PWM2 LED_PWM0

RC6

KEY_PAD 0 KEY_PAD 1 IR_SSB

IR_RC

8/20 PHP SR

6K8 1%

C194

100P 50V

Modify by EMI

8/20 OTS Key

Wi-Fi Power Control [3V5 boost to 5V]

Wi-Fi_VCC

1 2

NC/120R/3000mA

IF +5V_STB=STB_PWR

1 2

120R/3000mA

TP4403

WIFI-PWR-EN : Enable : High Disable : Low

Vout=1*(1+220/(120//100))=5.03 V

STB_PWR

FB8007

2016-09-22

CLOSE TO CONNECTOR

FB4403

C4439

C4436

WIFI-OCP : Disable : Low

C4440

22uF 6.3V

100K 1/16W

TP4421

22uF 6.3V

R4433

TP4440

R4431

C4460

220K 1%

R4434 120K 1%

R4438

10K+-5%1/16W

18pF 50V

TP4438

C158

100N 16V

1 2 3 4 5

WIFI-OCP

LED_GE LED_RE

IR

KEY1_IN KEY2_IN

12

ZD125

AZ5123-01H

EMI & ESD solution

L4303

1.5uH

U4418

SW SW VOUT VOUT PG

GND

TPS61230DRCR

11

R4440

NC/10K+-5%1/16W

HYS

ZD126

NC/AZ5123-01H

VIN EN

FB SS

3V3SB

12

10 9 8 7 6

FB403 30R/600mA

C195 100N 16V

1 3 5 7 9

C4453

CN401

CONN

C4435

TP4422

10N 50V

TP4423

2 4 6 8 10

STB_PWR

22UF 6.3V

+3V5-SB from STB_PWR

R4441

4.7K 1/16W R404

TP4439

R4425

NC/4.7K 1/16W

WIFI_PWR_EN

NC/10K 1/ 16W 5%

GND 3,5,6,7,8,9,10,11,12,13,14,15, 17,18,19,20,21,22,23,24, 26,27

AVDD3V3 3V3SB +5V_STB +5V_SW

IR_SSB6,27 IR_RC27 STB_PWR3,5

8/20 PHP SR

WoWLAN_IRQ17 WIFI_PWR_EN17

WoWBLE_IRQ17

WIFI_RESET17

Grounding(20mil)

USB_DP_P318 USB_DM_P318

2K17 Wi-Fi Standard Module

2016-09-22

CN4605

2 4 6 8

CONN

311GW200C08ABL

WIFI_RESET

R5116

10K 1/16W 5%

R5115

100R 1/16W 5%

R5117

NC/10K 1/ 16W 5%

WIFI_RSTn

AVDD3V3 5,9,11,12,18 3V3SB 3,5,6,9,10,12,17,18,27 +5V_STB 3,5,9,12 +5V_SW 3,5,9,12,13,15,18,20,27

IR_SSB IR_RC STB_PWR

KEY_PAD 117

KEY_PAD 017, 27 LED_PWM06,17 LED_PWM26,17 RC66,27

EMI reques t

1 3 5 7

WoWLAN_IRQn

Wi-Fi_VCC

R5102

NC/10K 1/ 16W 5%

KEY_PAD 1 KEY_PAD 0

LED_PWM0 LED_PWM2

RC6

WoWLAN_IRQ

WIFI_PWR_EN WoWBLE_IRQ WIFI_RESET

USB_DP_P3

USB_DM_P3

90 ohm

3 2

L103

R5099

NC/10K 1/ 16W 5%

R5101

NC/0R 05 1/ 16W

4 1

R4273

100R 1/16W 5%

R5103

NC/10K 1/ 16W 5%

WoWBLE_IRQ

R4268 R4267

3V3SB3V3SB

2R2 1/16W 5%

USB_DM_P3

USB_DP_P3

2R2 1/16W 5%

R5100

10K 1/16W 5%

WoWLAN_IRQ

Wi-Fi_VCC

8-4-14 GPIO/ServAD(4)

LOCKN HTPDN

LD_EN_SOC

DVDD3V3

10K 1/16W 5%

R4968

R4969

TP4437

R4988 33R 1/16W 5%

3V3SB

R407 20K 1/16W

R408 10K 1/16W 5%

Modify 11/25

CI_A0 CI_A1 CI_A2 CI_A3 CI_A4 CI_A5 CI_A6 CI_A7 CI_A8 CI_A9 CI_A10 CI_A11 CI_A12 CI_A13 CI_A14 CI_MCLKI CI_MIVAL CI_MISTRT CI_MDI0 CI_MDI1 CI_MDI2 CI_MDI3 CI_MDI4 CI_MDI5 CI_MDI6 CI_MDI7 CI_D0 CI_D1 CI_D2 CI_D3 CI_D4 CI_D5 CI_D6 CI_D7 CI_MDO0 CI_MDO1 CI_MDO2 CI_MDO3 CI_MDO4 CI_MDO5 CI_MDO6 CI_MDO7 CI_RST

CI_PWR_EN DDC_RCR VIDEO_DET USB_PWR_EN2 SOC_RESET USB_PWR_EN1 DMD_TSERR

I2SAMP_RESET YPBPR_DETECT1

SCART_FS0 KEY_PAD0 KEY_PAD1

USB_PWR_OCP2 USB_PWR_OCP0/OCP1 TUN_LNB AMBI_TEMP_CTL

AJ29 AH29 AG29

AJ31 AC27 AC28 AC29

AB29

AB30

F16 E15 E16 F15 B10 F11

K30

N30

L29

M30

K28 L28

H30

T32

H4 G1 F2 E2 D2 C1 B1 K5 D5 C5 B3 C3 J6 D4 E4 K6 G4 D3 C4 E3 F3 G3 G5 H5 J5 K4 H3 J4 J1 A7 C7 D6 B5 B4 J3 J2 K2 B7 C6 A5 A4 A3 C2

U401-8

CI_A0 CI_A1 CI_A2 CI_A3 CI_A4 CI_A5 CI_A6 CI_A7 CI_A8 CI_A9 CI_A10 CI_A11 CI_A12 CI_A13 CI_A14 CI_MCLKI CI_MIVAL CI_MISTRT CI_MDI0 CI_MDI1 CI_MDI2 CI_MDI3 CI_MDI4 CI_MDI5 CI_MDI6 CI_MDI7 CI_D0 CI_D1 CI_D2 CI_D3 CI_D4 CI_D5 CI_D6 CI_D7 CI_MDO0 CI_MDO1 CI_MDO2 CI_MDO3 CI_MDO4 CI_MDO5 CI_MDO6 CI_MDO7 CI_RST

GPIO42 GPIO43 GPIO44 GPIO45 GPIO46 GPIO48 GPIO49 GPIO50 GPIO52 GPIO95 GPIO56 GPIO57 GPIO58 GPIO59 GPIO60

ADIN0_SRV ADIN1_SRV ADIN2_SRV ADIN3_SRV ADIN4_SRV ADIN5_SRV ADIN6_SRV ADIN7_SRV

MT5596L

GPIO0 GPIO1 GPIO2 GPIO3 GPIO4 GPIO5 GPIO6 GPIO7 GPIO8 GPIO9 GPIO10 GPIO11 GPIO12 GPIO13 GPIO14 GPIO15 GPIO16 GPIO17 GPIO18 GPIO19 GPIO20 GPIO21 GPIO22 GPIO23 GPIO24 GPIO25 GPIO26 GPIO27 GPIO28 GPIO29 GPIO30 GPIO31 GPIO32 GPIO33 GPIO34 GPIO35 GPIO36 GPIO37 GPIO38 GPIO39 GPIO40 GPIO41 GPIO47

DEMOD_RST

DEMOD_TSCLK DEMOD_TSDATA0 DEMOD_TSDATA1 DEMOD_TSDATA2 DEMOD_TSDATA3 DEMOD_TSDATA4 DEMOD_TSDATA5 DEMOD_TSDATA6 DEMOD_TSDATA7

DEMOD_TSSYNC

DEMOD_TSVAL

CI_INT

CI_TSCLK

CI_TSDATA0

CI_TSSYNC

CI_TSVAL

PVR_TSCLK PVR_TSVAL

PVR_TSSYNC PVR_TSDATA0 PVR_TSDATA1

SPI_CLK1

SPI_CLK

SPI_DATA

SPI_CLE

OPWM0 OPWM1 OPWM2

SD_D0 SD_D1 SD_D2 SD_D3

SD_CMD

SD_CLK

VCC3IO_SD

LED_PWM0 LED_PWM1 LED_PWM2

OPCTRL0 OPCTRL1 OPCTRL2 OPCTRL3 OPCTRL4 OPCTRL5 OPCTRL6 OPCTRL7 OPCTRL8

OPCTRL9 OPCTRL10 OPCTRL11

C11

DEMOD_RST

F10

R1032 22R 1/16W 5%

E10

DEMOD_TSDATA0

G11 G13 F12 E12 E13 F13 G16 E11 D11

E1 B8 G2 F4 B2

F1 A2 K7 F5 D1

K3 A8 A1 E5

AB31 AJ30 AB28

G10 D7 E8 F8 F9 C8 A10

U29 T29 Y33

P29 P30 P28 W29 W28 R29 M29 N31 J28 U30 Y31 T33

EMI modify 12/01

DEMOD_TSSYNC DEMOD_TSVAL

CI_INT CI_TSCLK CI_TSDATA0 CI_TSSYNC CI_TSVAL

PVR_TSCLK PVR_TSVAL PVR_TSSYNC PVR_TSDATA0 PVR_TSDATA1

SPI_CLK1 SPI_CLK SPI_DATA SPI_CLE

BRIGHT_ADJ OPWM1 OPWM2 USB_PWR_OCP2

TP4433 TP1505

SD_D0

R4989

SD_D2

R4990

VCC3IO_SD

LED_PWM0 LED_PWM1 LED_PWM2

WoWLAN_IRQ WIFI_PWR_EN

WIFI _RESET

DDR_PWR_EN

R406 0R 05 1/ 16W

WoWBLE_IRQ

HP_DET

SYS_EEPROM_WP

MHL_PWR_EN

INVERTER_ON_OFF

USB_PWR_EN0 USB_MHL_OC

Close to Main Chip

DVDD3V3

VCC3IO_SD

C1501 100N 16V

DEMOD_TSCLK

C1503 22P 50V

SOC CONTROL BL OPTION

AMBIL_SPI_DO

NC/33R 1/ 16W 5%

AMBIL_SPI_CLK

NC/33R 1/ 16W 5%

PANEL_VCC_ON/OFF

C1502 NC/100N F 16V

8/20 Add for P HP

LOCKN HTPDN

WIFI_RESET16

DEMOD_RST14 USB_MHL_OC12 INVERTER_ON_OFF5 PANEL_VCC_ON/OFF22,24

WoWLAN_IRQ16

WIFI_PWR_EN16

WoWBLE_IRQ16

LED_PWM06,16 LED_PWM16

LED_PWM26,16

DDR_PWR_EN5

SYS_EEPROM_WP6

BRIGHT_ADJ5

USB_PWR_OCP0/OCP1

SOC_RESET DDC_RCR

I2SAMP_RESET10

KEY_PAD116 KEY_PAD016,27 HP_DET10

MHL_PWR_EN12

VIDEO_DET9

USB_PWR_EN1 USB_PWR_EN2 USB_PWR_EN0

SCART_FS0

YPBPR_DETECT19

DMD_TSERR LD_EN_SOC

CI_PWR_EN CI_RST

LOCKN 11,22 HTPDN 11,22 SOC_RESET 22 DDC_RCR 22

WIFI _RESET DEMOD_RST USB_MHL_OC INVERTER_ON_OFF PANEL_VCC_ON/OFF

I2SAMP_RESET KEY_PAD1 KEY_PAD0 HP_DET

WoWLAN_IRQ WIFI_PWR_EN WoWBLE_IRQ

LED_PWM0 LED_PWM1 LED_PWM2 DDR_PWR_EN MHL_PWR_EN VIDEO_DET

SYS_EEPROM_WP BRIGHT_ADJ

USB_PWR_OCP2 18 USB_PWR_OCP0/OCP1 18

USB_PWR_EN1 18 USB_PWR_EN2 18 USB_PWR_EN0 18 SCART_FS0 26

YPBPR_DETECT1

DMD_TSERR 14 LD_EN_SOC 11

CI_PWR_EN 15 CI_RST 15

3V3SB

DVDD3V3

BootStrape

8/20 Add for PHP

GND 3,5,6,7,8,9,10,11,12,13,14,15,16, 18,19,20,21,22,23,24, 26,27 3V3SB 3,5,6,9,10,12,16,18,27 DVDD3V3 3,5,6,7,9,10,12,13,14,15,19,27

CI_A0

CI_A0 15

CI_A1

CI_A1 15

CI_A2

CI_A2 15

CI_A3

CI_A3 15

CI_A4

CI_A4 15

CI_A5

CI_A5 15

CI_A6

CI_A6 15

CI_A7

CI_A7 15

CI_A8

CI_A8 15

CI_A9

CI_A9 15

CI_A10

CI_A10 15

CI_A11

CI_A11 15

CI_A12

CI_A12 15

CI_A13

CI_A13 15

CI_A14

CI_D0 CI_D1 CI_D2 CI_D3 CI_D4 CI_D5 CI_D6 CI_D7

AMBIL_SPI_DO 22,27 AMBIL_SPI_CLK 22,27 AMBI_TEMP_CTL 27

CI_A14 15 CI_MCLKI 15 CI_MIVAL 15 CI_MISTRT 15 CI_MDI0 15 CI_MDI1 15 CI_MDI2 15 CI_MDI3 15 CI_MDI4 15 CI_MDI5 15 CI_MDI6 15 CI_MDI7 15 CI_D0 15 CI_D1 15 CI_D2 15 CI_D3 15 CI_D4 15 CI_D5 15 CI_D6 15 CI_D7 15 CI_MDO0 15 CI_MDO1 15 CI_MDO2 15 CI_MDO3 15 CI_MDO4 15 CI_MDO5 15 CI_MDO6 15 CI_MDO7 15

SPI_CLK 15 SPI_CLK1 15 SPI_DATA 15 SPI_CLE 15

CI_INT 15 CI_TSCLK 15 CI_TSVAL 15 CI_TSSYNC 15 CI_TSDATA0 15

PVR_TSSYNC 15 PVR_TSCLK 15 PVR_TSDATA0 15 PVR_TSDATA1 15 PVR_TSVAL 15 CI_RST 15

TUN_LNB 14

DEMOD_RST DEMOD_TSCLK DEMOD_TSDATA0 DEMOD_TSSYNC DEMOD_TSVAL

CI_MCLKI CI_MIVAL CI_MISTRT CI_MDI0 CI_MDI1 CI_MDI2 CI_MDI3 CI_MDI4 CI_MDI5 CI_MDI6 CI_MDI7

CI_MDO0 CI_MDO1 CI_MDO2 CI_MDO3 CI_MDO4 CI_MDO5 CI_MDO6 CI_MDO7

AMBIL_SPI_DO AMBIL_SPI_CLK AMBI_TEMP_CTL

SPI_CLK SPI_CLK1 SPI_DATA SPI_CLE

CI_INT CI_TSCLK CI_TSVAL CI_TSSYNC CI_TSDATA0

PVR_TSSYNC

PVR_TSCLK PVR_TSDATA0 PVR_TSDATA1 PVR_TSVAL CI_RST

TUN_LNB

DEMOD_RST14 DEMOD_TSCLK14 DEMOD_TSDATA014 DEMOD_TSSYNC14 DEMOD_TSVAL14

YPBPR_DETECT19

YPBPR_DETECT19 YPBPR_DETECT19

YPBPR_DETECT1Y PBPR_DETECT1 YPBPR_DETECT1

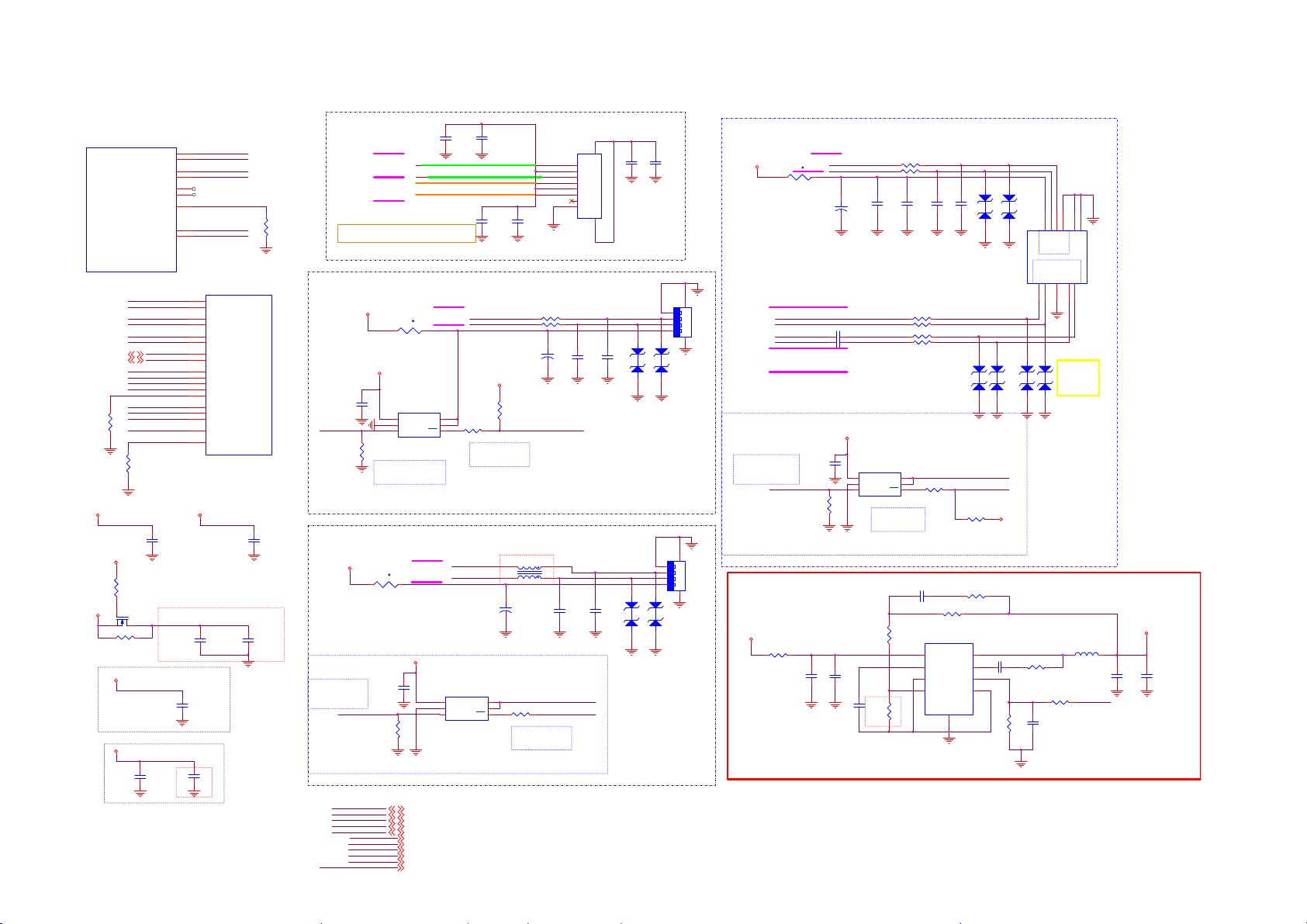

8-4-15 USB/ETHERNET PHY (4)

ETHERNET PHY

U401-10

AVDD33_ETH_STB AVDD10_ETH_STB

MT5596L

USB_DP_P316 USB_DM_P316

R115

5K1 1/16W 5%

R1101

5K1 1/16W 5%

AVDD1V0_STB 3V3SB

AVDD10_ETH_STB

+5V_SW

R1029

10K 1/16W 5%

AVDD3V3

R1030

NC/0R 0 5 1/ 16W

3V3SB

AVDD33_USB_STB

AVDD1V0_1

AVDD10_SSUSB_STB

TXVP_0 TXVN_0

RXVP_1 RXVN_1

PHYLED1 PHYLED0

REXT

USB_DP_P0 USB_DM_P0

USB_DP_P1 USB_DM_P1

USB_DP_P2 USB_DM_P2

USB_DP_P3 USB_DM_P3

SSUSB_TXP SSUSB_TXN SSUSB_RXP

SSUSB_RXN

SSUSB_VRT

AVDD33_USB AVDD33_SSUSB AVDD33_USB_STB

AVDD10_SSUSB_STB

USB_VRT_P0

C1009 100N 16V

AO3414 Q102

AVDD33_USB

Near IC

C1105 100N 16V

U32 U33

V30 V31

Y29 Y28

R27

K23 E28

Near IC

100N 16V

TXVP_0 TXVN_0

RXVP_1 RXVN_1

REXT

AVDD33_ETH_STB AVDD10_ETH_STB

U401-9

B11

USB_DP_P0

A11

USB_DM_P0

D12

USB_DP_P1

C12

USB_DM_P1

A12

USB_DP_P2

B12

USB_DM_P2

W32

USB_DP_P3

W33

USB_DM_P3

B15

SSUSB_TXP

A15

SSUSB_TXN

B13

SSUSB_RXP

A13

SSUSB_RXN

J15

SSUSB_VRT

L19

AVDD33_USB

K19

AVDD33_SSUSB

L25

AVDD33_USB_STB

A14

AVDD10_SSUSB_STB

J13

USB_VRT_P0

MT5596L

AVDD33_ETH_STB

AVDD33_SSUSB

C1101 10UF 6.3V 20%

C101

C1106 10UF

R4601 24K 1/16W 5%

C145 100N 16V

C1102 1uF 10V

All P a th Grounding(20mil)

Must be differential 100ohm

SEPARATE GROUND

USB PORT 1

All Path Grounding(20mil)

+5V_US B

500mA

1 2

TH4103 NC/PTCR

+5V_USB

40mil

C111

1uF 10V

USB_PWR_EN0

for SONY

USB PORT 3

+5V_US B

HI = > POWER ON LO = > POWER OFF

USB_PWR_EN1

4.7K1/16W

for SONY

+5V_SW

3V3SB AVDD3V3 AVDD1V0_STB AVDD1V0_1

USB_PWR_OCP0/OCP1

R1047

4.7K1/16W

HI = > POWER ON LO = > POWER OFF

1 2

TH4101 NC/PTCR

500mA

R1039

OPWRSB_PWR

USB_PWR_EN1 USB_PWR_EN2 USB_PWR_EN0

USB_PWR_OCP2

2 1

All P a th Grounding(20mil)

t

C110 1uF 10V

C4601 100N 16V

TXVP_0 TXVN_0

RXVP_1 RXVN_1

t

U106 G529A1TB1U

4

IN3OUT

5

GND

OUT

6

EN

OC

R1049 8.2K 1/16W

USB_DP_P1 USB_DM_P1

USB_PORT1_5V

100UF 16V

+5V_US B

40mil

G529A1TB1U

IN3OUT

2

GND

1

EN

Min 1.2A

U104

+5V_SW 3,5, 9,12,13, 15,20,27 3V3SB 3,5,6,9,10, 12,16,17, 27 AVDD3V3 5,9,11, 12 AVDD1V0_STB 5,6,12

AVDD1V0_1 3,5,11, 12 OPWRSB_PWR 3, 5,27 USB_PWR _EN1 17 USB_PWR _EN2 17 USB_PWR _EN0 17 USB_PWR_OCP2 17 USB_PWR_OCP0/OCP1 17

C4602 10N 50V

C4603 100N 16V

USB_DP_P0 USB_DM_P0

USB_PORT0_5V

3V3SB

H=> NORMAL L =>OCP

C1113

4 5

OUT

6

OC

C4604 10N 50V

EQUAL LENGTH and DIFFERENTIAL IMPEDANCE 90ohm

R1025 2R2 1/16W 5% R1026 2R2 1/16W 5%

C1015

+

100UF 16V

R1046

3.3K 1/16W

USB_PWR_OCP0/OCP1

Modify by EMI

90 ohm

4

3

1

2

L102

+

USB_PORT1_5V

USB_PWR_OCP0/OCP1

R1041 4.7K1/16W

H=> NORM A L L =>OCP

RJ45

9

CN4601

1

TH1

P1

2

P2

3

P3

4

P4

5

P5

6

P6

7

P7 NC

8

P8

TH2

RJ45 8P

10

USB_DP_P0_R USB_DM_P0_R

C1016

C1017

10PF 50V

EQUAL LENGTH and DIFFERENTIAL IMPEDANCE 90ohm

USB_DP_P1_R USB_DM_P1_R

C1114

C1115

10PF 50V

C4605 100N 16V

12

ZD107

NC/AZ 5123-01H

12

ZD1107

NC/AZ 5123-01H

C4606

10N 50V

CN1103 USB CONN

4 3 2 1

12

ZD108

4 3 2 1

ZD1108

NC/AZ 5123-01H

65

1234

NC/AZ 5123-01H

65

CN1101

1234

USB CONN

USB PORT 2 (USB 3.0)

900mA

+5V_US B

1 2

TH4102 NC/PTCR

All Path Grounding(20mil)

SSUSB_RXN SSUSB_RXP

SSUSB_TXP SSUSB_TXN

All P ath Grounding(20mil)

t

C1111 100N 16V C1112 100N 16V

SIDE USB1

4.7K1/16W

1uF 10V

R1027

C1018

HI = > POWER ON LO = > POWER OFF

USB_PWR _EN2

for SONY

18V TO 5V

Main_18V

R8058 0R05

C8079 10UF 25V

Vout = 0.6V (1+( R1/R2 ))

Vout = 0.6V (1+( 100/13.3 ))=5.1V

⊙

USB_DP_P2 USB_DM_P2

C1108

+

100UF 16V

EQUAL LENGTH and DIFFERENTIAL IMPEDANCE 90ohm

+5V_USB

G529A1TB1U

IN3OUT

2

GND

1

EN

U108

C8083 100N 50V

C8080 100NF 25V

C1109 10uF 16V

R1115 R1118

R1116 R1117

4 5

OUT

6

OC

H=> NORM A L L =>OCP

C8082 47pF 50V

R8064 0R05 1/16W

R8057

13.3K 1%

R11052R2 1/16W 5% R11062R2 1/16W 5%

C1110 10uF 16V

0R05 1/16W 0R05 1/16W

R1028

4.7K1/16W

R8059 100K 1%

8

IN

7

SS

6

SGND

5

FB

USB_DP_P2_R USB_DM_P2_R

C1119

C1120

10PF 50V

SSUSB_RXN_R SSUSB_RXP_R

SSUSB_TXP_R SSUSB_TXN_R

ZD4103

NC/AZ 5123-01H

USB_PORT2_5V USB_PWR_OCP2

U713 SY8234FC C

LX BS EN

NC

PGND

9

12

R107

3.3K 1/16W

R8061

1 2 3 4

VBUS2USB_PORT2_5V

12

ZD1102

NC/AZ5123-01H

CN1102

USB CONN 9P

12

ZD4105 NC/AZ 5123-01H

ZD4104

NC/AZ 5123-01H

3V3SB

0R05 1/16W

C8081

100N 50V

R8062

ZD1101

NC/AZ5123-01H

3

2

4

1

D-

D+

VCC

GND

USB2.0

USB3.0

RXN5RXP6GND7TXN8TXP

12

ZD4106 NC/AZ 5123-01H

Vout = 0.6x (1+100/ 13)= 5. 21V

R8060

2.2 OHM 1/10W

R8063

10K 1/16W 5%

100K 1/16W 5%

C8086 10N 50V

11

HAND110HAND2

9

8/20 Swap

L803

4.7uH

OPWRSB_PWR

3.3A

C8084 10UF 16V

+5V_US B

C8085 10UF 16V

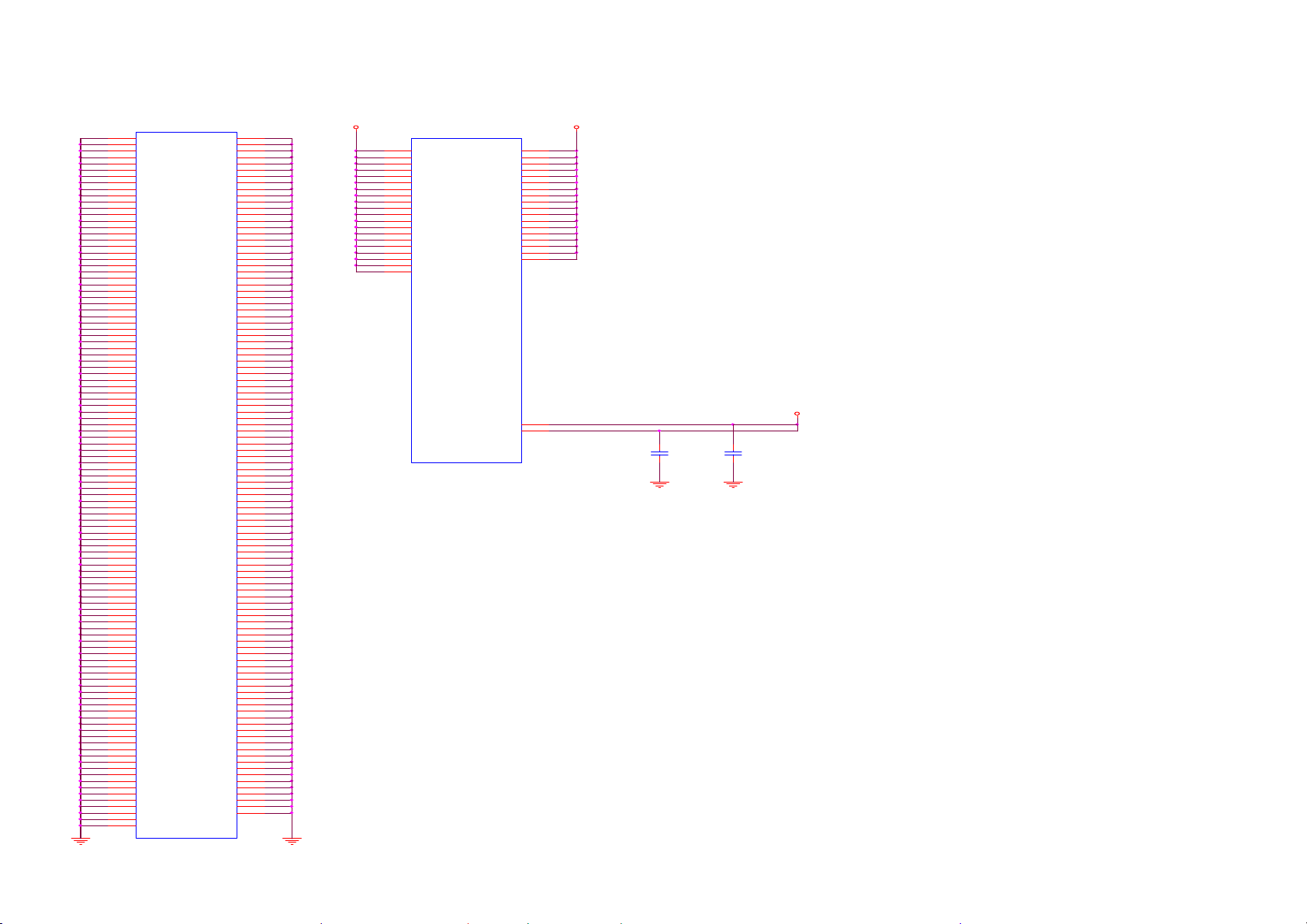

8-4-16 VCCK & DVSS(4)

AC2 AF2

AJ2

AA3 AD3 AG3

AL3

AH4

AJ4 AL4

AE5 AH5

AE6 AG6

AB7 AF7

AL7

AB8 AC8 AE8 AK8 AM8

AJ9

C10

AH10

AL10

M11 N11

P11

R11

AF11

U17

V17

W17

Y17 AA17 AM17

N18

P18

R18

U18

V18

W18

Y18 AA18

C19

D19

N19

P19

W19

Y19 AA19 AF19 AG19

AL19

N20

P20 V21

W21

Y21 AA21

N22

P22

R22

U22

V22

W22

Y22 AF31

H28

F29

G29 AD29

F30 G30 Y30

AA30 AF30

F31

AH31

E32

AC32

AC19 AD19 AC20 AD20 AC21 AD21 AC22 AD22 W23 Y23 AA23 AG27 AF27 AH27 AE27 AJ26 AH26 AG26

K1 AJ33

VCCKVCCK

VCC3IO_A VCC3IO_B

C143 100N 16V

VCC3IO_AB

C144 100N 16V

GND 3,5,6,7,8,9,10,11,12,13,14,15,16,17,18,20,21,22,23,24,26,27

VCCK3, 5,6,7

DVDD3V33,5,6,7,9,10,12, 13,14,15,17,27

VCCK

VCC3IO_AB

U401-11

P2

DVSS

U2

DVSS

Y2

DVSS DVSS DVSS DVSS

M3

DVSS

R3

DVSS

V3

DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS

P5

DVSS

V5

DVSS DVSS DVSS

E6

DVSS

F6

DVSS

T6

DVSS

W6

DVSS DVSS DVSS

E7

DVSS

F7

DVSS

H7

DVSS

M7

DVSS DVSS DVSS DVSS

D8

DVSS

G8

DVSS

R8

DVSS

T8

DVSS

V8

DVSS

W8

DVSS DVSS DVSS DVSS DVSS DVSS

D9

DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS

T11

DVSS DVSS

T17

DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS

T18

DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS

T22

DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS

MT5596L

DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS

R19 V12 W12 Y12 AA12 AB12 AF12 AJ12 M13 N13 P13 U12 T12 R12 P12 N12 M12 AM11 R13 T13 U13 V13 W13 Y13 AA13 AB13 AL13 B14 C14 M14 N14 P14 R14 T14 U14 V14 W14 Y14 AA14 AB14 AM14 M15 N15 P15 R15 T15 U15 V15 W15 Y15 AA15 AB15 AF15 M16 N16 P16 R16 T16 U16 V16 W16 Y16 AA16 AE16 AF16 AL16 C17 D17 N17 P17 R17 T19 U19 V19 R20 T20 U20 V20 W20 Y20 AA20 AF20 AG20 AM20 C21 D21 N21 P21 R21 T21 U21 AA22 AL22 C23 D23 AL23 E25 F25 E26 H27 G28 G31 U31 W31 AC31 AE32 F33

AB23 AC23 AD23 AE23

W24

AA24 AB24 AC24 AD24 AE24

AJ27 AB25 AC25 AD25 AE25 AF25 AD26 AE26 AF26

Y24

U401-12

VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK

MT5596L

VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK

VCC3IO_A VCC3IO_B

8-4-17 MST7484 Power

FRC Cor e Power 0.9V

+5V_SW

layout trace from MST IC

R908

0R051/8W

VIN_U717

C944

10UF 10V

Vout=0.765*( R1+R2)/R2 =>0.9V

C946

C945

100N 16V

1uF 10V

VDDC_FB

VIN_U717

R909 100K 1%

R911

R1

5.6K 1%

220ohm 1/16W +/-1%

C948 22P 50V

R910 100K 1%

R912

Close IC(U801) side or C8016

C947

100N 16V

R2

EN_U717

R913

33K 1/16W 1%

C951

1uF 10V

1

EN

2

VFB

3

VREG5

4

SS

C952

U809 TPS54528DDAR

10N 50V

5A(Spec.)

E-Pad

VIN

VBST

SW

GND

9 8 7

C949 100N 16V

6 5

L802

4.7uH 32m OH M 5.5A

+5V_SW

VCC0.9V_FRC

VDDC_FB

VCC0.9V_FRC

4.8A

C953

C954 10UF

100N 16V

+5V_SW 3,5,9,12,13,15,18,27

VCC0.9V_FRC 21

VDDC_FB 21

GND 3,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,21,22,23,24,26,27

C955 10UF

C956 10UF

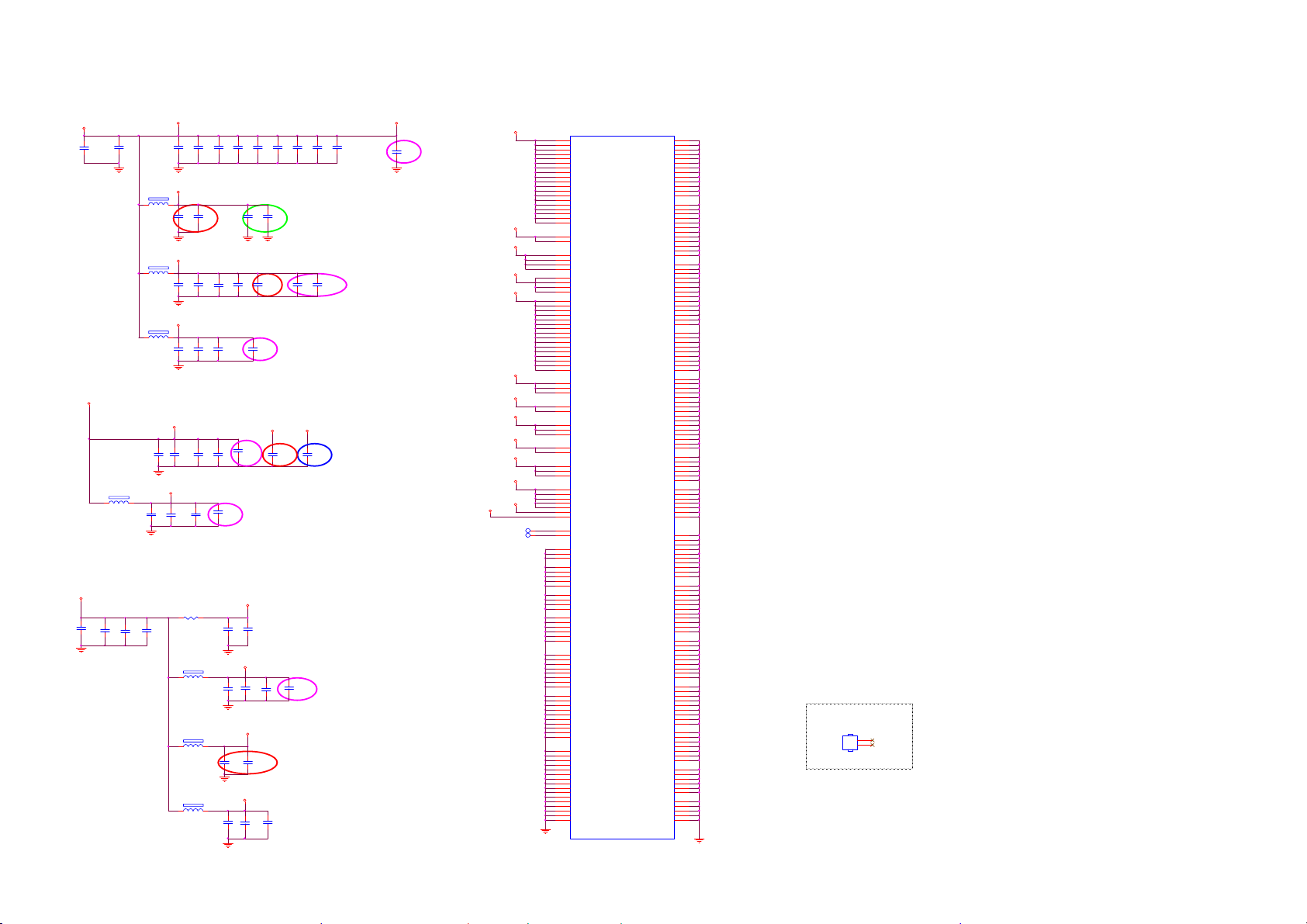

8-4-18 MST7484 Power 2

VCC0.9V_FRC

+

220UF 16V

VCC1.8V_FRC

VCC3. 3V_FRC

+

C8001

C8039 100UF 16V

C8002 10UF 10V

VDDC

4000mA

C8003 10UF 10V

AVDDL_MOD_DRV

FB8001

12

120R 3A

C8012 1uF 10V

DVDD_DDR

FB8002

12

120R 3A

C8017 10UF 10V

Close to ball A10/A11 on the TOP

AVDDL_RX

FB8003

12

120R 3A

C8024 1uF 10V

AVDD_DDR

C8028

C8029

10UF 10V

1uF 10V

close to BALL H14

FB8004 120R 3A

C8040 10UF 10V

AVDD_15_MOD

12

C8035

C8036

10UF 10V

1uF 10V

C8041

C8042

1uF 10V

100N 16V

C8004

C8005

10UF 10V

Close to ball AA4 on the TOP

C8013 100N 16V

50mA

C8018 10UF 10V

60mA

C8025 100N 16V

400mA

C8030 100N 16V

50mA

C8037 100N 16V

R8007 0R05 1/ 10W

FB8005 120R 3A

FB8006 120R 3A

F8007 120R 3A

C8008

C8007

C8006

100N 16V

1uF 10V

10UF 10V

30mA

C8014

C8015

1uF 10V

100N 16V

Reserve at Bottom side close to ball V4

C8020

C8021

C8019

100N 16V

1uF 10V

C8026

C8027

100N 16V

Reserve at Bottom side.

DDR POWER

AVDD_DDR_1

C8032

C8031 100N 16V

C8038 100N 16V

Reserve at Bottom side. close to chip

12

C8033

100N 16V

Close to BALL A7 on the TOP

VDDP

C8044

C8043

100N 16V

10UF 10V

AVDD_ALLRX

C8045

C8046

10UF 10V

1uF 10V

AVDD_PLL

C8050

C8049

100N 16V

1uF 10V

AVDD_MOD

C8052

C8051

1uF 10V

10UF 10V

C8009

C8010

C8011

100N 16V

Reserve at Bottom side.

C8022

C8023

1uF 10V

100N 16V

Reserve at Bottom side.

AVDD_DDR_2

C8034 100N 16V

Reserve at Bottom side.Reserve at Bottom side. close to BALL D5

20mA

50mA

C8047

C8048

100N 16V

Reserve at Bottom side.

50mA

close to chip

350mA

C8053 100N 16V

VDDC_FB

C8016 100N 16V

VDDC

AVDDL_MOD_DRV

AVDD_15_MOD

AVDD_MOD

VDDP

AVDD_PLL

AVDD_ALLRX

AVDD_DDR

AVDD_DDR_1 AVDD_DDR_2

AVDDL_RX

DVDD_DDR

AVDD_DDR

TP83 TP84

U801D MST7484GC

P5

VDDC

R5

VDDC

P6

VDDC

R6

VDDC

P7

VDDC

R7

VDDC

F8

VDDC

G8

VDDC

H8

VDDC

J8

VDDC

K8

VDDC

G9

VDDC

H9

VDDC

J9

VDDC

K9

VDDC

N12

VDDC

P12

VDDC

N13

VDDC

P13

VDDC

U7

AVDDL_R X

V7

AVDDL_R X

V4

AVDDL_MOD

W4

AVDDL_MOD

Y4

AVDDL_MOD

AA4

AVDDL_MOD

A10

DVDD_DDR

A11

DVDD_DDR

H11

DVDD_DDR

J11

DVDD_DDR

H13

AVDD_DDR0

J13

AVDD_DDR0

K13

AVDD_DDR0

L13

AVDD_DDR0

H14

AVDD_DDR0

J14

AVDD_DDR0

K14

AVDD_DDR0

L14

AVDD_DDR0

A18

AVDD_DDR0

B18

AVDD_DDR0

C18

AVDD_DDR0

A19

AVDD_DDR0

B19

AVDD_DDR0

C19

AVDD_DDR0

F20

AVDD_DDR0

F21

AVDD_DDR0

D11

AVDD_15_MOD

E11

AVDD_15_MOD

F11

AVDD_15_MOD

R14

AVDD_MOD

T13

AVDD_MOD

T15

VDDP

U15

VDDP

V15

VDDP

U13

AVDD_PLL

V13

AVDD_XTAL

T14

AVDD_R X

U14

AVDD_R X

V14

AVDD_R X

A20

DRAM_VDD_A

B20

DRAM_VDD_A

C20

DRAM_VDD_A

B21

DRAM_VDD_A

C21

DRAM_VDD_A

A7

DRAM_VDD_A

D5

DRAM_VDD_A

A15

NC

B15

NC

H1

VSS

R1

VSS

U1

VSS

G2

VSS

J2

VSS

P2

VSS

T2

VSS

V2

VSS

L3

VSS

M3

VSS

N3

VSS

Y3

VSS

C4

VSS

D4

VSS

P4

VSS

R4

VSS

T4

VSS

U4

VSS

M5

VSS

N5

VSS

T5

VSS

U5

VSS

V5

VSS

W5

VSS

Y5

VSS

AA5

VSS

A6

VSS

B6

VSS

C6

VSS

D6

VSS

M6

VSS

N6

VSS

T6

VSS

U6

VSS

V6

VSS

W6

VSS

B7

VSS

C7

VSS

D7

VSS

E7

VSS

F7

VSS

G7

VSS

H7

VSS

J7

VSS

K7

VSS

L7

VSS

M7

VSS

N7

VSS

T7

VSS

W7

VSS

Y7

VSS

AA7

VSS

A8

VSS

B8

VSS

C8

VSS

D8

VSS

E8

VSS

L8

VSS

M8

VSS

N8

VSS

P8

VSS

R8

VSS

T8

VSS

U8

VSS

V8

VSS

A9

VSS

B9

VSS

C9

VSS

D9

VSS

E9

VSS

F9

VSS

L9

VSS

M9

VSS

N9

VSS

P9

VSS

R9

VSS

V9

VSS

B10

VSS

C10

VSS

D10

VSS

E10

VSS

F10

VSS

G10

VSS

H10

VSS

J10

VSS

K10

VSS

L10

VSS

M10

VSS

N10

VSS

P10

VSS

R10

VSS

B11

VSS

C11

VSS

G11

VSS

K11

VSS

L11

VSS

M11

VSS

N11

VSS

P11

VSS

R11

VSS

A12

VSS

B12

VSS

C12

VSS

D12

VSS

E12

VSS

F12

VSS

G12

VSS

H12

VSS

J12

VSS

K12

VSS

L12

VSS

M12

VSS

R12

VSS

T12

VSS

U12

VSS

V12

VSS

A13

VSS

B13

VSS

C13

VSS

G13

VSS

M13

VSS

R13

VSS

A14

VSS

B14

VSS

C14

VSS

G14

VSS

M14

VSS

N14

VSS

P14

VSS

C15

VSS

D15

VSS

G15

VSS

H15

VSS

J15

VSS

K15

VSS

L15

VSS

M15

VSS

N15

VSS

R15

VSS

B16

VSS

C16

VSS

D16

VSS

E16

VSS

F16

VSS

G16

VSS

H16

VSS

R16

VSS

T16

VSS

U16

VSS

V16

VSS

C17

VSS

D17

VSS

E17

VSS

F17

VSS

G17

VSS

H17

VSS

R17

VSS

T17

VSS

W17

VSS

D18

VSS

E18

VSS

F18

VSS

G18

VSS

H18

VSS

P18

VSS

R18

VSS

T18

VSS

W18

VSS

D19

VSS

E19

VSS

F19

VSS

G19

VSS

R19

VSS

T19

VSS

Y19

VSS

D20

VSS

E20

VSS

G20

VSS

P20

VSS

U20

VSS

W20

VSS

D21

VSS

E21

VSS

G21

VSS

P21

VSS

V21

VSS

VCC3.3V_FRC VCC1.8V_FRC VCC0.9V_FRC

AVDD_DDR VDDC_FB

HS801

HEAT SINK

GND 3,5,6,7,8,9,10,11,12, 13,14,15,16,17,18, 19,20,22,23,24,26, 27

VCC3.3V_FR C 5,22, 24 VCC1.8V_FRC 5,23

VCC0.9V_FRC 20 AVDD_DDR 5,23 VDDC_FB 20

Heat sink

1 2

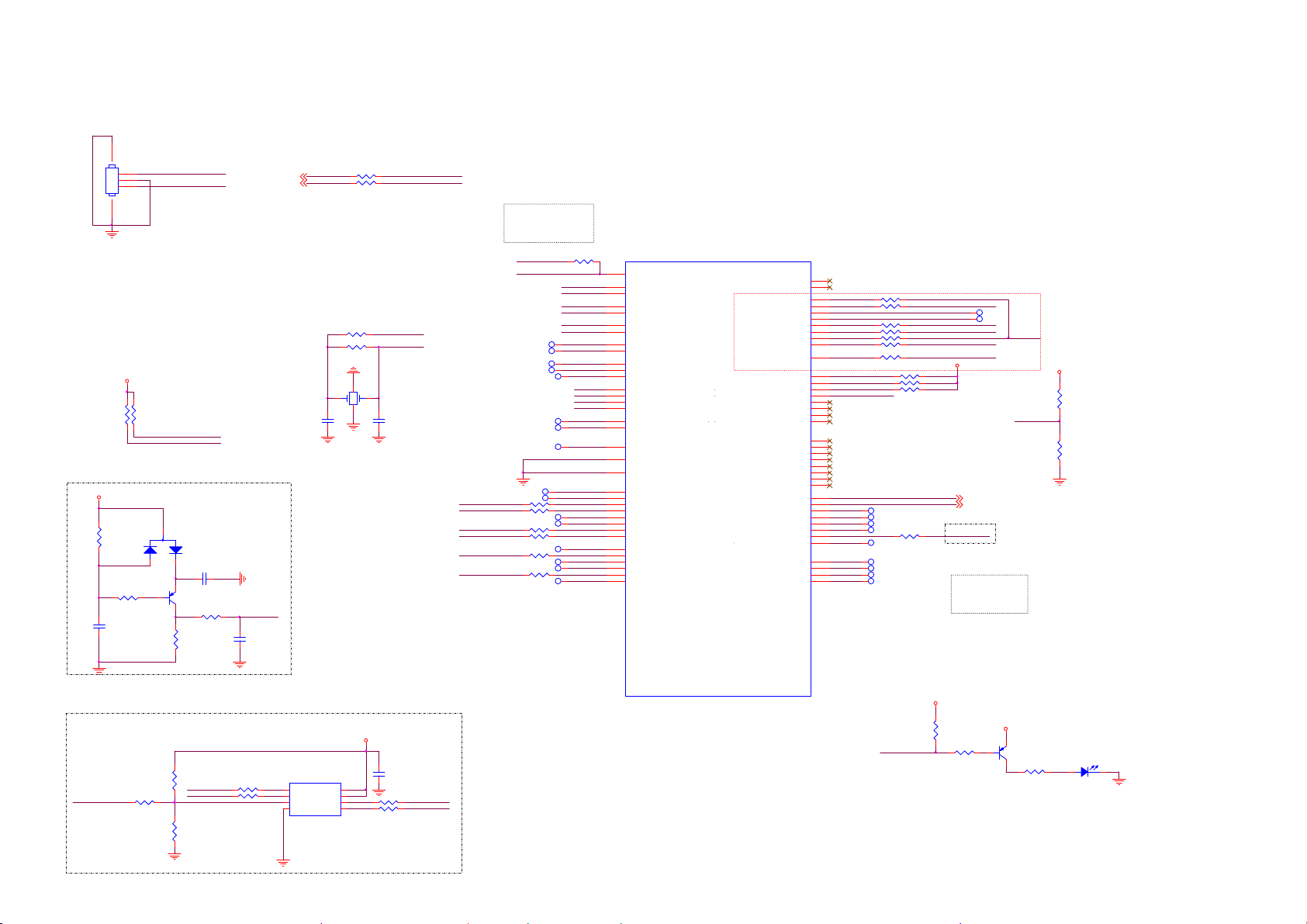

8-4-19 MST7484 BGA

from scaler

OSDA16,11 OSCL16,11

R807 0R 05 1/ 16W R810 0R 05 1/ 16W R811 33R 1/ 16W 5%

I2CM_SDA24 I2CM_SCL24

[SPI Flash] 4MB

GPIO0

UART2_TX

R831 NC/1K

[I2C / UART ]

I2C_S Port

45

CN800

CONN

1 2 3

Modify by EMI

R835 22 OHM 1/16W R836 22 OHM 1/16W

R828 10K 1/16W 5%

SPI_CZ SPI_DO

R834 NC/10K

10K 1/16W 5%

10R 1/16W 5%

10R 1/16W 5% R829 R830

I2CS_SCL I2CS_SDA

R802

I2CS_SDA I2CS_SCL

R815

VCC3.3V_FRC

R803 10K 1/16W 5%

R808 33R 1/ 16W 5%

R816 10K 1/16W 5%

R818 33R 1/16W 5% R819 33R 1/16W 5%

U802

1

CS#

VCC

2

SO/SIO1

HOLD#

3

WP#

SCLK

GND4SI/SIO0

MX25L3206EM2I-12G

8 7 6 5

I2CS_SDA_U I2CS_SCL_U

I2CM_SDA_U I2CM_SCL_U

VCC3.3V_FRC

R832 R833

10R 1/16W 5% 10R 1/16W 5%

C805 100N 16V

SPI_CK SPI_DI

8/20 Ad d for PHP

PANEL_VCC_ON/OFF

SBL interface

R871 33R 1/16W 5% R872 33R 1/16W 5%

LD_EN

VX1_RX_HTPD_V

VX1_RX_LOCK_V

AMBIL_SPI_DOSPI3_DI AMBIL_SPI_CLKSPI3_CK

SOC_RESET Low: normal High: rese t

SOC_RESET

R245 NC/0R05 OHM

HW_RESET

R849 33R 1/ 16W 5% R850 33R 1/ 16W 5% R851 33R 1/ 16W 5%

TP4436

TP4434 TP4435

R854

R855

TP85

TP57 TP58

TP56

TP60 TP61

TP62

33R 1/16W 5%

TP63 TP64

33R 1/16W 5%

TP65

XOU T XIN

I2CS_SDA_U I2CS_SCL_U

I2CM_SDA_U I2CM_SCL_U

UART2_TX UART2_RX

UART1_TX UART1_RX

SPI_CZ SPI_CK SPI_DI SPI_DO

GPIO13 GPIO14 GPIO15 GPIO16

GPIO03

GPIO42 GPIO41

CHIP_VDET

GPIO4 GPIO5 GPIO6 GPIO7 GPIO8 GPIO9 GPIO10 GPIO11

GPIO12

GPIO17

GND 3,5,6,7,8,9, 10,11,12,13,14,15,16,17,18,19,20,21,23,24,26,27

8/20 A dd for PHP

AMBIL_SPI_DO AMBIL_SPI_CLK

U801C MST7484GC

E13

RESET

Y6

XOU T

AA6

XIN

V17

I2C_S_SDA

U17

I2C_S_SCL

L16

I2C_M_SDA

L17

VSYNC_LIKE_SP1/ I2C_M_SCL

E5

GPIO00 / UAR T2_TX

E6

GPIO01 / UAR T2_RX

F4

GPIO02/UART1_TX

F5

IRE / UART1_RX

G5

GPIO03

J21

SPI_CZ

H20

SPI_CK

H21

SPI_DI

J19

SPI_DO

D14

INT_R20

E14

INT_R21

G4

CHIP_VDET

D13

TESTPIN

N4

EFUSE

M16

GPIO04

N16

GPIO05

M18

GPIO06

N17

GPIO07

N18

GPIO08

M17

GPIO09/PWM4

K20

GPIO10

L19

GPIO11

F15

GPIO12

V18

GPIO13/VX1R_HTPD_V

E15

GPIO14

F14

GPIO15

U18

GPIO16/VX1R_LOCK_V

F13

GPIO17

AMBIL_SPI_DO 17,27 AMBIL_SPI_CLK 17,27

VSYNC_LIKE_SP2 VSYNC_LIKE_SP3

SPI1_CK/PWM2

SPI1_DI/PWM3

SPI2_CK/PWM0

SPI2_DI/PWM1

VSYNC_LIKE_SP0/ PWM5

VX1T_HTPDN/GPIO18 VX1T_LOCKN/GPIO19

SPI3_CK

SPI3_DI

SPI4_CK

SPI4_DI

DIM00 DIM01 DIM02 DIM03 DIM04 DIM05 DIM06 DIM07

GPIO43 GPIO44 GPIO45 GPIO46 GPIO47 GPIO48 GPIO49 GPIO50

GPIO20 GPIO21 GPIO22 GPIO23 GPIO24 GPIO25

UFC_CS

UFC_SDO

UFC_SCL UFC_SDI

P16 P17

J16 K16 J18 J17 K18 K17 J20 K19

P15

L20 L21 M19 M21 M20 N19 N20 P19

L5 L6 K6 J6 K4 K5 J4 J5

T9 U9 U10 V10 U11 V11 T10 T11

F6 G6 H5 H6

VCC3.3V_FRC5,21, 24

PANEL_VCC_ON/OFF LD_EN

VX1_RX_LOCK_V VX1_RX_HTPD_V

I2CS_SCL I2CS_SDA

DDC_RCR SOC_RESET

SPI3_CK SPI3_DI

DIM0

R800 10K 1/16W 5%

DIM1

R809 10K 1/16W 5%

DIM2

R814 10K 1/16W 5%

DIM3

VX1T_HTPDN_R VX1T_LOCKN_R

DDC_RCR_R

SBL interface

pull-do wn: 0x98; pull-high: 0x92;

TP66 TP67 TP68 TP69 TP70 TP71 TP72 TP73

R856 R857

TP74 TP75 TP76

R858

TP77

33R 1/16W 5%

TP78

TP79 TP80 TP81 TP82

VCC3.3V_FRC

PANEL_VCC_ON/OFF 17,24 LD_EN 24

LOCKN 11,17 HTPDN 11,17

I2CS_SCL 24 I2CS_SDA 24

DDC_RCR 17 SOC_RESET 17

VCC3.3V_FRC

33R 1/16W 5% 33R 1/16W 5%

R820

R823

VX1T_HTPDN VX1T_LOCKN

DDC_RCR

For DDC read command Ready. connect to SoC.

DDC_RCR Normal: h igh Abno rmal:low

NC/10K

10K 1/16W 5%

VX1T_HTPDN 24 VX1T_LOCKN 24

[UART1 Port]

UART1 Port

8/1 (modify)

R839 NC/33R 1/16W 5% R840 NC/33R 1/16W 5% R841 NC/0R05 OHM R842 NC/0R05 OHM

UART1_RX UART1_TX UART2_RX UART2_TX

VCC3.3V_FRC

R801 100K 1/16W 5%

R805

10K 1/16W 5%

C801

2.2uF 6 . 3V

X801

XOU T

XIN

3

C804

12P 50V

R821

22R 1/16W 5%

R824 1 MOHM 1% 1/16W

1

2 4

C803

24MHz

12P 50V

D800 LBAV99LT1G

2

Q800 MMBT3906

R806 1K 1/16W 5%

R812 100K 1/16W 5%

RESET

C800

2.2uF 6.3V

HW_RESET

C802

2.2uF 6.3V

3

1

* all I/O without 5V tolerance

8-4-20 MST7484 DDR

U801A MST7484GC

R825 240R 1%

R826 240R 1%

A-ZQ-A

A-MVREFDQ

A-ZQ-B

B17

A_DDR_ZQ_A

A16

A_DDR_VREF_A

A17

A_DDR_ZQ_B

MIU0

AVDD_DDR

AVDD-DDR

R847

R846 0R05

1K 1/16W 1%

AVDD-DDR

A-MVREFDQ

C810 100N 16V

C809 10UF 6.3V 20%

C811 1N 50V

+

C808 100UF 16V

R848 1K 1/16W 1%

GND 3,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,24,26,27

AVDD_DDR

AVDD_DDR 5,21

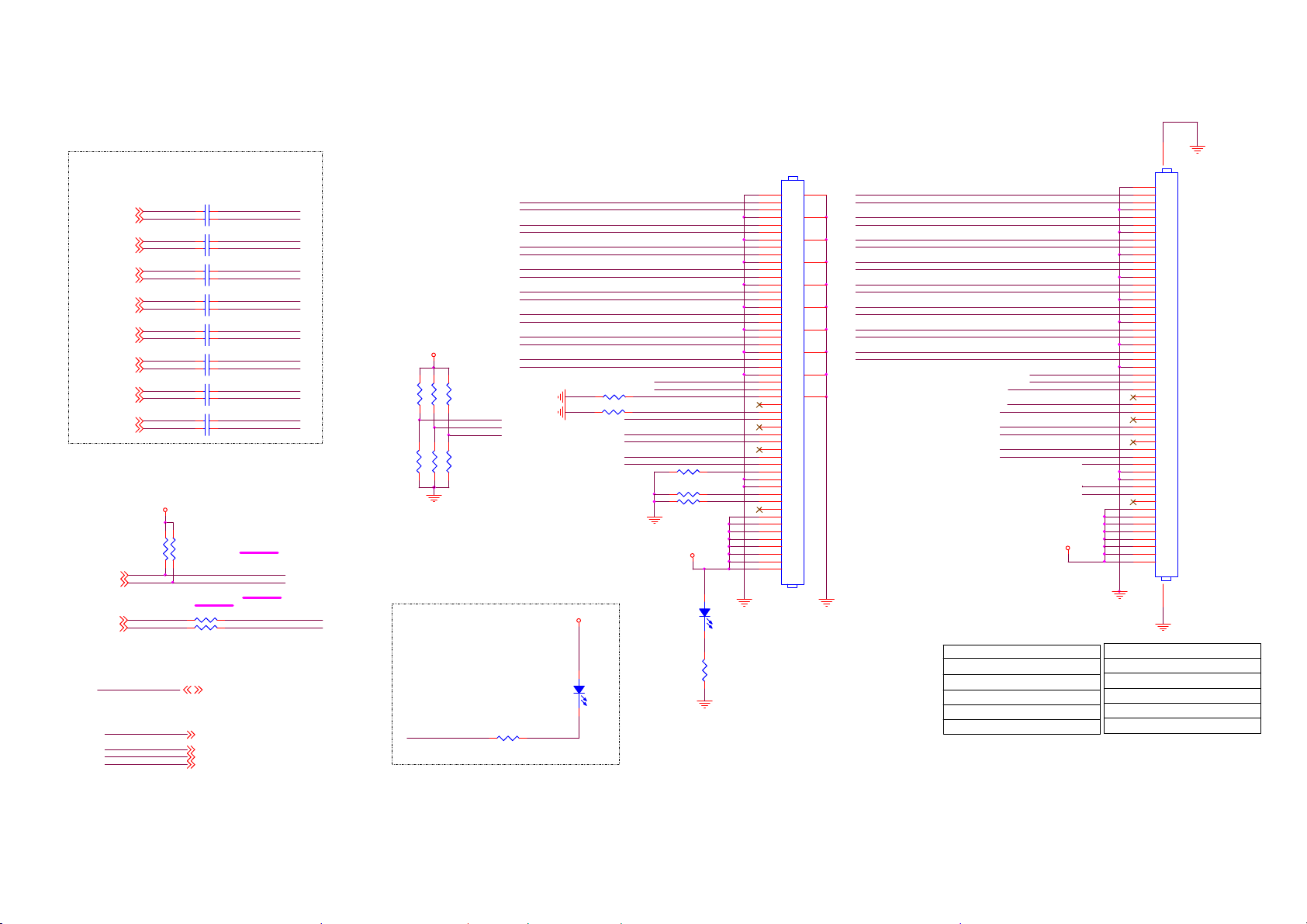

8-4-21 MST7484 VB1 TX interface

0.1uF for VB1 Out

A0N25 A0P25

A1N25 A1P25

A2N25 A2P25

ACKN25 ACKP25

A3N25 A3P25

A4N25 A4P25

B0N25 B0P25

B1N25 B1P25

VX1T_HTPDN22 VX1T_LOCKN22

I2CM_SDA22 I2CM_SCL22

I2CS_SDA22 I2CS_SCL22

A0N A0P

A1N A1P

A2N A2P

ACKN ACKP

A3N A3P

A4N A4P

B0N B0P

B1N B1P

VCC3.3V_FRC

R873

R878 R879

All Path Grounding(20mil)

R874

10K 1/16W 5% 10K 1/16W 5%

NC/ 0R 05 OH M NC/ 0R 05 OH M

R880 R881

NC/ 0R 05 OH M NC/ 0R 05 OH M

C911100N 16V

VBY0N_2

VBY0P_2

C912100N 16V C913100N 16V

VBY1N_2

VBY1P_2

C914100N 16V C915100N 16V

VBY2N_2

VBY2P_2

C916100N 16V C917100N 16V

VBY3N_2

VBY3P_2

C918100N 16V C919100N 16V

VBY4N_2

VBY4P_2

C920100N 16V C921100N 16V

VBY5N_2

VBY5P_2

C922100N 16V C923100N 16V

VBY6N_2

VBY6P_2

C924100N 16V C925100N 16V

VBY7N_2

VBY7P_2

C926100N 16V

HTPDN_TX LOCKN_TX

All P a th Grounding(20mil)

VCC3.3V_FRC

NC/10K+-5%1/16W

NC/10K 1/16W 5%

SDA_VB1_out SCL_VB1_out

R1034

AGP

R1033

PANEL_POWER

NEAR CN40 8

VCC3.3V_FRC

R1021

NC/10K+-5%1/16W

R1022

10K 1/16W 5%

VB1 output

FB4278

1 2

120R 3A

FB4279

1 2

120R 3A

R1018

R1020

10K 1/16W 5%

R1024

R1023

NC/10K+-5%1/16W

VBY7P_2 VB1_TX7P

VBY6P_2 VB1_TX6P

VBY5P_2 VB1_TX5P VBY5N_2 VB1_TX5N

VBY4P_2 VB1_TX4P

VBY3P_2 VB1_TX3P VBY3N_2 VB1_TX3N

VBY2P_2 VB1_TX2P

VBY1P_2 VB1_TX1P

VBY0N_2 VB1_TX0N

R5004 NC / 0R 05 1/ 16W R5005 4.7K1/16W

Panel_12V

C4816

10UF 25V

VB1_TX7NVBY7N_2

VB1_TX6NVBY6N_2

VB1_TX4NVBY4N_2

VB1_TX2NVBY2N_2

VB1_TX1NVBY1N_2 VB1_TX0PVBY 0P_2

LOCKN_TX HTPDN_TX

SCL_VB1_out SDA_VB1_out

D_Fomat1 D_Fomat0

R5013 0R05 1/ 16W

R5010 0R05 1/ 16W R5011 0R05 1/ 16W

Panel_12V

Modify by EMI

D_Fomat0 D_Fomat1 Bit_SEL

H or NC = 10bit L = 8bit

AGP LD_EN Bit_SEL

R4739

10K OHM +-5% 1/8W

311GF050P51ADP

CN418

CONN

+18V VCC3.3V_FRC 18Vto12V

1

52 2 3 4

53 5 6 7

54 8 9

10

55

11 12 13

56

14 15 16

57

17 18 19

58

20 21 22

59

23 24 25

60

26 27 28

61

29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51

Panel_12V PANEL_VCC_ON/OFF

LD_EN D_Fomat0 D_Fomat1 Bit_SEL +12V_LNB

Panel VCC=12V

PANEL_VCC ON/O FF Normal:High Stand_By:Low

PANEL_VCC_ON/OFF

10K 1/16W 5%

LOCKN_TX

GND 3,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,26,27

+18V 3,5,27 VCC3.3V_FRC 5,21,22 18Vto12V 3

Panel_12V 11 PANEL_VCC_ON/OFF 17,22 LD_EN 22 D_Fomat0 11 D_Fomat1 11 Bit_SEL 11 +12V_LNB 14

FB710

+18V

18Vto12V

R784

750R 1/16W 5%

1 2

120R 6A

FB709

1 2

FB708

1 2

5.1KOHM +-5% 1/10W

10K 1/16W 5%

R783

GPTS06033GC1-PB

R3217

120R 6A

NC/120R 6A

10K 1/10W 5%

C784

NC/4.7UF 10V

LED302

R780

R782

VCC3.3V_FRC

R3218 470R 1/16W 5%

12

Q3201

BC857C

+12V_LNB

Q780

BC847C

Q781 AON4421

8

D

7

D

6

D

5

G4S

C783

1UF 10% 16V

6K8 1/10W 5%

R781

1 2 3

Panel T/S P/B FB710 FB709 FB708

PANEL_POWER

R883

NC/ 1K 1/ 16W 1%

+

C782

220UF 16V

12V T/T2 12V

NC SMT SMT NC

12V T/T2 16V

NC SMT NC SMT

Panel_12V

R882 NC/ 470R 1/ 10 W 1%

Q782 NC/2N7002K

For Panel T6&T7

12V S2 12V

SMT NC

12V S2 16V

NC SMT

8-4-22 MST7484 RX_TX interface

From SOC

VBY1_R0N11 VBY1_R0P11 VBY1_R1N11 VBY1_R1P11 VBY1_R2N11 VBY1_R2P11 VBY1_R3N11 VBY1_R3P11

VBY1_R4N11 VBY1_R4P11 VBY1_R5N11 VBY1_R5P11 VBY1_R6N11 VBY1_R6P11 VBY1_R7N11 VBY1_R7P11

VBY1_R0N VBY1_R0P VBY1_R1N VBY1_R1P VBY1_R2N VBY1_R2P VBY1_R3N VBY1_R3P

VBY1_R4N VBY1_R4P VBY1_R5N VBY1_R5P VBY1_R6N VBY1_R6P VBY1_R7N VBY1_R7P

R8008 0R05 1 / 16W R8009 0R05 1 / 16W R8010 0R05 1 / 16W R8011 0R05 1 / 16W R8012 0R05 1 / 16W R8013 0R05 1 / 16W R8014 0R05 1 / 16W R8015 0R05 1 / 16W

R8016 0R05 1/16W R8017 0R05 1/16W

R8018 0R05 1/ 16W R8019 0R05 1/16W R8020 0R05 1/16W R8021 0R05 1/16W R8022 0R05 1/16W R8023 0R05 1/16W

Close to CN408

Modify by MTK 6/22

U801B MST748 4GC

W8

NC

AA8

NC

Y8

NC

W9

NC

Y9

NC

W10

NC

Y10

NC

AA10

NC

W11

NC

AA11

NC

Y11

NC

W12

NC

Y12

NC

W13

Y13

AA13

W14

AA14

Y14

W15

Y15

W16

Y16

AA16

AA17

Y17 Y18

W19 AA19 AA20

Y20 Y21

W21

V20

V19 U21 U19

T20 R20 R21

NC NC NC NC NC NC NC NC NC NC NC

VBY1_1_RXM[0] VBY1_1_RXP[0] VBY1_1_RXM[1] VBY1_1_RXP[1] VBY1_1_RXM[2] VBY1_1_RXP[2] VBY1_1_RXM[3] VBY1_1_RXP[3]

VBY1_1_RXM[4] VBY1_1_RXP[4] VBY1_1_RXM[5] VBY1_1_RXP[5] VBY1_1_RXM[6] VBY1_1_RXP[6] VBY1_1_RXM[7] VBY1_1_RXP[7]

MOD

VB1RX

VX1_0+

VX1_0-

VX1_1+

VX1_1-

VX1_2+

VX1_2-

VX1_3+

VX1_3-

VX1_4+

VX1_4-

VX1_5+

VX_5-

VX1_6+

VX1_6-

VX1_7+

VX1_7-

To Panel

AA2

A0P

AA3

A0N

Y2

A1P

Y1

A1N

W3

A2P

W2

A2N

V3

ACKP

V1

ACKN

U3

A3P

U2

A3N

R2

A4P

T3

A4N

P1

B0P

R3

B0N

N2

B1P

P3

B1N

M1

NC

M2

NC

L2

NC

L1

NC

K3

NC

K2

NC

J3

NC

J1

NC

L4

NC

M4

NC

H3

NC

H2

NC

F2

NC

G3

NC

F3

NC

F1

NC

E2

NC

E1

NC

D2

NC

E3

NC

C2

NC

D3

NC

C3

NC

C1

NC

B2

NC

B1

NC

B3

NC

A2

NC

B4

NC

A3

NC

B5

NC

A4

NC

C5

NC

A5

NC

A0P 24 A0N 24 A1P 24 A1N 24 A2P 24 A2N 24 ACKP 24 ACKN 24 A3P 24 A3N 24 A4P 24 A4N 24 B0P 24 B0N 24 B1P 24 B1N 24

8-4-23 SCART

SCART 1(Full SCART) -- CVBS+SV+RGB+TV OUT

Near CONNECTOR

SCART CVBS IN

SCT1_AV_IN

12

ZD119

NC/AZ5123-01H

CN151

SCT1_AUR_IN

SCT1_AUL_IN SCT1_FS_IN

SCT1_FB_IN SCT1_AVI_GND SCT1_AV_IN

SCART1L_PA

with GND

SCART1R_PA

2 4 6

8 10 12 14 16 18 20

SCART 21P

H:8.5mm BPR

Near CONNECTOR

R139

NC/470R 1/16W 5%

R146

NC/470R 1/16W 5%

R121

0R05 1/16W

R124

75R 1/16W 1%

1 3 5 7 9 11 13 15 17 19 21

C131

NC/470pF 50V

C137

NC/470pF 50V

SCT1_AUR_OUT SCT1_AUL_OUT SCT1_GB_GND SCT1_B_IN SCT1_GB_GND SCT1_G_IN SCT1_R_GND SCT1_R_IN SCT1_AVO_GND SCT1_AV_OUT

Near MT5561

C119

C123 47pF 50V

R122

100R 1/16W 5%

SCT1_R_IN

CVBS2P

47nF 16V

with GND

12

0R05 1/16W

ZD120 NC/AZ5123-01H

12

0R05 1/16W

ZD110 NC/AZ5123-01H

ZD111

NC/AZ5123-01H

1 2

0R05 1/16W

R125

R131

R137

SCART1 Audio Output

12

ZD113

NC/AZ5123-01H

ZD117

NC/AZ5123-01H

R1123 NC/ 100K 1%

NC/ 10N 5 0V

12

R1124 NC/ 100K 1%

NC/ 10N 5 0V

TUNER_BY PASS_OUT

with GND

Near CONNECTOR

R127

75R 1/16W 1%

R133

75R 1/16W 1%

R135

75R 1/16W 1%

Near CONNECTOR

R140

SCT1_AUL_OUT

NC/0R05 1/16W

C124

8/20 EMI S R

R147

SCT1_AUR_OU T

NC/0R05 1/16W

8/20 EMI S R

C133

Near MT5561

SCT1_BSCT1_B_IN

R126 100R 1/16W 5%

C125 10PF 50V

COM_2

R130

100R 1/16W 5%

SCT1_G

C128 10PF 50V

C129 10PF 50V

SCT1_R

R132

100R 1/16W 5%

R138 100R 1/16W 5%

Near CONNECTOR

L101

NC/2.2UH

NC/220pF 50V

C122 10N 50V

with GND

C126 10N 50V

C127 10N 50V

C120

Y0P

COM0

PB0PSCT1_G_IN

C121 NC/ 220PF 5 0V

FAST BLANKING

SCT1_FB_IN

12

Function Select

SCT1_FS_IN

with GND

PR0P

C130 10N 50V

SCART Audio Input

Near CONNECTOR

SCT1_AUR_IN

SCT1_AUL_IN

C135

NC/ 1nF 50 V

12

C136

NC/ 1nF 50 V

ZD114

NC/AZ5123-01H

R141 NC/10R 1/ 16W 5%

ZD109 AZ5123-01H

12

ZD112

AZ4012-01H.R7G

>12V ESD component

C132 1uF 10V

C134 1uF 10V

12

ZD115

NC/AZ5123-01H

SCART CVBS OUT

SCT1_AV_OUT

12

ZD118 NC/AZ5123-01H

R128

0R05 1/16W

R129 75R 1/16W 1%

R134 51K 1/16W 5%

Near MT5561

30K OHM +-1% 1/16W

SCART_FS0

R136 10K 1/16W 5%

R143

R144

SOY0

SCART1_R_IN

SCART1_L_IN

SCART Audio Output

SCART1R_PA SCART1L_PA

SCART Audio Input

SCART Video Output

SCART1_R_IN SCART1_L_IN

TUNER_BYPASS_OUT

SCART1R_PA 10 SCART1L_PA 10

SCART1_R_IN 9 SCART1_L_IN 9

TUNER_BY PASS_OUT 9

SCART Video Input

SOY09 Y0P9 COM09 PB0P9 PR0P9 SCART_FS017 CVBS2P9

with GND

GND 3,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,27

SOY0 Y0P COM0 PB0P

PR0P SCART_FS0 CVBS2P

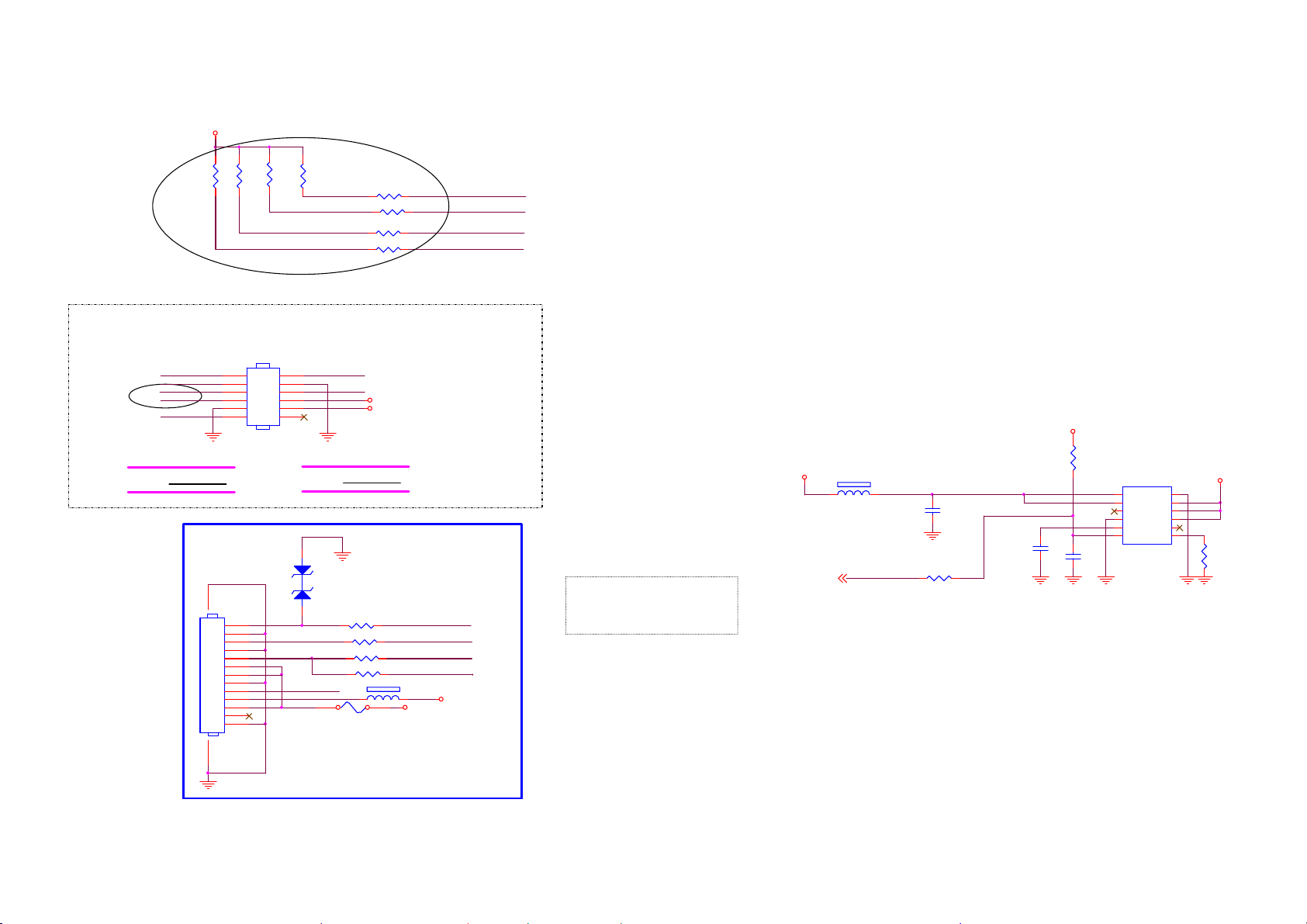

8-4-24 AMBILIGHT & Hotel TV

AL+KEY

1112

Add ZD127 / 0119

CN412 CONN

1

Key1

2 3

AMBIL_SPI_CLK

4 5

AMBIL_SPI_DO

6 7

+12V_AMBI

8 9

AMBI_TEMP

10

AMBI_3V3

C403

NC/1nF 50V

R4501 100R 1/16W 5%

12

ZD127

AZ5123-01H

C402

C404

NC/ 470pF 50V

F1401 N C / T 2A 63V

R4502

NC/1nF 50V

NC/ 0R 05 1/16W

Modify by EMI

2W Mono Speaker output for BUH Hot el TV

AL1O

AR1O

Close to MT5593

R4504

NC/200R 1/16W 5%

R4506

NC/ 200R 1/ 16W 5%

R4505

NC/ 510R 1/16W 5%

C4501

NC/ 1nF 50V

C4503

NC/ 1n F 50V

R4507

NC/ 510R 1/ 16W 5%

C4502

NC/10NF 50V

C4504

NC/10NF 50V

+5V_SW

KEY_PAD0

AMBI_TEMP_CTL

1 2

FB715 NC/120R 3A

3V3SB

OPWRSB_PWR IR_SSB IR_RC

SPK_SD

U0TX U0RX

For shutdown 12V

+18V

DVDD3V3

1210 pin updated

NC/CONN

12 11 10

9 8 7 6 5 4 3 2 1

CN413

13 14

+18V 3V3SB +5V_SW

DVDD3V3

8/20 A dd for P HP

GND 3,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,26

+18V 3,5,24 3V3SB 3,5,6,9,10,12,16,17,18 +5V_SW 3,5,9,12,13,15,18,20 DVDD3V3 3,5,6,7,9,10,12,13,14,15,17,19

AMBIL_SPI_DO AMBIL_SPI_CLK

AMBI_TEMP_CTL KEY_PAD0

OPWRSB_PWR PWRDN

AL1O AR1O

IR_SSB6,16 IR_RC16

U0TX6,12 U0RX6,12

AMBIL_SPI_DO 17,22 AMBIL_SPI_CLK 17,22

AMBI_TEMP_CTL 17 KEY_PAD0 16,17

OPWRSB_PWR 3,5,18 PWRDN 10

AL1O 9 AR1O 9

IR_SSB IR_RC

U0TX U0RX

PWRDN

R4503

0R05 1/16W

SPK_SD

8.5 B 715G8071 SSB

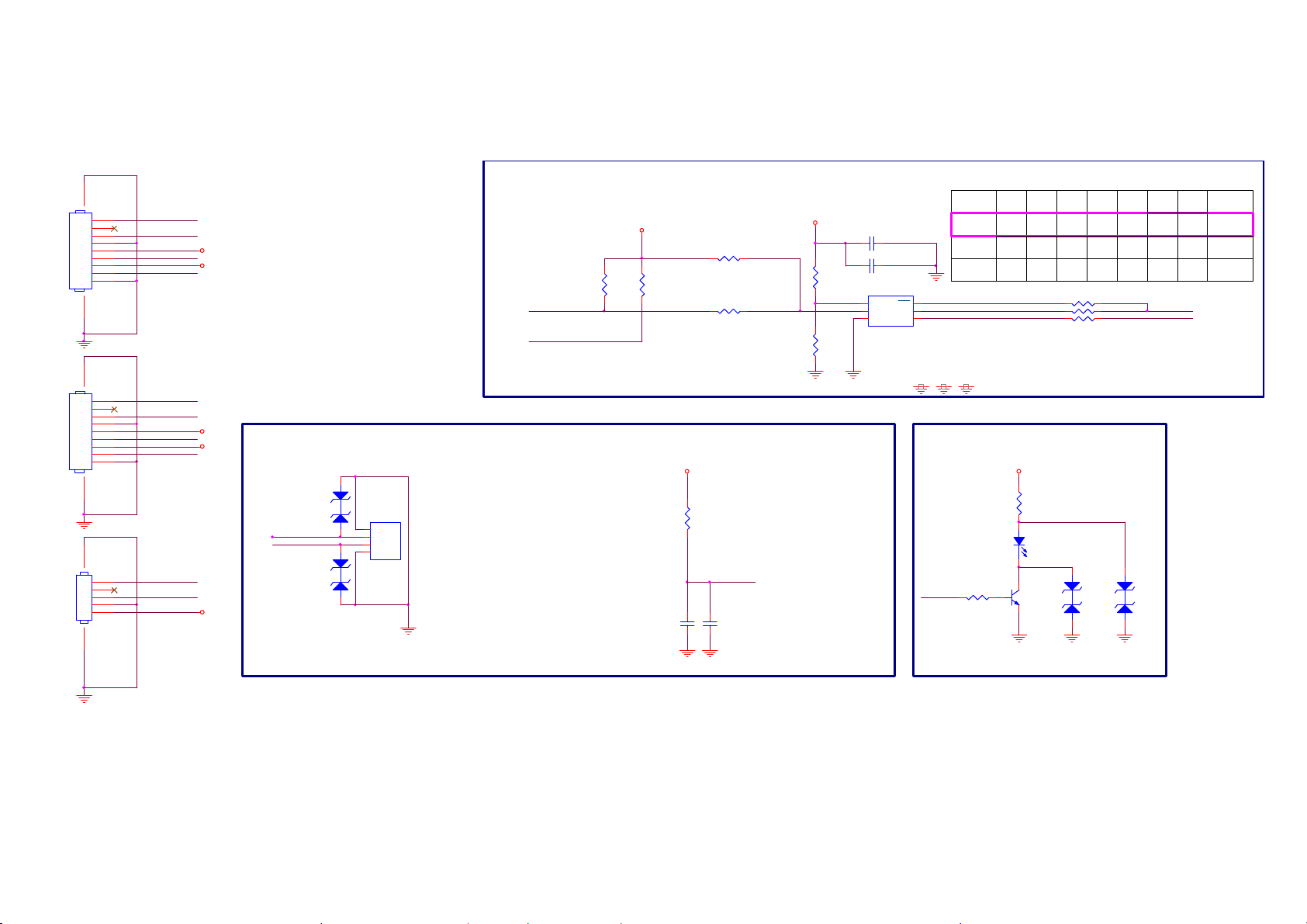

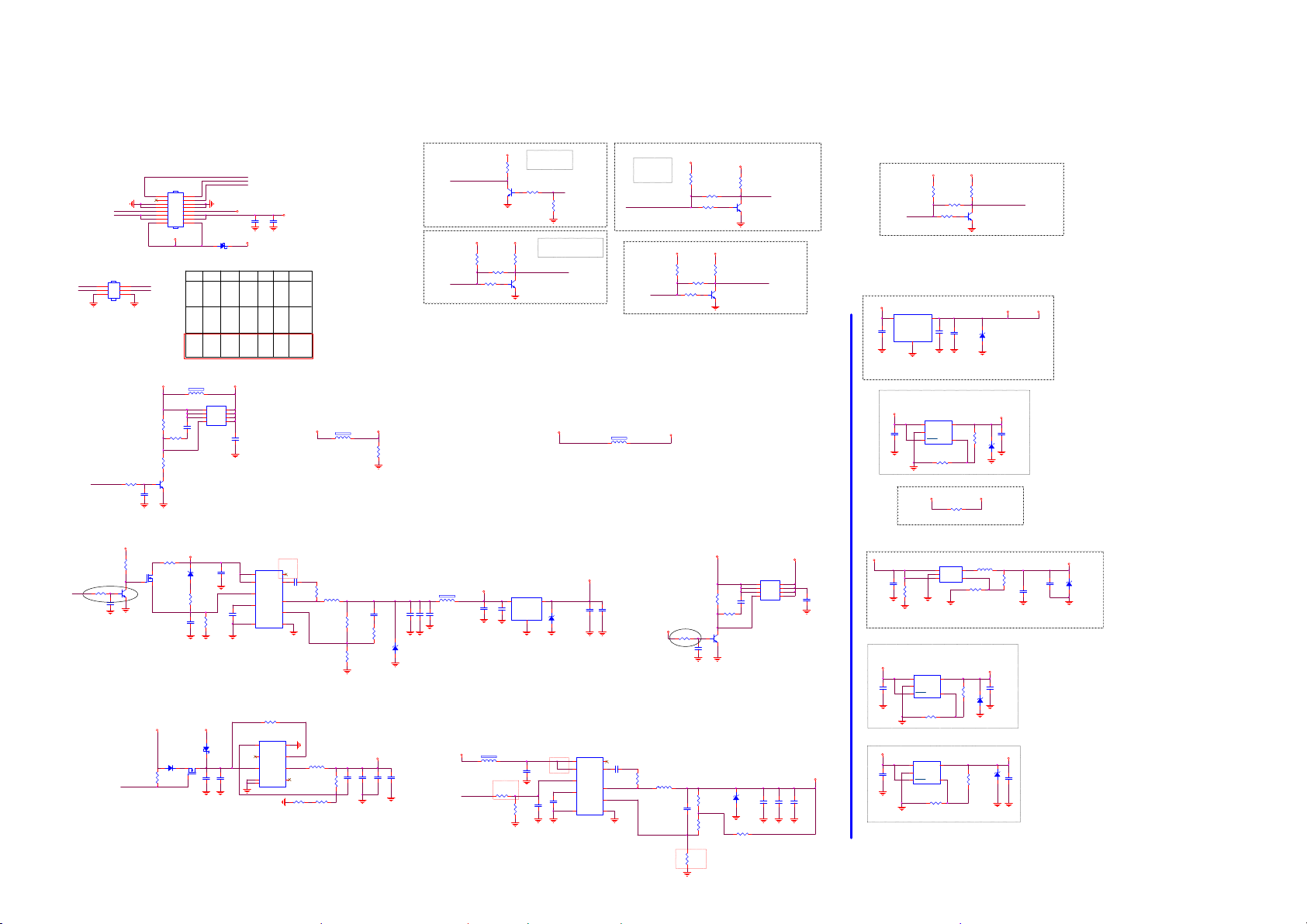

8-5-1 System Power

2K15 MT5596L platform

MAIN POWER

AU_18V Main_18V

CN703

2

1

BL_DIG_DI MBL_DIG_DIM1

4

3

BL_ON/POK BL_DI G_DIM2

6

5

nc/CONN

R741 NC/47K 1/16W 5%

OPWRSB_PWR

C708

NC/100N F 16 V

Main_18V

R729

NC/10K 1/16W 5%

R745

Nc/5K1 1/16W 5%

16 14 12 10 8 6 4 2

STB_PWR

Q708 NC/MMBT3904

CN701

15 13 11 9 7 5 3 1

CONN

FB702

SMT

1 2

120R 6A

C709

NC/1UF 10% 16 V

NC/10K 1/16W 5%

R730

NC

FB708

D703

1 2

FB710

NC

SMT

Q704

1

S

2

S

3

S

4

G

NC/AO4449 -7A/-30V

BL_ON/POK BL_DIG_DI M OPWRSB_PWR

FB340M

D D D D

FB709

3V3SB

OPWRSB: Normal: Low Stand_by: Hi

R709

MMBT3904

R711

NC/0R05 1/16W

4.7K 1/16W

1K 1/16W 5%

R767

DVDD3V3

4.7K 1/16W

R706

10K 1/16W 5%

Q703 MMBT3904

OPWRSB

R715

47K 1/16W 5%

BRIGHT_ADJ: Normal:Max:+3V 3, Min:0V Stand_By:0V

BL_DIG_DIM

Main_18V

Q710

R714

OPWRSB_PWR

AU_18V

Main_18V

C717

C718

10UF 25V

+5V_STB

U701

Q704

FB708

+18V

NC/10UF 25V

SMT

NC

12V_PW

SMTNCSMT

NC

18V_PW

SMT

NC

CD

+18V_AUDIOAU_18V

FB703

C713

1 2

120R 6A

R722 10K 1/4W

SMT

NC

8 7 6 5

4.7K 1/16W

BRIGHT_ADJ

DVDD3V3

R705

FB701

1 2

120R 6A

BL_ON/OFF: Inv erter on: Low Inverte r off: H igh

INVERTER_ON_OFF

NC/4. 7K 1 / 16 W

OPWM1

DVDD3V3

R8116

P12V

3V3SB

R768

4.7K 1/16W

R8118

NC/0R05 1/16W

R8119

NC/4.7K 1/16W

R765

NC/0R05 1/16W

R770

4.7K 1/16W

DVDD3V3

R8117

NC/10K 1/16W 5%

BL_DIG_DIM1

Q5008 NC/MMB T3904

R769 1K 1/16W 5%

BL_ON/POK

Q711 MMBT3904

DVDD3V3

R8112

NC/4.7K 1/16W

OPWM2

MAX=2.0A

TO263GOI

+5V_SW

U702 AZ1084S2-3.3TRG1

2

3

OUTPUT(TAB)

INPUT

C706

ADJ/GND

10uF 16V

1

DVDD3V3 From +5V_SW

Vout=1.0(1+R1/R2)_SPEC 600mA

DVDD3V3

U703

1

IN

2

GND

C711

NC/1uF 10V

SHDN3SET

NC/G9141T11U

AVDD1V0_STB

R8114

NC/0R05 1/16W

NC/4.7K 1/16W

C705

22UF 20% 6.3V

OUT

R713

0R05 1/16W

R8115

R734

NC/20K 1%

DVDD3V3

R8113

NC/10K 1/16W 5%

Q5007 NC/MMBT3904

Sony request

C707

100NF 16V

1 2

DIGITAL POWER DVDD3V3/AVDD3V3

5

NC/1Kohm 1/ 16W +/ -1%

R727

4

AVDD1V0_1

BL_DIG_DIM2

MAX=2.0A

(1A/60mil)

DVDD3V3

ZD703

NC/BZT52-B3V6

AVDD1V0_1

ZD702

C714 NC/10UF 6.3V 20%

1 2

NC/BZT52H-C2V7

AVDD3V3

Modify 151210

BL_ON/POK

100 OHM 1/16W

47K 1/16W 5%

R8101

R8102

C8091

100NF 16V

Main_18V

DDR_PWR_EN

Q712 DTC114EN3/S

10K 1/16W 5%

R8100

47K 1/16W 5%

Q403

2N7002K

+5V_STB

100NF 25V

D702 BAS316WS

R708

RLZ9V1B

ANALOG POWER AVDD1V05_STB

3V3SB

C797

1uF 10V

R707 100K 1%

1 2

VIN GND EN3VFB

G5695T11U

U710

5

LX

4

24K 1%

Vout = 0.6x(1+R1/R2)=1.05V

eMMC 1V8

Vout=1.0(1+R1/R2)_SPEC 600mA

DVDD3V3

U704

1

5

IN

OUT

R728

2

24K 1%

GND

4

SHDN3SET

G9141T11U

R735

30K OHM +-1% 1/16W

U709

1

5

IN

OUT

2

GND

4

SHDN3SET

G9141T11U

R7002

10K 1% 1/16W

Vout=1.0(1+R1/R2)_SPEC 600mA

R7003 2K 1%

1uF 10V

C712

DVDD3V3

C743

R704

1 2

L704

2.2UH

R2

LDO_PWR

C715

10UF 6.3V 2 0% ZD710 NC/BZT52H-C2V7

AVDD1V2_DTMB

ZD711

NC/MMSZ4678

R1

1 2

R702 18K OHM 1% 1/16W

C799

10UF 6.3V 2 0%

C744 10UF 6.3V 20%

AVDD1V0_STB

ZD705

NC/BZT52H-C2V7

C731

100NF 16V

1 2

R733

10K 1/16W 5%

R740

120 OHM 5% 1/16W

C701

100NF 16V

6A DC/DC V=0.6x(1+16K/24K)=1.0V

R8073 10 OHM 1/16W

C750

220pF 50V

R8071

24K 1%

R1

R8072

R2

36K 1%

+5V_STB

C716

Q707 MMBT3904

ZD712

NC/MMSZ4678

NC/1uF 10V

R738

1 2

Q706

1

S

2

S

3

S

4

G

AO4449 -7A/-30V

C758

2R2 1/16W 5%

R8074

+5V_SW

8

MAX=2.0A

D

7

D

6

D

C728

5

D

100NF 16V

VCCK

C759

C760

22UF 20% 6.3V

Main_18V

ZD713

1 2

R798 10K 1/16W 5%

C777

+5V_SW

12

Q701 AO3401A

U708

8

IN

7

IN

1

EN

5

LDO

9

GND

SY8368QNC

8A(Spec.)

U705

1

FB

2

PG

3

IN

4

PGND

9

PGND

SY8003ADF C

R737

4.7K 1/16W

2

PG

C781

6

BS

0.1uF 50V L702

R7005

3.3UH

2.2R 1%

10

LX

Big pla n e

4

FB

3

ILMT

R1

R2

8

SGND

7

EN

L701

4.7uH

6

LX

5

R749

NC

33K 1%

DDR_PWR_FB

R701

R753

0R05 1/16W

22K 1%

C740 22P 50V

R794 36K 1%

R795

4.87K 1%

MAX=3A

C722

470PF 50V

R7006

1K 1/16W 5%

DDRV

C734

C733

22UF 20% 6.3V

FB706

+5V_STB

U707

C786

C725

100NF 16V

1uF 10V

FB704 120R 6A

51K 1/16W 5%

10K 1/16W 5%

R8075

R8076

AP1084D33LA

VIN3VOUT

TO252GOI

ADJ(GND)

1

Big plane

10UF 25V

C747

100NF 25V

C746

1 2

C785

C702 1UF 6.3V

C784

120R 6A

22uF 6.3V

ZD704 RLZ6V2B

1 2

+18V

C704

1uF 10V

OPWRSB_PWR

MAX=0.12A

(0.12A/15mil)

2

ZD706

1 2

PWR_EN

4.7UF 6. 3V

3V3SB

C726

C727

22UF 20% 6.3V

U706

8 7

1

5

9

SY8366QNC

100NF 16V

VCCK

2

IN

PG

6

C749

BS

IN

0.1uF 50V

2.2uH

R743

EN

2.2R 1%

10

LX

VC

4

FB

3

GND

ILMT

L703

BZT52-B3V6

C748

C778 10UF 25V

C780

R744

10K 1/16W 5%

4.7UF 6.3 V

D701 FB340M

C730

C765

22UF 20% 6.3V

100NF 16V

8-5-2 EMMC_Strap

Close to m ain chi p

C8063 1UF 6.3V

EMMC

POWE#

R582 0R05 OH M

PAALE

R583 0R05 OH M

PACLE

R584 0R05 OH M

PDD2

R585 0R05 OH M

PDD3

R586 0R05 OH M

PDD4

R587 0R05 OH M

PDD5

R588 0R05 OH M

PDD6

R589 0R05 OH M

PDD7

R590 0R05 OH M

VCC3IO_EMMC

R4030

DVDD3V3

4.7K 1/16W

C4008 10uF 6.3V

C4033 100NF 16V

EMMC_RST#

Core Power

VCCK

C4003 22uF 6.3V

3V3 IO Power

Close to Main Chip

Analog Power

PCB Power merge

OSDA0 OSCL0

OSDA1 OSCL1

XTAL I XTAL O

AVDD33_PDW_STB

VCC3IO_EMMC

AVDD33_RGB_STB

AVDD33_PLL_STB

AVDD10_PDW_STB

POR_OPT

R591 0R05 OH M

POWE#1

TP90

D3 D4 D5 D6 D7

C402

2.2uF 6.3V

C4009 100NF 16V

C4014 100NF 16V

TP91

C4035

AM33 AN33

AA28 AA27

AH33

D0 D1 D2

TP94

TP95

100NF 16V

UM1-7

OSDA0 OSCL0

OSDA1 OSCL1

D32

XTAL I

D33

XTAL O

L24

AVDD33_PDW_STB VCC3IO_EMMC

K25

AVDD33_RGB_STB

L22

AVSS33_RGB

L23

AVDD33_PLL_STB

F28

AVDD10_PDW_STB

R28

POR_OPT

MT5596LGEJ

R4041 N C / 10K 1/16W 5% R4034 N C / 10K 1/16W 5% R4038 N C / 10K 1/16W 5% R4037 N C / 10K 1/16W 5% R4039 N C / 10K 1/16W 5% R4033 N C / 10K 1/16W 5% R4036 N C / 10K 1/16W 5% R4035 N C / 10K 1/16W 5% R4040 N C / 10K 1/16W 5%

T92

TP93

TP96

TP97

VCC3IO_EMMC

DVDD3V3

C4010 100NF 16V

C4013 100NF 16V

AA32 AA31

AD33 AC33 AD28 AG30 AE30 AD31 AD30 AH32 AG32 AF32 AG31 AF29 AC30 AD32 AF33 AE31 AH30 AE29

V28 P31 V29 F17 AB33

AB32

NC

NC Vssq Vccq Vssq Vccq Vssq Vccq Vssq

CLK CMD Vccq

NC Vcc Vss

NC

RSTN

Vcc

VSS

Vss

DS

NC Vss

N1

U0TX U0RX

POWE# POOE# POCE1# POCE0# PDD7

TP117

PDD6

TP116

PDD5

TP115

PDD4

TP114

PDD3 PDD2

PARB# PACLE PAALE EMMC_CLK EMMC_RST#

OPWRSB

RC6

FSRC_WR

E-Fuse

R4005

4.7K 1/16W

EMMC VCC/VCCQ Power

DVDD3V3

NC/0R05 1/16W

VCC3IO_EMMC

P10 P7 P6 P5 P4 P3 N5 N4 N2 M6

EMMC_C LK#

M5

POWE#1

M4 K10

DVDD3V3 K9 K8 K7 K6 K5

EMMC_RST#

J10 J5 H10 H5 G10 G5

PCB Power merge

AVDD10_PDW_STBAVDD33_PDW_STB AVDD33_RGB_STB AVDD33_PLL_STB

TP113 TP112

TP111 TP110 TP100

Close to SOC

R520

1K 1/16W 5%

R4027

R4028

0R05 1/16W

R4031 NC/10K 1/ 16 W 5%

TP99

DS

C8062 1uF 10V

OSDA1 OSCL1

TP98

ORESETB

C423

100NF 16V

LDO_PWR

VCC3IO_EMMC

DVDD3V3

VCC3IO_EMMC

DVDD3V3

R417

10K 1/16W 5%

VCC3IO_EMMC

C4024 100NF 16V

C4030 100NF 16V

R418

10K 1/16W 5%

R503

R518 47 OHM 1/16W

C8071 NC/4. 7P F 50 V

C4022 10UF 6.3V 20%

C4025 100NF 16V

C4028 10UF 6.3V 20%

C4031 100NF 16V

DVDD3V3

NC/4. 7K 1/16W

R504

NC/4. 7K 1/16W

C4026 100NF 16V

C4032 100NF 16V

R505

R517

NC/4.7K 1/16W

PARB# POCE0# POOE#

POCE1#

DS

R404

NC/47 OH M 1/ 16W

C401

NC/100NF 16V

3V3SB

U410

3

Vcc

RESET

NC/AZ 809ANSTR-E1

Reset IC

1

GND

3V3SB

2

R4013

27K 1/16W 1%

ORESETB

R4014

20K 1%

24MHz CRYSTAL

X401

1

3

XTAL I

C4005

10PF 50V

SYSTEM EEPROM

4.7K 1/16W

SYS_EEPROM_WP OSCL0 OSDA0

SYS_EEPROM _WP Low: write High: Write protection

R4024

0R05 1/16W

STRAPPING

ICE moce + 24M + ROM to eMMC boot from eMMC pins (share pins w/s NAND)

ICE mode + 24M + serial boot ICE moce + 24M + ROM to 60bit ECC Nand boot ICE mode + 24M + serial boot(with GPIO) Boundary scan mode OLT mode scan mode cpu model mode

POR

R419

3V3SB

DVDD3V3

R4025

2.2K 1/16W

R4022 NC/4.7K 1/16W

R4021 NC/4.7K 1/16W

R4020 NC/4.7K 1/16W

POR_OPT

External ResetInternal POR

R4015: NA R4016: Mount

R4015: Mount R4016: NA

XTAL O

24MHz

2 4

R4026

2.2K 1/16W

C4006

10PF 50V

DVDD3V3

C4020 220NF 16V

I2C ADDRESS "A0"

U409

1

8

E0

VCC

7

2

E1

WC

3

6

E2

SCL

5

VSS4SDA

M24128-BRMN6TP

LED_PWM0

LED_PWM1

LED_PWM2

R4018 10K 1/16W 5%

R4019 10K 1/16W 5%

R4017 10K 1/16W 5%

HS402

1 2

HEAT SINK

HS801

1 2

NC/HEAT SINK

Heat sink

LED_PWM0 LED_PWM1 LED_PWM2STRAPPING

0

00

R4016 0R05 1/16W

0 0 0 1 1 1 1

R4015 NC/4.7K 1/16W

3V3SB

1

0

1 11 0

0

1

0

1

U0TX

U0RX

POWE__B

POOE__B POCE1__B POCE0__B

PDD7 PDD6 PDD5 PDD4 PDD3 PDD2 PDD1 PDD0

PARB__B

PACLE

PAALE

EMMC_CLK

EMMC_R STB

EMMC_D S

OPWRSB

ORESETB

OIRI

FSRC_WR

STB_SCL

STB_SDA

EMMC_CLK#EMMC_CLK

VCC3IO_EMMC

THGB MDG5 D1L BAI T

A3

U4052

DAT0

A4

DAT1

A5

DAT2

A6

VSS

A7

NC

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

C2

VDDI

C4

Vssq

C5

NC

C6

Vccq

D4

A1 index

E5

NC

E6

Vcc

E7

Vss

E8

NC

E9

NC

E10

NC

F5

Vcc

F10

NC

G3

NC

NCB1NCC1NC

C4007 22uF 6.3V

AVDD1V0_STB3V3SB

C8061 10uF 6.3V

8-5-3 DDR3x2(A)

UM1-1

R5

ARA0 ARA1 ARA2 ARA3 ARA4 ARA5 ARA6 ARA7 ARA8 ARA9 ARA10 ARA11 ARA12 ARA13 ARA14

ARBA0 ARBA1 ARBA2

ARCS ARCSD ARRAS ARCAS ARWE ARODT ARCKE ARRESET#

ARCLK0 ARCLK0B

DDRVREF _A1 DDRVREF _A2

ARTN

DDRV

AB6

W7

Y6

AC6

R7

AD6

T5 Y5

U5 AC7 AA5 AC5

R6

U7

AB5 AD5

P6

N2

N3

N6

P7 AA6

N4

U6

V6

M2

M1

L2

AL1

M8

RM158 47R 1/16W 5%

AK4

AJ5

AK5

AL5

AH6

AJ6 AG7 AH7 AF8

V9

W9

AB9

U9

ARA0 ARA1 ARA2 ARA3 ARA4 ARA5 ARA6 ARA7 ARA8 ARA9 ARA10 ARA11 ARA12 ARA13 ARA14

ARBA0 ARBA1 ARBA2

ARCS ARCSD ARRAS ARCAS ARWE ARODT ARCKE ARRESET#

ARCLK ARCLK#

DDRVREF_A1 DDRVREF_A2

ARTN

DDRV DDRV DDRV DDRV DDRV DDRV DDRV DDRV DDRV DDRV DDRV DDRV DDRV_CKA

MT5596LGEJ

ARDQM0 ARDQS0

ARDQS0#

ARDQ0 ARDQ1 ARDQ2 ARDQ3 ARDQ4 ARDQ5 ARDQ6 ARDQ7

ARDQM1 ARDQS1

ARDQS1#

ARDQ8

ARDQ9 ARDQ10 ARDQ11 ARDQ12 ARDQ13 ARDQ14 ARDQ15

ARDQM2 ARDQS2

ARDQS2#

ARDQ16 ARDQ17 ARDQ18 ARDQ19 ARDQ20 ARDQ21 ARDQ22 ARDQ23

ARDQM3 ARDQS3

ARDQS3#

ARDQ24 ARDQ25 ARDQ26 ARDQ27 ARDQ28 ARDQ29 ARDQ30 ARDQ31

AVDD33_DDR AVDD10_DDR

AVSS_DDR AVSS_DDR

N5 V1 V2 R2 AB2 R1 AB3 P1 AC3 P3 AC1

N7 W2 W3 Y3 T3 AA2 T2 Y1 U1 AA1 U3

AG4 AH2 AH3 AE3 AL2 AE2 AM1 AD1 AN1 AD2 AM2

AF5 AJ1 AK3 AJ3 AF3 AK2 AF1 AG5 AG1 AK1 AG2

L1 AC18

L4 AC17

ARDQM0ARDQM0 ARDQS0ARDQS0 ARDQS0BARDQS0B ARDQ0ARDQ0 ARDQ1ARDQ1 ARDQ2ARDQ2 ARDQ3ARDQ3 ARDQ4ARDQ4 ARDQ5ARDQ5 ARDQ6ARDQ6 ARDQ7ARDQ7

ARDQM1ARDQM1 ARDQS1ARDQS1 ARDQS1BARDQS1B ARDQ8ARDQ8 ARDQ9ARDQ9 ARDQ10ARDQ10 ARDQ11ARDQ11 ARDQ12ARDQ12 ARDQ13ARDQ13 ARDQ14ARDQ14 ARDQ15ARDQ15

ARDQM2ARDQM2 ARDQS2ARDQS2 ARDQS2BARDQS2B ARDQ16ARDQ16 ARDQ17ARDQ17 ARDQ18ARDQ18 ARDQ19ARDQ19 ARDQ20ARDQ20 ARDQ21ARDQ21 ARDQ22ARDQ22 ARDQ23ARDQ23

ARDQM3ARDQM3 ARDQS3ARDQS3 ARDQS3BARDQS3B ARDQ24ARDQ24 ARDQ25ARDQ25 ARDQ26ARDQ26 ARDQ27ARDQ27 ARDQ28ARDQ28 ARDQ29ARDQ29 ARDQ30ARDQ30 ARDQ31ARDQ31

AVDD33_DDRAVD D33_DDR AVDD10_DDRAVD D10_DDR

CH1 AD/CM Damping

ARA101_A10 ARBA11_BA1

1_A4 ARA4 1_A7 ARA7

1_RREST_MEM ARRESET# 1_A1 ARA1

1_CAS# ARCAS 2_CAS# AR CAS 1_A0 ARA0 1_A14 ARA14

1_RAS# ARRAS 1_A2 ARA2

DDRVREF _A1 A_VREFCA1

DDRV

ARRESET#

ARA121_A12

ARA131_A13 ARA91_A9

ARA81_A8 ARA111_A11

ARBA21_BA2 ARA51_A5

ARBA01_BA0 ARA31_A3 ARWE1_WE#

1_ARCSARCS

2_ARCSDARCSD

RD80 NC / 0R 05 1/16W RD82 NC / 0R 05 1/16W

1_CKEARCKE

1_ODTAROD T

RM70 NC/47K 1% 1/ 16W

2_A10 ARA10

2_A7 ARA7 2_A13 ARA13

2_RREST_MEM ARR ESET# 2_A6 ARA6ARA61_A6

2_A8 ARA8 2_A11 ARA11

2_A0 ARA0 2_A5 ARA5 2_RAS# ARRAS

2_A2 ARA2 2_BA0 ARBA0 2_A3 ARA3 2_WE# ARWE

A_VREFCA2DDRVR EF_A2

RD23 47R 1/ 16W 5%

RM139 47R 1/16W 5%

2_CKE

2_ODT

CD142100N F 16V

ARBA12_BA1 ARA122_A12 ARA42_A4

ARA92_A9

ARA12_A1

ARBA22_BA2

ARA142_A14

RD1 240R 1%

1_A01_A0 1_A11_A1 1_A21_A2 1_A31_A3 1_A41_A4 1_A51_A5 1_A61_A6 1_A71_A7 1_A81_A8 1_A91_A9 1_A101_A10 1_A111_A11 1_A121_A12 1_A13 1_A14

1_BA01_BA0 1_BA11_BA1 1_BA21_BA2

ARCLK0ARCLK0 ARCLK0BARCLK0B

1_CKE1_CKE 1_ARCS1_ARCS 1_RAS#1_RAS#

1_CAS#1_CAS# 1_WE#1_WE#

1_RREST_MEM A_ZQ1

DDRV

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

J3

RAS

K3

CAS

L3

WE

T2

RST

L8

ZQ

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

VREF_DQ

VREF_CA

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6

DQL7 DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

LDQS

LDQS UDQS

UDQS

UD1

H9

NT5CB256M16DP-EK

H1 M8

E3 F7 F2 F8 H3 H8 G2 H7 D7 C3 C8 C2 A7 A2 B8 A3

F3 G3

C7 B7

E7

LDM

D3

UDM

K1

ODT

G9

DDR3#1

DDRVREF _A1

A_VREFCA1 ARDQ0

ARDQ1 ARDQ2 ARDQ3 ARDQ4 ARDQ5 ARDQ6 ARDQ7 ARDQ8 ARDQ9 ARDQ10 ARDQ11 ARDQ12 ARDQ13 ARDQ14 ARDQ15

ARDQS0 ARDQS0B

ARDQS1 ARDQS1B

ARDQM0 ARDQM1

1_ODT1_ODT

CD60 100NF 16V

RD2 240R 1%

2_A02_A0 2_A12_A1 2_A22_A2 2_A32_A3 2_A42_A4 2_A52_A5 2_A62_A6 2_A72_A7 2_A82_A8 2_A92_A9 2_A102_A10 2_A112_A11 2_A122_A12 2_A132_A13 2_A142_A14

2_BA02_BA0 2_BA12_BA1 2_BA22_BA2

ARCLK0ARCLK0 ARCLK0BARCLK0B

2_CKE2_CKE 2_ARCSD2_ARCSD 2_RAS#2_RAS#

2_CAS#2_CAS# 2_WE#2_WE#

2_RREST_MEM A_ZQ2

DDRV

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

J3

RAS

K3

CAS

L3

WE

T2

RST

L8

ZQ

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

VREF_DQ VREF_CA

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7 DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

LDQS LDQS

UDQS UDQS

UD2

H9

NT5CB256M16DP-EK

H1 M8

E3 F7 F2 F8 H3 H8 G2 H7 D7 C3 C8 C2 A7 A2 B8 A3

F3 G3

C7 B7

E7

LDM

D3

UDM

K1

ODT

G9

DDR3#2

DDRVREF_A2

A_VREFCA2 ARDQ16

ARDQ17 ARDQ18 ARDQ19 ARDQ20 ARDQ21 ARDQ22 ARDQ23 ARDQ24 ARDQ25 ARDQ26 ARDQ27 ARDQ28 ARDQ29 ARDQ30 ARDQ31

ARDQS2 ARDQS2B

ARDQS3 ARDQS3B

ARDQM2 ARDQM3

2_ODT2_ODT

CD61 100NF 16V

DRAM K4B4G1646E-BCMA 4Gb FBGA-96

RM192 0R05 1/16W

Top Side DRAM#1/2 Bypass Cap

DDRV

CD16 100NF 16V

DDRV

CD162 10UF 6.3V 20%

DDRV

CD13 10UF 6.3V 20%

AVDD33_DDR

CD20 100NF 16V

CD164 NC/10UF 6. 3V 20%

CD165 10uF 6.3V

CD14 100NF 16V

CM61

1uF 10V

CD19 100NF 16V

Bottom Side DRAM#1 Bypass Cap

CD5 100NF 16V

Bottom Side DRAM#2 Bypass Cap

CD18 100NF 16V

RM193 0R05 1/16W

CD30 100NF 16V

CD6 100NF 16V

CD158 100NF 16V

CD31 NC/100NF 16V

CD7 100NF 16V

CD21 100NF 16V

AVDD10_DDR

CD163 100NF 16V

CD22 100NF 16V

DRAM#1/2 Bottom Layer

DDRV

CD39

CD41

100NF 16V

NC/100NF 16V

DDR3#1 Ref Volt.

1Kohm 1/16W +/-1%

DDRV DDRV

RD16

A_VREFCA1

RD20

CD38 NC/100NF 16V

CD40 NC/100NF 16V

CD3 100NF 16V

CD15 100NF 16V

AVDD10_DDRDVDD3V3 VCCKAVDD33_DDR

CM60 100NF 16V

RM194 0R05 1/16W

RM346

0R05 1/16W

AVDD10_DDR

AVDD10_DDRVCCK

CM66 100NF 16V

Near DRAM

DDRV

CD9 100NF 16V

CD23 100NF 16V

CD10 100NF 16V

CD24 100NF 16V

CD11 100NF 16V

CD25 100NF 16V

CD12 100NF 16V

CD159 100NF 16V

CD136 100NF 16V

Cap close to DDRV power source.

CEM7

CEM6

22UF 20% 6.3V

NC/22UF 20% 6.3V

CM48

1uF 10V

CM49 100NF 16V

Differential Clock

NEAR Main Chip

ARCLK0B ARCLK0B

DDR3#2 Ref Volt.

1Kohm 1/16W +/-1%

Near DRAM

CM47 10UF 6.3V 20%

CM50 100NF 16V

CD121

4.7UF 6. 3V

CM51 100NF 16V

RD18

RD22

NEAR DRAM

ARCLK0

ARCLK0AR CLK0

RD8 100R 1/16W 1%

ARCLK0B

A_VREFCA2

CM55 100NF 16V

CD4 100NF 16V

CD17 100NF 16V

8-5-4 DDR3x2(B)

UM1-2

AH9

BRA0

AH17

BRA1

AJ14

BRA2

AJ16

BRA3

AH19

BRA4

AG9

BRA5

AJ19

BRA6

AH11

BRA7

AG17

BRA8

AH13

BRA9

AG21

BRA10

AH18

BRA11

AJ20

BRA12 BRA13 BRA14

BRBA0 BRBA1 BRBA2

BRCS BRCSD BRRAS# BRCAS# BRWE# BRODT BRCKE BRRESET#

BRCLK0 BRCLK0#

B_VERFDQ1 B_VERFDQ2

RM129

DDRV

47R 1/16W 5%

BRTN

AH20

AH16

AH14

AM24

AD16

AD10

AJ11 AJ13

AJ17

AJ10

AK12

AM5

AN2

AC9 AD9

AE10 AE11 AE12 AE15

AK9 AK6

AK7 AJ8

AJ7

AL6

AE9

BRA12 BRA13 BRA14

BRBA0 BRBA1 BRBA2

BRCS BRCSD BRRAS BRCAS BRWE BRODT BRCKE BRRESET#

BRCLK BRCLK#

DDRVREF_B1 DDRVREF_B2

BRTN

DDRV DDRV DDRV DDRV DDRV DDRV DDRV DDRV_CKB

MT5596LGEJ

BRDQM0

BRDQS0

BRDQS0#

BRDQ0 BRDQ1 BRDQ2 BRDQ3 BRDQ4 BRDQ5 BRDQ6 BRDQ7

BRDQM1

BRDQS1

BRDQS1#

BRDQ8

BRDQ9 BRDQ10 BRDQ11 BRDQ12 BRDQ13 BRDQ14 BRDQ15

BRDQM2

BRDQS2

BRDQS2#

BRDQ16 BRDQ17 BRDQ18 BRDQ19 BRDQ20 BRDQ21 BRDQ22 BRDQ23

BRDQM3

BRDQS3

BRDQS3#

BRDQ24 BRDQ25 BRDQ26 BRDQ27 BRDQ28 BRDQ29 BRDQ30 BRDQ31

AM6

BRDQM0

AL9

BRDQS0

AM9

BRDQS0#

AM4

BRDQ0

AM13

BRDQ1

AN4

BRDQ2

AN13

BRDQ3

AM3

BRDQ4

AN14

BRDQ5

AN3

BRDQ6

AL14

BRDQ7

AN5

BRDQM1

AM10

BRDQS1

AN10

BRDQS1#

AN11

BRDQ8

AN7

BRDQ9

AM12

BRDQ10

AM7

BRDQ11

AL11

BRDQ12

AL8

BRDQ13

AL12

BRDQ14

AN8

BRDQ15

AH21

BRDQM2

AM19

BRDQS2

AN19

BRDQS2#

AN16

BRDQ16

AM22

BRDQ17

AM16

BRDQ18

AN22

BRDQ19

AL15

BRDQ20

AM23

BRDQ21

AM15

BRDQ22

AN23

BRDQ23

AK21

BRDQM3

AL20

BRDQS3

AN20

BRDQS3#

AH22

BRDQ24

AN17

BRDQ25

AM21

BRDQ26

AL17

BRDQ27

AJ22

BRDQ28

AL18

BRDQ29

AL21

BRDQ30

AM18

BRDQ31

3_A3 BRA3

3_RAS# BRRAS# 3_CAS# BRCAS# 3_BA2 BRBA2 3_A0 BRA0

3_A6 BRA6 3_A1 BRA1

3_A10 BRA10 3_BA1 BRBA1 3_A12 BRA12 3_A4 BRA4

3_A9 BRA9

BRA23_A2 BRBA03_BA0

BRWE#3_WE#

BRA53_A5

BRA83_A8 BRA113_A11

BRA73_A7 BRA133_A13

BRRESET#3_RREST_MEM

B_VERFDQ1 B_VREFCA1

RM116 NC/ 47K 1% 1/16W

DDRV

BRRESET#

4_A2 BRA2

4_A14 BR A143_A14 BRA14 4_CAS# BRCAS#

4_BA2 BRBA2 4_A0 BRA0

4_A6 BRA6 4_A1 BRA1 4_A8 BRA8

4_A10 BR A10

4_A4 BRA4 4_A7 BRA7

4_RREST_MEM BRRESET#

RD84 NC/0R05 1/16W RD86 NC/0R05 1/16W

RD49

47R 1/16W 5%

RM141

3_ODTBRODT

47R 1/16W 5%

CD143 100NF 16V

BRBA04_BA0 BRA34_A3 BRWE#4_WE#

BRRAS#4_R AS#

BRA54_A5

BRA114_A11 BRBA14_BA1

BRA124_A12

BRA134_A13 BRA94_A9

3_ARCSBRCS

4_ARCSDBRCSD

B_VREFCA2B_VERFDQ2

4_CKEBRCKE 3_CKE

4_ODT

DDR3#3

RD69 240R 1%

3_A0 3_A1 3_A2 3_A3 3_A4 3_A5 3_A6 3_A7 3_A8 3_A9 3_A10 3_A11 3_A12 3_A13 3_A14

3_BA0 3_BA1 3_BA2

BRCLK0 BRCLK0#

3_CKE 3_ARCS 3_RAS#

3_CAS# 3_WE#

3_RREST_MEM B_ZQ1

DDRV

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

J3

RAS

K3

CAS

L3

WE

T2

RST

L8

ZQ

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

VREF_DQ VREF_CA

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6

DQL7 DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

LDQS

LDQS UDQS

UDQS

UD3 NT5CB128M16IP-EK

H9

H1 M8

E3 F7 F2 F8 H3 H8 G2 H7 D7 C3 C8 C2 A7 A2 B8 A3

F3 G3

C7 B7

E7

LDM

D3

UDM

K1

ODT

G9

B_VERFDQ1 B_VREFCA 1

BRDQ0 BRDQ1 BRDQ2 BRDQ3 BRDQ4 BRDQ5 BRDQ6 BRDQ7 BRDQ8 BRDQ9 BRDQ10 BRDQ11 BRDQ12 BRDQ13 BRDQ14 BRDQ15

BRDQS0 BRDQS0#

BRDQS1 BRDQS1#

BRDQM0 BRDQM1

3_ODT

CD62

100NF 16V

DDR3#4

4_A0 4_A1 4_A2 4_A3 4_A4 4_A5 4_A6 4_A7 4_A8 4_A9 4_A10 4_A11 4_A12 4_A13 4_A14

4_BA0 4_BA1 4_BA2

BRCLK0 BRCLK0#

4_CKE 4_ARCSD 4_RAS#

4_CAS# 4_WE#

4_RREST_MEM B_ZQ2

RD70 240R 1%

DDRV

N3

A0

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

J3

RAS

K3

CAS

L3

WE

T2

RST

L8

ZQ

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

DDRV

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

VREF_D Q VREF_CA

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7 DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

LDQS LDQS

UDQS UDQS

UD4 NT5CB128M16IP-EK

H9

LDM

UDM

ODT

G9

5,7

DDRV

H1

B_VERFDQ2

M8

B_VREFCA2

BRDQ16 BRDQ17 BRDQ18 BRDQ19 BRDQ20 BRDQ21 BRDQ22

BRDQ23 BRDQ24 BRDQ25 BRDQ26 BRDQ27 BRDQ28 BRDQ29 BRDQ30 BRDQ31

BRDQS2 BRDQS2#

BRDQS3 BRDQS3#

BRDQM2 BRDQM3

4_ODT

CD63

100NF 16V

E3 F7 F2 F8 H3 H8 G2 H7 D7 C3 C8 C2 A7 A2 B8 A3

F3 G3

C7 B7

E7 D3

K1

Bottom Side Capacitors close to IC for reserve

DDRV

CD175

CD106

10UF 6. 3V 20%

10uF 6.3V

Top Side DRAM#1/2 Bypass Cap

DDRV

CD27 100NF 16V

DDRV

CD171 10UF 6.3V 20%

DDRV

CD124 10UF 6.3V 20%

CD29 100NF 16V

CD176 10UF 6. 3V 20%

CD177 NC/10UF 6. 3V 20%

CD64 100NF 16V

CD53 100NF 16V

CD128 100NF 16V

CD144 100NF 16V

Bottom Side DRAM#3 Bypass Cap

CD118 100NF 16V

Bottom Side DRAM#4 Bypass Cap

CD130 100NF 16V

CD71 100NF 16V

CD127 100NF 16V

CD139 100NF 16V

CD73 NC/100NF 16V

CD172 100NF 16V

CD125 100NF 16V

CD54 100NF 16V

CD129 100NF 16V

CD135 100NF 16V

CD134 100NF 16V

CD55 100NF 16V

CD131 100NF 16V

CD137 100NF 16V

CD138 100NF 16V

DRAM#3/4 Bottom Layer

DDRV

CD36 100NF 16V

CD35 NC/100NF 16V

CD34 NC/10 0N F 16V

DDR3#3 Ref Volt.

DDRV

RD60

1Kohm 1/16W +/-1%

Near DRAM

B_VREFC A1

RD67

CM57 100NF 16V

CD45 100NF 16V

Damping and Termination for CLK Close to MainChip

CD37 100NF 16V

DDR3#4 Ref Volt.

BRCLK0

BRCLK0#

1Kohm 1/16W +/-1%

Near DRAM

DDRV

RD61

RD65

Close to DRAM

RD71 100R 1/16W 1%

BRCLK0#

CM65 100NF 16V

B_VREFCA2

CD117 100NF 16V

BRCLK0

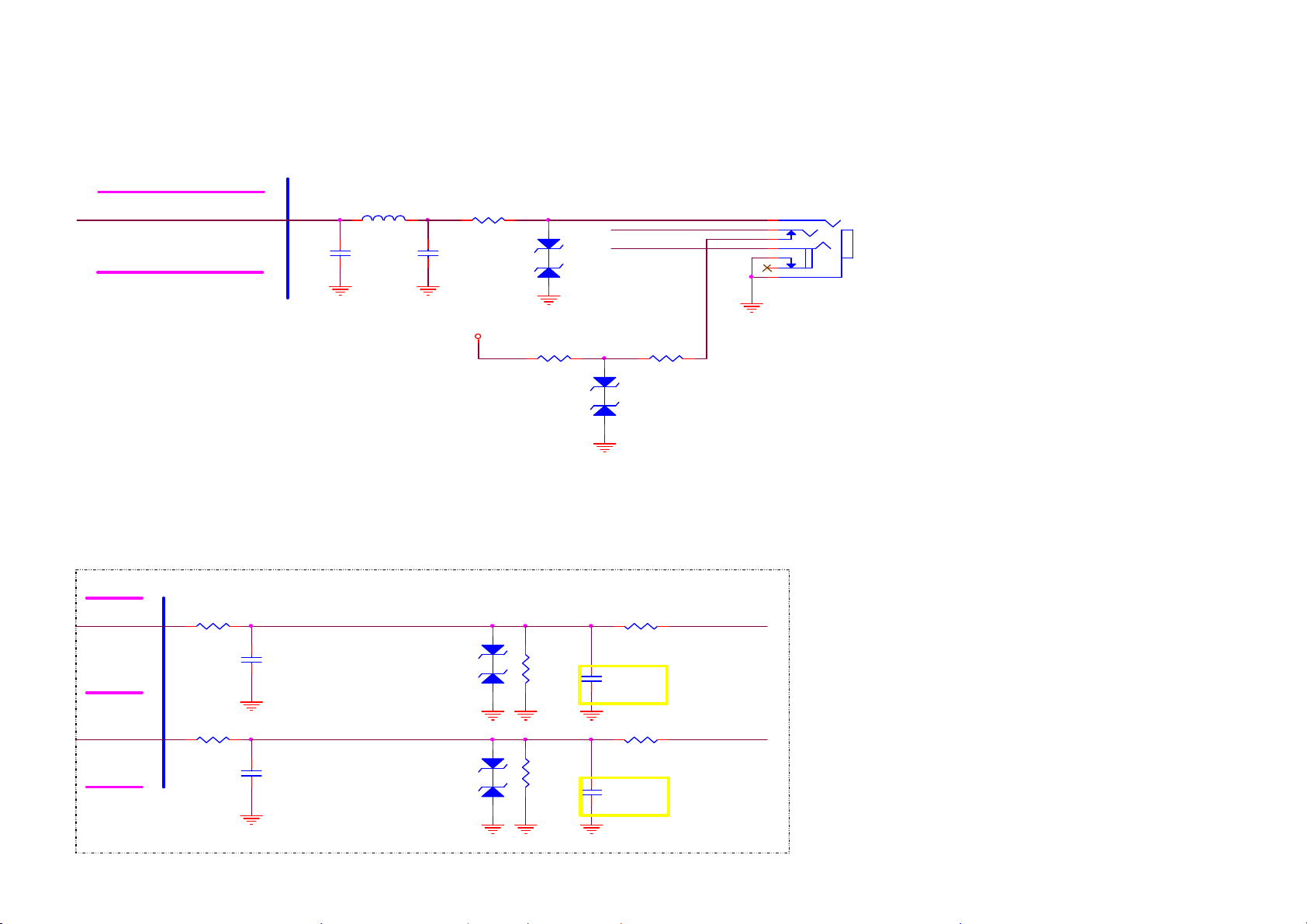

8-5-5 YPbPr/CVBS/SPIDIF

UM1-4

AIN_R0 AIN_L0

AVDD33_AADC

VMID_AADC

C1032 100NF 16V

ADCINP_DEMOD ADCINN_DEMOD

R1085

2.2K 1/16W

R104

0R05 1/16W

YPbPr /CVBS + R/L

CN116

13 12

E

11 10

D

9 8 7

C

6 5

B

4 3 2

A

1

RCA JACK 13P

A32 C33 A33 C32 B32 A31 B31 B33

K21

E29

C1002 1uF 10V

K22

C1011 68PF 50V

DVDD3V3

R1086

2.2K 1/16W

C1031 1uF 10V

TP104 TP105 TP107

Y_IN_1 Y_DET

PB_IN_1

PR_IN_1 YPBPR_DETECT

YPBPRL_IN

YPBPRR_IN

R105 NC/ 0R 05 1/16W

AIN_R0 AIN_L0 AIN_R1 AIN_L1 AIN_R2 AIN_L2 AIN_R3 AIN_L3

AVDD33_AADC

VMID_AADC

AVSS33_CLN

R119 0R05 1/ 16W R120 0R05 1/ 16W

C1012 68PF 50V

IF_AGC_5593

OSCL2 OSDA2

CVBS_COM

CVBS3P

CVBS1P CVBS0P SIF_C OM

ZD101

ZD104

AZ5123-01H

MT5596LGEJ

NC/0R 05 1/ 16W

R1015

12

AZ5123-01H

12

ZD106

E33 F32

C9

D10

D14 E14

H32 H33 K29

J29 G33 G32

AZ5123-01H

AR0_ADAC

AL0_ADAC

AR1_ADAC

AL1_ADAC

AR2_ADAC

AL2_ADAC

AVDD33_AD AC

ASPDIFO0 ASPDIFO1

AOBCK AOLRCK AOMCLK

AOSDATA1 AOSDATA0

UM1-5

ADCINP_DEMOD ADCINN_DEMOD

IF_AGC RF_AGC

OSCL2 OSDA2

CVBS_COM CVBS3P CVBS2P CVBS1P CVBS0P SIF_COM

MT5596LGEJ

C101

1uF 10V

12

ZD105

AZ5123-01H

C31 C30

D31 D30

E31 E30

J21

Y32 E17 AL33 AK32 AL32

AJ32 AK33

AVDD33_VIDEO_STB

AVDD33_DEMOD_STB

+5V_SW

ZD102 AZ5123-01H

ZD103 AZ5123-01H

C10441NF

AR2O AL2O

AVDD33_AD AC

AOBCK AOLRCK

AOSDATA1 AOSDATA0

VGA_SDA VGA_SCL

VDACX_OUT

AVDD33_DTMB AVDD1V2_DTMB AVSS33_DEMOD

3

1

2

R1008

0R05 1/16W

R1012

0R05 1/16W

C1030 1uF 10V

C1029 1uF 10V

C10451NF

HSYNC VSYNC

RP GP

BP COM SOG

COM1

PB1P PR1P

Y1P

SOY1

COM0

PB0P PR0P

Y0P

SOY0

R1004

0R05 1/16W

D101 LBAV99LT1G

TP101

R30 R31 M31 N33 P33 N32 P32 T31 T30

L32 L33 K31 L31 M32 J31 J32 H31 K32 K33

J30 J24

J25 L20 AN24 L21

D102

BAS316WS

R101

22R 1/16W 5%

VGASDA VGASCL

COM1 PB1P PR1P

Y1P

SOY1

10 OHM 1/16W

R5168

AVDD33_VIDEO_STB AVDD33_DEMOD_STB

AVDD33_DTMB AVDD1V2_DTMB

with GND

R1005 75R 1/16W 1%

with GND

R1010

75R 1/16W 1%

R1011

75R 1/16W 1%

with GND

FB114 120R

AOMCLK

C8054

NC/10PF 50V

Modify by EMI close to U401

TP102 TP103

TUNER_BYPASS_OU T

C1034

CO_CVBS

10PF 50V

C1040

10PF 50V

C1041

10PF 50V

CO_PR

Analog Power

AVDD33_ADAC

1 2

R102

75R 1/16W 1%

R1001

10 OHM 1/16W

R1003 100 OHM 1/16W

R1002

100 OHM 1/16W

R1007

100 OHM 1/16W

R1009

100 OHM 1/16W

with GND

100 OHM 1/16W

with GND

R1014

NC/0R05 1/ 16W

R1140 30K OHM

R1139 30K OHM

Near ScalerNEAR Y P bPr CONNECTO R

R1013

C1033

33pF 50V

C1003 100NF 16V

FB115 120R

ARC

Modify by EMI close to U401

C1035

1.5nF 50V

C1037 10N 50V

C1036 47nF 16V

C1038 10N 50V

C1039 10N 50V

C1042 10N 50V

CO_CVBSCO_PR

C1004 10uF 6.3V

1 2

SOY1

Y1P

CVBS3P

COM1

PB1P

PR1P

AIN_L0

AIN_R0

AVDD3V3AVDD3V3

Analog Power

3V3SB

AVDD33_AADC

SPDIF_OUT

C1043

10PF 50V

Modify by EMI close to U401

AVDD33_VIDEO_STB

C1005

100NF 16V

AVDD3V3

AVDD33_D EMOD_STB

C1010 10uF 6.3V

CN1004

4 5 6 7

JACK

AVDD33_DTMB

C1006 100NF 16V

TH1

3

GND

TH2

2

VCC

TH3

1

VIN

TH4

388G359G09A0AT

Vedio_DET

L:Pr Plug-in (Cable detect) H:Pr Plug-out (Non Cable)

DVDD3V3

R138 10K 1/16W 5%

YPBPR_DETECT

Y_DET

Spdif Out

+5V_SW

R1141

0R05 1/16W

12

ZD109

AZ5123-01H

R143 1K 1/16W 5%

DVDD3V3

Q102 MMBT3904

C1007 100NF 16V

33R 1/16W 5%

C1026 100NF 16V

R122 10K 1/16W 5%

AVDD1V2_DTMB

AVDD1V2_D TMB

with GND

R1138

DVDD3V3

R145 6K8 1/16W 5%

R106

4.7K 1/16W

Q103 MMBT3904

C1008 100NF 16V

SPDIF_OUT

R114

100 OHM 1/16W

VIDEO_DET

C1013 10UF 6.3V 20%

Modify by EMI

8-5-6 Speaker/Headphone

DVDD3V3

R629

I2SAMP_RESET Low: reset High: normal

R660 NC/10K 1/16W 5%

RESET#

C619 1uF 10V

AMP_SA1

For EMI, close to MT5593

All Path Grounding(20mil)

1 2

AOMCLK

FB603 120R

Modify by EMI

AOBCK

R603

0R05 1/16W

AOLRCK

R606

0R05 1/16W

AOSDATA0

R607

0R05 1/16W

R609 10K 1/16W 5%

AMP_DEF

R631

R630

10K 1/16W 5%

C603

33pF 50V

C605

33pF 50V

C607

33pF 50V

C608

33pF 50V

LRCLKI

RA

RB

LA

LB

MCLK

Grounding

BICKI

Grounding

SDI

Grounding

L601

C615

22uH

0.1uF 50V

C618

R612

220N 50V

10 OHM

R614 10 OHM

C621

220N 50V

C624

0.1uF 50V

L602 22uH

L603 22uH

C629

0.1uF 50V

R623

C634

220N 50V

10 OHM

R628 10 OHM

C640

220N 50V

C643

0.1uF 50V

L604 22uH

+18V_AUDIO

R1

R633

301K 1%

MUTE Circuit

AMPVCC=12V ,R1=301K Q1 OFF :Normal Q1 ON :M u te

C620

0.1uF 50V

C635

0.1uF 50V

AMP_MUTE

DVDD3V3

R645 100K 1/16W 5%

C617

10N 50V

C622

10N 50V

C631

10N 50V

C641

10N 50V

Q603

MMBT3906

R639 1K 1/16W 5%

Q1

R649

1K 1/16W 5%

Stereo mode: FB607, FB610, C628: NC

1

R-

2

R+

3

L-

4

L+

4 ohm: 10uH, 470nF 6 ohm: 15uH, 470nF 8 ohm: 22uH, 470nF

R635 33 OHM 1/16W

17

56

CN601 CONN

DVDD3V3

R650 10K 1/16W 5%

R632 10K 1/16W 5%

Q601 MMBT3904

PWRDN

R

RR+ LL+

L

DVDD3V3

R636

10K 1/16W 5%

PWRDN-HP

Q602 MMBT3904

R611 10 OHM

R613 10 OHM

R622 10 OHM

R627 10 OHM

C616 470PF 50V

C623 470PF 50V

C630 470PF 50V

C642 470PF 50V

All Path Grounding

AR2O

SCART1R_PA

R615 NC/ 0R 05 OHM R616 0R 05 1/16W

DVDD3V3

C651

1uF 10V

10 OHM 1/16W

LRCLKI

HS601

1 2

HEAT SINK

R646

AMP_CFG0 AMP_CFG1

SDI

BICKI MCLK

R647 16K OHM

C655

330PF 50V

R648

FB602

DVDD3V3 AU_VDD3V3

1 2

120R 3A

FB605

DVDD3V3

1 2

120R 3A

C610

C609

0.1uF 50V

LA

LB

45

44

46

48

47

U601

LA

NC

GNDL

VDDLA

49

THERMAL PAD

1

SDATA1

2

MS

3

PLL

4

CFG0

5

CFG1

6

CLK_OUT

7

DGND

AD87588-LG48NAY

C627

100NF 16V

8

DVDD

9

SDATA0

10

LRCIN

11

BCLK

12

MCLK

RINN13OUTR14VSS15EN16PVSS17CN18CP19PVDD20PGND21UVP22OUTL23LINN

C656

C652 1UF 10% 16V

68PF 50V

43K 1/16W

16K OHM

C647

C663

1uF 10V

100NF 16V

R651

PWRDN-HP

43

LB

1UF 10% 16V

AU_VDD_HP

42

VDDLB

C646

C611

0.1uF 50V

AU_VDD_HP

RB

41

RB

VDDRB

1K 1/16W 5%

C606 10UF 6.3V 20%

C612

0.1uF 50V

RA

40

39

RA

GNDR

LINEIN

RESET#

ERROR#

DVDD

DGND

R656 30K OHM

R655

R634

1K5 1/16W 5%

38

LREX

PD#

DEF

SCL SDA

24

68PF 50V

+

C613

220uF 25V

37

NC

36

VDDRA

35 34 33 32 31

30

29 28

SA1

27

SA0

26

A_SCL

25

A_SDA

C632 NC/22P 50V

C657

R643

43K 1/16W

R652

16K OHM

10 OHM 1/16W

DVDD3V3

R601

0R05 1/16W

AMP_CFG1 AMP_CFG0

R605

0R05 1/16W

CFG0

CFG1

0

Reserved

2.1CH

10 01

Stereo

1

Mono

1

+18V_AUDIO

+

R608

C614

Reset (pul l -up)

220uF 25V

10K 1/4W

I2SAMP_RESET

RESET#

0R05 1/16W

R620 22R 1/16W 5% R621 22R 1/16W 5%

All Path Grounding

C648

AL2O

SCART1L_PA

AU_VDD3V3

R617

AMP_SA0

PWRDN

C625 100NF 16V

AMP_DEF AMP_SA0 AMP_SA1

C633 NC/22P 50V

R642 16K OHM

1uF 10V

C649 330PF 50V

R637

SCART OUT Gain R:-(R651/R647)=51/16=3.1875

L:-(R652/R642)=51/16=3.1875

Mode

R610 0R05 1/16W

C626 22UF 20% 6.3 V

OSCL0 OSDA0

I2C address Write=0110"SA0"0"SA1"0=0x60

10K 1/16W 5%

8-5-7 VB1 output

AVDD1V0_1

AVDD10_LVDS_STB AVDD10_LVDS_STB

C417

10UF 6.3V 20%

C418

1uF 10V

Analog Power

LVDS(Ball Name)

V

PANEL_VCC ON/OFF Normal:High Stand_By:Low

PANEL_VCC_ON/OFF17

C419

100NF 16 V

AO0

MTK TPV

PANEL_VCC_ON/OFF

10K 1/16W 5%

AVDD3V3

AO1

R784

AVDD33_LVDSA

REXT_VPLL

R459 6K8 1/16W 5%

AO2

CH2CH1CH0

10K 1/16W 5%

R783

4.7UF 10V

AJ24

K20

C422 100NF 1 6V

AF22

P12V

10K 1/16W 5%

5K1 1/16W 5%

C782

UM1-3

AVDD10_LVDS_STB

AVDD33_LVDSA

REXT_VPLL

CH0

CH1

MT5596LGEJ

R780

R782

Q780 MMBT3904

AN28 AM28 AL27 AK27 AL26 AK26 AN26 AM26 AL25 AK25 AL24 AK24

AN32 AM32 AL31 AK31 AL30 AK30 AN30 AM30 AL29 AK29 AL28 AK28

LVDSTX_AE0P LVDSTX_AE0N LVDSTX_AE1P LVDSTX_AE1N LVDSTX_AE2P LVDSTX_AE2N LVDSTX_AECKP LVDSTX_AECKN LVDSTX_AE3P LVDSTX_AE3N LVDSTX_AE4P LVDSTX_AE4N

LVDSTX_AO3P LVDSTX_AO3N LVDSTX_AO4P LVDSTX_AO4N

AE0P

AE0N

AE1P

AE1N

AE2P

AE2N

AECKP

AECKN

AE3P

AE3N

AE4P

AE4N AO0P

AO0N AO1P AO1N AO2P AO2N

AOCKP

AOCKN

AO3P AO3N AO4P AO4N

Port AEPort AO

AE0AO4AO3AOCK

AE1

CH6CH5CH4CH3

CH7

CH3

CH2 CH7

Q781

1

S

D

2

S

D

3

S

D

4

G

D

AO4449 -7A/-30V

C783

1UF 10% 16V

R781

6K8 1/16W 5%

CH9

CH8

CH4

8 7 6 5

R882

NC/470 OHM 1% 1/10W

R883

NC/ 1K 1/ 16W 1%

Q782

NC/2N7002K

For Panel T6&T7

MT5593 Vx1 OUTPUT

C4939 100NF 16V C4940 100NF 16V C4941 100NF 16V C4942 100NF 16V C4943 100NF 16V C4944 100NF 16V C4945 100NF 16V C4946 100NF 16V C4947 100NF 16V C4948 100NF 16V C4949 100NF 16V C4950 100NF 16V

Close to U401 Scaler

C4959 100NF 16V C4960 100NF 16V C4961 100NF 16V C4962 100NF 16V

AE3AECKAE2

AE4

CH11CH10

CH6CH5

FB709

1 2

120R 6A

R703

10K 1/8W

SOC-VB1-TX3n SOC-VB1-TX4p SOC-VB1-TX4n SOC-VB1-TX5p SOC-VB1-TX5n SOC-VB1-TX6p SOC-VB1-TX6n SOC-VB1-TX7p SOC-VB1-TX7n

SOC-VB1-TX0p SOC-VB1-TX0n SOC-VB1-TX1p SOC-VB1-TX1n

PANEL_POWER

C710 10uF 16V

SOC-VB1-TX2p SOC-VB1-TX2n

SOC-VB1-TX3p

VBY1_R2P VBY1_R2N VBY1_R3P VBY1_R3N VBY1_R4P VBY1_R4N VBY1_R5P VBY1_R5N VBY1_R6P VBY1_R6N VBY1_R7P VBY1_R7N

VBY1_R0P VBY1_R0N VBY1_R1P VBY1_R1N

25 25 25 25 25 25 25 25 25 25 25 25

PANEL_POWER

25 25 25 25

R3202 N C / 0R05 1/ 16W

R3215 NC / 0R 05 1/ 16W R3204 NC / 0R 05 1/ 16W R3205 N C /0R 05 1/ 16W

R3207 N C /0R05 1/16W R3208 N C /0R05 1/16W R3209 N C /0R05 1/16W

SOC-VB1-TX0n SOC-VB1-TX0p

SOC-VB1-TX1n SOC-VB1-TX1p

SOC-VB1-TX2n SOC-VB1-TX2p

SOC-VB1-TX3n SOC-VB1-TX3p

SOC-VB1-TX4n SOC-VB1-TX4p

SOC-VB1-TX5n SOC-VB1-TX5p

SOC-VB1-TX6n SOC-VB1-TX6p

SOC-VB1-TX7n SOC-VB1-TX7p

R3213N C / 100 OHM 1/16W R3214N C / 100 OHM 1/16W

6,22,24 6,22,24

17,22 17,22

OSDA1

OSCL1

HTPDN

LOCKN

D_Fomat0 D_Fomat1

Bit_SEL LD_EN_SOC

HTPDN LOCKN

CN408

51

CONN 51P

50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10

9 8 7 6 5 4 3 2 1

52 53

8-5-8 MHL/HDMI Input

R501

UM1-6

100 OHM 1/16W

HDMI_0_SCL HDMI_1_SCL HDMI_2_SCL HDMI_3_SCL

HDMI_0_SDA HDMI_1_SDA HDMI_2_SDA HDMI_3_SDA

HDMI_0_PW R5V

HDMI_0_HPD_CBUS HDMI_1_HPD HDMI_2_HPD HDMI_3_HPD

MHL_SENSE

CN501

20

SHLD0

TMDSD2+

22

SHLD2

TMDSD2TMDSD1+

TMDSD1TMDSD0+

TMDSD0-

DDC_GND

23

SHLD3

21

SHLD1

HDMI 19P

HDMI_CEC_0

12

ZD501 AZ5123-01H

CN502

20

SHLD0

22

SHLD2

23

SHLD3

21

SHLD1

HDMI 19P

CEC

DSHLD0

DSHLD1

DSHLD2 TMDSC+

CSHLD0 TMDSC-

CEC

SCL

SDA

VCC5

HPD

TMDSD2+

DSHLD0

TMDSD2-

TMDSD1+

DSHLD1

TMDSD1-

TMDSD0+

DSHLD2

TMDSD0-

TMDSC+ CSHLD0

TMDSC-

DDC_GND

VCC5

G19

HDMI_CEC_1

G21

HDMI_CEC_2

E20

HDMI_0_SCL

F22

HDMI_1_SCL

G23

HDMI_2_SCL

F23

HDMI_3_SCL

F20

HDMI_0_SDA

F21

HDMI_1_SDA

E22

HDMI_2_SDA

E24

HDMI_3_SDA

F19

HDMI_0_PWR5V

E19

HDMI_0_HPD_CBUS

E21

HDMI_1_HPD

E23

HDMI_2_HPD

F24

HDMI_3_HPD

E18

MHL_S ENSE

B16

AVDD10_HDMI_STB

A16

AVDD10_HDMI_STB

E27

AVDD10_ECBUS_STB

J19

AVDD33_HDMI

J20

AVDD33_HDMI

K24

AVDD33_ECBUS_STB

MT5596LGEJ

1 2 3 4 5 6 7 8 9 10 11 12 13 14

NC

15 16 17 18 19

+5V_US B

MHL_PWR_EN

1 2 3 4 5 6 7 8 9 10 11 12 13

CEC

14

NC

15

SCL

16

SDA

17 18 19

HPD

NC/0R05 1/16W

R810

0R05 1/16W

100K 1/16W 5%

+5V_SW

R508

R512 300K

12

AZ5123-01H

R5113

HDMI_CEC

TP106

AVDD10_HDMI_STB AVDD10_HDMI_STB AVDD10_ECBUS_STB

AVDD33_HDMI AVDD33_HDMI AVDD33_ECBUS_STB

HDMI/MHL Port 1 (HDMI 1.4/MHL)

388G340FJ05FAT: BPR 1. 2m m 388G340FJ05FAT0001: BPR 1. 6mm

HDMI port 2 (HDMI 2.0 & HDCP 2.2)

8/20 modify

388G340FJ05FAT: BPR 1.2mm 388G340FJ05FAT0001: BPR 1.6m m

HDMI_0_RX_0

HDMI_0_RX_0B

HDMI_0_RX_1

HDMI_0_RX_1B

HDMI_0_RX_2

HDMI_0_RX_2B

HDMI_0_RX_C

HDMI_0_RX_CB

HDMI_1_RX_0

HDMI_1_RX_0B

HDMI_1_RX_1

HDMI_1_RX_1B

HDMI_1_RX_2

HDMI_1_RX_2B

HDMI_1_RX_C

HDMI_1_RX_CB

HDMI_2_RX_0

HDMI_2_RX_0B

HDMI_2_RX_1

HDMI_2_RX_1B

HDMI_2_RX_2

HDMI_2_RX_2B

HDMI_2_RX_C

HDMI_2_RX_CB

HDMI_3_RX_0

HDMI_3_RX_0B

HDMI_3_RX_1

HDMI_3_RX_1B

HDMI_3_RX_2

HDMI_3_RX_2B

HDMI_3_RX_C

HDMI_3_RX_CB

47R 1/16W 5% R519

SCL0 SDA0

OPWR5V

AZ5123-01H

+5V_STB

OPWR1_5V

ZD504

R5404.7R R5414.7R R5424.7R R5434.7R

R5444.7R R5454.7R R5464.7R R5474.7R

ZD503

R8025

NC/0R 05 1 / 16W

C509 10uF 16V

R5484.7R R5494.7R R5504.7R R5514.7R

R5524.7R R5544.7R R5554.7R R5564.7R

HDMI_CEC_1 ARC2_HDMI

R5112 75R 1/16W 1%

Q5005

MMBT3904

A19 B19 D18 C18 A17 B17 D20 C20

A23 B23 D22 C22 A21 B21 D24 C24

C26 D26 C25 D25 A25 B25 A27 B27

A29 B29 C28 D28 C27 D27 C29 D29

HDMI_CEC_0

R515

ARC1_HDMI

R516

100 OHM 1/16W 100 OHM 1/16W

12

U501

2 1

G529A1TB1U

SCL1 SDA1

R5111 910R

MHL_S ENSE

IN3OUT GND EN

RX_1_2 RX_1_2B RX_1_1 RX_1_1B

RX_1_0 RX_1_0B RX_1_C RX_1_CB

HDMI_1_HPD

RX_0_0 RX_0_0B RX_0_1 RX_0_1B RX_0_2 RX_0_2B RX_0_C RX_0_CB

RX_1_0 RX_1_0B RX_1_1 RX_1_1B RX_1_2 RX_1_2B RX_1_C RX_1_CB

RX_2_0 RX_2_0B RX_2_1 RX_2_1B RX_2_2 RX_2_2B RX_2_C RX_2_CB

RX_3_0 RX_3_0B RX_3_1 RX_3_1B RX_3_2 RX_3_2B RX_3_C RX_3_CB

RX_0_2 RX_0_2B RX_0_1 RX_0_1B

RX_0_0 RX_0_0B RX_0_C RX_0_CB

R5110 47K 1/ 16W 5%

OUT

OC

OPWR0_5V

4 5 6

R8033 R8031

100 OHM 1/16W 100 OHM 1/16W

Q5006

MMBT3904

with GND

R513 47K 1/16W 5%

R509 22R 1/ 16W 5% R521

OPWR5V

USB_MHL_OC

R8032

47K 1/16W 5%

New

HDMI_CEC

CEC

D506

BAS316WS

R514 47K 1/16W 5%

OPWR1_5V

+5V_STB

4.7R

C510 10uF 16V

R8030 47K 1/16W 5%

12

HDMI_1_SCL HDMI_1_SDA

HDMI_CEC_1

ZD512 AZ5123-01H

ARC3_HDMI

ARC2_HDMI

ARC1_HDMI

ARC4_HDMI

HDMI_CEC_0 HDMI_CEC_1 HDMI_CEC_2

HDMI_CEC_3

HDMI_0_SCL HDMI_0_SDA

HDMI_0_PWR5V HDMI_0_HPD_CBUS

USB_MHL_OC

R5185 NC/0R 05 1/16W

R5186

NC/100 OH M 1/ 16W

R5187 NC/0R 05 1/16W

R5188

NC/100 OH M 1/ 16W

R5189 NC/0R 05 1/16W

R5190

NC/100 OH M 1/ 16W

R5191

0R05 1/16W

R5192

NC/100 OHM 1/16W

Close to connector

RX_0_2 RX_0_2B GND RX_0_1 RX_0_1B

RX_0_0 RX_0_0 RX_0_0B GND RX_0_C

ZD502 AZ5123-01H

RX_0_CB

SCL0

SDA0

MHL_SENSE

12

R522 300K

Close to connector

3V3SB

R510

10K 1/16W 5%

R511 10K 1/16W 5%

SCL2 SDA2

HDMI port 3 (HDMI 1.4)

CN503

20

SHLD0

TMDSD2+

22

DSHLD0

SHLD2

TMDSD2-

TMDSD1+

DSHLD1

TMDSD1-

TMDSD0+

DSHLD2

TMDSD0-

TMDSC+ CSHLD0 TMDSC-

DDC_GND

23

VCC5

SHLD3

21

SHLD1

HDMI 19P

8/20 modify

3V3SB 3V3SB

R5114 1K 1/ 16W 5%

388G340FJ05FAT: BPR 1. 2m m 388G340FJ05FAT0001: BPR 1. 6mm

+5V_SW

16 15 14 13 12 11

ARC_SEL_0

10

ARC_SEL_1

from Scaler GPIO

U506

1

10

RX_0_2

CH1

NC

2

9

RX_0_2B

CH2

NC

3

8

VN

4

7

RX_0_1

CH3

NC

6

RX_0_1B

CH45NC

NC/TVU1240R1A

U507

1

10

CH1

NC

2

9

RX_0_0B

CH2

NC

3

8

VN

4

7

RX_0_C

CH3

NC

6

RX_0_CB

CH45NC

NC/TVU1240R1A

ZD506 AZ5 123-01H

1 2

ZD507 AZ5 123-01H

1 2

U509

1

CH1

NC

2

CH2

NC

3

VN

4

CH3

NC

CH45NC

NC/TVU1240R1A

U510

1

CH1

NC

2

CH2

NC

3

VN

4

CH3

NC

CH45NC

NC/TVU1240R1A

ZD508 AZ5 123-01H

1 2

ZD509 AZ5 123-01H

1 2

1 2 3 4 5 6 7 8 9 10 11 12 13 14

ARC3_HDMI

15 16 17 18 19

12

AZ5123-01H

R507

100K 1/16W 5%

ZD505

10 9 8 7 6

RX_2_2 RX_2_2B GND RX_2_1 RX_2_1B

RX_2_0 RX_2_0B GND RX_2_C RX_2_CB R X_2_CB

CEC

NC

SCL

SDA

HPD

Audio Return Ch ann el (ARC)

M0F change

PIN 1/2/4/ 5 pull down

U518

1

Y4

VCC

2

Y6

Y2

3

Z

Y1

4

Y7

Y0

5

Y5

Y3

6

E

S0

7

VEE

S1

9

NC/74HC4051PW

R5193 0R05 1/ 16W

RX_2_2 RX_2_2B

RX_2_1 RX_2_1B

RX_2_0 RX_2_0B

RX_2_C

R5574.7R R5584.7R R5594.7R R5604.7R

R5614.7R R5624.7R R5804.7R R5814.7R

R568

0R05 1/16W

OPWR2_5V

R502

75R 1/16W 1 %

MMBT3904

GND8S2

HDMI_CEC_2 UART_SEL

SCL2 SDA2

Q5001

R8103

NC/4.7K 1/16W

Close to connector

1

RX_3_2

2

RX_3_2B

3

GND

4

RX_3_1 RX_3_1B

1

RX_3_0 RX_3_0

2

RX_3_0B

3

GND

4

RX_3_C RX_3_CB

SCL3 SDA3

Close to connector

1

RX_1_2

2

RX_1_2B

3

GND

4

RX_1_1 RX_1_1B

1

RX_1_0

2

RX_1_0B

3

GND

4

RX_1_C RX_1_CB RX_1_CB

ZD510 AZ5123-01H

1 2

SCL1

ZD511 AZ5123-01H

1 2

SDA1

RX_2_2 RX_2_2B RX_2_1 RX_2_1B

RX_2_0 RX_2_0B RX_2_C RX_2_CB

47K 1/16W 5%

R539

100 OHM 1/16W

R5118 47K 1/16W 5%

100 OHM 1/16W

R5119 910R

HDMI_2_HPD

Q5002

MMBT3904

ZD514 AZ512 3-01H ZD515 AZ512 3-01H

U516

NC/TVU1240R1A

U517

NC/TVU1240R1A

U512

CH1

NC

CH2

NC

VN

CH3

NC

CH45NC

NC/TVU1240R1A

U513

CH1

NC

CH2

NC

VN

CH3

NC

CH45NC

NC/TVU1240R1A

1 2 1 2

10

CH1

NC

9

CH2

NC

8

VN

7

CH3

NC

6

CH45NC

10

CH1

NC

9

CH2

NC

8

VN

7

CH3

NC

6

CH45NC

R536

R538

R5104 1K 1/ 16W 5%

10

RX_3_2

9

RX_3_2B

8 7

RX_3_1

6

RX_3_1B

10 9

RX_3_0B

8 7

RX_3_C

6

RX_3_CB

RX_1_2 RX_1_2B

RX_1_1 RX_1_1B

RX_1_0 RX_1_0B

RX_1_C

OPWR2_5V

12

NC/47K 1/ 16W 5%

NC/47K 1/ 1 6W 5%

R537 47K 1/16W 5%

HDMI_CEC_2

ZD513 AZ5123-01H

M0F change

+5V_SW

R8105

R8104

HDMI_SCL2/RX HDMI_SDA2/TX

AVDD3V3

R525

NC/4. 7K 1/ 16W

0R05 1/16W

C8092

180R

1uF 10V

R8107

R8106

82R

Factory UART & I2C Switch IC

AVDD3V3

+5V_SW

R553 1K 1/16W 5%

M0F change

R526

AVDD3V3

5

1

74LVC1G125GV

U502

24

3

R531

NC/0R 05 1/ 1 6W

HDMI Pin-14 for Factory WB & debug

R569

UART_SEL

60.4K 1% R570

40.2K 1/16W 1%

Analog Power

AVDD33_HDMI

Q508 AO3414

C501 10NF 50V

R506 100K 1/16W 5%

Prevent HDMI leakage from HDMI device.

Rear HDMI port 4 (HDMI 1.4)

CN504

20

SHLD0

22

SHLD2

23

SHLD3

21

SHLD1

HDMI 19P

from Scaler ARC



ARC

+5V_STB

R571 10K 1/16W 5%

Q514 MMBT3904

+5V_STB

C511

C502

100NF 16V

AVDD1V0_STB

1

TMDSD2+

2

DSHLD0

3

TMDSD2-

4

TMDSD1+

5

DSHLD1

6

TMDSD1-

7

TMDSD0+

8

DSHLD2

9

TMDSD0-

10

TMDSC+

11

CSHLD0

12

TMDSC-

13

CEC

14

NC

15

SCL

16

SDA

17

DDC_GND

18

VCC5

19

HPD

100K 1/16W 5%

HDMI_SCL2/RX HDMI_SDA2/TX

D508

BAS316WS

C408

100NF 16V

AVDD1V0_1

AVDD10_ECBUS_STB

12

ZD516

AZ5123-01H

R5108

ARC_SEL_017 ARC_SEL_117

+5V_STB

R572

10K 1/16W 5%

S0

AVDD10_HDMI_STB

C503

100NF 16V

C512 10uF 6.3V

R5924.7R R5934.7R R5944.7R R5954.7R

R5964.7R R5974.7R R5984.7R R5994.7R

HDMI_CEC_3

ARC4_HDMI

OPWR3_5V

R5107

75R 1/16W 1%

Q5003

MMBT3904

SCL3 SDA3

S1

RX_3_2 RX_3_2B RX_3_1 RX_3_1B

RX_3_0 RX_3_0B RX_3_C RX_3_CB

6

9

10

3

13

8 7

16

C504

1uF 10V

3V3SB

R5106 910R

HDMI_3_HPD

ARC_SEL_0 ARC_SEL_1

R8110

4.7K 1/16W

U515

/E

S1 S0

2Z 1Z

GND VEE VCC

74HC4052PW

R575 NC/ 0R 05 1/ 1 6W

R576 NC/ 0R 05 1/ 1 6W

AVDD33_ECBUS_STB

100NF 16V

47K 1/16W 5%

R566 R567

R5105

100 OHM 1/16W 100 OHM 1/16W

47K 1/16W 5%

Q5004

MMBT3904

R8111

4.7K 1/16W

4

HDMI_2_SCL

2Y3

11

HDMI_2_SDA

1Y3

2

U0RX

2Y2

15

U0TX

1Y2

5

2Y1

14

1Y1

1

2Y0

12

1Y0

C513

OPWR3_5V

R565

R564

47K 1/16W 5%

HDMI_3_SCL HDMI_3_SDA

HDMI_CEC_3

12

ZD517 AZ5123-01H

3V3SB

R5109

1K 1/16W 5%

8-5-9 Tuner

NA/T2

IFOUT1P

22P 50V

IFOUT1N

22P 50V

Close to Tuner

T_SC L T_SD A

C154

22P 50V

NA ATSC

SA ISDBT

SA T2

AP T2

13 12 11 10

9 8

TU101

TH6 TH5 TH4 TH3 TH2 TH1

TDSY-H480F

C106

C107

Demod U101

NC

Yes

1

ANT

2

+B1(+3.3V)

3

SDA

4

SCL

5

IF_N

6

IF_P

7

IF_AGC

R203

0R05 1/16W

R204

0R05 1/16W

R1090

NC/100 OH M 1/16W

R1089

NC/100 OH M 1/16W

R162 100 OHM 1/16W R165 100 OHM 1/16W

C155 22P 50V

Tuner

ANT_5V

T_SD A

T_SC L IFOUT1N IFOUT1P IFAGC

C115 C118

R8099 NC/0R 05 1/ 16W

Close to Tuner

T2S2_TUNER_SDA T2S2_TUNER_SCL

OSCL2 OSDA2

C138 C140

NC

Yes

NC Yes

Yes

TUNER3.3V

C8090

100NF 16V

C115 NC/1uF 10V

C118 NC/1uF 10V

R193

0R05 1/16W

R196

0R05 1/16W

From Demod From SoC

I2C

AGC

R110

R171

+5V_SW TO TUNER3.3V

(Near Tuner)

+5V_SW

R116 NC/0R05 1/16W

R188 NC/0R05 1/16W

All P ath Grounding(20mil)

C138

1uF 10V C140

1uF 10V

debug

ノ

I2C

R162 R165

R1090 R1089

U102

C102

1uF 10V

G1117-33T63Uf

VI3VO

GND14

2

4

Close to SONY DEMOD

R189 NC/0R 05 1/ 16W

R191 NC/0R 05 1/ 16W

Close to MT5593

R194

0R05 1/16W

C141 NC/ 22PF 50 V

R197

0R05 1/16W

C142 NC/ 22PF 50 V

AGC Control

with GND

Close to MT5593

T2_I F_AGC _TUNER

IF_AGC_5593

TUNER3.3V

0.25A 20mil

C103

C104

10UF 6.3V 20%

C114

NC/22PF 50V

C109

NC/22PF 50V

1UF 6.3V

Close to tuner Pin

R190

NC/0R 05 1/ 16W

R192

NC/0R 05 1/ 16W

ADCINP_DEMOD

R195

NC/150R 1/ 16W 1%

ADCINN_DEMOD

T2_IF_P

T2_IF_N

Close to Demod.

R103

NC/10K 1/ 16W 5%

R185 10K 1/16W 5%

C116

47nF 16V

C105

100NF 16V

All P a th Grounding(20mil)

C146 NC/47nF 16V

R110

with GND

0R05 1/16W

R171 NC/0R 05 1/ 16W

Close to Tuner

R111

4.7K 1/16W

C117

10N 50V

IFAGC

R186

NC/10K 1% 1/ 16W

8-5-10 T2 DEMOD

OSCL2

OSDA2

C165

NC/100NF 16V

C1114 NC/ 82pF 50V

C1113 NC/ 82pF 50V

R1087

NC/0R 05 1/16W

R1088

NC/0R 05 1/16W

T2 Dem od

+3.3V_T2

R157

NC/ 4.7K 1/16W

C1092 NC/100N F 16V

+1.2V_T2

49

47

48

GND

EPad

1

MP_A

VDD_Vcore

2

MP_B

3

GPIO_0

4

NC

5

NC

6

C163

+1.2V_T2

NC/100NF 16V

+3.3V_T2 +1.2V_T2

NC

7

VDD_Vcore

8

GND

9

VDD_VIO

10

SCL_Host

11

SDA_Host

12

TS_VLD

TS_SYNC13TS_CLK14TS_D0/SER15TS_D116TS_D217TS_D318TS_D419VDD_Vcore20GND21VDD_VIO22TSD523TSD6

T2S2_TUNER_SCL

46

SCL_T

R158 NC/4. 7K 1/ 16W

T2S2_TUNER_SDA

45

44

SDA_T

CLK_IN_OUT

U101

NC/Si2168-C50-GMR

C1086 C1087 NC/100NF 16V NC/100NF 16V

42

43

41

NC

TC_ADC_P

TC_ADC_N

C166

NC/100N F 16V

VDD_Vana

XTAL_I/CLK_IN

RESETB

VDD_Vcore

TS_ERR/GPIO_1

+3.3V_T2+1.2V_T2

C167

NC/100N F 16V

37NC38NC39NC40

NC

GND

ADDR

XTAL _O

MP_D

MP_C

GND

TSD7

24

36

35

34

33

32

31

30

29

28

27

26

25

S_DEMOD_TSSYNC S_DEMOD_TSVALID

DEMOD POWER

+3.3VA_T2

T2_IF_N

T2_IF_P

C1094NC / 10PF 50V

C1093NC / 10PF 50V

+3.3V_T2

C1101

+3.3VA_T2

NC/100NF 16V

R168 N C / 4. 7K 1/ 16W R169 NC/22R 1/ 16 W 5%

C169 NC/ 100N F 16V

R1186 NC/ 4. 7K 1/ 16W

C164

NC/100NF 16V

S_TSDATA7 DEMOD_TSDATA7

S_TSDATA6

S_TSDATA5 DEMOD_TSDATA5

S_TSDATA4 DEMOD_TSDATA4

S_TSDATA2

S_TSDATA0

S_TSCLK

C1302 NC/5.6pF 50V

1

X101

2 4

NC/16MHz

3

C1303 NC/5.6pF 50V

+3.3V_T2

DEMOD_RST

T2_IF_AGC_TUNER

C162 NC/ 100NF 16V

R135 NC/22R 1/16W 5%

R134 NC/22R 1/16W 5%

R133 NC/22R 1/16W 5%

R132

R131 NC/22R 1/16W 5% R130 NC/22R 1/16W 5% R129 NC/22R 1/16W 5% R128 NC/22R 1/16W 5% R127 NC/22R 1/16W 5% R126 NC/22R 1/16W 5% R125 NC/22R 1/16W 5% R123 NC/22R 1/16W 5%

NC/22R 1/16W 5%

DMD_TSERRS_DEMOD_GPIO2

DEMOD_TSDATA6

DEMOD_TSDATA3S_TSDATA3

DEMOD_TSDATA2

DEMOD_TSDATA1S_TSDATA1

DEMOD_TSDATA0

DEMOD_TSCLK DEMOD_TSSYNC DEMOD_TSVAL

C147 NC/10PF 50V

FB102

1 2

C1200 NC/10U F 6. 3V

FB103

1 2

NC/120R

C1085 NC/10UF 6.3V

C148 NC/ 10 PF 50V

NC/120R

DVDD3V3

5,6,7,9,10, 11,12, 17,18,19,26, 27

Tuner to Demod.

13

T2_IF_P

13

T2_IF_N

13

T2S2_TUNER_SCL

13

T2S2_TUNER_SDA

Scaler to Demod.

OSCL2 OSDA2

T2_IF_AGC_TUNER

LNB control

DMD_TSERR

Scaler to Demod.

DEMOD_RST DEMOD_TSCLK

DEMOD_TSVAL DEMOD_TSSYNC DEMOD_TSDATA7 DEMOD_TSDATA6 DEMOD_TSDATA5 DEMOD_TSDATA4 DEMOD_TSDATA3 DEMOD_TSDATA2 DEMOD_TSDATA1 DEMOD_TSDATA0

Vout=1.0(1+R1/R2)_SPEC 600mA CVDD SPEC 451mA

DVDD3V3

C703

NC/1uF 10V

U4252

1

IN

2

GND SHDN3SET

NC/G9141T11U

OUT

R8052

NC/10K 1% 1/16W

5

4

DMD_TSERR

DEMOD_RST 17 DEMOD_TSCLK17

DEMOD_TSVAL 17 DEMOD_TSSYNC17 DEMOD_TSDATA717 DEMOD_TSDATA617 DEMOD_TSDATA517 DEMOD_TSDATA417 DEMOD_TSDATA317 DEMOD_TSDATA217 DEMOD_TSDATA117 DEMOD_TSDATA017

DVDD3V3

T2_IF_P T2_IF_N

T2S2_TUNER_SCL

T2S2_TUNER_SDA

OSCL2 OSDA2 T2_IF_AGC_TUNER

FB101

1 2

NC/120R

C8070 NC/ 10U F 6. 3V 20%

R8053 NC/2K 1%

9,13 9,13 13

17

DVDD3V3

+1.2V_T2

C160

NC/10UF 6.3V

8-5-11 WIFI/KEYPAD/RS232

Wi- Fi Powe r Co n trol

3V3SB

R5100

10K 1/16W 5%

WIFI_VCC

WOWLAN_IRQ

CN4605

2

1

4

3

6

5

8

7

CONN

311GW200C08ABL

90OHM

3 2

L103

11/23 modify

R4268 2R2 1/16W 5%

4 1

R4267 2R2 1/16W 5%

3V3SB

R5116

10K 1/16W 5%

WIFI_VCC

WIFI_RESET

IR/KEY BOARD

3V3SB

8/20 OTS Key

R108

R163

6K8 1%

LED_PWM2 LED_PWM0 LED_RE

RC6

KEY_PAD0 KEY_PAD1

IR_RC

C194 100pF 50V

C156 100pF 50V

C108 100pF 50V

R109

10K 1/16W 5%

R118 100 OHM 1/16W R117 100 OHM 1/16W

R112 100 OHM 1/16W

R113 100R 1/16W 1% R170 100R 1/16W 1%

C157 100NF 16V

C158 100NF 16V

8/20 PHP SR

8/20 OTS Key

USB_DM_P3 USB_DP_P3

FB422

NC/120R 3A

WIFI_PWR_EN

10K 1/16W 5%

3V3SB

1uF 10V

C4297

R403

Grounding

+5V_STB

12

FB421

120R 3A

U4250

G524B3T11U

5

VOUT

IN

4

EN(EN)

GND

2

8/20 Add for PHP

FB425

1 2 NC/120R 3A

1 3

OC

R4250

10K 1/16W 5%

USB_DP0

USB_DM0

FB8007

1 2

120R 3A

11/23 modify

C4298100NF 16V

LED_GE

KEY1_IN

ZD126 AZ5123-01H

ZD125 AZ5123-01H

12

EMI & ESD solution

WIFI_VCC

C4975

10UF 6.3V 20%

3V3SB

12

IR_PWR

KEY2_IN

C195 100NF 16V

FB403

120R

CN401

1 3 5 7 9

CONN

R4042

4.7K 1/16 W

U0RX U0TX

3V3SB

2 4 6 8 10

R4043

4.7K 1/16 W

R4044

100 OHM 1/16W 100 OHM 1/16W

R4045

ZD111

AZ5123-01H

ZD110

AZ5123-01H

12

033G3802 3 : high 6.0mm 311GW200G03BAL : high 11mm

U0TX_0 U0RX_0

---><---|>

UART Port

U0RX_0 U0TX_0

CN403

2

3 1

PHONE JACK

1 2 3

CONN

CN402

12

Wi-Fi_PWR_EN : Enable : High Disable : Low

Wi-Fi_OCP : High : Normal Low : OCP

8-5-12 GPIO/ServAD

DVDD3V3

10K 1/16W 5%

R4968

R4969

LOCKN

TP109

HTPDN

TP47

TP49

ARC_SEL0

DDC_RCR USB_PWR_EN2

SOC_RESET

ARC_SEL1

DMD_TSERR

TP43

I2SAMP_RESET

AMP_MUTE LD_EN_SOC FAULT_SBL

10K 1/16W 5%

R412

KEY_PAD0 KEY_PAD1 LAYOUT_OPT USB_PWR_OCP2 USB_PWR_OCP0/OCP1 VIDEO_DET AMBI_TEMP_IN

AJ29 AH29 AG29

AJ31 AC27 AC28 AC29

AB29

AB30

F16 E15 E16 F15 B10 F11

K30 N30

M30 K28

H30

H4 G1 F2 E2 D2 C1 B1 K5 D5 C5 B3 C3

D4 E4 K6 G4 D3 C4 E3 F3 G3 G5 H5

K4 H3

A7 C7 D6 B5 B4

K2 B7 C6 A5 A4 A3 C2

L29

L28 T32

J6

J5

J4 J1

J3 J2

UM1-8

CI_A0 CI_A1 CI_A2 CI_A3 CI_A4 CI_A5 CI_A6 CI_A7 CI_A8 CI_A9 CI_A10 CI_A11 CI_A12 CI_A13 CI_A14 CI_MCLKI CI_MIVAL CI_MISTRT CI_MDI0 CI_MDI1 CI_MDI2 CI_MDI3 CI_MDI4 CI_MDI5 CI_MDI6 CI_MDI7 CI_D0 CI_D1 CI_D2 CI_D3 CI_D4 CI_D5 CI_D6 CI_D7 CI_MDO0 CI_MDO1 CI_MDO2 CI_MDO3 CI_MDO4 CI_MDO5 CI_MDO6 CI_MDO7 CI_RST

GPIO42 GPIO43 GPIO44 GPIO45 GPIO46 GPIO48 GPIO49 GPIO50 GPIO52 GPIO95 GPIO56 GPIO57 GPIO58 GPIO59 GPIO60

ADIN0_SRV ADIN1_SRV ADIN2_SRV ADIN3_SRV ADIN4_SRV ADIN5_SRV ADIN6_SRV ADIN7_SRV

GPIO0 GPIO1 GPIO2 GPIO3 GPIO4 GPIO5 GPIO6 GPIO7 GPIO8 GPIO9 GPIO10 GPIO11 GPIO12 GPIO13 GPIO14 GPIO15 GPIO16 GPIO17 GPIO18 GPIO19 GPIO20 GPIO21 GPIO22 GPIO23 GPIO24 GPIO25 GPIO26 GPIO27 GPIO28 GPIO29 GPIO30 GPIO31 GPIO32 GPIO33 GPIO34 GPIO35 GPIO36 GPIO37 GPIO38 GPIO39 GPIO40 GPIO41 GPIO47

DEMOD_RST

DEMOD_TSCLK DEMOD_TSDATA0 DEMOD_TSDATA1 DEMOD_TSDATA2 DEMOD_TSDATA3 DEMOD_TSDATA4 DEMOD_TSDATA5 DEMOD_TSDATA6 DEMOD_TSDATA7

DEMOD_TSSYNC

DEMOD_TSVAL

CI_INT

CI_TSCLK

CI_TSDATA0

CI_TSSYNC

CI_TSVAL

PVR_TSCLK PVR_TSVAL

PVR_TSSYNC PVR_TSDATA0 PVR_TSDATA1

SPI_CLK1

SPI_CLK

SPI_DATA

SPI_CLE

OPWM0 OPWM1 OPWM2

SD_D0 SD_D1 SD_D2 SD_D3

SD_CMD

SD_CLK

VCC3IO_SD

LED_PWM0 LED_PWM1 LED_PWM2

OPCTRL0 OPCTRL1 OPCTRL2 OPCTRL3 OPCTRL4 OPCTRL5 OPCTRL6 OPCTRL7 OPCTRL8

OPCTRL9 OPCTRL10 OPCTRL11

C11 F10 E10 G11 G13 F12 E12 E13 F13 G16 E11 D11

E1 B8 G2 F4 B2

F1 A2 K7 F5 D1

K3 A8 A1 E5

AB31 AJ30 AB28

G10 D7 E8 F8 F9 C8 A10

U29 T29 Y33

P29 P30 P28 W29 W28 R29 M29 N31 J28 U30 Y31 T33

DEMOD_RST DEMOD_TSCLK DEMOD_TSDATA0 DEMOD_TSDATA1 DEMOD_TSDATA2 DEMOD_TSDATA3 DEMOD_TSDATA4 DEMOD_TSDATA5 DEMOD_TSDATA6 DEMOD_TSDATA7 DEMOD_TSSYNC DEMOD_TSVAL

BRIGHT_ADJ OPWM1 OPWM2

TP108

SD_D0 SD_D1 SD_D2 SD_D3

SD_CLK

LED_PWM0 LED_PWM1 LED_PWM2

R4983 33R 1/ 16W 5% R4984 33R 1/ 16W 5% R4985 33R 1/ 16W 5% R4986 33R 1/ 16W 5%

R4987 33R 1/ 16W 5%

WOWLAN_IRQ WIFI_PWR_EN

WIFI_RESET

DDR_PWR_EN

PANEL_VCC_ON/OFF

WOWBLE_IRQ

SYS_EEPROM_WP

MHL_PWR_EN

INVERTER_ON_OFF

USB_PWR_EN0

USB_MHL_OC

R4982 33R 1/16W 5%

SOC CONTROL BL OPTION

DVDD3V3

TP39

HP_DET

HSYNC_SBL

SDO_SBL SDI_SBL SCL_SBL

VSYNC_SBL

CS_SBL

AMP_MUTE LD_EN_SOC

DVDD3V3

T-branch

Fly-by

DVDD3V3

JTAG

I2SAMP_RESET

FAULT_SBL

R405

10K 1/16W 5%

C129 Close to Main Chip_Pin A10

C129 100NF 16V

3V3SB

R415

20K 1%

LAYOUT_OPT

R416

10K 1% 1/16W

2.47V

1.1V

R409 10K 1/16W 5%

TP38 TP40

TP41 TP42

10K

20K

ARC_SEL0 ARC_SEL1

AMBI_TEMP_IN

R416R415ADIN3_SRVPCB TYPE

30K

10K

3V3SB

DVDD3V3

AMP_MUTE LOCKN HTPDN

WIFI_RESET16

12

USB_MHL_OC

5

INVERTER_ON_OFF

11

PANEL_VCC_ON/OFF

10 16 16,27 26

16

WOWLAN_IRQ

16

WIFI_PWR_EN

6,16

LED_PWM2

9

VIDEO_DET

6

SYS_EEPROM_WP

5

BRIGHT_ADJ

USB_PWR_OCP0/OCP1

R8108 33R 1/ 16W 5% R8109 33R 1/ 16W 5%

R430

33R 1/16W 5%

R437

NC/ 33R 1/ 16 W 5%

SOC_RESET DDC_RCR

I2SAMP_RESET

KEY_PAD1 KEY_PAD0 HP_DET

LED_PWM06,16 LED_PWM16

DDR_PWR_EN5

MHL_PWR_EN12

USB_PWR_OCP2

USB_PWR_EN2 USB_PWR_EN0

CS_SBL SDO_SBL SCL_SBL SDI_SBL VSYNC_SBL HSYNC_SBL FAULT_SBL DMD_TSERR LD_EN_SOC

5

AMBI_TEMP

OPWM15

OPWM2

ARC_SEL_0 ARC_SEL_1

VIDEO_DET

3V3SB DVDD3V3

AMP_MUTE

LOCKN HTPDN SOC_RESET

DDC_RCR

USB_PWR_OCP2 USB_PWR_OCP0/OCP1 USB_PWR_EN2

USB_PWR_EN0

AMBI_TEMP

5,6,9,12,16,18,27 5,6,7,9,10,11,12,14,18,19,26,27

10 11,22 11,22 22 22

WIFI_RESET USB_MHL_OC

INVERTER_ON_OFF PANEL_VCC_ON/OFF

I2SAMP_RESET KEY_PAD1 KEY_PAD0 HP_DET

WOWLAN_IRQ WIFI_PWR_EN

LED_PWM0 LED_PWM1 LED_PWM2 DDR_PWR_EN MHL_PWR_EN VIDEO_DET

SYS_EEPROM_WP BRIGHT_ADJ

18 18 18

18

OPWM1 OPWM2

22,27 22,27 22,27 22,27 22,27 22,27 22,27 14 11

ARC_SEL_0 17 ARC_SEL_1 17

16,17

CS_SBL SDO_SBL SCL_SBL SDI_SBL VSYNC_SBL HSYNC_SBL FAULT_SBL DMD_TSERR LD_EN_SOC

BootStrape

MT5596LGEJ

8-5-13 USB/ETHERNET PHY

ETHERNET PHY

UM1-10

AVDD33_ETH_STB AVDD10_ETH_STB

MT5596LGEJ

USB_DP_P0 USB_DM_P0

USB_DP_P2 USB_DM_P2

USB_DP_P3 USB_DM_P3

SSUSB_TXP SSUSB_TXN SSUSB_RXP

SSUSB_RXN

SSUSB_VRT

R115

AVDD33_USB

5K1 1/16W 5%

AVDD33_USB AVDD33_USB_STB

AVDD10_SSUSB_STB

USB_VRT_P0

R1101 5K1 1/16W 5%

+5V_SW

U32

TXVP_0

U33

TXVN_0

V30

RXVP_1

V31

RXVN_1

Y29

PHYLED1

Y28

PHYLED0

R27

REXT

K23 E28

UM1-9

B11

USB_DP_P0

A11

USB_DM_P0

D12

USB_DP_P1

C12

USB_DM_P1

A12

USB_DP_P2

B12

USB_DM_P2

W32

USB_DP_P3

W33

USB_DM_P3

B15

SSUSB_TXP

A15

SSUSB_TXN

B13

SSUSB_RXP

A13

SSUSB_RXN

J15

SSUSB_VRT

L19

AVDD33_USB

K19

AVDD33_SSUSB

L25

AVDD33_USB_STB

A14

AVDD10_SSUSB_STB

J13

USB_VRT_P0

MT5596LGEJ

+5V_US B

FB707 NC/120R 6A

C1014

100UF 16V

18V TO 5V

Main_18V

FB8008 120R 6A

TXVP_0 TXVN_0

RXVP_1 RXVN_1

REXT

AVDD33_ETH_STB AVDD10_ETH_STB

+

C8079

C8083

10UF 25V

100N 50V

C1109 10UF 6.3V 20%

C8080 100NF 25V

R4601

24K 1%

C8082 47pF 50V

R8064 0R05 1/16W

R8057

13.3K 1%

AVDD10_ETH_STB

AVDD3V3

+5V_SW

R8059 100K 1%

8

IN

7

SS

6

SGND

5

FB

R121

10K 1/16W 5%

U713 SY8234FC C

PGND

9

LX BS EN NC

USB PORT 1

HI = > POWER ON LO = > POWER OFF

for SONY

C1009 100NF 16V

AVDD33_USB

Q101 AO3414

R8061

0R05 1/16W

1

C8081

2

100N 50V

3 4

+5V_USB

3V3SBAVDD1V0_STB

R8062

C112 1UF 6.3V

2.2 OHM 1/10W

100K 1/16W 5%

500mA

1 2

TH4103 NC/PTCR

USB_PWR_EN0

4.7K 1/16W

AVDD33_ETH_STB

R8060

10K 1/16W 5%

C8086 10N 50V

All Pa th Grounding(20mil)

t

+5V_US B

40mil

C111

C145 100NF 16V

Near IC

C113 10uF 6.3V

L803

4.7uH

OPWRSB_PWR

G529A1TB1U

IN3OUT

2

GND

1

EN

U106

+5V_USB

3.3A

C8084 10UF 16V

1uF 10V

R1047

Vout = 0. 6 x (1 + 100/ 13)= 5.21V

R8063

USB_DP_P0 USB_DM_P0 USB_PORT0_5V

OUT

OC

3V3SB

C8085 10UF 16V

EQUAL LENGTH and DIFFERENTIAL IMPEDANCE 90ohm

R1025 2R2 1/16W 5% R1026 2R2 1/16W 5%

C125 10UF 6.3V 20%

3V3SB

4 5 6

R1049 8.2K 1/16W

H=> NORMAL L =>OCP

Near IC

AVDD33_USB_STB

AVDD1V0_1

Near IC

AVDD10_SSUSB_STB

C127

C126

NC/10PF 50V

R1046

3.3K 1/16W

USB_PORT0_5V USB_PWR_OCP0/ OCP1

C110

100NF 16V

C119 100NF 16V

USB_DP_P0_R USB_DM_P0_R

NC/10PF 50V

C122 10UF 6.3V 20%

4 3 2 1

12

ZD108

ZD107

MLC104025R0V05A0-C 1

65

CN1103

1234

USB CONN

USB PORT 2 (USB 3.0)

Grounding

All P a th Grounding(20mil)

SSUSB_RXN SSUSB_RXP

SSUSB_TXP SSUSB_TXN

HI = > POWER ON LO = > POWER OFF

USB_PWR_EN2

4.7K 1/16W

for SONY

+5V_US B

USB_DP2

USB_DM2

C1111 100NF 16 V C1112 100NF 16 V

1uF 10V

+5V_STB

Main_18V

+5V_STB

Main_18V

900mA

1 2

TH4102 NC/PTCR

+5V_US B

C128

R1027

D103

12

USB_PORT0_5V

FB340M D104

12

FB340M

D105

12

USB_PORT2_5V

FB340M D106

12

FB340M

All P a th Grounding(20mil)

Must be differential 100ohm

SEPARATE GROUND

All P a th Grounding(20mil)

t

R1115 R1118

SIDE USB1

G529A1TB1U

2 1

U108

0R05 1/16W

0R05 1/16W R1116 R1117 0R05 1/16W

IN3OUT GND EN

OUT

OC

USB_PORT2_5V

SSUSB_RXN_R SSUSB_RXP_R

0R05 1/16W

SSUSB_TXP_R SSUSB_TXN_R

4 5 6

R1028 8.2K 1/16W

+5V_STB

+5V_SW

3V3SB AVDD3V3 AVDD1V0_STB AVDD1V0_1

USB_PWR_EN2 USB_PWR_EN0

USB_PWR_OCP2

USB_PWR_OCP0/OCP1

16

USB_DP_P3

16

USB_DM_P3

Must be differential 100ohm

C4601 100NF 16V

TXVP_0 TXVN_0

RXVP_1 RXVN_1

C4603 100NF 16V

USB_DP_P2 USB_DM_P2

C1110 10UF 6.3V 20%

NC/10PF 50V

EQUAL LENGTH and DIFFERENTIAL IMPEDANCE 90ohm

3V3SB

10mil

R107

3.3K 1/16W

USB_PORT2_5V

USB_PWR_OCP2

H=> NORMAL L =>OCP

C4602 10N 50V

C4604 10N 50V

R11052R2 1/16W 5% R11062R2 1/16W 5%

C1119

ZD4103

+5V_STB

+5V_SW 3V3SB AVDD3V3 AVDD1V0_STB AVDD1V0_1

USB_PWR_EN2 USB_PWR_EN0 USB_PWR_OCP2 USB_PWR_OCP0/OCP1

USB_DP_P3 USB_DM_P3

RJ45

CN4601

USB_DP_P2_R USB_DM_P2_R

12

ZD1102

MLC104025R0V05A0-C 1

C1120

NC/10PF 50V

12

MLC104025R0V05A0-C 1

ZD4105

MLC104025R0V05A0-C 1

5,9,12, 13,20,27

5,9,12,1 3,20,27 5,6,9,12 ,16,17,27 5,6,7,9, 10,11,12, 14,17,19 ,26,27 5,6,12 5,11,12

17 17 17 17

9

1

TH1

P1

2

P2

3

P3

4

P4

5

P5

6

P6

7

P7 NC

8

P8

TH2

RJ45 8P

10

C4606 10N 50V

12

ZD1101

MLC104025R0V05A0-C 1

3

11

4

2

1

D-

D+

VCC

GND

USB2.0

HAND110HAND2

USB3.0

RXN5RXP6GND7TXN8TXP

9

12

ZD4106

ZD4104

MLC104025R0V05A0-C 1

CN1102 USB CONN 9P

8-5-14 VCCK & DVSS

UM1-11

P2

DVSS

U2

DVSS

Y2

DVSS

AC2

DVSS

AF2

DVSS

AJ2

DVSS

M3

DVSS

R3

DVSS

V3

DVSS

AA3

DVSS

AD3

DVSS

AG3

DVSS

AL3

DVSS

AH4

DVSS

AJ4

DVSS

AL4

DVSS

P5

DVSS

V5

DVSS

AE5

DVSS

AH5

DVSS

E6

DVSS

F6

DVSS

T6

DVSS

W6

DVSS

AE6

DVSS

AG6

DVSS

E7

DVSS

F7

DVSS

H7

DVSS

M7

DVSS

AB7

DVSS

AF7

DVSS

AL7

DVSS

D8

DVSS

G8

DVSS

R8

DVSS

T8

DVSS

V8

DVSS

W8

DVSS

AB8

DVSS

AC8

DVSS

AE8

DVSS

AK8

DVSS

AM8

DVSS

D9

DVSS

AJ9

DVSS

C10

DVSS

AH10

DVSS

AL10

DVSS

M11

DVSS

N11

DVSS

P11

DVSS

R11

DVSS

T11

DVSS

AF11

DVSS

T17

DVSS

U17

DVSS

V17

DVSS

W17

DVSS

Y17

DVSS

AA17

DVSS

AM17

DVSS

N18

DVSS

P18

DVSS

R18

DVSS

T18

DVSS

U18

DVSS

V18

DVSS

W18

DVSS

Y18

DVSS

AA18

DVSS

C19

DVSS

D19

DVSS

N19

DVSS

P19

DVSS

W19

DVSS

Y19

DVSS

AA19

DVSS

AF19

DVSS

AG19

DVSS

AL19

DVSS

N20

DVSS

P20

DVSS

V21

DVSS

W21

DVSS

Y21

DVSS

AA21

DVSS

N22

DVSS

P22

DVSS

R22

DVSS

T22

DVSS

U22

DVSS

V22

DVSS

W22

DVSS

Y22

DVSS

AF31

DVSS

H28

DVSS

F29

DVSS

G29

DVSS

AD29

DVSS

F30

DVSS

G30

DVSS

Y30

DVSS

AA30

DVSS

AF30

DVSS

F31

DVSS

AH31

DVSS

E32

DVSS

AC32

DVSS

MT5596LGEJ

DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS DVSS

R19 V12 W12 Y12 AA12 AB12 AF12 AJ12 M13 N13 P13 U12 T12 R12 P12 N12 M12 AM11 R13 T13 U13 V13 W13 Y13 AA13 AB13 AL13 B14 C14 M14 N14 P14 R14 T14 U14 V14 W14 Y14 AA14 AB14 AM14 M15 N15 P15 R15 T15 U15 V15 W15 Y15 AA15 AB15 AF15 M16 N16 P16 R16 T16 U16 V16 W16 Y16 AA16 AE16 AF16 AL16 C17 D17 N17 P17 R17 T19 U19 V19 R20 T20 U20 V20 W20 Y20 AA20 AF20 AG20 AM20 C21 D21 N21 P21 R21 T21 U21 AA22 AL22 C23 D23 AL23 E25 F25 E26 H27 G28 G31 U31 W31 AC31 AE32 F33

VCCK VCCK

AB23 AC23 AD23

AE23

W24

Y24 AA24 AB24

AC24 AD24

AE24 AJ27 AB25

AC25 AD25

AE25 AF25

AD26

AE26 AF26

UM1-12

VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK

MT5596LGEJ

VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK

VCC3IO_A VCC3IO_B

AC19 AD19 AC20 AD20 AC21 AD21 AC22 AD22 W23 Y23 AA23 AG27 AF27 AH27 AE27 AJ26 AH26 AG26

K1 AJ33

DVDD3V3 DVDD3V3

C143 100NF 16V

C144 100NF 16V

DVDD3V3

8-5-15 MST7484 Power

+5V_SW

FB705 120R 6A

C8077

1uF 10V

VCC5V_FRC

C8078 10uF 16V

4.8A

VCC0.9V_FRC

C954

C953 100NF 16V

10UF 6.3V 20%

Modify 151203

C955

22UF 20% 6.3V

VCC5V_FRC

C936

22UF 20% 6.3V

VCC5V_FRC

U808

SY8009BABC

6 5 4

R804

0R05 1/1 6W

C937

1uF 10V

R807

4.7K 1/1 6W

FB

GND

NC IN

10K 1% 1/16W

5A(Spec.)

U4253

G1117-33T63Uf

VI3VO

GND14

1

EN

2 3

LX

R803

2

4

Vout=

FRC 3. 3V

VCC3.3V_FRC

C932

10UF 6. 3 V 20%

L801

4.7uH

R802

20K 1%

C933 100NF 16V

C910 22P 50V

C929

22UF 20% 6.3V

VCC1.8V_FRC

C928

22UF 20% 6.3V

Modify 151210

VCC5V_FRC

+18V

10K 1/16W 5%

R901

R902

51K 1/16W 5%

C952

4.7UF 6. 3V

8 7

1

5

9

⊙ ⊙

U809

IN IN

EN

VC

GND

SY8366QNC

Big p l a n e

C947

10UF 25V

C951

NC/ 100NF 25V

SY8366: Max:6A Vin 4V~25V

Vout = 0.6V (1+( R1/R2 ))

Vout = 0.6V (1+( 20/36 ))=0.93V

ILMT

2

PG

6

BS

FB

C949

0.1uF 50V R909

2.2R 1%

10

LX

4

3

FRC Core Power 0.9V

2.2uH

L802

R911

C948

220pF 50V

10 OHM 1/16W

R1

R912

20K 1%

R913

R2

36K 1%

0.6x(1+20K/10K)=

1.8V

8-5-16 MST7484 Power 2

VDDC

VCC0.9V_FR C

VCC1.8V_FRC

VCC3.3V_FR C

C8039

C8001 22UF 20% 6.3V

FB8004

1 2

120R

C8040

22UF 20% 6.3V

C8002 10UF 6.3V 20%

DDR POWER

10UF 6.3V 20%

C8041

10UF 6.3V 20%

1uF 10V

C8035

4000mA

C8003

10UF 6.3V 20%

AVDDL_MOD_DRV

FB8001

Close to ball AA4 on the TOP

1 2

120R

C8012 1uF 10V

DVDD_DDR

FB8002

1 2

120R

C8017

10UF 6.3V 20%

AVDDL_RX

FB8003

1 2

C8028

60mA

120R

C8024

1uF 10V

AVDD_DDR

C8029

10UF 6.3V 20%

1uF 10V

100NF 16V

Reserve at Bottom side. close to BALL H14

AVDD_15_MOD

C8036

C8037 100NF 16V

1uF 10V

R8007

0R05 1/16W

C8042 100NF 16V

FB8005

1 2

120R

FB8006

1 2

120R

F8007 120R 3A

C8005

C8004

10UF 6.3V 20%

30mA

C8013 100NF 16V

50mA

C8018

C8019

10UF 6.3V 20%

1uF 10V

C8025

C8026

100NF 16V

400mA

C8030

C8031 100NF 16V

50mA

C8038 100NF 16V

Reserve at Bottom side. close to chip

C8043

10UF 6.3V 20%

C8045

10UF 6.3V 20%

C8049

1uF 10V

12

C8051

10UF 6.3V 20%

C8006

10UF 6.3V 20%

C8014 1uF 10V

C8007 1uF 10V

C8008

100NF 16V

C8015 100NF 16V

C8009 100NF 16V

C8010

100NF 16V

Reserve at Bottom side close to ball V4

Reserve at Bottom side.

C8022

C8020

C8021

100NF 16V

Close to ball A10/A11 on the TOP

C8027 100NF 16V

1uF 10V

C8023 100NF 16V

Reserve at Bottom side.

AVDD_DDR_1

AVDD_DDR _2

Reserve at Bottom side.

C8032 100NF 16V

C8033 100NF 16V

close to BALL D5

C8034 100NF 16V

Close to BALL A7 on the TOP

VDDP

20mA

C8044 100NF 16V

50mA

AVDD_ALLRX

C8048

C8046

C8047

100NF 16V

1uF 10V

100NF 16V

Reserve at Bottom side.

AVDD_PLL

50mA

C8050 100NF 16V

close to chip

AVDD_MOD

350mA

C8053

C8052

100NF 16V

1uF 10V

C8011 100NF 16V

VCC0.9V_FR C

C8016 100NF 16V

Reserve at Bottom side.

AVDD_DDR _2

VDDC

AVDDL_RX

AVDDL_MOD_DRV

DVDD_DDR

AVDD_DDR

AVDD_15_MOD

AVDD_MOD

VDDP

AVDD_PLL

AVDD_ALLRX

AVDD_DDR

AVDD_DDR _1

TP83 TP84

U801D MST7484GC

P5

VDDC

R5

VDDC

P6

VDDC

R6

VDDC

P7

VDDC

R7

VDDC

F8

VDDC

G8

VDDC

H8

VDDC

J8

VDDC

K8

VDDC

G9

VDDC

H9

VDDC

J9

VDDC

K9

VDDC

N12

VDDC

P12

VDDC

N13

VDDC

P13

VDDC

U7

AVDDL_RX

V7

AVDDL_RX

V4

AVDDL_MOD

W4

AVDDL_MOD

Y4

AVDDL_MOD

AA4

AVDDL_MOD

A10

DVDD_DDR

A11

DVDD_DDR

H11

DVDD_DDR

J11

DVDD_DDR

H13

AVDD_DDR0

J13

AVDD_DDR0

K13

AVDD_DDR0

L13

AVDD_DDR0

H14

AVDD_DDR0

J14

AVDD_DDR0

K14

AVDD_DDR0

L14

AVDD_DDR0

A18

AVDD_DDR0

B18

AVDD_DDR0

C18

AVDD_DDR0

A19

AVDD_DDR0

B19

AVDD_DDR0

C19

AVDD_DDR0

F20

AVDD_DDR0

F21

AVDD_DDR0

D11

AVDD_15_MOD

E11

AVDD_15_MOD

F11

AVDD_15_MOD

R14

AVDD_MOD

T13

AVDD_MOD

T15

VDDP

U15

VDDP

V15

VDDP

U13

AVDD_PLL

V13

AVDD_XTAL

T14

AVDD_RX

U14

AVDD_RX

V14

AVDD_RX

A20

DRAM_VDD_A

B20

DRAM_VDD_A

C20

DRAM_VDD_A

B21

DRAM_VDD_A

C21

DRAM_VDD_A

A7

DRAM_VDD_A

D5

DRAM_VDD_A

A15

NC

B15

NC

H1

VSS

R1

VSS

U1

VSS

G2

VSS

J2

VSS

P2

VSS

T2

VSS

V2

VSS

L3

VSS

M3

VSS

N3

VSS

Y3

VSS

C4

VSS

D4

VSS

P4

VSS

R4

VSS

T4

VSS

U4

VSS

M5

VSS

N5

VSS

T5

VSS

U5

VSS

V5

VSS

W5

VSS

Y5

VSS

AA5

VSS

A6

VSS

B6

VSS

C6

VSS

D6

VSS

M6

VSS

N6

VSS

T6

VSS

U6

VSS

V6

VSS

W6

VSS

B7

VSS

C7

VSS

D7

VSS

E7

VSS

F7

VSS

G7

VSS

H7

VSS

J7

VSS

K7

VSS

L7

VSS

M7

VSS

N7

VSS

T7

VSS

W7

VSS

Y7

VSS

AA7

VSS

A8

VSS

B8

VSS

C8

VSS

D8

VSS

E8

VSS

L8

VSS

M8

VSS

N8

VSS

P8

VSS

R8

VSS

T8

VSS

U8

VSS

V8

VSS

A9

VSS

B9

VSS

C9

VSS

D9

VSS

E9

VSS

F9

VSS

L9

VSS

M9

VSS

N9

VSS

P9

VSS

R9

VSS

V9

VSS

B10

VSS

C10

VSS

D10

VSS

E10

VSS

F10

VSS

G10

VSS

H10

VSS

J10

VSS

K10

VSS

L10

VSS

M10

VSS

N10

VSS

P10

VSS

R10

VSS

B11

VSS

C11

VSS

G11

VSS

K11

VSS

L11

VSS

M11

VSS

N11

VSS

P11

VSS

R11

VSS

A12

VSS

B12

VSS

C12

VSS

D12

VSS

E12

VSS

F12

VSS

G12

VSS

H12

VSS

J12

VSS

K12

VSS

L12

VSS

M12

VSS

R12

VSS

T12

VSS

U12

VSS

V12

VSS

A13

VSS

B13

VSS

C13

VSS

G13

VSS

M13

VSS

R13

VSS

A14

VSS

B14

VSS

C14

VSS

G14

VSS

M14

VSS

N14

VSS

P14

VSS

C15

VSS

D15

VSS

G15

VSS

H15

VSS

J15

VSS

K15

VSS

L15

VSS

M15

VSS

N15

VSS

R15

VSS

B16

VSS

C16

VSS

D16

VSS

E16

VSS

F16

VSS

G16

VSS

H16

VSS

R16

VSS

T16

VSS

U16

VSS

V16

VSS

C17

VSS

D17

VSS

E17

VSS

F17

VSS

G17

VSS

H17

VSS

R17

VSS

T17

VSS

W17

VSS

D18

VSS

E18

VSS

F18

VSS

G18

VSS

H18

VSS

P18

VSS

R18

VSS

T18

VSS

W18

VSS

D19

VSS

E19

VSS

F19

VSS

G19

VSS

R19

VSS

T19

VSS

Y19

VSS

D20

VSS

E20

VSS

G20

VSS

P20

VSS

U20

VSS

W20

VSS

D21

VSS

E21

VSS

G21

VSS

P21

VSS

V21

VSS

MST7484GC HEAT SINK Q90G0279001A0100HG

HS401

1 2

HEAT SINK

8-5-17 MST7484 BGA

[I2C / UART ]

CN800

I2C_S Port

45

1 2 3

CONN

VCC3.3V_FRC

R815

VCC3.3V_FRC

R801 100K 1/16W 5%

R805

10K 1/16W 5%

C801

2.2uF 6.3V

R816 10K 1/16W 5%

1

3

I2CM_SDA_U I2CM_SCL_U

2

Q800 MMBT390 6

R812 100K 1/16W 5%

10K 1/16W 5%

OSCL1 OSDA1

D800 LBAV99LT1G

C800

2.2uF 6. 3V

R806 1K 1/16W 5%

From SoC

6,11,24

OSDA1

6,11,24

OSCL1

RESET

HW_RESET

C802

2.2uF 6. 3V

R808 33R 1/ 16W 5% R811 33R 1/ 16W 5%

R821

22R 1/16W 5% R824 1M 1/16W

X80 1

1

24MHz

2 4

C803 12P 50V

3

C804 12P 50V

XOU T XIN

I2CS_SDA_U I2CS_SCL_U

SBL interface

LD_EN FAULT_SBL

SCL_SBL SDI_SBL

VX1_RX_HTPD_V

VX1_RX_LOCK_V

SOC_RESET Low: normal High: reset

SOC_RESET

R245 NC/ 0R 05 OH M

HW_RESET

XOU T XIN

I2CS_SDA_U I2CS_SCL_U

I2CM_SDA_U I2CM_SCL_U

UART2_TX

TP50

UART2_RX

TP51

UART1_TX

TP52

UART1_RX

TP53

TP85

TP57 TP58

TP56

TP54 TP55

R851 33R 1/16W 5%

R861 NC/33R 1/ 16W 5%

TP60 TP61

R862 NC/33R 1/16W 5% R863 NC/33R 1/16W 5%

TP62

R854 33R 1/16W 5%

TP63 TP64

R855 33R 1/16W 5%

TP65

GPIO03

SPI_CZ SPI_CK SPI_DI SPI_DO

GPIO42 GPIO41

CHIP_VD ET

GPIO4 GPIO5 GPIO6

GPIO7 GPIO8 GPIO9 GPIO10 GPIO11

GPIO12 GPIO13 GPIO14 GPIO15 GPIO16

GPIO17

U801C MST7484GC

E13

RESET

Y6

XOU T

AA6

XIN

V17

I2C_S_SDA

U17

I2C_S_SCL

L16

I2C_M_SDA

L17

VSYNC_LIKE_SP1/I2C_M_SCL

E5

GPIO00 / UART2_TX

E6

GPIO01 / UART2_RX

F4

GPIO02/UART1_TX

F5

IRE / UART1_RX

G5

GPIO03

J21

SPI_CZ

H20

SPI_CK

H21

SPI_DI

J19

SPI_DO

D14

INT_R20

E14

INT_R21

G4

CHIP_VDET

D13

TESTPIN

N4

EFUSE

M16

GPIO04

N16

GPIO05

M18

GPIO06

N17

GPIO07

N18

GPIO08

M17

GPIO09/PWM4

K20

GPIO10

L19

GPIO11

F15

GPIO12

V18

GPIO13/VX1R_HTPD_V

E15

GPIO14

F14

GPIO15

U18

GPIO16/VX1R_LOCK_V

F13

GPIO17

VSYNC _LIKE_SP2 VSYNC _LIKE_SP3

SPI1_CK/PWM2

SPI1_DI/PWM3

SPI2_CK/PWM0

SPI2_DI/PWM1

VSYNC _LIKE_SP0/PWM5

VX1T_HTPDN/GPIO18 VX1T_LOCKN/GPIO19

SPI3_CK

SPI3_DI

SPI4_CK

SPI4_DI

DIM00 DIM01 DIM02 DIM03 DIM04 DIM05 DIM06 DIM07

GPIO43 GPIO44 GPIO45 GPIO46 GPIO47 GPIO48 GPIO49 GPIO50

GPIO20 GPIO21 GPIO22 GPIO23 GPIO24 GPIO25

UFC_CS

UFC_SDO

UFC_SCL

UFC_SDI

P16 P17

J16 K16 J18 J17 K18 K17 J20 K19

P15

L20 L21 M19 M21 M20 N19 N20 P19

L5 L6 K6 J6 K4 K5 J4 J5

T9 U9 U10 V10 U11 V11 T10 T11

F6 G6 H5 H6

SPI1_CK SPI1_DI SPI2_CK SPI2_DI SPI3_CK SPI3_DI SPI4_CK SPI4_DI

VSYNC_SP0

DIM0 DIM1 DIM2 DIM3

DDC_RCR_R

SBL interface

R864 NC/33R 1/16W 5% R865 NC/33R 1/16W 5%

R866 NC/33R 1/16W 5% R867 NC/33R 1/16W 5% R868 NC/33R 1/16W 5% R869 NC/33R 1/16W 5%

R870 NC/33R 1/16W 5%

R800 10K 1/16W 5% R809 10K 1/16W 5% R814 10K 1/16W 5%

VX1T_HTPDN VX1T_LOCKN

TP74 TP75 TP76 TP77

R858 33R 1/16W 5%

TP78

TP79 TP80 TP81 TP82

HSYNC_SBL

TP87 TP88

SCL_SBL SDI_SBL

SDO_SBL VSYNC _SBL

VCC3.3V_FRC

pull-down: 0x98;

pull-high: 0x92;

VX1T_HTPDN VX1T_LOCKN

DDC_RCR

For DDC read command Ready. connect to SoC.

DDC_RCR Normal: high Abnormal:low

CS_SBL

24 24

VCC3.3V_FRC

DIM3

R820

NC/10K

R823

10K 1/16W 5%

[SPI Flash] 4MB

GPIO0

UART2_TX

R831 NC/1K

R828 10K 1/16W 5%

SPI_CZ SPI_DO

R834 NC/10K

R829 10 OHM 1/16W R830 10 OHM 1/16W

U802

1

CS#

2

SO/SIO1

HOLD#

3

WP# GND4SI/SIO0

MX25L3206EM2I-12G

VCC

SCLK

VCC3.3V_FRC

8 7 6

R832 10 OHM 1/16W

5

R833 10 OHM 1/16W

C805 100NF 16V

SPI_CK SPI_DI

* all I/O without 5V tolerance

VX1_RX_LOCK_V

VCC3.3V_FRC

R3218

NC/10K 1/16W 5%

R3219 NC/1K 1/16W 5%

VCC3.3V_FRC

Q301 NC/MMBT3906

R3220 NC/1K2 OHM

LED303

1 2

NC/GPTS06033GC1-PB

8-5-18 MST7484 DDR

U801A MST7484GC

MIU0

AVDD_DDR

C808 22UF 20% 6. 3V

1Kohm 1/16W +/-1%

R847

C809

100NF 16V

R848

A-MVREFDQ

1Kohm 1/16W +/-1%

C810 100NF 16V

C811 1nF 50V

R825 240R 1%

R826 240R 1%

A-ZQ-A A-MVREFDQ A-ZQ-B

B17

A_DDR_ZQ_A

A16

A_DDR_VREF_A

A17

A_DDR_ZQ_B

8-5-19 MST7484 VB1 TX interface

0.1uF for VB1 Out

VBY0N_2 VBY0P_2

VBY1N_2 VBY1P_2

VBY2N_2 VBY2P_2

VBY3N_2 VBY3P_2

VBY4N_2 VBY4P_2

VBY5N_2 VBY5P_2

VBY6N_2 VBY6P_2

VBY7N_2 VBY7P_2

All Pa th Grounding(20mil)

HTPDN_TX LOCKN_TX

22 11

11 11

VX1T_HTPDN VX1T_LOCKN

OSDA1 OSCL1

A0N A0P

A1N A1P

A2N A2P

ACKN ACKP

A3N A3P

A4N A4P

B0N B0P

B1N B1P

10K 1/16W 5%

VCC3.3V_FRC

LD_EN

D_Fomat0 D_Fomat1 Bit_SEL

A0N A0P

A1N A1P

A2N A2P

ACKN ACKP

A3N A3P

A4N A4P

B0N B0P

B1N B1P

VCC3.3V_FRC

R873

C911 100NF 16V

25

C912 100NF 16V

25

C913 100NF 16V

25

C914 100NF 16V

25

C915 100NF 16V

25

C916 100NF 16V

25

C917 100NF 16V

25

C918 100NF 16V

25

C919 100NF 16V

25

C920 100NF 16V

25

C921 100NF 16V

25

C922 100NF 16V

25

C923 100NF 16V

25

C924 100NF 16V

25

C925 100NF 16V

25

C926 100NF 16V

25

R874 10K 1/16W 5%

22 22

R880 NC /0R05 OHM

6,11,22

R881 NC /0R05 OHM

6,11,22

VCC3.3V_FRC

LD_EN D_Fomat0

D_Fomat1 Bit_SEL

SDA_VB1_OUT

SCL_VB1_OUT

20,21,22

VCC3.3V_FRC

R1020 10K 1/ 16W 5%

R1018 10K 1/ 16W 5%

R1021 N C / 10K 1 / 16W 5%

D_Fomat0

D_Fomat1

Bit_SEL

R1024

R1023 NC / 10K 1/ 16W 5%

R1022 10K 1/16W 5%

H or NC = 10bit L = 8bit

NC/ 10K 1/ 16W 5 %

For Debug

LOCKN_TX

R3217

1K 1/16W 5%

VBY7P_2 VB1_TX7P

VBY6P_2 VB1_TX6P

VBY5P_2 VB1_TX5P VBY5N_2 VB1_TX5N

VBY4P_2 VB1_TX4P

VBY3P_2 VB1_TX3P VBY3N_2 VB1_TX3N

VBY2P_2 VB1_TX2P

VBY1P_2 VB1_TX1P

VBY0N_2 VB1_TX0N

GPTS06033GC1-PB

LED302

VB1 output

VB1_TX7NVBY7N_2

VB1_TX6NVBY6N_2

VB1_TX4NVBY4N_2

VB1_TX2NVBY2N_2

VB1_TX1NVBY1N_2 VB1_TX0PVBY0P_2

R5004 N C / 0R05 1/16W

R5005

4.7K 1/16W

VCC3.3V_FRC

12

LOCKN_TX HTPDN_TX

LD_EN Bit_SEL

SCL_VB1_OUT SDA_VB1_OUT

D_Fomat1 D_Fomat0

R5013 0R05 1/ 16W

R5010 0R05 1/ 16W R5011 0R05 1/ 16W

PANEL_POWER

NC/GPTS06033GC1-PB

LED301

p28

p38

p41 p42

12

311GF050P51ADP

R3216

NC/ 4K7 1/ 10W 5%

CN418

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51

NC/CONN

CN417

VB1 output

1

52 2 3 4

53 5 6 7

54 8 9

55

56

57

58

59

60

61

VBY7P_2 VB1_TX7P

VBY6P_2 VB1_TX6P

VBY5P_2 VB1_TX5P VBY5N_2 VB1_TX5N

VBY4P_2 VB1_TX4P

VBY3P_2 VB1_TX3P VBY3N_2 VB1_TX3N

VBY2P_2 VB1_TX2P

VBY1P_2 VB1_TX1P

VBY0N_2 VB1_TX0N

VB1_TX 7NVBY7N_2

VB1_TX 6NVBY6N_2

VB1_TX 4NVBY4N_2

VB1_TX 2NVBY2N_2

VB1_TX 1NVBY1N_2 VB1_TX 0PVBY0P_2

Panel

T/S P/B FB710 FB709 FB708

12V T/T2

12V

NC SMT NC

LOCKN_TX HTPDN_TX

LD_EN Bit_SEL

SCL_VB1_OUT SDA_VB1_OUT

D_Fomat1 D_Fomat0

PANEL_POWER

12V

S2 12V

SMT SMT NC

p28

p38

p41 p42

CONN 51P

Panel T/S P/B FB710

FB708

5253

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51

12V T/T2 16V

NC NCFB709 SMT

12V S2 16V

SMT NC SMT

8-5-20 MST7484 RX_TX interface

From SOC

VBY1_R0N VBY1_R0P VBY1_R1N VBY1_R1P VBY1_R2N VBY1_R2P VBY1_R3N VBY1_R3P

VBY1_R4N VBY1_R4P VBY1_R5N VBY1_R5P VBY1_R6N VBY1_R6P VBY1_R7N VBY1_R7P

VBY1_R0N VBY1_R0P VBY1_R1N VBY1_R1P VBY1_R2N VBY1_R2P VBY1_R3N VBY1_R3P

VBY1_R4N VBY1_R4P VBY1_R5N VBY1_R5P VBY1_R6N VBY1_R6P VBY1_R7N VBY1_R7P

R884 0R05 1/16W

11

R885 0R05 1/16W

11

R886 0R05 1/16W

11

R887 0R05 1/16W

11

R888 0R05 1/16W

11

R889 0R05 1/16W

11

R890 0R05 1/16W

11

R891 0R05 1/16W

11

R892 0R05 1/16W

11

R893 0R05 1/16W

11

R894 0R05 1/16W

11

R895 0R05 1/16W

11

R896 0R05 1/16W

11

R897 0R05 1/16W

11

R898 0R05 1/16W

11

R899 0R05 1/16W

11

U801B MST7484GC

W8

NC

AA8

NC

Y8

NC

W9

NC

Y9

NC

W10

NC

Y10

NC

AA10

NC

W11

NC

AA11

NC

Y11

NC

W12

NC

Y12

NC

W13

Y13

AA13

W14

AA14

Y14

W15

Y15

W16

Y16

AA16

AA17

Y17 Y18

W19 AA19 AA20

Y20 Y21

W21

U21 U19

R20 R21

V20 V19

T20

NC NC NC NC NC NC NC NC NC NC NC

VBY1_1_RXM[0] VBY1_1_RXP[0] VBY1_1_RXM[1] VBY1_1_RXP[1] VBY1_1_RXM[2] VBY1_1_RXP[2] VBY1_1_RXM[3] VBY1_1_RXP[3]

VBY1_1_RXM[4] VBY1_1_RXP[4] VBY1_1_RXM[5] VBY1_1_RXP[5] VBY1_1_RXM[6] VBY1_1_RXP[6] VBY1_1_RXM[7] VBY1_1_RXP[7]

MOD

VB1RX

VX1_0+ VX1_1+ VX1_2+ VX1_3+ VX1_4+ VX1_5+ VX1_6+ VX1_7+

VX1_0VX1_1VX1_2VX1_3VX1_4-

VX_5VX1_6VX1_7-

AA2 AA3 Y2 Y1 W3 W2 V3 V1 U3 U2 R2 T3 P1 R3 N2 P3 M1

NC

M2

NC

L2

NC

L1

NC

K3

NC

K2

NC

J3

NC

J1

NC

L4

NC

M4

NC

H3

NC

H2

NC

F2

NC

G3

NC

F3

NC

F1

NC

E2

NC

E1

NC

D2

NC

E3

NC

C2

NC

D3

NC

C3

NC

C1

NC

B2

NC

B1

NC

B3

NC

A2

NC

B4

NC

A3

NC

B5

NC

A4

NC

C5

NC

A5

NC

A0P A0N A1P A1N A2P A2N ACKP ACKN A3P A3N A4P A4N B0P B0N B1P B1N

24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24

To Panel

8-5-21 AVout Line out Earphone

CVBS+Line+Earphone out

Near MT5596L

TUNER_BYPASS_OUT

with GND

0R05 1/16W

with GND

Near CONNECTOR

R139

C131

470PF 50V

Near CONNECTOR

L101

2.2UH

C120

NC/ 220pF 50V

SCART1 Audio Output

AZ5123-01H

R141

10 OHM 1/16W

C121

220pF 50V

DVDD3V3

ZD113

12

R641

470KOHM 5% 1/16W

ZD114 AZ5123-01H

12

R1123

47K 1/16W 5%

ZD119 AZ5123-01H

HP_DET

12

SCT1_AV_OUT

SCT1_AUL_OUT

SCT1_AUR_OUT

R140

0R05 1/16W

C124

NC/ 10N 50V

10 OHM 1/16W R124

SCT1_AUL_OUTSCART1L_PA

8/20 EMI SR

CN602

4 2 5 3 6 7 1

PHONE J AC K 7P

SCART1R_PA

R146

0R05 1/16W

C137

470PF 50V

ZD117

AZ5123-01H

12

R1124

47K 1/16W 5%

R147

0R05 1/16W

C133

NC/ 10N 50V

SCT1_AUR_OUT

8/20 EMI SR

8-5-22 AMBILIGHT & Hotel TV & SBL

DVDD3V3

NC/ 4. 7K 1/ 16W

R421

NC/ 4. 7K 1/ 16W

R420

11/23 modify

Scanning Backlight

CN702

1 3 5 7 9

11

CONN

Grounding

11/23 modify

Grounding

VSYNC_SBL

CS_SBLP SDO_SBLP SDI_SBLP

FAULT_SBL

CS_SBL

AL+KEY

CN423

1415

1 2 3 4 5 6 7 8 9 10 11 12 13

COMM

R422

R423

NC/ 4. 7K 1/ 16W

CS_SBL

R424 33R 1/ 16W 5%

SDI_SBL

R425 33R 1/ 16W 5%

SDO_SBL

SCL_SBL

2

HSYNC_SBL

4 6 8 10 12

12

AMBI-SPI-CLK SCL_SBL AMBI-SPI-MOSI

AMBI_TEMP

R426 33R 1/ 16W 5% R427 33R 1/ 16W 5%

SCL_SBLP

ZD127 NC/AZ5123-01H

R4501 NC/ 100R 1/ 16W 5%

F1401

+5V_SW Main_18V

SCL_SBL

R431 NC / 33R 1/16W 5%

R432 N C / 33R 1/16W 5%

R433 N C / 33R 1/16W 5%

FB405

1 2

NC/ T 2A 63V

NC/ 120R 3A

KEY_PAD0

+12V_AL

SDI_SBL SDO_SBL

DVDD3V3

CS_SBLP

SDI_SBLP

SDO_SBLP

SCL_SBLP

+12V_Ambient Light Switch.

PANEL_VCC ON/OFF:(TCON0) Normal:High Stand_By:Low

PANEL_VCC_ON/OFF17

P12V

FB752

1 2

120R 3A

C4457 10UF 16V

10K 1/16W 5%

R434

C4454

1UF 10% 16V

DVDD3V3

R435

10K 1/16W 5%

C4456

1UF 10% 16V

1

IN

2

IN

3

NC

4

GND

5

SS EN6SET

U4405

GND OUT OUT OUT

NC

AOZ1360DIL

12 11 10 9 8 7

+12V_AL

R436

10K 1/16W 5%

8.6 J 715G8623 IR/LED Panel

8-6-1 IR BOARD

CN201

10 11

67

CN203

CONN

1 2 3 4 5 6 7 8 9

NC/CONN

CN202

1 2 3 4 5 6 7 8 9

NC/CONN

1 2 3 4 5

LED_R RC-IR

LS_SCL LS_SDA

LED_R RC-IR

LS_SCL LS_SDA

LED_R RC-IR

3V3SB DVD3V3

ZD200 ZD201 near U212 pin

3V3SB

IR_power RC-IR

ZD200

AZ5123-01H

ZD201

AZ5123-01H

12

1 2

U212

1

GND

2

VCC

3

Vout

4

GND

TSOP75436TR

Light Sensor

LS_SCL

LS_SDA

DVD3V3

R225 0R05 1/16W

R222

R221

10K 1/16W 5%

R226 NC/0R05 1/16W

DVD3V3

R223

R224

0R05 1/16W

NC/ 0R05 1/16W

C222 1uF 10V

C221 100N 16V

U221 JSA-1130

1

ADDR

INT

2

VDD

SDA

GND3SCL

6 5 4

R223

JSA-1130

NC 0x44

JSA-1130 0RNC0R

TSL25715

Digital Light Sensor

R225R224 R227R226

NCNC0R0R

0R0RNCNC0R

R227 NC/0R05 1/ 16W R228 0R05 1/16W R229 0R05 1/16W

R228

NC

LS_SDA LS_SCL

R229

0R0R

NC

I2C ADDR

0x45NCNC

0x29

Standby LED

C211

1UF 6.3V

3V3SB

R211

100R 1/16W 5%

C212

NC/1UF 6.3V

IR Receiver

IR_power

LED_R

1K 1/16W 5%

LED201

GPSS008RC4

Red

R202

3V3SB

R201

10K 1/16W 5%

12

Q201 BC847BW

ZD202

NC/AZ5123-01H

1 2

ZD203

NC/AZ5123-01H

1 2

ZD202 ZD203 near LED201

8.7 E 715G7088 Keyboard control panel

8-7-1 Key BOARD

9. Styling Sheets

9.1 6102 series 50"



9.2 6102 series 55

  



9.3 6162 series 65
