Page 1

Operating Instructions

Manual de instrucciones

High Deﬁ nition Hospitality Plasma Display

Pantalla de plasma de alta deﬁ nición para la industria hotelera

Model No.

Número de modelo.

TH-37PR10U TH-42PR10U

English

Español

The illustration shown is an image.

Before connecting, operating or adjusting this product, please read these instructions completely.

Please keep this manual for future reference.

La ilustración mostrada es una imagen.

Antes de conectar, utilizar o ajustar este producto, lea completamente este manual de instrucciones;

y guárdelo para consultarlo en el futuro en caso de ser necesario.

TQB2AA0801-1

Page 2

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualiﬁ ed service personnel.

The lightning flash with arrow-head within a triangle is in tend ed to tell the user that parts inside the product are a risk of electric shock to per sons.

The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the ap pli ance.

WARNING : To prevent damage which may result in fire or shock hazard, do not expose this apparatus to rain

or mois ture. Do not place containers with water (flower vase, cups, cosmetics, etc.) above the set. (including on shelves above, etc.)

WARNING : 1) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to

qualified service personnel.

2) Do not remove the grounding pin on the power plug. This apparatus is equipped with a three pin grounding-type power plug. This plug will only fit a grounding-type power outlet. This is a safety fea ture. If you are unable to insert the plug into the outlet, contact an electrician.

Do not defeat the purpose of the grounding plug.

Page 3

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁ ers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁ t into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments / accessories speciﬁ ed by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table speciﬁ ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualiﬁ ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) To prevent electric shock, ensure the grounding pin on the AC cord power plug is securely connected.

Page 4

Dear Panasonic Customer

Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment from your new Plasma Display. To obtain maximum benefit from your set, please read these Instructions before making any adjustments, and retain them for future reference. Retain your purchase receipt as well, and record the model number and serial number of your set in the space provided on the rear cover of these instructions.

Table of Contents

Important Safety Instructions ..................................3

FCC STATEMENT ...................................................... 5

Safety Precautions ................................................... 6

Maintenance .............................................................. 7

Accessories .............................................................. 8

Accessories Supplied .............................................. 8

Connections .............................................................. 9

PC Input Terminals connection ..............................10

SERIAL T erminals connection ............................... 11

Power ON / OFF ..................................................... 12

Initial selections ..................................................... 13

Selecting the input signal ......................................13

Selecting the On-Screen Menu Language ............13

Basic Controls ........................................................ 14

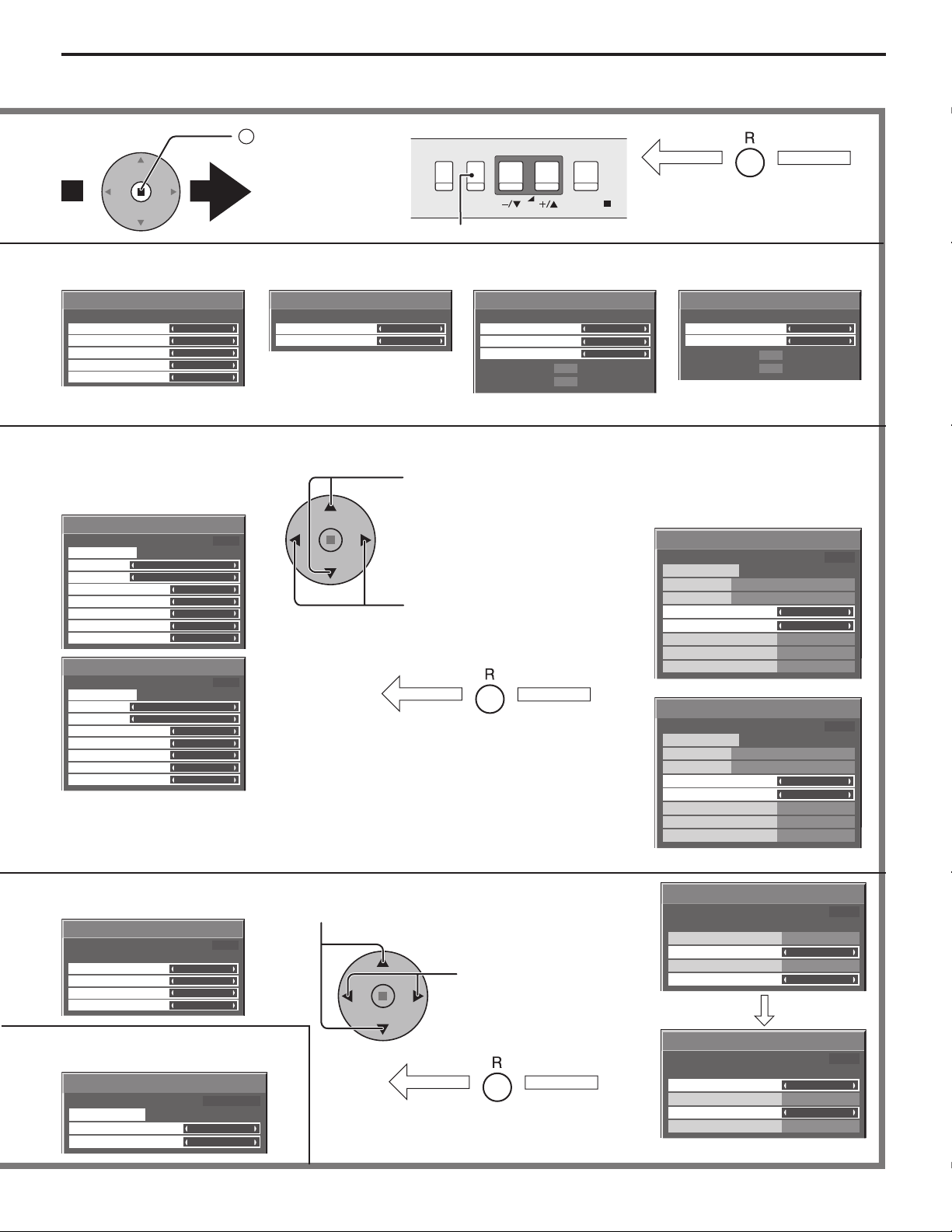

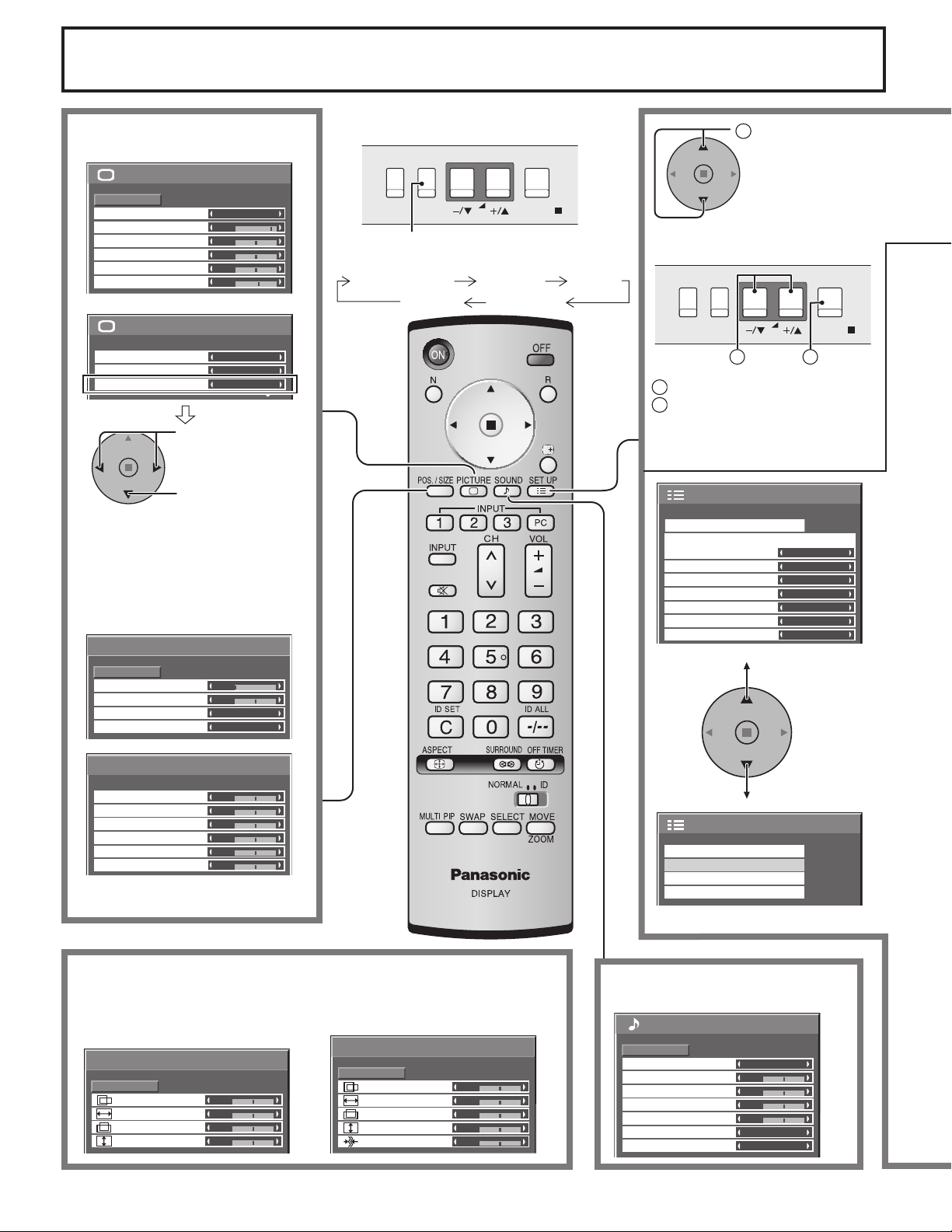

On-Screen Menu Displays ..................................... 16

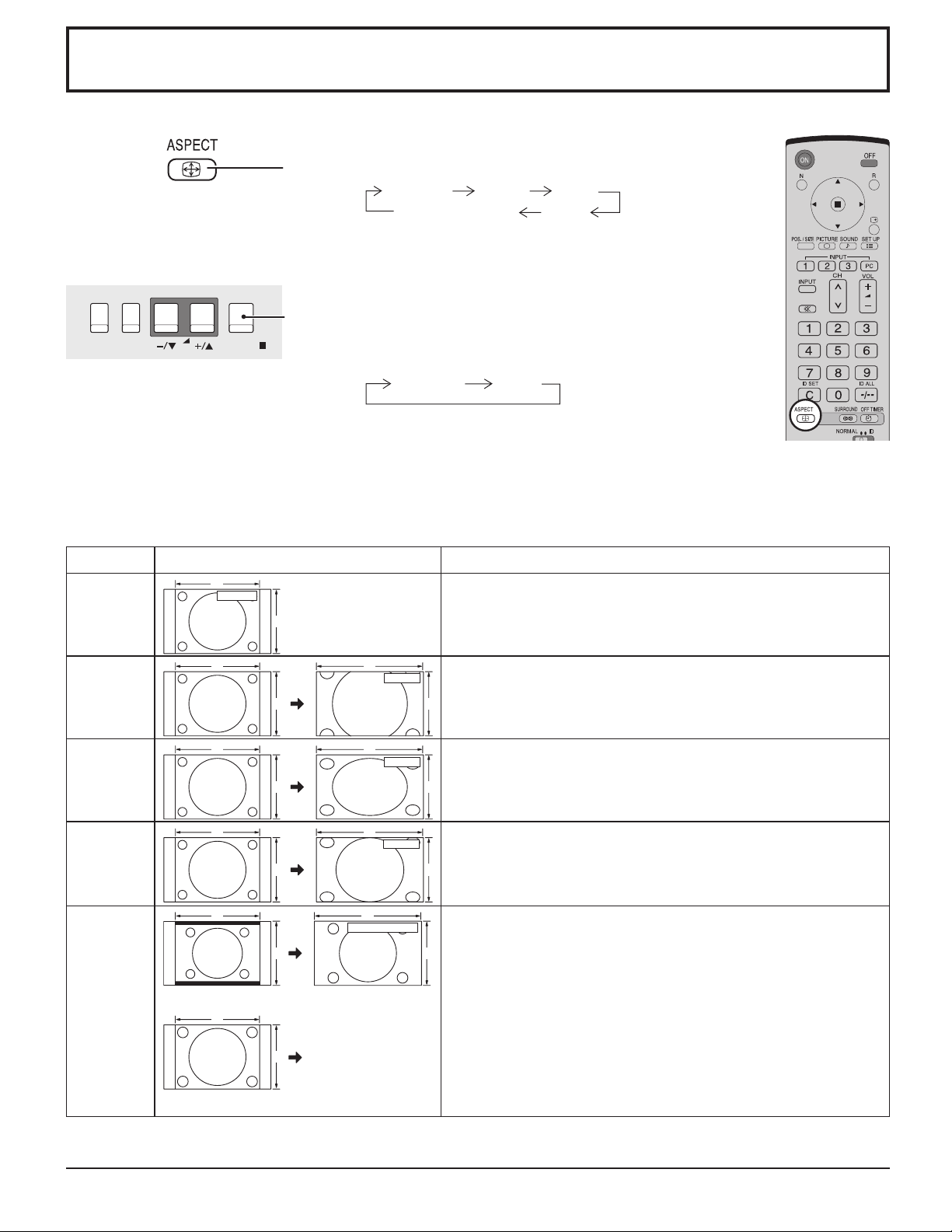

ASPECT Controls ................................................... 18

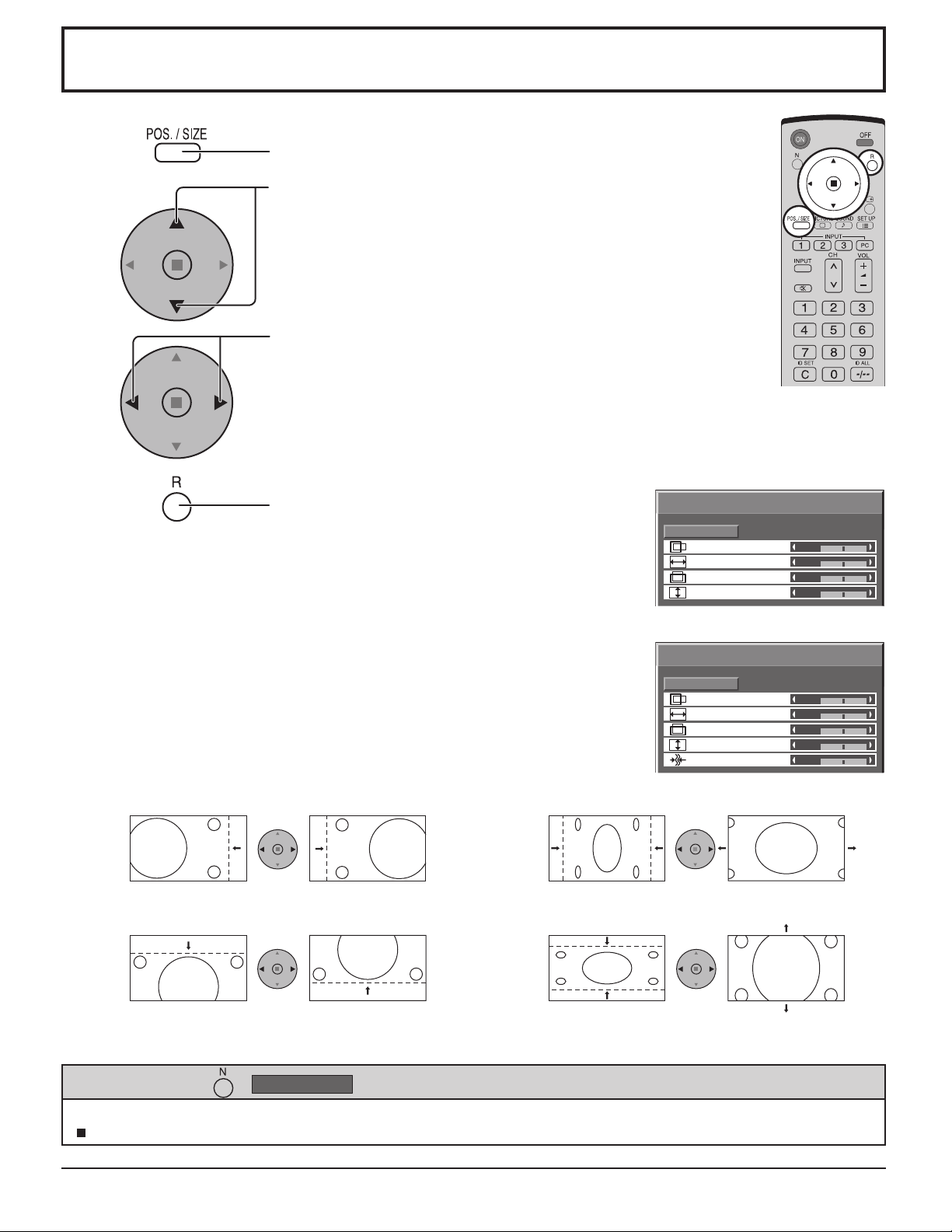

Adjusting POS. /SIZE .............................................19

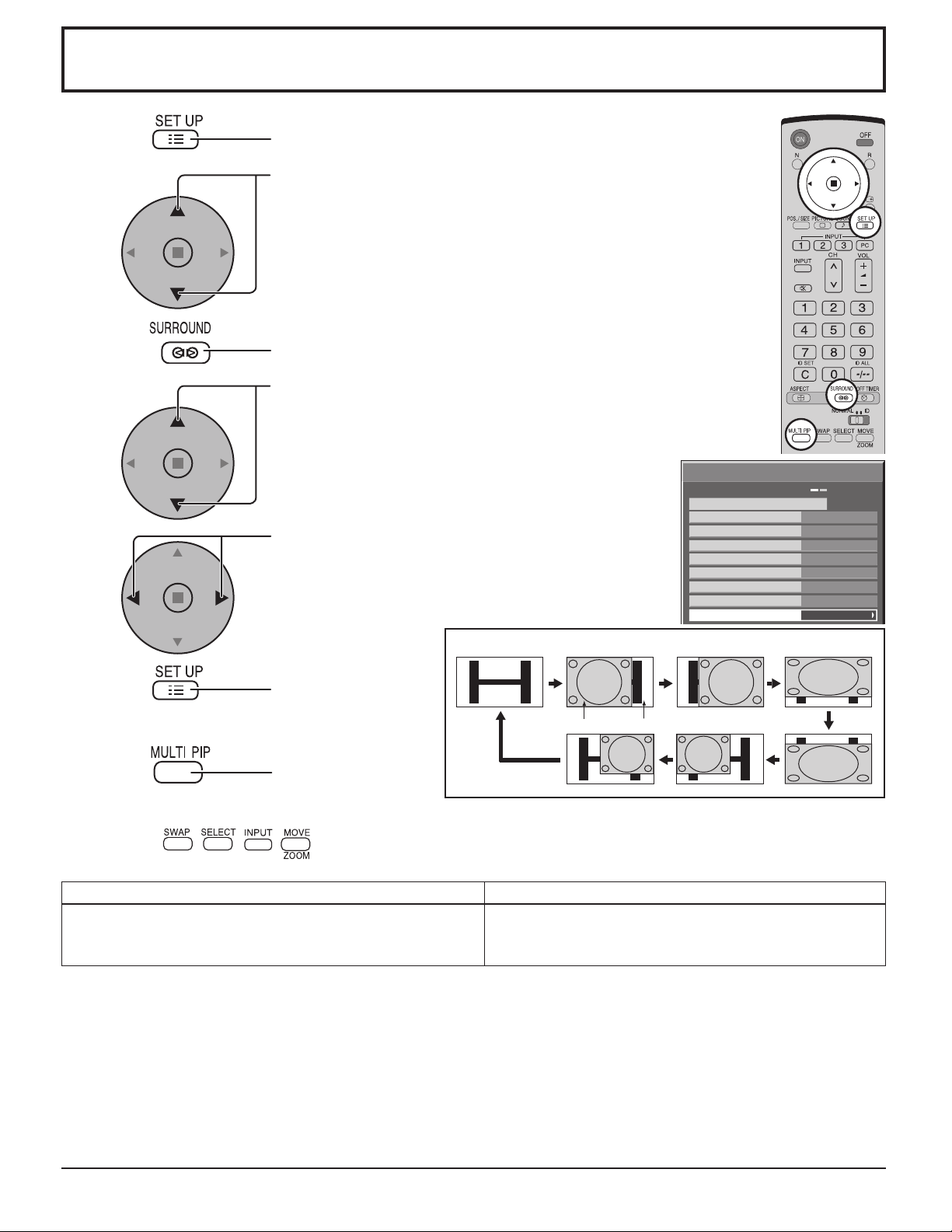

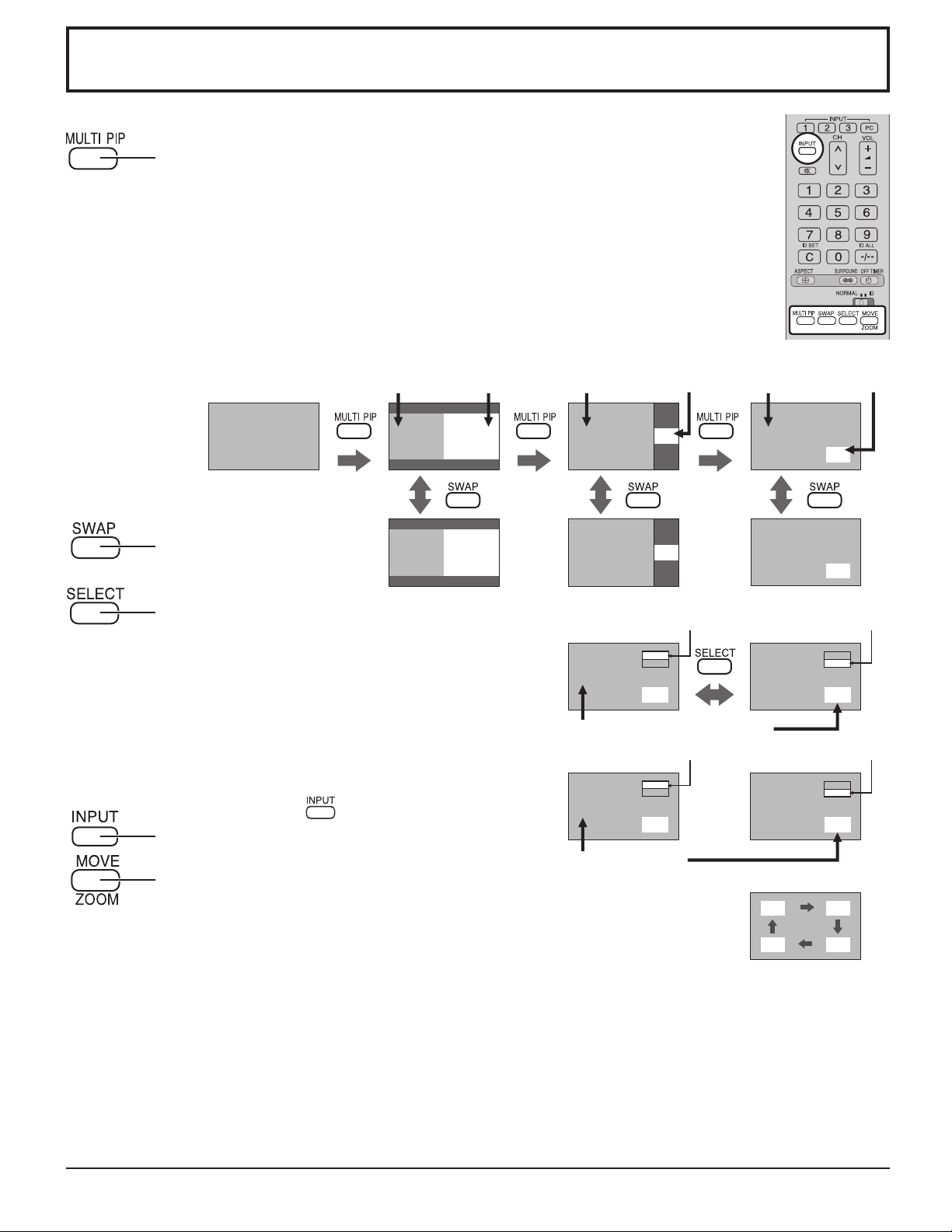

MUL TI PIP ................................................................20

Advanced PIP ..........................................................21

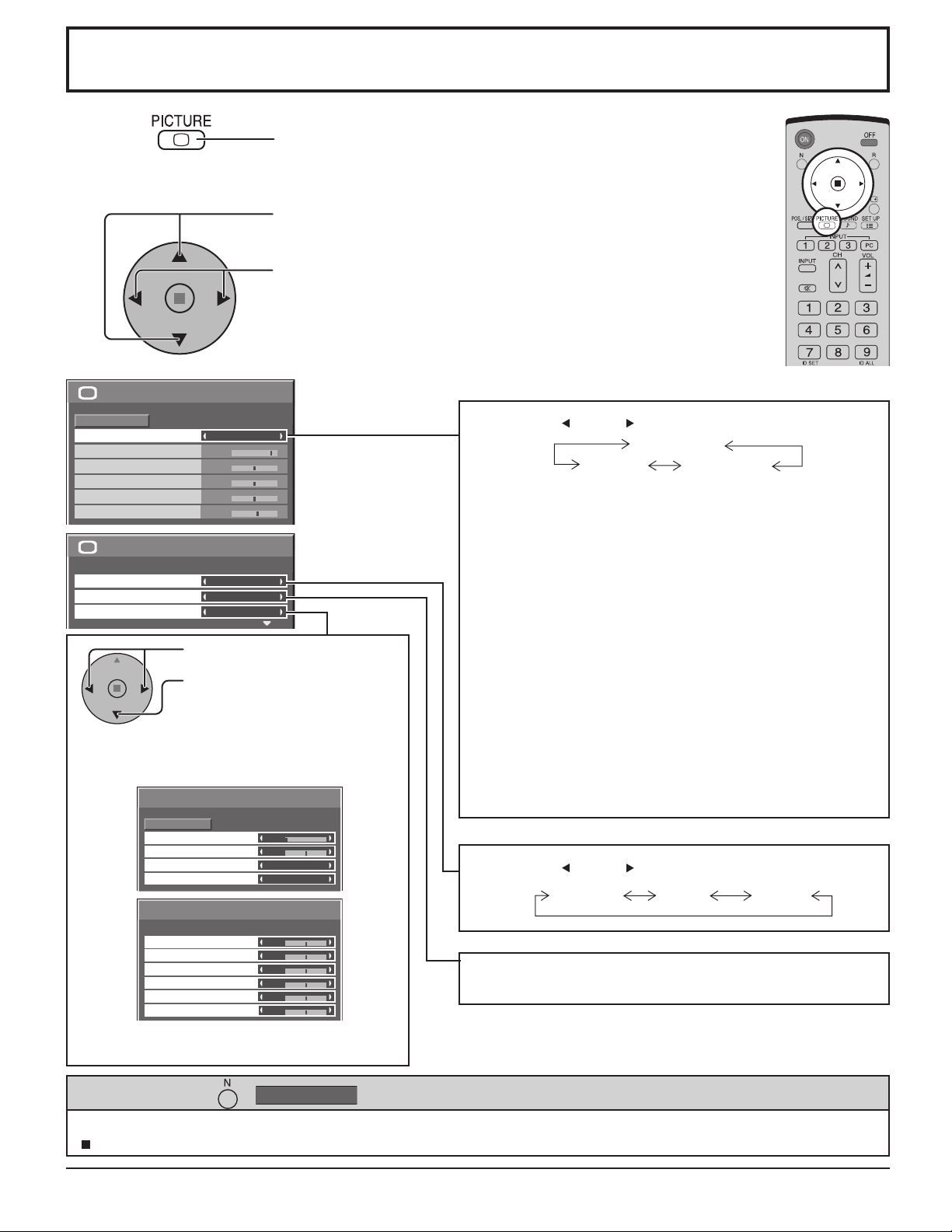

PICTURE Adjustments ........................................... 22

ADVANCED SETTINGS ........................................ 23

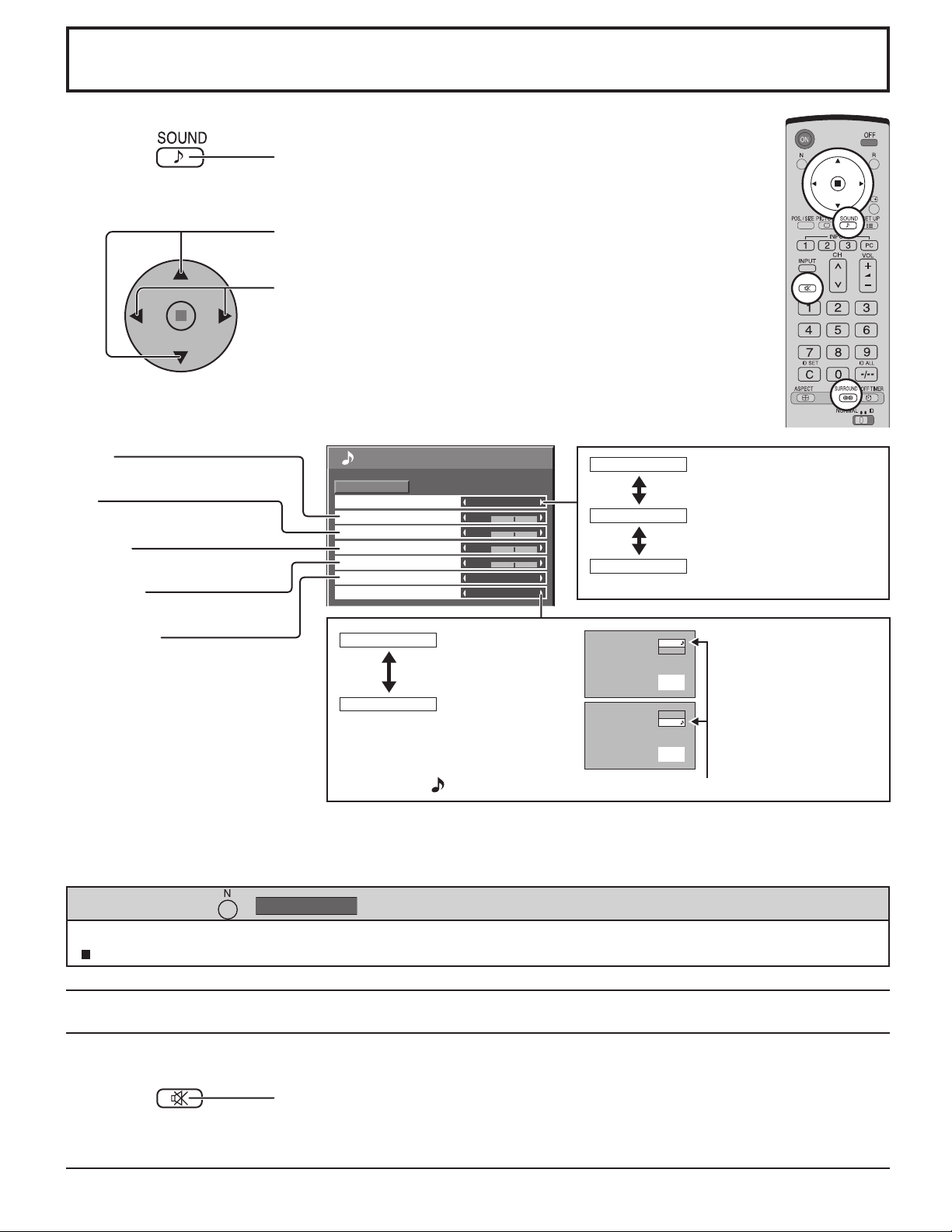

SOUND Adjustment ................................................24

MUTE ....................................................................24

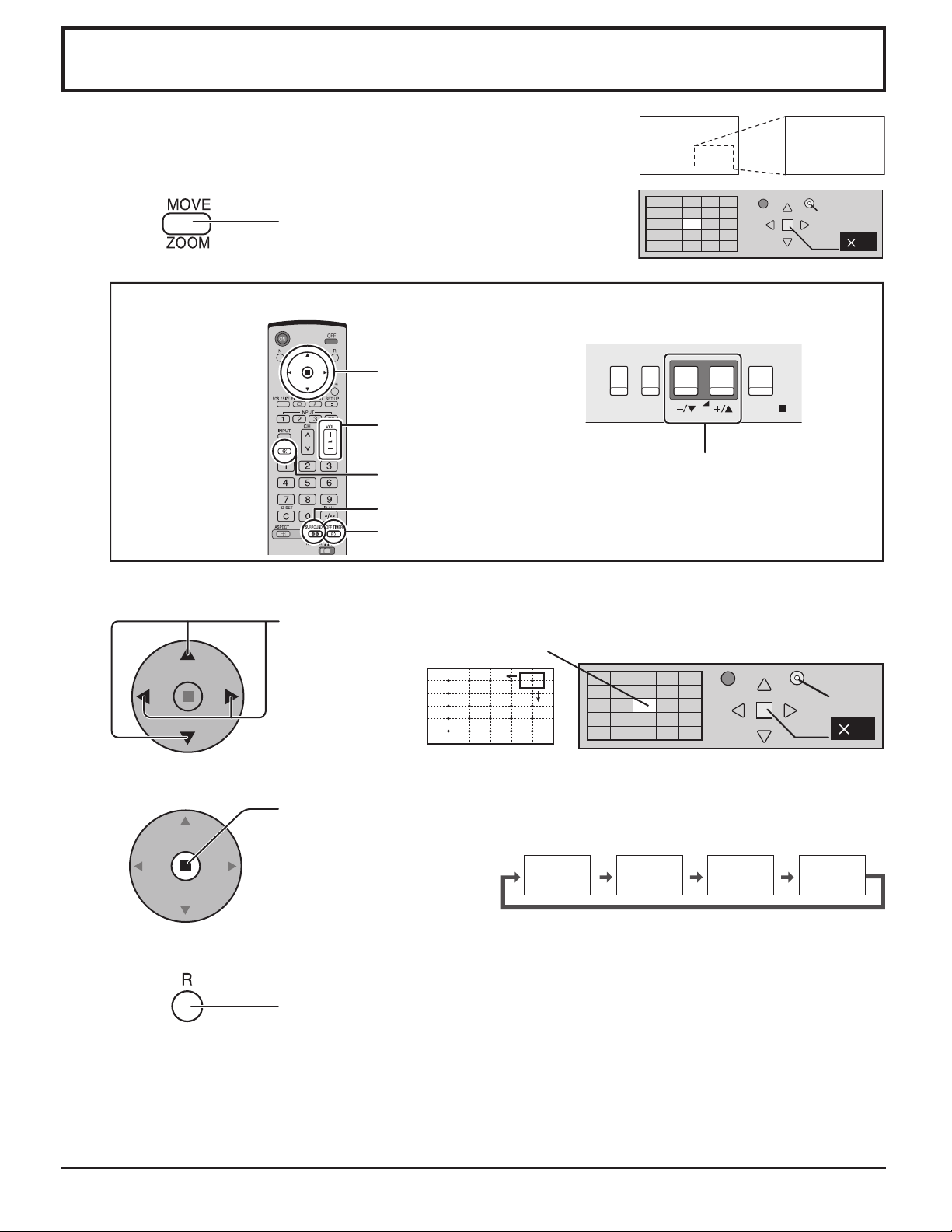

Digital Zoom ............................................................ 25

PRESENT TIME SETUP / SET UP TIMER .............. 26

PRESENT TIME SETUP .......................................26

SET UP TIMER .....................................................27

SCREENSAVER (For preventing image retention)

Setup of SCREENSAVER Time ............................ 29

Reduces screen image retention ........................... 29

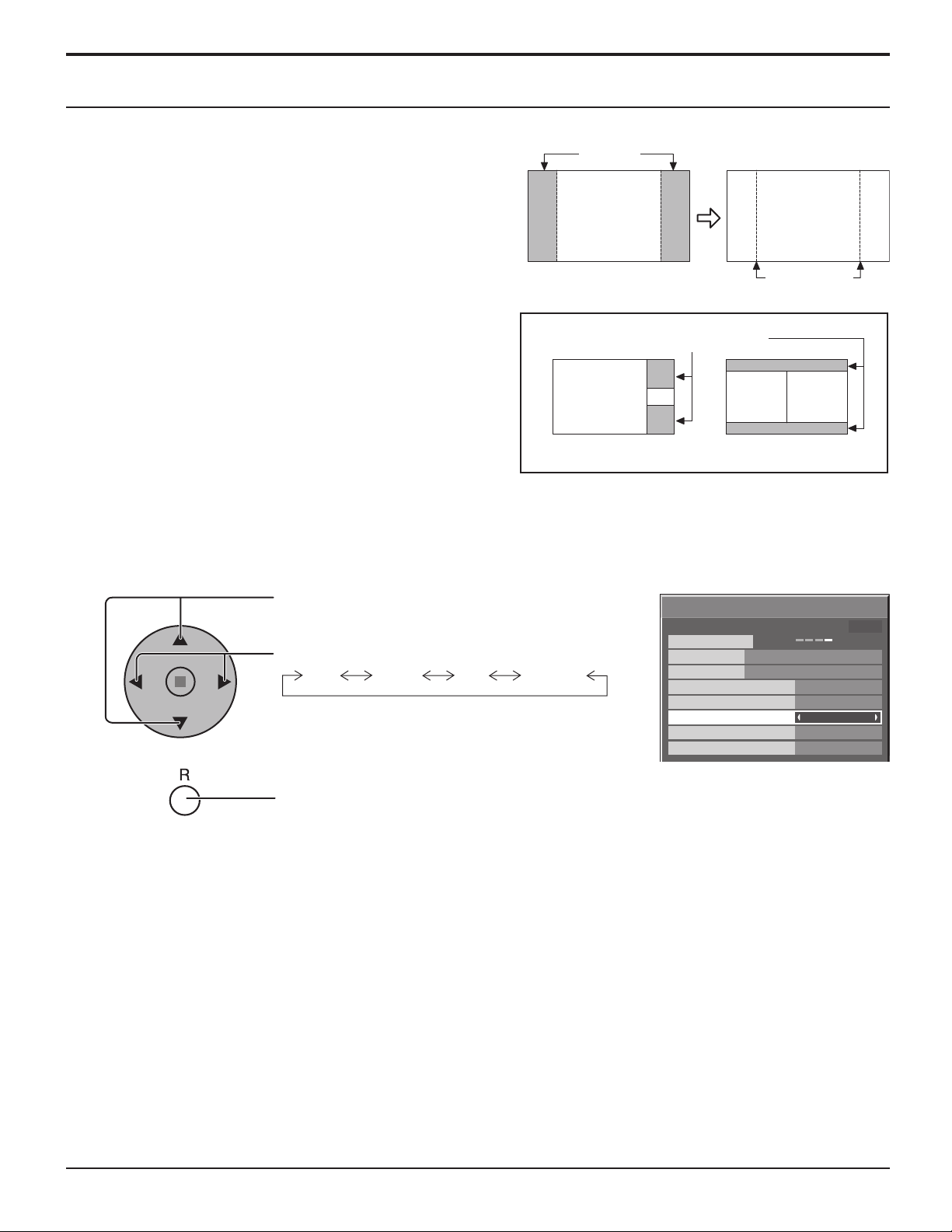

SIDE BAR ADJUST ............................................... 30

Reduces power consumption ...............................31

Customizing the Input labels .................................31

SET UP for Input Signals ....................................... 32

COMPONENT / RGB IN SELECT ......................... 32

3D Y/C FILTER ......................................................32

COLOR SYSTEM / Panasonic AUTO ...................33

3:2 PULLDOWN / VIDEO NR ................................ 33

SYNC ....................................................................34

REFRESH RATE ................................................... 34

H-FREQ. (kHz) / V-FREQ. (Hz) ............................. 34

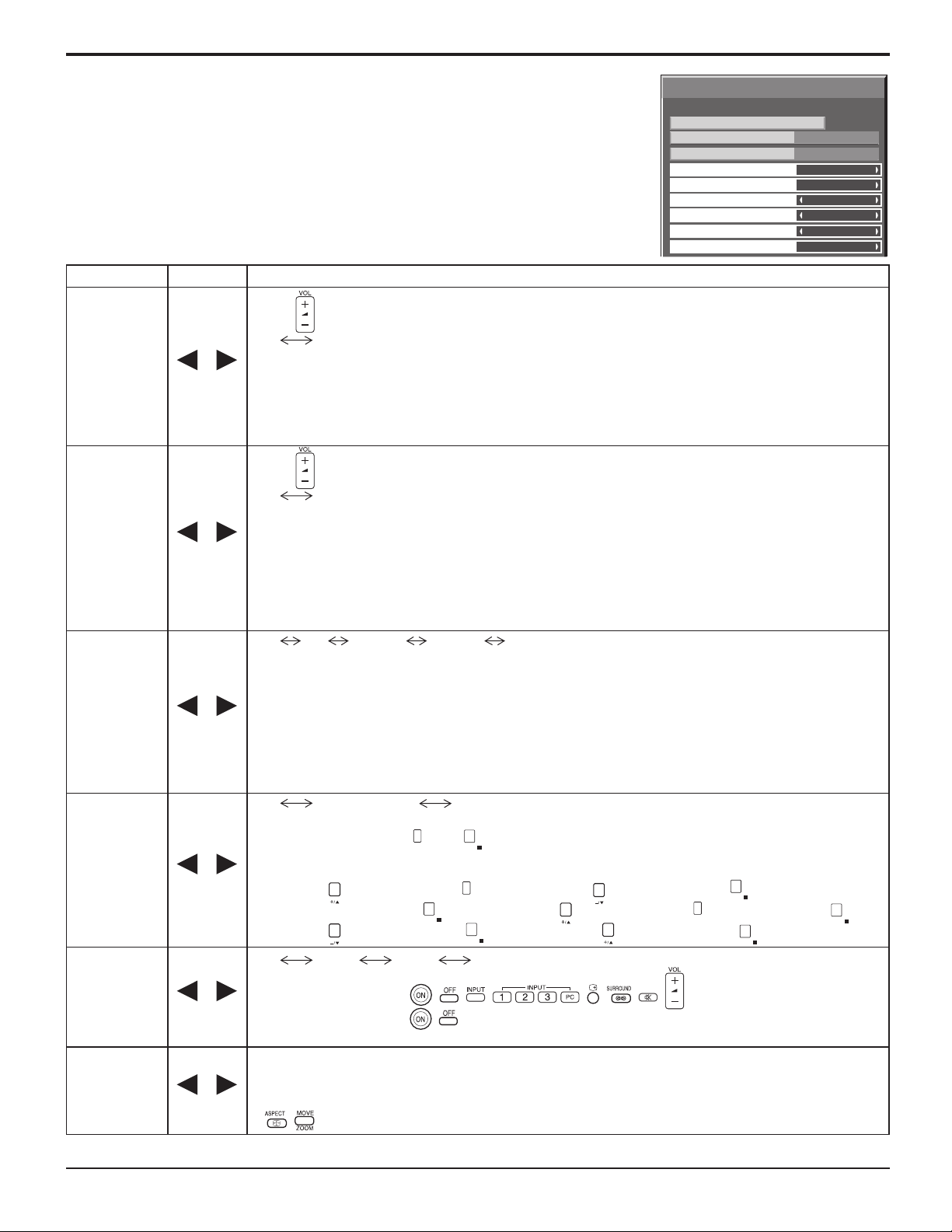

Options Adjustments ............................................. 35

Weekly Command Timer ....................................... 39

Shipping condition .................................................41

Troubleshooting .....................................................42

PC input signals .....................................................43

Command list of Weekly Command Timer ...........44

Specifications ......................................................... 45

Limited Warranty ....................................................46

LIMITED WARRANTY STATEMENT .......................47

.. 28

Page 5

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced technician for help.

This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to computer or peripheral devices. Any changes or modifications not expressly approved by Panasonic Corporation of North America could cause harmful interference and would void the user’s authority to operate this device.

FCC Declaration of Conformity

Model No. TH-37PR10U, TH-42PR10U

Responsible Party: Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094 Contact Source: Panasonic Professional Display Company Panasonic Plasma Concierge 1-888-972-6276 email: [email protected]

CANADIAN NOTICE:

This Class B digital apparatus complies with Canadian ICES-003.

Note:

Do not allow a still picture to be displayed for an extended period, as this can cause permanent image retention to remain on the Plasma Display. Examples of still pictures include logos, video games, computer images, teletext and images displayed in NORMAL mode.

Trademark Credits

• VGA is a trademark of International Business Machines Corporation.

• Macintosh is a registered trademark of Apple Computer, USA.

• S-VGA is a registered trademark of the Video Electronics Standard Association. Even if no special notation has been made of company or product trademarks, these trademarks have been fully

respected.

Page 6

Safety Precautions

CAUTION

This Plasma Display is for use only with the following optional accessories. Use with any other type of optional accessories may cause instability which could result in the possibility of injury.

• Pedestal ......................................................................................................................TY-ST09GR-K

• Wall-hanging bracket (vertical) .................................................................................... TY-WK42PV3U

• Wall-hanging bracket (angled) .................................................................................... TY-WK42PR3U

• BNC Component Video Terminal Board ...................................................................... TY-42TM6A

• BNC Composite Video Terminal Board ....................................................................... TY-42TM6B

• BNC Dual Video Terminal Board .................................................................................TY-FB9BD

• Ir Through T erminal Board ..........................................................................................TY-FB9RT

• RCA Component Video Terminal Board ...................................................................... TY-42TM6Z

• RCA Composite Video Terminal Board .......................................................................TY-42TM6V

• PC Input Terminal Board ............................................................................................. TY-42TM6P

• RGB (Digital) Terminal Board ......................................................................................TY-42TM6D

• HDMI Terminal Board .................................................................................................. TY-FB8HM

• AV T erminal Box .......................................................................................................... TY-TB10AV

Always be sure to ask a qualified technician to carry out set-up.

(All of the following accessories are manufactured by Matsushita Electric Industrial Co., Ltd.)

Small parts can present choking hazard if accidentally swallowed. Keep small parts away from young children. Discard unneeded small parts and other objects, including packaging materials and plastic bags/sheets to prevent them from being played with by young children, creating the potential risk of suffocation.

When using the Plasma Display

Do not bring your hands, face or objects close to the ventilation holes of the Plasma Display.

• Top of the Plasma Display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries can happen if any body parts are brought too close. Placing any object near the top of the display could also result in heat damages to the object as well as to the Display if its ventilation holes are blocked.

Be sure to disconnect all cables before moving the Plasma Display.

• Moving the Display with its cables attached might

damage the cables which, in turn, can cause fire or electric shock.

Disconnect the power plug from the wall outlet as a safety precaution before carrying out any cleaning.

• Electric shocks can result if this is not done.

Clean the power cable regularly to prevent it from becoming dusty.

• Built-up dust on the power cord plug can increase humidity which might damage the insulation and cause fire. Unplug the cord from the wall outlet and clean it with a dry cloth.

This Plasma Display radiates infrared rays, therefore it may affect other infrared communication equipment. Install your infrared sensor in a place away from direct or reflected light from your Plasma Display.

Note:

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent image retention to remain on the Plasma Display. Examples of still pictures include logos, video games, computer images, teletext and images displayed in NORMAL mode.

Page 7

Safety Precautions / Maintenance

WARNING

Setup

Do not place the Plasma Display on sloped or unstable surfaces.

• The Plasma Display may fall off or tip over.

Do not place any objects on top of the Plasma Display.

• If water spills onto the Plasma Display or foreign objects get inside it, a short-circuit may occur which could result in fire or electric shock. If any foreign objects get inside the Plasma Display , please consult an Authorized Service Center.

Do not cover the ventilation holes.

• Doing so may cause the Plasma Display to overheat, which can cause fire or damage to the Plasma Display.

If using the pedestal (optional accessory), leave a space of 3

15/16” (10 cm) or more at the top, left and right, 2 3/8”

(6 cm) or more at the bottom, and 2 3/4” (7 cm) or more at the rear. If using some other setting-up method, leave a space of 3 15/16” (10 cm) or more at the top, bottom, left and right, and 2 3/4” (7 cm) or more at the rear.

Transport only in upright position!

• Transporting the unit with its display panel facing upright or downward may cause damage to the internal circuitry.

AC Power Supply Cord

The Plasma Display is designed to operate on 120 V AC, 50/60 Hz.

Do not use any power supply cord other than that provided with this unit.

• Doing so may cause fire or electric shocks.

Securely insert the power cord plug as far as it will go.

• If the plug is not fully inserted, heat may be generated which could cause fire. If the plug is damaged or the wall socket plate is loose, they should not be used.

Do not handle the power cord plug with wet hands.

• Doing so may cause electric shocks.

Do not do anything that might damage the power cable. When disconnecting the power cable, hold the plug, not the cable.

• Do not make any modifications, place heavy objects on, place near hot objects, heat, bend, twist or forcefully pull the power cable. Doing so may cause damage to the power cable which can cause fire or electric shock. If damage to the cable is suspected, have it repaired at an Authorized Service Center.

If the Plasma Display will not be used for a long period of time, unplug the power cord from the wall outlet.

If problems occur during use

If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odor is detected from the Plasma Display, unplug the power cord immediately.

• Continuous use of the Display under these conditions might cause fire or permanent damage to the unit. Have the Display evaluated at an Authorized Service Center. Services to the Display by any unauthorized personnel are strongly discouraged due to its high voltage dangerous nature.

If water or foreign objects get inside the Plasma Display , if the Plasma Display is dropped, or if the cabinet becomes damaged, disconnect the power cord plug immediately.

• A short may occur, which could cause fire. Contact an Authorized Service Center for any repairs that need to be made.

Maintenance

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lint-free cloth.

• If the surface is particularly dirty, wipe with a soft, lint-free cloth which has been soaked in pure water or water in which neutral detergent has been diluted 100 times, and then wipe it evenly with a dry cloth of the same type until the surface is dry.

• Do not scratch or hit the surface of the panel with fingernails or other hard objects, otherwise the surface may become damaged. Furthermore, avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the surface may be adversely affected.

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

• If the cabinet is particularly dirty, soak the cloth in water to which a small amount of neutral detergent has been added and then wring the cloth dry. Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth.

• Do not allow any detergent to come into direct contact with the surface of the Plasma Display. If water droplets get inside the unit, operating problems may result.

• Avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the cabinet surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact with articles made from rubber or PVC.

Page 8

Accessories

Accessories Supplied

Check that you have the Accessories and items shown

Operating Instruction book AC cord

The remote control is not included with this set. Available for purchase separately. Object model : EUR7636070R

Fixing bands × 2

Page 9

Connections

– AC cord fixing

Plug the AC cord into

the display unit.

Plug the AC cord until

it clicks.

Fix the AC cord with

Note:

Make sure that the AC cord is locked on both the left and right sides.

– Cable fixing bands

Secure any excess cables with bands as required.

Pass the attached cable fixing band through the clip as shown in the figure.

T o secure cables connected to Terminals, wrap the cable fixing band around them then pass the pointed end through the locking block, as shown in the figure.

While ensuring there is sufficient slack in cables to minimize stress (especially in the power cord), firmly bind all cables with the supplied fixing band.

the clamper which is attached to the unit.

AC cord connection (see page 12)

Push until the hook clicks.

Open

2. Pull off.

1. Keep the

knob pressed.

Unplug the AC cord

Unplug the AC cord pressing the two knobs.

Note:

When disconnecting the AC cord, be absolutely sure to disconnect the AC cord plug at the socket outlet first.

To tighten:

Pull

To loosen: Push the catch

SLOT1 SLOT2 SLOT3

Optional Terminal Board Insert Slot (covered)

From EXTERNAL monitor terminal on Computer (see page 10)

Pull

AUDIO

SERIAL PC IN

From SERIAL Terminal on Computer (see page 11)

Page 10

Connections

PC Input Terminals connection

COMPUTER

Conversion adapter (if necessary)

AUDIO

PC IN

Mini D-sub 15p

RGB

PC cable

Audio

Connect a cable which matches the audio output terminal on the computer.

Stereo plug

Notes:

• Due to space limitations, occasionally you may have trouble connecting Mini D-sub 15P cable with ferrite core to PC input Terminal.

• Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110 kHz and vertical scanning frequency of 48 to 120 Hz. (However, the image will not be displayed properly if the signals exceed 1,200 lines.)

• The display resolution is a maximum of 768 × 720 dots (TH-37PR10U), 768 × 768 dots (TH-42PR10U) when the aspect mode is set to “NORMAL”, and 1,024 × 720 dots (TH-37PR10U), 1,024 × 768 dots (TH-42PR10U) when the aspect mode is set to “FULL”. If the display resolution exceeds these maximums, it may not be possible to show fine detail with sufficient clarity.

• The PC input terminals are DDC2B-compatible. If the computer being connected is not DDC2B-compatible, you will need to make setting changes to the computer at the time of connection.

• Some PC models cannot be connected to the set.

• There is no need to use an adapter for computers with DOS/V compatible Mini D-sub 15P terminal.

• The computer shown in the illustration is for example purposes only.

• Additional equipment and cables shown are not supplied with this set.

• Do not set the horizontal and vertical scanning frequencies for PC signals which are above or below the specified frequency range.

• Component Input is possible with the pin 1, 2, 3 of the D-sub 15P Connector.

• Change the “COMPONENT/RGB-IN SELECT” setting in the “SET UP” menu to “COMPONENT”

(when component connection) or “RGB” (when RGB signal connection). (see page 32)

Signal Names for Mini D-sub 15P Connector

Pin No.

15 14 13 12 11

Pin Layout for PC Input Terminal

67839

NC (not connected)

Signal Name

R (PR/CR)

G (Y)

B (PB/CB)

GND (Ground)

Pin No.

Signal Name

GND (Ground) GND (Ground) GND (Ground)

NC (not connected)

GND (Ground)

Pin No.

Signal Name

NC (not connected)

SDA

HD/SYNC

SCL

Page 11

SERIAL Terminals connection

The SERIAL terminal is used when the Plasma Display is controlled by a computer.

Connections

COMPUTER

RS-232C Straight cable

SERIAL

Pin layout for SERIAL Terminal

1 3452

6789

D-sub 9p

Notes:

• Use the RS-232C cable to connect the computer to the Plasma Display.

• The computer shown is for example purposes only.

• Additional equipment and cables shown are not supplied with this set. The SERIAL terminal conforms to the RS-232C interface specification, so that the Plasma Display can be controlled by a

computer which is connected to this terminal. The computer will require software which allows the sending and receiving of control data which satisfies the conditions given below. Use a computer application such as programming language software. Refer to the documentation for the computer application for details.

Communication parameters

Signal level RS-232C compliant

Synchronization method Asynchronous

Baud rate 9600 bps

Parity None

Character length 8 bits

Stop bit 1 bit

Flow control -

D-sub 9-pin female Details

RS-232C Conversion cable

2 3 5

•

7 8

•

R X D T X D

GND

Non use

Shorted

Basic format for control data

The transmission of control data from the computer starts with a STX signal, followed by the command, the parameters, and lastly an ETX signal in that order. If there are no parameters, then the parameter signal does not need to be sent.

STX C1 C2 C3 P1 P2 P3 P4: P5 ETX

Start (02h)

Colon Parameter(s) 3-character command (3 bytes)

(1 - 5 bytes)

End (03h)

Notes:

• If multiple commands are transmitted, be sure to wait for the response for the first command to come from this unit before sending the next command.

• If an incorrect command is sent by mistake, this unit will send an “ER401” command back to the computer.

• SL1A, SL1B, SL2A and SL2B of Command IMS are available only when a dual input terminal board is attached.

Command

Command Parameter Control details PON None Power ON POF None Power OFF AVL ** Volume 00 - 63

AMT IMS None

DAM None

0 Audio MUTE OFF 1 Audio MUTE ON

Input select (toggle) SL1 SL2 SL3 PC1 SL1A SL1B SL2A SL2B

Slot1 input

Slot2 input

Slot3 input

PC input

Slot1 input (INPUT1A)

Slot1 input (INPUT1B)

Slot2 input (INPUT2A)

Slot2 input (INPUT2B)

Screen mode select (toggle) NORM ZOOM FULL JUST SELF

NORMAL (4 : 3)

ZOOM

FULL

JUST

Panasonic AUTO

With the power off, this display responds to PON command only.

Page 12

Power ON / OFF

Connecting the AC cord plug to the Plasma Display.

Fix the AC cord plug securely to the Plasma Display with the clamper. (see page 9)

Connecting the plug to the Wall Outlet

Note:

When disconnecting the AC cord, be absolutely sure to disconnect the AC cord plug at the socket outlet first.

Press the Power switch on the Plasma Display to turn the set on: Power-On.

Power Indicator: Green

Example: The screen below is displayed for a while after the

Plasma Display is turned on. (setting condition is an example.)

Press the button on the remote control to turn the Plasma Display off. Power Indicator: Red (standby)

Press the button on the remote control to turn the Plasma Display on. Power Indicator: Green

Remote Control Sensor

POWER

Power Indicator

Turn the power to the Plasma Display off by pressing the switch on the unit, when the Plasma Display is on or in standby mode.

Note:

During operation of the power management function, the power indicator turns orange in the power off state.

Page 13

Initial selections

Selecting the input signal

Select the input signals to be connected by installing the optional Terminal Boards.

Press to select the input signal to be played back from the equipment which has been connected to the Plasma Display.

Input signals will change as follow:

INPUT1 INPUT2 PCINPUT3

Notes:

• Selecting is also possible by pressing the INPUT button on the unit.

• Input terminal will not be selected if the terminal board is not installed into the SLOT.

• Select to match the signals from the source connected to the component/RGB input terminals. (see page 32)

• In 2 screen display, the same input mode cannot be selected for the main picture and sub picture.

INPUT

VOL

ENTER/

Selecting the On-Screen Menu Language

Press to display the SET UP menu. Press to select OSD LANGUAGE.

Press to select your preferred language.

Selectable languages

English(UK)

Deutsch

Français

Italiano

Español

ENGLISH(US)

.......(Chinese)

.......(Japanese)

Русский

.......(Russian)

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE STANDBY SAVE POWER MANAGEMENT AUTO POWER OFF OSD LANGUAGE ENGLISH (US

Swing up the door at “PULL”.

SET UP

SIGNAL

1/2

RGB

PC OFF OFF OFF OFF

)

Page 14

Basic Controls

Remote control sensor

POWER

INPUT

VOL

INPUT button (INPUT1, INPUT2, INPUT3 and PC selection)

(see page 13)

ENTER/

Power Indicator

The Power Indicator will light.

• Power-OFF .... Indicator not illuminated (The unit

will still consume some power as long as the power cord is still inserted into the wall outlet.)

• Standby .........Red

• Power-ON ......Green

• DPMS .............Orange (With PC input signal

and during operation of PC’s screensaver.)

Main Power On / Off Switch

How to release button lock

MENU and ENTER/■ buttons are locked before shipping. You can unlock them with unit buttons.

1. Press +/▲ 4 times.

2. Press INPUT 4 times.

3. Press –/▼ 4 times.

4. Press ENTER/■.

Note:

After unlocking the buttons, Button lock in OPTIONS menu is set to “Off”. (see page 36)

SURROUND button

The surround setting switches on and off each time the SURROUND button is pressed. The benefits of surround sound are enormous. Y ou can be completely enveloped in sound; just as if you were at a concert hall or cinema.

Note:

The surround settings are memorized separately for each AUDIO MENU (STANDARD, DYNAMIC, CLEAR).

ON OFF

V olume Adjustment

Volume Up “+” Down “–” When the menu screen is displayed: “+” :

press to move the cursor up

“–” :

press to move the cursor down

(see page 16)

Enter / Aspect button

This button is locked by initial setting. (see page 16, 18)

MENU Screen ON / OFF

This button is locked by initial setting. Each time the MENU button is pressed, the menu screen will switch. (see page 16)

Normal Viewing PICTURE SET UP

SOUND POS. /SIZE

N button (see page 19, 22, 23, 24) POS. /SIZE button (see page 19) PICTURE button (see page 22)

INPUT button (INPUT1, INPUT2, INPUT3 and PC selection)

Press to select INPUT1, INPUT2, INPUT3 and PC input SLOTS sequentially . (see page 13)

Sound mute On / Off (see page 24)

Numeric buttons

ASPECT button

Press to adjust the aspect. (see page 18)

MULTI Window buttons (see page 20)

SURROUND

Page 15

Basic Controls

The remote control is not included with this set. Available for purchase separately. Object model : EUR7636070R

Standby (ON / OFF) button

The Plasma Display must first be plugged into the wall outlet and turned on at the power switch (see page 12). Press ON to turn the Plasma Display On, from Standby mode. Press OFF to turn the Plasma Display Off to Standby mode.

POSITION

buttons

ACTION button

Press to make selections.

SOUND button

(see page 24)

R button (see page 17) Press the R button to return to previous menu screen.

Status button

Press the “Status” button to display the current system status.

NORMAL

Input label

Aspect mode (see page 18) Off timer

The off timer indicator is

OFF TIMER 90

displayed only when the off timer has been set.

SET UP button (see page 16, 17) DIRECT INPUT buttons

Press the INPUT “1”, “2”, “3” or “PC” input mode selection button to select the INPUT mode. This button is used to switch directly to INPUT mode. These buttons can only display the slot which is installed. If you press the button whose slot is not installed, it automatically displays the current input signal. When a dual input terminal board is attached, A or B is displayed depending on the selected input signal. (Ex. INPUT1A, INPUT1B)

Note:

Image retention (image lag) may occur on the plasma display panel when a still picture is kept on the panel for an extended period. The function that darkens the screen slightly is activated to prevent image retention (see page 42), this function is not the perfect solution to image retention.

Channel Adjustment

You can use this button when U/V Tuner Board with MATE I/F is installed (optional accessories). Refer to each Board's Operating Instruction for detail.

V olume Adjustment

Press the Volume Up “+” or Down “–” button to increase or decrease the sound volume level.

OFF TIMER button

The Plasma Display can be preset to switch to stand-by after a fixed period. The setting changes to 30 minutes, 60 minutes, 90 minutes and 0 minutes (off timer cancelled) each time the button is pressed.

30 60

When three minutes remain, “OFF TIMER 3” will flash. The off timer is cancelled if a power interruption occurs.

Digital Zoom (see page 25)

Press to access Digital Zoom.

This displays an enlargement of the designated part of the displayed image.

Page 16

On-Screen Menu Displays

To PICTURE adjust menu (see page 22)

1/2PICTURE


NORMAL

STANDARD

0 0 0 5

2/2

NORMAL

OFF

NORMALIZE

PICTURE MENU PICTURE BRIGHTNESS COLOR TINT SHARPNESS

COLOR TEMP COLOR MANAGEMENT ADVANCED SETTINGS

Press to select “ON”.

Press to enter ADVANCED SETTINGS.

To ADVANCED SETTINGS (see page 22, 23)

ADVANCED SETTINGS

NORMALIZE

BLACK EXTENSION INPUT LEVEL GAMMA AGC

NORMAL

1/2

0 0

2.2

OFF

The MENU button on the unit can also be pressed.

INPUT

VOL

ENTER/

Each time the MENU button is pressed, the menu screen will switch.

Normal Viewing PICTURE SETUP

SOUND

POS. /SIZE

Press to select .

[ from the unit ]

INPUT

VOL

Press to select.

Press to access each adjust

ENTER/

screen.

SET UP

SIGNAL

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE STANDBY SAVE POWER MANAGEMENT AUTO POWER OFF OSD LANGUAGE ENGLISH (US

RGB

PC OFF OFF OFF OFF

1/2

)

ADVANCED SETTINGS

W/B HIGH R W/B HIGH G W/B HIGH B W/B LOW R W/B LOW G W/B LOW B

2/2

0 0 0 0 0 0

To POS. /SIZE adjust menu (see page 19) During “VIDEO (S VIDEO)”,

“COMPONENT” and “Digital” input signal.

POS. /SIZE

H-POS H-SIZE V-POS V-SIZE

NORMAL

0 0 0 0

NORMALIZE

During “RGB/PC” input signal.

POS. /SIZE

NORMALIZE

NORMAL

H-POS H-SIZE V-POS V-SIZE

CLOCK PHASE

0 0 0 0 0

SCREENSAVER

MULTI DISPLAY SETUP

SET UP TIMER

PRESENT TIME SETUP

To SOUND adjust menu (see page 24)

SOUND

NORMALIZE

AUDIO MENU BASS MID TREBLE BALANCE SURROUND AUDIO OUT (PIP)

NORMAL

STANDARD 0 0 0 0

OFF

MAIN

2/2SET UP

Page 17

On-Screen Menu Displays

Note:

Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal, input and menu setting.

Press to access

[ from the unit ]

each adjust screen.

INPUT

VOL

ENTER/

Press the R button to return to previous menu.

Press to return to next menu screen.

To SIGNAL screen for VIDEO (S VIDEO) (see page 32, 33)

SIGNAL

3D Y/C FILTER (NTSC) COLOR SYSTEM 3 : 2 PULLDOWN Panasonic AUTO (4 : 3) VIDEO NR

[

VIDEO

AUTO

OFF

NORMAL

OFF

To SIGNAL screen for COMPONENT (see page 33)

]

SIGNAL

3 : 2 PULLDOWN VIDEO NR

[

COMPONENT

OFF OFF

To SIGNAL screen for RGB (see page 33, 34)

]

SIGNAL

SYNC 3 : 2 PULLDOWN VIDEO NR

H-FREQ.

33.8

V-FREQ.

60.0

kHz

AUTO

OFF OFF

[

RGB

T o SIGNAL screen for Digital (see page 33, 34)

]

SIGNAL

3 : 2 PULLDOWN VIDEO NR

H-FREQ.

V-FREQ.

Note: “SIGNAL” setup menu displays a different setting condition for each input signal. (see page 13)

To setup SCREENSAVER (See page 28-30)

SCREENSAVER

PRESENT TIME OF DAY 15:00

START FUNCTION MODE START TIME FINISH TIME SIDE BAR ADJUST WOBBLING PEAK LIMIT

SCREENSAVER

START FUNCTION MODE SHOW DURATION SAVER DURATION SIDE BAR ADJUST WOBBLING PEAK LIMIT

WHITE BAR SCROLL

TIME OF DAY

6:15

12:30

BRIGHT

OFF OFF

PRESENT TIME OF DAY 15:00

WHITE BAR SCROLL

INTERVAL

12:00

3:00

BRIGHT

OFF OFF

Press to select START TIME/ FINISH TIME (When TIME OF DAY is selected). Press to select SHOW DURATION/ SAVER DURATION (When INTERVAL is selected).

Press to set up.

Press the R button to return to “SET UP” menu.

SCREENSAVER

PRESENT TIME OF DAY 15:00

START FUNCTION MODE START TIME FINISH TIME SIDE BAR ADJUST WOBBLING PEAK LIMIT

WHITE BAR SCROLL

SCREENSAVER

PRESENT TIME OF DAY 15:00

START FUNCTION MODE SHOW DURATION SAVER DURATION SIDE BAR ADJUST WOBBLING PEAK LIMIT

WHITE BAR SCROLL

kHz

33.8

60.0

TIME OF DAY

6:15

12:30

BRIGHT

OFF OFF

INTERVAL

12:00

3:00

BRIGHT

OFF OFF

[

OFF OFF

Digital

]

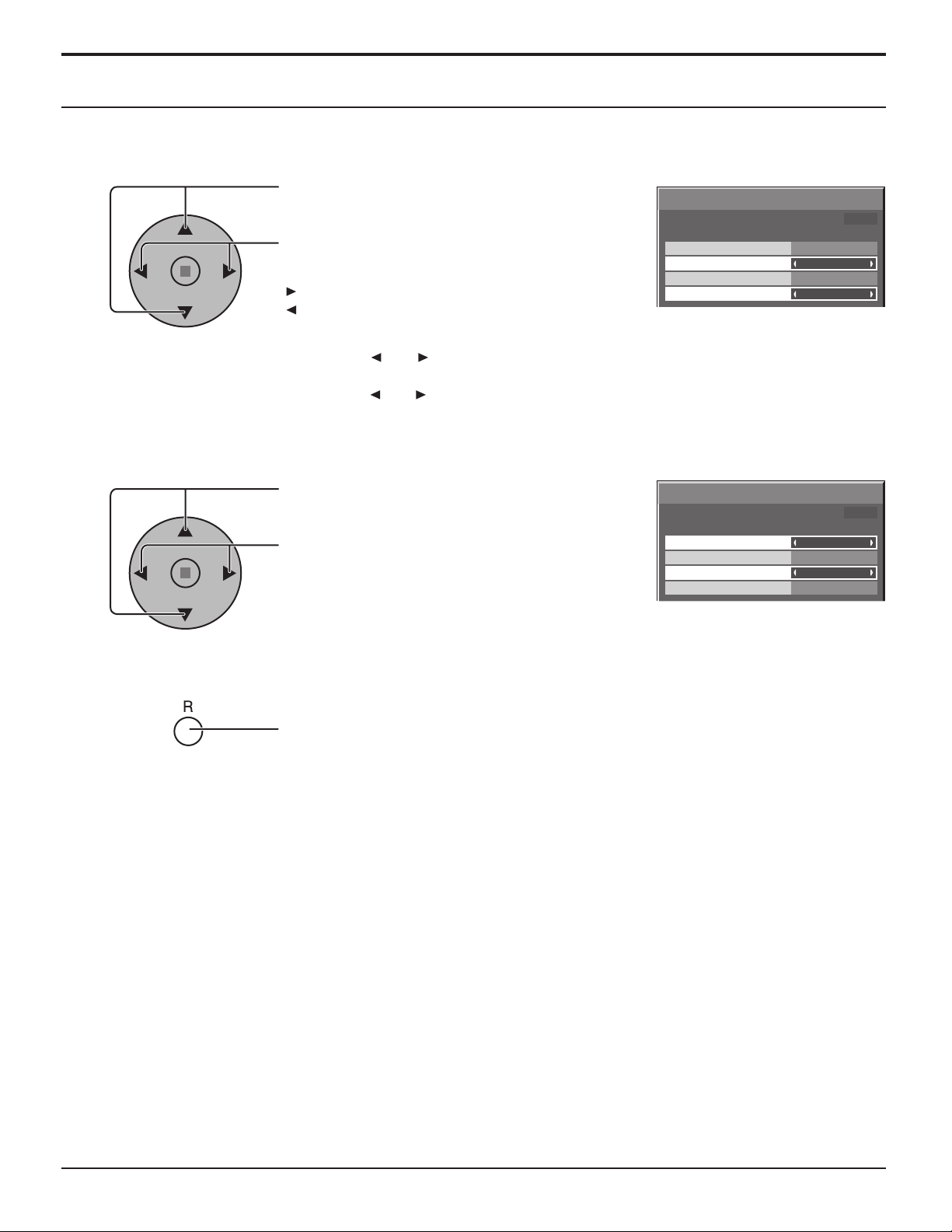

To SET UP TIMER selection screen. (see page 26, 27)

SET UP TIMER

PRESENT TIME OF DAY 10:00

POWER ON FUNCTION POWER ON TIME POWER OFF FUNCTION POWER OFF TIME

OFF 0:00 OFF 0:00

To PRESENT TIME SETUP. (see page 26)

PRESENT TIME SETUP

PRESENT TIME OF DAY MON 99:99

SET DAY PRESENT TIME OF DAY

MON 99:99

Press to select POWER ON TIME / POWER OFF TIME.

Press to set up POWER ON TIME / POWER OFF TIME.

Press the R button to return to “SET UP” menu.

SET UP TIMER

PRESENT TIME OF DAY 10:00

POWER ON FUNCTION POWER ON TIME POWER OFF FUNCTION POWER OFF TIME

SET UP TIMER

PRESENT TIME OF DAY 10:00

POWER ON FUNCTION POWER ON TIME POWER OFF FUNCTION POWER OFF TIME

OFF

12:00

OFF

18:00

OFF

12:00

OFF

18:00

Page 18

ASPECT Controls

The Plasma Display will allow you to enjoy viewing the picture at its maximum size, including wide screen cinema format picture.

Press repeatedly to move through the aspect options:

NORMAL ZOOM FULL

Panasonic AUTO JUST

Note:

When selecting an input slot that attaches BNC Dual Video T erminal

[from the unit]

INPUT

VOL

ENTER/

[During MULTI PIP Operations]

• Picture and Picture, Picture in Picture :

• Others : Aspect switching is not possible.

Notes:

• For PC signal input, the mode switches between “NORMAL”, “ZOOM” and “FULL” only.

• For a 1125 (1080) / 60i · 50i · 24p · 25p · 30p · 24sF, 1250 (1080) / 50i, 750 (720) / 60p · 50p signal input, the mode is set to “FULL” mode, and switching is not possible.

• Panasonic AUTO can be selected only during Video signal input.

• The aspect mode is memorized separately for each input terminal.

Board (TY-FB9BD), Panasonic AUTO cannot be selected.

The aspect mode changes each time the ENTER button is pressed.

NORMAL FULL

Mode Picture Explanation

NORMAL

ZOOM

FULL

JUST

NORMAL

ZOOM

FULL

JUST

3 9

NORMAL will display a 4:3 picture at its standard 4:3 size.

ZOOM mode magnifies the central section of the picture.

FULL will display the picture at its maximum size but with slight elongation.

JUST mode will display a 4:3 picture at its maximum size but with aspect correction applied to the center of the screen so that elongation is only apparent at the left and right edges of the screen. The size of the picture will depend on the original signal.

4 16

Panasonic AUTO

The display will automatically become enlarged (depending on the picture source), allowing you to view the picture at its maximum size.

Notes:

• Panasonic AUTO mode is designed to automatically adjust the aspect ratio to handle a mix of 16:9 and 4:3 program material. Certain 4:3

Panasonic

AUTO

For an elongated image

For a 4:3 image

Image is expanded Changes in

accordance with the Panasonic AUTO mode setting (see page 33).

program material, such as stock market data screens, may occasionally cause the image size to change unexpectedly. When viewing such programs, it is recommended that the ASPECT be set to NORMAL.

• If adjusting the PICTURE V-POS/V -SIZE in Panasonic AUT O with FULL mode, the adjustment is not memorized. When exiting the mode, the screen will return to a former adjustment.

• Panasonic AUTO can not be selected while BNC Dual Video Terminal Board (TY-FB9BD) is installed.

Note: Do not allow the picture to be displayed in NORMAL mode for an extended period, as this can cause a permanent

image retention to remain on the Plasma Display Panel.

Page 19

Adjusting POS. /SIZE

Press to display the POS. /SIZE menu.

Press to select H-POS / H-SIZE / V-POS / V-SIZE / CLOCK PHASE.

Press to adjust POS. /SIZE.

Notes:

• Adjustment details are memorized separately for different input signal formats (Adjustments for component signals are memorized for 525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 1 125 (1080) / 60i · 50i · 24p · 25p · 30p · 24sF, 1250 (1080) / 50i, 750 (720) / 60p · 50p each, and RGB/PC/Digital signals are memorized for each frequency.)

• If a “Cue” or “Rew” signal from a VCR or DVD player is received, the picture position will shift up or down. This picture position movement cannot be controlled by the POS. /SIZE function.

• If adjusting the PICTURE V-POS / V-SIZE in Panasonic AUTO with FULL mode, the adjustment is not memorized. When exiting the mode, the screen will return to a former adjustment.

Press to exit from adjust mode.

During “VIDEO (S VIDEO)”, “COMPONENT” and “Digital” input signal.

POS. /SIZE

NORMALIZE

H-POS H-SIZE V-POS V-SIZE

During “RGB / PC” input signal.

POS. /SIZE

NORMALIZE

H-POS H-SIZE V-POS V-SIZE

CLOCK PHASE

NORMAL

0 0 0 0

NORMAL

0 0 0 0 0

H-POS Adjust the horizontal position. H-SIZE Adjust the horizontal size.

V-POS Adjust the vertical position. V-SIZE Adjust the vertical size.

CLOCK PHASE (RGB/PC in mode)

Helpful Hint ( /

While the POS. /SIZE display is active, if either the N button on the remote control is pressed at any time or the ACTION ( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.

Eliminate the flickering and distortion.

NORMALIZE

Normalization)

Page 20

MULTI PIP

Press repeatedly. Each time pressing this button main picture and sub picture will be displayed as follows below.

[Picture and Picture] [Picture in Picture]

Main picture Sub picture

Normal

Viewing

Press to swap main picture and sub picture.

Press to select the input mode. Under main Picture and sub picture display , select the picture which you would like to change input modes.

Notes:

• The sub picture sound is heard while a sub picture operation is underway.

• The sub picture operation automatically returns to the main picture operation if a sub picture operation has not been performed for about 5 seconds or if any of the remote control buttons is pressed (except

Press to change input signal.

Press to move the sub picture. Each time the location of the sub picture will be moved.

Notes:

• This button is effective only in the picture in picture.

• The sub picture may be hidden by the on screen display, depending on its position.

Notes:

• If “Input lock” in Options menu is set to other than “Off”, MULTI PIP function isn’t available.

• Sound output is from the picture which is selected in Audio OUT(PIP) (See page 24).

• In 2 screen display, the same input mode cannot be selected for the main picture and sub picture.

• The main picture and sub picture are processed by different circuits, resulting in a slight difference in the clarity of the pictures. There may also be a difference in the picture quality of the sub picture depending on the type of signals displayed on the main picture and depending on the 2-picture display mode.

• Due to the small dimensions of the sub pictures, these sub pictures cannot be shown in detail.

• Computer screen picture is displayed in a simplified format, and it may not be possible to discern details on them satisfactorily.

• Following combinations of two analog signals cannot be displayed simultaneously.

Component - Component, Component - PC (RGB), PC (RGB) - Component, PC (RGB) - PC (RGB)

button).

A B

B A

[Picture out Picture]

Main picture Sub picture Main picture Sub picture

[Example]

Main picture label is bright Sub picture label is bright

PC1

VIDEO2

Input modes switching is possible

Main picture label is changed Sub picture label is changed

VIDEO2 VIDEO1

Picture is changed

PC1

VIDEO2

PC1

VIDEO2

Page 21

Advanced PIP

1 2

3 4

Press to display the Setup menu. Press to select “OSD Language”.

Press and hold until the Options menu is displayed. Press to select Advanced PIP.

Press to adjust the menu. Off : Sets normal two screen display mode

(see page 20).

On : Sets Advanced PIP mode.

Options

Weekly Command Timer

Onscreen display Initial INPUT Initial VOL level Maximum VOL level INPUT lock Button lock Remocon User level

Advanced PIP

1/3

Off

Off 0 0

Off

One screen Advanced PIP

(When Advanced PIP is On)

Note:

Notes:

• Advanced PIP corresponding signal

• If “Input lock” in Options menu is set to other than “Off”, MULTI PIP function isn’t available.

• Sound output is from the picture which is selected in Audio OUT (PIP) (See page 24).

• In 2 screen display, the same input mode cannot be selected for the main picture and sub picture.

• The main picture and sub picture are processed by different circuits, resulting in a slight difference in the clarity of the

• Due to the small dimensions of the sub pictures, these sub pictures cannot be shown in detail.

•

• Following combinations of two analog signals cannot be displayed simultaneously. Component - Component, Component - PC (RGB), PC (RGB) - Component, PC (RGB) - PC (RGB)

• Refer to each board's operating instruction for DVI, SDI, HDMI's corresponding signals.

To use

NTSC, PAL, SECAM (tuner, video) 525i, 525p, 625i, 625p, 750/60p, 750/50p, 1 125/60i, 1 125/50i, 1250/50i (Component Video, RGB, DVI, SDI, HDMI)

pictures. There may also be a difference in the picture quality of the sub picture depending on the type of signals displayed on the main picture and depending on the 2-picture display mode.

Computer screen picture is displayed in a simplified format, and it may not be possible to discern details on them satisfactorily.

, , , buttons for the screen operations, follow the procedures in the previous page.

Press to exit from Options menu.

Press repeatedly. Each time pressing this button main picture and sub picture will be displayed as above.

Sub screen Main screen

640x480@60Hz, 852x480@60Hz, 1024x768@60Hz, 1366x768@60Hz (RGB, DVI, HDMI) 1280x768@60Hz (DVI)

1 23

Main screenSub screen

654

Page 22

PICTURE Adjustments

Select to adjust each item.


NORMALIZE

PICTURE MENU PICTURE BRIGHTNESS COLOR TINT SHARPNESS


COLOR TEMP COLOR MANAGEMENT ADVANCED SETTINGS

NORMAL

Press to select “ON”.

STANDARD

0 0 0 5

NORMAL

OFF

Press to display the PICTURE menu.

Press to select the menu to adjust.

Select the desired level by looking at the picture behind the menu.

Note:

Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal, input and menu setting.

1/2

Press the left or right button to switch between modes.

STANDARD

CINEMA DYNAMIC

STANDARD

For viewing in standard (evening lighting) environments. This menu selects the normal levels of BRIGHTNESS

2/2

and PICTURE.

DYNAMIC

For viewing in brighter environments. This menu selects higher than normal levels of BRIGHTNESS and PICTURE.

Press to enter Advanced Settings.

ADVANCED SETTINGS ON Enables fine picture adjustment at a professional level (see next page).

ADVANCED SETTINGS

NORMALIZE

BLACK EXTENSION INPUT LEVEL GAMMA AGC

NORMAL

1/2

0 0

2.2

OFF

CINEMA

Ideal for movies.

Note:

If you would like to change the picture and color of the selected PICTURE menu to something else, adjust using the items in the PICTURE menu. (see next page)

Press the left or right button to switch between modes.

NORMAL COOL WARM

ADVANCED SETTINGS

W/B HIGH R W/B HIGH G W/B HIGH B W/B LOW R W/B LOW G W/B LOW B

2/2

0 0 0 0 0 0

COLOR MANAGEMENT ON Enables vivid color adjustment automatically.

ADVANCED SETTINGS OFF Displays images with settings of the PICTURE menu.

Helpful Hint ( /

NORMALIZE

Normalization)

While the “PICTURE” menu is displayed, if either the N button on the remote control is pressed at any time or the ACTION ( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.

Page 23

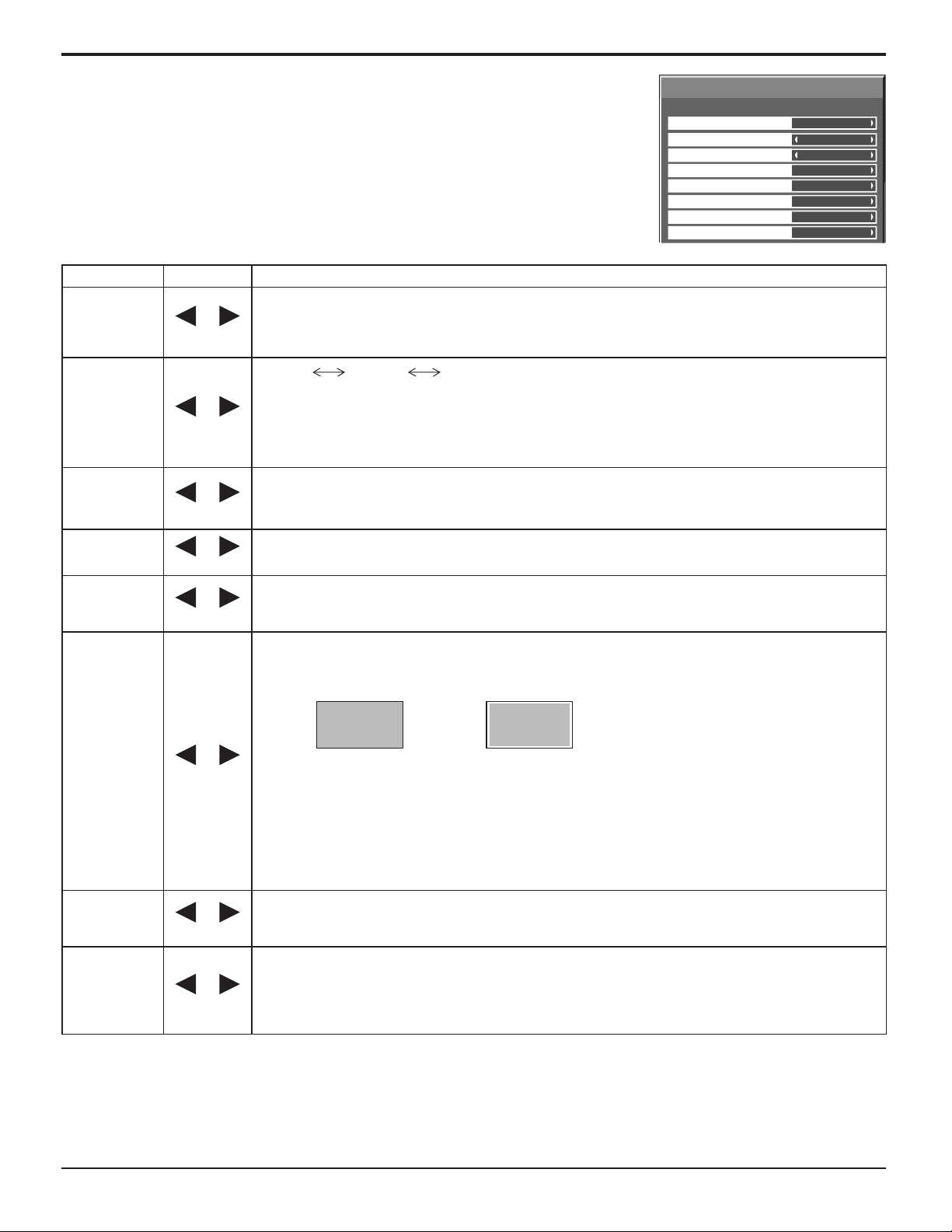

PICTURE Adjustments

Item Effect Adjustments


BRIGHTNESS

COLOR

TINT

SHARPNESS

Less More

Darker Brighter

Less More

Reddish Greenish

Less More

Adjusts the proper picture contrast. Adjusts for easier viewing of dark

pictures such as night scenes and black hair.

Adjusts color saturation.

Adjusts for natural flesh tones.

Adjusts picture sharpness.

ADVANCED SETTINGS

Item Effect Details

BLACK

EXTENSION

INPUT

LEVEL

Less More

Adjusts the dark shades of the image in gradation. Adjustment of parts which are extremely bright and hard to see.

(This cannot be adjusted when the input signal is Digital.)

Notes:

• “COLOR” and “TINT” settings cannot be adjusted for “RGB/PC” and “Digital” input signal.

•

You can change the level of each function

(PICTURE, BRIGHTNESS, COLOR, TINT, SHARPNESS) for each PICTURE MENU.

• The setting details for STANDARD, DYNAMIC and CINEMA respectively are memorized separately for each input terminal.

• The “TINT” setting can be adjusted for NTSC signal only during “VIDEO (S VIDEO)” input signal.

• In PICTURE, there is not a noticeable change even when contrast is increased with a bright picture or reduced with a dark picture.

GAMMA

AGC

W/B HIGH R

W/B HIGH G

W/B HIGH B

W/B LOW R

W/B LOW G

W/B LOW B

Notes:

• Carry out “W/B” adjustment as follows.

Adjust the white balance of the bright sections using the “W/B HIGH R” , “W/B HIGH G” and “W/B HIGH B” settings.

2. Adjust the white balance of the dark sections using the “W/B LOW R

3. Repeat steps 1 and 2 to adjust.

Steps 1 and 2 affect each other’s settings, so repeat each step in turn to make the adjustment.

• The adjustment values are memorized separately for each input terminal.

• The adjustment range values should be used as an adjustment reference.

Down Up

OFF ON

Less More

S CURVE 2.0 2.2 2.5 Increases the brightness of dark signal automatically.

Adjusts the white balance for light red areas.

Adjusts the white balance for light green areas.

Adjusts the white balance for light blue areas.

Adjusts the white balance for dark red areas.

Adjusts the white balance for dark green areas.

Adjusts the white balance for dark blue areas.

” , “W/B LOW G”

and “W/B LOW B” settings.

Helpful Hint ( /

On the remote control unit, while the “ADVANCED SETTINGS” menu is displayed, if either the N button is pressed at any time or the ACTION ( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.

NORMALIZE

Normalization)

Page 24

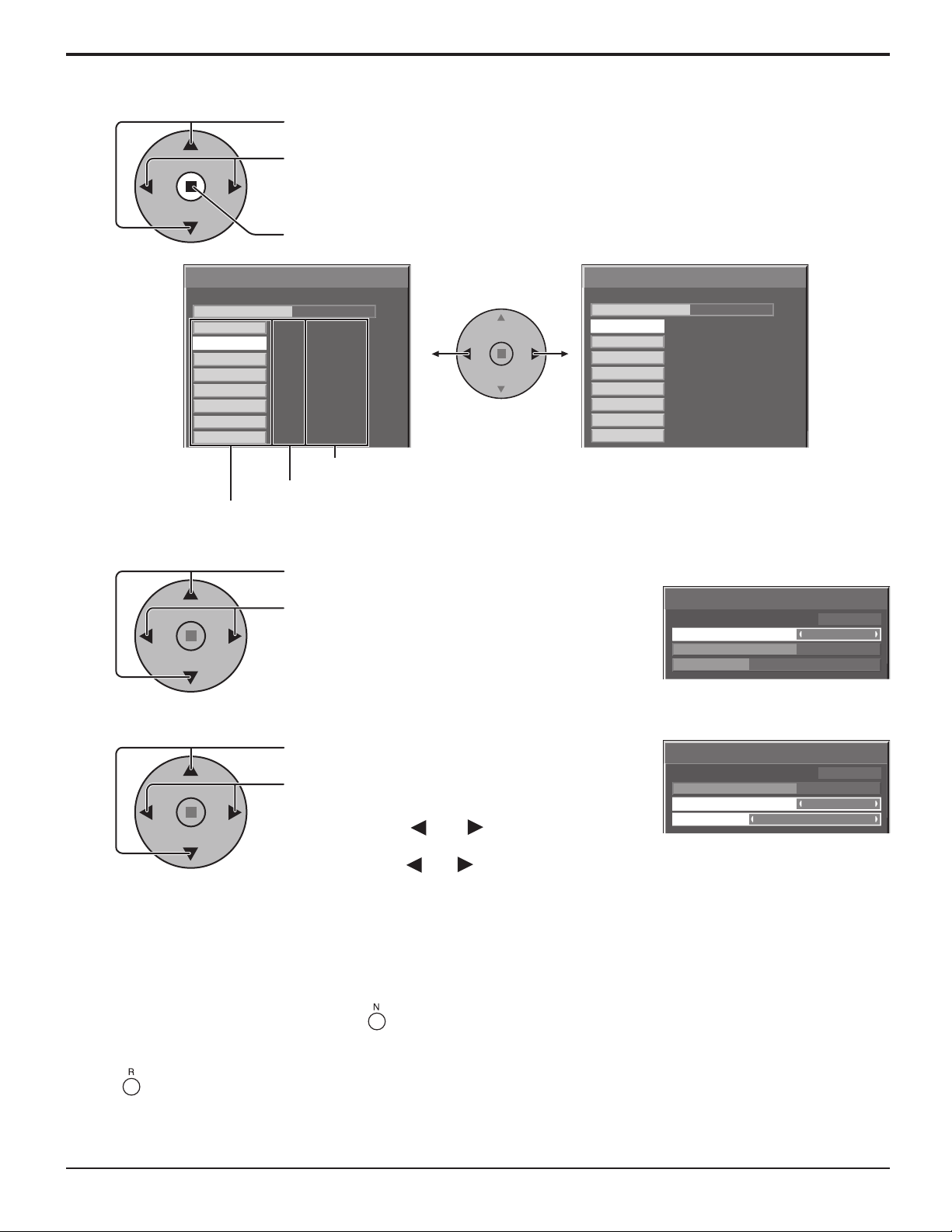

SOUND Adjustment

Press to display the SOUND menu.

Select to adjust each item.

Press to select the menu to adjust.

Select the desired level by listening to the sound.

BASS

Adjusts low pitch sounds

MID

Adjusts normal sounds

TREBLE

Adjusts pitch sounds

BALANCE

SOUND

NORMALIZE

AUDIO MENU BASS MID TREBLE BALANCE SURROUND AUDIO OUT (PIP)

NORMAL

STANDARD 0 0 0 0

OFF

MAIN

STANDARD

DYNAMIC

CLEAR

Emits the original sound.

Accentuates sharp sound.

Attenuates human voice.

Adjusts left and right volumes

SURROUND

Select On or Off

MAIN

Selects main picture sound.

INPUT1

(When main picture sound is chosen.)

SUB

Selects PIP frame sound.

INPUT1 PC

(When PIP frame sound is chosen.)

Musical note is displayed on right side of the audio output screen label.

Notes:

• Press the SURROUND button to directly turn the surround effect ON and OFF. (see page 14)

• BASS, MID, TREBLE and SURROUND settings are memorized separately for each AUDIO MENU.

Helpful Hint ( /

NORMALIZE

Normalization)

While the “SOUND” menu is displayed, if either the N button on the remote control is pressed at any time or the ACTION ( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.

MUTE

Useful when answering the phone or receiving unexpected visitors.

Press this button to mute the sound. Press again to reactivate sound. Sound is also reactivated when power is turned off or volume level is changed.

Page 25

Digital Zoom

This displays an enlargement of the designated part of the displayed image.

Display the operation guide.

Press to access Digital Zoom. The operation guide will be displayed.

During Digital Zoom, only the following buttons can be operated.

[Remote control]

POSITION / ACTION button

VOL button

MUTE button SURROUND button

OFF TIMER button

Select the area of the image to be enlarged.

[Unit]

INPUT

VOL button

VOL

EXIT

ENTER/

Press on the enlargement location to select.

The cursor will move.

Notes:

• When power goes OFF (including “Off Timer” operation), Digital Zoom terminates.

• The Digital Zoom function cannot be selected while in the following operation state: “Multi-viewer” (Picture in Picture, Picture out Picture, Picture and Picture) operation. (see page 20)

• While Digital Zoom is in operation, “Adjusting POS. /SIZE” cannot be used.

Select the magnification required for the enlarged display.

Each time this is pressed, the magnification factor changes. This is shown in the image being displayed.

× 1 × 2 × 3 × 4

Return to normal display (quit Digital Zoom).

Press to exit from the Digital Zoom.

EXIT

Page 26

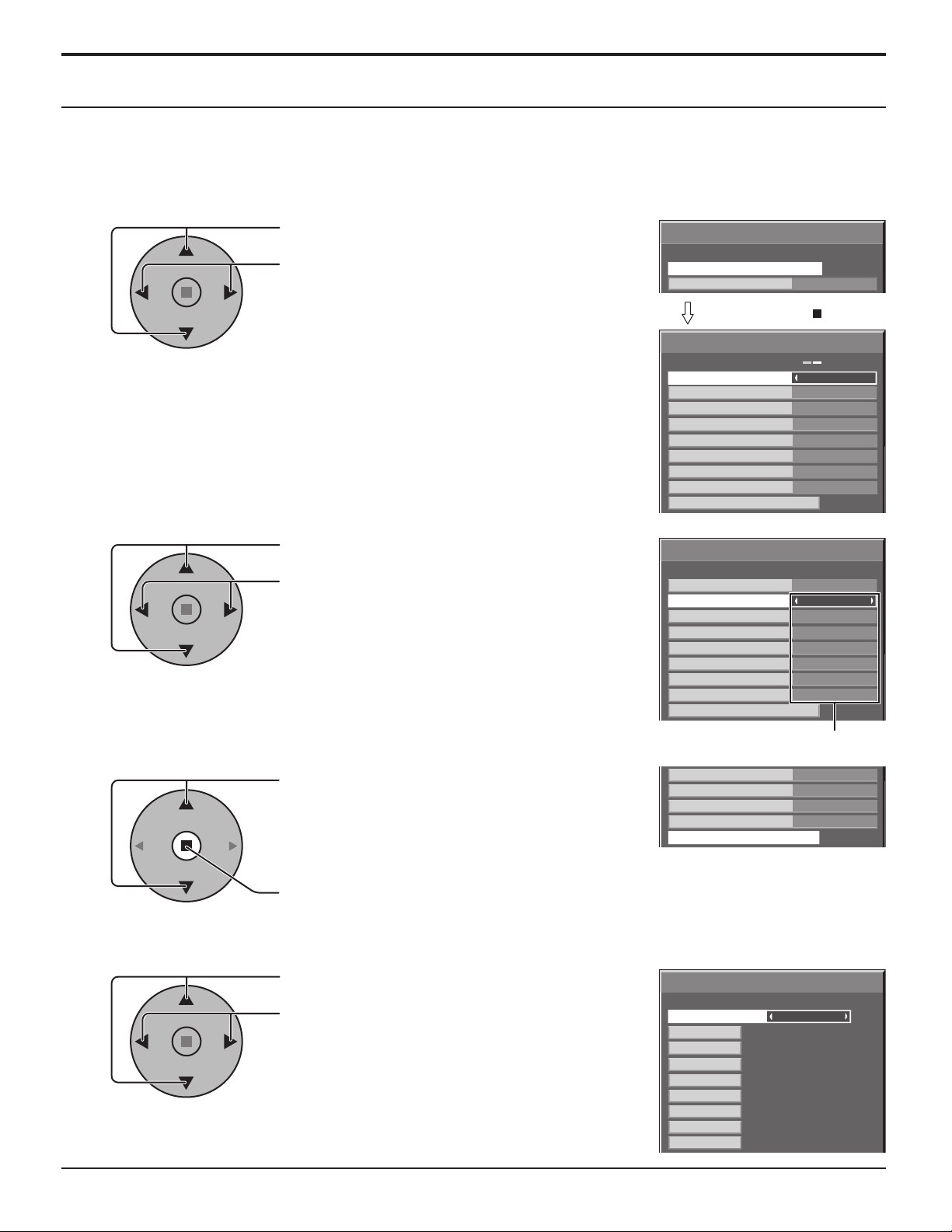

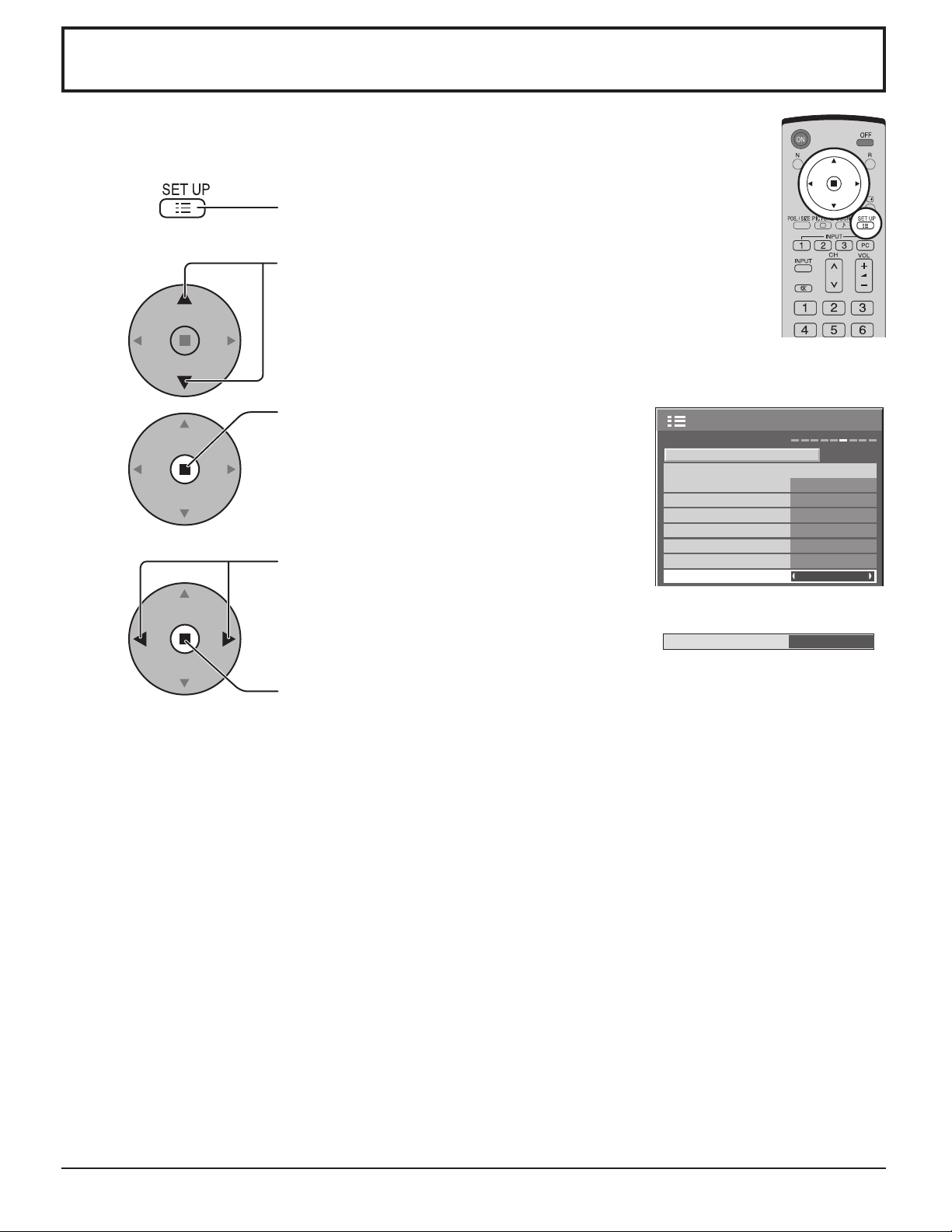

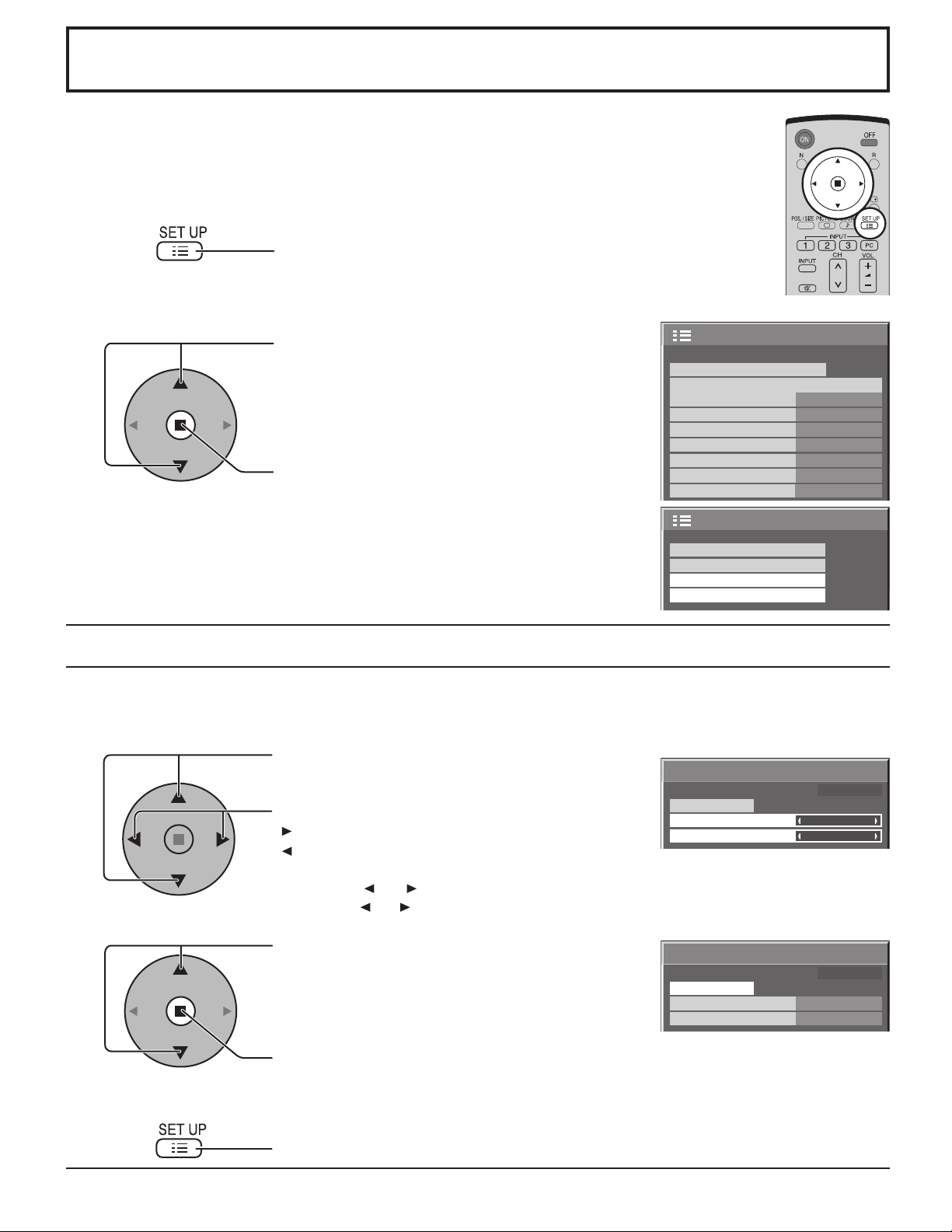

PRESENT TIME SETUP / SET UP TIMER

The timer can switch the Plasma Display ON or OFF. Before attempting Timer Set, confirm the PRESENT TIME OF DAY and adjust if necessary.

Then set POWER ON TIME / POWER OFF TIME.

Press to display the SET UP menu.

Press to select SET UP TIMER or

PRESENT TIME SETUP.

Press to display the SET UP TIMER screen or PRESENT TIME SETUP screen.

PRESENT TIME SETUP

Display the PRESENT TIME SETUP screen.

SET UP

SIGNAL

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE STANDBY SAVE POWER MANAGEMENT AUTO POWER OFF OSD LANGUAGE ENGLISH (US

SCREENSAVER

MULTI DISPLAY SETUP

SET UP TIMER

PRESENT TIME SETUP

1/2

RGB

PC OFF OFF OFF OFF

2/2SET UP

)

To set up DAY and PRESENT TIME OF DAY, follow the procedure described below.

Press to select DAY or PRESENT TIME OF DAY.

Press to set up DAY or PRESENT TIME OF DAY.

button: Forward button: Back

Notes:

• Pressing “ ” or “ ” button once changes PRESENT TIME OF DAY 1minute.

• Pressing “ ” or “ ” button continuously changes PRESENT TIME OF DAY by 15 minutes.

Press to select SET.

Press to store PRESENT TIME SETUP.

Notes:

• SET cannot be selected unless PRESENT TIME OF DAY is set.

• Unless setting the present time other than “99:99”, DAY setting is invalid.

Press to exit from PRESENT TIME SETUP.

PRESENT TIME SETUP

PRESENT TIME OF DAY MON 99:99

SET DAY PRESENT TIME OF DAY

PRESENT TIME SETUP

PRESENT TIME OF DAY MON 99:99

SET DAY PRESENT TIME OF DAY

MON

99:99

TUE

10:00

Page 27

SET UP TIMER

Display the SET UP TIMER SCREEN.

PRESENT TIME SETUP / SET UP TIMER

Press to select POWER ON TIME / POWER OFF TIME.

Press to set up POWER ON TIME / POWER OFF TIME.

button: Forward button: Back

Notes:

• Pressing “ ” or “ ” button once changes POWER ON TIME / POWER OFF TIME 1minute.

• Pressing “ ” or “ ” button continuously changes POWER ON TIME / POWER OFF TIME by 15 minutes.

Press to select POWER ON FUNCTION / POWER OFF FUNCTION.

Press to select ON.

SET UP TIMER

PRESENT TIME OF DAY 10:00

POWER ON FUNCTION POWER ON TIME POWER OFF FUNCTION POWER OFF TIME

SET UP TIMER

PRESENT TIME OF DAY 10:00

POWER ON FUNCTION POWER ON TIME POWER OFF FUNCTION POWER OFF TIME

OFF

12:00

OFF

18:00

12:00

18:00

Note:

Timer function will not work unless “PRESENT TIME OF DAY” is set.

Press twice to exit from SET UP.

Page 28

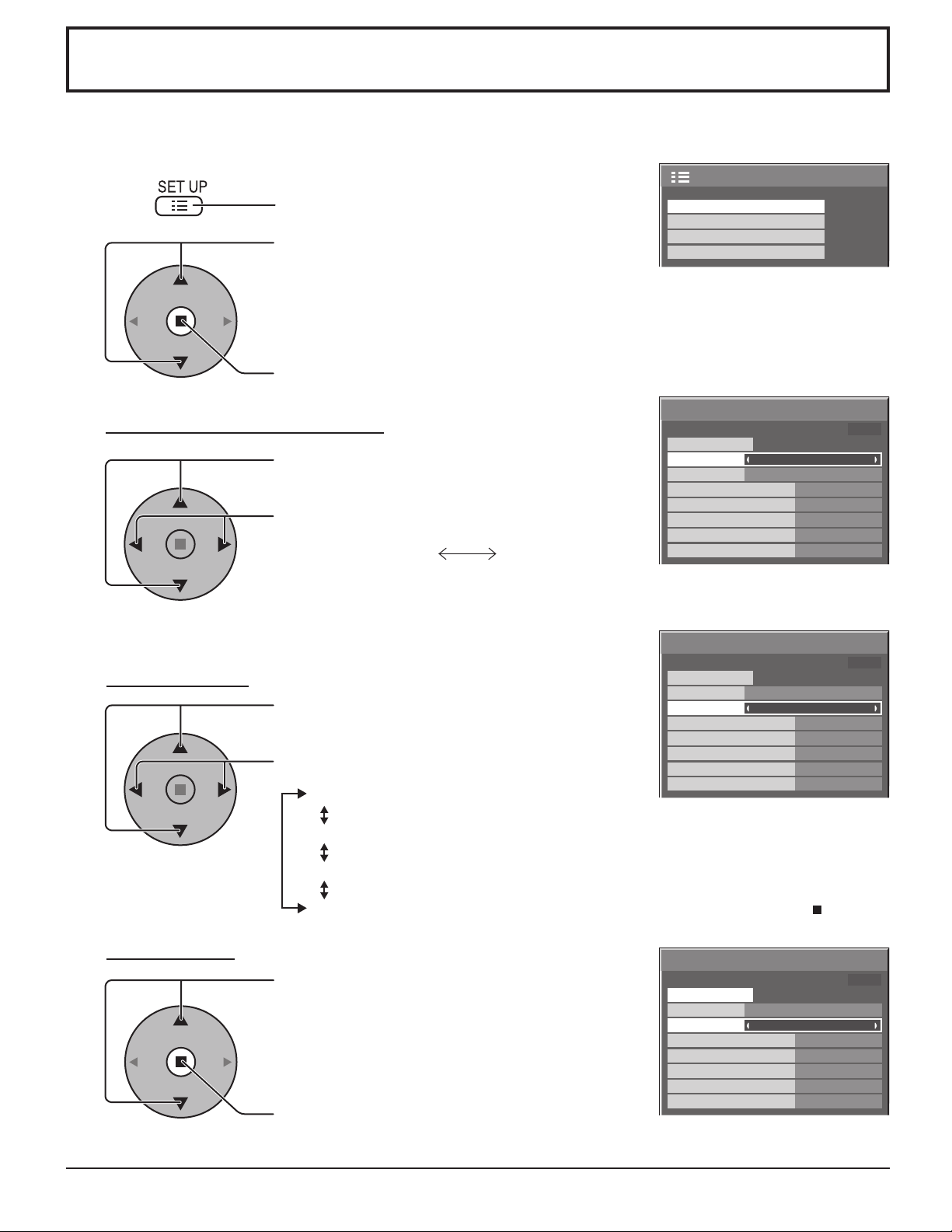

SCREENSAVER (For preventing image retention)

Do not display a still picture, especially in NORMAL mode, for any length of time. If the display must remain on, a SCREENSAVER should be used.

1 2

Press to display the SET UP menu. Press to select the SCREENSAVER.

Press to select the SCREENSAVER screen.

SCREENSAVER

MULTI DISPLAY SETUP

SET UP TIMER

PRESENT TIME SETUP

2/2SET UP

NEGATIVE / SCROLL selection

Press to select the FUNCTION.

Press to select the desired function. WHITE BAR SCROLL NEGATIVE WHITE BAR SCROLL : A white bar will scroll from left to right.

NEGATIVE : A negative image will be displayed on the screen.

MODE selection

Press to select the MODE.

Press to select each mode items.

START setting

When the MODE is set to ON, press to select START.

Press to start SCREENSAVER. The menu screen will disappear and the SCREENSAVER will be activated. To stop the

SCREENSAVER under ON, press the R button.

SCREENSAVER

PRESENT TIME OF DAY 99:99

START FUNCTION MODE START TIME FINISH TIME SIDE BAR ADJUST WOBBLING PEAK LIMIT

SCREENSAVER

START FUNCTION MODE START TIME FINISH TIME SIDE BAR ADJUST WOBBLING PEAK LIMIT

WHITE BAR SCROLL

OFF

6:15

12:30

BRIGHT

OFF OFF

PRESENT TIME OF DAY 99:99

WHITE BAR SCROLL

OFF

6:15

12:30

BRIGHT

OFF OFF

OFF INTERVAL : Operates when SHOW DURATION and SAVER DURATION are

set up and those times arrive.

TIME OF DAY : Operates when START TIME and FINISH TIME are set up and

those times arrive.

ON : Operates when START is selected and the ACTION ( ) button is

pressed.

SCREENSAVER

PRESENT TIME OF DAY 99:99

START FUNCTION MODE START TIME FINISH TIME SIDE BAR ADJUST WOBBLING PEAK LIMIT

WHITE BAR SCROLL

6:15

12:30

BRIGHT

OFF OFF

Page 29

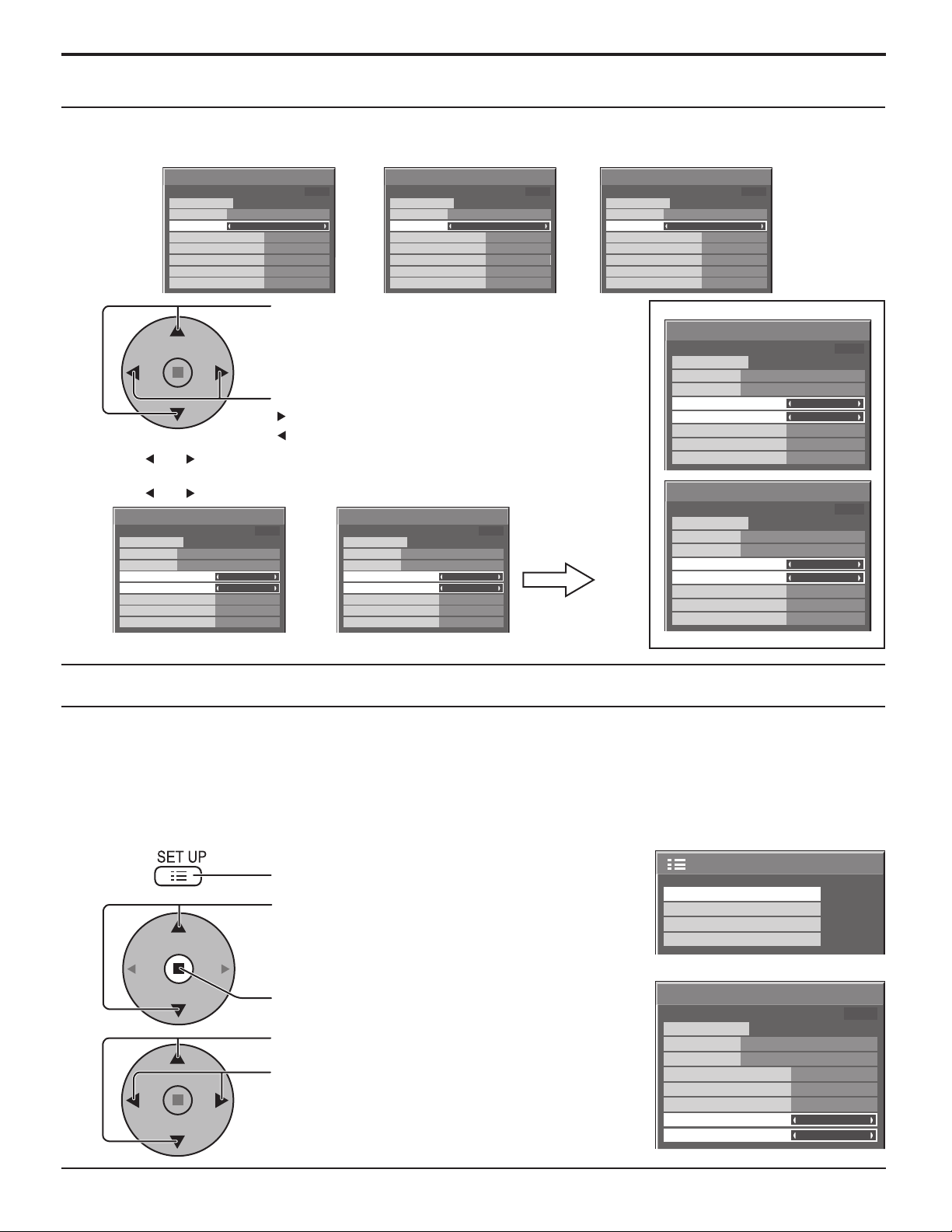

SCREENSAVER (For preventing image retention)

Setup of SCREENSAVER Time

After selecting TIME OF DA Y or INTER V AL, the relevant T ime Setup will become available for selection and the Operating Time may be set. (Time cannot be set when “MODE” is “ON” or “OFF”.)

SCREENSAVER

PRESENT TIME OF DAY 15:10

START FUNCTION MODE START TIME FINISH TIME SIDE BAR ADJUST WOBBLING PEAK LIMIT

WHITE BAR SCROLL

TIME OF DAY

6:15

12:30

BRIGHT

OFF OFF

SCREENSAVER

PRESENT TIME OF DAY 15:00

START FUNCTION MODE SHOW DURATION SAVER DURATION SIDE BAR ADJUST WOBBLING PEAK LIMIT

WHITE BAR SCROLL

INTERVAL

BRIGHT

12:00

3:00

OFF OFF

Press to select START TIME / FINISH TIME (When TIME OF DAY is selected). Press to select SHOW DURATION / SAVER DURATION (When INTERVAL is selected).

Press to setup. button: Forward

Notes:

button: Back

• Pressing “ ” or “ ” button once changes the Time 1minute. [However, switching occurs every 15 minutes when Periodic Time is selected.]

• Pressing “ ” or “ ” button continuously changes the Time by 15 minutes.

SCREENSAVER

PRESENT TIME OF DAY 15:10

START FUNCTION MODE START TIME FINISH TIME SIDE BAR ADJUST WOBBLING PEAK LIMIT

WHITE BAR SCROLL

TIME OF DAY

0:00 0:00

BRIGHT

OFF OFF

SCREENSAVER

PRESENT TIME OF DAY 15:00

START FUNCTION MODE SHOW DURATION SAVER DURATION SIDE BAR ADJUST WOBBLING PEAK LIMIT

WHITE BAR SCROLL

INTERVAL

BRIGHT

0:00 0:00

OFF OFF

SCREENSAVER

PRESENT TIME OF DAY 99:99

START FUNCTION MODE START TIME FINISH TIME SIDE BAR ADJUST WOBBLING PEAK LIMIT

WHITE BAR SCROLL

SCREENSAVER

FUNCTION MODE START TIME FINISH TIME SIDE BAR ADJUST WOBBLING PEAK LIMIT

SCREENSAVER

FUNCTION MODE SHOW DURATION SAVER DURATION SIDE BAR ADJUST WOBBLING PEAK LIMIT

OFF

6:15

12:30

BRIGHT

OFF OFF

PRESENT TIME OF DAY 15:00

START

WHITE BAR SCROLL

TIME OF DAY

PRESENT TIME OF DAY 15:00

WHITE BAR SCROLL

INTERVAL

6:15

12:30

BRIGHT

OFF OFF

12:00

3:00

BRIGHT

OFF OFF

Note: Timer function will not work unless “PRESENT TIME OF DAY” is set.

Reduces screen image retention

These functions prevent the occurrence of an “image retention” on the display when turned ON.

WOBBLING: Automatically shifts the display image (therefore unnoticeable to the eye) to prevent image retention of

sharper contour of image. ON1: Shifts the image every 30 seconds. ON2: Shifts the image at a dot level pitch depending on screen-detection. PEAK LIMIT: Suppresses image contrast (peak brightness). Note:

1 2

When a still picture is viewed for an extended time, the screen may become slightly darker. (see page 42)

Press to display the SET UP menu. Press to select “SCREENSAVER”.

Press to display SCREENSAVER menu.

Press to select “WOBBLING” or “PEAK LIMIT”. Press to select “ON1”, “ON2” or “OFF” (WOBBLING).

“ON” or “OFF” (PEAK LIMIT).

SCREENSAVER

MULTI DISPLAY SETUP

SET UP TIMER

PRESENT TIME SETUP

SCREENSAVER

PRESENT TIME OF DAY 99:99

START

FUNCTION

WHITE BAR SCROLL

MODE START TIME FINISH TIME SIDE BAR ADJUST WOBBLING PEAK LIMIT

OFF

6:15

12:30

BRIGHT

OFF OFF

2/2SET UP

Page 30

SCREENSAVER (For preventing image retention)

SIDE BAR ADJUST

Do not display a picture in NORMAL mode for an extended period, as this can cause an image retention to remain on the side bars on either side of the display field. To reduce the risk of such an image retention, change the brightness of the side bars.

This function may be applicable to the non-picture area.

Display the SCREENSAVER screen. (Refer to the previous page, operation guide steps 1 and 2)

Press to select the SIDE BAR ADJUST.

Press to select OFF, DARK, MID, BRIGHT.

OFF MID BRIGHTDARK

side bars

NORMAL mode

image retention

Non picture area

Picture out Picture Picture and Picture

SCREENSAVER

PRESENT TIME OF DAY 99:99

START FUNCTION MODE START TIME FINISH TIME SIDE BAR ADJUST WOBBLING PEAK LIMIT

WHITE BAR SCROLL

OFF

6:15

12:30

BRIGHT

OFF OFF

Press to exit from SCREENSAVER.

Notes:

• To reduce the occurrence of image retention, set the SIDE BAR ADJUST to BRIGHT.

• The side bar may flash (alternate black/white) depending on the picture being shown on the screen. Using Cinema mode will reduce such flashing.

Page 31

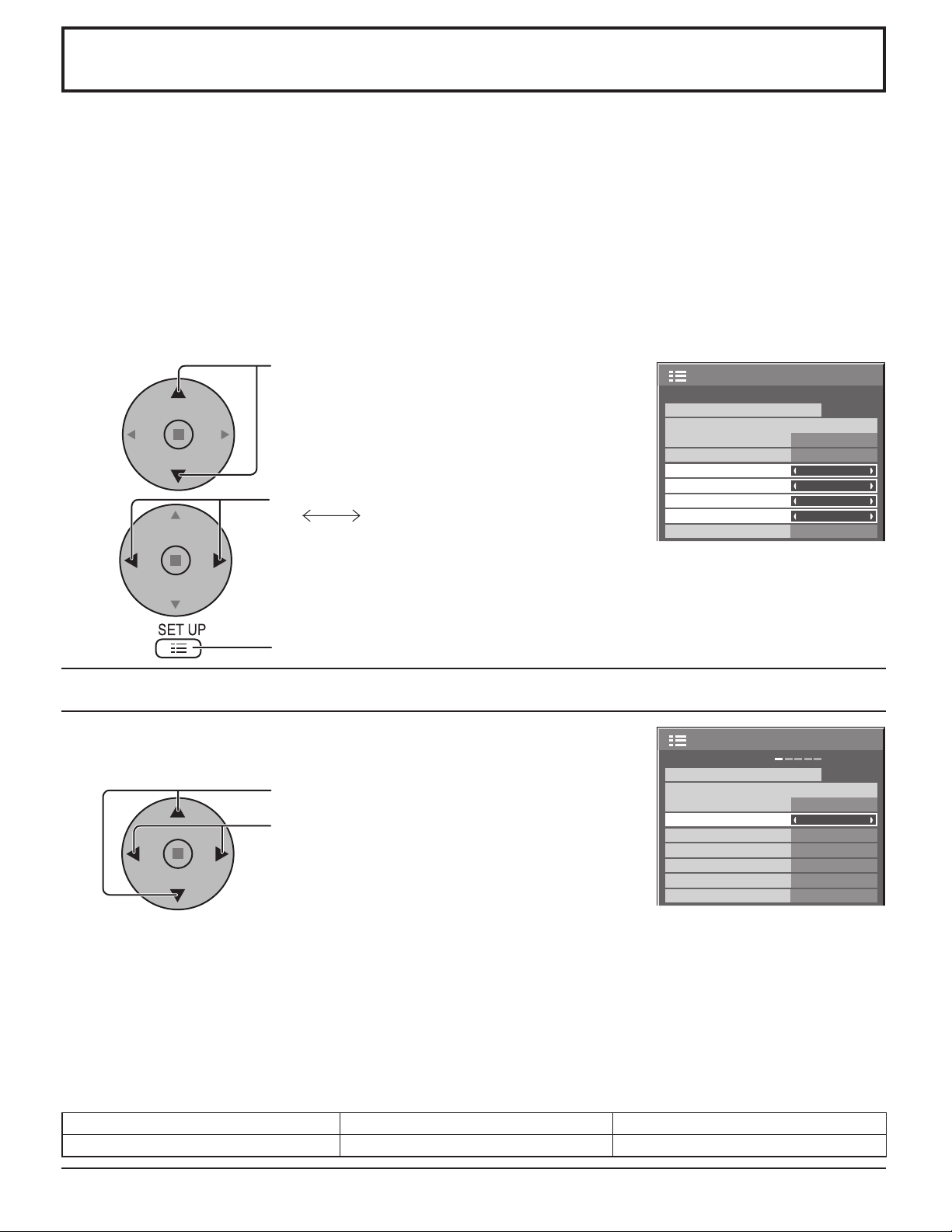

Reduces power consumption

• POWER SAVE: When this function is turned ON, luminous level of the Plasma Display is suppressed, so power consumption is reduced.

• STANDBY SAVE: When this function is turned ON, power consumption of the microcomputer is reduced during power supply standby (see page 12, 14-15), so standby power of the set is reduced.

• POWER MANAGEMENT: The unit power supply is turned ON or OFF depending on whether or not there is a signal during PC input mode.

This function is enabled when it is turned ON. (Only during input from PC(Mini D-sub)

terminal)

• AUTO POWER OFF: Equipment power supply is turned OFF when there is no signal.

When this is set to On, the power supply of the unit goes Off 10 minutes after the input

signals stop.

This function is effective for input signals except input from PC (Mini D-sub) terminal.

Press to select “POWER SAVE” “STANDBY SAVE” “POWER MANAGEMENT” “AUTO POWER OFF”.

Press to select “ON” or “OFF”. On Off

SET UP

SIGNAL

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE STANDBY SAVE POWER MANAGEMENT AUTO POWER OFF OSD LANGUAGE ENGLISH (US

1/2

RGB

PC OFF OFF OFF OFF

)

Note:

“POWER MANAGEMENT” and “AUTO POWER OFF” are

Press to exit from SET UP.

effective during normal viewing (one picture screen) only.

Customizing the Input labels

This function can change the label of the Input signal to be displayed. Select the input signal which you would like to change its label before customizing the Input labels. (see page 13, 15)

Press to select INPUT LABEL. Press to change the INPUT LABEL.

SET UP

SIGNAL

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE STANDBY SAVE POWER MANAGEMENT AUTO POWER OFF OSD LANGUAGE ENGLISH (US

Note:

While selecting a Input signal through Optional Terminal Board connected to Slot 1, Slot 2 and Slot 3, the Input label will depend on each Optional Terminal Board.

INPUT LABELS for Slot 1, Slot 2, Slot 3 and Mini D-sub:

[Slot1 Input] INPUT1/VIDEO1/COMPONENT1/RGB1/DIGITAL1/PC1/DVD1/CATV1/VCR1/STB1 [Slot2 Input] INPUT2/VIDEO2/COMPONENT2/RGB2/DIGITAL2/PC2/DVD2/CATV2/VCR2/STB2 [Slot3 Input] INPUT3/VIDEO3/COMPONENT3/RGB3/PC3/DVD3/CATV3/VCR3/STB3 [PC (Mini D-sub) input] PC/COMPONENT/RGB/DVD/STB

1/2

RGB

PC OFF OFF OFF OFF

)

When BNC Dual Video Terminal Board (TY -FB9BD) is used, an “A” or “B” is added at the end of each input label, depending on the input selected (see below).

Addition sign “A” “B” Selected Input Composite S VIDEO

Page 32

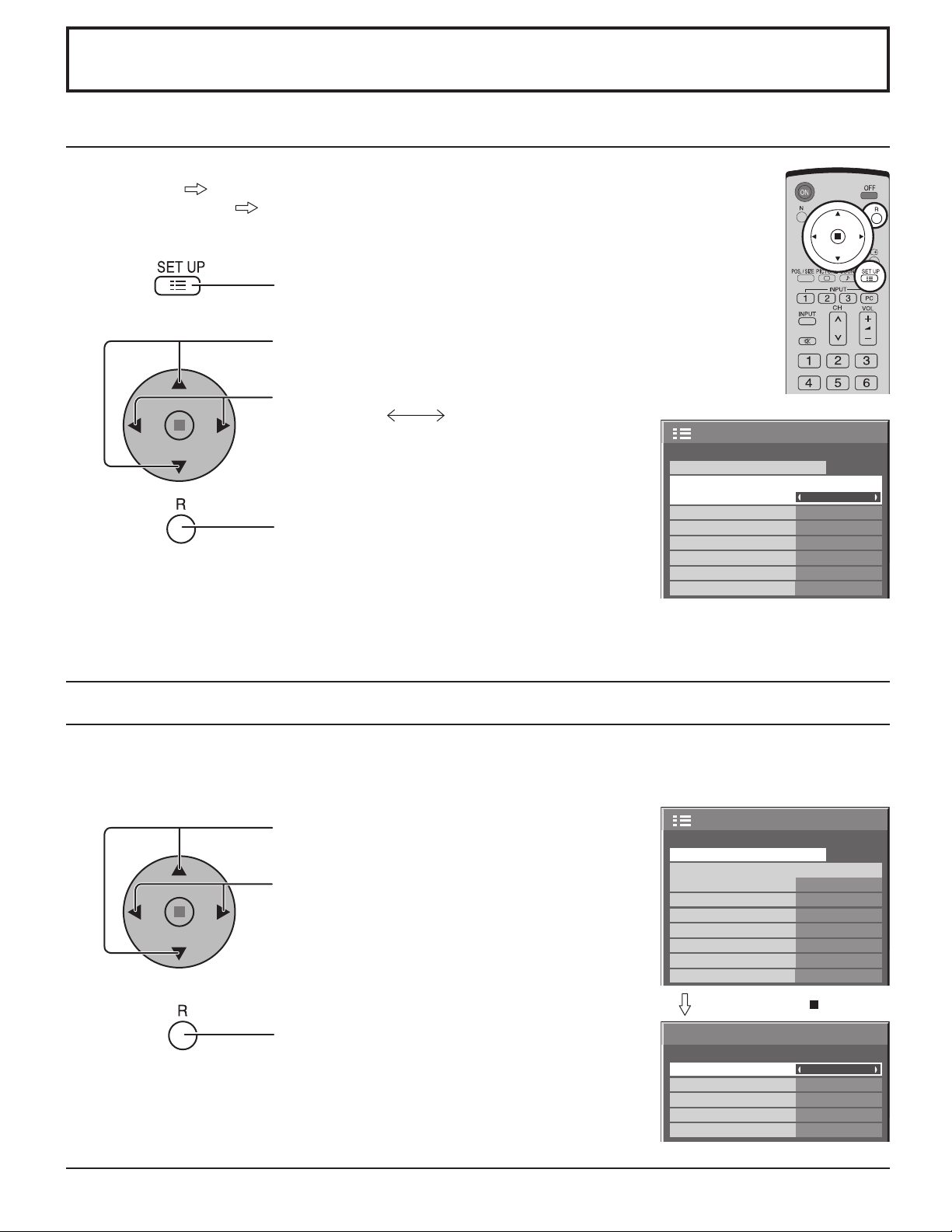

SET UP for Input Signals

COMPONENT / RGB IN SELECT

Select to match the signals from the source connected to the COMPONENT / RGB input terminals. Y, PB, PR signals “COMPONENT” R, G, B, HD, VD signals “RGB”

Press to display the SET UP menu.

Press to select the “COMPONENT / RGB-IN SELECT”.

Press to select the desired mode. COMPONENT RGB

Press to exit from adjust mode.

Note:

Selection may not be possible, depending on which optional board is installed.

3D Y/C FILTER – For NTSC AV images

Select “SIGNAL” from the “SET UP” menu during VIDEO (S VIDEO) input signal mode. (“SIGNAL [VIDEO]” menu is displayed.)

SET UP

SIGNAL

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE STANDBY SAVE POWER MANAGEMENT AUTO POWER OFF OSD LANGUAGE ENGLISH (US

1/2

RGB

PC OFF OFF OFF OFF

)

Press to select the “3D Y/C FILTER (NTSC)”.

Press to set ON / OFF.

Press to exit from adjust mode.

Note:

When ON, this setting only affects NTSC input signals.

SET UP

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE STANDBY SAVE POWER MANAGEMENT AUTO POWER OFF OSD LANGUAGE ENGLISH (US

SIGNAL

RGB

PC OFF OFF OFF OFF

Press ACTION ( ) button

SIGNAL

3D Y/C FILTER (NTSC) COLOR SYSTEM 3 : 2 PULLDOWN Panasonic AUTO (4 : 3) VIDEO NR

[

VIDEO

AUTO

OFF

NORMAL

OFF

1/2

)

]

Page 33

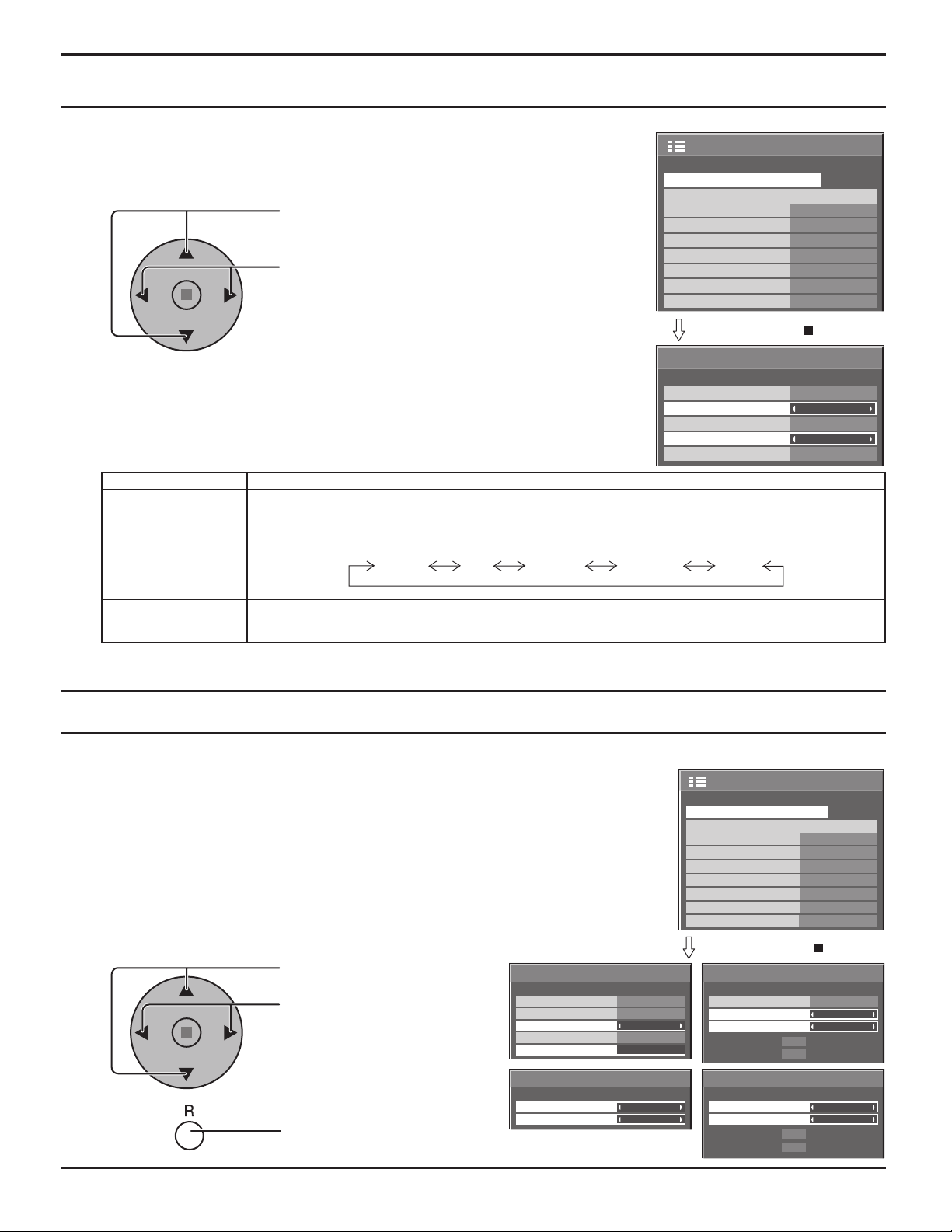

SET UP for Input Signals

COLOR SYSTEM / Panasonic AUTO

Select SIGNAL from the “SET UP” menu during VIDEO (S VIDEO) input signal mode.(“SIGNAL [VIDEO]” menu is displayed.)

Press to select the “COLOR SYSTEM” or “Panasonic AUTO”.

Press to select each function.

If the image becomes unstable:

With the system set on Auto, under conditions of low level or noisy input signals the image may in rare cases become unstable. Should this occur, set the system to match the format of the input signal.

Mode Function

COLOR SYSTEM

Set the color system to match the input signal. When selecting “AUTO”, the color system is automatically selected from NTSC/PAL/SECAM, however, M.NTSC signal is not displayed properly depending on the attached terminal board. To display M.NTSC signal, select “M.NTSC” in COLOR SYSTEM.

AUTO SECAM M.NTSC NTSCPAL

SET UP

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE STANDBY SAVE POWER MANAGEMENT AUTO POWER OFF OSD LANGUAGE ENGLISH (US

SIGNAL

RGB

PC OFF OFF OFF OFF

Press ACTION ( ) button

SIGNAL

3D Y/C FILTER (NTSC) COLOR SYSTEM 3 : 2 PULLDOWN Panasonic AUTO (4 : 3) VIDEO NR

[

VIDEO

AUTO

OFF

NORMAL

OFF

1/2

)

]

Panasonic AUTO (4 : 3 )

Set to “NORMAL” to view 4:3 images in an unchanged format when Panasonic AUTO is selected. If you would like to view 4:3 images in Just format, set to “JUST”.

Note:

Panasonic AUTO does not function when BNC Dual Video Terminal Board (TY-FB9BD) is used.

3:2 PULLDOWN / VIDEO NR

3:2 PULLDOWN: When ON, the display attempts to reproduce a more natural interpretation of sources such as movie

pictures, which are recorded at 24 frames per second.

If the picture is not stable, turn the setting to OFF.

Notes:

When ON, this setting only affects the following signal input:

• NTSC / PAL signal input during “VIDEO (S VIDEO)” input signal.

• 525i(480i) 625i(575i), 1125(1080)/60i signal input during “COMPONENT” input signal.

VIDEO NR: Automatically reduces unwanted picture noise. Note:

VIDEO NR cannot be adjusted while a PC signal is being applied.

Press to select 3:2 PULLDOWN or VIDEO NR. Press to set ON/OFF.

Press to exit from adjust mode.

SIGNAL

3D Y/C FILTER (NTSC) COLOR SYSTEM 3 : 2 PULLDOWN Panasonic AUTO (4 : 3) VIDEO NR

SIGNAL

3 : 2 PULLDOWN VIDEO NR

[

VIDEO

AUTO

OFF

NORMAL

OFF

[

COMPONENT

OFF OFF

SET UP

SIGNAL

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE STANDBY SAVE POWER MANAGEMENT AUTO POWER OFF OSD LANGUAGE ENGLISH (US

Press ACTION ( ) button

]

SIGNAL

SYNC 3 : 2 PULLDOWN VIDEO NR

H-FREQ.

33.8

V-FREQ.

60.0

]

SIGNAL

3 : 2 PULLDOWN VIDEO NR

H-FREQ.

33.8

V-FREQ.

60.0

kHz

RGB

PC OFF OFF OFF OFF

AUTO

OFF OFF

[

Digital

1/2

RGB

)

]

Page 34

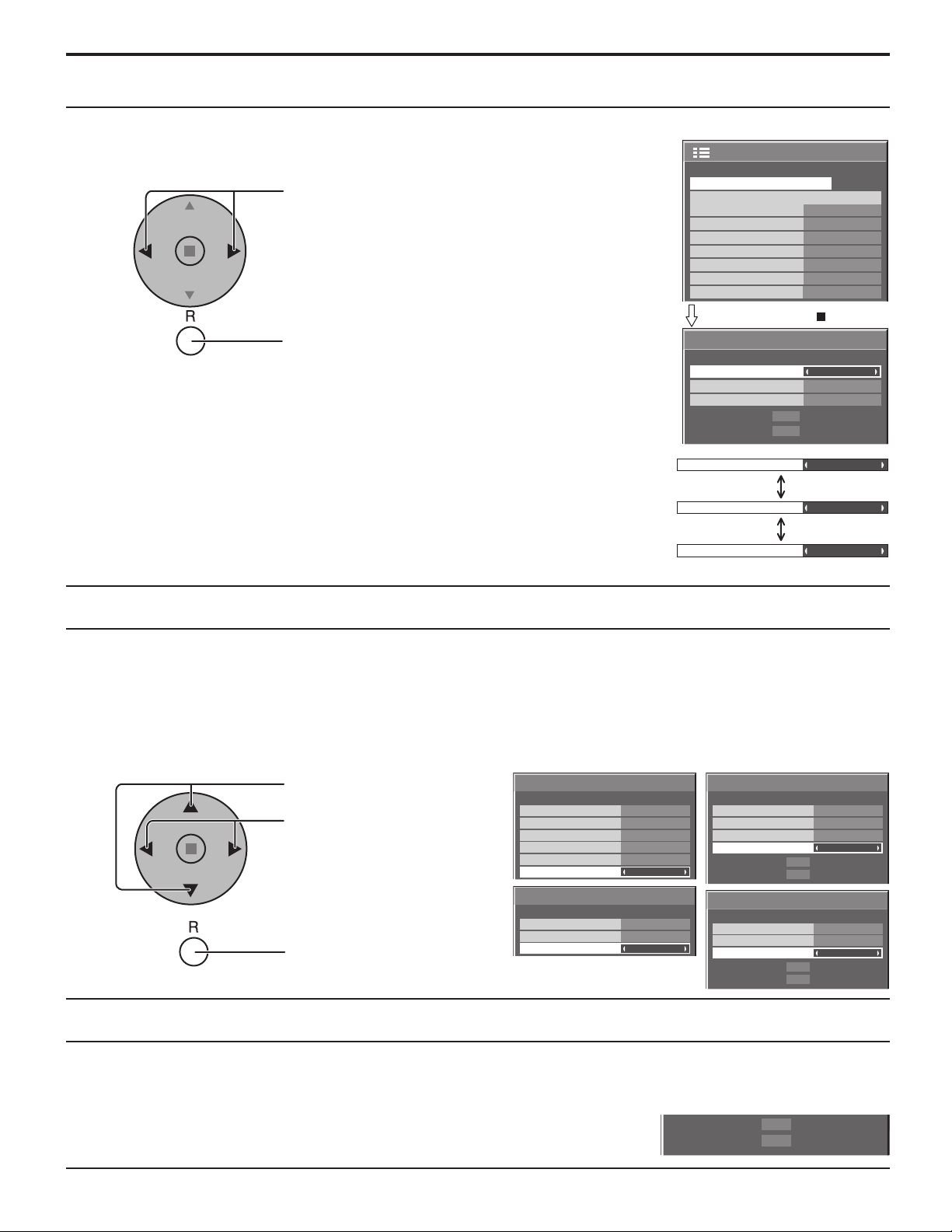

SET UP for Input Signals

SYNC

Select SIGNAL from the “SET UP” menu during RGB input signal.

Press to adjust.

Press to exit from adjust mode.

Setting RGB sync signal

Confirm that the input is set to RGB INPUT (this setting is valid only for RGB INPUT signal).

AUTO: The H and V sync or synchronized signal are automatically selected.

If both input, it is selected the H and V sync.

ON G: Uses a synchronized signal on the Video G signal, which is input from

the G connector.

VBS: Uses a synchronized signal of Composite Sync input, which is input

from the HD connector.

SET UP

SIGNAL

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE STANDBY SAVE POWER MANAGEMENT AUTO POWER OFF OSD LANGUAGE ENGLISH (US

RGB

OFF

Press ACTION ( ) button

SIGNAL

SYNC 3 : 2 PULLDOWN VIDEO NR

H-FREQ.

V-FREQ.

SYNC

33.8

60.0

AUTO

OFF

kHz

AUTO

ON G

VBS

[

RGB

1/2

)

]

REFRESH RATE

This function sets the refresh rate of the display. This menu is displayed when the input signal is 50 Hz system (50i, 50p, 25p, 24p, 24sF) of vertical scan rate.

100 Hz: Reduce screen flicker. 50 Hz: Enhance the resolution of moving images.

Note:

It is recommended to set to 100 Hz normally.

[

VIDEO

AUTO

OFF

NORMAL

OFF

100 Hz

OFF OFF

100 Hz

]

SIGNAL

SYNC 3 : 2 PULLDOWN VIDEO NR REFRESH RATE

H-FREQ.

V-FREQ.

SIGNAL

3 : 2 PULLDOWN VIDEO NR REFRESH RATE

H-FREQ.

V-FREQ.

33.8

60.0

33.8

60.0

Press to select REFRESH RATE. Press to adjust.

Press to exit from adjust mode.

SIGNAL

3D Y/C FILTER (NTSC) COLOR SYSTEM 3 : 2 PULLDOWN Panasonic AUTO (4 : 3) VIDEO NR REFRESH RATE

SIGNAL

3 : 2 PULLDOWN VIDEO NR REFRESH RATE

[

COMPONENT

H-FREQ. (kHz) / V-FREQ. (Hz)

kHz

[

AUTO

OFF OFF

100 Hz

[

Digital

OFF OFF

100 Hz

RGB

]

Displays the H (Horizontal) / V (Vertical) frequencies.

This display is valid only for RGB/PC and Digital input signal. Display range:

Horizontal 15 - 110 kHz Vertical 48 - 120 Hz

H-FREQ.

V-FREQ.

33.8

60.0

kHz

Page 35

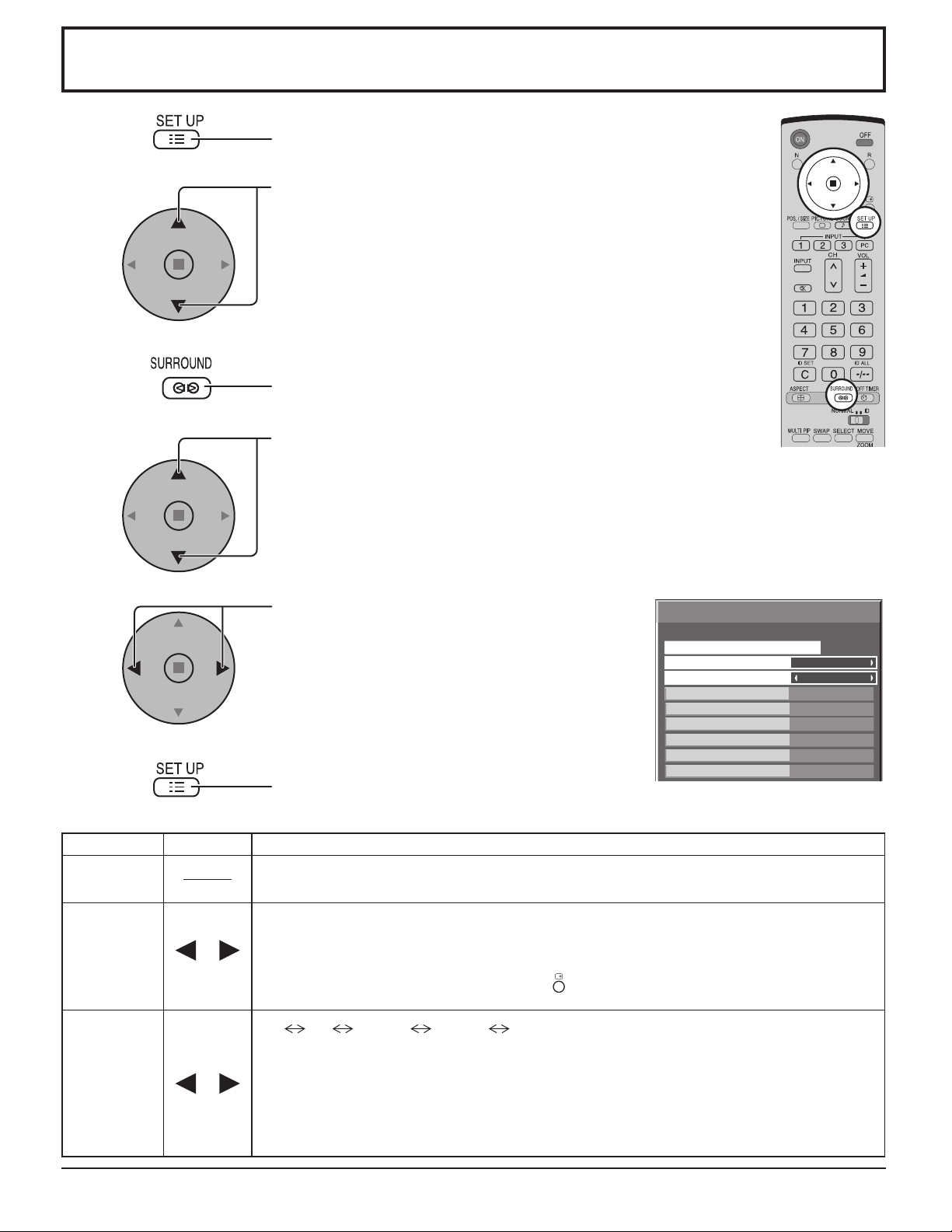

Options Adjustments

1 2

Press to display the Setup menu.

Press to select “OSD Language”.

Press and hold until the Options menu is displayed.

Press to select your preferred menu.

Press to adjust the menu.

Item Effect Adjustments

Weekly

Command

Timer

Onscreen

display

Initial INPUT

On Off

Press to exit from Options menu.

Sets Weekly Command Timer. (see page 39)

On: Displays all the following on screen.

• Power on display

• Input signal switch display

• No signal display

• Mute and the remaining time of off-timer after

Off: Hides all the items above from view. Off PC INPUT1 INPUT2 INPUT3

Adjusts the input signal when the unit is turned on.

Notes:

• Only the adjusted signal is displayed. (see page 13).

• Signal can be displayed when the Terminal board is installed.

• This menu is available only when “INPUT lock” is “Off”.

• When a dual input terminal board is attached, A or B is displayed depending on the selected input signal. (Ex. INPUT1A, INPUT1B)

was pressed.

Options

Weekly Command Timer

Onscreen display Initial INPUT

Initial VOL level Maximum VOL level INPUT lock Button lock Remocon User level Advanced PIP

1/3

On O f f

Off 0 0

Off

Page 36

Options Adjustments

Item Effect Adjustments

Press button to adjust the volume when the unit is turned on.

Off On

Initial VOL

level

Maximum VOL

level

INPUT lock

Button lock

Remocon

User level

Advanced PIP

Off On

Off: Sets normal volume. On: Sets your preferred volume. Notes:

•

When “Maximum VOL level” is “On”, the volume can only be adjusted between 0 and your maximum range.

•

You can hear the changed volume regardless of your volume setting before opening the options menu if you adjust the volume when “Initial VOL level” is “On” and cursor is on the menu.

Press button to adjust the maximum volume.

Off On Off: Sets auto maximum volume. On: Sets your preferred maximum volume. Notes:

• If the “Maximum VOL level” is set lower than the “Initial VOL level”, the “Initial VOL level” automatically becomes the same as the “Maximum VOL level”.

• The volume display can go up to 63 regardless of the settings.

•

You can hear the changed volume regardless of your volume setting before opening the options menu if you adjust the volume when “Maximum VOL level” is “On” and cursor is on the menu.

Off PC INPUT1 INPUT2 INPUT3

Locks the input switch operation.

Notes:

• Only the adjusted signal is displayed (see page 13).

• Signal can be displayed when the Terminal board is installed.

• Input switch can be used when this is set to “Off”.

• In two screen display mode, if anything other than “Off” is set, the value will be fixed as the value input in the single screen display mode.

• When a dual input terminal board is attached, A or B is displayed depending on the selected input signal. (Ex. INPUT1A, INPUT1B)

Off MENU&ENTER On Off: All the buttons at the bottom of the main unit can be used.

MENU & ENTER: Locks

and

buttons on bottom face of main unit.

ENTER/

On: Locks all the button on bottom face of main unit. Sets Button lock with the unit buttons in the following procedure.

Off: Press MENU & ENTER: Press On: Press four times→Press

four times→Press

four times→Press four times→Press

ENTER/

four times→Press four times→Press

INPUT

four times→Press four times→Press

ENTER/

Off User1 User2 User3 Off: You can use all of the buttons on the remote control. User1:

You can only use , , , , , , , buttons on the remote control. You can only use

User2:

, , buttons on the remote control.

User3: Locks all the buttons on remote control. Off: Sets normal two screen display mode (see page 20).

On: Sets Advanced PIP mode (see page 21). Notes:

• When “INPUT lock” is “On”, you cannot use all the two screen display functions.

•

, buttons are unavailable during Advanced PIP mode operation.

Options

Weekly Command Timer

Onscreen display Initial INPUT

Initial VOL level Maximum VOL level INPUT lock Button lock

Remocon User level Advanced PIP

ENTER/

four times→Press

INPUT

ENTER/

1/3

Off

Off 0 0 Off

Off

ENTER/

Page 37

Options Adjustments

Item Effect Adjustments

Off-timer

function

Initial Power

Mode

ID select

Enable

Disable

Enable: Enables the “Off-timer function”. Disable: Disables the “Off-timer function”. Note: When “Disable” is set, the Off-timer is cancelled.

Normal Standby On

Sets the power mode of the unit for when the power recovers from failure or after plugging off and in again.

Normal: Power returns in as the same state as before the power interruption. Standby: Power returns in standby mode. (Power Indicator : red/orange) On: Power returns in power On. (Power Indicator : green) Note:

When using multiple displays, “Standby” is preferred to be set in order to reduce a power load.

Sets panel ID number when panel is used in “Remote ID” or “Serial ID”. Set value range: 0 - 100 (Standard value: 0)

Options

Off-timer function

Initial Power Mode ID select Remote ID Serial ID Display size Studio W/B Studio Gain

2/3

Enable

Normal

Off

Remote ID

Serial ID

Display size

Studio W/B

Studio Gain

Off On

Off: Disables ID remote control functions. You can use normal remote control operations. On: Enable ID remote control functions.

Sets the panel ID Control.

Off: Disables external control by the ID. On: Enables the external control by the ID.

Adjusts the image display size on screen.

Off: Sets the normal image display size on screen. On: Sets the image display size approximately 95 % of the normal image display. Off On

Notes:

• This setting is valid only when the input signals are as follows; NTSC, PAL, SECAM, M.NTSC, PAL60, PAL-M, PAL-N (BNC Dual Video Terminal Board (TY-FB9BD))

525i, 525p, 625i, 625p, 750/60p, 750/50p, 1 125/60i, 1 125/50i, 1 125/24sF, 1 125/25p, 1 125/24p, 1 125/30p,

1250/50i (Component Video, RGB, DVI, SDI, HDMI)

• This setting is invalid when two screen display, digital zoom or Multi screen is selected.

• When “Display size” is set to “On”, “POS. /SIZE” adjustment cannot be used.

• Refer to each board's operating instruction for DVI, SDI, HDMI's corresponding signals.

Off: Nullify all the settings adjusted. On: Sets the color temperature for TV studio. Note: Valid only when the low is set as color temperature on screen adjustment.

Sharpens the contrast for a better view when a part of the image is too light to see.

Off: Disables “Studio Gain”. On: Enables “Studio Gain”. Note: This setting is valid only when the input signals are as follows:

Component Video, RGB (analog), SDI, HDMI

Page 38

Options Adjustments

Options

Slot power V. lnstallation Rotate Serial Slot Select

3/3

Off Off Off

Slot1

Item Effect Adjustments

Off Auto On Off: Power is not transmitted to the slot power.

Slot Power

Auto: Power is transmitted to the slot power only when main power is on. On: Power is transmitted to the slot power when main power is on or in the standby state. Note: In some cases, power is transmitted to the slot power when main power is on or in the standby

state regardless of the slot power setting.

V.Installation

Rotate

Serial Slot

Select

Off On

Note: This mode is unavailable.

Off: Does not rotate the image. On: Rotates the image 180 degrees.

Slot1 Slot2 Slot3

Selects the slot which communicates serial.

Note: The setting of an external command can be set only from the ﬁ xed serial terminal (see page 11).

Normalization

When both main unit buttons and remote control are disabled due to the “Button lock”, “Remocon User level” or “Remote ID” adjustments, set all the values “Off” so that all the buttons are enabled again.

Press the

button on main unit together with button on the remote control and hold for more than 5 seconds. The

VOL

“SHIPPING” menu is displayed and the lock is released when it disappears.

Page 39

Options Adjustments

Weekly Command Timer

You can set 7-day timer programming by setting time and command.

Note:

Before setting Weekly Command Timer, set PRESENT TIME SETUP. (see page 26)

Press to select Function. Press to select “On”.

Note:

• When Function is set to On, SET UP TIMER (see page 27) is unavailable and INTERVAL / TIME OF DA Y in MODE of SCREENSAVER (see page 28) cannot be selected.

Press to select a day. Press to select a program number.

Note:

• You can set the program from 1 to 7.

--- indicates unset.

Options

Weekly Command Timer

Onscreen display

Press ACTION ( ) button

Weekly Command Timer

Function

Monday

Tuesday Wednesday Thursday Friday Saturday Sunday

Program Edit

Weekly Command Timer

Function

Monday Tuesday

Wednesday Thursday Friday Saturday Sunday

Program Edit

1/3

Program1

Program3

---

Program3

---

Program6

Program4

Program1

Program3

---

Program3

---

Program6

Program4

Press to select Program Edit.

Press to show the Program Edit screen.

Press to select Program. Press to change the program numbers (1-7).

Program number

Thursday Friday Saturday Sunday

Program Edit

Program Edit screen

Weekly Command Timer

Program

01 02 03 04

05 06 07 08

8:00

10:30

--:--

12:00

9:12

--:--

PON

IMS:SL1

---

DAM:ZOOM

AVL:10

---

Program3

---

Program6

Program4

1/8

Page 40

Options Adjustments

Press to select a command number. Press to show the previous / next command

pages (1-8) of the selected program.

Press to show the command setting screen.

Weekly Command Timer

Program

01 02 03 04 05 06 07 08

8:00

10:30

--:--

12:00

9:12

--:--

Set time of timer(--:-- indicates unset)

Command numbers

Press to select Command No. Press to select a command number.

1/8

PON

IMS:SL1

---

DAM:ZOOM

AVL:10

---

Command (--- indicates unset)

Weekly Command Timer

Program

57 58 59 60 61 62 63 64

20:00

20:30

22:00

--:--

Command setting screen

Weekly Command Timer

Command No

Time Command

AVL:00

DAM:NORM

POF

---

8/8

Program

IMS:SL1

10:30

Press to select Time / Command.

Press to set each item. Time: Set the time to execute a command program. Pressing “ ” or “ ” button once changes

“Time” 1 minute. Pressing “ ” or “ ” button continuously changes “Time” by 15 minutes. Command: Select a command to execute at the set time. This unit has 64 commands to

Notes:

•

Command is performed in order of execution time, regardless of the command number.

• If a command execution time overlaps with that of other commands, these commands

are performed in number order.

• Pressing , Time becomes --:-- and Command becomes ---.

Note:

• Press to return to the previous screen.

set. (see page 44)

Weekly Command Timer

Program

Command No Time

Command

10:30

IMS:SL1

Page 41

Shipping condition

This function allows you to reset the unit to the factory setting.

Press to display the SET UP menu.

Press to select “OSD LANGUAGE”.

Press and hold till the SHIPPING menu is displayed.

Press to select “YES”.

Press to confirm.

SET UP

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE STANDBY SAVE POWER MANAGEMENT AUTO POWER OFF OSD LANGUAGE ENGLISH (US

SHIPPING

SIGNAL

RGB

PC OFF OFF OFF OFF

YES

1/2

)

[from the unit]

1 Press the MENU button till the Setup menu is displayed. 2 Press the Volume Up “+” or Down “–” button to select “OSD LANGUAGE”. 3 Press and hold the ENTER button till the SHIPPING menu is displayed. 4 Press the Volume Up “+” or Down “–” button to select “YES”. 5 Press the ENTER button and wait for 10 sec.

Note:

Press the R button to return to SET UP menu when SHIPPING menu is displayed.

Page 42

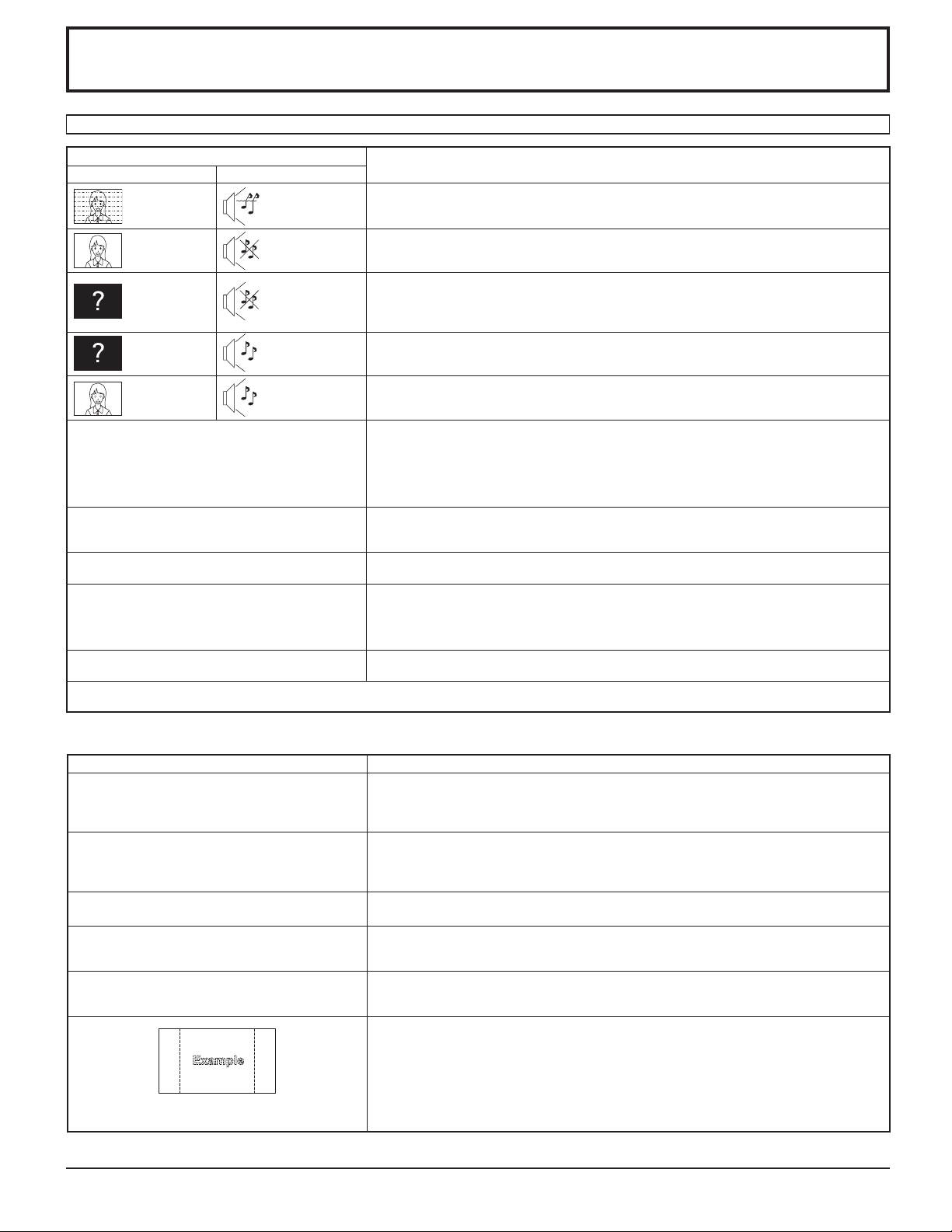

Troubleshooting

Before you call for service, determine the symptoms and make a few simple checks as shown below.

Symptoms

Picture Sound

Interference Noisy Sound

Normal Picture No Sound

No Picture No Sound

No Picture Normal Sound

No Color Normal Sound

No remote control operations can be performed. Check whether the batteries have discharged completely and, if they have not, whether they

A cracking sound is sometimes heard from the unit. If there is nothing wrong with the picture or sound, this is the sound of the cabinet undergoing

The top or bottom of the picture on the screen is cut off when I use the zoom function.

Areas at the top and bottom of the screen where the image is missing appear when I use the zoom function.

Electrical Appliances Cars / Motorcycles Fluorescent light

Volume (Check whether the mute function has been activated on the remote control.)

Not plugged into AC outlet Not switched on PICTURE and BRIGHTNESS/Volume setting (Check by pressing the power switch or stand-by button on the remote control.)

If a signal with a non-applicable color system format, or frequency is input, only the input terminal indication is displayed.

Color controls set at minimum level. (see page 22, 23) COLOR SYSTEM (see page 33)

were inserted properly. Check whether the remote control sensor is exposed to an outdoor light or a strong fluorescent light. Check whether the remote control designed specifically for use with the unit is being used. (The unit cannot be operated by any other remote control.)

very slight contractions in response to changes in the room temperature. There are no adverse effects on the performance or other aspects.

Adjust the position of the picture on the screen.

When using a video software program (such as a cinema size program) with a screen wider than one in the 16:9 mode, blank areas separate from the images are formed at the top and bottom of the screen.

Checks

I can hear sounds coming from inside the unit. When the power is turned on, a sound of the display panel being driven may be heard: This is

This Plasma Display uses special image processing. Hence a slight time lag may occur between image and audio, depending on the type of input signal. However, this is not a malfunction.

normal and not indicative of malfunctioning.

Plasma Display panel

Symptoms Check

The screen darkens slightly when bright pictures with minimal movements are shown.

It takes a while for the picture to appear. The unit digitally processes the various signals in order to reproduce esthetically pleasing

The edges of the images flicker. Due to the characteristics of the system used to drive the panel, the edges may appear to flicker

The brightness on both sides of images in NORMAL mode changes.

Some parts of the screen do not light up. The plasma display panel is manufactured using an extremely high level of precision technology,

Image retention appears

The screen will darken slightly when photos, still images of a computer or other pictures with minimal movements are shown for an extended period. This is done to reduce image retention on the screen and the shortening of the screen’s service life: It is normal and not indicative of malfunctioning.

images. As such, it sometimes takes a few moments for the picture to appear when the power has been turned on, when the input has been switched or when the images for the main picture and sub picture on the two screens are swapped.

in the fast-moving parts of the images: This is normal and not indicative of malfunctioning. When viewing the side panels at the “BRIGHT” or “MID” setting, the brightness on both sides

may change depending on the kind of program shown: This is normal and not indicative of malfunctioning.

however, sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a malfunction.

Note:

The permanent image retention on the Plasma Display resulting from fixed image use is not an operating defect and as such is not covered by the Warranty. This product is not designed to display fixed images for extended periods of time.

Page 43

PC input signals

Applicable input signals for Mini D-sub 15P (Component) / Mini D-sub 15P (RGB) (* Mark)

Horizontal

Signal name

1 525 (480) / 60i 15.73 59.94 13.5 2 525 (480) / 60p 31.47 59.94 27.0 3 625 (575) / 50i 15.63 50.00 13.5 4 625 (575) / 50p 31.25 50.00 27.0 5 750 (720) / 60p 45.00 60.00 74.25 6 750 (720) / 50p 37.50 50.00 74.25 7 1,125 (1,080) / 60i 33.75 60.00 74.25 8 1,125 (1,080) / 50i 28.13 50.00 74.25

9 1,125 (1,080) / 24sF 27.00 47.92 74.25 10 1,125 (1,080) / 30p 33.75 30.00 74.25 11 1,125 (1,080) / 25p 28.13 25.00 74.25 12 1,125 (1,080) / 24p 27.00 24.00 74.25 13 1,250 (1,080) / 50i 31.25 50.00 74.25 14 640 × 400 @70 Hz 31.46 70.07 25.17 15 640 × 480 @60 Hz 31.47 59.94 25.18 16 640 × 480 @72 Hz 37.86 72.81 31.5 17 640 × 480 @75 Hz 37.50 75.00 31.5 18 640 × 480 @85 Hz 43.27 85.01 36.0 19 852 × 480 @60 Hz 31.47 59.94 33.54 20 800 × 600 @56 Hz 35.16 56.25 36.0 21 800 × 600 @60 Hz 37.88 60.32 40.0 22 800 × 600 @72 Hz 48.08 72.19 50.0 23 800 × 600 @75 Hz 46.88 75.00 49.5 24 800 × 600 @85 Hz 53.67 85.06 56.25 25 1,024 × 768 @60 Hz 48.36 60.00 65.0 26 1,024 × 768 @70 Hz 56.48 70.07 75.0 27 1,024 × 768 @75 Hz 60.02 75.03 78.75 28 1,024 × 768 @85 Hz 68.68 85.00 94.5 29 1,152 × 864 @75 Hz 67.50 75.00 108.0 30 1,280 × 960 @60 Hz 60.00 60.00 108.0 31 1,280 × 960 @85 Hz 85.94 85.00 148.5 32 1,280 × 1,024 @60 Hz 63.98 60.02 108.0 33 1,280 × 1,024 @75 Hz 79.98 75.03 135.0 34 1,280 × 1,024 @85 Hz 91.15 85.02 157.5 35 1,600 × 1,200 @60 Hz 75.00 60.00 162.0 36 1,600 × 1,200 @65 Hz 81.25 65.00 175.5 37 1,066 × 600 @60 Hz 37.64 59.94 53.0 38 1,366 × 768 @60 Hz 48.36 60.00 86.71 39 Macintosh13” (640 × 480) 35.00 66.67 30.24 40 Macintosh16” (832 × 624) 49.72 74.54 57.28 41 Macintosh21” (1,152 × 870) 68.68 75.06 100.0

∗1:

When selected the RGB format and 525p signal input to the Mini D-sub 15P terminal, it is recognized as VGA 60Hz signal.

∗2:

When inputted VGA 60Hz format signal from the other than Mini D-sub 15P terminal, it is recognized as 525p signal.

Note: Signals without above specification may not be displayed properly.

frequency

(kHz)

Vertical

frequency (Hz)

Dot clock

frequency

(MHz)

Mini D-sub 15P

(Component)

** ** ** ** ** ** ** ** ** ** ** ** **

Mini D-sub 15P

(RGB)

* * * * * * * * * * * * * * * * * * * * * * * * * * * *

∗1

∗2

Page 44

Command list of Weekly Command Timer

No. Command Control details

1 AAC:MENCLR Audio Menu (Clear) 2 AAC:MENDYN Audio Menu (Dynamic) 3 AAC:MENSTD Audio Menu (Standard) 4 AAC:SURMON Surround (ON) 5 AAC:SUROFF Surround (OFF) 6 AMT:0 Audio Mute (OFF) 7 AMT:1 Audio Mute (ON) 8 ASO:M Audio out when PIP mode (Main Picture)

9 ASO:S Audio out when PIP mode (Sub Picture) 10 AVL:00 Audio Volume (00) 11 AVL:10 Audio Volume (10) 12 AVL:20 Audio Volume (20) 13 AVL:30 Audio Volume (30) 14 AVL:40 Audio Volume (40) 15 AVL:50 Audio Volume (50) 16 AVL:60 Audio Volume (60) 17 DAM:FULL Aspect (FULL) 18 DAM:JUST Aspect (JUST) 19 DAM:NORM Aspect (NORMAL) 20 DAM:SELF Aspect (Panasonic AUTO) 21 DAM:ZOOM Aspect (ZOOM) 22 DWA:OFF Dual Picture mode (OFF) 23 DWA:OVL1 Advanced PIP mode (1) (see page 21) 24 DWA:OVL2 Advanced PIP mode (2) (see page 21) 25 DWA:OVL3 Advanced PIP mode (3) (see page 21) 26 DWA:OVL4 Advanced PIP mode (4) (see page 21) 27 DWA:OVL5 Advanced PIP mode (5) (see page 21) 28 DWA:OVL6 Advanced PIP mode (6) (see page 21) 29 DWA:OVLOF Advanced PIP mode (OFF) (normal two screen display mode) 30 DWA:OVLON Advanced PIP mode (ON) 31 DWA:PIN0 The location of the sub picture (lower right) 32 DWA:PIN1 The location of the sub picture (lower left) 33 DWA:PIN2 The location of the sub picture (upper left) 34 DWA:PIN3 The location of the sub picture (upper right) 35 DWA:PIP Dual Picture mode (Picture in Picture) 36 DWA:POP Dual Picture mode (Picture out Picture) 37 DWA:SWP Swap main picture and sub picture when PIP mode 38 DWA:TWN Dual Picture mode (Picture and Picture) 39 IMS:PC1 Input select (PC1) (Main Picture when PIP mode) 40 IMS:SL1 Input select (SLOT1) (Main Picture when PIP mode) 41 IMS:SL1A Input select (SLOT1A) (Main Picture when PIP mode) 42 IMS:SL1B Input select (SLOT1B) (Main Picture when PIP mode) 43 IMS:SL2 Input select (SLOT2) (Main Picture when PIP mode) 44 IMS:SL2A Input select (SLOT2A) (Main Picture when PIP mode) 45 IMS:SL2B Input select (SLOT2B) (Main Picture when PIP mode) 46 IMS:SL3 Input select (SLOT3) (Main Picture when PIP mode) 47 ISS:PC1 Sub Picture Input Select (PC1) 48 ISS:SL1 Sub Picture Input Select (SLOT1) 49 ISS:SL1A Sub Picture Input Select (SLOT1A) 50 ISS:SL1B Sub Picture Input Select (SLOT1B) 51 ISS:SL2 Sub Picture Input Select (SLOT2) 52 ISS:SL2A Sub Picture Input Select (SLOT2A) 53 ISS:SL2B Sub Picture Input Select (SLOT2B) 54 ISS:SL3 Sub Picture Input Select (SLOT3) 55 OSP:SCR0 Screen Saver WHITE BAR SCROLL (OFF) 56 OSP:SCR1 Screen Saver WHITE BAR SCROLL (ON) 57 POF Power OFF 58 PON Power ON 59 SSC:FNC0 Screen Saver function (WHITE BAR SCROLL) 60 SSC:FNC1 Screen Saver function (NEGATIVE) 61 SSC:MOD0 ScreenSaver (Mode (OFF)) 62 SSC:MOD3 ScreenSaver (Mode (ON)) 63 64

Picture Mute cannot be unlocked by powering off/on with the remote control. Turn off and on again with the button on

∗

the unit or enter the command VMT:0 to unlock Picture Mute.

VMT:0 VMT:1

∗ ∗

Picture Mute (OFF) Picture Mute (ON)

Page 45

Specifications

TH-37PR10U TH-42PR10U

Power Source 120 V AC, 50/60 Hz Power Consumption

Power on 340 W 380 W

Stand-by condition Save OFF 0.7 W, Save ON 0.5 W Save OFF 0.7 W, Save ON 0.5 W

Power off condition 0.2 W 0.2 W

Plasma Display panel Drive method : AC type 37-inch,

16:9 aspect ratio

Screen size 32.2” (819 mm) (W) × 18.0” (457 mm) (H)

× 37” (938 mm) (diagonal)

(No.of pixels) 737,280 (1,024 (W) × 720 (H))

[3,072 × 720 dots]

Operating condition

Temperature 32 °F - 104 °F (0 °C - 40 °C)

Humidity 20 % - 80 %

Applicable signals

Scanning format 525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 750 (720) / 60p · 50p, 1125 (1080) / 60i · 50i · 24p · 25p

· 30p · 24sF ···· SMPTE274M, 1250 (1080) / 50i

PC signals VGA, SVGA,

XGA, SXGA, UXGA ···· (compressed)

Horizontal scanning frequency 15 - 110 kHz

Vertical scanning frequency 48 - 120 Hz

Connection terminals

PC IN (HIGH-DENSITY MINI D-SUB 15PIN) Y or G with/sync 1.0 Vp-p (75 Ω)

Y or G without/sync 0.7 Vp-p (75 Ω) B/P R/P HD/VD: 1.0 - 5.0 Vp-p (high impedance) AUDIO IN (M3 JACK) 0.5 Vrms (high impedance)

SERIAL EXTERNAL CONTROL TERMINAL (D-SUB 9PIN) RS-232C COMPATIBLE

Accessories Supplied

Fixing bands TMME203 × 2

Dimensions (W × H × D)

Mass (weight) approx. 55.1 lbs approx. 61.7 lbs Sound

Speaker 4.8 ” (120 mm) × 2.4 ” (60 mm) × 2 pcs, 8 Ω

Audio Output 20W [10 W + 10 W] (10 % THD)

36.1” (917 mm) × 25.4” (644 mm) × 3.7” (95 mm)

(4.3” (109 mm) when including protruding portion of slots)

B/CB: 0.7 Vp-p (75 Ω) R/CR: 0.7 Vp-p (75 Ω)

40.2” (1,020 mm) × 27.8” (705 mm) × 3.7” (95 mm) (4.3” (109 mm) when including protruding portion of slots)

Drive method : AC type 42-inch,

16:9 aspect ratio

36.3” (922 mm) (W) × 20.4” (518 mm) (H) × 42” (1,057 mm) (diagonal)

786,432 (1,024 (W) × 768 (H))

[3,072 × 768 dots]

VGA, SVGA, XGA,

SXGA, UXGA ···· (compressed)

Horizontal scanning frequency 15 - 110 kHz

Vertical scanning frequency 48 - 120 Hz

Note:

Design and specifications are subject to change without notice. Mass and dimensions shown are approximate.

Page 46

Panasonic Professional Display Company, Unit of Panasonic Corporation of North America One Panasonic Way 2A-4 Secaucus, NJ 07094

PANASONIC PLASMA SCREEN

Limited Warranty

Panasonic Puerto Rico, Inc. Ave. 65de Infanteria, Km.9.5 San Gabriel Industrial Park Carolina, Puerto Rico 00985

Panasonic Professional Display Company or Panasonic Puerto Rico, Inc. (collectively referred to as “the Warrantor”) will repair this product and all included accessories with new or refurbished parts, free of charge in the USA or Puerto Rico, of the original purchase in the event of a defect in materials or workmanship as follow:

Models or Parts

Plasma Screen

Carry-in or mail-in service in the USA may be obtained during the warranty period by contacting Panasonic Professional Display Company Factory Servicenter listed in the Service Directory or call toll free 1-888-972-6276 to locate an authorized Servicenter.

Carry-in or mail-in service in Puerto Rico can be obtained during the warranty period by 787-750-5135

This warranty is extended only to the original purchaser and is non transferable. A purchase receipt or other proof of date of original purchase will be required before warranty service is rendered.

This warranty only covers failures due to defects in materials or workmanship, which occur during normal use. The warranty does not cover damage which occur in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result installation, set-up adjustments, improper antenna,

Part

Warranty

1 Y ear 1 Y ear

Labor

Warranty

inadequate signal pickup, maladjustment of consumer controls, improper operation, power line surge, improper voltage supply, lighting damage, or service by anyone other than an authorized repair facility, or damaged this attributable to acts of God.

LIMITS AND EXCLUSIONS

There are no express warranties except as listed above.

THE WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING, WITHOUT LIMITION, DAMAGE TO DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THE WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or limitations may nor apply to you. This warranty gives you specific legal rights and you may other rights, which vary from state to state.

If you have a problem with this product that is not handled to your satisfaction, then write the Consumer Affairs Department at the Company address indicated above.

In the USA

FOR THE NEAREST SERVICE CENTER

1-888-972-6276

50 Meadowland Parkway Panazip #1F-10 Secaucus, NJ 07094

In Puerto Rico

For service call 787-750-5135

Page 47

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

LIMITED WARRANTY STATEMENT

Panasonic Canada Inc. (also known as PCI) warrants this product to be free of defects in material and workmanship under normal use during the applicable warranty coverage period described below. PCI agrees to repair, or at its option, exchange, any part that becomes defective. However, the product must be purchased and serviced in Canada. The product or part that shows evidence of defect must be delivered prepaid or carried in to an authorized Panasonic Broadcast Service Center. This warranty does not cover shipping costs.

The warranty coverage period is one year for both parts and labour beginning with the date of original end user purchase, subject to the exceptions as stated below. Repaired or replacement parts supplied during the warranty coverage period carry the unexpired portion of the original warranty coverage period. Proof of product purchase is a condition of warranty service. The owner must produce the product purchase receipt or other satisfactory evidence of date of original purchase.

This warranty does not apply to external appearance items, such as handles, knobs, safety windows, etc. This warranty does not apply to any part, or parts, of the product, installed, altered, repaired or misused in any way that, in the opinion of PCI, affects the reliability of or detracts from the performance of the product.

For products requiring routine preventive maintenance, that maintenance must be performed in order to maintain warranty coverage.

Serial numbers that have been altered, defaced or removed void this warranty. This warranty does not cover replacements or repairs necessitated by loss or damage resulting from any cause beyond the control of PCI.

Marking or retained images (sometimes called “burn-in”) resulting from the display of fixed images on video display products are not defects and are not covered under this warranty.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES.

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable.

WARRANTY COVERAGE PERIOD EXCEPTIONS

Item

Video Tape

P2/SD Cards

Video Heads

D5 Video heads

Maintenance Items

Colour Camera CCD Imaging Block

LCD/CRT Monitors

* DLP™ Projectors

* LCD Projectors above

2,500 ANSI Lumens

* LCD Projectors below

2,500 ANSI Lumens

Projector Lamps

103 inch Plasma displays

Hard Drive Disk Unit

• Dust, smoke, rental/staging environment and twenty-four/seven operation, dramatically decreases the interval between performances of routine preventive maintenance required to maintain this warranty coverage.

Warranty Service

If the product needs to be shipped for service, carefully pack (preferably in the original carton) and enclose a letter, detailing the complaint. Send prepaid and adequately insured to the local authorized Panasonic Service Centre in your area or to Panasonic Technical Support and Product Services Department, 5770 Ambler Drive, Mississauga, Ontario, L4W 2T3. Shipping to the latter location requires a return authorization before shipment. No liability is assumed for loss or damage to the product while in transit.

Parts

30 days— Replacement only (content not covered)

(Content not covered)

1 year or 2,000 hrs. (prorated) Whichever comes first

1 year or

1,0

Whichever comes first

90 days

2 years

3 years or 17,000 hrs. Whichever comes first

3 years or 2,500 hrs. Whichever comes first

3 years or 1,500 hrs. Whichever comes first

50% of the rated lamp life or 1 year. Whichever comes first

3 year (burn-in not covered)

1 year plus balance (if any) of the original Manufacturer’s Limited Warranty. (Content not covered)

00 hrs.

Labour

N/A

1 year or 2,000 hrs. Whichever comes first

1 year or 1,000 hrs. Whichever comes first

90 days

1 year

3 years or 17,000 hrs. Whichever comes first

3 years or 2,500 hrs. Whichever comes first.

3 years or 1,500 hrs. Whichever comes first

50% of the rated lamp life or 1 year. Whichever comes first.

3 year

1 year

Page 48

Customer’s Record

The model number and serial number of this product can be found on its back cover . Y ou should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Panasonic Professional Display Company

Unit of Panasonic Corporation of North America

Executive Office :

One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7000 EASTERN ZONE : One Panasonic Way 4E-7 Secaucus, NJ 07094 (201) 348-7621

Mid-Atlantic/New England : One Panasonic Way 4E-7 Secaucus, NJ 07094 (201) 348-7621 Southeast Region : 1225 Northbrook Parkway, Ste 1-160 Suwanee GA 30024 (770)338-6835 Central Region : 1707 N Randall Road E1-C-1, Elgin, IL 60123 (847)468-5200

WESTERN ZONE : 3330 Cahuenga Blvd W., Los Angeles, CA 90068 (323) 436-3500 Dallas Region : 6226 Abington Way, Houston, TX 77008 (713) 802-2726 No. CA/Northwest Region : 5870 Stone Ridge, #3, Pleasanton, CA (925) 416-5108

Government Marketing Department : 52 West Gude Drive, Rockville, MD 20850 (301) 738-3840 Panasonic Canada Inc.

5770 Ambler Drive Mississauga, Ontario L4W 2T3

Printed in U.S.A.
