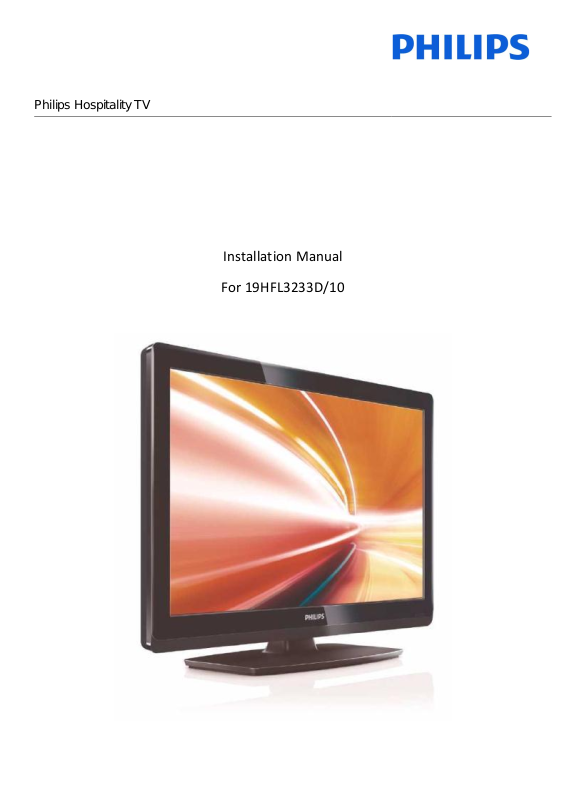

Philips Hospitality TV

Installation Manual

For 19HFL3233D/10

Contents:

1. Requirements before starting the installation .......................................................................................................... 3

2. Find out the state of the TV ...................................................................................................................................... 4

3. Re-install TV .............................................................................................................................................................. 5

4. Installation wizard. .................................................................................................................................................... 6

5. Prison Mode ............................................................................................................................................................ 10

2

Master remote control 22AV8573

Standard remote control

USB stick

1. Requirements before starting the installation

Before starting the installation, make sure that you have everything you need at hand.

A few key points you need to know.

1. Fixed High Security, this means that the menu is only accessible with the Setup remote. (Green/yellow).

2. The key sequence ‘3,1,9,7,5,3, MUTE’ does not activate Prison Mode menu.

3. After configuration the TV needs a restart.

For cloning settings from one TV to another TV, you will need to have a USB stick. This stick needs to be formatted as
FAT32 and should be empty.

Always check if the software version on the TV is the latest one. You can do this by using the Master remote and
press the recall button. On page 2.1 – Current Main Software, you can see the version the set is using.

The latest software can be downloaded by going to this link.

http://www.philips.com/support

Here you can enter the model number and check the latest version available.

Check if the software version present on TV is identical with the one from the website. If not please download the
latest version from the website and unzip it on a USB key. The USB key must be formatted FAT32 and preferably
empty to avoid an accidental upload of the wrong settings and software. Follow the instructions on how to upgrade
the software.

If the software version from your TV is identical with the one available on the website it is not necessary to upgrade.

3

2. Find out the state of the TV

It is important to know the state of the TV before starting the installation. For this set, there are 2 options. If click on
setup, you can see one of two possibilities.

The menu below will only show when ‘Channel install’ is set to ‘ON’.

If “Channel install” is set to ‘OFF’, the TV menu will look as shown below.

4
