Philips TD6600 User Manual

Your handset

Antenna

Earpiece

This display tells you what is

happening on your telephone.

Down Key

Display

Press this key to move through

the menu or to decrease

earpiece volume during calls.

Phone Book Key

Press this key to consult

your phone book.

Hookswitch Key

Use this key to make, answer

or end calls.

Recall/Menu Key

Press this key to enter or leave

menu mode, or to use the Recall

function during a call.

Up Key

Press this key to move through the menu or to increase earpiece volume during calls.

OK Key

Press this key to confirm a menu selection or to scroll the number on the display.

Loudspeaker Key

Press this key to turn on or off the handset loudspeaker.

Answering Machine Key

Press this key to operate your answering machine.

Number/Character Keypad

Use these keys for dialling and for entering characters.

Redial Key

Press this key to redial the last number called.

Internal Call Key

Press this key to make, answer

or end internal calls and to

transfer an outside call to

another handset.

Microphone

SOS Key

Press this key to make an emergency call.

Standby

se symbols

you what is

pening on

r phone.

When:

M e

Your display

This line o display sh up to 10 numbers o characters

is on

blinks

is on

blinks

is on

- your handset is in menu mode.

- you are in an internal call with another handset.

- an outside call has been put on hold.

- another handset is calling your handset.

- the outside line is occupied.

- the outside line is on hold.

- the outside line is ringing.

- the handset is charging when on the base station.

is on

blinks

- the battery is discharged when

- your handset is out of range of the base station.

- you are reaching the limit of the handset’s range.

- your handset is not subscribed to any base station.

- the handset loudspeaker is on.

- your answering machine is switched on.

- your answering machine is answering a call.

- you have pressed the

- you have received new messages on the answering machine.

off

the base station.

key to operate your answering machine.

Your base station

Antenna

Paging Key

Press this key to page handsets and to adjust ringer volume whilst the base station is ringing.

Light

On when the base station is powered. It blinks when an outside call arrives or is in progress, or when there are new messages on the answering machine. After a power failure, it blinks to indicate that the time setting has been erased.

In the interest of improving its products and services, Philips reserves the rights to modify the specifications

contained in this document at any time and without prior notice.

Your Xalio Vox cordless telephone 4

Safety information

Installing your Xalio Vox 6

Connecting your phone

Deciding where to put the base station Connecting the base station Connecting another telephone Ringer Equivalence Number (REN)

Charging your handset

Handset discharge

Testing your telephone

Using your Xalio Vox 9

Making a call Answering a call Redialling the last number called Adjusting sound volume Using the handset loudspeaker Paging a handset

6 6 7 7

9 10 10 10 11 11

Your Xalio Vox answering machine 12

Setting up your answering machine

Recording an outgoing message Setting the day and time

Using your answering machine

Switching on the answering machine Switching off the answering machine Intercepting calls Filtering calls Listening to received messages Erasing messages

Personalising your answering machine

Switching the message voice prompt on or off Entering a remote control code Changing the number of rings Switching message record on or off

Your answering machine’s advanced functions

Recording a local message Switching on the answering machine by remote control Calling into your answering machine by remote control Using the message boxes

Table of Contents2

13 14

15 15 16 16 17 18

19 19 20 21

21 22 22 23

Personalising your telephone 26

Entering menu mode Setting the dial mode Selecting the ringer melody of your handset Switching off the handset ringer Using the battery saver

Your phone book and emergency number 28

The phone book

Storing a name and number in your phone book Using the handset keypad to enter characters Making a call using the phone book Removing a name and number from your phone book

The emergency number

Entering an emergency number - SOS Calling the emergency number

28 29 29 29

30 30

Using advanced functions 31

Inserting automatic dialling pauses Subscribing a new handset to your base station Making internal calls Answering internal calls Transferring calls Call waiting Setting up Baby Sit Subscribing one handset to several base stations

Selecting the base station

Removing a handset

Connection to a PABX 37

Selecting network type Setting the recall type

Useful tips and maintenance 39

Beeps and melodies Base station indicator light Telephone troubleshooting guide Answering machine troubleshooting guide Caring for your phone Changing the battery

Index 43

Table of Contents 3

Your Xalio Vox cordless telephone

Your Philips of features.

You c an :

•

Display and correct the number you want to call.

•

Store up to 25 numbers and associated names in the phone book.

•

Call numbers stored in the phone book.

•

Store an emergency number.

•

Redial the last number called.

•

Control the handset earpiece sound volume.

•

Turn on the handset loudspeaker during a call.

•

Select the ringer melody on the handset from a selection of 4 melodies.

•

Enable or disable the handset or base station ringer.

•

Use paging from the base station to locate a handset.

•

Display the duration of a call.

•

Subscribe your handset up to 4 base stations.

•

Connect your Xalio Vox to a private branch exchange (PABX).

....with the answering machine, you can:

•

Call your answering machine from your handset or from a telephone outside your home.

•

Filter calls using your handset.

•

Assign a voice prompt to your messages.

... and, if you acquire several handsets you can:

•

Subscribe up to 6 handsets to one base station.

•

Make 2 calls at the same time (1 outside and 1 internal call).

•

Transfer calls from one handset to another.

•

Use your handsets as a baby sit intercom system.

Xalio Vox

cordless telephone combines ease of use and a wide range

What you get with your phone

•

1 cordless handset

fitted with an uncharged battery

•

1 base station

•

1 power cable

•

1 telephone cable

•

1 user manual

Your Xalio Vox cordless telephone4

Safety information

This product may be used legally only in a country where the appropriate authority has given its specific authorisation. This authorisation appears on a label at the back of base station.

The marking on the product certifies its conformity to the technical regulations for user safety and electromagnetic disturbance which were applicable on the date of approval in accordance with European Union directive No. N°91/263/EEC.

Power requirements

This product requires an electrical supply of 230 volts, alternating monophased current, excluding IT installations defined in standard EN 60-950.

Warning!

This equipment is not designed for making emergency telephone calls when the power fails. Alternative arrangements should be made for access to emergency services.

The electrical network is classified as dangerous according to criteria in the standard EN 60-950.

The only way to power down this product is by unplugging the power cable from the electrical outlet. Make sure the electrical outlet is located close to the apparatus and is always easily accessible.

It is recommended that this telephone be used as a complement to another telephone which does not require mains power.

Telephone connection:

The voltage on this network is classified as TNV-3 (Telecommunication Network Voltages, as defined in the standard EN 60-950).

Safety precautions:

•

Do not allow the handset to come into contact with water.

•

Do not open the handset or the base station. This could expose you to high voltages. Contact our after-sales service for all repairs.

•

Do not allow the charging contacts or the battery to come into contact with conductive materials such as keys, paper clips, rings, bracelets, etc.

Your Xalio Vox cordless telephone 5

Installing your Xalio Vox

Connecting your phone

Deciding where to put the base station

•

To reduce to a minimum any interference with other electronic devices such as telephones, televisions, screens, etc. we advise you to place your base station at least 50 cm from any other electronic device.

•

Place the base station on a flat surface such as a desk.

•

Do not install the base station in a damp or humid room.

•

Do not place the base station near a strong source of heat.

The operating range of your cordless telephone will vary according to your environment. Significant obstacles such as concrete walls or metallic supports (windows and door frames, partitions, etc.) will lessen the communication range between the base station and the handset.

Note:

Your Xalio Vox can be adapted for a wall installation using a wall mounting bracket available from your local Philips dealer.

Connecting the base station

Make sure that you connect the power plug to the correct mains voltage of 230 V.

1 Step one

Plug the power cable into the base station and then into the wall outlet.

2 Step two

Plug the telephone cable into the base station and then into the telephone connector on the wall.

Note:

You can connect a Philips battery backup unit between your telephone and the power supply. Please refer to the instructions for use of this accessory.

Installing your Xalio Vox6

Connecting another telephone

If you connect a second telephone (standard telephone) on the same line, please use a

Another telephone

T-Adaptor

To B.T. socket

T-Adaptor

Telephone line cord

Ringer Equivalence Number (REN)

Your Xalio Vox has a Ringer Equivalence Number (REN) of 1.0 . To determine the maximum number of telephones that can be connected to your line, add together the individual RENs of all the apparatus you wish to connect. If this total exceeds four, one or all of your telephones may not ring correctly.

Charging your handset

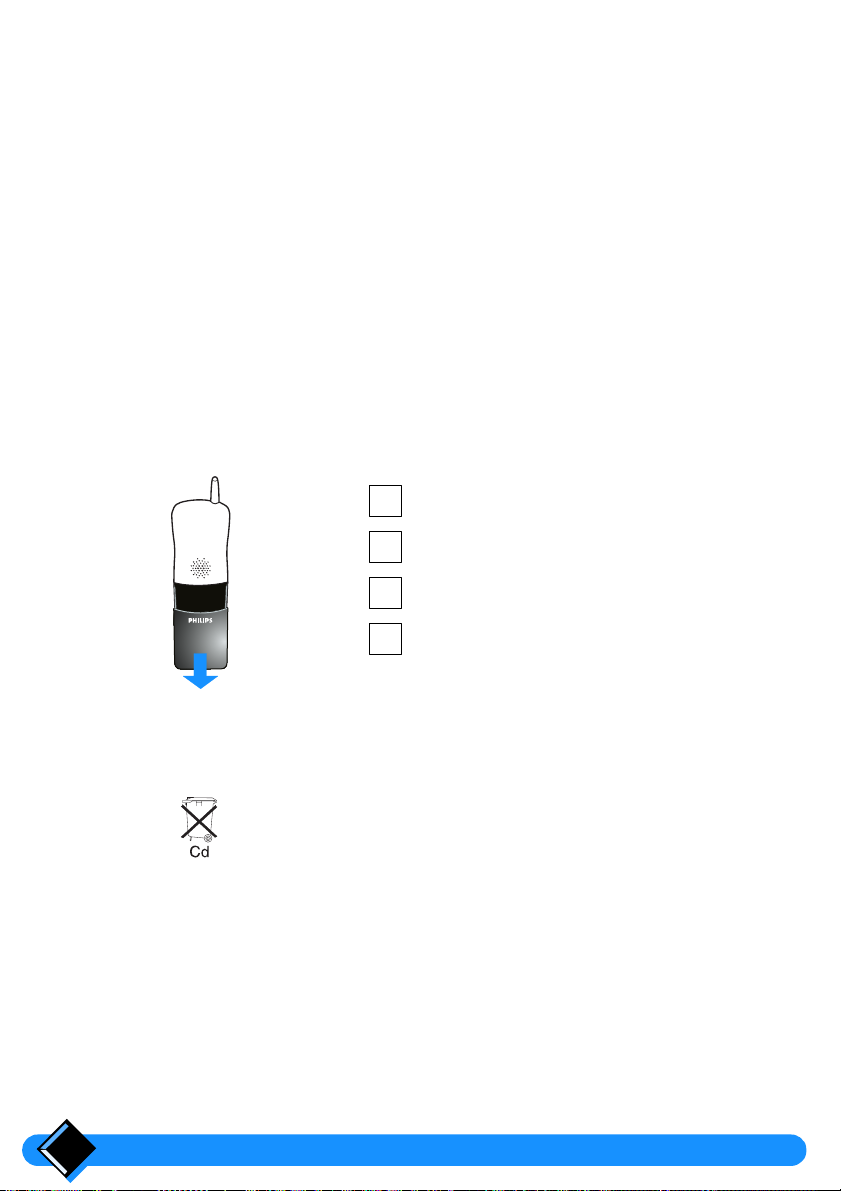

Your handset is powered by a rechargeable battery.

Before you use your telephone for the first time, charge the handset for at least 12 hours.

To charge your handset, place it on the base station. The b symbol will appear on the display to indicate that the handset is charging.

When the

The base station must be connected to a power supply using the power cable supplied with your phone.

To ensure an optimum handset charge, replace the handset on the base station regularly.

This precaution helps to lengthen the life of the battery.

symbol disappears, your handset is fully charged.

Installing your Xalio Vox 7

Tip

Handset discharge

Shortly before the handset is totally discharged, the b symbol appears on the handset display. If you are in the middle of a call, you will also hear a warning beep.

The handset will switch itself off shortly afterwards. You will need to recharge the handset before you can use it again.

Testing your telephone

Now that your telephone is installed, try making a call.

•

Press t on the handset. The t symbol appears on the display and you hear the dial tone.

•

Dial the number. The digits you dial appear on the display and the dial tone should stop.

If you have problems making your test call, make sure that the telephone cord is correctly plugged into the telephone network socket and into the base station socket, that the base station is plugged into a power outlet, and that the base station light is on.

If your base station is correctly connected but the dial tone does not stop when you dial the number, you need to change the dial mode. To do this refer to

dial mode”

on page 26.

“Setting the

The handset display should show the base station name, change the base station name if you wish (see

base station”

on page 32).

“Subscribing a new handset to your

PHILIPS

. You can

Installing your Xalio Vox8

Using your Xalio Vox

Making a call

Direct dialling

Press the t

The

handset earpiece.

Dial the number using the number keys.

The number called is displayed for 10 seconds after the last key is pressed, then is replaced by a timer showing the duration of your call. If the number you enter is longer than 10 digits, the display will scroll the number to the left to show the last digits.

To hang up, press

The duration of your call in minutes and seconds is displayed for 2 seconds.

Dialling with number preparation

This way of dialling allows you to make corrections to the number before dialling.

Dial the number before pressing the

make corrections by cancelling the last digit entered.

If the number you enter is longer than 10 digits, the display will scroll the number to the left to show the last digits.

key on the handset.

symbol is shown on the display and you hear the dial tone in the

or replace the handset on the base station.

t key. You can use the - key to

Tip

If you want to see the whole number you have dialled so far, press

. The number will scroll to the left if it is longer than 10 digits.

Press the t

The number prepared is automatically dialled. The

You can also press is dialled.

To hang up, press t

The call duration is displayed for 2 seconds.

key on the handset.

symbol will be displayed, followed by the call duration after 10 seconds.

. The handset loudspeaker is activated and the number

or replace the handset on the base station.

Using your Xalio Vox 9

Answering a call

When someone calls you, the base station and the handset ring, the t symbol blinks on the handset display and the green light on the base station flashes.

Press the

The light on the base station blinks regularly to indicate that a call is in progress.

You can also press take the call.

To hang up, press

The call duration is displayed for 2 seconds.

t key on the handset or simply lif t it of f the base station.

symbol stops blinking and the call duration is displayed. The green

. The handset loudspeaker is activated and you can

or replace the handset on the base station.

Redialling the last number called

Direct redial

Press the

Wait for the dial tone.

Press the key on the handset.

The last number called is shown on the display and dialled automatically.

Redial with number correction

Press the key on the handset.

The last number called is shown on the display. You can use the make corrections by cancelling the last digit entered.

Press the

t key on the handset.

key to

Adjusting sound volume

Adjusting the handset earpiece volume

You can adjust the earpiece sound volume during a call by pressing + or -.

You can choose from 3 possible sound levels. The sound level you have selected will be set for your next calls.

Adjusting the base station ringer volume

You can adjust the volume of the base station ringer when the base station is ringing.

You adjust the sound volume by pressing the button on the base station. There are 4 possible volume levels. At the lowest level, the base station will not ring.

Using your Xalio Vox10

Using the handset loudspeaker

Your handset is fitted with a loudspeaker so that other people with you can listen to the conversation.

During a call, press

The The sound is amplified through the loudspeaker at the back of the handset.

You can adjust the sound volume of the loudspeaker when it is on by

pressing

To turn off the loudspeaker, press H

symbol is displayed.

+ or -.

Paging a handset

If you can’t find your handset, you can page it from the base station. All handsets in range will ring.

Briefly press the button of the base station.

The handsets within range will ring for 20 seconds. If you press again before the end of the 20 seconds, the handsets will stop ringing.

again.

Using your Xalio Vox 11

+ 34 hidden pages
