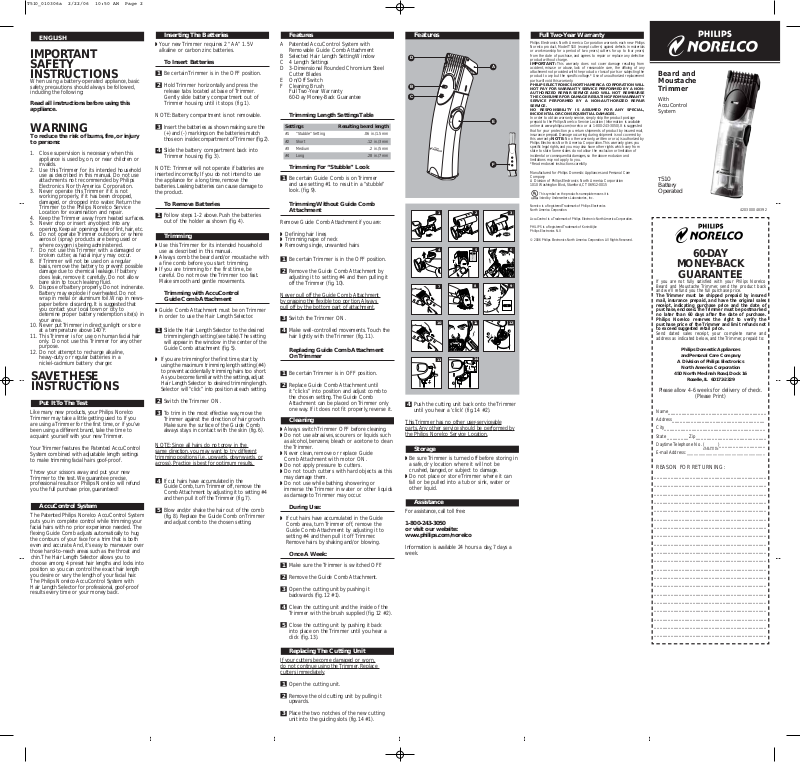

Page 1
Beard and
Moustache
Trimmer
With
AccuControl
System
T510
Battery
Operated
4203 000 4839 2
Page 2
ENGLISH
IMPORTANT
SAFETY
INSTRUCTIONS
When using a battery-operated appliance, basic
safety precautions should always be followed,
including the following:
Read all instructions before using this
appliance.
WARNING
To reduce the risk of burns,fire, or injury
to persons:
1. Close supervision is necessar y when this
appliance is used by, on,or near children or
invalids.
2. Use this Trimmer for its intended household
use as described in this manual.Do not use
attachments not recommended by Philips
Electronics North America Corporation.
3. Never operate this Trimmer if it is not
working properly, if it has been dropped,
damaged,or dropped into water. Return the
Trimmer to the Philips Norelco Service
Location for examination and repair.
4. Keep the Trimmer away from heated surfaces.
5. Never drop or insert any object into any
opening.Keep air openings free of lint, hair,etc.
6. Do not operate Trimmer outdoors or where
aerosol (spray) products are being used or
where oxygen is being administered.
7. Do not use this Trimmer with a damaged or
broken cutter, as facial injury may occur.
8. If Trimmer will not be used on a regular
basis,remove the battery to prevent possible
damage due to chemical leakage. If batter y
does leak,remove it carefully. Do not allow
bare skin to touch leaking fluid.
9. Dispose of battery properly. Do not incinerate.
Battery may explode if overheated.Do not
wrap in metal or aluminum foil.Wrap in newspaper before discarding.It is suggested that
you contact your local town or city to
detemine proper battery redemption site(s) in
your area.
10. Never putTrimmer in direct sunlight or store
at a temperature above 140˚F.
11. This Trimmer is for use on human facial hair
only. Do not use this Trimmer for any other
purpose.
12. Do not attempt to recharge alkaline,
heavy-duty or regular batteries in a
nickel-cadmium battery charger.
SAVE THESE
INSTRUCTIONS
Put It T o The T est
Like many new products,your Philips Norelco
Tr immer may take a little getting used to. If you
are using a Trimmer for the first time, or if you’ve
been using a different brand, take the time to
acquaint yourself with your new Trimmer.
Your Trimmer features the Patented AccuControl
System combined with adjustable length settings
to make trimming facial hairs goof-proof.
Throw your scissors away and put your new
Tr immer to the test.We guarantee precise,
professional results or Philips Norelco will refund
you the full purchase price, guaranteed!
AccuControl System
The Patented Philips Norelco AccuControl System
puts you in complete control while trimming your
facial hairs with no prior exper ience needed. The
flexing Guide Comb adjusts automatically to hug
the contours of your face for a trim that is both
even and accurate.And, it’s easy to maneuver over
those hard-to-reach areas such as the throat and
chin. The Hair Length Selector allows you to
choose among 4 preset hair lengths and locks into
position so you can control the exact hair length
you desire or vary the length of your facial hair.
The Philips Norelco AccuControl System with
Hair Length Selector for professional,goof-proof
results every time or your money back.
Page 3
Inserting The Batteries
◗ Your new Trimmer requires 2 “AA” 1.5 V
alkaline or carbon zinc batteries.
To Insert Batteries
1 Be certain Trimmer is in the OFF position.
2 Hold Trimmer horizontally and press the
release tabs located at base of Trimmer.
Gently slide battery compartment out of
Trimmer housing until it stops (fig. 1).
NOTE: Battery compartment is not removable.
3 Insert the batteries as shown making sure the
(+) and (-) markings on the batteries match
thoseon insidecompartment ofTrimmer(fig.2).
4 Slide the battery compartment back into
Trimmer housing (fig. 3).
NOTE: Tr immer will not oper ate if batter ies are
inser ted incor rectly.If you do not intend to use
the appliance for a long time, remove the
batteries. Leaking batteries can cause damage to
the product.
To Remove Batteries
1 Follow steps 1-2 above.Push the batteries
out of the holder as shown (fig.4).
Trimming
◗ Use this Trimmer for its intended household
use as described in this manual.
◗ Always comb the beard and/or moustache with
a fine comb before you start trimming.
◗ If you are trimming for the first time,be
careful.Do not move the Trimmer too fast.
Make smooth and gentle movements.
Trimming with AccuControl
Guide Comb Attachment
◗ Guide Comb Attachment must be on Trimmer
in order to use the Hair Length Selector.
1 Slide the Hair Length Selector to the desired
trimming length setting (see table).The setting
will appear in the window in the center of the
Guide Comb attachment (fig.5).
◗ Ifyouaretrimmingfor the first time,start by
usingthe maximum trimming length setting(#4)
topreventaccidentally trimminghairstoo short.
Asyoubecomefamiliar with the settings,adjust
HairLength Selector to desired trimming length.
Selectorwill“click”intoposition at each setting.
2 Switch the Trimmer ON.
3 To trim in the most effective way, move the
Trimmer against the direction of hair growth.
Make sure the surface of the Guide Comb
always stays in contact with the skin (fig.6).
NO
TE: Since all hairs do not grow in the
same direction, you may want to try different
trimming positions (i.e., upwards, downwards, or
Practice is best f
across).
or optimum results.
4 If cut hairs have accumulated in the
Guide Comb,turn Trimmer off,remove the
CombAttachment by adjusting it to setting #4
and then pull it off the Trimmer (fig.7).
5 Blow and/or shake the hair out of the comb
(fig.8). Replace the Guide Comb on Trimmer
and adjust comb to the chosen setting.
Page 4
Features
A Patented AccuControl System with
Removable Guide Comb Attachment
B Selected Hair Length Setting Window
C 4 Length Settings
D 3-Dimensional Rounded Chromium Steel
Cutter Blades
E On/Off Switch
F Cleaning Brush
Full T w o-Y ear War ranty
60-Day Money-Back Guarantee
Trimming Length Settings Table
Settings Resulting beard length
#1 “Stubble” Setting .06 in./1.5 mm
#2 Short .12 in./3 mm
#3 Medium .2 in./5 mm
#4 Long .28 in./7 mm
Trimming For “Stubble” Look
1 Be certain Guide Comb is on Trimmer
and use setting #1 to result in a “stubble”
look.(fig. 9).
T rimming Without Guide Comb
Attachment
Remove Guide Comb Attachment if you are:
◗ Defining hair lines
◗ Trimming nape of neck
◗ Removing single, unwanted hairs
1 Be certain Trimmer is in the OFF position.
2 Remove the Guide Comb Attachment by
adjusting it to setting #4 and then pulling it
off the Trimmer (fig.10).
Nev
er pull off the Guide Comb Attachment
y grasping the flexible top por tion. Always
b
pull off by the bottom part of attachment.
3 Switch the Trimmer ON.
4 Make well-controlled movements.Touch the
hair lightly with the Trimmer (fig. 11).
Replacing Guide Comb Attachment
On T rimmer
1 Be certain Trimmer is in OFF position.
2 Replace Guide Comb Attachment until
it “clicks” into position and adjust comb to
the chosen setting. The Guide Comb
Attachment can be placed on Trimmer only
one way. If it does not fit properly,reverse it.
Cleaning
◗ Always switch Trimmer OFF before cleaning.
◗ Do not use abrasives,scourers or liquids such
as alcohol,benzene, bleach or acetone to clean
the T rimmer .
◗ Never clean,remove or replace Guide
Comb Attachment with motor ON.
◗ Do not apply pressure to cutters.
◗ Do not touch cutters with hard objects as this
may damage them.
◗ Do not use while bathing,showering or
immerse the Trimmer in water or other liquids
as damage to Trimmer may occur.
During Use:
◗ If cut hairs have accumulated in the Guide
Comb area,turn Trimmer off,remove the
Guide Comb Attachment by adjusting it to
setting #4 and then pull it off Trimmer.
Remove hairs by shaking and/or blowing.
Once A W eek:
1 Make sure the Trimmer is switched OFF.
2 Remove the Guide Comb Attachment.
3 Open the cutting unit by pushing it
backwards (fig.12 #1).
4 Clean the cutting unit and the inside of the
Trimmer with the brush supplied (fig. 12 #2).
5 Close the cutting unit by pushing it back
into place on the Trimmer until you hear a
click (fig.13).
Replacing The Cutting Unit
If your cutters become damaged or worn,
do not continue using the Trimmer. Replace
cutters immediately.
1 Open the cutting unit.
2 Remove the old cutting unit by pulling it
upwards.
3 Place the two notches of the new cutting
unit into the guiding slots (fig. 14 #1).
Page 5
Features
D
B
C
A
E
F
CLICK
1
4
7
10
13
2
2
5
4
8
4
11
1
14
1
3
CLICK
6
9
12
2
4 Push the cutting unit back onto the Trimmer
until you hear a ‘click’ (fig. 14 #2).
Trimmer has no other user-serviceable
This
Any other service should be performed by
ts.
par
the Philips Norelco Service Location.
Storage
◗ Be sure Trimmer is turned off before storing in
a safe, dry location where it will not be
crushed,banged, or subject to damage .
◗ Do not place or store Trimmer where it can
fall or be pulled into a tub or sink,water or
other liquid.
Assistance
For assistance, call toll free:
1-800-243-3050
or visit our website:
www.philips.com/norelco
Information is available 24 hours a day, 7 days a
week.
Page 6
Full T w o-Y ear W arranty
Philips Electronics North America Corporation war rants each new Philips
Norelco product, Model T510 (except cutter s) against defects in materials
or workmanship for a period of two years (cutters for up to four years)
from the date of purchase, and agrees to repair or replace any defective
product without charge.
IMPORTANT: This warranty does not cover damage resulting from
accident, misuse or abuse, lack of reasonable care, the affixing of any
attachment not provided with the product or loss of parts or subjecting the
product to any but the specific voltage.* Use of unauthorized replacement
parts will void this warr anty.
PHILIPS ELECTRONICS NORTH AMERICA CORPORATION WILL
NOT PAY FOR WARRANTY SERVICE PERFORMED BY A NONAUTHORIZED REPAIR SERVICE AND WILL NOT REIMBURSE
THE CONSUMER FOR DAMAGE RESULTING FROM WARRANTY
SERVICE PERFORMED BY A NON-AUTHORIZED REPAIR
SERVICE.
NO RESPONSIBILITY IS ASSUMED FOR ANY SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES.
In order to obtain warranty ser vice , simply ship the product postage
prepaid to the Philips Norelco Service Location (Information is available
online at www.philips.com/norelco or at 1-800-243-3050).It is suggested
that for your protection you return shipments of product by insured mail,
insurance prepaid. Damage occurring during shipment is not covered by
this warranty.NOTE: No other warranty, wr itten or or al, is authorized by
Philips Electronics North America Corporation.This warranty gives you
specific legal rights, and you may also have other rights which var y from
state to state. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above exclusion and
limitations may not apply to you.
*Read enclosed instructions carefully.
Manufactured for: Philips Domestic Appliances and Personal Care
Company
A Division of Philips Electronics North America Corporation
1010 Washington Blvd., Stamford, CT 06912-0015
Norelco is a Registered Trademark of Philips Electronics
North America Corporation.
AccuControl is a Trademark of Philips Electronic North America Corporation.
PHILIPS is a Registered Trademark of Koninklijke
Philips Electronics N.V.
© 2006 Philips Electronics North America Corporation. All Rights Reserved.
Page 7
60-DAY
MONEY-BACK
If you are not fully satisfied with your Philips Norelco
GUARANTEE
Beard and Moustache Trimmer, send the product back
and we’ll refund you the full purchase price.
The Trimmer must be shipped prepaid by insured
mail, insurance prepaid, and have the original sales
receipt, indicating purchase price and the date of
purchase,enclosed.The Trimmer must be postmarked
no later than 60 days after the date of purchase.
Philips Norelco reserves the right to verify the
purchase price of the Trimmer and limit refunds not
to exceed suggested retail price.
Send dated sales receipt, your complete name and
address as indicated below,and the Trimmer, prepaid to:
Philips Domestic Appliances
and Personal Care Company
A Division of Philips Electronics
North America Corporation
450 North Medinah Road, Dock 16
Roselle, IL 60172-2329
Please allow 4-6 weeks for delivery of check.
Name
____________________________________
Address
__________________________________
_____________________________________
City
State
________
Daytime Telephone No.(
E-mail Address:_________________________________
(Please Print)
Zip
__________________________
_____)_________________
AREACODE
REASON FOR RETURNING:
_________________________________________
_________________________________________
_________________________________________
_________________________________________
_________________________________________
_________________________________________
_________________________________________
_________________________________________
_________________________________________
_________________________________________
_________________________________________
_________________________________________
_________________________________________
_________________________________________
_________________________________________
_________________________________________
_________________________________________
_________________________________________
_________________________________________
_________________________________________
Loading...
