Owner’s Manual

Digital Video Disc Player

MODEL SVD100

Once your purchase is registered, you’re eligible to receive all the privileges of owning this product. So complete and return the Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.

MAC5097

Return your Warranty Registration Card today to

ensure you receive all the

benefits

you’re entitled to.

Warranty Verification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your warranty.

Owner Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

Model Registration

Returning your Warranty Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model.

Congratulations on your purchase, and welcome to the “family!”

Dear product owner:

Thank you for your confidence in this product. You’ve selected one of the best-built, best-backed products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come. As a member of the SV2000 “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry. What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network. And most importantly, you can count on our uncompromising commitment to your total satisfaction. All of this is our way of saying welcome - and thanks for investing in an SV2000 product.

P.S. Remember, to get the most from your product,

you must return your Warranty Registration Card within 10 days. So please mail it to us right now!

Hurry!

Know these

safetysymbols

This “bolt of lightning” indi-

cates uninsulated material within your unit which may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The “exclamation point” calls attention to features

for which you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

ATTENTION: Pour éviter les choc électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

For Customer Use

Below, enter your product’s model number and serial number, which are located on the rear of the cabinet. Keep this information for future reference.

Model No. ______________________________________ Serial No. ____________________________

Safety Precautions

Warning: To prevent fire or shock hazard, do not expose this equipment to rain or

moisture. Federal Communications Commission (FCC) Warning: Any unauthorized changes or modifications to this equipment void the user’s authority to operate it.

Laser Safety

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury. CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM. THE BEAM IS LOCATED INSIDE, NEAR THE DECK MECHANISM.

Special Information for Canadian Users

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Radio/TV Interference

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and the receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

Unauthorized copying, broadcasting, public performance and lending of Discs are prohibited. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Safety Information 3

As an ENERGY STAR®Partner, Philips Consumer Electronics Company has determined that this product meets the ENERGY STAR®guidelines for energy efficiency. ENERGY STAR®is a U.S.

registered mark. Using products with the ENERGY STAR®label can save energy. Saving energy reduces air pollution and lowers utility bills. Manufactured under license from Dolby Laboratories. "Dolby," "AC-3," and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. (© 1992-1997 Dolby Laboratories, Inc. All rights reserved.) DTS is a trademark of Digital Theater Systems Inc. in the United States of America.

4 Table of Contents

General Information

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Getting Started

Remote Control Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Hookups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-12

DVD Player Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

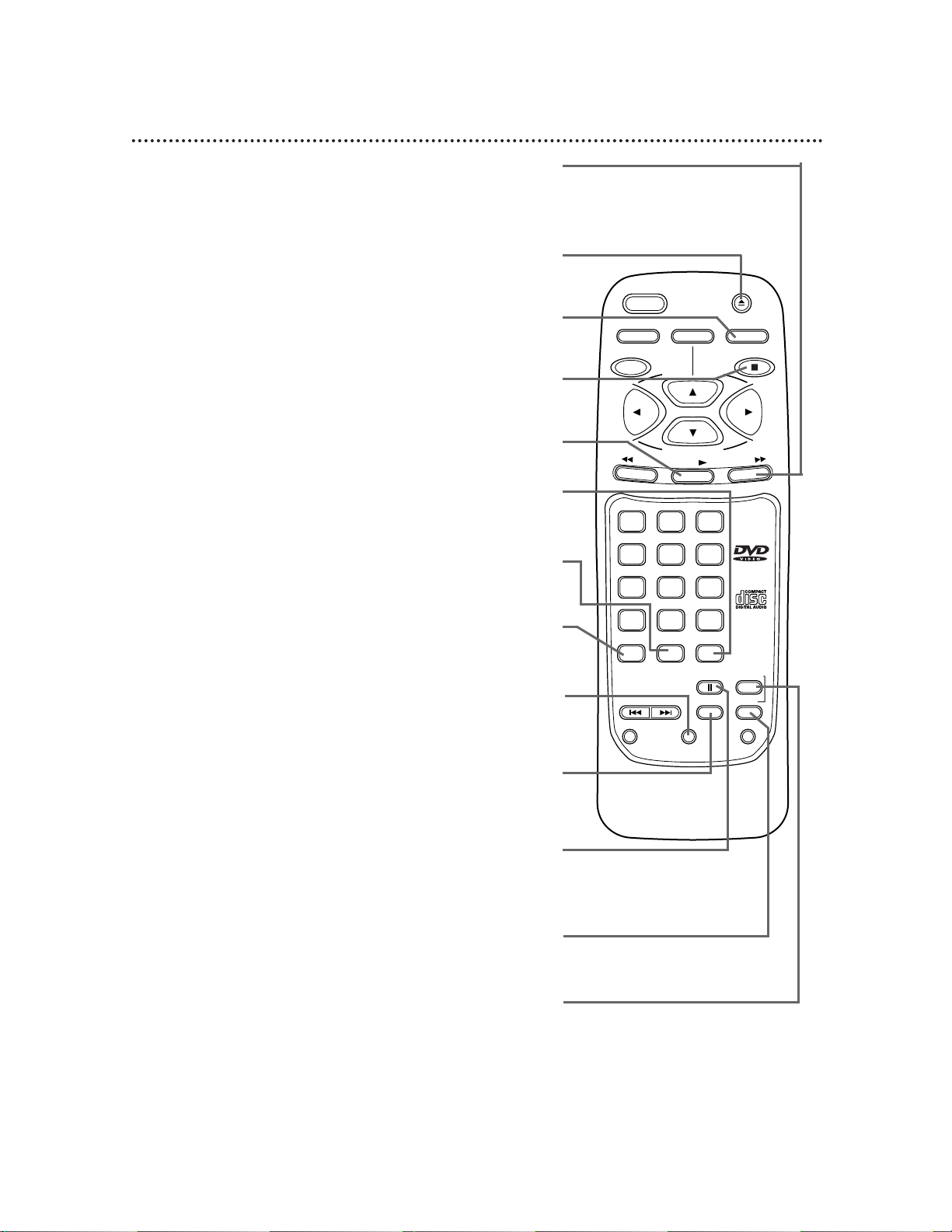

Remote Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16-17

Disc Playback and Features

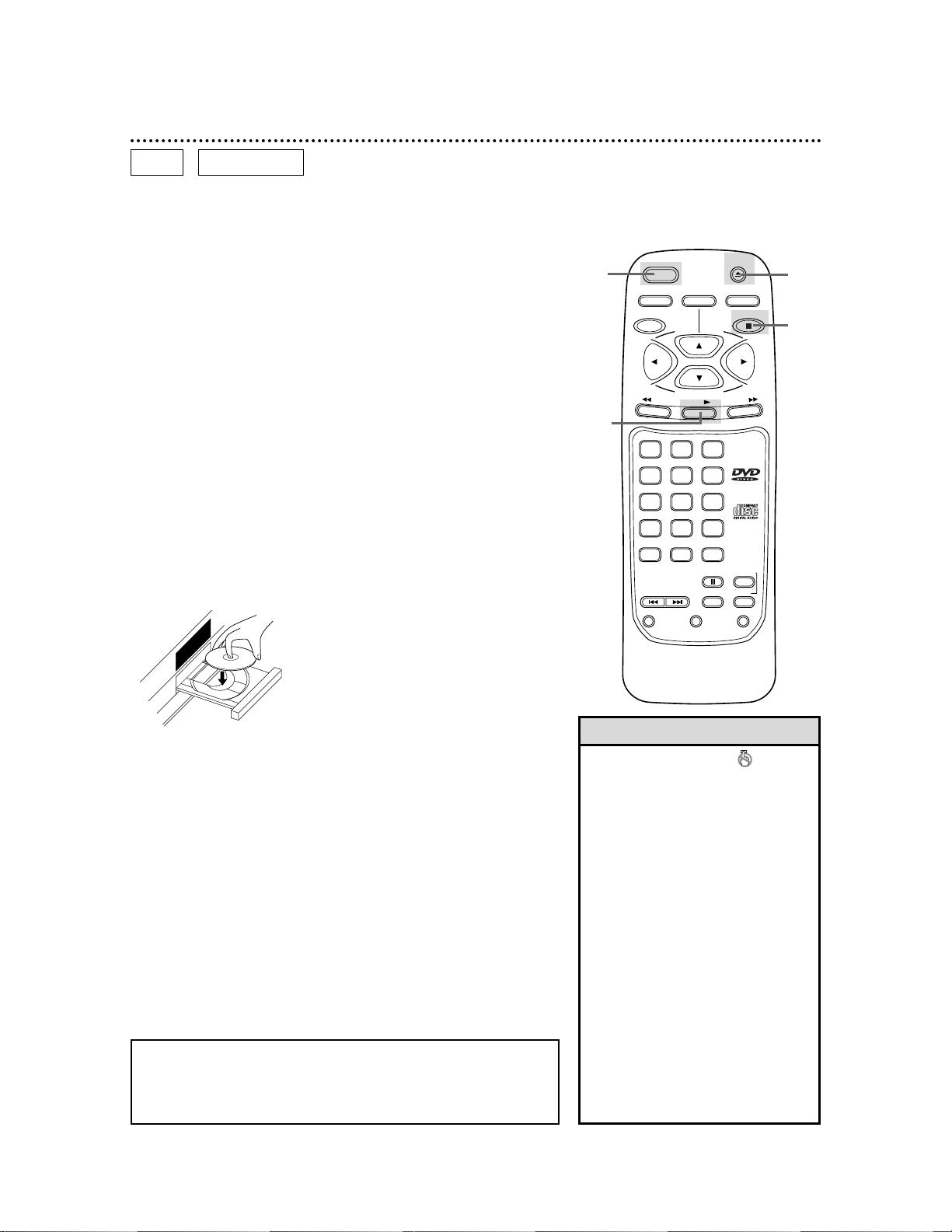

Playing a Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Disc Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Pausing Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Step by Step Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Fast Forward/Reverse Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Slow Motion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Track Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Title/Chapter Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Specific Time Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

A-B Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Programmed Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Random Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Audio Language/Sound Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Subtitle Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

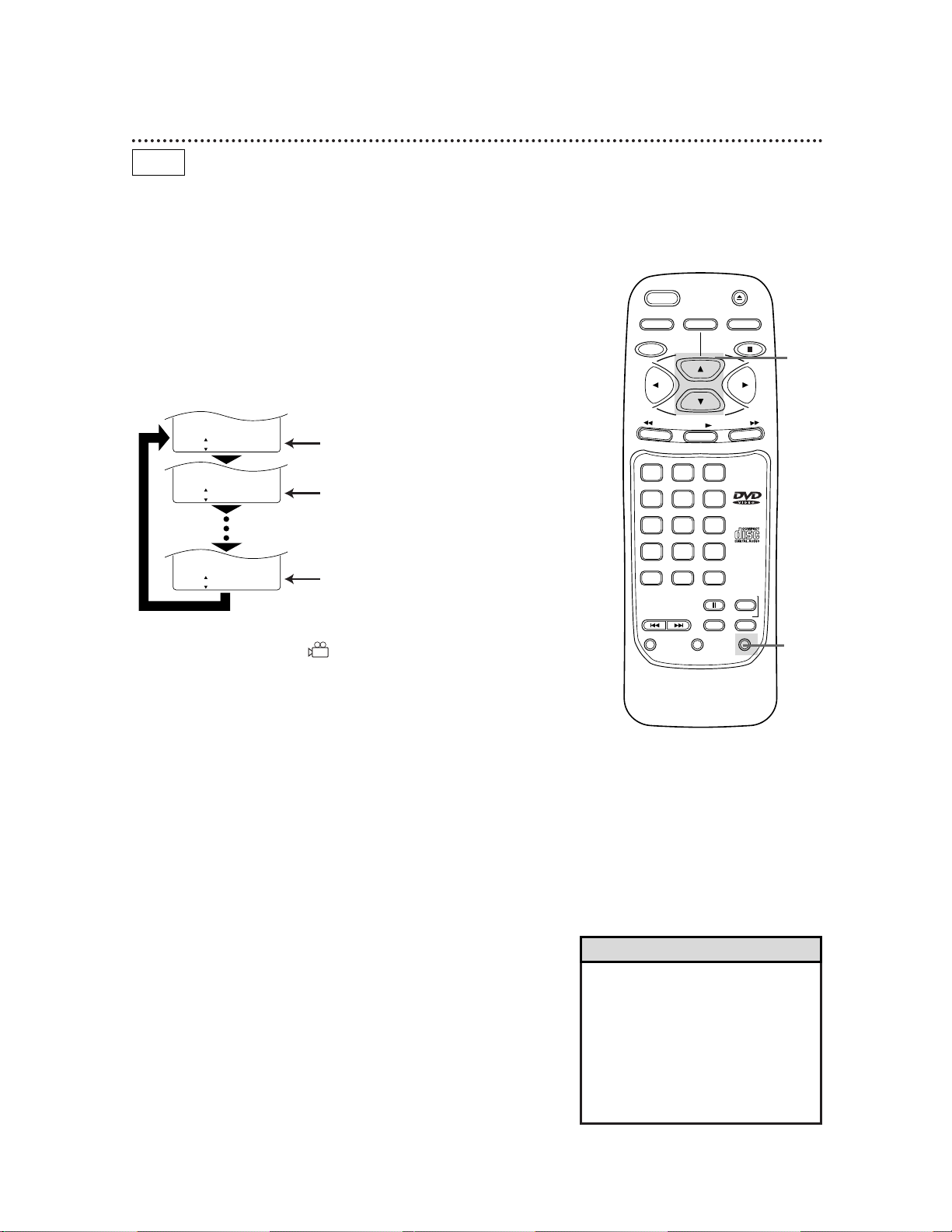

Camera Angles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Parental Lock Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Parental Lock Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

DVD Player Setup and Features

Status Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Video Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Audio Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38-39

Language Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40-42

Other Menu Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Information You May Need

Helpful Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44-45

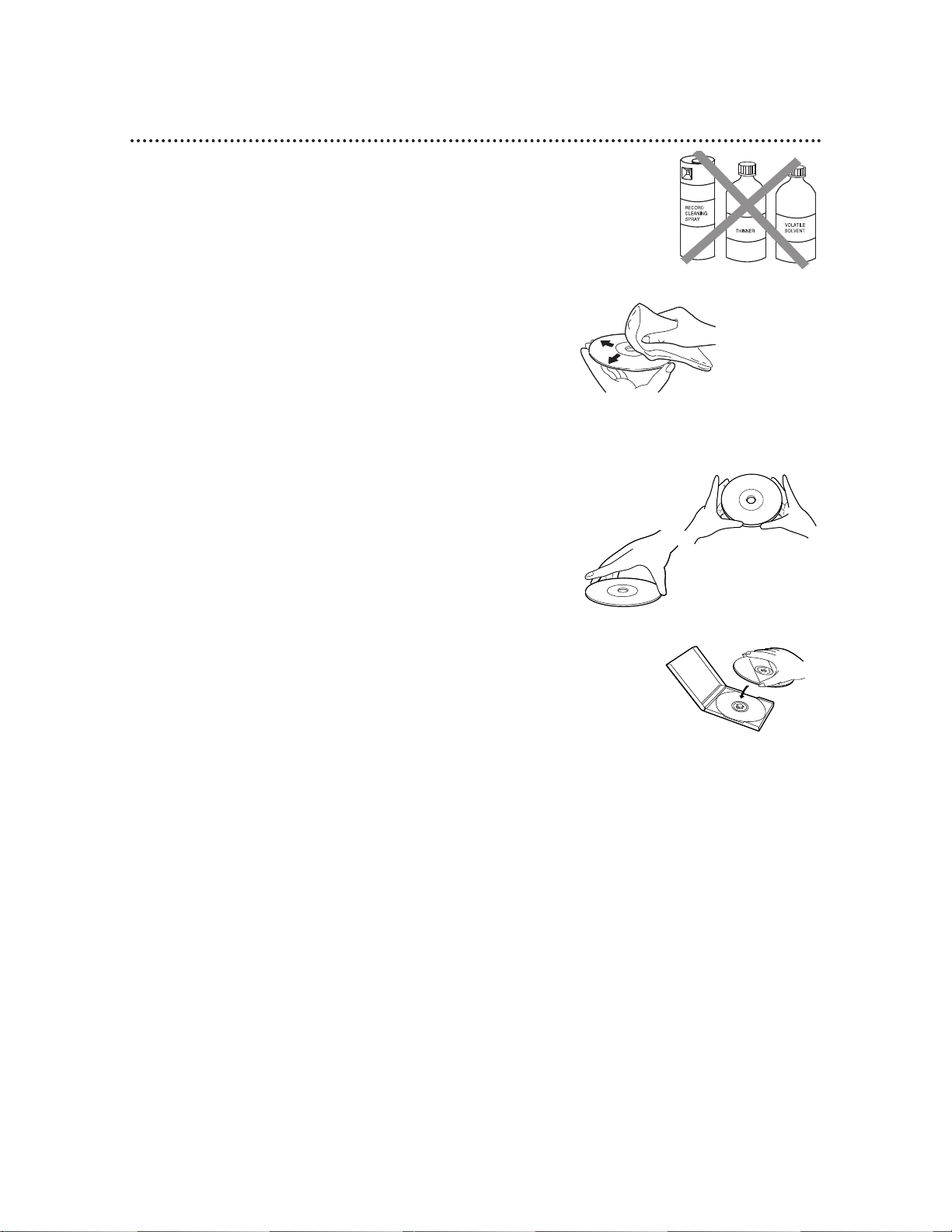

Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

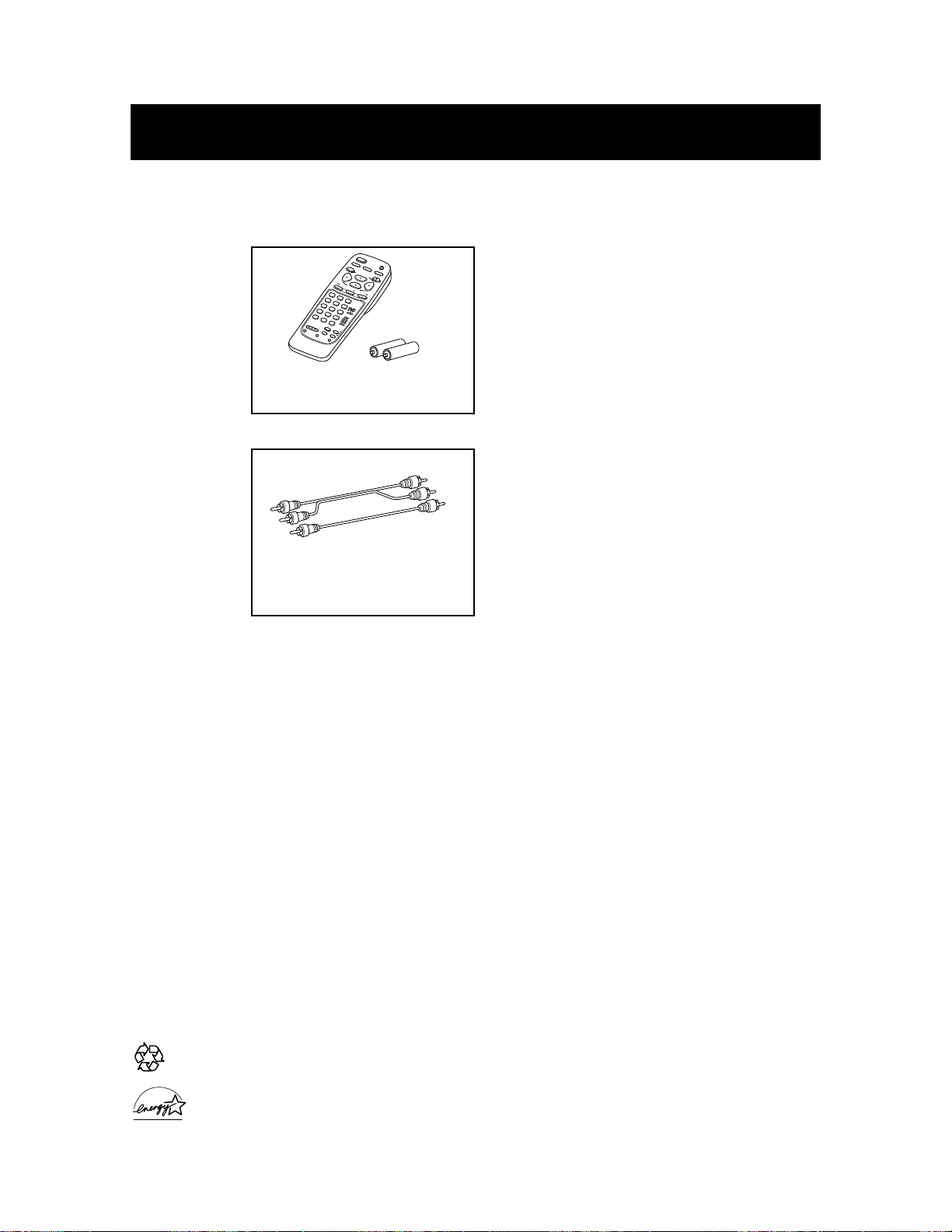

Supplied Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Introduction 5

Welcome!

This Digital Video Disc Player will allow you to enjoy better picture quality, clearer sound, and endless playback features available on Digital Video Discs (DVDs). Expanding technology allows you to add options to your viewing - watch a director’s cut of a movie, listen to the producer’s comments, or play your favorite scene over and over again. Hear a movie in different languages, or listen only to the soundtrack. The possibilities are limited only by your choices and the materials available on the DVD. Of course, you can listen to your favorite Audio Compact Discs on this DVD Player as well. Determine the order in which you want to hear the songs, or play the Disc repeatedly - all while seeing the status of the CD on your television. We hope you enjoy this DVD Player and learn to use all of its features. To get the most out of the DVD Player, read this owner’s manual carefully. It will describe how you can access all the features listed below.

Features

When referring to this manual, remember...

Indicates that the feature described is available on some Digital Video Discs.

Indicates that the feature described is available on some Audio Compact Discs.

Disc Menus...

Some explanations in this manual are intended to describe the Disc Menus. These menus are set by the movie producers or by the music industry, and the menus will vary among Discs. Furthermore, not all Discs are guaranteed to have menus. However, if the Disc has a menu, you can access the Disc Menu by pressing the MENU button on the remote control.

DVD Player Menus...

Some instructions explain how to use the DVD Player’s menu to set up features of the DVD Player or the Disc. You get to the DVD Player Menu by pressing the SETUP button on the remote control when playback is stopped. Even if a feature is set up in the DVD Player’s menu, it may not be available if the current Disc does not include that feature.

Available Disc Features...

Not all of the features described in this manual may be available on every DVD or Audio CD. If the feature is not available on the Disc, you cannot use the DVD Player to make these features available. The “No feature” symbol will appear on the TV screen if you try to set up a feature that is

not available on the current Disc or not available at the current time.

DVD

AUDIO CD

• Audio Language/Sound Mode Choices

• Automatic Detection of Disc Type

(Audio CD or DVD)

• Dolby Digital Sound

• DVD Menus in a Desired Language *

• On-Screen Display for DVD Player

• Parental Lock

• Paused/Fast/Slow/Step-by-Step Playback

• Program Playback (Audio CD only)

• Random Playback (Audio CD only)

• Screen Saver

• Selecting a Camera Angle *

• Subtitles in a Desired Language *

* If available on the Disc

Playable Discs

This DVD Player will play Digital Video Discs (DVDs) and Audio CDs. In order to play a DVD or Audio CD on this DVDPlayer, make sure the Disc meets the requirements for Region Codes and Color Systems as described on this page. Also, the Discs should be labelled with the following logos and should meet these standards.

• CD-ROM

• Compact Disc-Interactive (CD-I)

• Compact Disc-Recordable (CD-R)

• Digital Video Disc-Video Recordable

(DVD-VR)

• DVD-RAM

• DVD-ROM

• Photo CD

• Video CD

• Video Single Disc (VSD)

Digital

Video

Disc

12 cm

Approx. 4 hours

(single-sided)

Approx. 8 hours

(double-sided)

Approx. 80 minutes

(single-sided)

Approx. 160 minutes

(double-sided)

20 minutes

8 cm

(singles)

Logo

Maximum

Playback Time

ContentsDisc Type

Sound

and

Pictures

Audio

Disc Size

Sound

74 minutes

Disc

Segments

DVDs are

divided into Titles,

which are divided

into Chapters.

Titles and Chapters

are numbered.

Audio CDs are divided

into numbered Tracks, i.e.,

a track may be one song.

6 Playable Discs

Region Codes

DVDs also must be labelled for ALL regions or for Region 1 in order to be played on this DVDPlayer. You can not play Discs that are labelled for other regions. Look for the symbols below on your DVDs. If these region symbols do not appear on your DVD, you cannot play the DVD in this DVD Player.

The number inside the globe refers to a region of the world. Region 1 represents the United States, Canada, upper regions of North America, Bermuda, the U.S. Virgin Islands, and small regions near Australia. A Disc encoded in a specific region format can only be played on DVD Players with the same region code. For example, if a Disc is labelled for Region 2, you can not play the DVD on this DVD Player.

Color Systems

Different color systems are available throughout the world. The most common color systems are NTSC, which is used primarily in the United States and North America, PAL, and SECAM. This DVD Player uses the NTSC color system. Therefore, the Discs that you play must be recorded in the NTSC system. You cannot play Discs recorded in other formats. The color system of the DVD may be listed on the DVD or on the Disc jacket.

Unacceptable Discs

The following Discs cannot be played on this DVD Player.

• Compact Disc-Graphic (CD-G) • Compact Disc-Video (CD-V)

The following discs may be played, but only the audio will be available. There will be no picture.

Remote Control Setup 7

• The remote control and its batteries are supplied.

• Do not mix alkaline and manganese batteries.

• Do not mix old and new batteries.

Helpful Hints

Using the Remote Control

● Point the remote control at the DVD Player’s remote sensor

(see page 14) when using the remote control to operate the DVD Player.

● Do not put objects between the remote control and the DVD

Player.

Putting Batteries in the Remote Control

Remove the battery compartment lid on the bottom of the

remote control by pressing the tab, then lifting the lid.

Place two AA batteries inside the battery compartment

with their +and –ends aligned as indicated.

Replace the battery compartment lid.

2 3

Recycling Guidelines/Battery Safety

Your new product and its packaging contain materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount that needs to be properly disposed. Your product uses batteries that should not be thrown away when depleted but should be disposed of as small chemical waste. Please find out about the local regulations on disposal of your old product, batteries, and packaging whenever you replace existing equipment.

8 Hookups

Connecting the DVD Player to a TV only (no stereo or amplifier)

TV has AUDIO (red and white) and VIDEO (yellow) IN jacks

DIGITAL AUDIO OUT PCM/BITSTREAM

AUDIO OUT

COAXIAL

S-VIDEO

OUT

VIDEO

OUT

R L

75 V

VIDEO

L/MONO AUDIO R

VIDEO IN

LEFT AUDIO IN

RIGHT AUDIO IN

You may connect the DVD Player several different ways, depending on your existing equipment and your preferences for sound and picture quality. To determine which hookup is best for you, examine the options on the following pages, then see which best matches your situation. Before you hook up the DVD Player, remember:

● Connect the DVD Player directly to a TV. If you connect the DVD Player to a VCR, then connect the VCR

to the TV, the picture may be distorted by the copyright protection system.

● Turn off the power of all equipment before making any connections.

● Refer to the owner’s manuals of your other equipment for additional information.

● Depending on your connection, you may need to purchase additional cables.

● If you do not connect the DVD Player to a Dolby Digital or DTS Decoder, set DOLBY DIGITAL and DTS

to OFF on the DVD Player. Details are on pages 11 and 38-39. If you play a DVD when the settings are wrong, the sound will be distorted or you may damage the speakers.

Connect the red and white audio cables to the red and white AUDIO OUT jacks on the DVD Player and to the red and white AUDIO IN jacks on the TV, matching the cable colors to the jack colors.

Connect the yellow video cable to the VIDEO OUT jack on the DVD Player and to the VIDEO IN jack on the TV.

Connect the TV’s power cord to a power outlet. Turn on the TV and set it to the Audio/Video In channel, which also may be

referred to as A/V In or Auxiliary In. This channel usually is located in the vicinity of channel 00. See your TV owner’s manual for details.

Connect the DVD Player’s power cord to a power outlet. Press the POWER button to turn on the DVD Player. “HELLO” will appear

briefly on the DVD Player’s display panel. You should see the DVD logo on the TV screen. If you do not, check your connections and make sure the TV is set to the correct Audio/Video In channel.

Back of TV

(example only)

DVD Player

Hookups (cont’d) 9

Connecting the DVD Player to a TV only (no stereo or amplifier)

TV has audio (red and white) and S-Video In jacks

● For better picture quality, use an optional S-Video cable to connect the S-VIDEO OUT jack on the DVD

Player to the S-VIDEO IN jack on your TV. You will not use the VIDEO OUT jack on the DVD Player, and you will not need the yellow video cable.

● Set DOLBY DIGITAL and DTS to OFF on the DVD Player. Details are on pages 38-39. If you play a DVD

when the settings are wrong, the sound will be distorted or you may damage the speakers.

DIGITAL AUDIO OUT PCM/BITSTREAM

AUDIO OUT

COAXIAL

S-VIDEO

OUT

VIDEO

OUT

R L

75 V

VIDEO

L/MONO AUDIO R

S-VIDEO IN

LEFT AUDIO IN

RIGHT AUDIO IN

Connect the red and white audio cables to the red and white AUDIO OUT jacks on the DVD Player and to the red and white AUDIO IN jacks on the TV, matching the cable colors to the jack colors.

Connect an S-Video cable (not supplied) to the S-VIDEO OUT jack on the DVD Player and to the S-VIDEO IN jack on the TV.

Connect the TV’s power cord to a power outlet. Turn on the TV and set it to the S-VIDEO IN channel. This channel usually

is located near channel 00. See your TV owner’s manual for details.

Connect the DVD Player’s power cord to a power outlet. Press the POWER button to turn on the DVD Player. “HELLO” will appear

briefly on the DVD Player’s display panel. You should see the DVD logo on the TV screen. If you do not, check your connections and make sure the TV is on the correct Audio/Video In channel.

Back of TV

(example only)

DVD Player

10 Hookups (cont’d)

Connecting to a TV and a Stereo

● Set DOLBY DIGITAL and DTS to OFF on the DVD Player. Details are on pages 38-39. If you play a DVD

when the settings are wrong, the sound will be distorted or you may damage the speakers.

DIGITAL AUDIO OUT PCM/BITSTREAM

AUDIO OUT

COAXIAL

S-VIDEO

OUT

VIDEO

OUT

R L

75 V

VIDEO

L/MONO AUDIO R

VIDEO IN

AUDIO (RIGHT) IN

AUDIO (LEFT) IN

Back of TV

(example only)

DVD Player

Back of Stereo (example only)

Connect the red and white audio cables to the red and white AUDIO OUT jacks on the DVD Player and to the red and white AUDIO IN jacks on the Stereo, matching the cable colors to the jack colors.

Connect the supplied video cable (yellow) to the VIDEO OUT jack on the DVD Player and to the VIDEO IN jack on the TV.

(Or, you may connect an optional S-Video cable to the S-VIDEO OUT jack on the DVD Player and to the S-VIDEO IN jack on the TV.)

Plug in the Stereo’s power cord. Turn on the Stereo and select the Stereo’s Auxiliary IN station. During Disc playback, you will adjust the volume at your

Stereo. See your Stereo owner’s manual for details.

Plug in the TV’s power cord. Turn on the TV and set it to the Video In channel (or S-Video In channel), which usually is located near channel 00.

During Audio CD playback, you may check the status of Audio CDs on your TV screen. During DVD playback, you will watch the program on the TV. See your TV owner’s manual for details.

Connect the DVD Player’s power cord to a power outlet. Press the POWER button to turn on the DVD Player. “HELLO” will appear

briefly on the DVD Player’s display panel. You should see the DVD logo on the TV screen. If you do not, check your connections and make sure the TV is on the correct channel.

Hookups (cont’d) 11

Connecting to a Dolby Digital Decoder or DTS Decoder

Some Discs are recorded in a 5.1 channel Dolby Digital Surround or Digital Theater System (DTS) Surround format. These Discs will sound best if you connect the DVDPlayer to a Dolby Digital or DTS Decoder.

● You will need a coaxial digital audio cable (not supplied).

● If you connect the DVD Player to a Dolby Digital (AC-3) Decoder, set DOLBY DIGITAL to ON. Details are

on pages 38-39.

● If you connect the DVD Player to a DTS Decoder, set DTS to ON. Details are on pages 38-39.

If the DVD Player is not connected to a Dolby Digital (AC-3) or DTS decoder, set DOLBY DIGITAL and DTS to OFF. Incorrect settings may cause noise distortion and damage the speakers.

● Select the 5.1 channel Dolby Digital Surround sound in the Disc menu.

● Connect a subwoofer and the center, front, and surround speakers to the Decoder as described in the

Decoder’s owner’s manual.

DIGITAL AUDIO OUT

(PCM/BITSTREAM)

AUDIO OUT

COAXIAL

S-VIDEO

OUT

VIDEO

OUT

R L

75 V

VIDEO

L/MONO AUDIO R

VIDEO IN

COAXIAL IN

Back of Decoder

(example only)

DVD Player

Back of TV

(example only)

Connect a coaxial digital audio cable to the COAXIAL jack on the DVD Player and to the COAXIAL DIGITAL AUDIO IN jack on the Decoder.

Connect the supplied video cable (yellow) to the VIDEO OUT jack on the DVD Player and to the VIDEO IN jack on the TV. (Or, you may connect an

optional S-Video cable to the S-VIDEO OUT jack on the DVD Player and to the S-VIDEO IN jack on the TV.)

Plug in the Decoder’s power cord. Turn on the Decoder and select the Auxiliary IN station. During Disc playback, you will adjust the volume at the Decoder.

See your Decoder owner’s manual for details.

Plug in the TV power cord. Turn on the TV and set it to the Video In channel (or S-Video In channel), which may be located near channel 00. During Audio

CD playback, you may check the Disc status on your TV screen. During DVD playback, you will watch the program on the TV. See your TV owner’s manual for details.

Connect the DVD Player’s power cord to a power outlet. Press the POWER button to turn on the DVD Player. “HELLO” will appear briefly on the DVD Player’s

display panel. You should see the DVD logo on the TV. If you do not, check your connections and make sure the TV is on the correct channel.

Connecting to a TV and an Amplifier with Digital Input jacks, Mini-Disc Deck or

Digital Audio Tape Deck

● Use a coaxial digital audio cable (not supplied) for this connection.

● If the Disc is recorded in 5.1 channel Dolby Digital Surround, you cannot dub the Disc in digital sound using

a Mini-Disc or Digital Audio Tape Deck.

● Set DOLBY DIGITAL and DTS to OFF on the DVD Player. Details are on pages 38-39. If you play a DVD

when the settings are wrong, the sound will be distorted or you may damage the speakers.

DIGITAL AUDIO OUT

PCM/BITSTREAM

AUDIO OUT

COAXIAL

S-VIDEO

OUT

VIDEO

OUT

R L

75 V

VIDEO

L/MONO

AUDIO R

VIDEO IN

COAXIAL DIGITAL AUDIO IN

Back of TV

(example only)

Back of Amplifier

(example only)

DVD Player

12 Hookups (cont’d)

Connect a coaxial digital audio cable to the COAXIAL jack on the DVD Player and to the COAXIAL DIGITAL AUDIO IN jack on the Amplifier.

Connect the supplied video cable (yellow) to the VIDEO OUT jack on the DVD Player and to the VIDEO IN jack on the TV. (Or, you may con-

nect an optional S-Video cable to the S-VIDEO OUT jack on the DVD Player and to the S-VIDEO IN jack on the TV.)

Plug in the Amplifier’s power cord. Turn on the Amplifier and select the Auxiliary IN station. During Disc playback, you will adjust the volume at the

Amplifier. See your Amplifier owner’s manual for details.

Plug in the TV’s power cord. Turn on the TV and set it to the Video In channel (or S-Video In channel). This channel usually is located near channel

00. During Audio CD playback, you may check the status of the Disc on your TV screen. During DVD playback, you will watch the program on the TV. See your TV owner’s manual for details.

Plug in the DVD Player’s power cord. Press the POWER button to turn on the DVD Player. “HELLO” will appear briefly on the DVD Player’s display

panel. You should see the DVD logo on the TV. If you do not, check your connections and make sure the TV is on the correct channel.

Lit when an Audio CD is inserted. When the CD light is on, the disc is loaded completely and is ready for playback.

Lit when a DVD is inserted. When the DVD light is on, the disc is loaded completely and is ready for playback.

Displays a chapter (DVD) or track (Audio CD) number

Displays a title number (DVD)

Displays the elapsed time of the current title (DVD) or track (Audio CD)

POWERSEARCHSKIP

PAUSE

STOPPLAY

OPEN/CLOSE

DVD Player Display 13

Display

Messages about current DVD Player operations appear here. See Display Messages below.

Disc loading tray

Insert a Disc here.

Power is turning off.

Tray is opening or is open.

Tray is closing.

Appears after the disc tray closes if the tray is empty, if there is an error reading the disc, or if an unacceptable disc is installed.

Appears when you press the SKIP buttons to search for the next or previous track (Audio CD).

Power is turning on.

Disc is loading.

Display Messages

14 Front Panel

POWERSEARCHSKIP

PAUSE

STOPPLAY

OPEN/CLOSE

OPEN/CLOSE Button

Press to open or close the Disc tray.

Details are on page 18.

PLAY Button

Press to start or resume Disc playback. Details are on page 18.

STOP Button

Press to stop Disc playback.

Details are on page 18.

PAUSE Button

Press to pause Disc playback.

Details are on page 21.

POWER Button

Press to turn the power on and off.

Details are on page 18.

SKIP Buttons

Press to go to subsequent or previous Tracks or Chapters. Details are on page 24.

SEARCH Buttons

Press to fast forward or reverse playback.

Details are on page 22.

Remote Sensor

Receives a signal from your remote control so you can operate your DVD Player from a distance.

Rear Panel 15

DIGITAL AUDIO OUT PCM/BITSTREAM

AUDIO OUT

COAXIAL

S-VIDEO

OUT

VIDEO

OUT

R L

AC Power Cord

Connect to a standard AC outlet to supply power to the DVD Player.

COAXIAL Jack

Connect an optional audio coaxial digital cable here and to the coaxial digital Audio In jack of a decoder or amplifier. Details are on

pages 11-12.

S-VIDEO OUT Jack

Connect an optional S-Video cable here and to the S-Video In jack of a television. Details

are on pages 9-12.

VIDEO OUT Jack

Connect the yellow video cable (supplied) here and to the TV’s Video In jack. Details are

on pages 8 and 10-12.

AUDIO OUT Jacks

Connect the supplied audio cables here and to the Audio In jacks of a television or stereo. Details are on pages

8-10.

16 Remote Control Buttons

SETUP MODE DISPLAY

CLEAR

+10

SKIP

SEARCH MODE

TITLE

ENTER

POWER

STOP

PLAY

FWD

REV

RETURN

A-B

REPEATPAUSE/STILL

AUDIO SUB TITLE

ANGLE

OPEN/

POWER Button

Press to turn the power on and off. “HELLO” appears

briefly on the display panel as the DVD Player turns

on. “BYE” appears briefly as the DVD Player turns off.

MENU Button

Press to display the menu of the Disc. Details are on pages 5 and 19.

TITLE Button

Press to display the Title menu of the

Disc, if available. Details are on page 19.

ENTER Button

Press to select a setting in the Player menu or

to select a feature in the Disc menu.

ARROW Buttons

Press to select an item in the DVD Player menu or in the Disc menu.

REV (reverse) h Button

Press to view the picture in fast reverse motion (DVD) or to

reverse playback of an Audio CD. Details are on page 22.

Number Buttons

Press to directly select a Track (Audio CD) or a Chapter or Title

(DVD) for playback. Details are on pages 24-25. For single-digit

Tracks, press a single number button. For example, to play Track

three, press the Number 3 button. For Tracks numbered 10 and

above, press the +10 button as often as needed, then press the

Number button of the second digit. For example, to play Track 12,

press the +10 button, then press the Number 2 button. For Track

22, press the +10 button twice, then press the Number 2 button.

Press to program Tracks (Audio CD) for playback.

Details are on page 29.

CLEAR Button

Press to remove Track numbers from a Program. Details are on

page 29.

SKIP Buttons

Press to skip Chapters or Tracks. Details are on page 24.

AUDIO Button

Press the AUDIO button, then press the o /p buttons to choose

one of the audio languages or sound modes available on the Disc.

Details are on page 31.

ANGLE Button

Press to view the picture from a different angle (if available). Press

the ANGLE button, then press the o /p buttons to choose one

of the available angles. Details are on page 33.

+ 36 hidden pages
