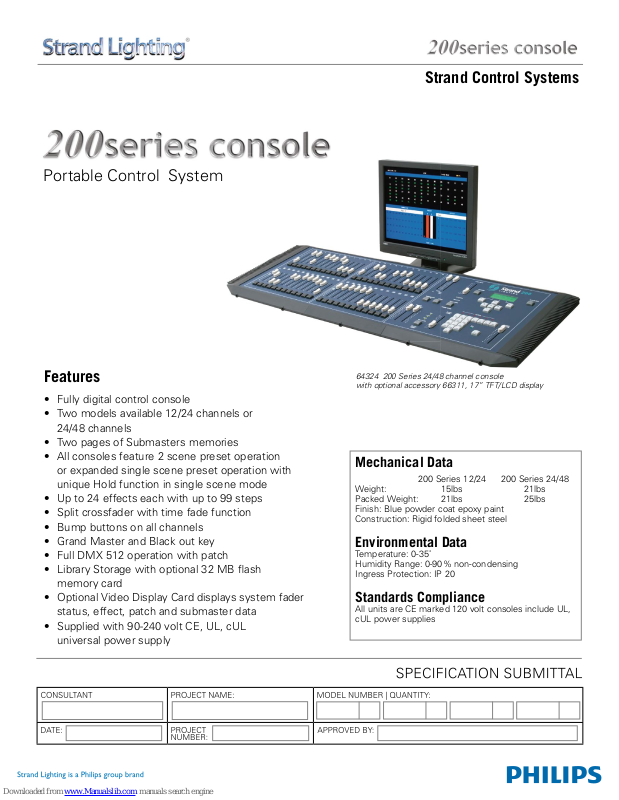

Philips 200 series, Strand Lighting 200 series Specifications
Portable Control System
Strand Control Systems
Features
• Fully digital control console
• Two models available 12/24 channels or
24/48 channels
• Two pages of Submasters memories
• All consoles feature 2 scene preset operation
or expanded single scene preset operation with
unique Hold function in single scene mode
• Up to 24 effects each with up to 99 steps
• Split crossfader with time fade function
• Bump buttons on all channels
• Grand Master and Black out key
• Full DMX 512 operation with patch
• Library Storage with optional 32 MB fl ash
memory card
• Optional Video Display Card displays system fader
status, effect, patch and submaster data
• Supplied with 90-240 volt CE, UL, cUL
universal power supply
64324 200 Series 24/48 channel console
with optional accessory 66311, 17” TFT/LCD display
Mechanical Data
200 Series 12/24 200 Series 24/48
Weight: 15lbs 21lbs
Packed Weight: 21lbs 25lbs
Finish: Blue powder coat epoxy paint
Construction: Rigid folded sheet steel
Environmental Data
Temperature: 0-35˚
Humidity Range: 0-90% non-condensing
Ingress Protection: IP 20
Standards Compliance
All units are CE marked 120 volt consoles include UL,
cUL power supplies
Ordering Information
Cat No Description
64314 200 Series 12/24 Console
Universal power supply
64324 200 Series 24/48 Console
Universal power supply
Accessories
64315 Dust cover 200 12/24
64325 Dust cover 200 24/48
64326 Compact Flash data card
64327 200 Series Video Display Card
66311 17” TFT/LCD display
Strand Control Systems
64314 200 Series 12/24 channel console
Strand Lighting, Inc.
6603 Darin Way
Cypress, CA 90630
Tel: (714) 230-8200
Fax: (714) 899-0042
Strand Lighting Europe Limited
Unit 2 Royce Road, Fleming Way
Crawley, West Sussex RH10 9JY
Tel: + 44 (0) 1293 554010
Fax: + 44 (0) 1293 554019
Strand Lighting Asia Limited
20/F Delta House,
3 On Yiu Street
Shatin, N.T. Hong Kong
Tel: +852 2757 3033
Fax: +852 2757 1767
64324 200 Series 24/48 channel console
www.strandlighting.com
© Philips Group 2008
All rights reserved.
The Company reserves the right to make
any variation in design or construction to
the equipment described. E&OE
