Philips

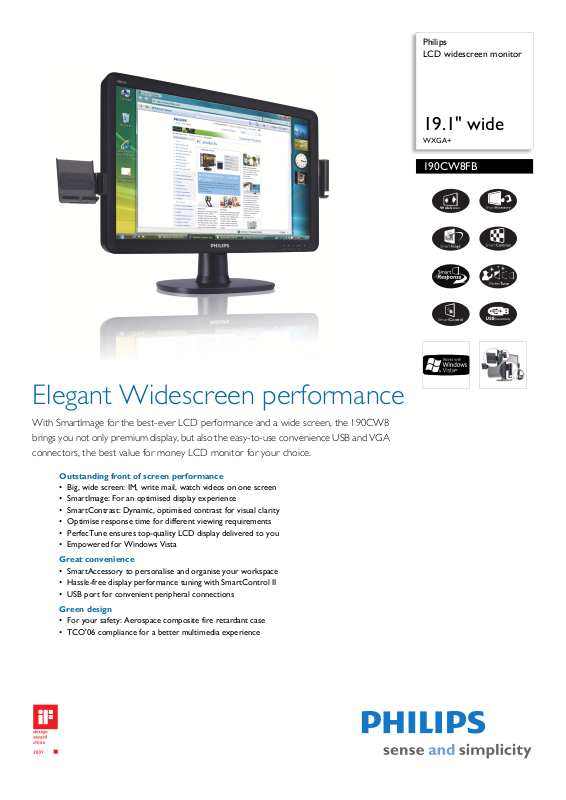

LCD widescreen monitor

19.1" wide

WXGA+

190CW8FB

WideScreen

Elegant Widescreen performance

With SmartImage for the best-ever LCD performance and a wide screen, the 190CW8
brings you not only premium display, but als o t h e easy-to-use c o n venience USB and VGA
connectors, the best value for money LCD monitor for your choice.

Outstanding front of screen performance

• Big, wide screen: IM, write mail, watch videos on one screen

• SmartImage: For an optimised display experience

• SmartContrast: Dynamic, optimised contrast for visual clarity

• Optimise response time for different viewing requirements

• PerfecTune ensures top-quality LCD display delivered to you

• Empowered for Windows Vista

Great convenience

• SmartAccessory to personalise and organise your workspace

• Hassle-free display performance tuning with SmartControl II

• USB port for convenient peripheral connections

Green design

• For your safety: Aerospace composite fire retardant case

• TCO'06 compliance for a better multimedia experience

SmartControl

LCD widescreen monitor

190CW8FB/05

19.1" wide WXGA+

Specifications Product highlights

Picture/Display

• LCD panel type: 1440 x 900 pixels, Anti-glare
polariser, RGB vertical stripe

• Panel Size: 19.1"/48.1 cm

• Effective viewing area: 410.4 x 256.5 mm

• Pixel pitch: 0.285 x 0.285 mm

• Brightness: 300 cd/m²

• Contrast ratio (typical): 1000:1

• SmartContrast ratio (dynamic): 3500:1

• Display colours: 16.7 M

• Viewing angle: 160º (H)/160º (V), @ C/R > 10

• Response time (typical): 5 ms

• SmartResponse: 2 ms (Grey to Grey)

• Maximum Resolution: 1440 x 900 @ 75 Hz

• Recommended Resolution: 1440 x 900 @ 60 Hz

• Video Dot Rate: 140 MHz

• Horizontal Scanning Frequency: 30 - 83 kHz

• Vertical Scanning Frequency: 56 - 76 Hz

• Picture enhancement: SmartImage

•sRGB

Connectivity

• Signal Input: Analogue (VGA)

• USB: 1 x USB 2.0

• Video Sync Input Signal: Composite Sync, Separate
Sync, Sync on Green

Convenience

• Convenience Enhancements: On-screen Display,
SmartControl II

• Monitor Controls: SmartImage, Auto (Back),
Input (Down), Brightness (Up), Menu (OK),
Power On/Off

• OSD Languages: English, French, German, Italian,
Portuguese, Russian, Simplified Chinese, Spanish

• Other convenience: Kensington lock compatible

• Plug & Play Compatibility: DDC/CI, sRGB,
Windows 98/ME/2000/XP/Vista

• Regulatory Approvals: CE Mark, EMC, Energy
Star, FCC-B, UL, CSA

• Tilt: -5° to 20°

Accessories

• Included Accessories: AC Power Lead, VGA cable

•User Manual

Dimensions

• Box dimensions (W x H x D):
500

x 415 x 149 mm

• Box dimensions in inch (W x H x D):

19.7

x 16.3 x 5.9 inch

• Set dimensions (W x H x D): 452 x 371 x 78 mm

• Set dimensions in inch (W x H x D):

17.8

x 14.6 x 3.1 inch

• Set dimensions with stand (W x H x D):
452

x 375 x 183 mm

• Set dimensions with stand in inch (W x H x D):

17.8

x 14.8 x 5.4 inch

• MTBF: 50,000 (excl. CCFL 40,000) hrs

• Relative humidity: 20% - 80%

• Temperature range (operation): 0°C to 40°C

• Temperature range (storage): -20°C to 60°C

• Product weight (+stand): 3.8 kg

• Product weight (+stand) (lb): 8.4 lb

• Weight incl. Packaging: 5.3 kg

• Weight incl. Packaging (lb): 11.7

Electricity

• Complies with: Energy Star

• Consumption: < 36 W (Typical)

• Consumption (economy mode): 27 W

• Off Mode: < 1 W

• Power LED indicator: Operation - green, Standby/
sleep - Amber

• Power supply: Built in, 100-240 VAC, 50/60 Hz

•

Widescreen design

A wide screen has a wider aspect ratio for displaying
mo re en terta inme nt or infor mati on to have m ore f un an d
get more done.

SmartImage

SmartImage is an exclusive leading-edge Philips
technology that analyses the content displayed on your
screen. Based on a scenario you select, SmartImage
dynamically enhances the contrast, colour saturation and
sharpness of images and videos for ultimate display
performance - all in real time and at the press of a single
button.

SmartContrast

SmartContrast is Philips technology that analyses the
contents you are displaying, automatically adjusting
colours and controlling backlight intensity to dynamically
enhance contrast for the best digital images and
optimum contrast for better entertainment when viewing
videos or playing games where dark hues are displayed;
when you select the Economy mode, contrast is adjusted
and backlighting fine-tuned for just-right display of
everyday office applications and lower power
consumption.

SmartResponse

SmartResponse is exclusive Philips technology that
adjusts response time to application requirements,
delive ring faste r respon se times for g aming an d videos or
better colour saturation for viewing photos and static
images.

PerfecTune

PerfecTune is industry-leading, proprietary Philips testing
and algorithm technology for monitor adjustment and
fine tuning, an extensive process that ensures ultimate
display performance in compliance with a standard four
times more stringent than Microsoft's Vista requirements
from each and every monitor that leaves the factory - not
just a few review samples. Only Philips goes to these
lengths to deliver this exacting level of colour accuracy
and display quality in every new monitor.

Windows Vista-ready

Philips Vista-ready monitors are empowered for vibrant,
exciting display of this new, visually sophisticated and
demanding Windows operating system, designed to
enhance your entertainment experience, make you more
productive and help you control your computing
experience at home and in the office, making viewing,
finding and organising information for work or play quick,
efficient and easy.

SmartAccessory

SmartAccessory is an innovative and friendly solution for
easily and flexibly attaching peripherals like a webcam or
stationery onto a monitor frame to keep your space tidy
and organised. It is equipped with multifunction clips with
a universal interface that attaches to the monitor frame
and moves up and down or left and right to
acc om mo da te a v ar ie ty of in cl ud ed or optio na l h ol de rs fo r
stationery, small peripherals like webcams, conveniently
locating work or personal items in your line of sight and
at your fingertips.

SmartControl II

SmartControl II is monitor-based software with an easy­to-use on-screen graphic interface that guides you
through fine-tuning resolution, colour calibration and
other d isplay set tings in cluding br ightnes s, contras t, clock
& phase, position, RGB, white point and - on models with

Issue date 2008-06-20

Version: 5.0.3

12 NC: 8670 000 36852
EAN: 87 12581 39386 1

© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

www.philips.com

onboard speakers - volume adjustments.
