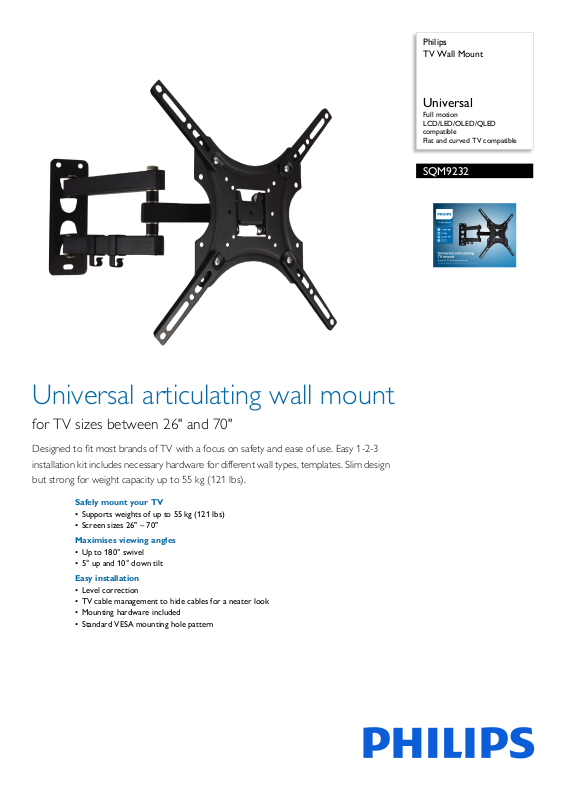

Page 1
Philips
TV Wall Mount
Universal
Full motion
LCD/LED/OLED/QLED
compatible
Flat and curved TV compatible
SQM9232
Universal articulating wall mount
for TV sizes between 26" and 70"
Designed to fit most brands of TV with a focus on safety and ease of use. Easy 1-2-3
installation kit includes necessary hardware for different wall types, templates. Slim design
but strong for weight capacity up to 55 kg (121 lbs).
Safely mount your TV
• Supports weights of up to 55 kg (121 lbs)
• Screen sizes 26" – 70"
Maximises viewing angles
• Up to 180° swivel
• 5° up and 10° down tilt
Easy installation
• Level correction
• TV cable management to hide cables for a neater look
• Mounting hardware included
• Standard VESA mounting hole pattern
Page 2
SQM9232/00
TV Wall Mount
Universal Full motion, LCD/LED/OLED/QLED compatible, Flat and curved TV compatible
Specifications
Dimensions
• VESA wall mount compatible: 75 x 75 mm, 100 x
100 mm, 200 x 100 mm, 200 x 200 mm, 400 x
0 mm
40
Accessories
• Mounting material included
Weight and dimensions
• Extension of articulating arm: 55 cm
• Wall Distance: 6 cm
Packaging dimensions
• Packaging dimensions (W x H x D):
30.9 x 4 x 22.8 cm
• Packaging dimensions (W x H x D):
.2 x 1.6 x 9.0 inch
12
• Net weight: 1.6 kg
• Net weight: 3.527 lb
• Gross weight: 1.85 kg
• Gross weight: 4.079 lb
• Tare weight: 0.25 kg
• Tare weight: 0.551 lb
• Number of products included: 1
• Packaging type: Carton
• EAN: 48 95229 11567 5
• Type of shelf placement: Laying
Outer Carton
•Outer carton (L x W x H): 44 x 23.5 x 32.5 cm
•Outer carton (L x W x H): 17.3
•Gross weight: 20 kg
• Gross weight: 44.092 lb
• Tare weight: 4.0 kg
• Tare weight: 8.818 lb
• GTIN: 1 48 95229 11567 2
• Number of consumer packages: 10
• Net weight: 16.0 kg
• Net weight: 35.274 lb
x 9.3 x 12.8 inch
Inner Carton
• GTIN: 2 48 95229 11567 9
• Number of consumer packages: 1
• Gross weight: 4.409 lb
•Gross weight: 2 kg
• Inner carton (L x W x H): 12.2 x 9.0 x 1.6 inch
• Inner carton (L x W x H): 30.9 x 22.8 x 4 cm
• Net weight: 1.6 kg
• Net weight: 3.527 lb
• Tare weight: 0.882 lb
• Tare weight: 0.4 kg
•
Highlights
Up to 180° swivel
Allow the TV to adjust left and right up to 180° to
attain the optimum viewing angle.
Level correction
If the wall mount is slightly off-level after it is
installed, it allows for level corrections to
horizontally mount the TV.
TV cable management
The cable compartment is designed to tuck your
cables in neatly behind the television in one place.
Mounting hardware included
Includes all necessary screws, anchors and bolts for
different types of walls, ensuring the right type of
hardware is readily available for the particular type of
wall the support is being mounted on.
Standard VESA mounting hole pa
Standard VESA mounting hole pattern
5° up and 10° down tilt
Allow the TV to be adjusted up to 10° forward tilt
and 5° backward tilt to attain the optimum viewing
angle.
Supports weights of up to 55 kg
Supports weights of up to 55 kg (121 lbs)
Issue date 2022-03-30
Version: 3.3.5
12 NC: 8670 001 72485
EAN: 48 95229 11567 5
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
